Abstract
A common assumption across many industries is that inserting advanced autonomy can often replace humans for low-level tasks, with cost reduction benefits. However, humans are often only partially replaced and moved into a supervisory capacity with reduced training. It is not clear how this shift from human to automation control and subsequent training reduction influences human performance, errors, and a tendency toward automation bias. To this end, a study was conducted to determine whether adding autonomy and skipping skill-based training could influence performance in a supervisory control task. In the human-in-the-loop experiment, operators performed unmanned aerial vehicle (UAV) search tasks with varying degrees of autonomy and training. At the lowest level of autonomy, operators searched images and, at the highest level, an automated target recognition algorithm presented its best estimate of a possible target, occasionally incorrectly. Results were mixed, with search time not affected by skill-based training. However, novices with skill-based training and automated target search misclassified more targets, suggesting a propensity toward automation bias. More experienced operators had significantly fewer misclassifications when the autonomy erred. A descriptive machine learning model in the form of a hidden Markov model also provided new insights for improved training protocols and interventional technologies.
Introduction
Human supervisory control is a common control scheme for unmanned aerial vehicles (UAVs), during which human operators supervise high-level tasks, whereas autonomous systems are responsible for local control of the UAVs. One common assumption is that advanced autonomy requires less training to master associated tasks, as functionalities are shifted from human to automation control. Indeed, one of the most popular selling points for increasing autonomy across a number of commercial industries is that such systems require less training as autonomy is doing more of the low-level control work.
The military is increasingly attempting to reduce training time and costs, and increased autonomy is one possible way to do this. Because of the advanced automation onboard UAVs, particularly their automatic landing and takeoff abilities, the Air Force has ushered in a new program that allows UAV operators to skip flight training and enter UAV training with significantly less experience than their counterparts that attend flight school. Because of the onboard automation, Air Force UAV training has been reduced from 2 years to 9 months for these new non-pilot operators (Blacke, 2009).
Although this reduction in training time is important for minimizing costs and potentially getting personnel to theaters of conflict faster, it is not clear how this shift could influence human performance and increased error rates. More specifically, if aspects of training are deleted due to increased vehicle autonomy, like the elimination of learning to take off and land a plane because these functions are automated in a UAV, is there a potential cost in terms of UAV operator performance? If human training is dropped for low-level tasks that are taken over by autonomy, is there a link to inappropriate trust which could lead to complacency and associated errors? An operator’s trust in an autonomous system influences reliance on that system (Dzindolet, Peterson, Pomranky, Pierce, & Beck, 2003; Moray, Inagaki, & Itoh, 2000), and so it is critical that the influence of increasing autonomy on inappropriate trust is also examined (Lee & See, 2004; Mittu, Sofge, Wagner, & Lawless, 2016).
Deskilling has long been suspected to be a negative outcome of increased automation and subsequent reduced training (Bainbridge, 1983; Strauch, 2018). More recent research has demonstrated that there is a complex interplay between inserting automation and different training tasks, exacerbated by operators’ aptitudes (Clegg, Heggestad, & Blalock, 2010), and the use of automation to augment part-task training has been called into question (Gutzwiller, Clegg, & Blitch, 2013). In general, it is unknown how training should be redesigned to successfully accommodate new task requirements in the presence of increased autonomy such that task performance and situation awareness are not decreased.
This problem of determining training requirements in the presence of advanced autonomy is related to the function allocation conundrum, that is, what functions should be exclusively given to autonomy versus exclusively humans, or possibly shared between the two? The SRKE (skill, rule, knowledge, expertise) model provides a framework to shed light on this problem (Cummings, 2014, 2018) and is illustrated in Figure 1.

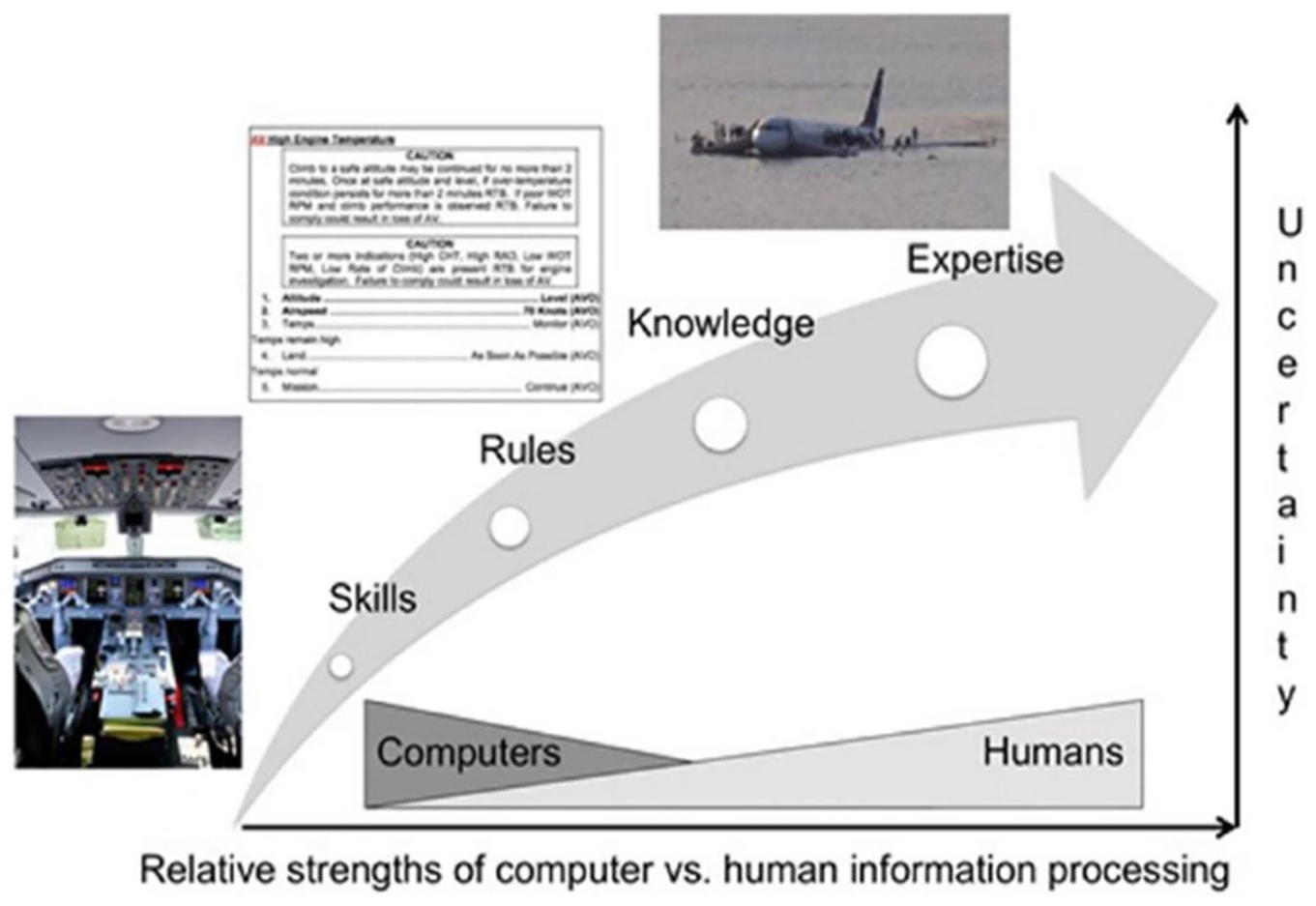

Role allocation for increasingly complex behaviors and the relationship to uncertainty (Cummings, 2014).
In the SRKE model in Figure 1, skill-based behaviors are highly practiced and automatic responses to stimuli, such as a pilot’s ability to keep the plane in stable flight. Once these are mastered, this frees the operator to concentrate on attending to rule-based behaviors that have clear action criteria associated with signals from the world. For example, pilots use procedures as instructions in response to emerging situations, such as the steps to follow when a cabin depressurization alert occurs. Once skills and rules are mastered, operators are then able to turn more cognitive resources to knowledge-based behaviors, which occur in novel situations where conceptual understanding of the environment is required. Expertise-based responses occur under the highest degrees of uncertainty, such as when a plane loses both engines and the pilot must determine how to safely land the airplane. Typically, only highly experienced people can become true experts since it takes time to be presented with such uncertain scenarios over the course of a career. As depicted in Figure 1, computers currently can automate many skill- and rule-based behaviors in settings with adequate sensors, such as autopilot and path planning, but knowledge- and expert-based behaviors require judgments under uncertainty that are outside the scope of current systems enabled with any form of artificial intelligence.
The SRKE framework falls in line with other research calling for a capabilities-based approach to function allocation, as compared to a levels-of-automation approach (see Kaber, 2018, for debates on this point). For example, Feigh and Pritchett (2014) lay out requirements for such an approach including “Each agent must be Allocated Functions That It Is Capable of Performing” and “The Function Allocation Must Support the Dynamics of the Work,” which are similar to the discussions about humans and computer capabilities in the SRKE model. Other researchers have used the skill-, rule-, and knowledge-based behavior approach to determine function allocation in the design of cockpit automation (Idris, Enea, & Lewis, 2016), as well as for intelligent driving applications (Wang, Hou, Tan, & Bubb, 2010).
What is unclear in any SRKE paradigm is how much one level of successful reasoning relies upon adequately learning those behaviors from a lower level, especially in human supervisory control. For example, how much do takeoff and landing skills learned by Air Force pilots who fly UAVs actually benefit them when the UAV experiences a problem while landing? It is widely recognized that deskilling is a significant concern for operators of semi-autonomous systems where they still have to take over manual control at times (Ferris, Sarter, & Wickens, 2010; Parasuraman, Sheridan, & Wickens, 2000; Wickens & Hollands, 2000). However, what is less known is how removing the learning of these skills due to increasing autonomy potentially influences possible performance degradation and potential errors in judgment. It has been well established that an increase in automation in supervisory control settings can lead to automation bias, which is the propensity to overtrust automated recommendations and not seek any disconfirming evidence (Cummings, 2004; Mosier, Skitka, Heers, & Burdick, 1998). It is possible that the insertion of automation and the reduction of training could lead to more cases of automation bias.
In addition to the influence of increasing UAV autonomy on training objectives, the role of video game experience in these settings is also important to consider as it has been shown to lead to better learning (Schenk, Lech, & Suchan, 2017) and improved performance in such settings (Lin, Wohleber, Matthews, & Funke, 2015). In addition, trust is also a significant consideration as previous research has shown that people with a lack of experience can overly trust such supervisory control systems (Cummings, Bertucelli, Macbeth, & Surana, 2014). However, distrust can also be a factor in such settings (Parasuraman, Sheridan, & Wickens, 2008), even though the automation performs satisfactorily (Cummings, Buchin, Carrigan, & Donmez, 2010). Thus, a study of operator training and autonomy should consider these influences as well.
To this end, we wanted to explore in a simplified UAV control environment whether the presence or absence of a trained skill could dramatically influence performance under two different levels of autonomy and reliability. We wanted to determine whether there were consequences of bypassing skill-based training in a UAV supervisory control task and having people start with just rule-based training. To this end, we developed a test environment that allowed for training of operators with and without automated target search. By manipulating the type of training participants received in the presence (or absence) of advanced autonomy, we aimed to examine the criticality of skill-based training that focused on manipulating an unfamiliar input device, particularly in the presence of advanced autonomy. In addition, because experience can influence not only trust in automated systems, but also the ability to deal with uncertainty in systems, we wanted to examine how novices differed from experts in this regard. Our hypothesis was that skipping skill-based training, as represented in the SRKE model in Figure 1, would have a negative effect on performance in a human supervisory control task of supervising multiple UAVs, which would be more pronounced in novices than experts.
Method
Experimental Testbed
An experiment was designed and conducted utilizing a modified version of the Research Environment for Supervisory Control of Heterogeneous Unmanned Vehicles (RESCHU) experimental platform (Nehme, 2009). RESCHU is a Java-based discrete event simulation platform, which provides for testing of single-operator supervision of multi-UAVs in multi-tasking supervisory control scenarios that include navigational and imagery searching tasks. The interface of the RESCHU platform is shown in Figure 2. The interface features four main components: the payload camera view, control panel, mission timeline, and map area.

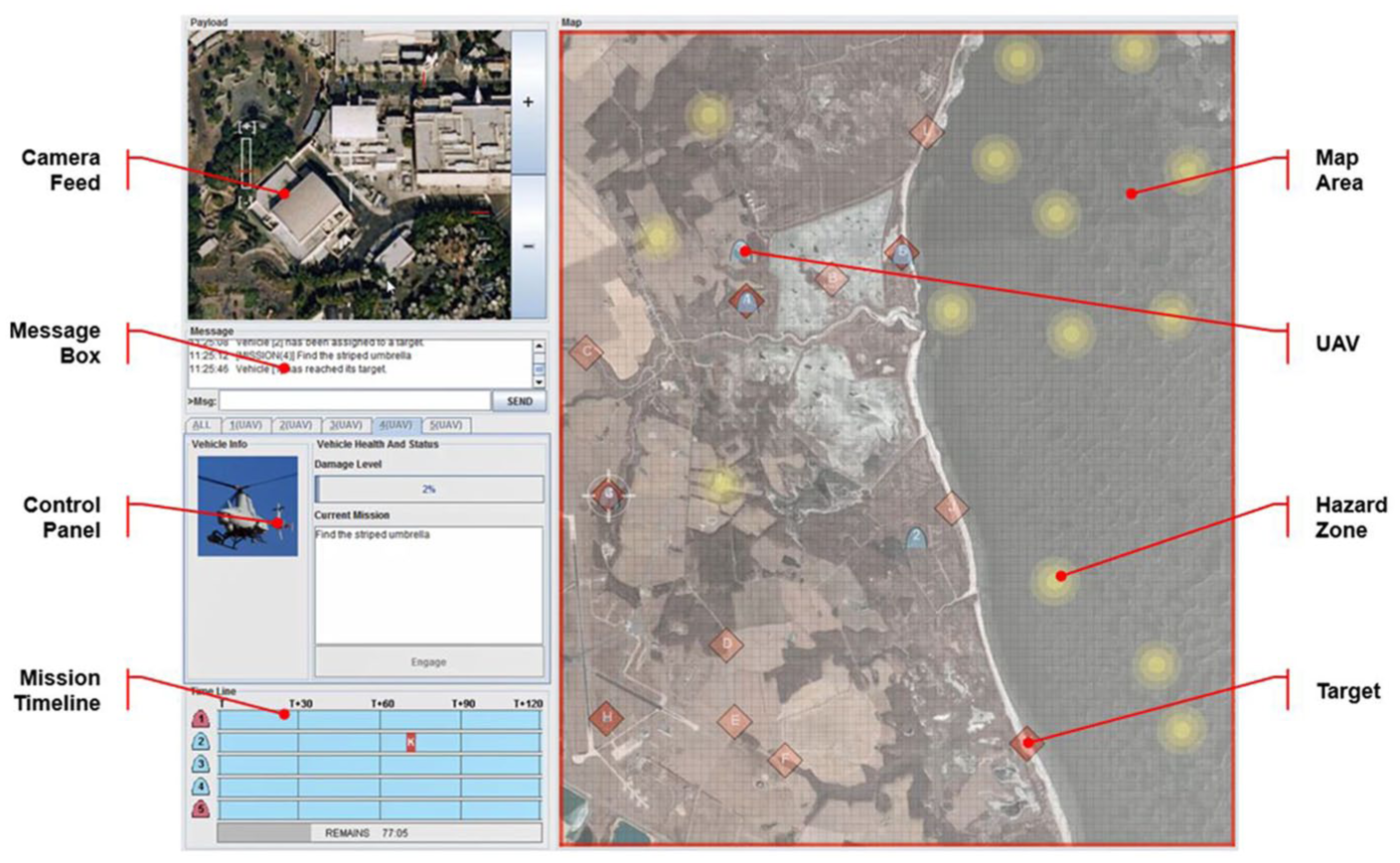

RESCHU experimental platform operator interface.
The primary purpose of the camera view displays is to conduct imagery searching tasks through the camera once a UAV reaches a target. The control panel provides the UAV damage level, which is caused by UAVs intersecting with the yellow hazard areas. A message box provides directives from a virtual supervisor for searching tasks (i.e., a supervisor would tell the operator that when he or she reaches Target A, search for a red truck in the parking lot of the chemical plant). The timeline in Figure 2 shows the estimated remaining time of all UAV arrivals at waypoints and assigned targets. The map displays the area of surveillance with real-time locations of all UAVs, hazard areas, and targets.
One significant addition to this version of RESCHU was the insertion of an automated target recognition (ATR) system to assist in imagery search tasks. Such a system represents advanced autonomy that is meant to reduce both operator workload as well as training time. In theory, ATR systems use computer vision and machine learning techniques to automatically identify a target of interest, thus reducing the search time of a human operator. However, in practice, such systems have high false alarm rates and are often problematic in actual operations (Ratches, 2011), which can later lead to issues with trust.
In RESCHU, participants with ATR assistance see the computer’s proposed target in the camera video feed window without any need to search for the target through panning and zooming. However, the ATR system was only 70% correct in its identifications to simulate real-world problems with reliability. In addition, previous research has indicated that 70% is a critical threshold for human trust (Wickens & Dixon, 2007). For participants without ATR assistance, they had to search for the target through panning and zooming interactions, which were also available to those with ATR if they decided they did not agree with the automated recommendation, which is similar to actual systems.
To test the interactions between increasing autonomy and skill-based training, we needed a scenario where skills would be required under the lower autonomy case of no ATR, which would not be needed in scenarios where operators had access to ATR. To this end, we elected to use a new, unfamiliar input device that required dedicated training to master, especially in the search task, but could still be used with some on-the-job training.
Thus, the Kensington Expert Trackball Mouse® was used as the new unfamiliar input device, which required operators to learn a new manual control skill vis-a-vis trackball manipulation. This device is much faster than a traditional mouse, and participants had to both adjust to the speed of movement and relearn which buttons mapped to various functions. Such an equipment change is reflective of real-world decisions to add hardware to a new system that requires a skill set which takes time to learn, but is often introduced with the expectation that operators will learn it on their own.
Participants who received trackball training were given ~20 min of dedicated training in an abstract training task. None had ever used such a device prior to the experiment. An abstract training task was needed to allow participants to become experienced in using the trackball without giving them significant experience inside the RESCHU environment. Thus, we developed a Fitts’s Law training environment (FLTE; see Figure 3), which embodies the well-known Fitts’s Law relationship that the movement time (MT) required to rapidly move to a target area is a function of the distance and the size of the target (Fitts, 1954; MacKenzie, 1995):
In these equations, ID is the index of difficulty, D is the distance to the target for selection, and We is the effective width of the target. Coefficients a and b are the slope and intercept coefficients, respectively, determined through empirical tests conducted in a pilot study. In the training environment in Figure 3, participants conducted six blocks of 75 clicks each in FLTE with 30-s breaks between blocks. This protocol has been shown to effectively train people learning a new mouse input device to relatively stable levels of performance (MacKenzie, Kauppinen, & Silfverberg, 2001).

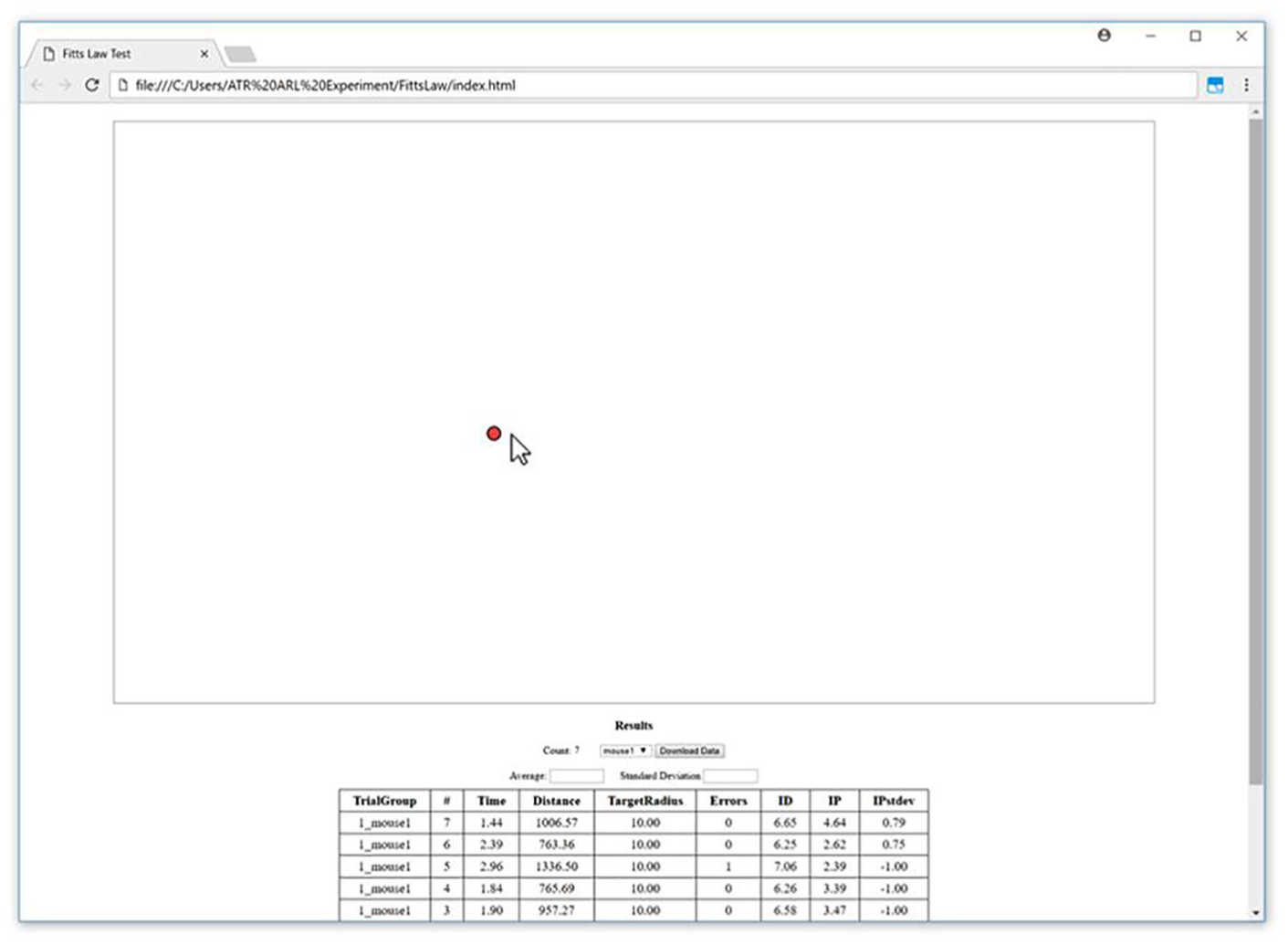

Fitts’s Law training environment. The 10-pixel target dot moves randomly across the screen.
Experimental Objectives and Participants
The primary objectives for participants in this study were to direct multiple UAVs to (1) search images for specific objects when UAVs reached their assigned targets as directed in the message box (e.g., a red car in the parking lot), (2) ensure that UAVs do not encounter hazard zones marked in yellow in Figure 2, and (3) optimize the routing as needed. UAVs were automatically assigned to a new target once a target search concluded but the assignment was often intentionally suboptimal, with the underlying algorithm randomly assigning UAVs to targets, so participants could improve the search process.
Participants included one group of 15 students from a U.S. southeastern university (nine male and six female, age M = 24.1 years, SD = 4.0 years) and another group of 15 FAA Part 107 commercial UAV pilots (13 male, two female, age M = 35.1 years, SD = 10.8 years). The participants were all over the age of 18, with 20/20 or corrected to normal vision, no neurological disorders, or any physical impairments that would prevent them from using conventional computer input devices. The study recruited participants from campus mailing lists and flyers with a US$25 gift card for the 1.25-hr experiment and an additional US$100 gift card for the best performer.
Among the participants, 13 had little video game experience, eight participants had monthly gaming experience, four participants played video game several times a week, another three participants had weekly gaming experience, and only two participants had daily gaming experience, ranked on a Likert-type scale from 1 to 5. The Part 107 commercial UAV pilots in this study were very familiar with looking through actual UAV cameras but had no experience supervising multiple UAVs.
Experimental Procedures
The experimental procedure consisted of three phases. The first phase provided participants with different types of training, detailed in the next section. The second phase was a 15-min practice session to allow participants to get familiar with the experiment interface, including the steps needed to engage the camera, the procedures needed to successfully search and identify each target assigned, and then how to submit a final answer. This training also included the other elements of RESCHU including directing UAVs out of hostile areas and how to improve their path planning. At the end of this phase, there was a dedicated test session during which an evaluator ensured that each participant could successfully identify and search for a target without any assistance and could successfully navigate the UAVs between targets with no exploration for the correct interface elements. The third phase was data collection with two different 20-min test scenarios per person with no change in experimental conditions.
Participants were split into three training groups for the first phase. In the first training group, participants were provided with the additional trackball training described previously. The FLTE practice was considered as skill-based training because it was designed to decrease participants’ input movement speeds while searching in the camera window and thus reducing their overall time in the search task, which would allow them to more rapidly switch between targets.
In terms of the level of autonomy, this first group labeled “skill-based with ATR” was given the ATR so they, on average, should have the fastest target identification times. However, given that their ATR was 70% reliable, which they were told, it was possible that they could become complacent and not recognize the automation provided a poor recommendation. Given that each person was presented with 10 targets, in the case of the unreliable ATR, three of the 10 targets were not correct identifications but the correct target was somewhere in the image. Thus, the presence of ATR could lead to incorrect identifications. If participants did catch the anomaly, given that this group had significant training in using the trackball, we expected that their search task times would be somewhat slower than when the ATR was correct, but still fairly quick.
The second group also had the same training in terms of the interface and the trackball but were not given the ATR assistance, so it was expected that this group would have longer times for target identification than those with ATR. Participants with no ATR would have to pan and zoom to find the target much more than people who had ATR. We also expected this group to have the fewest number of incorrect identifications, as the chance for automation bias was removed. This group was labeled “skill-based without ATR.”
The last training group also had the ATR assistance but had minimal training and was labeled the “ATR without skill-based training” group. This group received no special trackball training but spent 15 min in the practice session acclimating to the new device. Because they did not have specific skill-based trackball training, we expected their search times to be the longest of all three groups when the ATR provided a poor recommendation, because they would be inexperienced at controlling the mouse while performing their two missions. However, their search times when the ATR was correct should be the same as those with skill-based training and ATR. Because of the lack of foundational training in manipulating the trackball, we expected this group to exhibit more instances of automation bias.
The two testing populations, undergraduate and graduate university students versus people with formal UAV commercial licenses, represent novices versus experienced operators. Given their commercial certification, the experienced operators, in theory, possessed significantly more knowledge about actual UAV operations than people who had never before operated a UAV. Given their time looking through UAV cameras, we expected the experienced operators to more easily identify targets but also detect when the automation was not correctly performing. To take this experiment to the commercial UAV operators, who were geographically dispersed, a mobile command center van was used (see Figure 4). This van is equipped with a test station and wireless communication capabilities in which the training and testing took place. All experiments took place in this van for both novices and experienced operators.

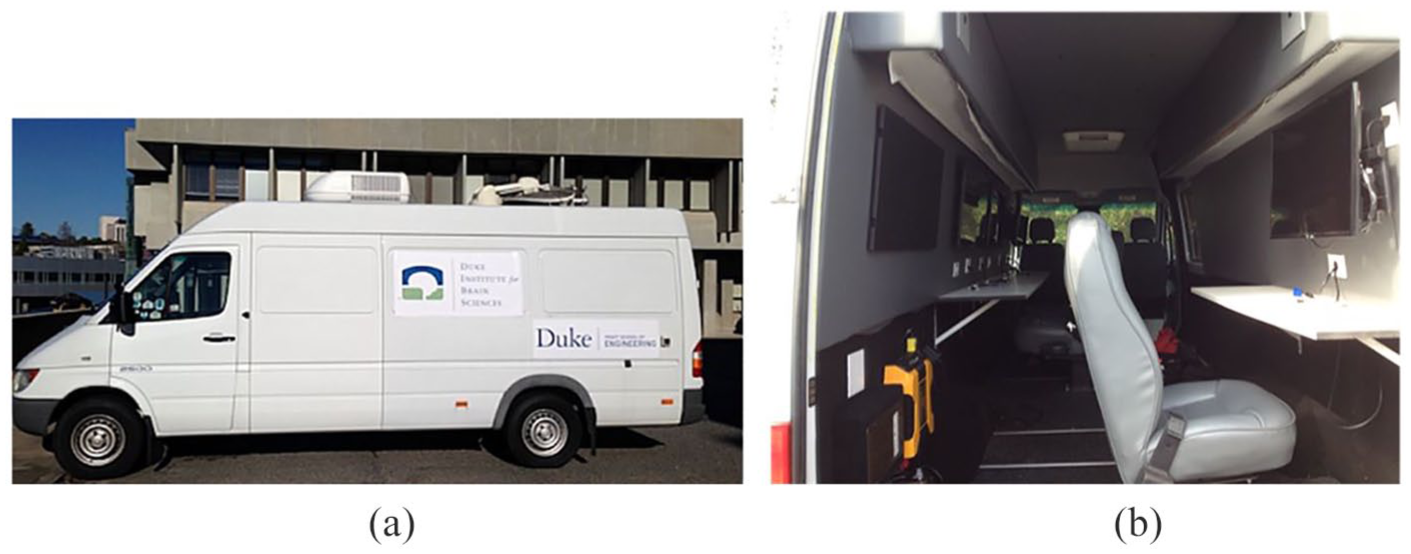

Mobile command center (a) exterior and (b) interior.
In summary, these different experimental factors resulted in a 3 (skill-based training with ATR, skill-based training without ATR, ATR without skill-based training) × 2 (15 UAV operators, 15 novices) mixed-subject design with two test sessions per person that each lasted 20 min (see Table 1). ATR assignment and experience were between factors with a repeated measure on each test session. Two sessions were included to increase statistical power. The training lasted ~45 min for the two skill-based groups but only lasted ~30 min for the group that did not receive the skill-based training. Every test group supervised four UAVs and were presented with 10 possible targets, spaced approximately 90 s apart. All participants experienced all 10 targets and no vehicles were destroyed in the hazard zones.

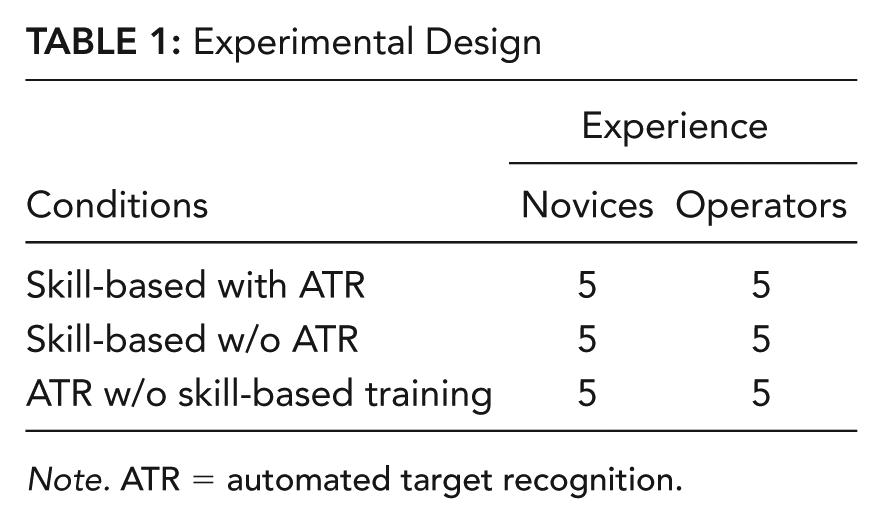

Experimental Design
Note. ATR = automated target recognition.
Results
A multivariate repeated-measures 3 × 2 analysis of variance (ANOVA) model with a repeat on the test session and a significance level of .05 was used to analyze the experimental data. Video game experience was used as a covariate, but age was not as it was not correlated with any of the performance metrics. There were two mission performance metrics: (1) overall success rates of finding targets and (2) the amount of time UAVs spent in hazard zones. The overall success rate was defined as the percentage of targets correctly identified in a test session. The amount of time in a hazard zone was the average amount UAVs spent transiting a hazard area. There were two other search-related metrics: the time spent searching for each of the 10 targets in the camera window and the average time other UAVs waited at their targets as they needed the operator’s attention to search their target window.
When looking at performance across the three experimental conditions, namely, (1) skill-based with ATR, (2) skill-based without ATR, and (3) ATR without skill-based training, there were no statistical differences in overall success rates of finding targets and the amount of time UAVs spent in hazard zones, which were the two primary performance metrics. The video game covariate was also not significant. Although not statistically different, participants in the ATR without skill-based training condition had the overall lowest error rates of 5%, whereas those in the skill-based without ATR condition were at 9% and skill-based with ATR participants were at 11%. As expected, the commercial Part 107 operators had a third fewer misclassifications than the students (21 vs. 30). When considering all the trials, this meant that the experienced operators had an error rate of 7%, whereas the novices were at 10%. The highest number of misclassifications occurred in the skill-based with ATR condition with student novices as shown in Figure 5.

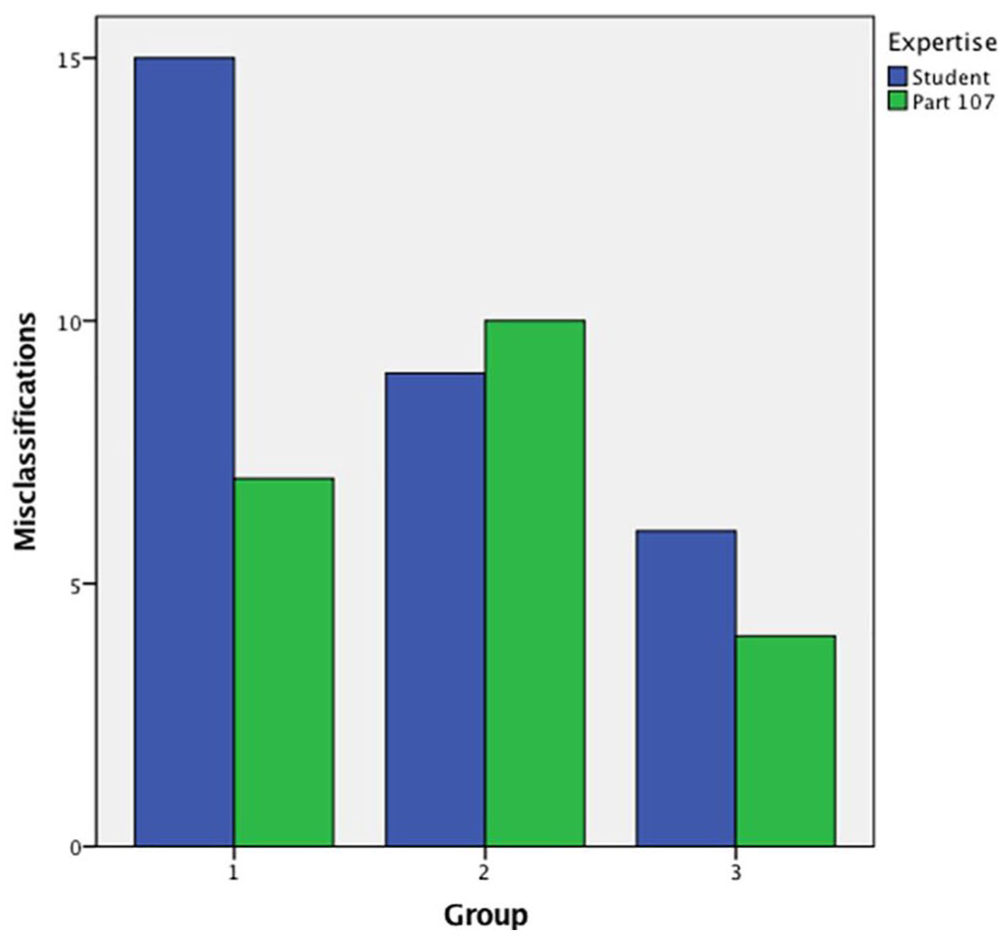

Number of misclassifications for students and Part 107 certified pilots, as a function of their training group: (1) skill-based with ATR, (2) skill-based without ATR, and (3) ATR without skill-based training.
In terms of time spent searching for targets in the camera window, different combinations of training and autonomy had a significant effect on the average time expended in imagery searching tasks, F(2, 23) = 10.901, p < .001,

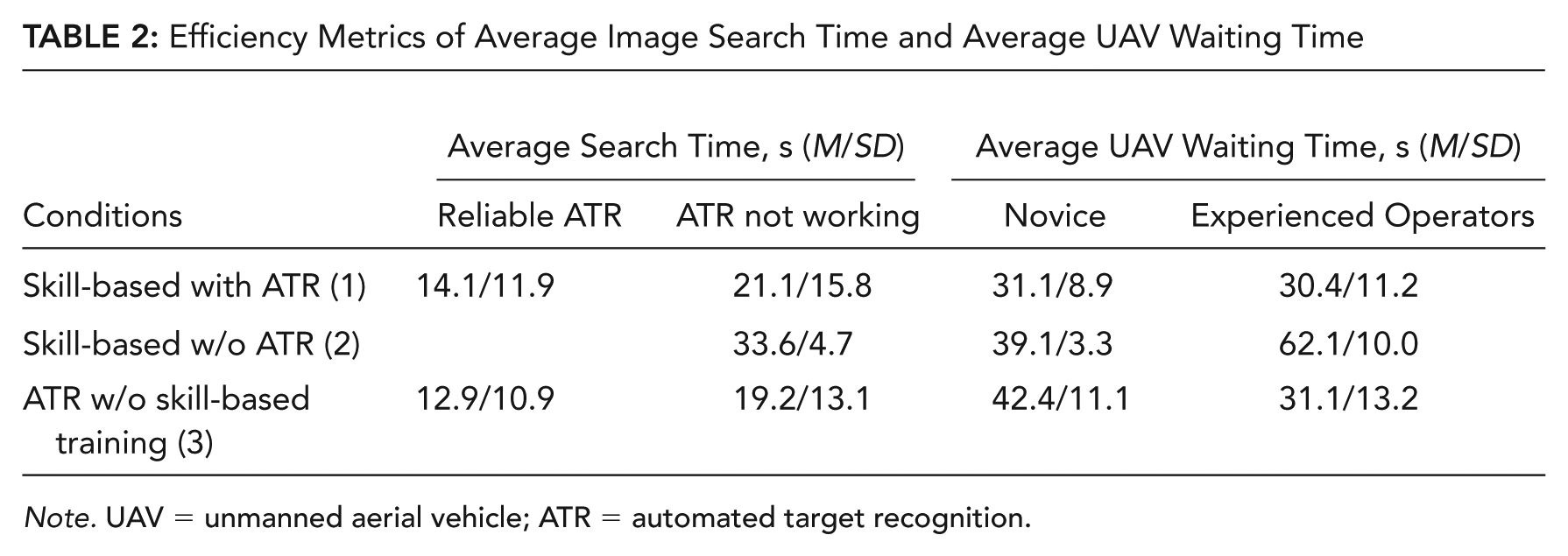

Efficiency Metrics of Average Image Search Time and Average UAV Waiting Time
Note. UAV = unmanned aerial vehicle; ATR = automated target recognition.
When looking at Tukey pairwise comparisons of the average search time, the skill-based without ATR group was statistically significantly slower than the other two groups (p12 = .027, p23 < .001), which were not statistically different. Thus, on average and as expected, people in the skill-based without ATR group took approximately 10 s or longer to search for a target than the other groups with ATR. This relationship also held true for the average task waiting time (p12 = .006, p23 = .015), with the lack of ATR causing a 15 to 20 s wait time, on average, for images to be searched. There was one single significant interaction, F(2, 23) = 3.37, p = .040 (see Figure 6) in that the commercial pilots’ actions led to the longest wait times, on average 23 s longer, but only for those commercial operators without ATR. Thus, the Part 107 experienced operators took much longer to identify a target when they had no ATR, even with significant trackball training. However, as mentioned previously, this same group also had the fewest misclassifications.

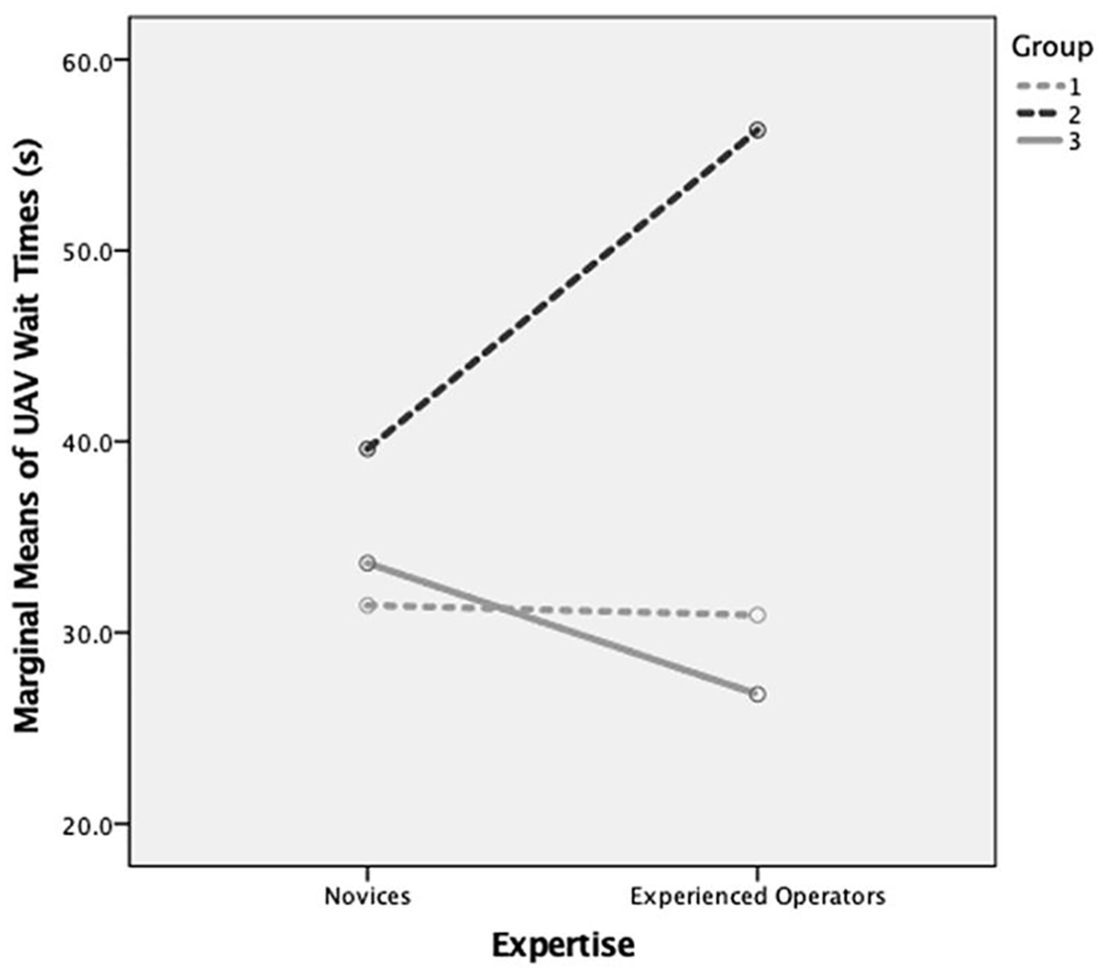

The significant interaction, F(2, 23) = 3.37, p = .040, between expertise and different training groups, where 1 = skill-based with ATR, 2 = skill-based without ATR, and 3 = ATR without skill-based training.
It is also interesting to note the difference between those people in the skill-based with ATR condition when it failed (30% of the time) and those in Condition 2 who never had ATR, especially because they had the exact same training. This large difference could be attributed to a fatigue effect because participants without any ATR assistance had to manually search each image, whereas those with ATR had less work to do for 70% of the time. There was no statistical difference in ages across the groups, so age was not an influencing factor.
When examining the raw counts of correct versus incorrect classification for each image searched, for participants with ATR (Conditions 1 and 3), when the ATR was correct, there was a 96% likelihood that the participants correctly identified the target. However, when the ATR was wrong, 30% of the time, the correct identification rate dropped to 79%, demonstrating a clear propensity toward automation bias (χ2 = 29.3, p < .001). As illustrated in Figure 5, these mistakes were made primarily by students in the skill-based with ATR condition who simply agreed with the automation and did not look for evidence to the contrary. Interestingly, there were several instances (4%) where the ATR was correct, but participants disagreed and found another incorrect target. Only five people made this mistake, and all but one was in the skill-based with ATR student group.
In summary, the statistical analysis results revealed that, regardless of the presence of advanced autonomy in the form of ATR or the fidelity of the training, participants’ performance results were no different in terms of overall mission performance. However, experienced operators made fewer errors, as expected, but when they were not assisted by ATR, they also took the longest to search for targets, causing the longest system delays.
These results provide significant insight into the overall behavior trends of participants across the experimental factors but do not provide any information on how or why people took specific actions or made mistakes. What is needed is an analytic method to accompany traditional inferential statistics that not only bridges this gap but also gives clear design guidance for either new technologies or training interventions. We believe that the hidden Markov modeling technique can provide such benefits, described in more detail in the next section.
Evaluating Supervisory Control Performance Through a Machine Learning Approach
Given that experiments with realistic testbeds often do not show clear performance advantages through traditional inferential testing, it is worth exploring if there are other analytic techniques that can provide additional insight. Previous research has indicated that the application of hidden Markov models (HMMs), a machine learning modeling approach, can provide greater insight into operator strategies, particularly in terms of supervisory control environments like RESCHU. Indeed, a previous HMM analysis of a similar RESCHU environment was able to determine that, despite having three different types of vehicles under their control, operators tended to cluster the vehicles into two categories, thus reducing their cognitive complexity and workload (Boussemart, Cummings, Las Fargeas, & Roy, 2011).
An HMM is a stochastic model that describes a Markov process with some states and variables that are not observable (Rabiner & Juang, 1986). Whereas system states and state transitions are observable for Markov models, in an HMM, system states are not directly observable (thus are “hidden”), and the only observable variables are emission probabilities determined by hidden system states. HMMs have been used previously to develop human operator behavior models (Boussemart & Cummings, 2011; Pentland & Liu, 1999; Suzuki et al., 2005), but none of these previous efforts attempted to investigate the impact of different training and autonomy paradigms on operator image searching.
An HMM can represent both higher-level human operator behavioral states and lower-level operator interactions with human supervisory control systems. The observable emissions are determined by clusters of lower-level interactions between operators and an interface, for example, when people click on an interface button. The clustering of related behaviors forms the hidden states of an HMM, which then suggest operator strategies. For example, an operator generates observable states by clicking on a button to add a UAV waypoint and then another button to assign a new target, but the combination of these button actions indicates that an operator is executing the higher-level action of navigating, which is the hidden state.
Given that the presence of ATR affected the participants in this study in terms of search and wait times as well as misclassifications, we developed an HMM that represented operator interactions in the search camera window to determine if such an HMM could provide any useful insight into how operators searched the image for the correct target. There were 10,203 observations used to build this model, with an average of 165 observations per each test session. To this end, Figure 7 demonstrates the HMM of operator interactions in the search window, which were consistent regardless of the training group or level of expertise.

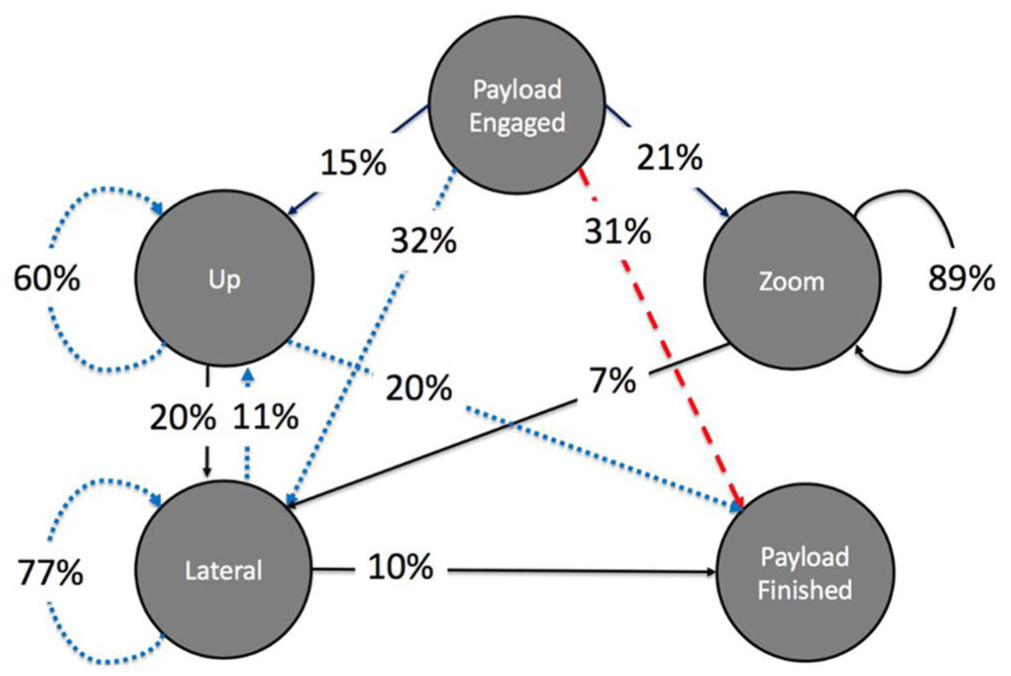

RESCHU search task hidden Markov model.
In Figure 7, operators generally exhibited two observed and three hidden states in their search efforts. The initial state in this task was the observed state Payload Engaged. This state was fully observed since operators had to right-click on a UAV–target pairing to select the Payload Engage function. Thus, this state indicates with no uncertainty when people began a search task. Once this button was selected, then the HMM model in Figure 7 reveals three distinct clusters of states with the relevant transition properties. The final state, Payload Finished, was also fully observed when people submitted their answer.
The three hidden states can be generally described as the Up state where participants predominantly searched up, the Lateral state where operators generally panned left and right, and the Zoom state where people predominantly zoomed in and out on the target. These clusters are interesting as, for example, Up was its own state. People tended not to scan down, revealing a possible gap in training and understanding. Moreover, people tended to group lateral left and right behaviors together and the large self-transition of 77% suggests that people had very inefficient search strategies. Self-transitions in HMMs indicate repetitive activity, and operators tended to repeat left and right camera movements, suggesting that this could be an area where either more training or better decision support could be helpful.
Although the overall structure of the HMM is instructional in terms of how people clustered behaviors and where attentional inefficiencies likely reside, such a representation can also help diagnose problem behaviors. In Figure 7, the red dashed line shows the dominant strategy of people who made target misclassifications and the blue dotted line illustrates the dominant strategy of those people who correctly classified targets. The difference is quite stark. In agreement with the statistical analysis in terms of errors, people who made errors had a strong propensity to only look at the ATR’s recommendation and then jump straight to the answer submission. They did not investigate any alternatives, as indicated by the move from the payload engage to finish observable state. In contrast, those people who correctly identified the targets, even when they were assisted by ATR, still explored their region to ensure the answer was correct.
This is an important finding because whereas the inferential statistical analysis indicated a propensity toward automation bias, particularly for novices, the HMM analysis demonstrated how such a bias was manifested in actual behaviors. Armed with such results, designers now have a clear intervention in that ATR recommendations could provide a general area of a target instead of a specific point to reduce this bias. Another option would be to train operators to never simply accept a recommendation without first exploring the solution space and also to specifically remember to search down in an image. Previous research has shown that HMMs could be used to develop automated training aids (Gombolay, Jensen, & Son, 2017), so we leave these areas for future work but believe that these results demonstrate the utility of adding such an HMM analysis to any complex of human–computer study in a supervisory control setting.
Discussion
Given that autonomous systems often remove the need for humans to perform low-level skill-based tasks and offer potentially lower training costs, there is a need to better understand how the removal of training for these tasks can potentially influence overall joint human–system performance. To this end, our goal in this study was to determine whether skipping skill-based training, as represented in the SRKE model, could have a demonstrable negative effect on performance in a human supervisory control task.
Using both traditional inferential statistics and a machine learning analysis in the form of an HMM, operators supervising multiple UAVs who were given focused skill-based training for an unfamiliar trackball input device did not have different search times in panning and zooming a simulated camera, as compared to operators with no special training when the autonomy was correctly working. Thus, for this specific instance, the lack of skill-based training did not affect people’s ability to search for a target in terms of time.
However, one concern with increased autonomy and reduced training is that this combination could lead to more mistakes, a loss of situation awareness and a tendency toward automation bias. This result was partially seen in this study, in that students with the most training and the highest autonomy had the most misclassifications. Hence, whereas search times were not dramatically affected by differences in training and autonomy, error rates were influenced but not as expected. Those people with the least training (both students and Part 107 operators) also had the least misclassifications, which is completely counter to our expectations. This result could have occurred because the additional skill-based training could have made people more complacent in the search task as it was highly automatic for them. When augmented with the HMM analysis, the lack of investigation of alternate targets was a clear contributing factor. The participants in the ATR without skill-based training condition were still learning to control the trackball while executing their searches, so this could have made them more vigilant, leading to the reduced misclassifications.
One other result worth highlighting is that, overall as a group, the Part 107 commercial UAV operators were slower at searching for targets when they had no autonomy assistance; however, they also had the lowest misclassification rates, especially when the autonomy made an error. This statistically significant search time delay potentially suggests that the experienced operators were more cautious in this mode, even though they received the same training as the novices. This may also reflect their experience with looking through UAV cameras, which is difficult and has been compared to looking through a soda straw (Endsley & Jones, 2004).
The caution of the experienced operators is in sharp contrast to the novices who, with the most automated assistance and the most training, exhibited a tendency toward automation bias in that they had the highest error rates, especially when the automation made an erroneous suggestion. This result suggests that novices in the ATR without skill-based training group were very focused on their environment, likely because they were still developing their trackball manipulation skill during the experiment, which made them more careful in their selections.
Hence, these results are counter to our expectation that participants in the ATR without skill-based training condition would make more mistakes. Indeed, both novices and experienced operators had their lowest errors in this condition suggesting that their higher workload was not a problem. The additional trackball skill training for the novices in the skill-based with ATR condition potentially made them more complacent. However, this was not the case for the experienced operators.
In part, this validates the SRKE model such that knowledge- and expert-based behaviors have distinct benefits and provide some level of protection against degraded system operation and unexpected uncertainties. However, significant work is needed to determine how much and what kind of training is needed to achieve these levels as well as how expertise does (or does not) transfer across domains.
There are many limitations to this work. First, these conclusions are based only on the RESCHU application and cannot be generalized across all multiple UAV testbeds. Moreover, although there were 30 subjects, a larger sample size could have led to different trends. For example, the 10 people in the ATR without skill-based training condition could have just been very good at adapting to an unfamiliar input device, and so another group may struggle with adapting to a new device with no training. This limitation also applies to the HMM. Such models work best with significant amounts of data, but it is also important to note that they also indicate aggregate observed behavioral trends and so cannot specifically predict any individual behavior.
Despite these limitations, there are many important lessons learned in this study which combined inferential statistics and a machine learning descriptive model. First, knowledge gained through significant experience in a similar but not exactly the same domain may provide some protection against growing uncertainty in the form of degraded automation. More specifically, operators with real-world UAV experience appeared to recognize and exercise more caution when the automation was degraded in this multiple UAV simulation. On a related note, another critical result is that when the autonomy was unreliable, so were the humans that were novices, even despite additional skill-based training. Such propensity toward overtrust and automation bias in autonomous systems could be extremely dangerous in safety-critical settings, and the reduction of training could lead to increased inappropriate trust and more cases of automation bias.
Finally, through using a descriptive machine learning model in the form of an HMM, we gained new insights into the problems with extended search time and misclassifications that could form the basis for new training protocols and interventional technologies. Although more data with more people would be needed on actual systems to determine more prescriptive interventions, the ability to acquire interface interaction data is relatively straightforward with supervisory control systems in both commercial and military systems, such as all types of UAVs, air traffic control, self-driving cars, and cockpits of airplanes. The use of machine learning analytic approaches has increased significantly in the past few years with the explosion of “big data,” but most of these efforts look at replacing human judgment as opposed to aiding in diagnosing human actions and judgments. What is markedly missing is a focus on what patterns could emerge from the vast amount of training data generated during computer-based training sessions, which represent a large part of military and commercial training programs.
