Abstract

In modern times, swarm intelligence has played an increasingly important role in finding an optimal solution within a search range. This study comes up with a novel solution algorithm named QUasi-Affine TRansformation-Pigeon-Inspired Optimization Algorithm, which uses an evolutionary matrix in QUasi-Affine TRansformation Evolutionary Algorithm for the Pigeon-Inspired Optimization Algorithm that was designed using the homing behavior of pigeon. We abstract the pigeons into particles of no quality and improve the learning strategy of the particles. Having different update strategies, the particles get more scientific movement and space exploration on account of adopting the matrix of the QUasi-Affine TRansformation Evolutionary algorithm. It increases the versatility of the Pigeon-Inspired Optimization algorithm and makes the Pigeon-Inspired Optimization less simple. This new algorithm effectively improves the shortcoming that is liable to fall into local optimum. Under a number of benchmark functions, our algorithm exhibits good optimization performance. In wireless sensor networks, there are still some problems that need to be optimized, for example, the error of node positioning can be further reduced. Hence, we attempt to apply the proposed optimization algorithm in terms of positioning, that is, integrating the QUasi-Affine TRansformation-Pigeon-Inspired Optimization algorithm into the Distance Vector–Hop algorithm. Simultaneously, the algorithm verifies its optimization ability by node location. According to the experimental results, they demonstrate that it is more outstanding than the Pigeon-Inspired Optimization algorithm, the QUasi-Affine TRansformation Evolutionary algorithm, and particle swarm optimization algorithm. Furthermore, this algorithm shows up minor errors and embodies a much more accurate location.

Keywords

Pigeon-inspired optimization algorithm QUasi-Affine TRansformation evolutionary algorithm evolution matrix DV-Hop algorithm

Introduction

The optimization problem is the values of a set of parameters under certain constraint conditions, so as to obtain a certain performance, and play a role to a certain extent. It usually solves mathematical problems. Swarm intelligence algorithms are mostly stemmed from biological behaviors in nature, and most of them have strong optimization ability, which is a powerful tool to solve problems in life.¹ In the last few years, a good deal of naturally inspired computation methods are proposed, which have their own expansibilities and have been widely used in engineering and daily life. Although the Pigeon-Inspired Optimization (PIO) algorithm has obvious advantages such as faster convergence speed and simpler calculation comparing with other algorithms, it still needs further study in the basic theory of convergence and multi-objective optimization.

In the early years, Duan and Qiu¹ propose pigeon-inspired optimization which comes out the simulation of homing behavior of pigeons through magnetic field and landmarks.² Pigeons could seek out their homing tools with no difficulty: magnetic fields, the sun, and landmarks. The homing ability of pigeons has been known, and pigeons are used as communication tools a long time ago. When the pigeons are far away from their destination, they use the geomagnetic field to identify the direction, and when they are closer to the destination they use the local landmark to navigate. The first model in PIO algorithm is based on the geomagnetic field and the sun. While the landmark operator model is based on landmarks.

The PIO algorithm has good performance, but it has certain limitations. Based on the simple structure of the PIO algorithm and the peculiarity of simply combining with other intelligent algorithms, we bring forward an improved algorithm that combined with the QUasi-Affine TRansformation Evolutionary (QUATRE) algorithm. QUATRE is a new metaheuristic algorithm proposed by Meng in 2016, which uses an evolutionary formula like the affine transformation in geometry.³ The PIO makes use of a group of pigeons to delegate candidate solutions in the solution space to be studied and the optimization problem is that pigeons remove toward the best solution for a given measurement of performance through iteration.

In this article, our proposed algorithm combines the PIO algorithm with the QUATRE algorithm. This novel QUasi-Affine TRansformation-Pigeon-Inspired Optimization (QT-PIO) evolutionary optimization algorithm still comprises two operators.⁴ In the primary stage, the map and compass operator is executed to explore and exploit the solution space for multiple iteration. The particles learning strategy combines evolutionary guidance matrix $B$ and co-evolutionary matrix $M$ of QUasi-Affine TRansformation Evolutionary Algorithm into matrix form. In the second phase, the population is divided into two groups. In the first part, the population size reduces from $ps$ to $ps / 2$ . The second part of particles start their new explorations.

With the rapid development of information science and technology, the requirement of node location is becoming more and more accurate in wireless sensor networks (WSNs).^5,6 Nowadays, WSNs are widely applied in various fields, for example, intelligent transportation, defense, environmental monitoring, health care, space exploration, and many other fields. The Distance Vector–Hop (DV-Hop) positioning algorithm is one of a series of distributed localization methods on the strength of distance-vector routing and Global Positioning System (GPS) localization.

The DV-Hop node localization algorithm is an important distance-independent positioning algorithm.^7,8 DV-Hop is a node localization algorithm that is independent of signal attenuation, and it has high practicability in terms of network cost, layout, and signal attenuation.⁹ In a randomly distributed network, the node positioning error is large. More and more intelligence algorithms are used to optimize DV-Hop, this paper mainly takes advantage of QT-PIO to optimize that decreases the error of positioning, makes the location more accurate, and thus ensures a certain degree of accuracy.

This text mainly proposes a new approach with regard to finding an optimal solution. The optimization ability performs well and effectively improves the convergence speed in this model. Applying it to the DV-Hop algorithm and the experimental results indicate that our consideration greatly reduces errors of positioning and improves positioning accuracy. In a word, it is justifiable to select QT-PIO to find the optimum solution. This article is separated into five sections, the second section describes the basis of the new algorithm. The third section raises our novel algorithm. The fourth section describes the consequence of evolutionary optimization. Next, the fifth section discusses the optimal DV-Hop algorithm. The last section is conclusion.

Related work

This section mainly exhibits the basis of the proposed algorithm, including the original PIO algorithm and the QUATRE algorithm.

Canonical PIO algorithm

On the strength of the specific navigational behavior of the pigeons in their search for a home, a bionic group intelligent optimization algorithm is proposed. PIO algorithm puts to use two diverse operator model two disparate that is put forward by means of simulating the mechanism in which the pigeons make use of various guide instruments in a disparate stage to find the loft. There are diverse tools: the map and compass operator and landmark operator. The pigeons perceive the field of the earth with magnetic material as their map and think of the height of the sun as a compass.

In the loft model, the objects of the study is the particle which is virtualized from pigeons in the navigation process.^10,11 Initial setting of the parameters are set, for example, the population of pigeons is $ps$ , the pigeons’ search in $D$ -dimensional space, the number of running is set to 100, the current iteration is $iter$ , the total number of iterations is $Ite r_{\max} = 600$ , in the first stage iterations are $maxIteratio n_{1} = 300$ , in the second phase iterations are $maxIteratio n_{2} = 300$ , and the position and velocity of every pigeon are recorded as below ( $j = 1, 2, 3, . . ., ps$ )

{\vec{X}}_{j} = [x_{j, 1}, x_{j, 2}, x_{j, 3}, . . ., x_{j, D}],

(1)

{\vec{V}}_{j} = [v_{j, 1}, v_{j, 2}, v_{j, 3}, . . ., v_{j, D}],

(2)

where $j$ means the $j^{th}$ individual in the population, ${\vec{X}}_{j}$ represents the coordinates of $j^{th}$ individual and ${\vec{V}}_{j}$ signifies the $j^{th}$ velocity.

When $iter$ is greater than 1 and less than $maxIteratio n_{1}$ , the map and compass operator has an effect on the homing of the pigeons. The pigeon $X_{i}$ updates its velocity at $(iter + 1)^{th}$ by

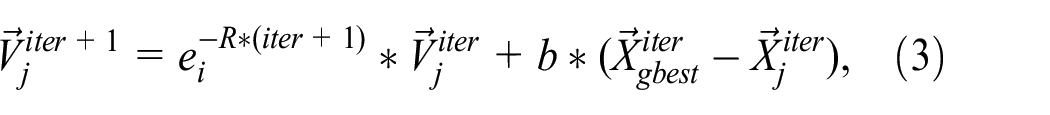

{\vec{V}}_{j}^{iter + 1} = e_{i}^{- R * (iter + 1)} * {\vec{V}}_{j}^{iter} + b * ({\vec{X}}_{gbest}^{iter} - {\vec{X}}_{j}^{iter}),

(3)

where $R$ is a positive number that serves as the first factor, $b$ is a numerical value randomly generated between $0$ and $1$ , and ${\vec{X}}_{gbest}^{iter}$ is the global optimal position obtained by making a comparison among the positions of all the pigeons after $iter$ iterative loop.

Affected by the map and compass operator, pigeon adjusts its position with the new velocity of each pigeon at $(iter + 1)^{th}$ as below

{\vec{X}}_{j}^{iter + 1} = {\vec{X}}_{j}^{iter} + {\vec{V}}_{j}^{iter + 1} .

(4)

When $iter$ is greater than the set maximum in the first phase, the exploration and exploition are stopped immediately, and the optimization proceeds into the following phase which takes advantage of the landmark operator. In this process, half of the pigeons is deserted with the passage of each iteration, which navigate toward the loft when the number of iterations $iter$ is from $maxIteratio n_{1}$ to $maxIteratio n_{1} + maxIteratio n_{2}$ . Pigeons that are far from their destination are considered to have no ability to distinguish their home path, so they are discarded. While the current number of iterations is less than $maxIteratio n_{1} + maxIteratio n_{2}$ , the position ${\vec{X}}_{j}$ of each remaining pigeon is expressed as in the following expression

{\begin{matrix} ps = ⌈ \frac{ps}{2} ⌉, \\ {\vec{X}}_{c}^{iter} = \frac{\sum_{j = 1}^{ps} {\vec{X}}_{j}^{iter} * F ({\vec{X}}_{i}^{iter})}{p s^{iter} * \sum_{j = 1}^{ps} F ({\vec{X}}_{j}^{iter})}, \\ {\vec{X}}_{j}^{iter + 1} = {\vec{X}}_{j}^{iter} + b * ({\vec{X}}_{c}^{iter} - {\vec{X}}_{j}^{iter}) . \end{matrix}

(5)

${\vec{X}}_{c}$ is the midpoint among the own pigeons left and serves as a landmark in the second phase, the reference direction in which the rest of the left pigeons will fly. And $b$ is defined by a random value between 0 and 1. $p s^{iter}$ is representative of the population of $iter$ generation. For the different questions asked, $F ({\vec{X}}_{i}^{iter})$ can be solved as follows

\begin{matrix} F ({\vec{X}}_{j}^{iter}) = fobj ({\vec{X}}_{j}^{iter}), \end{matrix}

(6)

for the minimization problem and the maximization problem,

\begin{matrix} F ({\vec{X}}_{j}^{iter}) = \frac{1}{fobj ({\vec{X}}_{j}^{iter}) + a}, \end{matrix}

(7)

where $fobj ({\vec{X}}_{j}^{iter})$ is the function value of the pigeon ${\vec{X}}_{j}$ at the $ite r^{th}$ generation and $a$ is an any nonzero constant.¹²

Similarly, the landmark operator stops working, supposing that $iter$ exceeds the maximum iteration limit set previously at the present.

QUATRE algorithm

The evolutionary algorithm used in the QUATRE algorithm is similar to the affine transformation in geometry.^13,14,15 The evolutionary architecture adopted by the QUATRE algorithm is $X \to M X + \bar{M} B$ , so the equation is given as below

X = M \otimes X + \bar{M} \otimes B,

(8)

where $X$ stands for individual population matrix, $X = ({\vec{X}}_{1}, {\vec{X}}_{2}, {\vec{X}}_{3}, . . ., {\vec{X}}_{j}, . . ., {\vec{X}}_{ps})^{T}$ , $j \in [1, ps]$ . ⊗ signifies the bitwise multiplication of matrix elements. Matrix $B$ denotes the evolutionary mutation matrix and it has the same number of lines as Matrix $M$ . Matrix $M$ is a co-evolutionary matrix, $\bar{M}$ is an association matrix $M$ , and $\bar{M}$ represents a binary inversion operation of the elements of $M$ . Elements from the same position of the two matrices have opposite values, for example in equations (9) and (10)

M = [\begin{matrix} 1 \\ 1 & 1 \\ 1 & 1 & 1 \\ 1 & 1 & 1 & 1 \\ \dots \\ 1 & 1 & 1 & 1 & \dots & 1 \end{matrix}]

(9)

\bar{M} = [\begin{matrix} 0 & 1 & \dots & 1 \\ 0 & 0 & 1 & \dots & 1 \\ 0 & 0 & 0 & 1 & \dots & 1 \\ 0 & 0 & 0 & 0 & \dots & 1 \\ \dots \\ 0 & 0 & 0 & 0 & \dots & 0 \end{matrix}]

(10)

The co-evolutionary matrix $M$ is received, after the matrix elementary transformation of $M_{intitial}$ . $D$ represents the dimension of object function, takes individual population size $ps = D$ as an example. The matrix $M_{intitial}$ is a lower triangular matrix with an element value of 1. The equation (11) gives an example of the transformation from the matrix $M_{intitial}$ to the matrix $M$

M_{intitial} = [\begin{matrix} 1 \\ 1 & 1 \\ 1 & 1 & 1 \\ 1 & 1 & 1 & 1 \\ \dots \\ 1 & 1 & 1 & 1 & \dots & 1 \end{matrix}]

~ [\begin{matrix} 1 & 1 & 1 & 1 \\ 1 & 1 & 1 \\ \dots \\ 1 & 1 \\ 1 \\ 1 & 1 & 1 & 1 & \dots & 1 \end{matrix}] = M

(11)

There are two main operations for conversion: the first step randomly arranges all the elements in all the row vectors in the initial matrix $M_{intitial}$ , and then randomly arranges all the row vectors in the matrix in which has been arranged at the first step randomly. So after the above two consecutive steps, the matrix $M$ is formed.

In QUATRE algorithm, the coordinate dimension is usually smaller than the population size $ps$ , the initial matrix $M_{intitial}$ ought to be expanded to the size of the particle population. For example, equation (12) shows how to extend to $ps$ (the population size $ps = 3 D + 2$ ). On condition that $ps % D = k$ , where $%$ is the remainder operator, $k$ $D \times D$ lower triangular matrices constitute the first $k * D$ rows of the matrix $M_{intitial}$ . After performing a primary transformation on $M_{intitial}$ , matrix $M$ is immediately evolved in accordance with $M_{intitial}$

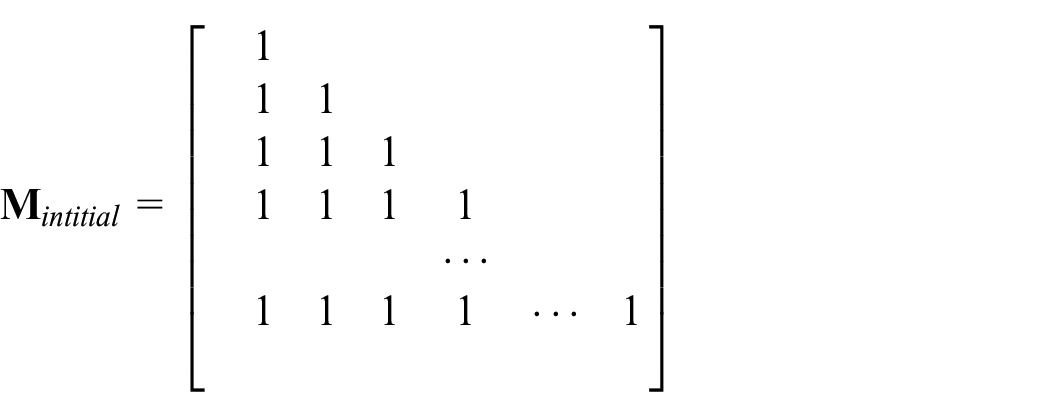

M_{intitial} = [\begin{matrix} 1 \\ 1 & 1 \\ 1 & 1 & 1 \\ 1 & 1 & 1 & 1 \\ \dots \\ 1 & 1 & 1 & 1 & \dots & 1 \\ 1 \\ 1 & 1 \\ 1 & 1 & 1 \\ 1 & 1 & 1 & 1 \\ \dots \\ 1 & 1 & 1 & 1 & \dots & 1 \\ 1 \\ 1 & 1 \\ 1 & 1 & 1 \\ 1 & 1 & 1 & 1 \\ \dots \\ 1 & 1 & 1 & 1 & \dots & 1 \\ ⋱ \\ 1 \\ 1 & 1 \end{matrix}]

~ [\begin{matrix} 1 & 1 & 1 & 1 \\ 1 & 1 & 1 \\ \dots \\ 1 & 1 \\ 1 \\ 1 & 1 & 1 & 1 & \dots & 1 \\ 1 & 1 & 1 \\ \dots \\ 1 & 1 & 1 & 1 \\ 1 & 1 \\ 1 \\ 1 & 1 & 1 & 1 & \dots & 1 \\ 1 \\ 1 & 1 & 1 & 1 & \dots & 1 \\ 1 & 1 & 1 \\ \dots \\ 1 & 1 & 1 & 1 \\ 1 & 1 \\ ⋱ \\ 1 & 1 \\ 1 & 1 & 1 & 1 & \dots & 1 \end{matrix}] = M

(12)

Each individual ${\vec{X}}_{j}$ ( $j \in [1, ps]$ ) in the matrix $X$ has a corresponding evolutionary instruction vector $B$ , which has several different generation methods given in Table 1.¹⁶ $X_{rl, g}$ ( $l \in [1, ps]$ ) means entirely the random matrix which is produced by arranging the line sequence of matrix $X$ of the $g^{th}$ generation at random. ${\vec{X}}_{gbest}$ denotes the global best position at $g^{th}$ generation. The same $ps$ row vectors make up $X_{gbest, g}$ and which $X_{gbest, g}$ is shown in equation (13)

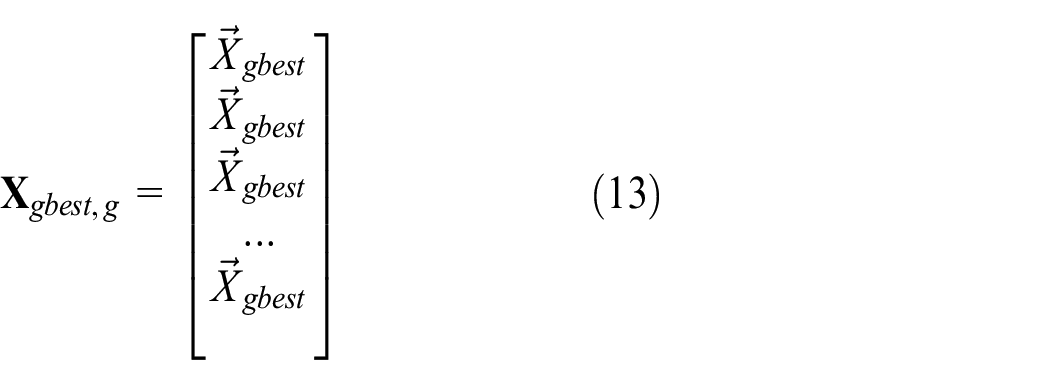

X_{gbest, g} = [\begin{matrix} {\vec{X}}_{gbest} \\ {\vec{X}}_{gbest} \\ {\vec{X}}_{gbest} \\ . . . \\ {\vec{X}}_{gbest} \end{matrix}]

(13)

Table 1.

The six mutation matrices $B$ calculation.

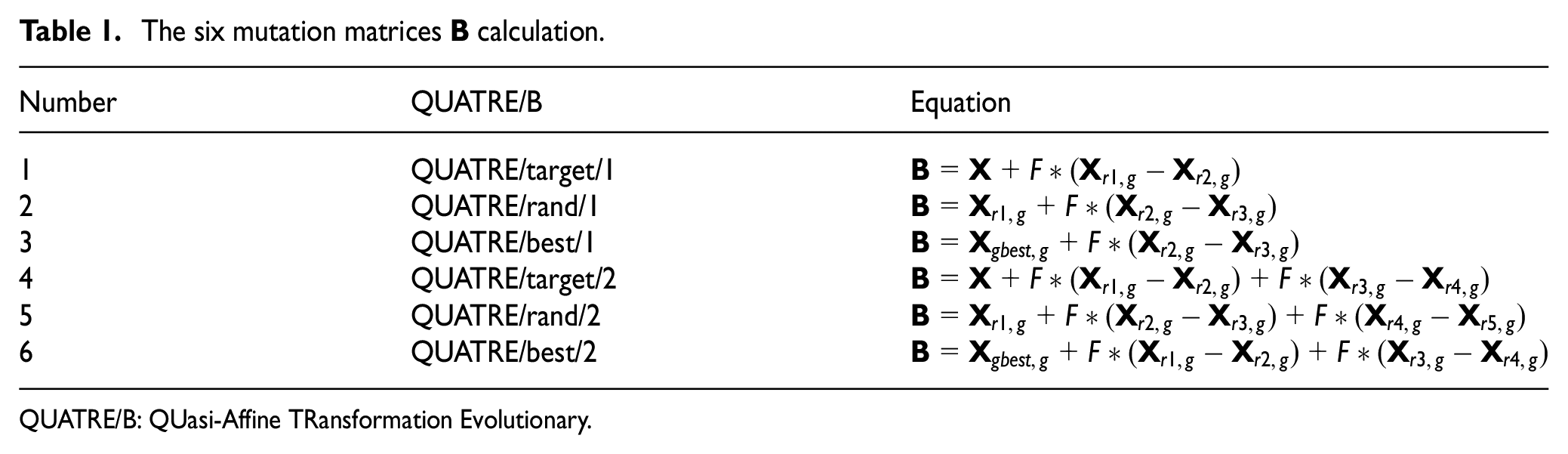

Number	QUATRE/B	Equation
1	QUATRE/target/1	$B = X + F * (X_{r 1, g} - X_{r 2, g})$
2	QUATRE/rand/1	$B = X_{r 1, g} + F * (X_{r 2, g} - X_{r 3, g})$
3	QUATRE/best/1	$B = X_{gbest, g} + F * (X_{r 2, g} - X_{r 3, g})$
4	QUATRE/target/2	$B = X + F * (X_{r 1, g} - X_{r 2, g}) + F * (X_{r 3, g} - X_{r 4, g})$
5	QUATRE/rand/2	$B = X_{r 1, g} + F * (X_{r 2, g} - X_{r 3, g}) + F * (X_{r 4, g} - X_{r 5, g})$
6	QUATRE/best/2	$B = X_{gbest, g} + F * (X_{r 1, g} - X_{r 2, g}) + F * (X_{r 3, g} - X_{r 4, g})$

QUATRE/B: QUasi-Affine TRansformation Evolutionary.

$F$ is the control factor of the difference matrix with a range of (0,1], where the outcome of $({\vec{X}}_{r, i} - {\vec{X}}_{r, j})$ $(i, j \in [1, 2, . . ., 5])$ is deemed to difference matrix. Commonly, $F = 0.7$ is a good choice.

QT-PIO algorithm

The newly filed approach is an optimization algorithm combining pigeon-inspired optimization algorithm with a quasi-affine transformation algorithm. The basic PIO algorithm makes use of the first operator for exploration and takes advantage of the second operator for exploitation. The structure of the pigeon herd optimization algorithm is relatively simple. It combines with QUATRE algorithm, promoting and supplying each other, which enhances the capability of PIO to solve complex problems. The QT-PIO algorithm changes the iterative update strategy of particles and the particles still work in two consecutive phases to find the optimal solution. First, initialize the coordinate and speed of all particles in the form of a matrix using equations (14) and (15) which are given as follows

\begin{matrix} X = [\begin{matrix} {\vec{X}}_{1} \\ {\vec{X}}_{2} \\ . . . \\ {\vec{X}}_{j} \\ . . . \\ {\vec{X}}_{ps} \end{matrix}], \end{matrix}

(14)

where ${\vec{X}}_{j} = [x_{j, 1}, x_{j, 2}, . . ., x_{j, D}, . . ., x_{ps, D}]$ , $j \in (1, 2, . . ., ps)$

\begin{matrix} V = [\begin{matrix} {\vec{V}}_{1} \\ {\vec{V}}_{2} \\ . . . \\ {\vec{V}}_{j} \\ . . . \\ {\vec{V}}_{ps} \end{matrix}], \end{matrix}

(15)

where ${\vec{V}}_{j} = [v_{j, 1}, v_{j, 2}, . . ., v_{j, D}, . . ., v_{ps, D}]$ , $j \in (1, 2, . . ., ps)$

In the first phase, the equation corresponding to the mutation scheme “QUATRE/rand/1” is taken as the donor matrix $B$ during the execution of the second operator. The positions $X$ of all the particles at $(iter + 1)^{th}$ are updated by equation

{\begin{matrix} B = X_{r 1, g} + F * (X_{r 2, g} - X_{r 3, g}), \\ V^{iter + 1} = e^{- R * (iter + 1)} * V^{iter} + \\ b * (X_{gbest}^{iter} - X^{iter}), \\ X^{iter + 1} = M \otimes X^{iter} + \bar{M} \otimes B + r * V^{iter + 1} . \end{matrix}

(16)

In each iteration, under the mechanism of the first phase, all particles update their speed and position together in the form of a matrix, rather than updating one particle at a time. Ultimately, the velocity matrix and the position matrix are obtained after every iteration. After the position of species calculated by the evolutionary equation (16) are compared in pairs with individuals of the previous generation, the optimal individual is finally selected as the individual in the next generation population.

In the second optimization phase in QT-PIO, instead of abandoning the part of particles having relatively worse fitness values in the swarm ( $ps = ps / 2$ ), this article considers that each particle has its own value. Whereas, there are two groups of particles and they adopt, respectively, disparate communication strategies to make them play different roles. At the first group, the population quantity of particles cut down linearly from $ps$ to $ps / 2$ along with $iter$ running and population quantity after changing in the first group is recorded as $ps 1$ . Without a doubt, the spare particles are the second group. The first set of particles still uses the center position $X^{iter}$ of the remaining particles as the landmark and that acts as their exploitation direction to the best final solution. The exact evolution equation described in equation (17)

{\begin{matrix} ps 1 & = & ⌈ \frac{(- (\frac{ps}{2}))}{maxIteratio n_{2}} * iter + ps ⌉, \\ {\vec{X}}_{c}^{iter} & = & \frac{\sum_{j = 1}^{ps 1} {\vec{X}}_{j}^{iter} * F ({\vec{X}}_{j}^{iter})}{ps 1 * \sum_{j = 1}^{ps 1} F ({\vec{X}}_{j}^{iter})}, \\ {\vec{X}}_{j}^{iter + 1} & = & {\vec{X}}_{j}^{iter} + b * ({\vec{X}}_{c}^{iter} - {\vec{X}}_{j}^{iter}), \end{matrix}

(17)

where $maxIteratio n_{2}$ is the amount of iterations at the second phase, and $F ({\vec{X}}_{j}^{iter})$ is the weight of the $j^{th}$ particle, which is computed by equation (18) on the basis of the maximization or minimization of the requested questions

F ({\vec{X}}_{j}^{iter}) = {\begin{matrix} fobj ({\vec{X}}_{j}^{iter}), & for minimization \\ \frac{1}{fobj ({\vec{X}}_{j}^{iter}) + a}, & for maximization \end{matrix}

(18)

The other part of the particles explores the best final solution using the learning strategy in QUATRE is shown in equation (8) and no longer regards the landmark as a direction to explore. In the meantime, the evolutionary guidance matrix $B$ is calculated using equation (19)

B = X_{gbest, g} + F * (X_{r 2, g} - X_{r 3, g}) .

(19)

In our algorithm, we set parameters as follows: dimension $D$ , the search space $[R_{\min}^{D}, R_{\max}^{D}]$ , the population size of particles $ps$ , the control factor $F = 0.7$ , the map and compass factor $R = 0.2$ in an any nonzero constant $a$ , $r$ takes a random value of 0 to 1, the amount of iterations are $Ite r_{\max}$ (including the amount of iterations $maxIteratio n_{1}$ in the first phase and the amount of iterations $maxIteratio n_{2}$ in the second phase), generate randomly the speed matrix $V$ and the position matrix $X$ of $ps$ particles, and set fitness function $f ({\vec{X}}_{i})$ . The generation process is outlined below:

Step 1: Assign parameters and the $X$ and $V$ of particles in the form of a matrix.

Step 2: Set the previous position $X_{pbest} = X$ , optimal solution location $X_{gbest}^{iter}$ , the optimal value $f (X_{gbest}^{iter})$ .

Step 3: Produce matrix $M$ and matrix $B$ .

Step 4: Enter the first iteration.

Step 4: Sort the particles arrange them from smallest to largest, select the center position from $ps 1$ historical best points.

Step 5: Enter the second iteration.

That is all shown in Algorithm 1.

Algorithm 1. Pseudo Code of QT-PIO algorithm.
1: Input: Initialize $D$ , $[R_{\min}^{D}, R_{\max}^{D}]$ , $ps$ , $F$ , $R$ , $a$ , $Ite r_{\max}$ , $maxIteratio n_{1}$ , $maxIteratio n_{2}$ , $V$ , $X$ , $f ({\vec{X}}_{j})$ ; 2: //Compute the fitness value of every particle 3: for $i = 1 : ps$ do 4: initialization of evaluation fitness value $f ({\vec{X}}_{j}^{iter})$ ; 5: end for 6: Set the previous position $X_{pbest} = X$ , optimal solution location $X_{gbest}^{iter}$ , the optimal value $f (X_{gbest}^{iter})$ ; 7: Generate the co-evolution matrix $M$ according to equation (11) 8: for $iter = 1 : maxIteratio n_{1}$ do 9: $B = X_{r 1, g} + F * (X_{r 2, g} - X_{r 3, g});$ 10: // Update position and velocity// $V^{iter + 1} = e^{- R * (iter + 1)} * V^{iter} + b * (X_{gbest}^{iter} - X^{iter});$ $X^{iter + 1} = M \otimes X^{iter} + \bar{M} \otimes B + b * V^{iter + 1};$ 11: Calculating the fitness function of the population $f (X^{iter + 1})$ ; 12: //Best Selection// 13: if $f ({\vec{X}}_{j}^{iter + 1}) < f ({\vec{X}}_{pbest, j}^{iter})$ then 14: $f ({\vec{X}}_{pbest, j}^{iter}) = f ({\vec{X}}_{j}^{iter + 1})$ ; 15: enf if 16: $X = X_{pbest}$ ; 17: Mark the optimal value of the population $f ({\vec{X}}_{gbest}^{iter + 1})$ , and the position of the optimal solution ${\vec{X}}_{gbest}^{iter + 1}$ ; 18: end for 19: for $iter = maxIteratio n_{1} + 1 : Ite r_{\max}$ do 20: Sort the particles and arrange them from smallest to largest// 21: The number of particles decreases linearly from $ps$ to $\frac{ps}{2}$ with the iterations that recorded as $ps 1$ // $ps 1 = ⌈ \frac{(- (\frac{ps}{2}))}{maxIteratio n_{2}} * iter + ps ⌉$ ; 22: Select the center position from $ps 1$ historical best points: ${\vec{X}}_{c}^{iter} = \frac{\sum_{j = 1}^{ps 1} {\vec{X}}_{j}^{iter} * F ({\vec{X}}_{j}^{iter})}{ps 1 * \sum_{j = 1}^{ps 1} F ({\vec{X}}_{j}^{iter})}$ ; 23: // Update position and velocity// 24: for $i = 1 : ps 1$ do 25: ${\vec{X}}_{j}^{iter + 1} = {\vec{X}}_{j}^{iter} + b * ({\vec{X}}_{c}^{iter} - {\vec{X}}_{j}^{iter});$ 26: end for 27: $B = X_{gbest, g} + F * (X_{r 2, g} - X_{r 3, g});$ 28: for $i = ps 1 + 1 : ps$ do 29: ${\vec{X}}_{j}^{iter + 1} = M_{j} \otimes {\vec{X}}_{j}^{iter} + {\bar{M}}_{j} \otimes B_{j}$ ; 30: end for //Best Selection// 31: if $f ({\vec{X}}_{j}^{iter + 1}) < f ({\vec{X}}_{pbest, j}^{iter})$ then 32: $f ({\vec{X}}_{pbest, j}^{iter}) = f ({\vec{X}}_{j}^{iter + 1})$ ; 33: end if 34: $X = X_{pbest}$ ; 35: Mark the optimal value of the population $f ({\vec{X}}_{gbest}^{iter + 1})$ , and the position of the optimal solution ${\vec{X}}_{gbest}^{iter + 1}$ ; 36: end for 37: Return $f (X_{gbest})$ and $X_{gbest}$ ;

Algorithm 1. Pseudo Code of QT-PIO algorithm.

1: Input: Initialize

D

[R_{\min}^{D}, R_{\max}^{D}]

ps

F

R

a

Ite r_{\max}

maxIteratio n_{1}

maxIteratio n_{2}

V

X

f ({\vec{X}}_{j})

;
2: //Compute the fitness value of every particle
3: for

i = 1 : ps

do
4: initialization of evaluation fitness value

f ({\vec{X}}_{j}^{iter})

;
5: end for
6: Set the previous position

X_{pbest} = X

, optimal solution location

X_{gbest}^{iter}

, the optimal value

f (X_{gbest}^{iter})

;
7: Generate the co-evolution matrix

M

according to equation (11)
8: for

iter = 1 : maxIteratio n_{1}

do
9:

B = X_{r 1, g} + F * (X_{r 2, g} - X_{r 3, g});

10: // Update position and velocity//

V^{iter + 1} = e^{- R * (iter + 1)} * V^{iter} + b * (X_{gbest}^{iter} - X^{iter});

X^{iter + 1} = M \otimes X^{iter} + \bar{M} \otimes B + b * V^{iter + 1};

11: Calculating the fitness function of the population

f (X^{iter + 1})

;
12: //Best Selection//
13: if

f ({\vec{X}}_{j}^{iter + 1}) < f ({\vec{X}}_{pbest, j}^{iter})

then
14:

f ({\vec{X}}_{pbest, j}^{iter}) = f ({\vec{X}}_{j}^{iter + 1})

;
15: enf if
16:

X = X_{pbest}

;
17: Mark the optimal value of the population

f ({\vec{X}}_{gbest}^{iter + 1})

, and the position of the optimal solution

{\vec{X}}_{gbest}^{iter + 1}

;
18: end for
19: for

iter = maxIteratio n_{1} + 1 : Ite r_{\max}

do
20: Sort the particles and arrange them from smallest to largest//
21: The number of particles decreases linearly from

ps

\frac{ps}{2}

with the iterations that recorded as

ps 1

ps 1 = ⌈ \frac{(- (\frac{ps}{2}))}{maxIteratio n_{2}} * iter + ps ⌉

;
22: Select the center position from

ps 1

historical best points:

{\vec{X}}_{c}^{iter} = \frac{\sum_{j = 1}^{ps 1} {\vec{X}}_{j}^{iter} * F ({\vec{X}}_{j}^{iter})}{ps 1 * \sum_{j = 1}^{ps 1} F ({\vec{X}}_{j}^{iter})}

;
23: // Update position and velocity//
24: for

i = 1 : ps 1

do
25:

{\vec{X}}_{j}^{iter + 1} = {\vec{X}}_{j}^{iter} + b * ({\vec{X}}_{c}^{iter} - {\vec{X}}_{j}^{iter});

26: end for
27:

B = X_{gbest, g} + F * (X_{r 2, g} - X_{r 3, g});

28: for

i = ps 1 + 1 : ps

do
29:

{\vec{X}}_{j}^{iter + 1} = M_{j} \otimes {\vec{X}}_{j}^{iter} + {\bar{M}}_{j} \otimes B_{j}

;
30: end for //Best Selection//
31: if

f ({\vec{X}}_{j}^{iter + 1}) < f ({\vec{X}}_{pbest, j}^{iter})

then
32:

f ({\vec{X}}_{pbest, j}^{iter}) = f ({\vec{X}}_{j}^{iter + 1})

;
33: end if
34:

X = X_{pbest}

;
35: Mark the optimal value of the population

f ({\vec{X}}_{gbest}^{iter + 1})

, and the position of the optimal solution

{\vec{X}}_{gbest}^{iter + 1}

;
36: end for
37: Return

f (X_{gbest})

and

X_{gbest}

;

QTPIO: QUasi-Affine TRansformation-Pigeon-Inspired Optimization.

The novel algorithm is combined with PIO and QUATRE that introduces matrices and adopts new update strategies. In the second stage, the number of particles is linearly processed, but no one is discarded, so that enhances the vitality of the particles, and the multiformity of the species is augmented, thereby improves competitiveness of this algorithm.

Experimental results and analysis

On behalf of evaluating the newly proposed QT-PIO algorithm, twenty-four functions are selected to test the performance of the algorithm.^17,18 We regard convergence speed and the minimum solution as the criteria of measurement in this article. There are twenty-four test functions applied, the dimension settings and search scope in the following tables. Table 2 shows the unimodal functions. Table 3 contains the multimodal functions. Table 4 displays fixed-dimension multimodal functions.

Table 2.

Unimodal functions in experiments.

Number	Function	Space	Dimension
1	$f_{1} (z) = \sum_{l = 1}^{m} z_{l}^{2}$	$[- 100, 100]$	30
2	$f_{2} (z) = \sum_{l = 1}^{m} \| z_{l} \| + Π_{l = 1}^{m} \| z_{l} \|$	$[- 10, 10]$	30
3	$f_{3} (z) = \sum_{l = 1}^{m} {(\sum_{j = 1}^{l} z_{j})}^{2}$	$[- 100, 100]$	30
4	$f_{4} (z) = ma x_{l} \| z_{l} \|, l \in [1, m]$	$[- 100, 100]$	30
5	$f_{5} (z) = \sum_{l = 1}^{m - 1} [100 {(z_{l + 1} - z_{l}^{2})}^{2} + {(z_{l} - 1)}^{2}]$	$[- 30, 30]$	30
6	$f_{6} (z) = \sum_{l = 1}^{m} {([z_{l} + 0.5])}^{2}$	$[- 100, 100]$	30
7	$f_{7} (z) = \sum_{l = 1}^{m} l * z_{l}^{2} + rand [0, 1)$	$[- 1.28, 1.28]$	30

Table 3.

Multimodal functions in experiments.

Number	Function	Space	Dimension	fmin
8	$f_{8} (z) = \sum_{l = 1}^{m} - z_{l} * \sin (\sqrt{\| z_{l} \|})$	$[- 500, 500]$	30	−12569
9	$f_{9} (z) = \sum_{l = 1}^{m} [z_{l}^{2} - 10 * \cos (2 π z_{l}) + 10]$	$[- 5.12, 5.12]$	30	0
10	$\begin{matrix} f_{10} (z) = - 20 * \exp (- 0.2 \sqrt{\frac{1}{m} \sum_{l = 1}^{m} z_{l}^{2}}) \\ - \exp (\frac{1}{m} \sum_{l = 1}^{m} \cos (2 π z_{l}) + 20 + 2.718) \end{matrix}$	$[- 32, 32]$	30	0
11	$f_{11} (z) = \frac{1}{4000} * \sum_{l = 1}^{m} z_{l}^{2} - Π_{l = 1}^{m} \cos (\frac{z_{l}}{\sqrt{l}}) + 1$	$[- 600, 600]$	30	0
12	$\begin{matrix} f_{12} (z) = \frac{π}{m} * {10 * \sin (π y_{1}) + \\ \sum_{l = 1}^{m - 1} {(y_{l} - 1)}^{2} [1 + 10 * si n^{2} (π y_{l + 1})] + (y_{m} - 1)^{2}} \\ + \sum_{l = 1}^{m} u (z_{l}, 10, 100, 4), \end{matrix}$ $y_{l} = 1 + \frac{z_{l} + 1}{4} * u (z_{l}, a, k, m) = {\begin{matrix} k (z_{l} - a), z > a \\ 0, - a < z_{l} < a \\ k (- z_{l} - a), z > a \end{matrix}$	$[- 50, 50]$	30	0
13	$\begin{matrix} f_{13} (z) = 0.1 * \\ {si n^{2} (3 π z_{1}) + \sum_{l = 1}^{m} {(z_{l} - 1)}^{2} [1 + si n^{2} (3 π z_{l} + 1)] \\ + {(z_{m} - 1)}^{2} [1 + si n^{2} (2 π z_{m})]} \\ + \sum_{l = 1}^{m} u (z_{l}, 10, 100, 4) \end{matrix}$	$[- 50, 50]$	30	0

Table 4.

Fixed-dimension multimodal functions in experiments.

Number	Function	Space	Dimension	fmin
14	$f_{14} (z) = {(\frac{1}{500} * \sum_{j = 1}^{25} \frac{1}{j + \sum_{l = 1}^{2} {(z_{l} - a_{lj})}^{6}})}^{- 1}$	$[- 65, 65]$	2	1
15	$f_{15} (z) = \sum_{l = 1}^{11} {[a_{l} - \frac{z_{1} (b_{l}^{2} + b_{l} z^{2})}{b_{l}^{2} + b_{l} z^{3} + z^{4}}]}^{2}$	$[- 5, 5]$	4	0.00030
16	$\begin{matrix} f_{16} (z) = 4 z_{1}^{2} - 2.1 z_{1}^{4} + \frac{1}{3} z_{1}^{6} \\ + z_{1} z_{2} - 4 z_{2}^{2} + 4 z_{2}^{4} \end{matrix}$	$[- 5, 5]$	2	−1.0316
17	$\begin{matrix} f_{17} (z) = {(z_{2} - \frac{5.1}{4 π^{2}} z_{1}^{2} + \frac{5}{π} z_{1} - 6)}^{2} \\ + 10 (1 - \frac{1}{8 π}) \cos z_{1} + 10 \end{matrix}$	$[- 5, 5]$	2	0.398
18	$\begin{matrix} f_{18} (z) = [1 + {(z_{1} + z_{2} + 1)}^{2} * \\ (19 - 14 z_{1} + 3 z_{1}^{2} - 14 z_{2} + 6 z_{1} z_{2} + 3 z_{2}^{2})] \\ * [30 + {(2 z_{1} - 3 z_{2})}^{2} * \\ (18 - 32 z_{1} + 12 z_{1}^{2} + 48 z_{2} - 36 z_{1} z_{2} + 27 z_{2}^{2})] \end{matrix}$	$[- 2, 2]$	2	3
19	$f_{19} (z) = - \sum_{l = 1}^{4} c_{l} * \exp (- \sum_{j = 1}^{3} a_{lj} {(z_{j} - p_{lj})}^{2})$	$[1, 3]$	3	−3.86
20	$f_{20} (z) = - \sum_{l = 1}^{4} c_{l} * \exp (- \sum_{j = 1}^{6} a_{lj} {(z_{j} - p_{lj})}^{2})$	$[0, 1]$	6	−3.32
21	$f_{21} (z) = - \sum_{l = 1}^{5} {[(Z - a_{l}) {(Z - a_{l})}^{T} + c_{l}]}^{- 1}$	$[0, 10]$	4	−10.1532
22	$f_{22} (z) = - \sum_{l = 1}^{7} {[(Z - a_{l}) {(Z - a_{l})}^{T} + c_{l}]}^{- 1}$	$[0, 10]$	4	−10.4028
23	$f_{23} (z) = - \sum_{l = 1}^{10} {[(Z - a_{l}) {(Z - a_{l})}^{T} + c_{l}]}^{- 1}$	$[0, 10]$	4	−10.5363
24	$\begin{matrix} f_{24} (z) = (\sum_{l = 1}^{5} l * \cos ((l + 1) z_{1} + l)) \\ * (\sum_{l = 1}^{5} l * \cos ((l + 1) z_{2} + l)) \end{matrix}$	$[- 5.12, 5.12]$	2	−186.7309

Everhart and Kennedy presented the particle swarm optimization (PSO) first in 1995, and its basic concept originated from the research on the foraging behavior of birds.^19,20,21 PSO is originally inspired by the cluster activity of birds and a useful model is created by group intelligence.^22,23 To validate the quality of the property for the optimization problems of the QT-PIO algorithm comparing with the other three algorithms: PIO algorithm, PSO algorithm, QUATRE algorithm. The parameters of the four algorithms used in the comparison process are expressed in Table 5. The data of the average and square deviation under the test functions of over 600 iterations are obtained, and the comparison is expressed in Table 6. In the values of each row, the best value is highlighted as shown. Observed from the comparison of Table 6, the new QT-PIO algorithm can often provide superior results in most selected test functions than other algorithms of over 100 runs.

Table 5.

Parameters settings.

No.	Algorithm	Parameter values
1	PIO	$ps$ = 60, $R$ = 0.2, $a$ = 0.1, $Vmax$ = 3, $Ite r_{\max}$ = 600 ( $maxIteratio n_{1}$ = 300, $maxIteratio n_{2} = 300$ )
2	PSO	$ps$ = 60, $d 1$ = 2, $d 2$ = 2, $w_{\max}$ = 0.9, $w_{\min}$ = 0.2, $Vmax$ = 3, $Ite r_{\max}$ = 600
3	QUATRE	$ps$ = 60, $F$ = 0.7, $Vmax$ = 3, $Ite r_{\max}$ = 600
4	QT-PIO	$ps$ = 60, $R$ = 0.2, $a$ = 0.1, $F$ = 0.7, $Vmax$ = 3, $Ite r_{\max}$ = 600 ( $maxIteratio n_{1}$ = 300, $maxIteratio n_{2}$ = 300)

PIO: pigeon-inspired optimization; PSO: particle swarm optimization; QUATRE: QUasi-Affine TRansformation Evolutionary; QTPIO: QUasi-Affine TRansformation-Pigeon-Inspired Optimization.

Table 6.

Comparsion results of mean value and standard deviation with diverse algorithm.

Function	PIO		QUATRE		PSO		QTPIO
	Mean	Standard	Mean	Standard	Mean	Standard	Mean	Standard
f1	18.6332	3.3724	0.3529	0.1224	5.858e + 02	2.6744e + 02	1.2615e-08	9.0690e-08
f2	15.8862	2.6240	8.5978	2.2405	4.6275e + 02	1.0710e + 02	4.3108e-05	1.8468e-04
f3	1.08e + 03	5.3629e + 02	2.2363e + 04	5.7981e + 03	1.1402e + 03	4.1997e + 02	7.9563	2.5069
f4	1.0220	0.0355	8.8211	1.2727	15.5464	2.7414	0.9950	0.0263
f5	7.1147e + 02	3.2299e + 02	4.2781e + 03	3.3998e + 03	4.0460e + 06	3.8863e + 06	52.7145	52.1526
f6	42.3820	5.8131	0.3761	0.1549	6.1402e + 02	2.6795e + 02	5.4458e-09	2.1702e-08
f7	41.9966	15.4374	12.5532	11.5875	5.9292e + 05	5.5561e + 05	0.0268	0.0103
f8	−2.5491e + 03	4.3312e + 02	−1.9841e + 33	1.6593e + 34	−2.6509e + 76	2.2743e + 77	−1.8652e + 28	1.1328e + 29
f9	20.9807	4.1413	1.3267e + 02	13.1095	1.4167e + 03	4.1905e + 02	11.2245	2.7448
f10	3.0330	0.2944	20.1919	0.0311	20.9195	0.4294	1.6980	0.5486
f11	0.7127	0.1705	0.0518	0.0466	1.1674	0.0646	0.0178	0.0218
f12	3.9410	0.8346	0.3745	0.2006	4.3678e + 03	0.2006	0.1924	0.3603
f13	0.4578	0.2041	0.9082	0.3402	2.9840e + 05	4.5549e + 05	1.3498e-32	2.4756e-47
f14	−1.1408e + 02	38.7487	−1.8673e + 02	9.7939e-04	−1.8667e + 02	0.1663	−1.8673e + 02	1.4504e-08
f15	0.0302	0.0210	0.0011	4.3061e-05	0.0010	8.6872e-05	9.5477e-04	3.3481e-04
f16	−1.0316	1.87e-08	−1.0316	1.4605e-15	−1.0316	1.5580E-15	−1.0316	1.5580E-15
f17	0.6721	0.3320	0.4236	0.0330	0.3979	1.0600e-15	0.3979	8.4914e-08
f18	23.2291	20.9353	1.8239e + 04	7.34590e + 04	4.6200	11.3971	3.0000	1.2417e-15
f19	−3.63205	0.0829	−3.3841	1.0401	−3.7855	0.5435	−3.8628	6.2486e-15
f20	−1.9270	0.4826	−1.6300e-22	1.6299e-21	−0.3251	0.9803	−3.2709	0.0592
f21	−8.2160	2.2302	−10.1319	0.1073	−6.0938	3.4405	−8.9806	2.1562
f22	−8.2084	2.5139	−10.4007	0.0088	−6.7265	3.6376	−8.7020	2.4919
f23	−5. 75	0.0067	−10.5354	0.0072	−6.2799	3.7142	−7.8324	2.7176
f24	−1.8439e + 02	13.8362	−1.8673e + 02	4.1986e-04	−1.8668e + 02	0.1955	-1.8673e + 02	2.1621e-13

PIO: pigeon-inspired optimization; QUATRE: QUasi-Affine TRansformation Evolutionary; PSO: particle swarm optimization; QTPIO: QUasi-Affine TRansformation-Pigeon-Inspired Optimization.

QT-PIO algorithm wins twenty in twenty-four on mean value comparsion as Table 6 shown. For the sake of more intuitively evaluating the quality of the QT-PIO algorithm, Figure 1 exhibits the curves of PIO, QUATRE, PSO, QT-PIO with the best final fitness value obtained minimum for the unimodal functions and the curves of multi-modal functions is shown in Figure 2. Figure 3 holds up the curves of PIO, QUATRE, PSO, QT-PIO with the best final fitness value obtained minimum for the selected fixed-dimension multimodal functions in experiments. In addition, Figure 1, Figure 2 and Figure 3 display the function search space of particles is used for optimization.

Figure 1.

Function model and comparison of four algorithms of PIO, PSO, QUATRE, and QT-PIO performance in test functions of single-modal.

Figure 2.

Function model and comparison of four algorithms of PIO, PSO, QUATRE, and QT-PIO performance in test functions of multi-modal.

Figure 3.

Function model and comparison of four algorithms of PIO, PSO, QUATRE, and QT-PIO performance in randomly fixed-dimension multimodal functions.

As known from Figure 1, the curve of the QT-PIO algorithm not only converges fastest but also has the best optimal solution. This means that it performs best under all selected seven unimodal functions. As a consequence, we could say the QT-PIO algorithm optimizes the original function in the case of unimodal functions. We select six multimodal functions for testing, Figure 2 indicates that the QT-PIO algorithm achieves the best optimal solution as soon as possible under the five functions of six multi-modal functions. Figure 3 shows that QT-PIO achieves a fast convergence speed.

In accordance with the comparison of Figures 1, 2, 3, and Table 6, there is no doubt the convergence speed of QT-PIO is distinctly faster and can achieve better optimal value. Strictly, under the selected test functions modal the proposed algorithm can be said to be beautiful.

On the whole, QT-PIO is excellent and effective compared with before. Local optimization in the original PIO algorithm is solved well in the proposed algorithm, and the diversity of QT-PIO algorithm is improved effectively.

Experiment for DV-Hop in WSNs problem

The research of positioning technology has far-reaching significance. Compared with traditional sensors that have limitations, WSNs have numerous advantages, such as smaller size, less energy consumption, simple organization, no special personnel required, and high fault tolerance. Not only can it reduce network deployment time, cut down deployment costs, but it can also be used in a number of areas where traditional sensors cannot.

WSN is a self-organized, multi-hop distributed network composed of randomly deploying sensor nodes that communicate wirelessly in the monitored area.²⁴ According to whether the distance between practical nodes requires to be measured during the locating process, the localization algorithm can be classified into a range-free location algorithm and range-based positioning algorithm. The DV-Hop is a non-ranging location algorithm based on distance vector routing in order to avoid direct measurement of the distance between nodes. Distance vector routing is based on the distance of the destination to determine the best path.

Incipient DV-Hop

Pristine positioning algorithm obtains the minimum hop-count by distance vector routing between the nodes whose location is unknown and the beacon node first. Next, dividing the distance between each beacon node by the total number of hops gets the average distance per hop. The average distance $ho p_{avedi}$ of per hop is calculated in equation (20)

ho p_{avedi} = \frac{\sum_{i = 1, i \neq j}^{n} \sqrt{{(x_{i} - x_{j})}^{2} + {(y_{i} - y_{j})}^{2}}}{\sum_{i = 1, i \neq j}^{n} ho p_{ij}},

(20)

where $ho p_{ij}$ is the hop-count from the anchor node $i$ to the anchor node $j$ .

And then the average distance of per hop is multiplied by the minimum hop-count between this unknown node and the beacon node, hence the obtained product is taken as the estimated distance between this unknown node and the beacon node. In the end, the location estimation of the unknown node is obtained by means of the maximum likelihood estimation method. In this way, the error of state estimation would be tested by the objective function as equation (21)

f (x, y) = \min (\sum_{i = 1}^{n} {(\frac{1}{ho p_{ui}})}^{2} {(\sqrt{{(x - w_{i})}^{2} + {(y - z_{i})}^{2}} - d_{i})}^{2}) .

(21)

There $n$ is the amount of all anchor nodes, $d_{i}$ signifies estimated distance between the unknown node and anchor node, $(x, y)$ denotes the estimated position coordinate of unknown nodes in the intelligence algorithm combined with DV-Hop. $(w_{i}, z_{i})$ means the position coordinate of the anchor node.

Our algorithm for optimizing DV-Hop

Although DV-Hop has the characteristics of a simple method, the requirements for accuracy are getting higher with the needs of life and production.²⁵ Therefore, people often combine intelligent computation with it to locate. In this article, we make use of QT-PIO to optimize DV-Hop, which improves the precision of positioning and reduces the error. In the optimized DV-Hop, first calculates the minimum value of hops among nodes and figures up the average hop distance of each beacon node and then the hop-count is used to estimate the distance. At last, our novel QT-PIO algorithm is applied to estimate the position coordinates of unknown nodes. The main problem of positioning in the WSNs is to reduce the positioning error, here it uses the novel algorithm to optimize.^26,27,28 The experiment considers the two-dimensional best final position obtained in the QT-PIO algorithm as the approximated location of the unknown nodes.

The detailed procedure is as below:

Set parameters of QT-PIO and initialize distance and hop-count matrix among nodes;

Generate the minimum hop-count among all the nodes;

Calculate average hop distance of beacon nodes using equation (21);

$d_{i}$ is figured out;

Employ QT-PIO to gain the two-dimensional variable.

Optimal experiment

The parameters needed in our algorithm for optimizing DV-Hop are flowing: the edge length of the area $A = 100$ , the total amount of all nodes $NAmount = 350$ , all anchor nodes are 70, wireless communication distance $S = 30$ , dimension $D = 2$ , individual $ps = 30$ , maximum iteration is set to 600, QT-PIO algorithm runs 20. Here we compare the performance qualities of the advanced DV-Hop optimized by QT-PIO algorithm with the primary DV-Hop, DV-Hop optimized by PIO algorithm, DV-Hop optimized by PSO algorithm, and DV-Hop optimized by QUATRE algorithm.

In the course of combining evolutionary algorithms with sensor localization, the two-dimensional optimal solution $(x_{i}, y_{i})$ signifies the $i^{th}$ unknown node. The errors of the position of estimated unknown nodes are calculated by equation (22). Table 7 shows the comparsion of positioning errors and accuracy that come out of equation (23)

{\begin{matrix} e r_{i} = \sqrt{{(x_{i} - x_{i}^{1})}^{2} + {(y_{i} - y_{i}^{1})}^{2}}, \\ er = \frac{\sum_{i}^{m} (e r_{i})}{m}, \end{matrix}

(22)

where $m$ is the total quantity of unknown nodes and $(x_{i}^{1}, y_{i}^{1})$ represents the practical coordinate of the $i^{th}$ unknown node

{\begin{matrix} e r_{i} = \sqrt{{(x_{i} - {x^{1}}_{i})}^{2} + {(y_{i} - y_{i}^{1})}^{2}}, \\ accuracy = \frac{\sum_{i}^{m} (e r_{i})}{m * S}, \end{matrix}

(23)

where $S$ is the communication distance of nodes.

Table 7.

Comparsion of error and accuracy results.

Measurement index	QT-PIO	DV-Hop	PIO	PSO	QUATRE
Error	4.2395	9.7851	5.0124	4.7376	4.2542
Accuracy	0.1415	0.3262	0.1589	0.1494	0.1418
Aveaccuracy	0.1416	0.1631	0.1597	0.1418	0.1418

QTPIO: QUasi-Affine TRansformation-Pigeon-Inspired Optimization; PSO: particle swarm optimization; QUATRE: QUasi-Affine TRansformation Evolutionary.

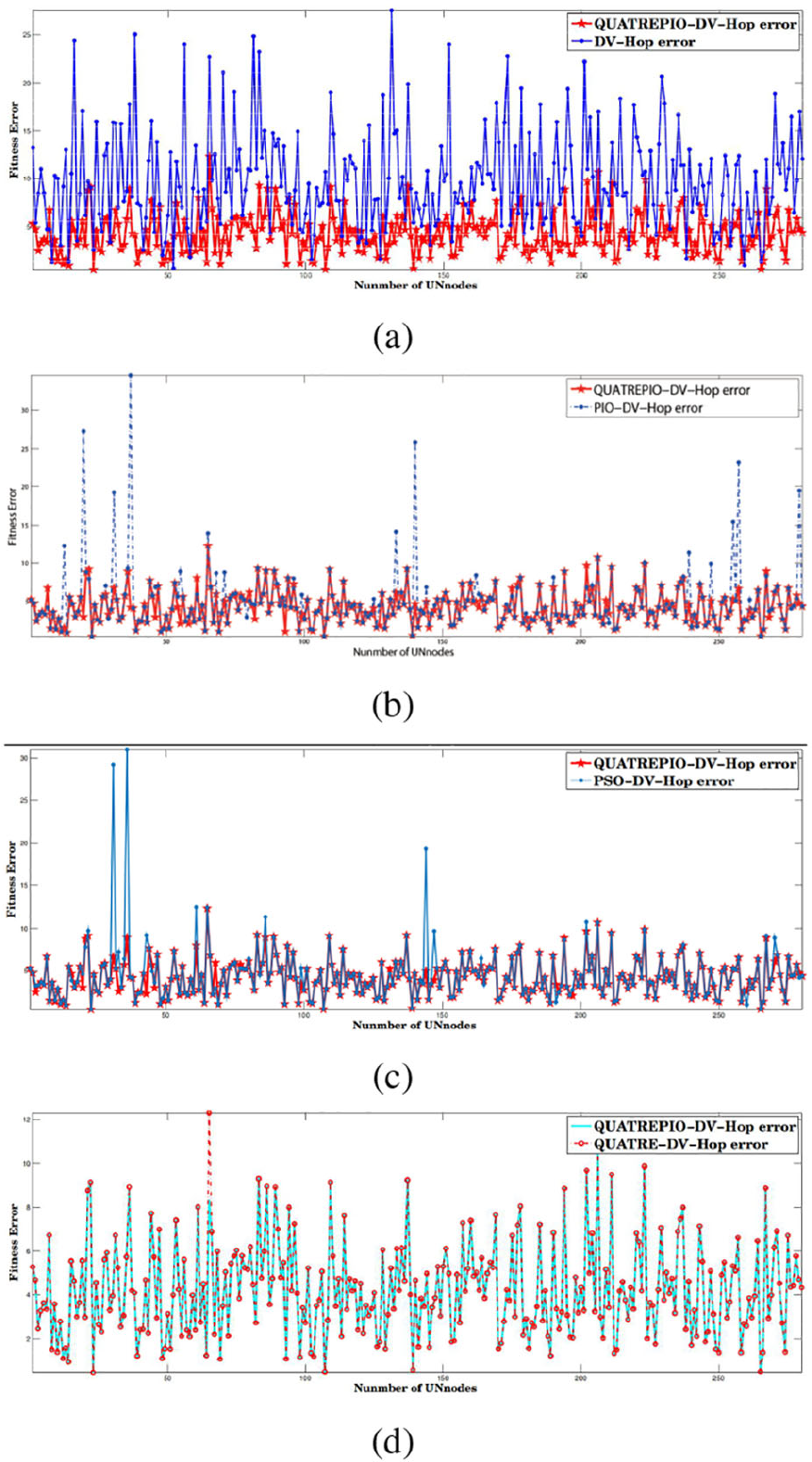

Figure 4 depicts the comparsion of errors of the applied QT-PIO, PSO, PIO, QUATRE after running 20. When scanning the errors and accuracy of four algorithms applied to DV-Hop, the QT-PIO algorithm could reduce the errors of estimation effectively and have a great effect on the positioning precision.

Figure 4.

Comparison of PIO, PSO, QUATRE, and QT-PIO combining with DV-Hop performance in specific test functions.

Distinctly observed from above that the results of the QT-PIO under the given testing function for the DV-Hop positioning algorithm in WSNs is preferable than the other three algorithms in the process of comparison.

Conclusion

To improve the capability and performance of PIO, this study proposed a new optimization algorithm, which mainly applies the co-evolutionary M and mutation B in QUATRE algorithm to PIO algorithm, and enables individuals to update their positions in the form of matrix in the process of optimization. This learning strategy not only merely raises the diversity of PIO but also effectively avoids the problem that pigeons of the PIO algorithm plunge into a local optimal solution. The curve of registration results demonstrates the converging speed of this update strategy model. Furthermore, the rate of convergence is faster than the traditional model, and this model has good practicability. Later we use the new optimized algorithm for DV-Hop positioning, which further improves the error caused by positioning and improves the accuracy. Our algorithm supplies an effective optimization mechanism for going into WSNs and the application of WSNs. The proposed QT-PIO algorithm may be further improved by adopting some efficient methods.^29,30

Footnotes

Acknowledgements

This class file was developed by Sunrise Setting Ltd, Brixham, Devon, UK.

Website:

Handling Editor: Kuo-Ming Chao

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work is supported by the National Natural Science Foundation of China (61872085), the Natural Science Foundation of Fujian Province (2018J01638) and the Fujian Provincial Department of Science and Technology (2018Y3001).

ORCID iDs

Xiao-Xue Sun

Jeng-Shyang Pan

Shu-Chuan Chu

Pei Hu

Ai-Qing Tian

References

Duan

Qiao

. Pigeon-inspired optimization: a new swarm intelligence optimizer for air robot path planning. Int J Intell Comput Cybernet 2014; 7(1): 24–37.

Chen

, et al. An improved pigeon-inspired optimization for clustering analysis problems. Int J Comput Intell Appl 2017; 16(2): 809–818.

Wang

Rahnamayan

Sun

, et al. Gaussian bare-bones differential evolution. IEEE Tran Cybernet 2013; 43(2): 634–647.

Wang

Jin

Sun

, et al. Offline data-driven evolutionary optimization using selective surrogate ensembles. IEEE Trans Evolut Comput 2018; 23(2): 203–216.

Kong

Pan

J-S

Tsai

P-W

, et al. A balanced power consumption algorithm based on enhanced parallel cat swarm optimization for wireless sensor network. Int J Distrib Sens Net 2015; 11(3): 1–10.

Kumar

Lobiyal

. An advanced DV-Hop localization algorithm for wireless sensor networks. Wirel Pers Communi 2013; 71(2): 1365–1385.

Chen

Zhang

. Improved DV-Hop node localization algorithm in wireless sensor networks. Int J Distrib Sens Net. Epub ahead of print 1 August 2012. DOI: 10.1155/2012/213980.

Nguyen

T-T

Pan

J-S

Dao

T-K

. An improved flower pollination algorithm for optimizing layouts of nodes in wireless sensor network. IEEE Access 2019; 7: 75985–75998.

Meng

Pan

J-S

Tseng

K-K

. PaDE: an enhanced algorithm with novel control parameter adaptation schemes for numerical optimization. Knowl-based Syst 2019; 168: 80–99.

10.

Kung

H-Y

Chen

C-H

H-H

. Designing intelligent disaster prediction models and systems for debris-flow disasters in Taiwan. Expert Syst Appl 2012; 39(5): 5838–5856.

11.

Duan

Qiu

. Advancements in pigeon-inspired optimization and its variants. Sci China Inform Sci 2019; 62: 70201.

12.

Wang

Gao

Wang

, et al. An affinity propagation-based self-adaptive clustering method for wireless sensor networks. Sensors 2019; 19(11): 2579.

13.

Liu

Pan

J-S

Nguyen

T-T

. A bi-population QUasi-Affine TRansformation evolution algorithm for global optimization and its application to dynamic deployment in wireless sensor networks. EURASIP J Wirel Comm. Epub ahead of print 1 December 2019. DOI: 10.1186/s13638-019-1481-6.

14.

Chu

S-C

Xue

Pan

J-S

, et al. Optimizing ontology alignment in vector space. J Intern Technol 2020; 21: 15–22.

15.

Meng

Pan

J-S

. QUasi-Affine TRansformation evolutionary (QUATRE) algorithm: a cooperative swarm based algorithm for global optimization. Knowl-based Syst 2016; 109: 104–121.

16.

Yin

Zhang

, et al. A task allocation strategy for complex applications in heterogeneous cluster–based wireless sensor networks. Int J Distrib Sens Netw. Epub ahead of print 21 August 2018. DOI: 10.1177/15501477 18795355

17.

Pan

J-S

Chu

S-C

. Novel parallel heterogeneous meta-heuristic and its communication strategies for the prediction of wind power. Proces 2019; 7(11): 845.

18.

Kennedy

Eberhart

. Particle swarm optimization (PSO). IEEE Int Conf Neu Netw 1995; 4: 1942–1948.

19.

Wang

Gao

, et al. A PSO based energy efficient coverage control algorithm for wireless sensor networks. Comput Mater Contin 2018; 56(3): 433–446.

20.

Chu

S-C

Tsai

P-W

Pan

J-S

. Cat Swarm Optimization. PRICAI 2006; 4099: 854–858.

21.

Sun

Jin

Cheng

, et al. Surrogate-assisted cooperative swarm optimization of high-dimensional expensive problems.IEEE Tran Evolut Comput 2017; 21(4): 644–660.

22.

Chang

J-F

Chu

S-C

Roddick

, et al. A parallel particle swarm optimization algorithm with communication strategies. J Inform Sci Eng 2005; 21(4): 809–818.

23.

Pan

J-S

Kong

Sung

T-W

, et al. A clustering scheme for wireless sensor networks based on genetic algorithm and dominating set. J Inter Technol 2018; 19(4): 1111–1118.

24.

Chen

C-H

Lee

C-A

C-C

. Vehicle localization and velocity estimation based on mobile phone sensing. IEEE Access 2016; 4: 803–817.

25.

Wang

Gao

Yin

, et al. An enhanced PEGASIS algorithm with mobile sink support for wireless sensor networks. Wirel Comm Mob Comput 2018; 2018: 1–9.

26.

Wang

Gao

Liu

, et al. An improved routing schema with special clustering using PSO algorithm for heterogeneous wireless sensor network. Sensors 2019; 19(3): 671.

27.

Pan

J-S

Kong

Sung

T-W

, et al.

α

-fraction first strategy for hierarchical model in wireless sensor networks. J Inter Technol 2018; 19(6): 1717–1726.

28.

Wang

Liu

, et al. An empower hamilton loop based data collection algorithm with mobile agent for WSNs. Hum-cent Comput Info Sci 2019; 9(1): 18.

29.

Pan

J-S

Lee

C-Y

Sghaier

, et al. Novel systolization of subquadratic space complexity multipliers based on toeplitz matrix-vector product approach. IEEE Tran VLSI Syst 2019; 27: 1614–1622.

30.

Xue

Chen

Yao

. Efficient user involvement in semi-automatic ontology matching. IEEE TETCI. Epub ahead of print 13 December 2018. DOI: 10.1109/TCI. 2018.2883109.

A novel pigeon-inspired optimization with QUasi-Affine TRansformation evolutionary algorithm for DV-Hop in wireless sensor networks

Abstract

Keywords

Introduction

Related work

Canonical PIO algorithm

QUATRE algorithm

QT-PIO algorithm

Experimental results and analysis

Experiment for DV-Hop in WSNs problem

Incipient DV-Hop

Our algorithm for optimizing DV-Hop

Optimal experiment

Conclusion

Footnotes

Acknowledgements

Declaration of conflicting interests

Funding

ORCID iDs

References
