New-Onset Alzheimer’s Disease and Normal Subjects 100% Differentiated by P300

Abstract

Previous work has suggested that evoked potential analysis might allow the detection of subjects with new-onset Alzheimer’s disease, which would be useful clinically and personally. Here, it is described how subjects with new-onset Alzheimer’s disease have been differentiated from healthy, normal subjects to 100% accuracy, based on the back-projected independent components (BICs) of the P300 peak at the electroencephalogram electrodes in the response to an oddball, auditory-evoked potential paradigm. After artifact removal, clustering, selection, and normalization processes, the BICs were classified using a neural network, a Bayes classifier, and a voting strategy. The technique is general and might be applied for presymptomatic detection and to other conditions and evoked potentials, although further validation with more subjects, preferably in multicenter studies is recommended.

Introduction

It is important to be able to diagnose subjects with new-onset Alzheimer’s disease (AD) both for their care and for their personal planning. Evoked potential analysis might provide a relatively inexpensive, quick, and noninvasive technique for this and has therefore been investigated. A method of distinguishing with 100% accuracy between subjects with early-stage AD and normal, healthy subjects (normals) based upon the nonoscillatory, independent components (ICs) of the P300 peak in the P300 waveform elicited by an auditory oddball paradigm is described in this article. Because averaging is not used, potentially significant components, unsynchronized to the stimulus, are not reduced, and results may be obtained using fewer trials per subject. This method could be a useful tool to aid diagnosis, and the selected ICs may be regarded as biomarkers. The method might also be useful for presymptomatic testing for AD.

Since the review and description of work previous to 2011, ¹ there have been further publications on the topic in question. In a review of 2011, ² it was concluded that the sensitivities of a number of event-related potential (ERP) components have great promise for the detection of the stages of AD. Another review in 2014 was focused on the progression from mild cognitive impairment (MCI) to AD. ³ All the studies quoted followed changes in amplitude and latency of the P300 peak, but on an averaged basis. In reference, ⁴ trial averaging and statistical analysis of the peak ERP amplitudes and latencies derived from a 3-stimulus auditory oddball paradigm showed that the P3a and P3b peaks produced the most sensitive and reliable measures of the cognitive deficits associated with early AD. None of this work ^{2 – 4} addressed the analysis on a single trial basis as described here. However, Ouyang et al ⁵ have analyzed single trials by applying the technique of residue iteration decomposition to identify the latencies of the different ERP peaks in different trials. It seems that this technique, though, does require some averaging of trials to obtain the initial most likely latency of the ERP peaks, after which the individual latencies are found by an iterative method. No application that differentiated between different subject groups was presented. By contrast, in our work, we derive the individual components of the individual ERP peaks comprising each individual single trial using independent components analysis (ICA) and apply this knowledge to differentiate between normals and ADs. It seems none of the authors ^{2 – 5} were aware of the previous work by both ourselves and those we quoted, ¹ although the work of Jung et al using ICA is mentioned in one article. ⁵ In another review, ⁶ it was concluded that subjects with MCI had prolonged P300 latencies compared to controls, but shortened P300 latencies when compared to subjects with AD, meaning that ADs had longer latencies than normals.

Our research was carried out using the data obtained in earlier work, which has been thoroughly described in 2 previous publications. ^{1, 7} Thus, only the essentials of that work are repeated here. A selective analysis of those data using an artificial neural network, the Probabilistic Simplified Fuzzy ARTMAP (PSFAM), ⁸ and a voting strategy is presented.

The undulatory P300 waveform includes a number of positive and negative peaks. ¹ Using ICA and back-projecting the nonoscillatory, independent, source signals to the scalp electrodes, it was found that the peaks in the P300 waveform consisted of many short duration, randomly occurring, and randomly positive or negative half-sinusoidal pulses. ¹ Here, attention is focused upon the positive back-projected independent components (BICs) centered on the P300 peak because the shape of the peak is primarily determined by these and the latency of this peak is delayed in ADs compared to normals. ^{1 , 6} Therefore, these BICs were deemed the most likely to be useful for differentiating between ADs and normals.

Theoretical Aspects

The voltage measured at each electrode depends upon the contributions there from all the independent cortical signal sources. These depend upon the unknown source signals and their unknown transmission paths from the sources to the electrodes. Fortunately, the individual source signals may be computed from the measured scalp voltages using ICA, ¹ where it was explained that if $S$ be a matrix of temporally independent source signals and $Y$ be the matrix of measured signals at the electrodes, which are assumed to consist of linear sums of the source signals $(S$ ), which have passed through an unknown, linear transmission system characterized by an m × m mixing matrix, $A$ , then we may write

$Y=AS$

1

and

$\widehat{S}=A^{-1}Y.$

2

Thus, the estimated source signals $(\widehat{S})$ may be found since $A^{-1}$ can be found. Selected estimated source signals may then be multiplied by the mixing matrix to obtain their estimated contributions at the measurement electrodes, $\widehat{Y}$ . These are referred to as the BICs. Thus,

$\widehat{Y}=A\widehat{S}.$

3

The BICs are correct in both magnitude and sign and so may be compared.

The PSFAM, used to classify the data, consisted of a Simplified Fuzzy ARTMAP (SFAM) and a Bayes classifier. ⁸ The latter produced the Bayes posterior probability $P(A|\mathbf{X})$ that the test vector X belonged to the class AD or class normal.

Measurements

Six male and 3 female normal, healthy subjects and 2 male and 7 female newly diagnosed, early-stage, mildly cognitively impaired subjects with AD participated in auditory-evoked oddball P300 recordings as fully detailed previously. ^{1, 7} The ADs were under various drug treatments, ¹ where age effects are also discussed.

Scalp voltages were recorded at 27 standard electrode sites (see below). The voltage waveforms were sampled at 1024 Hz, the high-pass cutoff frequency was 0.016 Hz, and the low-pass cutoff was at 60 Hz. A notch filter eliminated the mains frequency of 50 Hz. There were 40 target tones of 2 kHz and 160 nontarget tones at 1 kHz. The interstimulus interval was 1.29 seconds. The subjects had closed eyes, were relaxed, and responded to the target tones by button-pressing. For each subject, 360 target stimuli were recorded, with 600 prestimulus samples and 700 poststimulus samples.

Procedures

The following signal processing was performed as fully detailed before. ^{1 , 7} The ICs of the P300 waveforms were obtained by applying principal components analysis first and then ICA. ¹ These ICs were then back-projected to the measurement electrodes as the BICs. These were separated into separate bins centered around the P300 peaks. The highest variance BICs were selected for further processing. The BICs in each bin were clustered in 2 stages using the k-means clustering algorithm. ^{1, 7} In the primary stage, clustering was by amplitude and latency, in the secondary stage by the scalp topographies. ^{1, 7} Noise components were eliminated by filtering out ICs according to the number of zero-crossings in their waveform and their largest and smallest amplitudes. ^{1, 7} Within each bin, the peak amplitudes, latencies, and the scalp topographies of the BICs were saved for analysis. ^{1, 7}

In the previous article, ¹ the BIC results obtained at this stage of processing were discussed and have also been briefly reviewed in the Introduction. Here, we describe that data in detail and how they have been processed further to allow identification of the individuals with newly diagnosed AD. These data may be requested from the corresponding author.

The data spreadsheet was 39 columns wide and contained 5302 rows. The data in each row included subject details, subject class (AD or normal), trial number, BIC information (which bin, which cluster, positive or negative, amplitude, latency), and the voltages of the BICs at the 27 measurement electrodes used which were Fp1, Fp2, F7, F8, F3, F4, FC5, FC6, FC1, FC2, T7, T8, C3, C4, CP5, CP6, CP1, CP2, P7, P8, P3, P4, O1, O2, Fz, Cz, and Pz. These 27 BIC voltages, taken in the above order, comprise the BIC topology vector. This spreadsheet was divided into separate spreadsheets for the subjects with AD and normal subjects.

Data Preparation for PSFAM

It was intended to use the data in the above 2 spreadsheets to train classifiers to distinguish between the subjects with AD and normal subjects. These 5302 × 39 data contained some personal details which were irrelevant to this training, and so these columns were ultimately deleted. Since it had been established ¹ that those positive BICs associated with the P300 peak, and their latencies, were the most significant in distinguishing the 2 classes, the amount of data could be considerably reduced by using only that for positive BICs found close to the P300 peak, that is, those in bin 5. This reduced the data arrays to 520 and 581 rows for the subjects with AD and normal subjects, respectively. Since latency was more important than amplitude, the amplitude column was also deleted. The training and test vectors then consisted of the latency vector and the topology vector, making a 1 × 28 row vector per trial.

The PSFAM neural network required input data normalized to between 0 and 1. The latency column was normalized by dividing all values by the largest. Some of the elements of a topology vector could be positive, while others were negative, reflecting the scalp voltage topography. A simple formula was applied to convert the values over the positive and negative voltage range of the topology vector array to values between 0 and 1. A spreadsheet function was used to set all data to numerical values because the classifiers could not accept exponentials. A sample section of a resulting data array up to column F4 is shown in Table 1. The values are as calculated, but of course were not measured to the accuracy shown. The contents of the first column define the bin and cluster numbers of the BIC in a particular row. Subj is the subject number. Trial is the trial number for that subject. Latencies are in milliseconds, and voltages in millivolt. Files in training and validation data formats were derived from the 2 data arrays by deleting columns 1 to 3, and replacing column 4 (trial) by the subject class; 0 for a normal and 1 for a subject with AD. Test vectors may be formed by deleting the first 4 columns.

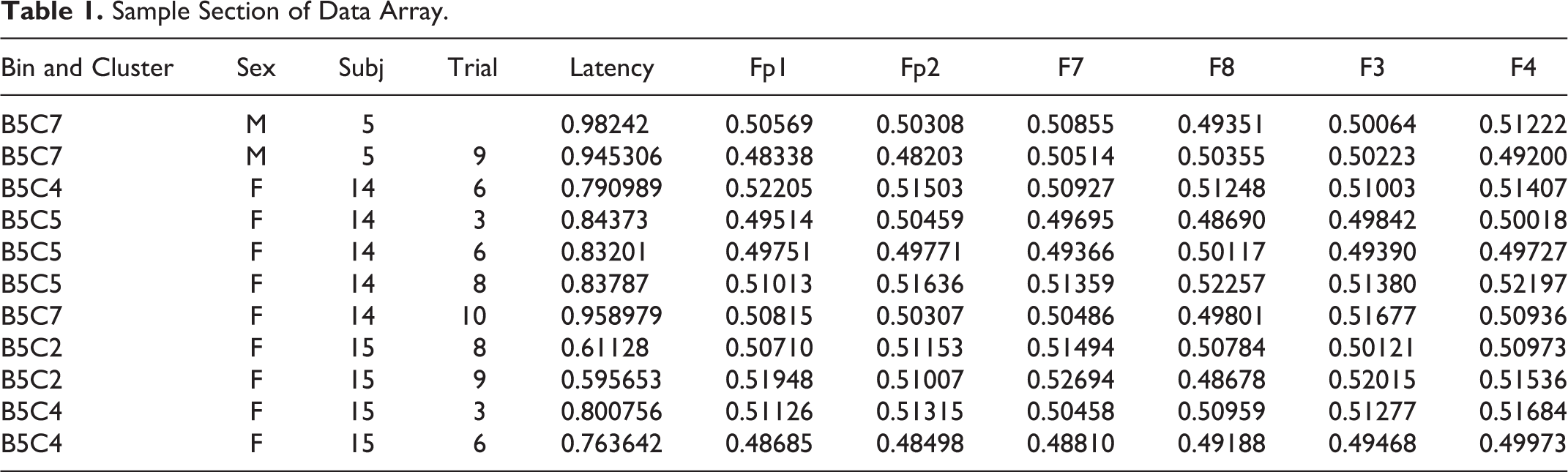

Table 1.

Sample Section of Data Array.

Bin and Cluster	Sex	Subj	Trial	Latency	Fp1	Fp2	F7	F8	F3	F4
B5C7	M	5		0.98242	0.50569	0.50308	0.50855	0.49351	0.50064	0.51222
B5C7	M	5	9	0.945306	0.48338	0.48203	0.50514	0.50355	0.50223	0.49200
B5C4	F	14	6	0.790989	0.52205	0.51503	0.50927	0.51248	0.51003	0.51407
B5C5	F	14	3	0.84373	0.49514	0.50459	0.49695	0.48690	0.49842	0.50018
B5C5	F	14	6	0.83201	0.49751	0.49771	0.49366	0.50117	0.49390	0.49727
B5C5	F	14	8	0.83787	0.51013	0.51636	0.51359	0.52257	0.51380	0.52197
B5C7	F	14	10	0.958979	0.50815	0.50307	0.50486	0.49801	0.51677	0.50936
B5C2	F	15	8	0.61128	0.50710	0.51153	0.51494	0.50784	0.50121	0.50973
B5C2	F	15	9	0.595653	0.51948	0.51007	0.52694	0.48678	0.52015	0.51536
B5C4	F	15	3	0.800756	0.51126	0.51315	0.50458	0.50959	0.51277	0.51684
B5C4	F	15	6	0.763642	0.48685	0.48498	0.48810	0.49188	0.49468	0.49973

A training file was constructed consisting of the data for the first 5 normal subjects and for the first 5 subjects with AD. A validation file was constructed from the last 4 normal subjects and the last 4 subjects with AD. Thus, all the data were used. The structures of these 2 files were identical, and so their training and validation roles were reversible. These files contained the data obtained from all 40 trials. In clinical practice, where subjects may not be sufficiently cooperative, it is necessary to use fewer trials. For this reason, we also explored the use of just 10 trials and of just 5 trials. We had observed that 5 trials were necessary to ensure that a BIC was found (remember the random nature of the appearance of the BICs). Thus, additional training and validation files were produced by eliminating the row data for trial numbers greater than 11 and greater than 6 using functions of the spreadsheet.

Probabilistic Simplified Fuzzy ARTMAP Procedures and Considerations

A number of tests were carried out using the training and validation files to determine the optimal values of the PSFAM parameters. These were found to be as follows: vigilance, ρ = .65; global smoothing parameter, σ = .02; and the remaining parameters set to 1. In the training mode, the data were presented in random order using the “shuffle” button. The normal subjects were assigned to the reference class 0 and the subjects with AD to class 1. Each subject was represented by several row vectors, which contained the values calculated for different trials and clusters. The classification of an individual row for a given subject could be correct or incorrect. When the overall accuracy per subject was investigated, the SFAM was found to result in the higher accuracy for the normal subjects, but the subjects with AD were most accurately classified by the Bayes method. The reason for the difference lies in the different classification techniques used by these classifiers. In the SFAM, the degree of fuzzy membership of the test input vector $I$ to the fuzzy power set of the weight vector $W_{\text{J}}$ is calculated using the match function $\text{MF}\left(I,W_{\text{J}}\right)$ ⁸ where

$\text{MF}\left(I,W_{\text{J}}\right)=\frac{I_{\wedge }{W}_{\text{J}}}{I }$

4

and ∧ is the fuzzy logic operator. Thus, each input vector’s similarity to each weight vector is determined and the test input vector is assigned to the class of the weight vector for which $\text{MF >}\rho$ , that is, for which it is acceptably close. In the Bayes classifier, the summed differences of the test input vector to all the training vectors of the normal class is compared to those of the AD class, according to

${\displaystyle \sum }_{i=1}^{i=n_N}\text{exp}\left\{-{\left(X-Y_{Ni}\right)}^t\left(X-Y_{Ni}\right)/2{\sigma }^2\right\}\ge {\displaystyle \sum }_{i=1}^{i=m_{AD}}\text{exp}\left\{-{\left(X-Y_{ADi}\right)}^t\left(X-Y_{ADi}\right)/2{\sigma }^2\right\},$

5

Where n and m are the numbers of training vectors for the normal subjects and patients with AD, respectively; the indices N and AD refer to the normal and AD classes; X is the assumed normal input test vector; the $Y_{Ni}$ and the $Y_{ADi}$ are the training vectors; $\text{σ}$ is the smoothing parameter; and t $$ denotes the vector transpose. If the equality is satisfied, the test input vector is assigned to the class normal. This difference in the classification methods explains why in general the 2 classifiers do not always assign the same class to a test vector. The discrepancies between the 2 classifiers can be expected to be greater when the training and test vectors have more random properties as in the case for the BICs of both the normal subjects and the subjects with AD obtained in this work. Further, it was also suspected that the ADs’ BICs were more random than those for the normal subjects. In fact, it was found that the SFAM gave the higher classification accuracy for the normal subjects, while the Bayes classifier gave the higher classification accuracy for the subjects with AD. The correct class for a subject was indicated by the classifier that classed the most input vectors for that subject as being of the same class. The classification of a subject was, therefore, decided by adopting this voting strategy. When the number of test vectors assigned to the 2 classes was equal, they both indicated the correct class.

Another test was undertaken to establish whether fewer, carefully chosen electrodes might be used. Thus, classification using only columns Lat, Fp1, Fp ² , P3, P4, Fz, and Pz was attempted, but the results were worse than when all 28 columns were used. In another test, the training and validation files were exchanged, when equally good results were obtained.

Probabilistic Simplified Fuzzy ARTMAP Results

40 Trials

Table 2 gives the overall percentage classification accuracies for training and testing the PSFAM with the full set of data from 40 trials when the training and validation files were prepared as described above. It is seen that the higher percentage correct classification of normal subjects is achieved by the SFAM (77%:45%) and that of the subjects with AD by the Bayes classifier (62%:40%).

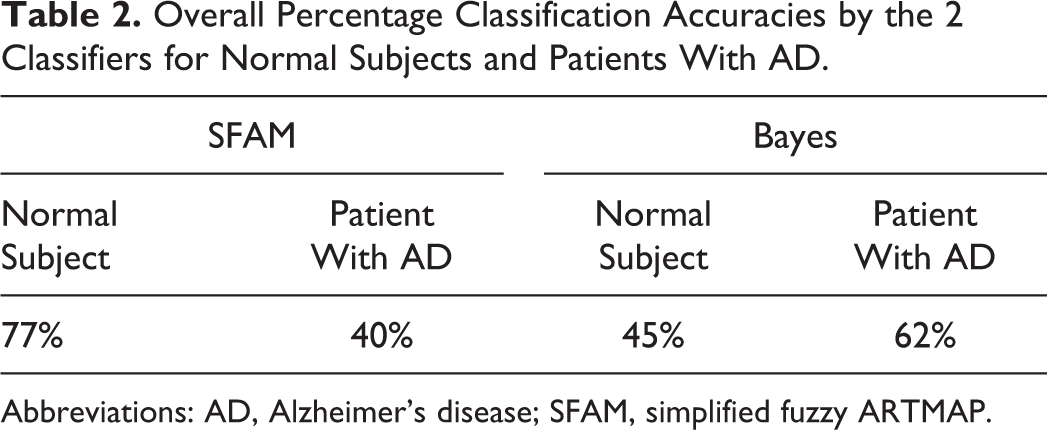

Table 2.

Overall Percentage Classification Accuracies by the 2 Classifiers for Normal Subjects and Patients With AD.

SFAM		Bayes
Normal Subject	Patient With AD	Normal Subject	Patient With AD
77%	40%	45%	62%

Abbreviations: AD, Alzheimer’s disease; SFAM, simplified fuzzy ARTMAP.

The percentage classification accuracies of the individual subjects, by their individual input test vectors, are shown in Table 3. It is seen that, if the percentage correct in the SFAM column is greater than that in the Bayes column, the subject is normal; if the converse is true, the subject is in the AD class. This is the basis of the voting strategy, which yields 100% correct classification of the subjects newly diagnosed with AD in this study from the positive BICs at the 27 electroencephalogram (EEG) electrodes centered on the P300 peak. Of course, slightly different numerical values are obtained when the training is repeated, owing to the shuffling of the training data, but the conclusions remain unaltered.

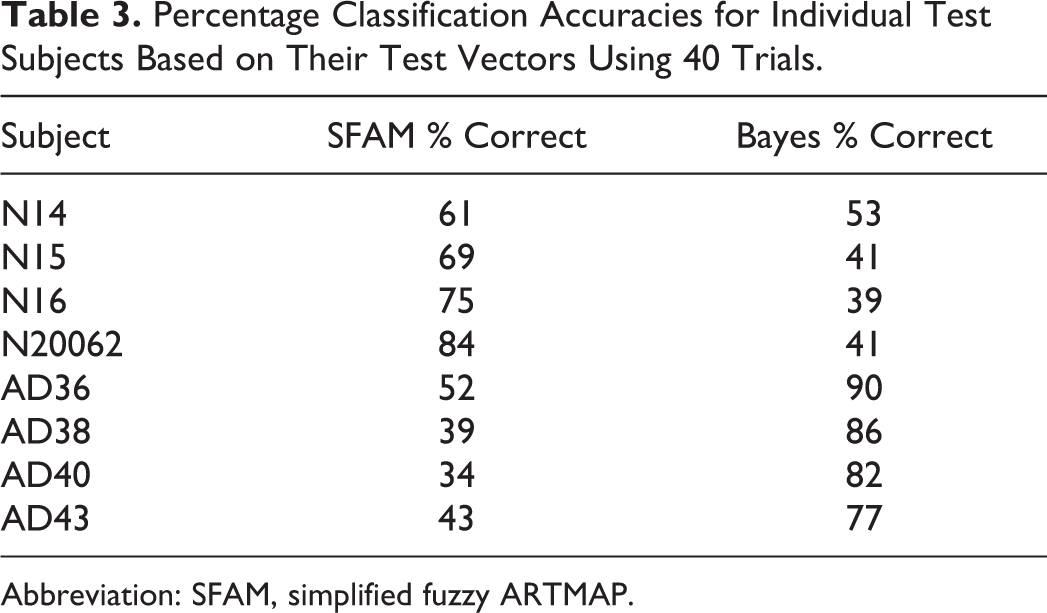

Table 3.

Percentage Classification Accuracies for Individual Test Subjects Based on Their Test Vectors Using 40 Trials.

Subject	SFAM % Correct	Bayes % Correct
N14	61	53
N15	69	41
N16	75	39
N20062	84	41
AD36	52	90
AD38	39	86
AD40	34	82
AD43	43	77

Abbreviation: SFAM, simplified fuzzy ARTMAP.

Ten Trials

Similar results were obtained as for the case of the 40 trial data when only the first 10 trials were used. Table 4 gives the subject classification accuracies. The same conclusions apply as for 40 trials, with the addition that in 2 cases, N14 and AD40, the percentage accuracies are the same for both classifiers, but they both predict the same correct class. We also see that the accuracy of classification of the normal subjects by the SFAM and that of the subjects with AD by the Bayes classifier have increased with the reduced number of trials. Some of this may be attributed to the shuffling of the input vectors, but it seems more likely it could be owing to a reduction in the degree of randomness associated with using fewer vectors.

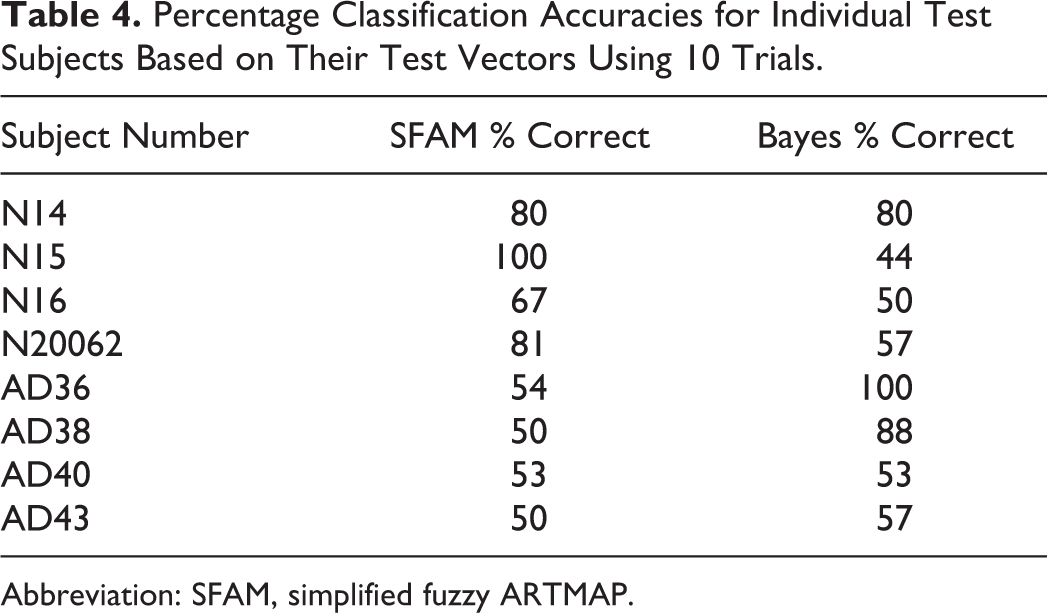

Table 4.

Percentage Classification Accuracies for Individual Test Subjects Based on Their Test Vectors Using 10 Trials.

Subject Number	SFAM % Correct	Bayes % Correct
N14	80	80
N15	100	44
N16	67	50
N20062	81	57
AD36	54	100
AD38	50	88
AD40	53	53
AD43	50	57

Abbreviation: SFAM, simplified fuzzy ARTMAP.

Table 5 presents a sample of the numbers of 0s and 1s output by the classifiers to represent the classes of the input vectors for the subjects, normal and AD, respectively, and the classification voted, which is correct in each case.

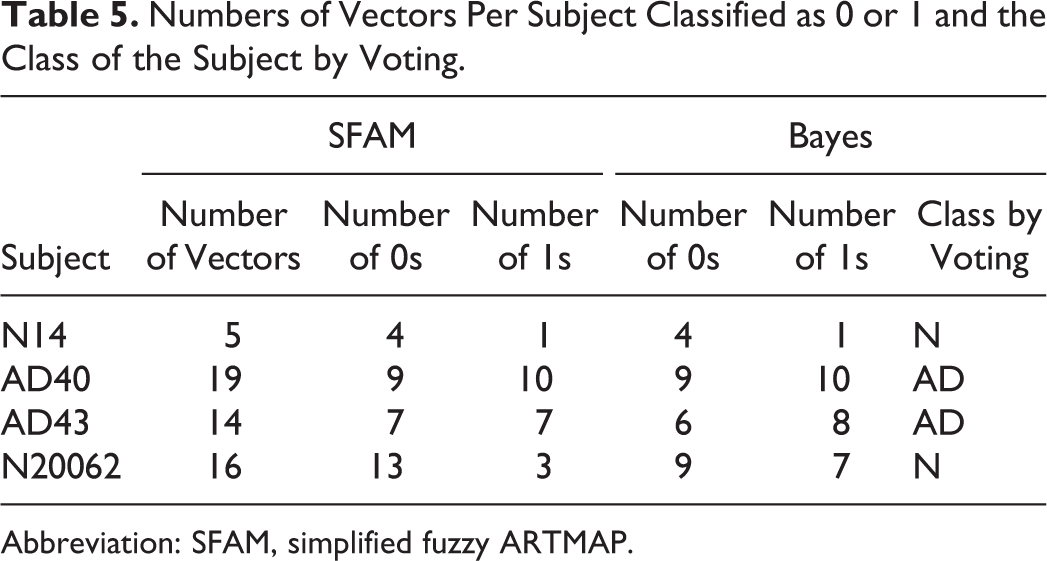

Table 5.

Numbers of Vectors Per Subject Classified as 0 or 1 and the Class of the Subject by Voting.

Subject	SFAM			Bayes
	Number of Vectors	Number of 0s	Number of 1s	Number of 0s	Number of 1s	Class by Voting
N14	5	4	1	4	1	N
AD40	19	9	10	9	10	AD
AD43	14	7	7	6	8	AD
N20062	16	13	3	9	7	N

Abbreviation: SFAM, simplified fuzzy ARTMAP.

Five Trials

Similar results were obtained again in the case of 5 trials as shown in Table 6. Apart from subject N15, the classification accuracies were again improved by this further reduction in the number of trials included. However, the use of fewer trials still is likely to lead to more classification failures when there may be too few input vectors for reliable testing or even the absence of any vector.

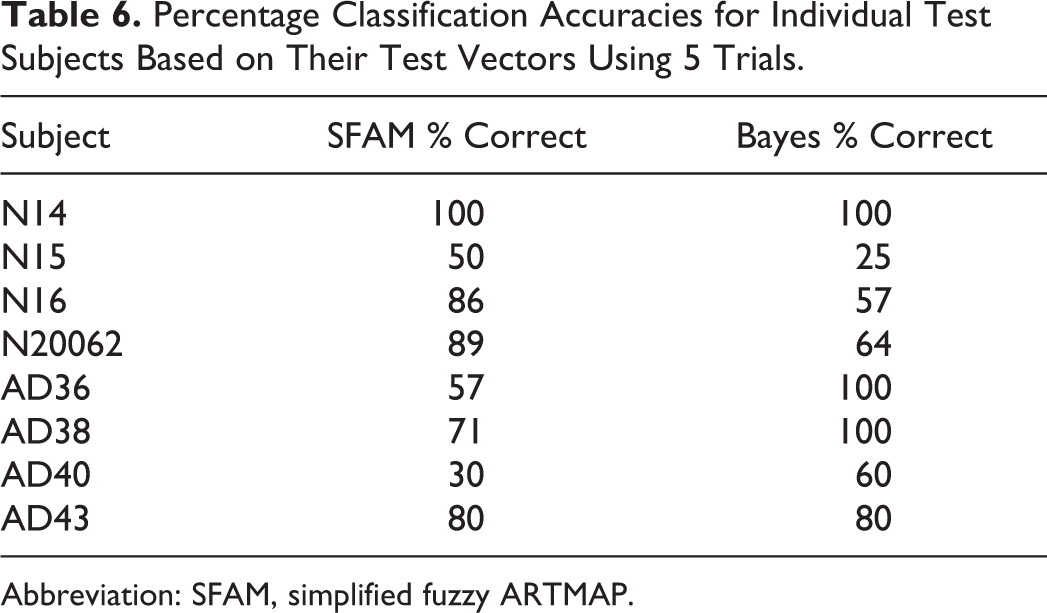

Table 6.

Percentage Classification Accuracies for Individual Test Subjects Based on Their Test Vectors Using 5 Trials.

Subject	SFAM % Correct	Bayes % Correct
N14	100	100
N15	50	25
N16	86	57
N20062	89	64
AD36	57	100
AD38	71	100
AD40	30	60
AD43	80	80

Abbreviation: SFAM, simplified fuzzy ARTMAP.

Discussion

It has been clearly demonstrated in this research that the positive voltage BICs associated with the P300 peak may constitute an excellent biomarker for new-onset AD, since 100% accurate differentiation between new-onset ADs and normals was achieved. It is quite possible that they could indicate AD presymptomatically. This could be tested by making measurements on subjects at risk of AD, such as carriers of the apolipoprotein E4 gene with a family history of AD or subjects for whom synaptic dysfunction has been detected by elevated cerebrospinal fluid phosphor-τ. ² The technique is noninvasive, requires a reduced number of trials, is inexpensive, and can be employed in any hospital EEG department. Because of the small sample size, it is desirable that far more subjects be tested, and preferably in multicenter studies, to validate it, if it be considered useful. The digitized multicenter recordings could be processed centrally to ensure conformity. This validation could take place during the clinical studies. Such studies might also be used to investigate the effects of drug treatment, the relationship of the results to those of similar studies on subjects with other neurological diseases to reduce the risk of misdiagnosis, and the possible usefulness of the BICs associated with other peaks in the waveform. Extension to other conditions such as Parkinson’s disease and other evoked potentials is also a possibility.

Conclusions

New-onset ADs were differentiated from normals to 100% accuracy by classifying the positive voltage BICs centered on the P300 waveform peak response to an oddball task, auditory-evoked potential using a SFAM neural network, a Bayes classifier, and a voting strategy. It may also be possible to detect AD presymptomatically, but more preferably multicenter research on more subjects is necessary to validate the technique. Extension to other conditions and evoked potentials is a possibility.
