Abstract

This study aims to characterize and model the thermal protective fabrics usually used in workwear under Molotov cocktail exposure. Physical properties of the fabrics were measured; and, thermal protective performances of the fabrics were evaluated under a fire exposure generated from the laboratory-simulated Molotov cocktail. The performance was calculated in terms of the amount of thermal energy transmitted through the fabrics; additionally, the time required to generate a second-degree burn on wearers’ bodies was predicted from the calculated transmitted thermal energy. For the characterization, the parameters that affected the protective performance were identified and discussed with regards to the theory of heat and mass transfer. The relationships between the properties of the fabric systems and the protective performances were statistically analyzed. The significant fabric properties affecting the performance were further employed in the empirical modeling techniques − Multiple Linear Regression (MLR) and Artificial Neural Network (ANN) for predicting the protective performance. The Coefficient of Determination (R²) and Root Mean Square Error (RMSE) of the developed MLR and ANN models were also compared to identify the best-fit model for predicting the protective performance. This study found that thermal resistance and evaporative resistance are two significant properties (P-Values < 0.05) that negatively affect the transmitted thermal energy through the fabric systems. Also, R² and RMSE values of ANN model were much higher (R² = 0.94) and lower (RMSE = 37.42), respectively, than MLR model (R² = 0.73; RMSE = 191.38); therefore, ANN is the best-fit model to predict the protective performance. In summary, this study could build an in-depth understanding of the parameters that can affect the protective performance of fabrics used in the workwear of high-risk sectors employees and would provide them better occupational health and safety.

Keywords

Molotov cocktail protective fabrics workwear fabric properties protective performance modeling

Introduction

During last few decades, the occurrences of fire exposures to the employees of different high-risk sectors (e.g., firefighting, defense, secret services and police) have increased hugely and it may put them at risk of getting significant burn injuries on their bodies [1 –3]. In this situation, the workwear used by these employees becomes very important to get protection from burn injuries [4,5]. Nevertheless, the thermal protective performance of their workwear mainly depends upon the characteristics of fabrics materials used in the workwear and types of exposed fires [6 –9]. In these fabrics, namely petroleum based inherently fire-retardant fibers (e.g., meta-aramid, para-aramid) are used; however, the recent advancements have also functionalized the natural cellulosic fibers to be used in these fabrics [10,11].

Considering the above situation, different organizations [e.g., International Organization for Standardization (ISO), American Society for Testing and Materials (ASTM), Comité Européen de Normalisation (CEN)] have developed the standard methods (e.g., ISO 9151, ISO 6942, ASTM F 2700, ASTM F 1060, ASTM F 2703) for evaluating the thermal protective performance of fabrics used in the workwear under different types of fire exposures [12 –18]. These standards are mainly used for evaluating the protective performance of fabrics under the flame (simulated by fueling a flammable gas), radiant-heat (simulated by heating a coil), or hot surface contact (simulated by heating a solid metal plate that is placed on an electrically operated hot-plate) exposures [61319]. By using or customizing these standards, many researchers have also evaluated and characterized the thermal protective performance of fabrics [13,20 –22]. Based on their research, they identified and discussed various parameters (e.g., fabric properties, test configurations) that could significantly affect the protective performance of fabrics. By employing these parameters, previous researchers have also developed the empirical models for predicting the performance [20,23,24]. It has been found that empirical Artificial Neural Network (ANN) model could perform significantly better than the Multiple Linear Regression (MLR) model in order to predict the performance.

Although previous researchers [2,7,9,20 –24] extensively studied the thermal protective performance of fabrics under various fire exposures (flame, radiant-heat, and/or hot surface contact), it is notable that the high-risk sectors employees (e.g., police, military, firefighters, secret service agents) are not limited to expose to only these types of fires. In the case of civic unrest or riots, it has been commonly observed that the high-risk sectors’ employees need to control or face the protestors or rioters. In such critical situations, it is most likely that they might be exposed to Molotov cocktails (i.e., flammable liquids-based firebombs) hurled by the protestors or rioters. For example, in a most recent incident on May 3,12,020 in Washington, USA, at least 50 secret service agents got exposed to Molotov cocktail attacks during the protest of ‘Black Lives Matter’ [25,26]. Sometimes, an exposure to Molotov cocktail may cause serious burn injuries to high-risk sectors employees. Considering this, Kemp et al. (2016) recently developed an instrument that could be used to evaluate the thermal protective performance of fabrics under the Molotov cocktail exposure [27]. This study extensively investigated various aspects related to the test apparatus/methods (e.g., angle of hurling the flammable liquids, volume of flammable liquids) and their effect on the thermal protective performance of fabrics. However, this study did not properly characterize the thermal protective performance of fabrics in order to analyze various fabric properties and structures that could impact the protective performance. As a result, the knowledge of thermal protective performance of fabrics under the Molotov cocktail exposure is still limited and fragmented.

In this study, the thermal protective performance of fabrics used in the workwear was evaluated under a Molotov cocktail exposure. The parameters (fabric properties and structures, test configuration) that affected the protective performance were identified and discussed with regard to the scientific theory of heat and mass transfer. The relationship between the fabrics’ properties and their protective performances were statistically analyzed. The identified significant fabric properties were further employed in the empirical modeling techniques for predicting the protective performance. This study could help the textile and materials engineers to develop a thorough understanding on the thermal protective performance of fabrics under the Molotov cocktail exposure. This enhanced understanding could lead towards developing a new fabric in order to provide better occupational protection to the high-risk sectors’ employees.

Research methodology

Fabric selection and properties evaluation

In the manufactured workwear for high-risk sectors’ employees, layered fabric systems are generally used. These fabric systems consist of different types of high-performance fabrics (an outer shell, a moisture barrier, and/or a thermal liner) in an assembly [28 –30]. In this study, the commercially available and commonly used high-performance fabrics in the manufacturing of thermal protective clothing were selected based on the fiber content, weave structure, mass, thickness, and air permeability (Table 1). These fabrics were purchased from the North American textile industries. Next, these fabrics were assembled in different combinations to prepare the layered fabric systems (single-, double-, and triple-layered) to fulfil the objectives of this study (Table 2). A pictorial representation of the layers in a particular combination (e.g., AED in Table 2) used in the fabric has been shown in Figure 1. Notably, the number of prepared fabric systems or the sample size for this study was relatively small; however, the small sample size is common to most textile experimental research and this does not adversely affect the data analysis [31,32]. In these fabric systems, the outer layer (OL) faces the thermal exposure, the inner layer (IL) remains closest to the skin simulant sensor or the wearers’ skin, and the middle layer (ML) sandwiches between OL and IL.

Table 1.

Constructional features of fabrics used in this work.

Fabric types	Fiber content	Weave structure	Mass^a(g/m²)	Thickness^b(mm)	Air permeability^c(cm³/cm²/s)
A (Outer Shell)	60% Kevlar® aramid and 40% Polybenzimidazole	Plain weave, rip-stop woven	248 (0.003%)	0.69(2.45%)	15.7(2.40%)
B (Thermal liner)	100% Nomex® aramid	Plain weave Nomex® layer quilted to two thin Nomex® oriented webs	209(0.002%)	1.63(1.40%)	43.2(2.50%)
C (Thermal liner)	100% Nomex® aramid	Plain weave Nomex® layer quilted to Nomex® needle-felted batt	289(0.003%)	2.13(2.48%)	40.6(2.31%)
D (Thermal liner)	100% Nomex® aramid	Plain weave Nomex® layer quilted to a Nomex® scrim, needle-felted batt, and scrim	351(0.004%)	3.18(2.29%)	38.4(2.50%)
E (Moisture Barrier)	85% Nomex-IIIA® and 15% polyurethane	Plain weave Nomex® back-coated with polyurethane film	211(0.005%)	0.85(2.28%)	0(NA)

^aMeasured according to ASTM D 3776 [33].

^bMeasured according to ASTM D 1777 under 1 kPa pressure [34].

^cMeasured according to ASTM D 737 under air pressure differential 125 Pa [35].

Table 2.

Structural configurations and physical properties of the fabric systems.

Fabricconstruction	Fabric systems	Structural configurations	Thickness(mm)	Air permeability(cm³/cm²/s)	Thermal resistance^f( °K·m²/W )	Evaporative resistance^g(m²·Pa/W)
Single-layered	A	Fabric A	0.69(2.45%)	15.71(2.40%)	0.073(1.28%)	4.40 (2.27%)
Double-layered	AB	Fabric A (OL) + Fabric B^a (IL)	2.18(2.26%)	13.59(2.48%)	0.117(1.30%)	9.87(1.17%)
	AD	Fabric A (OL) + Fabric D^b (IL)	3.53(2.09%)	13.30(2.21%)	0.169(1.36%)	12.70(0.79%)
	AE	Fabric A (OL) + Fabric E^d (IL)	1.42(0.6%)	0(NA)	0.095(1.22%)	20.70(0.84%)
	EA	Fabric E^e (OL) + Fabric A (IL)	1.42(0.96%)	0(NA)	0.095(1.05%)	21.17(0.27%)
Triple-layered	AEB	Fabric A (OL) + Fabric E^d (ML) + Fabric B^a (IL)	2.88(2.25%)	0(NA)	0.129(1.18%)	25.90(0.39%)
	AEC	Fabric A (OL) + Fabric E^d (ML) + Fabric C^c (IL)	3.49(2.48%)	0( NA)	0.151(1.15%)	25.40(1.97%)
	AED	Fabric A (OL) + Fabric E^d (ML) + Fabric D^b (IL)	4.23(2.04%)	0(NA)	0.184(1.44%)	28.03(2.15%)
	EAC	Fabric E^e (OL) + Fabric A (ML) + Fabric C^c (IL)	3.49(2.50%)	0( NA)	0.151(1.38%)	25.37(0.60%)

^aThe web side of Fabric B is in contact with wearers’ skin.

^bThe scrim side of Fabric D is in contact to wearers’ skin.

^cThe batt side of Fabric C is in contact with wearers’ skin.

^dThe polyurethane coated side of Fabric E faces Fabric A.

^eThe polyurethane coated side of Fabric E faces a Molotov cocktail exposure.

^fMeasured according to ASTM D 1518 [36].

^gMeasured according to ISO 11,092 [37].

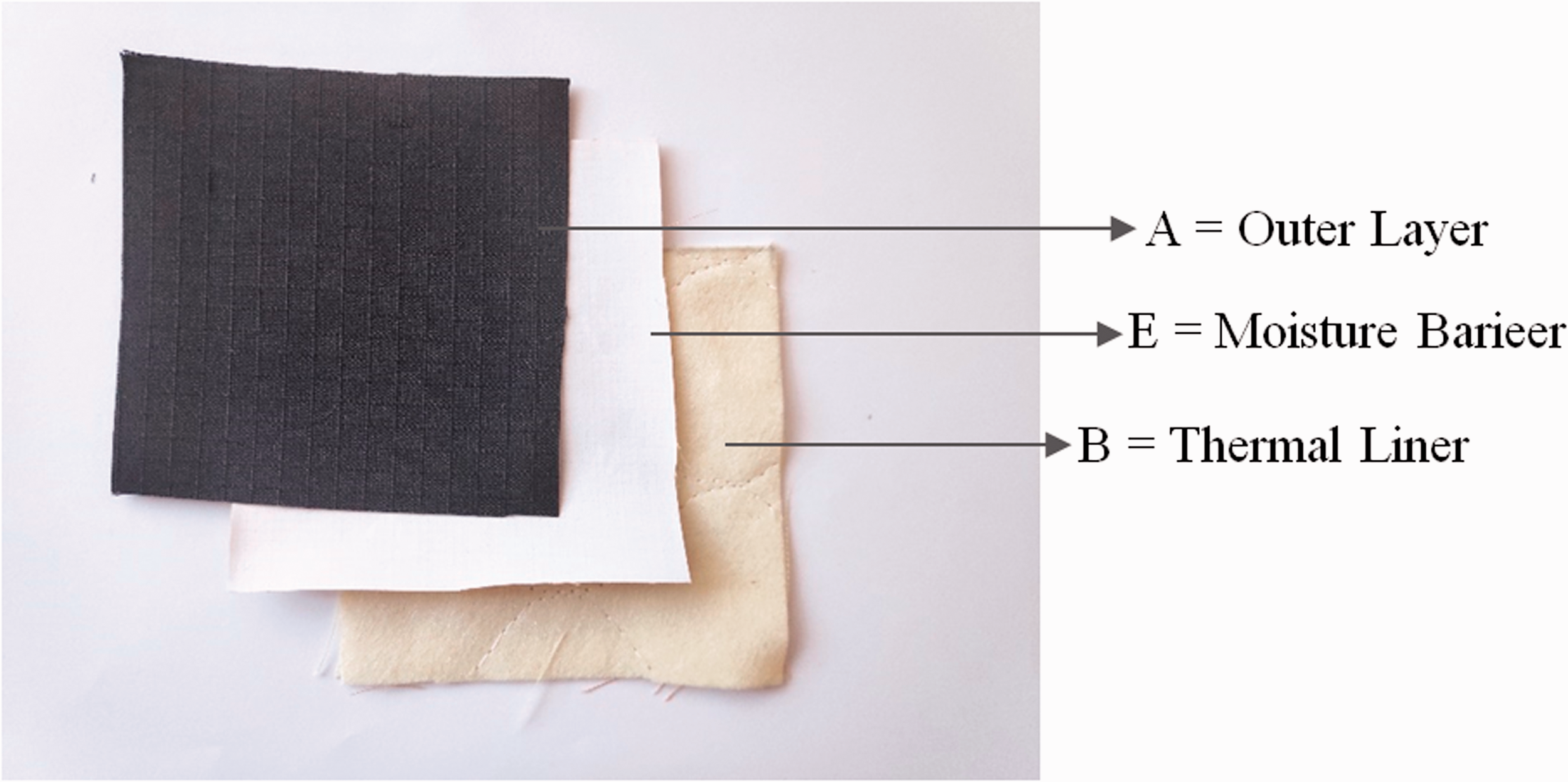

Figure 1.

Pictorial representation of the technical face side of AED fabric system in Table 2.

The physical properties (thickness, air permeability, thermal resistance, and evaporative resistance) of each of these fabrics or fabric systems were measured according to ASTM standards and their mean value was calculated by maintaining a Coefficient of Variation (CV) between 1-2.5%. These mean values are presented in Tables 1 and 2. For the statistical data analysis, the measured physical properties (thickness, air permeability, thermal resistance, and evaporative resistance) were considered as independent variables with respect to the dependent variable (thermal protective performance). Here, the number of physical properties considered were limited to four because the sample size of this study is relatively small. Generally, fewer independent variables are recommended for statistical analysis, especially where the sample size is small [32].

Test conditions and approaches

The protective performances of three specimens (340 mm × 170 mm) of each selected single-, double-, and triple-layered fabric system were evaluated under a Molotov cocktail exposure using a bench-scale test. Before testing, the specimens were conditioned at 20 ± 2°C temperature and 65 ± 5% relative humidity for at least 24 hours in accordance with ISO 139 [38]. Then, these specimens were subjected to a laboratory-simulated Molotov cocktail exposure tests conducted at Empa – Swiss Federal Laboratories for Materials Science, Switzerland.

During the Molotov cocktail exposure (Figure 2), a specimen of each fabric system was placed on a 30° inclined sensor board in such a way that the outer layer of the specimen could be exposed to the Molotov cocktail fire. The sensor board had a size of 290 mm × 180 mm and it was made by a low thermal conductive (0.18 W/m.K), liquid- and heat-resistant material – more specifically, the water regain of the sensor board material was 0.2% (at 23 °C for 24 hours) and the materials used in the sensor board can resist the heat up to 800 °C. While the top edge of the specimen was clamped on the upper edge of the sensor board; and a 500-gm mass was attached to the lower edge of the specimen in order to provide the equal amount of tension on each tested fabric specimen. The sensor board was instrumented with 10 human skin simulating sensors (made by epoxy resin slab with encapsulated T-type thermocouple) developed by Precision Products, USA. A fuel reservoir was placed over the last sensor on the upper edge of the sensor board. Before starting the testing, 4 ml of fuel was pipetted in the reservoir and ignited. The fuel was kept in ignited condition for 10 seconds, and then tipped onto the fabric specimen using a simple pulley system. During and after the fire exposure (a total of 100 seconds), the temperature rise of the sensors was recorded using a software. From this temperature rise, the amount of heat flux transmitted through the specimen was measured. In this study, the heat flux under a particular fire exposure was measured using equation (1), where, q = heat flux (cal/sec/cm²), M = mass of the sensor disk (gm), Cp = specific heat of the disk (cal/gm°C), A = area of the disk (cm²), ΔT = temperature rise of the disk (°C), and Δt = exposure time (sec). Here, M can be further represented by equation (2), where, A = area of the disk (cm²), b = thickness of the disk (cm), and ρ = density of the disk (gm/cm³). Eventually, equation (1) can be rewritten as equation (3), which was used to calculate heat flux in the sensor. According to equation (3), it is clear that the ρ and Cp are constant; consequently, q is directly dependent upon b and ΔT/Δt. It seems that the accurate measurement of ΔT/Δt is essential to precisely calculate q, and b is the most important affecting parameter to accurately measure ΔT/Δt or q. Thereafter, by using the heat flux (the average heat flux without any presence of tested fabric system was ∼0.45 cal/s/cm²; and, this heat flux varied depending upon the tested fabric systems), the amount of thermal energy absorbed by the sensors was calculated in terms of kJ/m². And, the time required to generate a second-degree burn on each sensor (simulating skin) was predicted using the software programmed according to Henriques Burn Integral Equations (equations (4) and (5)). The time at which Ω reaches a value of 0.53 in equation (5), it can be interpreted as the ‘first-degree burn time’; and, when Ω reaches a value of 1 in equation (5), it is called the ‘second-degree burn time’ [39,40]. Considering the severity of the burns, this study mainly focused on the second-degree burn time. The average transmitted thermal energy and second-degree burn time of all the 10 sensors were reported as the thermal protective performance of the specimens. The average thermal protective performance of three specimens of a fabric system was considered as the thermal protective performance of the fabric system.

q = \frac{M . C p . Δ T}{A . Δ t}

(1)

M = A . b . ρ

(2)

q = \frac{b . ρ . C p . Δ T}{Δ t}

(3)

\frac{d Ω}{d t} = P \exp (\frac{- Δ E}{R T}) .

(4)

Figure 2.

Schematic diagram of the Molotov cocktail exposure test.

Mathematical integration of equation (4) yields,

Ω = \int_{0}^{t} P \exp^{- (Δ E / R T)} d t

(5)where,

Ω = burn injury parameter (dimensionless),

P = frequency factor (2.185 × 10¹²⁴ seconds⁻¹ at T < 50 °C and 1.823 × 10⁵¹ seconds⁻¹ at T > 50 °C),

ΔE = activation energy (J/kmol),

R = universal gas constant (8.315 J/kmolK) (i.e., ΔE/R = 93534.9 K at T < 50 °C and ΔE/R = 39109.8 K at T > 50 °C),

T = temperature (K) at epidermis skin depth of 75 × 10⁻⁶ m, and t = time (seconds) for which T is above 317.15 K (44 °C).

Procedure to analyze the experimental results

The transmitted thermal energy and second-degree burn times of the selected fabric systems (obtained from the test described above) were tabulated. According to this transmitted thermal energy and/or time required to generate a second-degree burn injury, the thermal protective performances of the fabric systems were ranked or rated. The physical properties (e.g., thickness, air permeability, thermal resistance, and evaporative resistance) and thermal protective performance (namely, transmitted thermal energy) of the fabric systems were normalized between −1 and +1, with the average value set to zero. The normalized variable X_i,norm was calculated by equation (6), where, $R_{i, \max} = Maximum [(X_{i, \max} - X_{i, avg}), (X_{i, avg} - X_{i, \min})]$ . In equation (6), X_i is the value of a selected variable (thickness, air permeability, thermal resistance, evaporative resistance, or second-degree burn time), X_i_, _avg is the average value of that particular variable, X_i_, _min is the minimum value of that variable, X_i_, _max is the maximum value of that variable, and R_i,max is the maximum range between the average value and either the minimum or the maximum of that variable. This normalization process reduces the redundancy rates in the data by pulling out abnormal factors, and helps in distributing the data with normal probability plot.

X_{i, norm} = \frac{X_{i} - X_{i, avg}}{R_{i, \max}}

(6)

In order to understand the association between the physical properties of fabric systems and thermal protective performance (transmitted thermal energy), a linear regression t-test of the normalized data set was conducted using the SPSS Statistics 25 Data Editor (developed by IBM Corporation, USA). The + or – sign of the T-stat value obtained from the t-test was used to infer the association, and this association was justified through the predicted second-degree burn time or the theory of heat and mass transfer. P-values obtained from the t-test for individual fabric properties were analyzed to identify the fabric properties that significantly affected the thermal protective performance. Significance tests were carried out at the significance level 0.05. Thus, any considered property with obtained P-value less than 0.05 was inferred to be statistically significant. The coefficients of determination (R²) of the relationship plots between the significant fabric properties and the thermal protective performance were calculated. An R² value with proximity to 1 was inferred as a strong association between the significant fabric property and thermal protective performance.

Further in this study, the standard Multiple Linear Regression (MLR) and Artificial Neural Network (ANN) models were used to predict the thermal protective performance using the significant properties obtained from the t-test analysis. This modeling was carried out using the SPSS Statistics 25 Data Editor (developed by IBM Corporation, USA) and MATLAB R2019a (developed by Mathworks, USA). To identify the best-fit high-performance models to predict the thermal protective performance, these MLR and ANN models were statistically compared based on their predicting performance parameters i.e., R², Root Mean Square Error (RMSE), P-values. During the comparison, a model with high R² (admired range: >0.7), low RMSE (admired range: <100) and P-values of <0.05 was inferred as the best-fit high-performance model.

MLR modeling

A generic form of the MLR model is shown in equation (7), where, C = identically distributed constant normal error, (SFP)₁.…(SFP)_n = n numbers of significant fabric properties (SFP), and β₁ …β_n = regression coefficients that determine relative strength of the respective SFP. An inherent limitation of the MLR model is that it should not be used to predict the output variable (thermal protective performance) beyond the range of the values of the input variables (SFP) employed in the model [41,42].

Performance = C + β_{1} \times (SFP)_{1} + β_{2} \times (SFP)_{2} + \dots + β_{n} \times (SFP)_{n}

(7)

ANN modeling

ANN modeling is considered a powerful data modeling tool to capture and represent any kind of relationship between the input (significant fabric properties obtained from the t-tests) and output (protective performance) variables [41 –48]. It is a more efficient and suitable method in comparison with standard modeling methods for function approximation in the definite intervals of training data.

Different ANN models were developed in this study for predicting the protective performance of fabrics under Molotov cocktail exposure. In these ANN models, three layers were used – input layer, hidden layer, and output layer. These models were constructed using the MATLAB R2019a software [49]. An important consideration to construct a suitable model is to decide upon the architecture of the ANN. Multi-Layer Perceptron (MLP) architecture was employed in this study as MLPs are universal function approximators and are commonly used in developing ANN empirical models. Next, after setting different values for hyper-parameters (e.g., number of hidden layers and neurons, choice of activation functions) and different training algorithms (e.g., the gradient descent with momentum constant, Levenberg-Marquardt), a three-layered (input layer, one hidden layer, and output layer) feed-forward backpropagation (the gradient descent with momentum constant backpropagation method was used in this study) ANN model was employed [47,48]. The MATLAB generated schematic diagram of three-layered feed-forward backpropagation ANN model with four input fabric properties and three hidden neurons is shown in Figure 3.

Figure 3.

Schematic diagram of three-layered feed-forward backpropagation ANN model with four input and three hidden and one output neurons.

The three-layered feed-forward model (Figure 3) was composed of connecting each layer of the neural network to the next layer (e.g., from the input to the hidden layer), but there were no connections back. The connections between the neurons in the particular layers determine the network function. The neural netwrok can be trained by adjusting the values of connections (weights) between neurons to perform a particular function. As the models used backpropagation supervised training form (the gradient descent with momentum constant), the final outputs predicted were always compared with the actual output, until the netwrok outut matches the actual output. Through this comparison, the backpropagation training algorithm calculated the prediction error and adjusted the values of the weights of various layers backward from the output to the input layer. This weight adjustment process worked based on a delta rule and decreased the error signal iteratively. The delta rule used is shown in equation (8), where, W(n) = the weight connecting between two neurons at the n^th iteration, ΔW(n) = the weight correction applied to the W(n) at the n^th iteration, E = predicted error signal at the n^th iteration, and η = learning rate parameter constant. The hyperbolic tangent sigmoid transfer function (equation (9)) was assigned as an activation function in the hidden layer, and the linear function (equation (10)) was used in the output layer. These transfer functions can easily be applied with all types of data and can provide the best performance for an ANN model [41]. In the equations (9) and (10), x is the weighted sum of inputs to a neuron and f(x) is the transformed output from that neuron. A challenge in using the feed-forward backpropagation ANN model was to decide the number of neurons in the hidden layer. Because a model trained with too few neurons in the hidden layer can not differentiate between complex patterns, and it might lead to a linear estimate of the actual relationship between the input and output variables; whereas, if the model is trained with too many neurons, the model follows a noise in the data set, and it might predict an inaccurate output [43]. Therefore, we trained the feed-forward ANN models with two to ten hidden neurons, and the best predictive ANN models was found with three hidden neurons (Figure 3) [20,50]. In the present study, MATLAB software randomly used 60% of the data (significant properties and transmitted energy) for the training, 20% of the data for the validation, and the remaining 20% of the data to test the predicting performance of the ANN models. To improve the generalization and prevent overfit of the ANN models, early stopping condition was used (i.e., the training continued until the validation error failed to decrease for six iterations or epochs). Contextually, it is notable that these ANN models were trained with a small dataset. As a consequence, these models could be unstable and may not be generalized for use in predicting protective performance of all types of fabrics.

Δ W (n) = - η [\partial E / \partial W (n)]

(8)

f (x) = \frac{\sinh x}{\cosh x} = \frac{e^{x} - e^{- x}}{e^{x} + e^{- x}} = \frac{e^{2 x} - 1}{e^{2 x} + 1}

(9)

f (x) = x

(10)

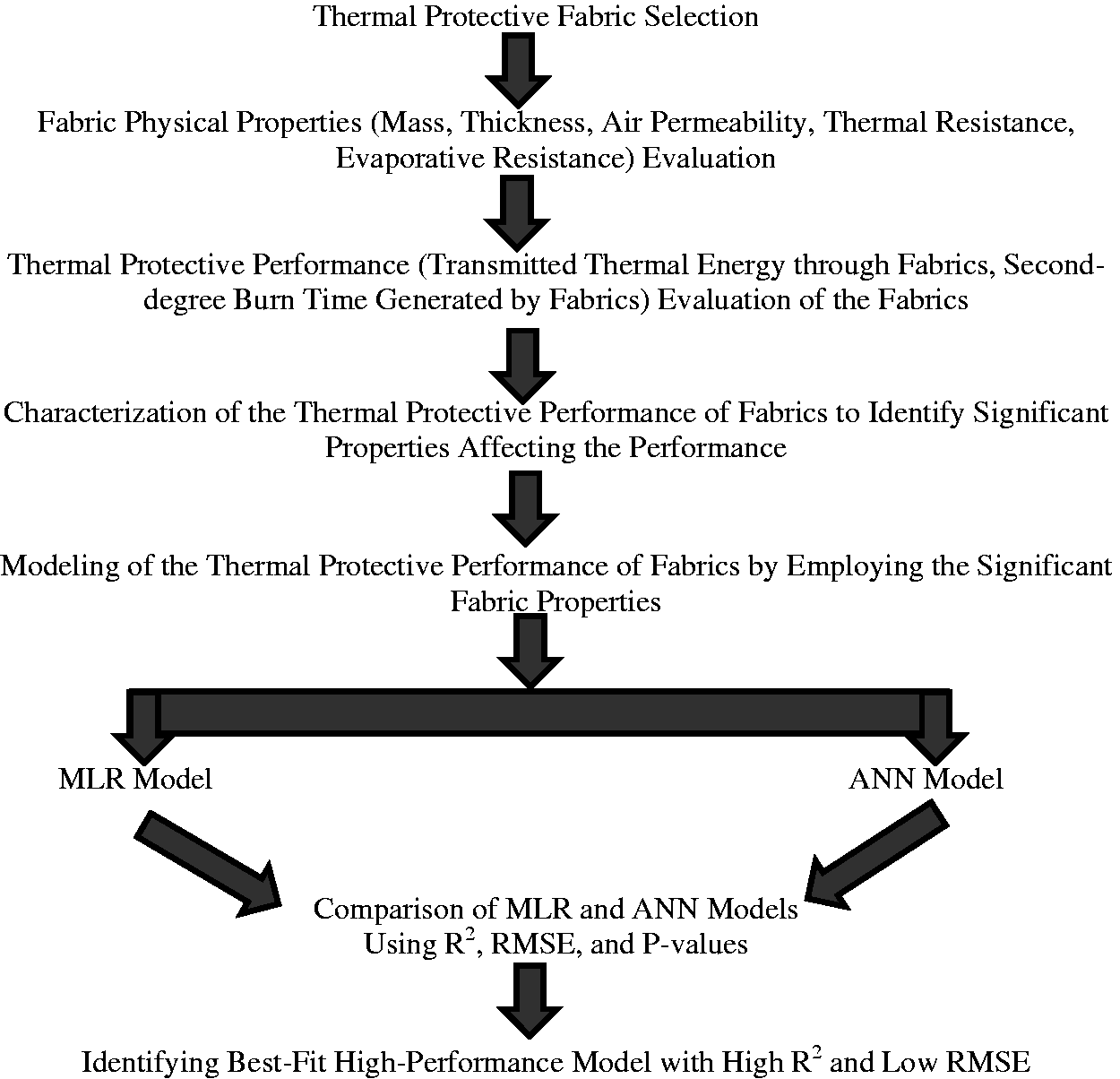

Summary of this Research Methodology Section with a Flow ChartIn the previous sections, the methods used in this research were explained. In this section, these methods have been summarized in a flow chart.

Results and discussion

The thermal protective performances of the selected fabric systems in terms of transmitted thermal energy and second-degree burn time are presented in Table 3. Based on Table 3, it is clear that the second-degree burn time generally decreases as the transmitted thermal energy increases. However, no second-degree burn has been observed if the transmitted thermal energy becomes less than ∼180 kJ/m². Notably, the transmitted thermal energy of triple-layered fabric systems is comparatively lower than the single- and double-layered fabric systems. Eventually, no second-degree burn has been usually observed in the case of triple-layered fabric systems. As triple-layered fabric systems are thicker than the single- and double-layered fabric systems, the chances of burns are relatively lower. As no burns occurred in the 4 fabric systems (Table 3), this study will mainly consider the transmitted thermal energy for statistically characterizing and empirically modeling the thermal protective performance.

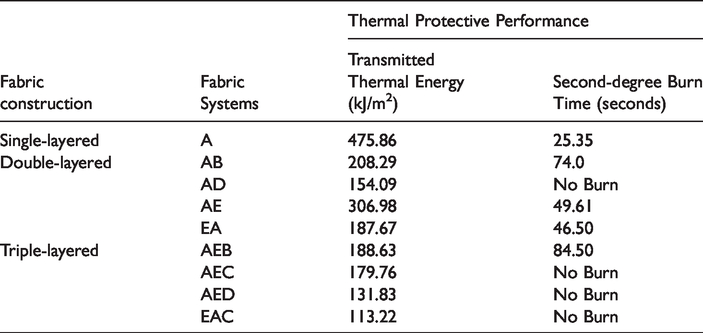

Table 3.

Thermal protective performance of the selected fabric systems.

Fabric construction	Fabric Systems	Thermal Protective Performance
Fabric construction	Fabric Systems	Transmitted Thermal Energy(kJ/m²)	Second-degree Burn Time (seconds)
Single-layered	A	475.86	25.35
Double-layered	AB	208.29	74.0
	AD	154.09	No Burn
	AE	306.98	49.61
	EA	187.67	46.50
Triple-layered	AEB	188.63	84.50
	AEC	179.76	No Burn
	AED	131.83	No Burn
	EAC	113.22	No Burn

Characterization of the thermal protective performance of fabrics

In general, convection is the primary mode of heat transfer in the Molotov cocktail exposure. In this exposure, flammable liquid enters through the pores of the fabrics. This movement of the liquid carries the flame within the fabrics, transfers the convective thermal energy through the fabrics, and generates burns on the wearers’ skin. Results obtained from the t-tests (T-stat and P-value) to analyze the association between fabric system properties and transmitted thermal energy are presented in Table 4.

Table 4.

Results of t-tests between fabric system properties and transmitted thermal energy in Molotov cocktail exposure.

Fabric System Properties	Transmitted Thermal Energy
Fabric System Properties	T-Stat	P-value
Thickness	-3.813	0.007
Air permeability	1.497	0.178
Thermal resistance	-3.518	0.010
Evaporative resistance	-2.464	0.043

According to Table 4, T-stat values for thickness, thermal resistance, and evaporative resistance are negative. It indicates a negative relationship between these properties and trans-mitted thermal energy. As the fabric systems with high thickness, high thermal resistance, and high evaporative resistance could trap more dead air in comparison to the fabrics with low thickness, low thermal resistance, and low evaporative resistance. This trapped dead air could enhance the thermal insulation of the fabric systems and lower the transmission of the thermal energy [22,24,51,52]. Due to the lower transmitted thermal energy, the fabric systems with high thickness, high thermal resistance, and high evaporative resistance take longer time to generate second-degree burns on wearers’ bodies under the Molotov cocktail exposure. Furthermore, according to Table 4, the T-Stat value of air permeability is positive. It means a positive relationship exists between the air permeability and transmitted thermal energy. This is because a fabric system with high air permeability possesses high porosity [8,53]. Due to this high porosity, the flammable liquids may easily transmit through the fabric system to the wearers’ skins. This situation ultimately carries the flame inside the fabric systems and transmits the thermal energy towards the wearers and generates burns on their skins.

Table 4 further shows that P-values associated with thickness and thermal resistance are significantly lower than 0.05. It means both thickness and thermal resistance are the significant fabric properties that can affect the transmitted thermal energy. Contextually, it is notable that thermal resistance of a fabric system depends on its thickness (Thermal Resistance = Thickness/Thermal Conductivity); eventually both of these properties are mutually dependent [8,22]. As using the mutually dependent properties could disturb the efficiency of the models, this study will only consider thermal resistance as the most significant property for the transmitted thermal energy, in turn, second-degree burn time. Furthermore, it is evident from Figure 4, two fabric systems with the same thermal resistance could transfer different amounts of thermal energy through the fabric systems. For example, AE (or AEC) and EA (or EAC) fabric systems have same thermal resistance 0.095°K·m²/W (thermal resistance of AEC or EAC is 0.151°K·m²/W); however, the transmitted thermal energy through these fabric systems are very different. This phenomena could be explained based on the surface structure of the outer layer of these fabric systems and its fire behaviour during the Molotov cocktail exposure (Figure 5). The outer layer of AE fabric system, i.e., ‘A’, is a plain weave, rip-stop woven fabric. This woven fabric is constructed with the interlacement of warp and weft yarns making it a porous medium. Due to this porous structure, the flammable liquids move easily through fabric ‘A’ resulting in flame reaching more closer to the skin. On the other hand, the outer layer of EA fabric system, i.e., ‘E’, is a plain weave Nomex® fabric coated with polyurethane (PU) film. Due to the smooth PU coated surface structure, the EA fabric system restricted the transfer of flammable liquids through the system (notably, moisture barried E in EA fabric system could be damaged more in comparison to the outer layer A in AE fabric system due to the restriction of the flammable liquid tranfer, holding the liquid, and continious burning of PU coating); rather, it dispersed the liquids on the surface or driped the liquids through the edges of the system. Eventually, the transmitted thermal energy is higher for AE fabric system in comparison to the EA fabric system. It is also notable that transmitted thermal energy through the AD fabric system is the lowest among the double-layered fabric systems; this is because the thermal resistance of the AD fabric system is the highest among the double-layered fabric systems. Although a fabric system with high thermal resistance could lower the transmission of the energy, it is not absolutely true for the triple-layered fabric systems. For example, the AED fabric system possesses the highest thermal resistance among the selected triple-layered fabric systems; however, the transmitted thermal energy is the lowest in case of the EAC fabric system. This is because the thickest AED fabric system considerably absorbs most of the flammable liquids, which changes the fire behavior and generates high flame (Figure 6). This situation ultimately transfers more thermal energy towards the wearers’ skins. Additionally, the thickest AED fabric system could store more thermal energy in comparison to the EAC fabric system and this stored energy get transmitted to the wearers' skins over the time of 100 seconds test duration used in this study [54].

Figure 4.

Relationship between the thermal resistance and transmitted thermal energy of the fabric systems.

Figure 5.

Outer surface structure and fire behavior of the AE and EA fabric systems.

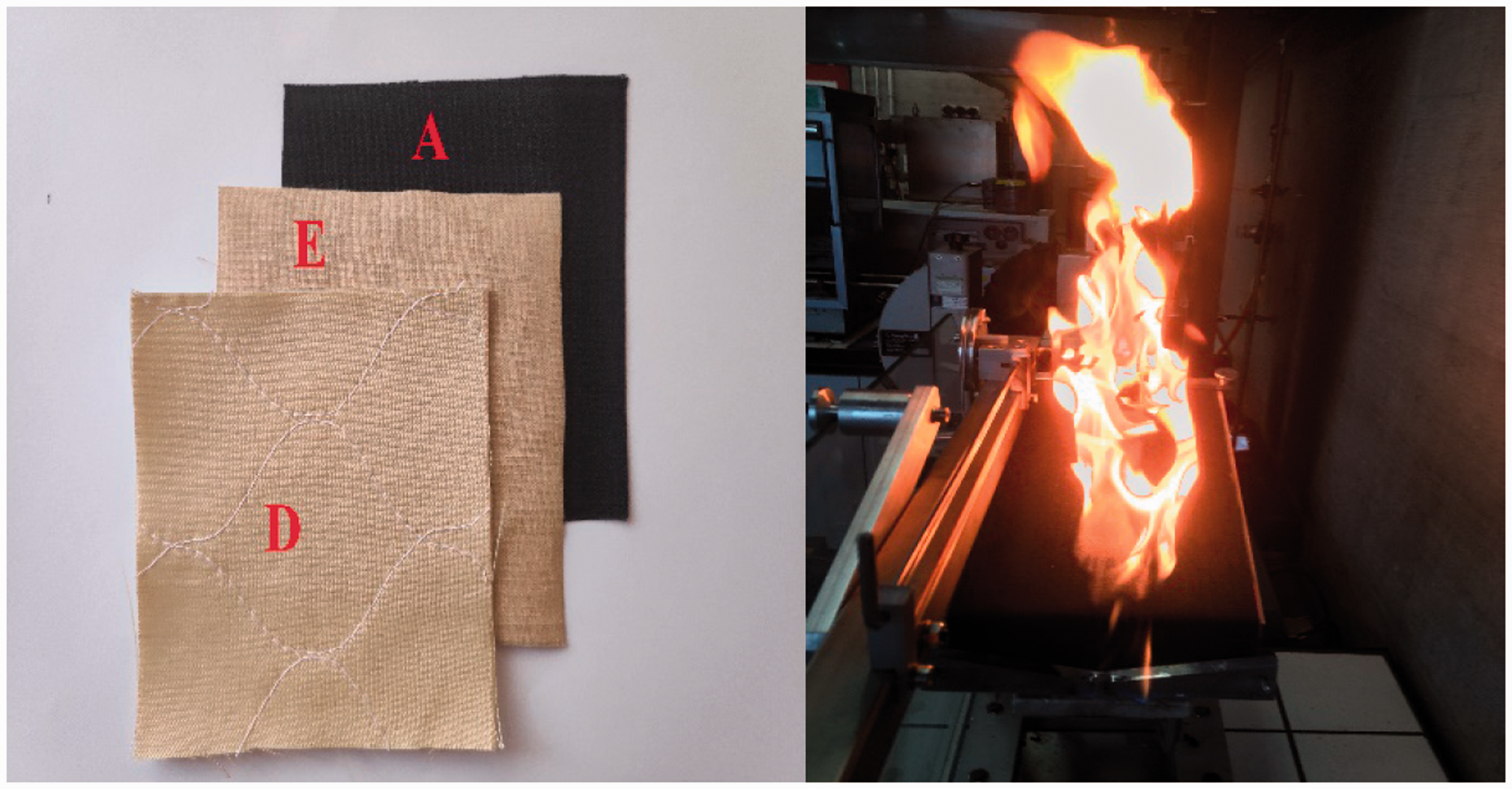

Figure 6.

Surface structure (technical back surface structure of the layers is shown here; technical face surface structures is as shown in Figure 1) and fire behavior of the of the AED fabric system (after testing, the outer layer A damaged most among all the layers and it is similar to outer layer A in Figure 5).

Furthermore, based on Table 4, it is evident that the P-value of evaporative resistance is lower than the 0.05. It means evaporative resistance is also a significant property to affect the transmitted thermal energy. However, by comparing the R² values in Figures 4 and 7, it is clear that the R² value of evaporative resistance is lower than the R² value of thermal resistance. Hence, evaporative resistance is less significant property in comparison to the thermal resistance for affecting the transmitted thermal energy. Actually, a fabric system could possess high evaporative resistance if it comprises a moisture barrier; however, this moisture barrier does not add much thermal insulation to the fabric system; eventually, a fabric system with high evaporative resistance may not provide high thermal insulation and that can lower its impact on the transmitted thermal energy.

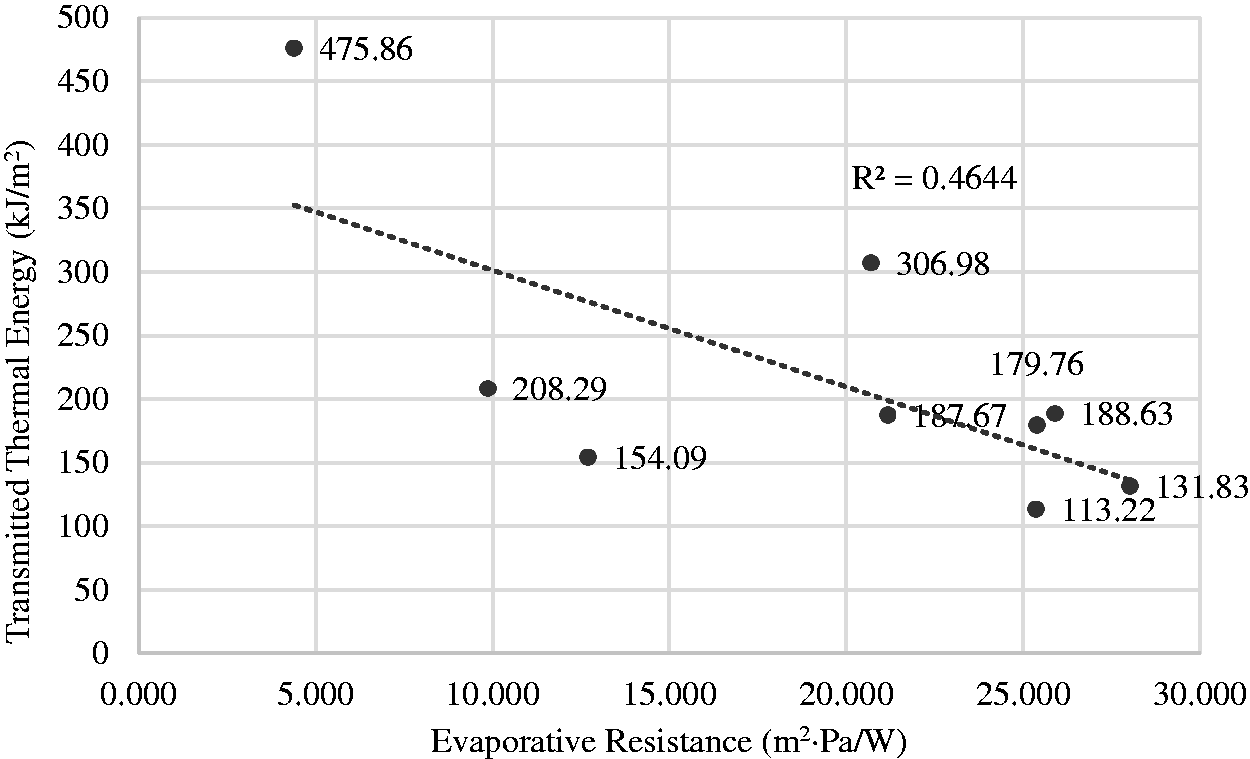

Figure 7.

Relationship between the evaporative resistance and transmitted thermal energy of the fabric systems.

Modeling for predicting the thermal protective performance of fabrics

Based on the above discussion, it can be inferred that thermal resistance and evaporative resistance are the two most significant properties to affect the transmitted thermal energy, in turn, thermal protective performance of the fabric systems. In the following section, these significant properties are employed in the MLR and ANN modeling techniques in order to develop models for predicting the thermal protective performance of the fabric systems in terms of transmitted thermal energy. Notably, the MLR and ANN models developed in the following section are based on the fabric systems used in this study. In future, the performance (R², RMSE) of these models could be improved by incorporating a greater number of fabric systems with a wide range of properties and performance.

MLR model

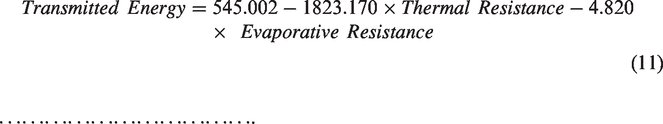

The MLR model for predicting the thermal protective performance of fabric systems under Molotov cocktail exposure is shown in equation (11). In this model, the fabric properties that significantly affected the thermal protective performance of fabric systems were employed in the SPSS Statistics 25 Data Editor software according to the MLR modelling method described in the research methodology section.

Transmitted Energy = 545.002 - 1823.170 \times Thermal Resistance - 4.820 \times Evaporative Resistance

(11)

ANN model

In order to predict the thermal protective performance by ANN models in terms of transmitted thermal energy, the ANN modelling method described in the research methodology section was followed. Here, the values of two significant fabric properties for the transmitted thermal energy were employed to code the computer program for ANN model using MATLAB software. This program was executed in the MATLAB software for predicting the transmitted thermal energy of the fabric systems. A schematic diagram (Figure 8) and code for the ANN model that was used to predict the transmitted thermal energy of the fabric systems under Molotov cocktail exposure is presented below:

input = [0.073 0.117 0.169 0.095 0.095 0.129 0.151 0.184 0.151; 4.400 9.870 12.700 20.700 21.170 25.900 25.400 28.030 25.370];

target = [475.86 208.29 154.09 306.98 187.67 188.63 179.76 131.83 113.22];

trainFcn = ‘trainlm'; % Levenberg-Marquardt backpropagation.

% creating a fitting network

hiddenLayerSize = 3;

netp1 = fitnet(hiddenLayerSize,trainFcn);

% setting up the division of data for training, validation, testing

netp1.divideParam.trainRatio = 60/100;

netp1.divideParam.valRatio = 20/100;

netp1.divideParam.testRatio = 20/100;

% training the network

[netp1,tr] = train(netp1,input,target);

% testing the network

y = netp1(input);

% assessing the performance of the trained network. The default performance function is mean squared error.

performance = perform(netp1,target,y)

% saving the trained network

save netp1;

% loading the trained network

load netp1;

% calculating the root mean square error

rmse=sqrt(performance);

% viewing the network

view(netp1);

% using the regression analysis to judge the network performance

[m,b,r]=postreg(y,target);

plotregression(target,y,'Regression');

%plotperform(tr);

Figure 8.

Schematic diagram of three-layered feed-forward backpropagation ANN model with two significant fabric properties and three hidden neurons.

Comparison between MLR and ANN models

In this section, the MLR and ANN models obtained for predicting the thermal protective performance of the fabric systems under Molotov cocktail exposure are statistically compared according to the method described in the research methodology section. The predicting performance parameters (R², RMSE, P-values) of these MLR and ANN models are presented in Table 5.

Table 5.

The R², RMSE, and P-values of the MLR and ANN models.

Model Types	Model Performance Parameters
Model Types	R²	RMSE	P-values
MLR	0.73	191.38	0.02
ANN	0.94	37.42	0.02

Table 5 presents that the prediction models are valid as the P-values are less than 0.05. In a comparison between the MLR and ANN models, it can be identified that the R² value of MLR model is lower than the ANN model; hence, the predictability of the ANN model works better than the MLR model. Moreover, the prediction error (RMSE) by the ANN model is much lower than the MLR model. The best validation performance of this ANN model was found at epoch 2 and there was a strong relationship between the targetted value (i.e., the actual value of the transmitted thermal energy obtained from the experiment) and ANN model obtained output value (Figure 9). In summary, the ANN model performed better than the MLR model in terms of the precision and accuracy for predicting the thermal protective performance under Molotov cocktail exposure. Thus, it is worthwhile to use the best-fit ANN model for predicting the thermal protective performance of the fabric systems under Molotov cocktail exposure.

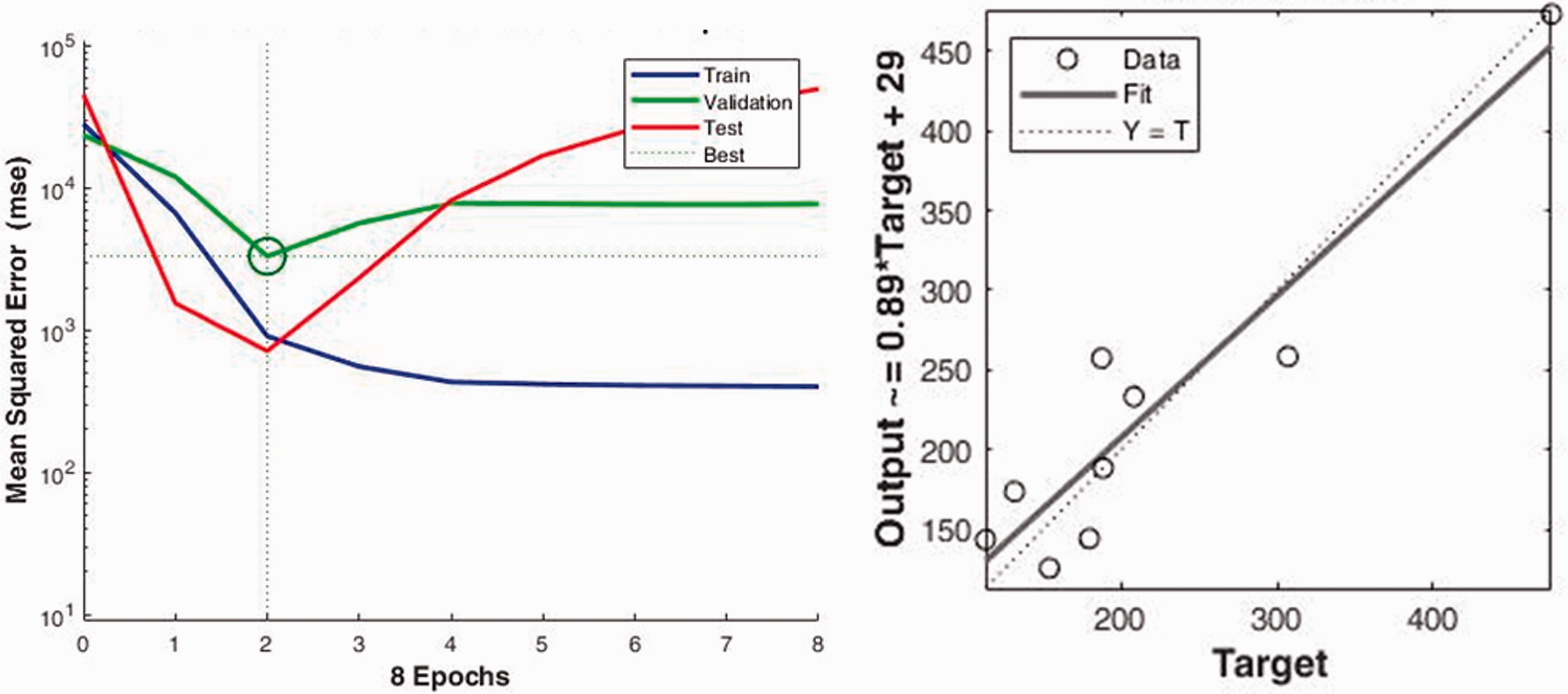

Figure 9.

Performance and regression plots of the developed ANN model.

Summary and conclusion

High-risk sectors’ employees are often exposed to fires while on-duty. In this fire exposure, the workwear used by these employees mainly provide them protection. Considering this, many researchers characterized and modeled the thermal protective performance of the fabrics used in the workwear under different types of fire exposures such as flame, radiant-heat, and hot surface contact. However, no studies have been carried out to characterize and model the thermal protective performance of fabrics under an important fire exposure – i.e., Molotov cocktail exposure.

Based on this study, it can be concluded that a workwear made up of a fabric with high thickness, high thermal resistance, and high evaporative resistance could provide better protection to high-risk sectors’ employees. However, if the fabric is highly air permeable, the workwear cannot provide proper protection to the employees. Notably, thermal resistance and evaporative resistance are the most significant properties that can affect the thermal protective performance of the fabrics used in the workwear under Molotov cocktail exposure. This study further employed these significant properties for developing the models that can conveniently predict the thermal protective performance of the fabrics under Molotov cocktail exposure. In this study, it has been found that state-of-the-art ANN model could accurately predict the performance in comparison to the MLR model.

In future, the developed models can be used by industry and academic researchers for predicting the thermal protective performance of fabrics under Molotov cocktail exposure. The understanding developed through this study could also lead textile and materials scientists to develop a novel fabric-based workwear that can provide better occupational health and safety to the high-risk sectors’ employees.

Future work

Considering the limited resources and time, this study primarily focused on the thermal protective performance of fabrics. However, this fabrics-based workwear should also provide protection from bullet and stab; therefore, in future, a study on impact and penetration resistance of these fabrics could be conducted. Additionally, these fabrics may have an impact on comfort of the wearers; therefore, a study could also be conducted to evaluate the thermo-physiological, fit, and tactile comfort performance of these fabrics.

Footnotes

Acknowledgements

The authors like to thank Leonie El Issawi-Frischknecht at Empa, Switzerland for her support during the testing.

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: Sumit Mandal would like to thank Oklahoma State University, USA for providing him a Start-up Research Grant. Sumit Mandal would also like to thank University of Alberta, Canada for providing him with the Edmonton Consular Ball Scholarship during his PhD to visit and conduct this research at Empa, Swiss Federal Laboratories for Materials Science and Technology, Switzerland.

ORCID iD
