Abstract

Open-source Electronic Health Records (OS-EHRs) are of pivotal importance in the management, operations, and administration of any healthcare organization. With the advancement of health informatics, researchers and healthcare practitioners have proposed various frameworks to assess the maturation of Open-source EHRs. The significance of OS-EHRs stems from the fact that vendor-based EHR implementations are becoming financially burdensome, with some vendors raking in more than $1 billion with one contract. Contrarily, the adoption of OS-EHRs suffers from a lack of systematic evaluation from the standpoint of a standard reference model. To this end, the Healthcare Information and Management Systems Society (HIMSS) has presented a strategic road map called EMR Adoption and Maturity (EMRAM). The HIMSS-EMRAM model proposes a stage-wise model approach that is globally recognized and can be essentially applied as a benchmark evaluation criteria for open-source EHRs. This paper offers an applied descriptive methodology over the frequently studied open-source EHRs currently operational worldwide or has the potential of adoption in healthcare settings. Besides, we also present profiling (User Support, Developer’ Support, Customization Support, Technical details, and Diagnostic help) of studied OS-EHRs from developer’s and user’s perspectives using updated standard metrics. We carried out multi-aspect objective analysis of studied systems covering EHR functions, software based features and implementation. This review portrays systematic aspects of electronic medical record standards for open-source software implementations. As we observed in the literature, prevalent research and working prototypes lack systematic review of the HIMSS-EMRAM model and do not present evolving software features. Therefore, after the application of our assessment measures, the results obtained indicate that OS-EHRs are yet to acquire standard compliance and implementation. The findings in this paper can be beneficial in the planning and implementation of OS-EHRs projects in the future.

Keywords

open-source electronic health records Health Informatics healthcare information and management systems society analatics

Introduction

Some of the widely accepted benefits of implementation Electronic Health Record (EHR) systems into health organizations include secure clinical information, improved hospital administrative affairs, availability of e-prescription, and better management of patients and hospital staff .^1,2 Multi-aspects operations of the patient and extensive management of hospital staff make the prevalent health systems more complicated and prone to administrative mismanagement. The importance of E-Health solutions to mitigate such anomalies of manual clinical management systems becomes more recognizable. Recent research towards the adoption of technology-based health policy has found a profound effect of operational proficiency and service standards on health organizations .^3,4 On the other hand, adoption of EHR has not been frequent and easy due to shortage of e-health models, expensive implementation of e-health solutions, and unavailability of trained IT-health professionals .^5,6,7 Nevertheless, healthcare organizations around the world have been utilizing e-health solutions to improve operational efficiency, realizing its outstanding impact on patient care and medical staff administration .^8,9,10

In the last decade, open-source Electronic Health Record systems (OS-EHRs) have gained notable recognition due to several factors, like, availability without financial barriers, wider compatibility, user-friendliness, and unrestricted modification and restructuring .^11,12 Open-source software in healthcare has also been quite successful as it provides development flexibility, involving users and the developer’s community at great deal .¹³ Moreover, regular release of products, modular architecture and explanatory documentation of open-source EHR are considered as additional contributing factors towards frequent acceptance of OS-EHRs in the domain of health informatics. There have been numerous research efforts in past to formulate the EHR model that should include basic sub-systems and functional requirements identified by IT-professionals and clinical users for the development of enterprise-wide OSS solutions. Generally, evaluation-based assessment of an OS-EHRs should have eight prominent parameters: Management of health data, decision support system, management of clinical results, inventory system, communication of documents using electronic means, in and outpatient record management support, report generation using health and population administration .¹⁴

Despite the low-cost and operation benefits, OS in health care entails certain challenges, like, long-term organizational ownership, financial assistance for continuous maintenance, functionality-based limitations, issues of usability, scarce resources with respect to the environment. This can be mitigated by an exclusive attempt to evaluate an OS-EHRs on the basis of a systematic model that guides its stage-wise implementation in terms of core-modules, clinical administration, and centralized governance of OS-EHR into the health system.

Therefore, in this study, our endeavor is to explore, assess, and evaluate OS-EHRs in correspondence with Health Care Information Management Systems Society (HIMSS) Analytics EMRAM model. Over the years, HIMSS has been formulating maturity models that describe strategic pathways for analytics, clinical care, clinical documentation, and digital health infrastructure.

As a matter of fact, OS-EHR is basically a complete software product. Consequently, software products keep on updating, evolving and maintaining to meet customers needs and technological advances. Therefore, it is quite eminent to determine OS-EHR from software engineering context. In addition, we have developed a hands-on study design using state-of-the-art software metrics and parameters for comprehensive evaluation of OS-EHRs. These parameters include technical aspects, user measure, developers metrics, diagnostics tools, help resources, and software quality attributes. This makes our contribution a multi-pronged strategy to present an assessment of OS-EHRs. Consequently, this study will help health practitioners to compare the efficacy of popular OS-EHRs systematically, and make feasible and economical decisions for their respective health organizations.

Existing literature review

We started our study with review of existing literature quite carefully to segregate studies related to Open-Source Electronic Health Record (OS-EHR). Review followed two steps specifically: firstly to select research studies related to open-source Electronic Health Record (OS-EHRs); secondly to determine the studies having scope and relevance of open-source utilization or model-based evaluation. We obtained research article from web based research databases like, Web of Science (Wos), Scopus, pugMed, Medline, Google Scholar and IEEE-Xplore, etc.

We then performed thorough process of screening, identification and inclusion to extract our research domain from collection of 112 research articles from 2005 to 2019 found in various academic journal’s search engines. Firstly, we separated articles which are, out of context, not published in English, irrelevant to our scope or domain and published not in credible journals from collection. Afterwards we identified articles with specific research focus of Open Source Electronic Health Record. As a result of search and executing query using keywords of “Open-Source Electronic Health Records, HIMMS Analytics, Utilization of EHR”, we collected 55 papers. In order to further refine the review process, we included the papers in which at-least 3 or more open-source EHRs (OS-EHRs) were studied or EHR based subject systems (not necessarily open-source) were analyzed using any systematic reference model. Basically, our inclusion criteria was two fold, first article with relevance of Evaluation based on any reference model of OS-EHRs were included, secondly, articles with utilization of OS-EHRs were included. Admittedly, our research is in-line with the one of comprehensive study on open-source published in 2014 .¹⁵ However, recent technological development in Health Informatics and up-gradation of open-source software systems demand revised and systematic review of this kind. Our proposed classification mechanism will help health-informatics researchers to perceive utilization, effectiveness and prevalent spectrum of credible open-source EHRs. This process of finalizing our review research domain is depicted in Figure 1. We believe need of putting up couple of observations from literature review. First, surveyed articles are with emphasis of implementing OS-EHRs in health organization as innovative health effort. Second, analysis in these articles is quite limited in terms of number of OS-EHRs used as subject system or criteria. Third, an effort of combining these articles into composite review is missing. All these observations provide us motivation to review that can cover overall impression of OS-EHRs as complete MIS tool that automates all the health care activities. We believe that significant advancement in evaluation of OS-EHRs took place in period from 2014 to 2019. Therefore, description review articles of two eras is reported in Tables 1 and 2 separately.

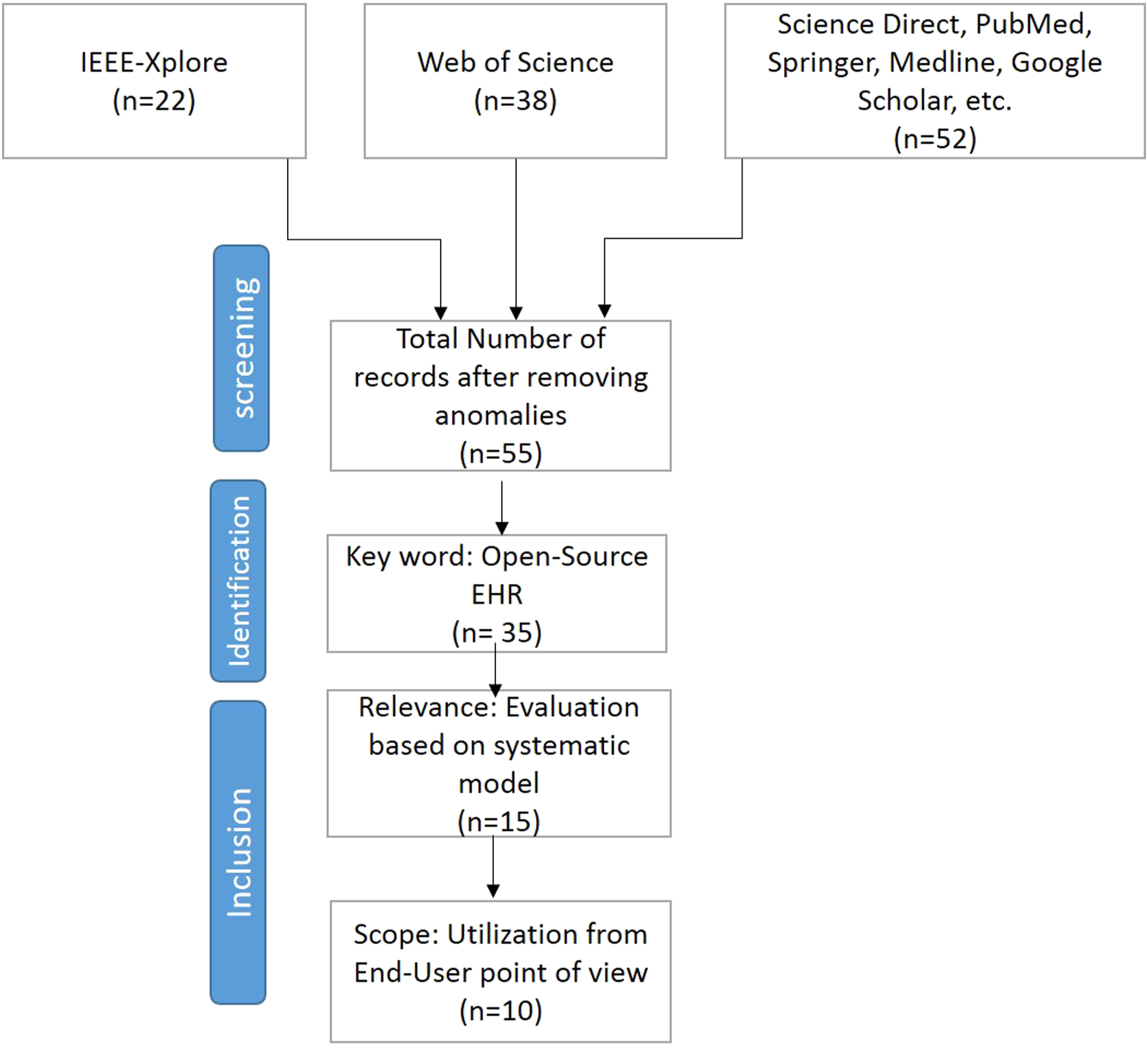

Figure 1.

Flow diagram for article selection process.

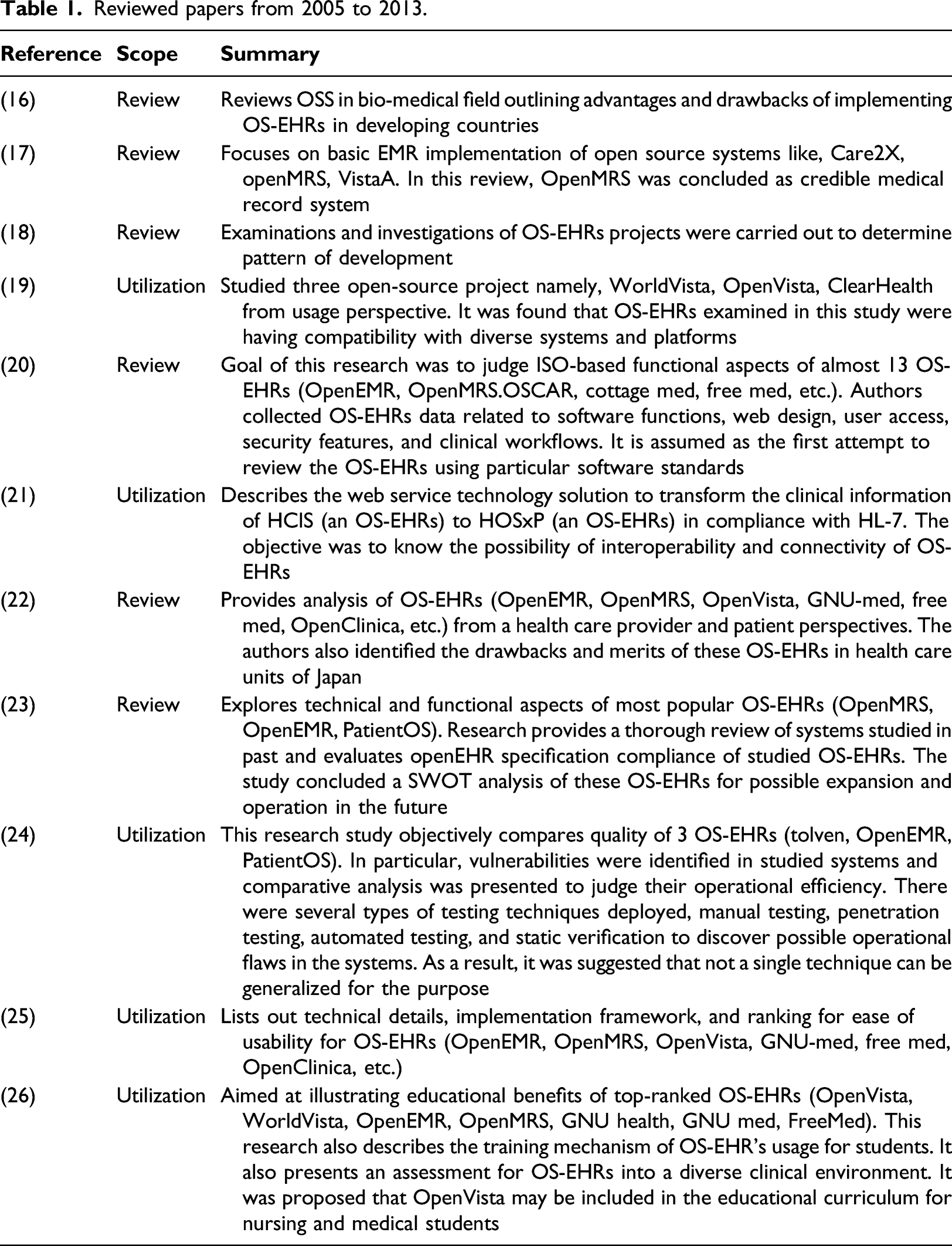

Table 1.

Reviewed papers from 2005 to 2013.

Reference	Scope	Summary
(16)	Review	Reviews OSS in bio-medical field outlining advantages and drawbacks of implementing OS-EHRs in developing countries
(17)	Review	Focuses on basic EMR implementation of open source systems like, Care2X, openMRS, VistaA. In this review, OpenMRS was concluded as credible medical record system
(18)	Review	Examinations and investigations of OS-EHRs projects were carried out to determine pattern of development
(19)	Utilization	Studied three open-source project namely, WorldVista, OpenVista, ClearHealth from usage perspective. It was found that OS-EHRs examined in this study were having compatibility with diverse systems and platforms
(20)	Review	Goal of this research was to judge ISO-based functional aspects of almost 13 OS-EHRs (OpenEMR, OpenMRS.OSCAR, cottage med, free med, etc.). Authors collected OS-EHRs data related to software functions, web design, user access, security features, and clinical workflows. It is assumed as the first attempt to review the OS-EHRs using particular software standards
(21)	Utilization	Describes the web service technology solution to transform the clinical information of HCIS (an OS-EHRs) to HOSxP (an OS-EHRs) in compliance with HL-7. The objective was to know the possibility of interoperability and connectivity of OS-EHRs
(22)	Review	Provides analysis of OS-EHRs (OpenEMR, OpenMRS, OpenVista, GNU-med, free med, OpenClinica, etc.) from a health care provider and patient perspectives. The authors also identified the drawbacks and merits of these OS-EHRs in health care units of Japan
(23)	Review	Explores technical and functional aspects of most popular OS-EHRs (OpenMRS, OpenEMR, PatientOS). Research provides a thorough review of systems studied in past and evaluates openEHR specification compliance of studied OS-EHRs. The study concluded a SWOT analysis of these OS-EHRs for possible expansion and operation in the future
(24)	Utilization	This research study objectively compares quality of 3 OS-EHRs (tolven, OpenEMR, PatientOS). In particular, vulnerabilities were identified in studied systems and comparative analysis was presented to judge their operational efficiency. There were several types of testing techniques deployed, manual testing, penetration testing, automated testing, and static verification to discover possible operational flaws in the systems. As a result, it was suggested that not a single technique can be generalized for the purpose
(25)	Utilization	Lists out technical details, implementation framework, and ranking for ease of usability for OS-EHRs (OpenEMR, OpenMRS, OpenVista, GNU-med, free med, OpenClinica, etc.)
(26)	Utilization	Aimed at illustrating educational benefits of top-ranked OS-EHRs (OpenVista, WorldVista, OpenEMR, OpenMRS, GNU health, GNU med, FreeMed). This research also describes the training mechanism of OS-EHR’s usage for students. It also presents an assessment for OS-EHRs into a diverse clinical environment. It was proposed that OpenVista may be included in the educational curriculum for nursing and medical students

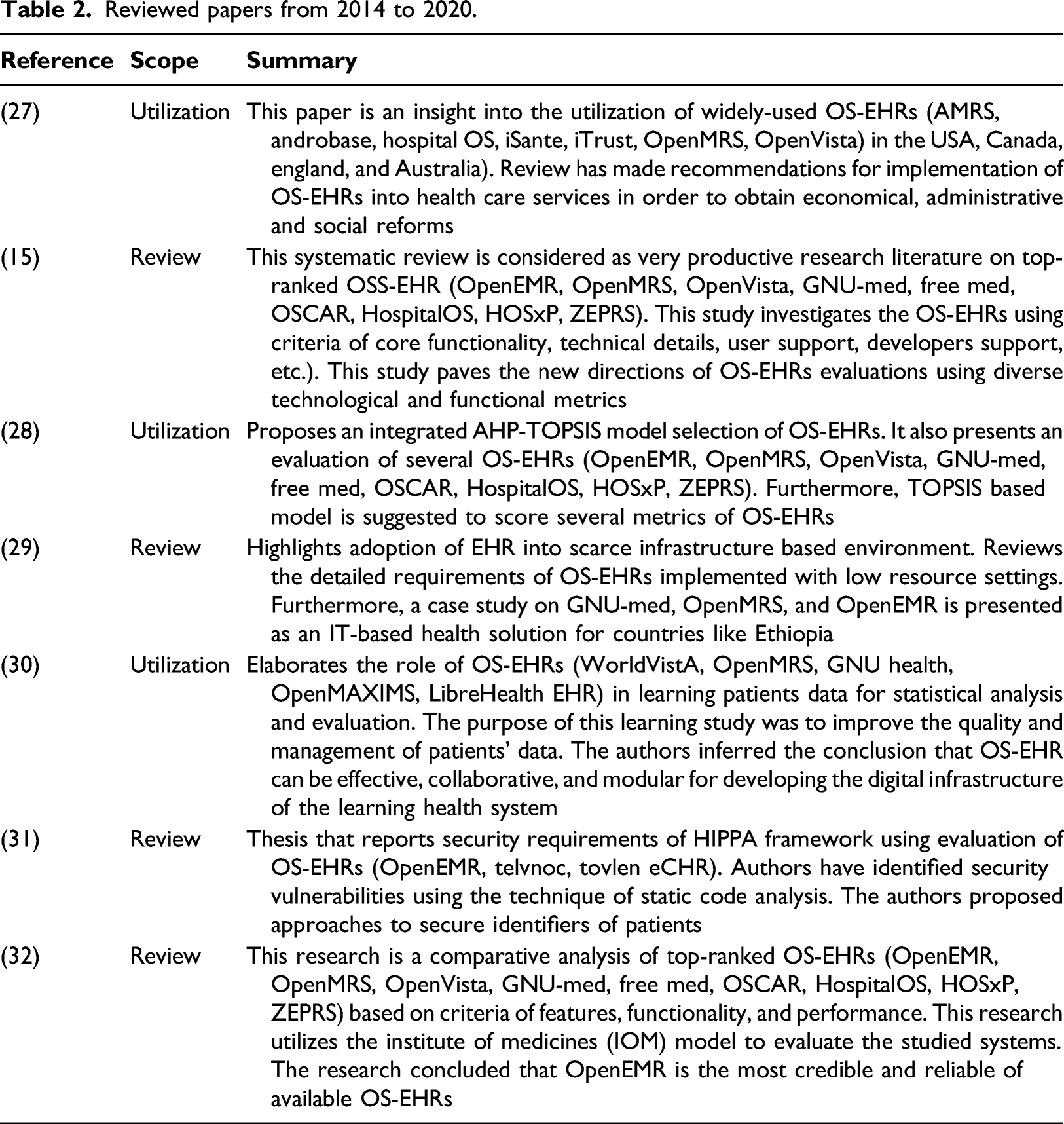

Table 2.

Reviewed papers from 2014 to 2020.

Reference	Scope	Summary
(27)	Utilization	This paper is an insight into the utilization of widely-used OS-EHRs (AMRS, androbase, hospital OS, iSante, iTrust, OpenMRS, OpenVista) in the USA, Canada, england, and Australia). Review has made recommendations for implementation of OS-EHRs into health care services in order to obtain economical, administrative and social reforms
(15)	Review	This systematic review is considered as very productive research literature on top-ranked OSS-EHR (OpenEMR, OpenMRS, OpenVista, GNU-med, free med, OSCAR, HospitalOS, HOSxP, ZEPRS). This study investigates the OS-EHRs using criteria of core functionality, technical details, user support, developers support, etc.). This study paves the new directions of OS-EHRs evaluations using diverse technological and functional metrics
(28)	Utilization	Proposes an integrated AHP-TOPSIS model selection of OS-EHRs. It also presents an evaluation of several OS-EHRs (OpenEMR, OpenMRS, OpenVista, GNU-med, free med, OSCAR, HospitalOS, HOSxP, ZEPRS). Furthermore, TOPSIS based model is suggested to score several metrics of OS-EHRs
(29)	Review	Highlights adoption of EHR into scarce infrastructure based environment. Reviews the detailed requirements of OS-EHRs implemented with low resource settings. Furthermore, a case study on GNU-med, OpenMRS, and OpenEMR is presented as an IT-based health solution for countries like Ethiopia
(30)	Utilization	Elaborates the role of OS-EHRs (WorldVistA, OpenMRS, GNU health, OpenMAXIMS, LibreHealth EHR) in learning patients data for statistical analysis and evaluation. The purpose of this learning study was to improve the quality and management of patients’ data. The authors inferred the conclusion that OS-EHR can be effective, collaborative, and modular for developing the digital infrastructure of the learning health system
(31)	Review	Thesis that reports security requirements of HIPPA framework using evaluation of OS-EHRs (OpenEMR, telvnoc, tovlen eCHR). Authors have identified security vulnerabilities using the technique of static code analysis. The authors proposed approaches to secure identifiers of patients
(32)	Review	This research is a comparative analysis of top-ranked OS-EHRs (OpenEMR, OpenMRS, OpenVista, GNU-med, free med, OSCAR, HospitalOS, HOSxP, ZEPRS) based on criteria of features, functionality, and performance. This research utilizes the institute of medicines (IOM) model to evaluate the studied systems. The research concluded that OpenEMR is the most credible and reliable of available OS-EHRs

EHR Adoption: 7 Stages to Implementation Success

Over the last decade, there has been notable research and development for incorporating technology towards health information management to enhance, improve, and facilitate prevalent health systems. In this regard, several models were proposed to benchmark and evaluate clinical practices, specifically the adoption of electronic medical records. The Electronic Medical Record Adoption Model (EMRAM) proposed by Health Care Information Management Systems Society (HIMSS^∗) Analytic has lately gained universal recognition as a standard for evaluation and assessment of electronic medical records. HIMSS Analytics EMRAM mainly provides a comprehensive stage-wise framework that guides health organizations to track their level of EMR adoption. HIMSS Analytics EMRAM explicitly defines eight stages (zero to seven), and adoption model setting and meeting requirements for each stage as well. Table 3 lists down HIMSS Analytics EMRAM stages and their description briefly.

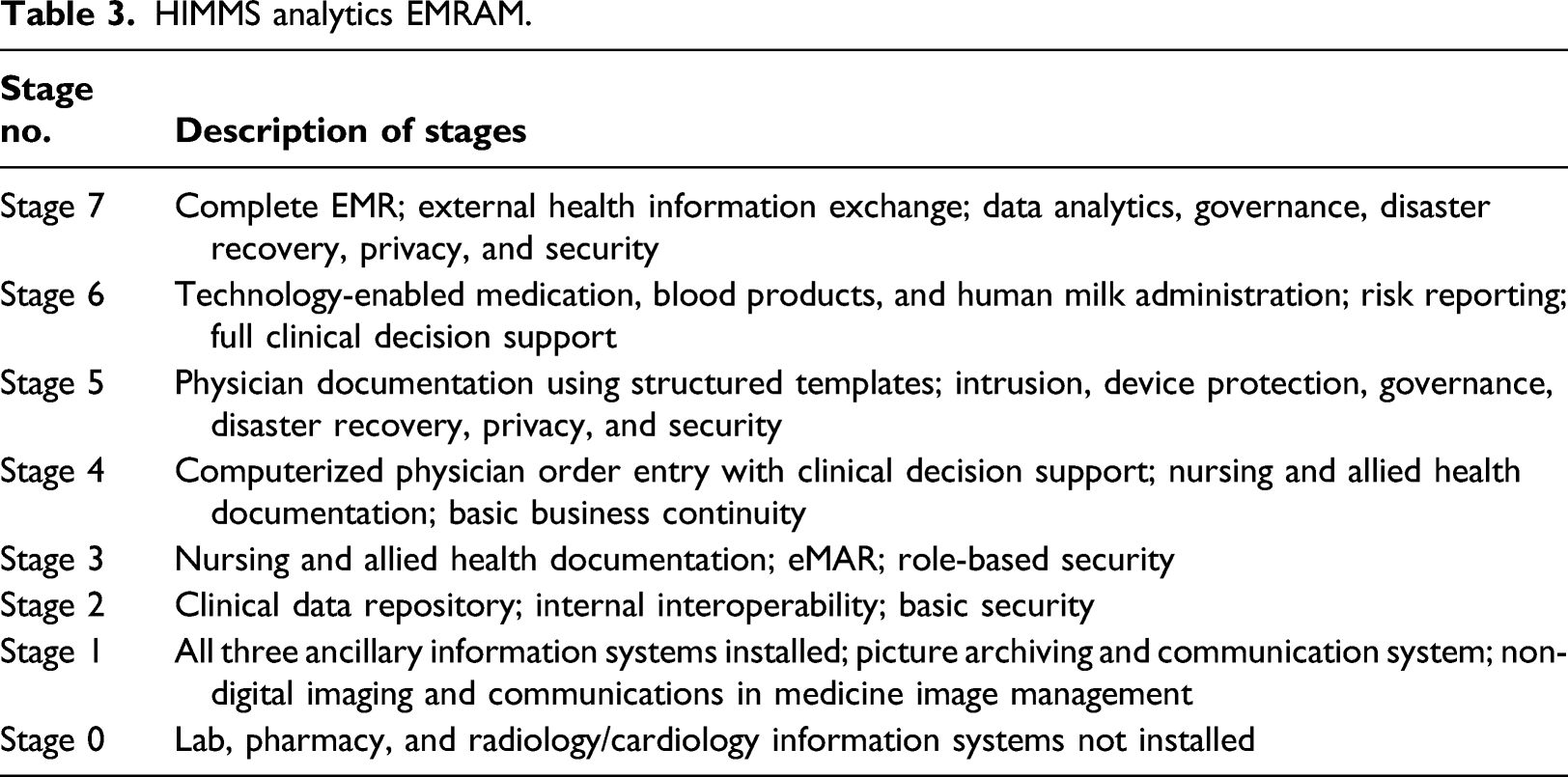

Table 3.

HIMMS analytics EMRAM.

Stage no.	Description of stages
Stage 7	Complete EMR; external health information exchange; data analytics, governance, disaster recovery, privacy, and security
Stage 6	Technology-enabled medication, blood products, and human milk administration; risk reporting; full clinical decision support
Stage 5	Physician documentation using structured templates; intrusion, device protection, governance, disaster recovery, privacy, and security
Stage 4	Computerized physician order entry with clinical decision support; nursing and allied health documentation; basic business continuity
Stage 3	Nursing and allied health documentation; eMAR; role-based security
Stage 2	Clinical data repository; internal interoperability; basic security
Stage 1	All three ancillary information systems installed; picture archiving and communication system; non-digital imaging and communications in medicine image management
Stage 0	Lab, pharmacy, and radiology/cardiology information systems not installed

It costs a huge investment to develop the EMR based solutions. Moreover, an organization has to keep continuous maintenance of such EMR based system, enhance the staff capacity building and optimize the workflows to realize its long-term benefits. Achievement of HIMSS 7 stages is indicator that an organization is adapting technological changes and incorporating innovations to improve health care.

Workflow of HIMSS Analytics EMRAM

As explained earlier, efficacy of patient care is subject to collaboration of all the basic components of Health Information Systems. These basic systems are sought to be implemented successfully for meaningful use of OS-EHRs technology. Researchers have reached to the conclusion that complete Electronic Medical Record Adoption (EMRAM) is contingent to integration of maximum health information into clinical workflows. In the process, there has been efforts to achieve productivity and simplified ambulatory care settings for EMRAM based clinical workflow. Diagrammatic representation of HIMSS Analytics EMRAM (stage 1 to stage 7) based clinical workflow and their corresponding sub-systems is presented in Figure 2.

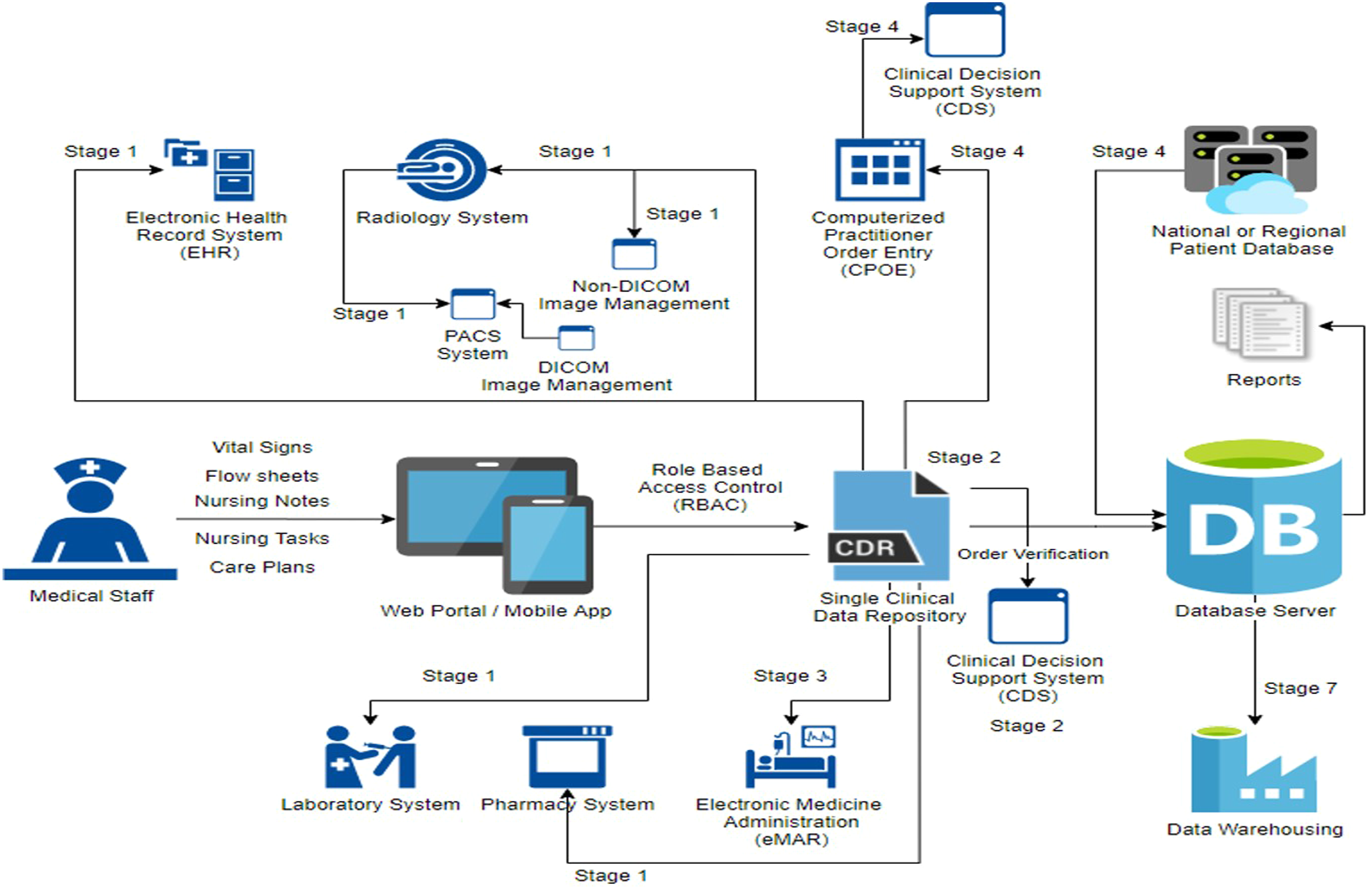

Figure 2.

HIMSS workflow.

EMRAM 7 stages portray the blue print of Digital Health ecosystem. That ecosystem creates working connection among clinician, health management team and digital tools to reach the goal of patient wellness. HIMSS Analytics EMRAM addresses 4 dimensions (also known as Digital Health Indicators) of principles and evidences to improve the health system operational capacity, i.e. Governance and Workforce, predictive analytic, inter-operability, Person-Enabled Health. These indicators can be well observed as you go along the flow in Figure 2. Another key benefit of applying HIMSS Analytics EMRAM is to progressively measure advancement in any health organization and at the same time improve health care delivery with defined functional course, i.e. Growth, Development and alignment.

Adoption of Electronic Health Record

There has been gradual adoption of Electronic Health Record into health organization around the world. This is quite valid as transformation of manual systems to computer based systems into any organization has not been a simple task. Different health related bodies (locally and globally) have formulated policy emphasizing EHR implementation for the adoption of technology to promote meaningful use and efficacy of health systems .³³ Initially, there were recommendation of Meaningful Use (MU) stage 2 attestation of hospitals, later on, more reforms for IT-based health services were sought .³⁴ Indeed, there was rapid adoption of EHR in many hospitals at government levels, however, some hospitals in rural localities were yet to embrace technology .³⁵ One of the study for United States reports that there has been increase in EHR adoption from 10% to 83% in just 8 years (2008–2015) .³⁶ Research Literature of EHR adoption focus suggests that Meaningful Use (MU) was considered frequently set criteria .³⁷ Moreover, adoption was mainly considered as transition from paper to electronic data collection within the EHR, thereby partially serving the purpose.

As realization of EHR adoption increased to enhance health care services, researchers began to bring diverse functionalities (Clinical Decision Support (CDS), Automating Clinical Workflows, Integrating and administrating the health care systems) into domain of EHR adoption .^38,39 This also paved the way for health policy makers to frame the EHR into some stage wise implementation .⁴⁰ The Health Information Management System Society developed EMRAM, a model to identify extent of technological integration and way-points in the form of stages.

Challenges Achieving 7 stages

Indeed, success of any organization in achieving stage 7 of EMRAM depends upon Team from all the stack-holders. It is assumed to be combined effort of doctors, nurses, hospital administration, IT professionals to ensure full utilization of EMR functionality. Health systems following the HIMSS analytics 7 stages primarily lead the organization to paperless clinical workflow and administration. Open-source EHR are generally developed on the criteria of open-source business models, medical informatics guidelines and platform-independence. Additionally, open-source EHRs allow developers to continuously enhance the functionalities and performance according to specific requirements. As an IT initiative, an organization needs to avoid re-inventing wheel and opt for enhancing available open-source EHR for achieving HIMSS 7 stages of implementation .^41,42 Despite growing significance of EHR adoption in compliance with HIMMS 7 stages, health organization has to coup with following challenges:

• Team should be formed comprising IT and Health professionals to form strategy helping health organization to merge e-health solutions.

• E-health necessities and functionalities should be illustrated considering EMRAM stage 7 model and several socio-politico-economic structure of particular country.

• Government should make obligatory rules and regulations for any health organization to adopt EHR and continuously make updating to acquire EMRAM stage-7.

• Government IT institution should form close collaboration with health organization for centralized EHR based health framework.

• Government should regulates health and population management departments to educate the people regarding importance and key benefits of EMRAM stage-7 achievement.

EHR functionalities and their evaluation

Over the years, health and IT-practitioners have developed many open source and proprietary EHRs to promote and facilitate the health care world wide. Despite extensive prevalent and on-going development, not all of the EHRs have gained same level of popularity. There have been studies to determine the capability of particular open source EHR based on interoperability-focused criteria, meaningful-use criteria and core functionalities criteria. However, there is no as such existing study to the best of our knowledge that systematically reviews compliance of open source EHR’s with HIMSS Analytics EMRAM stage-wise model. Our research methodology is based on maturity assessment of open source Electronic Health Record systems following HIMSS EMRAM. There were number of steps involved in this study as described below:

Selection of subject systems

To provide credible assessment, we followed comprehensive process of open source EHRs selection. Firstly, we examined and reviewed functional aspects of several systems from their available documentation. Secondly, we devised criteria to include systems adhering to following conditions: (a) OS-EHRs which have been frequently used in research literature of health and information systems; (b)OS-EHRs which are operational on large scale (In most of countries or for large population) and are user friendly; (c) OS-EHRs which are top-ranked on several web search engines and can be implemented with minimum system requirement; (d) OS-EHRs which are HL7 and OpenEHR compliant and show maximum functionalities of clinical workflows; (e) EHRs which are operational in rural population (Mostly in African countries) and have potential of further maintenance and restructuring. Finally, we concluded to select some of best systems fitting our criteria mentioned in Table 4 with details.

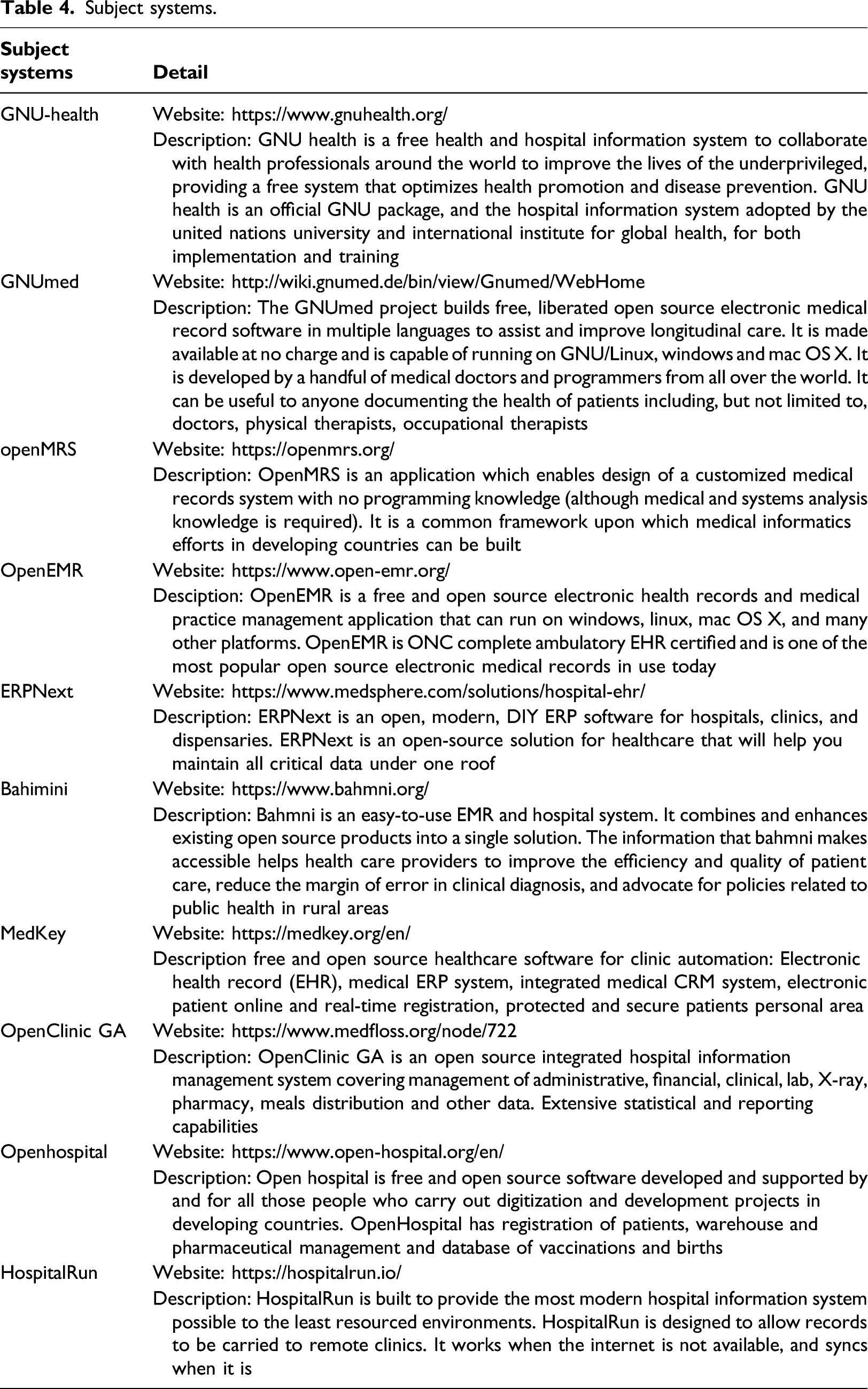

Table 4.

Subject systems.

Subject systems	Detail
GNU-health	Website: https://www.gnuhealth.org/
	Description: GNU health is a free health and hospital information system to collaborate with health professionals around the world to improve the lives of the underprivileged, providing a free system that optimizes health promotion and disease prevention. GNU health is an official GNU package, and the hospital information system adopted by the united nations university and international institute for global health, for both implementation and training
GNUmed	Website: http://wiki.gnumed.de/bin/view/Gnumed/WebHome
	Description: The GNUmed project builds free, liberated open source electronic medical record software in multiple languages to assist and improve longitudinal care. It is made available at no charge and is capable of running on GNU/Linux, windows and mac OS X. It is developed by a handful of medical doctors and programmers from all over the world. It can be useful to anyone documenting the health of patients including, but not limited to, doctors, physical therapists, occupational therapists
openMRS	Website: https://openmrs.org/
	Description: OpenMRS is an application which enables design of a customized medical records system with no programming knowledge (although medical and systems analysis knowledge is required). It is a common framework upon which medical informatics efforts in developing countries can be built
OpenEMR	Website: https://www.open-emr.org/
	Desciption: OpenEMR is a free and open source electronic health records and medical practice management application that can run on windows, linux, mac OS X, and many other platforms. OpenEMR is ONC complete ambulatory EHR certified and is one of the most popular open source electronic medical records in use today
ERPNext	Website: https://www.medsphere.com/solutions/hospital-ehr/
	Description: ERPNext is an open, modern, DIY ERP software for hospitals, clinics, and dispensaries. ERPNext is an open-source solution for healthcare that will help you maintain all critical data under one roof
Bahimini	Website: https://www.bahmni.org/
	Description: Bahmni is an easy-to-use EMR and hospital system. It combines and enhances existing open source products into a single solution. The information that bahmni makes accessible helps health care providers to improve the efficiency and quality of patient care, reduce the margin of error in clinical diagnosis, and advocate for policies related to public health in rural areas
MedKey	Website: https://medkey.org/en/
	Description free and open source healthcare software for clinic automation: Electronic health record (EHR), medical ERP system, integrated medical CRM system, electronic patient online and real-time registration, protected and secure patients personal area
OpenClinic GA	Website: https://www.medfloss.org/node/722
	Description: OpenClinic GA is an open source integrated hospital information management system covering management of administrative, financial, clinical, lab, X-ray, pharmacy, meals distribution and other data. Extensive statistical and reporting capabilities
Openhospital	Website: https://www.open-hospital.org/en/
	Description: Open hospital is free and open source software developed and supported by and for all those people who carry out digitization and development projects in developing countries. OpenHospital has registration of patients, warehouse and pharmaceutical management and database of vaccinations and births
HospitalRun	Website: https://hospitalrun.io/
	Description: HospitalRun is built to provide the most modern hospital information system possible to the least resourced environments. HospitalRun is designed to allow records to be carried to remote clinics. It works when the internet is not available, and syncs when it is

Research methdology

We adopted review, evaluation and analysis based research methodology to determine maturation of subject systems. Firstly, authors in collaboration installed and deployed open source EHRs on their local machine. Secondly, each selected system was carefully evaluated by checking its functionalities corresponding to all stages of EMRAM model. Our objective was to develop qualitative assessment of these open source EHRs from its functional parameters and architectural perspective. Indeed, it is functionality of particular EHR that indicates weather its maturation has reached to certain EMRAM stage, however, architectural evaluation help to devise further implementation recommendation. Thereafter, review data for all the subject systems was complied to develop a final checklist. Furthermore, illustration of review is provided based on remarks and functional analysis obtained from each system following EMRAM model shown in Table 5.

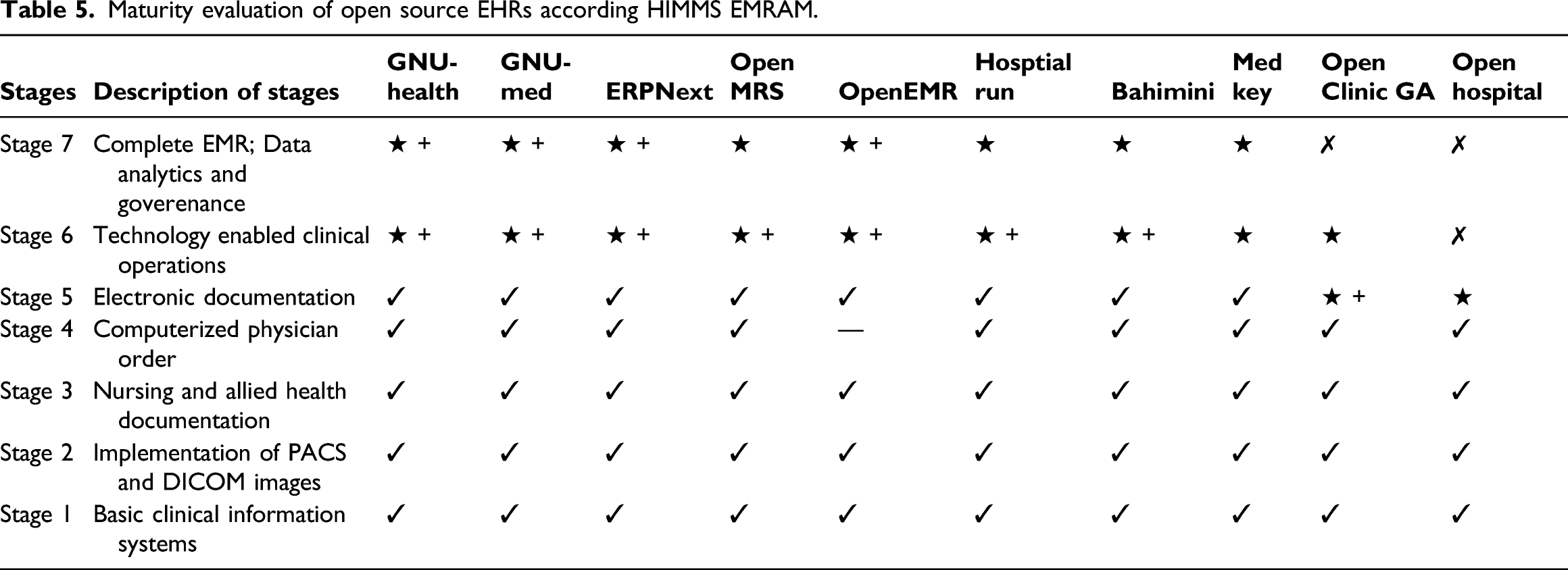

Table 5.

Maturity evaluation of open source EHRs according HIMMS EMRAM.

Stages	Description of stages	GNU-health	GNU-med	ERPNext	Open MRS	OpenEMR	Hosptial run	Bahimini	Med key	Open Clinic GA	Open hospital
Stage 7	Complete EMR; Data analytics and goverenance	⋆ +	⋆ +	⋆ +	⋆	⋆ +	⋆	⋆	⋆	✘	✘
Stage 6	Technology enabled clinical operations	⋆ +	⋆ +	⋆ +	⋆ +	⋆ +	⋆ +	⋆ +	⋆	⋆	✘
Stage 5	Electronic documentation	✓	✓	✓	✓	✓	✓	✓	✓	⋆ +	⋆
Stage 4	Computerized physician order	✓	✓	✓	✓	—	✓	✓	✓	✓	✓
Stage 3	Nursing and allied health documentation	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Stage 2	Implementation of PACS and DICOM images	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Stage 1	Basic clinical information systems	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓

In Table 2, ✓, star +, ⋆ and ∗∗∗∗∗ signs respectively indicate full, more than partial, partial or null implementation of corresponding stage of EMRAM model for particular open source EHR. It can be easily concluded that studied open source EHR are yet to achieve seven stage of EMRAM model. Further, stage-wise description is given as under:

Stage-1

Indeed, one of the prime check feature in OS-EHRs is presence of basic clinical information systems, i.e. Laboratory Pharmacy, Radiology functionalities. As a basic requirement, all subject systems have been developed ensuring compliance of Health Level-7 and open-EHR. There is exception of openHospital EHR which is basically part of health-care project in developing countries and yet to be declared as standard compliant. On the other hand, GNU-Health, GNU-Med,ERPNext, OpenMRS, OpenEMR, and MedKey are top ranked open source EHRs and are already operational in many developed countries world-wide. Implementation of Picture Archiving and Communication Systems (PACS) and non-DICOM(Digital Imaging and Communication in Medicine) storage is also required to pass stage 1. Previously this was a requirement which was covered in stage 5 but most of the hospitals in developed countries have some kind of image management system installed. From 1 January 2018, important changes were introduced by HIMSS and this requirement was moved from stage 5 to stage 1. Although, such imaging systems are rarely available in under developed areas based Health Information Systems (HIS). GNU-Med, Bahmni and OpenEMR have this integration available but other systems are either partially equipped or lacking this functionality.

Stage-2

This stage comprises basic physical data security and interoperability functions check within EHR. This stage requires major functionalities of systems which are covered in stage 1, and ought to be integrated into a single clinical data repository (CDR). This CDR functionality should provide access to all the data via single user interface. That includes laboratory, pharmacy, radiology and basic health record systems. All systems which we are evaluating support CDR functionality. This stage also requires use of controlled medical vocabulary in CDR functionality to make sure all medical professionals understand each other and can communicate easily. This feature is supported by all EHR systems we have evaluated. Stage 2 also requires Clinical Decision Support system (CDS) and it is found partially implemented in most of the subject systems except GNU-Med. One of the hospitals has implemented a CDS system using Bahmni but no documentation is available which can be used for implementing a similar system. OpenCDS, a third party open source solution is available which is quite techno-oriented and offers advanced customization options but more development is needed for integration. System must have the functionality to link document imaging systems with CDR to pass stage 2. All systems which support PACS integration have this functionality. Only exception is HospitalRun which doesn’t have any built-in imaging system support. As a policy matter, all the subject systems are physically secure access driven. OpenMRs and openEMR are operated through local-host and PhP server databases. Extension in interoperability can be established using link between manual clinial Data Repository (CDR) notes and advanced AI systems in most of subject systems, like, OpenMRS, OpenEMR and GNU-Health.

Stage-3

Role-based security and Electronic Medical Record adoption (eMAR) are key functions of this stage. Since, all the subject system EHRs follow HL-7 and OpenEHR guidelines, therefore, roles for all medical staff registered within particular EHR are well designated. Moreover, authorized access is administrated for all the staff using secure login procedures. Despite limitations in the scope of the subject systems, in principle all EHR provide implementation of integrated hospital information management system covering management of administrative, financial, clinical, lab, X-ray, pharmacy and other data. It is also evident from our review analysis that subject systems have also their technical constraints, resulting, OpenClinic GA and OpenHospital have eMAR focus for hospitals with limited resource. Whereas GNU-Health, OpenMRS, OpenEMR and MedKey are most popular open source electronic medical record and practice solutions providing wider scope of implementation. This stage requires 50% of documentation work that is vital signs, flowsheets, tasks, to be implemented and integrated into the CDR system. All the subject systems support this functionality and most of the systems exceed the 50% requirement. OpenMRS, Bahmni, GNUMed and OpenEMR are the functionally rich systems in this regard. 50% of documentation capability to be used in the Emergency Department is an additional condition to reach stage-2. All subject systems support this functionality except HospitalRun.

Stage-4

At stage 4, implementation of Computerized Practioner Order Entry (CPOE) functionality is checked for OS-EHRs. This stage also insures 50% of all medical orders like, drug dispensing, Lab reports, clinical history be placed using CPOE. Furthermore, integration of the Clilnical Decision Support (CDS) system with CPOE is next part of stage-4 implementation. Most of subject systems on evaluation were identified to lack CDS functionality except GNU-Med and OpenMRS. On the other hand, all the subject systems have matured enough to demonstrate CPOE functionality except OpenHospital and HosptialRun. As per stage-4 detailed recommendations, CPOE must be used in the Emergency Department to clear this stage. HospitalRun and OpenHospital have relatively failed to achieve full implementation of stage-4, probably due to their operational scope being limited. Generally, all the subject system are efficiently organized to run basic medical departments (Clinics, Pharmacy and Laboratory). Digital documentation work requirement in subject system is witnessed to have increased from 50% in stage 3–90% in stage 4. Digital connectivity and access to a regional database of patient data to support decision making is objective of data centralization in stage-4. However, upon careful examination and investigation, most of OS-EHRs are not upgraded with this process so far. Possible reasons can be difficulty in availability of such data and integration of such databases will require custom development work. According to modern IT-Health models, OS-EHRs should posses offline operation functionality so that basic information of patients should be accessible during down times. Interestingly, Only Bahmni and HospitalRun support this functionality. Bahmni supports this functionality via a separate application called Bahmni-Connect and HospitalRun utilized PouchDB which excels in supporting both online and offline modes. When a network is offline or downtime occurs, HospitalRun stores data locally in the browser and when the system is online, it synchronizes data with the server. Another possible solution for integrating offline functionality with other subject system not support offline operation mode by default, is to use database replication. This requires writing all transactions to the queue and local database and then adding a background process which synchronizes the queue with the database on another server or cloud. Again it entails custom development work to implement offline operation mode in EHR systems. Second level of CDS capability is required for nursing support related to nursing-based medicine protocols. All systems we evaluated partially support this functionality. One of the hospitals implemented this functionality using Bahmni but no documentation is available for such systems. This could be accomplished through an organized development work sponsored by the Hospital management. Network intrusion capability needs to be managed on network and device level. This functionality is out of scope in most of systems, we have evaluated.

Stage-5

Implementation of full physician documentation with structured templates and discrete data to at at-least 50% of the hospital will elevate OS-EHRs into stage-5. This functionality is seen to be available in most of the subject systems. OpenMRS, OpenEMR, Bahmni and GNU Health are technically sound and bear mature capabilities of stage-5. Whereas, HospitalRun and OpenHospital have acquired partial implementation of stage-5 requirement and do not support discharge summaries either. This structured process of documentation should be active in the Emergency Department as essential part of stage-5. Again, HosptialRun and OpenHospital have not shown such availability for Emergency clinical workflows. In this stage, particular OS-EHRs is expected to report and track nurse order tasks completion. This functionality is available in OpenMRS, OpenEMR, Bahmni, GNU-Med, ERPNEXT and partially executable in rest of subject systems. Intrusion prevention is not part in most of subject systems yet and can be task of future development and improvement.

Stage-6

Technology based administering of medications, blood products, and human milk and for blood specimen collection and tracking are constituents that can enhance OS-EHRs into stage-6. This needs to be implemented in 50% percent of the hospital operating OS-EHRs. According to our analysis, Bahmni, OpenEMR, OpenMRS, GNU-Health GNU-Med and ERPNext Healthcare provide the most advanced functionality in this regard. All other systems we have reviewed, provide a basic level of stage-6 functionalities in this regard. This stage also requires accomplishment of eMAR and technology to be integrated with CPOE, pharmacy and laboratory systems. OpenEMR and Bahmni have complete and advanced software architectures ensuring eMARS and CPOE integration. OpenMRS has a initial level implementation which has been extended in Bahmni, a derivative of OpenMRS. All other systems have components partially connecting eMAR with CPOE integration. Advanced level CDS functionality “five rights” of medication administration is next level of up-gradation criteria into stage-6 for hospital operating OS-EHRs. None of the systems which we evaluated have this level of CDS functionalities and can be a part of re-engineering or re-structuring process of OS-EHRs. Although, GNUMed and OpenEMR have limited CDS functionality which do not explicitly cover medication administration. GNU-Med does support some advanced CDS level functionality, for example, the system can analyze data and can score the clinical probability of Long QT Syndrome. This stage requires mobile/portable device security policy and practices which are out of scope of systems. This needs to be handled by server administrators and IT management of hospitals running OS-EHRs.

Stage-7

This stage ensures systems to be capable of covering all aspects of hospital documentation so that hospitals may no longer use paper charts for patient care management. OpenEMR shows the most advanced capabilities in this regard. OpenMRS has an eye examination module which covers all vision related parameters and data acquisition methodologies. This can be further linked to patient visits reports access-able by a physician to examine results. HospitalRun and OpenHosptial do not cover all aspects of hospital documentation. ERPNext and Bahmni are flexible and allow creation of custom forms and reports featuring maximum hospital documentation. The concept of Data warehousing is available with Bahmni only but it is in initial stages and documentation is not complete. In general, subject systems are capable enough to generate basic reports for evaluating clinical data. HospitalRun and OpenHospital are to be enhanced technically to meet requirements of stage-7. All systems which we have evaluated provide continuity of care document (CCD) integration and information can be shared to entities who are authorized to treat the patient. HospitalRun is an exception as its latest version is still under development and doesn’t provide this functionality. This stage also requires summary data continuity for all hospital services. Most of subject system demonstrated this functionality except HospitalRun. OpenClinicGA and OpenHosptial. At this, physician documentation and CPOE should reach 90% excluding ED, and the closed loop processes have reached 95%. GNUMed, OpenEMR and Bahmni provide the most of requirement coverage with advanced functionalities.

Summary

OpenEMR has many structured and organized EMR functionalities with basic CDS support. It does lack offline support which is essential in low resource health settings but it can be compensated via Master server replication of database. OpenEMR also lacks a fully functional PACS system but it does support viewing DCOM images. Full PACS integration is under design consideration and maybe available soon. OpenEMR has one of the best user and developer support systems. It has a very active community which can help find solutions and support. OpenMRS has demonstrated robust EHR functionalities requiring improvement in architecture and layout of pharmacy, laboratory and radiology system. Lack of a PACS system is another issue in OpenMRS which needs to be addressed. OpenMRS does provide a comprehensive framework to extend its functionality using API and by defining different classes at back-end. Third party modules are available to further upgrade EHR capabilities of OpenMRS to meet advanced requirements of EMRAM. However, maintainance and restructuring on those modules is inadequate. OpenMRS comes with python based front-end client that connects with a PostgreSQL database thereby easing data transactions hospital system. In terms of usage support, OpenMRS can allow creation of multiple clients within intranet architecture and generally over the internet. GNU-Med provides a comprehensive solution for all EHR related activities. It is one of the few systems which is compatible with maximum stages of HIMSS Analytics EMRAM. GNU-Med supports third party modules to be integrated within the system. Insufficient details in documentation area is one of the notable drawback in GNU-Med. GNU-Med doesn’t support offline mode so it’s difficult to use in areas with connectivity constraints. ERPNEXT is one of the most user friendly systems with very fast performance. It’s documentation is comprehensive and it’s modular structure can be fully utilized to extend its functionalities further. Both community and paid support version of ERPNext are available. It lacks offline functionality, integration with the PACS system and ability to upload and view DICOM images. Bahmni is the most feature rich system which implements almost all EMRAM recommendations. This system is managed by an active community of developers and supporters and is currently being used in multiple hospitals in India and Bangladesh. This system is quite viable and feasible in an environment with scarce technical and financial resources. HospitalRun is relatively user friendly systems with very fast performance and offline fast capability. Version 1. x is no longer supported and active development is happening on the latest 2. x branch.

Upon developer’s feedback recommend third-party module iDART to implement Computerized Practioner Order Entry (CPOE) functionality. In this case, unified interface is needed all necessary CPOE related data. Since, openMRS does not allow linking its information with national or regional database. To accomplish this, custom module should be used to link the data with external data sources. During the down-times network intrusion detection system in enabled on server level. Server-enabled Load balancing techniques should adopted to avoid down-times. Clinical Decision Support (CDS) functionality can be acquired through external module OpenCDS. At stage 5, Intrusion prevention is yet to be made available at network level. To do that server and network security needs to be hardened to cover all aspects of outside intrusion. At stage 6, the closed-loop communication process is formed through data sharing between doctors and medical staff. This component can be improved by introducing more controls for tracing and handling blood specimens and drug administration. Although, eMAR technology is integrated CPOE at basic level, however, functionality can be further refined using third-party custom module with separate interface. None of open-source EHR is equipped with mobile security, policy and practices. It is essentially advanced step of EMRAM adoption for open-source EHR. At stage 7, none of open-source EHR allows data analytic techniques to specifically analyze the clinical data. This capability can be acquired into EHRs using AI system and custom module APIs. Data sharing can be witnessed among most of entities of system. As a better software design perspective, diagnosis data can be presented using separate timeline view.

Summarizing our illustration, it is worth mentioning that there has been keen focus of world on global health issues after COVID-19. Health care services are utilizing information and communication technologies to support patient management through OS-EHR. Demand of digitization and computerization of patient’s data is high than ever to insure diagnostic accuracy and minimize redundancies during information extraction. HIMSS-EMRAM stage wise model paves a gradual path for cost-effective development, customization and usage of OS-EHRs resulting in organizational and societal improvement. Despite an exclusive trend of HIMSS-EMRAM adoption model in developed countries, majority of countries with having economical constraints, budget limitations, financial lacks and poor health policies can not afford expensive proprietary software from big vendors as their tool for e-Health solution. Moreover, expenses like power supply, internet connection, staff training and system support further hinder effective medical care services using EHR technologies. However, these barriers in can easily be mitigated through adoption of OS-EHR solutions.

There are many factors that leave adverse effects on health care services in low-resource setting such as lack of infrastructure, ill-equipped hosptials and untrained human resources ^43,29. Therefore, adoption of HIMSS-EMRAM along with OS-EHR in low or middle income developing countries can bring rapid and revolutionary changes. OpenHospital and Hosptial Run are a few examples of such OS-EHR (currently operational in african countries) can be game changers for the health systems. Our study has already evaluated functionality, features and implementation of these OS-EHR within constraints of cost, technology and human resources. Nevertheless, we listdown following recommendation of OS-EHR adoption of in general and HIMSS-EMRAM implementation in particular for countries with low resource settings.

• Revision of health policy according international health standards like HL-7, Digital Health Communication.

• Tanning of hospital staff (doctors, nurses, management) according World Health Organization guidelines

• Basic computer literacy for health care service providers and awareness campaign for adoption of computer based clinical data.

• Acquiring funding and donation from health and monetary organization for maintaining OS-EHR and operating under HIMSS-EMRAM model.

Reporting End-Users Feedback on Open-source Systems

From implementation stand-point, open-source EHRs are extensively dependent on End-User feedback. In particular, End-Users Feedback help developers, users, clients to improve overall quality, operational competence and performance of open-source EHR. Based on our review, we have formed hands-on study design evaluating the subject systems which explicitly utilizes End-Users Feedback. Furthermore, this design is based on two fold examination. Firstly, information source is the actual website of open-source software which includes several resources, research based documentation and communal flexibility. Secondly, as explained earlier, each subject system is installed on local machine and tested for core software functionality from usage view point. This hands-on analysis depicts multidimensional metrics of open-source EHR listed In Table 6. We also developed a mechanism to assign score/index to quantify these metrics based on ease and complexity, availability and limitation, extensibility and impenetrability, and adaptability and inflexibility.

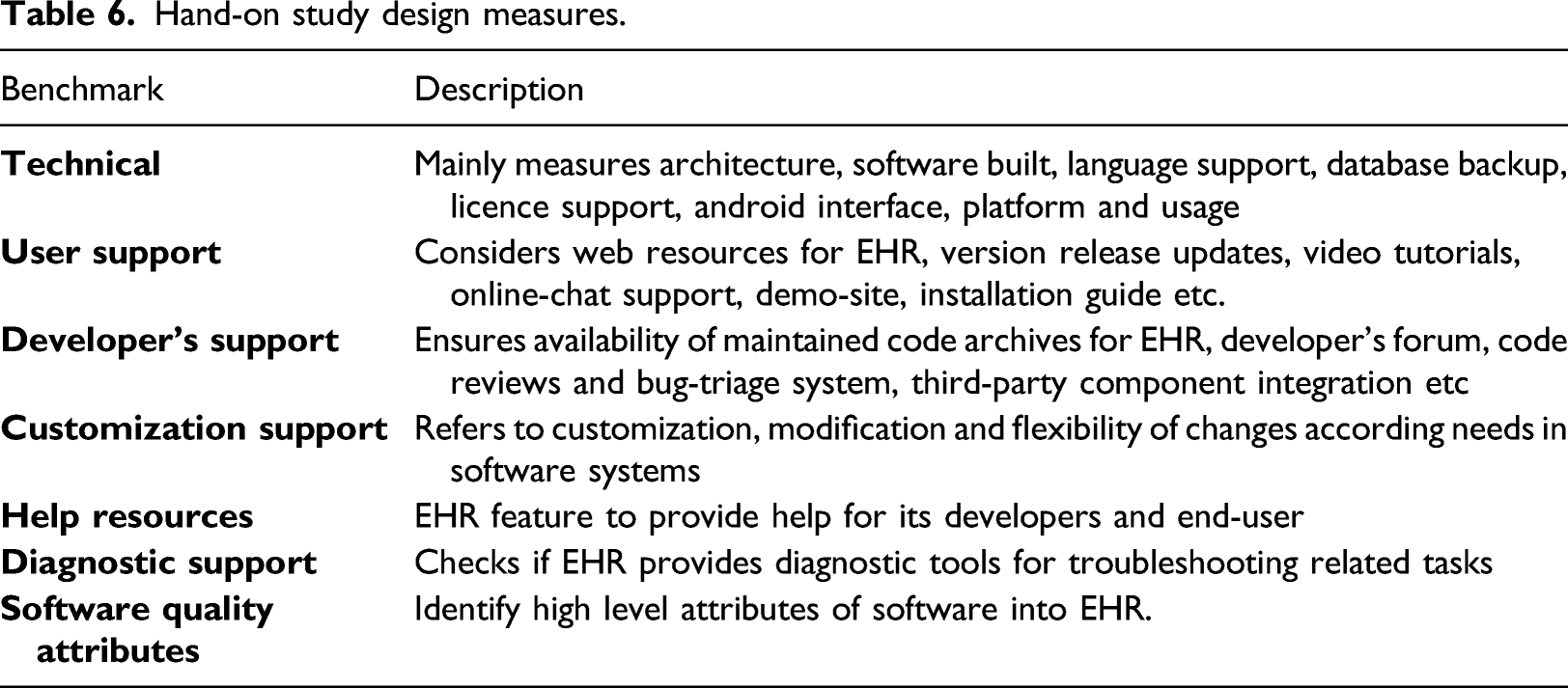

Table 6.

Hand-on study design measures.

Benchmark	Description
Technical	Mainly measures architecture, software built, language support, database backup, licence support, android interface, platform and usage
User support	Considers web resources for EHR, version release updates, video tutorials, online-chat support, demo-site, installation guide etc.
Developer’s support	Ensures availability of maintained code archives for EHR, developer’s forum, code reviews and bug-triage system, third-party component integration etc
Customization support	Refers to customization, modification and flexibility of changes according needs in software systems
Help resources	EHR feature to provide help for its developers and end-user
Diagnostic support	Checks if EHR provides diagnostic tools for troubleshooting related tasks
Software quality attributes	Identify high level attributes of software into EHR.

Technical measures

In modern age, information systems are designed with high quality technical specification to manage their operational complexity. These systems can integrate several components, legacy web-services, commercial components and open-source based hybrid artefacts. These software system are evaluated through technical requirements of software quality models. To inspect open-source EHR technically, we set numerous metrics related to architecture, integrated development platform and operational information. Our subject systems are licensed as free-libre or open-source systems. Technical details mainly refers to hardware and software configuration, database compatibility and connectivity modes of open-source EHR of systems. Evidently, Our subject systems have evolved adequately to provide innovative support features than being merely cost free. Technical details of these subject systems are given in Table 7.

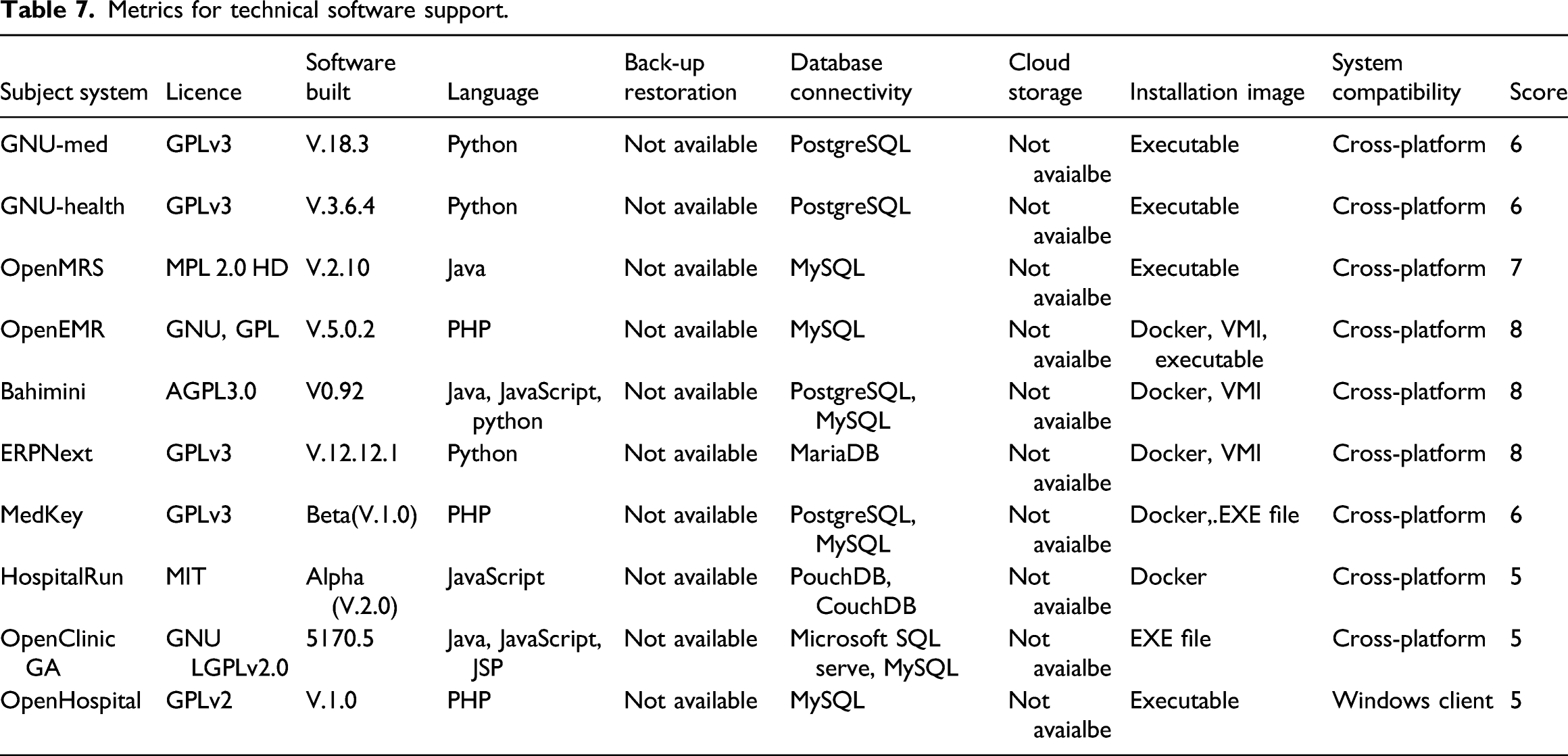

Table 7.

Metrics for technical software support.

Subject system	Licence	Software built	Language	Back-up restoration	Database connectivity	Cloud storage	Installation image	System compatibility	Score
GNU-med	GPLv3	V.18.3	Python	Not available	PostgreSQL	Not avaialbe	Executable	Cross-platform	6
GNU-health	GPLv3	V.3.6.4	Python	Not available	PostgreSQL	Not avaialbe	Executable	Cross-platform	6
OpenMRS	MPL 2.0 HD	V.2.10	Java	Not available	MySQL	Not avaialbe	Executable	Cross-platform	7
OpenEMR	GNU, GPL	V.5.0.2	PHP	Not available	MySQL	Not avaialbe	Docker, VMI, executable	Cross-platform	8
Bahimini	AGPL3.0	V0.92	Java, JavaScript, python	Not available	PostgreSQL, MySQL	Not avaialbe	Docker, VMI	Cross-platform	8
ERPNext	GPLv3	V.12.12.1	Python	Not available	MariaDB	Not avaialbe	Docker, VMI	Cross-platform	8
MedKey	GPLv3	Beta(V.1.0)	PHP	Not available	PostgreSQL, MySQL	Not avaialbe	Docker,.EXE file	Cross-platform	6
HospitalRun	MIT	Alpha (V.2.0)	JavaScript	Not available	PouchDB, CouchDB	Not avaialbe	Docker	Cross-platform	5
OpenClinic GA	GNU LGPLv2.0	5170.5	Java, JavaScript, JSP	Not available	Microsoft SQL serve, MySQL	Not avaialbe	EXE file	Cross-platform	5
OpenHospital	GPLv2	V.1.0	PHP	Not available	MySQL	Not avaialbe	Executable	Windows client	5

GNU-Med is a cross platform system with active community and rich sub systems. It’s one of the oldest systems available with mature functionality. It consists of a python based client and PostgreSQL based database server. A public database is also available which can be connected via client and can be used for evaluation purposes. GNU-Health is a open source system with GPLv3 license. It consists of a server and a client architecture. Server is based on Linux and client is available for both Linux and Windows operating systems. There is no support for virtual machine images or docker so a bit of learning curve is required to install both server and client. HospitalRun is a offline first OS-EHR solution which is currently under active development and its sponsored by a cloud hosting company. It can be installed via docker images which makes it a cross-platform solution. Bahmni comes with most of a OS-EHR facets which integrates multiple solutions like OpenELS, OpenMRS etc. It’s a cross platform solution with active community and it has been implemented in various hospitals, especially in India. ERPNext is another OS-EHR solution which is basically part of an Enterprise Resource Planning (ERP) software and has an additional health care module covering many EHR functions. It’s well supported by parent company and its a cross platform. MedKey is OS-EHR with multi-purpose solutions of computerization of Hospital Information System, practice automation and patient management. MedKey is cross-platform application having support of docker installation and web hosting as well. OpenHospital is open source and licensed with GPLv2, and primarily developed by NGOs for developing countries.

User Support

Understanding the interaction and intent of users seeking resources and information is vital during development of Open-source Electronic Health Record Systems (OS-EHRs) ⁴⁴. Different features of conversational systems and digital dialogue support aspects are some of important components obtained through human-computer interaction data analysis. In an online environment of increasing health information, diverse characteristics particularly influence healthcare decision making. Learning to operate the software system can be in different forms as it involves different types of users. In case of support for open-source EHR, typical user has to rely upon product documentation, textual or virtual guidance and manual of instructions. Recent review studies suggest social QA sections, social networking and crowd sourcing web resources as key factors making an impact for selection of open-source health information system ⁴⁵. We have listed down relevant user support features in Table 8. These features if available in subject system can help users to inspect product through demonstration guide, acquire in-hand information from user blogs, training videos and user manuals.

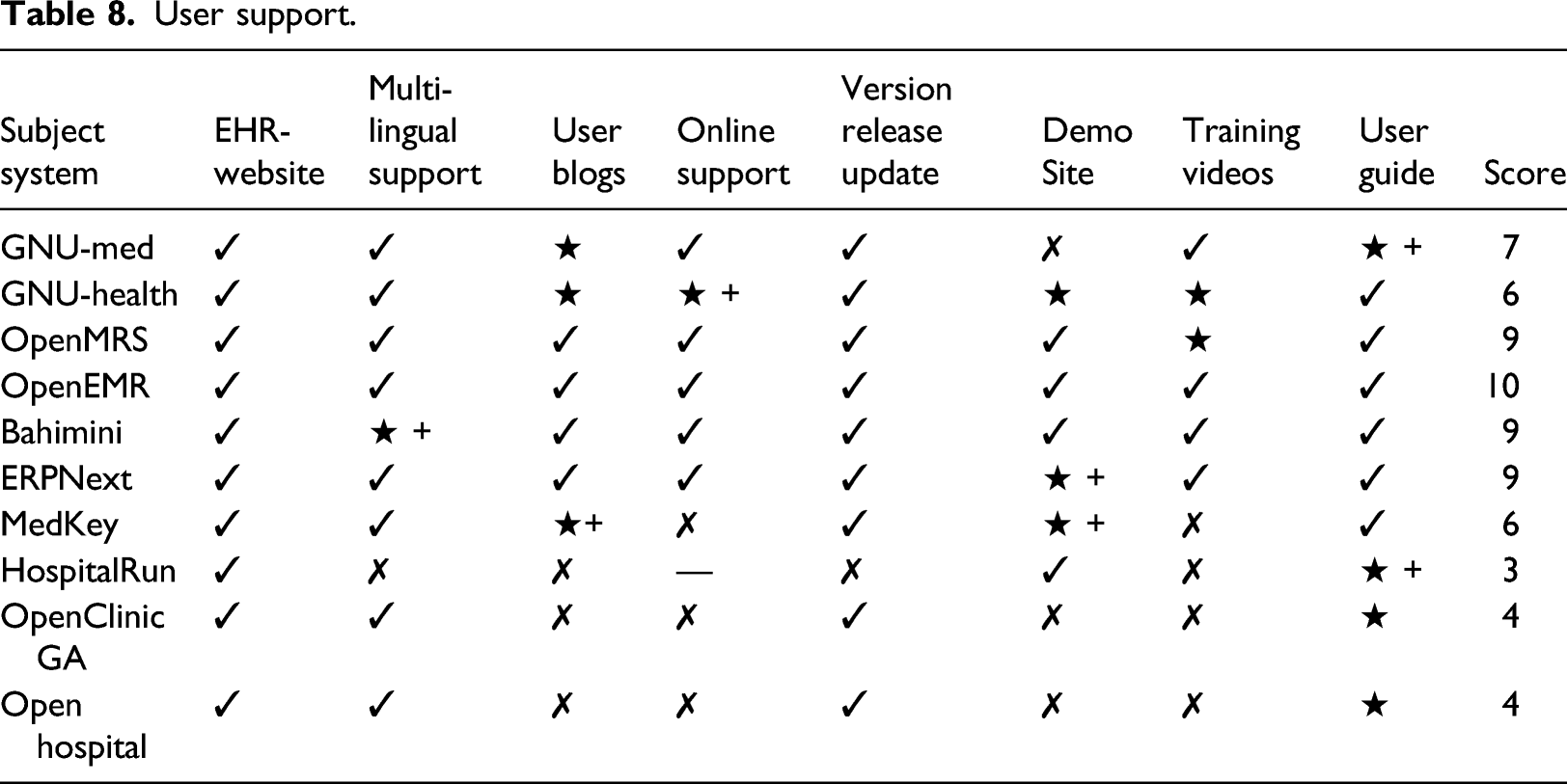

Table 8.

User support.

Subject system	EHR-website	Multi-lingual support	User blogs	Online support	Version release update	Demo Site	Training videos	User guide	Score
GNU-med	✓	✓	⋆	✓	✓	✘	✓	⋆ +	7
GNU-health	✓	✓	⋆	⋆ +	✓	⋆	⋆	✓	6
OpenMRS	✓	✓	✓	✓	✓	✓	⋆	✓	9
OpenEMR	✓	✓	✓	✓	✓	✓	✓	✓	10
Bahimini	✓	⋆ +	✓	✓	✓	✓	✓	✓	9
ERPNext	✓	✓	✓	✓	✓	⋆ +	✓	✓	9
MedKey	✓	✓	⋆+	✘	✓	⋆ +	✘	✓	6
HospitalRun	✓	✘	✘	—	✘	✓	✘	⋆ +	3
OpenClinic GA	✓	✓	✘	✘	✓	✘	✘	⋆	4
Open hospital	✓	✓	✘	✘	✓	✘	✘	⋆	4

OpenMRS, OpenEMR, Bahmni and ERP Next are well supported systems with maximum user support, hence listed with higher score. GNU-Health and GNU-Med are missing documentation and online support which are essential to keep system running in their optimum capacity. OpenHospital and HospitalRun need to improve their support systems and user guides to allow developers to fully utilize these systems to their maximum potential. MedKey exhibits better User Support features in comparison to OpenHospital and OpenClinicGA acquiring score of 5. MedKey is enriched with detailed documentation, but, some components, like, Demo Site, are partially developed. Whereas, OpenHospital should be upgraded enough to depict standard EHR website facets.

Developers Support

Evolution of Software Systems due to changing requirements is widely accepted phenomena. Similarly, it becomes quite inevitable for developers to make adjustment with customers requests and execute refactoring, re-engineering and maintenance process ⁴⁶. As matter of practice, open-source software systems are assumed to offer extensive user involvement and eventually user requirements are continuously recommended. There are several elements which can be commonly set as developers measures, specially in open-source systems, e.g. code repositories, QA System, Bug Reports, API-documentation and configuration management ⁴⁷. These support features are enumerated for each of our studied subject system in Table 9. Availability of code archives is of foremost significance for the re-usability and up-gradation of open-source product. User blogs present frequent conversation on product development and question and answers.

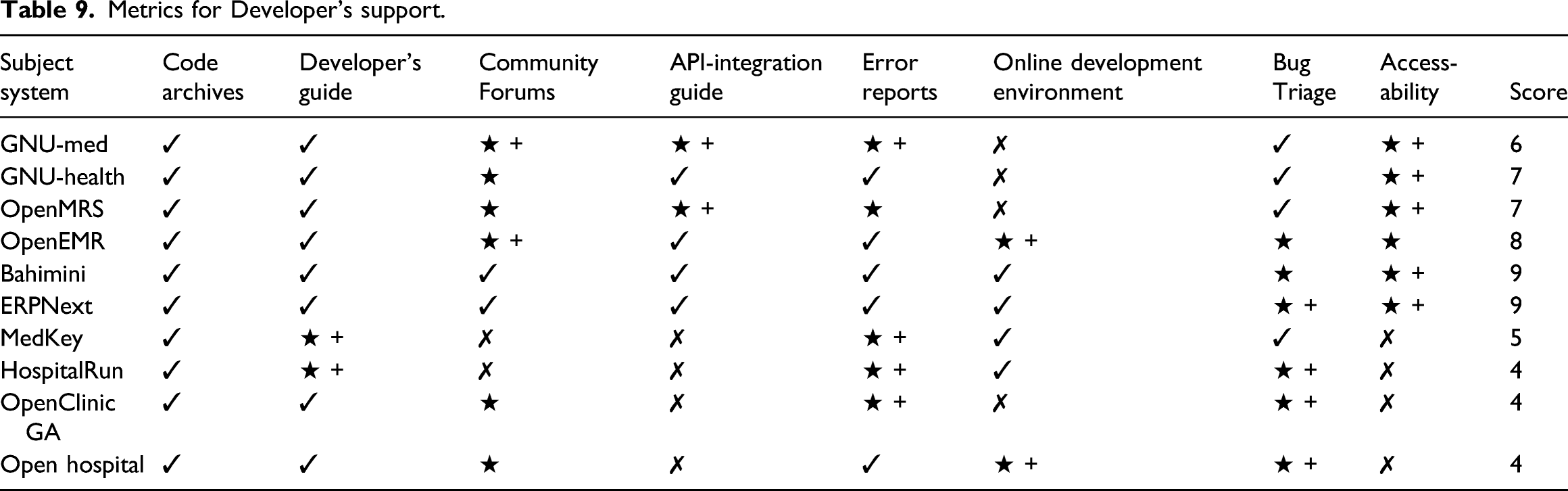

Table 9.

Metrics for Developer’s support.

Subject system	Code archives	Developer’s guide	Community Forums	API-integration guide	Error reports	Online development environment	Bug Triage	Access-ability	Score
GNU-med	✓	✓	⋆ +	⋆ +	⋆ +	✘	✓	⋆ +	6
GNU-health	✓	✓	⋆	✓	✓	✘	✓	⋆ +	7
OpenMRS	✓	✓	⋆	⋆ +	⋆	✘	✓	⋆ +	7
OpenEMR	✓	✓	⋆ +	✓	✓	⋆ +	⋆	⋆	8
Bahimini	✓	✓	✓	✓	✓	✓	⋆	⋆ +	9
ERPNext	✓	✓	✓	✓	✓	✓	⋆ +	⋆ +	9
MedKey	✓	⋆ +	✘	✘	⋆ +	✓	✓	✘	5
HospitalRun	✓	⋆ +	✘	✘	⋆ +	✓	⋆ +	✘	4
OpenClinic GA	✓	✓	⋆	✘	⋆ +	✘	⋆ +	✘	4
Open hospital	✓	✓	⋆	✘	✓	⋆ +	⋆ +	✘	4

Apparently, OpenHospital despite lacking user support is found to be with notable opportunities of development. Whereas, MedKey is yet to offer development space completely. OpenMRS, OpenEMR, Bahmni and ERPNext have shown maximum developer support, facilitating developers to easily maintain existing installations, report errors and third-party integration using API. HospitalRun, though supports promising architecture with offline operation capabilities but severely lacks when it comes to developer support measures. Lack of documentation and code refactoring is a major hurdle for it’s wide adoption. OpenHospital, GNU- Med and GNU-Health are legacy systems but GNU-Health is better in terms of available support characteristics and documentation. ERPNext is a newly introduced having sufficient development space. In general, most of subject system present useful guides which help developers to utilize the system effectively and extend it’s missing features.

Customization Support in EHRs

The key to effective utilization of open-source software is balance between best fit business requirement and strategy. Ideally, open-source system should allow, customized functionality and design, and be compatible within the system requirements of organization. Customization is perceived as ease of use and has an impact on utility of open-source. Notably, lack of customization has been cited in research literature as barrier in acceptance of EHR ⁴⁸. In this regard, open-source EHR customization services are assumed to ensure End-User satisfaction primarily and assist the End-User in interface design, making clinical work-flow templates based on personal preferences, documentation to meet the need of specific patient population ⁴⁹. In general, our subject systems are flexible enough to customize the EHR utilizing technical knowledge and documentation. However, we studied customization of subject system from user’s perspective that can improve efficiency of clinical operations and avoid reluctance in acceptance and spread of open-source EHR. We decomposed several aspects of customization, e.g. design an interface based on environment and organizational preferences, developing clinical workflow templates (Forms, Reports, Prescription) to spread awareness in specific population and other technical customization. Customization support metrics for subject systems are mentioned in Table 10.

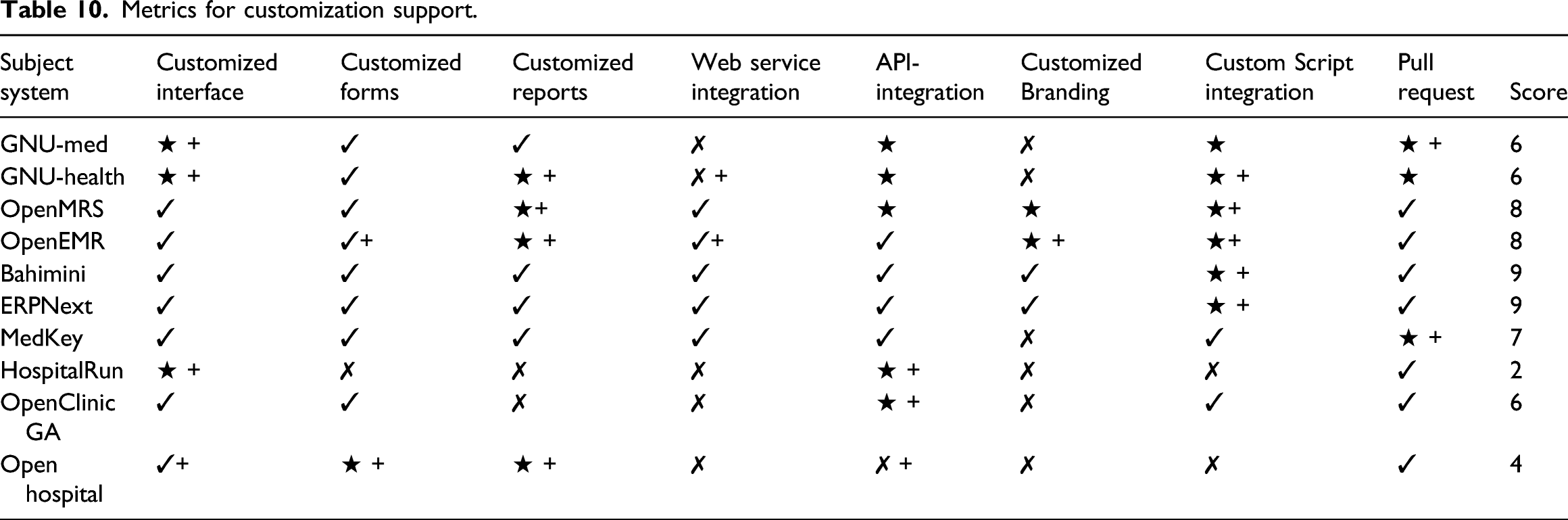

Table 10.

Metrics for customization support.

Subject system	Customized interface	Customized forms	Customized reports	Web service integration	API-integration	Customized Branding	Custom Script integration	Pull request	Score
GNU-med	⋆ +	✓	✓	✘	⋆	✘	⋆	⋆ +	6
GNU-health	⋆ +	✓	⋆ +	✘ +	⋆	✘	⋆ +	⋆	6
OpenMRS	✓	✓	⋆+	✓	⋆	⋆	⋆+	✓	8
OpenEMR	✓	✓+	⋆ +	✓+	✓	⋆ +	⋆+	✓	8
Bahimini	✓	✓	✓	✓	✓	✓	⋆ +	✓	9
ERPNext	✓	✓	✓	✓	✓	✓	⋆ +	✓	9
MedKey	✓	✓	✓	✓	✓	✘	✓	⋆ +	7
HospitalRun	⋆ +	✘	✘	✘	⋆ +	✘	✘	✓	2
OpenClinic GA	✓	✓	✘	✘	⋆ +	✘	✓	✓	6
Open hospital	✓+	⋆ +	⋆ +	✘	✘ +	✘	✘	✓	4

It can be seen from Customization Analysis, OpenHosptial asks for lot of development work and contribution to allow customization according particular requirements. On the other hand, OS-EHRs with relatively developed standards, like, MedKey and OpenClina GA allow its clients and users to customize the system effectively. OpenMRS, OpenEMR, ERPNext and Bahmni allow most customization features proficiently. GNU-Med and GNU-Health support integration using custom modules but it lacks comprehensive documentation of customization.

Help Resources

Development of open-source EHR has often uniform design containing web based deployment feature and user-centered feedback documentation. Recent studies have proposed evaluation of EHR using persuasive software design features with focus of consumer intervention in e-Health .⁵⁰ Persuasive features are basically characteristics of technology which take into account influence and behaviour of users for desired change into OS-EHR ⁵¹. These are technically interactive and personalized inputs for any software design. Target consumer of open-source EHR include government, people and organization, therefore, studying these persuasive feature would be effective evaluation criteria. These feature mainly include primary task support (e.g. self monitoring), Covid-19 guide, Dialogue Support (e.g. reminders), System credibility Support (e.g. trustworthiness) and Social support (e.g. social comparison).⁵²

There were some interesting findings while analysis of OS-EHRs for availability of Help resources. Despite the fact, MedKey being EHR built on modern approaches of software development bearing simple UIs, forms and tables is still under process of creating community and task support modules. On the contrary, OpenClinic GA and OpenHospital are yet to show flexibility of User Interface. And User Experience. According to our scoring criteria, MedKey touches mark of 7, while OpenHospital touches 3. We have tested web based systems using Google light house tool which can analyze web pages and can suggest accessibility related improvements. We have found all systems lacking in accessibility feature. Desktop based clients like GNU-Med, GNU-Health and OpenHospital support basic keyboard navigation accessibility features. ERPNext, OpenMRS and OpenEMR are relatively better performing with very fast response time. ERPNext has the better usability where as OpenMRS, OpenEMR and Bahmini have the most efficient GUIs. Bahimini and OpenMRS are running an active Covid-19 awareness campaign with offer of intuitive support using data analytics techniques (Table 11).

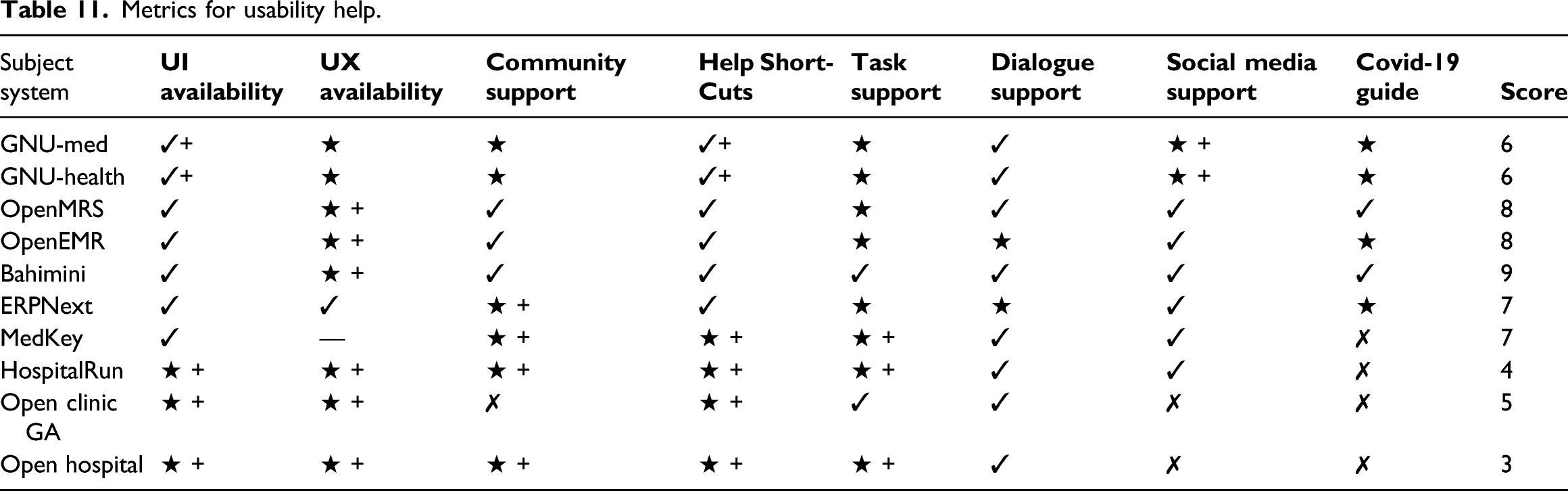

Table 11.

Metrics for usability help.

Subject system	UI availability	UX availability	Community support	Help Short-Cuts	Task support	Dialogue support	Social media support	Covid-19 guide	Score
GNU-med	✓+	⋆	⋆	✓+	⋆	✓	⋆ +	⋆	6
GNU-health	✓+	⋆	⋆	✓+	⋆	✓	⋆ +	⋆	6
OpenMRS	✓	⋆ +	✓	✓	⋆	✓	✓	✓	8
OpenEMR	✓	⋆ +	✓	✓	⋆	⋆	✓	⋆	8
Bahimini	✓	⋆ +	✓	✓	✓	✓	✓	✓	9
ERPNext	✓	✓	⋆ +	✓	⋆	⋆	✓	⋆	7
MedKey	✓	—	⋆ +	⋆ +	⋆ +	✓	✓	✘	7
HospitalRun	⋆ +	⋆ +	⋆ +	⋆ +	⋆ +	✓	✓	✘	4
Open clinic GA	⋆ +	⋆ +	✘	⋆ +	✓	✓	✘	✘	5
Open hospital	⋆ +	⋆ +	⋆ +	⋆ +	⋆ +	✓	✘	✘	3

Diagnostic Support

System diagnosis is becoming very vital facet of information systems. Open-source EHRs which are aimed easing complicated medical solutions require more sophisticated system diagnostic modules. Although human inspection of open-source soft wares was enough to deal with small scale diagnostic issues, while, health information system are assumed to have automated diagnostic mechanism for reliability and safety requirements. In an OS-EHR, diagnostic support measures are expected to identify small scale operational faults, e.g. issue warning in several data violations (redundancy, SQL injections, mismanaged integrity, etc.), saves logs for error in usage .^53,54 These diagnostic techniques are further analyzed for each subject system in Table 12.

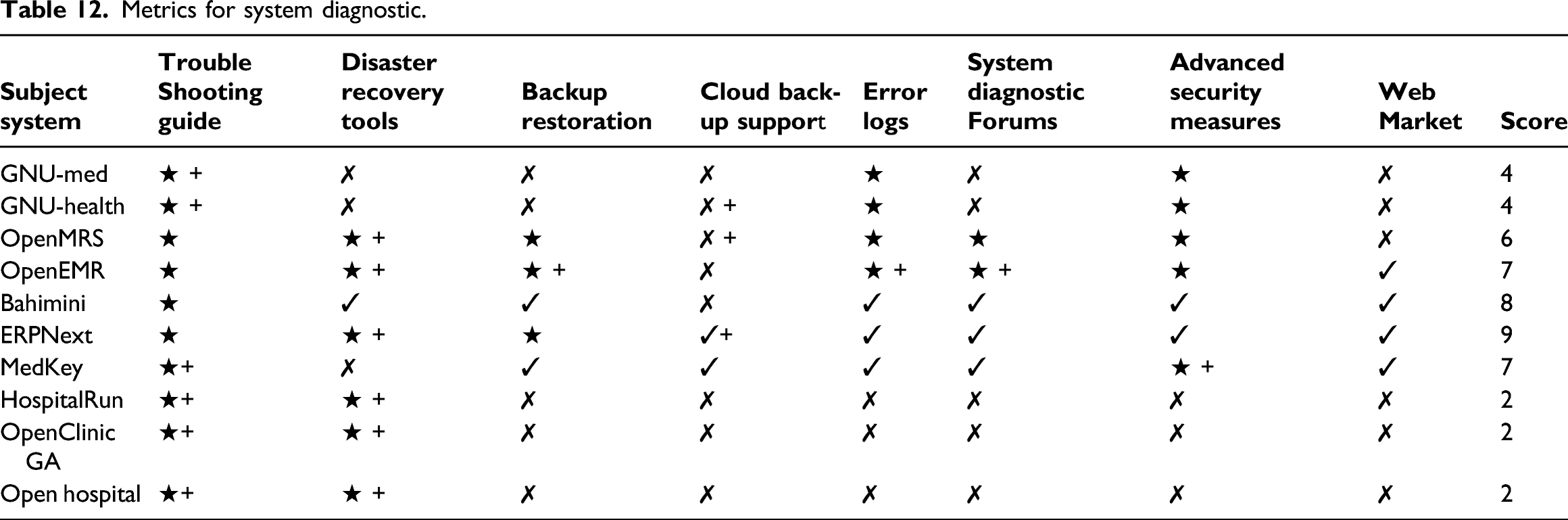

Table 12.

Metrics for system diagnostic.

Subject system	Trouble Shooting guide	Disaster recovery tools	Backup restoration	Cloud back-up support	Error logs	System diagnostic Forums	Advanced security measures	Web Market	Score
GNU-med	⋆ +	✘	✘	✘	⋆	✘	⋆	✘	4
GNU-health	⋆ +	✘	✘	✘ +	⋆	✘	⋆	✘	4
OpenMRS	⋆	⋆ +	⋆	✘ +	⋆	⋆	⋆	✘	6
OpenEMR	⋆	⋆ +	⋆ +	✘	⋆ +	⋆ +	⋆	✓	7
Bahimini	⋆	✓	✓	✘	✓	✓	✓	✓	8
ERPNext	⋆	⋆ +	⋆	✓+	✓	✓	✓	✓	9
MedKey	⋆+	✘	✓	✓	✓	✓	⋆ +	✓	7
HospitalRun	⋆+	⋆ +	✘	✘	✘	✘	✘	✘	2
OpenClinic GA	⋆+	⋆ +	✘	✘	✘	✘	✘	✘	2
Open hospital	⋆+	⋆ +	✘	✘	✘	✘	✘	✘	2

OS-EHRs must have extensive and needful support for its installation, back-up and usage. Generally, advanced software systems are equipped with several diagnostic support features listed in Table 12. OpenMRS, OpenHospital and OpenClinic GA have least diagnostic feature, whereas, MedKey and ERP Next are reasonably better due to cloud storage embedded into them. GNU-Health, HospitalRun and GNU-Med are yet to build components related to system diagnostic. Disaster recovery and backup restoration is mainly system administrator tasks, so most of the systems we evaluated don’t provide any tool for these purposes. OpenEMR, Bahmni, MedKey, OpenClinic GA and ERPNext provide commercial support via parent companies and other third party vendors. However, not all OS-EHRs have reached to defined diagnostic targets. OpenHospital and OpenClinic GA are under par systems as far as diagnostic potential is concerned (Table 13).

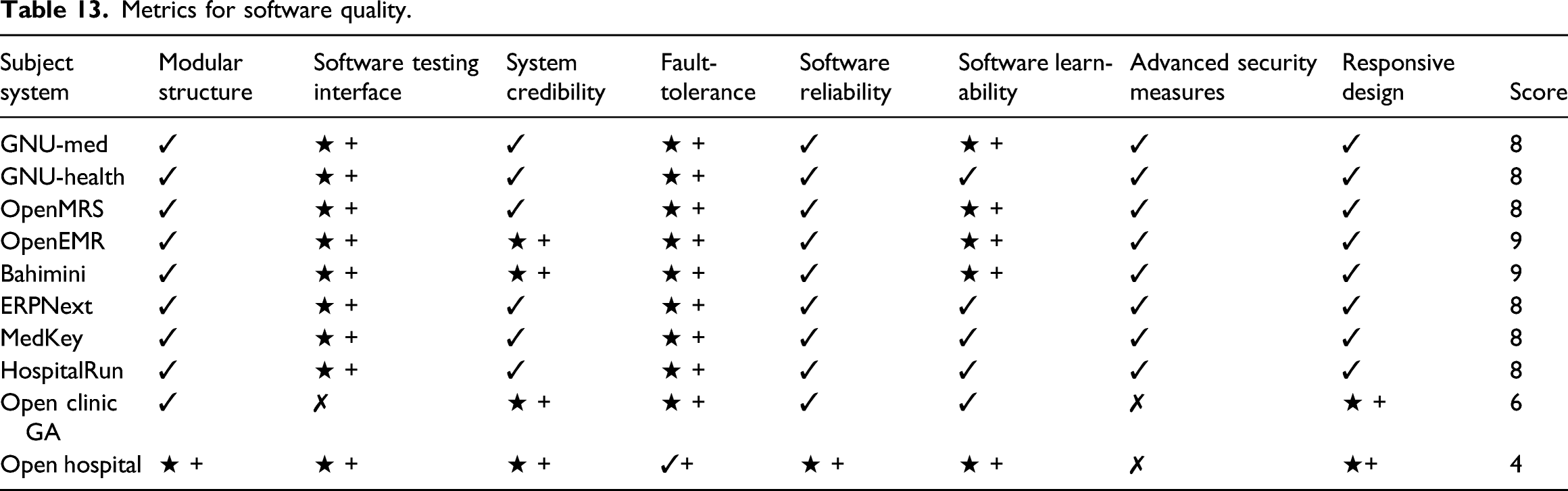

Table 13.

Metrics for software quality.

Subject system	Modular structure	Software testing interface	System credibility	Fault-tolerance	Software reliability	Software learn-ability	Advanced security measures	Responsive design	Score
GNU-med	✓	⋆ +	✓	⋆ +	✓	⋆ +	✓	✓	8
GNU-health	✓	⋆ +	✓	⋆ +	✓	✓	✓	✓	8
OpenMRS	✓	⋆ +	✓	⋆ +	✓	⋆ +	✓	✓	8
OpenEMR	✓	⋆ +	⋆ +	⋆ +	✓	⋆ +	✓	✓	9
Bahimini	✓	⋆ +	⋆ +	⋆ +	✓	⋆ +	✓	✓	9
ERPNext	✓	⋆ +	✓	⋆ +	✓	✓	✓	✓	8
MedKey	✓	⋆ +	✓	⋆ +	✓	✓	✓	✓	8
HospitalRun	✓	⋆ +	✓	⋆ +	✓	✓	✓	✓	8
Open clinic GA	✓	✘	⋆ +	⋆ +	✓	✓	✘	⋆ +	6
Open hospital	⋆ +	⋆ +	⋆ +	✓+	⋆ +	⋆ +	✘	⋆+	4

Software Quality Attributes

Another recent study of open-source EHR analyzed the various of EHRs based on certain functional and user performance parameters (32). Authors set user performance criteria parameters which were limited to machine dependent. We have evaluated the subject system from core attributes software quality, i.e. Maintainability, Reliability, Portability and Use-ability.Open Hospital, GNU Health and GNU Med are not web based system so these system don’t have responsive design features. These are legacy and mature systems with proven technical credibility and fault tolerance. All other systems are web based and provide responsive design feature which help in using system on different devices. OpenMRS, OpenEMR and Bahmni have slight learning curve, but, their overall architectural strength, intuitive and modular design is quite promising. ERPNext proved to be one of the easiest system to learn. All systems provide basic security measures like authentication and role based access. ERPNext and Bahmni provide 2FA which adds an additional layer of security. MedKey is credible, reliable, agile and modular OSS-EHR designed with international standards of OpenEHR and HL7. It acquires maximum software quality score of 8. In comparison, OpenClin GA and OpenHospital lack quality facets, like, Software Learn-ability and responsive design due to improper documentation and unstructured design modules, hence scoring 6 and 4 respectively.

Limitations

Conventionally, OS-EHR technology adoption is understood as developing meaningful use of data to scale the growing complexities in health care systems. Concurrently, HIMSS-EMRAM maturity model frame OS-EHR as the journey than end-point. Despite the fact that HIMSS-EMRAM defines technological way-points along organizational OS-EHR adoption as sequential, specific and measure process, there are number of challenges it entails. First, from theoretical perspective, validity of results and generalizability is yet to be established as there are alternative models (e.g. Bass model) ensuring feasible analytical framework. Second, from assumption point of view, HIMSS-EMRAM based evaluation of OS-EHR is supposed on consistent e-health policies and free of external factors effects. Nonetheless, emphasis on adoption of advanced EHR functionalities supported by systematic, gradual EMRAM model is higher than demoting of EHR with traditional settings. Third, data source for OS-EHRs has not been recent since inception of e-Health concept is assumed to be back in 2004 and 2006. Therefore, we could not coorelate some of architectural and functional dynamics of studied OS-EHRs with HIMSS-EMRAM stages. Whereas these limitations can be covered with integeration of new methods and revised e-Health policies. Fourth the setting for this study is explicitly for end-user frame of reference and excludes quantitative evaluation as future work. For all that, characterization, evaluation and comprehensive assesment of OS-EHRs towards adoption of HIMSS-EMRAM remains outstanding goal of this study.

Conclusion and Future Work

This study is aimed to investigate more advanced features of open-source EHR. We have presented qualitative analysis of open-source EHR rigorously. Indeed, our effort is to help health organization to rank their prevalent OS-EHRs and consequently improve, enhance and upgrade them for better health care services. It was quite necessary to investigate OS-EHRs in-depth, as relevant prevalent literature does not address utilization of OS-EHRs beyond spectrum of profiling reporting. Comprehensive analysis of OS-EHRs based on HIMSS Analytics EMRAM (systematic reference model for clinical workflow analysis) is unique attempt of this review study.

Additionally, in this study, diverse perspectives of OS-EHRs utilization were undertaken, particularly implementation feature and ever-evolving software attributes. We induced the methodology of scoring OS-EHRs in several ways to project their comparative worth. We conducted expertly designed (hands-on) study, implementing all OS-EHRs on local machines for close examinations. Notably, not all OS-EHRs fulfill the designed criteria, neither they extensively lack to meet set measures. Consequently, this study can be helpful for developers during re-engineering process of OS-EHRs. In future, we are determined to bring more measures of data analytics and COVID-19 support to analyze the OS-EHRs.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

Note

References

Poba-Nzaou

Kume

Kobayashi

. Developing and Sustaining an Open Source Electronic Health Record: Evidence from a Field Study in Japan. J Med Syst 2020; 44(9): 159–210.

Holmgren

Phelan

Jha

, et al. Hospital Organizational Strategies Associated with Advanced EHR Adoption. Health Services Research, 2021.

Onodera

Sengoku

. Innovation process of mHealth: An overview of FDA-approved mobile medical applications. Int Journal Medical Informatics 2018; 118: 65–71.

Tayefi

Ngo

Chomutare

, et al. Challenges and Opportunities beyond Structured Data in Analysis of Electronic Health Records. Wiley Interdisciplinary Reviews: Computational Statistics, 2021, p. e1549.

Ebnehoseini

Tara

Tabesh

, et al. Understanding key factors affecting on hospital electronic health record (EHR) adoption. J Fam Med Prim Care 2020; 9(8): 4348–4352.

Jianxun

Arkorful

Shuliang

. Electronic health records adoption: Do institutional pressures and organizational culture matter? Technology Soc 2021; 65: 101531.

Abdulai

A-F

Adam

. Health providers' readiness for electronic health records adoption: A cross-sectional study of two hospitals in northern Ghana. PloS One 2020; 15(6): e0231569.

Chen

Xie

Liu

, et al. Advances in healthcare electronics enabled by triboelectric nanogenerators. Adv Funct Mater 2020; 30(43): 2004673.

Ramachandran

Karuppiah

. A survey on recent advances in wearable fall detection systems. Biomed Research International 2020; 2020: 2167160–2167217.

10.

Wang

Alexander

. Big data analytics in medical engineering and healthcare: methods, advances and challenges. J Medical Engineering Technology 2020; 44(6): 267–283.

11.

Negro-Calduch

Azzopardi-Muscat

Krishnamurthy

, et al. Technological progress in electronic health record system optimization: Systematic review of systematic literature reviews. Int J Med Inform 2021; 152: 104507.

12.

Karopka

Schmuhl

Demski

. Free/Libre open source software in health care: a review. Healthc Informatics Research 2014; 20(1): 11–22.

13.

Madrigal

. Digital media archive for gross pathology images based on open-source tools and Fast Healthcare Interoperability Resources (FHIR). Mod Pathology : An Official Journal United States Can Acad Pathol Inc 2021; 34: 1686–1695.

14.

Enaizan

Zaidan

Alwi

NHM

, et al. Electronic medical record systems: Decision support examination framework for individual, security and privacy concerns using multi-perspective analysis. Health Technology 2020; 10(3): 795–822.

15.

Kiah

MLM

Haiqi

Zaidan

, et al. Open source EMR software: Profiling, insights and hands-on analysis. Computer Methods Programs Biomedicine 2014; 117(2): 360–382.

16.

Meystre

Müller

. Open source software in the biomedical domain: Electronic health records and other useful applications. Swiss Med Inform 2005; 55(3): 1–25.

17.

Kalogriopoulos

Baran

Nimunkar

, et al. Electronic medical record systems for developing countries. In: Annual International Conference of the IEEE Engineering in Medicine and Biology Society. IEEE, 2009, pp. 1730–1733.

18.

Janamanchi

Katsamakas

Raghupathi

, et al. The state and profile of open source software projects in health and medical informatics. Int J Med Inform 2009; 78(7): 457–472.

19.

Boldyreff

Crowston

Lundell

, et al. Open source ecosystems: diverse communities interacting: 5th IFIP WG 2.13. In: International Conference on Open Source Systems, OSS 2009, Skövde, Sweden, June 3–6, 2009. 299. Springer, 2009.

20.

Flores Zuniga

Win

Susilo

. Functionalities of free and open electronic health record systems. Int Journal Technology Assessment Health Care 2010; 26(4): 382–389.

21.

Ngamsuriyaroj

Sirichamchaikul

Hanam

, et al. Patient information exchange via web services in HL 7 v3 for two different healthcare systems. In: Eighth International Joint Conference on Computer Science and Software Engineering (JCSSE), Nakhonpathom, Thailand, 11–13 May 2011. IEEE, 2011, pp. 420–425.

22.

Kobayashi

Kalloniatis

. Open source software development on medical domain. Mod Inf Syst 2012; 2012: 953–978.

23.

Maglogiannis

. Towards the adoption of open source and open access electronic health record systems. J Healthc Eng 2012; 3: 141–162.

24.

Austin

Holmgreen

Williams

. A comparison of the efficiency and effectiveness of vulnerability discovery techniques. Inf Softw Technology 2013; 55(7): 1279–1288.

25.

de la Torre

Martínez

López-Coronado

. Analyzing open-source and commercial EHR solutions from an international perspective. In: IEEE 15th International Conference on e-Health Networking, Applications and Services (Healthcom 2013), Lisbon, Portugal, 9–12 October, 2013. IEEE, 2013, pp. 399–403.

26.

Multak

Khazraee

Rogers

, et al. Implementing an Open Source EMR in a Nursing Informatics Course, 2013.

27.

Aminpour

Sadoughi

Ahamdi

. Utilization of open source electronic health record around the world: a systematic review. J Research Medical Sciences : The Official Journal Isfahan Univ Med Sci 2014; 19(1): 57–64.

28.

Zaidan

Al-Haiqi

, et al. Evaluation and selection of open-source EMR software packages based on integrated AHP and TOPSIS. J Biomedical Informatics 2015; 53: 390–404.

29.

Syzdykova

Malta

Zolfo

, et al. Open-source electronic health record systems for low-resource settings: systematic review. JMIR Medical Informatics 2017; 5(4): e44.

30.

Paton

Karopka

. The role of free/libre and open source software in learning health systems. Yearb Medical Informatics 2017; 26(1): 53–58.

31.

Farhadi

Haddad

Shahriar

. Compliance of Open Source EHR Applications with HIPAA and ONC Security and Privacy Requirements, 2019.

32.

Purkayastha

Allam

Maity

, et al. Comparison of open-source electronic health record systems based on functional and user performance criteria. Healthc Inform Res 2019; 25(2): 89–98.

33.

Schenk

Schleyer

Jones

, et al. Impact of adoption of a comprehensive electronic health record on nursing work and caring efficacy. CIN: Comput Inform Nurs 2018; 36(7): 331–339.

34.

Rathert

Porter

Mittler

, et al. Seven years after Meaningful Use: Physicians' and nurses' experiences with electronic health records. Health Care Management Review 2019; 44(1): 30–40.

35.

. Major Issues in Adoption of Electronic Health Records. J Digital Inf Management 2018; 16(4): 180.

36.

Lim

Boland

McCannel

, et al. Adoption of electronic health records and perceptions of financial and clinical outcomes among ophthalmologists in the United States. JAMA Ophthalmology 2018; 136(2): 164–170.

37.

Kruse

Stein

Thomas

, et al. The use of electronic health records to support population health: a systematic review of the literature. J Medical Systems 2018; 42(11): 214–216.

38.

Bae

Ford

Kharrazi

HHK

, et al. Electronic medical record reminders and smoking cessation activities in primary care. Addict Behaviors 2018; 77: 203–209.

39.

Kharrazi

Chi

Chang

H-Y

, et al. Comparing population-based risk-stratification model performance using demographic, diagnosis and medication data extracted from outpatient electronic health records versus administrative claims. Med Care 2017; 55(8): 789–796.

40.

Moncho

Marco-Simo

Cobarsi

. EHR Implementation: A Literature Review. In: International Conference on Information Technology & Systems. Springer; 2021, pp. 3–12.

41.

Chen

Hsu

Worley

. Evaluation systems of the electronic medical records: a comparative study. In: IEEE 4th international conference on software engineering and service science, Beijing, China, 23–25 May 2013. IEEE, 2013, pp. 558–564.

42.

Sulkers

Tajirian

Paterson

, et al. Improving inpatient mental health medication safety through the process of obtaining HIMSS Stage 7: a case report. JAMIA Open 2019; 2(1): 35–39.

43.

Kabukye

Casaceli

Ball

, et al. Towards an open-source oncology electronic medical records system for low-resource settings: development of chemotherapy management in openMRS. In: MEDINFO 2019: Health and Wellbeing e-Networks for All. IOS Press; 2019, pp. 634–638.

44.

Yang

Croft

, et al. Analyzing and characterizing user intent in information-seeking conversations. In: The 41st International ACM SIGIR Conference on Research & Development in Information Retrieval; 2018, pp. 989–992.

45.

Zhang

Sun

Kim

. The influence of individual differences on consumer's selection of online sources for health information. Comput Hum Behav 2017; 67: 303–312.

46.

Zirkelbach

Krause

Hasselbring

. Modularization of Research Software for Collaborative Open Source Development. arXiv preprint arXiv:190705663. 2019.

47.

Nguyen

Di Rocco

Di Ruscio

. Mining Software Repositories to Support OSS Developers: A Recommender Systems Approach. IIR, 2018.

48.

Kane

Gueye

Dieng

, et al. Setting up a customized electronic health record system fit for internal medicine in dakar, senegal. E-health Telecommunication Syst Networks 2020; 8(4): 35–42.

49.

Ahmed

Sharif

Joy

, et al. Design of a cost-effective customized Electronic Health Record system to handle patient management during Covid-19 pandemic. AIUB J Sci Eng (Ajse) 2021; 20(1): 41–46.

50.

Coorey

Peiris

Usherwood

, et al. Persuasive design features within a consumer-focused eHealth intervention integrated with the electronic health record: A mixed methods study of effectiveness and acceptability. PloS One 2019; 14(6): e0218447.

51.

Oinas-Kukkonen

Harjumaa

. Persuasive Systems Design. In: Routledge handbook of policy design. Routledge; 2018, pp. 87–105.

52.

Bakken

. Progress toward Contextualized, Persuasive, and Integrated Consumer Information Technologies for Health. Oxford University Press, 2021.

53.

Hanauer

Mei

Law

, et al. Supporting information retrieval from electronic health records: A report of University of Michigan's nine-year experience in developing and using the Electronic Medical Record Search Engine (EMERSE). J Biomedical Informatics 2015; 55: 290–300.

54.

Lupenko

Lutsyk

Yasniy

, et al. The Modeling and diagnostic features in the computer systems of the heart rhythm analysis with the increased informativeness. In: 2019 9th International Conference on Advanced Computer Information Technologies (ACIT), Ceske Budejovice, Czech Republic, 5–7 June 2019. IEEE, 2019, pp. 121–124.

Open-source electronic health record systems: A systematic review of most recent advances

Abstract

Keywords

Introduction

Existing literature review

EHR Adoption: 7 Stages to Implementation Success

Workflow of HIMSS Analytics EMRAM

Adoption of Electronic Health Record

Challenges Achieving 7 stages

EHR functionalities and their evaluation

Selection of subject systems

Research methdology

Stage-1

Stage-2

Stage-3

Stage-4

Stage-5

Stage-6

Stage-7

Summary

Reporting End-Users Feedback on Open-source Systems

Technical measures

User Support

Developers Support

Customization Support in EHRs

Help Resources

Diagnostic Support

Software Quality Attributes

Limitations

Conclusion and Future Work

Footnotes

Declaration of conflicting interests

Funding

Note

References
