Abstract

Keywords

laser capture microdissection soybean cyst nematode microarray RNA interference

Introduction

The advent of molecular biology caused a reductionist “fever” to spread throughout the biological research community that continues to this day. The new molecular insights and techniques enabled researchers to probe the constituent parts of complex biological systems at unprecedented scale and detail. The reductionist approach naturally emerged: if we could now isolate and study the component parts of a system, we should be able to synthesize the information about the individual components into a unified understanding of the whole system. However, this “naive reductionism” (Bloom, 2001) needs to be balanced with a systems approach for a simple reason: the complex dynamics of a biological system often produce behaviors and properties that cannot be explained by the presence of a single component, but rather emerge from the interactions of the components of the system (so-called emergent properties).

Running counter to the molecular biology revolution, there were proponents of a systems-level approach to studying and understanding various types of complex systems, including those found in the social and biological sciences. The foundations of this approach can be found in the works of Bertalanffy (1976) and Wiener (1948). However, the lack of experimental and computational technology at the time hindered the adoption of a systems approach as a practical method of biological research and was thus overshadowed by the exciting and promising reductionist approach afforded by the new molecular biology techniques. After many years of exciting discoveries involving molecules in isolation, many in the research community realized that although this type of research is necessary to understand a biological system, it is not sufficient. Fortunately, the experimental and computational technology required for a more integrated approach to studying complex biological systems is finally catching up. Computers have become smaller, faster, and capable of storing vast amounts of data. Coupled with computer-assisted automation techniques, several high-throughput experimental technologies have emerged that enable a systems approach to biology, including DNA sequencing platforms (genome and EST), EST libraries, transcriptional profiling technologies (various microarray platforms), two-hybrid screening, protein microarrays, and tandem mass spectrometry, to name a few. These new techniques generate huge amounts of genomic, transcriptomic, proteomic, and metabolomic data that needs to be stored, accessed, and mined. Fortunately, computers can store these large amounts of data now and database technology has flourished and matured in recent years (Pandey and Mann, 2000; Lockhart and Winzeler, 2000; Ge et al. 2001; Grigoriev, 2001; Walhout and Vidal, 2001; Vidal, 2001; Jansen et al. 2002; Walhout et al. 2002; Gunsalus et al. 2004). Superseding the ability to store the data, the emergence of the World Wide Web (WWW) has made it possible to make biological data publicly available to the masses. The conjunction of database technologies and the WWW has given rise to publicly available nucleotide and protein sequence databases (i.e. GenBank, UniProt, ExPASy), biomolecule structure databases (PDB), metabolic network databases (i.e. KEGG), genetic databases (i.e. WormBase), annotation databases (i.e. gene ontology [GO]), and many others.

The first stage of a systems approach to studying an organism or biological phenomena is typically discovery-based, during which researchers characterize and catalog, in a high-throughput manner, the component biomolecules of the various levels of a system and their possible interactions. Functional and comparative genomics exist at the core of this research stage, whereby the genes, their encoded proteins, and gene regulatory interactions are identified for the biological system under study. Genome sequencing, creation of EST libraries, transcription profiling, and tandem mass spectrometry are typical activities during this stage and the wealth of knowledge obtained using reductionist approaches is invaluable for informing and fine-tuning the characterization of biomolecules. The second stage of the systems approach to studying an organism or biological phenomena is typically hypothesis-based, during which researchers determine functionally relevant biomolecules and interactions, develop models to explain and predict system behavior, and perform perturbation experiments to validate hypotheses. Although discovery-based research and hypothesis-based research are distinct and complementary research modalities in systems biology, it is important to note that the technologies and techniques often overlap. For example, microarrays are often used during discovery-based research to identify unknown gene functions (via clustering of expression profiles perhaps), but they are also used during hypothesis-based research to test hypotheses about system responses to various perturbations. This has been encountered in systems biology approaches to understand plant cell signaling (reviewed in Provart and McCourt, 2004) and the incorporation of protein data to study plant biology (reviewed in Glinski and Weckwerth, 2006). As our research into plant-pathogen interactions progressed using EST library analysis and microarrays, we found that we were implementing a systems biology approach and developing systems biology tools. A systems approach identifies genes important for biological processes (Janes et al. 2005; Janes and Yaffe, 2006; Albeck et al. 2006; Forst, 2006) and has been useful for our analysis of an important plant-pathogen interaction. It was then essential to develop databases that could manage those data.

Significance of the problem

Parasitic plant nematodes cause billions of dollars in crop losses each year and cause problems universally in plants. The most economically devastating parasitic nematode is Heterodera glycines (soybean cyst nematode), a parasite that infects Glycine max (soybean). H. glycines is the major parasite of G. max. It causes approximately $460 to 818 million per year in losses in the U.S. (Wrather and Koenning, 2006). H. glycines invade roots, migrate to the stele and establish their feeding sites (Endo, 1965, 1991; Riggs et al. 1973; Kim et al. 1987) (Fig. 1). When susceptible (compatible reaction), roots fail to overcome infection and the nematode continues to feed and complete its lifecycle. During the resistance response (incompatible reaction), roots eventually overcome infection by localized changes in the syncytium and or the cells surrounding the syncytium (Endo, 1965, 1991; Riggs et al. 1973; Kim et al. 1987). Thus, it is apparent that specific events occur, making G. max hostile to H. glycines infection. There are numerous well-characterized H. glycines isolates that exhibit varying degrees of compatibility with G. max varieties (Riggs and Schmitt, 1991; Niblack et al. 2002). Resistance is limited to specific nematode races. Thus, resistance is not durable. These limitations necessitate ways to create H. glycines resistance in G. max.

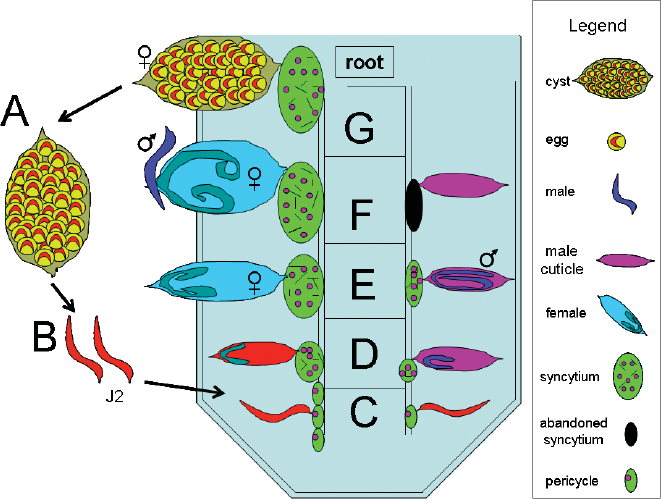

Figure 1

Life cycle of H. glycines. The life cycle of H. glycines is approximately 30 days and consists of three major stages, (1) egg, (2) mobile juvenile (J2) that undergoes successive molts (J3, J4) while within the root, and (3) adult that is either mobile (male) or sedentary (female). The egg, within cysts that can lie dormant in the soil for years, hatch as second stage juveniles (J2s) and migrate toward and subsequently penetrate a root. Once in the root, nematodes burrow to the root stele. A stylet emerges from the anterior end of the nematode and injects substances into a pericycle or neighboring root cell. The nematode, presumably, releases substances that then causes major changes in the physiology of the root cell. Those root cells then fuse with neighboring cells. This process transforms the fused root cells into a syncytium, a structure that ultimately contains ~200 merged root cells, and acts as the H. glycines feeding site for the balance of its lifecycle. During this time, the male nematodes feed for several days until the end of the J3 stage meanwhile becoming sedentary and exhibiting muscle degradation. Shortly afterwards, the males discontinue feeding, and molt into vermiform J4. They reactivate their muscles, emerge through the J2 and J3 cuticle and burrow toward the female to copulate. In contrast, the female becomes and remains sedentary once their feeding site is established. The female nematodes expand circumferentially and undergo J3 and J4 molts during feeding. They subsequently mature into feeding adult females. Ultimately, the female becomes the cyst that encases the eggs. Fig. 1A , cysts may lie dormant in the soil for years. Fig. 1B , second stage juveniles (red) hatch and migrate toward the root of G. max. Fig. 1C , J2 nematodes burrow into the root and migrate toward the root vasculature and select a cell for feeding site establishment. Fig 1D , J2 nematodes have molted into J3. Meanwhile, neighboring root cells have merged to form syncytia. Fig. 1E , Male and female J3 nematodes have molted into J4. Meanwhile, the female continues to grow circumferentially as it feeds. The male discontinues feeding at the end of its J3 stage. Fig. 1F , Male and female J4 nematodes become adults and the vermiform male migrates to the female to copulate. Fig. 1G , After ~30 days, the cyst is clearly visible, emerging from the root. Figure adapted from Jung and Wyss, (1999).

Our lab studies the G. max-H. glycines plant-nematode system to understand how parasitic nematodes influence plant growth. The G. max-H. glycines system is used because resistant or susceptible reactions can be studied in the same G. max cultivar (i.e. Peking). The system is tractable for gene expression analyses (Cho et al. 2001; Zhang and Ghabrial, 2006). A new rapidly growing and dwarf G. max cultivar (MiniMax) has been generated, making a variety of genetic and molecular studies feasible (Matthews et al. 2007). The G. max-H. glycines system is also useful because information on genes identified in G. max can be translated directly to improve resistance. The development of several comparative databases (Alkharouf and Matthews, 2004; Alkharouf et al. 2004; Alkharouf et al. 2007) has allowed for a better understanding of emergent properties in both G. max and H. glycines occurring during infection.

Historical techniques and research

Histological analysis- historical perspective

There are numerous histological studies of the interactions between G. max roots and H. glycines (Endo, 1964, 1965, 1971, 1991; Endo and Veech, 1970; Gipson et al. 1971; Jones and Northcote, 1972; Riggs et al. 1973). These studies demonstrated the anatomical changes that occur in G. max roots during H. glycines invasion (Figs. 2A, B). During infection, H. glycines penetrate the root and migrate toward the vascular tissue. At approximately two days post-inoculation (dpi), the nematode selects a cell adjacent to the vascular tissue and pierces it with its stylet to initiate a feeding site or syncytium. The nematode presumably releases substances it synthesized in gland cells into the plant cell to initiate syncytium formation. Thus, the development of the syncytium is an emergent property of the infection process. By three days, the plant cell further enlarges (Fig. 3A). The cells adjacent to the feeding site become metabolically hyperactive (Endo and Veech, 1970; Endo, 1971). After a cell is selected and pierced by the nematode, the walls of the plant cells adjacent to the selected cell begin to dissolve. Eventually these recruited cells merge to form a syncytium or larger feeding cell (Fig. 3B). In susceptible roots, a number of changes occur to the cells at the nematode feeding site. The nuclei and nucleoli hypertrophy, cytoplasmic organelles proliferate, the central cell vacuole is reduced or lost, the cell expands, and the cell wall becomes perforated (Jones and Dropkin, 1975; Endo and Veech, 1970; Gipson et al. 1971; Riggs et al. 1973). The perforations enlarge as the cell expands and surrounding cells merge at the perforations to enlarge the feeding site. The girth of the feeding nematode becomes noticeably larger at four and six dpi and is especially noticeable at eight dpi.

Figure 2

G. max cv. Peking seedlings were inoculated with H. glycines isolate TN8, resulting in a compatible reaction. Plants were harvested at three and eight dpi. Fig 2A , Peking infected with TN8 three dpi. Nematodes (white arrows) are stained red. Fig. 2B , Peking infected with TN8 eight dpi. Nematodes (white arrows) are stained red.

Figure 3

G. max cv. Peking seedlings were inoculated with H. glycines isolate TN8, resulting in a compatible reaction. Fig 3A , histological section of a root infected with TN8 (white arrowheads) at three dpi. The nematode feeding site (syncytium) has been encircled with a red line. Fig 3B , histological section of a root infected with TN8 (white arrowhead) at eight dpi. The nematode feeding site (syncytium) has been encircled with a red line.

In contrast, in the resistance response of G. max cultivar ‘Peking’ to H. glycines NL1-RHp, the syncytium collapses and becomes necrotic. Riggs et al. (1973) noted that cell wall depositions form and there is an increase in lipid globules before necrosis in Peking four dpi. There is also a concomitant degeneration of syncytia. Thus, a major mechanism of resistance may be to wall off the area of nematode invasion with a secondary wall to either starve the nematode or to allow toxic by-products to build up in the area. The resistant cultivar ‘Bedford’ has a somewhat different response, in that the nuclei degrade, then the cytoplasm degrades (Kim et al. 1987). Interestingly, syncytia form in both susceptible and resistant G. max genotypes, including PI 437654, which possesses broad resistance against H. glycines (Mahalingam and Skorupska, 1996). Certainly, development and maintenance of the syncytium is crucial to the survival of H. glycines. It is unclear if resistance is due to localized events or if these events occur throughout the root. Many pathways, genes and proteins are likely to be involved during the infection process.

Gene expression-historical perspective

There are a few reports concerning the molecular aspects of susceptibility and resistance of plants to nematodes (Gurr et al. 1991; Cai et al. 1997; Grundler et al. 1997; Hermsmeier et al. 1998; reviewed in Williamson and Kumar, 2006). However, most discuss the expression of only one or a few genes (reviewed in Gheysen and Fenoll, 2002; Williamson and Kumar, 2006). Many labs have been using a variety of methods to better understand the problem of susceptibility. As will be mentioned below, these labs have focused on the identification of resistance (R) genes, candidate gene approaches, single gene analyses, and microarray analyses.

The cloning of R genes is important because of the potential to use those genes to engineer resistance. R genes (Jones et al. 1994; reviewed in Glazebrook, 2001, 2005) are plant genes that encode determinants for the activation of a plant defense response to pathogens. They have been shown to confer defense against bacteria and other pathogens such as the insect Macrosiphum euphorbiae (Rossi et al. 1998). Genes that actually confer resistance to nematodes are scarce (Williamson and Kumar, 2006). These R genes, identified by map-based cloning, include ones that defend against Heterodera schachtii (Cai et al. 1997) and Meloidogyne javanica and M. incognita (Milligan et al. 1998). It is not clear whether functional homologs exist in all agricultural plants. Resistance loci to H. glycines are present in the germplasm of G. max. These loci have been physically mapped (Cregan et al. 1999; Matthews et al. 2001). However, resistance is restricted to varieties that are the poorest with respect to production yield. In addition, resistance is limited to specific nematode populations within those varieties exhibiting resistance (Riggs and Schmitt, 1991; Niblack et al. 2002). Those R genes have not yet been identified.

Candidate resistance gene approaches have been performed (van der Vossen et al. 2000; Ernst et al. 2002; Paal et al. 2004). During this process, resistance genes from one plant are genetically engineered into another plant. These genes are then evaluated for their ability to confer resistance in the species it is introduced.

Single gene expression analyses have been performed. Numerous nematode-induced transcripts from tomato have been sequenced and identified (Bird and Wilson, 1994; Wilson et al. 1994). An understanding of the molecular response of G. max to H. glycines has been gained using differential display and northern blots. In these experiments, Hermsmeier et al. (1998) noted major changes in G. max gene expression in the susceptible interaction of G. max with H. glycines. Transcripts for five genes increased upon H. glycines infection, while transcripts of ten others decreased. Until recently, little was known about the molecular response of resistant and susceptible cultivars of G max to H. glycines. Edens et al. (1995) examined the expression of some of the genes involved in phenylpropanoid synthesis. This is an important plant defense pathway. Transcription of the genes encoding phenylalanine ammonia lyase and 4-coumaryl CoA- ligase increased, as did these enzyme activities, in resistant, but not in susceptible cultivars of G. max after infection by H. glycines. However, transcription of genes encoding enzymes found later in the pathway was enhanced in both resistant and susceptible cultivars after nematode invasion.

Microarrays were originally developed for the study of plant gene expression (Schena et al. 1995) and used subsequently to study infection of plants by a pathogen (Schenk et al. 2000). Microarray analyses have been used to study nematode infection in the model plant Arabidopsis thaliana (Puthoff et al. 2003; Jammes et al. 2005). Puthoff et al. (2003) examined sugarbeet cyst nematode (Heterodera schachtii) and H. glycines interactions with A thaliana using microarrays to measure gene transcript levels. There were 128 genes identified with altered gene transcript levels in A. thaliana roots after infection by the sugarbeet cyst nematode, while only 12 genes were identified with altered transcript levels following H. glycines infection. Jammes et al. (2005) identified thousands of genes exhibiting various profiles of expression during a time-course of M. incognita infection in A. thaliana. Microarray analyses focusing on the susceptible response have been performed in G max (Khan et al. 2004; Alkharouf and Matthews, 2004; Alkharouf et al. 2004, 2005, 2006). For an in-depth review of nematode infection, see Gheysen and Fenoll (2002).

Studies investigating nematode gene expression have also been performed. These analysis methods include the isolation and identification of putative parasitism genes (Gao et al. 2001; Wang et al. 2001; Bekal et al. 2003; Lambert et al. 2005). A cDNA query database (i.e. http://www.nematode.net; Washington University, St. Louis) has also been developed. Databases that can be used to perform comparative analyses between different nematode species have also been generated (Alkharouf et al. 2007) that also demonstrated RNA in H. glycines.

The aforementioned approaches are the initial steps to understanding the complexity of the interaction between the plant and infectious nematodes. Methods that can integrate these data will help to better understand their emergent properties during infection. The following sections will expand and examine how both discovery-based techniques and research and hypothesis-based techniques and research are being merged to study G. max infection by H. glycines.

Discovery-based techniques and research

Database management tools

It is clear from the historical observations that differential gene expression in G. max and H. glycines occurs during resistance and susceptibility. To understand this problem better and to develop new solutions through biotechnology, a systems approach is required because in the plant, tissue and cell morphology is grossly altered, the levels of many different gene transcripts are altered, proteins are altered in abundance and activity, and metabolite concentrations are changed. The goal, therefore, is to find out what is changing and why it is changing during the course of infection.

One discovery method already mentioned is the use of microarrays. Microarray analysis of gene expression in G. max roots infected by incompatible or compatible isolates of H. glycines would likely identify genes preferentially expressed during resistance. An obstacle to analyzing the vast amounts of gene expression data is its organization, management and maintenance. New technologies have been developed that are now available to begin identifying and better understanding genes in both G. max and H. glycines. Once a large amount of G. max and H. glycines genes were available in GenBank, they could be annotated to better understand their role(s) in the biology of those organisms. This is one of the most basic organizational levels of identifying gene function. A gene ontology (GO) analysis (Ashburner et al. 2000; Gene Ontology Consortium, 2001) would permit a better understanding of both G. max and H. glycines (Alkharouf et al. 2007) genes. Once these analyses were made, those data could be centralized in a database and made available to researchers (Alkharouf and Matthews, 2004; Alkharouf et al. 2007).

Soybean Genomics Microarray Database (SGMD)

The centralization of expression data in our lab has begun with the Soybean Genomics Microarray Database (SGMD). The Soybean Genomics Microarray Database (SGMD) is a resource to mine the gene expression data of thousands of genes identified by microarray analysis (Alkharouf and Matthews, 2004). Housed in the SGMD are the results of several microarray analyses. These analyses include a time-course microarray analysis of 6,500 genes using seven time-points during the course of a susceptible interaction (Alkharouf et al. 2006). This database has since been supplemented with several other microarray experiments and genomic data. The online analytical processing (OLAP) capabilities of the SGMD database are another resource that can be used to query those data (Alkharouf et al. 2005). This allows scientists, who have little or no knowledge of bioinformatics, to mine the microarray database without downloading the data and using third-party analysis software.

CeHg database-gene identification in H. glycines

Data on genes often reside in non-connected databases and thus impede contextual analyses. The isolation of cDNAs important to H. glycines parasitism (Gao et al. 2001; Wang et al. 2001) was essential for an understanding of the earliest stages of parasitism (Bakhetia et al. 2007). This is because it provided a set of genes that encode proteins that are presumably injected by the nematode into plant cells during infection. Those H. glycines gene sequences are available at both GenBank and http://www.nematode.net. The availability of those sequences then allowed for a comparative analysis. However, those data exist in unlinked databases, making comparative analyses seemingly intractable. The Caenorhabditis elegans-Heterodera glycines (CeHg) database (Alkharouf et al. 2007) is a comparative analysis of H. glycines with C. elegans, a nematode with a fully-sequenced and well-characterized genome. The linking of those databases was essential to organize, manage and maintain the data. It was also essential so that interfaces with other databases (i.e. Wormbase.org) could be created. In that analysis, over 300,000 gene sequences from C. elegans were compared with the EST sequences of H. glycines (Alkharouf et al. 2007). Those analyses identified approximately 8,000 gene sequences that were conserved between H. glycines and C. elegans. The C. elegans database (Wormbase.org) also provides a wealth of information concerning genetic mapping data and phenotypes identified by mutational analysis by a large community of researchers. Another resource available in Wormbase.org is RNA interference (RNAi) data for thousands of genes. RNAi (Fire et al. 1998) was originally identified as a means to eliminate the endogenous pool of cognate RNA for a particular gene. RNAi is a process by which double stranded RNA is introduced into a cell (or organism) and, by a well-defined biochemical process, the cognate RNA normally produced in the cell is degraded while other RNAs are not affected (Fire et al. 1998). Because the RNAi outcome typically mimics the mutant phenotype of that gene, the result is called a phenocopy The analysis of H. glycines gene sequences was then expanded by putting an additional constraint on the analysis. All of the conserved genes that occur between H. glycines and C. elegans (from the current gene sequence data available in GenBank) were identified that also had RNAi experimental data (in Wormbase.org) that demonstrated that the C. elegans phenocopy was lethal. It was believed that the RNAi constraint would maximize the probability of identifying H. glycines genes whose RNAi phenocopies were lethal. That analysis was followed up by RNAi studies that demonstrated RNAi for a putative lethal candidate gene resulted in lethality for H. glycines, thus demonstrating the efficacy of the approach (Alkharouf et al. 2007). Other analyses comparing H. glycines with C. elegans will undoubtedly aid in the understanding of its pathogenicity and will allow for the development of biocontrol measures. Those comparisons will be aided by identifying active metabolic pathways whose constituent genes (and thus their corresponding proteins) are induced or suppressed on microarrays during the course of a biological process. These comparisons will be aided by applications such as ResNet and PathwayStudio (Ariadne Genomics) and Kyoto Encyclopedia of Genes and Genomes (KEGG), (Kanehisa Laboratories, Kyoto University and the Human Genome Center, University of Tokyo). These interfaces allow for the functional categorization of genes presently managed in disparate databases.

Whole root genomic analysis of G. max

Alkharouf et al. (2004) examined the development of an infection process by studying the gene transcript levels of ~6,500 genes in G. max roots susceptible to H. glycines two dpi., Because syncytia are formed by H. glycines at approximately 1.5 to two dpi, RNA was isolated from G. max roots two dpi. This allowed the examination of transcript levels during the susceptible response at this critical time point. That analysis identified a number of genes having elevated and suppressed transcript levels. Approximately 8% of the genes represented on the microarray were induced. Noteworthy genes included those encoding the repetitive proline-rich glycoprotein, SAM22, peroxidase and those involved in plant defense and signaling. Interestingly, the function was unknown for over 50% of the induced genes.

Alkharouf et al. (2006) expanded on that study by including time-points at six, 12 and 24 hours post-inoculation (hpi), two, four, six and eight dpi. Therefore the development of a susceptible infection was analyzed. It takes at least 18 to 24 hours before most of the nematodes reach cells near the vascular tissue to initiate a feeding site. Prior to these times, the nematodes are burrowing into the root, but have not started to feed yet. Thus, a significant part of that experiment was the inclusion of time-points occurring before the nematode establishes its feeding site. Those time-points allowed for the determination that the plant responds to the nematode as soon as the nematode is burrowing through the root. Numerous genes were induced at the early time points of six and 12 hpi during G. max infection by H. glycines. Some of those genes were well-known genes involved in the defense response. Those genes included Kunitz trypsin inhibitor SAM22, phospholipase D and 12-oxyphytodienoate reductase. Those results suggested that there are important changes in gene expression occurring during the susceptible response while the nematode is burrowing through the root and before they begin feeding. RT-PCR was used to confirm the expression of some of the genes, including calmodulin, trehalose phosphate synthase, lipoxygenase, phospholipase C, chalcone reductase and WRKY6 (Alkharouf et al. 2006).

The identification of the induction of WRKY gene expression during the susceptible reaction was particularly intriguing. This is because WRKY transcription factors are involved in the defense response (Shen et al. 2007). Recent microarray analyses have demonstrated WRKY gene expression during infection of A. thaliana by the bacterium Pseudomonas syringae. Those analyses demonstrated that the activation and downstream targets of the WRKY gene family is complex (Wang et al. 2006). Those microarray analyses have aided their understanding of the activation of gene networks during infection (Wang et al. 2006). WRKY genes have been shown to be rapidly induced during the resistance response in pepper (Capsicum annum) (Oh et al. 2006). A. thaliana mutants of WRKY33 become susceptible to the fungal pathogens Botrytis cinerea and Alternaria brassicicola (Zheng et al. 2006). However, over-expression of WRKY33 was shown to enhance susceptibility to P. syringae and is coincident with reduced PR1 gene expression (Zheng et al. 2006). Ryu et al. (2006) explored the expression of 45 WRKY genes in Oryza sativa. They demonstrated that 15 WRKY genes were significantly induced during the resistance response after infection with the fungus Magnaportha grisaei (Ryu et al. 2006). Twelve of those WRKY genes were also induced during infection with the bacterial pathogen Xanthomonas oryzae pv oryzae (Xoo) (Ryu et al. 2006). Xu et al. (2006) demonstrated that, in A. thaliana, WRKY18, WRKY40 and WRKY60 form a multimeric complex. The influence of WRKY gene expression during resistance to P. syringae and B. cinerea was tested by mutational analysis. Single mutants of wrky18, wrky40 or wrky60 had little effect (Xu et al. 2006). However, wrky18-wrky40 and wrky18-wrky60 double mutants exhibited resistance to P. syringae, but were susceptible to B. cinerea (Xu et al. 2006). The wrky18-wrky40-wrky60 triple mutant was also resistant to P. syringae and susceptible to B. cinerea (Xu et al. 2006). Enhanced disease resistance was also observed in A. thaliana wrky11 and wrky17 single mutants and enhanced resistance was observed in wrky11-wrky17 double mutants infected with P. syringae (Journot-Catalino et al. 2006). The WRKY gene family is also large in G. max. It is likely that complex gene expression patterns will emerge as we better understand G. max infection by H. glycines.

Later time-points during the infection of G. max by H. glycines were also studied. At the later time-points of six and eight dpi, H. glycines has found a potential feeding site and punctured a cell with its stylet. The emergent reaction is the formation of the syncytium. At these later times the transcripts were elevated for numerous genes involved in transcription and protein synthesis, carbon metabolism and transport, including sucrose synthase and glyceraldehydes 3-phosphate dehydrogenase. The generation of these data during the discovery phase of research has provided a useful resource that can now be further analyzed so that the expression data can be put into a functional context using applications such as Metacyc that link microarray expression data to metabolic pathways (Caspi et al. 2006).

Analysis of specific cell types of G. max and H. glycines

Important molecular interactions leading to resistance have been shown to occur in other plants within the specific cell types experiencing those interactions. For example, Shen et al. (2007) demonstrated how the interaction between a fungus (Blumeria graminis) avirulence effector (AVR_A10), the barley mildew A (MLA) R locus (MLA10) and WRKY transcription factors were important to resistance in the specific plant barley cells that contain them (Shen et al. 2007; reviewed in Sheen and He, 2007). This may relate to G. max infection by H. glycines infection because R genes have been shown to confer resistance in plants to other nematode species (Cai et al. 1997; Milligan et al. 1998; van der Vossen et al. 2000; Ernst et al. 2002; Paal et al. 2004). The involvement of R genes and WRKY genes during G. max infection by H. glycines may work in some manner analogous to those observed in barley (Shen et al. 2007). Clearly, there are important interactions occurring between G. max and H. glycines within the syncytium. Thus, isolating syncytia from the surrounding tissue may provide clues as to how the cell emerges and develops. It may also help us understand how the syncytium is sustained by the plant (or coerced by the nematode) throughout the course of nematode development.

A method to isolate cells from complex tissues is Laser Capture Microdissection (LCM). LCM was first developed and used to study animal cells (Meier-Ruge et al. 1976; Isenberg et al. 1976). LCM, thus, allowed them to overcome problems with hand-microdissection of tissues. LCM was further developed to accommodate paraffin-embedded samples on microscope slides (Emmert-Buck et al. 1996) and was first used by Asano et al. (2002) in plants. LCM can be used to isolate syncytial cells formed by the feeding nematode (Fig. 4) (Klink et al. 2005). RNA can be extracted from these isolated feeding cells and used to construct a cDNA library for EST analysis (Klink et al. 2005). Sequence analysis of a cDNA library can provide information on gene identity and provide a representation of the transcript abundance of genes expressed in the syncytium. The analysis of sequenced ESTs from the feeding site cDNA library identified numerous genes, including genes encoding tubulin, several ribosomal proteins, DNA-binding proteins and transcription factors, a protein kinase, two peroxidases, a protease, aquaporin, carbonic anhydrase, and other proteins. The extracted RNA also can serve as a template to perform gene expression experiments (Nakazono et al. 2003). Transcript levels of aquaporin (GmPIP2,2), α-tubulin, β-tubulin and genes of unknown function were elevated in syncytial tissue (Klink et al. 2005). Full-length clones of GmPIP2,2 and α-tubulin were identified and sequenced (Klink et al. 2005). Transcripts of GmPIP2,2 were localized by in situ hybridization to cells immediately adjacent to the syncytium, while immuno-histocytochemistry was used to demonstrate α-tubulin localization to the syncytium (Klink et al. 2005).

Figure 4

Syncytia from G. max were microdissected for gene expression experiments. Fig. 4A , an eight dpi time-point syncytium (arrow) prior to microdissection was identified by their proximity to the anterior end of H. glycines (black arrow). Fig. 4B , the same syncytium section from Fig. 4A after microdissection (area between arrows). The black arrow points toward the nematode.

The coercion of G. max by the nematode probably occurs via substances that are injected into the plant. The dorsal esophageal gland cell and the subventral esophageal gland cells are the sites of synthesis of proteins that presumably are injected through a piercing stylet mouthpiece of the nematode into plant cells. Methods have been employed to isolate those cell specific cDNAs in H. glycines (Gao et al. 2001; Wang et al. 2001). Consistent with this was the isolation and characterization of one of these nematode genes having homology to an important plant protein involved in various aspects of growth (Clark et al. 1996; Wang et al. 2005). The isolation of cDNAs from the syncytium (Klink et al. 2005) along with the isolation of cDNAs from glands important for H. glycines pathogenicity (Gao et al. 2001; Wang et al. 2001; Bakheita et al. 2007) are allowing for the isolation and subsequent analysis of cDNAs expressed in the actual cell types important to infection.

Hypothesis-based techniques and research

It is essential to find G. max and H. glycines genes that may be relevant to the infection process. This occurs during the discovery phase of the research. The hypothesis-based phase of research required the development and utilization of certain technologies and methodologies that allowed for the perturbation of the normal function of these genes. Putative candidate lethal H. glycines genes have been identified by comparative analyses (Alkharouf et al. 2007). This will allow for the identification of their actual role(s) during infection. The following sections describe the technologies and methodologies developed to study those genes.

Database management as a means to drive hypothesis-based techniques and research

The sequencing of the C. elegans genome (The C. elegans Sequencing Consortium, 1998) and the A. thaliana genome (Arabidopsis Genome Initiative, 2000) paved the way for a systems approach to understand their development. Genomic RNAi screens (Sonnichsen et al. 2005) housed in the updated Wormbase (Bieri et al. 2007) provide a large amount of data to manage. A limitation encountered during the study of C. elegans was the development of ways to manage those large databases. In addition, it became important to have ways to link data obtained in these C. elegans RNAi studies (phenome mapping) to data generated from microarrays (transcriptome) and protein-protein interaction (interactome) (Walhout et al. 2002). Some of these problems were solved by the development of RNAiDB and PhenoBlast tools (http://www.rnai.org) that permits the user access to time-lapse movies and a variety of other data pertaining to RNAi experiments (Gunsalus et al. 2004). Many of these and other limitations had been solved originally in Saccharomyces cerevisiae (Pandey and Mann, 2000; Lockhart and Winzeler, 2000; Ge et al. 2001; Walhout and Vidal, 2001; Vidal, 2001).

RNAi studies- H. glycines

One way to study infection is to study genes essential for the pathogen to function. A method showing much promise is the production of transgenic plants that produce RNAi constructs for genes essential to pathogen viability. The plant will not be affected by RNAi constructs engineered for pathogen genes. This is due to the gene specific nature of RNAi. The premise is that the pathogen will somehow imbibe the dsRNA that is produced within the host (Winston et al. 2002; Feinberg and Hunter, 2003). Once the dsRNA is within the cells of the pathogen the RNAi pathway will be engaged. If the gene is essential, the pathogen will lose viability over time as the cognate RNA pool is depleted and its protein content degrades. Early efforts using this strategy were successful. For example, RNAi has been used to study genes essential for infection of A thaliana and Lycopersicon esculentum by Agrobacterium tumefaciens (Escobar et al. 2001). Infection of plants by A. tumefaciens is a two-step process. Firstly, the bacterium performs a horizontal gene transfer and integration into the plant genome (transformation). Secondly, plant cell division is engaged, resulting in the formation of a crown gall (tumorigenesis). This occurs as a consequence of gene activation on the horizontally transferred DNA sequence (Escobar et al. 2001). Escobar et al. (2001) generated plants transgenic for A tumefaciens iaaM and ipt genes. The iaaM gene encodes tryptophan monooxygenase (Klee et al. 1984) while ipt encodes a gene whose product catalyzes the condensation of AMP and isopentyl pyrophosphate to produce zeatin, a cytokinin (Lichtenstein et al. 1984). These two genes reside on the tumor-inducing (Ti) plasmid of A. tumifaciens and are essential for wild-type tumor formation (Ooms et al. 1981). Escobar et al. (2001) demonstrated that plants transgenic for an RNAi construct that generated dsRNA for both iaaM and ipt inhibited crown gall formation. This provided a model for the use of RNAi in the study and control of other plant pathogens.

RNAi has been used in candidate approach investigations to study H. glycines genes (Urwin et al. 2002; Alkharouf et al. 2007; Bakheita et al. 2007). Urwin et al. (2002) employed a candidate gene approach investigating cysteine proteinases, C-type lectins and major sperm protein. Cysteine proteinase RNAi experiments reduced the male/female ratio while RNAi for C-type lectins decreased the number of nematodes. RNAi for the major sperm protein had no effect (Urwin et al. 2002). Bakheita et al. (2007) focused primarily on genes whose products are secreted substances that subvert the growth of the plant. Other ways to study the process of infection is to study the role of genes that are essential to viability or the development of H. glycines as the J2s develop into mature adults or the development of embryos within the gravid females. One limitation would be in identifying large numbers of essential genes by candidate gene approaches. After the discovery of RNAi in C. elegans (Fire et al. 1998), researchers realized the power that large-scale genomic screens could have in identifying the function of a large number of genes important for viability and development (Piano et al. 2000; Sonnichsen et al. 2005). In addition, RNAi would be of particular use to study genes that supply maternal pools of RNA that are essential for embryogenesis (Piano et al. 2000). These studies demonstrated the efficacy of the approach to applying large-scale screens to identify genes essential for specific biological functions.

The identification of putative lethal genes in H. glycines became simplified by the various available C. elegans RNA databases. However, the identification of genes was still confounded by the data residing in disparate databases. The CeHg database has been developed and used to identify ~1500 genes that could potentially yield lethal phenocopies in H. glycines (Alkharouf et al. 2007). Those analyses have identified numerous genes that perform roles in development, metabolism, cell structure, protein synthesis, transport and DNA synthesis (Alkharouf et al. 2007). Those predictions have been tested by performing RNAi experiments of H. glycines genes (Alkharouf et al. 2007). In one of those tests, a lethal phenocopy of a gene shown to be essential for viability was obtained (Alkharouf et al. 2007). Other uses of the CeHg database have been the identification of H. glycines homologs of genes involved in muscle composition and maintenance in C. elegans (Klink et al. 2007). These studies have demonstrated a decrease in transcript abundance of several genes that perform important roles in muscle biology, presumably as a consequence of the sedentary phase of their lifecycle (Klink et al. 2007). Those hypothesis-based analyses of H. glycines gene function demonstrate that large numbers of genes can be rapidly screened as a means to better understand important aspects of H. glycines development. These analyses have also identified numerous genes of unknown function. Those genes could be the focus of RNAi screens to identify their function during parasitism. Some of these unknown genes were originally isolated from gland cells known to be important for parasitism (Gao et al. 2001; Wang et al. 2001). Some of these putative parasitism genes have subsequently been tested through knock down RNAi analyses in H. glycines (Bakheita et al. 2007). Experiments have shown in other systems that expressing nematode genes as RNAi constructs in plants can be used as a biocontrol for parasitic nematodes (Huang et al. 2006). Using such strategies should prove promising in better understanding genes essential for parasitism (Bakheita et al. 2007) and those important for various aspects of development of H. glycines (Alkharouf et al. 2007).

MiniMax as a model for soybean research

A major limitation to test the emergent properties of genes in G. max research is the time it takes to grow and engineer genes into them (Bailey et al. 1993; Santarem and Finer, 1999; Ko et al. 2004; Schmidt et al. 2005). Researchers have used dwarf varieties of agricultural plants as an avenue that can be taken to avoid the problem of plant size and generation time (Scott and Harbaugh, 1989; Meissner et al. 1997). Recently, a dwarf variety of G. max that has the additional benefit of growing rapidly has been developed as an alternative variety for genetic and molecular research (Matthews et al. 2007). This variety, called MiniMax, has several features (i.e. the ability to be transformed, rapid generation time, compact size) that make it especially useful for laboratory research. MiniMax can be used to test the roles of genes attributed to emergent properties because of its ability to be genetically transformed.

Mutagenic analyses

Chemically induced mutagenesis can and has been used to generate mutations useful for determining gene function in plants and animals (reviewed in Schimenti and Bucan, 1998). The feasibility of using ethyl methanesulfonate (EMS) to generate a range of mutations using MiniMax has been tested. The combination of small size and rapid generation time makes MiniMax an ideal cultivar for hypothesis-based systems-level analysis, enabling thousands of parallel experiments (mutation analysis) to be performed in a shorter period of time while studying G. max responses to H. glycines infection. Mutations in height, structure and fruit set have been identified, suggesting that useful mutations could be found using chemical mutagenesis of MiniMax.

An application of mutagenesis screening is targeting induced local lesions in genomes (TILLING). TILLING is a high-throughput technique that allows the correlation of gene mutation with phenotype. McCallum et al. (2000a, b) used EMS to generate a population of mutagenized A. thaliana plants for TILLING. In addition to A. thaliana Benaben et al. (1995) developed EMS mutants of Medicago truncatula, Perry et al. (2003) developed a collection of EMS mutants of Lotus japonicus, and Till et al. (2004) established a collection of point mutations in maize which he screened using TILLING.

As mentioned earlier, R genes have been identified in other plants to confer resistance to parasitic plant nematodes (Cai et al. 1997; Milligan et al. 1998; Hwang et al. 2000; van der Vossen et al. 2000; Ernst et al. 2002; Hwang and Williamson 2003; Paal et al. 2004). Because many R genes have been identified in G. max by a variety of screening methods (Graham et al. 2002, 2003; Peneuela et al. 2002; He et al. 2002; Ashfield et al. 2003), mutated forms of those genes could be produced and identified via TILLING. Their emergent properties in nematode resistance could then be tested with simple visual screens.

Plant transformation

Plant transformation can be used to study the emergent properties occurring during the G. max interaction with H. glycines. Using plant transformation, certain genes are over-expressed or silenced to better understand their function. Over-expressing and/or silencing R genes in G. max could be another way to identify the potential roles of those genes in G. max. Transformed G. max root cultures can be rapidly produced by using Agrobacterium rhizogenes mediated hairy roots (Savka et al. 1990; Cho et al. 2001). Thus, they can be used for large-scale genetic screens. Alternatively, viral expression systems can be used to overexpress genes or be used for virus induced gene silencing (VIGS) to silence genes in G. max (Zhang and Ghabrial, 2006). The application of MiniMax is an especially promising development because it will allow rapid testing of the predicted functionality of individual genes as well as emergent functionality resulting from the combined effects of multiple genes of the host and its pathogen. The dwarf nature of MiniMax permits the study of large numbers of these compact plants in a small space.

Future directions

Over the course of the past few years, a systems-level approach has overcome several limitations inherent in the traditional G. max-H. glycines research paradigm. The manufacture and use of G. max cDNA microarrays has allowed the study of the expression patterns of thousands of G. max genes simultaneously at various times during the H. glycines infection process. Those analyses led to the identification of several genes involved in defense pathways in other organisms. The isolation of homogeneous cell populations using LCM has allowed for profiling the transcriptome of the feeding site of the nematode. The development of MiniMax, a dwarf, transformable and rapidly growing G. max variety should allow researchers to overcome space and time limitations of standard G. max varieties. The compilation of these data, using a variety of interconnected databases, allows for the identification of active sub-networks from gene expression data. The implementation of new database search techniques will allow for the correlation of gene expression data with the available data on gene pathways (Metacyc [Caspi et al. 2006] and other resources). This will allow for the dissection of how members of genes and gene families function during infection (Wang et al. 2006). Such analyses may aid in the identification of their function during resistance of G. max to H. glycines.

References

Albeck

J.G.

, MacBeath

, White

F.M.

2006. Collecting and organizing systematic sets of protein data. Nat. Rev. Mol. Cell Biol., 7: 803–12.

Alkharouf

, and Matthews

B.F.

2004. SGMD: The Soybean Genomics and Microarray Database. Nucleic Acids Research, 32: D398–D400.

Alkharouf

, Khan

, and Matthews

B.F.

2004. Analysis of expressed sequence tags from roots of resistant soybean infected by the soybean cyst nematode. Genome, 47: 380–388.

Alkharouf

N.W.

, Jamison

D.C.

, and Matthews

B.F.

2005. Online Analytical Processing (OLAP): A Fast and Effective Data Mining Tool for DNA Microarrays. Journal of Biomedicine and Biotechnology, 2: 181–8.

Alkharouf

N.W.

, Klink

V.P.

, Chouikha

I.B.

2006. Timecourse microarray analyses reveals global changes in gene expression of susceptible Glycine max (soybean) roots during infection by Heterodera glycines (soybean cyst nematode). Planta., 224: 838–52.

Alkharouf

N.W.

, Klink

V.P.

, and Matthews

B.F.

2007. Identification of Heterodera glycines (soybean cyst nematode (SCN) DNA sequences with high similarity to those of Caenorhabditis elegans having lethal mutant or RNAi phenotypes. Experimental Parasitology, 115: 247–58.

Arabidopsis Genome Initiative. 2000. Analysis of the genome sequence of the flowering plant Arabidopsis thaliana. Nature, 408: 796–815.

Asano

, Masumura

, Kusano

2002. Construction of a specialized cDNA library from plant cells isolated by laser capture microdissection: toward comprehensive analysis of the genes expressed in the rice phloem. Plant. J., 32: 401–8.

Ashburner

, Ball

C.A.

, Blake

J.A.

2000. Gene ontology: tool for the unification of biology. The Gene Ontology Consortium. Nat. Genet., 25: 25–9.

10.

Ashffeld

, Bocian

, Held

2003. Genetic and physical localization of the soybean Rpgl-b disease resistance gene reveals a complex locus containing several tightly linked families of NBS-LRR genes. Mol. Plant Microbe Interact, 16: 817–26.

11.

Bailey

M.A.

, Boerma

H.R.

, and Parrott

W.A.

1993. Genotype effects on proliferative embryogenesis and plant regeneration of soybean. In. Vitro. Cell Dev. Biol., 29P: 102–108.

12.

Bakhetia

, Urwin

P.E.

, and Atkinson

H.J.

2007. QPCR analysis and RNAi define pharyngeal gland cell-expressed genes of Heterodera glycines required for initial interactions with the host. Mol. Plant Microbe Interact, 20: 306–12.

13.

Bekal

, Niblack

T.L.

, and Lambert

K.N.

2003. A chorismate mutase from the soybean cyst nematode Heterodera glycines shows polymorphisms that correlate with virulence. Mol. Plant Microbe Interact, 16: 439–46.

14.

Benaben

, Duc

, Lefebvre

1995. TE7, an ineffcient symbiotic mutant of Medicago truncatula Gaertn. Cv Jemalong. Plant Physiol., 107: 53–62.

15.

Bertalanffy

1976. General System Theory: Foundations, Development, Applications. George Braziller Inc.

16.

Bieri

, Blasiar

, Ozersky

2007. WormBase: new content and better access. Nucleic Acids Res., 35(Database issue): D506–10.

17.

Bird

D.A.M.

, and Wilson

M.A.

1994. DNA sequence and expression analysis of root-knot nematode-elicited giant cell transcripts. Molec. Plant Microbe Interact, 7: 419–24.

18.

Bloom

F.E.

2001. What does it all mean to you? J. Neuroscience, 21: 8304–5.

19.

Cai

, Kleine

, Kifle

1997. Positional cloning of a gene for nematode resistance in sugar beet. Science, 275: 832–4.

20.

Caspi

, Foerster

, Fulcher

C.A.

2006. MetaCyc: a multiorganism database of metabolic pathways and enzymes. Nucleic Acids Res., 34(Database issue): D511–6.

21.

Cho

H.J.

, Farrand

S.K.

, Noel

G.R.

2001. High-efficiency induction of soybean hairy roots and propagation of the soybean cyst nematode. Planta, 210: 195–204.

22.

Clark

, Jacobsen

S.E.

, and Levin

J.Z.

1996. The CLAVATA and SHOOT MERISTEMLESS loci competitively regulate meristem activity in Arabidopsis. Development, 122: 1567–75.

23.

Cregan

P.B.

, Mudge

, Fickus

E.W.

1999. Targeted isolation of simple sequence repeat markers through the use of bacterial artificial chromosomes. Theor. Appl. Genet., 98: 919–928.

24.

Edens

R.M.

, Anand

S.C.

, and Bolla

R.I.

1995. Enzymes of the phenylpropanoid pathway in soybean infected with Meloidogyne incognita or Heterodera glycines. J. Nematol., 27: 292–303.

25.

Emmert-Buck

M.R.

, Bonner

R.F.

, Smith

R.F.

1996. Laser capture microdissection. Science, 274: 998–1001.

26.

Endo

B.Y.

1964. Penetration and development of Heterodera glycines in soybean roots and related and related anatomical changes. Phytopathology., 54: 79–88.

27.

Endo

B.Y.

1965. Histological responses of resistant and susceptible soybean varieties, and backcross progeny to entry development of Heterodera glycines. Phytopathology, 55: 375–81.

28.

Endo

1971. Synthesis of nucleic acids at infection sites of soybean roots parasitized by Heterodera glycines. Phytopathology, 61: 395–9.

29.

Endo

B.Y.

1991. Ultrastructure of initial responses of resistant and susceptible soybeanroots to infection by Heterodera glycines. Rev. Nematol., 14: 73–94.

30.

Endo

B.Y.

, and Veech

J.A.

1970. Morphology and histochemistry of soybean roots infected with Heterodera glycines. Phytopath., 60: 1493–8.

31.

Ernst

, Kumar

, Kriseleit

2002. The broad-spectrum potato cyst nematode resistance gene (Hero) from tomato is the only member of a large gene family of NBS-LRR genes with an unusual amino acid repeat in the LRR region. Plant. J., 31: 127–36.

32.

Escobar

M.A.

, Civerolo

E.L.

, Summerfelt

K.R.

2001. RNAi-mediated oncogene silencing confers resistance to crown gall tumorigenesis. Proc. Natl. Acad. Sci. U.S.A., 98: 13437–42.

33.

Feinberg

E.H.

, and Hunter

C.P.

2003. Transport of dsRNA into cells by the transmembrane protein SID-1. Science, 301: 1545–7.

34.

Fire

, Xu

, Montgomery

M.K.

, Kostas

S.A.

1998. Potent and specifc genetic interference by double-stranded RNA in Caenohrabditis elegans. Nature, 391: 806–11.

35.

Forst

C.V.

2006. Host-pathogen systems biology. Drug Discov. Today, 11: 220–7.

36.

Gao

, Allen

, Maier

2001. Identification of putative parasitism genes expressed in the esophageal gland cells of the soybean cyst nematode Heterodera glycines. Mol. Plant Microbe Interact, 14: 1247–54.

37.

, Liu

, Church

, and Vidal

2001. Correlation between transcriptome and interactome mapping data from Saccharomyces cerevisiae. Nat. Genet., 29: 482–486.

38.

Gene, Ontology, Consortium. 2001. Creating the gene ontology resource: design and implementation. Genome Res., 11: 1425–33.

39.

Gheysen

, and Fenoll

2002. Gene expression in nematode feeding sites. Annu. Rev. Phytopathol, 40: 191–219.

40.

Gipson

I.K.

, Kim

, and Riggs

R.D.

1971. An ultrastructural study of syncytium development in soybean roots infected with Heterodera glycines. Phytopath., 61: 347–53.

41.

Glazebrook

2001. Genes controlling expression of defense responses in Arabidopsis-2001 status. Current Opinion in Plant Biology, 4: 301–8.

42.

Glazebrook

2005. Contrasting mechanisms of defense against biotrophic and necrotropic pathogens. Annual Revue in Phytopathology, 43: 205–27.

43.

Glinski

, and Weckwerth

2006. The role of mass spectrometry in plant systems biology. Mass Spectrom Rev., 25: 173–214.

44.

Graham

M.A.

, Marek

L.F.

, and Shoemaker

R.C.

2002. Organization, expression and evolution of a disease resistance gene cluster in soybean. Genetics, 162: 1961–77.

45.

Graham

, Marek

, and Shoemaker

2002. PCR Sampling of disease resistance-like sequences from a disease resistance gene cluster in soybean. Theor. Appl. Genet., 105: 50–57.

46.

Grigoriev

2001. A relationship between gene expression and protein interactions on the proteome scale: analysis of the bacteriophage T7 and the yeast Saccharomyces cerevisiae. Nucleic Acid Res., 29, 3513–3519.

47.

Grundler

F.M.W.

, and Bockenhoff

1997. Physiology of nematode feeding and feeding sites (pp. 107–19). In In Cellular and molecular aspects of plant-nematode interactions (ed. Fenoll

, Grundler

F.M.W.

, Ohl

S.A.

), Kluwer Academic, Dordrecht.

48.

Gunsalus

K.C.

, Yueh

W.C.

, MacMenamin

2004. RNAiDB and PhenoBlast: web tools for genome-wide phenotypic mapping projects. Nucleic Acids Res., 32(Database issue): D406–10.

49.

Gurr

S.J.

, McPherson

M.J.

, Scollan

1991. Gene expression in nematode-infected plant roots. Mol. Gen. Genet., 226: 361–6.

50.

C.Y.

, Tian

A.G.

, Zhang

J.S.

2003. Isolation and characterization of a full-length resistance gene homolog from soybean. Theor. Appl. Genet., 106: 786–93.

51.

Hermsmeier

, Mazarei

, and Baum

T.J.

1998. Differential display analysis of the early compatible interaction between soybean and the soybean cyst nematode. Mol. Plant Microbe Interact, 11: 1258–63.

52.

Huang

, Allen

, Davis

E.L.

2006. Engineering broad root-knot resistance in transgenic plants by RNAi silencing of a conserved and essential root-knot nematode parasitism gene. Proc. Natl. Acad. Sci., U.S.A., 103: 14302–6.

53.

Hwang

C.F.

, Bhakta

A.V.

, Truesdell

G.M.

2000. Evidence for a role of the N terminus and leucine-rich repeat region of the Mi gene product in regulation of localized cell death. Plant Cell, 12: 1319–29.

54.

Hwang

C.F.

, and Williamson

V.M.

2003. Leucine-rich repeat-mediated intramolecular interactions in nematode recognition and cell death signaling by the tomato resistance protein Mi. Plant J., 34: 585–93.

55.

Isenberg

, Biesler

, Meier-Ruge

1976. Cell surgery by laser micro-dissection: a preparative method. J. Microsc., 107: 19–24.

56.

Jammes

, Lecomte

, de Almeida-Engler

2005. Genome-wide expression profiling of the host response to root-knot nematode infection in Arabidopsis. Plant. J., 44: 447–58.

57.

Janes

K.A.

, Albeck

J.G.

, Gaudet

2005. A systems model of signaling identifies a molecular basis set for cytokine-induced apoptosis. Science, 310: 1646–53.

58.

Janes

K.A.

, and Yaffe

M.B.

2006. Data-driven modelling of signal-transduction networks. Nat. Rev. Mol. Cell Biol., 7: 820–8.

59.

Jansen

, Greenbaum

, and Gerstein

2002. Relating whole-genome expression data with protein-protein interactions. Genome Res., 12: 37–46.

60.

Jones

M.G.K.

, and Northcote

D.H.

1972. Nematode-induced syncytium-a multinucleate transfer cell. J. Cell Sci., 10: 789–809.

61.

Jones

M.G.K.

, Dropkin

V.H.

1975. Scanning electron microscopy of syncytial transfer cells induced in roots by cyst-nematodes. Physiol. Plant. Pathol., 7: 259–63.

62.

Jones

D.A.

, Thomas

C.M.

, Hammond-Kosack

K.E.

1994. Isolation of the tomato Cf-9 gene for resistance to Cladosporium fulvum by transposon tagging. Science, 266: 789–93.

63.

Journot-Catalino

, Somssich

I.E.

, Roby

2006. The transcription factors WRKY11 and WRKY17 act as negative regulators of basal resistance in Arabidopsis thaliana. Plant Cell, 18: 3289–302.

64.

Jung

, Wyss

1999. New approaches to control plant parasitic nematodes. Applied Microbiology and Biotechnology, 51: 439–46.

65.

Khan

, Alkharouf

, Beard

H.S.

2004. Microarray analysis of gene expression in soybean roots susceptible to the soybean cyst nematode two days post invasion. J. Nematol., 36: 241–8.

66.

Kim

Y.H.

, Riggs

R.D.

, and Kim

K.S.

1987. Structural changes associated with resistance of soybean to Heterodera glycines. J. Nematol., 19: 177–87.

67.

Klee

, Montoya

, and Horodyski

1984. Nucleotide sequence of the tms genes of the pTiA6NC octopine Ti plasmid: two gene products involved in plant tumorigenesis. Proc. Natl. Acad. Sci., U.S.A., 81: 1728–32.

68.

Klink

V.P.

, MacDonald

, Alkharouf

2005. Laser capture microdissection (LCM) and expression analyses of Glycine max (soybean) syncytium containing root regions formed by the plant pathogen Heterodera glycines (soybean cyst nematode). Plant. Molecular. Biology, 59: 969–83.

69.

Klink

V.P.

, Martins

V.E.

, Alkharouf

N.W.

2007. A decline in transcript abundance for Heterodera glycines homologs of Caenorhabditis elegans uncoordinated genes accompanies its sedentary parasitic phase. BMC Dev. Biol., 7: 35.

70.

T-S.

, Nelson

R.L.

, and Korban

S.S.

2004. Screening multiple soybean cultivars (MG 00 to MG VIII) for somatic embryogenesis following Agrobacterium-mediated transformation of immature cotyledons. Crop. Sci., 44: 1825–1831.

71.

Lambert

K.N.

, Bekal

, Domier

L.L.

2005. Selection of Heterodera glycines chorismate mutase-1 alleles on nematode-resistant soybean. Mol. Plant Microbe Interact, 18: 593–601.

72.

Lichtenstein

, Klee

, Montoya

1984. Nucleotide sequence and transcript mapping of the tmr gene of the pTiA6NC octopine Ti-plasmid: a bacterial gene involved in plant tumorigenesis. J. Mol. Appl. Genet., 2: 354–62.

73.

Lockhart

D.J.

, and Winzeler

E.A.

2000. Genomics, gene expression and DNA arrays. Nature, 405: 827–835.

74.

Mahalingam

, Skorupska

H.T.

1996. Cytological expression of early response to infection by Heterodera glycines, Ichinohe in resistant PI 437654 soybean. Genome, 39: 986–98.

75.

Matthews

B.F.

, Devine

T.E.

, Weisemann

J.M.

2001. Incorporation of sequenced cDNA and genomic markers into the soybean genetic map. Crop. Sci., 41: 516–521.

76.

Matthews

B.F.

, MacDonald

M.H.

, Song

Q-J.

2007. Registration of “MiniMax” soybean. Journal of Plant Registrations, (in press).

77.

McCallum

C.M.

, Comai

, Greene

E.A.

2000. Targeted screening for induced mutations. Nature Biotech, 18: 455–7.

78.

McCallum

C.M.

, Comai

, Greene

E.A.

2000. Targeting Induced Local Lesions IN Genomes (TILLING) for plant functional genomics. Plant Physiol., 123: 439–42.

79.

Meier-Ruge

, Biesler

, Remy

1976. The laser in the Lowry technique for microdissection of freeze-dried tissue slices. Histochem. J., 8: 387–401.

80.

Meissner

, Jacobson

, Melamed

1997. A new model system for tomato genetics. The Plant Journal, 12: 1465–72.

81.

Milligan

S.B.

, Bodeau

, Yaghoobi

1998. The root knot nematode resistance gene Mi from tomato is a member of the leucine zipper, nucleotide binding, leucine-rich repeat family of plant genes. Plant Cell, 10: 1307–19.

82.

Nakazono

, Qiu

, and Borsuk

L.A.

2003. Laser-capture microdissection, a tool for the global analysis of gene expression in specific plant cell types: identification of genes expressed differentially in epidermal cells or vascular tissues of maize. Plant Cell, 15: 583–596.

83.

Niblack

T.L.

, Arelli

P.R.

, Noel

G.R.

2002. A revised classification scheme for genetically diverse populations of Heterodera glycines. J. Nematol, 34: 279–88.

84.

S.K.

, Yi

S.Y.

, Yu

S.H.

2006. CaWRKY2, a chili pepper transcription factor, is rapidly induced by incompatible plant pathogens. Mol. Cells, 22: 58–64.

85.

Ooms

, Hooykaas

P.J.

, Moolenaar

1981. Grown gall plant tumors of abnormal morphology, induced by Agrobacterium tumefaciens carrying mutated octopine Ti plasmids; analysis of T-DNA functions. Gene., 14: 33–50.

86.

Paal

, Henselewski

, Muth

2004. Molecular cloning of the potato Gro1-4 gene conferring resistance to pathotype Ro1 of the root cyst nematode Globodera rostochiensis, based on a candidate gene approach. Plant J., 38: 285–97.

87.

Pandey

, and Mann

2000. Proteomics to study genes and genomes. Nature, 405: 837–846.

88.

Penuela

, Danesh

, and Young

N.D.

2002. Targeted isolation, sequence analysis, and physical mapping of nonTIR NBS-LRR genes in soybean. Theor Appl. Genet., 104: 261–272.

89.

Perry

J.A.

, Wang

T.L.

, Welham

T.J.

2003. A TILLING reverse genetics tool and a web-accessible collection of mutants of the legume Lotus japonicus. Plant Physiol., 131: 866–71.

90.

Piano

, Schetter

A.J.

, Mangone

2000. RNAi analysis of genes expressed in the ovary of Caenorhabditis elegans. Curr, Biol., 10: 1619–22.

91.

Provart

N.J.

, McCourt

2004. Systems approaches to understanding cell signaling and gene regulation. Curr. Opin. Plant Biol., 7: 605–9.

92.

Puthoff

D.P.

, Nettleton

, Rodermel

S.R.

2003. Arabidopsis gene expression changes during cyst nematode parasitism revealed by statistical analyses of microarray expression profiles. The Plant Journal, 33: 911–21.

93.

Riggs

R.D.

, Kim

K.S.

, and Gipson

1973. Ultrastructural changes in Peking soybeans infected with Heterodera glycines. Phytopath, 63: 74–84.

94.

Riggs

R.D.

, and Schmitt

D.P.

1991. Optimization of the Heterodera glycines race test procedure. J. Nematol., 23: 149–54.

95.

Rossi

, Goggin

F.L.

, Milligan

S.B.

1998. The nematode resistance gene Mi of tomato confers resistance against the potato aphid. Proc. Natl. Acad. Sci. U.S.A. 95: 9750–4.

96.

Ryu

H.S.

, Han

, Lee

S.K.

2006. A comprehensive expression analysis of the WRKY gene superfamily in rice plants during defense response. Plant Cell Rep. 25: 836–47.

97.

Santarem

E.R.

, and Finer

J.J.

1999. Transformation of soybean (Glycine max (L.) Merrill) using proliferative embryogenic tissue maintained on semi-solid medium. In. Vitro. Cell Dev., 35: 451–455.

98.

Savka

M.A.

, Ravillion

, Noel

G.R.

1990. Induction of hariy roots on cultivated soybean genotypes and their use to propagate the soybean cyst nematode. Phytopathology, 80: 503–508.

99.

Schena

, Shalon

, Davis

R.W.

, and Brown

P.O.

1995. Quantitative monitoring of gene expression patterns with a complementary DNA microarray. Science, 270: 467–70.

100.

Schenk

P.M.

, Kazan

, Wilson

2000. Coordinated plant defense responses in Arabidopsis revealed by microarray analysis. Proc. Natl. Acad. Sci. U.S.A., 97: 11655–60.

101.

Schimenti

, and Bucan

1998. Functional genomics in mouse: Phenotype-based mutagenesis screens. Genome Res., 8: 698–710.

102.

Schmidt

M.A.

, Tucker

D.M.

, and Cahoon

E.B.

2005. Towards normalization of soybean somatic embryo maturation. Plant Cell Rep., 24: 383–391.

103.

Sheen

, and He

2007. Nuclear actions in innate immune signaling. Cell, 128: 821–823.

104.

Shen

Q.H.

, Saijo

, Mauch

2007. Nuclear activity of MLA immune receptors links isolate-specific and basal disease-resistance responses. Science, 315: 1098–103.

105.

Scott

J.W.

, and Harbaugh

B.K.

1989. Micro-Tom-a miniature dwarf tomato. Florida Agr. Expt. Sta. Circ., 370: 1–6.

106.

Sonnichsen

, Koski

L.B.

, Walsh

2005. Full-genome RNAi profiling of early embryogenesis in Caenorhabditis elegans. Nature, 434: 462–9.

107.

The C. elegans sequencing consortium. 1998. Genome sequence of the nematode C. elegans: a platform for investigating biology. Science, 282: 2012–2018.

108.

Till

B.J.

, Reynolds

S.H.

, Weil

2004. Discovery of induced point mutations in maize genes by TILLING. BMC. Plant Biology, 4: 12–16.

109.

Urwin

P.E.

, Lilley

C.J.

, and Atkinson

H.J.

, 2002. Ingestion of doublestranded RNA by preparasitic juvenile cyst nematodes leads to RNA interference. Mol. Plant Microbe Interact, 15: 747–752.

110.

van der Vossen

E.A.

, van der Voort

J.N.

, Kanyuka

2000. Homologues of a single resistance-gene cluster in potato confer resistance to distIt pathogens: a virus and a nematode. Plant J., 23: 567–76.

111.

Vidal

2001. A biological atlas of functional maps. Cell, 104: 333–339.

112.

Walhout

A.J.M.

, and Vidal

2001. Protein interaction maps for model organisms. Nat. Rev. Mol. Cell. Biol., 2: 55–62.

113.

Walhout

A.J.

, Reboul

, Shtanko

2002. Integrating interactome, phenome, and transcriptome mapping data for the C. elegans germline. Curr. Biol., 12: 1952–8.

114.

Wang

, Amornsiripanitch

, Dong

2006. A genomic approach to identify regulatory nodes in the transcriptional network of systemic acquired resistance in plants. PLoS Pathog., 2: e123.

115.

Wang

, Mitchum

M.G.

, and Gao

2005. A parasitism gene from a plant parasitic nematode with function similar to CLAVATA3/ESR (CLE) of Arabidopsis thaliana. Mol. Plant Pathol., 6: 187–191.

116.

Wang

, Allen

, Ding

2001. Signal peptide-selection of cNDA cloned directly from the esophageal gland cells of the soybean cyst nematode Heterodera glycines. Mol Plant Microbe Interact, 14: 536–44.

117.

Weiner

1948. Cynbernetics or Control and Communication in the Animal and Machine. Cambridge, MA: MIT Press.

118.

Williamson

V.M.

, and Kumar

2006. Nematode resistance in plants: the battle underground. TRENDS in Genetics, 22: 396–403.

119.

Wilson

M.A.

, Bird

D.M.

, and van der Knapp

1994. A comprehensive subtractive cDNA cloning approach to identify nematode-induced transcripts in tomato. Phytopath., 84: 299–303.

120.

Winston

W.M.

, Molodowitch

, and Hunter

C.P.

2002. Systemic RNAi in C. elegans requires the putative transmembrane protein SID-1. Science, 295: 2456–9. Epub., 2002 Feb 7.

121.

Wrather

J.A.

, and Koenning

S.R.

2006. Estimates of disease effects on soybean yields in the United States 2003 to 2005. J. Nematol., 38: 173–80.

122.

, Chen

, Fan

2006. Physical and functional interactions between pathogen-induced Arabidopsis WRKY18, WRKY40, and WRKY60 transcription factors. Plant Cell, 18: 1310–26.

123.

Zhang

, and Ghabrial

S.A.

2006. Development of Bean pod mottle virus-based vectors for stable protein expression and sequence-specific virus-induced gene silencing in soybean. Virology, 344: 401–11.

124.

Zheng

, Qamar

S.A.

, Chen

2006. Arabidopsis WRKY33 transcription factor is required for resistance to necrotrophic fungal pathogens. Plant J., 48: 592–605.

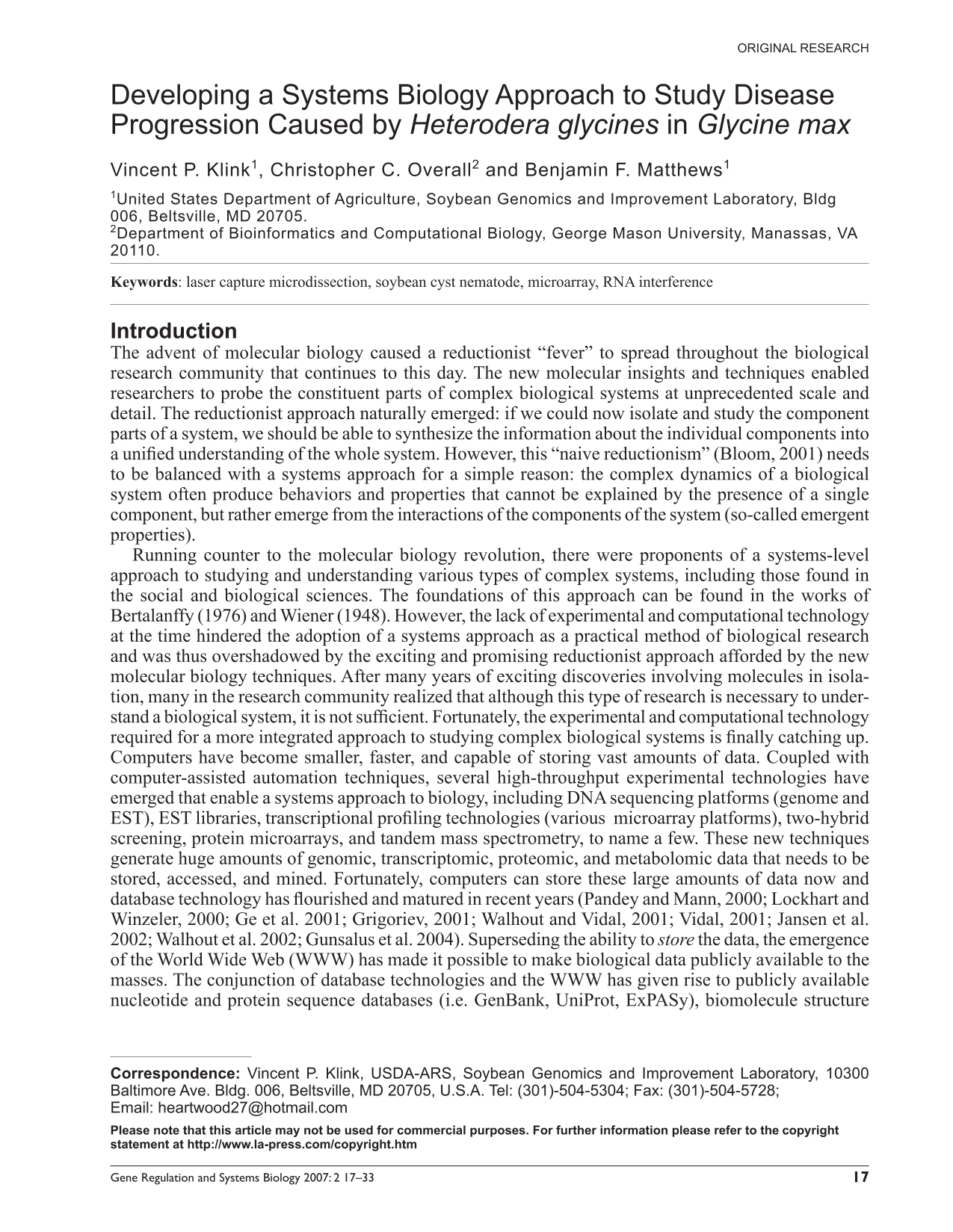

Developing a Systems Biology Approach to Study Disease Progression Caused by Heterodera glycines in Glycine max

Abstract

Keywords

Introduction

Significance of the problem

Historical techniques and research

Histological analysis- historical perspective

Gene expression-historical perspective

Discovery-based techniques and research

Database management tools

Soybean Genomics Microarray Database (SGMD)

CeHg database-gene identification in H. glycines

Whole root genomic analysis of G. max

Analysis of specific cell types of G. max and H. glycines

Hypothesis-based techniques and research

Database management as a means to drive hypothesis-based techniques and research

RNAi studies- H. glycines

MiniMax as a model for soybean research

Mutagenic analyses

Plant transformation

Future directions

References
