Comparative Genome Analysis of 2 Mycobacterium Tuberculosis Strains from Pakistan: Insights Globally Into Drug Resistance,Virulence,and Niche Adaptation

Abstract

Multidrug-resistant Mycobacterium tuberculosis is a global threat particularly in developing countries like Pakistan. In this study, we identified 2 M tuberculosis strains, mnpk and swlpk, by 16S RNA genes, sequenced their draft genome, and compared the 2 genomes with reference strain H37Rv and gene expression analysis of selected virulent genes. Phylogenetic analysis of M tuberculosis strains, mnpk and swlpk, using 16S RNA genes revealed that the strains are closely related with reference strain H37Rv. The draft genome sequence of mnpk and swlpk contains 4305 and 4295 protein-coding genes, respectively, having 99.9% with high collinearity when compared with H37Rv. Although some important drug-resistant genes such as fabG, faDE24, and iniA were missing, genome mining also revealed key drug-resistant genes such as katG, inhA, rpoA, rpoB, and rpoC against first-line isoniazid and rifampicin drug. The strain mnpk and swlpk encodes 257 putative and 86 verified virulent genes including type 7 secretion system (T7SS) key genes. The variation in the expression profile of selected T7SS genes, particularly low expression level of EspK, raised concern that the mechanism of virulence of mnpk and swlpk might be different from H37Rv strains as espK is associated with ATPase EccC1a and EccC1b which showed high expression level. Briefly, this study shows that the strains mnpk and swlpk are linked with H37Rv having 99% similarity in genomes, but the absence of drug-resistant genes and variation in key genes’ expression profile espK, EccE1, PPE41, and espC provide a rationale for the future investigation of M tuberculosis mnpk and swlpk pathogenesis via RNA sequencing, single-nucleotide polymorphisms, as well as gene manipulation.

Keywords

genome sequence MDR 4 ncRNA outer membrane proteins Pakistan

Introduction

Tuberculosis (TB) is a widespread infectious disease caused by a pathogen known as Mycobacterium tuberculosis. Mycobacterium tuberculosis is a gram-positive bacteria belonging to the Mycobacteriaceae family.¹ Tuberculosis, a chronic disease, is the primary source of lower respiratory tract illness and causes 10.4 million ill cases and 1.7 million deaths every year² (World Health Organization [WHO] report 2017). Unfortunately, in Pakistan, TB has remained ignored in the past and its prevalence has made a severe challenge for medical industry to deal with this disease.^3,4 More seriously, half of the TB cases in Pakistan are diagnosed in Punjab which is known as the most populous province of Pakistan.⁴ Among many factors that contribute to TB prevalence and transmission in Pakistan, the predominant factors are incorrect treatment regimes, poverty, unawareness, poor sanitation, and default treatment.⁵

The development of multidrug-resistant TB (MDR-TB) is the result of a number of mutational events, most of which are due to the phenomenon known as epistasis that leads to the formation of resistance to anti-TB drugs.⁶ Like all bacteria, M tuberculosis accumulates genetics changes over time. For a long time, M tuberculosis has been known as highly conserved, having high sequence homology as well as low antigenic diversity.⁷ The reason is that in M tuberculosis, unlike to other bacterial pathogens, horizontal gene transfer and resistance plasmids did not take part in the acquisition of drug resistance.⁷ The advancement in next-generation sequencing technologies are proving promising methods to analysis and explore the entire genetic makeup of the bacteria.⁸ These technologies have improved the diagnostics efficacy to scrutinize M tuberculosis strains as they move through space and time.⁹ The genome sequencing, genetics, and physiological studies in TB, particularly the research on M tuberculosis, have largely been ignored in Pakistan, possibly due to insufficient funding. The aims of this study include genome sequencing, comparative genomics analysis, drugs resistance, and virulence genes analysis following gene expression analyses of T7SS. Results from this study will help to understand and to measure the M tuberculosis disease severity in Pakistan by deciphering the sequence biology of M tuberculosis.

Materials and Methods

Culturing and identification of M tuberculosis by 16S rRNA gene sequencing

Mycobacterium tuberculosis isolates mnpk and swlpk were identified using 16S rRNA gene as described by El Amin et al¹⁰ and Lawn et al.¹¹ Briefly, isolates of M tuberculosis cells were taken from Löwenstein-Jensen media and killed by adding ciprofloxacin (100 μg/mL) into the culture media before lysis and following incubation for an hour at 30°C. Lysozyme (20 μL) added into Eppendorf tube and stored for 2 hours at 37°C. After adding 30 μL sodium dodecyl sulfate (10%) and 3 μL proteinase K (0.2 mg/mL), tubes were gently vortexed and incubated for 20 minutes at 65°C. About 80 μL of 100 μL NaCl (0.1 M) and N-acetyl-N, N, N-trimethyl ammonium bromide (40 mM) was added. The Eppendorf tubes were vortexed till the whole solution turned milky and stored at 65°C for 15 minutes. About 750 μL of chloroform-isoamyl alcohol (24:1) was added following vortex and centrifugation till 5 minutes at room temperature at 13 000 rpm. It was followed by ethanol precipitation and collection of DNA in 110 μL TE buffer.

The 16S rRNA gene amplification was performed with universal primer set F-285 5ʹ-AGAGTTTGATCCTGGCTCAG-3ʹ and Myc-264 3ʹ-TGCACACAGGCCACAAGGGA-5ʹ as described by Gholoobi et al.¹² Total polymerase chain reaction (PCR) reaction mixture was set in a final volume of 25 µL using 12.5 µL of Taq Master Mix, 9.5 µL water, and 1 µL of DNA template, and forward and reverse primers were used. Negative control used in this experiment was the sample having no DNA template. The PCR conditions used for this reaction were as follows: 94°C for 1 minute, 60°C for 1 minute and 72°C for 1 minute for 35 cycles, and final elongation cycle at 72°C for 10 minutes. The PCR amplification was run at 1.5 % agarose gel electrophoresis and PCR product was eluted using DNA elution kit (Tiagin, TIANGEN Biotech, Beijing, China) and sent for sequencing (Macrogen Seoul, Korea) and obtained sequence were analyzed at NCBI (National Center for Biotechnology Information) using BLAST tool¹³ with default parameters. To reveal evolutionary association of drug resistance proteins of M tuberculosis strains mnpk and swlpk, a phylogenetic analysis based on 16S rRNA genes was conducted through MEGA 7 using maximum likelihood methods with default parameters.¹⁴

Genome sequencing, assembly, and annotation

The whole genome sequence of M tuberculosis strains mnpk and swlpk from Pakistani patients was done using Illumina MiSeq 300PE throughput 2M which produced, on average, more than 20× coverage with a total of 140 127 reads for strain mnpk and more than 20× coverage with a total of 139 989 reads for strain swlpk. The de novo genomic assembly was conducted using Geneious pro V10.¹⁵ Assembled genome sequences of strains were annotated using Rapid Annotation Subsystem Technology (RAST) server,¹⁶ tRNAscan-SE 1.21,¹⁷ and RNAamer V1.2¹⁸ which provide high-quality functional annotation.

Genome alignment, similarity, and visualization

The genome alignment of M tuberculosis swlpk and mnpk was conducted using Mauve software package,¹⁹ which is employed for conducting an alignment of multiple genomes to look at the highly similar subsequences, evolutionary events such as inversions, rearrangement, and likely to reveal the correct global alignment. The multiple genome alignment in the form of graphical map of genome sequence provides a means to quickly view the characteristics of specific genomic regions and study of genomic level evolutionary dynamics. The 2 genomes were also further compared using CGView tool.²⁰ A circular genomic map of M tuberculosis strains was generated using CGView that represent circular genomes into graphical map resulting base composition plots, sequence features, and analysis such as GC skew, GC content, and number of RNAs.

Drug-resistant gene prediction and characterizations

In a previous study, Ze-Jia et al²¹ reported various drug resistance genes in M tuberculosis strain H37Rv. The sequences of drug-resistant genes were retrieved from M tuberculosis strain H37Rv via UniProt and NCBI databases and were used as reference. Using these genes as query, a BLAST search was conducted against M tuberculosis strains mnpk and swlpk at RAST server with following parameters, cut-off value 10, ie, 1e−30, and filter size 0.

The drug resistance proteins identified in mnpk and swlpk using reference strain H37Rv were further in silico characterized by performing protein domain, protein family search analysis using NCBI’s Conserved Domain Database²² and InterPro.²³ Protein family search was conducted in drug resistance genes of both strains using Pfam database.²⁴

Virulence factors distribution and analysis

The Virulence Factors Database (VFDB)²⁵ was used for retrieving virulence genes and all the virulent genes used in this study were from M tuberculosis H37Rv. The FASTA sequences of encoded virulent genes of H37Rv were used as query sequences to search each matching gene in the 2 M tuberculosis strains, mnpk and swlpk, genomes using BLAST too at RAST server (50% coverage and 90% identity thresholds).

RNA extraction and quantitative real-time PCR

ESX-1 to ESX-5 are the 5 T7SS present in M tuberculosis. Three out of these 5 systems are necessary for mycobacterial virulence and/or viability.²⁶ To understand the molecular mechanisms of resistance pathogenicity based on the available genomics data, in this study, we further evaluated M tuberculosis mnpk and swlpk strains and gene expression profiles of selected and previously verified T7SS.²⁷ Culture was prepared for RNA extraction as described by Wang et al,²⁸ using RNA extraction kit according to the manufacturer’s instructions (Qiagen, Germantown, MD, USA). About 1.5 μg of RNA was reverse transcribed according to the manufacturer’s instructions (Qiagen, USA) with following thermal cycling conditions: 25°C for 10 minutes, 42°C for 60 minutes, and 85°C for 5 minutes. The complementary DNA (cDNA) was kept at −20°C. Two cDNA preparations were made. The assay was conducted using cDNA directly as a template for quantitative reverse transcription PCR (qRT-PCR) on PikoReal Real-Time PCR System (Thermo Scientific). Comparative gene analysis for normalized expression of target transcripts profile was determined using the ΔΔCT method, where CT is the threshold cycle.

Results

Genomic DNA extraction and 16S rRNA gene identification

The PCR reaction was performed using 16S rRNA gene primers and results showed the amplification of 16S rRNA genes at size approximately 1400 bp (base pairs) when compared with 100 bp markers (Figure 1) which lead to the confirmation of isolate as M tuberculosis at molecular level. Amplified products were sequenced which give the size of 1.4 kb gene sequence. Global alignment and comparative analysis were conducted at NCBI BLAST analyses using NCBI BLASTn for evolutionary analysis. The results showed that M tuberculosis strain has 100% identity with reference strain H37Rv, whereas other close neighbors are M tuberculosis strain MTB1 another drug-resistant strain (Figure 2). The partial sequences were submitted to the NCBI and the accession numbers obtained based on 16S rRNA gene of M tuberculosis strains mnpk and swlpk are KY271751 and KY287640, respectively. Evolutionary relationships among various biological species or other entities are shown in the form of evolutionary tree (Figure 2) and those strains are out of the cluster of M tuberculosis endorsing that the partial sequence of M tuberculosis strains is conserved within M tuberculosis species.

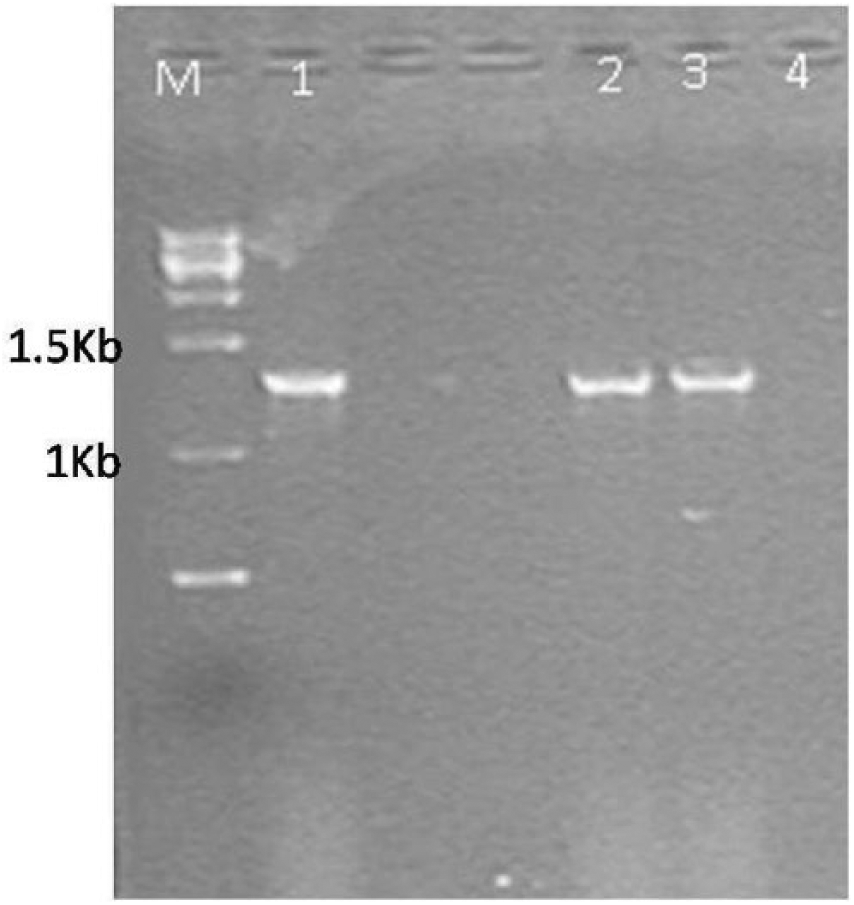

Figure 1.

DNA band of amplified 16S rRNA gene M: 10 kb DNA ladder, 1 and 2: 16S rRNA bands of Mycobacterium tuberculosis patients from Multan regions. 3: 16S rRNA bands of M tuberculosis patients from Sahiwal regions. 4: Negative control.

Figure 2.

Phylogenetic analysis of Mycobacterium tuberculosis strains mnpk and swlpk.

Genome data acquisition and analysis

The sequenced and assembled genomes of 2 M tuberculosis strains mnpk and swlpk consisting of 20 and 12 contigs, respectively, were used in this study using H37Rv as reference. The estimated assembled genome size of strain mnpk is 4.4 Mb and swlpk 4.39 Mb with GC contents of 65.6% (Table 1). The size of strain mnpk as well as swlpk is smaller than M tuberculosis strain H37Rv whose total estimated size is 4.41 Mb. The strains mnpk and swlpk encode total 4295 protein-coding sequence (CDS) and 4305 CDS, respectively. Genome comparative analysis at RAST reveals that the closest neighbor of mnpk and swlpk is M tuberculosis strain H37Rv which belongs to the Beijing genotypes.

Table 1.

Genomic feature of Mycobacterium tuberculosis mnpk and swlpk.

Name of strains	M tuberculosis mnpk	M tuberculosis swlpk	M tuberculosis H37rv
Genomic size, bp	4 409 295	4 391 906	4 411 532
GC content, %	65.6	65.6	65.6
No. of coding sequences	4305	4295	4367
No. of RNAs	48	48	50
Contigs	20	12	1

Comparative genomics features analysis

We investigated the overall genome similarities as well as differences between M tuberculosis strains mnpk and swlpk with reference strain H37Rv by alignment using Mauve 2.3.1, CGView, and RAST tools. The M tuberculosis strains mnpk and swlpk were highly syntenic when compared with H37Rv genomes validating their close relationship (Figure 3). The Mauve results showed that colored blocks represent the individual locally collinear blocks (LCBs), and the homologous LCBs among the 3 strains are connected. Overall, the syntenic regions are shown as colored rounded boxes and unique regions in the genomes are shown as white/gray areas in Figure 3. The regions mutual with a subset of 3 genomes or segments seem to be conserved among all the genomes. Because M tuberculosis genomes of strains mnpk and swlpk are unfinished, these results only include the genomic rearrangement that occurred within contigs and the actual number of rearrangements is probably higher.

Figure 3.

Mauve alignment of the genome of Mycobacterium tuberculosis strains mnpk and swlpk and H37Rv reference strain.

A circular genome map of strains mnpk and swlpk was generated using CGView using assembled contigs. The circular genome of strains mnpk and swlpk displays the CDS, open reading frame, GC content, number of RNAs, and GC skew (Figure 4) where the first 2 rings represent the CDS and the number of RNAs (tRNA, rRNA, and sRNA), on the forward and reverse strands. The GC contents which M tuberculosis encode and are above the genome average (65.6%) are shown by black plot with the peaks extending toward the outside of the circle, whereas those GC contents which are lower than the genome average are extending toward the center mark segments. The innermost plot represents GC skew. Green color shows the positive G+C mean excess of guanine over cytosine, whereas purple color shows negative G−C mean excess of cytosine over guanine (Figure 4).

Figure 4.

Circular representation of Mycobacterium tuberculosis strains mnpk and swlpk.

The predicted protein sequences were annotated to various clusters of orthologous groups (COG) categories. Some differences in protein numbers among COG categories of M tuberculosis strains mnpk and swlpk and H37Rv genomes were identified (including those listed as protein numbers for M tuberculosis strains mnpk and swlpk and H37Rv genomes (Figure 5). This list contains all genes associated with various key function of M tuberculosis such as virulence, disease and defense genes, membrane transport genes stress responses genes, drug resistance genes and regulation, and cell signaling genes. The details of these genes are shown and described in Figure 5. It showed several new insights such as the better understanding of the M tuberculosis strains’, swlpk and mnpk, origin as an obligate pathogen and population genetic characteristics and its molecular evolution both within and between hosts following many features related to antibiotic resistance.

Figure 5.

Classification of genes based on cluster of orthologous groups (COG).

Drug resistance gene prediction and analysis

Mycobacterium tuberculosis strains mnpk and swlpk encode several drug-resistant genes (Table 2) against key drugs such as isoniazid, rifampicin, capreomycin, ethambutol (EMB), ethionamide, and ofloxacin. The uptake of drug resistance genes listed in Table 2 not only reveals the association of these strains with Beijing family genotype of M tuberculosis but is also vital for development of drug resistance genes–based markers for Pakistan-resourced strains of M tuberculosis. Apart from the drug-resistant genes present in strains mnpk and swlpk (Table 2), several drug-resistant genes of M tuberculosis already reported in reference strain H37Rv were not found such as faDE24 and iniA which are associated with isoniazid genes; rpoB which is associated with rifampicin gene; embR, iniA, and rmlD, which are ethambutol-associated genes; and rpsL and rrs which are associated with streptomycin (SM) (Table 2). Moreover, the missing genes may therefore have impact on the efficacy of antimicrobial agents, particularly when their presence has not been diagnosed.

Table 2.

The drug resistance–associated genes present in mnpk and swlpk.

Drugs	Genes involved in resistance
	mnpk	swlpk	H37Rv
Isoniazid (INH)	katG, inhA, ahpC, fabG	katG, inhA, ahpC, fabG	katG, inhA, ahpC, fabG, faDE24, iniA, oxyR
Rifampicin (RMP)	rpoA, rpoB, rpoB	rpoA, rpoB, rpoC	rpoA, rpoB, rpoC
Capreomycin (CPM)	tlyA	tlyA	tlyA, Rrs
Ethambutol (EMB)	embA, embB, embC	embA, embB, embC	embA, embB, embC, embR, iniA, rmlD
Ethionamide (ETH)	ethA	inhA, katG	EthA
Ofloxacin (OFX)	gyrA, gyrB	gyrA, gyrB	gyrA, gyrB
Streptomycin (SM)	gidB	gidB	gidB, rpsL, rrs

Table 3 enlists the protein domains and families associated with drug-resistant genes present in mnpk and swlpk. Our results showed that all the drug resistance genes of M tuberculosis strains mnpk and swlpk against first-line or second-line drugs encode similar domain as well as family. No differences were noted among their family-based functional analysis. The rpoA and rpoC genes of strains mnpk and swlpk that participate in RIF resistance belong to DNA-directed RNA polymerase, and the subunit beta prime family encodes the same family. Moreover, gene paralogs were seen such as all the genes, embA, embB, and embC, retrieved from strains mnpk as well as swlpk genomes associated with ethambutol drug resistance belong to the same family Arabinose_trans_C.

Table 3.

Protein families of drug resistance genes present in mnpk and swlpk.

No.	Gene name	Family
1	katG	Catalase_peroxidase
2	inhA	Enoyl-ACP_Rdtase_NADH
3	ahpC	AhpC-type
4	fabG	SDR_fam
5	rpoA	DNA-dir_RpoA
6	rpoC	DNA-dir_RpoC
7	embA	Arabinose_trans_C
8	embB	Arabinose_trans_C
9	embC	Arabinose_trans_C
10	ethA	Flavin_mOase-like
11	gyrA	DNA gyrase subunit A
12	gyrB	Topo_IIA
13	tlyA	Haemolysin_A/TlyA
14	gidB	rRNA_ssu_MeTfrase_G

Genome-wide analysis of virulent genes

Despite the high conservation in genome of M tuberculosis, the various lineages have diverse degrees of virulence. In our study, we looked into the genome of M tuberculosis strains mnpk and swlpk for virulence factors using 257 virulence factor obtained from VFDB as bait (Table S1). Among these, about 86 are experimentally verified as described by Jia et al²⁷ and VFDB database,²⁵ whereas the rests are putative ones. The results showed that all the verified virulence factors existed not only in strain mnpk but also in swlpk except hspR (Rv0353), fbpD (Rv 3803c), and devS (Rv3132c) described in Table S1. Moreover, all these verified encoded genes are conserved in 3 strains. We also found that several virulent factors were absent in strains mnpk and swlpk such as mce2E and mce1E putative virulent genes. This may be important to note that these strains may be not highly virulent and verification of these missing drug resistances via RNA sequencing will be highly vital for the ecology of these strains and its association with global strains.

Quantitative expression of T7SS genes

The quantification results of the expression levels of 25 T7SS genes in 2 strains are shown in Table 4 and the detailed set of primers for all target genes for qRT-PCR are listed in Table S3. In strain mnpk as well as in swlpk, genes espk, eccE1, eccE5, eccD5 showed the lowest expression levels from 0.177 to 0.004. The T7SS genes esxA, esxB, eccB1, eccCa1, eccb1, PE35, eccD1, espK, eccE1, eccCb5, and eccCa5 showed higher than 5.0. The genes espB, eccB1, and eccCa1 were exceptional which showed the highest expression levels from 21.265 to 33.06.

Table 4.

Comparative gene expression profile of type 7 secretion systems of Mycobacterium tuberculosis mnpk and swlpk.

Name of gene	M tuberculosis mnpk	M tuberculosis swlpk
esxA (Rv3875)	10.177	12.254
esxB (Rv3874)	13.321	15.531
eccA1 (Rv3868)	12.047	10.294
eccB1 (Rv3869)	21.265	24.661
eccCa1 (Rv3870)	26.509	20.465
eccCb1 (Rv3871)	11.598	9.365
PE35 (Rv3872)	12.210	12.402
eccD1 (Rv3877)	14.955	10.910
espK (Rv3879c)	0.375	0.568
eccE1 (Rv3882c)	0.794	0.594
mycP1 (Rv3883c)	9.537	8.075
espD (Rv3614c)	7.537	5.075
espC (Rv3615c)	3.401	21.585
espA (Rv3616c)	21.549	2.115
espB (Rv3881c)	33.063	27.371
eccA5 (Rv1798)	6.353	2.305
eccE5 (Rv1797)	0.338	0.006
eccD5 (Rv1795)	0.194	0.004
Rv1794	32.194	06.104
esxN (Rv1793)	6.809	8.627
esxM (Rv1792)	2.492	17.757
eccCb5 (Rv1784)	13.501	6.493
eccCa5 (Rv1783)	11.809	13.627
eccB5 (Rv1782)	16.492	3.757
PPE41 (Rv2430c)	03.501	16.493

We also examined the expressional differences between 2 strains such as the expression levels of espA and Rv1794 genes which were significantly higher in mnpk and (P < .05) than in swlpk (Table 4). We also found that the expression of 3 genes (espC, esxM, and PPE41) was significantly lower (P < .05) in mnpk isolates than in swlpk isolates.

Discussion

Although many research works had been conducted and still continue with several efforts to get insight into the nature and origin of MDR-TB, dilemma remains obscure. In our study, we have conducted the extensive genomics study to reveal the multidrug resistance as well as the virulence features. By this study, we wished to get closer in the understanding of multidrug-resistant tuberculosis. Moreover, we believe that understanding the molecular basis of TB drug resistance using next-generation sequencing technologies could pave the way to fight against this old foe by developing of new diagnosis approaches. The prevalence and rapid dissemination of Mycobacterium tuberculosis Beijing strains are reported around the globe and makes it an important issue of public health. By this study, we could not draw any concrete conclusion that about the close association of M tuberculosis strains mnpk and swlpk with Beijing genotypes but presence of drug resistance and virulent genes has been shown in many settings of strains mnpk and swlpk such as Beijing genotypes. It showed that these strains could have high level of virulence and multidrug resistance, resulting in rapid progression from infection to active disease and increased transmissibility in M tuberculosis H37Rv which is highly virulent, drug resistant, and endemic over Asia.²⁸

The difference in genome size with reference strain H37Rv may lead to the prediction that strains mnpk and swlpk may have some missing genes or could be an overestimation due to the incomplete nature of genomes and scaffolds quality could be lower with stretches of N’s. The high GC contents in these strains depict the stability of the genome as characteristically high GC% age also verifies the hypothesis that horizontal gene transfer events are nearly missing in M tuberculosis which is consistent as described by Šmarda et al.²⁸

The M tuberculosis strains mnpk and swlpk were highly syntenic with H37Rv genomes verifying their close relationship when compared using Mauve 2.3.1. The composition of bacterial genomes is highly polarized nucleotide in the 2 replichores and this asymmetry of genomic strand could be visualized by GC skew graph. Most prokaryotes and archaea contain only 1 DNA replication origin.^29,30 There will be a GC skew when composition of guanine and cytosine nucleotides is over- or underabundant in a particular region of DNA. The GC skew in strain mnpk and swlpk represents that nucleotide composition is asymmetric between the lagging strand and leading strand which is consistent to Escherichia coli.³¹

The presence of key drug-resistant genes and their belonging to PPE and PE family protein indicate that patterns of these drug resistances may differ widely not only in transmissibility of drug resistance but also from single-drug to multiple-drug resistance and which are allied with numerous genetic mutations.³² RpoB gene identified in mnpk as well as swlpk is notorious to drug resistance by mutation such as 95% of RIF resistance in M tuberculosis strains which is caused by mutation in rpoB genes. It is known that most of the mutations took place in the 81-bp core region of the rpoB gene which encodes the β-subunit of the RNA polymerase and is known as RIF-resistance-determining region.³³ Similarly, other RIF-associated genes also go to various mutations and developing drug resistance such as rpoC and rpoA in mnpk and swlpk strains may provide preliminary data for RIF-resistant patterns and more importantly these are also known as a surrogate marker of multidrug-resistant genes in M tuberculosis.³⁴ Similarly, resistance to isoniazid has been linked not only with mutations in genes such as inhA and KatG but also with 2 different genes such as ahpC, and oxyR.⁷

The development of resistance against SM drugs in M tuberculosis is known as linked with mutations rpsL which code for ribosomal protein S12 and in rrs gene which codes for 16S rRNA.³⁵ The data regarding these mutations are in a limited proportion for SM-resistant M tuberculosis clinically isolated. Both of these genes are not retrieved in M tuberculosis strains mnpk and swlpk. It shows that these strains may depend on gidB which has been reported that development of resistance is caused by mutations within the gidB gene at conserved 7-methylguanosine (m7G) methyltransferase position.³⁶ The embA, embB, and embC genes were identified in both strains and it has been reported that the cause of resistance to EMB drugs is mutation in these genes which is consequently making M tuberculosis more drug resistant.³⁷

The existence of these well-known drug-resistant genes in Pakistani strains will be beneficial for further analysis on identification and characterizations and will enrich the TB genetic data sources. The missing of faDE24, iniA, rpoR, rpsL, rrs genes indicates that further analyses are required and these genes may not be used as a marker when identifying samples from Pakistan-resourced strains. In silico identification of protein family significantly highlights the functional characterizations of proteins or interaction contributing to the overall role of a protein.³⁸ The results of our study showed that all proteins identified in strain mnpk as well as swlpk encode similar proteins which either is not new and showed the close relation of these proteins with Beijing genotype.

Several studies have identified components of T7SS in M tuberculosis and their role in pathogenicity.³⁹ Although very important proteins such as EccD1 (Rv3877), EccCb1 (Rv3871), and EccCa1 (Rv3870) which are indispensable for secretion of ESX-1 in M tuberculosis expression level were significantly better among both strains, but EccE1 (Rv3882c) is the core membrane protein and espK is an ESX-1 secretion–associated protein. In our study, expression of espK is very low and EccC1a and EccC1b showed higher gene expression. The ESX-1 which is a part of T7SS is the most important virulent component in M tuberculosis, but the role of espK in this system is not clear. Similarly, McLaughlin et al⁴⁰ reported that espB interacts with espK (which showed low level of expression); the interaction of these proteins leads to the interaction of membrane-associated ATPases EccC_1a and EccC_1b. It is well-documented that virulence features of Beijing strains such as H37Rv are more than the modern isolates. There were no appreciable differences except the absence of few genes mentioned above between Beijing genotype strain (H37Rv) and other strains such as mnpk and swlpk (Table S1). We may infer that these missing genes might have been lost through IS6110.

Similarly, some differential gene expression among strain to strain were also noted such as espA, Rv1794 were highly expressed in mnpk and low expressed in swlpk, esxM, espC, PPE41 were highly expressed in swlpk and low expressed in mnpk. The findings of gene expression profile lead toward 2 major key information in gene expression profile such as low-expression espK and eccE1, and the possible effect of these variations could impact on mechanism of virulence which needs to be disclosed and is conceivable that these various differences noted in our study might have a functional impact.

Conclusions

This study of comparative genomics analysis of 2 Mycobacterium strains resourced from Pakistan allowed in-depth genome-wide comparison and covered important genetic heterogeneity. The high similarity with H37Rv but still missing of key drug resistance genes, variation in the expression profile of already verified T7SS proteins, particularly low expression level of espK, which is one of the important virulent factors and associated with membrane-associated ATPase EccC_1a-EccC_1b, raises concern that the mechanism of virulence of mnpk and swlpk strains via RNA sequence as well as gene manipulation will be important future prospective.

Supplemental Material

Supplemental_Material – Supplemental material for Comparative Genome Analysis of 2 Mycobacterium Tuberculosis Strains from Pakistan: Insights Globally Into Drug Resistance, Virulence, and Niche Adaptation

Supplemental material, Supplemental_Material for Comparative Genome Analysis of 2 Mycobacterium Tuberculosis Strains from Pakistan: Insights Globally Into Drug Resistance, Virulence, and Niche Adaptation by Asma Muhammad Yar, Ghanva Zaman, Annam Hussain, Yan Changhui, Azhar Rasul, Abrar Hussain, Zhu Bo, Habib Bokhari and Muhammad Ibrahim in Evolutionary Bioinformatics

Footnotes

Acknowledgements

Nucleotide sequence accession number: This Whole Genome Shotgun project has been deposited at DDBJ/ENA/GenBank under the accession NCKT00000000 for Mycobacterium tuberculosis strain MNPK and SWLPK data were available under the accession NYMU00000000.

Funding:

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This research was supported by Higher Education Commission of Pakistan under the project of NRPU entitled “Sequencing and mapping of Mycobacterium tuberculosis from patients in Pakistan using next-generation sequencing (No-20-3658/R&D/HEC/14).

Declaration of conflicting interests:

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Author Contributions

AMY performed the experiment. AMY, GZ, AH, YC, AR, AH, and ZB contributed significantly to analysis and manuscript preparation. HB and MI conceived and designed the work, helped in preparation the manuscript that led to the submission. All the authors reviewed and approved the final manuscript.
