Abstract

Keywords

Energy harvesting non-linear dynamics frequency up-conversion low-frequency

1. Introduction

Motion energy harvesting with miniaturized devices has been studied for over 20 years since the early work of Williams and Yates (1996), in which the piezoelectric, electromagnetic, and electrostatic transduction mechanisms were investigated for the purpose of vibration-to-electric energy conversion. Devices that incorporate such transduction mechanisms are called motion energy harvesters and have received much interest as they may provide an alternative to batteries. Especially, for biomedical applications such as pacemakers, hearing aids, insulin pumps and various sensors, the elimination of a dependency on batteries can offer a huge quality of life improvement to patients. Despite the vast amount of research on the topic, the implementation of miniaturized motion energy harvesters remains limited in practice (Daqaq et al., 2014). One of the main contributing factors is that the performance of these systems is poor when excited by a low-frequency driving motion such as human motion (<10 Hz) (Green et al., 2013).

In prior art, a few design strategies were proposed to effectively harvest energy from these low-frequency motions. Bowers and Arnold (2009) argued that the commonly used resonant generators need to be very large to be effective at low frequencies. As an alternative, a 4 cm³ concept based on rolling magnets was proposed for which an average output power of 1.44 mW was shown when carried in a pocket during running. Galchev et al. (2012) developed a piezoelectric system based on the frequency up-conversion principle pioneered by Kulah and Nafaji (2008). The 3.75 cm³ prototype was able to generate an average power of 13.6 μW from a vibration of 10 Hz at 1 g. In the work of Geisler et al. (2017), non-linearities are introduced to constrain the internal motion and limit the size of generator. Excited by a 6 Hz vibration at 2 g, the 9 cm³ prototype showed an average power of 6.57 mW. It was estimated that only up to 36% of the theoretical power output was attainable as a result of the displacement constraints.

However, with the existing methods it is not possible to generalize the results from these studies and compare the performances of the used design strategies on an abstract level. Without such a proper comparison, it remains unclear what specific challenges need to be solved to achieve a high efficiency. The research objective of this work is to classify these generators by their dynamics and compare the efficiencies between the groups. For this purpose, a new metric will be proposed. First, the metric presents a modification to an existing efficiency metric that adds a sensitivity to generator shape and material. Second, a new parameter is introduced which is called the motion ratio and relates the excitation amplitude to the dimension of the generator in the direction of the driving motion.

In section “Methods,” the methods are explained and the new metrics are introduced. Section “Classification of generator dynamics” presents the classification, and section “Results” presents the results of the reported generators and identifies the respective groups. Section “Discussion” discusses the observations that can be made from the results, and the conclusions are presented in section “Conclusion.”

2. Methods

2.1. Performance evaluation

For the comparison of different devices or harvesting strategies, there are a number of performance metrics available. Excellent investigations and discussions of these metrics were presented by Mitcheson et al. (2008) and Liu et al. (2015a). The volume figure of merit $(Fo M_{V})$ was introduced as a metric that could make a fair comparison between different types and sizes of generators under different vibration conditions. This metric compares the useful power output of a generator with the power output of an imaginary generator cube of the same volume, V, driven by the same vibration conditions. To set a baseline, the proof mass of this generator is assumed to be made from gold.

Although the $Fo M_{V}$ normalizes the output power to the total volume, the shape of this volume is not taken into account. This is a problem because the power output of the generator scales with $P \propto L^{2}$ in the direction of the driving motion and $P \propto L$ in the perpendicular dimensions (Mitcheson et al., 2008). Consider the example of Figure 1, where two imaginary generators are sketched with an equal volume, V, and mass, M. In this example, a larger power output can be expected from the cylindrical generator due to its greater $L_{z}$ dimension. This leads to an unfair comparison where some designs are already ahead in terms of $Fo M_{V}$ due to their shape, regardless of their dynamic performance.

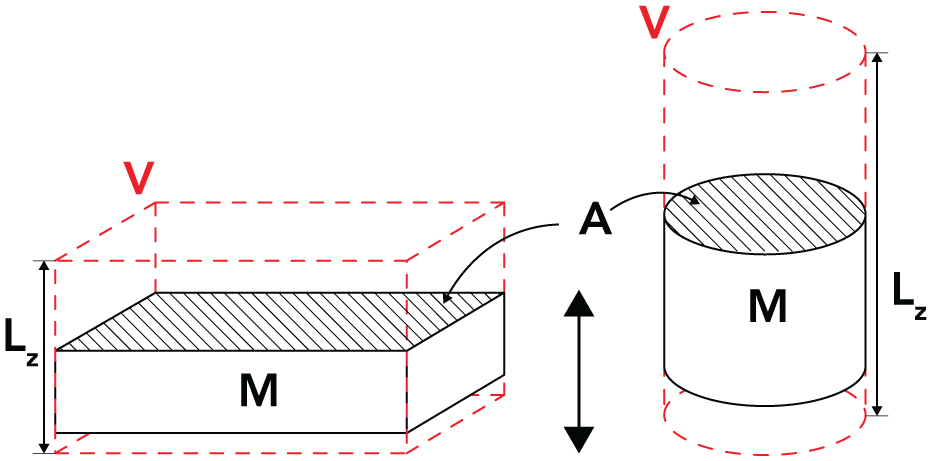

Figure 1.

Two imaginary generators with an equal total volume, V, and mass, M. A greater power output can be expected from the cylindrical generator due to its larger dimension in the direction of the driving motion, $L_{z}$ .

In order to make this comparison more fair, a variation in the $Fo M_{V}$ is proposed, which will be named the generator figure of merit $(Fo M_{G})$ . In this metric, the $V^{4 / 3}$ is replaced by the product $V L_{z}$ , to take into account both the volume and the shape of the generator. Furthermore, the real density of the proof mass material is included instead of the density of gold. This ensures that the efficiency fully depends on the design of the generator and not on the selection and/or availability of the proof mass material. The following expression is obtained

{FoM}_{G} = \frac{P_{avg}}{\frac{1}{16} Y_{0} ρ_{M} V L_{z} ω^{3}} \times 100 %

(1)

where $Y_{0}$ and $ω$ are the amplitude and frequency of the driving motion, V is the total volume occupied by the device, $L_{z}$ is the dimension of the generator along the direction of the applied motion, $ρ_{M}$ is the density of the proof mass material, and $P_{avg}$ is the average output power.

2.2. Peak efficiency and normalized half-efficiency bandwidth

In a great deal of the experimental work, the power output of a generator prototype is presented for a range of input conditions, typically through frequency sweep (with constant acceleration). From these data, a frequency-efficiency graph can be constructed by calculating equation (1) for every data point, as shown in Figure 2. For the assessment of the performance of the generators, two properties will be evaluated: the peak efficiency, $η_{pk}$ , and the normalized half-efficiency bandwidth, $B W_{nhe}$ . In contrast to previous metrics, the peak performance and bandwidth are therefore derived from the efficiency as calculated by the FoM_G instead of from the raw output power.

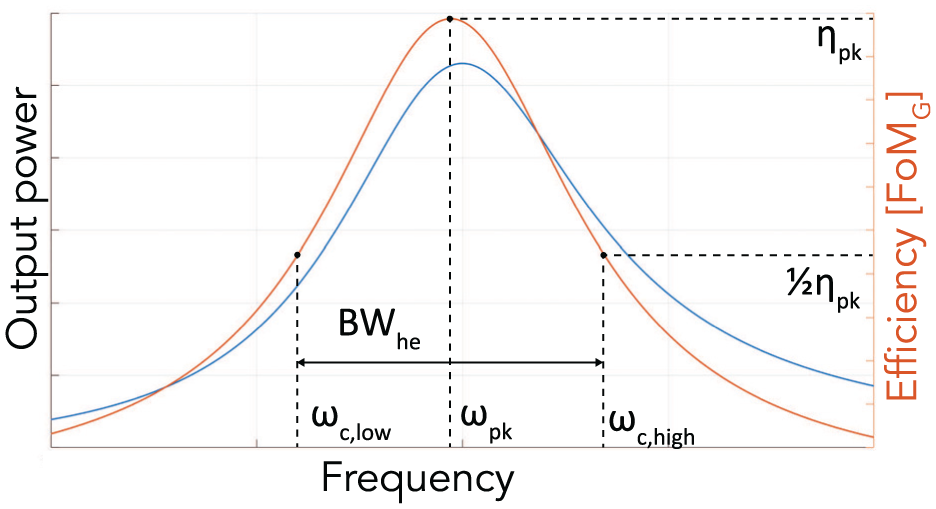

Figure 2.

Example frequency-output power (blue) and frequency-efficiency graph (orange) of an energy harvester. The peak efficiency, $η_{pk}$ , and normalized half-efficiency bandwidth, $B W_{nhe}$ , indicated in the figure are important properties for the performance evaluation of the generator.

The peak efficiency $(η_{pk})$ is defined as the maximum efficiency obtained by the generator. Please note that this point does not necessarily coincide with the point at which a maximum output power is achieved. Although a fair comparison can be made between the efficiencies of different designs, $η_{pk}$ only reflects the maximum efficiency at one particular frequency. Therefore, no bandwidth information is included in this property.

For this reason, a second property is derived from the frequency–efficiency graph. The normalized half-efficiency bandwidth $(B W_{nhe})$ is defined by the following expression

B W_{nhe} = \frac{B W_{he}}{ω_{pk}} = \frac{ω_{c, high} - ω_{c, low}}{ω_{pk}}

(2)

where $B W_{he}$ is the half-efficiency bandwidth between the higher $(ω_{c, high})$ and lower $(ω_{c, low})$ corner frequencies and $ω_{pk}$ is the frequency at which $η_{pk}$ is found.

2.3. The motion ratio

The dynamics of the energy harvester are for a great deal determined by the $L_{z}$ dimension of the generator and the amplitude of the driving motion, $Y_{0}$ . For example, many generators make use of resonance induce an relative displacement that is greatly amplified w.r.t. the amplitude of the driving motion (Roundy, 2005). Naturally, these dynamics are only possible if $L_{z} > > Y_{0}$ for obvious reasons. Therefore, it is proposed here to look at the ratio between the vibration amplitude and this dimension. This ratio is defined here as the motion ratio, $λ$ , of the generator

λ = \frac{L_{z}}{2 Y_{0}}

(3)

2.4. Literature search method

Relevant scientific literature on the topic of energy harvesting was searched in the database of Scopus. Only publications of experimental nature where both $λ$ and the $Fo M_{G}$ could be found are included in the dataset. This means that the relevant parameters were directly reported, could be calculated, or could be estimated from graphs or figures. For example, the generator volume was stated directly or calculated based on the reported dimensions of the device. Sometimes, a particular design was tested under multiple conditions and therefore appears multiple times in the table, with different $λ$ and $Fo M_{G}$ . It should be noted that the dataset is predominantly oriented toward generators operating at a frequency below 100 Hz, because it was expected that low motion ratios would rarely be found at higher frequencies due to small vibration amplitudes $(Y_{0} \propto 1 / ω^{2})$ . Moreover, it should be noted that a great portion of the literature fails to report a complete set of the important parameters of the generator and the testing conditions required to calculate the $Fo M_{G}$ . The dataset reported here is therefore only a fraction of the total amount of experimental work.

3. Classification of generator dynamics

Based on the dynamics found in the reported energy harvesters, a classification is proposed where the generators are split in the following groups. The designs found in the literature are sketched and grouped in Figures 3 and 4 according to the classification.¹

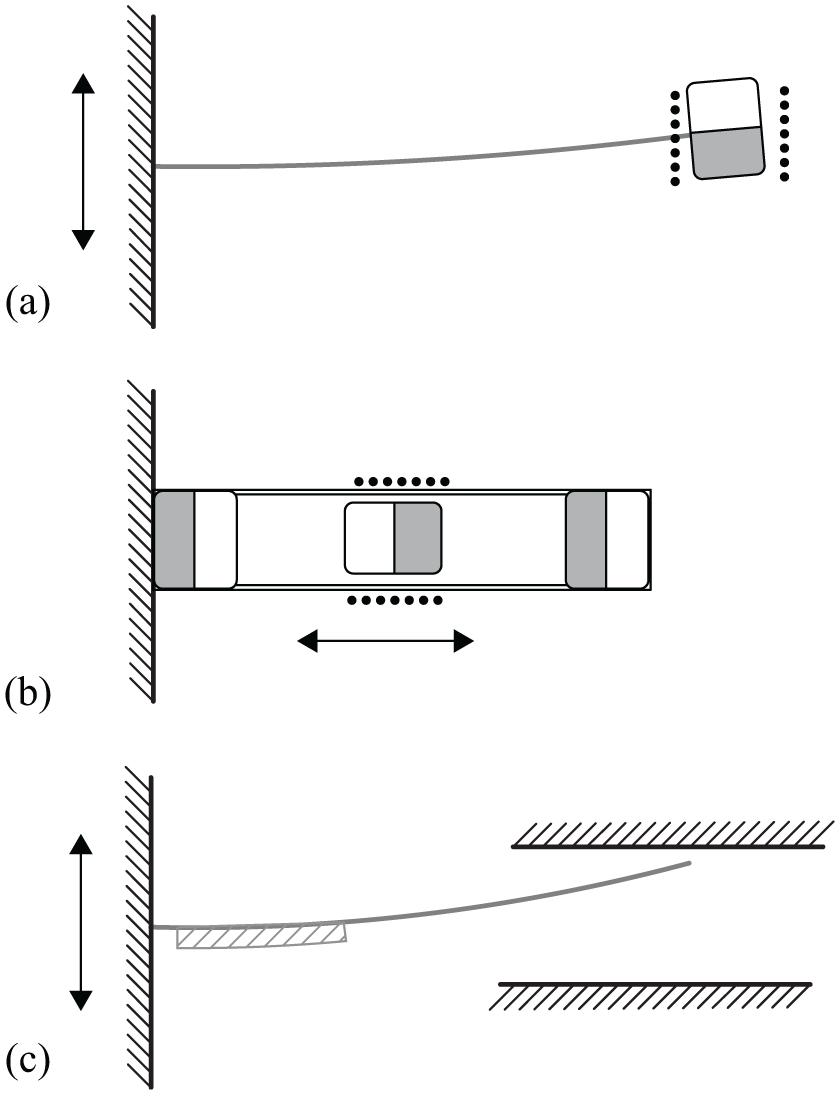

Figure 3.

Sketches of single-degree-of-freedom energy harvesters: (a) without end-stops, (b) with magnets acting as soft-stops, and (c) with mechanical contacts acting as hard-stops.

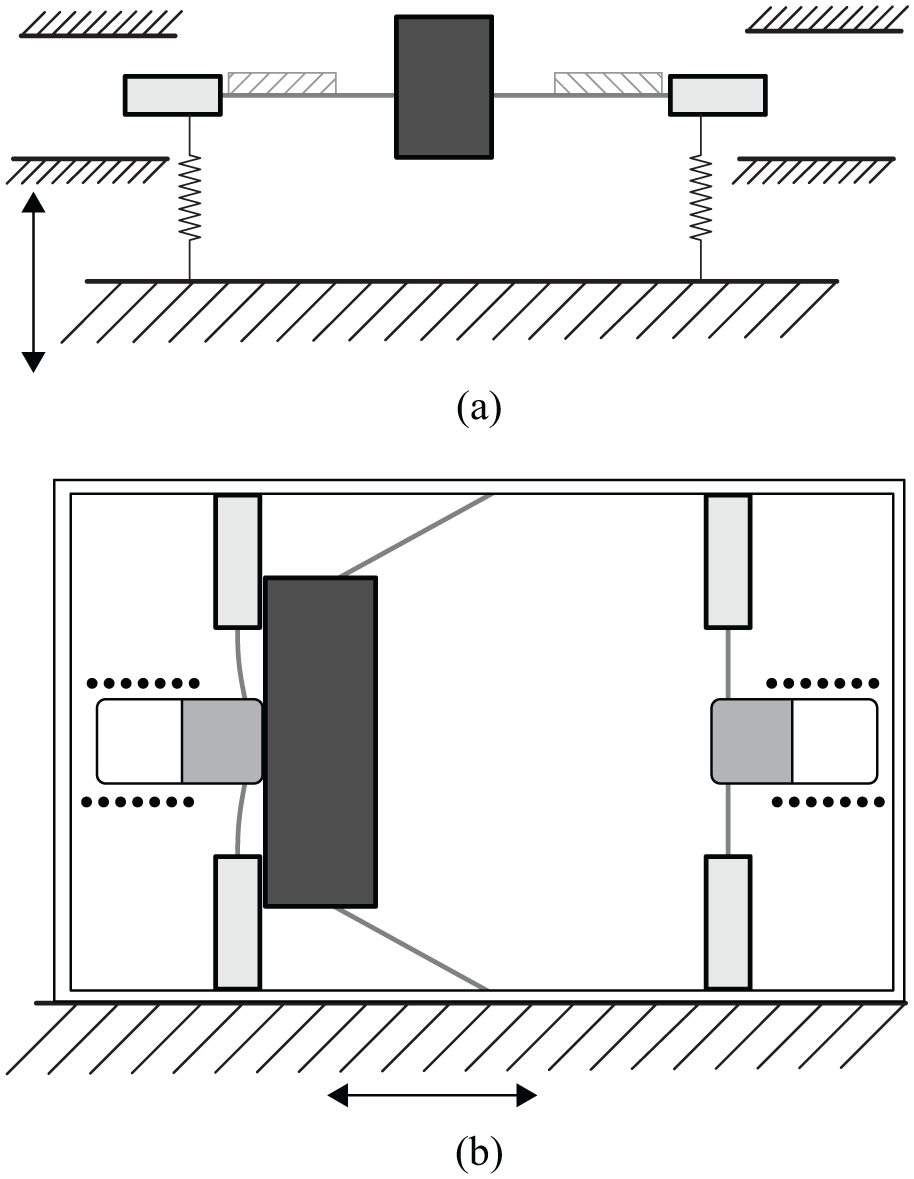

Figure 4.

Sketches of frequency up-converting energy harvesters: (a) using impact and (b) using plucking.

3.1. Single-degree-of-freedom generators

This subsection groups all energy harvesters that have a single degree-of-freedom (SDoF), which is used directly for energy conversion.

3.1.1. Without end-stops

The first group that can be found among the reported devices are the SDoF that operate without end-stops. In Figure 3(a), the working principle of the generator reported by Beeby et al. (2007) is sketched. In this design, a magnet at the tip of a thin beam moves relative to a fixed coil, inducing a current. These generators can be modeled as a linear mass–spring–damper system with mass M, stiffness K, and damping coefficient C. The following equation of motion can be found

M \overset{\cdot\cdot}{z} + C \overset{\cdot}{z} + Kz = M ω^{2} Y_{0} \sin (ω t)

(4)

where z is the relative internal displacement and $ω$ and $Y_{0}$ are the frequency and amplitude of the driving motion, respectively. These generators are typically designed to operate at resonance where they greatly amplify the driving motion and achieve high efficiencies.

3.1.2. With soft-stops

Next are the non-linear energy harvesters that rely on a gradually increasing stiffness to limit the internal motion. An example of such a system is the design reported by Geisler et al. (2017), which is sketched in Figure 3(b). In this design, a moving magnet experiences a repulsive force from the oppositely poled magnets at the ends. The dynamics of such a system can be modeled by the Duffing equation shown in equation (5) (Pellegrini et al., 2013)

M \overset{\cdot\cdot}{z} + C \overset{\cdot}{z} + α z + β z^{3} = M ω^{2} Y_{0} \sin (ω t)

(5)

where $α$ controls the linear stiffness and the stiffening effect is controlled by $β > 0$ . Moreover, systems where $α \geq 0$ have one stable position, and a bi-stable system is obtained for $α < 0$ .

3.1.3. With hard-stops

In the third group, there are the energy harvesters with a very rapid stiffening effect at the end of their range of motion. These stiffening effects are, for example, the result of a mechanical contact, as is the case in the design of Liu et al. (2012), which is sketched in Figure 3(c). In this design, the proof mass mounted on the tip of a piezoelectric beam makes contact with mechanical elements on the top and bottom during excitation. The dynamics of these systems can be modeled by the piecewise linear equation of motion given in equation (6), where $C_{h}$ and $K_{h}$ are the damping coefficient and stiffness of the housing, respectively. Solutions to this equation of motion can be found through numerical methods

\begin{matrix} for z \geq Z_{l} : \\ M \overset{\cdot\cdot}{z} + (C + C_{h}) \overset{\cdot}{z} + (K + K_{h}) z - K_{h} Z_{l} = M ω^{2} Y_{0} \sin (ω t) \\ for - Z_{l} < z < Z_{l} : \\ M \overset{\cdot\cdot}{z} + C \overset{\cdot}{z} + Kz = M ω^{2} Y_{0} \sin (ω t) \\ for z \leq - Z_{l} : \\ M \overset{\cdot\cdot}{z} + (C + C_{h}) \overset{\cdot}{z} + (K + K_{h}) z + K_{h} Z_{l} = M ω^{2} Y_{0} \sin (ω t) \end{matrix}

(6)

3.2. Frequency up-converters

In addition, there are systems that use an inertial mass to excite a secondary oscillator in its natural frequency, which is increased w.r.t the frequency of the driving motion. The relative motion of the secondary oscillator is then used for energy conversion.

3.2.1. Using impact

The first group of frequency up-converters (FupC) use the impact of an impact member to excite the secondary oscillators. An example of such a system is the generator reported by Dechant et al. (2017) and is shown in Figure 4(a). In this design, a piezoelectric membrane is mounted between a proof mass (dark) and an impact member (light). Under a driving motion, the impact member is displaced until it makes contact with the mechanical stops at the end of its range of motion. As a result, the proof mass experiences an impulse-like response and begins to oscillate in its own natural frequency. This system can be modeled as a two-DoF system with the following equations of motion

\begin{matrix} Eq . 6 + C_{2} d \overset{\cdot}{z} + K_{2} dz = M ω^{2} Y_{0} \sin (ω t) \\ M_{2} {\overset{\cdot\cdot}{z}}_{2} + C_{2} d \overset{\cdot}{z} + K_{2} dz = M_{2} ω^{2} Y_{0} \sin (ω t) \end{matrix}

(7)

where Eq.6 is the relevant left side of equation (6), $z_{2}$ is the relative internal displacement of the proof mass w.r.t. the housing, $dz = z - z_{2}$ is the relative internal displacement between the impact member and the proof mass and $C_{2}$ , $K_{2}$ , and $M_{2}$ are the damping coefficient and stiffness of the connection between the two bodies and the mass of the proof mass, respectively.

3.2.2. Using plucking

The final group contains the FupC that excite their secondary oscillator through plucking. An example was reported by Galchev et al. (2011) and is sketched in Figure 4(b). The design consists of an inertial mass which snaps back and forth between the two secondary oscillators, attaching magnetically. When the inertial mass detaches, the secondary oscillator starts oscillating at its natural frequency and generates power through electromagnetic induction. The dynamics in such a system can be modeled as three oscillators with the following equations of motion

\begin{matrix} Eq . 6 + F_{u} (du) + F_{v} (dv) = M ω^{2} Y_{0} \sin (ω t) \\ M_{u} \overset{\cdot\cdot}{u} + C_{u} d \overset{\cdot}{u} + K_{u} u + F_{u} (du) = M_{u} ω^{2} Y_{0} \sin (ω t) \\ M_{v} \overset{\cdot\cdot}{v} + C_{v} d \overset{\cdot}{v} + K_{v} v + F_{v} (dv) = M_{v} ω^{2} Y_{0} \sin (ω t) \end{matrix}

(8)

where u and v and du and dv are the positions of the secondary oscillators w.r.t. the housing and w.r.t. the inertial mass, respectively. $M_{u}$ , $C_{u}$ , $K_{u}$ and $M_{v}$ , $C_{v}$ , $K_{v}$ are the mass, damping coefficient, and stiffness of the secondary oscillators and $F_{u}$ and $F_{v}$ are the interaction forces between the secondary oscillator and the inertial mass.

4. Results

Table 1 presents the classification of the reported generators and the calculated values for $λ$ , $η_{pk}$ , and $B W_{nhe}$ . The color coding of the groups is used in Figures 5 and 6, where the motion ratios of the generators are plotted against their peak efficiency $η_{pk}$ and normalized half-efficiency bandwidth $B W_{nhe}$ , respectively. To visualize the domains in which the generators of the different groups were reported, shaded areas were added to the figures. Based on the reported data, the following observations can be made.

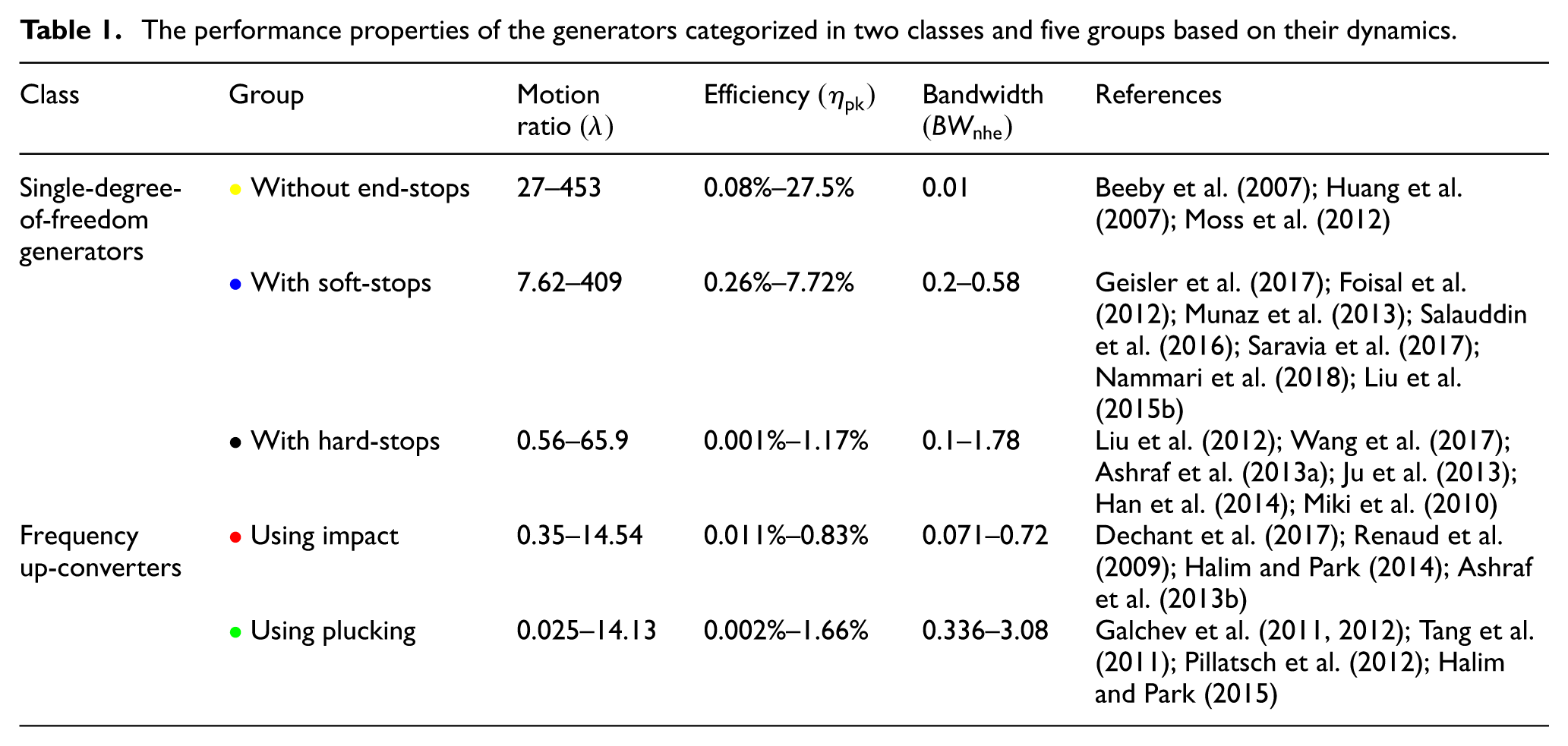

Table 1.

The performance properties of the generators categorized in two classes and five groups based on their dynamics.

Class	Group	Motion ratio $(λ)$	Efficiency $(η_{pk})$	Bandwidth $(B W_{nhe})$	References
Single-degree-of-freedom generators	Without end-stops	27–453	0.08%–27.5%	0.01	Beeby et al. (2007); Huang et al. (2007); Moss et al. (2012)
	With soft-stops	7.62–409	0.26%–7.72%	0.2–0.58	Geisler et al. (2017); Foisal et al. (2012); Munaz et al. (2013); Salauddin et al. (2016); Saravia et al. (2017); Nammari et al. (2018); Liu et al. (2015b)
	• With hard-stops	0.56–65.9	0.001%–1.17%	0.1–1.78	Liu et al. (2012); Wang et al. (2017); Ashraf et al. (2013a); Ju et al. (2013); Han et al. (2014); Miki et al. (2010)
Frequency up-converters	Using impact	0.35–14.54	0.011%–0.83%	0.071–0.72	Dechant et al. (2017); Renaud et al. (2009); Halim and Park (2014); Ashraf et al. (2013b)
	Using plucking	0.025–14.13	0.002%–1.66%	0.336–3.08	Galchev et al. (2011, 2012); Tang et al. (2011); Pillatsch et al. (2012); Halim and Park (2015)

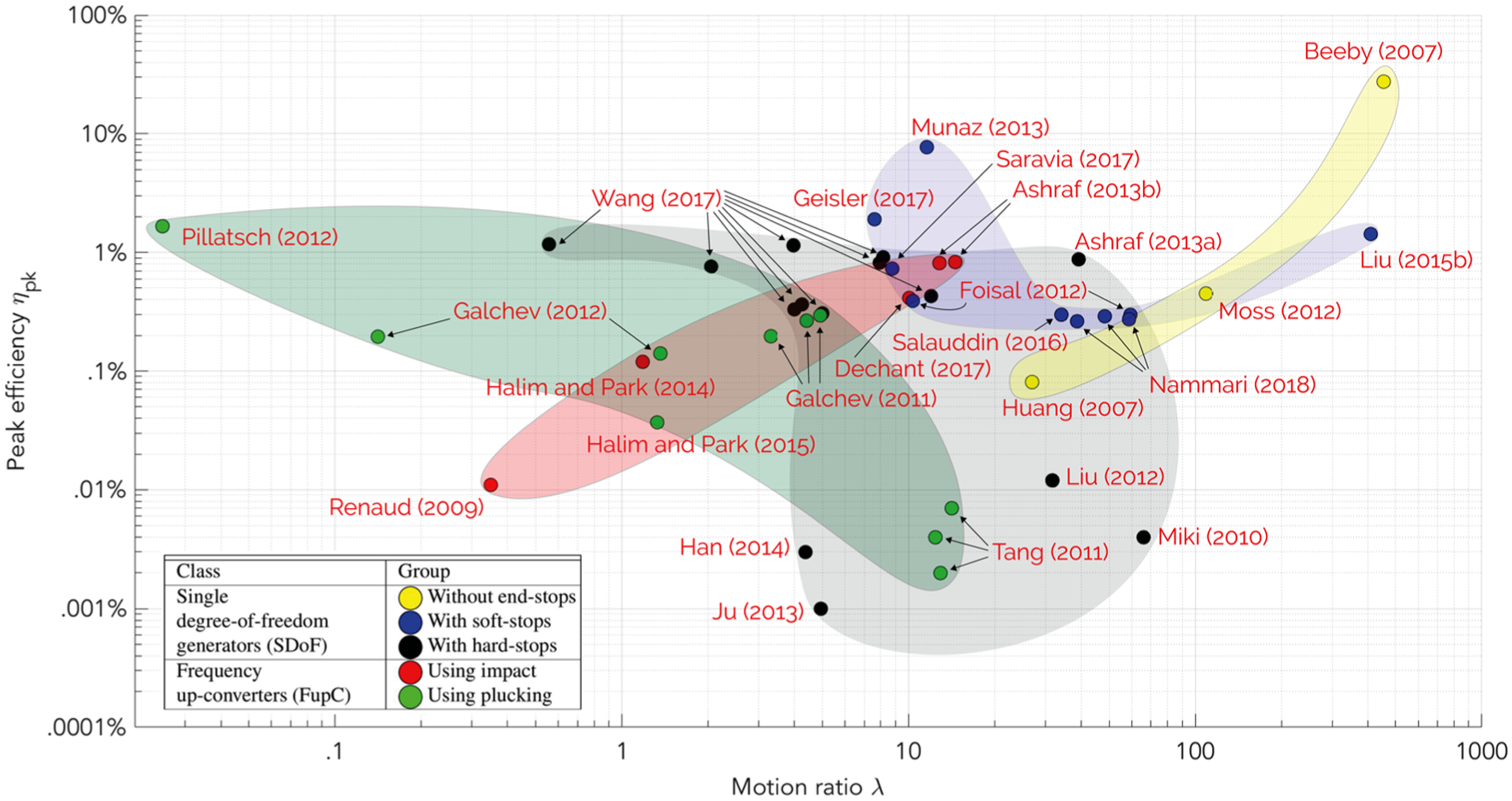

Figure 5.

Motion ratio $(λ)$ versus peak efficiency $(η_{pk})$ of reported generators by generator type. The shaded areas indicate the ranges in which the generators of different groups were reported; multiple arrows originating from one source indicate that a prototype was tested under multiple vibration conditions.

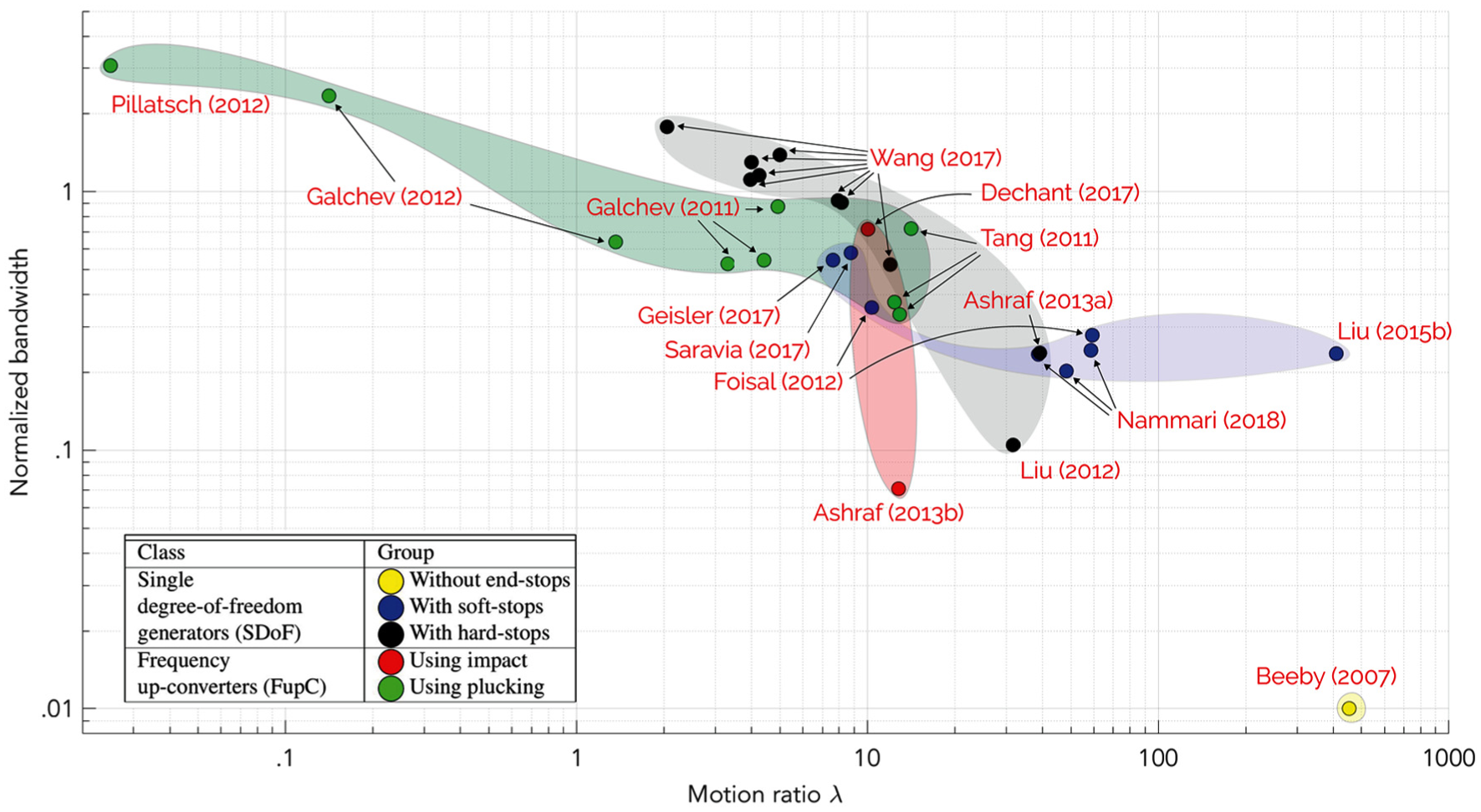

Figure 6.

Motion ratio $(λ)$ versus normalized half-efficiency bandwidth $(B W_{nhe})$ of reported generators by generator type. The shaded areas indicate the ranges in which the generators of different groups were reported; multiple arrows originating from one source indicate that a prototype was tested under multiple vibration conditions.

4.1. SDoF generators

The majority of the reported generators are of the SDoF class, which covers a widespread in motion ratios, efficiencies, and bandwidths. While efficiencies range from 0.001% to 27.5%, most work reports values between 0.1% and 1%. The normalized half-efficiency bandwidths ranged from 0.01 to 1.78.

4.1.1. Without end-stops

In this group three generators were found. The motion ratios found for this group are at the right of the spectrum presented in Figure 5. It can be observed that within this group the efficiency and motion ratio are correlated. The efficiency of 28% reported by Beeby et al. (2007) is the highest efficiency (according to FoM_G metric) reported in energy harvesting literature. This work was also the only instance where bandwidth information was reported for this group. The half-efficiency bandwidth was 0.53 Hz around a $ω_{pk} = 52 Hz$ yielding a normalized half-efficiency bandwidth of $B W_{nhe} = 0.01$ .

4.1.2. With soft-stops

The devices with soft-stops were reported seven times with motion ratios ranging between 7.62 and 409. The efficiencies of these devices ranged from 0.26% to 7.72% and the normalized half-efficiency bandwidths ranged from 0.2 to 0.58. In the work of Salauddin et al. (2016), the effect of the motion ratio on the efficiency was specifically tested by varying the amplitude of the driving motion for a fixed frequency. It was found that when the motion ratio was decreased from 56.81 to 34.09, the efficiency increased from 0.2% to 0.3%.

4.1.3. With hard-stops

In this group six generators were reported. With motion ratios between 0.56 and 65.9 and efficiencies from 0.001% to 1.17%, this group covers a large part of Figure 5. Moreover, in this group normalized half-efficiency bandwidths were reported between 0.1 and 1.78. Wang et al. (2017) reported testing their prototypes under six conditions varying the motion ratios at fixed frequencies and found that for small motion ratios $(λ < 1)$ a small increase in efficiency was found for their prototypes increased as the motion ratio was increased.

4.2. Frequency up-converters

The FupC class generators are reported predominantly on the left side of Figure 5, with motion ratios of 15 or less. Their motion ratios range from 0.025 to 14.54 and efficiencies are reported between 0.002% and 1.66%. The normalized half-efficiency bandwidths ranged from 0.071 to 3.08.

4.2.1. Using impact

In this group four generators were found. The motion ratios of these devices ranged from 0.35 to 14.54 and their efficiencies between 0.011% and 0.83%. The normalized half-efficiency bandwidths ranged between 0.071 and 0.72. Moreover, the prototype reported by Ashraf et al. (2013b) was also tested for a fixed frequency. When the motion ratio was decreased from 248 to 13, the efficiency increased from 0.088% to 0.83%.

4.2.2. Using plucking

Finally, five examples of frequency up-converters using plucking were found. Their motion ratios ranged from 0.025 to 14.13 and efficiencies between 0.002% and 1.66% were reported. The normalized half-efficiency bandwidths were reported between 0.336 and 3.08. The prototype of Pillatsch et al. (2012) reported the lowest motion ratio and largest normalized bandwidth found in the literature at $λ = 0.025$ and $B W_{nhe} = 3.06$ , respectively.

5. Discussion

The widespread in efficiency of the reported energy harvesters can be attributed to the number of variables that contribute to the final efficiency. First of all, there are great differences in the degree of optimization and overall quality of the transduction elements, the mechanical structures, and the power conditioning circuitry. Next, there are great differences in the types of dynamics that are employed and the operating conditions under which they are evaluated.

For example, in linear systems the maximum power output coincides with the maximum efficiency at the resonance point, and it is a common practice to evaluate the performance at this point. However, for non-linear systems this is not necessarily true and the performance is commonly evaluated at the point of maximum output power, which is not necessarily the point of maximum efficiency. Finally, at least some of the spread can be attributed to the uncertainty that comes with the estimation of some of the parameters that were not explicitly reported by the authors of the experimental work. When the references are grouped by publication year, it can be found that the efficiencies of the reported generators converge over time. This can be an indication of the maturing of the field. Moreover, it is likely that the adoption of established strategies and designs is the main contributor in this aspect.

5.1. SDoF generators

5.1.1. Without end-stops

When generators in this group are driven at resonant condition, amplification of the driving motion is achieved with a ratio that (for $t \to \infty$ ) only depends on the total damping in the system. Moreover, the portion of output power to the total energy dissipated in the system is only dependent on the ratio between the electrical damping and the parasitic damping. The electrical damping has to be provided by the transduction mechanism and is limited in practice by, for example, magnetic flux density, maximum tensile stress, or dielectric breakdown in electromagnetic, piezoelectric, and electrostatic transducers. As a result, in order to maximize the fraction of useful output power (and thus the efficiency) the amplification factor should be maximized. However, maximizing the amplification factor leads to a very narrow bandwidth, which can also be observed from Figure 6 where the device from this group has by far the smallest normalized bandwidth.

In practice, the upper limit for the amplification factor also depends on the dimensions of the generator and is therefore directly related to the motion ratio of the device. As a result, it can be expected that SDoF generators without end-stops demonstrate higher efficiencies at larger motion ratios. This is supported by the data shown in Figure 5, where a clear correlation is found between efficiency and motion ratio in the SDoF generators without end-stops. Furthermore, none of these systems were found for lower motion ratios, which indicates that these are not favorable conditions for a SDoF system without end-stops.

5.1.2. With soft-stops

Within the group of SDoF generators with soft-stops two embodiments are found. In Figure 5, two groups of points can be observed around $λ = 10$ and between $30 < λ < 60$ . In these devices, the stiffening effect is a result of a magnetic suspension. The footprint of such a suspension is relatively small and therefore these embodiments were found to be relatively efficient in terms of volume. The other embodiment uses a mechanical element to facilitate the stiffening effect. Since the footprint of the mechanical element is relatively large, it was found that the efficiency of this design was lower in terms of volume.

In terms of dynamics, the same principles as with the SDoF generator without end-stops hold. Therefore, it should be expected that higher efficiencies are demonstrated at larger motion ratios. However, the normalized bandwidths of generators using soft-stops are much larger compared to generators without end-stops. In general, the use of soft-stops allows an increased bandwidth and a lower motion ratio and therefore a greater degree of miniaturization at the cost of a reduced efficiency.

5.1.3. With hard-stops

SDoF generators with hard-stops are found in different embodiments and are found in a broad range of motion ratios and efficiencies. Compared to the soft-stop, the ratio between the travel stiffness and the hard-stop stiffness can be extremely large which allows very small motion ratios and therefore a large degree of miniaturization. In general, the kinetic energy of the mass upon engaging the hard-stop is lost which may greatly hurt the efficiency of these systems. In terms of bandwidth, it can be seen from Figure 6 that large normalized bandwidths can be obtained for these devices. Furthermore, it was observed that increased bandwidths are found for lower motion ratios.

5.1.4. Comparison between SDoF generators

Within the class of SDoF generators, it can be observed that the different groups are reported at different ranges of motion ratios, efficiencies, and bandwidths. SDoF generators without end-stops are only reported at larger motion ratios, report the greatest efficiency and the narrowest bandwidth. At very small motion ratios, exclusively SDoF generators with hard-stops were reported. Although their reported bandwidths are much greater, their efficiencies are generally lower due to the loss of kinetic energy when the hard-stops engage. Between those groups the soft-stopped generators are reported. In this group, generators are reported with slightly lower motion ratios compared to those without end-stops, but greater efficiencies compared to those with hard-stops. In general, a correlation can be found between the motion ratio and the efficiency of SDoF generators.

5.2. Frequency up-converters

5.2.1. Using impact

In the group of FupC generators two embodiments can be found. First, there are the systems where an inertial mass impacts on the secondary oscillator. In Figure 5, the two lowest efficiencies of this group are linked to these embodiments. Next, there are the systems where the secondary oscillator is mounted on top of an impact member, which impacts on an end-stop. It was found that these systems reported larger efficiencies compared to the other group.

5.2.2. Using plucking

In the group of plucking FupC generators three embodiments were found. The two generators with the smallest motion ratios made use of a secondary oscillator that was latched magnetically to an inertial body and detached upon excitation. These designs demonstrated the greatest normalized bandwidths of all reported energy harvesters. One design based on mechanical contact was reported and is found in Figure 5 in the middle of the group. The two designs with the largest motion ratios used piezoelectric beams with a magnet at the tip that was repelled by a magnet on the passing inertial mass.

5.2.3. Comparison between FupC generators

Between the groups of FupC no convincing evidence was found that one group would have an advantage compared to the other in terms of motion ratio, efficiency, or bandwidth.

5.3. Comparison between SDoF and FupC generators

The most striking difference between the groups of SDoF and FupC generators is the motion ratio at which they are reported; SDoF systems are mostly reported on the right side of Figure 5, while FupC systems dominate the left side. At the larger motion ratios, the SDoF systems report higher efficiencies compared to the FupC. Reasons for this could be the significantly larger amount of reported work on SDoF generators and the increased complexity of the dynamics of FupC. However, at the lower motion ratios it could be argued that FupC systems may be more efficient than SDoF systems. For example, in the results of the two works of Ashraf et al. (2013a, 2013b), a SDoF generator and FupC are reported with a similar design, shape, and volume and tested under similar conditions. At a motion ratio of approximately $λ = 12$ , the efficiencies of the SDoF generator and the FupC were 0.30% and 0.80%, respectively.

Another important property of the energy harvester is the bandwidth. Although SDoF generators have the highest peak efficiency, they are very sensitive to changes in the frequency of the driving motion. As a result, their practical use is greatly limited by the narrow range of frequencies where this efficiency is achieved. The non-linearities as a result of the end-stops or the use of a FupC strategy can greatly improve the efficiency over a much wider bandwidth. This can also be clearly observed from the differences between the groups in Figure 6.

5.4. Recommendations

The first recommendation is to consider the motion ratio at an early stage in the design process of the generator, similar to the frequency ratio $(ω / ω_{n})$ , because it greatly influences what dynamics can be used in the device. Next, it is recommended for the authors of experimental work on energy harvesters to report at least the following device properties: the dimensions, the total (packaged) volume, the moving mass, and the travel range of the mass. In addition, the following variables should be reported under all test conditions: the frequency and acceleration (or amplitude) of the driving motion and the power output. These parameters are necessary to perform proper analysis of the performance of the reported generator. It may be desirable to evaluate the wideband performance of an energy harvesting system in a single metric. An example of such a metric could be the product of $η_{pk}$ and $B W_{nhe}$ . However, reflecting all these properties in a single figure may lead to the loss of important information and is therefore not recommended as a stand-alone figure of merit. The last recommendation is to systematically benchmark the performance of typical generator designs under varying conditions and at different scales to gain insight into the design parameters and their sensitivities. This can be used to develop more accurate models to estimate the performance of vibration energy harvesters and will be the focus of future work.

6. Conclusion

Although motion energy harvesting at the small scales has been a research topic for over 20 years, the implementation of such generators remains limited in practice. One of the most important contributing factors here is the poor performance of these devices under low-frequency excitation. In this research, the efficiencies and bandwidths of small-scale generators are studied through two new metrics. The generator figure of merit, FoM_G, is a variation in an existing efficiency metric, which can facilitate a better comparison between generators by making it independent of shape and material. From this metric, the peak efficiency $(η_{pk})$ and the normalized half-efficiency bandwidth $(B W_{nhe})$ can be derived and used as important properties to characterize the maximum efficiency and bandwidth of the generator. The motion ratio, $λ$ , is a new metric which describes the relation between the excitation amplitude and the dimension of the generator in the direction of the driving motion. Furthermore, a classification of the dynamics is proposed where the systems are identified as either SDoF generators or FupC and categorized further in one of the five groups. It was found that SDoF generators reported the highest efficiencies, but were mainly found at large motion ratios and had a very narrow bandwidth. Through the use of end-stops lower motion ratios and larger bandwidths could be achieved at the cost of a reduced efficiency. The efficiency of FupC generators was on average found to be lower compared to SDoF systems. However, their typical motion ratios were also much lower and it was found that at these lower motion ratios FupC systems can outperform SDoF generators in terms of both efficiency and bandwidth.
