Abstract

In this study, the usability of several composite plates in level III and level IV body armors were examined, along with the ballistic resistance, protection level, and production parameters of each plate. For level III protection, composite panels are made using the heat pressing method under various pressures, and for level IV composites, ceramic plates of various thicknesses are reinforced on the back with various composite materials. Ballistic tests using the NIJ standards were performed on the created composite panels. There were delaminations between the layers as a result of the ballistic test in the level III protective panels produced at 140 bar pressure, but there was no puncture in the panels produced at 250 bar pressure, and the depth of trauma was reduced to a minimum. These observations were made using samples produced at 90 bar pressure under controlled conditions. Level IV panels were subjected to dry and wet ballistic tests, and the results of these tests showed that K-flex reinforced ceramics were impervious to punctures. It has been found that aramid-reinforced epoxy ceramic panels and UD H62 reinforced ceramics have superior ballistic qualities and are 6% lighter.

Keywords

Ballistic performance aramid woven fabric energy absorption armors

Introduction

Functional body armor must, in general, deflect a ballistic projectile and release the kinetic and momentum energy that was transmitted through the shielding.¹ Prior to a ballistic bullet entering the body and potentially injuring someone, its energy and motion must be dissipated. As a result, less impact energy passes through the shield and the energy density of the bullet is reduced at the area of impact, leading to deformation in the armor’s back.² The process of deformation occurs when the body is dynamically displaced as a result of the kinetic energy and momentum that the bullet’s impact with the armor imparted.³ As a result, the armor displacement affects the area of the body directly behind the afflicted region of the armor, even if penetration does not occur.⁴ The term “back trauma” is often used to describe this impact.^5,6 Due to their superior mechanical qualities, such as high specific strength, specific stiffness, resistance to corrosion, and extended fatigue life, among others, woven fabrics derived from high tenacity fibers are employed more frequently in both military and civilian applications.⁷ Ballistic products are currently made with high-performance fibers, including glass (S- and R-glass), aramid (Kevlar, Twaron), and high-performance polyethylene (HPPE) fibers (Dyneema, Spectra), and PBO (Zylon).^8,9 Using these high-performance fibers, protective armor systems are now designed through an iterative testing process.^10,11 High-performance composites against potential weight savings and weapon impacts have been developed using a fundamental understanding of these fibers and armor designs.¹²

Stacks of cloth, frequently with a tight plain weave structure to prevent strands from separating upon ballistic contact, are the common construction of soft body armor such as bulletproof vests. Composite panels and shells that are more rigid and flat are frequently created of various substitutes.^13–15 To ensure dimensional stability and fill the voids between the fibers, parallel yarn layers are stacked orthogonally and impregnated with a flexible polymer matrix at a volume percentage of 15–20%.¹⁶ Ultra-high molecular weight polyethylene (UHMWPE) fiber sold under the brand names Dyneema® and Spectra® or aramid fiber sold under the brand names Twaron® or Kevlar® is often the constituent yarns in these biaxial structures.^17–19

In compliance with NIJ standards, ballistic testing was performed on the generated panels by Karahan et al.²⁰ Twaron CT 70 type Twaron CT 70 type combined composite panels used in body armor with various fabric coefficients employing three stitching styles. The test findings showed that the ballistic properties were influenced by the fabric coefficient and stitch type. The effectiveness of ballistic protection panels made of 100% woven and 100% unidirectional non-woven para-aramid textiles at various fabric coefficients was examined and compared by Karahan.²¹ Using para-aramid fabric panels of the Twaron CT 710 type and K-Flex unidirectional non-woven materials, they conducted ballistic testing in accordance with NIJ requirements. The test findings showed that unidirectional fabric panels absorb roughly 12.5–16.5% more energy and are lighter than woven fabric panels for unit panel weight.

Applications requiring armor for vehicles and airplanes as well as for people include ultra-high molecular weight polyethylene (UHMWPE) composite.^22,23 Recently, dynamic and ballistic effects-related deformation and fracture mechanisms have undergone thorough characterization. UHMWPE is continuously improved for its ballistic resistance and suitability for use in protective constructions, just like all composite materials for protective applications.^24–26 The mechanical properties of UHMWPE composite materials depend not only on the caliber of their constituent parts, such as the fibers or matrix but also on the production method.^27,28 In addition to the fiber characteristics, the consolidation pressure, fiber volumetric ratio, and other production variables also have a direct impact on a composite’s ballistic performance.^29–31 Extensive research has been done on the impact of manufacturing parameters, particularly for UHMWPE plates, on the ballistic resistance of composite structures.^32,33

The experimental evaluation of ceramic/FRP composite structure performance is one of the most popular techniques for ballistic research. The ballistic impact behavior of composite laminates made of aramid and UHMWPE-H62 was studied experimentally by M. Karahan et al.³⁴ to determine the effects of fiber type, fabric structure, orientation, and layer thickness. They discovered that regardless of the material type, the orientation of the fabric layers had a negligible impact on the ballistic behavior. Shot tests on composites reinforced with woven and unidirectional fabrics made of aramid and UHMWPE polyethylene, as well as reinforced composites on hybrid reinforced composites, were conducted by K, Shaker et al.³⁵ They found that hybrid samples outperformed other samples in terms of energy absorption. The ballistic performance of UHMWPE fabric-based laminates with 2D and 3D architectural designs was compared by Zhang et al.⁴ The UD construction displayed the best impact velocity and kinetic energy absorption results, according to the researchers. Additionally, compared to the other two, UD-based construction has a substantially higher rate of delamination. The presence of the polyurethane matrix did not significantly affect the wave velocity propagation to the DYNEEMA HB80 laminate during an impact, according to Chocron et al.¹⁹ However, they pointed out that at the start of the impact under the projectile, a flare could happen when it reaches the target, presumably as a result of the composite self-igniting in conjunction with the shock wave produced by the impact.

According to Evci et al.,³⁶ the fracture behavior of the ceramic with an impact test had an impact on the energy absorption capacity of the ceramic/E-glass composite structure, and they opted to use B4C as the front plate in the ceramic/E-glass composite structure for ideal fracture behavior. The ballistic performance of a SiC/UHMWPE composite structure built of various mosaic ceramics with front and rear plates with various geometries and UHMWPE laminate was investigated by Hu et al.³⁷ The experiment’s findings revealed that the shape of the mosaic SiC ceramics had a substantial impact on ballistic performance and that lengthening the time the bullet spent interacting with the composite structure was advantageous. To find out how the AL₂O₃/UHMWPE composite structure’s ballistic performance changed with the AL₂O₃/UHMWPE ratio, Figueiredo et al.³⁸ conducted an impact test. According to the impact test results, an increase in the AL₂O₃ ratio would result in better ballistic performance.

A variety of production parameters were used in this study to create UHMWPE and ceramic composite panels with NIJ Level III and Level IV protection levels. UD H62 type Dyneema films were used to manufacture UHMWPE plates under various pressures. On the other hand, ceramic plates are created by merging various ceramic thicknesses with various rear part reinforcement materials. The ANSI/SAANI universal mechanism, a unique test barrel with catastrophic pressure resistance approved by NIJ, was used to test the composite armors made. Following the experimental trials, the number of punctures and the depth of depression behind the plates were measured, compared, and the utility of the plates in ballistics was assessed.

Materials and methods

Materials

Level III protection plates

The creation of Level III plates involved the use of Dyneema films of the UD H62 type. Ballistic studies benefit from Dyneema, a registered trademark of the DSM corporation, in a variety of ways. Due to its small weight, chemical resistance, high modulus, and high strength values, dyneema fibers are utilized as reinforcement in composites materials.

As shown in Table 1, the plates were produced using 90, 140, and 250 bar presses as well as steel molds with resistance heating. The plates were subjected to pressure for 30 min while being heated to 125–130°C and then cooled to 70°C without releasing the pressure. After being manufactured, composite plates with dimensions of 25 × 30 cm were found to weigh 1.453 kg. In preparation of level III plates, 100 layer of Dyneema H62 fabrics were utilized. It is known that the bonding strength is in direct relation with the consolidation pressure. The higher consolation pressure results in better ballistic performance.³⁹ Table 2 provides information on the UHMWPE UD fabric’s characteristics.

Table 1.

Level III plate manufacturing specifications.

No.	Material	Pressing pressure (bar)	Pressing temperature (°C)	Final plate weight (kg)
III-1	UD H 62	90	125–130	1.453
III-2	UD H 62	140	125–130	1.453
III-3	UD H 62	250	125–130	1.453

Table 2.

UHMWPE UD fabric properties.

Fabric type	Yarn number (dtex) (0°/90°)	Material type (0°/90°)	Knitting structure	Fabric weight (gr/m²)
Dyneema H62	440/440	SK62/SK62	UD	240

Level IV plates

Level IV plates are made from ceramic plates that contain aluminum oxide. 8.5, 9, and 10 mm ceramic plates were utilized during the tests. The rear side of the boards was reinforced with aramid plain woven fabrics, UD H62 Dyneema, and Para-aramid films under the brand name K-flex to create composite plates. The rear part reinforcement employed two alternative strategies. In the first approach, epoxy is used to mold aramid woven fabrics into the shape of the ceramic, which are then attached to the ceramic’s rear side. In the second approach, thermoplastic resin-containing materials called UD H62 and K-Flex films were utilized, molded by heat pressing into the shape of the ceramic, and attached to the ceramic’s rear side using a thermoplastic film. Twaron 2000 series yarns are used to weave the reinforcement fabric for aramid. A two-component epoxy glue of the araldite brand was used to connect the ceramic and reinforcement material after the textiles had been pressed with epoxy in 15 layers at a pressure of 25 bar.

UD H62 type Dyneema films are applied as reinforcement materials without the need for thermosetting resin. Heat pressing was employed to affix the layers together, and polyethylene-based perforated films were used between the ceramic films to guarantee a firm bond with the ceramic.

The material known by the commercial name K-Flex and the processes used to create Dyneema UD materials is identical. Only Kevlar 129 is utilized in this material instead of polyethylene. This material was made without the use of any adhesive or resin as a reinforcement, and it was attached to one another by the hot-pressing process. Perforated polyethylene film was employed to strengthen the bond between the reinforcement material and the ceramic. Table 3 illustrates the number of fabric layers, their weight ratios, and the reinforcement material used on the front and back of the ceramic plates. The features of the plates are likewise provided in Table 3, and the samples are identified by the numbers provided in the tables. Properties of the Twaron CT 710 and K-Flex fabrics mentioned in Table 4 and those of the UHMWPE, Twaron 2000, and Kevlar 129 fibers are provided in Table 5.

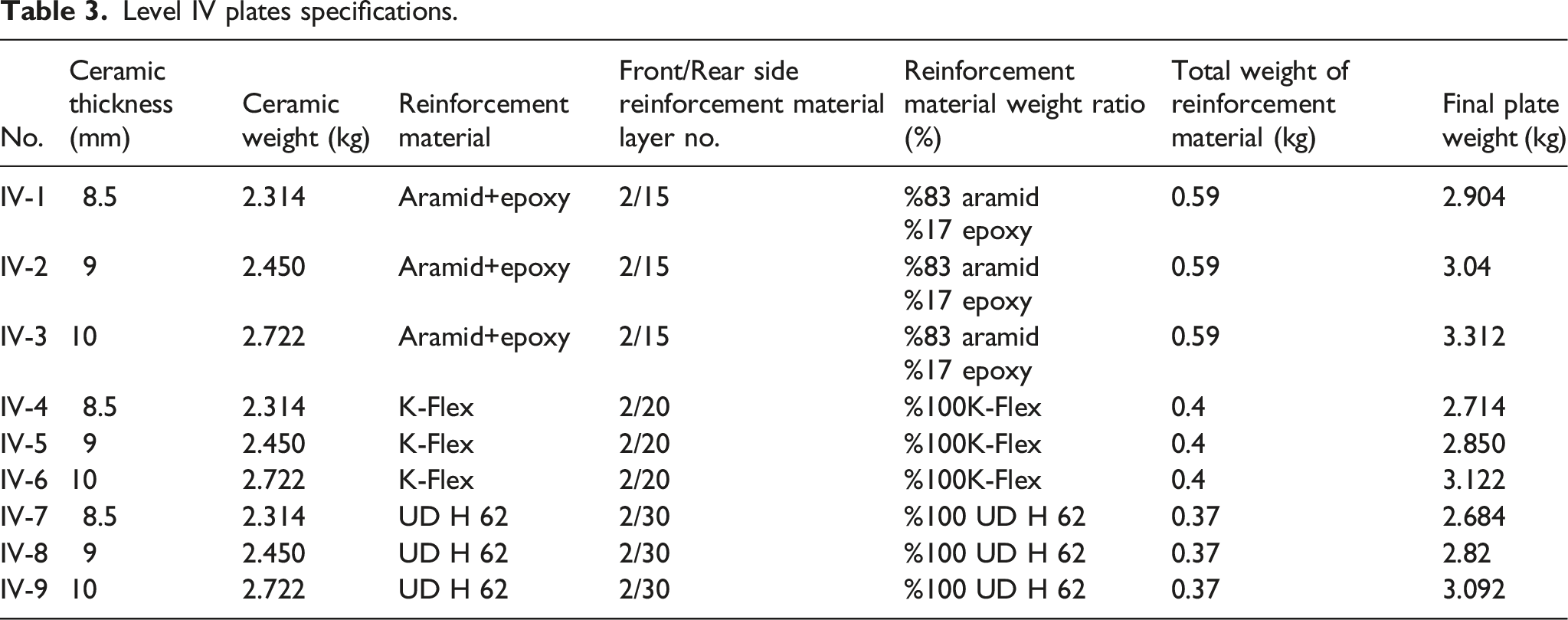

Table 3.

Level IV plates specifications.

No.	Ceramic thickness (mm)	Ceramic weight (kg)	Reinforcement material	Front/Rear side reinforcement material layer no.	Reinforcement material weight ratio (%)	Total weight of reinforcement material (kg)	Final plate weight (kg)
IV-1	8.5	2.314	Aramid+epoxy	2/15	%83 aramid	0.59	2.904
IV-1	8.5	2.314	Aramid+epoxy	2/15	%17 epoxy	0.59	2.904
IV-2	9	2.450	Aramid+epoxy	2/15	%83 aramid	0.59	3.04
IV-2	9	2.450	Aramid+epoxy	2/15	%17 epoxy	0.59	3.04
IV-3	10	2.722	Aramid+epoxy	2/15	%83 aramid	0.59	3.312
IV-3	10	2.722	Aramid+epoxy	2/15	%17 epoxy	0.59	3.312
IV-4	8.5	2.314	K-Flex	2/20	%100K-Flex	0.4	2.714
IV-5	9	2.450	K-Flex	2/20	%100K-Flex	0.4	2.850
IV-6	10	2.722	K-Flex	2/20	%100K-Flex	0.4	3.122
IV-7	8.5	2.314	UD H 62	2/30	%100 UD H 62	0.37	2.684
IV-8	9	2.450	UD H 62	2/30	%100 UD H 62	0.37	2.82
IV-9	10	2.722	UD H 62	2/30	%100 UD H 62	0.37	3.092

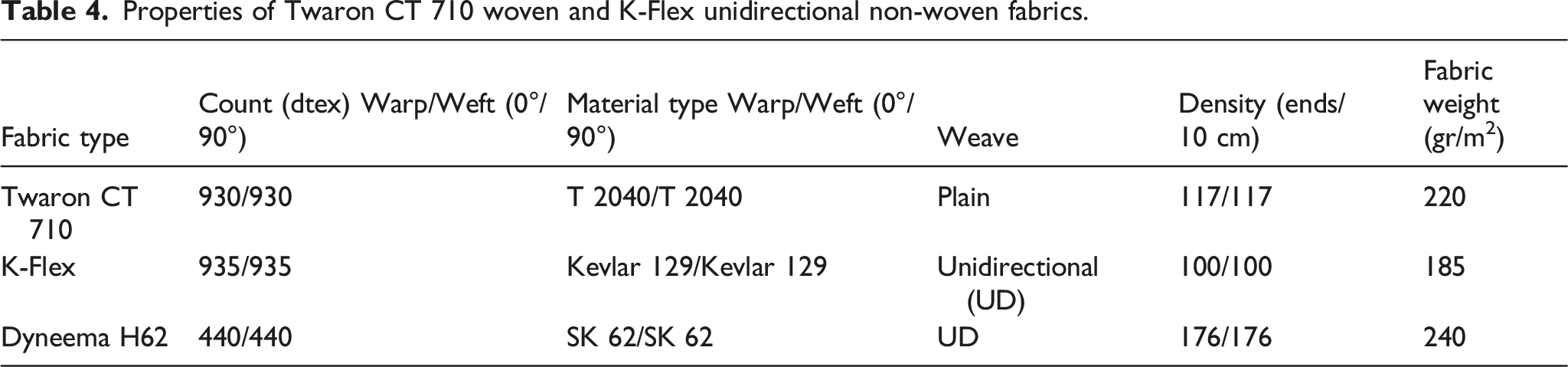

Table 4.

Properties of Twaron CT 710 woven and K-Flex unidirectional non-woven fabrics.

Fabric type	Count (dtex) Warp/Weft (0°/90°)	Material type Warp/Weft (0°/90°)	Weave	Density (ends/10 cm)	Fabric weight (gr/m²)
Twaron CT 710	930/930	T 2040/T 2040	Plain	117/117	220
K-Flex	935/935	Kevlar 129/Kevlar 129	Unidirectional (UD)	100/100	185
Dyneema H62	440/440	SK 62/SK 62	UD	176/176	240

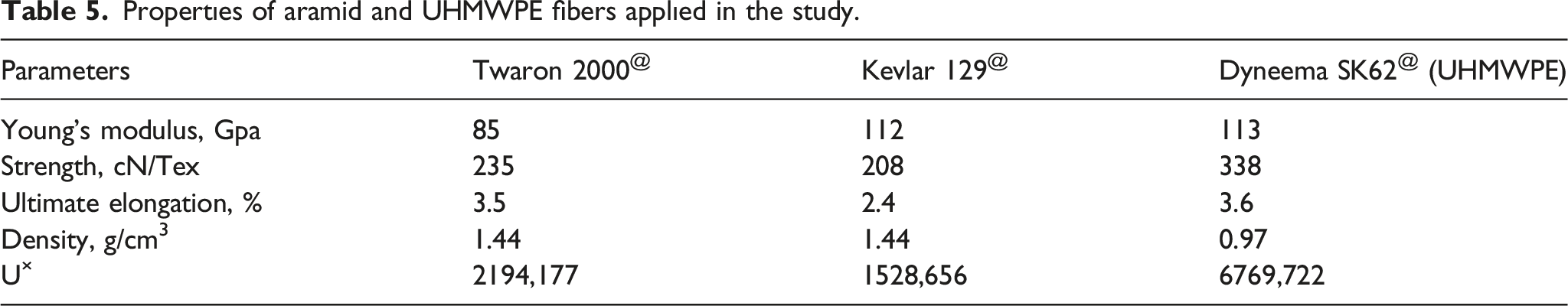

Table 5.

Propertıes of aramid and UHMWPE fibers applıed in the study.

Parameters	Twaron 2000^@	Kevlar 129^@	Dyneema SK62^@ (UHMWPE)
Young’s modulus, Gpa	85	112	113
Strength, cN/Tex	235	208	338
Ultimate elongation, %	3.5	2.4	3.6
Density, g/cm³	1.44	1.44	0.97
U^×	2194,177	1528,656	6769,722

Test equipment

NIJ standards were followed during the shooting testing. A chronograph gadget is included in the shooting test equipment to measure muzzle velocity. The chronograph is made up of a recording system, a start photoelectric screen, and an end photoelectric screen. The tests were conducted using an OEHLER Research photoelectric display chronograph. Figure 1 depicts the schematic view of the test setup and chronograph system. Additionally, a unique test barrel approved by the NIJ that can withstand catastrophic pressure was employed. The barrel was heated by firing pre-shots in order to achieve accurate muzzle velocity for the single shot. ANSI/SAAMI universal action system serves as the firing mechanism. This device consists of a shooting stand with a weighted base on which barrels of various lengths and calibers may be mounted, and precision shots can be fired.

Figure 1.

Schematic illustration of the testing apparatus.⁴⁰

In shooting trials, ballistic paste—which was approved by the NIJ—was employed as the backing material for gauging the severity of trauma. The sculptors' preferred Roma Plastilina No:1 putty kind was utilized. 90% copper, 1%× zinc alloy, 9.6 g (148 grain) of fully coated core were used in Level III shots. The core’s interior is made of lead. Level IV shots featured a fully metal-clad steel core weighing 10.8 g (166 grains) with an interior that had been heat-hardened. The core has the capacity to penetrate armor.

Methods

Backing material application

The backing material applied in this study was Roma Plastilina No. 1 clay. The installation and flattening of the backing material were carried out in accordance with NIJ 0101.04 guidelines. It is necessary to have at least three backing material fittings filled with the proper backing material. The backing material fixture must be 610 mm × 610 mm × 140 mm ± 2 mm deep. There will be a 2 mm tolerance applied to all dimensions. The back of the fixture must be detachable and made of plywood or wood that is 19.1 mm thick.

The sides of the box fixture must be made of hard wood or metal, preferably with a metal front edge to precisely direct the preparation of the flat front surface of the backing material. As few voids as possible must be present when the backing material is worked into the fixture (box). To create a smooth, flat front surface that is even with the front borders of the box fixture, the backing material surface must be chopped, “struck,” or otherwise modified.

Shooting trials

Standard shooting tests were conducted in accordance with NIJ 0101.03 guidelines. The test substance was put through wet and dry testing under typical environmental circumstances. In wet tests, spray nozzles were used to wet the plates so that 0.1 m2 of the surface area received 10 ± 2 L of water per hour. The test panel was submerged in water for a total of 6 min, 3 min on each side, starting with the rear and moving forward. Following that, the panel was tested in accordance with the specifications within 30 min.

Application of shooting tests to plates

A cardboard target was set up at a distance of 15 m from the barrel in order to determine the accuracy of the test ammunition. The target point of the laser sight and the hit point of the test bullet was then compared. The shot was taken at a flawless zero-degree angle. It has gone through the required application for wet testing using the test substance. Due to the oval shape of the test object that was appropriate for the breast form, the Plastilina paste was molded to the shape and fastened with the aid of elastic bands, as shown in Figure 2.

Figure 2.

The hit points on the level III plate and how the elastic bands are fastened.

At the ammunition type and speeds specified in the standard, the first shot was fired at a distance of 76.2 mm from the edges. Following this shot, the test material was detached from the backing material to prevent damage to its physical state, and it was examined for punctures. The rear side of the test material was then once more examined. The test material was then put back on the backing material and repeated evenly for the remaining five shots, spacing them at least 50.8 mm apart and 76.2 mm from the edges. Figure 2.2 illustrates how the firing points appear. Table 6 provides the specifications of the ammunition used in the shots and the maximum amount of depression permitted for level III shots.

Table 6.

The specifications of the ammunition used for Tier III shots and the maximum permitted amount of depression.

Protection level	Test ammunition	Nominal core weight	Quantity of shots	Minimum core speed
III	7.62 308 Winchester FMU	9.7 g	6	838 m/s + 15 m/s

The test material was separated from the rear part material, and the depressions created on the back part material by two of the six test rounds fired at the greatest speeds were measured. These values were then compared to those in the standard. The tests were subsequently run dry again.

Level IV plates

Wet and dry tests on test materials were performed similarly to level III plates. A single shot was fired from a distance of 156 m to a spot towards the center of the test material at a distance of 76.2 mm from the edges using level IV plates with the test material positioned similarly to level III plates and ammunition and muzzle velocity as per standard. If the backing material was intact and the substance had not yet split from it, the backing material’s depth was measured, and the results were compared. The experiments were then carried out dry again. Table 7 represents the firing ammunition table and the maximum depression levels.

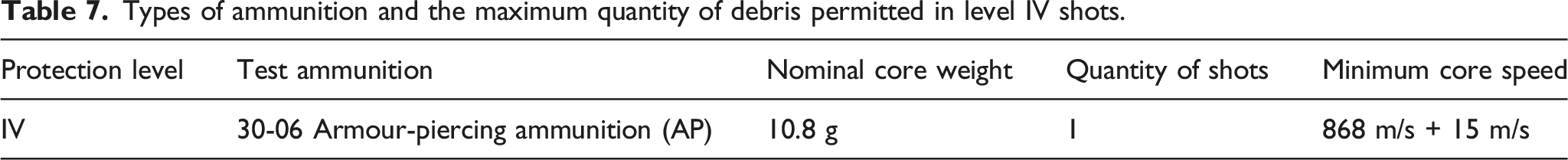

Table 7.

Types of ammunition and the maximum quantity of debris permitted in level IV shots.

Protection level	Test ammunition	Nominal core weight	Quantity of shots	Minimum core speed
IV	30-06 Armour-piercing ammunition (AP)	10.8 g	1	868 m/s + 15 m/s

Measurement of the rear side depression (Trauma depth)

During the testing, the kinetic energy from the ballistic impact causes the flat-surfaced rear part material, which is positioned on the ballistic test material, to collapse. The NIJ standard has a maximum value of 44 mm for this depression. After the ballistic hit, swelling starts to occur at the depression where the flat-surfaced material of the back half used to be. To measure a depression, it is important to use a flat surface and collect measurements in accordance with that. Because of this, it is recommended that the measurement from the top of the depression to the bottom be done in accordance with this approach when determining the trauma values. The mentioned depression value encompasses the area from the region marked with dots in Figure 3 to the bottom of the pit if it is assumed that this region extends beyond the flat surface. After the shot, the depth of trauma was measured, as shown in Figure 3.

Figure 3.

Assessment of trauma depth.⁴¹

Results and discussion

Level III plate tests

Two alternative testing methods—wet and dry—will be used for Level III plate tests. The experiments were conducted using 7.62 mm FMJ test ammunition. Under identical circumstances, plates that had been pressed at various pressures were tested. The muzzle velocity applied during the tests was inside the bounds allowed by the NIJ rules. The test results are presented in Tables 8, 9, 10, 11, 12, and 13.

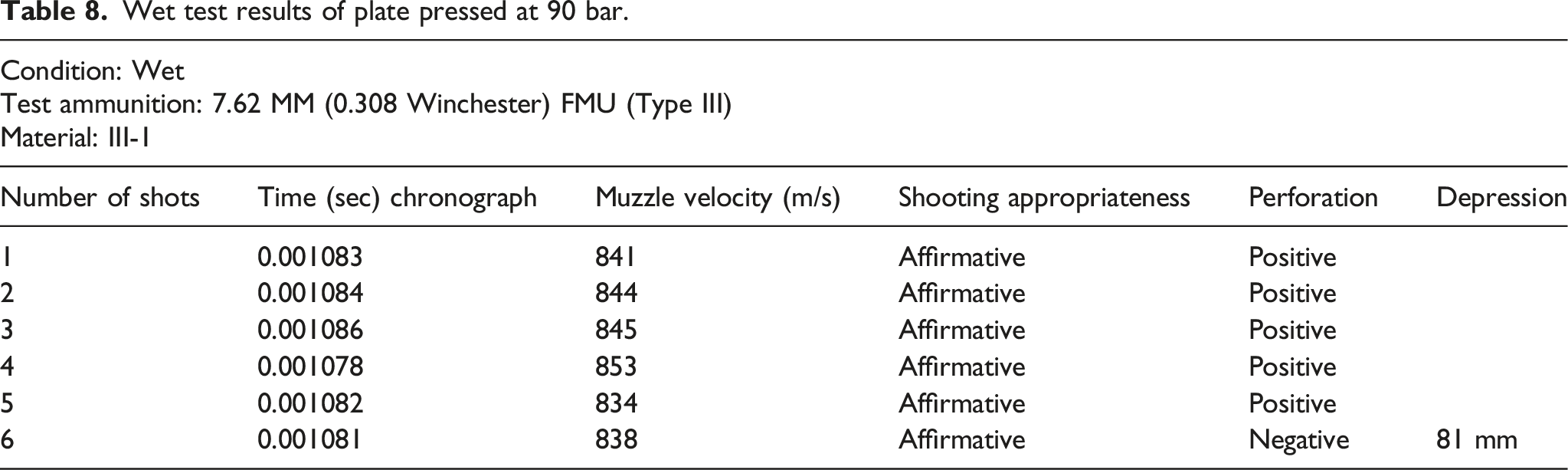

Table 8.

Wet test results of plate pressed at 90 bar.

Condition: WetTest ammunition: 7.62 MM (0.308 Winchester) FMU (Type III)Material: III-1
Number of shots	Time (sec) chronograph	Muzzle velocity (m/s)	Shooting appropriateness	Perforation	Depression
1	0.001083	841	Affirmative	Positive
2	0.001084	844	Affirmative	Positive
3	0.001086	845	Affirmative	Positive
4	0.001078	853	Affirmative	Positive
5	0.001082	834	Affirmative	Positive
6	0.001081	838	Affirmative	Negative	81 mm

Table 9.

Dry test results of plate pressed at 90 bar.

Condition: DryTest ammunition: 7.62 mm (0.308 Winchester) FMU (Type III)Material: III-1
Number of shots	Time (sec) chronograph	Muzzle velocity (m/s)	Shooting appropriateness	Perforation	Depression
1	0.001077	848	Affirmative	Positive
2	0.001085	843	Affirmative	Positive
3	0.001074	854	Affirmative	Positive
4	0.001072	857	Affirmative	Positive
5	0.001073	853	Affirmative	Positive
6	0.001076	851	Affirmative	Negative	87 mm

Table 10.

Wet test results of plate pressed at 140 bar.

Condition: WetTest ammunition: 7.62 mm (0.308 Winchester) FMJ (Type III)Material: III-2
Number of shots	Time (sec) chronograph	Muzzle velocity (m/s)	Shooting appropriateness	Perforation	Depression
1	0.001075	851	Affirmative	Negative	36 mm
2	0.001076	849	Affirmative	Negative
3	0.001067	857	Affirmative	Negative
4	0.001075	850	Affirmative	Negative
5	0.001077	849	Affirmative	Negative
6	0.001073	852	Affirmative	Negative	38 mm

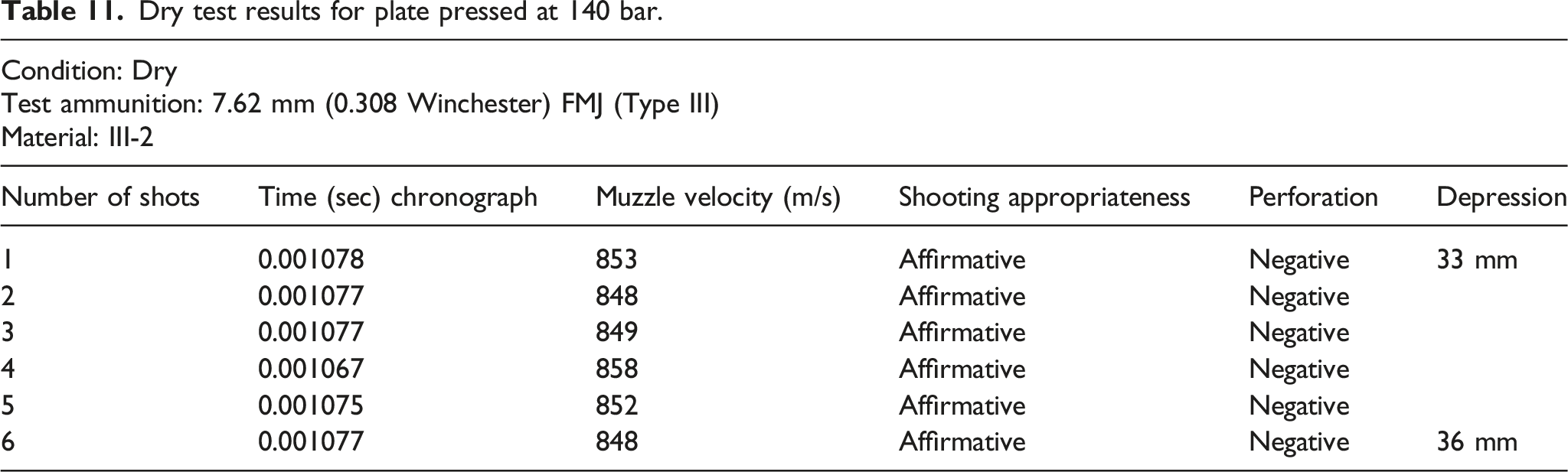

Table 11.

Dry test results for plate pressed at 140 bar.

Condition: DryTest ammunition: 7.62 mm (0.308 Winchester) FMJ (Type III)Material: III-2
Number of shots	Time (sec) chronograph	Muzzle velocity (m/s)	Shooting appropriateness	Perforation	Depression
1	0.001078	853	Affirmative	Negative	33 mm
2	0.001077	848	Affirmative	Negative
3	0.001077	849	Affirmative	Negative
4	0.001067	858	Affirmative	Negative
5	0.001075	852	Affirmative	Negative
6	0.001077	848	Affirmative	Negative	36 mm

Table 12.

Wet test results of plate pressed at 250 bar.

Condition: WetTest ammunition: 7.62 mm (0.308 Winchester) FMJ (Type III)Material: III-3
Number of shots	Time (sec) chronograph	Muzzle velocity (m/s)	Shooting appropriateness	Perforation	Depression
1	0.001075	852	Affirmative	Negative	25 mm
2	0.001077	848	Affirmative	Negative
3	0.001067	858	Affirmative	Negative
4	0.001077	849	Affirmative	Negative
5	0.001076	848	Affirmative	Negative
6	0.001074	850	Affirmative	Negative	26 mm

Table 13.

Dry test results of plate pressed at 250 bar.

Condition: DryTest ammunition: 7.62 mm (0.308 Winchester) FMJ (Type III)Material: III-3
Number of shots	Time (sec) chronograph	Muzzle velocity (m/s)	Shooting appropriateness	Perforation	Depression
1	0.001076	848	Affirmative	Negative
2	0.001074	850	Affirmative	Negative
3	0.001075	852	Affirmative	Negative	22 mm
4	0.001077	849	Affirmative	Negative
5	0.001067	858	Affirmative	Negative
6	0.001074	850	Affirmative	Negative	26 mm

These findings demonstrate that 90 bar pressure-pressed plates are not appropriate for level III protection. Five out of the six bullets have hit plates. The layers also began to delaminate after the second shot, and it was found that after the fifth shot, the layers had separated. Such a plate will not offer the required level III protection, even when paired with level III-A armor.

The plates pressed at 140 bar showed no signs of perforation. But trauma depths were more than anticipated. After the fifth shot, delaminations between the layers were also noticed. However, there was an issue with how the layers were separated from one another. Such a plate can offer the required protection if it is used in conjunction with a level II vest. To be deemed qualified for a level III protective plate, however, requires more than just the wearing of armor under NIJ regulations. Because if delamination happens during such testing, it is assumed that the plate is not in conformity with the standards—regardless of whether the trauma depth is within the allowed ranges. As a result, a plate printed at 140 bar cannot display the necessary level of protection.

After six shots, neither a puncture nor delamination occurred in the plates pressed at 250 bar. The testing yielded extremely shallow trauma depths.

The highest pressure possible should be used to manufacture UHMWPE plates for Level III protection. High-pressure production not only minimizes the issue of delamination in repeated shots but also increases ballistic resistance and reduces the depth of trauma.

Figure 4 illustrates how the level III protection plates' pressing pressure affects the change in trauma depths.

Figure 4.

Trauma depths determined by level III plate pressing pressure.

Figure 4 illustrates how the trauma depths vary depending on the pressing pressure. The wet and dry tests did not significantly differ from one another. Wetting has no effect on the physical characteristics of polyethylene fibers since they do not absorb moisture into their structures.

The results of the Student Newman Keuls (SNK) test are shown in Table 14, together with the average trauma depths based on production pressure. These findings show a considerable variation between the trauma depths of plates produced at 140 and 250 bar. However, considering delamination, a quality level III protection is advised at 250 bar pressure.

Table 14.

Ranking of the impact of press pressure used to produce plates on trauma depths at a 95% confidence level using the SNK (Student Newman Keul) principle.

Row no.	Pressure	Average
1	90 bar	84
2	140 bar	37
3	250 bar	24.5

The damage characteristics of level III post-shot plates are illustrated in Figure 5. On the front surface of plates without punctures, there is only slight shear deformation and tensile deformation; however, the rear surface of such plates experiences severe shear deformation and fiber breaks. The plates made at 140 and 250 bar pressure do not delaminate between layers or delaminate substantially less than plates made at 90 bar pressure. The high-pressure-produced plates are impermeable.

Figure 5.

Damage characteristics at 140 bar on dry Level III plates after firing tests on the front side (a), back side (b), and side section (c).

Figure 6 depicts the deformation of a plate caused by shot testing at low pressure. As a result, the second shot resulted in a puncture, which led to significant fiber ruptures in addition to shear deformation on the rear surface. It is well known that plate energy absorption is increased by fiber ruptures that take place in the absence of a puncture. This is because the fibers in the UD structure are arranged in a linear and unfolded pattern, which causes the structure to absorb more energy.^32–35 These plates have a substantial degree of delamination between the layers. Hence their ballistic resistance is only 2. Following the shot, it ends. The layers appear to be fully isolated from one another in repeated exposures.

Figure 6.

Damage characteristics and appearance of dry Level III plates produced at 90 bar pressure on the front side (a), back side (b, c, and d), and cross-section (e).

Level IV plate tests

The various ceramic thicknesses were taken into consideration while determining the quantity and ratios of the rear reinforcement materials utilized in the testing. Due to their incredibly delicate structure, ceramic plates without a composite layer are unable to sustain repeated shootings. Additionally, it is well known that the usage of reinforcing material in the rear side lessens the severity of injuries.^42,43 It has been demonstrated that the reinforcement layers employed on the back serve to contain the projectile and ceramic parts that have broken off as well as lessen the severity of the trauma that results from the strike. However, it is not advised to utilize more reinforcing material than is required in order to lower the ultimate weight of the ceramic. Tables 15, 16, 17, 18, 19, 20, 21, 22, and 23 present the obtained test results.

Table 15.

Test result of Aramid+Epoxy reinforced, 8.5 mm ceramic.

Test ammunition: 30-06 APM-2 (7.62X63 MM)Material code: IV-1
Condition	Number of shots	Time (sec) chronograph	Muzzle velocity (m/s)	Shooting appropriateness	Perforation	Depression
Dry	1	0.001045	875	Affirmative	Positive	---------
Wet	1			Affirmative	Positive	---------

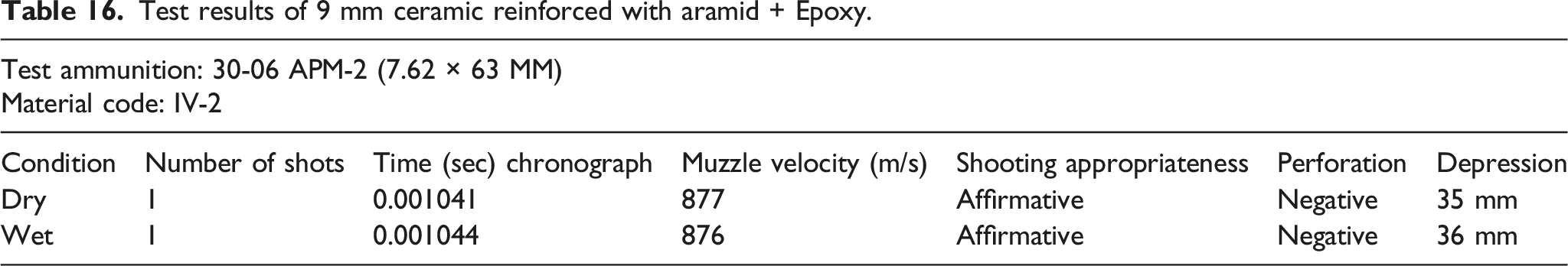

Table 16.

Test results of 9 mm ceramic reinforced with aramid + Epoxy.

Test ammunition: 30-06 APM-2 (7.62 × 63 MM)Material code: IV-2
Condition	Number of shots	Time (sec) chronograph	Muzzle velocity (m/s)	Shooting appropriateness	Perforation	Depression
Dry	1	0.001041	877	Affirmative	Negative	35 mm
Wet	1	0.001044	876	Affirmative	Negative	36 mm

Table 17.

Test results of 10 mm ceramic reinforced with aramid + Epoxy.

Test ammunition: 30-06 APM2 (7.62 × 63 MM)Material code: IV-3
Condition	Number of shots	Time (sec) chronograph	Muzzle velocity (m/s)	Shooting appropriateness	Perforation	Depression
Dry	1	0.001045	875	Affirmative	Negative	37 mm
Wet	1	0.001047	874	Affirmative	Negative	38 mm

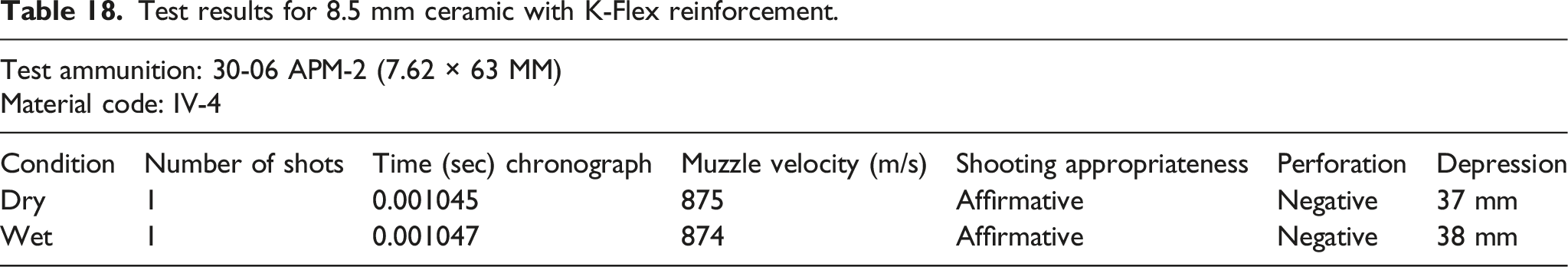

Table 18.

Test results for 8.5 mm ceramic with K-Flex reinforcement.

Test ammunition: 30-06 APM-2 (7.62 × 63 MM)Material code: IV-4
Condition	Number of shots	Time (sec) chronograph	Muzzle velocity (m/s)	Shooting appropriateness	Perforation	Depression
Dry	1	0.001045	875	Affirmative	Negative	37 mm
Wet	1	0.001047	874	Affirmative	Negative	38 mm

Table 19.

Test results for 9 mm ceramic with K-Flex reinforcement.

Test ammunition: 30-06 APM2 (7.62 × 63 MM)Material code: IV-5
Condition	Number of shots	Time (sec) chronograph	Muzzle velocity (m/s)	Shooting appropriateness	Perforation	Depression
Dry	1	0.001052	871	Affirmative	Negative	31 mm
Wet	1	0.001049	873	Affirmative	Negative	33 mm

Table 20.

Test result of 10 mm ceramic with K-Flex reinforcement.

Test ammunition: 30-06 APM2 (7.62 × 63 MM)Material code: IV-6
Condition	Number of shots	Time (sec) chronograph	Muzzle velocity (m/s)	Shooting appropriateness	Perforation	Depression
Dry	1	0.001054	870	Affirmative	Negative	24 mm
Wet	1	0.001058	868	Affirmative	Negative	25 mm

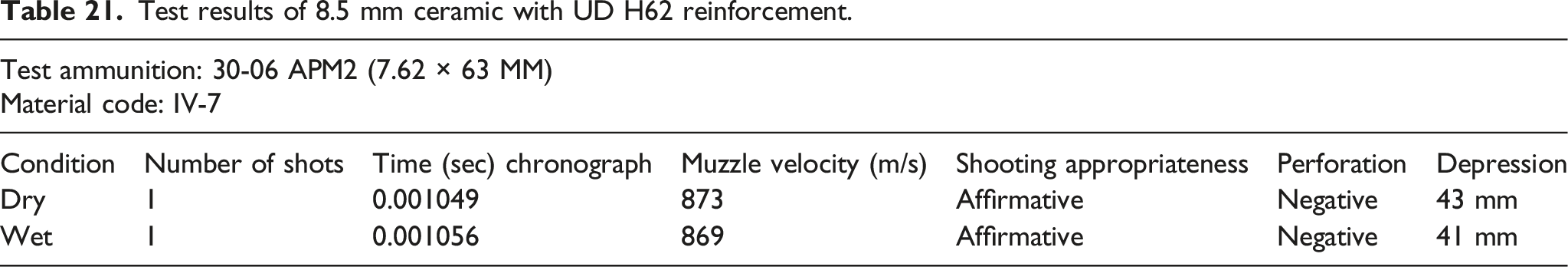

Table 21.

Test results of 8.5 mm ceramic with UD H62 reinforcement.

Test ammunition: 30-06 APM2 (7.62 × 63 MM)Material code: IV-7
Condition	Number of shots	Time (sec) chronograph	Muzzle velocity (m/s)	Shooting appropriateness	Perforation	Depression
Dry	1	0.001049	873	Affirmative	Negative	43 mm
Wet	1	0.001056	869	Affirmative	Negative	41 mm

Table 22.

Test results of UD H62 reinforced, 9 mm ceramic.

Test ammunition: 30-06 APM2 (7.62 × 63 MM)Material code: IV-8
Condition	Number of shots	Time (sec) chronograph	Muzzle velocity (m/s)	Shooting appropriateness	Perforation	Depression
Dry	1	0.001053	872	Affirmative	Negative	38 mm
Wet	1	0.001045	865	Affirmative	Negative	39 mm

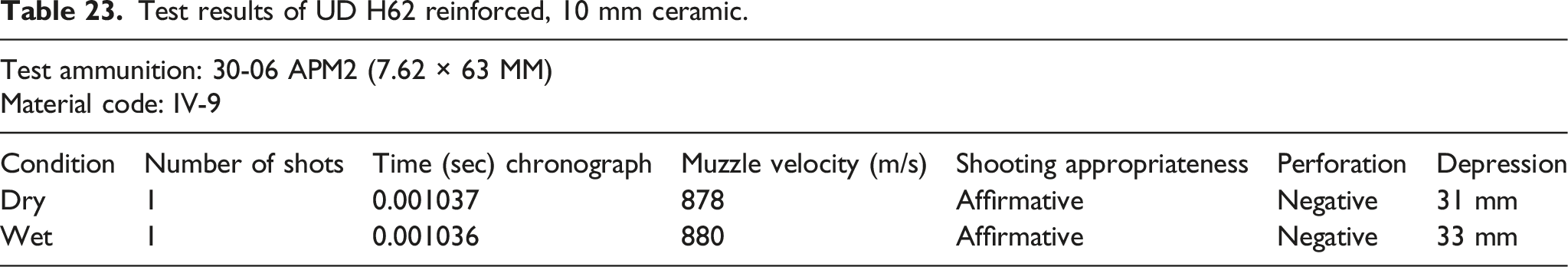

Table 23.

Test results of UD H62 reinforced, 10 mm ceramic.

Test ammunition: 30-06 APM2 (7.62 × 63 MM)Material code: IV-9
Condition	Number of shots	Time (sec) chronograph	Muzzle velocity (m/s)	Shooting appropriateness	Perforation	Depression
Dry	1	0.001037	878	Affirmative	Negative	31 mm
Wet	1	0.001036	880	Affirmative	Negative	33 mm

Aramid+Epoxy reinforced 8.5 mm ceramic was perforated in wet and dry testing, as noted in the results. However, the bullet fragments remained because they were caught in the paste applied to the rear side. The amount of depression formed in the paste was measured as approximately 100 mm. Due to perforation and extreme damage, this construction is unsuitable for use.

The trauma depths from the wet and dry testing are represented in Figures 7 and 8 in relation to the ceramic thickness.

Figure 7.

Results of wet testing on trauma depth.

Figure 8.

Results of dry testing on trauma depth.

The trauma depths considerably decrease with increasing ceramic thickness, and for ceramics with a thickness of 10 mm, the trauma depth dropped below 30 mm. However, as a result, the plate’s total weight rises.

As aramid cloth gets wet, it loses its strength and ballistic capabilities. When the test data were evaluated, it was discovered that neither dampness nor dryness significantly affected ballistic strength. The aramid fabric’s combination with epoxy was believed to be the primary factor in this, as it prevented moisture absorption.

The reinforced ceramics made of K-Flex were not perforated. It has been noted that the outcomes are superior than the reinforcement material made of aramid and epoxy. It has been noted that, in terms of weight, it is superior to aramid + epoxy reinforcing material by an average of 6%. However, it has been noted that there is a risk of delamination after the first shot since the adhesion between the layers is weak.

UD H62 reinforced ceramics were not perforated. The trauma depths, though, were considerable. Trauma depths were discovered to be greater than 30 mm even when 10 mm ceramic was employed. In comparison to aramid + epoxy reinforcement material and K-Flex material, it is generally %7 lighter and %1 lighter, respectively, in terms of weight.

Figure 9 provides an overview of the damage characteristics of the plates following the fire tests. Figure 9 illustrates the deformations of ceramics with twaron woven fabric reinforcement after numerous firings. Therefore, ceramic cracks and fiber breaks are the most common types of deformations that take place on the front face. The ceramic plate, on the other hand, entirely breaks under repeated bullets and is only kept together by the reinforcement on the front and rear. The reinforcing material on the back side is separated as delaminate in shots when there is no perforation. However, shear deformations occur. Fiber fractures and delamination occur in shoots that have been perforated. In addition to the same damage behavior seen in ceramic plates reinforced with K-Flex, tensile deformation-induced fiber breakage also happen in damage to the rear surface and in shootings without a perforation. The same is true, albeit to a lesser extent, for UD H62 reinforced plates. The yarn in K-Flex and UD H62 constructions is entirely linear within the structure, and there is no curl as in woven fabrics, which is the fundamental cause of this variation in damage behavior. In this instance, the tensile stresses that develop during ballistic loading cause the fibers to rupture. Tensile pressures in woven fabrics, however, do not exhibit this deformation because of the folds in the weaving. UD constructions with a linear fiber arrangement are more susceptible to energy absorption in this circumstance.^32–35

Figure 9.

Plates produced 90 bar pressure in wet Level IV plates: front side (a), back side (b), and damage properties.

Conclusions

In this study, testing was conducted within the purview of NIJ to assess the applicability of level III and level IV body protective armors and, in addition to its high protection characteristic, lighter and ergonomic fiber reinforced composite panels were constructed. The results of the experiments are as follows:

The Level III plates were created at 90 Bar pressure, and the results of the wet and dry ballistics tests revealed that the plates had been perforated. The experiment’s findings revealed that level III criteria did not provide sufficient protection.

The level III plates manufactured at 140 Bar pressure underwent wet and dry ballistic tests, and it was found that while there was no perforation in the plates, the trauma depths were greater than anticipated, and there were delaminations between the layers. It has been noted that this material will not offer the required protection as a result.

The trauma depths considerably decrease with increasing ceramic thickness, and for ceramics with a thickness of 10 mm, the trauma depth dropped below 30 mm.

UD H62 reinforced ceramics were not perforated. The trauma depths, though, were considerable. Trauma depths were discovered to be greater than 30 mm even when 10 mm ceramic was employed.

As a result of the shots fired on both wet and dry materials, it has been found that neither perforation nor delamination, nor significant trauma depths, occurred in the plates pressed at 250 bar.

As the ceramic thickness rose for Level IV, the depth of trauma decreased, and consequently, the final material’s weight increased, according to the test results.

Wet aramid fabric for Level IV has been found to lose its strength and ballistic capabilities.

It has been noted that at Level IV, there is no perforation in the K-Flex reinforced ceramics, and delamination only starts to happen after the first shot.

Although there was no penetration in the UD H62 reinforced ceramics for Level IV, the trauma depths were significant.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iDs

Ali ARI

Mazyar AHRAR

References

Gilson

Rabet

Imad

, et al. Experimental and numerical assessment of non-penetrating impacts on a composite protection and ballistic gelatine. Int J Impact Eng 2020; 136: 103417.

Wielewski

Birkbeck

Thomson

. Ballistic resistance of spaced multi-layer plate structures: experiments on fibre reinforced plastic targets and an analytical framework for calculating the ballistic limit. Mater Des 2013; 50: 737–741.

Tan

VBC

Shim

VPW

Tay

. Experimental and numerical study of the response of flexible laminates to impact loading. Int J Sol Struct 2003; 40: 6245–6266.

Zhang

Sun

Chen

, et al. Influence of fabric structure and thickness on the ballistic impact behavior of Ultrahigh molecular weight polyethylene composite laminate. Mater Des 2014; 54: 315–322.

Cannon

. Behind armour blunt trauma--an emerging problem. J R Army Med Corps 2001; 147: 87–96.

Liu

Kang

Chen

, et al. Intracranial pressure response to non-penetrating ballistic impact: an experimental study using a pig physical head model and live pigs. Int J Med Sci 2012; 9: 655–664.

Mamivand

Liaghat

. A model for ballistic impact on multi-layer fabric targets. Int J Impact Eng 2010; 37: 806–812.

Tan

VBC

Lim

Cheong

. Perforation of high-strength fabric by projectiles of different geometry. Int J Impact Eng 2003; 28: 207–222.

Russell

Karthikeyan

Deshpande

, et al. The high strain rate response of ultra high molecular-weight polyethylene: from fibre to laminate. Int J Impact Eng 2013; 60: 1–9.

10.

Karahan

. Development of an innovative sandwich composites for the protection of lower limbs against landmine explosions. J Reinf Plast Compos 2016; 35: 1776–1791.

11.

Karahan

. Development of an innovative sandwich composite material for protection of lower limb against landmine explosion: mechanical leg test results. Text Res J 2017; 87: 15–30.

12.

Greenhalgh

Bloodworth

Iannucci

, et al. Fractographic observations on Dyneema® composites under ballistic impact. Compos A Appl Sci Manuf 2013; 44: 51–62.

13.

Phoenix

Heisserer

van der Werff

, et al. Modeling and experiments on ballistic impact into UHMWPE yarns using flat and saddle-nosed projectiles. Fibers 2017; 5. Epub ahead of print 2017. DOI: 10.3390/fib5010008.

14.

Tabiei

Nilakantan

. Ballistic impact of dry woven fabric composites: a review. Appl Mech Rev 2008; 61: 0108011–01080113.

15.

Karahan

Nasir

, et al. Effect of structural hybridization on ballistic performance of aramid fabrics. J Thermoplast Compos Mater 2019; 32: 795–814.

16.

Karthikeyan

Russell

Fleck

, et al. The effect of shear strength on the ballistic response of laminated composite plates. Eur J Mech A/Solids 2013; 42: 35–53.

17.

Gilson

Rabet

Imad

, et al. Development of a numerical model for the ballistic penetration of Fackler gelatine by small calibre projectiles. Eur Phys J Spec Top 2016; 225: 375–384.

18.

Desper

Cohen

King

. Morphological effects of ballistic impact on fabrics of highly drawn polyethylene fibers. J Appl Polym Sci 1993; 47: 1129–1142.

19.

Chocron

Zaera

Walker

, et al. Transitioning a unidirectional composite computer model from mesoscale to continuum. EPJ Web Conf 2015; 94: 0–5.

20.

Karahan

Kuş

Eren

. An investigation into ballistic performance and energy absorption capabilities of woven aramid fabrics. Int J Impact Eng 2008; 35: 499–510.

21.

Karahan

. Comparison of ballistic performance and energy absorption capabilities of woven and unidirectional aramid fabrics. Text Res J 2008; 78: 718–730.

22.

Van Der Werff

Heisserer

. High-performance ballistic fibers: ultra-high molecular weight polyethylene (UHMWPE). Elsevier Ltd. Epub ahead of print 2016. DOI: 10.1016/B978-1-78242-461-1.00003-0.

23.

Lässig

Bagusat

Pfändler

, et al. Investigations on the spall and delamination behavior of UHMWPE composites. Compos Struct 2017; 182: 590–597.

24.

Austin

Brown

Escobedo

, et al. The high-velocity impact of Dyneema® and Spectra® laminates: implementation of a simple thermal softening model. Proced Eng 2017; 204: 51–58.

25.

Fallah

Micallef

Langdon

, et al. Dynamic response of Dyneema® HB26 plates to localised blast loading. Int J Impact Eng 2014; 73: 91–100.

26.

Lässig

Nguyen

May

, et al. A non-linear orthotropic hydrocode model for ultra-high molecular weight polyethylene in impact simulations. Int J Impact Eng 2015; 75: 110–122.

27.

Nguyen

Lässig

Ryan

, et al. A methodology for hydrocode analysis of ultra-high molecular weight polyethylene composite under ballistic impact. Compos A Appl Sci Manuf 2016; 84: 224–235.

28.

Chocron

Nicholls

Brill

, et al. Modeling unidirectional composites by bundling fibers into strips with experimental determination of shear and compression properties at high pressures. Compos Sci Technol 2014; 101: 32–40.

29.

Senthil

Arockiarajan

Palaninathan

, et al. Defects in composite structures: its effects and prediction methods - a comprehensive review. Compos Struct 2013; 106: 139–149.

30.

Gowayed

Ojard

Prevost

, et al. Defects in ceramic matrix composites and their impact on elastic properties. Compos B Eng 2013; 55: 167–175.

31.

Lemanski

Wang

Sutcliffe

MPF

, et al. Modelling failure of composite specimens with defects under compression loading. Compos Part A Appl Sci Manuf 2013; 48: 26–36.

32.

Karahan

Yildirim

. Low velocity impact behaviour of aramid and UHMWPE composites. Fibres Text East Eur 2015; 23: 97–105.

33.

Khan

Umair

Hussain

, et al. Investigation of impact properties of para-aramid composites made with a thermoplastic-thermoset blend. J Thermoplast Compos Mater. Epub ahead of print 2021. DOI: 10.1177/08927057211021464.

34.

Karahan

Jabbar

Karahan

. Ballistic impact behavior of the aramid and ultra-high molecular weight polyethylene composites. J Reinf Plast Compos 2015; 34: 37–48.

35.

Shaker

Jabbar

Karahan

, et al. Study of dynamic compressive behaviour of aramid and ultrahigh molecular weight polyethylene composites using Split Hopkinson Pressure Bar. J Compos Mater 2017; 51: 81–94.

36.

Evci

Gülgeç

. Effective damage mechanisms and performance evaluation of ceramic composite armors subjected to impact loading. J Compos Mater 2014; 48: 3215–3236.

37.

, et al. Numerical simulation study of ballistic performance of Al2O3/aramid-carbon hybrid FRP laminate composite structures subject to impact loading. Ceram Int 2022; 48: 6423–6435.

38.

da Silva Figueiredo

ABH

Júnior

ÉPL

Gomes

, et al. Response to ballistic impact of alumina-UHMWPE composites. Mater Res; 21. Epub ahead of print 2018. DOI: 10.1590/1980-5373-mr-2017-0959.

39.

Lässig

May

Heisserer

, et al. Effect of consolidation pressure on the impact behavior of UHMWPE composites. Compos B Eng 2018; 147: 47–55.

40.

Oliveira

Filho

FDCG

Pereira

, et al. Ballistic performance and statistical evaluation of multilayered armor with epoxy-fique fabric composites using the Weibull analysis. J Mater Res Technol 2019; 8: 5899–5908.

41.

Cheeseman

Bogetti

. Ballistic impact into fabric and compliant composite laminates. Compos Struct 2003; 61: 161–173.

42.

Pereira

Lima

Demosthenes

LCDC

, et al. Ballistic performance of ramie fabric reinforcing. Polymers (Basel) 2020; 12: 1–17.

43.

Alkhatib

Mahdi

Dean

. Design and evaluation of hybrid composite plates for ballistic protection: experimental and numerical investigations. Polymers (Basel) 2021; 13: 1–15.

The effect of manufacturing parameters on various composite plates under ballistic impact

Abstract

Keywords

Introduction

Materials and methods

Materials

Level III protection plates

Level IV plates

Test equipment

Methods

Backing material application

Shooting trials

Application of shooting tests to plates

Level IV plates

Measurement of the rear side depression (Trauma depth)

Results and discussion

Level III plate tests

Level IV plate tests

Conclusions

Footnotes

Declaration of conflicting interests

Funding

ORCID iDs

References
