Nonlinear activity and long-term stability of thin polymer films based on poly(3,5,7,3 ′,4 ′ -pentahydroxyflavone-8-sulfonic acid) sodium salt

Abstract

Cross-linked polymers with chromophore fragments built-in main chains can, depending on their structure and synthesis conditions, keep during a long time the orientation of chromophores that is necessary to create new organic polymer materials demonstrating nonlinear optical properties. The present work is devoted to cross-linked polymers on the basis of di-, tri-, and tetraglycidyl ethers of quercetin-8-sulfonic acid sodium salt (3,5,7,3^′,4^′-penthahydroxyflavon-8-sulfonic acid sodium salt) which were synthesized, and then, poled in electrical field of corona discharge. Study of thermal, optical, and nonlinear optical parameters of the polymer films was carried out. It was found that the polymers obtained from di- and triglycidyl ethers of quercetin-8-sulfonic acid sodium salt are characterized by the higher values of macroscopic quadratic susceptibilities comparing with such a value for polymer obtained from tetraglycidyl ether of quercetin-8-sulfonic acid sodium salt. However, the latter polymer demonstrates a minimal intensity of relaxation processes that evidence its highest long-term stability, and thus, could be used as a nonlinear optical material. It is supposed that the difference of the nonlinear optical properties is due to peculiarities of intermolecular interactions in physical network of the polymers, namely, to the difference between numbers of hydrogen bonds formed by hydroxyl groups of chromophore fragments and number of hydrogen bonds linked of inter fragmental parts of the polymeric chains.

Keywords

Sulfoquercetin chemical modification polymer films chromophore temporal stability

Introduction

Wide usage of polymer materials with nonlinear optical (NLO) properties in photonics and microelectronics is due to a number of advantages compared to similar inorganic materials.^1–5 The use of the latter in NLO applications is limited by the need to grow large-size crystals of a special shape, while NLO polymer materials are more technologically and economically effective, have faster NLO response, and their NLO properties can be optimized by modifying the chemical structure of the materials.^6,7

Currently, there are various approaches to obtaining the functional polymer materials with NLO properties.⁸ One of the pathways for obtaining such polymer systems, devoid of the disadvantages of other methods, is the synthesis of polymers with covalently linked chromophore fragments.

The condition necessary for such polymers is the presence of a rigid structure, that hinders shifting light-absorbing fragments—chromophores. This condition is usually realized in cross-linked polymers where moving chain fragments are more or less hindered. It is known that some cross-linked polymers with chromophore fragments built-in can, depending on their structure and synthesis conditions, keep during a long time the orientation of chromophores that is necessary to create new organic polymer materials demonstrating nonlinear optical properties.

There are two well-known methods of the synthesis of such polymers. The first method involves the synthesis of polymers with side chromophore fragments. The disadvantage of this method is that the obtained polymers have lack of long-term stability of the NLO properties. Another method is the synthesis of polymers, where the chromophore fragments are incorporated in main chains.

It is necessary to note that in the both mentioned cases the macroscopic second-order polarizabilities of synthesized polymers are defined by the hyperpolarizabilities on the molecular level (β), that is, by NLO activities of the chromophore fragments.^9–13 Therefore, the high-priority problem in the NLO polymers obtaining is the increase and optimization of NLO activity of the chromophores. In this regard, the search for new chromophores or chemical modification of the known ones is of a great interest. The chromophores should contain reactive functional groups providing the possibility to obtain chromophore-containing polymers under standard conditions.

In our previous publications,^14,15 new NLO active organic polymers containing chromophore fragments based on widespread natural compounds as 3,5,7,3^′,4^′- penthahydroxyflavone (quercetin) and its derivatives were obtained. These chromophores were not used as dopants but were inserted in the main polymer chains that would significantly increase the relaxation time of chromophores. As the result, NLO polymers based on glycidyl ethers of quercetin were obtained and studied. The synthesis of such polymers was based on obtaining a monomer—an epoxy derivative of quercetin, by glycidylation of hydroxyl groups of the chromophore.

The present work is aimed at expanding a number of chromophores and developing methods for the synthesis of polymers with covalently attached chromophore fragments. The synthesis and data about studied NLO properties of quercetine-8-sulfonic acid (hereinafter-called 8-sulfoquercetin) chromophore-containing polymers are described in the paper.

Materials and methods

Materials and instruments

Synthesis of glycidyl derivatives of 3,5,7,3^′,4^′-penthahydroxyflavon-8-sulfonic acid and their salts was carried out using commercial 3,5,7,3^′,4^′-pentahydroxyflavone (Quercetin, M_w = 302.24, Sigma-Aldrich Chemicals), sulfuric acid (ρ = 1.84 g × cm⁻³), and epichlorohydrin (M_w = 92.52, Sigma-Aldrich Chemicals). Acetone used as solvent was purified and dried before usage.

¹H-NMR spectra were measured with a Bruker Avance III NMR Spectrometer (500 MHz) using DMSO-d⁶. The presence of residual solvent in the polymer films were monitored by FTIR-ATR (attenuated total reflection) spectroscopy detecting a stretching vibration absorption band of acetone C=O group at about 1710 cm^–1. FTIR-ATR spectra were recorded by an ALPHA FT-IR Spectrometer with a diamond crystal in the range of 400–4000 cm⁻¹. Resolution of 4 cm⁻¹ was used, and 32 scans were averaged. UV-visible spectra of the polymer films were obtained using UV-Vis spectrophotometer Hitachi-U3210 in the range of 210–500 nm. Mathematical treatment of the spectra was performed using Spectra Data Lab software package.¹⁶ Glass transition temperature (T_g) of the polymers were obtained by differential scanning calorimetry (DSC). DSC analysis was carried out with a DSC1 (Mettler Toledo) thermal analyzer with sample weights of 9–6 mg over the temperature range from 0 to 180°C and with the heating rate of 10°C/min. The thickness of the studied polymer films was measured using a Linnik-type interference microscope MII-4. The Linnik interferometer configuration (a kind of Michelson configuration) was described in Mishurov et al.’s study¹⁷ Calculations of the Mulliken charges on quercetin-8-sulfonic acid sodium salt chromophore fragments were carried out according to DFT theory¹⁸ using the B3LYP functional¹⁹ and cc-pVDZ basis sets^20,21 implemented in the GAUSSIAN 09 program package.²²

Synthesis of (3,5,7,3^′,4^′-penthahydroxyflavon-8-sulfonic acid) sodium salt (NaQSA-8)

The synthesis of NaQSA-8 was carried out by the method reported previously in Mishurov et al.’s study.²³ 2 g (6.62 mmol) of previously dried (at 125^oC) quercetin was stirred with 8 cm³ of concentrated sulfuric acid (ρ = 1.84 g cm⁻³) for 5 h at 20^oC in 100 cm³ round-bottom flask. Then, 20 cm³ of very cold water was added into the reaction mixture. Obtained orange–red precipitate was filtered at a reduced pressure and recrystallized twice from the hot saturated water solution. Next, the orange–red sediment was dried in air at room temperature. The synthesis yield was 40%.

Sodium salt (NaQSA-8) was obtained by neutralizing supernatant fluid with 20% solution of NaOH up to pH 4. The yellow precipitate was filtered off and crystallized twice from a hot saturated aqueous solution. The precipitate was dried in air at room temperature. The synthesis yield was 44%.

Synthesis of NaQSA-8 glycidyl derivatives

NaQSA-8 glycidation was carried out by the method reported previously in Woznicka et al.’s study.²⁴ Monoglycidyl ethers of quercetin-8-sulfonic acid sodium salt were not obtained. Reaction of NaQSA-8and epichlorohydrin in molar ratio 1:1 resulted in a mixture of starting reagents and diglycidyl ether. Using higher epichlorohydrin concentrations, diglycidyl (I), triglycidyl (II), and tetraglycidyl (III) ethers of quercetin-8-sulfonic acid sodium salt were obtained. Scheme of synthesis of the latter ether is presented in Figure 1.

Figure 1.

Scheme of sulfoquercetin glycidyl ethers synthesis.

Synthesis of (7,4^′-diglycidyloxy-3,5,3^′-trihydroxyflavon-8-sulfonic acid) sodium salt (2GESQ, I)

Mixture of NaQSA-8 (2.00 g, 6.6 mmol), epichlorohydrin (1.034 mL, 13.2 mmol), was heated at 80°C for 30 min in argon atmosphere. Then, solution of sodium hydroxide (2.65 g, 66.2 mmol) in water (9.0 mL) was added, and the mixture was heated at 80°C for 4 h. After that, the mixture was concentrated and cooled; obtained precipitation was re-crystallized from acetone. Finally, 2GESQ was purified by column chromatography (silica gel; chloroform/acetone = 10:1 v/v). Yield was 65%.

¹Н NMR (DMSO–d⁶, J = 500 МHz): 3,65-4,45 (m, 10Н, –СН₂СНСН₂О-); 6.38 (d, 1Н, С6-Н); 7.67 (d, 1H, С2’-Н); 7.04 (d, 1H, С5’-Н); 7.53 (dd 1H, С6’-Н); 9,27 (d, 1Н, С3- ОН); 9,56 (s, 1Н, С3'-ОН);12,54 (s, 1Н, С5-ОН).

Elemental Analysis: Calc. (wt%): C—60.87; H—4.38; O—34.75. Found (wt%): C—59.70; H—4.55; O—35.75.

Synthesis of (7,4^′,3^′-triglycidyloxy-3,5-dihydroxyflavon-8-sulfonic acid) sodium salt (3GESQ, II)

Synthesis of II was carried out as described above at molar ratio of NaQSA-8/epichlorohydrin (1:3). Yield was 61%.

¹Н NMR (DMSO–d⁶, J = 500 МHz): 3,65-4,45 (m, 15Н –СН₂СНСН₂О-); 6.38 (d, 1Н, С6-Н); 6.86 (d, 1H, С8-Н); 7.67 (d, 1H, С2’-Н); 7.04 (d, 1H, С5’-Н); 7.53 (dd, 1H, С6’-Н); 9,27 (d, 1Н, С3- ОН); 12,54 (s, 1Н, С5-ОН).

Elemental Analysis: Calc. (wt%): C—61.28; H—4.71; O—34.01. Found (wt%): C—60.34; H—4.68; O—34.98.

Synthesis of (7,3,4^′,3^′- tetraglycidyloxy -5- hydroxyflavon -8- sulfonic acid) sodium salt (4GESQ, III)

Synthesis of III was carried out as described above at molar ratio of NaQSA-8/epichlorohydrin (1:4). Yield was 56%.

¹Н NMR (DMSO–d⁶, J = 500 МHz): 3,65-4,45 (m, 20Н–СН₂СНСН₂О-); 6.38 (d, 1Н, С6-Н); 6.86 (d, 1H, С8-Н); 7.67 (d, 1H, С2’-Н); 7.04 (d, 1H, С5’-Н); 7.53 (dd, 1H, С6’-Н)); 12,54 (s, 1Н, С5-ОН).

Elemental Analysis: Calc. (wt%): C—61.59; H—4.98; O—33.43. Found (wt%): C—61.28; H—5.01; O—33.71.

Preparation of polymer films

Glycidyl ethers of NaQSA-8 were dissolved in acetone at a concentration of about 0.1 g/mL. DETA was added in stoichiometric quantities proportionally to number of glycidyl groups in the corresponding NaQSA-8derivatives. Thereafter, obtained thin films were spin-coated onto pre-cleaned glass microscope cover slides of 170 μm at 1000 rpm for 0.5 min and cured at the room temperature for 24 h in vacuum. The thickness of the obtained films was 1.0 μm.

The used glass microscope cover slides were ultrasonically cleaned in detergent solution for about 10 min, followed by rinsing it in deionized water. Then the slides were then boiled in ethanol and dried at 90^oC for 10 min.

The network segments of polymers poly (2GESQ), poly (3GESQ) and poly (4GESQ) obtained correspondingly from di-, tri-, and tetraglycidyl derivatives of sulfoquercetin are depicted in Figure 1.

Polymer films poling

The polymer films were poled by the corona poling technique. Poling was done simultaneously with curing reaction. Temperature of the film was increased to 100^oC then the corona field was applied, and poling was carried out for 1 h. The corona current was held at 2.5 μA with an electrode potential of 6 kV. Finally, the films were cooled to the room temperature, while the electric field was kept on. To remove residual solvent, the polymer films were then annealed for 3 h at 100^oC.

Results and discussion

Optical properties

The absorption spectra of polymer films poly (2GESQ), poly (3GESQ), and poly (4GESQ) are showed in Figure 2. It can be seen, there is a small hypsochromic shift on going from poly (2GESQ) (396 nm) to poly (4GESQ) (380 nm), that is, from less to more substituted quercetin-8-sulfonic acid sodium salt chromophore small shift indicates that the replacement of end-donor OH groups on glycidyl groups have no significant effect on the conjugated polymer structures.

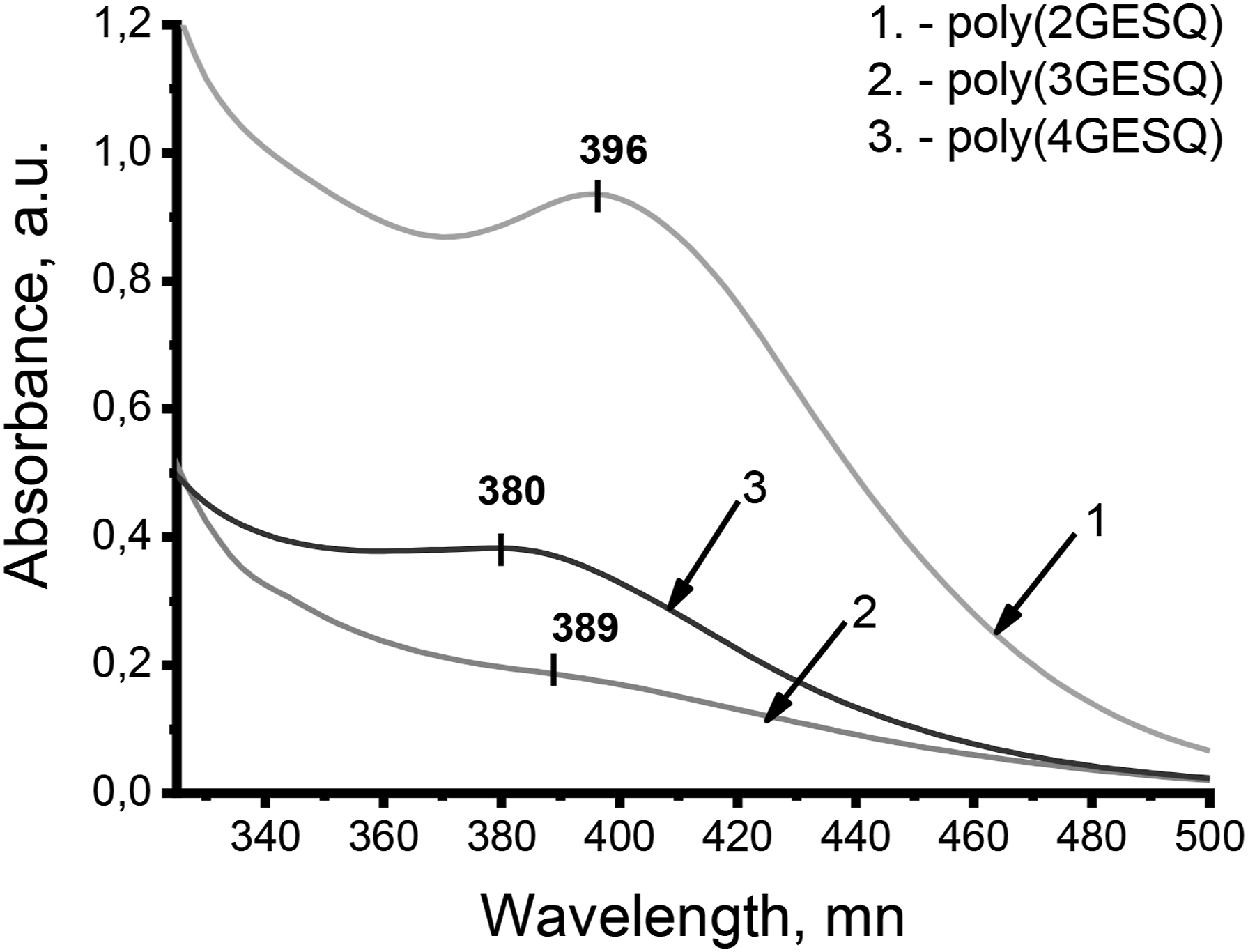

Figure 2.

Uv-Vis spectra of polymers based on sulfoquercetin glycydyl ethers.

Absorption bands of previously investigated polymer films obtained from quercetin glycidyl ethers are centered at about 362 nm. Thus, the introduction of sulfonic group into quercetin molecule results in the bathochromic shift of corresponding absorption band in the polymer films. It should be noted that the bathochromic shift of an intense long-wavelength band, that is, decrease in energy of corresponding electronic transition leads to increase in values of the first-order hyperpolarizability.^25,26 The obtained results also show that no other obvious absorption shoulders or peaks are observed in the investigated polymer films. This indicates the absence of some intense dipole–dipole interaction between chromophore fragments or formation of their aggregates in the polymer molecules. In this case, we can assume that the alignment of the chromophore fragments in investigated NLO polymer films could be easier to implement, and perhaps, higher poling efficiency and greater macro second-order polarizabilities in these materials could be achieved.^27,28

Thermal analysis

Thermal analysis of the polymer films based on glycidyl derivatives of quercetin was carried out in our previous work.¹⁴ It was showed that the increase in number of glycidyl substituents in the quercetin moiety results in the decrease of T_g, which could be explained by formation of the polymer networks with greater free volume. The growth of the free volume can be due to formation of a greater number of disordered regions in the polymer network of higher mobility of the polymer chains. In contrast with diglycidated quercetin, the use of tri- and tetra-glycidated monomers results in formation of the polymer networks having higher branching degree that sterically hinders a denser packing of the chain segments. This leads to amorphization of the obtained polymers and to the decrease of their T_g.

Figure 3 shows thermograms of the polymer films based on glycidyl ethers of quercetin-8-sulfonic acid sodium salt. It can be seen that the glass transition temperatures of the latter are lower than those of the polymer films based on quercetin glycidyl ethers studied previously. It is evident that substitution of a hydrogen atom by more voluminous sulfonic group results in changes of the supramolecular structure of the three-dimensional polymer and, consequently, in changes in orientational ordering of the chromophore fragments in the macromolecules. The additional effect leading to the increase in distance between chromophores is the negative charge of sulfonic groups, which is not completely neutralized by the counter ions. Thus, the additional amorphizarion of the obtained polymers and, as a result, the decrease in the glass transition temperature, in our opinion, could be explained by sterical hindrances and electrostatic interactions due to the presence of sulfonic substituents.

Figure 3.

DSC curves of polymers based on glycidyl ethers of sulfoquercetin.

Nonlinear optical activity and long-term stability of the polymer films

The macroscopic second-order susceptibilities (χ⁽²⁾) (at 1064 nm) in the polymer films were obtained. The former ones were calculated according to the one-dimensional rigid oriented gas model²⁹

χ^{(2)} (- 2 ω, ω, ω) = N β (- 2 ω, ω, ω) F 〈 \cos^{3} θ 〉

(1)

where N is the molecular number density; β is second-order susceptibilities of monomer units on molecular level; F is the local field correction factor; and

〈 \cos^{3} θ 〉

is the average alignment factor

〈 \cos^{3} θ 〉 = {(0.6 Φ)}^{1 / 2}

(2)

Φ is the order parameter characterizing the poling-induced dipole re-orientation of the chromophore moieties.

The parameter β for each monomer unit was determined by the solvatochromic method. The order parameter Φ was calculated from absorbance values of the films after (А1) and before (А0) the corona poling according to the equation³⁰

Φ = 1 - \frac{A_{1}}{A_{0}}

(3)

It can be seen (see Figure 2) that the absorption spectra of investigated polymers consist of several bands. To determine exact intensities of the long-wavelength band used for determination of Φ value, the absorption spectra were previously deconvoluted. The absorption bands deconvoluted from the polymer films spectra before and after poling procedure are presented in Figure 4.

Figure 4.

Uv-Vis spectra of polymers based on sulfoquercetin glycydyl ethers before and after poling (a) poly(2GESQ), (b) poly(3GESQ), (c) poly(4GESQ).

The physical parameters (as well as nonlinear optical ones on molecular level) of the monomer units of investigated polymers are listed in Table 1.

Table 1.

Dipole moments and molecular second-order susceptibilities (β) of monomers.

Substance	μ_g, × 10⁻²⁹cm	μ_eg, × 10⁻²⁹cm	μ_e, × 10⁻²⁹cm	^aβ_exp × 10⁻⁴⁰, m⁴/V
2GESQ	1.76	1.68	10.15	398.12
3GESQ	1.98	2.42	8.92	262.64
4GESQ	1.67	0.69	11.86	31.55

^aβ_esu = 2.368 × 10⁹β_SI.

As follows from Table 2, β value of the monomers decreases on going from 2GESQ to 4GESQ, and in the case of the 4GESQ, the β value is substantially lower than that for other glycidylated quercetin-8-sulfonic acid sodium salts. It is noteworthy that this effect is evidently connected with a degree of substitution hydroxyl groups by glycidyloxy ones and does not take place in the case of none-sulfonated compounds. It is evident that the phenomenon can be explained by peculiarities of electronic structure of the molecules investigated, namely, by substituent-dependent electronic density re-distribution between the molecular fragments and, consequently, by electrical charge value on the chromophore fragment.

Table 2.

Nonlinear parameters of the polymers based on glycidyl ethers of quercetin-8-sulfonic acid sodium salt.

Substance	N, molecules × cm⁻³	F	<cos³θ>	^aβ × 10⁻³⁰ esu	^bχ⁽²⁾, pm × V⁻¹
poly (2GESQ)	2.13 × 10²¹	4.40	0.19	94.24	70.3
poly (3GESQ)	1.83 × 10²¹	4.14	0.15	62.19	28.4
poly (4GESQ)	1.68 × 10²¹	4.30	0.11	7.47	2.5

^aThe second-order molecular susceptibilities of the corresponding monomers in electrostatic(esu) units.

^bχ⁽²⁾ (SI) = (4π/3) × 10⁻⁴χ⁽²⁾(esu).

It is known that a chromophore fragment responsible for spectral properties of flavonol molecules (to whom quercetine is related) is the chromone one. The side phenyl ring of flavonols almost always plays the role of an auxochrome fragment which affects the charge redistribution between itself and the chromone moiety depending on number and electron-releasing ability of the substituents in both fragments. Usually, substituent-controlled interfragmental charge redistribution leads to not very remarkable changing of the charge on the chromon fragment that explains not very substantial changes in the spectral properties of flavonols, particularly, the second-order susceptibilities.

The chromone fragment in 2GESQ, 3GESQ, and 4GESQ has substantial negative charge due to the presence of sulfonic group. In this case, the role of the side phenyl fragment increases substantially, and in particular, the degree of the interfragmental electronic density redistribution much drastically depends on the electron-releasing ability of the substituents in the side ring. Hydroxyl groups having high electron-releasing ability prevent the charge transfer onto phenyl ring, and the negative charge on the chromone fragment remains significant. Substitution of hydroxyl groups by glycidyloxy ones, having weaker electron-releasing ability, results in more intensive charge transfer onto the phenyl ring and in lower negative charge on the chromone moiety, correspondingly.

The estimations of negative charge on the chromone moiety made by the DFT method show that the glycidylation of quercetine up to 3,7,3′,4′-tetraglycidylquercetin (5-hydroxy group cannot glycidylated due to its very low acidity) results in unsignificative decrease of the negative charge on the chromone moiety—from −0.046ē to −0.044ē (Δq = −0.002ē). In the case of sulfonated quercetin similar glycidylation leads to changing of the chromone charge from −0,413ē to −0.365ē (Δq = −0.048ē).

So, we suggest that the decreases in the molecular second-order susceptibilities is connected with the decrease of negative charge on the chromone fragment when all hydroxyl groups of the side phenyl cycle are substituted by glycidyloxy groups of the low electron-releasing ability.

Values of the macroscopic second-order susceptibilities of corresponding polymers are listed in Table 2.

It can be seen that values β and χ⁽²⁾ decrease on going from poly (2GESQ) to poly (4GESQ). This phenomenon can be explained by the rigidity of the chromophore environment. Poly (2GESQ) has linear polymer chains, and it is of a “softest” structure, and in its case, the poling procedure results in a maximal re-orientation of the chromophore fragments and a maximal anisotropy effect achievement. Poly (3GESQ) and poly (4GESQ) are network polymers, the later one has higher crosslink degree, and its polymer network is more rigid. In the case of these polymers, the poling does not allow us to achieve the maximal re-orientation of the chromophore fragments, and anisotropy of the after-poling samples is lower for poly (3GESQ) and much lower for poly (4GESQ).

One of the most important parameters of NLO polymer films is the long-term stability of their nonlinear optical properties after turning off the applied electric field. It was previously shown that the rate of the second-harmonic intensity decreases after turning off the applied electric field depends on chemical structure of a polymer, the nature of non-specific and specific interactions between fragments of chains and free volume of the polymer network.¹⁴

The relaxation behavior of the NLO properties of investigated polymer films was studied by measuring the dependence of χ⁽²⁾_t/χ⁽²⁾₀ ratio on time at ambient temperature during 28 days. Figure 5 shows that the polymers obtained from 4GESQ demonstrate the higher long-term stability of the NLO properties than polymers obtained from 2GESQ and 3GESQ monomers. The relaxation processes in poly4GESQ take place during 3–5 days, and lead to decrease of χ⁽²⁾_t/χ⁽²⁾₀ ratio by about 30%. In the case of poly2GESQ and poly3GESQ, relaxation processes top in 25–28 days, and χ⁽²⁾_t/χ⁽²⁾₀ values decrease twice times approximately.

Figure 5.

Long-term stability of the NLO polymer films at 25^oC for 28 days.

Changing of χ⁽²⁾_t/χ⁽²⁾₀ values can occur by two simultaneous pathways. First, the decrease in χ⁽²⁾_t/χ⁽²⁾₀ can be due to the post-curing process, which is characteristic of cross-linked polymers, and especially, for epoxy polymers.³¹ It is additional crosslinking of the polymer network, which occurs during 2–5 days and results in disordering of the chromophore fragments and in fall of the NLO properties of the polymer films. The second and, probably, main pathway is the thermal motion of the chromophore fragments and the chain fragments connecting them. The most rigid network of poly4GESQ prevents free rotation of the chromophore fragments in the polymer chains and motion of the chains leading to changing of the chromophore positions. Thus, the ordered orientation of chromophores obtained due to the poling process does not change significantly over time. In the case of polymers poly2GESQ and poly3GESQ of the lower rigidity, the thermal motion of the chromophore fragments and polymer chains is more intensive that explains longer relaxation process over time and greater decrease in χ⁽²⁾_t/χ⁽²⁾₀ values. However, it is worth to note a factor limiting the relaxation processes in poly3GESQ and especially in poly2GESQ polymers. The chromophore fragments of poly3GESQ and poly2GESQ have one and two free hydroxyl groups, respectively, which form a strong “physical” network due to hydrogen bonds between the chromophores and hydroxyl groups in the polymer chains.³² The presence of such a network limits free motion of the polymer chains and chromophore fragments and thus prevents the NLO property losses.

Conclusions

New linear (2GESQ) and cross-linked polymers (3GESQ and 4GESQ) based on glycidyl ethers of quercetin sulfonic salt were synthesized. All obtained polymers are characterized by the high refractive indices and the great thermal stability. It was found that the polymers obtained from 2GESQ and 3GESQ have higher values of macroscopic quadratic susceptibility, than 4GESQ-based polymer. However, poly4GESQ polymers show a long-term stability of the NLO properties, while the 2GESQ and 3GESQ polymers undergo the relaxation process resulting in decrease of the NLO effect.

The obtained results allow us to conclude that the 2GESQ- and 3GESQ-based polymers could be used as NLO media in various photonics and optoelectronic applications.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: The authors acknowledge the financial support of this research by the Ministry of Education and Science of Ukraine (Project No. 0119U002536).

ORCID iD

Dmytro Mishurov

References

Gao

Qin

Liu

, et al. Design and preparation of novel Diels–Alder crosslinking polymer and its application in NLO materials. J Mater Sci Mater Electron 2017; 28(12): 8480–8486.

Liu

Gao

Kityk

, et al. Optimization of polycyclic electron-donors based on julolidinyl structure in push–pull chromophores for second order NLO effects. Dyes Pigm 2015; 122: 74–84.

Farsadpour

Taghizadeh Ghoochany

Kaiser

, et al. New class of hyperpolarizable push–pull organic chromophores by applying a novel and convenient synthetic strategy. Dyes Pigm 2016; 127: 73–77.

Liu

, et al. Recent advances in polymer electro-optic modulators. RSC Adv 2015; 5(21): 15784–15794.

Shi

Luo

Huang

, et al. Achieving excellent electro-optic activity and thermal stability in poled polymers through an expeditious crosslinking process. J Mater Chem 2012; 22(3): 951–959.

Yesodha

Sadashiva Pillai

Tsutsumi

. Stable polymeric materials for nonlinear optics: a review based on azobenzene systems. Progr Polym Sci 2004; 29(1): 45–74.

Suresh

Ramanand

Jayaraman

, et al. Review on theoretical aspect of nonlinear optics. Rev Adv Mater Sci 2012; 30(2): 175–183.

Qin

. New design strategies for second-order nonlinear optical polymers and dendrimers. Polymer 2013; 54(17): 4351–4382.

Bell

Rawlings

Long

, et al. Poling and crosslinking processes in NLO polymers. J Polym Sci A: Polym Chem 2014; 52(19): 2769–2775.

10.

Ulrich

Barsella

Boeglin

, et al. BODIPY-bridged push-pull chromophores for nonlinear optical applications. Chem Phys Chem 2014; 15(13): 2693–2700.

11.

Day

Pachter

Nguyen

. Analysis of nonlinear optical properties in donor–acceptor materials. J Chem Phys 2014; 140(18): 184308.

12.

Wojciechowski

Raposo

Castro

, et al. Nonlinear optoelectronic materials formed by push–pull (bi)thiophene derivatives functionalized with di(tri)cyanovinyl acceptor groups. J Mater Sci Mater Electron 2014; 25(4): 1745–1750.

13.

Zhang

, et al. Novel second-order nonlinear optical chromophores containing multi-heteroatoms in donor moiety: Design, synthesis, DFT studies and electro-optic activities. Dyes Pigm 2014; 102: 142–149.

14.

Mishurov

Voronkin

Roshal

, et al. Relaxation behavior and nonlinear properties of thermally stable polymers based on glycidyl derivatives of quercetin. Opt Mater 2016; 57: 179–184.

15.

Mishurov

Voronkin

Roshal

. Synthesis, molecular structure and optical properties of glycidyl derivatives of quercetin. Struct Chem 2015; 27(1): 285–294.

16.

Doroshenko

. Spectral Data Lab Software. Kharkiv: V.N.Karazin Kharkiv National University; 1999.

17.

Mishurov

Voronkin

Roshal

, et al. Influence of structure 3,5,7,3′, 4′–pentahydroxyflavone-based polymer films on their optical transparency. Opt Mater 2017; 64: 166–170.

18.

Labanowski

Andzelm

(eds). Density Functional Methods in Chemistry. New York: Springer-Verlag; 1991, p. 443.

19.

Becke

. A new mixing of Hartree–Fock and local density‐functional theories. J Chem Phys 1993; 98(2): 1372–1377.

20.

Francl

Pietro

Hehre

, et al. Self‐consistent molecular orbital methods. XXIII. A polarization‐type basis set for second‐row elements. J Chem Phys 1982; 77(7): 3654–3665.

21.

Hariharan

Pople

. The influence of polarization functions on molecular orbital hydrogenation energies. Theor Chim Acta 1973; 28(3): 213–222.

22.

Frisch

Trucks

Schlegel

, et al. Gaussian 09, Revision C.02. Wallingford: Gaussian, Inc., 2004.

23.

Mishurov

. The sulfonation of 3,5,7,3’,4’-pentahydroxyflavone and non-linear-optical activity of its sulfonic derivatives. Chem Chem Technol 2019; 13(1): 33–37.

24.

Woźnicka

Pieniążek

Zapała

, et al. New sulfonic derivatives of quercetin as complexing reagents: synthesis, spectral, and thermal characterization. J Therm Anal Calorim 2014; 120(1): 351–361.

25.

Ouyang

Liu

, et al. Preparation of main-chain polymers based on novel monomers with D−π–A structure for application in organic second-order nonlinear optical materials with good long-term stability. ACS Appl Mater Inter 2017; 9(12): 10366–10370.

26.

Liu

Zhang

Xiao

, et al. Auxiliary donor for tetrahydroquinoline-containing nonlinear optical chromophores: enhanced electro-optical activity and thermal stability. J Mater Chem C 2015; 3(36): 9283–9291.

27.

Qin

. Some new design strategies for second-order nonlinear optical polymers and dendrimers. Polym Chem 2011; 2(12): 2723.

28.

Yang

Hao

, et al. Synthesis and nonlinear optical properties of novel conjugated small molecules based on coumarin donor. J Mater Sci Mater Electron 2019; 30(22): 19977–19983.

29.

Xie

Liu

Huang

, et al. Synthesis and non-linear optical properties of four polyurethanes containing different chromophore groups. Eur Polym J 2001; 37(3): 497–505.

30.

Xie

Huang

Guo

. Synthesis and properties of two kinds of nonlinear optical interpenetrating polymer networks. J Appl Polym Sci 1996; 60(4): 537–542.

31.

Moller

Berry

Foster

. On the nature of epoxy resin post-curing. Polymers 2020; 12(2): 466.

32.

Mishurov

Roshal

Brovko

. Influence of residual solvent on relaxation behavior of polymer films based on glycidyl derivatives of 3, 5, 7, 3',4'-pentahydroxyflavone. Funct Mater 2017; 23(4): 068–075.
