Abstract
Total pancreatectomy and islet autotransplantation (TPIAT) is an effective treatment for selected patients with chronic pancreatitis. The portal circulation is the standard infusion site for islet transplant, but marked elevation of portal pressures may prevent complete islet infusion. Herein we report a novel technique of combined site islet autotransplantation using an omental pouch. This technique may be useful when technical limitations prevent complete intraportal transplantation. In four TPIAT recipients with intraoperative issues precluding the complete intraportal infusion of islets, an omental pouch was created to contain the remaining islet mass. Patients were monitored for complications, and islet graft function was assessed using mixed meal tolerance testing and compared with matched controls who received only intraportally transplanted islets. All patients had decreasing insulin requirements as their recovery progressed. At 3 months follow-up there were no significant differences in glycemic control or graft function for the combined site recipients compared with their matched controls who only received an intraportal islet infusion. The omentum has potentially desirable qualities such as accessibility, capacity, and systemic/portal vascularity comparable to the native pancreas. The omental pouch technique may represent a safe and effective alternate site for islet autotransplantation. Further study is needed to confirm these findings.
Keywords
Introduction
Total pancreatectomy and islet autotransplantation (TPIAT), first performed in 1977, is an effective treatment for relief of pain from severe chronic pancreatitis (CP) while reducing the likelihood of brittle diabetes associated with pancreatectomy alone 1,2 . In current practice, the portal venous system is the primary site for infusion of isolated islets due to its ease of use for islet infusion and demonstrated efficacy for restoring beta cell function. However, the intraportal infusion site carries several important limitations including the risk for portal vein thrombosis and bleeding that can occur related to elevated portal pressures, and the early loss of islet mass resulting from the instant blood-mediated inflammatory response (IBMIR) triggered by the islet infusion 3 –5 . In cases where portal pressures remain elevated during infusion, alternative sites for transplantation of the remaining islets are used, since total transplanted islet mass is a critical determinant of future insulin independence 6,7 . Many alternate sites have been explored, including but not limited to the omentum, peritoneum, gastric submucosa, and renal subcapsule; however, these sites are associated with limitations of capacity, complications, or questionable functional outcome 8 –18 . The omentum is an attractive alternative site because it is easily accessible intraoperatively, lacks volume restrictions, and is highly vascularized with portal venous drainage simulating the native pancreatic endocrine pathway 8,9 .
Baidal et al. recently reported a patient achieving insulin independence during 1 year of follow-up after an islet allotransplantation into the omentum in a type 1 diabetic recipient 19 , providing evidence the omentum can be used as an alternative to intraportal islet transplantation. There are important contrasts between islet allo- and autotransplantation. Islet allografts are smaller volume, purified islet preparations administered concomitantly with immunosuppression. In contrast, autografts are typically unpurified cell preparations that contain a larger amount of exocrine tissue, with different magnitudes of innate inflammatory response and apoptosis that may impact the early engraftment of the islet mass. Autograft patients do not require immunosuppression.
Herein we report the early outcomes of the first series of patients who received a portion of their islet autotransplantation into the omentum after intraoperative features precluded complete intraportal islet infusion.
Case Report
Case 1
A 35-year-old woman presented after multiple episodes of relapsing acute pancreatitis, which progressed to CP despite multiple endoscopic interventions over the course of 7 years. Given that her CP was complicated by persistent debilitating pain and continued weight loss, the patient was evaluated by our multidisciplinary team and deemed an appropriate candidate for TPIAT. She was not diabetic at the time of her procedure. Her islet isolation produced 6,822 IEQ/kg in a 17.5 mL tissue volume. During the islet infusion, the patient’s portal pressure elevation exceeded our safety threshold of 25 cm H2O above baseline; therefore, it was elected to transplant the remainder (25%) of her islet preparation into the greater omentum near the transverse colon, employing the omental pouch technique described below.
Case 2
A 63-year-old woman was diagnosed with CP attributed to sphincter of Oddi dysfunction 4 years prior to TPIAT. She had failed maximal endoscopic therapy and eventually required feeding tube placement for severe pain with oral intake and consequent malnutrition. The patient was deemed to be a candidate for TPIAT after careful review. The patient was not diabetic prior to surgery. The islet yield after processing was 2,750 IEQ/kg in a tissue volume of 15 mL. While infusing islets into the portal venous system, there was an increase in portal pressure greater than 25 cm H2O above baseline, and the remainder (36%) of her islets were placed in an omental pouch fashioned from the greater omentum near the transverse colon.
Case 3
The patient is a 49-year-old man with CP secondary to alcohol consumption with pain for 2 years prior to his operation. The patient failed endoscopic intervention and required a jejunal feeding tube secondary to severe pain with oral intake. He had no insulin requirements at the time of operation but was pre-diabetic by glycosylated hemoglobin of 5.9% and a fasting glucose of 101 mg/dL. He reported alcohol abstinence, a requirement at our institution, leading up to his procedure. The patient’s islet yield was 3,786 IEQ/kg in a tissue volume of 24 mL following pancreas processing. During intraportal islet infusion, the catheter was inadvertently displaced and the remainder (12%) of his islet yield was transplanted into an omental pouch.
Case 4
The patient is a 26-year-old woman with relapsing acute pancreatitis secondary to abdominal trauma suffered during a motor vehicle accident 6 years prior to her procedure. Despite attempts at endoscopic management, the patient’s pain increased and she eventually required a gastro-jejunal feeding tube secondary to constant pain and vomiting associated with oral intake. Following a careful review by our multidisciplinary team, she was deemed an appropriate candidate for TPIAT. The patient was not diabetic at the time of her procedure. Her islet yield was 6,778 IEQ/kg in a 40 mL tissue volume. During the islet infusion, the catheter was displaced. At the time of displacement, the patient’s portal pressure was 25 cm H2O above baseline, and the decision was made not to replace the catheter and the remainder (36%) of her islets were placed in an omental pouch.
Materials and Methods
Surgical Technique
Total pancreatectomy and islet isolation were performed as previously described 20,21 . At our institution, islets are infused following gastrointestinal reconstruction. Heparin (70 units/kg) is administered, and the portal venous system is accessed by cannulation of the splenic vein, middle colic vein, or superior mesenteric vein. The islet preparation is infused via gravity into the intrahepatic portal venous circulation. A manometer is used to monitor portal pressures prior to infusion, halfway through infusion, and at the end of infusion. If the change in portal pressure during islet infusion rises >25 cm H2O above baseline, infusion is paused and pressure is reevaluated after an additional 15 minutes. If portal pressures remain elevated above the 25 cm H2O threshold, the portal infusion is discontinued. In the aforementioned cases, the remaining islets were reserved for transplantation into an omental pouch.
In preparation for omental transplantation, the islets are allowed to settle from their solution to the bottom of the infusion bag before being drawn into a 60 cc syringe. A “bowl” of omentum is created by lifting up edges of the omentum from the transverse colon (Fig. 1a). The islets are dripped into the “bowl” and Evicel (Johnson & Johnson Wound Management, Somerville, NJ), a fibrin sealant, is applied over the islets, helping to affix them to the omentum to facilitate engraftment. The omental pouch is closed using a running suture (Fig. 1b) and surgical clips are placed on the borders of the pouch to aid in later identification of the area of transplant.

Omental pouch creation. (a) Pouch is created by lifting up edges of omentum. The concentrated islet preparation is dripped on to the omentum and affixed using a fibrin sealant hemostatic agent. (b) After islets have been affixed with the hemostatic agent, the pouch is sealed with a running 3-0 Vicryl suture.
Mixed Meal Tolerance Testing
Post-operatively, all patients are managed with insulin to promote strict euglycemia for approximately 3 months and prevent undue stress and resultant apoptosis of the islets during engraftment 22,23 . At 3 months post-operatively, patients undergo a mixed meal tolerance test (MMTT) to assess graft function. After an overnight fast, patients drink Boost High Protein (HP) (Nestle Health Science, Bridgewater, NJ, USA) 6 mL/kg body weight (maximum 360 mL). Serum glucose and C-peptide levels are obtained at 0, 60, and 120 minutes to measure the response to Boost HP consumption. Hemoglobin A1c (HbA1c) is measured as a marker of average glycemic control, and insulin dose is assessed by patient report or patient logbook.
Control Patient Selection
A control population was selected from the TPIAT database maintained by the University of Minnesota. Control patients had undergone TPIAT with all islets infused via the intraportal route. Two control patients were matched with each of the four omental pouch cases described above based on sex, age, body mass index (BMI), and IEQ/kg (Table 1). Patients were excluded from consideration as potential matched controls if they had diabetes prior to treatment, as none of the patients receiving the omental pouch technique had diabetes or insulin requirements prior to operation. Patients were also excluded from consideration if they had incomplete follow-up data.
Characteristics of Cases and Controls.
Mean values displayed for control patients unless both values are displayed.
TPIAT = Total pancreatectomy islet autotransplantation, BMI = Body mass index, IEQ = Islet equivalent.
* Islet equivalent defined as a pancreatic islet with a diameter of 150 µm.
Statistical Analysis
Omental pouch patients were compared with their matched intraportal controls using a two-tailed Student’s
Results
Hospital Course and Early Follow-up
None of the four omental pouch recipients experienced intraoperative complications. Post-operatively the first patient’s islet preservation solution grew
Graft Function
All patients maintained close clinical follow-up after their discharge from the hospital and progressively decreased their daily basal insulin requirements. At 3 months post-operatively, patient 1 required 6 units of basal insulin, patient 2 required 7 units, patient 3 required 13 units, and patient 4 required 5 units. All patients saw an increase in their HbA1c from their pre-operative levels with values of 5.5, 5.9, 6.1, and 5.4, respectively. MMTT was conducted at 3 months after surgery and compared with their pre-operative baseline (Fig. 2). As expected in the early post-operative course, glucose levels rose and C-peptide levels fell in comparison to pre-operative measurements, but all omental pouch recipients undergoing post-operative graft function assessments had partial islet graft function based on C-peptide levels. At 3 months post-operatively, the cases with a partial omental pouch infusion had similar fasting glucose, 120 minute glucose and peak C-peptide measurements to the matched control group (Table 2). Additional diabetes outcomes HbA1c and daily basal insulin use demonstrated no significant differences between omental pouch and control patients.

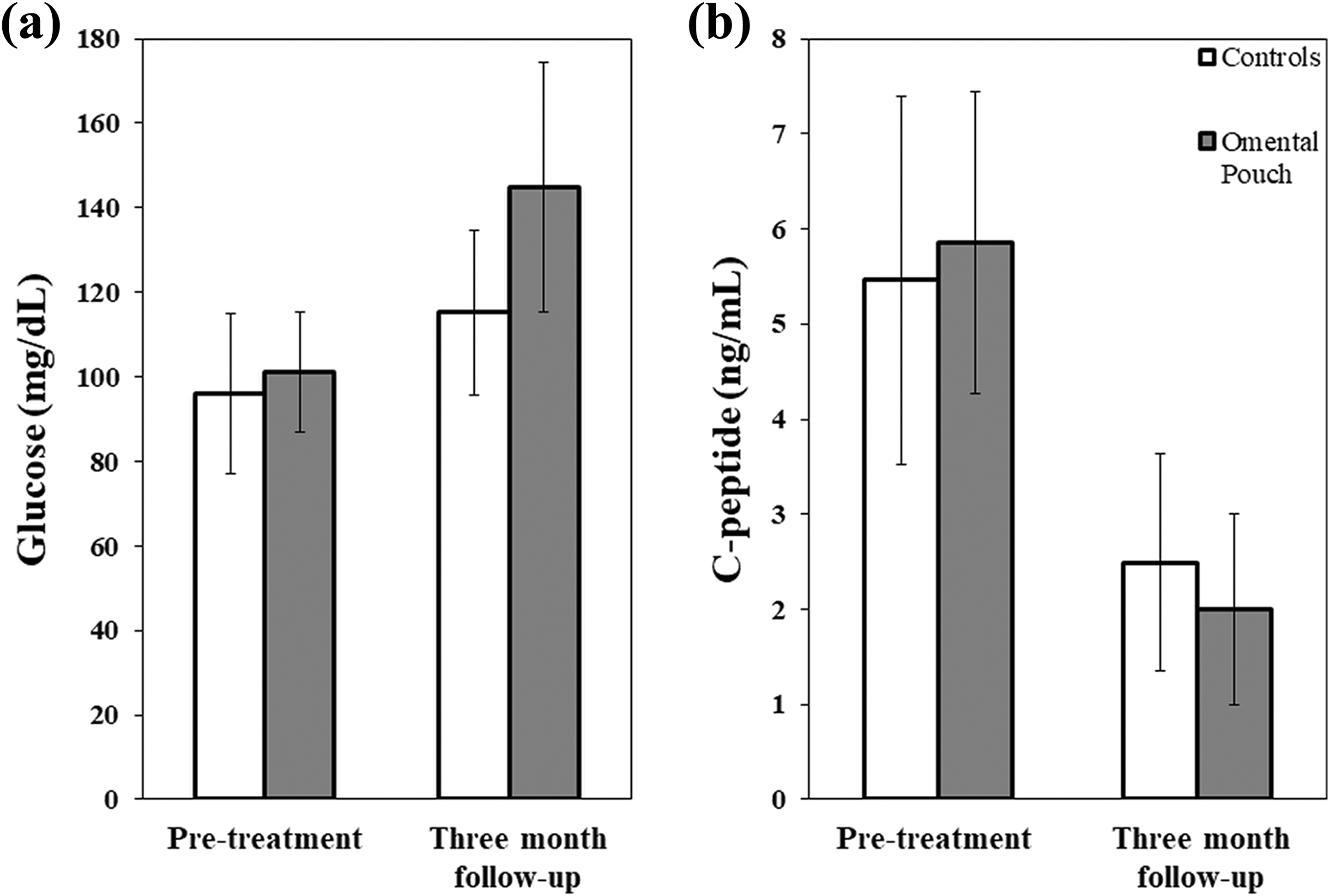

Comparison of pre-TPIAT and 3-month follow-up glycemic function in omental pouch recipients and their matched controls. Histogram bars represent mean pooled values for all patients in a respective group. Error bars show a single standard deviation. (a) 120 minute glucose results. No significant differences between groups. (b) Peak C-peptide, represented by maximum C-peptide value obtained during MMTT. No significant differences between groups.
Comparison of graft function between cases and controls at 3 months post-operatively.
All values are continuous, represented with mean (SD).
MMTT = Mixed meal tolerance test.
Discussion
The patients receiving islet autotransplantation utilizing a combined intraportal and omental pouch technique had similar early post-operative outcomes compared with patients receiving their entire islet mass intraportally. Early graft function and glycemic control suggest combined site outcomes are comparable to the complete intraportal recipients. Based on these early results, transplanting a portion of the islet mass via the omental pouch technique represents a safe and practical treatment option for patients unable to tolerate a complete intraportal infusion of the islet preparation.
The portal venous system is the most common site for islet autotransplantation; however, it has several shortcomings. As described earlier, elevated portal pressures from intraportal islet infusion can produce life-threatening complications such as bleeding and portal vein thrombosis. Elevated portal pressures have been associated with transplanting large-volume islet preparations intraportally 4 . Islet preparation volume reduction is possible through density gradient purification. However, this process significantly reduces islet mass 24 thereby lessening the chance for future insulin independence, and thus purification is generally avoided at our institution unless the tissue volume exceeds 0.25 mL/kg body weight. Insulin independence has been shown to provide a significantly higher physical quality of life in patients undergoing TPIAT 25 , thus preserving the islet mass is of great importance.
Rates of insulin independence decrease over time after undergoing TPIAT, due to loss of transplanted islet mass. One suspected early contributor to islet loss is the IBMIR, a nonspecific inflammatory reaction involving coagulation, complement activation, and inflammatory cell infiltration. IBMIR has been well characterized in allograft islet transplants, negatively affecting islet survival, and more recently has been demonstrated in an islet autotransplantation in vitro model 5 . Direct blood contact is required for IBMIR, making any intravascular transplant site, such as the portal venous system, a risk factor for islet loss and thrombotic complications 26 . Given the complications and significant islet loss associated with IBMIR, extrahepatic sites for islet autotransplantation have been investigated as potential alternatives.
While numerous sites have been investigated (Table 3), the omentum offers distinct advantages including capacity, accessibility, and physiologic environment. The omentum lacks any volume restrictions 11 , allowing consistent complete islet mass transplantation. The omentum is easily accessible during TPIAT, and can easily be found later if needed for subsequent evaluation or biopsy, as evidenced by our experiences with our omental pouch patient that required a re-operation. Furthermore, the omentum provides portal venous drainage and good arterial supply for nutrient delivery, mimicking native islet physiology.

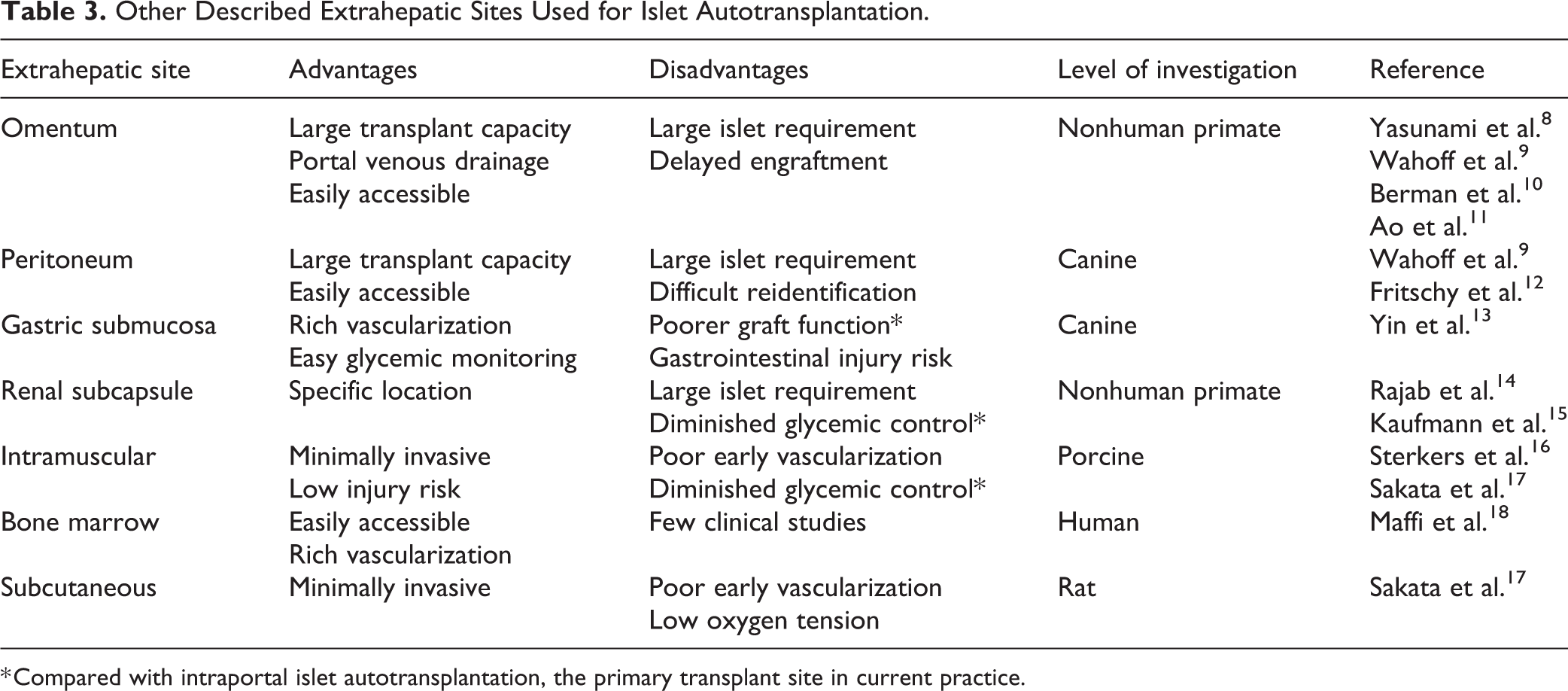

Other Described Extrahepatic Sites Used for Islet Autotransplantation.
* Compared with intraportal islet autotransplantation, the primary transplant site in current practice.
Although the omentum has substantial benefits, previous research has suggested that it requires a larger islet mass for successful graft function and has a longer period before function is observed 10 . The peritoneum and gastric submucosa offer other easily accessible options during TPIAT, and have been historically used at our institution if the entire islet preparation volume cannot be placed intraportally. The peritoneum, like the omentum, lacks volume restrictions; however, evidence for post-operative glycemic control is inconsistent. In nonhuman studies, it has been suggested insufficient parasympathetic reinnervation to the islet graft leads to abnormal glucose tolerance 12 , but other work suggests glycemic control can be attained with a sufficiently large transplanted islet mass 9 . In addition, subsequent identification of the islet graft is difficult. The gastric submucosa has portal venous drainage and vascular density suggesting a potentially successful islet transplant site, but islet autotransplantation in canines showed poorer graft function when compared with the intraportal site 13 .
Our report describes a simple technique used for omental pouch islet autotransplantation which maximizes contact surface area for the transplanted islets, a desirable aspect noted in other studies 27,28 . Previous research has discussed preventing islet leakage by using sutures to close the omental pouch, but suturing should be minimized to lessen the disruption of omental revascularization 28 . Islet survival is heavily influenced by the microenvironment, and three-dimensional scaffoldings have been shown to recreate the islet microenvironment better than free-floating islets by preventing clumping and promoting vascularization 29 . We created a fibrin scaffold produced by applying a hemostatic gel agent on top of the transplanted islets. Using a technique with similar methodology, Baidal et al. 19 published results from a patient receiving islet omental allotransplantation for type 1 diabetes. The authors layered the islets on to the omentum and secured the islets with a fibrin scaffold derived from plasma obtained from the transplant recipient. Shortly after the procedure, their patient achieved insulin independence. At 12 months, the patient maintained insulin independence without hypoglycemic events.
The complications that were experienced by these patients were likely not attributable to the omental pouch technique. Delayed gastric emptying and
Our study possesses several limitations that must be recognized. First, we have a small sample size with four patients utilizing the omental pouch transplant site. While similar early post-operative graft function was observed between groups, this could be an artifact of a limited sample. Second, we have a short post-operative follow-up period available. At the time of publication, our patients had only reached their 3-month follow-up when graft function is first assessed after TPIAT. Recovery from TPIAT and islet engraftment can be a lengthy process, and 3 months is an early time point. It is unknown whether long-term islet transplant function will remain similar for the two groups. Third, metabolic testing using MMTT and HbA1c assesses the overall graft function and is unable to specifically determine the viability of islets transplanted to the omental pouch. Therefore, it is possible the metabolic outcomes observed in omental pouch recipients are driven by the islets transplanted intraportally.
Conclusions
The omental pouch technique appears to be a safe and functional alternate site for islet autotransplantation which can be useful when complete intraportal infusion is precluded. The patients in which this technique was performed experienced similar early graft function and glycemic control compared with patients receiving their entire islet mass intraportally. Further studies involving a larger sample of omental pouch recipients with longer follow-up are necessary to more completely assess the efficacy of this technique; however, based on our limited experience, the omental pouch technique is a reasonable alternative when a completely intraportal islet autotransplantation is contraindicated.
Footnotes
Ethical Approval
This study was approved by the Institutional Review Board of the University of Minnesota.
Statement of Human and Animal Rights
The Procedures followed were in accordance with the ethical standards of the responsible committee on human experimentation (Institutional Review Board of the University of Minnesota).
Statement of Informed Consent
Written informed consent was obtained from all patients.
Declaration of Conflicting Interests
The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.
Funding
The authors disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: Mariya Skube is supported by NIH/NIDDK T32DK108733.
