Abstract

Electrochemical discharge machining has been proved to be efficient micro-machining process and significantly used for the machining of non-conductive materials. The miniaturized products have gained advantages in Lab-on-a-chip devices and microelectromechanical system because of advancement in technology. The challenge to produce micro features has been suitably addressed by electrochemical discharge machining and emerged as potential contender in generating micro holes and micro channels on electrically non-conductive materials. This article includes state-of-art review on different domains of electrochemical discharge machining, which includes work piece, electrolyte, behaviour of tool electrode, gas film formation, machining quality along with recent hybridizations in electrochemical discharge machining process. The conclusion focuses or summarizes the future research trends for enhancement of electrochemical discharge machining efficiency and tackles problems encountered in machining.

Keywords

Electrochemical discharge machining materials electrolytes tool electrode gas film formation machining quality

Introduction

The non-conductive materials has gained reputation in various application like ‘Lab-on-chip’ devices, microelectromechanical system (MEMS), microreactors, micro pumps, biomedical applications, and so on.¹ Miniature products are generated by various techniques or process such as micro electrical discharge machining (µ-EDM), wire electrical discharge machining (WEDM) and LASER beam machining. The applications and process capability of these processes are limited and depend upon the materials properties.^2,3 Most of these processes are limited to conductive nature of work piece. Therefore, there is a requirement to develop a machining process that can handle a variety of materials along with enhanced process capability. The electrochemical discharge machining (ECDM) process is a promising field of research in machining of materials irrespective of their mechanical, thermal, or chemical properties. It is a hybrid machining process having advantages of electrochemical machining (ECM) as well as electrical discharge machining (EDM). The ECDM process is more precisely used for machining of electrically non-conductive materials. Other advanced manufacturing processes like abrasive water jet machining (AWJ), ultrasonic machining (USM) and so on are also used for micro-machining of hard and brittle materials.^4,5 ECDM process combined the advantages of both EDM and ECM process and more appropriate for machining of electrically non- conductive materials.⁶

The generation of electrical discharge at anode tip was initially observed by Taylor⁷ in year 1925. But drilling in glass using ECDM was performed by Karafuji and Suda⁸ in 1968. The basic schematic diagram of ECDM is shown in Figure 1. The experimental setup consists of two electrodes, that is, tool electrode, acts as cathode and an auxiliary electrode, acts as anode. During machining, the material to be machined is placed below the tool electrode and partially immersed in electrolyte. The tool electrode is immersed up to few millimetre in electrolyte and auxiliary electrode is placed at few centimetres away from cathode electrode. Regulated direct current (DC) power supply is used for initiation of the electrolysis process. As the applied voltage is lowered than critical voltage (puncture strength of the gas film), the electrolysis process starts and hydrogen bubbles are generated at the cathode tip. With the increase in the current density at cathode electrode, the size of hydrogen bubbles increases and coalescence to form a gas film. This gas film acts as an insulating layer between tool electrode and electrolyte.⁹ As the applied voltage is higher than critical voltage, the spark is initiated. The spark produced in the close vicinity of tool electrode results in melting, vaporizing and thermally eroding of the workpiece due to discharge energy.¹⁰

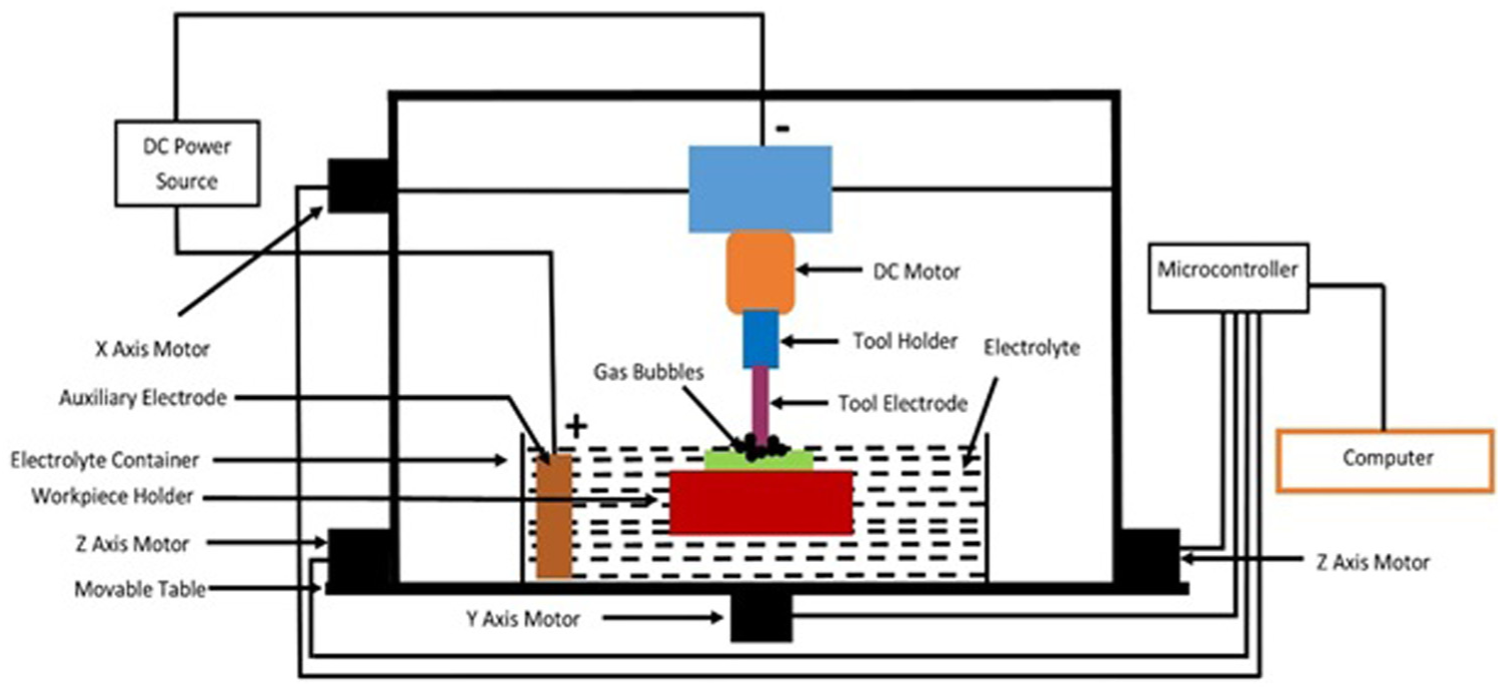

Figure 1.

Schematic diagram of ECDM.

The research fraternity explored the various domains of ECDM process and come out with different views on spark generation, gas film formation, material removal mechanism and so on. Ghosh¹¹ claimed that electrical spark is produced due to switching phenomenon, not due to the breakdown of the insulating gas layer. On contrary, Jalali et al.¹² described this phenomenon as a hybrid mechanism based on a combination of local heating and chemical etching. Jain et al.¹³ proposed arc discharge valve theory in mechanism of ECDM process due to inconsistency with switching phenomenon of Ghosh.¹¹ They concluded that discharge characteristics of ECDM process is quiet similar to arc discharge by Paschen’s curve. Whereas the Ghosh¹¹ reported discharge characteristics are similar to Townsend discharge by Paschen’s curve in ECDM process. With different hypothesis/philosophy on mechanism of sparking, the researchers designated ECDM process with different names such as electrochemical spark machining (ECSM) by Jain et al.,¹³ electrochemical arc machining (ECAM) by Crichton and Mcgeough,¹⁴ electro erosion dissolution machining (EEDM) by Khairy and Mcgeough,¹⁵ micro electrochemical discharge machining (µ-ECDM) by Langen et al.¹⁶ and spark-assisted chemical engraving (SACE) by Fascio et al.¹⁷

The ECDM process is complex process which contains large number of process parameters. The number of parameters which influence performance of ECDM process represents in cause and effect diagram as shown in Figure 2. The machining parameters, tool materials and electrolyte properties play vital role for machining quality characteristics of ECDM. The machining parameters include voltage, inter-electrode gap, duty cycle, current, polarity and feed rate and so on and the tool material and electrolyte properties include type of electrolyte, electrolyte concentration, tool material, tool geometry and so on. This article aims to give a comprehensive state-of-art literature review in different domains of ECDM process such as work piece material, electrolyte, tool electrode and tool geometry, gas film formation and machining quality of ECDM process (Figure 3).

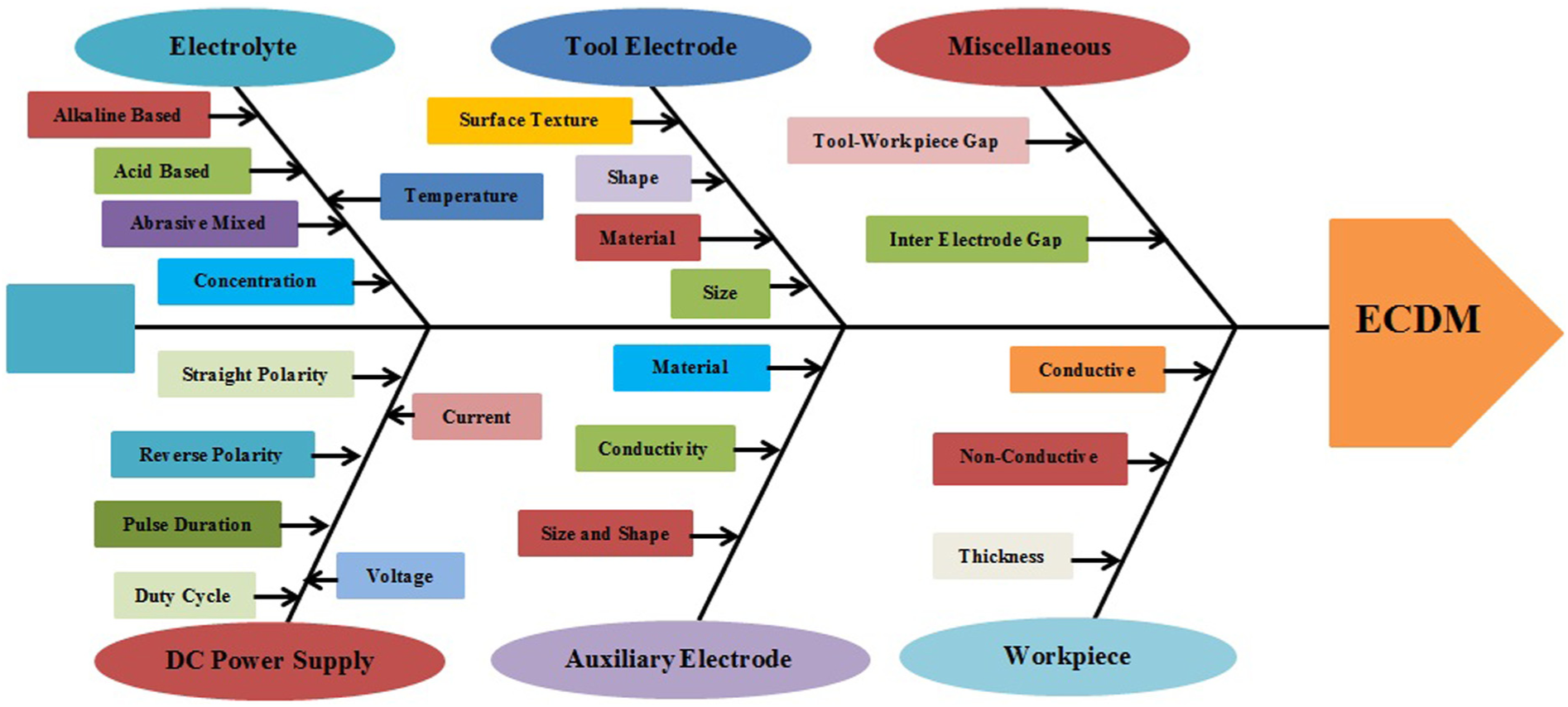

Figure 2.

Cause and effect diagram of ECDM process.

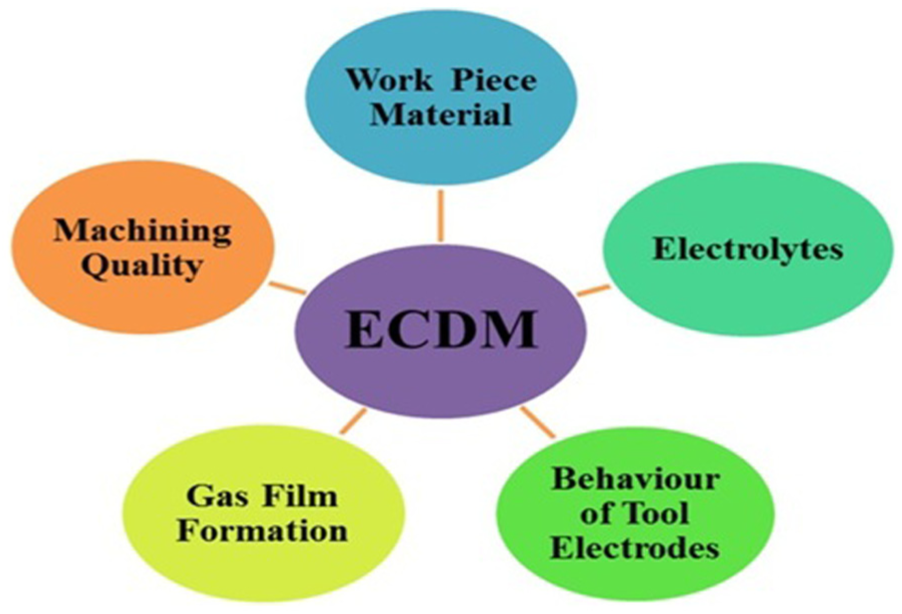

Figure 3.

Domains of ECDM process reviewed in this report.

Machining behaviour of work pieces materials under ECDM process

The ECDM is suitable to machine hard, brittle, conductive and non-conductive materials such as glass, ceramics, composites, steel plates and super alloy. This section elaborates literature survey of different materials machined on ECDM.

Glass and ceramics

The characteristic features of glass such as chemical resistance and transparency are responsible for their application in the field of Lab-on-a-chip devices and microelectromechanical systems (MEMS). In continuation to these features, several researchers reported the machining behaviour of glass using ECDM over a period of time. Wuthrich et al.^18–20 successfully drilled micro holes in glass by SACE. In this work, authors observed changes in gas film characteristics with addition of surfactant, that is, soap solution to electrolytes. The researchers claimed that main mechanism behind spark generation is the formation of gas film in electrochemical discharge phenomenon. During drilling of micro holes in glass, two regimes were reported,²¹ first, discharge regime (200–300 µm depth) and second, hydrodynamic regime (depth higher than 300 µm). The drilling speed in discharge regime acts as function of applied voltage owing to easy availability of electrolyte in the machining zone. Whereas in hydrodynamic regime, the behaviour of process parameters on drilling speed is not well established due to instability of gas film. This instability is because of limited electrolyte circulation at higher machining depths. Attempts have been made to address this problem in hydrodynamic regime using process modification such as vibration-assisted tool electrode.^22,23 The vibration-assisted tool electrode leads to enhancement in material removal rate (MRR) due to better circulation of electrolyte. On the contrary, an unconventional approach, that is, giving ultrasonic vibration to electrolyte has been attempted by Han et al.²⁴ The authors revealed that ultrasonic vibrations to electrolyte in ECDM process improves machining rate owing to better flushing of electrolyte during machining of glass. However, the side insulated tool electrode used in the experimentation reduces the overcut. Yang et al.²⁵ incorporate spherical tool electrode in machining of quartz by ECDM. The use of spherical tool electrode reduced instabilities encountered in hydrodynamic regime. It advances electrolyte flushing in hydrodynamic regime because of low contact zone between tool electrode and work piece. Jui et al.²⁶ analysed high aspect ratio micro machining of glass by rotary tool electrode in ECDM process. They revealed that rotation of tool improves circularity of hole, but it does not create any effects on critical voltage and critical current. Wei et al.²⁷ successfully modelled material removal mechanism in discharge regime but modelling mechanism in hydrodynamic regime is a complicated task due to lots of irregularities in machining zone. Similarly, in various studies, the effect of electrolyte concentration,^28–30 gas film,^31,32 tool electrode^33–35 and duty factor^36,37 is investigated on output quality characteristics of ECDM process.

Maillard et al.³⁸ observed that holes machined on glass by SACE at lower voltage and lower depth give smooth surface because of stable discharge regime. This finding is evident from the geometrical depiction of drilled holes. On the contrary, the holes machined at higher voltage and higher depth tend to produce heat affected zone (HAZ) and cracks on the drilled hole wall surface. The formations of cracks on machined surface were reduced with the addition of graphite powder in the electrolyte.³⁹ It is because of reduction in dielectric strength of gas film in machining zone. Cao et al.⁴⁰ reported the effect of change in electrolyte and electrolyte concentration on HAZ and overcut during machining of glass. The experimental results revealed that holes machined with KOH solution have less dimensional deviation as compared to hole machined with NaOH solution.

Later on, various research groups improved surface quality of glass and quartz with micro grinding–assisted ECDM,⁴¹ addition of SiC powder to electrolyte,⁴² pulse duration,⁴³ magnetic-assisted electrochemical discharge machining (MAECDM),^44,45 machining temperature,⁴⁶ pulsed supply⁴⁷ and tool feed rate.⁴⁸ Moreover, the use of tool electrode with different shapes such as conical,⁴⁹ tapered⁵⁰ and sharp edges⁵¹ evident efficient performance in terms of quality characteristics. Jain and Adhikary⁵² observed machining of glass with different electrodes polarities. It is interesting to find out that ECDM process with reverse polarities experienced high machining rate due to chemical reactions. In addition to micro-drilling of glass by ECDM, the machining of micro-channels on glass,^53,54 surface texturing,⁵⁵ three-dimensional (3D) micro structuring of glass⁵⁶ have also been attempted by different researchers.

In the field of micro-machining, ceramics attained lots of attention due to their numerous applications in industrial field such as computer parts, heat exchanger and internal combustion engine.⁵⁷ The machining of partially electrically conductive piezoelectric ceramic using ECSM process has been reported by Singh et al.⁵⁸ They revealed that MRR is appreciably increased with increase in applied voltage and electrolyte concentration. A similar finding has been reported by Sarkar et al.,⁵⁹ during machining of silicon nitride ceramics by ECDM process. In addition, in the machining of silicon nitride ceramic, Shanmukhi et al.⁶⁰ compared modelling results of ECDM process by genetic algorithm (GA) and particle swarm optimization (PSO). Similarly, several studies have been reported on machining of aluminium oxide (Al₂O₃) ceramic such as controlled spark phenomenon with change in tool electrode tip,⁶¹ abrasive tool electrode,⁶² thermal expansion of tool,⁶³ electrolyte flow method,⁶⁴ micro slicing⁶⁵ and observed tool wear mechanism.⁶⁶

From the above extensive literature, the following finding can be drawn from the present status of research on machining of glass and ceramics by ECDM process:

Micro-drilling of glass is classified into two regimes, that is, discharge regime and hydrodynamic regime.

Surface characteristics of discharge regime are better than hydrodynamic regime.

Micro-machining of glass at low voltage and depth gives good surface characteristics.

Machining at higher depth, that is, hydrodynamic regime attained lots of irregularities due to low electrolyte circulation and instability of gas film.

The lack of electrolyte circulation at higher machining depth is improved by vibration-assisted ECDM.

Poor surface characteristics in machining of glass is successfully upgraded by use of powder mixed electrolyte, pulsed supply, MAECDM and different tool electrode shapes.

Micro-channels, surface texturing and 3D micro structuring of glass are successfully carried out by ECDM process.

Micro-machining of ceramics such as piezoelectric ceramic, silicon nitride ceramic and aluminium oxide ceramic are effectively carried out by ECDM process.

The tool electrode experiences thermal expansion during machining of ceramic.

Traveling wire electrochemical spark machining (TWECSM) is effectively used for micro-slicing of ceramics.

Ceramics is easily machined with change in tool electrode tip and electrolyte flow method in ECDM process.

Steel, composites and super-alloys

ECDM primarily used for machining of non-conductive materials as elaborated and discussed in the previous section. The process capability of ECDM extended its application to conductive materials such as steel, metal matrix composites and super alloys. The machining of steel with wire electrochemical arc machining (WECAM) has been reported by Hofy and Mcgeough⁶⁷ in 1988. They attempted to improve the machining accuracy using coaxial flushing of electrolyte. Later, machining of steel has been reported by several researchers;^68–74 observed axial tool wear rate (TWR) in machining of small holes on steel plate^68–72 and HAZ mechanism.^73,74 Coteata et al.⁶⁸ studied drilling speed and axial TWR in machining of small holes on steel plate. They studied the effect of tool electrode diameter, voltage, electrolyte density and capacitance on drilling speed and axial TWR. The experimental results revealed that electrolyte density has significant effect on drilling speed and axial TWR as compared to other process parameters. However, the use of large diameter tool electrode in ECDM experienced low TWR due to better heat dissipation.⁶⁹ On the contrary, Chavoshi and Behagh⁷¹ studied axial TWR in ECDM and revealed that axial TWR is utmost influenced by voltage, capacitance as compared to other process parameters, that is, electrolyte density, tool electrode diameter. Furthermore, these results were aligned with the experimental observation reported by Huang et al.⁷² They studied effect of tool rotation speed, voltage and tool electrode diameter on axial TWR in drilling of small holes on stainless steel plate and concluded that voltage is dominant factor for the prediction of axial TWR. However, at high speed of rotation, the TWR is decreased due to centrifugal action of electrolyte. In micro-machining of steel by ECAM, the HAZ was analysed by Krotz et al.⁷³ They concluded that permanent pulsed voltage supply in ECAM process leads to formation HAZ on machined surface. However, an attempt has been made by Krotz et al.⁷⁴ to decrease the formation of HAZ on machined surface with process modification and named as Spark-assisted electrochemical machining (SAEM). Surfaces machined by SAEM process were free from recast layer and low HAZ because of plasma polishing effect given by the spark. The axial TWR in SAEM process was low as compared to ECAM process.

Composites are widely used in aerospace, electronics and automobile industries due to their high temperature and wear resistant properties.^75–83 The superior properties of composites make them difficult to machine by conventional machining methods. Therefore, various researchers investigated machining of different composites and difficult to cut materials by unconventional machining process such as Ultrasonic,^84,85 EDM,^82,83 LASER⁸⁶ and ECDM^58,87–91.

Machining of metal matrix composite (MMC) with ECDM process have been reported by Liu et al.⁸⁷ in 2010. They studied the effect of current, duty cycle, pulse duration and electrolyte concentration during machining of MMC by ECDM. The authors revealed that with the increase in the process parameters, the sparking rate in the machining zone increases. The material removal mechanism in ECDM process was similar to the EDM process, that is, spalling of debris. However, the surface characteristics of machined surface by ECDM process were superior to EDM process due to dissolution action caused by the electrolyte. Liu et al.⁸⁸ attempted machining of MMC by grinding-assisted electrochemical discharge machining(G-ECDM) process. In this study, process capability of ECDM process was enhanced due to additional grinding action in machining zone. As compared to conventional ECDM, the surface characteristics of machined surface by G-ECDM were considerably improved due to elimination of recast layer and reduction in surface roughness. Apart from metal matrix composites, researchers explored the machining of fibre-reinforced polymer matrix composites using ECDM process. Manna and Narang⁸⁹ drilled micro-holes in E-glass-fibre-epoxy composite by ECSM process. The output quality characteristics, that is, MRR and overcut have been significantly influenced by the applied voltage. The authors revealed that surface characteristics ofE-glass-fibre-epoxy composite machined by ECSM were poor due to incomplete or partial cutting of reinforced glass fibres during machining. Slicing of E-glass-fibre-epoxy composite has been investigated by Malik and Manna⁹⁰ using wire ECSM process. The authors conclude that the surface characteristics of micro-slicing were poor due to lack of fibres cutting during machining. However, fine micro-slicing is possible with optimized process parameters and electrolyte circulation. Antil et al.⁹¹ studied drilling of micro-holes on SiC reinforced polymer matrix composite by ECDM process. In this work, Taguchi’s grey relational analysis (GRA) was used for optimization of the output quality characteristics such as MRR, overcut and taper. The optical images of drilled holes revealed the presence of HAZ on wall surface and cracks in matrix of composite. The machining of partially electrically conductive carbon fibre–reinforced polymer matrix composite (CFRP) by ECSM process has been reported by Singh et al.⁵⁸ In this study, the micro-slots and blind holes were drilled in carbon fibre epoxy composite. The authors concluded that tool feed rate is key factor that significantly influences surface characteristics of machined surface.

The nickel-based super-alloys are extensively used in aircraft engines due to their superior mechanical and heat resistant properties.^92,93 A novel hybrid technique, that is, tube electrode high-speed electrochemical discharge drilling (TEHECDD) is effectively used for machining of film cooling holes in super-alloys.^94–97 Yan et al.⁹⁴ studied effect of inner diameter of tubular electrode on MRR and surface characteristics of super-alloys. In this study, MRR is increased with increase in inner diameter of tubular electrode due to better flushing action. Moreover, the surface characteristics of machined surface were also improved due to elimination of recast layer in machined sample. Later on, Zhang et al.⁹⁵ studied effect of inner structure of tubular electrode on machining of super-alloys by TEHECDD. They revealed that double hole tubular electrode is premier tool electrode among other geometries for enhancement of machining rate and better surface quality. In other study, Yan et al.⁹⁶ reported comparative analysis of machining of super-alloy by EDM and TEHECDD. They revealed that TEHECDD is promising machining method for machining of micro-holes in super-alloys. Micro-holes drilled by EDM process attained poor surface characteristics due to recast layer, while this effect is negligible in TEHECDD process. Zhang et al.⁹⁷ studied effect of low conductive electrolyte solution in drilling of micro-holes by TEHECDD process. The use of low conductive electrolyte solution in TEHECDD process yields improvement in MRR and overcut.

The statistical analysis of ECDM process for past 10 years with respect to work materials is presented in Figure 4. As depicted from Figure 3, that ECDM process is widely accepted for machining of non-conducting materials such as glass, composites and ceramics. However, the machining of conductive materials, that is, steel and super-alloys has also been attempted successfully by several researchers.

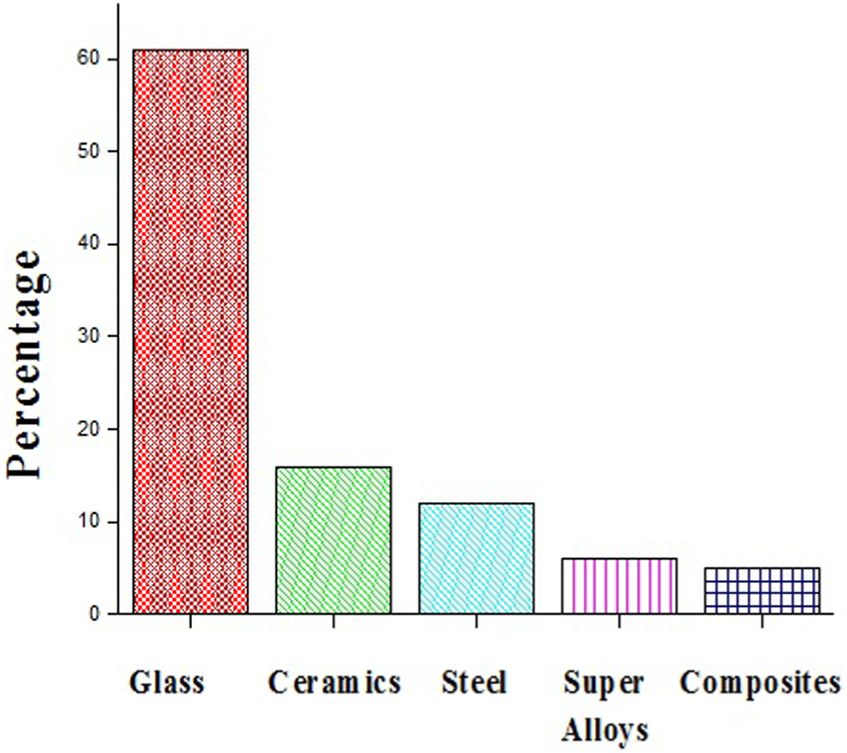

Figure 4.

Percentage of publications with various work piece material for last 10 years reviewed in this report.

The following findings are drawn from research status of steel, composite and super-alloys by ECDM process:

Highly precise holes are machined on steel plate by coaxial flushing of electrolyte in WECAM process.

While machining of holes on steel plate, the tool electrode experienced axial TWR in ECDM process.

Surface characteristic of steel machined by ECDM process is poor due to HAZs.

The micro-machining and micro-slicing of E-glass-fibre-epoxy composite, carbon fibre epoxy composite and SiC reinforced polymer matrix composite attained poor surface characteristics due to incomplete cutting of fibres and cracks on machined surface.

In machining of MMC, the grinding-aided ECDM process is recommended to attain better machining rate and surface characteristics.

In micro-machining of composites, the tool feed rate is predominant factor that significantly influences surface characteristics of machined surface.

Film cooling holes are successfully machined in super-alloys by tube electrode high-speed electrochemical discharge drilling (TEHECDD) process.

Machining rate is enhanced with change in inner shape of tool electrode.

The samples machined with TEHECDD process are free from recast layer as compared to EDM process.

Electrolytes

The electrolytes used in ECDM process are responsible for gas film formation and chemical etching on machining surface. Number of electrolytes such as NaOH, KOH, H₂SO₄, NaNO₃, NaCl, KCl, NaClO₃ and pure water were used by different researchers during machining by ECDM. The properties of electrolytes such as electrical conductivity, viscosity, concentration and temperature of electrolyte affect the output quality characteristics of the machined surfaces.^98,99 Yang et al.¹⁰⁰ studied the effect of various properties of electrolyte such as nature of electrolyte, temperature, concentration on machining of glass by ECDM process. The authors revealed the effect of acidic, neutral and alkaline electrolyte on machining rate. In ECDM process, the acidic electrolyte such as H₂SO₄ and HCl remains incapable to machine glass irrespective to generation of green spark. On the contrary, the neutral electrolytes such as KCl and NaCl yield low machining rate with generation of red spark. However, the alkaline electrolytes such as NaOH and KOH produce high MRR as compared to neutral electrolytes. This behaviour of alkaline electrolyte is because of the presence of OH⁻ ions which promotes etching rate after sparking during ECDM process. The increase in temperature and concentration of electrolyte yields high machining rate due to increase in spark intensity and etching rate. Wuthrich et al.²⁰ studied effect of addition of surfactant, that is, soap solution to electrolyte in SACE. The authors revealed that addition of soap solution to electrolyte yields generation of small diameter bubbles which causes reduction of gas film thickness on tool electrode surface because of improved wettability of tool electrode with electrolyte.¹⁰¹ This reduction in gas film thickness leads to improvement in surface quality characteristics because of decrease in spark intensity, stability of gas film and reduction in overcut. Han et al.³⁹ reported that addition of graphite powder to electrolyte improves surface characteristics of ECDM process. This improvement in surface characteristics was because of elimination of cracks and improved surface finish caused by abrasive action of graphite powder along with electrolysis process. Furthermore, it is also evident that with the addition of graphite, the puncture strength or critical strength of the gas film reduced considerably which cause to decrease the rate of spark intensity in the machining zone. Kuo et al.⁴² studied effect of mixing SiC powder to electrolyte on machining quality by wire electrochemical discharge machining (WECDM process. In this work, the surface characteristics of machined surface were improve due to fast replacement of titrated electrolyte during machining. Moreover, it reduces surface roughness of machined surface due to additional polishing action caused by SiC powder in electrolyte.

In ECDM process, the electrolytes such as NaOH and KOH have gained popularity due to high MRR. Moreover, KOH electrolyte at same level of concentration evolved high performance in terms of MRR when compared with NaOH.^40,100 It is because of difference in their ionic mobility and viscosity of NaOH and KOH. The low viscosity of KOH electrolyte yields high MRR due to better flushing action in machining zone. The remaining electrolytes like H₂SO₄, NaNO₃, NaCl and NaClO₃ are less versatile due to production of harmful gases and low MRR. The production of gases and fumes during machining is very hazardous to human health; therefore, the use of eco-friendly electrolytes becomes need of the hour. Mineral water act as eco-friendly electrolyte, it has capability to be used in ECDM due to the presence of ions like Na⁺, OH⁻ and H₃O⁺ irrespective of their low electrical conductivity.¹⁰²

The researchers explored the behaviour of different electrolytes such as NaOH, KOH, NaNO₃, mixture of NaOH and KOH, Na₂SiO₃ and NaCl on machining quality characteristics during ECDM process (Figure 5). The analysis of various electrolytes used in ECDM process reveals that NaOH electrolyte attains popularity over other electrolytes due to high MRR and better machined surface quality. The findings drawn from the research status of electrolyte in ECDM process are presented below:

Alkaline electrolytes are effectively used in ECDM process as compared to neutral and acidic electrolytes.

KOH electrolyte at same level of concentration gives high performance in terms of MRR as compared to NaOH.

Mineral water can be used as eco-friendly electrolyte in ECDM process.

Additives mixed electrolytes evolved high performance in terms of quality characteristics.

Electrolyte properties such as viscosity, electrical conductivity, concentration and temperature play a vital role in ECDM process.

Additives mixed electrolyte controlled gas film thickness in ECDM process.

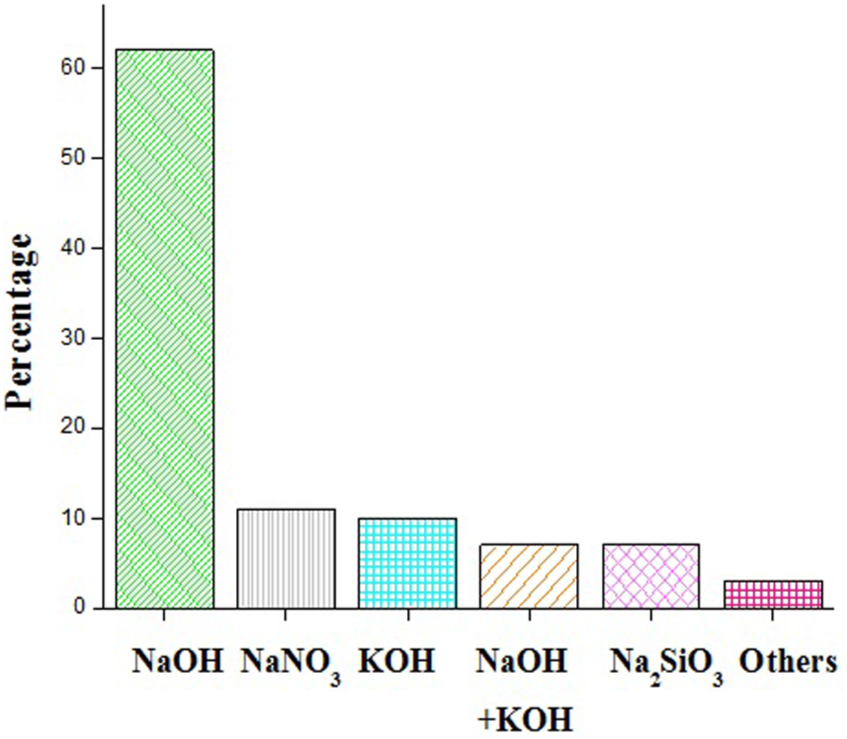

Figure 5.

Percentage of publications with various electrolytes for last 10 years reviewed in this report.

Behaviour of tool electrode

The researchers investigated various tool electrode materials such as tungsten carbide, stainless steel, tungsten, copper, high carbon steel and high-speed steel during machining with ECDM process. The MRR during ECDM process depends upon the various mechanical and metallurgical properties of the tool electrode. The tungsten carbide tool electrode attained popularity over other tool electrodes because of its superior properties such as high melting point, hardness, wear resistance and low specific heat capacity. It is interesting to note that tool electrode with high thermal conductivity yields superior machining performance in discharge regime. However, this effect is limited in hydrodynamic regime due to upward drag force caused by molten material.³³

The tool electrode geometry has significant role to ascertain the quality of gas film formation and surface to be machined during ECDM process. Several researchers investigated the effect of tool electrode geometry on machining quality characteristics of the machined surface. The tool geometric investigated by researchers were conical, spherical, cylindrical, tubular, abrasive coated, surface texture tool electrode, flat side tool electrode and so on as shown in Figure 6. Wuthrich et al.²¹ incorporate needle shape tool electrode in machining of glass by SACE process. The authors revealed that needle shape tool electrode increased drilling speed as compared to cylindrical tool electrode. It is because of concentrated spark intensity at tool electrode tip. Yang et al.²⁵ studied effect of spherical tool electrode in ECDM process. The incorporation of spherical tool electrode in ECDM process strengthens fresh electrolyte supply in machining zone. This occurred due to low contact area between tool electrode and work piece. Therefore, spherical tool electrode enhanced machining rate and stability of gas film in ECDM process. Chak and Rao^6,62 investigated the effect of abrasive tool electrode on output quality characteristics of ECDM process. They revealed that abrasive tool electrode increased machining rate due to additional abrasive action and high spark energy in the machining zone. Apart from this, the insulated abrasive coating on the peripheral tool electrode surface yields better surface integrity and dimensional overcut. Yang et al.³⁴ reported behaviour of the surface roughness of tool electrode in ECDM process. The authors revealed that the increase in surface roughness of tool electrode enlarged gas film thickness due to change in wettability of tool electrode. Therefore, holes machined with tool electrode having rougher surface caused increase in hole diameter, that is, overcut because of increase in gas film thickness in the machining zone. On the contrary, Han et al.¹⁰³ incorporate surface textured tool electrode in wire ECDM process and found that the surface machined by WEDCM has better surface quality due to stable discharge activity.

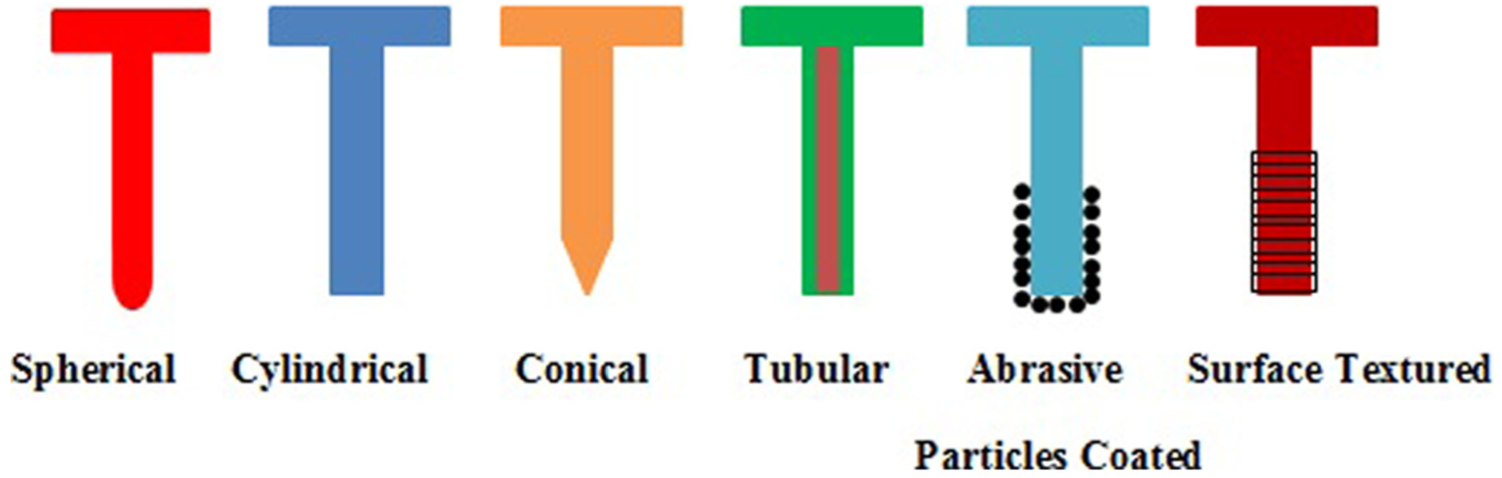

Figure 6.

Different tool electrode geometries used in ECDM process.

The major obstacle at higher machining depth is proper circulation of electrolyte in the machining region. This problem has been addressed by many researchers by change in geometrical shape and features of tool electrode. Zheng et al.¹⁰⁴ investigated effect of flat side tool in ECDM process. The use of flat side tool electrode in ECDM process strengthens electrolyte circulation at higher machining depth which leads to stable discharge activity and gas film phenomenon. Therefore, micro-holes at higher depth were easily machined with flat side tool electrode in ECDM process. Cheng et al.³² revealed the same finding as proposed by Zheng et al.¹⁰⁴ using ECDM process. Yan et al.⁹⁴ studied the effect of inner diameter of tool electrode in TEHECDD process. The authors found that with the increase in inner diameter of tubular tool electrode in TEHECDD, the machining rate increases. It was because of better flushing of electrolyte in the machining zone. Zhang et al.⁹⁵ reported effect of the inner geometry of tubular electrode on output quality characteristics of TEHECDD process. They concluded that double and multi-hole tubular tool electrode in TEHECDD process enhanced electrolyte flushing during machining. However, double hole tubular tool electrode was observed as optimal geometry due to elimination of residual cylinder on machined surface.

The most common tool electrode material used by researchers was stainless steel and tungsten carbide. The researchers recommended these tool materials because of low specific heat and high wear resistance characteristics. Figure 7 represents various studies on ECDM for last 10 years with stainless steel tool electrode followed by tungsten carbide and other tool electrode materials. The research findings drawn from research status of tool electrode and tool geometry in ECDM process are presented below:

Tungsten carbide tool electrodes were preferred in ECDM process due to its superior properties.

Tool electrode with high thermal conductivity yields high machining rate in ECDM process.

Tool electrodes with different shapes such as conical, spherical, flat side, tubular prompts electrolyte supply at higher machining depth.

Abrasive particle insulated tool electrode is widely acceptable for better surface integrity and machining accuracy.

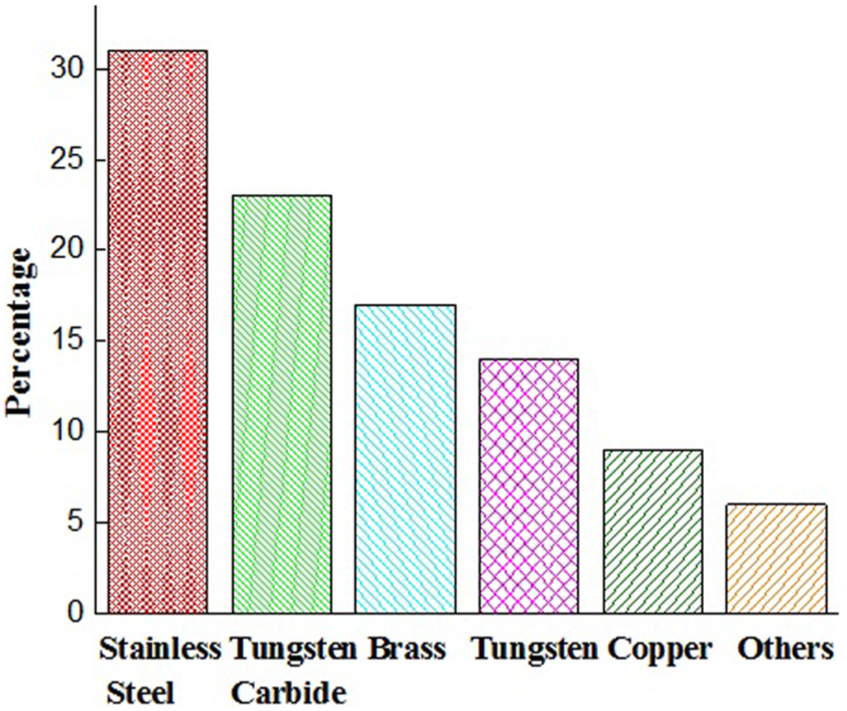

Figure 7.

Percentage of publications with various tool electrodes for last 10 years reviewed in this report.

Gas film formation

Formation of gas film in the machining zone is an important aspect in ECDM process which governs overcut, delamination and surface quality of machined surface. The basic principle behind the gas film formation is electrolyte evaporation and coalescence of hydrogen bubbles on tool the electrode surface.¹⁰⁵ The instability of gas film during machining is unacceptable; therefore, researchers tried to control and stabilize the gas film formation with the variation in input process parameters. The gas film formation is significantly influenced by current density, wetting of tool electrode, bubble detachment rate, gas production rate and so on.¹⁰⁶ The stability of gas film ensures the usability of ECDM process in the commercial or industrial machining. In other findings, authors revealed that the uniformity and thickness of gas film is directly related to temperature of electrolyte. With the rise in temperature, the gas film becomes more stable and narrow in nature.^107,108 Therefore, the elaborated study of gas film formation and the effect of different input process parameters on the gas film formation is the need of the hour.

The stability of gas film is directly related to availability of fresh electrolyte in machining zone. This problem has been addressed by various researchers with incorporation of different electrode shapes such as conical,²¹ side insulated,²⁴ flat side,³² tubular tool electrode^94,95 and hybridization techniques^109–111 in ECDM process:

Wuthrich et al.²¹ stabilized the gas film formation using conical tool electrode in SACE process.

Han et al.²⁴ investigated the effect of side insulated tool electrode on stability of gas film formation during ECDM process. The authors found that stability of gas film is enhanced because of the localized electrolysis process at tool electrode tip.

Cheng et al.³² revealed that the stability of gas film is improved due to availability of large space for electrolyte circulation by using flat side tool electrode.

Yan et al.⁹⁴ studied behaviour of gas film using tubular tool electrode in TEHECDD process. The tubular tool electrode promotes stability of gas film due to better flushing of electrolyte in machining regime.

In continuation to these studies, the instability of gas film at higher machining depth is addressed by various researchers using direct or indirect vibration to the ECDM process. Wuthrich et al.²² reduced instability of gas film using vibration-assisted tool electrode (direct vibration) in SACE process. This stability of gas film formation is because of better flushing of electrolyte in the machining zone. Han et al.²⁴ studied behaviour of gas film by using vibration to electrolyte instead of tool electrode (Indirect vibration) in ECDM process. Figure 8(a) represents the behaviour of gas film formation without vibration to electrolyte. In addition, Figure 8(b) depicts modification in gas film structure due to change in path of gas bubbles. Apart from this, ultrasonic-vibrated electrolyte enhanced the spark phenomenon along the sides and tip of tool electrode. Therefore, the instability of gas film encountered in hydrodynamic regime was reduced using direct or indirect vibrations. In addition to these studies, several researchers have been reported their work in domain of vibration-assisted ECDM by giving direct^10,23,112 or indirect vibrations¹¹³ in ECDM process. The basic schematic diagram of vibration-assisted ECDM process is shown in Figure 9.

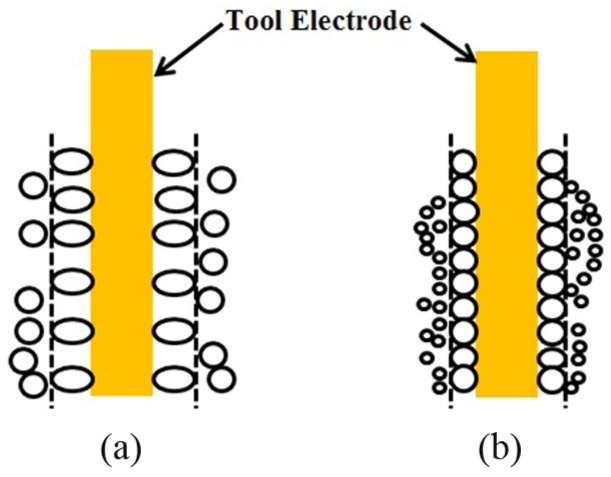

Figure 8.

Gas film geometry (a) without ultrasonic vibration of electrolyte (b) with ultrasonic vibration of electrolyte.²⁴

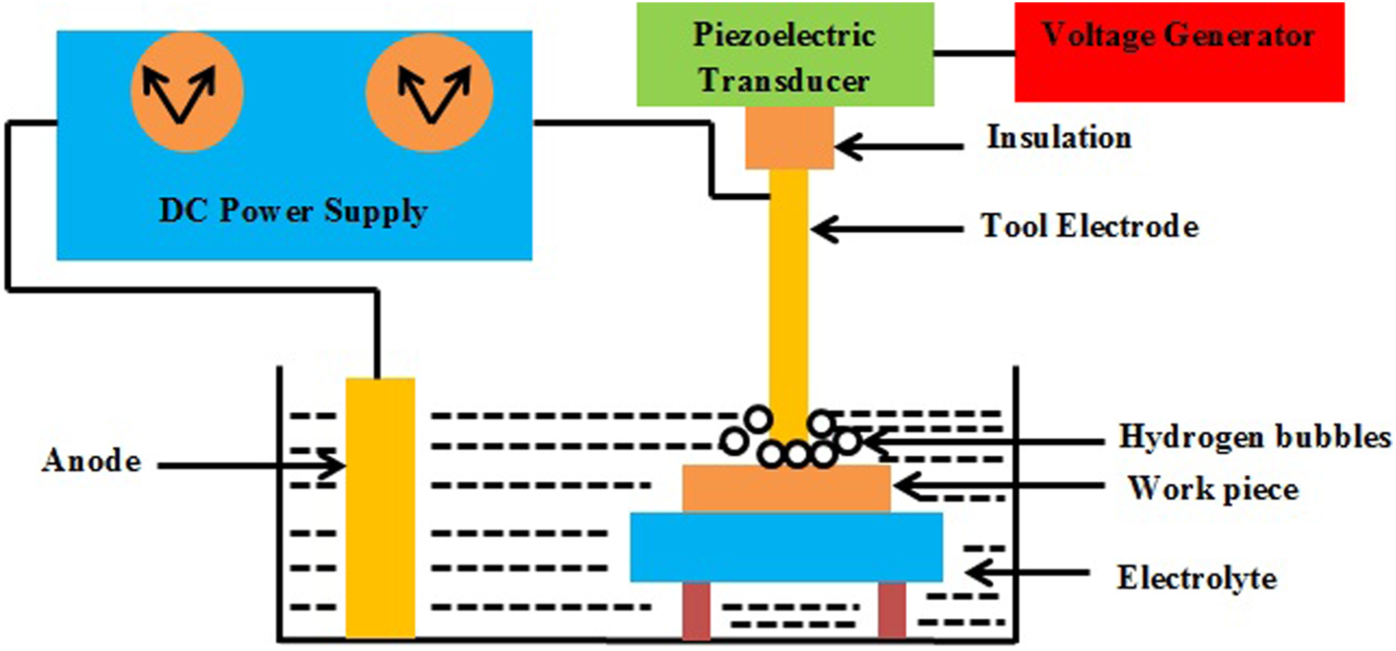

Figure 9.

Basic schematic of vibration-assisted ECDM.

Allagui and Wuthrich³¹ reported the dynamic behaviour of gas film formation, that is, gas film life time and gas film formation time based on wavelet analysis. This wavelet analysis showed that gas life time is more stable at higher voltage due to rise in temperature of tool electrode. On the contrary, the gas film formation time decreases with rise in terminal voltage. This decrease in gas film formation time is because of rapid evaporation of electrolyte and localized joule heating effect.

With the addition of surfactants (soap solution) to electrolyte, the critical voltage and gas film formation thickness decreases.^20,99 It occurs due to changes in surface tension of electrolyte and better wettability of tool electrode with electrolyte. As reported by Wuthrich et al.,²⁰ the gas film thickness is decreased with the addition of surfactants owing to the formation of small diameter hydrogen bubbles (Figure 10). Kuo et al.⁴² studied behaviour of gas film by SiC powder mixed titrated electrolyte in WECDM process. The authors revealed that stability of gas film is improved due to fast replacement of electrolyte in machining regime caused by titrated electrolyte.

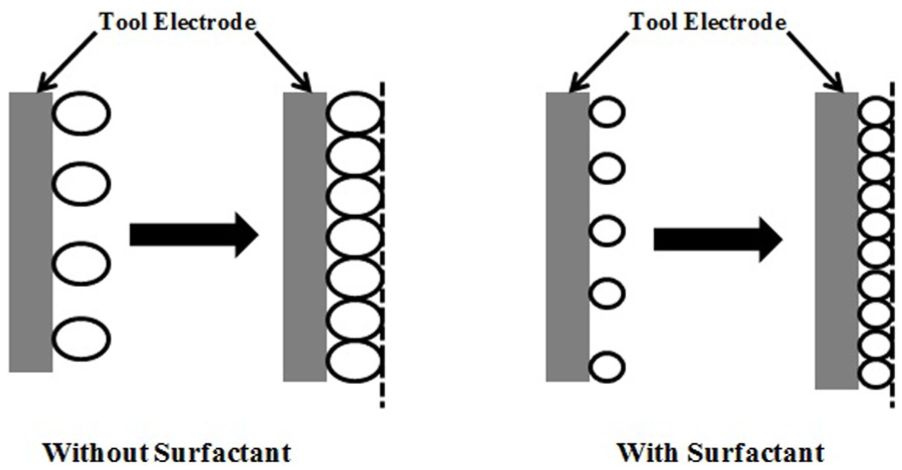

Figure 10.

Effect of surfactants on gas film thickness.²⁰

Yang et al.³⁴ investigated the behaviour of gas film formation with the increase in surface roughness of the tool electrode in ECDM process. They revealed that wettability of tool electrode is significantly affected by surface roughness of tool electrode. As shown in Figure 11, the gas film thickness is increased with the increase in surface roughness of tool electrode. It occurs as a result of formation of large diameter gas bubbles because of poor wettability of tool electrode with the electrolyte. Moreover, the detailed mechanisms for changes in wettability of tool electrode with surface roughness and addition of surfactants have been reported in different studies.^114–116

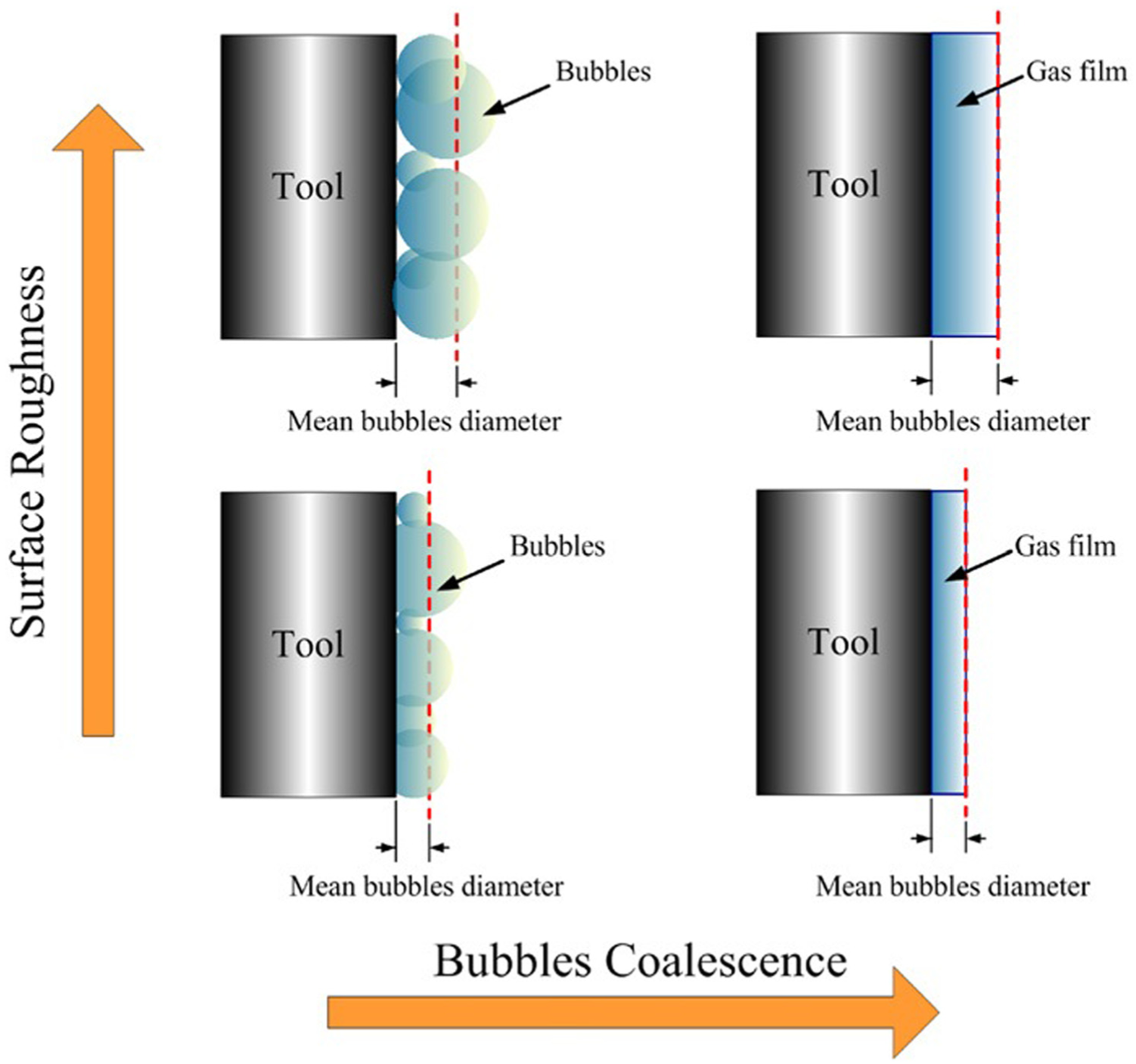

Figure 11.

Gas film thickness with rise in surface roughness of tool electrode³⁴ (with permission from Elsevier).

Gautam and Jain¹¹⁷ studied behaviour of gas film formation using rotary tool electrode in ECDM process (Figure 12). The studies described effect of tool rotation on gas film formation in two regimes, that is, speed from 0 to 500 r/min and above 500 r/min.^25,117 The first regime provides superior results, that is, enhancement in machining rate, better surface quality due to rapid gas film formation. The rotary speed above 500 r/min provides poor machining performance due to instability of gas film formation. However, the change in tool profile, that is, flat sidewall-flat front tool electrode provides better results even at higher tool rotation speed.¹⁰⁴

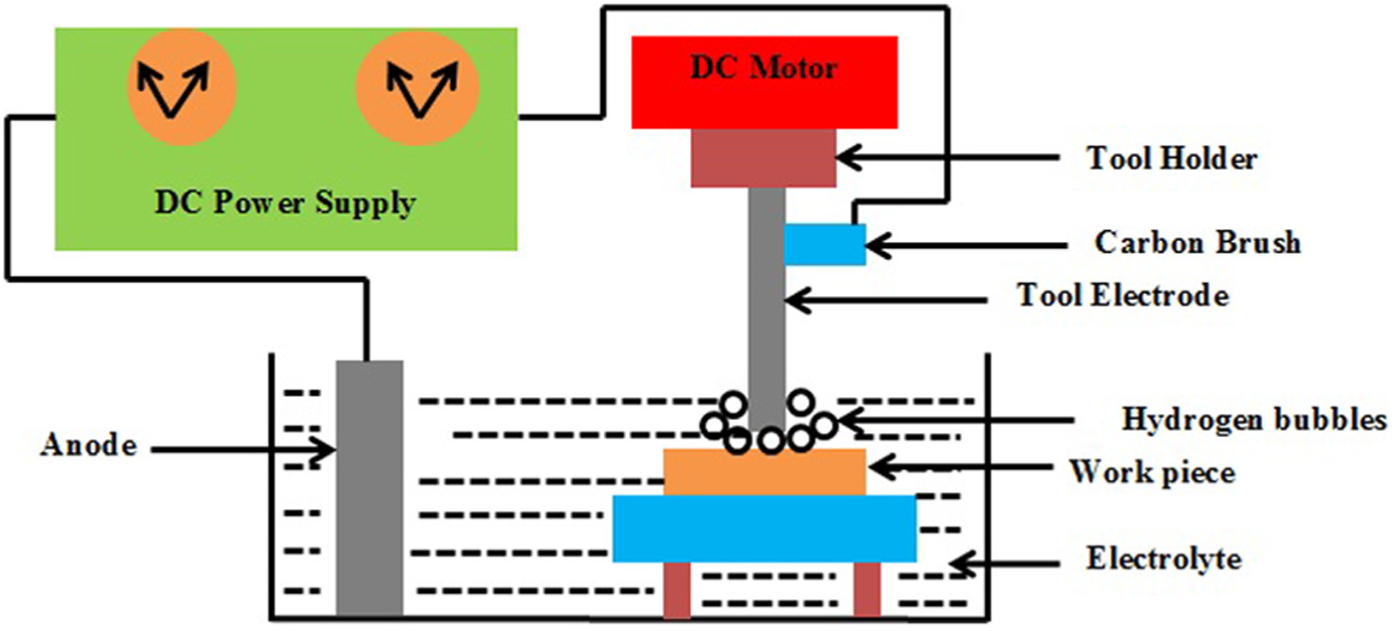

Figure 12.

Basic schematic of rotary-assisted ECDM.

The findings drawn from current research status of gas film phenomenon in ECDM process are shown below:

In ECDM process, the additives mixed electrolyte is effectively controlled gas film thickness.

Stability of gas film is directly controlled by different shapes of tool electrode such as conical shape, flat side and tubular tube electrode.

Instability of gas film in hydrodynamic regime is successfully handled by using direct or indirect vibration in ECDM process.

Surface roughness of tool electrode is highly susceptible for increase in gas film thickness of ECDM process.

Stability of gas film is directly related to temperature of tool electrode and electrolyte.

Hybridized process such as rotary ECDM and vibration-assisted ECDM have significant effect on behaviour of gas film formation.

Machining quality

With the development of ECDM process, few research articles have been reported on HAZ, cracks and surface quality of machined surface. Most of the available research studies have been focussed on MRR and overcut. However, in case of micromachining surface quality, HAZ and cracks are very important aspects to be addressed for viable results.^118,119 Geometrical morphology of holes in SACE has been reported by Maillard et al.³⁸ They revealed that holes machined at lower voltage and depth gives smooth surface due to stable discharge activity. On the contrary, the holes machined at higher voltage and depth tends to produce HAZ and thermal cracks. Didar et al.⁵⁵ reported the geometrical morphology of two-dimensional (2D) channels machined with SACE. Micro channels of different characteristics features such as smooth surface, jagged outline, HAZ edges were obtained with variation of supply voltage and tool travel speed. Yang et al.³⁴ investigated the effect of different tool electrodes on machining quality in ECDM (Figure 13). They revealed that current response of tungsten tool electrode remains less stable as compared to other tool electrodes. Therefore, the use of tungsten tool electrode creates uneven etching impressions on HAZ. Cao et al.⁴¹ studied surface characteristics of machined surface by post machining, that is, micro grinding of ECDM surface. The authors found improvement in surface quality of machined surface due to elimination of cracks caused by additional abrasion action. Likewise, the hybrid technique such as grinding-assisted ECDM (Figure 14) provides superior results as compared to conventional ECDM.^87,120,121

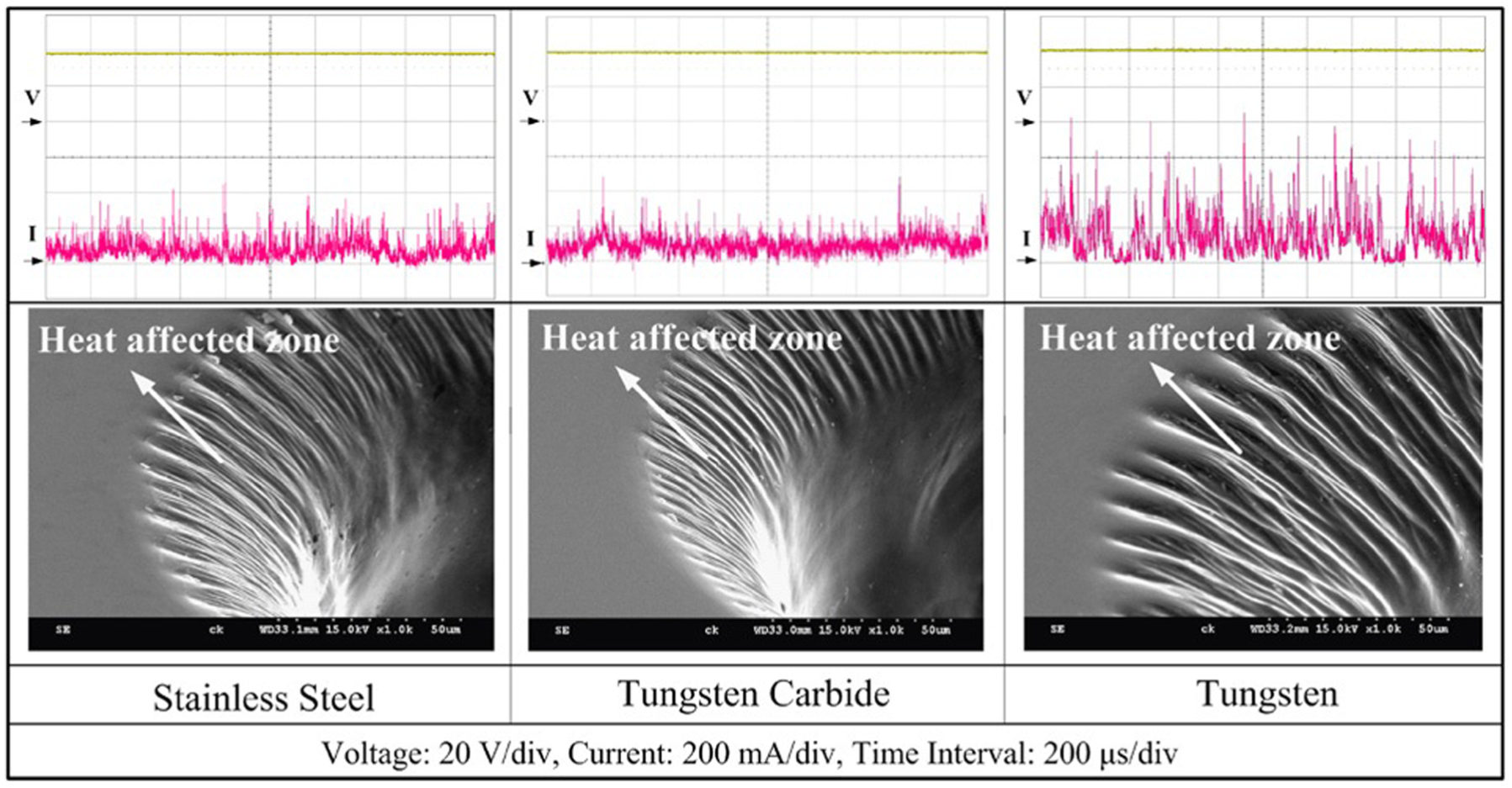

Figure 13.

Current responses and images of HAZ with different tool electrodes³⁴ (with permission from Elsevier).

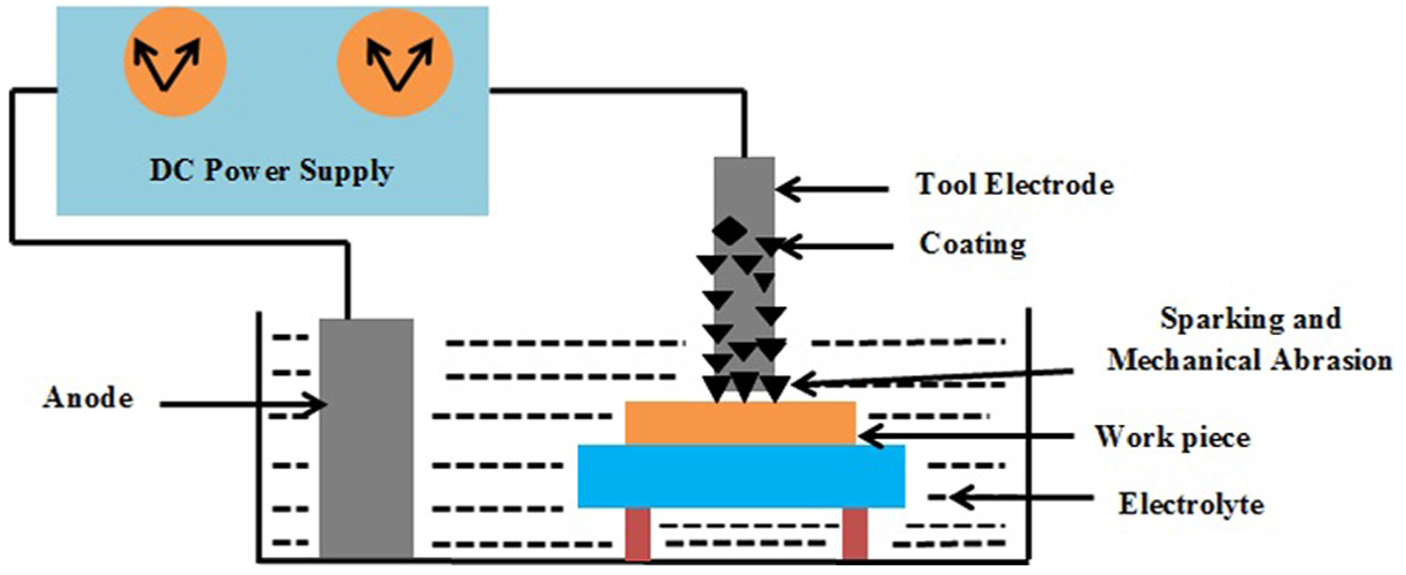

Figure 14.

Basic schematic of grinding-assisted ECDM.

Machining quality of machined surface is significantly affected by electrolyte and its properties. Nuguyen et al.³⁰ investigated the effect of electrolyte level on machined surface morphology. They revealed that rise in electrolyte level in ECDM process generates unstable gas film and causes poor quality surface due to uneven sparks. Ziki et al.¹²² revealed that micro-channels of different texture were produced due to change in viscosity of electrolyte.

Hajian et al.⁴⁴ investigated the effect of MAECDM on machining quality. The authors found that magnetic field orientation which generates upwards Lorenz force and low electrolyte concentration is an optimal condition for generating good quality surface. Similarly, other researchers reported that better surface characteristics were obtained using MAECDM.^45,123 The basic schematic of MAECDM is shown in Figure 15.

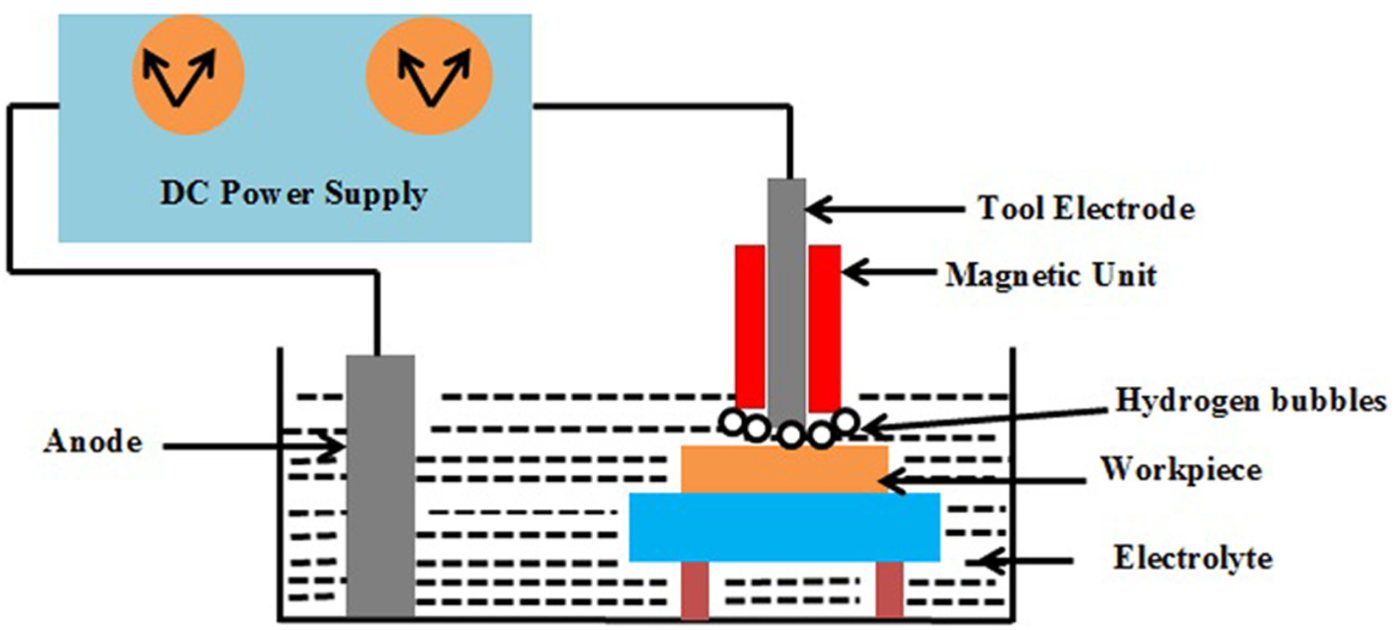

Figure 15.

Tool electrode with different magnetic outlines in MAECDM.

Han et al.³⁹ analysed surface integrity of machined samples with addition of graphite powder to electrolyte, that is, additives mixed ECDM. They revealed that addition of graphite powder reduces breakdown voltage due to reduction in dielectric strength of gas film. Figure 16(a)–(d) shows that increase in powder concentration up to 1 wt% tends to reduce surface roughness from 4.86 to 1.44 µm with elimination of cracks. Apart from this study, the mixing of SiC powder to electrolyte improved surface quality due to additional grinding action in machining zone.⁴²

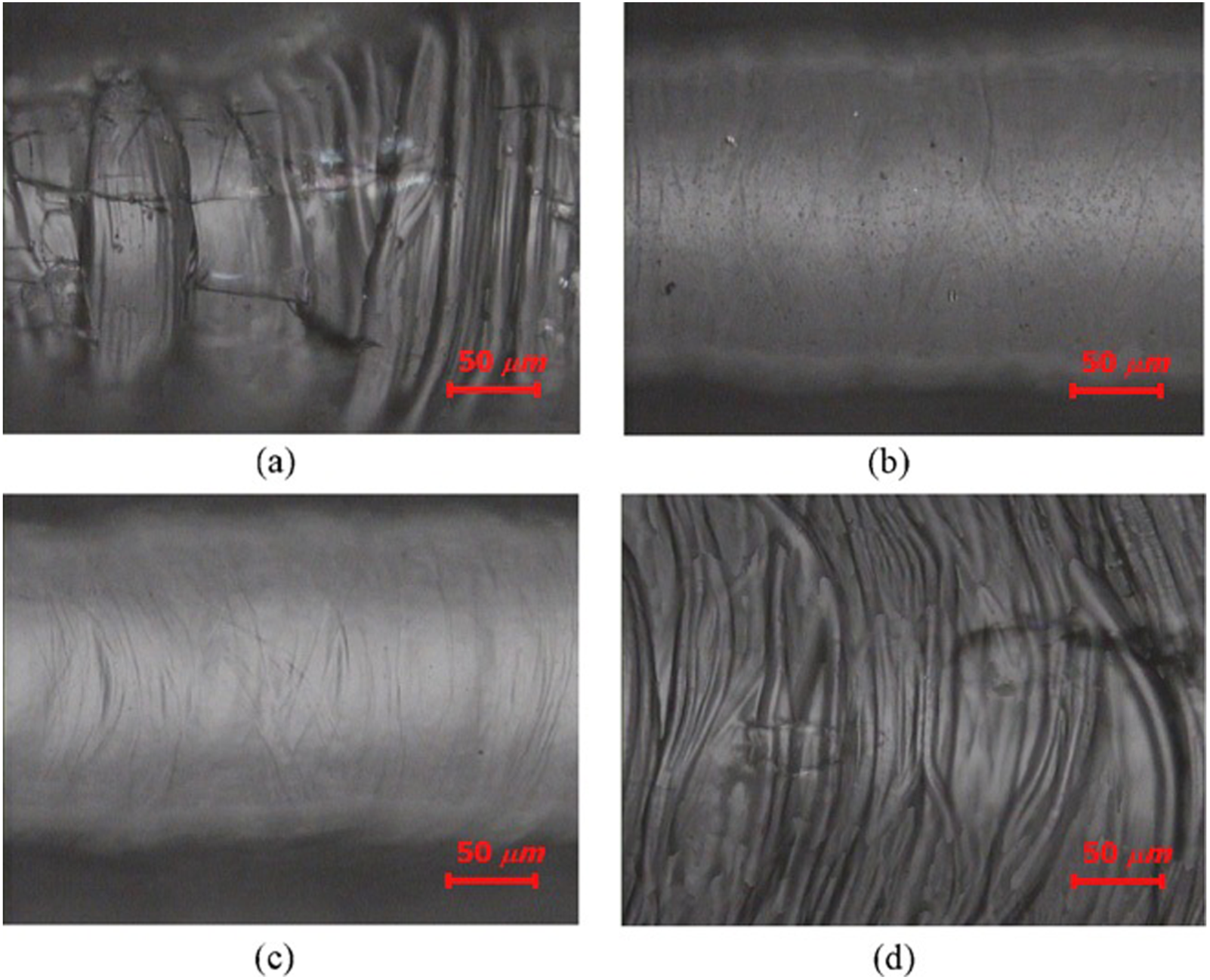

Figure 16.

Surface roughness with powder concentration (a) without powder, Ra: 4.86 µm; (b) powder: 0.5 wt%, Ra: 1.63 µm;(c) powder: 1 wt%, Ra: 1.44 µm and (d) powder: 2 wt%, Ra: 5.26 µm³⁹ (with permission from Elsevier).

Saranya et al.⁵³ studied surface characteristics of micro-channels machined by ECDM process. They revealed that surface quality of micro channels were significantly affected by tool travel rate (Figure 17(a) and (b)). Micrographs revealed that surface becomes rough with cracks at low tool travel rate (TTR), that is, 0.3 mm/min. It is because of machined surface remains in contact with sparking zone for extended period of time. In addition, the high TTR leads to reduction in micro channel width and cracks due to low contact time to sparking.

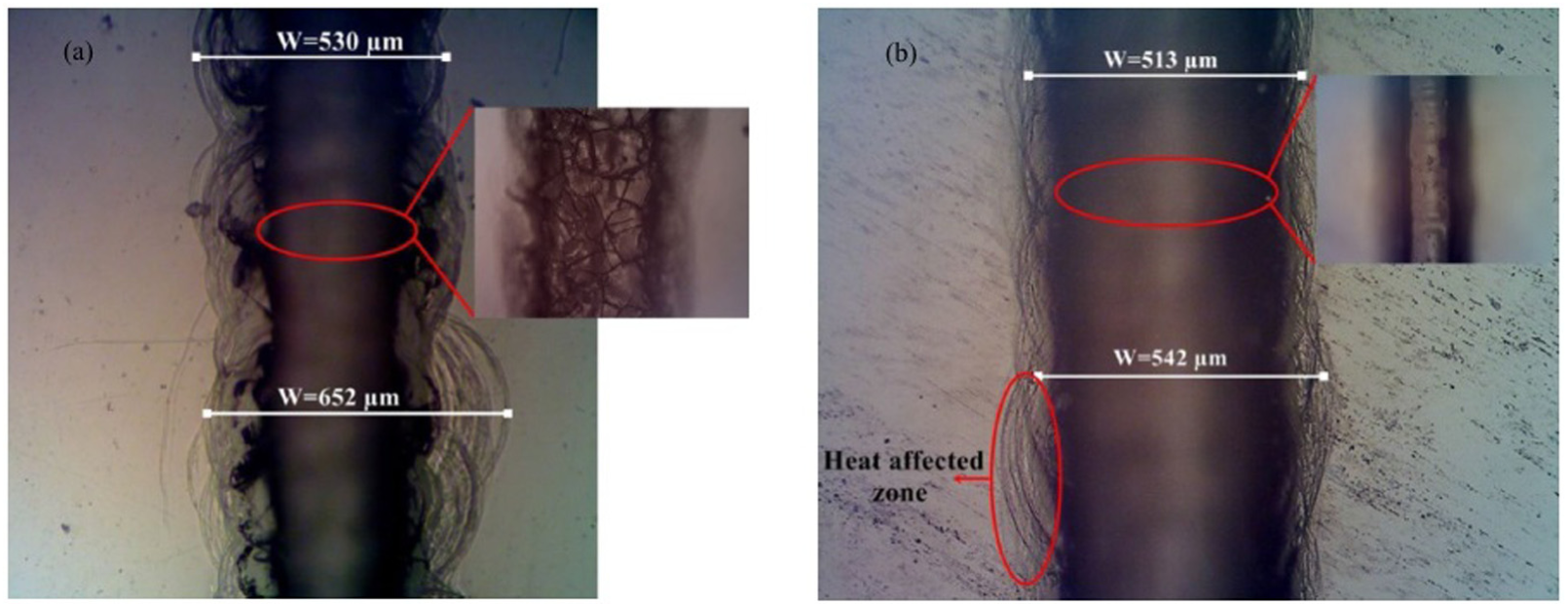

Figure 17.

Optical images of micro channels (a) with applied voltage V_c + 7 V and TTR 0.3 mm/min and (b) with applied voltage V_c + 7 V and TTR 2 mm/min⁵³ (with permission from Springer Nature).

Yan et al.⁹⁴ reported the effect of tubular electrode (Figure 18) inner diameter on machining quality characteristics. As shown in Figure 19(a)–(d), it revealed that machined surface with higher diameter of tubular electrode are free from recast layer due to better flushing action.

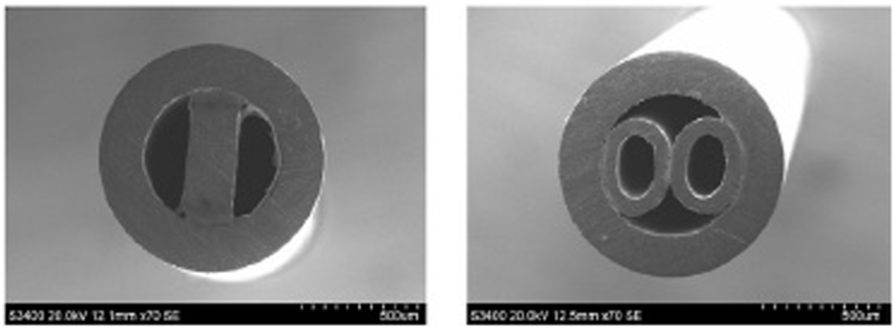

Figure 18.

Tubular electrode of different inner structure⁹⁵ (with permission from Elsevier).

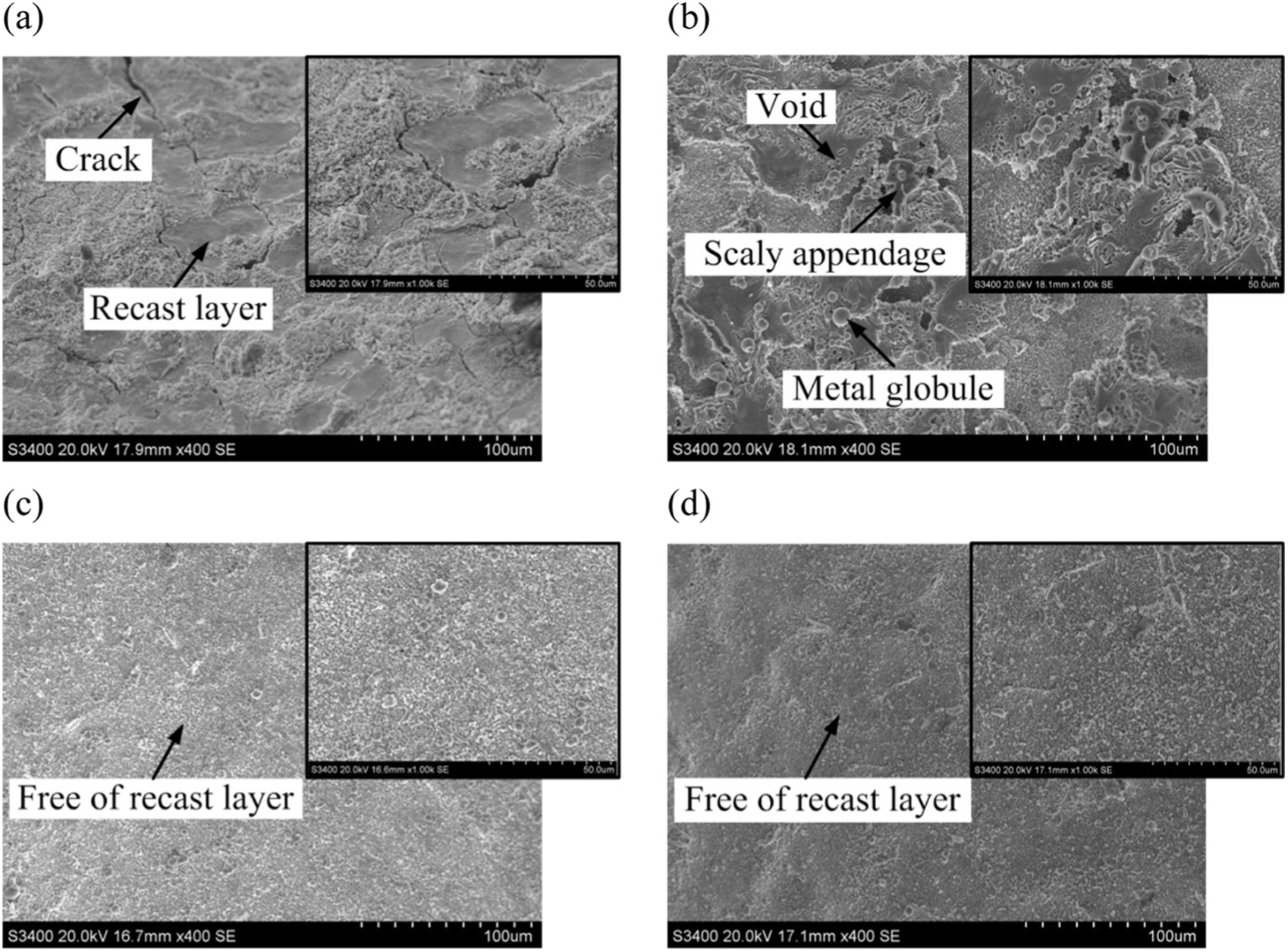

Figure 19.

Machining surface with different tool electrodes such as (a) cylinder, (b) single hole, (c) double hole and (d) multi-hole⁹⁵ (with permission from Elsevier).

Apart from these studies, several researchers have reported effect of numerous process parameters such as machining voltage, electrolyte concentration and current on machining performance of ECDM process. Machining performance in ECDM process is referred as an MRR, machining quality and dimensions of desired component. However, the quality of machined surface and its dimensions remain a dominant factor as compared to MRR in micro-machining of precise products.

The machining voltage of ECDM process increases the MRR because of increase in intensity of discharge energy in machining zone. The increase in machining voltage stepped up hydrogen bubbles generation rate which played a significant role in sparking intensity of ECDM process.¹²⁴ However, the effect of machining voltage on MRR is limited up to a certain value. The authors revealed⁶¹ the decrease in MRR at 100 V due to limited flushing of debris in machining zone. Also, the machining surface becomes rough with micro-cracks due to excessive heat in machining regime. Likewise, in machining of micro-holes and micro-channels on glass by SACE process the surface becomes rougher because of micro-cracks and HAZs.^38,55 In addition to this, overcut rate in machining region increased with increase in machining voltage due to side sparking.⁵⁹

The high concentration of electrolyte in ECDM process increases the electrical conductivity of electrolyte medium.⁵⁹ The electrolyte conductivity enhances the rate of electrochemical reactions and causes high MRR due to increase in sparking energy. However, this effect is limited up to electrolyte concentration 250 g/L (NaOH) caused by diminution of EDM action in machining zone.¹²⁵ On the contrary, high electrolyte concentration generates better quality machined surface due to chemical etching.^6,40,100 Moreover, the overcut rate is limited with high electrolyte concentration due to concentrated sparks in machining zone.⁵⁹ The MRR is increased with the increase in current supply of ECDM process.⁹⁰ This is because of increase in current density at tool electrode tip. On the contrary, the quality of machined surface becomes poor due to uneven sparking. In addition to this, the overcut rate is increased due to the formation of craters around tool electrode surface. Likewise, the power circuit characteristics of ECDM process such as inductance, resistance and capacitance have dominant effect on machining performance of ECDM.¹²⁶

The following findings were drawn from current research status of machining quality in ECDM process:

Micro-holes machined at lower depth and voltage yields smooth surface characteristics due to stability of gas film in ECDM process.

In machining of micro-channels by ECDM process, the surface quality of machined surface is controlled by applied voltage and tool travel rate.

Hybridization of ECDM process such as grinding-assisted ECDM, MAECDM, TEHECDD and additives mixed ECDM create better machining quality due to elimination of cracks and stability of gas film.

The various tool geometries such as tubular tool electrode, conical shape, flat side and spherical shape leads to good quality machining surface as compared to cylindrical tool electrode.

Nature of electrolyte and their properties have significant effect on machining quality.

The NaOH emerged as the effective electrolyte in ECDM process for attaining good surface characteristics.

The quality of machined surface becomes poor at high machining voltage due to micro-cracks and HAZs.

High electrolyte concentration in ECDM process promotes quality of machined surface due to chemical etching action.

The various studies in the domain of machining of ECDM process with generic inferences is presented in Table 1.

Table 1.

Timely research contributions in ECDM.

Authors	Material	Findings	Inferences
Wuthrich et al.²⁰	Glass	With addition of surfactants to the electrolyte, the gas film characteristics changed.	Gas film thickness can be controlled with a change in physical properties of the electrolyte. Machining at higher depth is possible with vibration-assisted tool electrode in ECDM. Drilling speed can be enhanced with needle shaped tool. Surface characteristics of the machined surface are influenced by change in voltage and machining depth. The addition of graphite powder to electrolyte in ECDM process gives better surface characteristics of machined surface. TWR can be controlled with a change in density of electrolyte. Surface characteristics of micro-channels can be controlled with variation in voltage and tool speed. Gas film phenomenon can be controlled with a temperature of the electrode and terminal voltage. SACE process combined the advantages of localized heating and chemical action in machining. Surface texture on tool electrode controls gas film behaviour. Flat side tool electrode gives better results as compared to cylindrical tool electrode. Machining at higher depths is possible with variation in shape of tool electrode. TWR can also controlled with physical properties of electrolyte. MRR and overcut rate significantly improved with use of spherical tool electrode. Surface characteristics of e-glass-fibre-epoxy composite are very poor due to incomplete cutting. Good quality surface can be obtained with grinding aided ECDM. Side spark is important aspect for controlling overcut rate. The circularity of hole enhanced with rotary tool electrode in ECDM. Surface quality of ECDM machined surface enhanced with post-machining such as micro grinding. TWR is momentously influenced by applied voltage. TWR can be significantly improved with tool rotation and change in geometry of tool electrode. Vibrations of tool electrode improve MRR due to better flushing action. Stability of gas film influenced by rotary motion of tool electrode.
Wuthrich et al.²²	Glass	Enhanced material removal rate with assistance of vibrated tool electrode. It overcomes the problems encountered in machining at hydrodynamic regime.
Wuthrich et al.²¹	Glass	With the increase in inter electrode resistance, the time required to build up gas film was increased which causes low drilling speed. Tool with conical shape showed better result as compared to cylindrical shape tool due to constriction of discharge activity at tool electrode tip.
Maillard et al.³⁸	Glass	Hole machined at low voltage and depth give smooth surface due to stable discharge regime. In addition, the hole machined at higher voltage and depth tends to produce HAZ and thermal cracks on periphery of hole due to instable gas film in hydrodynamic regime.
Han et al.³⁹	Borosilicae glass	Surface integrity of machined sample can be significantly improved with the addition of graphite powder to electrolyte. With the increase in powder concentration up to 1 wt% the surface roughness decreased from 4.86 to 1.44 µm and micro cracks were eliminated.
Coteata et al.⁶⁸	Steel sheet	Liquid density has significant influence on TWR as compared to other factors such as voltage, capacity and tool electrode diameter.
Didar et al.⁵⁵	Glass	Micro channels of different characteristics were obtained like smooth surface, jagged outline, HAZ edges by variation of supply voltage and tool speed.
Allagui and Wuthrich³¹	Glass	This proposed mechanism showed that gas life time is more stable at higher voltage due to rise in temperature of the electrode. Furthermore, gas film formation time shows inverse trends with the rise in terminal voltage.
Jalali et al.¹²	Glass	Machining mechanism in SACE is a combination of local heating and chemical etching.
Yang et al.³⁴	Quartz	It showed that tungsten carbide tool attains lowest tool wear rate as compared to stainless steel and tungsten due to its good resistance against wear, high melting point, strength and hardness. With the increase in surface roughness of tool, the thickness of the gas film was increased due to poor wettability of tool electrode and large diameter bubbles.
Cheng et al.³²	Pyrex glass	Stability of gas film increased when applied voltage crosses the critical voltage known as transition voltage. With increasing the machining depth above 250 µm, the quality of the gas film was decreased due to the problem of electrolyte circulation.	MRR and overcut are directly related to circulation of electrolyte. Micro hole can be drilled into steel plate of 1 mm thickness by spark assisted electrochemical machining. Gas film quality is disrupted with increase in electrolyte level. Addition of SiC powder to electrolyte improves surface quality of ECDM. Physical properties of electrolyte can be controlled gas film thickness. Discharge activity is more consistent in conical tool electrode. Effect of tool size and diameter on overcut was negligible as compared to electrolyte concentration. Slicing of non-conducting materials can be easily done with travel wire ECSM. TWR is directly related to material and their composition of tool electrode. Slicing of e-glass fibre epoxy composite is effectively performed with WECSM. Surface characteristics of micro channels are directly related to contact time to sparking. MRR was enhanced with the implementation of mechanical cutting in ECDM. With change in internal structure of tool electrode, the machining rate can be enhanced. Surface characteristics are also improved with the tubular electrode in ECDM. With the change in pulse duration, the quality of ECDM surface can be controlled. Surface quality can be also improved with assistance of magnetic field to ECDM. Machining rate is enhanced with change in the internal structure of electrode, that is, double tube and multi-tube electrode. Surface quality can be improved by optimum selection of tool feed rate.
Coteata et al.⁷⁰	Steel	TWR momentously influenced by the density of electrolyte.
Yang et al.²⁵	Quartz	With spherical shape tool electrode, the contact area between tool and workpiece was reduced due to curve surface of spherical tool electrode.
Manna and Narang⁸⁹	e-glass-fibre-epoxy composite	During micro drilling, the diameter of the hole at starting was equal to tool diameter and further it is reduced as the depth of hole increased. This happens due to the presence of debris and white foam along the periphery of machined hole.
Liu et al.⁸⁷	Al₂O₃ reinforced Aluminium 6061 Alloy	With grinding-assisted ECDM process, the MRR was increased up to three times due to additional grinding action.
Paul and Hiremath²⁹	Borosilicate glass	Radial overcut was found to be decreased with increase in voltage, concentration and duty factor due to a reduction in side sparks during machining.
Jui et al.²⁶	Glass	It improves circularity of hole with the rotation of tool electrode in ECDM.
Cao et al.⁴¹	Glass	It improves the surface quality of ECDM machined surface with micro grinding due to the elimination of cracks.
Chavoshi and Behagh⁷¹	Steel	It observed percentage contribution of voltage, capacitance, liquid density and tool diameter on TWR was 41%, 33%, 25% and 1%, respectively.
Huang et al.⁷²	Stainless steel	With tool rotation, TWR was decreased due to centrifugal action of electrolyte which further increased the heat dissipation capacity. Similarly, with an increase in tool diameter, TWR was decreased due to increase in heat dissipation capacity and small current density.
Razfar et al.¹⁰	Glass	In the case of a microdrill, the vibration of tool electrode does not produce any effect as compared to stationary micro drill tool electrode. It occurs due to easily circulation of electrolyte through the flutes of the drill.
Jiang et al.²³	Soda lime glass	With the assistance of rotary tool electrode, the efficiency of drilling can be enhanced due to mechanical action but it is limited up to 100 r/min, after increasing it disrupt gas film quality. In addition, experimental results revealed that MRR was increased with the vibration of tool electrode due to smooth movement of the electrolyte at hydrodynamic regime (200–400 µm).
Dhanvijay and Ahuja⁶⁴	Alumina Ceramics	Material removal rate was increased with electrolyte flow method due to better circulation of electrolyte.
Krotz and Wegener⁷⁴	Steel plate	Tool wear examined at tool tip was found to be 2–4 µm in the micro-drilling of conductive material by spark-assisted electrochemical machining.
Nguyen et al.³⁰	Quartz and glass	It showed that with an increase in electrolyte level of ECDM process yields unstable gas film formation which causes poor surface quality of machined surface due to uneven sparks. In addition, with an increase in pulse off time, the heat affected zones are eliminated due to the localization of heat.
Kuo et al.⁴²	Glass	With titrated electrolyte, the stability of gas film was enhanced due to the fast replacement of electrolyte during machining. The addition of SiC powder improved the surface roughness of machined channel up to 80% and decreases the width of the micro channel from 200 to 185 µm.
Jiang et al.¹⁰¹		It showed that thickness of gas film directly related to physical properties of an electrolyte such as surface tension and density of electrolyte.
Jiang et al.²³	Glass	It compared the performance of conical tool electrode with cylindrical tool electrode in SACE.Discharge activity was consistent in conical tool electrode as compared to the cylindrical electrode.
Kamraj et al.³⁶	Glass	It revealed that decrease in the rate of electrolyte concentration of ECDM process gives low overcut rate. However, the effect of tool size or diameter on overcut was negligible.
Manna and Kundal⁶⁵	Aluminim oxide	It reported machining of Al₂O₃ ceramic with travel wire electrochemical spark machining (TW-ECSM).It showed that electrolyte concentration was a most significant factor that will affect MRR and spark gap width.
Behroozfar and Razfar⁶⁶	Alumina and silica	It showed that tool wear start at 53, 48 and 46 V for tungsten carbide, steel and brass tool electrode, respectively.This happens due to variation in their melting point, composition and other properties.
Malik and Manna⁹⁰	E-glass-fibre-epoxy composite	It observed that machining rate is significantly enhanced with wire speed and voltage.With rise in wire speed of WECSM, the large amount of fresh wire come in contact with machining zone which causes high intensity sparks in machining zone.
Saranya et al.⁵³	Glass	Surface characteristics of micro channels were significantly influenced by tool travel rate.Optical images showed that with tool travel rate of 0.3 mm/min, the surface becomes rough with cracks due to surface subjects to sparking for a long time.
Jiang and Ni⁵⁴	Glass	In this study, researcher successfully implemented hybrid machining process, that is, combination of ECDM and mechanical cutting.
Yan et al.⁹⁴	Nickel-based super alloy	It observed an enhancement in MRR with an increase in inner diameter of the tubular electrode.
Yan et al.⁹⁶	Nickel-based super alloy	Tubular electrode high-speed electrochemical discharge drilling (TSECDD) is effectively used for machining of super-alloys.The morphology of machined sample shows that hole machined by TSECDD free from recast layer and good surface characteristics as compared to electrical discharge machining (EDM).
Gupta et al.¹²⁷	Glass	TWR was found be negligible with a range of pulse on time and pulse off time 1000–4000 µs and 1000 µs, respectively.NaOH electrolyte showed high machining characteristics as compared to NaCl due to their higher etching action in machining.
Hajian et al.⁴⁴	Glass	Magnetic field orientation which generates upwards Lorenz force with a combination of low electrolyte concentration leads to generate the good quality surface.
Zhang et al.⁹⁵	Super alloy	Their conclusions show sharply rise in MRR and improvement in taper angle with an increase in inner diameter of the electrode.In addition, the defect, that is, residual cylinder produced in the hole was eliminated by using the double hole and multi-hole tube electrode.
Goud and Sharma⁴⁸	Glass	Tool feed rate is dominant factor which significantly affects quality characteristics of machined surface.

ECDM: electrochemical discharge machining; TWR: tool wear rate; SACE: spark-assisted chemical engraving; MRR: material removal rate; ECSM: electrochemical spark machining; WECSM: wire electrochemical spark machining; HAZ: heat affected zone.

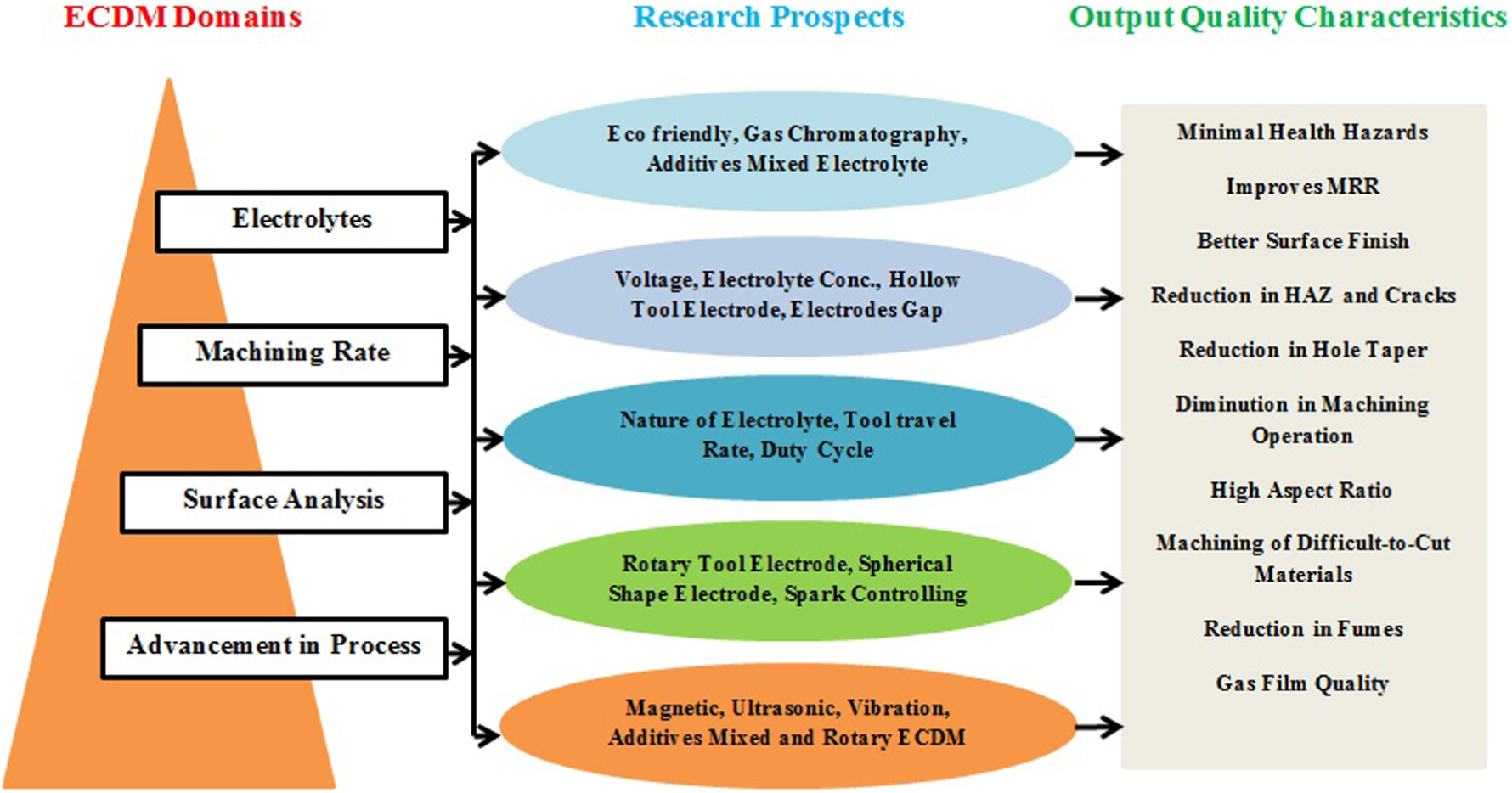

Research potential and scope for future work in ECDM

This review article highlights the work carried out in different domains of ECDM and presented in Figure 20. However, there is enormous scope of works which can be further explored for enhancement of ECDM process capability. It has been observed that foremost publications of ECDM lie in domain of MRR followed by hybridization and machining quality. As discussed in previous sections, several studies on hybrid ECDM, gas film phenomenon, tool electrode shapes and nature of electrolytes have also been attempted. The progress in various domains of ECDM process in last 10 years is presented in Figure 21. From the available literature, it has been concluded that the following domains of ECDM process need to be explored at extended length:

Researchers concluded different ideas on mechanism of sparking in ECDM process, that is, switching phenomenon,¹¹ local heating and chemical etching,¹² arc discharge valve theory.¹³ In switching theory, the authors revealed that coalescence of hydrogen bubbles on tool electrode surface causes blanketing action. Therefore, the contact between tool electrode surface and electrolyte is eliminated which causes current drops to zero in very short time. They concluded that switching phenomenon in ECDM process is quiet similar to switching off phenomenon in electrical circuit. Jalali et al.,¹² concluded that mechanism of ECDM process comprises local heating due to sparking followed by chemical action of electrolyte. On the contrary, Jain et al.¹³ proposed arc discharge valve theory in ECSM process. The arc discharge valve theory is inconsistent with switching theory of ECDM process. The arc discharge valve theory revealed that discharge behaviour in ECDM process is similar to arc discharge (current 1.5 A). Whereas the switching theory observed discharge characteristics is similar to Townsend discharge (current in range of micro ampere). From available literature, it concluded that sparking is occurred due to breakdown of hydrogen bubbles on tool electrode surface. However, the physics behind breakdown of hydrogen bubbles layer or gas film is not well cleared. In future, the different stages in formation of hydrogen bubbles layers and their breakdown can be studied out with the use of high-speed shutter camera in ECDM process.

The literature revealed that drilling of hole in hydrodynamic regime attains lots of irregularities; therefore, improvement in performance of ECDM in hydrodynamic regime is needed to be explored. The irregularities are instability of gas film, uneven machining surface and low fresh electrolyte circulation. These problems can be addressed by incorporating direct and indirect vibration to tool electrode, powder mixed electrolyte, varying tool electrode geometry and rotary tool electrode in ECDM process.

Several research studies have been focussed on vibration-assisted ECDM, that is, vibration applied to tool electrode^10,22,23,112 and electrolyte.²⁴ This leads to enhancement in MRR and deteriorate the surface quality. In case of miniaturized products such as MEMS, Lab-on-a-chip devices the surface characteristics are very important aspects than MRR. Therefore efforts are required to optimize the effect of vibration in the process for improvement in surface quality characteristics of micro-products.

The literature survey revealed that limited work has been done on gas film formation as compared to other domains. Basically, the stability of gas film is responsible for stable spark which tends to generate machined surface with good quality characteristics. In different studies, various researchers tried to control gas film with magnetic field–assisted ECDM,¹⁰⁴ physical properties of electrolyte,¹⁰¹ tool electrode shapes^21,127 and addition of surfactants to electrolyte.²⁰ The physical properties of electrolyte such as surface tension and density which controls gas film phenomenon are not well understood. The physics behind formation of gas film is not fully understood; therefore, lots of efforts are required to explore this area.

In the literature, the electrolyte used in ECDM produce fumes during machining which are very hazardous to human health and environment. So in search of eco-friendly electrolytes work is going on. Figure 22 represents the various research domains of ECDM in which future work can be carried out. In future, major research work lies in triplex hybridization of ECDM such as vibration-assisted ECDM, MAECDM and rotary tubular electrode-assisted ECDM for attainment of above-mentioned requirements. With continuation of this factor, serious efforts are required for exploration of this area.

Undoubtedly, since the development of ECDM process, this process still remains in domain of laboratory research work. Therefore, the transformation of this process from laboratory work to industrial field application requires a lot of exploration in search of eco-friendly electrolyte, the effect of fumes generates in ECDM process on health of operator. The exploration of fumes and eco-friendly electrolyte empower ECDM process to conversion into sustainable and green manufacturing.

Some researchers reported their work on production of nano particles by discharge phenomenon in ECDM.^128,129 This emergent application of discharge phenomenon in area of nanoscience is at starting stage. Therefore, it requires lots of efforts for transform into industrial practice.

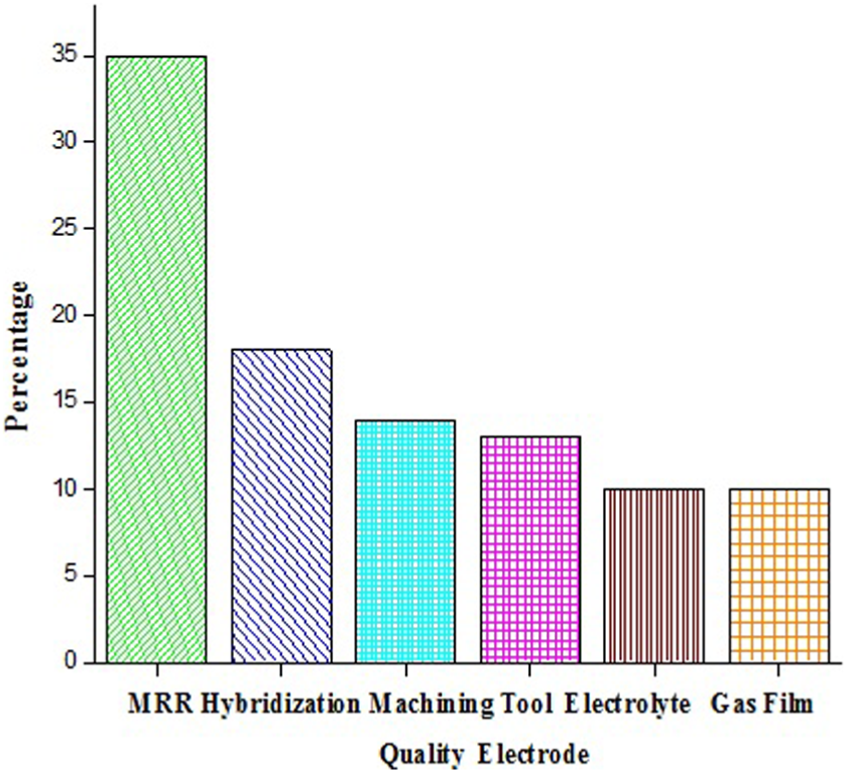

Figure 20.

Percentage of publications in various domains of ECDM for last 10 years reviewed in this report.

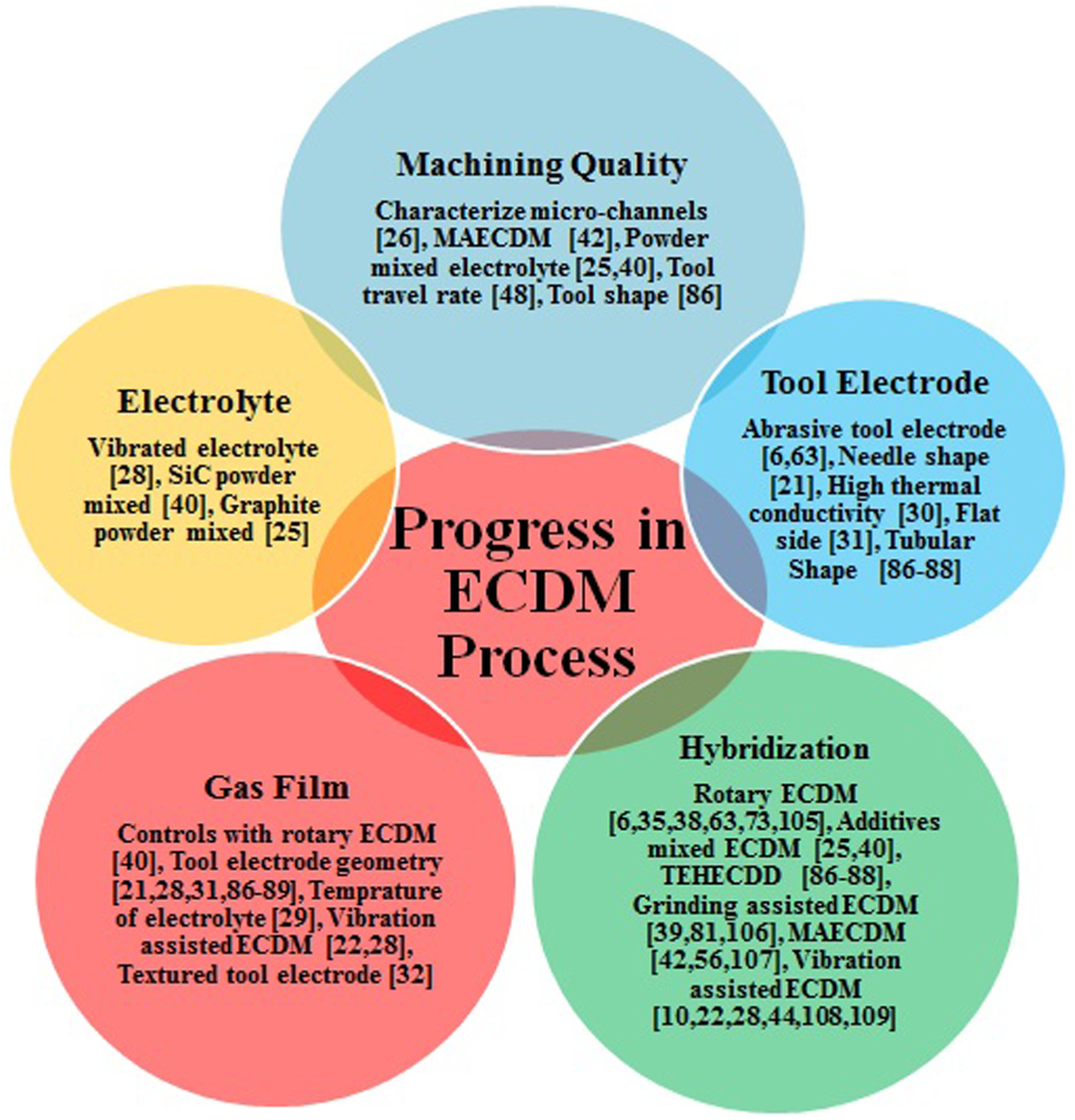

Figure 21.

Progress in ECDM process for last 10 years.

Figure 22.

Various research domains in ECDM process for future research work.

Conclusion

After exhaustive analysis in various domains of ECDM, the major conclusions are drawn and reported below:

The output quality characteristic, that is, overcut rate is minimized with assistance of abrasive coated tool electrode. It is because of insulating nature of abrasive particles over periphery surface of electrode. However, overcut can also be reduced with the use of side insulated tool electrodes.

Overcut can be minimized with implementation of spherical tool electrode as compared to cylindrical tool electrode. This is because of reduction in contact area with spherical tool electrode, which stepped up circulation of electrolyte.

MRR can be enhanced with grinding-assisted ECDM, vibration-assisted ECDM, rotary tool–assisted ECDM and tubular electrode ECDM.

The various problems encountered during machining in hydrodynamic regime can be overcome with vibration-assisted ECDM.

With variation in inner diameter of tubular electrode, that is, double hole and multi-hole electrode a sharply rise in MRR is observed, with elimination of recast layer and improvement in taper angle. In addition to this, residual cylinder produced on machined surface can also eliminate by double hole tubular tool electrode.

With increase in thermal conductivity of tool electrode, machining rate is increased in discharge regime, while it showed inverse trends in hydrodynamic regime. It is because of increase in viscosity of molten material in machining zone.

TWR is highly dependent on tool material properties like melting point, strength, hardness and their composition. With reference to these properties, the tungsten carbide tool electrode attains lowest TWR as compared to other tool electrodes.

TWR can also controlled with tool rotational speed and tool electrode diameter. With the increase in tool rotational speed and tool electrode diameter, the heat dissipation capacity enhanced which causes low TWR.

Surface characteristics such as surface quality, cracks and HAZ were directly linked with stability of gas film. Triplex hybridization of ECDM, that is, magnetic field–assisted ECDM improves surface quality and overcut rate due to control of gas film dynamics.

Surface integrity can also be improved with addition of graphite powder, SiC powder and surfactants to electrolyte in ECDM process.

Gas film can be controlled with number of factors such as surface texturing of tool electrode, vibration-assisted electrolyte and addition of surfactants to electrolyte.

Instability of gas film formation encountered while machining at higher depth, that is, hydrodynamic regime can be resolved with assistance of flat side tool electrode, vibration-assisted electrode and titrated electrolyte due to better flushing action.

Electrochemical discharge phenomenon attains its applicability in nanoscience for production of nanoparticles.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship and/or publication of this article.

ORCID iD

Sarbjit Singh

References

Haebrle

Zengerle

. Microfluidic platforms for lab-on-a-chip applications. Lab Chip 2007; 7: 1094–1110.

Liu

Zhang

Zhu

, et al. Effect of electrodes size on the performance of micro EDM. Mater Manuf Process 2016; 31(4): 391–396.

Geng

Chi

Wang

, et al. Study on micro rotating structure using micro wire electrical discharge machining. Mater Manuf Process 2014; 29: 274–280.

Yuvraj

Kumar

. Multi response optimization of abrasive water jet cutting process parameters using TOPSIS approach. Mater Manuf Process 2015; 30: 882–889.

Cheema

Dvivedi

Sharma

. Tool wear studies in fabrication of microchannels in ultrasonic micromachining. Ultrasonics 2015; 57: 57–64.

Chak

Rao

. Trepanning of Al₂O₃ by electrochemical discharge machining (ECDM) process using abrasive electrode with pulsed DC supply. Int J Mach Tool Manu 2007; 47: 2061–2070.

Taylor

. The anode effect. Transactions of the Electrochemical Society 1925; 47: 301–316.

Karafuji

Suda

. Electrical discharge drilling of glass. CIRP Ann: Manuf Techn 1968; 16: 416–419.

Goud

Sharma

Jawalkar

. A review on material removal mechanism in electrochemical discharge machining (ECDM) and possibilities to enhance the material removal rate. Precis Eng 2016; 45: 1–17.

10.

Razfar

Behroozfar

. Study of the effects of tool longitudinal oscillation on the machining speed of electrochemical discharge drilling of glass. Precis Eng 2014; 38: 885–892.

11.

Ghosh

. Electrochemical discharge machining: principle and possibilities. Sadhana 1997; 22(3): 435–447.

12.

Jalali

Maillard

Wuthrich

. Toward a better understanding of glass gravity-feed micro-hole drilling with electrochemical discharges. J Micromech Microeng 2009; 19: 045001.

13.

Jain

Dixit

Pandey

. On the analysis of electrochemical spark machining process. Int J Mach Tool Manu 1999; 39(1): 165–186.

14.

Crichton

Mcgeough

. Studies of discharge mechanism in electrochemical arc machining. J Appl Electrochem 1985; 15: 113–119.

15.

Khairy

ABE

Mcgeough

. Die-sinking by electroerosion-dissolution machining. CIRP Ann: Manuf Techn 1990; 39: 191–195.

16.

Langen

Breguet

Bleuler

. Micro electrochemical discharge machining of glass. Int J Electr Mach 1998; 3: 65–69.

17.

Fascio

Wuthrich

Bleuler

. Spark assisted chemical engraving in the light of electrochemistry. Electrochim Acta 2004; 49: 3997–4003.

18.

Wuthrich

Fascio

Bleuler

. A stochastic model for electrode effects. Electrochim Acta 2004; 49: 4005–4010.

19.

Wuthrich

Comninellis

Bleuler

. Bubble evolution on vertical electrodes under extreme current densities. Electrochim Acta 2005; 50: 5242–5246.

20.

Wuthrich

Hof

Lal

, et al. Physical principles and miniaturization of spark assisted chemical engraving (SACE). J Micromech Microeng 2005; 15: S268–S275.

21.

Wuthrich

Spaelter

, et al. A systematic characterization method for gravity-feed micro-hole drilling in glass with spark assisted chemical engraving (SACE). J Micromech Microeng 2006; 16: 1891–1896.

22.

Wuthrich

Despont

Maillard

, et al. Improving the material removal rate in spark-assisted chemical engraving (SaCE) gravity-feed micro hole drilling by tool vibration. J Micromech Microeng 2006; 16: N28–N31.

23.

Jiang

Lan

. Experimental investigation of drilling incorporated electrochemical discharge machining. In: Proceeding of the ASME 2014 international manufacturing science and engineering conference, Detroit, MI, 9–13 June 2014. New York: ASME.

24.

Han

Min

Lee

. Geometric improvement of electrochemical discharge micro-drilling using an ultrasonic-vibrated electrolyte. J Micromech Microeng 2009; 19: 065004.

25.

Yang

Hung

, et al. Enhancement of ECDM efficiency and accuracy by spherical tool electrode. Int J Mach Tool Manu 2011; 51: 528–535.

26.

Jui

Kamraj

Sundaram

. High aspect ratio micromachining of glass by electrochemical discharge machining (ECDM). J Manuf Process 2013; 15: 460–466.

27.

Wei

, et al. A finite element based model for electrochemical discharge machining in discharge regime. Int J Adv Manuf Tech 2011; 54: 987–995.

28.

Bhondwe

Yadava

Kathiresan

. Finite element prediction of material removal rate due to electro-chemical spark machining. Int J Mach Tool Manu 2006; 46: 1699–1706.

29.

Paul

Hiremath

. Response surface modelling of micro holes in electrochemical discharge machining process. Procedia Engineer 2013; 64: 1395–1404.

30.

Nguyen

Lee

Kim

. Experimental investigation of ECDM for fabricating micro structures of quartz. Int J Precis Eng Man 2015; 16(1): 5–12.

31.

Allagui

Wuthrich

. Gas film formation time and gas film life time during electrochemical discharge phenomenon. Electrochim Acta 2009; 54: 5336–5343.

32.

Cheng

Mai

, et al. Study of gas film quality in electrochemical discharge machining. Int J Mach Tool Manu 2010; 50: 689–697.

33.

Mousa

Allagui

, et al. The effect of thermal conductivity of the tool electrode in spark-assisted chemical engraving gravity-feed micro drilling. J Micromech Microeng 2009; 19: 015010.

34.

Yang

Cheng

Mai

, et al. Effect of surface roughness of tool electrode materials in ECDM performance. Int J Mach Tool Manu 2010; 50: 1088–1096.

35.

Ziki

Dhawale

NKM

Wuthrich

. Modelling the force exerted on tool-electrode during spark assisted chemical engraving constant velocity feed-drilling. In: Proceeding of the ASME (2010) 3rd joint US-European fluids engineering summer meeting and 8th international conference on nano channels, micro channels, and mini channels, 1–5 August 2010, Montreal, QC, Canada: American Society of Mechanical Engineers.

36.

Kamraj

Jui

Cai

, et al. A mathematical model to predict overcut during electrochemical discharge machining. Int J Adv Manuf Tech 2015; 81: 685–691.

37.

Harugade

Kavade

Hargude

. Effect of electrolyte solution on material removal rate in electrochemical discharge machining. IOSR J Mech Civil Eng 2013; 1–8, https://pdfs.semanticscholar.org/438e/49484c8ee2be725912a98d5fd0cb922ef3e3.pdf

38.

Maillard

Despont

Bleuler

, et al. Geometrical characterization of micro-holes drilled in glass by gravity-feed with spark assisted chemical engraving (SACE). J Micromech Microeng 2007; 17: 1343–1349.

39.

Han

Min

Lee

. Improvement of surface integrity of electro-chemical discharge machining process using powder-mixed electrolyte. J Mater Process Tech 2007; 191: 224–227.

40.

Cao

Kim

Chu

. Micro-structuring of glass with features less than 100 µm by electrochemical discharge machining. Precis Eng 2009; 33: 459–465.

41.

Cao

Kim

Chu

. Hybrid micromachining of glass using ECDM and micro grinding. Int J Precis Eng Man 2013; 14(1): 5–10.

42.

Kuo

Yang

, et al. Effect of adding SiC powder on surface quality of quartz glass micro slit machined by WECDM. Int J Adv Manuf Tech 2015; 78: 73–83.

43.

Gupta

Dvivedi

Kumar

. Effect of pulse duration on quality characteristics of blind hole drilled in glass by ECDM. Mater Manuf Process 2016; 31: 1740–1748.

44.

Hajian

Razfar

Movahed

. An experimental study on the effect of magnetic field orientations and electrolyte concentrations on ECDM milling performance of glass. Precis Eng 2016; 45: 322–331.

45.

Hajian

Razfar

Etefagh

. Experimental study of tool bending force and feed rate in ECDM milling. Int J Adv Manuf Tech 2017; 91(5–8): 1677–1687.

46.

Ziki

JDA

Hof

Wuthrich

. The machining temperature during spark assisted chemical engraving of glass. Manuf Lett 2015; 3: 9–13.

47.

Kim

Ahn

Lee

, et al. Voltage pulse frequency and duty ratio effects in an electrochemical discharge micro drilling process of Pyrex glass. Int J Mach Tool Manu 2006; 46: 1064–1067.

48.

Goud

Sharma

. On performance studies during micromachining of quartz glass using electrochemical discharge machining. J Mech Sci Technol 2017; 31(3): 1365–1372.

49.

Jiang

Lan

. On modelling and simulation of discharge activity in electrochemical discharge machining. In: Proceeding of the ASME 2015 international manufacturing science and engineering conference, Charlotte, NC, 8–12 June 2015. New York: ASME.

50.

Gupta

Dvivedi

Kumar

. A study on the phenomenon of hole overcut with working gap in ECDM. J Prod Eng 2014; 17(2): 30–34.

51.

Jiang

Lan

, et al. Experimental investigation of spark generation in electrochemical discharge machining of non-conducting materials. J Mater Process Tech 2014; 214: 892–898.

52.

Jain

Adhikary

. On the mechanism of material removal in electrochemical spark machining of quartz under different polarity conditions. J Mater Process Tech 2008; 200: 460–470.

53.

Saranya

Nair

Sankar

. Experimental investigations on the electrical and 2D-machining characteristics of an electrochemical discharge machining (ECDM) process. Microsyst Technol 2017; 23(5): 1453–1461.

54.

Jiang

. Micro-machining of glass using electrochemical discharge assisted cutting. In: Proceeding of the ASME 2016 11th international manufacturing science and engineering conference, Blacksburg, VA, 27 June–1 July 2016. New York: ASME.

55.

Didar

Dolatabadi

Wuthrich

. Characterization and modelling of 2D-glass micro-machining by spark-assisted chemical engraving (SACE) with constant velocity. J Micromech Microeng 2007; 18: 065016.

56.

Fascio

Wuthrich

Viquerat

, et al. 3D microstructuring of glass using electrochemical discharge machining (ECDM). In: Proceedings of 1999 international symposium on micromechatronics and human science, Nagoya, Japan, 23–26 November 1999, pp.179–183. New York: IEEE.

57.

Schwartz

. Engineering applications of ceramic materials: source book. Metals Park, OH: American Society for Metals, 1995.

58.

Singh

Jain

Kumar

, et al. Machining piezoelectric (PZT) ceramics using an electrochemical spark machining (ECSM) process. J Mater Process Tech 1996; 58: 24–31.

59.

Sarkar

Doloi

Bhattacharya

. Parametric analysis on electrochemical discharge machining of silicon nitride ceramics. Int J Adv Manuf Tech 2006; 28: 873–881.

60.

Shanmukhi

Vundavilli

Surekha

. Modeling of ECDM micro-drilling process using GA- and PSO-trained radial basis function neural network. Soft Comput 2015; 19: 2193–2202.

61.

Bhattacharya

Doloi

Sorkhel

. Experimental investigation into electrochemical discharge machining (ECDM) of non-conducting materials. J Mater Process Tech 1999; 95: 145–154.

62.

Chak

Rao

. The drilling of Al₂O₃ using pulsed DC supply with a rotary abrasive electrode by the electrochemical discharge process. Int J Adv Manuf Tech 2008; 39: 633–641.

63.

Ziki

JDA

Wuthrich

. Tool wear and thermal expansion during micro-machining by spark assisted chemical engraving. Int J Adv Manuf Tech 2012; 61: 481–486.

64.

Dhanvijay

Ahuja

. Micromachining of ceramics by electrochemical discharge process considering stagnant and electrolyte flow method. Procedia Engineer 2014; 14: 165–172.

65.

Manna

Kundal

. An experimental investigation on fabricated TW-ECSM setup during micro slicing of nonconductive ceramic. Int J Adv Manuf Tech 2015; 76: 29–37.

66.

Behroozfar

Razfar

. Experimental study of the tool wear during the electrochemical discharge machining. Mater Manuf Process 2016; 31: 574–580.

67.

Hofy

Mcgeough

. Evaluation of an apparatus for electrochemical arc wire-machining. J Eng Ind 1988; 110: 119–123.

68.

Coteata

Slatineanu

Dodun

, et al. Electrochemical discharge machining of small diameter holes. Int J Mater Form 2008; 1(1): 1327–1330.

69.

Coteata

Ciofu

Slatineanu

, et al. Establishing the electrical discharge weight in electrochemical discharge drilling. Int J Mater Form 2009; 2(1): 673–676.

70.

Coteata

Schulze

Slatineanu . Drilling of difficult-to-cut steel by electrochemical discharge machining. Mater Manuf Process 2011; 26: 1466–1472.

71.

Chavoshi

Behagh

. A note on influential control parameters for drilling of hard-to-machine steel by electrochemical discharge machining. Int J Adv Manuf Tech 2014; 71: 1883–1887.

72.

Huang

Liu

, et al. Electrochemical discharge machining micro-hole in stainless steel with tool electrode high-speed rotating. Mater Manuf Process 2014; 29: 634–637.

73.

Krotz

Roth

Wegener

. Experimental investigation and simulation of heat flux into metallic surfaces due to single discharges in micro-electrochemical arc machining (micro-ECAM). Int J Adv Manuf Tech 2013; 68: 1267–1275.

74.

Krotz

Wegener

. Spark assisted electrochemical machining: a novel possibility for micro drilling into electrical conductive materials using the electrochemical discharge phenomenon. Int J Adv Manuf Tech 2015; 79: 1633–1643.

75.

Speer

Es-Said

. Applications of an aluminium-beryllium composite for structural composite for structural aerospace components. Eng Fail Anal 2004; 11: 895–902.

76.

Kunze

Bampton

. Challenges to developing and producing MMCs for space applications. JOM 2001; 53(4): 22–25.

77.

Zweben

. Advanced electronics packaging material. Adv Mater Process 2005; 163: 33–37.

78.

Singh

Dvivedi

. Design and development of abrasive-assisted drilling process for improvement in surface finish during drilling of metal matrix composites. Proc IMechE, Part B: J Engineering Manufacture 2013; 228(8): 857–867.

79.

Singh

Dvivedi

. Multiobjective optimization in drilling of Al6063/10% SiC metal matrix composite based on grey relational analysis. Proc IMechE, Part B: J Engineering Manufacture 2013; 227(12): 1767–1776.

80.

Antil

Singh

Manna

. Glass fibers/SiCp reinforced epoxy composites: effect of environmental conditions. J Compos Mater 2018; 52(9): 1253–1264.

81.

Tandon

Jain

Kumar

, et al. Investigation into machining of composites. Precis Eng 1990; 12: 227–238.

82.

Yadav

Yadava

. Experimental investigations of slotted electrical discharge abrasive grinding of Al/ SiC/Gr composite. Proc IMechE, Part B: J Engineering Manufacture 2017; 231: 945–955.

83.

Kumar

Singh

. Electric discharge sawing of hybrid metal matrix composites. Proc IMechE, Part B: J Engineering Manufacture 2017; 231: 1775–1782.

84.

Singh

Singhal

. An experimental study on rotary ultrasonic machining of Macor ceramic. Proc IMechE, Part B: J Engineering Manufacture 2016; 232(7): 1221–1234.

85.

Yuan

Zhu

Zhang

. Modeling of tool blockage condition in cutting tool design for rotary ultrasonic machining of composites. Int J Adv Manuf Tech 2017; 91(5–8): 2645–2654.

86.

Taweeporn

Viboon

Chaiya

. Laser micro-milling under a thin and flowing water layer: a new concept of liquid-assisted laser machining process. Proc IMechE, Part B: J Engineering Manufacture 2015; 230(2): 376–380.

87.

Liu

Yue

Guo

. An analysis of the discharge mechanism in electrochemical discharge machining of particulate reinforced metal matrix composites. Int J Mach Tool Manu 2010; 50: 86–96.

88.

Liu

Yue

Guo

. Grinding-aided electrochemical discharge machining of particulate reinforced metal matrix composite. Int J Adv Manuf Tech 2013; 68: 2349–2357.

89.

Manna

Narang

. A study on micro machining of e-glass-fibre-epoxy composite by ECSM process. Int J Adv Manuf Tech 2012; 61: 1191–1197.

90.

Malik

Manna

. An experimental investigation on developed WECSM during micro slicing of e-glass fibre epoxy composite. Int J Adv Manuf Tech 2016; 85: 2097–2106.

91.

Antil

Singh

Manna

. Electrochemical discharge drilling of SiC reinforced polymer matrix composite using Taguch’s Grey relational analysis. Arab J Sci Eng 2018; 43(3): 1257–1266.

92.

Akhtar

Sun

, et al. Tool wear mechanism in machining of Nickel based super-alloys: a review. Front Mech Eng 2014; 9(2): 106–119.

93.

Yadav

Yadava

. Experimental investigation on electrical discharge diamond drilling of nickel-based superalloy aerospace material. Proc IMechE, Part B: J Engineering Manufacture 2017; 231(7): 1160–1168.

94.

Yan

Zhengyang

Jun

, et al. Effect of tube-electrode inner diameter on electrochemical discharge machining of nickel-based superalloy. Chinese J Aeronaut 2016; 29(4): 1103–1110.

95.

Zhang

Zhu

, et al. Effect of tube-electrode inner structure on machining performance in tube-electrode high-speed electrochemical discharge drilling. J Mater Process Tech 2016; 231: 38–49.

96.

Yan

Zhengyang

Yun

, et al. Machining of film cooling hole in a single-crystal superalloy by high-speed electrochemical discharge machining. Chinese J Aeronaut 2016; 29(2): 560–570.

97.

Zhang

Zhu

, et al. Tube electrode high-speed electrochemical discharge drilling using low-conductivity salt solution. Int J Mach Tool Manu 2015; 92: 10–18.

98.

Solaiyappan

Karuppan

. Investigation of electrochemical machining characteristics of 20MnCr5 alloy steel using potassium dichromate mixed aqueous NaCl electrolyte and optimization of process parameters. Proc IMechE, Part B: J Engineering Manufacture 2015; 229(11): 1984–1996.

99.

Sabahi

Razfar

Hajian

. Experimental investigation of surfactant-mixed electrolyte into electrochemical discharge machining (ECDM) process. J Mater Process Tech 2017; 250: 190–202.

100.

Yang

Yan

. Micro hole machining of borosilicate glass through electrochemical discharge machining (ECDM). Key Eng Mat 2001; 196: 149–166.

101.

Jiang

Lan

Wilt

, et al. Modelling and experimental investigation of gas film in micro-electrochemical discharge machining process. Int J Mach Tool Manu 2015; 90: 8–15.

102.

Yang

Natsu

Zhao

. Realization of eco-friendly electrochemical micromachining using mineral water as an electrolyte. Precis Eng 2011; 35: 204–213.

103.

Han

Min

Lee

. Micro-electrochemical discharge cutting of glass using a surface-textured tool. CIRP J Manuf Sci Tech 2011; 4: 362–369.

104.

Zheng

Huang

, et al. The tool geometrical shape and pulse-off time of pulse voltage effects in a Pyrex glass electrochemical discharge micro drilling process. J Micromech Microeng 2007; 17: 265–272.

105.

Wuthrich

Ziki

JDA

. Micomachining using electrochemical discharge phenomenon. 2nd ed. Oxford Elsevier.

106.

Vogt

Thonstad

. Review of the cause of anode effects in aluminium electrolysis. Aluminium 2003; 79: 98–102.

107.

Kelogg

. Anode effect in aqueous electrolysis. J Electrochem Soc 1950; 97: 133–142.

108.

Guilpin

Garbaz

. Analyse de la lumiere emis aux electrodes pendant les effects delectrode, dans des solutions aqueuses delectrolyte. Spectrochim Acta 1977; 32B: 155.

109.

Aspinwall

Dewes

Burrows

, et al. Hybrid high speed machining (HSM): system design and experimental results for grinding/HSM and EDM/HSM. CIRP Ann: Manuf Techn 2001; 50(1): 145–148.

110.

Curtis

Soo

Aspinwall

, et al. Electrochemical super abrasive machining on nickel-based aero engine alloy using mounted grinding points. CIRP Ann: Manuf Techn 2009; 58(1): 173–176.

111.

Lauwers

Klocke

Klink

, et al. Hybrid processes in manufacturing. CIRP Ann: Manuf Techn 2014; 63: 561–583.

112.

Elhami

Razfar

. Study of the current signal and material removal during ultrasonic-assisted electrochemical discharge machining. Int J Adv Manuf Tech 2017; 92(5–8): 1591–1599.

113.

Rusli

Furutani

. Performance of micro-hole drilling by ultrasonic assisted electrochemical discharge machining. Adv Mat Res 2012; 445: 865–870.

114.

Adam

. Use of the term ‘Young’s Equation for contact angles. Nature 1957; 180: 809–810.

115.

Mohammadi

Wassink

Amirfazli

. Effect of surfactants on wetting of super-hydrophobic surfaces. Langmuir 2004; 20: 9657–9662.

116.

Latthe

Hirashima

Rao

. TEOS-based water repellent silica film obtained by a co-precursor sol-gel method. Smart Mater Struct 2009; 18: 095017.

117.

Gautam

Jain

. Experimental investigations into ECSD process using various tool kinematics. Int J Mach Tool Manu 1998; 38: 15–27.

118.

Jain

Chouksey

. A comprehensive analysis of three-phase electrolyte conductivity during electrochemical macromachining/micromachining. Proc IMechE, Part B: J Engineering Manufacture 2018; 232(14): 2449–2261.

119.

Leese

Ivanov

. Electrochemical micromachining: review of factors affecting the process applicability in micro-manufacturing. Proc IMechE, Part B: J Engineering Manufacture 2018; 232(2): 195–207.

120.

Wen

. Grinding-aided electrochemical discharge machining of metal matrix composites. Doctoral Dissertation, The Hong Kong Polytechnic University, Hong Kong, 2009.

121.

Yadav

. Electro-chemical spark machining–based hybrid machining processes: research trends and opportunities. Proc IMechE, Part B: J Engineering Manufacture 2019; 233(4): 1037–1061.

122.

Ziki

JDA

Didar

Wuthrich

. Micro-texturing channel surface on glass with spark assisted chemical engraving. Int J Mach Tool Manu 2012; 57: 66–72.

123.

Cheng

Mai

, et al. Magnetic field assisted electrochemical discharge machining. J Micromech Microeng 2010; 20: 7.

124.

Bhuyan

Yadava

. Experimental modelling and multi-response optimization of traveling wire electrochemical spark machining of pyrex glass. Proc IMechE, Part B: J Engineering Manufacture 2014; 228(8): 902–916.

125.

Bhuyan

Yadava

. Experimental study of traveling wire electrochemical spark machining of borosilicate glass. Mater Manuf Process 2014; 29(3): 298–304.

126.

Sarkar

Doloi

Bhattacharyya

. Investigation into the influences of the power circuit on the micro-electrochemical discharge machining process. Proc IMechE, Part B: J Engineering Manufacture 2009; 223(2): 133–144.

127.

Gupta

Dvivedi

Kumar

. Developments on electrochemical discharge machining: a review of experimental investigations on tool electrode process parameters. Proc IMEchE, Part B: J Engineering Manufacture 2015; 229(6): 910–920.

128.

Wuthrich

Allagui

. Building micro and nanosystems with electrochemical discharges. Electrochimica Acta 2010; 55: 8189–8196.

129.

Tseng

Chen

Shyue

. Continuous synthesis of colloidal silver nanoparticles by electrochemical discharges in aqueous solutions. J Nanopart Res 2011; 13: 1865–1872.

Electrochemical discharge machining: A review on preceding and perspective research

Abstract

Keywords

Introduction

Machining behaviour of work pieces materials under ECDM process

Glass and ceramics

Steel, composites and super-alloys

Electrolytes

Behaviour of tool electrode

Gas film formation

Machining quality

Research potential and scope for future work in ECDM

Conclusion

Footnotes

Declaration of conflicting interests

Funding

ORCID iD

References
