An interactive and immersive human–computer interface for rapid composite part production design

Abstract

This article addresses the need for better retention and exploitation of tacit knowledge for intelligent computer-aided design. It presents an automated design framework for the development of individual part forming tools for a composite stiffener incorporating parametrically developed design geometries. This work develops existing principles in knowledge-based engineering and parametric modelling beyond product design in the manufacturing planning domain. Outcomes demonstrate chronological benefits of automated process design methods as well as learning enhancements as the tacit knowledge data set can now include an applied element through an auto-generated virtual build environment. A virtual environment presenting a design concept to the planner for interactive assembly assessment was generated in twenty seconds and enabled the completion of virtual builds in support of the development of an optimal forming tool arrangement. This principle enables the addition of an experiential tacit knowledge feedback loop to further improve assembly planning for design concepts as they evolve. Challenges still exist in determining the level of reality required to provide an effective learning environment in the virtual world. Full representation of physical phenomena such as gravity, part clashes and the representation of standard build functions require further work to represent real physical phenomena robustly.

Introduction

The aerospace industry, like others, faces considerable market demands of ever improving performance and ever reducing costs and time scales for delivery. Significant commercial advantage can be gained by delivering the right product to the market at the right time and ahead of competitors. Such pressure congests the design and development programmes for new aircraft and risks the delivery of right-first-time innovative solutions. By reducing the time-to-market, the net cost of the design process is not necessarily reduced. The time-to-market may be reduced by carrying out the same amount of work but compressing it into a shorter schedule. This can result in higher design and manufacturing preparation costs. The goal should therefore be to reduce the flow time required to design an aircraft by reducing the hours required to perform the design and manufacturing preparation tasks.

From a commercial point of view, it is recognised that competitive advantage can only be maintained through the application and foundation of knowledge. It is also recognised that in many organisations, their operating knowledge is un-documented, ¹ with up to 90% of organisational knowledge existing within the heads of their employees in a tacit form. A significant proportion of this can be regarded as high-value intellectual property which is unique to the individual and their employer. Knowledge is therefore a key asset just like capital equipment on the shop floor or cash in the bank. Despite its importance, knowledge in general, and tacit knowledge in particular, can be at best under-utilised or at worst lost ¹ through outsourcing, downsizing, mergers, redundancies, retirements or the natural migration of individuals in a competitive labour marketplace. Technical knowhow and competitive advantage can be forfeited to a competitor or lost altogether as 21st century business practices and commercial operating conditions make all of these factors commonplace in industry. Knowledge management and the maintenance of any competitive advantage remain a significant challenge, and it is acknowledged that this needs to be addressed in what has become a turbulent business environment. ²

In a technical context, sustainable competitive advantage can flow from the creation, ownership, protection and use of difficult-to-imitate commercial and industrial knowledge. ³ However, despite improvements in information technology and data management, the process of knowledge generation, interpretation, exploitation and even retention still requires human intervention. The tacit knowledge of domain experts remains central to technical and commercial success of commercial engineering programmes. Digital methods such as computer-aided design (CAD), finite element analysis (FEA), computational fluid dynamics (CFD) and product lifecycle management (PLM) have now matured to the extent that they have become ubiquitous across most engineering design disciplines. Multidisciplinary interaction has become routine as interface methods and codes have been developed which allow the seamless interchange of data between platforms and disciplines. These methods and software platforms have the capacity to generate the information required to develop optimal engineering solutions. Opportunities still exist to enhance and exploit automated design methods through better use of tacit design knowledge and broader use of virtual reality (VR) methods to enhance it as a product and its manufacturing requirements evolve. If these opportunities can be exploited, then original equipment manufacturers (OEMs) would be in a better position to overcome the perennial problems of time and cost overruns on major product development programmes^4,5 as well as the issues arising from diminishing competitive advantage due to loss or under-exploitation of organisational knowledge.

Intelligent design systems are already in use in aerospace. ‘Artificial’ intelligence (AI) already utilises computational methods to emulate various faculties of human intelligence and biological metaphors.^6,7 They use a combination of symbolic and sub-symbolic systems capable of evolving human cognitive skills and intelligence, and they are ideally suited to tasks such as search and optimisation, pattern recognition and matching, planning, uncertainty management, control and adaptation. However, the capabilities made available through the use of AI come at the cost of computational expense both in their development and application. Although they promote the evolution of knowledge, there has to be a question as to whether their application can mimic and fully exploit existing knowledge efficiently. An alternative is the development of design capability where the intelligence is derived from direct capture and integration of tacit knowledge in parametrically driven tools. This sub-division of knowledge management into codification approaches that emphasise the collection and organisation of knowledge (e.g. artificial intelligence) and personalisation approaches that emphasise human resources and communication (e.g. capture and use of tacit knowledge) is advocated by McMahon et al. ⁸ The challenge associated with the capture of design rationale ⁸ is an integral part of the work presented here.

Previous work has demonstrated the benefits of automated design methods and has shown how aircraft concepts can be transformed directly from a simple one-dimensional (1D) structural representation to full blown three-dimensional (3D) CAD model. ⁹ This effectively coupled the structural analysis and CAD domains using analytical outputs to drive the automated generation of detailed 3D features and geometries. The methods used effectively removed the human in the loop who would otherwise have translated analysis outcomes into physical elements for the purpose of ‘hand generating’ the 3D model. The tacit knowledge of the designer (based on the functions available within the CAD user interface) was effectively captured and added to the design code in order to translate structural performance characteristics into conceptual architectures. This significantly reduced development lead times enabling shortened detailed design phases or the opportunity to explore more options with equivalent development lead times thereby resulting in more optimal outcomes.

Methods have also been developed to design aircraft panel assembly fixtures automatically based on rules derived from the geometric properties of the product itself. ¹⁰ The product dimensions arising from the structural design process ⁹ were used as the basis for the design of the equipment required to assemble panel sections accurately. In this case, the tacit knowledge of the tooling designer was included in the process, and strategies were included for the sub-division of large fuselage sections into smaller sections for the manufacture and assembly of individual panels as well as the use of standard sections and clamping arrangements for the fixture itself. This then coupled the design and assembly domains, facilitating the design of fixtures, work cells and even factory layouts which could evolve in parallel with the product. This again offered opportunities for reducing development lead times by considering assemblability earlier in the product development cycle.

In both cases [9 & 10] the automatic generation of CAD geometry (for the product and its assembly fixtures) was built on data related to physical sizing derived from structural performance. The engineering principles surrounding structural analysis as well as standard practices in fixture design for metallic assembly processes are relatively well established. Their inclusion in automated design tools was therefore relatively straightforward. However, as new technologies develop to support the application of novel material systems in aircraft design, the ability to create support equipment becomes less straightforward. Domain and even material-specific knowledge still requires the input of subject experts making the capture and use of this tacit knowledge critical to the development of automated tools for specialised manufacturing applications. One such application is the design of composite forming tools.

Although, by definition, automated methods require tacit knowledge for their definition in the first instance, the creation of design concepts is only the first step in a process that leads to its eventual manufacture. The exploitation of tacit knowledge for assembly-based tasks around new products can only be maximised when the operator completes the task, and this is not serviced by current capabilities in automated design. To address this, this work focuses on the development of an automated design framework for the development of tools suitable for forming a carbon fibre–reinforced stiffener. The framework uses parametrically developed design geometries for both the part and its layup tool. The framework has been developed with a functioning user interface where part/tool combinations are developed using the interdependent dimensional relationships between the ‘as designed’ composite part and the tool required to form it. The tacit knowledge or ‘know how’ of the tooling engineer has also been coded into the tool covering design elements away from the part/tool interface. When complete, the design options can be passed to a virtual environment for utility-based assessment of their features and assemblability characteristics. This enables the integration of established, design-based tacit knowledge with an additional experiential element made possible through the completion of virtual builds. In the context of this article, automated design is defined as follows: ‘the generation of 3D CAD geometry automatically, through a custom-coded user interface, without direct user interaction with the traditional CAD interface’. Similar components differing only on key dimensions are used for this work. Part details, manufacturing procedures and tooling features are captured and embodied in the automated design code. The approach includes the use of the required geometrical relationships between the tool and part as well as the peripheral design rules required to form the tool geometry beyond the part/tool contact surfaces. These are used in turn to generate and articulate design options. This work includes the transfer of the resulting component and tool geometry to a VR environment enabling the virtual assessment of tooling functions as advocated by McConnell et al. ¹⁰ By providing an interactive and immersive human–computer interface, this work creates an efficient framework for designing, planning and assessing composite part manufacture including tooling functionality with respect to the human user. The outcomes enable the direct inclusion of what was previously considered artisan or ‘black art’-type manufacturing knowledge in engineering design and product build assessment.

Method

Automated design framework

Figure 1 maps the framework used for the development of the composite layup tool required to form the stiffener. The process includes component inspection and definition of the data required to drive mould tool design. This is then used to develop tool forms based on critical features and dimensions as well as ‘in house’ design rules (i.e. draft angles and standard fasteners) and mould tool functions.

Figure 1.

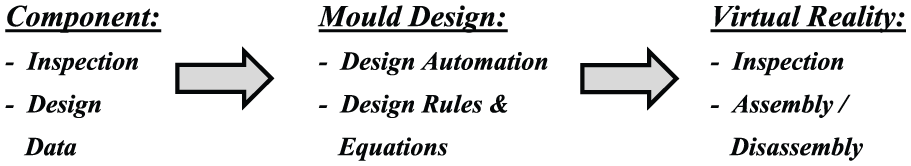

Automated design framework for virtual development of composite layup tool.

These include the elements required for ease of handling by the user and how the tool integrates with the curing environment (i.e. dimensions appropriate for insertion and positioning in autoclave as well as positioning on loading/unloading stations). The stiffener and its associated mould tool are then transferred to the virtual environment for functional assessment where a user can interact with all elements of the system.

Structural stiffener

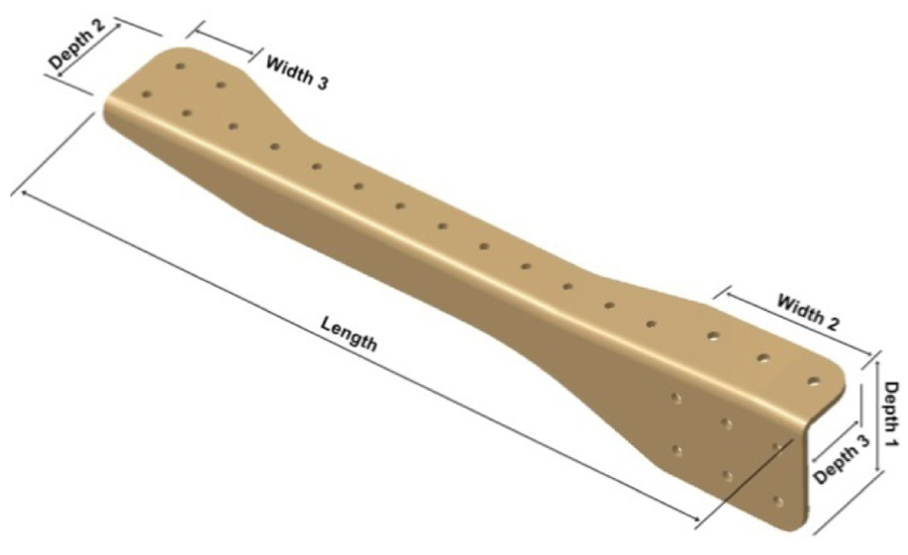

Figure 2 shows the basic stiffener with the main dimensions highlighted. This component currently exists in two forms, and the dimensions highlighted in Figure 2 vary for each case. Both versions of the stiffener have the same thickness, length, width 1 and width 2. All other dimensions differ for the two variants. The aim of this work was to create a third variant of the stiffener based on the design rules and key dimensions derived from the existing components. During the inspection phase, a subtle change in the profile shape along the surface defined by widths 2 and 3 and depths 2 and 3 was identified. A decreasing gradient along this surface meant that there was a variation between the two stiffener versions as the parts have to fit in with different structural profiles during final assembly.

Figure 2.

Composite stiffener.

Layup tool

Figure 3 shows the composite layup tool with the main features highlighted, and these are as follows: the mould block which is a shelled feature with 2 underlying ribs, 3 holes required on upper surface as well as a further 18 holes for the periphery bar.

Figure 3.

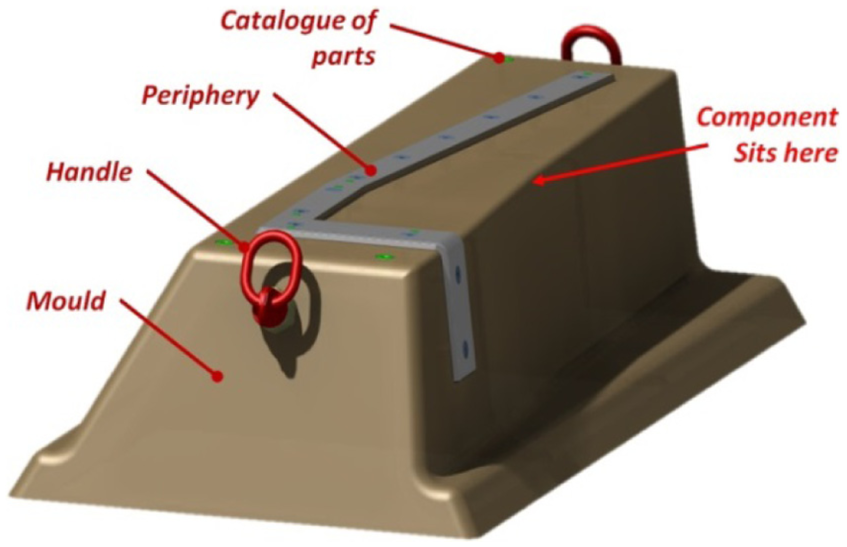

Composite layup tool.

The periphery bar consists of three separate components and a total of 18 holes required for fixing the component, and two handles on the ends of the block and the catalogue of parts (nuts, bolts and screws). The process for automated mould design started with the assessment of the features of the existing mould tools. This identified key features and dimensions. The moulds include multiple holes which vary in size, however, despite the dimensional differences between the parts and mould for the two existing stiffeners; the hole properties of the tools remain identical for both.

The tool inspection process also included the comparison of the hole positions and part locations relative to a datum point located at the corner of the upper tool surface (Figure 4). The mould tool also reflected the decreasing gradient along top surface of the stiffener. This feature is an important aspect of the layup tool as it forms a critical feature which interfaces with a higher profile on the aircraft during final assembly. The automated development of this feature is critical to the overall success of the work as it influences assembly accuracy.

Figure 4.

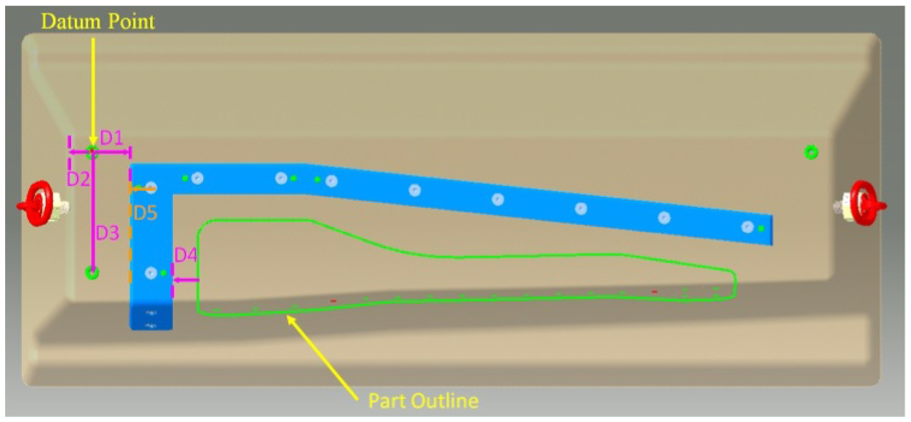

Tool inspection process: definition of positional parameters for automated design process.

CAD

Relating physical features to the CAD functions required to model them was a key element of this work. The key features of the tool were the part forming surfaces on the mould and the two end mounted handles (Figure 3). Each of the primary physical features was sub-divided into the constituent parts (see Figure 5), and the next stage in the process required the translation of these feature data using a process that would enable the creation of the CAD models including the spatial relationships between features and parts. Once placed in the CAD environment, the creation of repeated parts and features involved feature generation and copying functions. Axis systems were defined and used to control orientations and relative positions. This process formed the basis for a procedure which could automate the design of further components and tools differing only in key dimensions. Figure 6 maps the geometry creation process in the form of a design tree.

Figure 5.

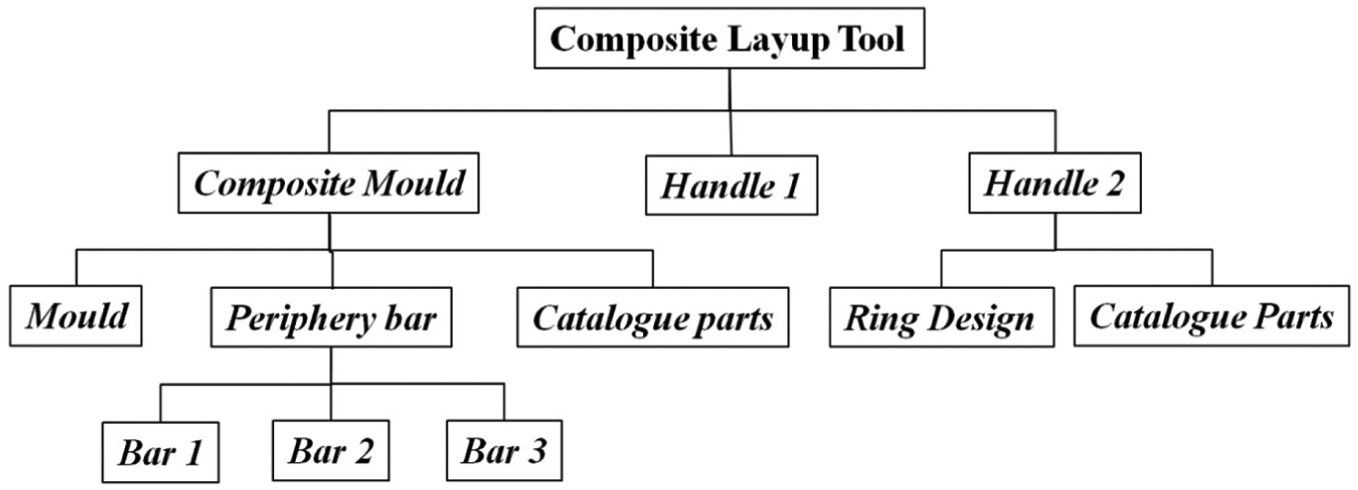

Primary geometric elements for composite layup tool.

Figure 6.

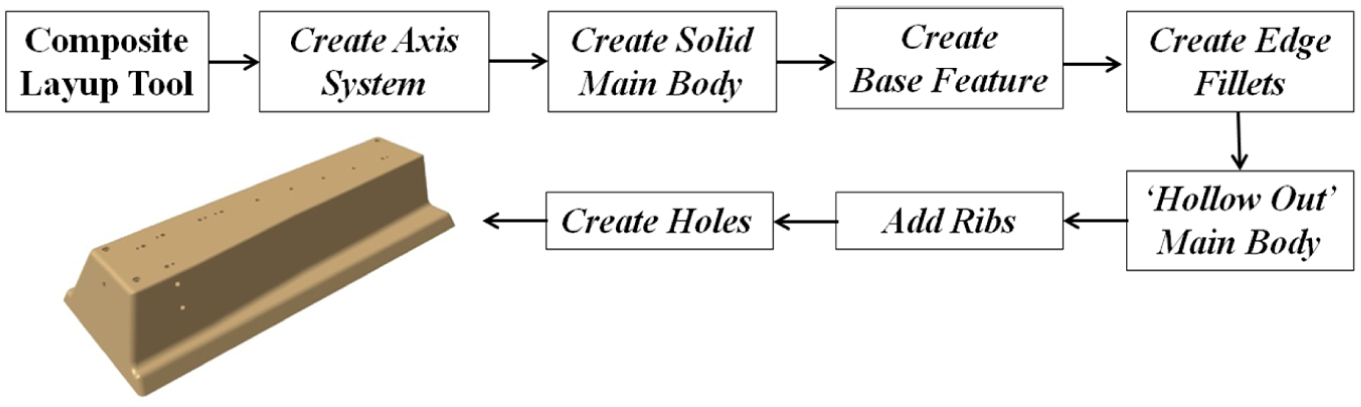

Design tree for composite layup tool.

Within the CAD environment, the automated application of the modelling functions meant that some of the design components could be transferred from a parent part. This removed access to their design parameters and the system considered these as elements within a catalogue of standard parts. Although this meant that detailed design knowledge for these parts was limited, mapping out names and matching features was helpful when automating the design later in the process. This method was applied to the mould handles as well as the periphery bars. With all of the required design data gathered for both the stiffener and the mould tool, the process of automating the generation of further components could begin.

Automated design

An user interface had previously been developed for the automated design of complex metallic assemblies. ⁹ This environment was re-used for this work (see Figure 7), and functionality was extended to include the design of the composite layup tool.

Figure 7.

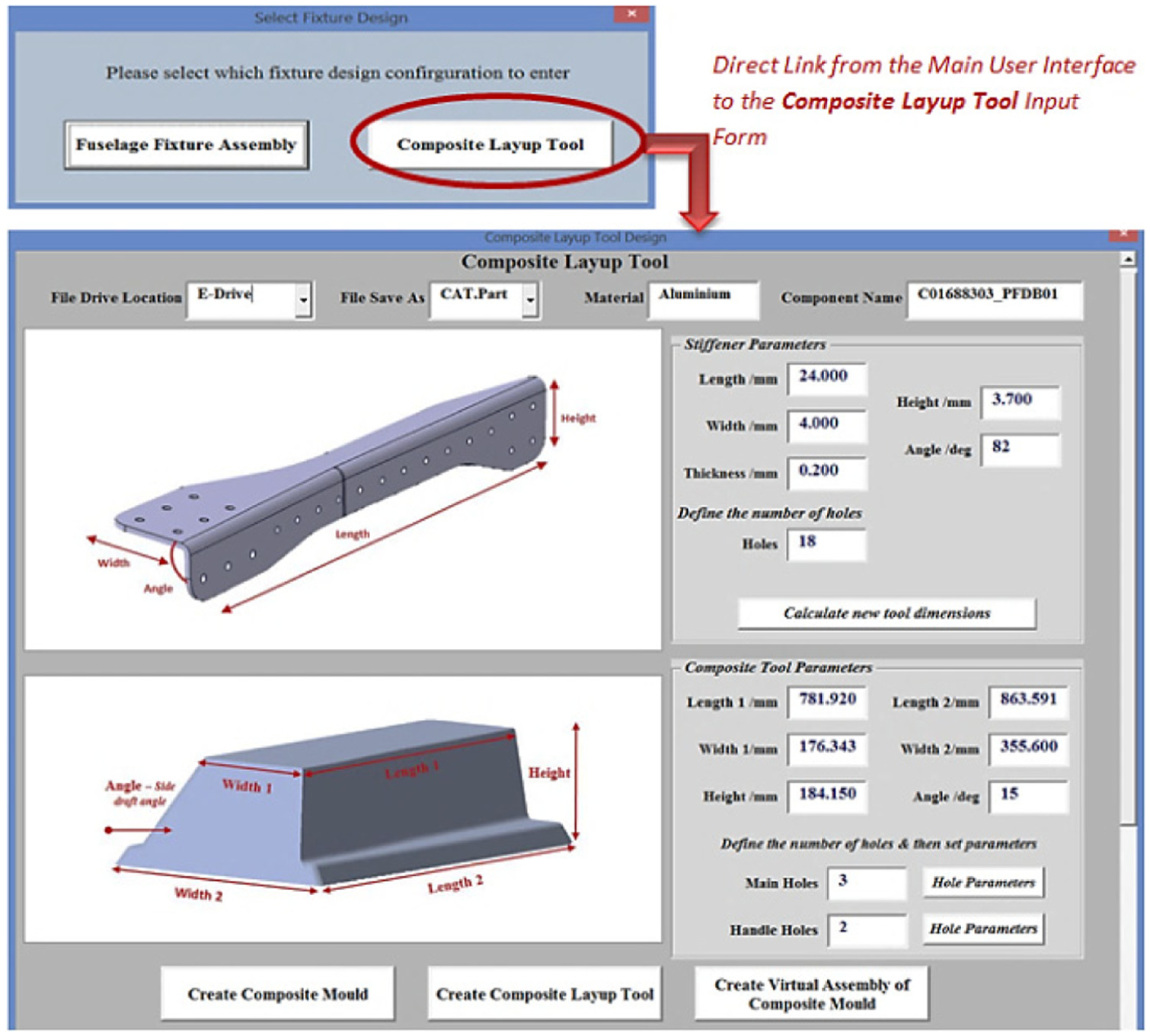

User interface for automated design of composite layup tool for aerospace stiffener.

The interface was used only for the input of critical dimensions as required design variables. All knowledge, rules and mathematical functions were embodied and stored within the write-protected Visual Basic (VBA) script. Lower level design parameters that were derived from the higher level component properties were also stored and accessed via the VBA script. An example was the size of the individual periphery bars which were based on the dimensions of the mould tool which was in turn based on the size of the part. This pre-defined data structure helped to ensure the dimensional integrity of the components. If any changes were made to the high-level component, the low-level parts were updated automatically, maintaining the design intent at all levels from the component to the tool required to lay up and form it.

The user form can be broken down into three sections; non-design inputs, part design inputs and tool design inputs. The information on the forms was kept to a minimum and the user had just enough control to design the required component variant. Inputs required for repeated features came through the code – inputs required for the variable features came from the user via the interface. In addition to core design functions, the interface included file management capability for accessing, naming and saving documents and CAD files.

From the input of the stiffener parameters, the system could calculate the size of the composite layup tool based on the geometric information established during the analysis phases. These were subsequently combined with standard design practices and converted to the series of design rules used to derive the final tool geometry.

VR

The virtual world is constructed using Python script for the VR software Vizard which can provide a fully immersive experience in a virtual environment. Unlike a typical CAD interface, geometry creation and manipulation functions are presented to the user in multi-layered toolbars, VR platforms typically do not have a default user interface. All operations required, when the user is in the environment, must be coded to provide the user with the required functions when they are immersed. To achieve a realistic experience, interaction was based on the movement of the user which was in turn based on the motion of their body and their inputs via a control device (a Nintendo Wii remote in this case). The user needed to visualise and interact with the immersive environment. Immersion and control of the VR environment were achieved using a head-mounted display (for stereoscopic visual immersion) and a motion tracking system which enabled realistic body movement as sensors attached to the head and hand in this case were tracked within a magnetic field (see Figure 8).

Figure 8.

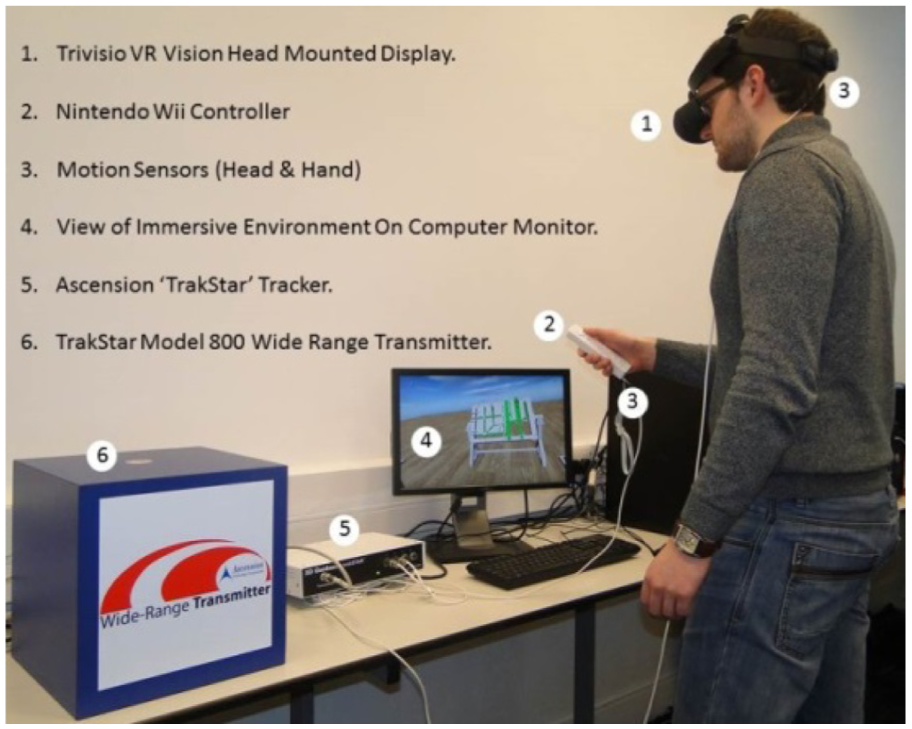

Desktop virtual reality (VR) system.

The main aim of the VR system in the context of this work was to create a realistic space that provided functionality for completing virtual part builds. The environment used here was kept as simple as possible and included a ground for walking on and a standard sky background. Two tables were used: one for placing containers (with nuts, screws and bolts) and the other for accommodating the composite mould tool and the separated periphery bars. All of the components within the VR environment were taken from the CAD design concept developed using the automated design process described in earlier sections. All components were automatically disassembled into a starting position in the virtual world so that the user could then assemble the mould tool.

Results

Creation of composite mould tool components

The code sequence for the creation of the composite layup tool in CATIA embodied information related to the dimensional requirements of the tool (based on the stiffener sizes), the tool configuration (for features not in direct contact with the stiffener) and the basic CAD functions required to build the geometry.

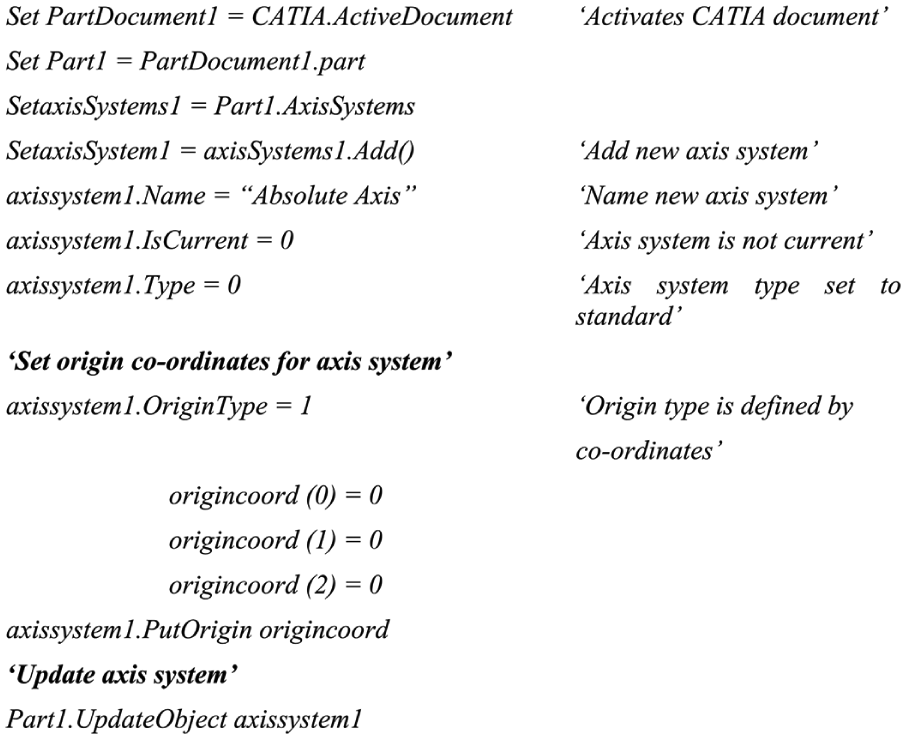

The actual VBA code for the creation of an appropriate axis system is listed in Figure 9. Equivalent functions were created for the other listed code elements which covered in sequence, all of the actions required to build the tool. A solid mould block for the main body was created first by extruding the required section. This was initially ‘oversized’ to allow material reduction as required to impart the required surface profiles on the mould tool which reflect the stiffener dimensions. It should be noted at this stage that the surface profiles used here were derived from existing tool geometries. These were manufactured taking into account material behaviours such as ‘spring back’. The base plate was then added to the mould followed by the corner fillets. The geometry for these was governed by established design rules relating radius to material thickness.

Figure 9.

Code for ‘Create Datum Tool Datum Axis’ function.

When the mould was formed as a solid block, the ‘shell’ function was used to hollow it out to a standard thickness. Again, this thickness was governed by standard practice. Once the mould was shelled, two ribs were added to bridge the gap between the two long sides. These were required to add dimensional stability to the mould. The rib profile varied in accordance with sectional changes along the length of the mould but the process for creating both ribs was the same. The creation of hole positions to accommodate fasteners followed the required pattern relative to the model datum (see Figure 4). Individual hole sizes were specified according to the fastener type identified during the inspection stage. Smaller tooling elements including the periphery bar handles and individual fasteners were coded in a similar way to the main body of the mould. Again, each was saved as a CatPart file in preparation for final assembly as a CATproduct. The final coded element required for this process required the presentation of the user with save options. File extensions and locations were defined by the user through the user interface.

Assembly of composite mould tool components

The final stage in completing the composite layup tool involved the creation of a CATIA assembly (CATproduct) and the importation of the respective components (CATparts). All of the individual parts were required for this stage and the system only needed to read in their final position to create the final tool assembly.

The process for opening and saving a CATIA Product document is identical to that used during the creation of the individual mould pieces; however in coding terms, instead of ‘Add.(“Part”)’ the system adds a product, ‘Add.(“Product”)’. The challenge in this area of the system was how the parts were added and fitted together to form the final product. Parts must be constrained and fixed relative to one another in order to create a valid assembly within CATIA. In this case, the mould is the primary component within the assembly and the additional parts were positioned relative to it using (x, y, z) positional and rotational coordinates.

Assembly analysis using VR

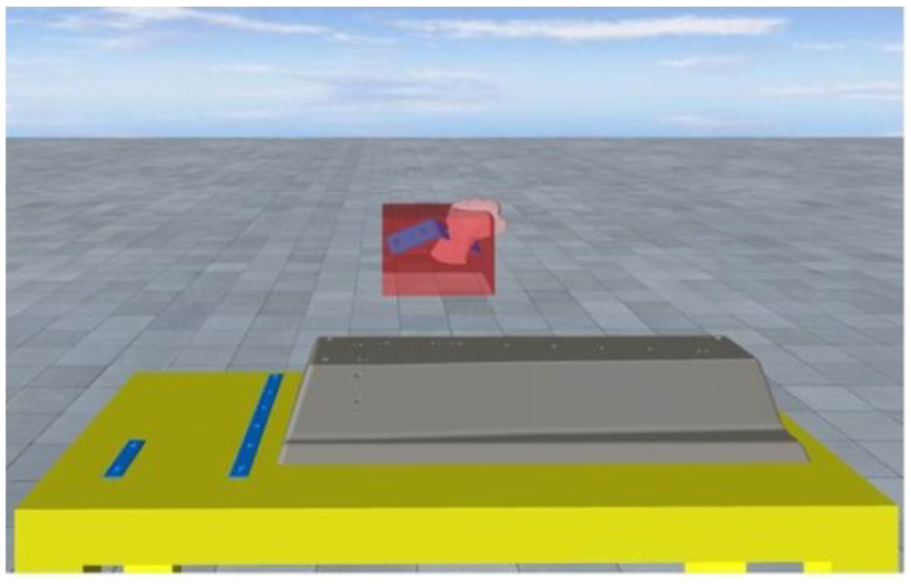

The first step required in the construction of a virtual space for assembly analysis was to convert the CAD files to the wrl format required for the virtual world within Vizard. This was offered as a file save option in the user interface of the automated design tool. Figure 10 shows the composite layup tool after the CAD data were migrated to the virtual environment. The ‘GrabHand’ script shown in Figure 11 was used for grabbing objects with physical effects included (i.e. gravity and component clash). In addition to the ‘geometry import’ and ‘position set’ functions, physics and grabbing functions were also included in the virtual environmental settings.

Figure 10.

Composite layup tool after the CAD data were migrated to the virtual environment.

Figure 11.

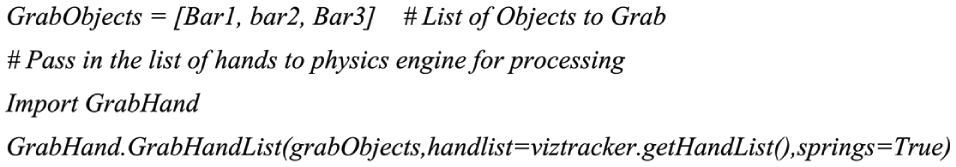

Python script for ‘Grab and Move’ function within Vizard VR environment.

The grab function was clearly required to enable the user to lift and place objects in the assembly. The physics function was required to improve the sense of reality within the system where parts clash if they come into contact and pieces fall due to the forces of gravity if they are dropped. To achieve this, collision shapes were added to all of the objects in the environment. An additional sound function helped the user to understand when a collision had occurred.

With the above functions established, the user was then free to lift and place individual pieces into their ‘as designed’ positions. This enabled the completion of an assembly-based virtual assessment of the mould design concept where the automated tools compressed the time from concept development to virtual assembly from days/weeks to a matter of minutes. The process produced a CAD design for the composite mould tool in less than 3 min and created a virtual environment to interact with the design in 20 s.

Discussion

With competitive advantage and efficient knowledge management in mind, the primary aim of this work was to link an automated design framework with a VR environment. The intention was to create capability which allowed the user to carry out design/assembly analysis with shorter lead times using automatic design and virtual assembly tools that allowed the production of better quality systems and products as the manufacturing systems are designed concurrently with the products. The knowledge acquired from the CAD documents when combined with the tacit knowledge of the tool designer has been utilised to assemble a set of automated codes for the purpose of developing conceptual tool designs in the virtual environment. The virtual assembly function allowed the user to include tacit knowledge based on what the tooling designer contributed through the design process and what they could add based on their domain-specific knowledge through the completion of virtual builds.

The work was able to successfully create an automated design process to develop a composite layup tool based on the design of the part that it will form (structural stiffener). It also showed how a direct link with the virtual world can be created to inspect, assemble and disassemble the new design concept. The process was able to produce a CAD design in less than 3 min and create a virtual environment with that design in 20 s. The approach presented in this article will have maximum impact when used for the development of families of parts with common features because the time required to generate the automated code will only be offset if a single, core code can be applied repeatedly. If the development process follows basic principles associated with best practice in design for manufacture and assembly (DFMA), then the lead time benefits demonstrated by this work are eminently possible. Although this work focused on a composite layup tool as single design application, the outcomes are equally applicable to any structural element manufactured using a forming tool.

Concurrent engineering (CE) systems and practices have focused on the integration and alignment between design and manufacturing; this has already proven to reduce manufacturing costs and improve product quality. ¹¹ The use of CE in the redesign of the Airbus A340 resulted in an estimated reduction of 25% in development time and 30% product costs. ¹² The success of any integrated design environment is dependent on individuals sharing information and collaborating during the decision-making process. True concurrency is difficult to achieve. For the work completed for this article, the product geometry must exist before the tool required to form it can be considered. However, the system presented here begins to approach concurrency when the process from part concept through tool design to virtual build validation is reduced to minutes rather than days. The consideration of multiple options through iterative loops in very short time periods means that tool development is for all intents and concurrent purposes.

The learning and innovative capability of an organisation is critically dependent on its capacity to mobilise tacit knowledge and foster its interaction with explicit knowledge. ¹³ Establishing a framework to organise and capture this knowledge such as the one presented here will not only preserve the knowledge but also avoids any associated loss or waste and means that it can be used repeatedly and consistently. Accurate knowledge presentation and visualisation also enable organisations to explore knowledge spaces so as to gain better understanding and insight. ¹⁴

Researchers have suggested that virtual environments could provide advantages for conceptual learning by allowing opportunities for learners to view information within the context of meaningful locations. ¹⁵ This work provides a means by which this can be achieved even at the conceptual development stage as the automated tools can place the operator in a virtual environment to gain familiarity with the manufacturing setup before prototypes or physical systems are produced. Organisational learning involves gaining experience with products and processes, achieving greater efficiency through automation and other capital investments and making other improvements in administrative methods or personnel. Unfortunately, the core dilemma that confronts all organisations is that they learn best from experience but they never directly experience the consequences of many of their most important decisions. ¹⁶ VR capability provides a means by which the experiential elements of the learning process can now be gained before production begins. When coupled with automated design capability, the time required to create and use the VR environment is offset by significantly reduced design lead times. The time (and therefore cost)-based benefits of the approach presented here are supplemented by the potential for achieving ‘right-first-time’ production systems that have been validated in the virtual world. The improved learning environment will also benefit operator learning, reducing the likelihood of errors when production begins. This has been observed by other authors including Mujber et al. ¹⁷

Previous authors have looked at immersive VR as a means of supporting process development in the manufacturing domain. Peng and Yu ¹⁸ used VR as a means of integrating product review and production evaluation activities. Although this work demonstrated the benefits of improved interaction, visualisation and resource sharing, it still required completed inputs from the design domain in terms of the geometry which populated the virtual environment. This means that design iterations would be time-consuming as they require activity outside the developed system. Manesh and Hashemipour ¹⁹ as well as Korves and Loftus ²⁰ extended VR applications beyond the product itself to develop a methodology for the development of shop floor control systems and the planning of manufacturing work cells. In both cases, their approach was post-design in terms of the chronology of their application. There was therefore a lack of connectivity in their methods between process planning and the mechanisms used to develop and articulate concepts. This means that any developmental benefits resulting from the use of VR, such as the time savings in process design and general learning benefits through improved human/environment interaction, could be offset by protracted design cycles. Pai et al. ²¹ developed an augmented reality-based robotic work cell to simulate a manufacturing plant environment. Although this approach resulted in visual and functional benefits to the user, it still required physical assets to deliver the virtual experience. The work presented here overcomes all of these issues through the provision and integration of automated design methods and an immersive VR environment, within a single interface, so that design options can be developed and fully evaluated without the need for physical assets beyond the VR equipment.

Future manifestations of the methods presented in this article will require development of the core design methods to include intelligent codes. These will integrate ‘as manufactured’ part form predictions within the design code to avoid the need for referencing/inspecting existing hardware to understand phenomena such as spring back. Further work and investment is also required to accurately determine, capture and exploit knowledge behind the design process to an extent where the automated design methods presented here can move beyond single components to span entire systems. Although this work presents the mechanism for placing the designer in front of his or her creations in a virtual environment, further work is required to quantify the learning benefits of this approach.

By combining parametric design methods with improved exploitation of tacit knowledge, the potential to improve the design system generally, produce better quality products with more efficient manufacturing systems and reduced lead times, becomes a reality.

Conclusion

This article demonstrates a novel computer-aided engineering (CAE)-based approach to better retain and exploit engineering tacit knowledge. It presents an automated design framework for the development of individual part forming tools for a composite stiffener. The framework uses parametrically developed design geometries for both the part and its layup tool. The framework has been developed with a functioning user interface where part/tool combinations are developed using the interdependent dimensional relationships between the ‘as designed’ composite part and the tool required to form it. The tacit knowledge or ‘know how’ of the tooling engineer has also been coded into the tool covering design elements away from the part/tool interface. When complete, the design options can be passed to a virtual environment for utility-based assessment of their features and assemblability characteristics where again general tacit knowledge can be mobilised to create product-specific knowledge based on practical build experience within the virtual environment. This work demonstrates clear benefits of automated process design methods with conventional design timelines reduced from hours and days to minutes and seconds. The methods developed here were able to produce a digital mock-up of a component with its associated layup tool in less than 3 min. The methods presented here are best suited to the development of part families differing only in key dimensions or minor features. The time required to code the development of single, low value parts cannot be justified. The virtual environment presenting the design to the designer for interactive assembly planning was generated in 20 s and enabled the completion of virtual builds in support of the development of an optimal forming tool arrangement. This work discriminates itself from previous parametric design work through its extension of basic principles into the manufacturing domain. Through the VR element, it also provides a means by which generic tacit knowledge in assembly methods can be converted to product-specific tacit knowledge through the completion of virtual builds. This then can be fed back to the parametric modelling system to improve the design in advance of production or any physical prototyping. This is important as all knowledge required to develop an optimum system is not available in advance of the design process when parametric methods are developed and applied. Challenges still exist in determining the level of reality required to provide an effective learning environment in the virtual world. This work also needs to be embedded in a real industrial environment to demonstrate and quantify benefits in a real industrial environment.
