Abstract

This study focused on the optimization of micro-milling parameters for two extensively used aerospace materials (titanium and nickel-based superalloy). The experiments were planned using Taguchi experimental design method, and the influences of spindle speed, feed rate and depth of cut on machining outputs, namely, tool wear, surface roughness and cutting forces, were determined. Tool wear, surface roughness and cutting forces measured in micro-milling of Ti6Al4V titanium alloy and Inconel 718 workpiece materials were optimized by employing Taguchi’s signal-to-noise ratio. The percentage contribution of micro-milling parameters, namely, spindle speed, feed rate and depth of cut, on tool wear, surface roughness and cutting forces was indicated by analysis of variance. The regression models identifying the relationship between the input variables and the output responses were also fitted using experimental data to predict output responses without conducting the experiments. Efficiency of regression models was determined using correlation coefficients, and the predicted values were compared with experimental results. From results, it was concluded that the established regression models could be employed for predicting tool wear, surface roughness and cutting forces in micro-milling of Ti6Al4V titanium alloy and Inconel 718 workpiece materials.

Keywords

Micro-milling Taguchi method regression tool wear cutting force surface roughness

Introduction

Micro-machining especially micro-milling has found widespread application areas in recent years in many industries such as electronics, optics, aerospace, medicine and biotechnology. Micro-milling not only makes the manufacturing of complex two-dimensional (2D) and three-dimensional (3D) shapes possible but also manufactures a great variety of engineering materials successfully.

Some superior properties such as the high strength-to-weight ratio, excellent physical and mechanical properties and superior corrosion resistance of titanium and nickel-based superalloy materials have induced in widely employing areas in the aerospace and aircraft industries. High biocompatibility of titanium alloys allows them employing in implants. Nickel-based superalloys protect their mechanical properties even at higher temperatures; therefore, these alloys are also extensively employed in gas turbines and nuclear reactors. However, it is not easy to machine these materials efficiently due to their work hardening and low thermal conductivity; therefore, machining parameters should be selected properly for improving the micro-machinability of titanium and Inconel materials. To solve the problems experienced during the micro-milling of titanium and Inconel materials, machining parameters should be optimized. However, very few studies concerning optimization of machining parameters in micro-milling were reported in the literature. Kuram and Ozcelik¹ optimized the tool wear, cutting forces and surface roughness in micro-milling of AISI 304 stainless steel using Taguchi method. Sreeram et al.² used genetic algorithms to optimize the cutting parameters in micro-milling of steel materials. The surface roughness in micro-milling of Al 2011 aluminium alloy was optimized by Cardoso and Davim.³ Natarajan et al.⁴ employed response surface methodology to maximize material removal rate and minimize surface roughness in micro-milling of aluminium material. The effects of speed, feed rate, depth of cut, cutting tool diameter and number of flutes on burr formation in micro-milling of Al2124 aluminium alloy and AISI 304 stainless steel were investigated with Taguchi method by Lekkala et al.⁵ Kuram and Ozcelik⁶ utilized Taguchi-based grey relational analysis to minimize tool wear, cutting forces and surface roughness simultaneously in micro-milling of Al 7075 aluminium alloy. Piquard et al.⁷ obtained optimal strategy, depth of cut, cutting speed, feed per tooth and width of cut to minimize burr in micro-milling of an austenitic and a martensitic NiTi.

The literature studies concentrated on the micro-milling of only titanium^8–16 or Inconel,¹⁷ and each study employed a different machining parameter and cutting tool geometry; thus, it was difficult to compare the micro-milling performance of titanium and Inconel using data in the literature. Therefore, this research focused on the micro-milling performance of not only Ti6Al4V titanium alloy but also Inconel 718 workpiece materials at the same conditions. Selecting the same experimental conditions helped a comparative study of micro-milling performance between Ti6Al4V titanium alloy and Inconel 718 materials, and this allowed to determine the most appropriate machining conditions for each workpiece material. To the best of our knowledge, this was the first study using the same machining conditions in order to compare the micro-milling performance of Ti6Al4V titanium alloy and Inconel 718 materials with Taguchi method. The micro-milling experiments were performed with Taguchi experimental design, and the changes in the tool wear, surface roughness and cutting forces were analyzed according to various spindle speed, feed rate and depth of cut. Optimal micro-milling conditions for tool wear, surface roughness and cutting forces were determined for both Ti6Al4V titanium alloy and Inconel 718 workpiece materials. Additionally, the mathematical models based on regression analysis for predicting of output responses were established in this study.

Methodology used

The methodologies used in this study were explained in the following paragraphs.

Methodologies for modelling

Taguchi methodology

Taguchi methodology was utilized for planning the experiments and for modelling. Taguchi methodology uses a specially designed experimental matrix known as orthogonal array.^18,19 The main aim of Taguchi methodology is to find the optimal level of input parameters within the ranges taken into consideration.

The desirable effect for the output characteristic is called as ‘signal’, and ‘noise’ means the undesirable effect for the output characteristic. Signal-to-noise (S/N) ratio is the quality characteristics deviating from the desired values, and higher S/N ratio represents the optimal level of the control parameters. In machining, the aim was to minimize the tool wear, surface roughness and cutting forces; therefore, the smaller-the-better S/N quality characteristic was employed in the current study. Quality characteristic of the smaller-the-better S/N is computed using the following equation

S / N = - 10 \log_{10} [\frac{1}{n} (\sum_{i = 1}^{n} y_{i}^{2})]

(1)

where y_i is the ith measured results in a run or row and n is the number of measurements in each test trial or row.^18,19

Regression analysis

Regression analysis is a statistical method, which is utilized for modelling purposes. To find the relationship between independent and dependent variables, regression analysis was used, and the general form of the first-order model is given in equation (2)

y = β_{0} + \sum_{i = 1}^{k} β_{i} x_{i} + ε

(2)

where β is a coefficient of each term, k is a number of independent variables and ε is an error. The validity of developed first-order model was evaluated by correlation coefficient (R²). Higher R² implies that relationship between the micro-milling parameters and the results obtained from experiments is high.

Experimental

Materials

The micro-milling experiments were performed at DECKEL MAHO DMU 60 P computer numerical control (CNC) milling machine. In the experiments, Ti6Al4V titanium alloy with a hardness of 35 HRC and Inconel 718 with a hardness of 43 HRC were selected as workpiece materials. Both workpiece materials were prepared at the dimensions of 15 mm × 10 mm × 20 mm (Figure 1). Before micro-milling experiments, the surfaces of workpieces were machined by milling to provide flatness of the workpieces. Two-flute flat end mill with a diameter of 800 µm (Union Tool, CER SP C/R 2008-005) was employed in the micro-milling experiments, and the scanning electron microscope (SEM) view of a micro cutting tool is shown in Figure 2. A new micro cutting tool was employed for each experiment to diminish the influence of the tool wear on the experimental results. Overhang length was set constant as 20 mm during all experiments in order to eliminate the deflection and runout effect and to control the dynamics of micro cutting tool. Before starting each experiment, the static runout of cutting tool was measured at the shaft region of cutting tool via dial gauge, and the average values of runout were found to be smaller than 3 µm. To diminish the differences obtained at the experiments, the workpiece materials and cutting tools from the same production batch were employed in the micro-milling experiments. In the experiments, down-milling method was used to machine the workpiece surfaces, and the experiments were performed under dry conditions. Each experiment was conducted on 15 mm × 10 mm blocks twice. Thus, the length of cutting path was 3000 mm for each experiment.

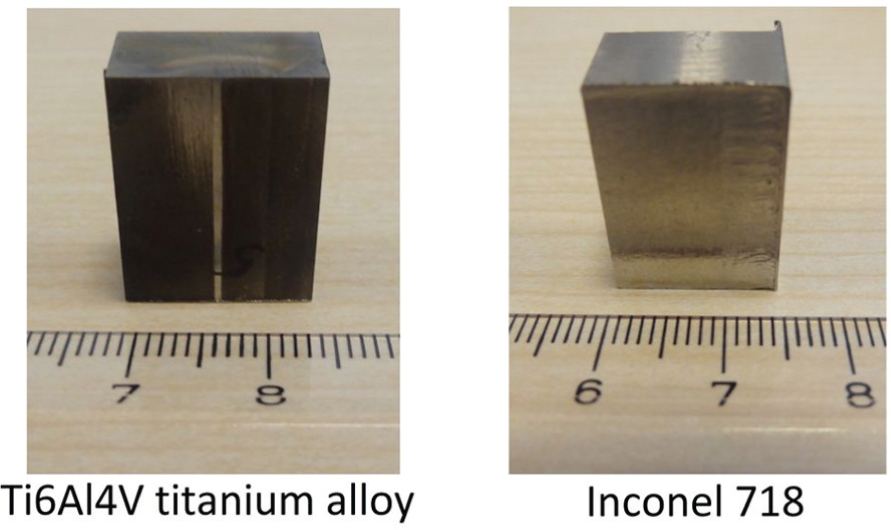

Figure 1.

Workpiece materials.

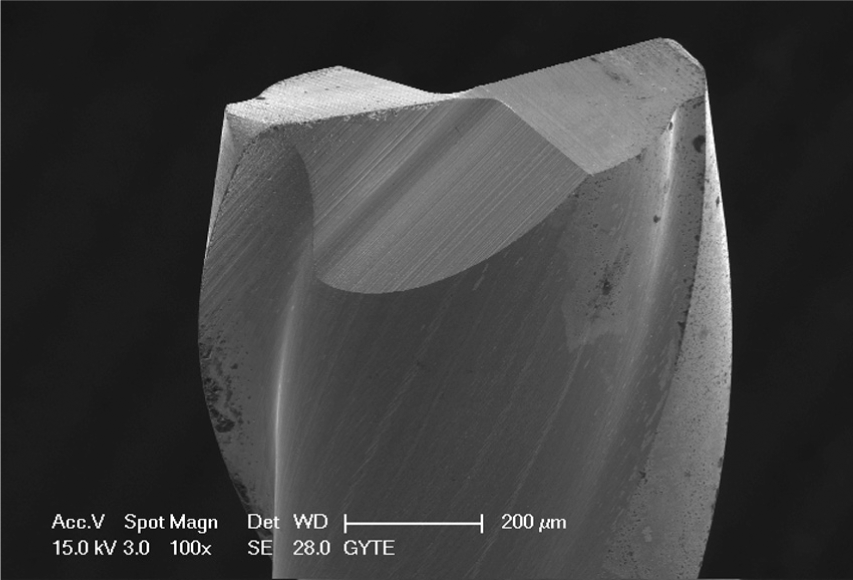

Figure 2.

SEM view of 800-µm-diameter two-flute flat end mill.

Measurements

Tool wear, surface roughness and cutting forces were measured, and the results of these machining outputs were presented in this study. SEM (Philips XL30) was used to measure the tool wear and to determine the tool wear mechanisms. After each experiment, tool wear measurement was carried out at 500× magnifications. Workpiece surfaces were inspected by SEM at 50× and 250× magnifications. Cutting forces were measured on-line with a dynamometer during micro-milling experiments. Fx and Fy forces were taken into consideration in the analysis of cutting forces. In this study, the average of peak-to-valley (P-to-V) force was considered as cutting forces in the analysis. P-to-V force is the amplitude between maximum and minimum values. Workpiece was clamped on the vise, and the vise was attached to the dynamometer (Figure 3). Force data obtained from dynamometer were analyzed with Dynoware software. The surface roughness of workpieces was measured by Mitutoyo Surf Test 301 profilometer after the surface was machined, and average surface roughness (Ra) was employed as a roughness parameter. Before carrying out the surface roughness measurements, the calibration of profilometer was conducted with a standard calibration block. The surface roughness was measured 10 times, and average values were considered for further analysis.

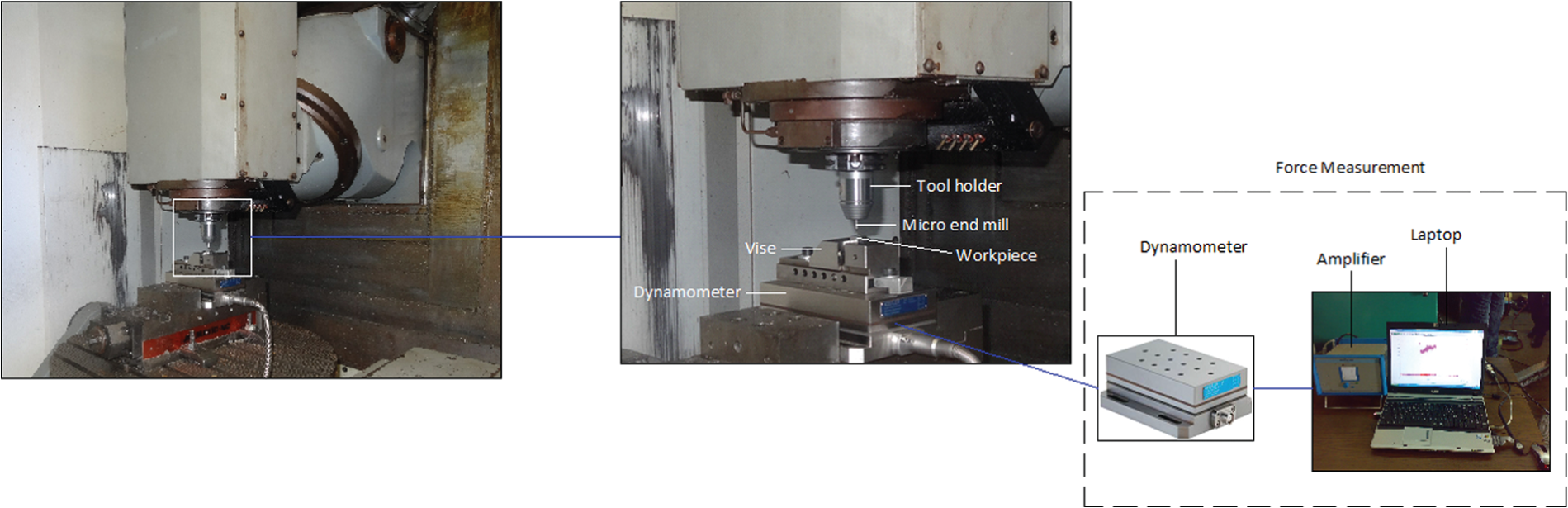

Figure 3.

Experimental set-up.

Design with Taguchi method

In this study, micro-milling experiments were organized with Taguchi experimental design, and Taguchi’s L₉ orthogonal array was used. Spindle speed, feed rate and depth of cut were selected as micro-milling parameters, and tool wear, surface roughness and cutting forces were considered as output responses. The micro-milling parameters and their levels are presented in Table 1, and the experimental plan is given in Table 2. Spindle speed, feed rate and depth of cut changed in three levels; however, the width of cut (step over) was set constant as 100 µm for both workpiece materials.

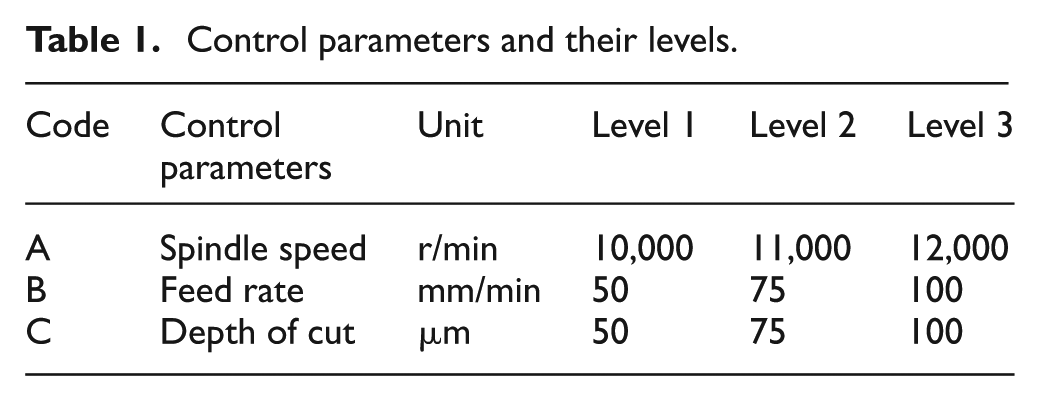

Table 1.

Control parameters and their levels.

Code	Control parameters	Unit	Level 1	Level 2	Level 3
A	Spindle speed	r/min	10,000	11,000	12,000
B	Feed rate	mm/min	50	75	100
C	Depth of cut	µm	50	75	100

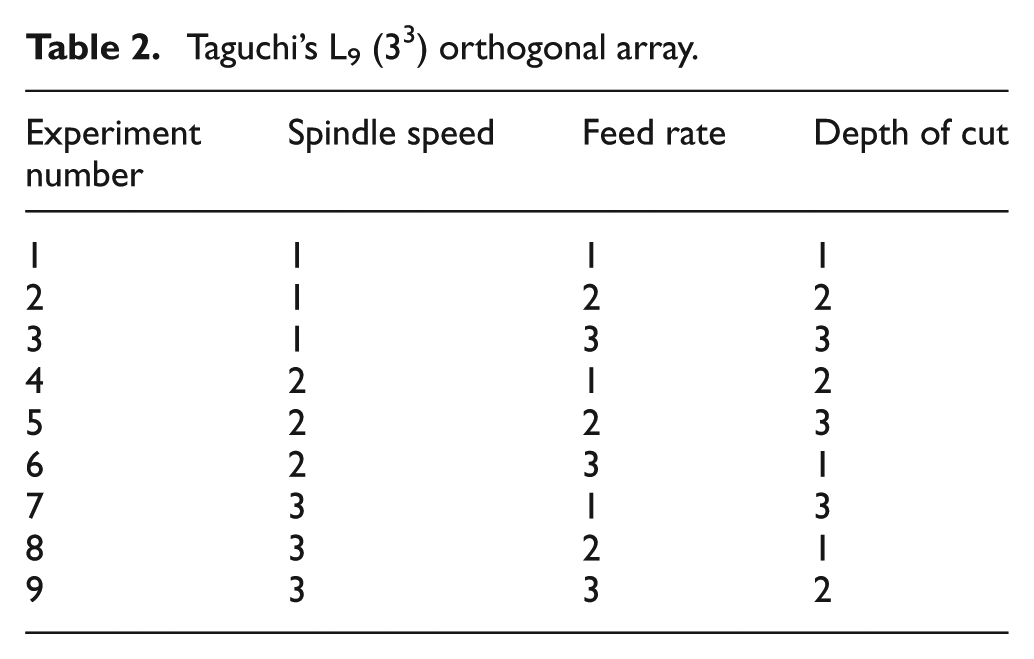

Table 2.

Taguchi’s L₉ (3³) orthogonal array.

Experiment number	Spindle speed	Feed rate	Depth of cut
1	1	1	1
2	1	2	2
3	1	3	3
4	2	1	2
5	2	2	3
6	2	3	1
7	3	1	3
8	3	2	1
9	3	3	2

Results and discussion

Some examples of used micro end mill are given in Figures 4 and 5. For cutting tool used in micro-milling of Ti6Al4V titanium alloy, no adhesions could be observed on the cutting tool (Figure 4). Tool wear was located at the corners. In general, the cutting tools were still capable for further micro-milling process, and this result was valid especially for Experiment 4. For cutting tool employed in micro-milling of Inconel 718 material, tool wear was located at the corners (Figure 5). Corner chipping was observed in some experiments. A high reactivity between the cutting tool and the workpiece material resulted in chipping. The reason for chipping formation may be also due to impact and stress concentration.

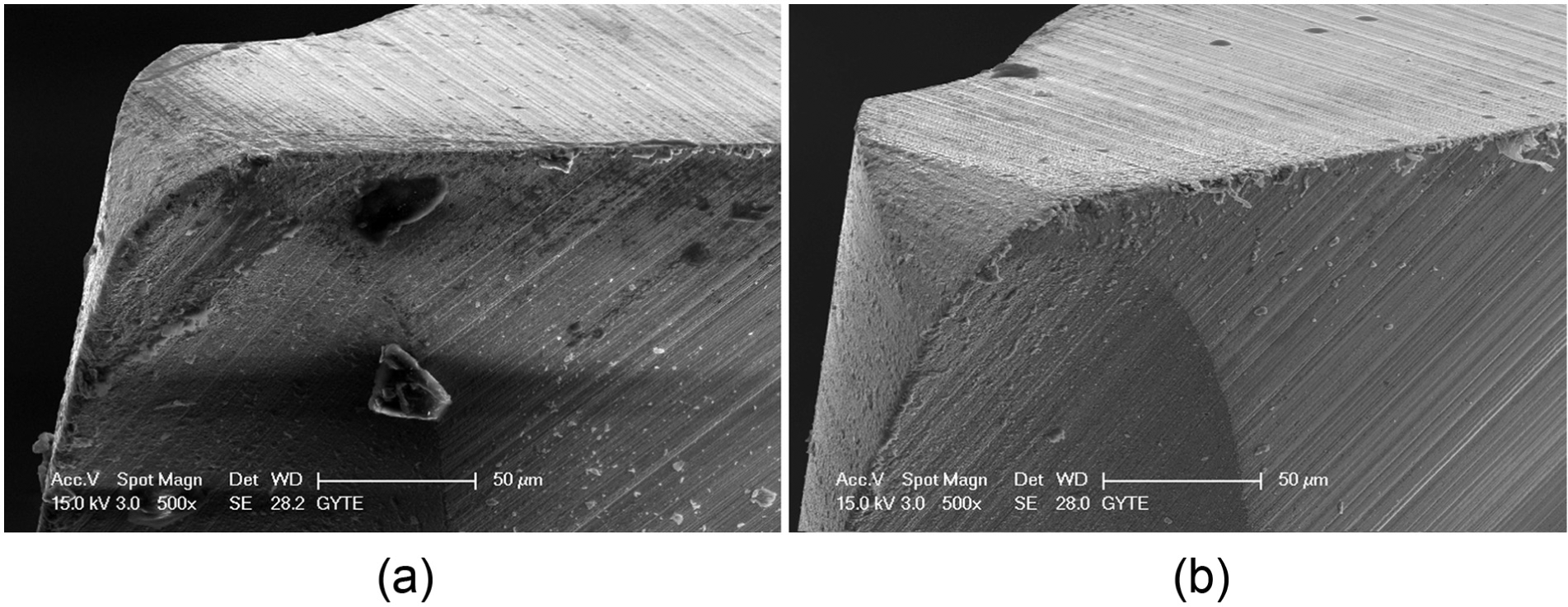

Figure 4.

Example tool wear results in micro-milling experiments for Ti6Al4V titanium alloy: (a) Experiment 2 − spindle speed of 10,000 r/min, feed rate of 75 mm/min and depth of cut of 75 µm and (b) Experiment 4 − spindle speed of 11,000 r/min, feed rate of 50 mm/min and depth of cut of 75 µm.

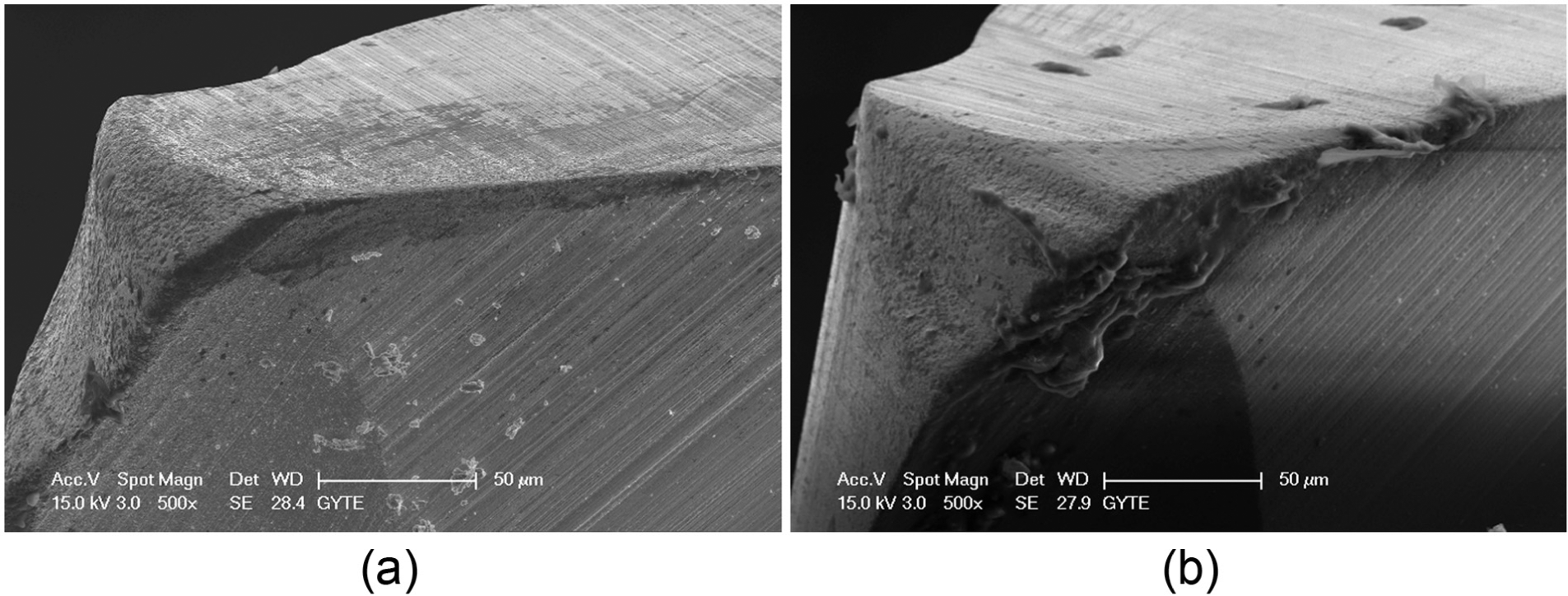

Figure 5.

Example tool wear results in micro-milling experiments for Inconel 718 material: (a) Experiment 2 − spindle speed of 10,000 r/min, feed rate of 75 mm/min and depth of cut of 75 µm and (b) Experiment 8 − spindle speed of 12,000 r/min, feed rate of 75 mm/min and depth of cut of 50 µm.

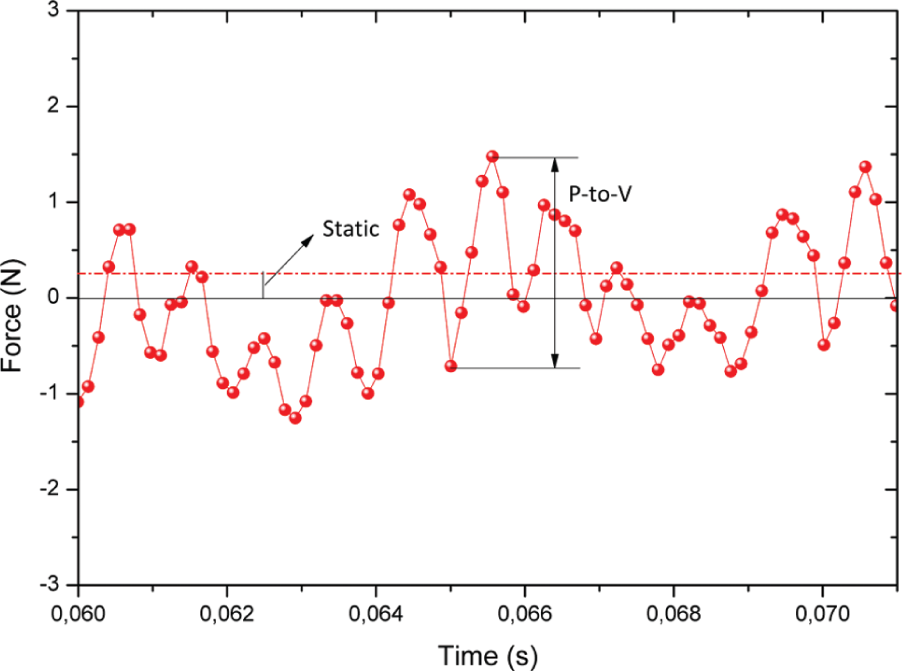

It was observed in Figure 6 that cutting forces were fluctuated between positive and negative values. It was also found that the magnitude of cutting forces was very small as compared to macro-milling operation.

Figure 6.

Sample force–time graph.

SEM was also employed in order to analyze machined workpiece surfaces, and some surfaces are presented in Figures 7 and 8. Cutting tool and step over traces were clearly observed on the surface textures. No accumulations of plastically deformed material were seen on the workpiece surfaces for both Ti6Al4V titanium alloy (Figure 7) and Inconel 718 (Figure 8) materials. It was also seen that the surface in Figure 7(a) was found to be rougher than that in Figure 7(b).

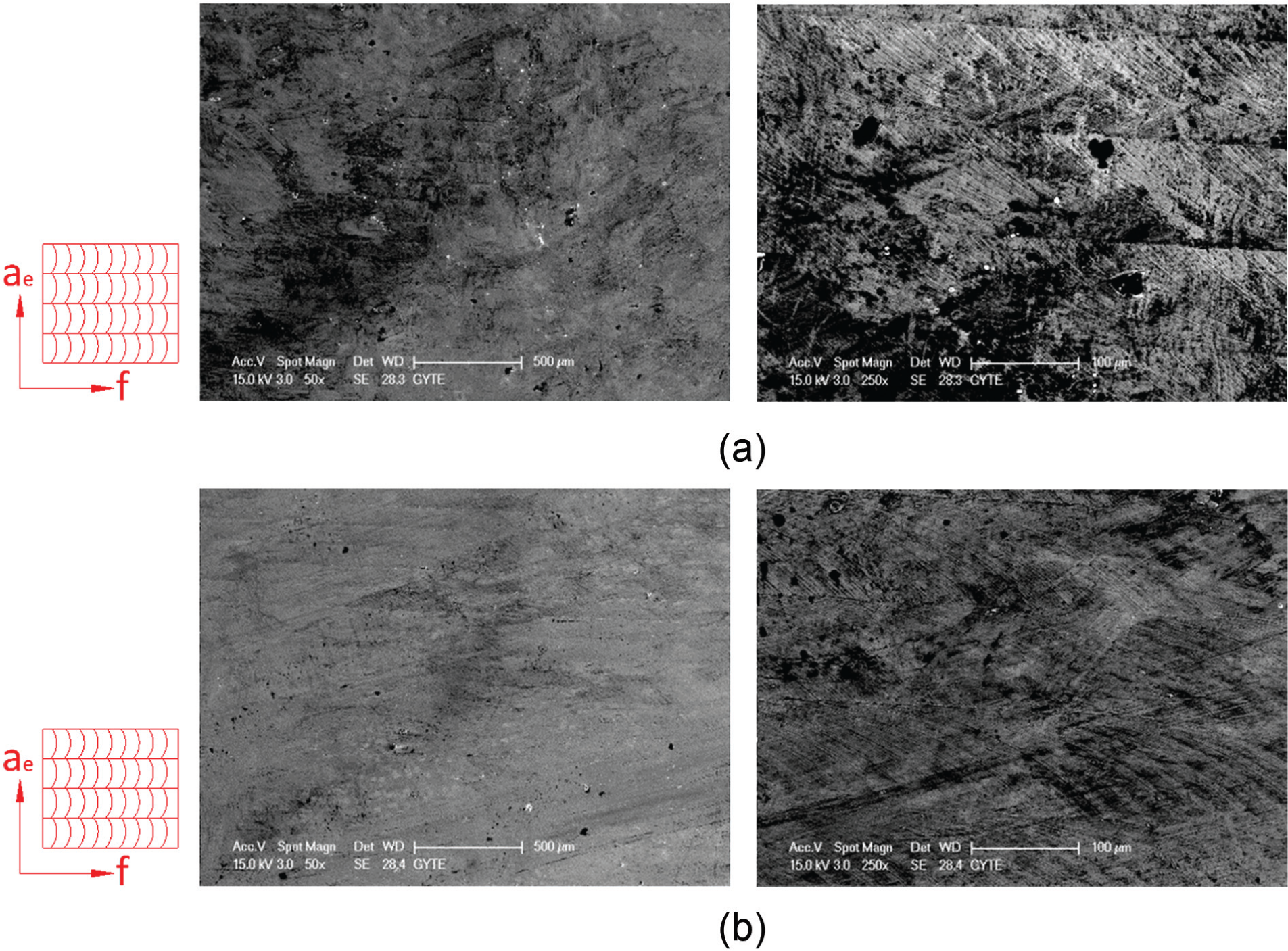

Figure 7.

SEM view of workpiece surfaces for Ti6Al4V titanium alloy: (a) Experiment 2 − spindle speed of 10,000 r/min, feed rate of 75 mm/min and depth of cut of 75 µm and (b) Experiment 4 − spindle speed of 11,000 r/min, feed rate of 50 mm/min and depth of cut of 75 µm (a_e is step over and f is feed).

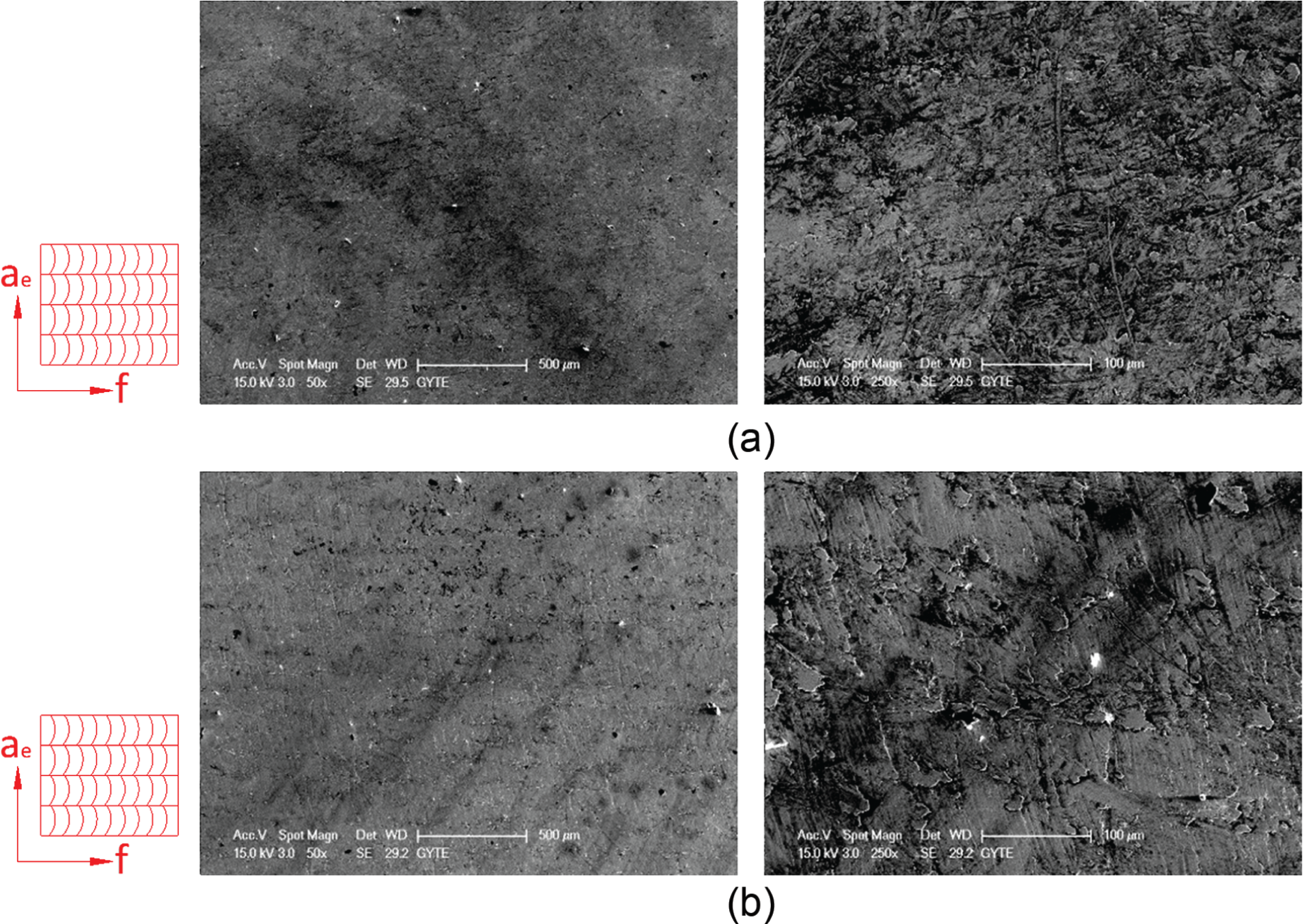

Figure 8.

SEM view of workpiece surfaces for Inconel 718 material: (a) Experiment 2 − spindle speed of 10,000 r/min, feed rate of 75 mm/min and depth of cut of 75 µm and (b) Experiment 8 − spindle speed of 12,000 r/min, feed rate of 75 mm/min and depth of cut of 50 µm (a_e is step over and f is feed).

Selecting the ranges of spindle speed and feed rate less than minimum value increases the machining time; however, selecting them greater than maximum value increases the tool wear, cutting force and risk of cutting tool breakage.

S/N analysis

For Ti6Al4V titanium alloy and Inconel 718 materials, the experimental results and the S/N ratio values computed by employing equation (1) are given in Table 3. At low spindle speeds, it was found that tool wear for Ti6Al4V titanium alloy was higher than that for Inconel 718 material. Tool wear in micro-milling of Ti6Al4V titanium alloy could be higher or lower than in micro-milling of Inconel 718 material, depending on the cutting conditions. Similar results were also reported in other studies. In the literature, it was concluded that tool edge wear in high-speed machining of Ti6Al4V developed more rapidly than in high-speed machining of Inconel 718.²⁰ In another study, Inconel 718 material caused much more wear than Ti6Al4V due to the high strength of Inconel 718 and its huge number of included hard particles in the matrix.²¹ For all experiments, both Fx and Fy forces were higher in micro-milling of Inconel 718 material than in micro-milling of Ti6Al4V titanium alloy. The higher forces for Inconel 718 than that for Ti6Al4V could be due to the higher hardness value of Inconel 718. At higher hardness, more energy was required for the formation of chip, and this was the reason why forces increased with the increase of hardness. Similar to the result of our study, it was reported that the cutting force was higher in machining of Inconel 718 than in machining of Ti6Al4V.^20,22 This phenomenon was explained with higher strength of Inconel 718 than that of Ti6Al4V titanium alloy.²²

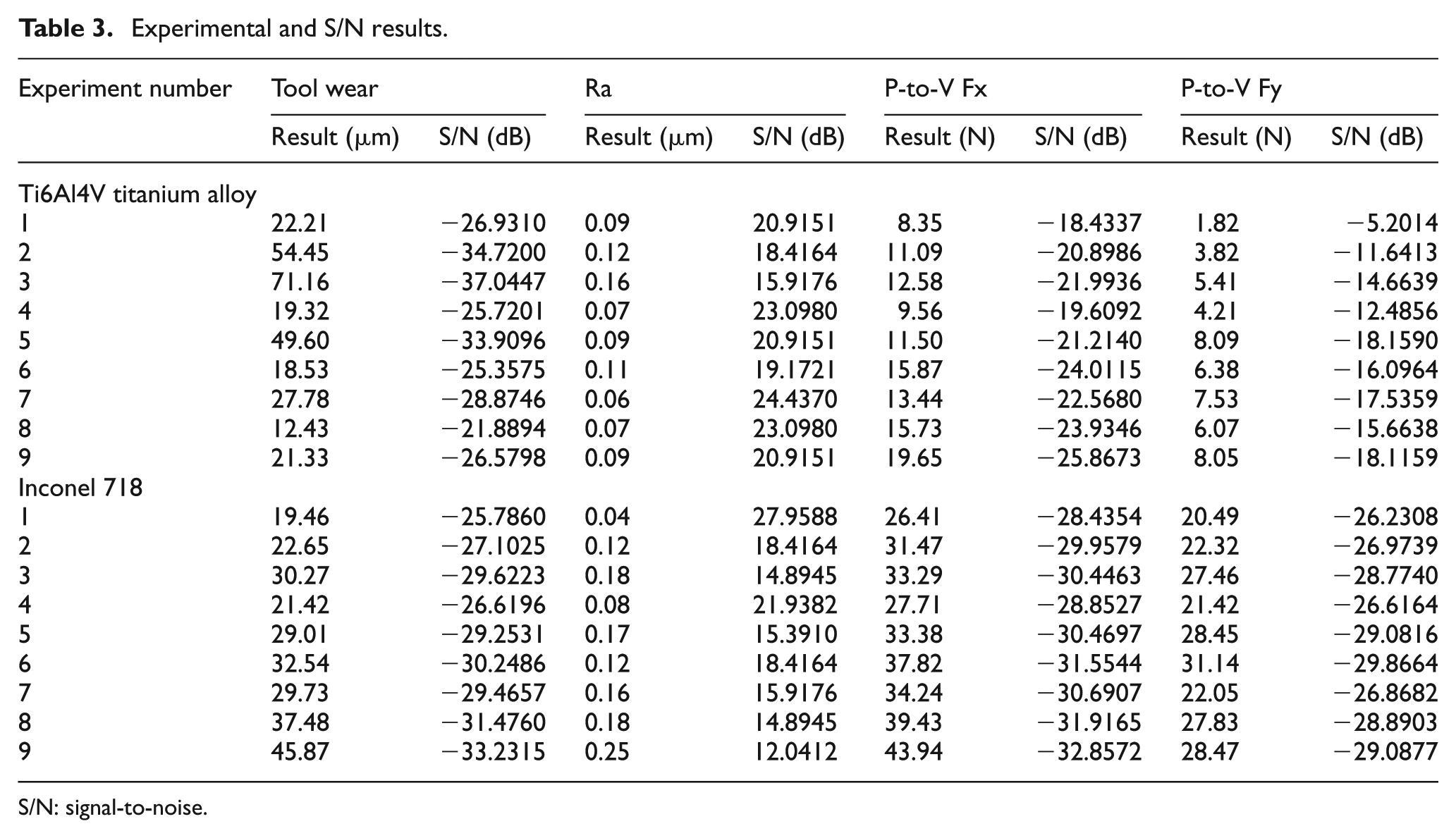

Table 3.

Experimental and S/N results.

Experiment number	Tool wear		Ra		P-to-V Fx		P-to-V Fy
	Result (µm)	S/N (dB)	Result (µm)	S/N (dB)	Result (N)	S/N (dB)	Result (N)	S/N (dB)
Ti6Al4V titanium alloy
1	22.21	−26.9310	0.09	20.9151	8.35	−18.4337	1.82	−5.2014
2	54.45	−34.7200	0.12	18.4164	11.09	−20.8986	3.82	−11.6413
3	71.16	−37.0447	0.16	15.9176	12.58	−21.9936	5.41	−14.6639
4	19.32	−25.7201	0.07	23.0980	9.56	−19.6092	4.21	−12.4856
5	49.60	−33.9096	0.09	20.9151	11.50	−21.2140	8.09	−18.1590
6	18.53	−25.3575	0.11	19.1721	15.87	−24.0115	6.38	−16.0964
7	27.78	−28.8746	0.06	24.4370	13.44	−22.5680	7.53	−17.5359
8	12.43	−21.8894	0.07	23.0980	15.73	−23.9346	6.07	−15.6638
9	21.33	−26.5798	0.09	20.9151	19.65	−25.8673	8.05	−18.1159
Inconel 718
1	19.46	−25.7860	0.04	27.9588	26.41	−28.4354	20.49	−26.2308
2	22.65	−27.1025	0.12	18.4164	31.47	−29.9579	22.32	−26.9739
3	30.27	−29.6223	0.18	14.8945	33.29	−30.4463	27.46	−28.7740
4	21.42	−26.6196	0.08	21.9382	27.71	−28.8527	21.42	−26.6164
5	29.01	−29.2531	0.17	15.3910	33.38	−30.4697	28.45	−29.0816
6	32.54	−30.2486	0.12	18.4164	37.82	−31.5544	31.14	−29.8664
7	29.73	−29.4657	0.16	15.9176	34.24	−30.6907	22.05	−26.8682
8	37.48	−31.4760	0.18	14.8945	39.43	−31.9165	27.83	−28.8903
9	45.87	−33.2315	0.25	12.0412	43.94	−32.8572	28.47	−29.0877

S/N: signal-to-noise.

Main effects plot of S/N ratios are shown in Figures 9 –12, and the optimal micro-milling parameters are highlighted in circles in these figures. The highest S/N ratio means the optimal level. Thus, the optimum parameter setting for the tool wear was A3B1C1 during micro-milling of Ti6Al4V titanium alloy (Figure 9(a)). To minimize the tool wear during micro-milling of Ti6Al4V titanium alloy, spindle speed of 12,000 r/min, feed rate of 50 mm/min and depth of cut of 50 µm were selected. Tool wear during micro-milling of Ti6Al4V titanium alloy decreased with an increment of spindle speed and, in general, increased with an increment of feed rate and depth of cut. The optimal combination setting for the tool wear of Inconel 718 material was found as A1B1C2 (Figure 9(b)). The combination values for minimizing tool wear were spindle speed of 10,000 r/min, feed rate of 50 mm/min and depth of cut of 75 µm. For Inconel 718 material, tool wear increased with an increment of spindle speed and feed rate. The increment of tool wear with increasing spindle speed was seen in the literature,²³ and we found similar increasing trend. Temperature at the tool–workpiece contact area increased when spindle speed was increased, and the higher cutting temperature caused the tool to lose its strength. Therefore, higher spindle speed resulted in the increment in tool wear. It was found that tool wear was smaller at a low feed in the micro-milling,²⁴ and similar result was found in our study. The increment of depth of cut initially decreased tool wear, but as depth of cut was further increased, tool wear increased. However, the effect of depth of cut was very small.

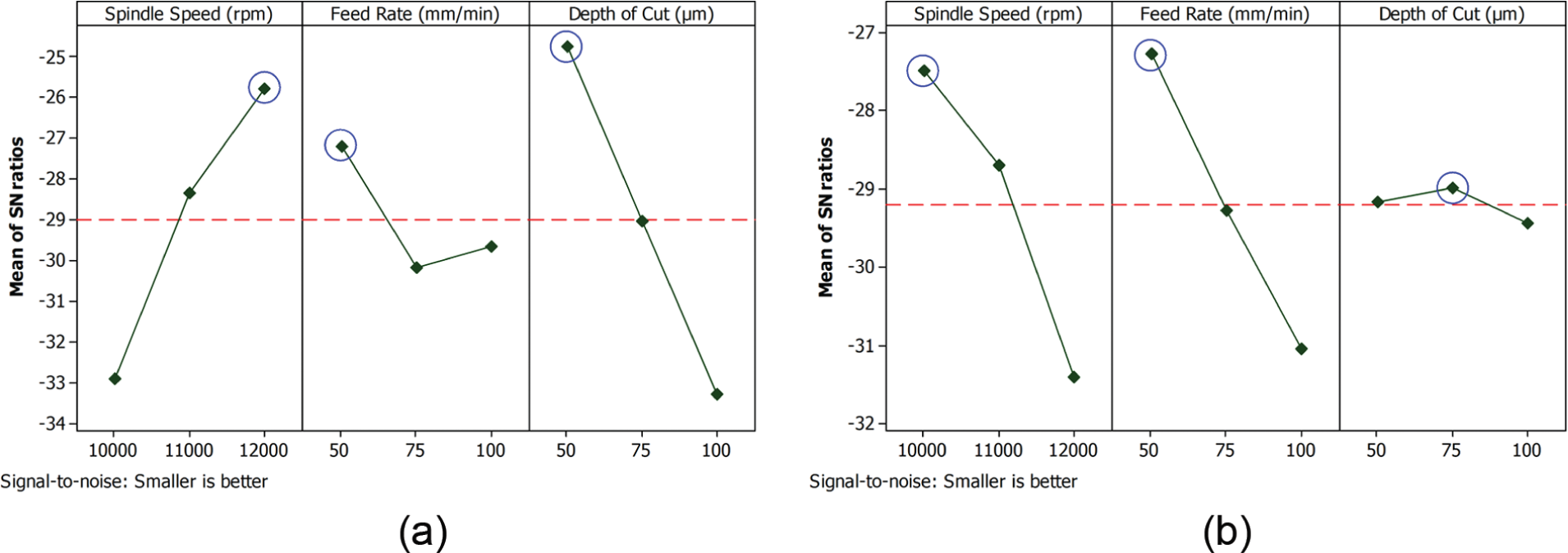

Figure 9.

Main effects plot of S/N ratios for tool wear during micro-milling of (a) Ti6Al4V titanium alloy and (b) Inconel 718 materials.

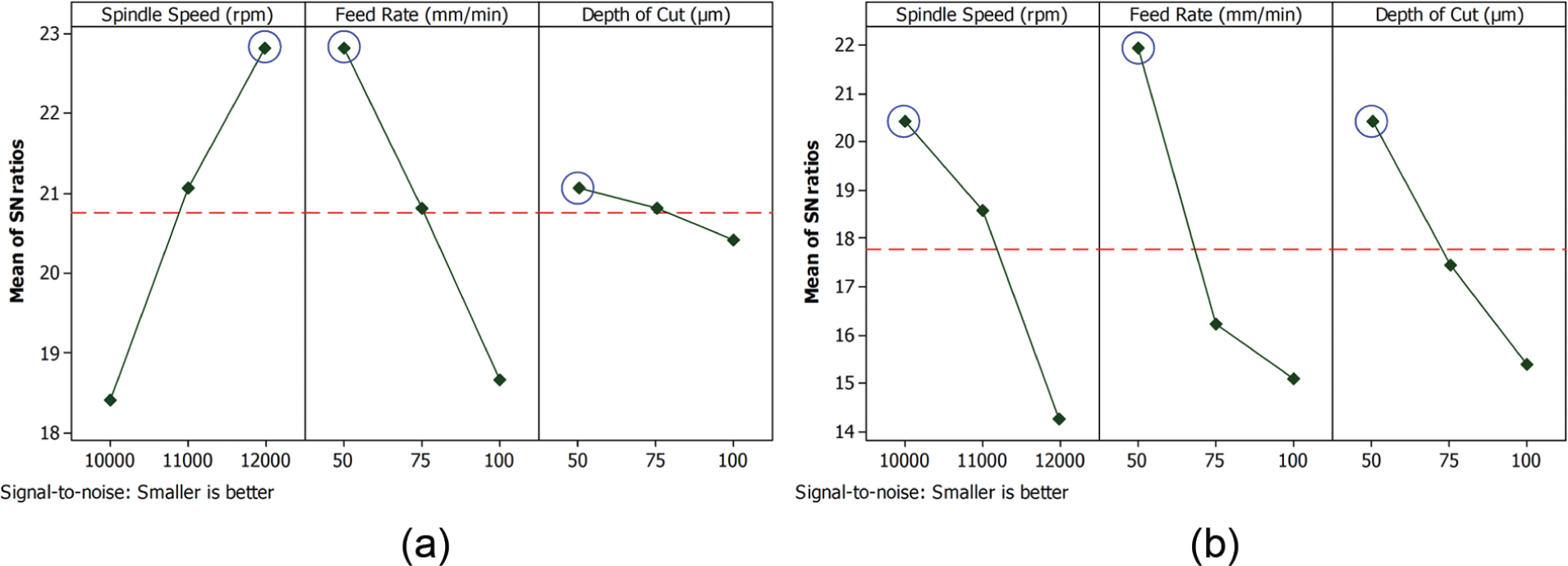

Figure 10.

Main effects plot of S/N ratios for surface roughness during micro-milling of (a) Ti6Al4V titanium alloy and (b) Inconel 718 materials.

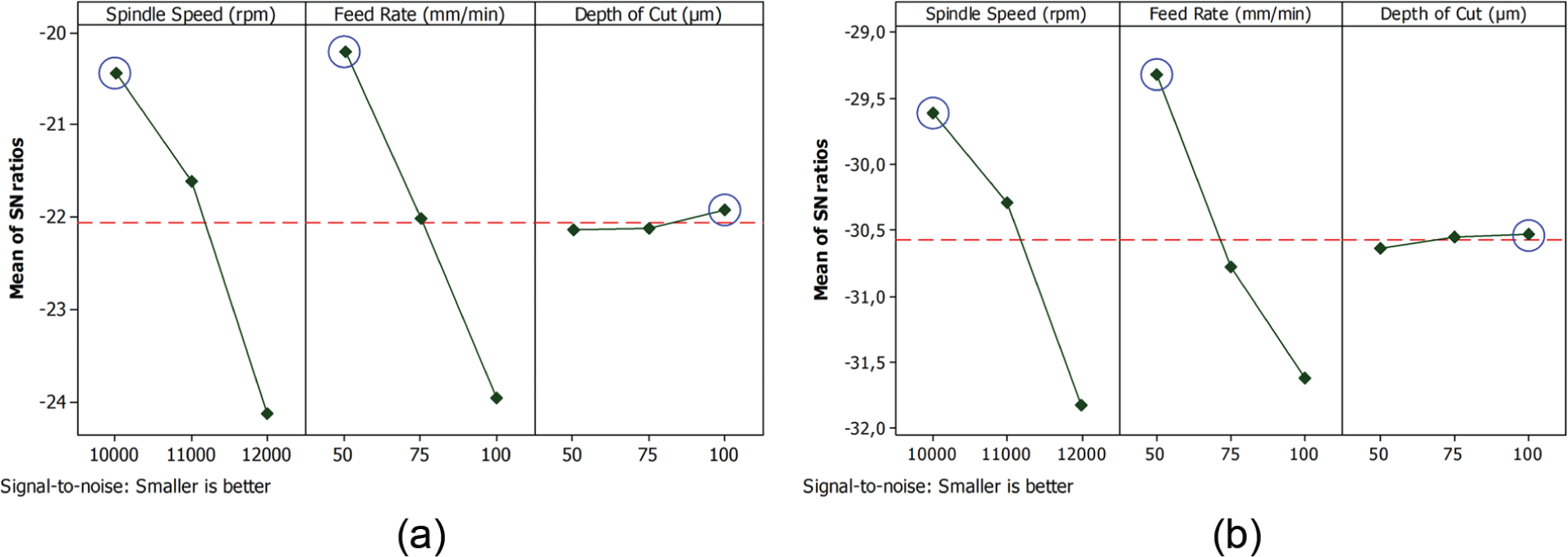

Figure 11.

Main effects plot of S/N ratios for P-to-V Fx during micro-milling of (a) Ti6Al4V titanium alloy and (b) Inconel 718 materials.

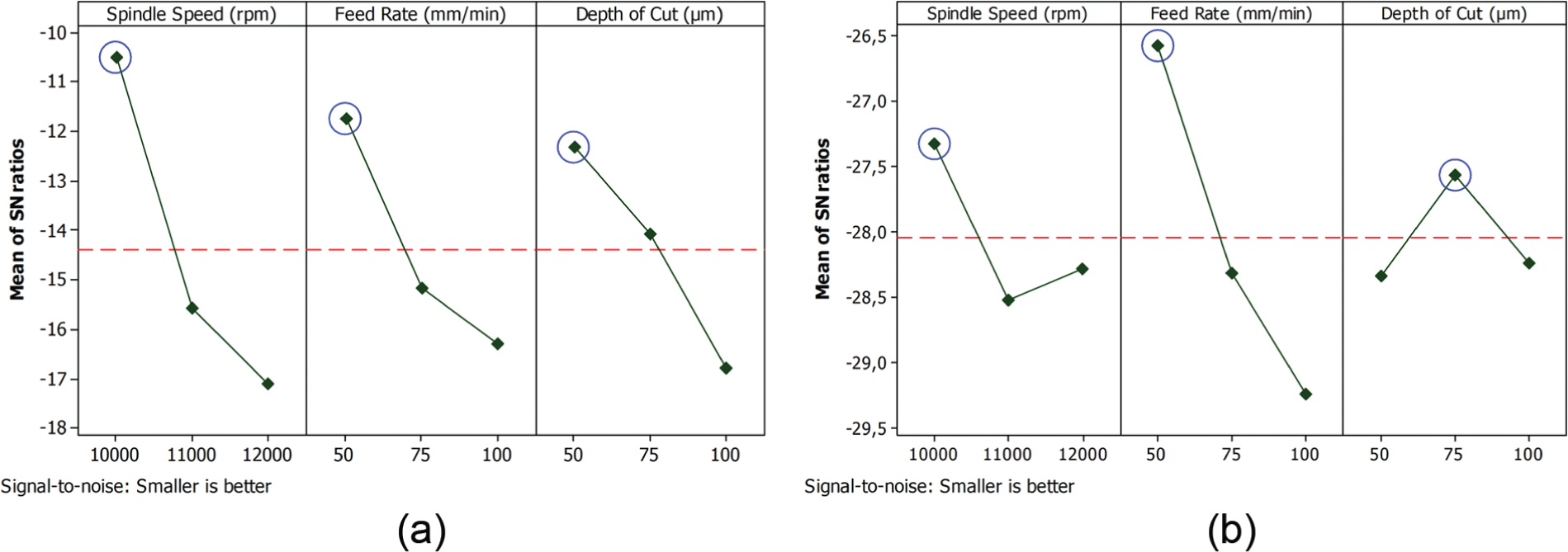

Figure 12.

Main effects plot of S/N ratios for P-to-V Fy during micro-milling of (a) Ti6Al4V titanium alloy and (b) Inconel 718 materials.

The optimum combination of parameters for surface roughness during micro-milling of Ti6Al4V titanium alloy was A3B1C1, namely, spindle speed of 12,000 r/min, feed rate of 50 mm/min and depth of cut of 50 µm (Figure 10(a)). Surface roughness decreased with increasing spindle speed and increased with increasing feed rate and depth of cut for micro-milling of Ti6Al4V titanium alloy. The results showed that the optimum combination for surface roughness during micro-milling of Inconel 718 was A1B1C1, namely, spindle speed of 10,000 r/min, feed rate of 50 mm/min and depth of cut of 50 µm (Figure 10(b)). It was found that surface roughness increased with an increment of spindle speed, feed rate and depth of cut. In micro-milling of Ti6Al4V titanium alloy, it was stated that surface roughness was minimized by a lower depth of cut,⁸ and we found similar result. The increase in surface roughness with increasing feed rate was due to the increase in friction between workpiece and cutting tool.

The optimal combination was A1B1C3 for P-to-V Fx during micro-milling of Ti6Al4V titanium alloy (Figure 11(a)). The optimum micro-milling conditions were found as follows: spindle speed of 10,000 r/min, feed rate of 50 mm/min and depth of cut of 100 µm. P-to-V Fx increased with spindle speed and feed rate and decreased with depth of cut. A1B1C3 was the optimum setting for lower P-to-V Fx during micro-milling of Inconel 718 material (Figure 11(b)). The optimum parameters were as follows: spindle speed of 10,000 r/min, feed rate of 50 mm/min and depth of cut of 100 µm. The increment in P-to-V Fx was observed with an increment of spindle speed and feed rate. It was found that P-to-V Fx decreased with increasing depth of cut.

P-to-V Fx and P-to-V Fy increased with an increment of spindle speed and feed rate for both workpiece materials. Similar to the result of our study, it was observed that Fx and Fy forces increased with feed value,²⁴ spindle speed²⁵ and depth of cut²⁶ in the literature. Park et al.²⁷ explained the increment of Fx and Fy forces when feed per tooth increased with an increment in chip cross-sectional area. When feed rate was increased, the amount of material in contact with the cutting tool increased. This meant that the increase in tool–workpiece contact area and increased contact length induced the increase in cutting force values.²⁸

The optimal P-to-V Fy value for micro-milling of Ti6Al4V titanium alloy was obtained at A1B1C1 combinations, namely, spindle speed of 10,000 r/min, feed rate of 50 mm/min and depth of cut of 50 µm (Figure 12(a)). P-to-V Fy increased with increasing spindle speed, feed rate and depth of cut. The optimal process parameter setting for P-to-V Fy during micro-milling of Inconel 718 material was found as A1B1C2 (Figure 12(b)). Hence, the best combination values for minimizing P-to-V Fy were spindle speed of 10,000 r/min, feed rate of 50 mm/min and depth of cut of 75 µm. P-to-V Fy increased with increasing spindle speed and feed rate. The increment of depth of cut initially decreased P-to-V Fy; however, as depth of cut was further increased, P-to-V Fy increased.

Analysis of variance

The statistically significant factors affecting the output responses in micro-milling of Ti6Al4V titanium alloy and Inconel 718 materials and percentage contribution of each control factor on output responses were indicated using analysis of variance (ANOVA). ANOVA results carried out at the level of confidence 95% are given in Tables 4 –11. For micro-milling of Ti6Al4V titanium alloy, spindle speed, feed rate and depth of cut influenced the tool wear value by 39.700%, 13.485% and 46.281%, respectively (Table 4). All parameters had statistical and physical significance on the tool wear due to the fact that P value was lower than 0.05.

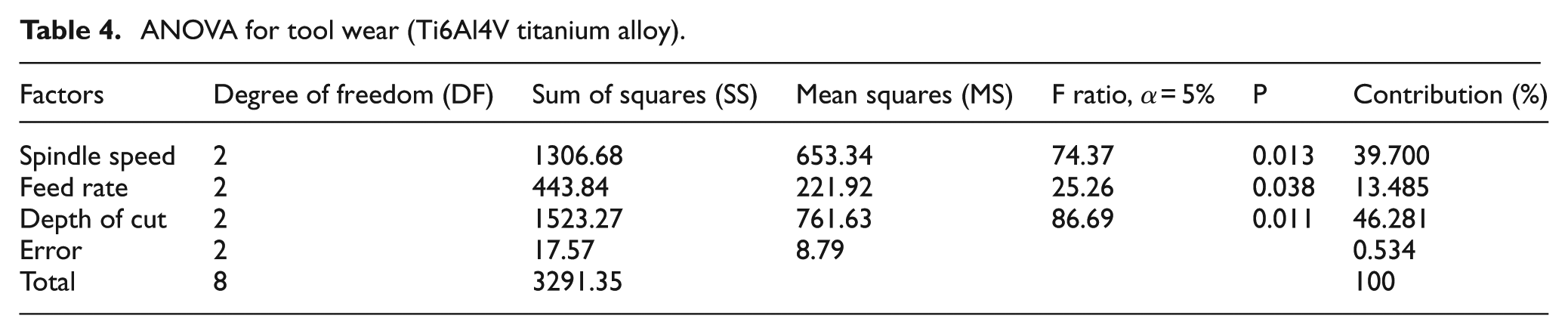

Table 4.

ANOVA for tool wear (Ti6Al4V titanium alloy).

Factors	Degree of freedom (DF)	Sum of squares (SS)	Mean squares (MS)	F ratio, α = 5%	P	Contribution (%)
Spindle speed	2	1306.68	653.34	74.37	0.013	39.700
Feed rate	2	443.84	221.92	25.26	0.038	13.485
Depth of cut	2	1523.27	761.63	86.69	0.011	46.281
Error	2	17.57	8.79			0.534
Total	8	3291.35				100

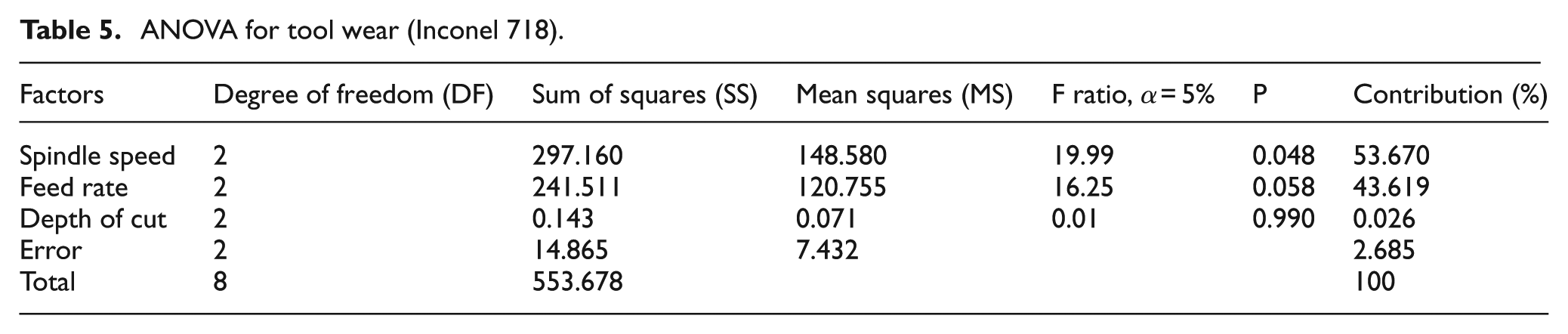

Table 5.

ANOVA for tool wear (Inconel 718).

Factors	Degree of freedom (DF)	Sum of squares (SS)	Mean squares (MS)	F ratio, α = 5%	P	Contribution (%)
Spindle speed	2	297.160	148.580	19.99	0.048	53.670
Feed rate	2	241.511	120.755	16.25	0.058	43.619
Depth of cut	2	0.143	0.071	0.01	0.990	0.026
Error	2	14.865	7.432			2.685
Total	8	553.678				100

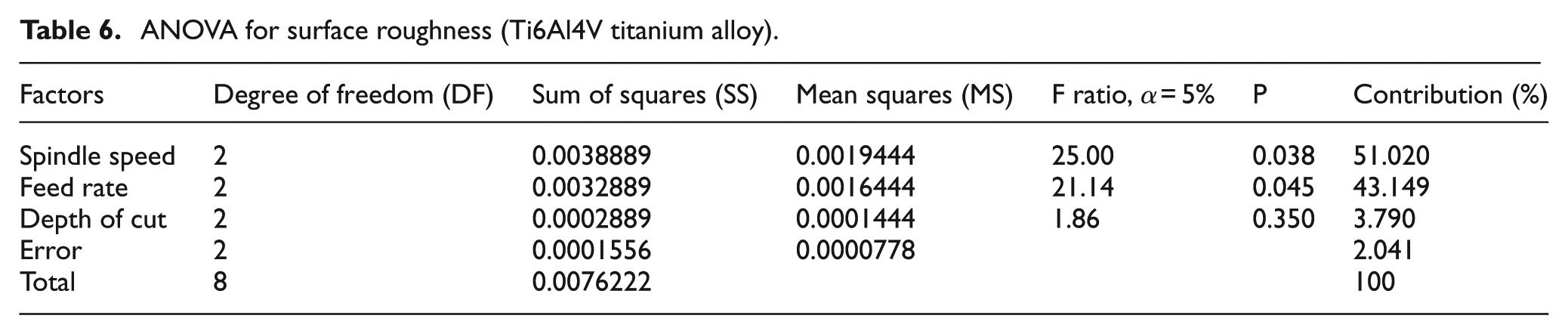

Table 6.

ANOVA for surface roughness (Ti6Al4V titanium alloy).

Factors	Degree of freedom (DF)	Sum of squares (SS)	Mean squares (MS)	F ratio, α = 5%	P	Contribution (%)
Spindle speed	2	0.0038889	0.0019444	25.00	0.038	51.020
Feed rate	2	0.0032889	0.0016444	21.14	0.045	43.149
Depth of cut	2	0.0002889	0.0001444	1.86	0.350	3.790
Error	2	0.0001556	0.0000778			2.041
Total	8	0.0076222				100

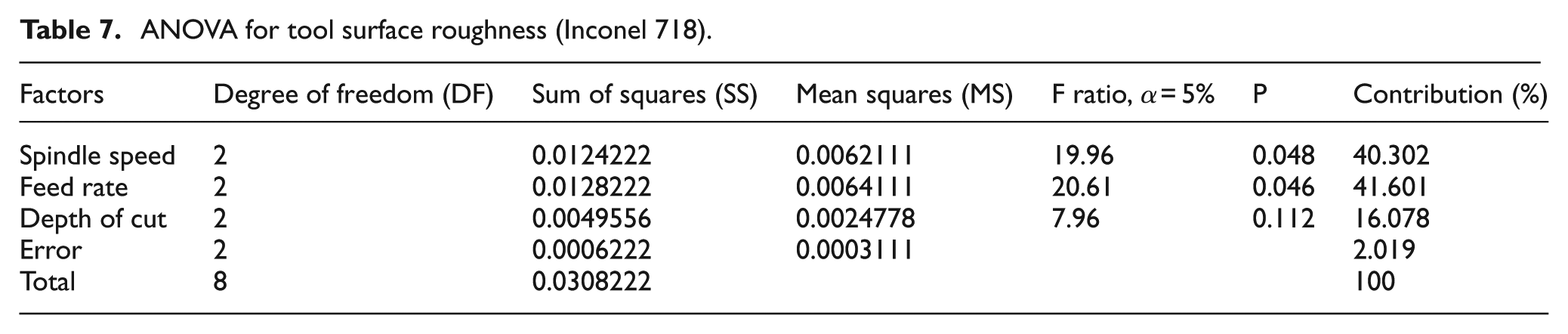

Table 7.

ANOVA for tool surface roughness (Inconel 718).

Factors	Degree of freedom (DF)	Sum of squares (SS)	Mean squares (MS)	F ratio, α = 5%	P	Contribution (%)
Spindle speed	2	0.0124222	0.0062111	19.96	0.048	40.302
Feed rate	2	0.0128222	0.0064111	20.61	0.046	41.601
Depth of cut	2	0.0049556	0.0024778	7.96	0.112	16.078
Error	2	0.0006222	0.0003111			2.019
Total	8	0.0308222				100

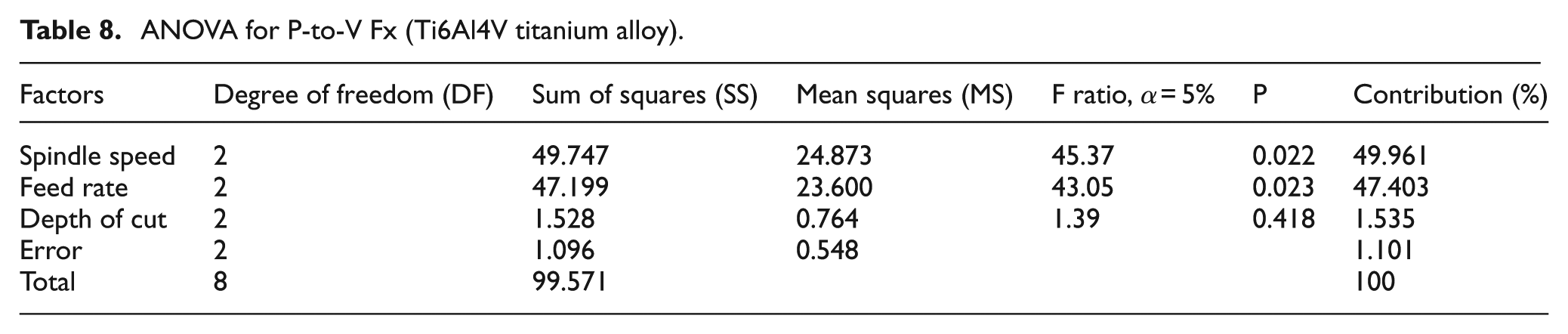

Table 8.

ANOVA for P-to-V Fx (Ti6Al4V titanium alloy).

Factors	Degree of freedom (DF)	Sum of squares (SS)	Mean squares (MS)	F ratio, α = 5%	P	Contribution (%)
Spindle speed	2	49.747	24.873	45.37	0.022	49.961
Feed rate	2	47.199	23.600	43.05	0.023	47.403
Depth of cut	2	1.528	0.764	1.39	0.418	1.535
Error	2	1.096	0.548			1.101
Total	8	99.571				100

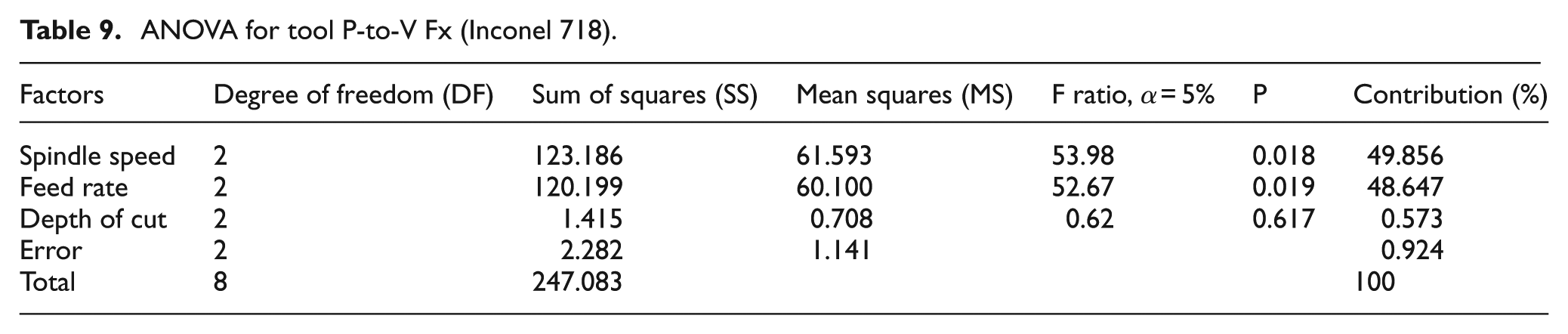

Table 9.

ANOVA for tool P-to-V Fx (Inconel 718).

Factors	Degree of freedom (DF)	Sum of squares (SS)	Mean squares (MS)	F ratio, α = 5%	P	Contribution (%)
Spindle speed	2	123.186	61.593	53.98	0.018	49.856
Feed rate	2	120.199	60.100	52.67	0.019	48.647
Depth of cut	2	1.415	0.708	0.62	0.617	0.573
Error	2	2.282	1.141			0.924
Total	8	247.083				100

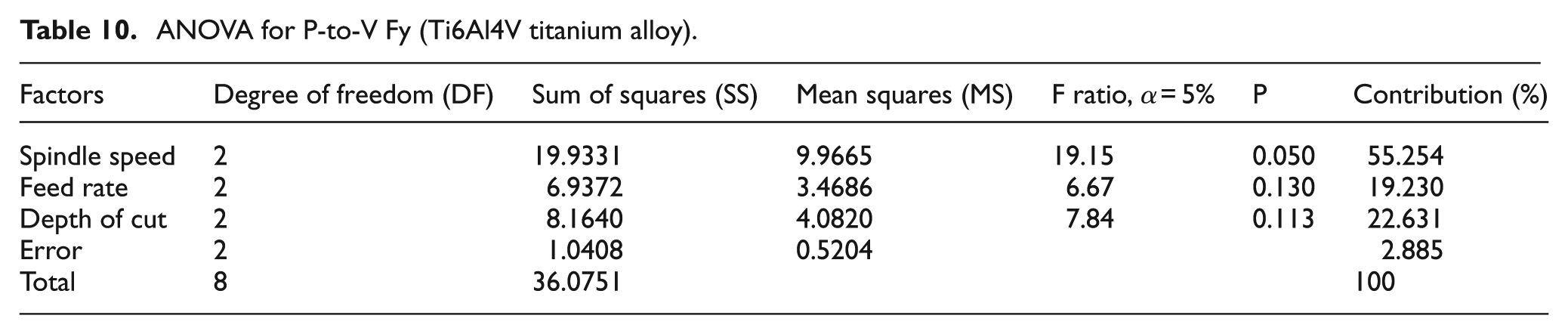

Table 10.

ANOVA for P-to-V Fy (Ti6Al4V titanium alloy).

Factors	Degree of freedom (DF)	Sum of squares (SS)	Mean squares (MS)	F ratio, α = 5%	P	Contribution (%)
Spindle speed	2	19.9331	9.9665	19.15	0.050	55.254
Feed rate	2	6.9372	3.4686	6.67	0.130	19.230
Depth of cut	2	8.1640	4.0820	7.84	0.113	22.631
Error	2	1.0408	0.5204			2.885
Total	8	36.0751				100

Table 11.

ANOVA for tool P-to-V Fy (Inconel 718).

Factors	Degree of freedom (DF)	Sum of squares (SS)	Mean squares (MS)	F ratio, α = 5%	P	Contribution (%)
Spindle speed	2	20.857	10.428	33.88	0.029	17.045
Feed rate	2	91.127	45.563	148.04	0.007	74.473
Depth of cut	2	9.764	4.882	15.86	0.059	7.979
Error	2	0.616	0.308			0.503
Total	8	122.363				100

The most influential parameter for tool wear during micro-milling of Inconel 718 material was the spindle speed with a contribution of 53.670% and followed by feed rate with a contribution of 43.619% (Table 5). However, depth of cut contributed to tool wear value only 0.026%, which could be neglected. It was concluded that spindle speed had statistical and physical significance on tool wear due to the fact that P value was lower than 0.05.

The most significant factor for surface roughness during micro-milling of Ti6Al4V titanium alloy was the spindle speed with a contribution of 51.020% (Table 6). The second most influential factor was found as feed rate (43.149% contribution). However, depth of cut had negligible influence on the surface roughness, and this result was also found in other studies.^17,29 It was concluded that spindle speed and feed rate had statistical and physical significance on surface roughness.

It was found that the most important parameter influencing the surface roughness during micro-milling of Inconel 718 material was feed rate with a contribution of 41.601% (Table 7). Spindle speed and depth of cut affected the surface roughness value by 40.302% and 16.078%, respectively. From the results, it was concluded that spindle speed and feed rate had statistical and physical significance on surface roughness.

P-to-V Fx force was mainly affected by spindle speed during micro-milling of Ti6Al4V titanium alloy (Table 8). Feed rate and depth of cut influenced P-to-V Fx value by 47.403% and 1.535%, respectively. From the results, it was found that spindle speed and feed rate had statistical and physical significance on P-to-V Fx.

It was concluded from ANOVA table that the spindle speed was the most significant parameter affecting P-to-V Fx value for Inconel 718 material (Table 9). The contribution of the feed rate on P-to-V Fx was found as 48.647%. Effect of depth of cut on P-to-V Fx was 0.573%, which showed that it had hardly any influence on reduction of P-to-V Fx value. It was found that spindle speed and feed rate had statistical and physical significance on P-to-V Fx. The effect of depth of cut on P-to-V Fx force for both materials was found insignificant, and similar observation was seen in the literature.²⁴

The most important parameter for P-to-V Fy during micro-milling of Ti6Al4V titanium alloy was spindle speed, and its contribution was achieved as 55.254% (Table 10). The contributions of feed rate and depth of cut on P-to-V Fy were found as 19.230% and 22.631%, respectively. It was concluded that spindle speed had statistical and physical significance on P-to-V Fy.

For P-to-V Fy, contributions of spindle speed, feed rate and depth of cut were found as 17.045%, 74.473% and 7.979%, respectively, during micro-milling of Inconel 718 material (Table 11). It was concluded that spindle speed and feed rate had statistical and physical significance on P-to-V Fy.

Regression analysis

In this study, tool wear, surface roughness and cutting forces were selected as output responses, whereas spindle speed, feed rate and depth of cut were considered as input parameters. Minitab 16 statistical software was used to establish the mathematical models, and the first-order models were as follows

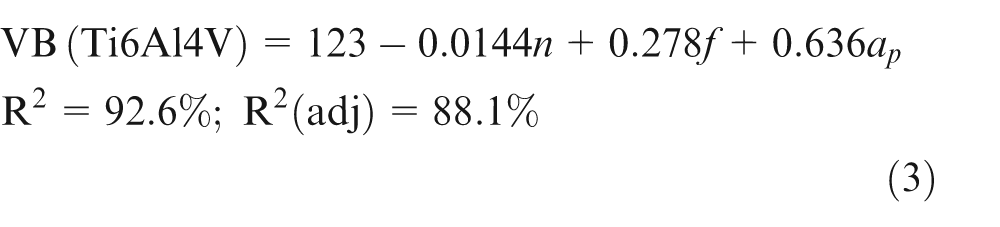

\begin{matrix} VB (Ti 6 Al 4 V) = 123 - 0.0144 n + 0.278 f + 0.636 a_{p} \\ R^{2} = 92.6 %; R^{2} (adj) = 88.1 % \end{matrix}

(3)

\begin{matrix} Ra (Ti 6 Al 4 V) = 0.281 - 0.000025 n + 0.000933 f \\ + 0.000267 a_{p} \\ R^{2} = 95.6 %; R^{2} (adj) = 92.9 % \end{matrix}

(4)

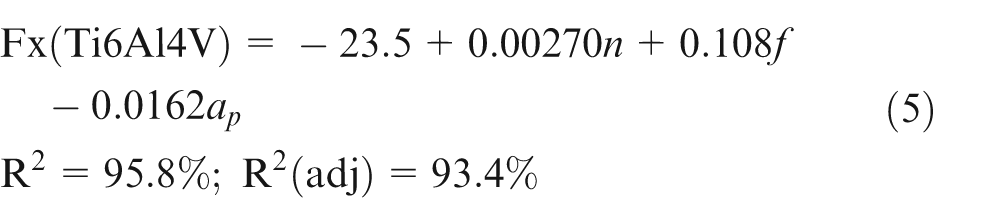

\begin{matrix} Fx (Ti 6 Al 4 V) = - 23.5 + 0.00270 n + 0.108 f \\ - 0.0162 a_{p} \\ R^{2} = 95.8 %; R^{2} (adj) = 93.4 % \end{matrix}

(5)

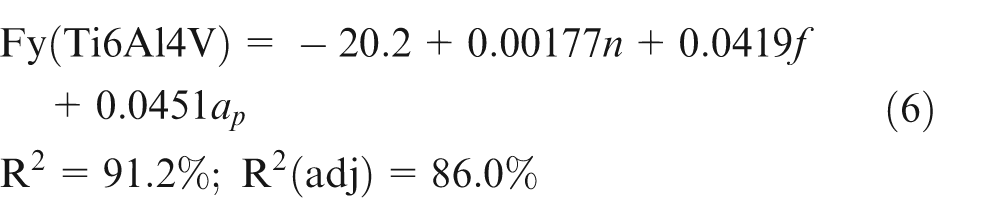

\begin{matrix} Fy (Ti 6 Al 4 V) = - 20.2 + 0.00177 n + 0.0419 f \\ + 0.0451 a_{p} \\ R^{2} = 91.2 %; R^{2} (adj) = 86.0 % \end{matrix}

(6)

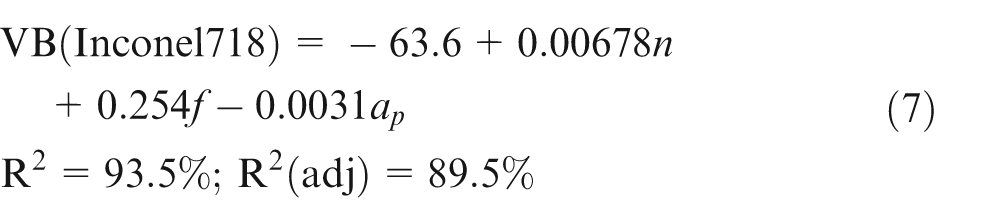

\begin{matrix} VB (Inconel 718) = - 63.6 + 0.00678 n \\ + 0.254 f - 0.0031 a_{p} \\ R^{2} = 93.5 %; R^{2} (adj) = 89.5 % \end{matrix}

(7)

\begin{matrix} Ra (Inconel 718) = - 0.534 + 0.000042 n \\ + 0.00180 f + 0.00113 a_{p} \\ R^{2} = 88.8 %; R^{2} (adj) = 82.1 % \end{matrix}

(8)

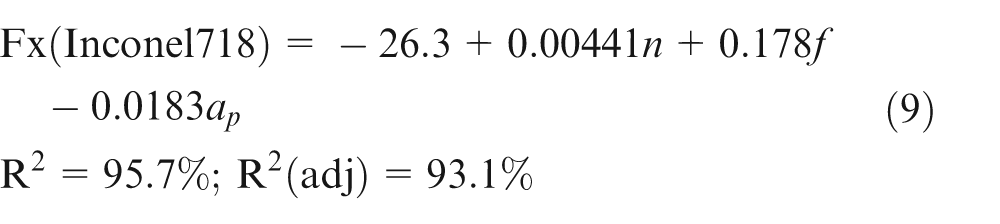

\begin{matrix} Fx (Inconel 718) = - 26.3 + 0.00441 n + 0.178 f \\ - 0.0183 a_{p} \\ R^{2} = 95.7 %; R^{2} (adj) = 93.1 % \end{matrix}

(9)

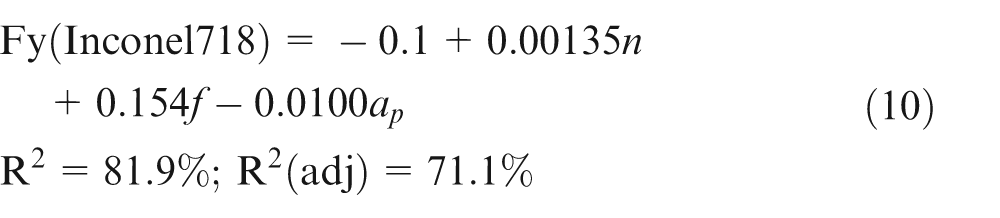

\begin{matrix} Fy (Inconel 718) = - 0.1 + 0.00135 n \\ + 0.154 f - 0.0100 a_{p} \\ R^{2} = 81.9 %; R^{2} (adj) = 71.1 % \end{matrix}

(10)

where n, f and a_p are spindle speed, feed rate and axial depth of cut, respectively.

In this study, established regression models were consistent with experimental values since R² values were high, and these mathematical models could be employed to estimate tool wear, surface roughness and cutting forces in micro-milling of Ti6Al4V titanium alloy and Inconel 718 materials.

Confirmation experiments

The last step of Taguchi method is to validate the output responses conducting additional experiments. The confirmation experiment was performed to predict the output responses, and the confirmation experiment for Ti6Al4V titanium alloy was conducted at the optimal parameters for P-to-V Fx. The results of confirmation experiments for Ti6Al4V titanium alloy are given in Figure 13. The predicted results for tool wear (Figure 13(a)), surface roughness (Figure 13(b)), P-to-V Fx (Figure 13(c)) and P-to-V Fy (Figure 13(d)) were very close to the results of confirmation experiments. In A1B1C3 confirmation experiment, average percentage errors for tool wear, surface roughness, P-to-V Fx and P-to-V Fy were 19.61%, 8.77%, 2.07% and 3.41%, respectively. It was also found that P-to-V Fx improved by 13.41% as compared to the value of initial setting (A1B1C1) (Table 12). The confirmation experiments for Inconel 718 material were carried out at the optimal parameter setting achieved from P-to-V Fx and P-to-V Fy. The results of confirmation experiments for Inconel 718 material are shown in Figure 14. The predicted results for tool wear (Figure 14(a)), surface roughness (Figure 14(b)), P-to-V Fx (Figure 14(c)) and P-to-V Fy (Figure 14(d)) were very close to the results of confirmation experiments. In A1B1C2 confirmation experiment, average percentage errors for tool wear, surface roughness, P-to-V Fx and P-to-V Fy were found as 17.24%, 4.07%, 0.32% and 1.14%, respectively. In A1B1C3 confirmation experiment, average percentage errors for tool wear, surface roughness, P-to-V Fx and P-to-V Fy were 0.48%, 7.88%, 2.35% and 1.23%, respectively. It was also concluded that P-to-V Fx and P-to-V Fy improved by 7.99% and 1.90%, respectively, as compared to the values of initial setting (Table 13).

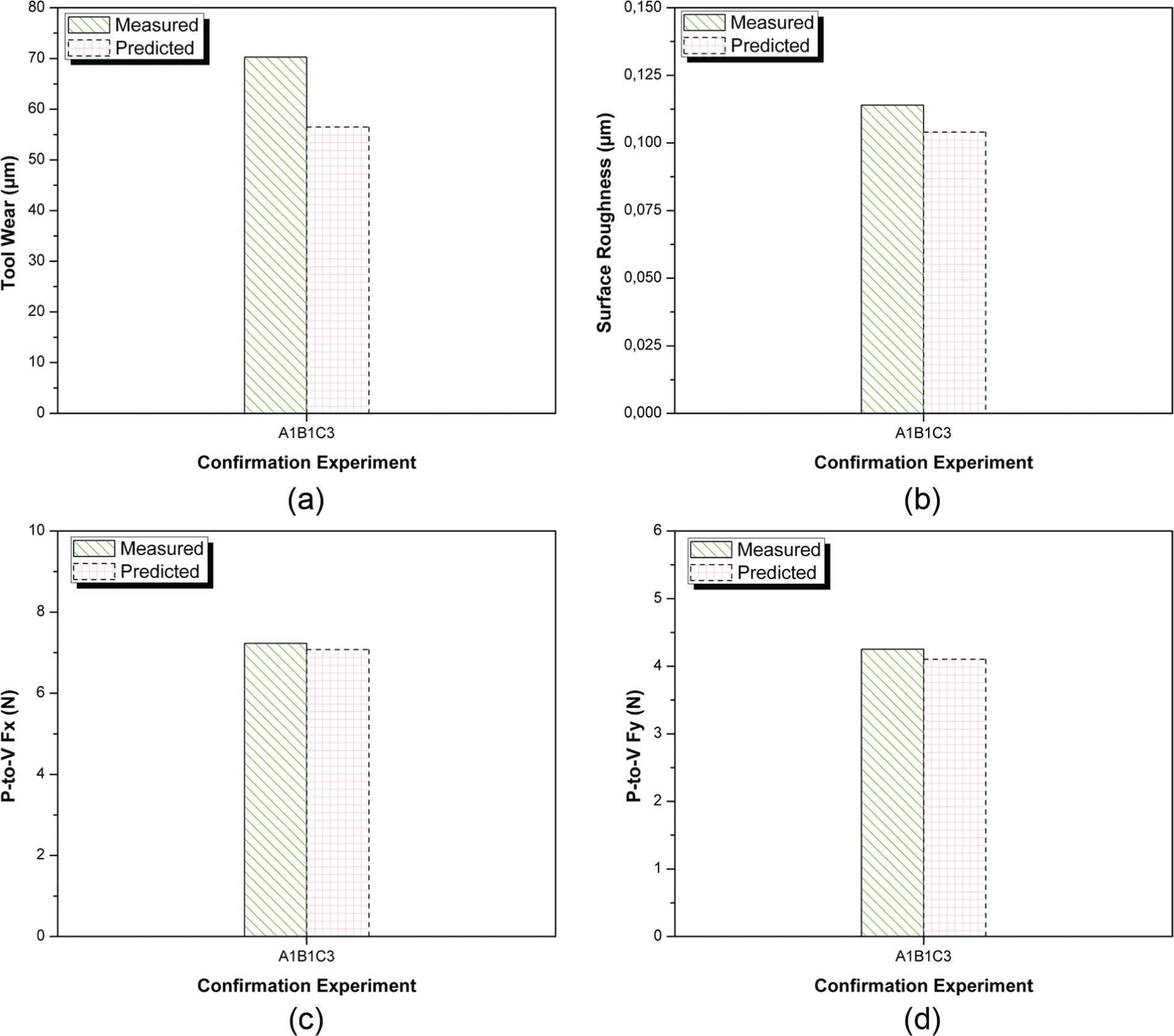

Figure 13.

Results of confirmation experiments for Ti6Al4V titanium alloy: (a) tool wear, (b) Ra, (c) P-to-V Fx and (d) P-to-V Fy.

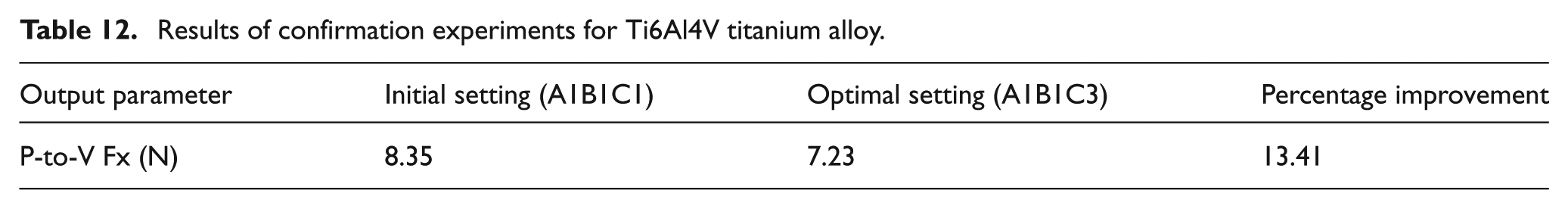

Table 12.

Results of confirmation experiments for Ti6Al4V titanium alloy.

Output parameter	Initial setting (A1B1C1)	Optimal setting (A1B1C3)	Percentage improvement
P-to-V Fx (N)	8.35	7.23	13.41

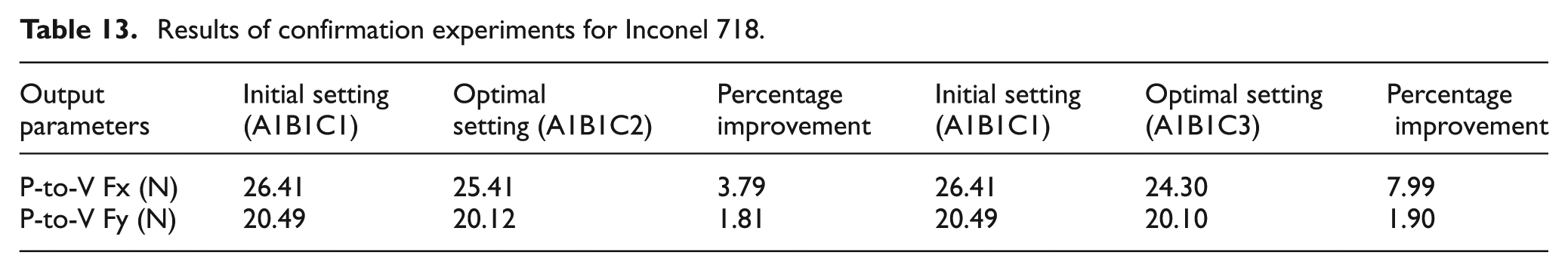

Table 13.

Results of confirmation experiments for Inconel 718.

Output parameters	Initial setting (A1B1C1)	Optimal setting (A1B1C2)	Percentage improvement	Initial setting (A1B1C1)	Optimal setting (A1B1C3)	Percentage improvement
P-to-V Fx (N)	26.41	25.41	3.79	26.41	24.30	7.99
P-to-V Fy (N)	20.49	20.12	1.81	20.49	20.10	1.90

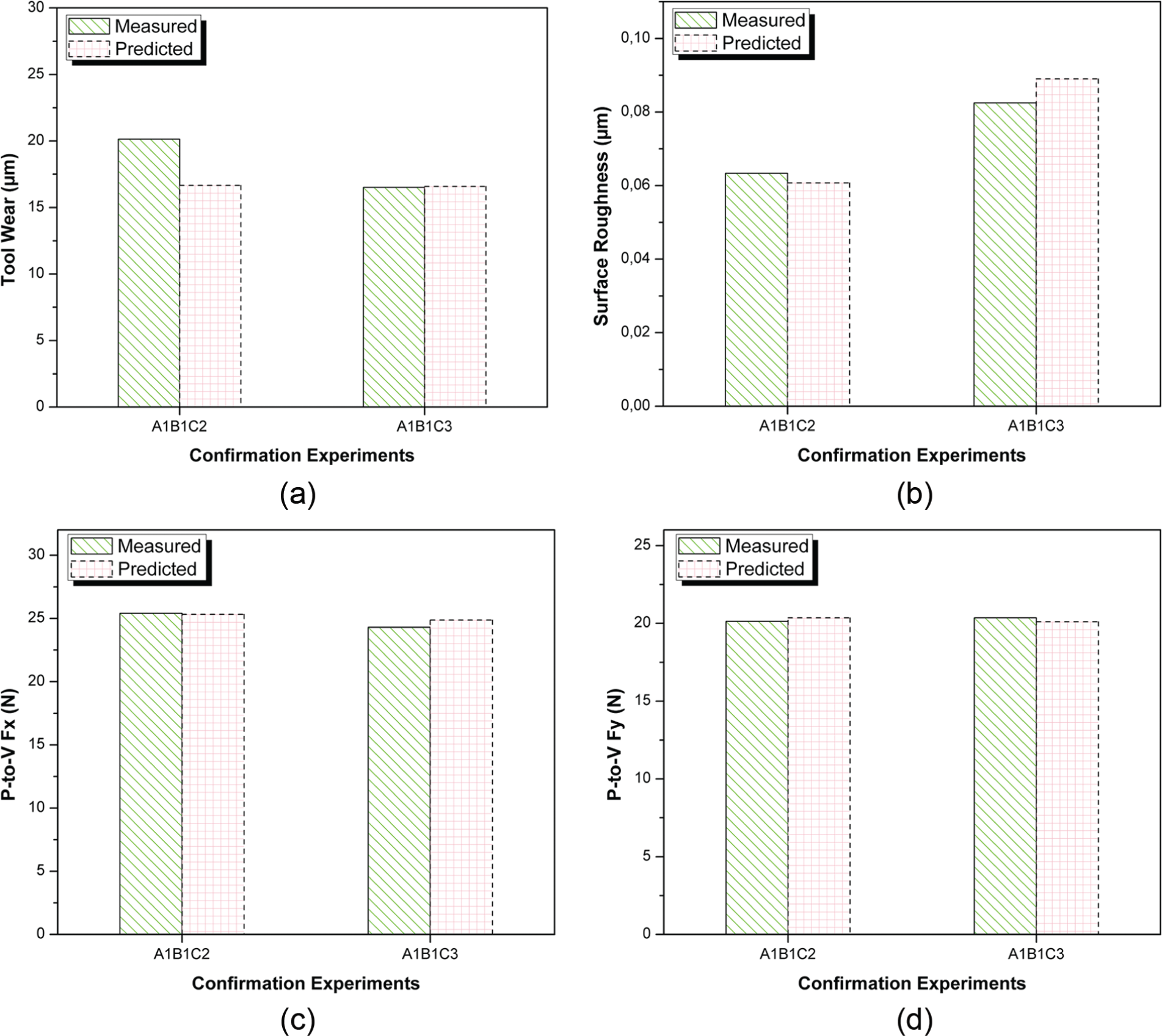

Figure 14.

Results of confirmation experiments for Inconel 718: (a) tool wear, (b) Ra, (c) P-to-V Fx and (d) P-to-V Fy.

It was concluded that the predicted values were very close to the results obtained from experiments; thus, the developed mathematical models could be employed for prediction of tool wear, surface roughness and cutting forces in the micro-milling of Ti6Al4V titanium alloy and Inconel 718 materials.

Conclusion

Influence of various micro-milling parameters, namely, spindle speed, feed rate and depth of cut on the tool wear, surface roughness and cutting forces, was analyzed via Taguchi method. Taguchi’s S/N ratio was employed to optimize the micro-milling parameters, and the effect of micro-milling parameters on output responses was investigated by ANOVA. From S/N analysis, it was concluded that the optimum values for minimizing tool wear in micro-milling of Ti6Al4V titanium alloy were spindle speed of 12,000 r/min, feed rate of 50 mm/min and depth of cut of 50 µm, and for Inconel 718 material, the optimum values were spindle speed of 10,000 r/min, feed rate of 50 mm/min and depth of cut of 75 µm. For Ti6Al4V titanium alloy, the optimum combination set of surface roughness was spindle speed of 12,000 r/min, feed rate of 50 mm/min and depth of cut of 50 µm. The results showed that the optimum combination for surface roughness during micro-milling of Inconel 718 was spindle speed of 10,000 r/min, feed rate of 50 mm/min and depth of cut of 50 µm. In micro-milling of both materials, optimum parameters were spindle speed of 10,000 r/min, feed rate of 50 mm/min and depth of cut of 100 µm for P-to-V Fx. For P-to-V Fy, optimum parameters were found to be as spindle speed of 10,000 r/min, feed rate of 50 mm/min and depth of cut of 50 µm in micro-milling of Ti6Al4V titanium alloy. The optimal process parameter setting for P-to-V Fy during micro-milling of Inconel 718 material was found as spindle speed of 10,000 r/min, feed rate of 50 mm/min and depth of cut of 75 µm.

The most important parameter affecting tool wear was depth of cut for Ti6Al4V titanium alloy. The most important parameter influencing tool wear was found to be spindle speed for Inconel 718 material. It was concluded that surface roughness and P-to-V Fy were mainly affected by spindle speed during micro-milling of Ti6Al4V titanium alloy, while for Inconel 718 material, the most important parameter affecting surface roughness and P-to-V Fy was feed rate. For both materials, P-to-V Fx force was mostly influenced by spindle speed.

Tool wear and surface roughness in micro-milling of Ti6Al4V titanium alloy could be higher or lower than in micro-milling of Inconel 718 material, depending on the cutting conditions. For all experiments, both P-to-V Fx and P-to-V Fy forces were found to be higher in micro-milling of Inconel 718 material than in micro-milling of Ti6Al4V titanium alloy.

In this study, the mathematical models were also developed using regression analysis. Thus, it was possible to predict the tool wear, surface roughness and cutting forces without conducting the experiments. The prediction capability of these developed models was determined by correlation coefficients. The results showed that the tool wear, surface roughness and cutting forces in micro-milling of Ti6Al4V titanium alloy and Inconel 718 materials could be predicted by regression modelling.

Footnotes

Acknowledgements

Emel Kuram was awarded PhD scholarship by the TUBITAK–BIDEB and is grateful to TUBITAK–BIDEB.

Declaration of conflicting interests

The authors declare that there is no conflict of interest.

Funding

The authors thank Gebze Technical University for supporting this project (Project Number: BAP 2013-A22).

References

Kuram

Ozcelik

. Micro-milling performance of AISI 304 stainless steel using Taguchi method and fuzzy logic modelling. J Intell Manuf. Epub ahead of print 23 April 2014. DOI: 10.1007/s10845-014-0916-5.

Sreeram

Senthil Kumar

Rahman

. Optimization of cutting parameters in micro end milling operations under dry cutting conditions using genetic algorithms. Int J Adv Manuf Tech 2006; 30: 1030–1039.

Cardoso

Davim

. Optimization of surface roughness in micromilling. Mater Manuf Process 2010; 25: 1115–1119.

Natarajan

Periyanan

Yang

. Multiple-response optimization for micro-endmilling process using response surface methodology. Int J Adv Manuf Tech 2011; 56: 177–185.

Lekkala

Bajpai

Singh

. Characterization and modeling of burr formation in micro-end milling. Precis Eng 2011; 35: 625–637.

Kuram

Ozcelik

. Multi-objective optimization using Taguchi based grey relational analysis for micro-milling of Al 7075 material with ball nose end mill. Measurement 2013; 46: 1849–1864.

Piquard

D’Acunto

Laheurte

. Micro-end milling of NiTi biomedical alloys, burr formation and phase transformation. Precis Eng 2014; 38: 356–364.

Monroy-Vazquez

Attanasio

Ceretti

. Evaluation of superficial and dimensional quality features in metallic micro-channels manufactured by micro-end-milling. Materials 2013; 6: 1434–1451.

Thepsonthi

Ozel

. Experimental and finite element simulation based investigations on micro-milling Ti-6Al-4V titanium alloy: effects of cBN coating on tool wear. J Mater Process Tech 2013; 213: 532–542.

10.

Obikawa

Kani

. Micro ball end milling of titanium alloy using a tool with a microstructured rake face. J Adv Mech Des Syst Manuf 2012; 6: 1121–1131.

11.

Aurich

Reichenbach

Schüler

. Manufacture and application of ultra-small micro end mills. CIRP Ann: Manuf Techn 2012; 61: 83–86.

12.

Vazquez

Gomar

Ciurana

. Analyzing effects of cooling and lubrication conditions in micromilling of Ti6Al4V. J Clean Prod. Epub ahead of print 2014. DOI: 10.1016/j.jclepro.2014.10.016.

13.

Zheng

Liu

Chen

. Experimental study on micro-milling of Ti6Al4V with minimum quantity lubrication. Int J Nanomanuf 2013; 9: 570–582.

14.

Butler-Smith

Axinte

Limvachirakom

. Preliminary study of the effects of crystal orientation of a CVD monocrystalline diamond in micromilling of Ti-6Al-4V. Proc IMechE, Part B: J Engineering Manufacture 2010; 224: 1305–1312.

15.

Chen

Wang

. Research on the modelling of burr formation process in micro-ball end milling operation on Ti-6Al-4V. Int J Adv Manuf Tech 2012; 62: 901–912.

16.

Ozel

Thepsonthi

Ulutan

. Experiments and finite element simulations on micro-milling of Ti-6Al-4V alloy with uncoated and cBN coated micro-tools. CIRP Ann: Manuf Techn 2011; 60: 85–88.

17.

Mian

Driver

Mativenga

. Identification of factors that dominate size effect in micro-machining. Int J Mach Tool Manu 2011; 51: 383–394.

18.

Taguchi

. Introduction to quality engineering. New York: McGraw-Hill, 1990.

19.

Ross

. Taguchi techniques for quality engineering. 2nd ed.New York: McGraw-Hill, 1996.

20.

Fang

Pai

Edwards

. A comparative study of high-speed machining of Ti-6Al-4V and Inconel 718 − part I: effect of dynamic tool edge wear on cutting forces. Int J Adv Manuf Tech 2013; 68: 1839–1849.

21.

Klocke

Sangermann

Kramer

. Influence of a high-pressure lubricoolant supply on thermo-mechanical tool load and tool wear behaviour in the turning of aerospace materials. Proc IMechE, Part B: J Engineering Manufacture 2011; 225: 52–61.

22.

Fang

. A comparative study of the cutting forces in high speed machining of Ti-6Al-4V and Inconel 718 with a round cutting edge tool. J Mater Process Tech 2009; 209: 4385–4389.

23.

Biermann

Kahleyss

Surmann

. Micromilling of NiTi shape-memory alloys with ball nose cutters. Mater Manuf Process 2009; 24: 1266–1273.

24.

Kang

I-S

Kim

J-S

Seo

Y-W

. Investigation of cutting force behaviour considering the effect of cutting edge radius in the micro-scale milling of AISI 1045 steel. Proc IMechE, Part B: J Engineering Manufacture 2011; 225: 163–171.

25.

Uhlmann

Piltz

Schauer

. Micro milling of sintered tungsten–copper composite materials. J Mater Process Tech 2005; 167: 402–407.

26.

Lai

. Modelling and analysis of micro scale milling considering size effect, micro cutter edge radius and minimum chip thickness. Int J Mach Tool Manu 2008; 48: 1–14.

27.

Park

J-B

Wie

K-H

Park

J-S

. Evaluation of machinability in the micro end milling of printed circuit boards. Proc IMechE, Part B: J Engineering Manufacture 2009; 223: 1465–1474.

28.

Selvaraj

Chandramohan

Mohanraj

. Optimization of surface roughness, cutting force and tool wear of nitrogen alloyed duplex stainless steel in a dry turning process using Taguchi method. Measurement 2014; 49: 205–215.

29.

Huo

Cheng

. Experimental investigation on micromilling of oxygen-free, high-conductivity copper using tungsten carbide, chemistry vapour deposition, and single-crystal diamond micro tools. Proc IMechE, Part B: J Engineering Manufacture 2010; 224: 995–1003.

Optimization of machining parameters during micro-milling of Ti6Al4V titanium alloy and Inconel 718 materials using Taguchi method

Abstract

Keywords

Introduction

Methodology used

Methodologies for modelling

Taguchi methodology

Regression analysis

Experimental

Materials

Measurements

Design with Taguchi method

Results and discussion

S/N analysis

Analysis of variance

Regression analysis

Confirmation experiments

Conclusion

Footnotes

Acknowledgements

Declaration of conflicting interests

Funding

References
