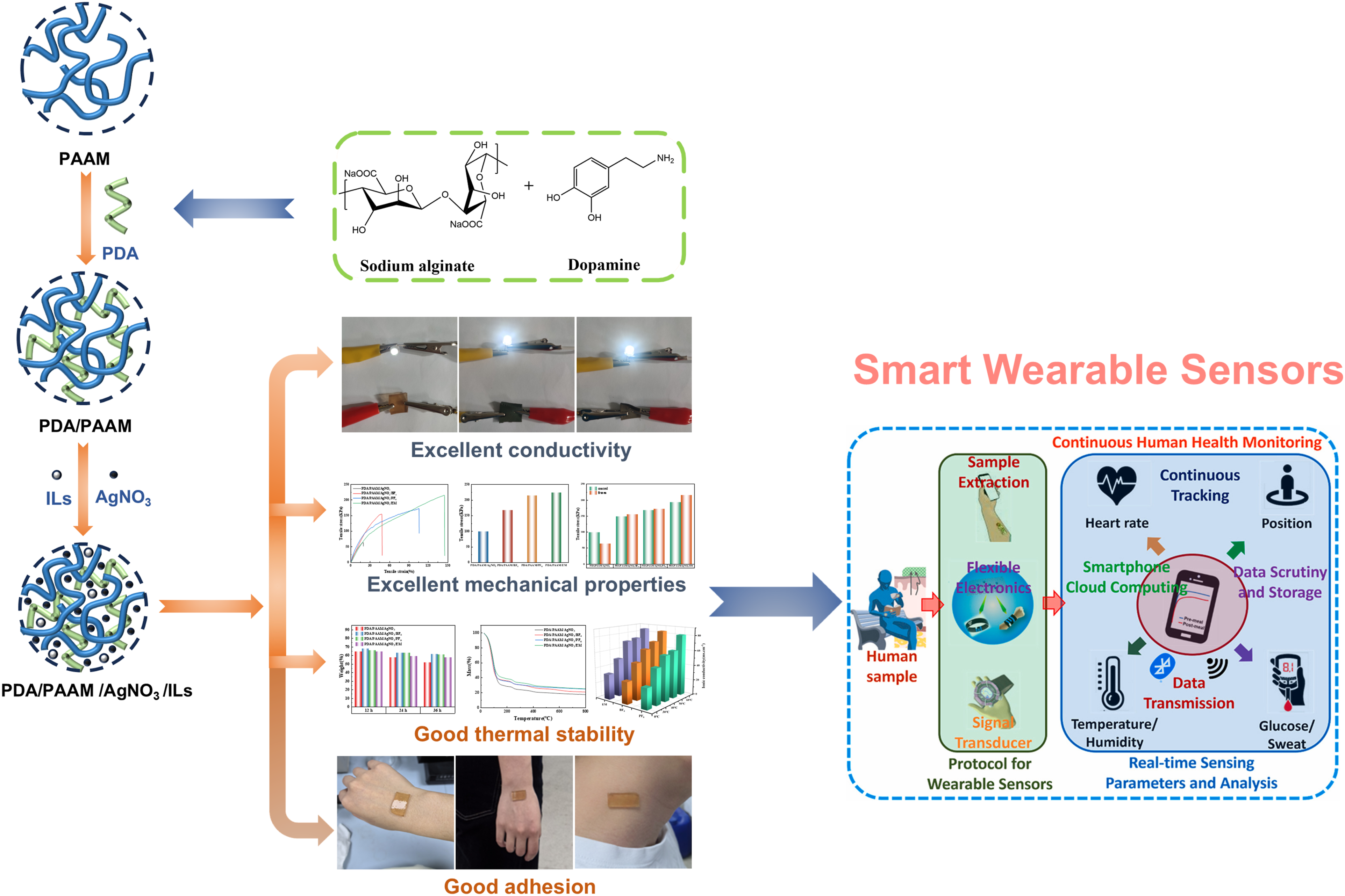

Conductive hydrogels have promise in a range of applications, but most existing conductive hydrogels’ susceptibility to water loss and poor freeze resistance limit their use in extreme environments such as low temperatures. Here, we report a mixed ionic-electronic conductive PDA/PAAM/AgNO3/ILs gel through the synergistic action of Ag+ and ionic liquids (ILs). This gel enhances adhesion by incorporating catechol-modified sodium alginate into the crosslinked polyacrylamide network structure, achieving adhesion strengths ranging from 19.26 to 26.77 KPa. The combined use of AgNO3 and ILs enhanced the conductive and mechanical properties of the gel. The conductivity of the PDA/PAAM/AgNO3/ILs gels increased from 0.83 mS/cm to 47.16∼49.93 mS/cm, while the tensile strength rose from 98.80 KPa to 154.84∼193.72 KPa. The incorporation of ILs also endows the PDA/PAAM/AgNO3/ILs gels with low volatility and freeze resistance, enabling a broad temperature response range. Comparing the three distinct PDA/PAAM/AgNO3/ILs gels, the PDA/PAAM/AgNO3/EM gel demonstrated the most favorable electrical conductivity and mechanical properties, providing valuable insights for the application of ILs in hydrogel systems. This research addresses the application needs of hydrogels in flexible sensor electronics, enhancing reliability and safety for flexible electronics, including low-temperature environments.
DaiWWangJXiangK, et al.Highly stretchable, ultra-sensitive, and self-healable multifunctional flexible conductive hydrogel sensor for motion detection and information transmission. ACS Appl Mater Interfaces2023; 15(24): 29499–29510. https://doi.org/10.1021/acsami.3c06222
2.
HannaJTawkYAzarS, et al.Wearable flexible body matched electromagnetic sensors for personalized non-invasive glucose monitoring. Sci Rep2022; 12(1): 14885. https://doi.org/10.1038/s41598-022-19251-z
3.
LianXYanB. Diagnosis of penicillin allergy: a MOFs-based composite hydrogel for detecting β-lactamase in serum. Chem Commun2019; 55(2): 241–244. https://doi.org/10.1039/C8CC08245F
4.
ZhangSXiaoYChenH, et al.Flexible triboelectric tactile sensor based on a robust MXene/Leather film for human-machine interaction. ACS Appl Mater Interfaces2023; 15(10): 13802–13812. https://doi.org/10.1021/acsami.3c00126
5.
LiangHZhangLWuT, et al.Dual-mode flexible sensor based on PVDF/MXene nanosheet/reduced graphene oxide composites for electronic skin. Nanomaterials2022; 13(1): 102. https://doi.org/10.3390/nano13010102
6.
LiYYangDWuZ, et al.Self-adhesive, self-healing, biocompatible and conductive polyacrylamide nanocomposite hydrogels for reliable strain and pressure sensors. Nano Energy2023; 109: 108324. https://doi.org/10.1016/j.nanoen.2023.108324
7.
YangYLiuY-X.DengB-W., et al.Construction of three-dimensional carbon materials-based conductive bonding network in flexible supercapacitor electrodes. Electrochim Acta2023; 440: 141751. https://doi.org/10.1016/j.electacta.2022.141751
8.
LiYJTianZYGaoXZ, et al.All-weather self-powered intelligent traffic monitoring system based on a conjunction of self-healable piezoresistive sensors and triboelectric nanogenerators. Adv Funct Mater2023; 33(52): 2308845. https://doi.org/10.1002/adfm.202308845
9.
LiYRenPSunZ, et al.High-strength, anti-fatigue, cellulose nanofiber reinforced polyvinyl alcohol based ionic conductive hydrogels for flexible strain/pressure sensors and triboelectric nanogenerators. J Colloid Interface Sci2024; 669: 248–257. https://doi.org/10.1016/j.jcis.2024.05.011
10.
GregorichNKanhereSStuttsJ, et al.Enhanced mechanical properties of composite hydrogels containing fractionated and purified lignin. ACS Appl Polym Mater2023; 5(1): 201–213. https://doi.org/10.1021/acsapm.2c01433
11.
LiYWangYWangX, et al.Linear range enhancement in flexible piezoresistive sensors enabled by double‐layer corrugated structure. Adv Funct Mater2025; 36: e13480. https://doi.org/10.1002/adfm.202513480
12.
TangXYangWYinS, et al.Controllable graphene wrinkle for a high-performance flexible pressure sensor. ACS Appl Mater Interfaces2021; 13(17): 20448–20458. https://doi.org/10.1021/acsami.0c22784
13.
LiuJWangFZhaoQ, et al.Multifunctional conductive hydrogels based on the alkali lignin-Fe3+-mediated fenton reaction for bioelectronics. Int J Biol Macromol2023; 235: 123817. https://doi.org/10.1016/j.ijbiomac.2023.123817
14.
LinXZhangTCaoJ, et al.Flexible piezoresistive sensors based on conducting polymer-coated fabric applied to human physiological signals monitoring. JBE2020; 17(1): 55–63. https://doi.org/10.1007/s42235-020-0004-9
15.
ZengJZhangYChenY, et al.Molecular dynamics simulation of the adsorption properties of graphene oxide/graphene composite for alkali metal ions. J Mol Graph Model2022; 114: 108184. https://doi.org/10.1016/j.jmgm.2022.108184
16.
ZhangFYangKPeiZ, et al.A highly accurate flexible sensor system for human blood pressure and heart rate monitoring based on graphene/sponge. RSC Adv2022; 12(4): 2391–2398. https://doi.org/10.1039/d1ra08608a
17.
WangCWangPChenS, et al.Anisotropic properties of tellurium nanoflakes probed by polarized raman and transient absorption microscopy: implications for polarization-sensitive applications. ACS Appl Nano Mater2022; 5(2): 1767–1774. https://doi.org/10.1021/acsanm.1c03132
18.
ZhangQYunGJinS, et al.Silver nanoflakes-enhanced anisotropic hybrid composites for integratable pressure sensors. Nanomaterials2022, [Online].
19.
QiaoZWeiAWangK, et al.Study of flexible piezoresistive sensors based on the hierarchical porous structure CNT/PDMS composite materials. J Alloys Compd2022; 917: 165503. https://doi.org/10.1016/j.jallcom.2022.165503
20.
WeiHFLiXMYaoFP, et al.Flexible piezoresistive pressure sensor based on a graphene-carbon nanotube-polydimethylsiloxane composite. Nanotechnology and Precision Engineering2024; 7(3): 033004. https://doi.org/10.1063/10.0025753
21.
HaoSLiTYangX, et al.Ultrastretchable, adhesive, fast self-healable, and three-dimensional printable photoluminescent ionic skin based on hybrid network ionogels. ACS Appl Mater Interfaces2022; 14(1): 2029–2037. https://doi.org/10.1021/acsami.1c21325
22.
FanJNewellBGarciaJ, et al.Effect of additive manufacturing on β-Phase Poly(Vinylidene Fluoride)-Based capacitive temperature sensors. Adv Eng Mater2022; 24(11): 2200485. https://doi.org/10.1002/adem.202200485
23.
LiaoMWanPWenJ, et al.Wearable, healable, and adhesive epidermal sensors assembled from mussel-inspired conductive hybrid hydrogel framework. Adv Funct Mater2017; 27(48): 1703852. https://doi.org/10.1002/adfm.201703852
Yoshizawa-FujitaMTamuraTTakeokaY, et al.Low-melting zwitterion: effect of oxyethylene units on thermal properties and conductivity. Chem Commun2011; 47(8): 2345–2347. https://doi.org/10.1039/c0cc03754k
27.
LiDRFeiXWangK, et al.A novel self-healing triple physical cross-linked hydrogel for antibacterial dressing. J Mater Chem B2021; 9(34): 6844–6855. https://doi.org/10.1039/d1tb01257f
28.
CuiRHChenFPZhaoYJ, et al.A novel injectable starch-based tissue adhesive for hemostasis. J Mater Chem B2020; 8(36): 8282–8293. https://doi.org/10.1039/d0tb01562h
29.
TaoXYZhuKChenH, et al.Recyclable, anti-freezing and anti-drying silk fibroin-based hydrogels for ultrasensitive strain sensors and all-hydrogel-state super-capacitors. Mater Today Chem2023; 32: 101624. https://doi.org/10.1016/j.mtchem.2023.101624
30.
ZhangLQJiangQFZhaoYM, et al.Strong and tough PAm/SA hydrogel with highly strain sensitivity. JOURNAL OF RENEWABLE MATERIALS2022; 10(2): 415–430. https://doi.org/10.32604/jrm.2022.016650
31.
ZhouHRNiuXDingXX, et al.Double regulation of conductivity by adhesive hydrogel based on catechol-modified sodium alginate/acrylamide hydrogel with silver ions. J Appl Polym Sci2024; 141(4): e54859. https://doi.org/10.1002/app.54859
32.
ChenWWangRXuTT, et al.A mussel-inspired poly(γ-glutamic acid) tissue adhesive with high wet strength for wound closure. J Mater Chem B2017; 5(28): 5668–5678. https://doi.org/10.1039/c7tb00813a
33.
ZhangKChenXMXueY, et al.Tough hydrogel bioadhesives for sutureless wound sealing, hemostasis and biointerfaces. Adv Funct Mater2022; 32(15): 2111465. https://doi.org/10.1002/adfm.202111465
34.
SunJXLuGQZhouJL, et al.Robust physically linked double-network ionogel as a flexible bimodal sensor. ACS Appl Mater Interfaces2020; 12(12): 14272–14279. https://doi.org/10.1021/acsami.0c01472
