Abstract
This work explores a novel method for fabricating lightweight thermoplastic polymer-fiber-reinforced polymer (PFRP) composites, often referred to as self-reinforced composites (SRCs), using automated powder dispersion followed by compression molding. A representative PFRP was fabricated using plain-weave ultra-high-molecular-weight polyethylene (UHMWPE) fabrics embedded in a high-density polyethylene (HDPE) powder matrix. In the dispersion process, various parameters including sweeping speed, vibration voltage, sieve mesh size, and dispersion paths were studied for their effects on powder distribution, powder amount, and processing speed, aiming to achieve better control over fiber volume fraction (
Keywords
Introduction
Polymer-fiber-reinforced polymers (PFRPs), often referred to as single polymer composites or self-reinforced composites (SRCs), have gained increasing attention due to their excellent impact resistance, 1 lightweight nature, 2 and remanufacturing capability. 3 These PFRP composites are composed entirely of polymer components, with both the fibers and matrix derived from the same or different types of thermoplastic polymer, including polyurethane (PU), 4 polypropylene (PP), 5 polyethylene (PE), 6 polyethylene terephthalate (PET), 7 polyamide (PA), 8 polylactic acid (PLA), 9 polymethyl methacrylate (PMMA), 10 liquid-crystal polymer (LCP), 11 polyether ether ketone (PEEK), 12 and polyphenylene sulfide (PPS). 13 Since the pioneering study conducted by Capiati and Porter half a century ago on the fabrication of PE-based PFRP composites, 14 numerous studies have investigated the mechanical, physical, and morphological behaviors of PFRPs made from the aforementioned thermoplastics, In brief, these behaviors include, for instances, thermal stability, 6 tension, 15 compression, 16 flexure, 17 fiber-matrix interfacial bonding,18,19 impact resistance,20,21 quasi-static fracture, 22 fatigue, 23 water absorption, 24 and micro-structural features. 25 The foregoing behaviors are closely related to the manufacturing methods and processing parameters (e.g., temperature, 6 pressure, 26 cooling rate, 27 and consolidation time 28 ). In particular, for manufacturing methods, which are the focus of this work, a survey of the literature is presented to briefly summarize the different manufacturing methods used for the fabrication of PFRPs and their reported features.
A variety of manufacturing methods for fabricating thermoplastic PFRPs have been investigated and reported in the literature. Among all the currently existing methods,2,29 the film stacking and hot compaction methods are the most common methods due to their simplicity of production. The film stacking method leverages alternating polymer fabrics and polymer films as matrices, whereas the hot compaction method requires only polymer fabrics and partially melts their surfaces to create the matrix. As a result, the PFRPs fabricated by these two methods exhibit significant differences in fiber volume fraction (
In the past decade, automation in manufacturing has been widely developed and applied to fabricate carbon-, glass-, and aramid-fiber-reinforced thermoset and thermoplastic polymers (CFRPs, CFRTPs, GFRPs, GFRTPs, AFRPs, and AFRTPs), as well as natural fiber composites, using techniques such as various 3D printing methods
44
and automatic fiber placement.
45
However, automated manufacturing methods for fabricating thermoplastic PFRPs remain relatively underexplored, despite the partial automation offered by processes such as injection molding and filament winding. Only a few studies on fully automated manufacturing of PFRPs have been reported in the literature. For example, Yadav et al.
46
demonstrated the fabrication of PLA-based PFRPs with a wide range of
Therefore, this study introduces a novel method for fabricating UHMWPE-based woven PFRPs, as a representative case of thermoplastic PFRPs, by using automated powder dispersion enabled by a movable sieve with a vibration function, followed by compression molding. Various fabrication parameters were investigated and compared for their effects on powder dispersion as well as the subsequent morphology and mechanical properties of the PFRP composites. In addition, this work further compared the specific mechanical properties of such composites fabricated using the proposed method with the literature data of various PFRPs, as well as other common composites (CFRPs, CFRTPs, GFRPs, GFRTPs, AFRPs, AFRTPs). The proposed fabrication method, using automated powder dispersion, represents a significant advancement toward integrating automation into diverse manufacturing approaches for thermoplastic PFRPs, which have potential applications for transportation (e.g., heavy-truck exterior panels 47 ), aerospace (e.g., drone flight frames 48 ), and personal protection (e.g., ballistic helmets). 49
Experimental preparation and characterizations
Materials
The plain-weave ultra-high-molecular-weight polyethylene (UHMWPE) fabrics were used as the reinforcement, and high-density polyethylene (HDPE) powder was used as the matrix for fabricating thermoplastic PFRPs. Single UHMWPE fibers exhibited tensile strengths ranging from 2.9 to 3.7 GPa and tensile moduli ranging from 90 to 135 GPa, as provided by the manufacturer (Honeywell Spectra). HDPE powder has an average particle size of approximately 20 μm, with a particle size distribution ranging from 5 to 50 μm. Both the UHMWPE fabric and HDPE powder have a similar density of 0.95 g/cm3. As shown in Figure 1(a), the UHMWPE fabric exhibits multiple melting peak temperatures ranging from 145°C to 156°C, corresponding to the melting and transition between different crystal phases in the UHMWPE fabric.50,51 In contrast, the HDPE powder has a lower melting peak temperature of 127°C. The aforementioned temperature difference provides a suitable processing window for fabricating UHMWPE-based PFRPs using the approach described in the following section. In addition, based on the heat capacity as a function of temperature as shown in Figure 1(a), the crystallinities of the investigated UHMWPE fabric and HDPE power were 89% and 56%, respectively. (a) Heat capacity versus temperature during heating process for both HDPE powder and UHMWPE fabric; (b) automated motion-controlled and vibratory powder dispersion system modified from a Prusa 3D printer; (c) an illustration of dispersed HDPE powder over the UHMWPE fabric in an aluminum mold; (d) schematic layup of the fabric and powder layers in the compression mold with the cavity of 127 mm
Fabrication of PFRPs
Step 1: Automated powder dispersion

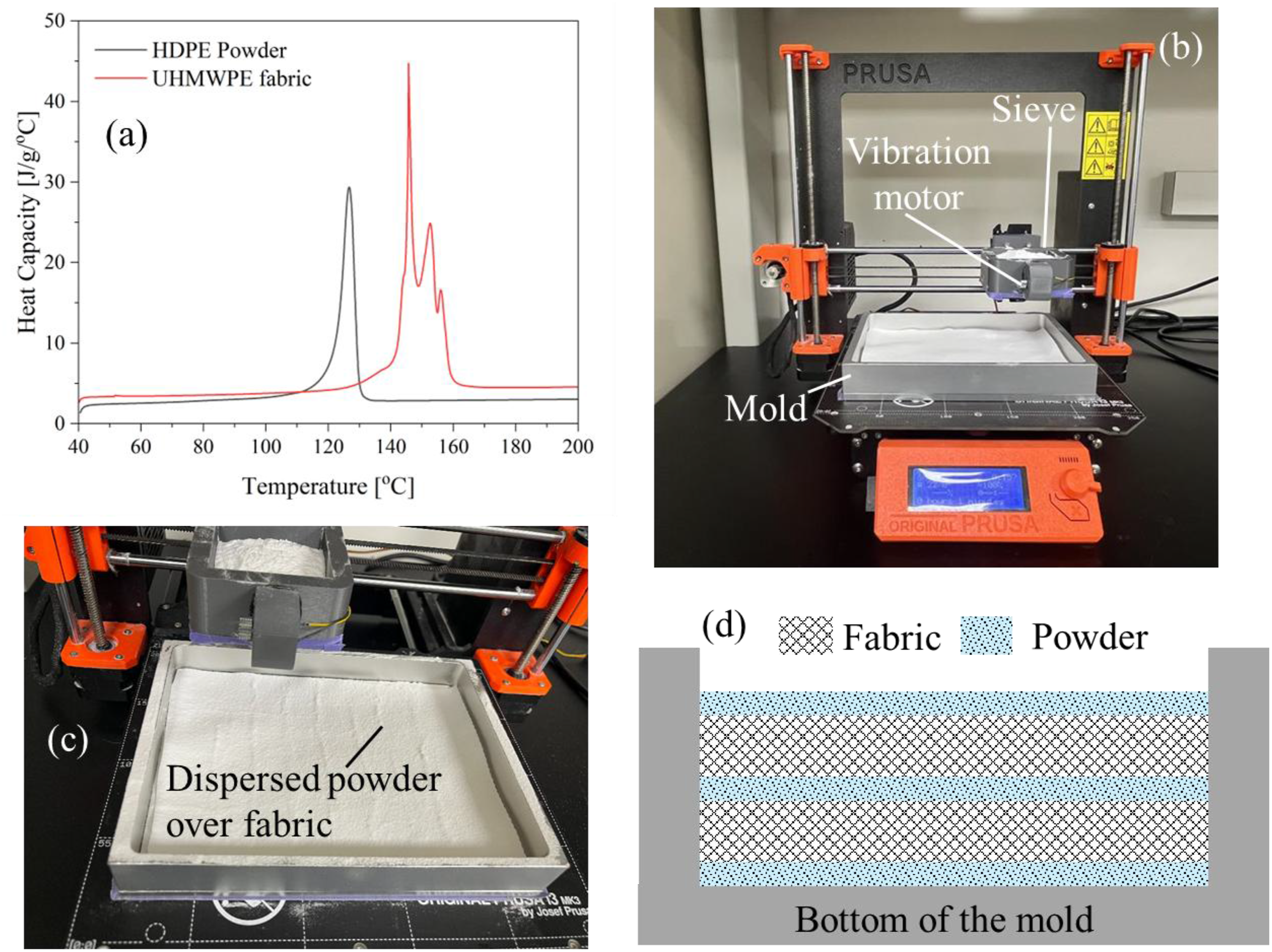

An automated powder dispersion system (Figure 1(b)–(c)) was developed by modifying a Prusa MK3S 3D printer to uniformly deposit HDPE powder over woven UHMWPE fabrics. The print head was replaced with a custom-designed sieve assembly, enabling programmable motion and vibratory powder dispensing controlling powder flow. The custom sieve head consists of a 60 mm
Powder was dispensed directly into a mold cavity of 127 mm
Step 2: Compression molding
The mold containing the powder and polymer fabrics was then transferred to a hot press (Carver, Indiana, USA) set at a temperature of 140°C and a pressure of 0.2 MPa. The temperature was maintained for 15 min, followed by cooling to room temperature at a rate of approximately 0.8°C/min. It is worth mentioning that the processing temperature of 140°C exceeded the melting peak of the HDPE powder but remained below that of the UHMWPE fiber as shown in Figure 1. Such a processing temperature has often been reported and extensively studied in the literature for the fabrication of thermoplastic PFRPs,52,53 as it facilitates interfacial bonding between the polymer fiber and matrix without significantly weakening the reinforcing properties of the polymer fiber. Using a temperature below the matrix melting peak can result in insufficient matrix melting, potentially causing defects in self-reinforced composites. Therefore, different processing temperatures were not studied in this work, as the focus was placed on the automated powder dispersion process and the associated composite mechanical properties.
Thermal, mechanical, and morphological characterizations
The melting behavior of the UHMWPE fabric and HDPE powder (Section - Materials) was measured using a Differential Scanning Calorimeter (DSC, TA Instruments Q2000). Powder samples were placed in a Tzero pan, while fiber samples were cut from UHMWPE fabric and crimped into another pan. Three samples were tested for repeatability. The samples and reference pans were subjected to heating at 10°C/min from 40°C to 200°C. Nitrogen flow was supplied at a flow rate of 50 mL/min to prevent unwanted reactions, and improve stable measurements.
To characterize the tensile strength and modulus, representative properties of the composites, tensile tests were conducted on UHMWPE-based PFRPs fabricated using the proposed approach (Section - Fabrication of PFRPs). Rectangular specimens were tested using an electromechanical Instron 5582 load frame under displacement control at a rate of 2 mm/min. Digital Imaging Correlation (DIC) analysis using a DIC system by Correlated Solutions was used to obtain the stress-strain relationship of the specimens. The specimens measured 125 mm × 12.5 mm × 0.6 mm, with a gauge area of 65 mm × 12.5 mm. Five specimens for each scenario were tested for repeatability.
The surface morphology of the composite was characterized using a Keyence VR-5000 3D optical profilometer, while the cross-sectional morphology was examined using an Olympus DSX1000 optical microscope. For cross-sectional analysis, square specimens (12.5 mm × 12.5 mm) cut from the fabricated composites were sequentially ground with sandpapers (180–1200 grit), rinsed with ethanol, polished using dedicated pads and solutions, and dried. A detailed preparation procedure for the samples used for cross-sectional optical microscopy is available in a recent publication by the authors. 6
Results and discussion
Powder dispersion versus parameters
The dispersion of HDPE powder as a function of time (t), mesh size (m
e
), and vibration voltage (V
o
) was initially investigated under conditions where the sieve vibrated without translational motion. To evaluate the effect of m
e
, the contour plot in Figure 2(a) presents the powder dispersion amount (W
g
) while maintaining a fixed combination of t and V
o
. At a lower vibration voltage (V
o
= 3.3 V), variations in m
e
did not produce noticeable changes in powder dispersion. However, as the vibration voltage increased to V
o
= 9 V, mesh size began to play a more significant role, with larger m
e
values resulting in increased powder dispersion. For instance, after approximately 15 s of powder dispersion at V
o
= 9 V, the W
g
values are 0.10 g, 1.83 g, 8.95 g, and 15.82 g for wire mesh sizes of 89 μm, 228 μm, 381 μm, and 500 μm, respectively. On the other hand, the contour plot in Figure 2(b) clearly shows the effect of V
o
on the variation in W
g
while t and m
e
are held constant. In this figure, a strong relationship between V
o
and m
e
is observed, similar to that shown in Figure 2(a), highlighting the increasingly significant role of V
o
in powder dispersion at larger m
e
values. After approximately 15 s of powder dispersion using m
e
= 500 μm, the W
g
values are 11.74 g, 15.36 g, and 15.82 g for vibration voltages of 3.3 V, 5 V, and 9 V, respectively. Overall, the powder dispersion rates for m
e
values of 89 μm, 228 μm, and 381 μm were approximately 0 g/s, 0.14 g/s, and 0.63 g/s, respectively, across all investigated V
o
values. However, the powder dispersion rate for m
e
values of 500 μm and 800 μm were approximately 0.85–1.1 g/s and 2.06–4.7 g/s, respectively, for V
o

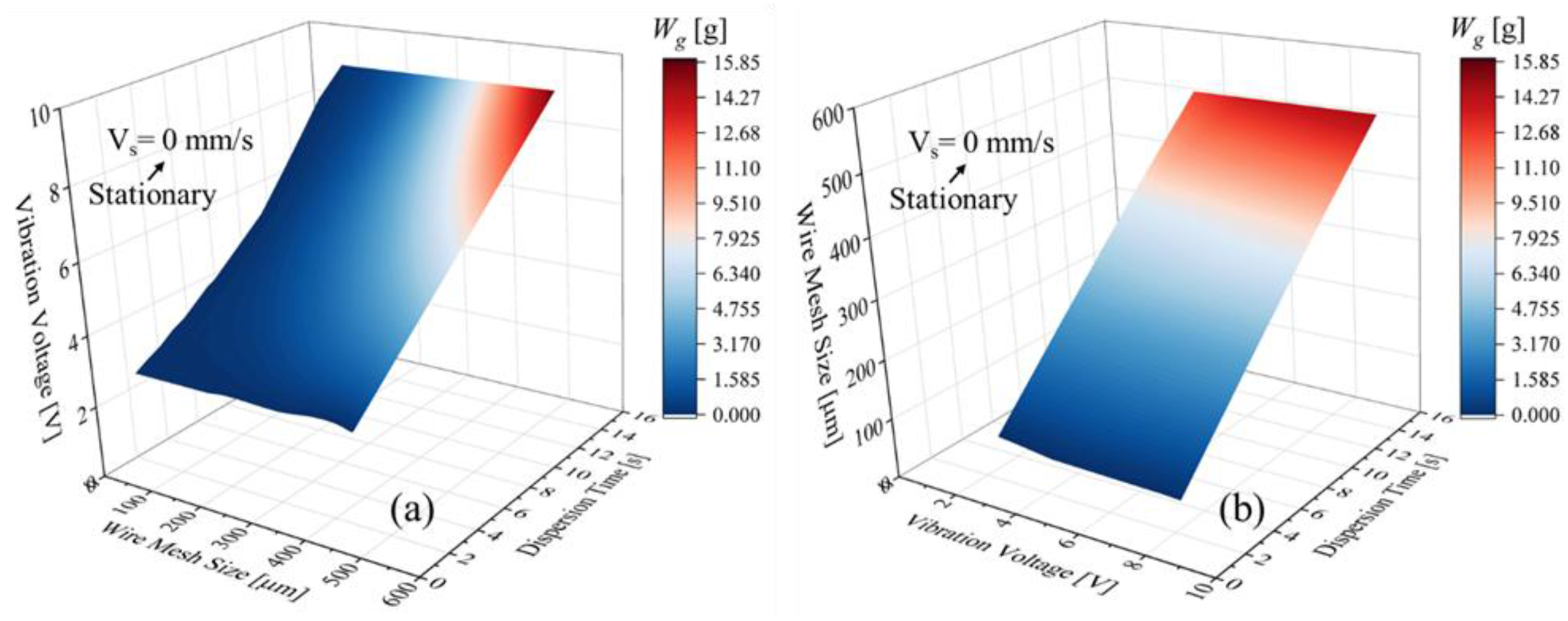

values ranging from 3.3 to 9 V. HDPE powder dispersion as a function t, m
e
, and V
o
for the sieve vibrated without translational motion (V
s
= 0): (a) illustration of the effect of m
e
while maintaining a fixed t and V
o
, and (b) illustration of the effect of V
o
while maintaining a fixed t and m
e.

When the sieve vibrated and moved, the dispersion rate of the HDPE powder did not change significantly compared to the stationary vibration condition for the investigated sweeping speeds (V
s
), but the dispersion path can affect the power distribution and the quality of the composites as will be discussed in the next section. Only the mesh sizes of 228 μm, 381 μm, and 500 μm were investigated, as the smaller m
e
value (89 μm) does not disperse powder effectively, and larger m
e

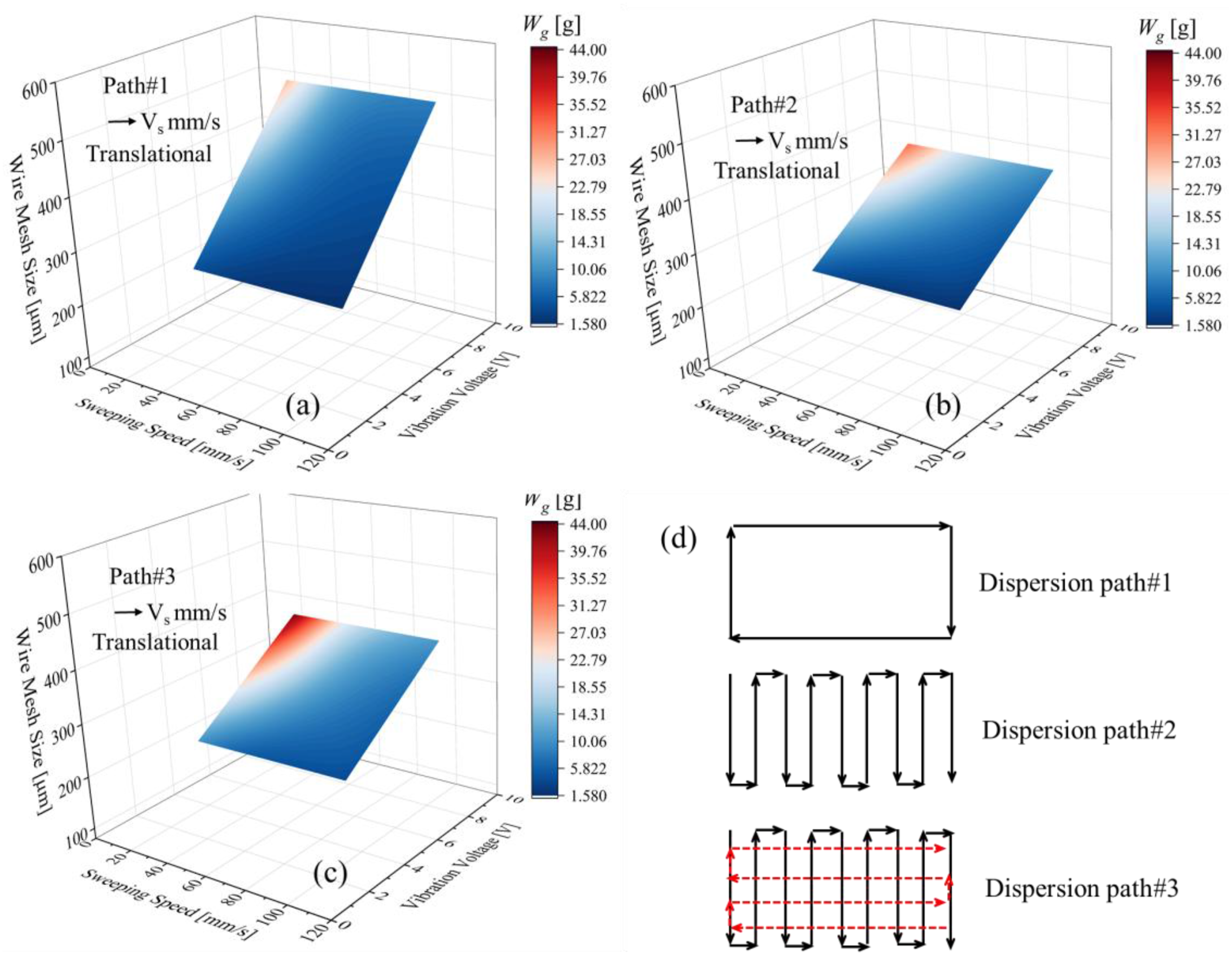

value (800 μm) can release all the powder from the container before dispersion is completed. As plotted in Figure 3, the dispersion of HDPE powder as a function of V
s
, m
e
, and V
o
was summarized for three different dispersion paths. For lower m
e
and V
o
values (Figure 3(a)–(c)), the V
s
does not significantly affect the amount of the powder after the dispersion is completed. However, the amount of powder increases noticeably as the V
s
decreases when m
e
or V
o
is higher. For the second and third dispersion paths in Figure 3(b) and (c), a mesh size of 500 μm was not included since all the powder, with an amount of approximately 44 g, can be dispersed before the dispersion is completed. For the third dispersion path in Figure 3(c), all the powder was just dispersed completely from the container under the conditions of m
e
= 381 μm, V
o
= 9 V, and V
s
= 25 mm/s. It is worth mentioning that the amount of powder dispersion depends on the size of the container, and the amount investigated is suitable for fabricating UHMWPE-based PFRPs with the aluminum mold size described in Section - Fabrication of PFRPs. Based on the experiments summarized in Figure 3, a certain combination of manufacturing parameters (V
s
, m
e
, and Vo) in the sweeping powder dispersion process can be selected to fabricate a customized V
f
value of the composite. HDPE powder dispersion as a function V
s
, m
e
, and V
o
for the sieve vibrated with translational motion. This figure includes three different dispersion paths: (a) path 1, (b) path 2, and (c) path 3. Details of dispersion paths were plotted in (d).
Tensile properties of UHMWPE-based PFRPs

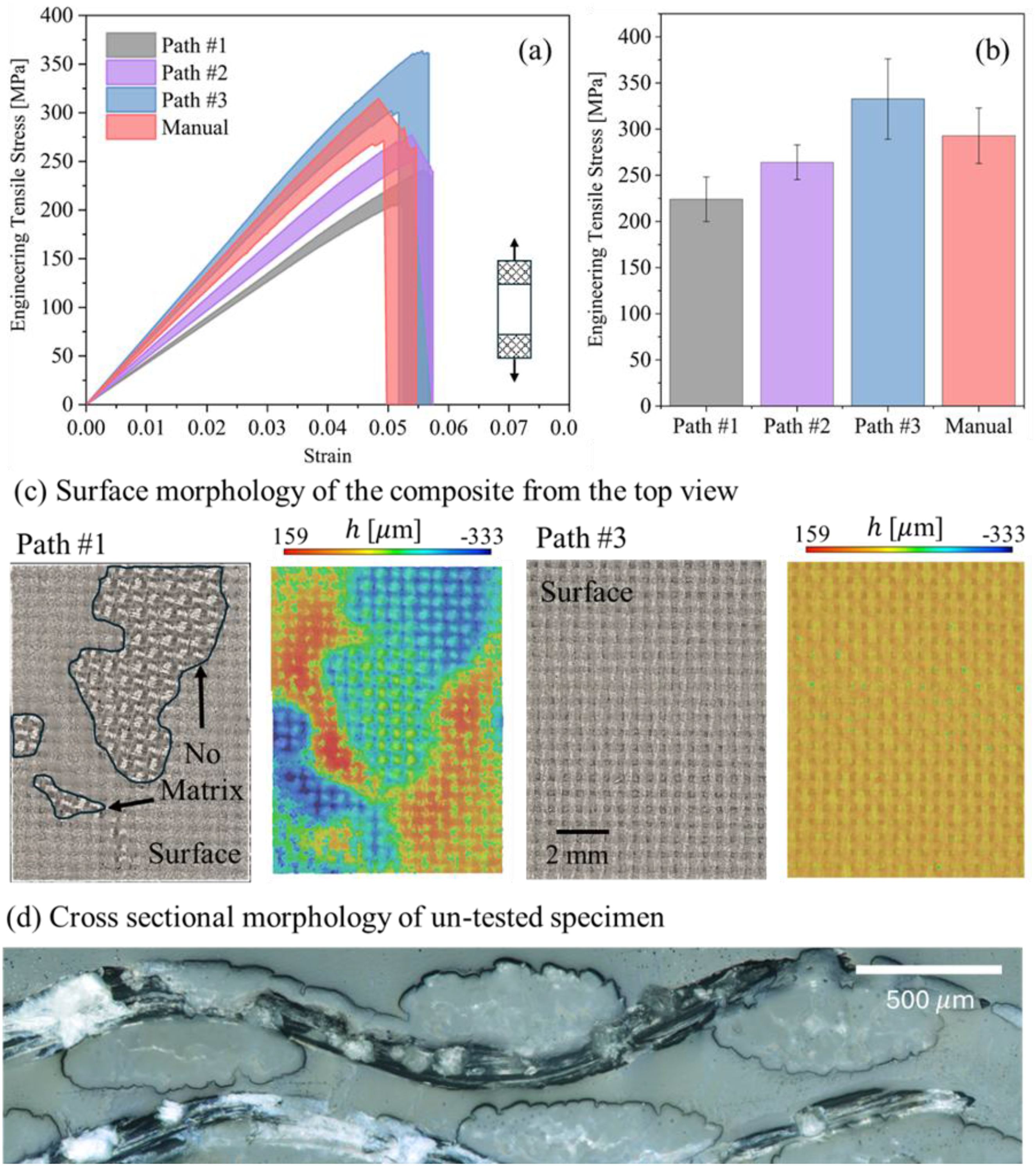

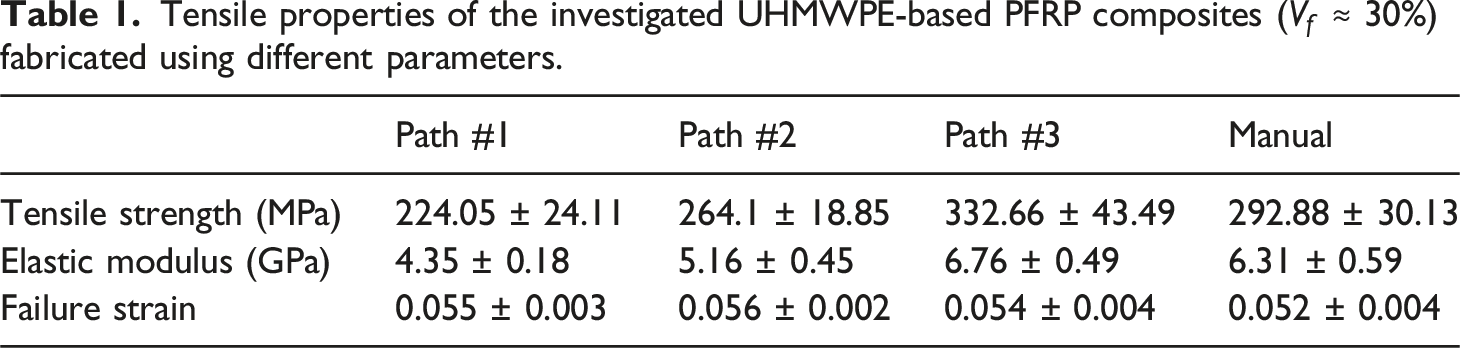

The effects of the powder dispersion path on the uniaxial tensile properties of the composites with a constant fiber volume fraction (V
f
≈ 30%) were further investigated, as shown in Figure 4(a) and (b) and Table 1. Among the three dispersion paths, the failure strains of the UHMWPE-based PFRP composites fabricated using automatic powder dispersion are similar, ranging from 5% to 5.8%. However, the elastic modulus and tensile strength of those composites show more pronounced differences. The composites fabricated using the third automatic powder dispersion path exhibit the highest elastic modulus and tensile strength, reaching approximately 6.4 to 7.2 GPa and 290 to 375 MPa, respectively, compared to those fabricated using the other two paths. The differences among the three powder dispersion paths were also reflected in the morphologies of the fractured composites after testing, as shown in Figure 5. Composites fabricated using the first and second paths exhibited more localized fracture compared with those produced using the third path, which showed more distributed deformation and damage. The underlying reasons causing the difference in tensile properties of the UHMWPE-based PFRP composites between the third path and the other two paths are explained in Figure 4(c). In this figure, a representative surface morphology of the UHMWPE-based PFRP composite fabricated using the first path is shown, where the powder matrix is unevenly distributed on the polymer fabrics, revealing areas without powder coverage. In contrast, for the composite fabricated using the third path, the powder matrix is uniformly distributed on the surface of the polymer fabric, as illustrated in Figure 4(c), and well impregnated into the polymer fabrics, as evident from the cross-sectional morphology in Figure 4(d). It is worth mentioning that fabric architecture, such as the spacing between tows, can also play an important role in the wettability of powders over fabrics during the manufacturing. For the investigated UHMWPE plain-weave fabric, the spacing between tows ranges from approximately 80 to 150 μm, which allows successful penetration of the investigated HDPE powders (5 to 50 μm) through the fabric layers. This promotes wettability and helps eliminate potential cavities near the fabrics. If the spacing between tows is smaller than the powder particle size range, wettability during the manufacturing can be adversely affected, potentially leading to cavities within the composites. (a) Engineering stress-strain curves of the investigated UHMWPE-based PFRP composites (V
f
≈ 30%) under un-axial tension, (b) Average engineering tensile strengths of the composites based on the results from (a), (c) Surface morphologies of these untested composites, and (d) Representative cross-sectional morphology of an un-tested UHMWPE-based PFRP composite (V
f

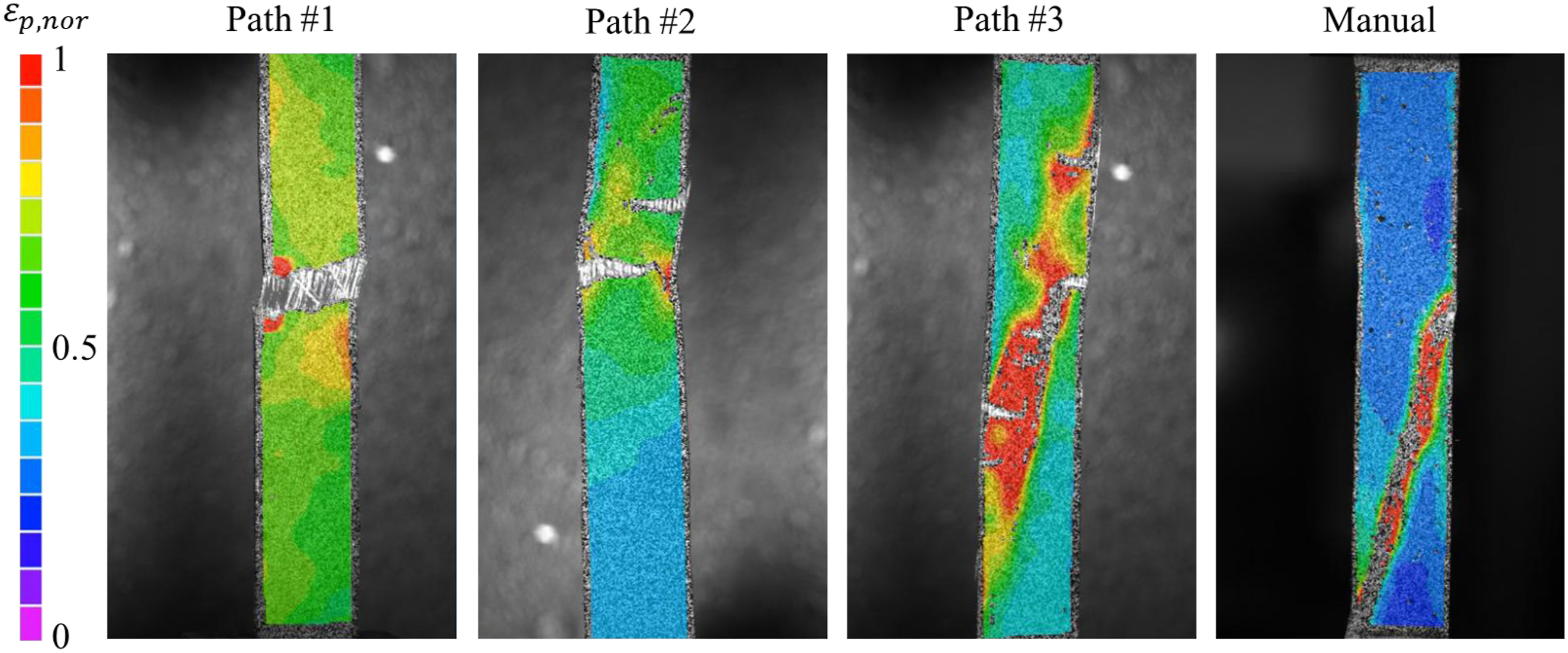

≈ 30%) with well-impregnated HDPE powder matrix. Note, Tensile properties of the investigated UHMWPE-based PFRP composites ( Normalized maximum principal strain (

Interestingly, as illustrated in Figure 4(a), the UHMWPE-based PFRP composites with the same V f value but fabricated using the manual powder dispersion method, as reported by the author in a recent publication, 54 exhibit slightly lower elastic modulus (5.7 to 6.9 GPa), tensile strength (263 to 323 MPa), and failure strain (5% to 5.6%) compared to those fabricated using the third automatic powder dispersion path. A slight difference was also observed in the morphologies of the fractured composites fabricated using the third path and manual powder dispersion, as both showed similar deformation and damage bands but with different sizes (Figure 5). The improvement achieved using automatic powder dispersion can be attributed to a more homogeneous distribution of powder on the polymer fiber surface and its penetration into the fiber tows (Figure 4(d)). Automated powder dispersion via the third path took 24 s and produced the highest mechanical performance in the investigated PFRP composites, whereas manual dispersion in the same time could not guarantee uniform distribution of the HDPE powder and show lower mechanical performance (Figure 4). It is worth mentioning here that determining the optimized powder dispersion path will require further quantitative studies, which is beyond the scope of this work, as the aim here is to demonstrate the feasibility of the powder dispersion method for the fabrication of PFRPs.
Comparison with other polymer composites
Having discussed the mechanical performance of the UHMWPE-based PFRP composites fabricated using the proposed method, it is insightful to compare their properties with those of other types of fiber-reinforced polymer composites. Therefore, various woven thermoplastic PFRPs, as well as carbon-, glass-, and aramid-fiber-reinforced polymer composites reported in the literature, were selected for comparison. The comparison focuses on the specific elastic modulus (E/

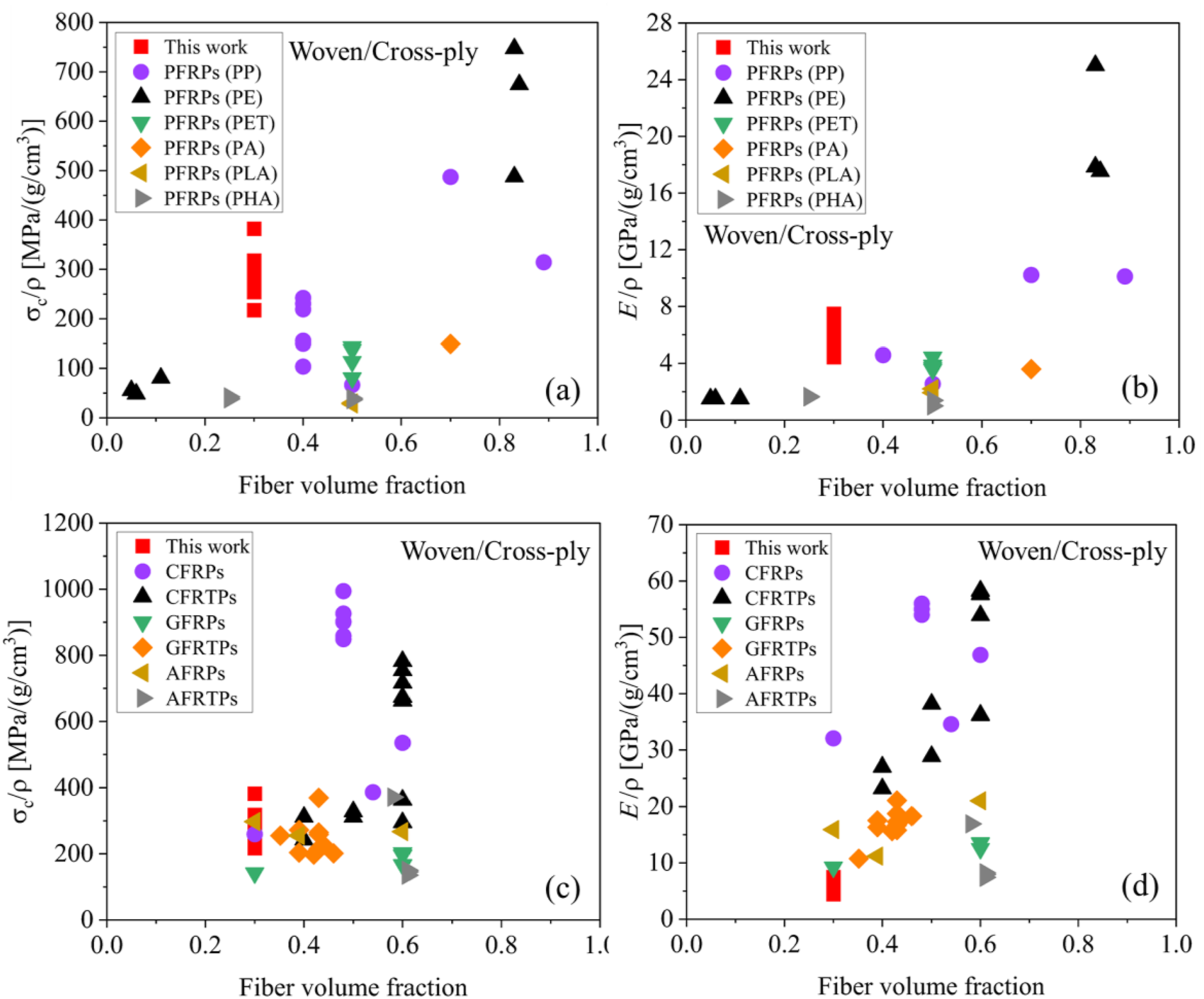

As illustrated in Figure 6(a) and (b), the specific tensile properties of the investigated UHMWPE-based PFRPs (E/ Specific tensile strength (
Similarly, the specific tensile properties of the investigated UHMWPE-based PFRPs were further compared with that of carbon-, glass-, and aramid-fiber-reinforced polymers (CFRPs,64–66 CFRTPs,67,68 GFRPs,
64
GFRTPs,
69
AFRPs,64,70,71 and AFRTPs72,73), as shown in Figure 6(c) and (d). The definitions of these abbreviations are provided in the caption of Figure 6. As it can be noted from Figure 6(c) and (d), the specific properties of the investigated UHMWPE-based PFRPs were comparable to that of glass- or aramid-fiber-reinforced polymers at similar fiber volume fractions. More specifically, by linearly normalizing the experimental data of carbon-, glass-, and aramid-fiber-reinforced polymers from
Prospects and future directions
This study represents a critical step toward developing diverse automated fabrication methods for thermoplastic PFRPs, an area with limited research compared to carbon- and glass-fiber composites, and offers a promising lightweight, ductile material solution for the automotive industry and beyond. Several future research extensions have been identified: (1) Fabricate thermoplastic PFRPs with higher fiber volume fractions using automated powder dispersion with optimized dispersion parameters, or other approaches, to achieve uniform powder dispersion; (2) Investigate the underlying dispersion mechanisms through computational modeling; (3) Identify the challenges in scaling the automated dispersion process. In the current form, this approach may be more suitable for fabrication of PFRP prepregs rather than complex-shaped components; (4) Beyond basic tensile properties, explore mechanical properties that are important to applications of UHMWPE-based PFRPs, specifically the impact and fracture resistance. In addition, cooling rate and strain rate, important processing and loading parameters, should be explored for self-reinforced thermoplastic composites; (5) Extend the automated powder dispersion method to other fiber reinforcements, such as glass, carbon, and aramid fibers, to evaluate the versatility and adaptability of this approach across different composite systems.
Conclusions
This work presents a novel method for fabricating thermoplastic polymer-fiber-reinforced polymers (PFRPs) via automatic powder dispersion followed by compression molding, and investigates the effects of various processing parameters within this method on the mechanical behavior of the composites. Plain-weave UHMWPE fabrics embedded in a HDPE powder matrix was used as a representative PFRP composite. Based on the experimental results, the following conclusions can be summarized: (1) In the automated powder dispersion process, a significant and non-linear increase in powder amount was observed with decreasing dispersion speed when using a larger wire mesh and higher vibration voltage. In contrast, with a smaller mesh and lower voltage, the powder amount increases linearly and less significantly; (2) The dispersion path incorporating both vertical and horizontal movements (third Path) results in a more uniform powder distribution on the polymer fabric compared to the other two paths. Consequently, the UHMWPE-based PFRPs ( (3) The lower tensile strength and elastic modulus of the UHMWPE-based PFRPs fabricated using the first and second paths likely result from the uneven distribution of the powder matrix on the polymer fabrics, leading to regions lacking matrix coverage and consequently causing defects; (4) The specific tensile properties of the investigated composites fall within the range of PE-based PFRP composites, while being noticeably higher than those of other PFRP composites (PP, PET, PLA, PA, and PHA) and comparable to glass- and aramid-fiber-reinforced polymer composites.
