Abstract

In the past decade, a lot of work has been reported on the use of polyvinylidene fluoride (PVDF) based thermoplastic composites as energy storage devices, and implant materials. But hitherto little has been reported on the dimensional stability and surface characteristics of 3D-printed PVDF composites after autoclaving for implant applications. In this study, the effect of autoclaving on surface characteristics (Shore-D hardness, surface roughness (Ra), morphological characteristics), and dimensional stability of 3D printed PVDF-hydroxyapatite (HAp)- chitosan (CS) composite has been reported for implant applications. The signal-to-noise (S/N) ratio approach was used to ascertain the best setting of process parameters for 3D printing by fused filament fabrication (FFF) process. This study suggests that the best setting for the FFF process, for the 3D printing of PVDF composite (90%PVDF-8%HAp-2%CS) are the nozzle temperature (NT) of 225°C, raster angle (RA) 0°, and printing speed (PS) 40 mm/s, resulting in Shore-D hardness 48.5 HD (before autoclaving) and 55.0 HD (after autoclaving), dimensional deviation 0.01 mm (after autoclaving). The results are supported by scanning electron microscopy (SEM) and Fourier transmission infrared (FTIR) spectroscopy analysis.

Keywords

polyvinylidene fluoride composite 3D printing autoclaving surface characteristics dimensional stability

Introduction

Fused deposition modeling (FDM) or FFF¹ is one of the established 3D printing processes, that uses a variety of thermoplastics/thermoplastic composites. This process entails stacking and fusing thermoplastic materials to produce three-dimensional objects.² Due to the better adaptability, affordability, and capacity for quick prototyping and manufacturing of complicated geometries, this process has attracted researchers in the fields of biomedical instruments, implant fabrication, aerospace, automobile, etc.³ Utilizing computer-aided design (CAD) software, the procedure starts with the creation of a 3D model. After this, using slicing software, the model is divided into thin cross-sectional layers, which produce guidance for the 3D printer on how to construct each layer.⁴ One of the main components of the FFF process is thermoplastic filaments made of polyethylene terephthalate glycol (PETG), acrylonitrile butadiene styrene (ABS), PVDF, and polylactic acid (PLA), etc.⁵ Each material has unique strengths, flexibilities, temperature resistance, and aesthetic qualities. The thermoplastic composite⁶ is extruded onto a construction platform layer by layer by the 3D printer using a heated nozzle. The sliced model gives the nozzle instructions on how to travel along the X, Y, and Z axis.⁷ The temperature of a heated bed of a 3D printer promotes adherence to the initial layers. As the filament is extruded in layers, each layer fuses with the one before it cools and hardens. The correct bonding between layers is ensured by the printer's exact control of the platform and nozzle temperatures.^7,8 Temporary bases can be generated to avoid material drooping during printing when overhangs or complicated geometries are present. Following the completion of the print, these supports are taken out.⁹

In typical biomedical/implant applications¹⁰ to get rid of microbes, the autoclaving process is being commercially used,¹¹ which involves high-pressure saturated steam/high temperature as a sterilizing agent.¹² It is commonly utilized in the healthcare and pharmaceutical sectors, particularly for aseptic-condition equipment like implants, and prostheses.¹³ In a typical autoclave setup, a specialized pressure vessel employs high temperature and pressure to ensure the eradication of bacteria, viruses, spores, and other microbes. Temperatures in autoclaves ranges from 100°C to 140°C.¹⁴ Effective sterilizing depends on the greater pressures and temperatures that autoclaves can produce. The autoclave's steam-generated pressure boost helps to achieve temperatures over the boiling point of water. Depending on the required temperature, pressures may vary between 0.1 and 0.2 MPa.¹⁵ To achieve total eradication of germs, the exposure duration at the appropriate temperature and pressure is essential. It depends on things like the microbial load and the type of item being sterilized. To remove any remaining moisture from the implant, tool, and medical equipment that has been sterilized, many autoclave cycles also include a drying phase.¹⁶

After being inserted into the body, implants come into touch with tissues and biological fluids.^17,18 By ensuring their sterility, germs that can cause serious infections or problems are kept out of the environment. Implants may be sterilized using the autoclave without losing their biocompatibility.¹⁹ The material’s characteristics may be changed by harsh chemical processes, which would change how it interacts with the body. Post-operative infections can harm the patient’s health and recovery, although autoclaving dramatically lowers that risk. Since implants are medical equipment, they must adhere to strict regulatory guidelines, which suggest that there must be no microbial contamination on implants that might cause infections.²⁰ To maintain aseptic conditions, autoclaving efficiently eradicates even extremely resistant germs. Thermoplastics, metals, and biocompatible materials are used to make a lot of implants. Compared to more aggressive sterilization techniques, autoclaving maintains the materials’ structural and chemical integrity.^21,22 The pressured steam in the autoclave provides even penetration into intricate geometries and porous objects, efficiently locating possible microbial hiding places. In comparison to less expensive options like ethylene oxide gas sterilization or gamma radiation sterilization, which might not be appropriate for all implant materials, autoclaving is a cost-effective sterilization technique. Autoclaving is more ecologically friendly than chemical sterilizing treatments since it uses heat and water, which don't produce any hazardous byproducts.²³

Dimensional stability is the capacity of a substance or item to preserve its initial form, size, and dimensions under a variety of circumstances, including temperature fluctuations, mechanical stress, humidity changes, and other environmental influences.^24,25 Dimensional stability is critical in many domains and applications, particularly in those where accuracy, precision, and reliable performance are crucial. Dimensional stability is crucial in several important fields, including healthcare, manufacturing, engineering, etc. The normal anatomy of the patient must be smoothly incorporated into orthopedic implants.²⁶ Poor dimensional stability can cause changes in size or form, which can cause the implant to fit incorrectly, become unstable, or even fail. This may lead to discomfort, restricted movement, and the requirement for further procedures. To guarantee uniform weight distribution and natural mobility, orthopedic implants must transmit mechanical loads and stress effectively. Dimensional instability may result in a different load distribution, which might put too much stress on the bones and tissues nearby.²⁷ Dimensional stability is essential to guarantee that the personalized implant precisely meets the patient's needs and keeps its form over time. Orthopedic implants must adhere to stringent safety, functionality, and quality criteria, according to regulatory agencies.²⁸

The bibliometric analysis was performed with a Web of Science database of the last 20 years for the keywords autoclaving of the implant (Figure 1(a)). The bibliometric analysis and literature review revealed that in the past two decades, a lot of work has been reported on the use of PVDF-based thermoplastic composites as energy storage devices, and implant materials. But hitherto little has been reported on the dimensional stability and surface characteristics of 3D-printed PVDF composites after autoclaving for implant applications as shown in Figure 1(b). Some previously reported studies have recommended the use of 3D-printed PVDF-HAp-CS composite for biomedical applications,^8,29–34 so there is a need to understand how the sterilization process affects the material’s dimensional stability for this composite. It may be noted that there are several sterilization techniques commonly used in the medical and biotechnology fields to ensure that materials, instruments, and devices are free from viable microorganisms. Some of the most prevalent sterilization methods are autoclaving, gamma irradiation, ethylene oxide sterilization, chemical sterilization, dry heat sterilization, filtration, and UV light sterilization. For the present case study dry heat sterlization method has been selected. In this study, the effect of autoclaving on surface characteristics (Shore-D hardness, Ra, and other morphological characteristics), and dimensional stability of 3D printed PVDF- HAp- CS composite has been reported for implant applications as an extension of previously reported studies.^30,31 The tensile properties of PVDF composite (90%PVDF-8%HAp-2%CS) were reported as peak load 394.87 N, peak strength 33.92 MPa, Young modulus 2.606 MPa, modulus of toughness 0.484 MPa.³⁰ The compressive properties of PVDF composite were reported as peak load 1321 N, break load 1188.9 N, and strength at peak 10.83 MPa.²⁹ Torsional strength of PVDF composite was reported as 3.44 N-m at the angle of 0-800°.³¹ In the present study S/N ratio approach was used to ascertain the best setting of process parameters for 3D printing (by FFF process).

Figure 1.

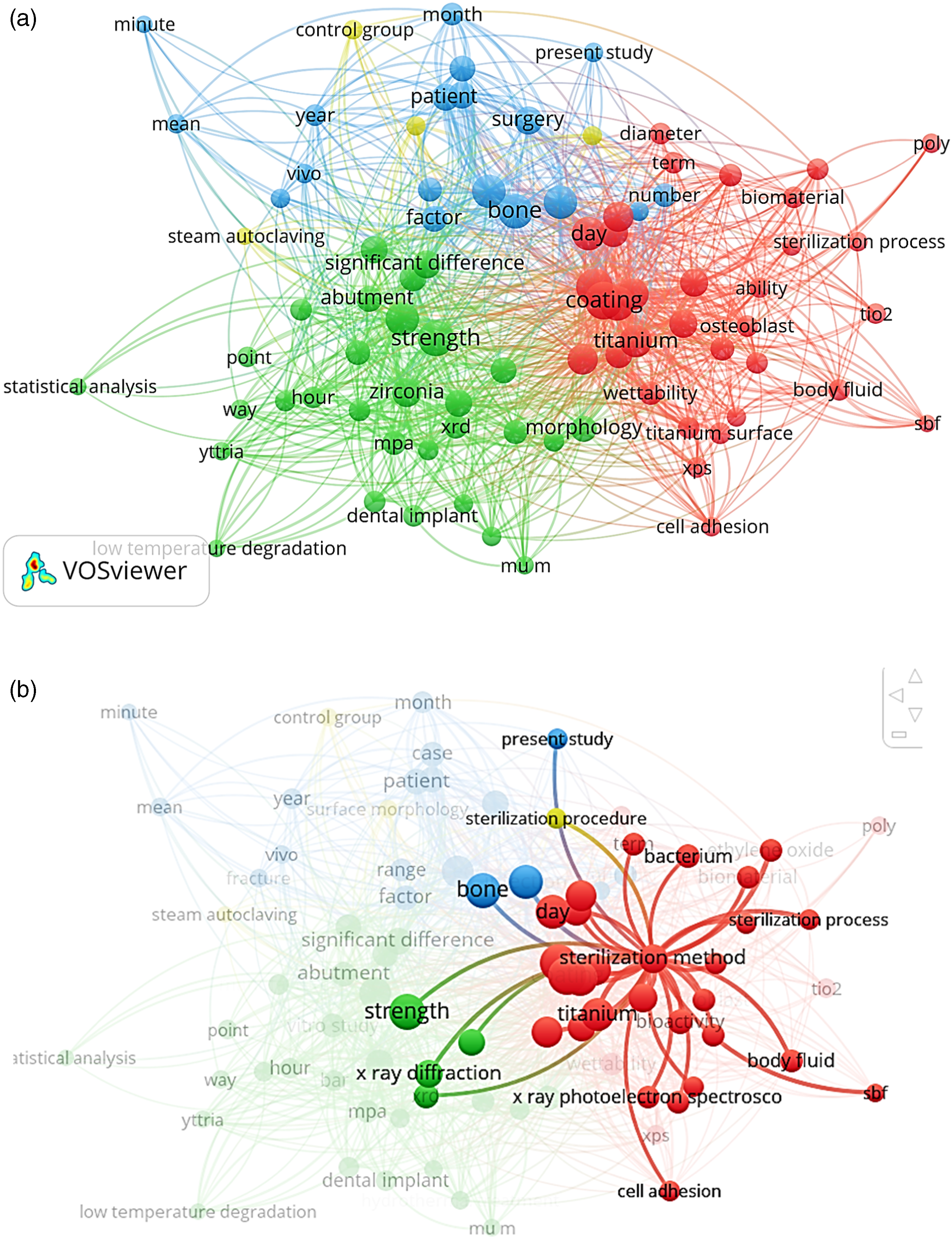

(a) Bibliometric analysis for the keywords “autoclaving of implants”. (b) Research gap for the keywords “sterilization method”.

Materials and methods

The PVDF extrusion grade thermoplastic was procured in pallet form from a local market (Solvay, Gujarat, India). The pellet has a density of 1.75 g/cm³, a melting point between 200 and 210°C, and a glass transition temperature (Tg) of −40°C, respectively. The CS (degree of deacetylation 90%, PH 7.0–9.0) and HAp (colorless and brittle) were procured from Marine Hydrocolloids, Kochi, Kerala, India, (CAS number: 1306-06-5). The composition/proportion of the PVDF composite matrix was selected based on previously reported studies.^29,31 The filament of PVDF composite (90%PVDF-8%HAp-2%CS) was fabricated on a single screw extruder (Figure 2(a)) at 7 r/min of screw speed and barrel temperature of 225°C.³¹ The methodology adopted for this study is shown in Figure 2(b). The autoclave setup (supplied by Hally Instruments, Mumbai, India) was used in this study at a temperature range of 30 °C–250 °C, internal size of 45 × 45 × 50 cm.

Figure 2.

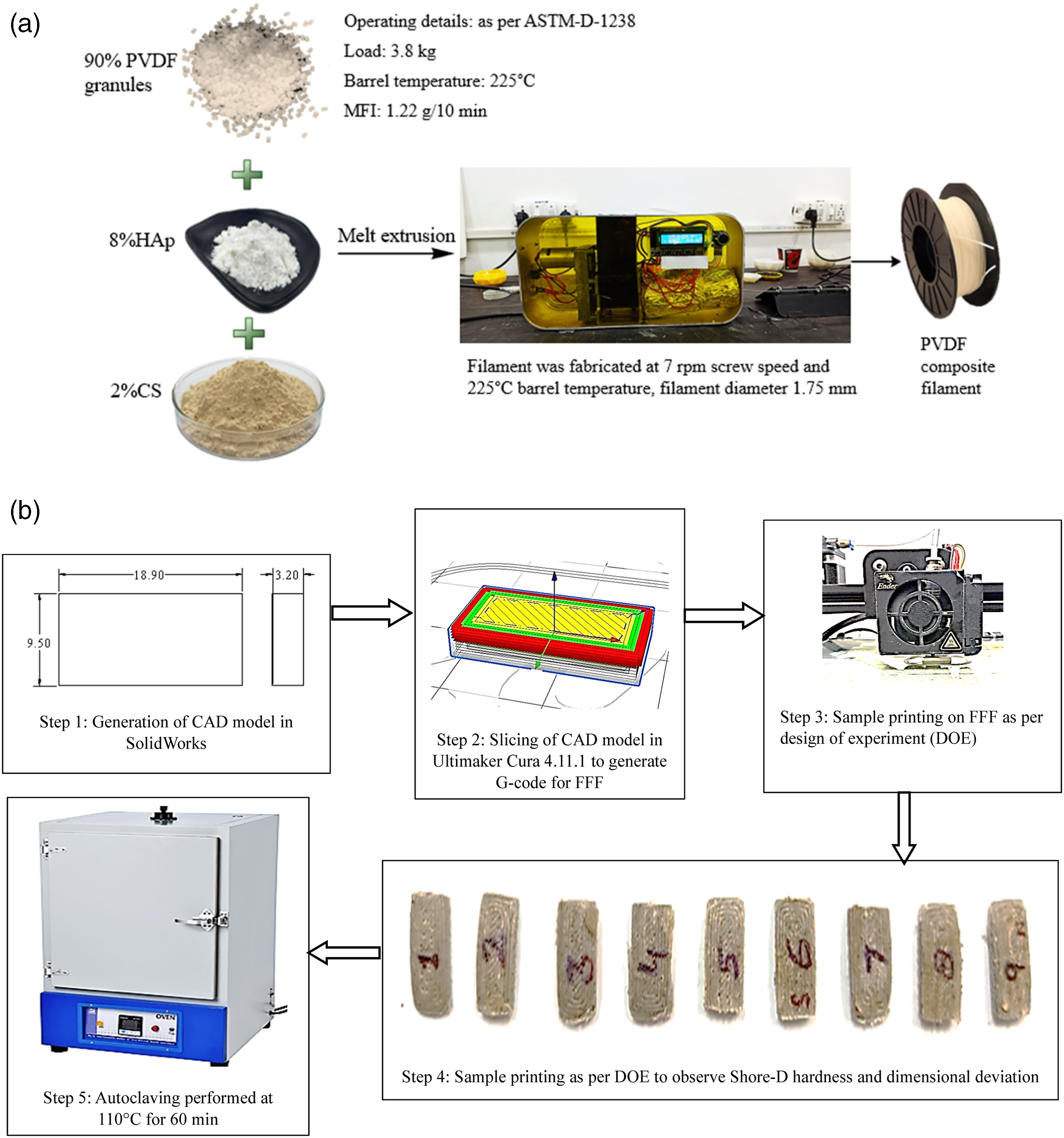

Filament fabrication process (a), adopted methodology (b).

Based on the reported literature,^32,33 Table 1 shows the selected factors and levels for the FFF process. The DOE using the L9 orthogonal array (OA) as per Taguchi is shown in Table 2 (based on Table 1).

Table 1.

Factors and levels selected for the FFF process.

Factor	Levels
Factor	Level I	Level II	Level III
NT (°C)	225	230	235
PS (mm/s)	40	50	60
RA (°)	0	45	90

Table 2.

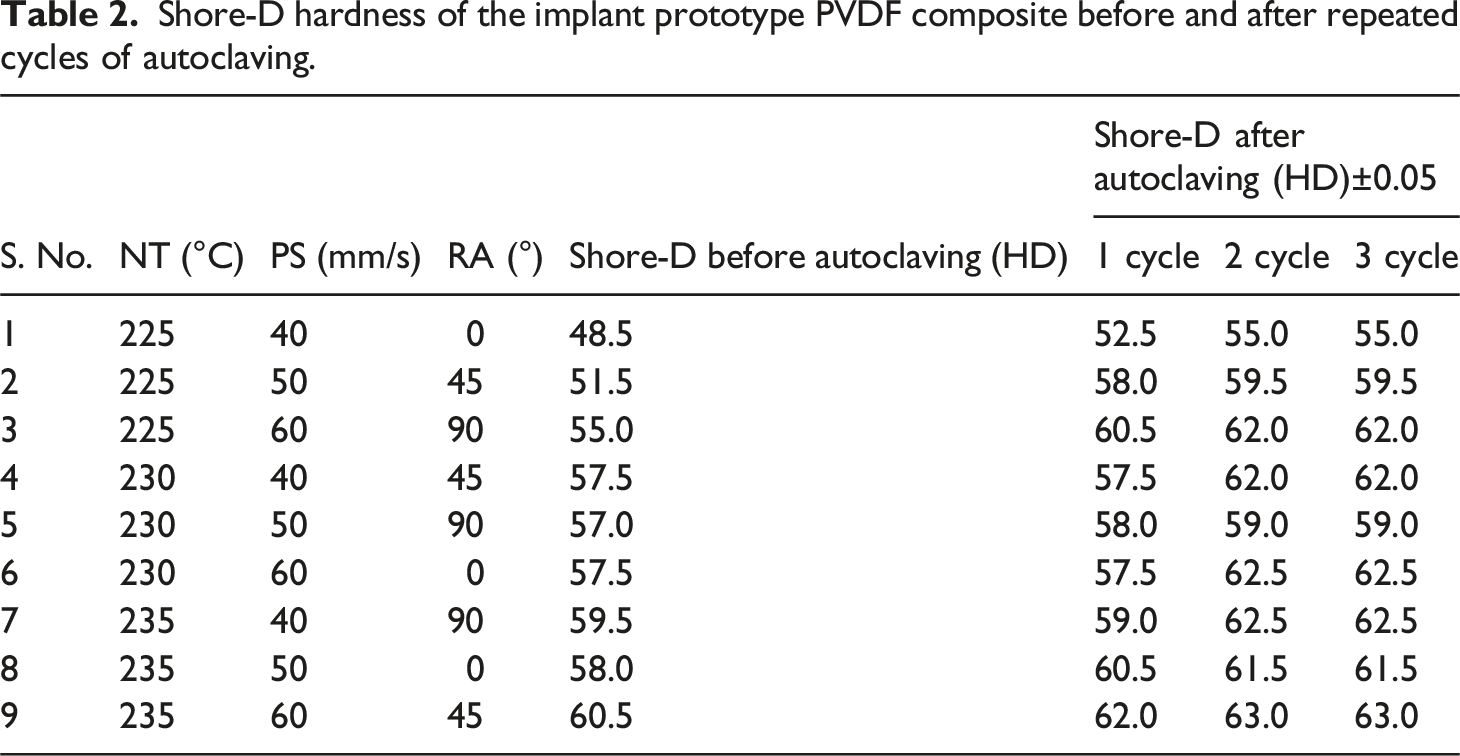

Shore-D hardness of the implant prototype PVDF composite before and after repeated cycles of autoclaving.

S. No.	NT (°C)	PS (mm/s)	RA (°)	Shore-D before autoclaving (HD)	Shore-D after autoclaving (HD)±0.05
S. No.	NT (°C)	PS (mm/s)	RA (°)	Shore-D before autoclaving (HD)	1 cycle	2 cycle	3 cycle
1	225	40	0	48.5	52.5	55.0	55.0
2	225	50	45	51.5	58.0	59.5	59.5
3	225	60	90	55.0	60.5	62.0	62.0
4	230	40	45	57.5	57.5	62.0	62.0
5	230	50	90	57.0	58.0	59.0	59.0
6	230	60	0	57.5	57.5	62.5	62.5
7	235	40	90	59.5	59.0	62.5	62.5
8	235	50	0	58.0	60.5	61.5	61.5
9	235	60	45	60.5	62.0	63.0	63.0

Nine sets of samples were printed as per Table 2 (with five repetitions) and surface hardness (Shore-D) was measured before and after (03 repeated cycles of autoclaving at 110°C for 60 min). The observations for Shore-D hardness are shown in Table 2.

Results and discussion

For statistical analysis purposes, S/N ratios were calculated for smaller is better type cases for Shore-D hardness to control the brittleness of implant (Table 3) by following the relation as per the literature.³²

η = - 10 \log [\frac{1}{n} \sum_{k = 1}^{n} y^{2}]

Where

η

is the S/N ratio, n is the No. of experiment and

y

is the material properties at experiment no. k.

Table 3.

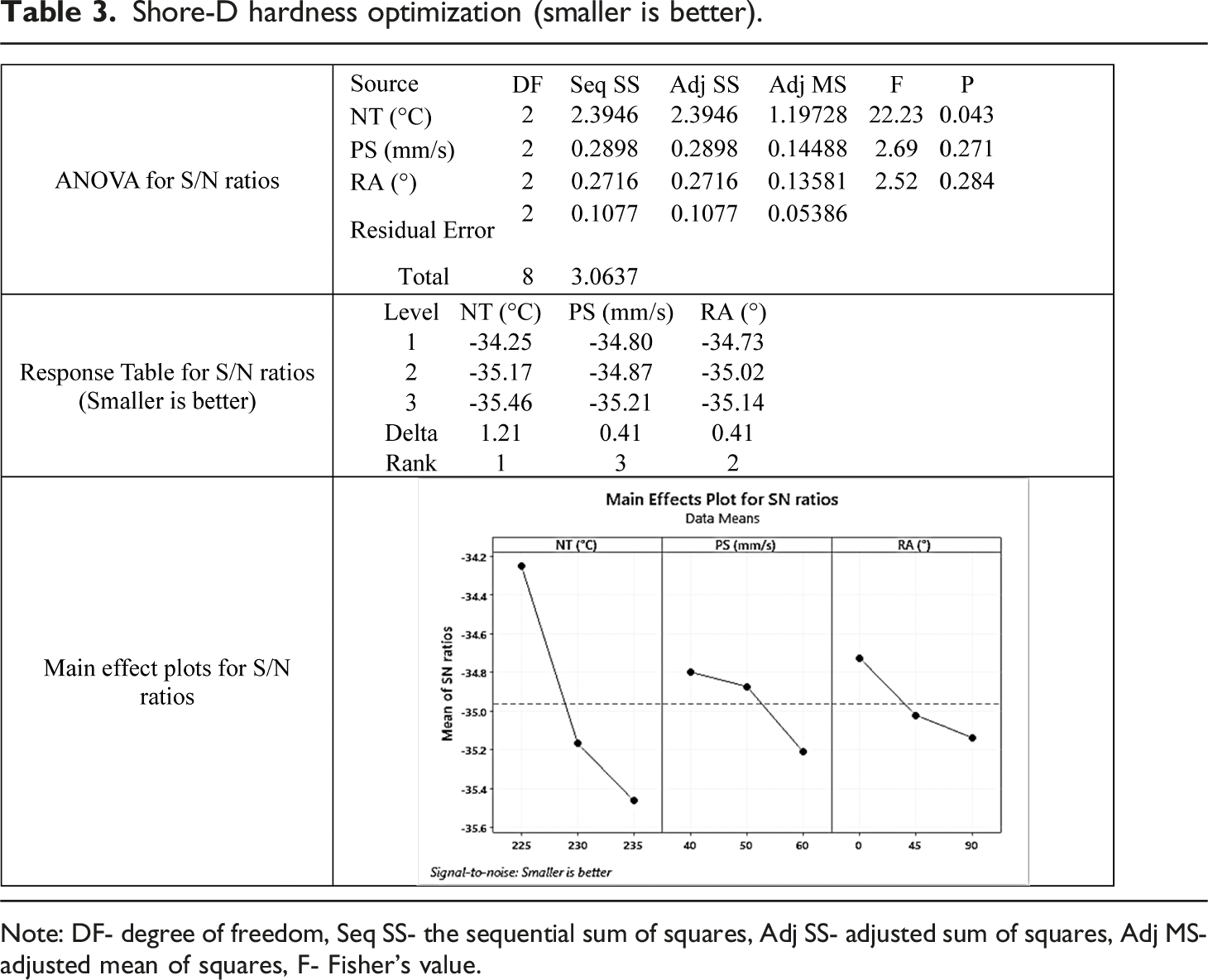

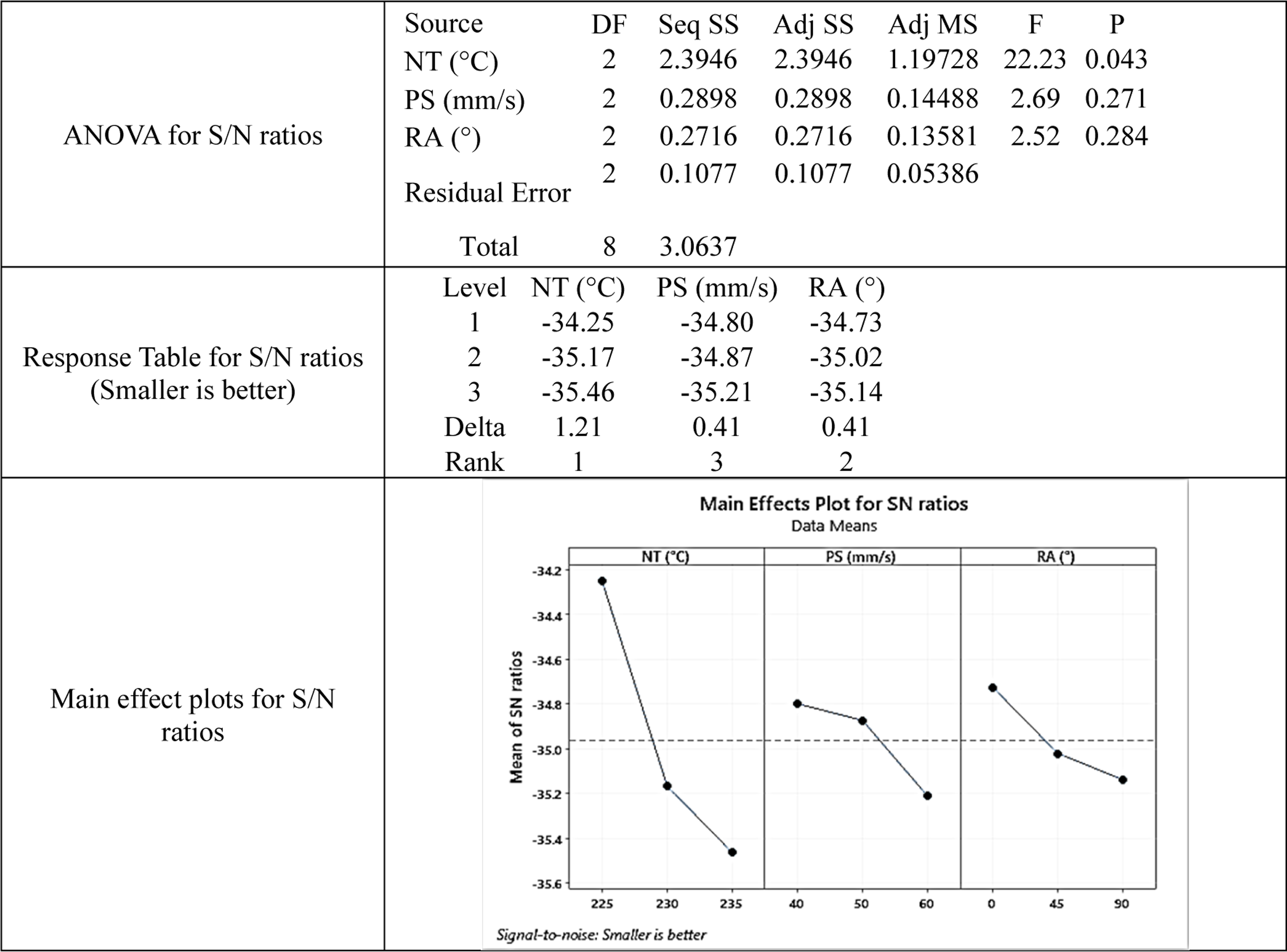

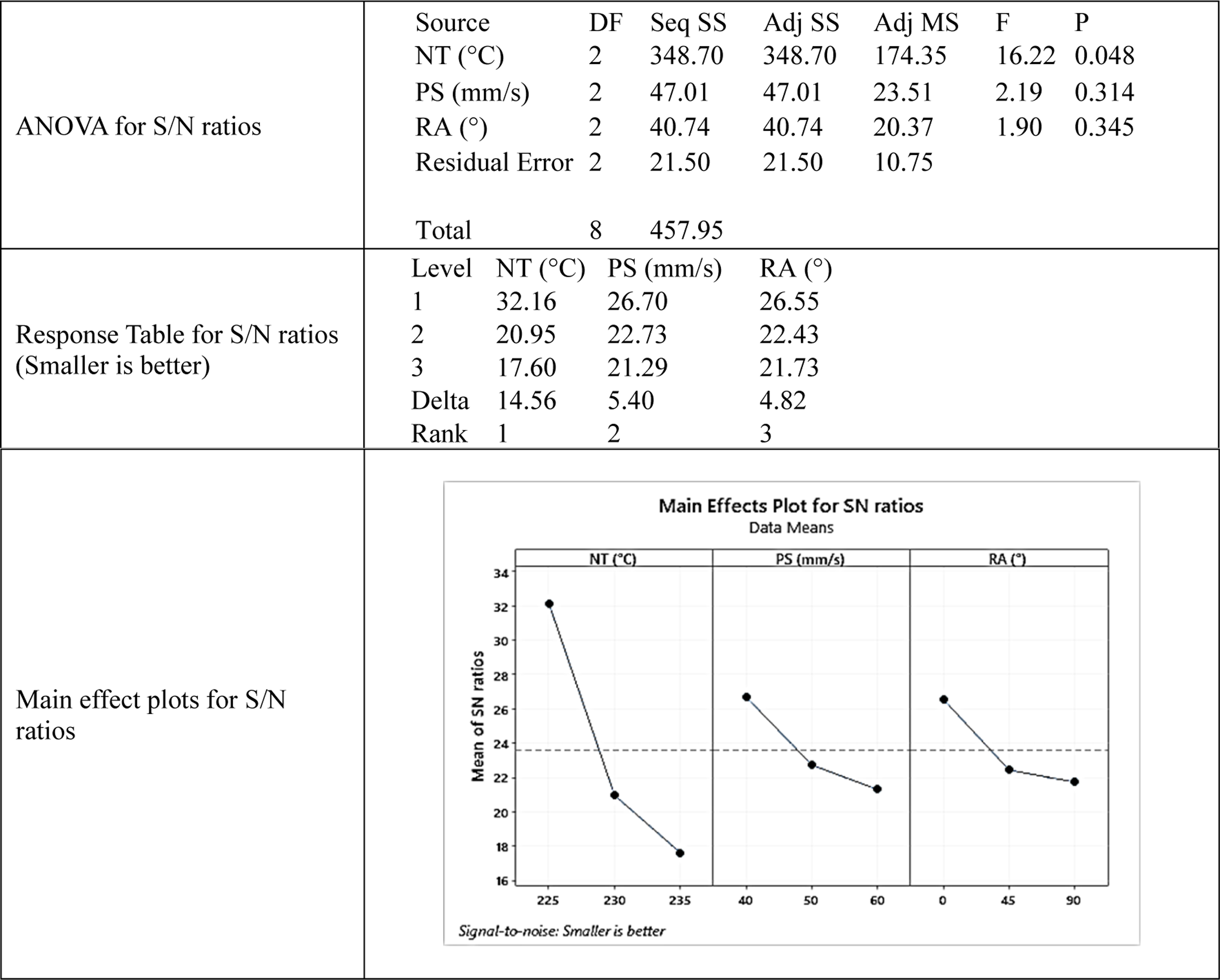

Shore-D hardness optimization (smaller is better).

Note: DF- degree of freedom, Seq SS- the sequential sum of squares, Adj SS- adjusted sum of squares, Adj MS- adjusted mean of squares, F- Fisher’s value.

It was observed from the main effect plot (Table 3) that, with the increase in temperature Shore-D hardness also increases. This may be due to better layer adhesion with an increase in temperature. The same may be counter-verified by optical photomicrographs. Based on analysis of variance (ANOVA) analysis as per literature,^3,5,12 NT was only found significant, having a probability (p)-value less than 0.05, and the best setting for minimization of Shore-D hardness is NT 225°C, PS 40 mm/s, RA 0°. Further, the best and worst sample was found as R1, and R9 respectively (Table 2).

The dimensions of all samples were measured with the digital vernier caliper having the least count of 0.05 mm. The dimensional stability of PVDF composites-based functional prototypes prepared by FFF is shown in Table 4. It has been observed that no change in length (18.90 mm) was noticed for samples (as per CAD data) after printing, and subsequently in cycles 1-3, whereas the relative change in width and thickness was prominent for different processing cycles. It has been observed that, with an increase in NT, dimensional deviation also increases, which may be due to the side flow of material. Overall the best and worst sample was found as R1, and R9 respectively.

Table 4.

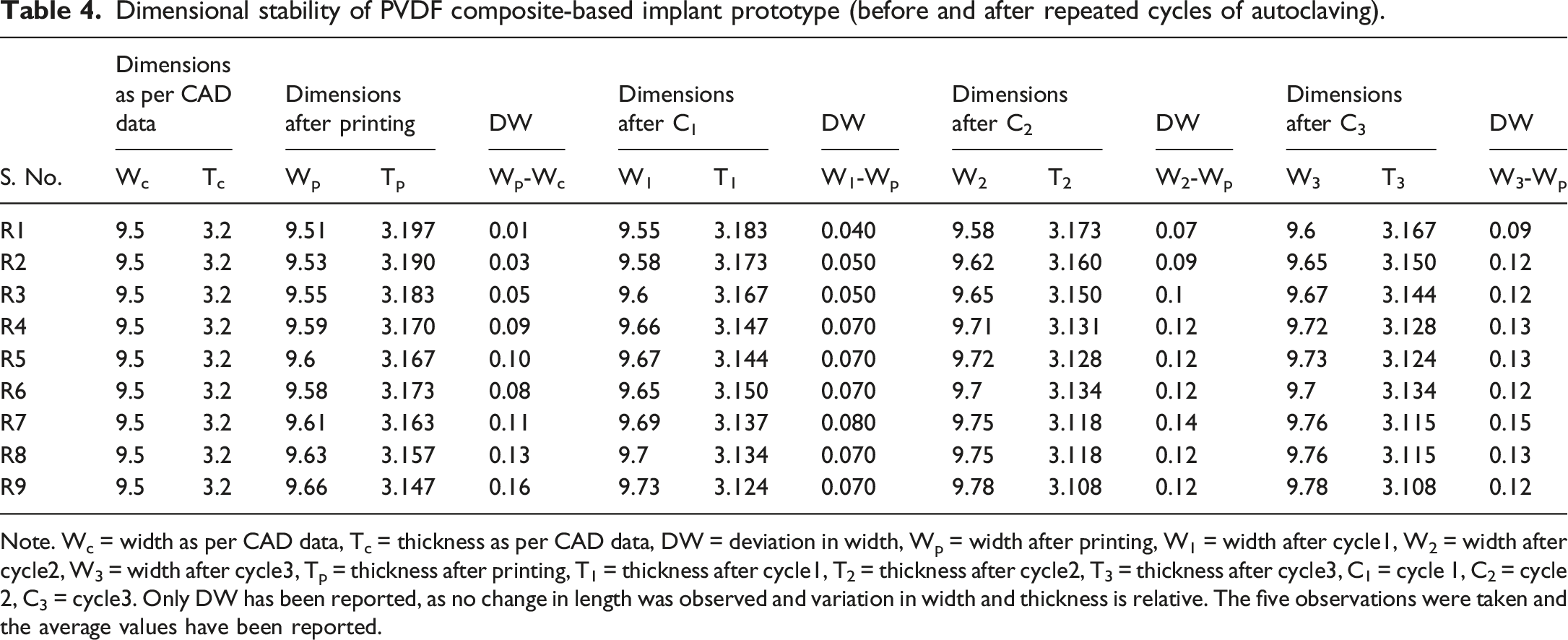

Dimensional stability of PVDF composite-based implant prototype (before and after repeated cycles of autoclaving).

S. No.	Dimensions as per CAD data		Dimensions after printing		DW	Dimensions after C₁		DW	Dimensions after C₂		DW	Dimensions after C₃		DW
S. No.	W_c	T_c	W_p	T_p	W_p-W_c	W₁	T₁	W₁-W_p	W₂	T₂	W₂-W_p	W₃	T₃	W₃-W_p
R1	9.5	3.2	9.51	3.197	0.01	9.55	3.183	0.040	9.58	3.173	0.07	9.6	3.167	0.09
R2	9.5	3.2	9.53	3.190	0.03	9.58	3.173	0.050	9.62	3.160	0.09	9.65	3.150	0.12
R3	9.5	3.2	9.55	3.183	0.05	9.6	3.167	0.050	9.65	3.150	0.1	9.67	3.144	0.12
R4	9.5	3.2	9.59	3.170	0.09	9.66	3.147	0.070	9.71	3.131	0.12	9.72	3.128	0.13
R5	9.5	3.2	9.6	3.167	0.10	9.67	3.144	0.070	9.72	3.128	0.12	9.73	3.124	0.13
R6	9.5	3.2	9.58	3.173	0.08	9.65	3.150	0.070	9.7	3.134	0.12	9.7	3.134	0.12
R7	9.5	3.2	9.61	3.163	0.11	9.69	3.137	0.080	9.75	3.118	0.14	9.76	3.115	0.15
R8	9.5	3.2	9.63	3.157	0.13	9.7	3.134	0.070	9.75	3.118	0.12	9.76	3.115	0.13
R9	9.5	3.2	9.66	3.147	0.16	9.73	3.124	0.070	9.78	3.108	0.12	9.78	3.108	0.12

Note. W_c = width as per CAD data, T_c = thickness as per CAD data, DW = deviation in width, W_p = width after printing, W₁ = width after cycle1, W₂ = width after cycle2, W₃ = width after cycle3, T_p = thickness after printing, T₁ = thickness after cycle1, T₂ = thickness after cycle2, T₃ = thickness after cycle3, C₁ = cycle 1, C₂ = cycle 2, C₃ = cycle3. Only DW has been reported, as no change in length was observed and variation in width and thickness is relative. The five observations were taken and the average values have been reported.

Based on Table 4, Table 5 shows the statistical analysis for dimensional stability optimization. In this case, DW was minimized, and NT was only found significant and had a p-value less than 0.05. The best setting for minimization of DW is NT 225°C, PS 40 mm/s, RA 0°,

Table 5.

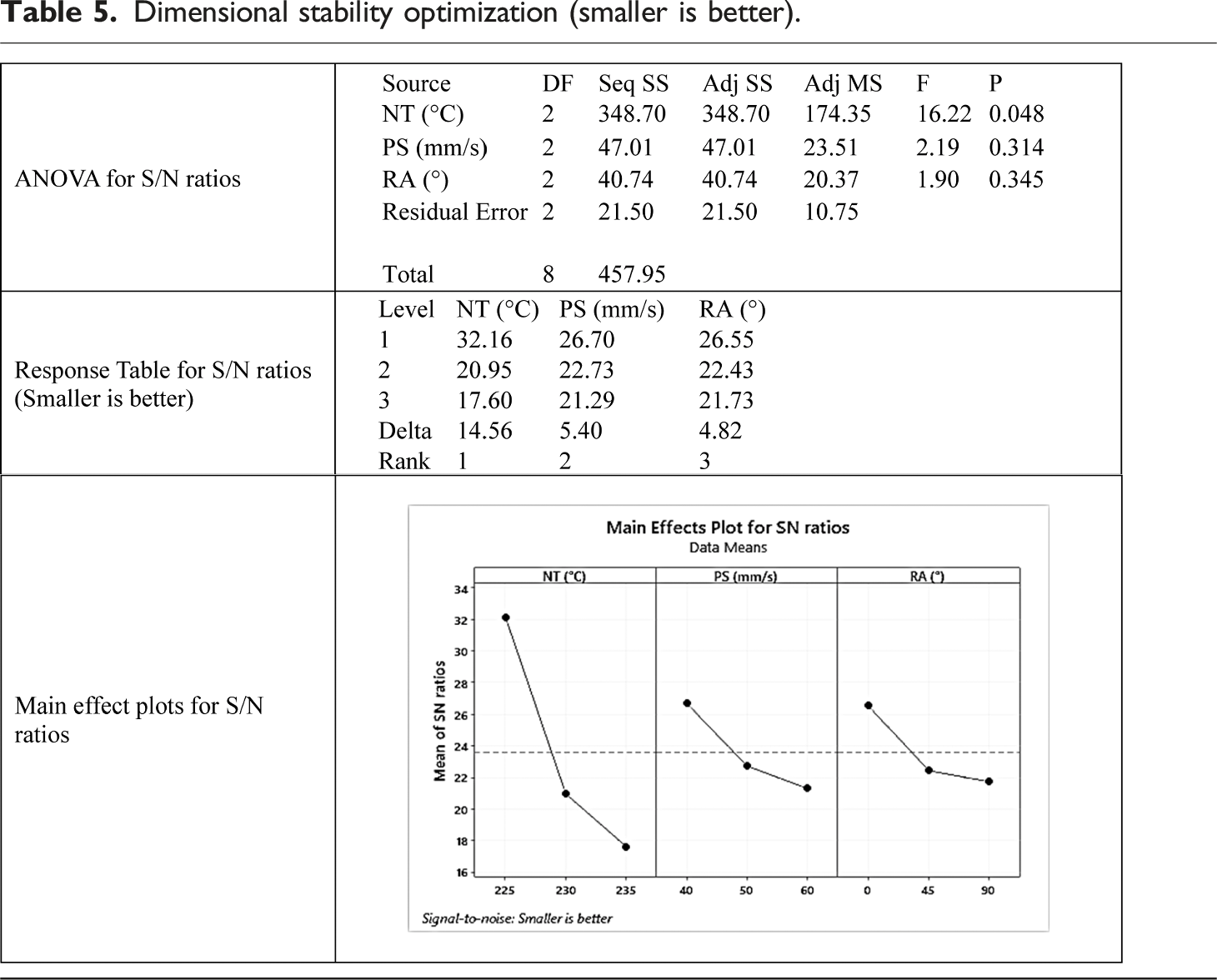

Dimensional stability optimization (smaller is better).

Further, for morphological analysis, scanning electron microscopy (SEM) (Make: Jeol, Model JSM-IT100) was used. The images were captured at a 5 kV operating voltage. The SEM images were processed on open-source Gwyddion software in line with other investigators.^8,31–33 The surface roughness (Ra) values (Table 6), %porosity (Table 7), and grain size number (Table 8) were observed before and after 03 repeated cycles of autoclaving performed at 110°C for 60 min. The SEM images and corresponding surface characteristics before and after 1, 2, and three cycles of autoclaving are shown in Table 9. As observed from Tables 6–8, the Ra observations are in line with % porosity and grain size number. It may be noted that for implant application, high Ra is considered better for the growth of osteoblast cells and finally the cell adhesion on implants is improved. Similarly, if porosity is higher, it may be helpful in the secondary stability of the implant, as the osteoblast cell passes through the pores of the implant surface.

Table 6.

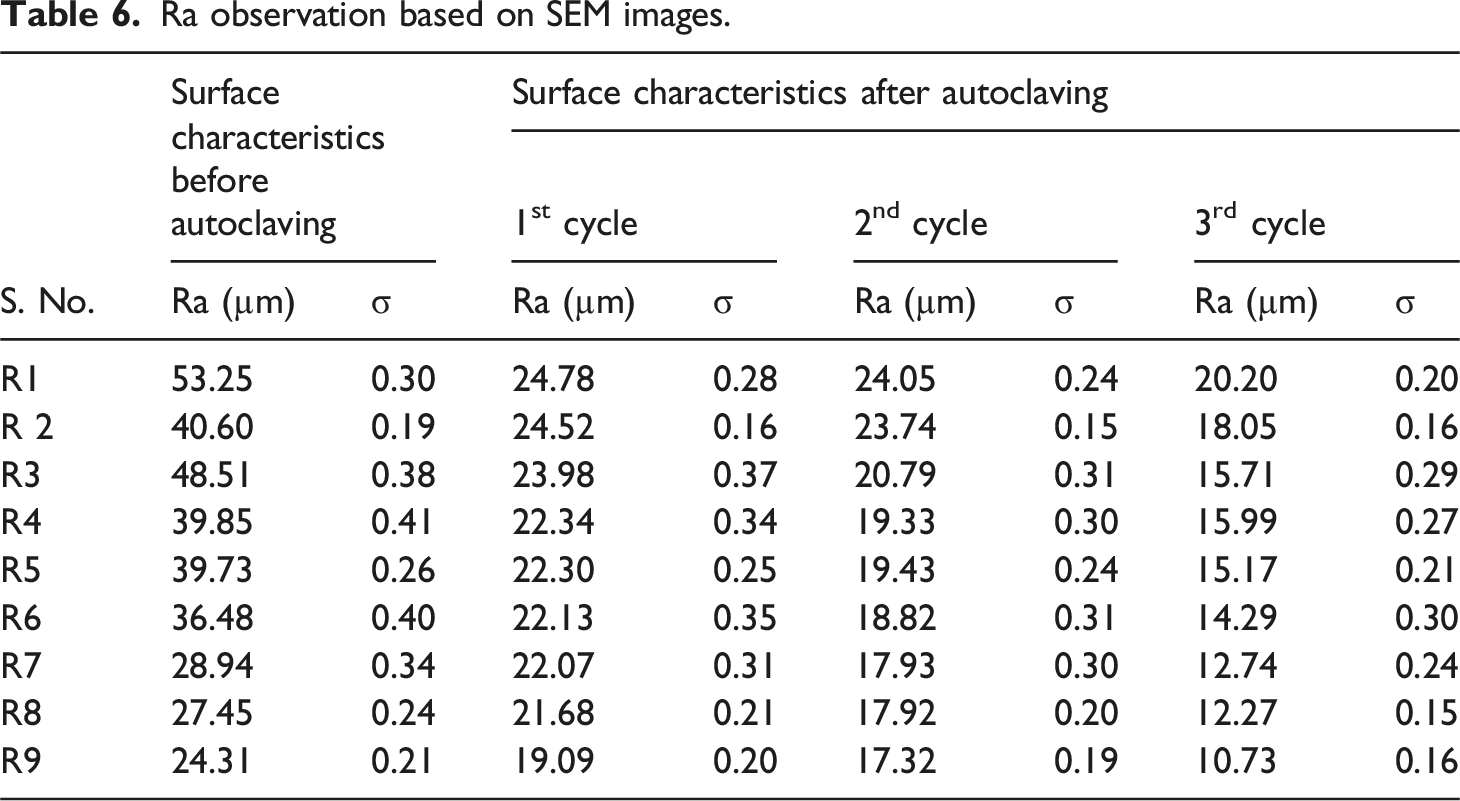

Ra observation based on SEM images.

S. No.	Surface characteristics before autoclaving		Surface characteristics after autoclaving
	Surface characteristics before autoclaving		1^st cycle		2^nd cycle		3^rd cycle
	Ra (µm)	σ	Ra (µm)	σ	Ra (µm)	σ	Ra (µm)	σ
R1	53.25	0.30	24.78	0.28	24.05	0.24	20.20	0.20
R 2	40.60	0.19	24.52	0.16	23.74	0.15	18.05	0.16
R3	48.51	0.38	23.98	0.37	20.79	0.31	15.71	0.29
R4	39.85	0.41	22.34	0.34	19.33	0.30	15.99	0.27
R5	39.73	0.26	22.30	0.25	19.43	0.24	15.17	0.21
R6	36.48	0.40	22.13	0.35	18.82	0.31	14.29	0.30
R7	28.94	0.34	22.07	0.31	17.93	0.30	12.74	0.24
R8	27.45	0.24	21.68	0.21	17.92	0.20	12.27	0.15
R9	24.31	0.21	19.09	0.20	17.32	0.19	10.73	0.16

Table 7.

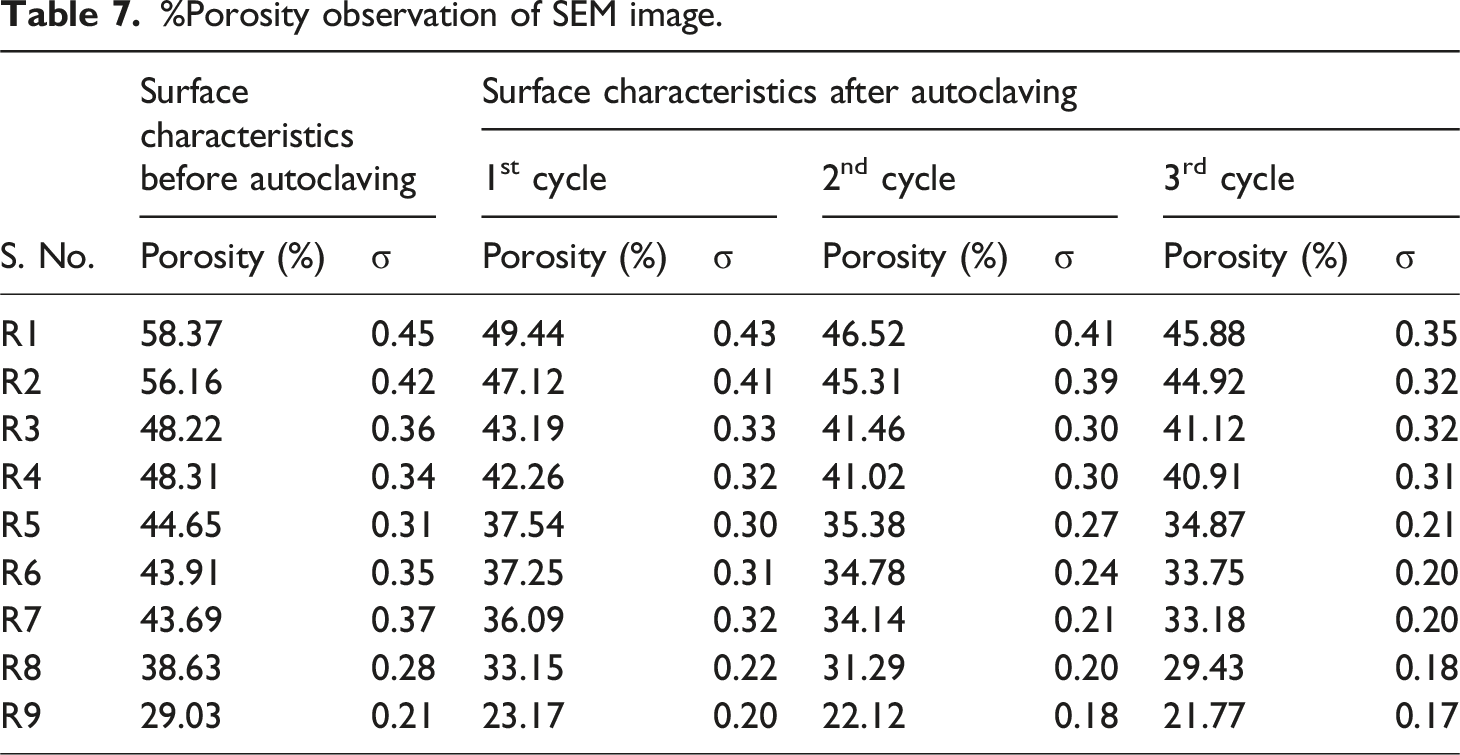

%Porosity observation of SEM image.

S. No.	Surface characteristics before autoclaving		Surface characteristics after autoclaving
	Surface characteristics before autoclaving		1^st cycle		2^nd cycle		3^rd cycle
	Porosity (%)	σ	Porosity (%)	σ	Porosity (%)	σ	Porosity (%)	σ
R1	58.37	0.45	49.44	0.43	46.52	0.41	45.88	0.35
R2	56.16	0.42	47.12	0.41	45.31	0.39	44.92	0.32
R3	48.22	0.36	43.19	0.33	41.46	0.30	41.12	0.32
R4	48.31	0.34	42.26	0.32	41.02	0.30	40.91	0.31
R5	44.65	0.31	37.54	0.30	35.38	0.27	34.87	0.21
R6	43.91	0.35	37.25	0.31	34.78	0.24	33.75	0.20
R7	43.69	0.37	36.09	0.32	34.14	0.21	33.18	0.20
R8	38.63	0.28	33.15	0.22	31.29	0.20	29.43	0.18
R9	29.03	0.21	23.17	0.20	22.12	0.18	21.77	0.17

Table 8.

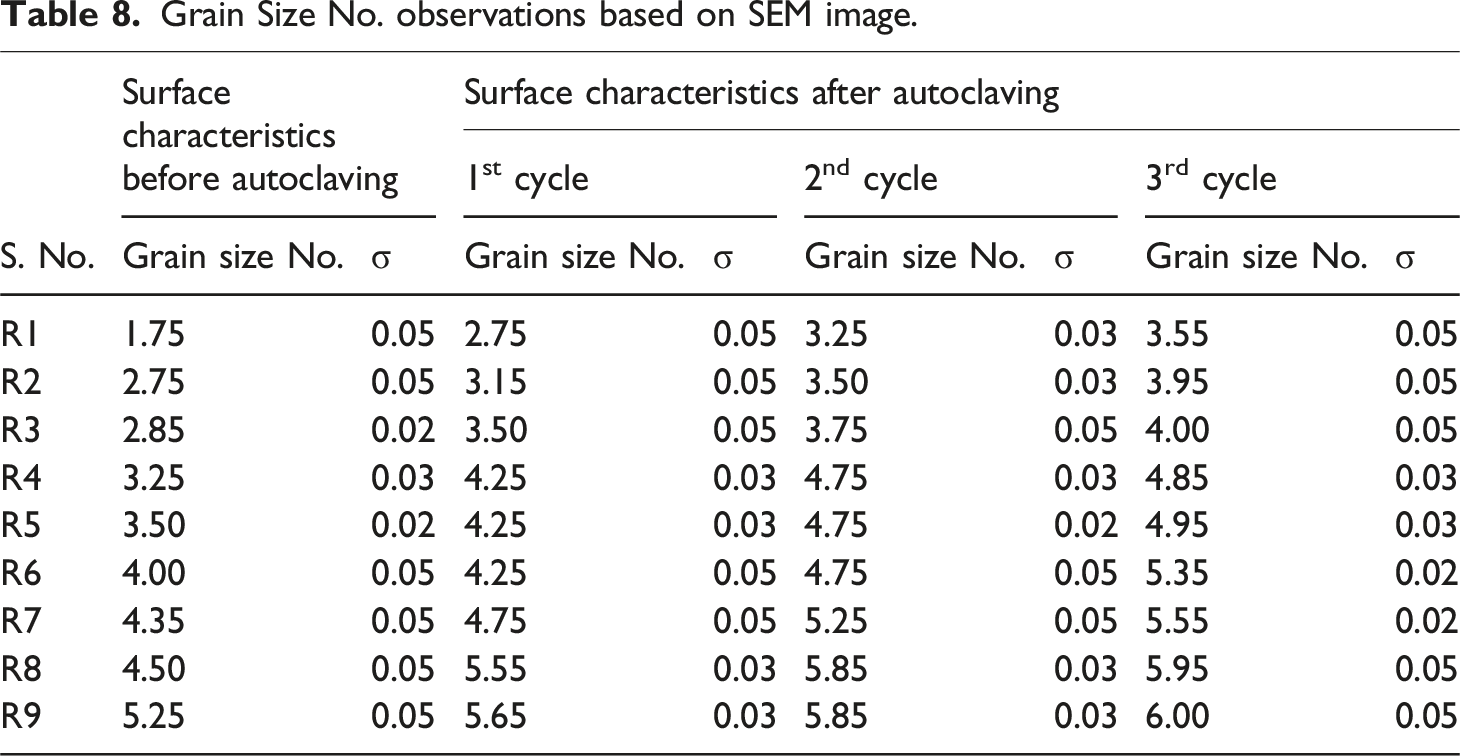

Grain Size No. observations based on SEM image.

S. No.	Surface characteristics before autoclaving		Surface characteristics after autoclaving
	Surface characteristics before autoclaving		1^st cycle		2^nd cycle		3^rd cycle
	Grain size No.	σ	Grain size No.	σ	Grain size No.	σ	Grain size No.	σ
R1	1.75	0.05	2.75	0.05	3.25	0.03	3.55	0.05
R2	2.75	0.05	3.15	0.05	3.50	0.03	3.95	0.05
R3	2.85	0.02	3.50	0.05	3.75	0.05	4.00	0.05
R4	3.25	0.03	4.25	0.03	4.75	0.03	4.85	0.03
R5	3.50	0.02	4.25	0.03	4.75	0.02	4.95	0.03
R6	4.00	0.05	4.25	0.05	4.75	0.05	5.35	0.02
R7	4.35	0.05	4.75	0.05	5.25	0.05	5.55	0.02
R8	4.50	0.05	5.55	0.03	5.85	0.03	5.95	0.05
R9	5.25	0.05	5.65	0.03	5.85	0.03	6.00	0.05

Table 9.

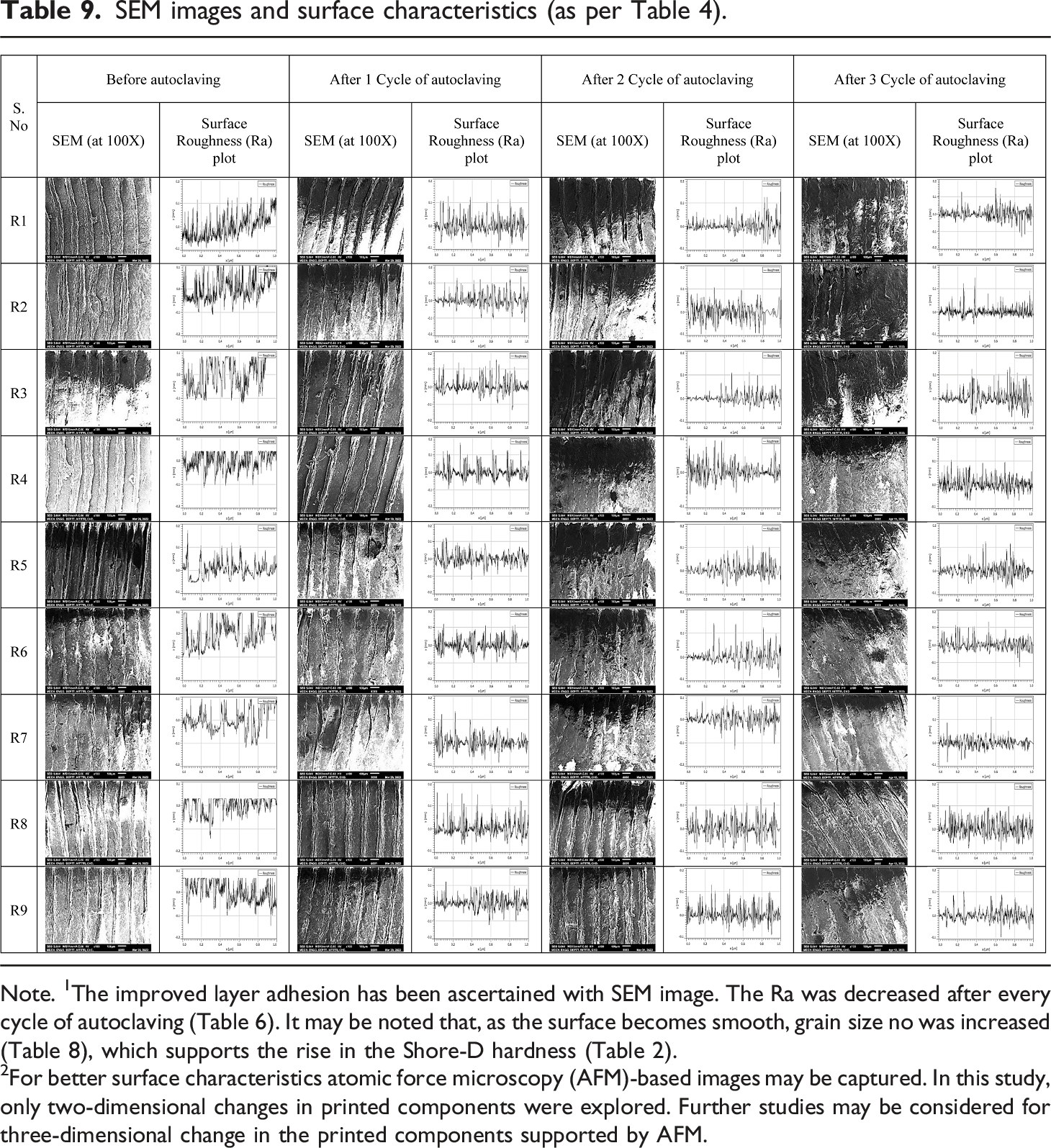

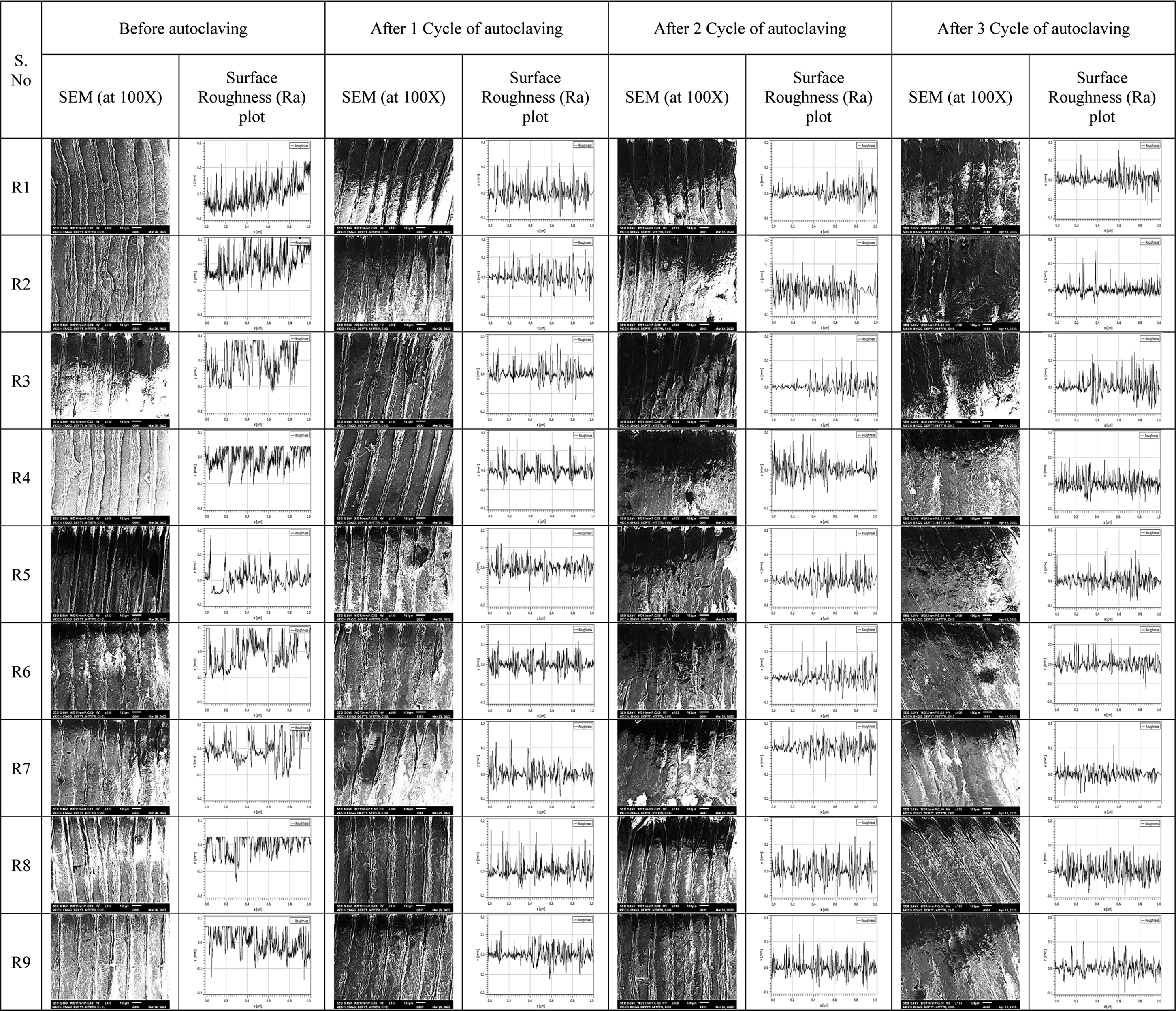

SEM images and surface characteristics (as per Table 4).

Note. ¹The improved layer adhesion has been ascertained with SEM image. The Ra was decreased after every cycle of autoclaving (Table 6). It may be noted that, as the surface becomes smooth, grain size no was increased (Table 8), which supports the rise in the Shore-D hardness (Table 2).

²For better surface characteristics atomic force microscopy (AFM)-based images may be captured. In this study, only two-dimensional changes in printed components were explored. Further studies may be considered for three-dimensional change in the printed components supported by AFM.

Finally, attenuated total reflection (ATR)-FTIR (Make: Shimadzu, Model HATR-10, with Zinc Selenide crystal material) was performed (Table 10), in the wave number range 400-4400 cm-1 recorded before and after three repeated cycles of autoclaving (performed at 110°C for 60 min). The FTIR was performed at 5 cm⁻¹ resolution, the velocity of the scanning mirror set as 25 kHz, and the sample scan at ×2. For the comparison of the FTIR spectrum plot before and after autoclaving, a prominent peak was noticed at wave number 1800 cm⁻¹ (after autoclaving) and the corresponding absorbance value was reduced. The observed peak (after autoclaving) at wave number 1800 cm⁻¹ is for CF₂ which may have resulted in increased Shore-D hardness.

Table 10.

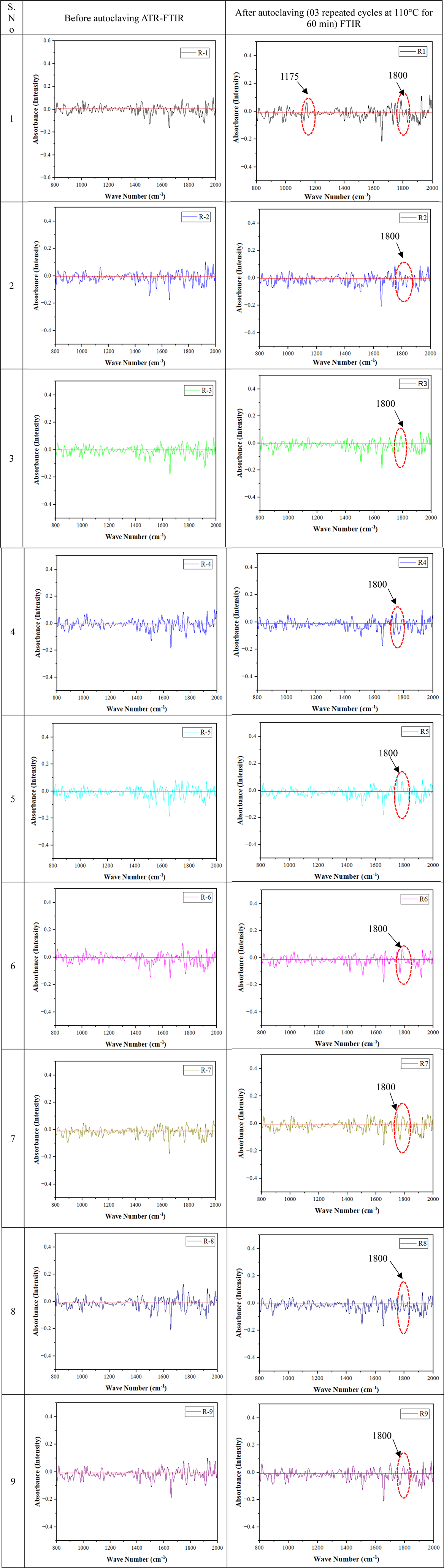

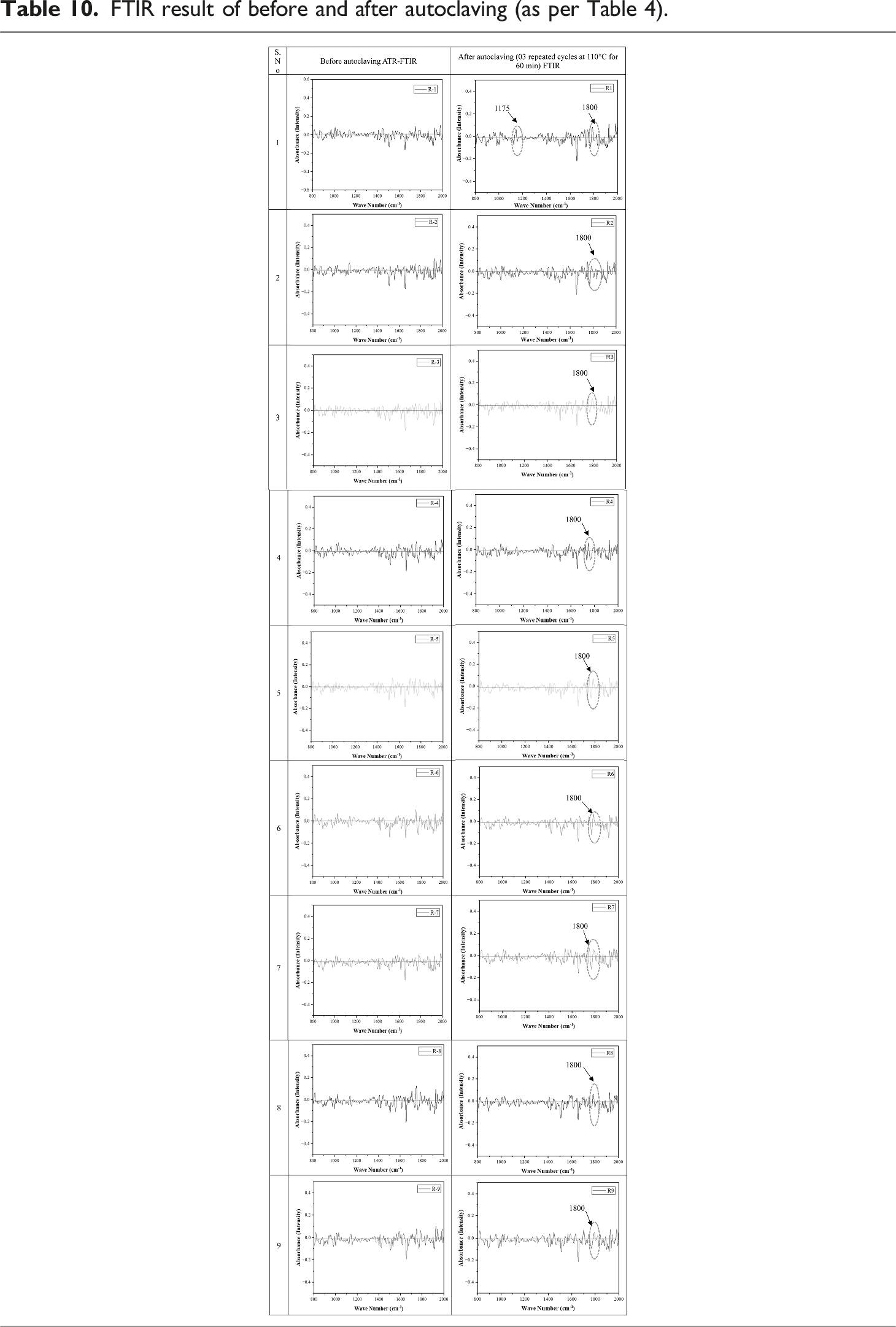

FTIR result of before and after autoclaving (as per Table 4).

Based on the experimental observations as per Table 4, Table 11 shows the comparison of surface characteristics for observed best and worst samples. As observed from Table 11, the Ra value for the best sample is higher in comparison to the worst sample, and accordingly amplitude distribution function (ADF) representing the probability of getting the highest peak has a normal distribution. The bearing ratio curve (BRC) representing the cumulative probability of getting the highest peak and peak count (PC) value is also higher for sample R1.

Table 11.

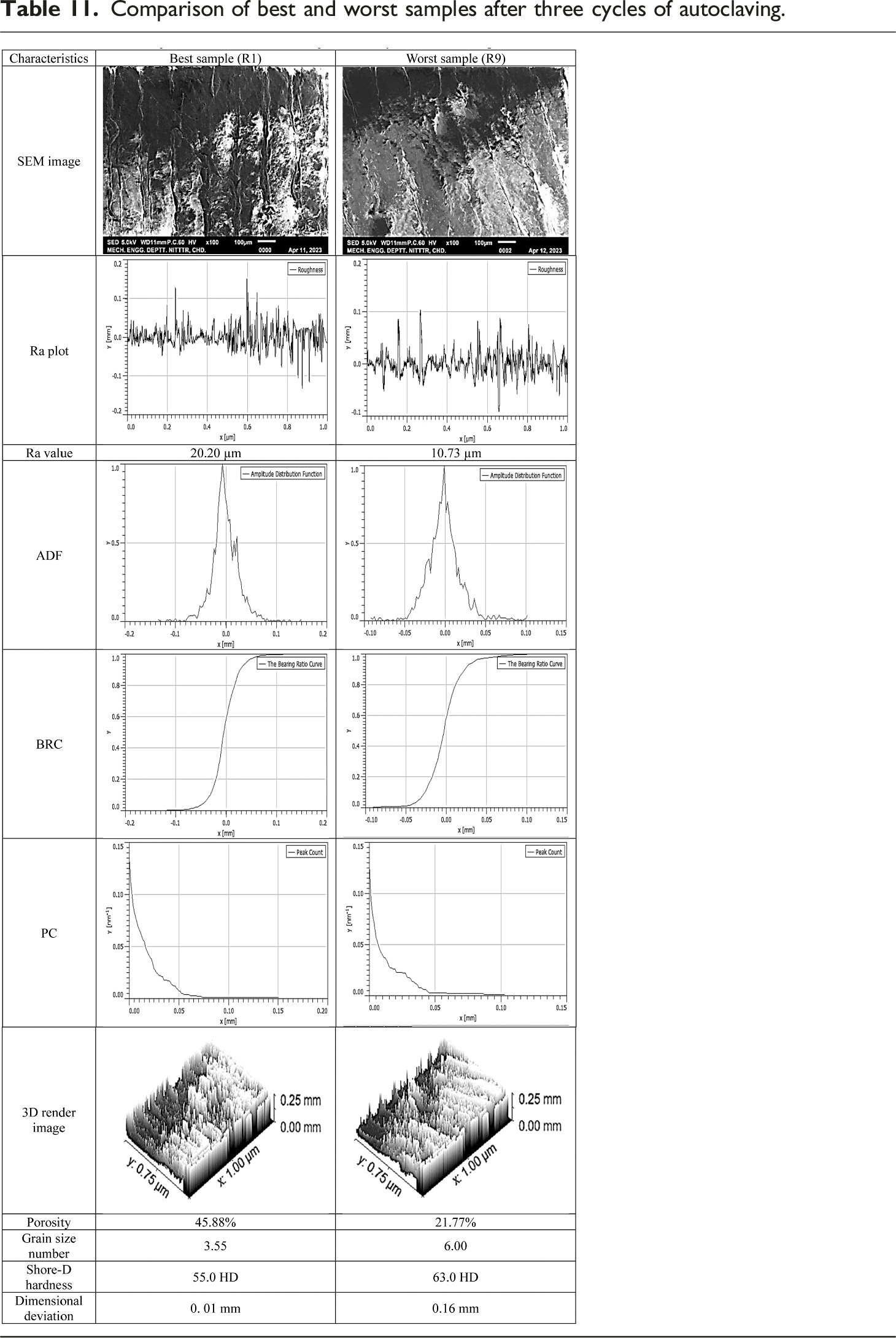

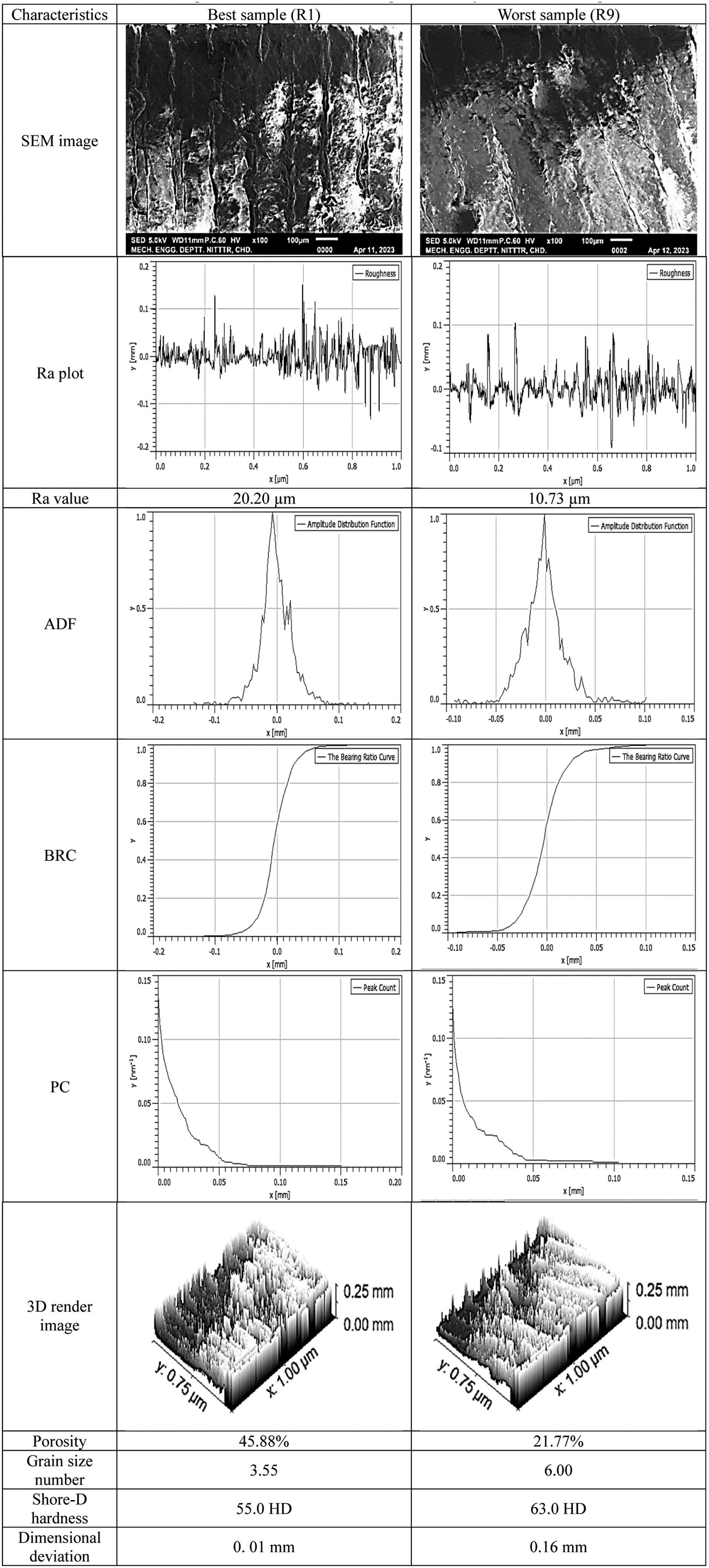

Comparison of best and worst samples after three cycles of autoclaving.

Conclusions

The autoclaving was performed for 03 cycles in this study because it can fulfill the unique requirements of implants while still being affordable and ecologically friendly. The dimensional stability directly affects fit, functioning, biocompatibility, and long-term performance in implants, and it is of the utmost significance. The necessity of maintaining constant size and form, assuring patient well-being, and lowering the risk of problems is further highlighted by the requirement for these implants to smoothly integrate with the intricate biomechanics of the human body. In this study, the S/N ratio was used to ascertain the best setting of process parameters for the minimum (smaller is better) Shore-D hardness and minimum dimensional deviation of PVDF-HAp-CS composite for the possible application to help in better adhesion or growth of osteoblast cells within the implant. This study suggests that the best setting of the FFF process, for the 3D printing of PVDF composite (90%PVDF, 8%HAp, 2%CS) for smaller is better are the NT 225°C, RA 0°, and PS 40 mm/s, resulting in Shore-D hardness 48.5 HD (before autoclaving) and 55.0 HD (after autoclaving), dimensional deviation 0.01 mm (after autoclaving). In the comparison of the FTIR spectrum plot before and after autoclaving, it was noticed that after autoclaving a prominent peak was developed at wave number 1800 cm^−1, and the corresponding absorbance value was reduced which was responsible for increased Shore-D hardness.

In this study, only two-dimensional changes in printed components were explored post-autoclaving. Further studies may be considered for three-dimensional change in the printed components supported by AFM. Also, actual biomedical implants of PVDF composite matrix may be prepared and their in vitro, in vivo analysis may be performed along with analysis of their mechanical, morphological, thermal, and dimensional stability before going for clinical trials.
