Poly(methyl methacrylate) denture base composites enhancement by various combinations of nitrile butadiene rubber/treated ceramic fillers

Abstract

Nitrile butadiene rubber (NBR) particles as impact modifier mixed with treated ceramic fillers (aluminum oxide, yttria-stabilized zirconia, and silicon dioxide) were used to reinforce poly(methyl methacrylate) (PMMA) denture base material. The powder components are PMMA, benzoyl peroxide, NBR (5, 7.5, and 10 wt%), and ceramic fillers (5 wt%) treated with silane. The liquid components are 90% methyl methacrylate and 10% ethylene glycol dimethacryate. Fourier transform infrared spectroscopy and energy dispersive X-ray spectroscopy analyses confirmed that the ceramic fillers were successful. The morphology of fracture surfaces of specimens was characterized using field emission scanning electron microscopy. The impact strength (IS) and fracture toughness (K _IC) improved significantly. IS increased to 56% (8.26 kJ m⁻²) and 73% (2.77 MPa m^1/2) for K _IC when compared with unreinforced PMMA matrix. Statistical analyses of data results were significantly improved (p < 0.005). PMMA denture base reinforced by NBR particles mixed with treated ceramic fillers are ideally suited for dentistry applications with the ability to withstand high mastication forces.

Keywords

PMMA denture base nitrile butadiene rubber ceramic fillers silane impact strength fracture toughness

Introduction

Poly(methyl methacrylate) (PMMA) material is the most commonly used denture base material in prosthetic dentistry. Although discovered in 1937, Walter Wright introduced PMMA material; it demonstrated excellent properties and surpassed other denture base materials such as wood, bone, ivory, tortoise shell, gutta-percha, vulcanite, cheoplastic, rose pearl, aluminum, and celluloid.^1
–3 Even in the 20th century, PMMA heat curing method is still far better than denture based made of self-cure acrylic resin, epoxy resin, polystyrene, nylon, vinyl resin, polycarbonates, visible light curing acrylic, and high-impact acrylic.⁴ PMMA offers remarkable physical and mechanical properties, compatible with oral tissue, aesthetics, ease of repair, and low cost.⁵ It is in context, further improvement in PMMA denture base materials is very necessary.

The fracture of prosthesis or fracture of composite restorations is a very common clinical problem.⁶ The geometry of denture base is complex, and stresses can be concentrated in flaws on the surface or in frenum notch, especially lingual and labial frenum in the mandible, crack can occur in the denture base.⁷ Most of upper denture base (maxilla denture) fractures are caused by the fatigue and impact, whereas about 80% of fractures in the lower denture base (mandibular denture) are due to impact⁸ and low fracture toughness (K _IC).⁹ It has also been reported that the frequency of acrylic fracture is estimated to be between 57% and 64% of all failures in case of removable dentures.¹⁰ Darbar et al.⁶ reported that 33% of the repairs carried out in three laboratories studied were due to debonded or detached teeth, 29% were repairs to midline fractures in dentures, and remaining 38% were other types of fractures, the majority of which were repaired dentures.

One of the primary problems of PMMA is the impact failure and fatigue resistance when the denture is accidentally dropped on a hard surface or by fatigue failure when the denture base deforms repeatedly through occlusal forces.^7,8 Vojdani et al.¹¹ found that 68% of PMMA dentures break within a few years after fabrication. It can be easily broken during accidents or when the patient applies high mastication force on the denture base that occurs between maxilla and mandible jaws.¹² Basically, adequate impact strength (IS) and K _IC are the most important requirements for denture-based resins,¹³ because these prostheses are removable, and shock induced fracture resistance possibly due to patient abuse.¹

Several studies have shown that PMMA mechanical properties’ deficiencies were overcome using various types of fillers such as glass fiber, polyethylene, aramid, carbon fiber, polylactic fiber, ceramic particle (e.g. barium titanate (BaTiO₃), zirconium dioxide (ZrO₂), silicon dioxide (SiO₂), hydroxyapatite (HA), titanium dioxide (TiO₂), and calcium carbonate), and metal plates or wires.^{7,14

–19} Many studies have been focused on the treatment of filler to improve the mechanical properties of the filler–matrix interface,^20,21 and treatment with silane is very effective in promoting adhesion for silica-based materials.²² It was reported that silane (3-(methacryloxy) propyl trimethoxysilane (γ-MPS))-treated HA helped reduce the water uptake. This is due to the ability of γ-MPS to react with hydroxyl groups in the HA filler by introducing a hydrophobic layer on surface of ceramic particles and improved its bonding strength.²⁰ Furthermore, mixing harder inorganic materials like treated SiO₂ increased the hardness of the PMMA denture base material.¹⁷ In another study, Asar et al.⁷ found that by using ZrO_2, Al₂O₃, and TiO₂, the K _IC and IS is only slightly increased. Ihab and Moudhaffar²³ reported improvement in the IS of PMMA denture base with addition of <5 wt% of ZrO₂ particles. This is due to good distribution of filler particles in the PMMA denture base. Elshereksiet al.¹⁶ evaluated the influence of BaTiO₃ on K _IC properties. The results showed that unreinforced PMMA possessed slightly higher K _IC properties than reinforced PMMA composites. This is because the adhesion of the PMMA matrix to BaTiO₃ is slightly weak due to partial embedding of the BaTiO₃ filler in the PMMA matrix. Chow et al.¹⁸ determined the reinforcing effect of HA on the fracture toughness, flexural strength, and flexural modulus of PMMA denture base. Addition of 5%, 10%, 15%, and 20% of HA showed increase in the flexural modulus, but with decrease in the K _IC and the flexural strength.

The positive effects of alumina (both micro- and nanosize)-reinforcing fillers in resin composites for dental applications have been studied.²⁴ Alsharif et al.²⁵ reported that the effects of silane-treated Al₂O₃ particles for dental resin composite increased the hardness and flexural properties. Other researchers attempted to improve the strength of PMMA denture base by the addition of metal wires and metal plates.¹¹ They found that the fracture resistance has increased in both metal wires and plates. However, the main disadvantages of metal wire are poor aesthetics and adhesion between the wire and PMMA. In the case of metal plate, it is prone to corrode and expensive. Alternatively, various fibers were used in PMMA denture base such as work done²⁶ using polyethylene, glass, and carbon fibers, which showed better IS. However, the IS reduced when glass woven and silk fibers were used. The negative effects of fibers as reinforcement materials are mainly on the aesthetic appearance, biocompatibility, and desire of the patient.²⁷ Another important approach to improve the PMMA denture base composites is through incorporation of rubber particles. According to Dowling,²⁸ modifying a low-ductility polymer with ductile particles such as rubber increased its fracture toughness. PMMA denture base was modified by butadiene–styrene copolymer rubber and improving the IS.²⁹ However, another type of rubber, nitrile butadiene rubber (NBR) has never been reported being used as PMMA denture base reinforcement. NBR has various advantages that may improve the properties of the PMMA denture base such as no allergic reaction upon contact with oral tissue of prostheses- nontoxic,³⁰ besides acts as impact modifier to increase the IS.

In this research, the effect of nitrile rubber (NBR) particles as impact modifier together with three different treated ceramic fillers (Al₂O₃, YSZ, and SiO₂) in a PMMA matrix was investigated for its mechanical properties. The powder component consisted of PMMA powder, 0.5 of benzoyl peroxide (BPO), NBR particles (5, 7.5, and 10 wt%), and ceramic fillers (fixed at 5 wt%).The combination of NBR with treated ceramic fillers in PMMA denture base has never been previously studied.

Materials and experimental

The materials used in this research are PMMA powder (weight-average molecular weight (M _w), 996.000 g mol⁻¹; Sigma Aldrich, St Louis, Missouri, USA), BPO (Merck chemical, Darmstadt, Germany), and methyl methacrylate (MMA) monomer (Fluka, UK) with (ethylene glycol dimethylacrylate (EGDMA); Sigma Aldrich) as liquid component, 99% purity Al₂O₃ particles (Sulzer Metco, Westbury, New Jersey, USA; average particle size = 4.4 μm and density = 2.70 g cm⁻³), 90% pure YSZ particles (containing 6.38 of yttrium oxide stabilizer; GoodFellow Cambridge Limited, Coraopolis, Pennsylvania, USA; average particle size = 1.05 μm and density = 5.90 g cm⁻³), 99% purity SiO₂ particles (average particle size = 4.28 μm and density = 2.33 g cm⁻³). The silane coupling agent 3-trimethoxysilyl propylmethacrylate (γ-MPS), also known as 3-(methacryloxy) propyl trimethoxysilane (gamma-MPS) was supplied by Sigma Aldrich and NBR particles (Genzo Scientific Ent., Malaysia; <150 μm and density = 0.98 g cm⁻³). The chemical structure and function of materials that were used are shown in Table 1.

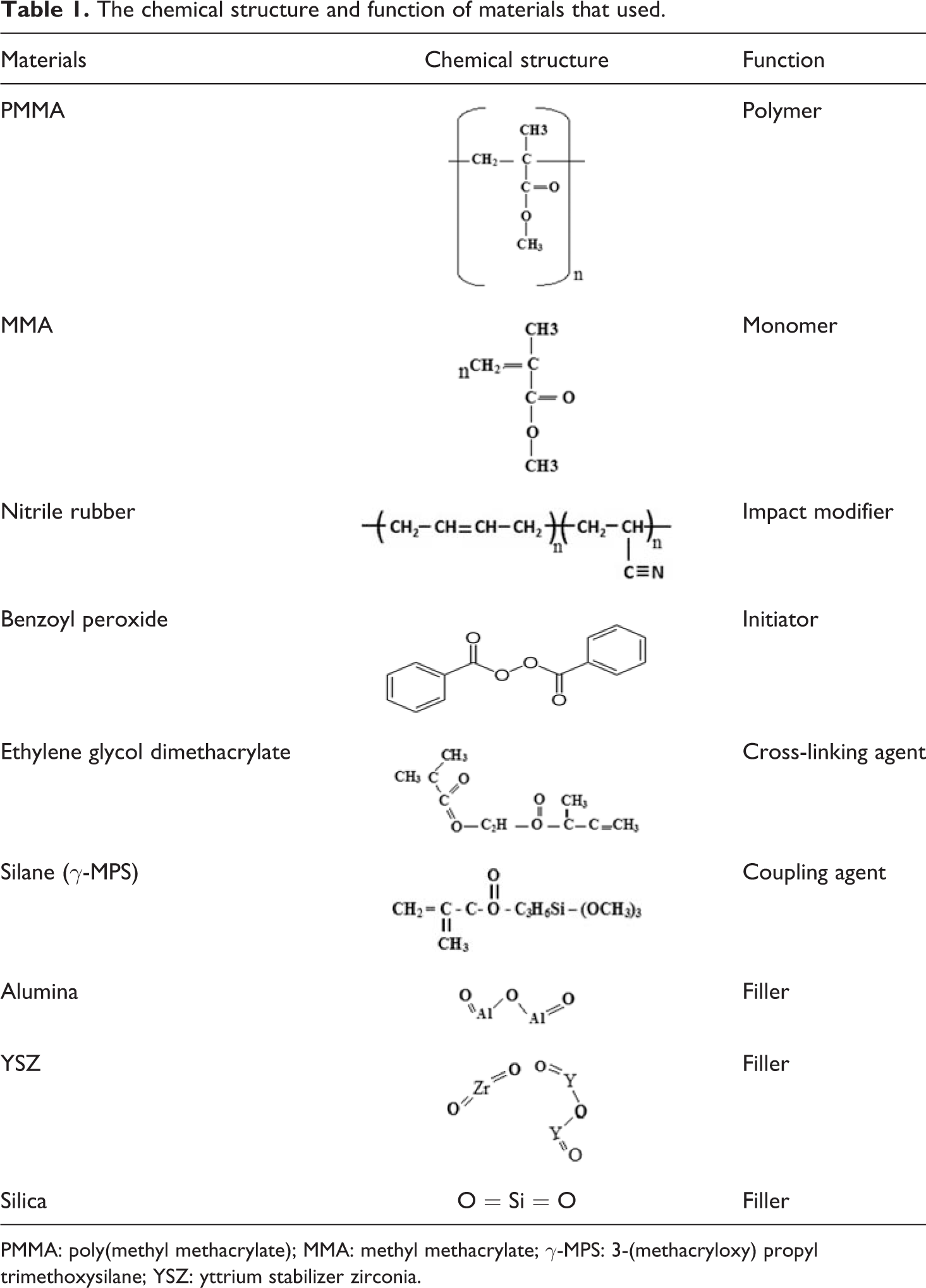

Table 1.

The chemical structure and function of materials that used.

Materials	Chemical structure	Function
PMMA		Polymer
MMA		Monomer
Nitrile rubber		Impact modifier
Benzoyl peroxide		Initiator
Ethylene glycol dimethacrylate		Cross-linking agent
Silane (γ-MPS)		Coupling agent
Alumina		Filler
YSZ		Filler
Silica	O = Si = O	Filler

PMMA: poly(methyl methacrylate); MMA: methyl methacrylate; γ-MPS: 3-(methacryloxy) propyl trimethoxysilane; YSZ: yttrium stabilizer zirconia.

Treatment process of powder filler

Silane treatment of Al₂O₃, YSZ, and SiO₂ composite filler

Filler treatment involved the use of 10 g of each filler powder (Al₂O₃, YSZ, and SiO₂) with 200 ml of toluene. The procedure commenced with the dispersion of powder filler in toluene. Then, to the solution was added 10 wt% of silane at room temperature and was continuously stirred at 150 r min⁻¹ for 15 h. Next, the solution was filtered in order to collect the modified powder. Subsequently, the powder was washed with 300 ml of fresh toluene in a Soxhlet apparatus for 24 h. The final product was then dried in an oven at 110°C for 3 h under vacuum. This treatment method also was previously described.³¹

Preparation of NBR particles

NBR gloves were passed through a two-roll rubber mixing mill (Shangha Rubber Machine, China) for 5 min at room temperature to obtain strips of nitrile rubber. These strips were ground to obtain fine particles using a table-type pulverizing machine (RongTsong Precision Tech. Co. Ltd, Taiwan). The particles were sieved to pass through 150 μm. The particle size and distribution were analyzed by particle size analyzer (Mastersizer Instrument, UK).

Preparation of the PMMA denture base composite

The PMMA denture base material was prepared using the powder components mixed with liquid component. The powder components were comprised of PMMA powder, NBR particles as impact modifier, BPO as initiator (fixed at 0.5 wt%), and ceramic fillers as reinforcement particles were fixed at 5 wt% (Al₂O₃, YSZ, and SiO₂, respectively). In total, 12 different mixtures were used in this study as shown in Table 2. Each mixture was mixed for 30 min by using the internal mixer (599957-K model, MS Instruments, Malaysia). The rotor speed was 50 r min⁻¹ and heated at 65°C. The mixing chamber was cleaned before next mixing process to avoid contamination. The liquid medium was comprised of 10% EGDMA as cross-linking agent and 90% MMA as an activator.¹⁸

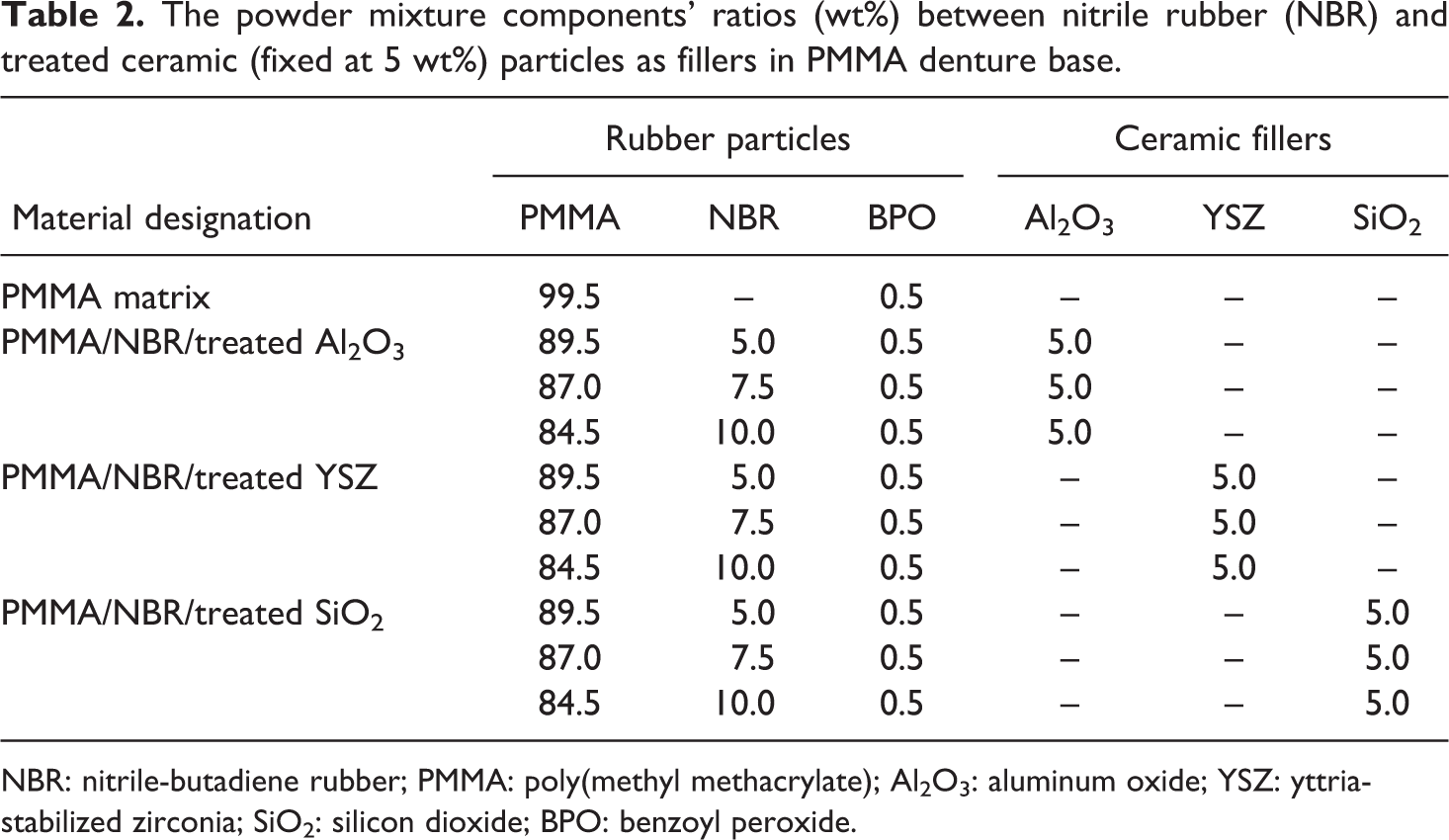

Table 2.

The powder mixture components’ ratios (wt%) between nitrile rubber (NBR) and treated ceramic (fixed at 5 wt%) particles as fillers in PMMA denture base.

Material designation	Rubber particles			Ceramic fillers
Material designation	PMMA	NBR	BPO	Al₂O₃	YSZ	SiO₂
PMMA matrix	99.5	–	0.5	–	–	–
PMMA/NBR/treated Al₂O₃	89.5	5.0	0.5	5.0	–	–
	87.0	7.5	0.5	5.0	–	–
	84.5	10.0	0.5	5.0	–	–
PMMA/NBR/treated YSZ	89.5	5.0	0.5	–	5.0	–
	87.0	7.5	0.5	–	5.0	–
	84.5	10.0	0.5	–	5.0	–
PMMA/NBR/treated SiO₂	89.5	5.0	0.5	–	–	5.0
	87.0	7.5	0.5	–	–	5.0
	84.5	10.0	0.5	–	–	5.0

NBR: nitrile-butadiene rubber; PMMA: poly(methyl methacrylate); Al₂O₃: aluminum oxide; YSZ: yttria-stabilized zirconia; SiO₂: silicon dioxide; BPO: benzoyl peroxide.

Each of the powder mixture components were mixed using hand mixing in liquid component. The mixing of powder mixture to liquid component P/L ratio was set at 2.5:1, according to standard dental laboratory usage as described.^18,32 The composite reached the dough stage (working stage) for easy forming of the paste in about 15 min. Later, the mixture was packed into a specific mold (IS and K _IC molds). Next, the mold was subjected to a pressure of 14 MPa, applied using a hydraulic press (Mestra 48150 Sondika-Bilbao, Spain) maintained under pressure for 30 min at room temperature. Upon completion, the mold was ready for heat curing process (heat polymerization). The curing process was carried out by placing the mold in a water bath. The temperature of water bath was kept at 78°C for 90 min to complete the heat polymerization; the polymerization of molecular weight polymer was suitable for a quick cure. The mold was removed from the water bath and then left to cool slowly to room temperature. The samples were removed from the mold, trimmed, and polished using emery paper 240. This procedure was in accordance with ISO 1567:2001 dentistry-denture base polymer standard method for preparing conventional denture base in a dental laboratory.³²

Characterization of the PMMA denture base composite

Fourier transforms infrared spectral measurements

The nitrile rubber particles were compacted into thin pellets and characterized using Universal ATR Sampling Accessory (Perkin-Elmer FTIR Spectrometer, Version 10.03.06; Waltham, Massachusetts, USA) for nitrile rubber particles. The resolution was over the wave number scanning range of 400–4000 cm⁻¹ with resolution of 4 cm⁻¹ in the transmission mode and performing 32 scans.

Mechanical tests

The impact test, Charpy V-notch impact test, was measured using a Zwick pendulum impact tester (Germany). The prepared samples were kept at 37°C for 24 h prior to the IS test. The dimensions of samples were 80 × 10 × 4 mm³, the width under notch b _n was 9.75 mm, as required by ISO 179-A1:2005. At least six specimens for each formulation was prepared, and specimens had a V-notch length with 0.25 mm ± 0.05 mm radius and the angle notch sensitivity (r _n) was 45° ± 1° using notched bar IS and span support of 62 ± 0.5 mm. The IS is loss of momentum in the pendulum while breaking the sample off at the notch. The actual value obtained after reducing the air force due to the friction of the pendulum against the air was 0.1 J. In this test, the specimen was held as a simply supported beam and impacted the same plane of the notch. The value of Charpy IS was recorded using the following equation (1):

(I S) = \frac{E}{b_{n} d} \times 10^{3},

where E is value of energy absorbed by the specimen under impact resistance (J), b _n the specimen width (mm), and d the specimen thickness (mm).

The fracture toughness test was determined using the single edge span notch bending test and the specimens were prepared according to ISO 13586:2000 standard. The test specimens were formed in a molded plate. The dimensions of the specimens were fixed as follows: 100 × 20 × 4 mm³ (length × width × thickness), having notch length of 4 mm and support span length of 64 mm. A crack was made on the specimens by tapping a new razor blade placed at the notch on the specimen. The specimens were tested using Instron (3366, 10 kN; Norwood, Massachusetts, USA) at a crosshead speed of 1.00 mm min⁻¹. The specimens were kept in a humidifier at 37°C for 24 h prior to the fracture toughness test and at least six specimens for each formulation were prepared. In this case, the fracture toughness of the critical intensity factor (K _IC) values was calculated using equation (2):¹⁶

K_{I C} = \frac{P \frac{s}{2}}{t \frac{w^{2}}{3}} (1.93 {(\frac{a}{w})}^{1 / 2} - 3.07 {(\frac{a}{w})}^{3 / 2} + 14.53 {(\frac{a}{w})}^{5 / 2} - 25.11 {(\frac{a}{w})}^{7 / 2} + 25.80 {(\frac{a}{w})}^{9 / 2}) a^{1 / 2}

where P is load at peak (N), S is the span length (mm), a is the notch length (mm), t is the specimen thickness (mm), and w is the specimen width (mm).

Morphological characterization

The morphology of the sample fracture surface of composite was studied using field-emission scanning electron microscope (FESEM; Zeiss Supra Model 35VP, Germany). The samples were mounted on aluminum stud with double-sided carbon tape, and all surfaces of samples were coated using platinum (by Bio-Rad E5150 Sputter Coater, England, UK) to eliminate the electrostatic charging effect and to enhance the image resolution in a Bio-Rad Polaron sputter coater. Energy dispersive X-ray spectroscopy (EDS) is a chemical microanalysis technique performed in conjunction with FESEM. EDS was applied to the treated filler in order to establish the composition of the filler after silane treatment.

Statistical analyses of data

The calculated values of results for tests were performed with statistical analyses (Statistical Package for the Social Sciences SPSS, statistics version 20). The data were subjected to one-way analysis of variance followed by Tukey’s post hoc test. The results of the tests were used to identify different groups and considered significant at p ≤ 0.05.

Results and discussion

Fourier transform infrared spectroscopy

Figures 1 to 3 show the Fourier transform infrared spectroscopy (FTIR) spectra for ceramic particles before and after being treated with silane as the coupling agent (γ-MPS). The results of this finding are summarized in Table 3. The main characteristic peaks are obtained at 1040–1100 cm⁻¹, (1617–1648 cm⁻¹, 1716–1728 cm⁻¹, and (3435–3800 cm⁻¹ for Si–O–Si, C=C, C=O, and –OH groups, respectively. The findings clearly identify the presence of the siloxane (Si–O–Si) on the surface of Al₂O₃, which is similar to the one described by Alsharif et al.²⁵ who reported the presence of complex siloxane network (Si–O–Si) on the surface at 1040–1100 cm⁻¹. According to Turner et al.,³³ the Si–O–Si group observed at 1110–1053 cm⁻¹ region indicates the availability of the coupling agent on the surface. However, Guo et al.³⁴ reported the presence of Si–O–Si vibration group at 1089 cm⁻¹ for the SiO₂ surface. Kang et al.³⁵ showed that the peaks at 1090 cm⁻¹ attributed to Si–O–Si group on the SiO₂ surface. Cervantes-Uc et al.³⁶ reported that the peak at 1084 cm⁻¹ stretching indicated the presence of Si–OSi group on the SiO₂ surface. The band at 503 cm⁻¹ is attributed to the presence of Zr–O group on the surface of the filler. Otsuka and Chujo³⁵ reported that the peak around 500–850 cm⁻¹ was due to Zr–O band.

Figure 1.

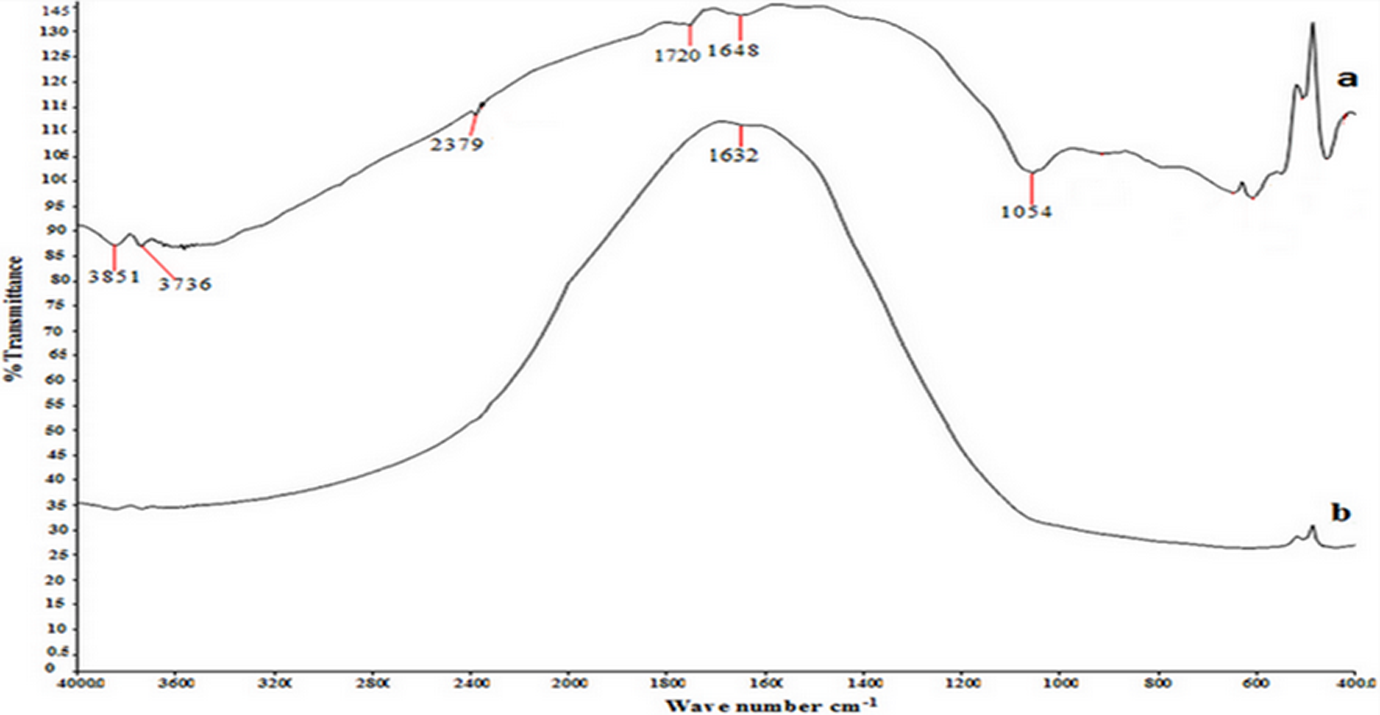

FTIR spectra of Al₂O₃ particles: (a) treated and (b) untreated by silane treatment. FTIR: Fourier transform infrared; Al₂O₃: aluminum oxide.

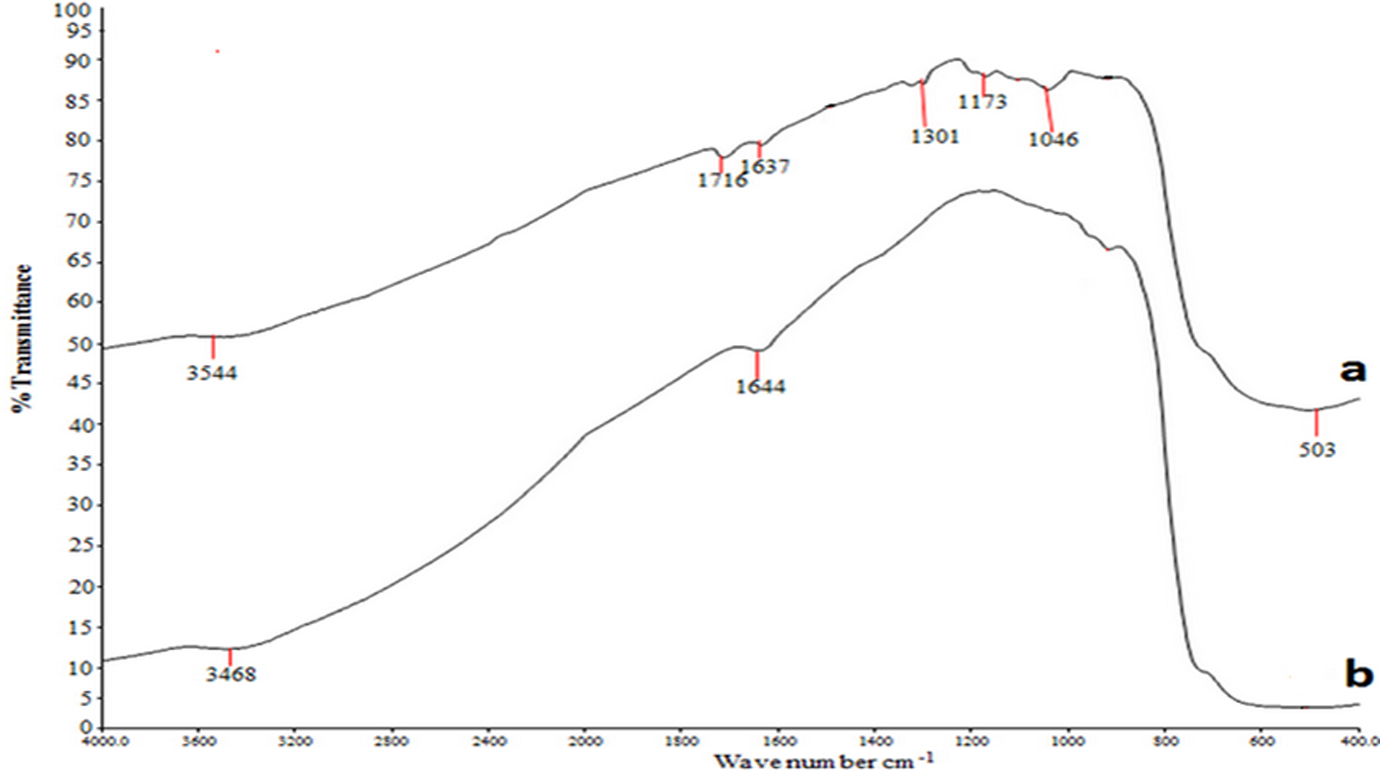

Figure 2.

FTIR spectra of YSZ particles: (a) treated and (b) untreated by silane treatment. FTIR: Fourier transform infrared; YSZ: yttria-stabilized zirconia.

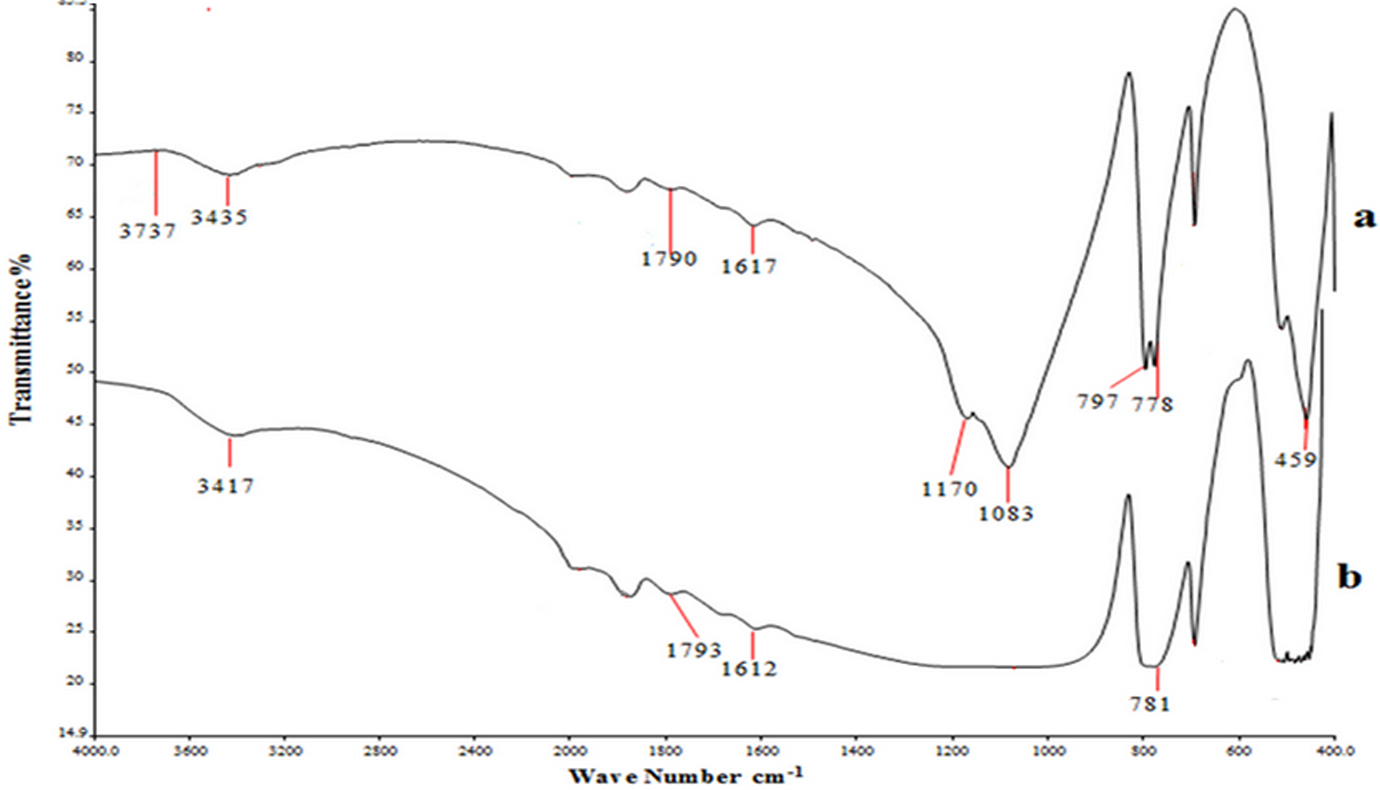

Figure 3.

FTIR spectra of SiO₂ particles: (a) treated and (b) untreated by silane treatment. FTIR: Fourier transform infrared; SiO₂: silicon dioxide.

Table 3.

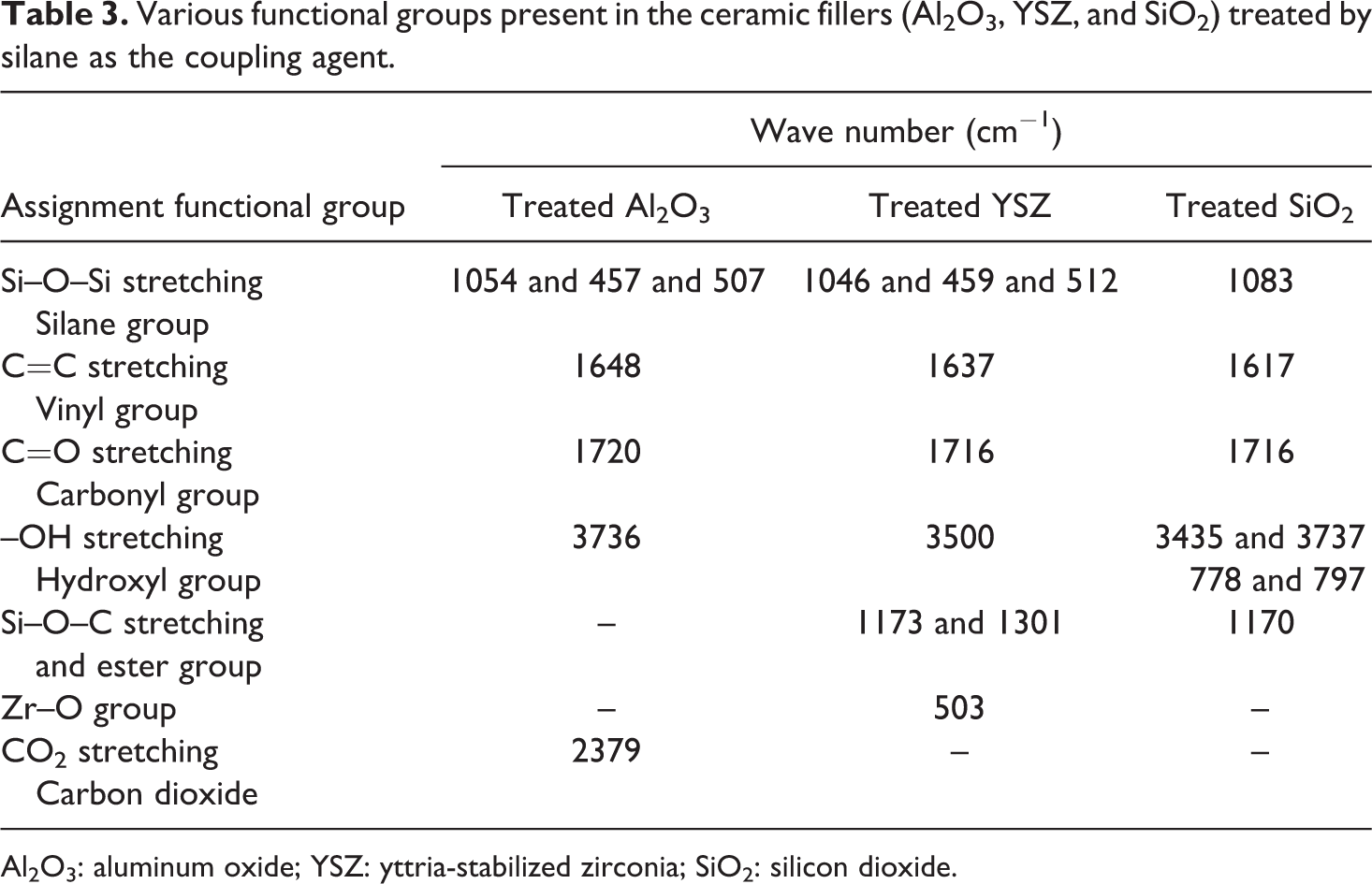

Various functional groups present in the ceramic fillers (Al₂O₃, YSZ, and SiO₂) treated by silane as the coupling agent.

Assignment functional group	Wave number (cm⁻¹)
Assignment functional group	Treated Al₂O₃	Treated YSZ	Treated SiO₂
Si–O–Si stretching Silane group	1054 and 457 and 507	1046 and 459 and 512	1083
C=C stretching Vinyl group	1648	1637	1617
C=O stretching Carbonyl group	1720	1716	1716
–OH stretching Hydroxyl group	3736	3500	3435 and 3737 778 and 797
Si–O–C stretching and ester group	–	1173 and 1301	1170
Zr–O group	–	503	–
CO₂ stretching Carbon dioxide	2379	–	–

Al₂O₃: aluminum oxide; YSZ: yttria-stabilized zirconia; SiO₂: silicon dioxide.

Table 3 refers to peak between 1617 and 1648 cm⁻¹ attributable to vinyl C=C stretching, whereas 1716–1720 peak reflects the presence of carbonyl C=O group. Otsuka and Chujo,³⁷ also identified the vinyl C=C and carbonyl C=O stretching at 1637 cm⁻¹ and 1720 cm⁻¹, respectively. Besides, Abboud et al.³⁸ showed that the peak at 1719 cm⁻¹ in treated Al₂O₃ can be attributed to the presence of γ-MPS on the surface. These findings are also in agreement with Wang et al.³⁹ who observed the carbonyl group stretching at 1716–1728 cm⁻¹, indicating the presence of different carbonyl groups arising from the acrylic acid and the silane coupling agent.

On the other hand, the peaks at 3736, 3737, 3500, 3435, 797, and 778 cm⁻¹ (refer Table 3) can be referred to hydroxyl groups (–OH). This is similar to the findings of Karabela and Sideridou⁴⁰ who identified the peaks for (–OH) group at 3740 cm⁻¹. A group of peaks at 3700–3800 cm⁻¹ is due to hydroxyl group –OH stretches on the surface of the filler. The absorption band at 3500 cm⁻¹ and 3494 cm⁻¹ is the evidence of hydroxyl groups as indicated by the –OH stretching band.^34,38 The broad absorption band at 3440 cm⁻¹ was due to the –OH absorption band, which is caused by physically adsorbed water.^34,41 Kang et al.³⁵ reported that the peak at 3423 cm⁻¹ is ascribed to the –OH vibrations stretching on the SiO₂ surface. Jafariet al.⁴¹ showed that the peaks at 788 cm⁻¹ were related to the network asymmetric (–OH) bond stretching vibration of the SiO₂ surface. The peak at 2379 cm⁻¹ observed at Al₂O₃ is attributed to carbon dioxide (CO₂). According to Guo et al.,³⁴ the peaks around 2376 cm⁻¹ and 2295 cm⁻¹ corresponded to CO₂ absorbed from the atmosphere on Al₂O₃ surface.

From Table 3, the peaks at 1301 cm⁻¹ can be identified with Si–O–C group, whereas, 1173 cm⁻¹ and 1170 cm⁻¹ are attributed to ester band on the YSZ and SiO₂ surfaces, respectively. Turner et al.³³ showed the presence of ester group at 1302 cm⁻¹ on the ZrO₂surface. This indicated that some of the hydroxyl groups that do not react with silanol groups (from silane coupling) were still presents on the outer surface of the SiO₂ particles.⁴² Silane is very effective in promoting adhesion for SiO₂-based materials.²² According to Liu et al.,⁴³ γ-MPS can be adsorbed on the surface of SiO₂ from solvent in three possible forms, (1) through the hydrogen bonding between silanol groups of γ-MPS and SiO₂, (2) through hydrogen bonding of C=O and O–H group from the filler, and (3) forming multilayer in between γ-MPS molecule through hydrogen bonding.

Figure 4 shows the possible mechanism of silane as the coupling agent reaction on different ceramic fillers with addition of NBR particles in PMMA composites. Silane treatment of these fillers helps to introduce chemically active sites on the ceramic fillers surfaces, thus establishing a chemical bridge between the filler and PMMA matrix. The surface modification of fillers leads to improvement in the compatibility and interfacial bonding between the fillers and PMMA matrix. The effectiveness of silane coupling agent improved the bond between filler and PMMA matrix. This permits the modification of mechanical properties of the composite by silane bonding on the surface of oxide powders.³¹ The addition of silane as the coupling agent in HA-reinforced PMMA could improve the mechanical properties by strengthening the chemical bonding and increasing the mechanical interlocking between HA and PMMA.²²

Figure 4.

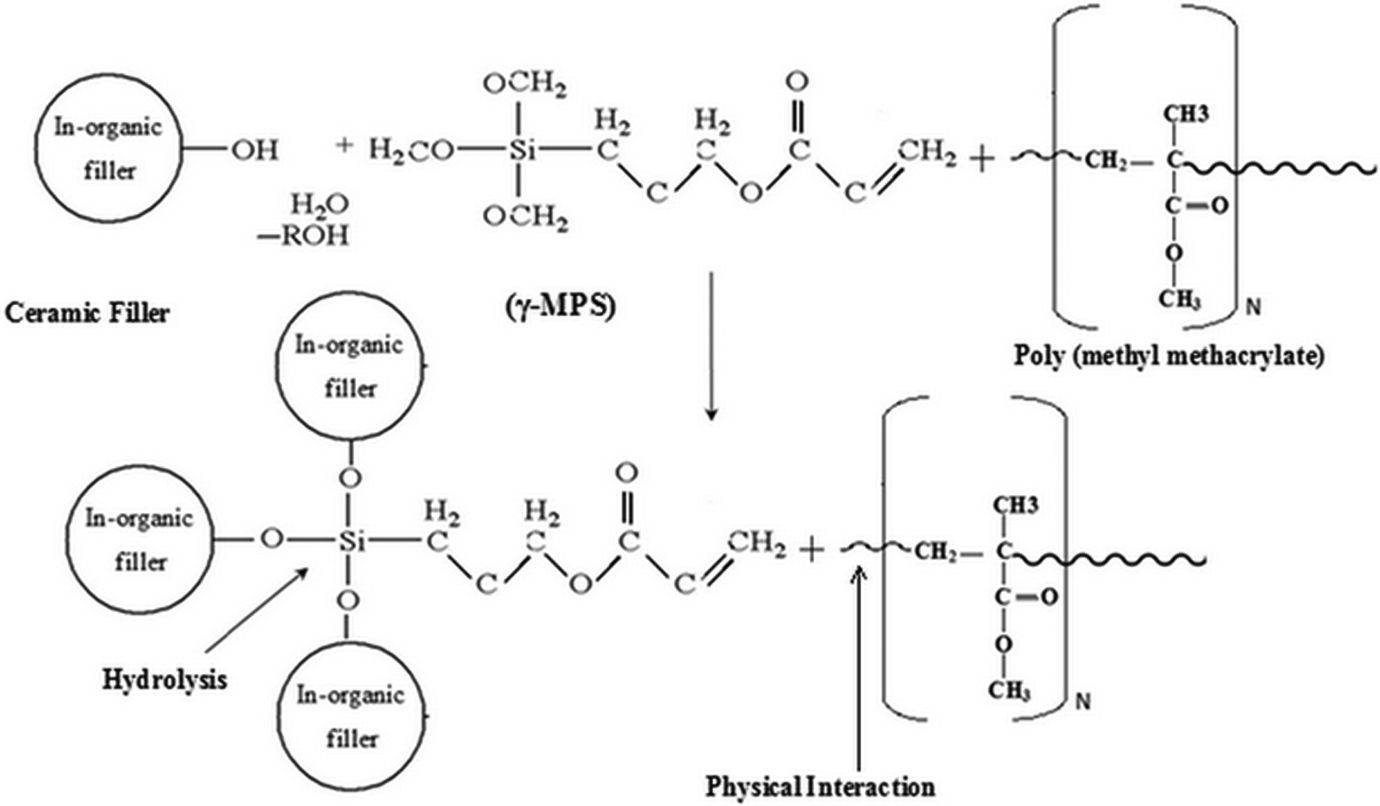

Schematic diagram representing the possible interaction mechanism reaction of silane coupling agent interlinked with inorganic ceramic surface treatment and PMMA matrix. PMMA: poly(methyl methacrylate).

FTIR spectral analysis of nitrile rubber particles

The FTIR spectrum of NBR particles is shown in Figure 5. It has various peaks that are normally present in the nitrile rubber and has good agreement with the spectrum reported.⁴⁴ The most important peak is detected at around 2237.49 cm⁻¹, confirming the presence of C≡N group of nitrile. The band peak at 967.04 cm⁻¹ is attributed to the –C–H stretching vibrations of butadiene double bond, which is typically present in the NBR.⁴⁵ The study by Marković et al.⁴⁶ also confirmed that the FTIR results were having C≡N group of nitrile peak at 2238 cm⁻¹ and the – C–H group of butadiene peak starching at 969 cm⁻¹.

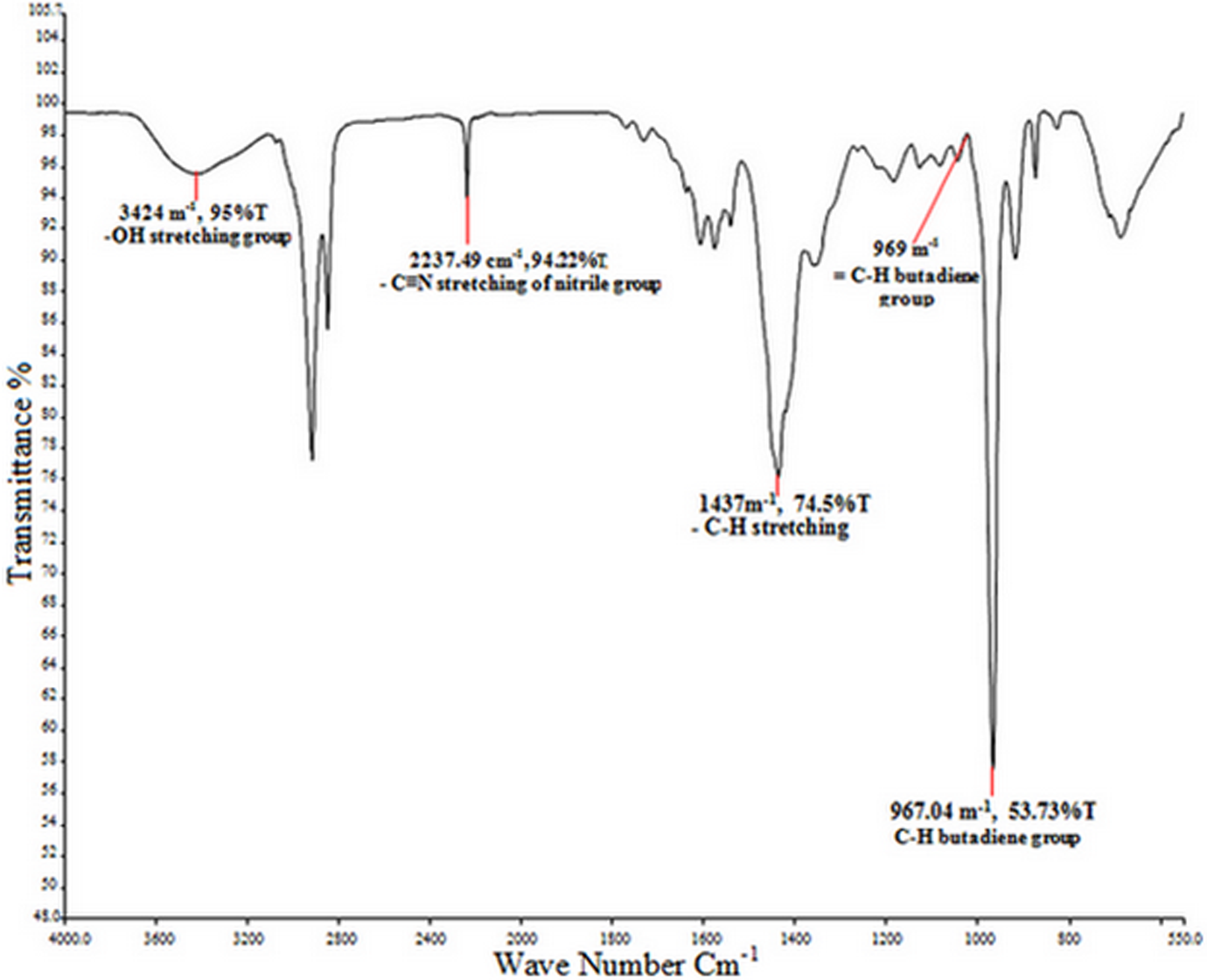

Figure 5.

FTIR spectra shown of NBR gloves particles analyzed. FTIR: Fourier transform infrared; NBR: nitrile-butadiene rubber.

Mechanical properties of PMMA denture base composite

The PMMA matrix has been reinforced with three different treated ceramic fillers, respectively, together with NBR particles. The effects of these reinforcements on their mechanical properties are shown in Figures 6 and 7. The addition of these fillers produced higher IS and K _IC compared to PMMA matrix alone. PMMA matrix without filler has the lowest IS due to its brittle property.⁴⁷ Addition of 10 wt% NBR particles together with Al₂O₃, YSZ, and SiO₂ particles shows superior IS by 56% (8.26 kJ m⁻²), 47% (7.79 kJ m⁻²), and 44% (7.63 kJ m⁻²), respectively, as shown in Table 4. The increase in IS values are statistically significant with p < 0.05. This shows that all the treated ceramic fillers are compatible with NBR particles and can enhance the IS in PMMA denture base.

Figure 6.

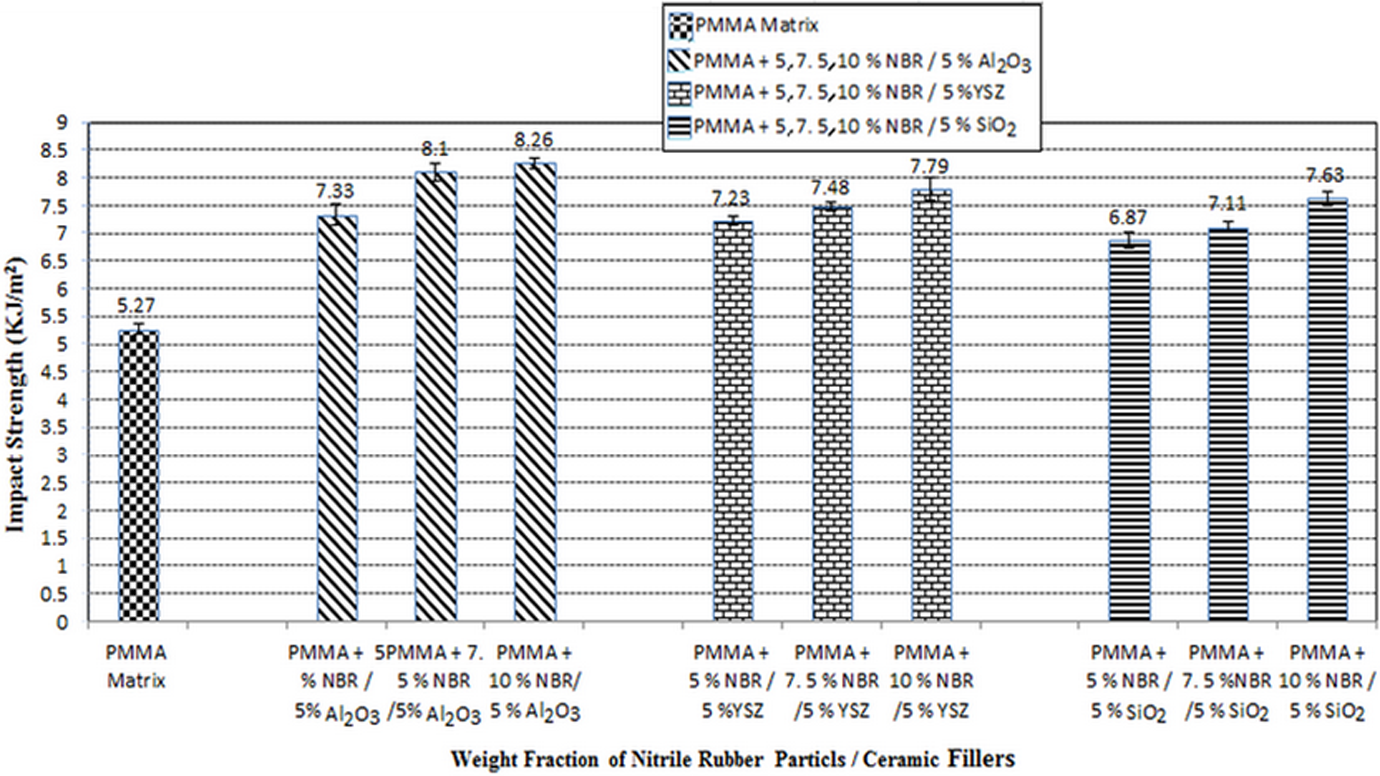

The effect of the NBR together with three different treated ceramic fillers (Al₂O₃, YSZ, and SiO₂) in PMMA composites on the IS (kJ/m²). NBR: nitrile-butadiene rubber; Al₂O₃: aluminum oxide; YSZ: yttria-stabilized zirconia; SiO₂: silicon dioxide; PMMA: poly(methyl methacrylate); IS: impact strength.

Figure 7.

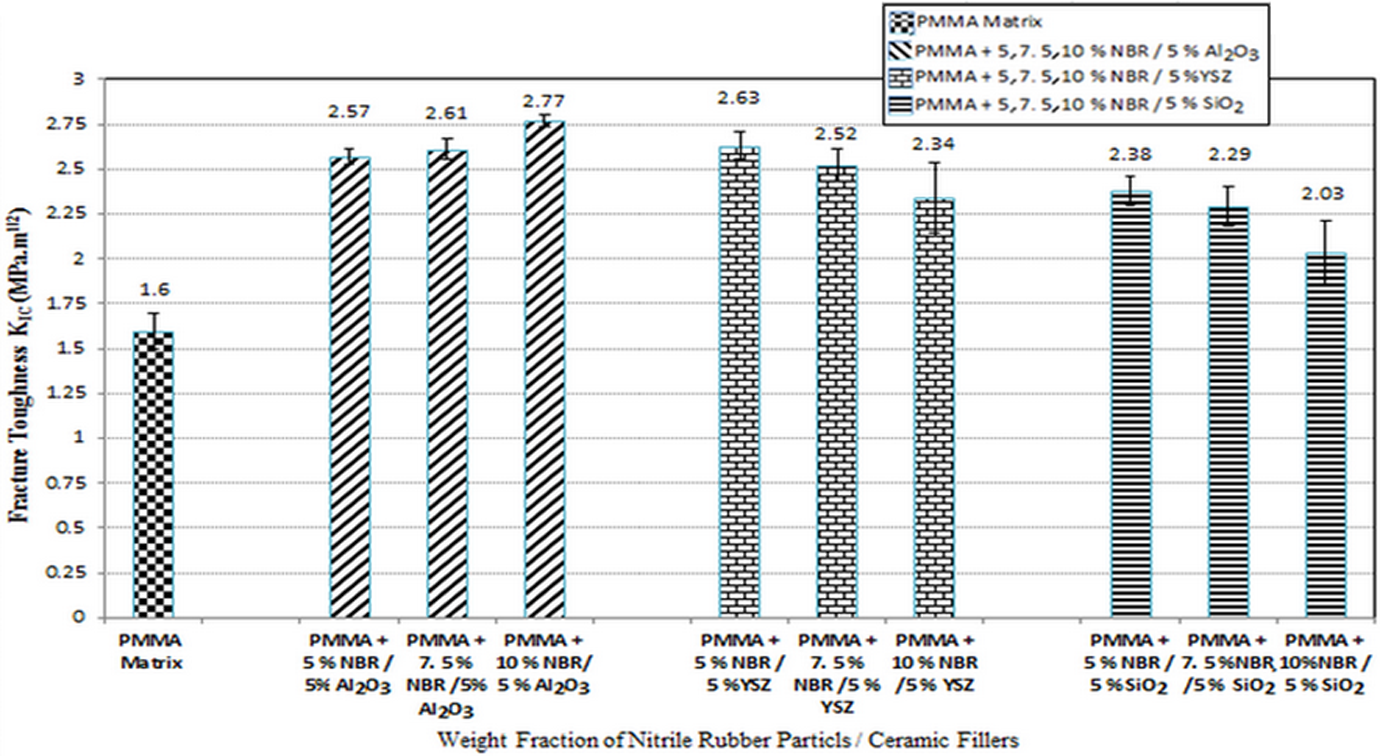

The effect of the NBR together with three different treated ceramic fillers (Al₂O₃, YSZ, and SiO₂) in PMMA composites on the K _IC (MPa m^1/2). NBR: nitrile-butadiene rubber; Al₂O₃: aluminum oxide; YSZ: yttria-stabilized zirconia; SiO₂: silicon dioxide; PMMA: poly(methyl methacrylate); K _IC: fracture toughness.

Table 4.

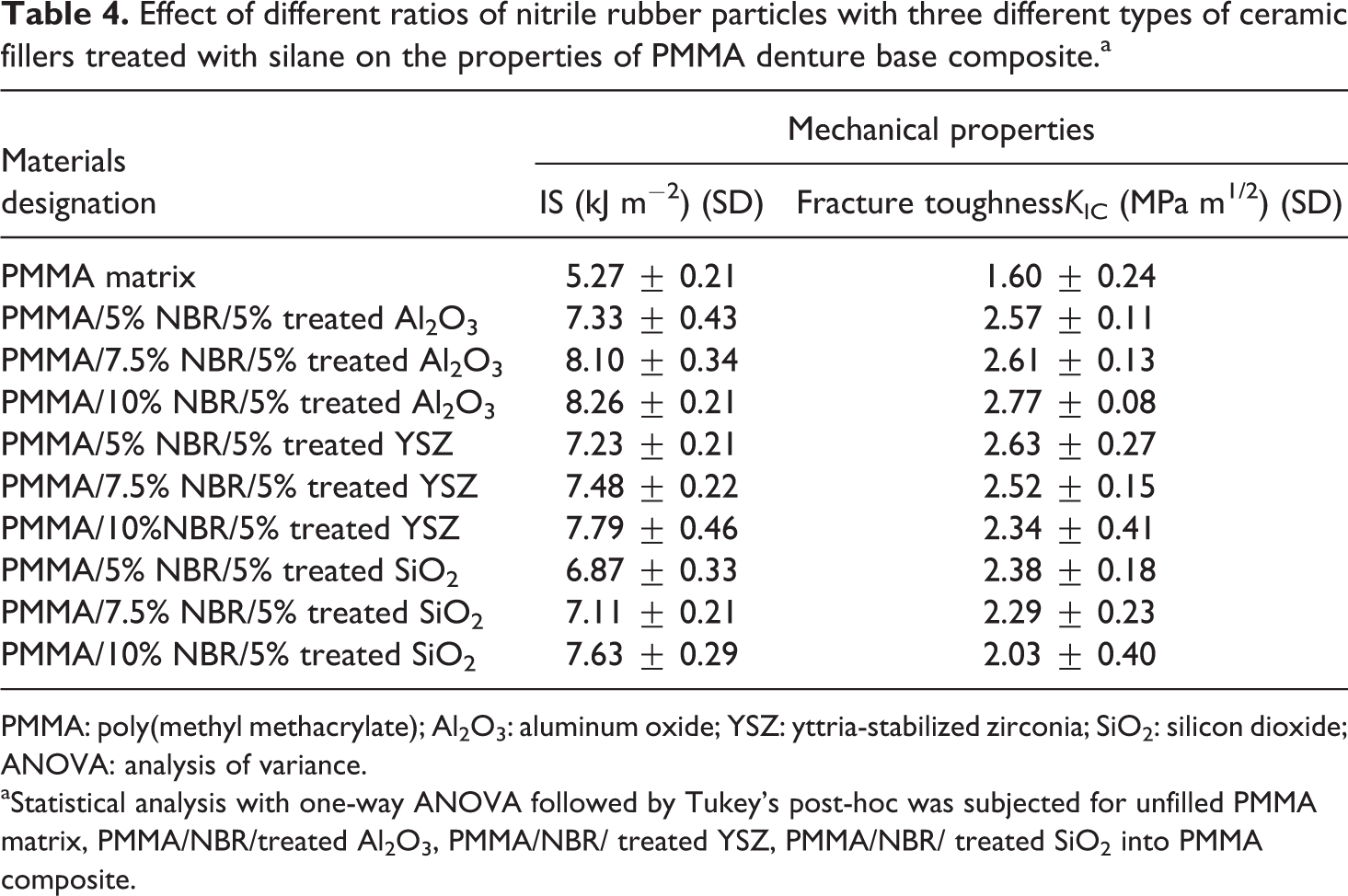

Effect of different ratios of nitrile rubber particles with three different types of ceramic fillers treated with silane on the properties of PMMA denture base composite.^a

Materials designation	Mechanical properties
Materials designation	IS (kJ m⁻ ²) (SD)	Fracture toughnessK _IC (MPa m^1/2) (SD)
PMMA matrix	5.27 ± 0.21	1.60 ± 0.24
PMMA/5% NBR/5% treated Al₂O₃	7.33 ± 0.43	2.57 ± 0.11
PMMA/7.5% NBR/5% treated Al₂O₃	8.10 ± 0.34	2.61 ± 0.13
PMMA/10% NBR/5% treated Al₂O₃	8.26 ± 0.21	2.77 ± 0.08
PMMA/5% NBR/5% treated YSZ	7.23 ± 0.21	2.63 ± 0.27
PMMA/7.5% NBR/5% treated YSZ	7.48 ± 0.22	2.52 ± 0.15
PMMA/10%NBR/5% treated YSZ	7.79 ± 0.46	2.34 ± 0.41
PMMA/5% NBR/5% treated SiO₂	6.87 ± 0.33	2.38 ± 0.18
PMMA/7.5% NBR/5% treated SiO₂	7.11 ± 0.21	2.29 ± 0.23
PMMA/10% NBR/5% treated SiO₂	7.63 ± 0.29	2.03 ± 0.40

PMMA: poly(methyl methacrylate); Al₂O₃: aluminum oxide; YSZ: yttria-stabilized zirconia; SiO₂: silicon dioxide; ANOVA: analysis of variance.

^aStatistical analysis with one-way ANOVA followed by Tukey’s post-hoc was subjected for unfilled PMMA matrix, PMMA/NBR/treated Al₂O₃, PMMA/NBR/ treated YSZ, PMMA/NBR/ treated SiO₂ into PMMA composite.

The improvement in the IS attributes to the impact resistance and excellent energy absorption capability by NBR along with the ceramic particles can help resist the occurrence of fracture to in PMMA denture base. These results are in agreement with the finding reported by Safarabadi et al.⁴⁸ who reported that IS of PMMA matrix increased significantly when reinforced by addition of 6 wt% Al₂O₃ particles. This could be attributed to the high interfacial shear strength that develops between the filler and matrix via the formation of cross-links or supra molecular bonding. This covers or shields the particles filler, which in turn prevents propagation of cracks. The crack propagation can be changed by good bonding between filler and resin matrix.^13,23 Several studies have also postulated that the strength of PMMA depends on the proportion of the cross-linking agent such as ethylene glycol dimethacrylate bead polymer added into the acrylic resin.⁴⁹ The addition of rubber on PMMA denture base produces better IS and facilitates dispersion of the cracks.⁵⁰ Furthermore, incorporation of PMMA reinforced by ceramic particles enhances the mechanical properties.^11,14 This result is in agreement with the finding of Ihab and Moudhaffa,²³ who reported that the addition of 2–5 wt% ZrO₂ significantly improved IS performance when compared to PMMA reinforced with 7 wt% ZrO₂ due to better distribution of ZrO₂ particles in the PMMA matrix. Similar observation was also reported.⁴⁸ The IS of PMMA denture base material was modified by butadiene rubber and was doubled in value due to dispersion of rubber particles in the polymer. The addition of rubber particles transformed the characteristic of PMMA denture base material from brittle to ductile material with increase in rubber.^1,8 Another report by Liu et al.⁴³ found that incorporated PMMA matrix by treated silica filler by silane (γ-MPS) significantly affect the mechanical properties. This is due to the presence of silane on the filler surface in the composite and to reduction in debonding at the reinforced filler and matrix interface.

Figure 7 shows that the K _IC of unreinforced PMMA matrix was reduced due to its brittle fracture. It can also be seen that the K _IC of the reinforced PMMA matrix by three different ratios of NBR particles together with three different treated ceramic fillers (5/5, 7.5/5, and 10/5 by wt%), respectively, were significantly higher when compared to unreinforced PMMA matrix. Addition of 10 wt% NBR together with Al₂O₃, YSZ, and SiO₂ particles increased the K _IC by 73% (2.77 MPa m^1/2), 64% (2.63 MPa m^1/2), and 48.7% (2.38 MPa m^1/2), respectively, in comparison to PMMA without filler as shown in Table 4. They are statistically significant at p < 0.05. This increase in K _IC for PMMA composites reinforced by Al₂O₃ and YSZ are due to their strong ionic bonding interaction and stiffness.^13,48 Ayad et al.¹⁴ also found that the PMMA added with ZrO₂ denture base increased its transverse strength by 29%. This increase was associated to the transformation toughening that especially associated with ZrO₂. When sufficient stress develops and a crack is being propagated, a transformation of ZrO₂ from the metastable tetragonal crystal phase to stable monoclinic phase occurs, which depletes the energy of crack propagation. The metastable ZrO₂ generated compressive stress, which is responsible for the arrest of crack propagation. Contribution from both mechanisms successfully improved the fracture resistance of denture base composites, especially under the applied mastication load.

The distribution pattern of filler (Al₂O₃, YSZ, and SiO₂) in the PMMA matrix also plays an important role in the enhancement of K _IC and reduction of the stress intensity at the crack region as shown Figure 8(b) to (k). Homogenous filler distribution will effectively stop or deflect the cracks. The same argument has been given.⁴⁸

Figure 8.

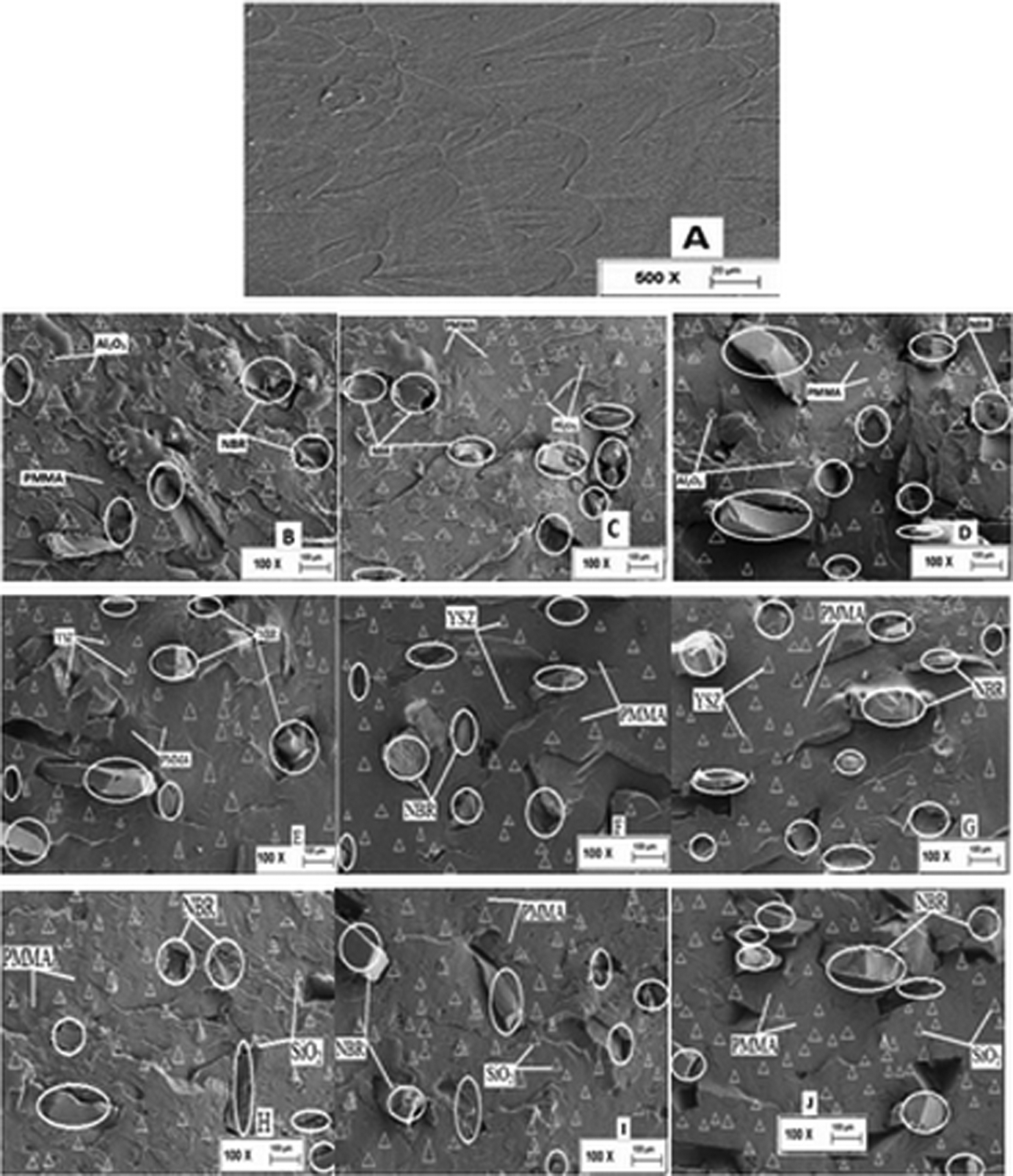

Composite particles NBR (○) and ceramic fillers (Al₂O₃, YSZ, and SiO₂ (Δ). The filler was distributed better in the PMMA matrix composite. SEM micrographs of the fracture surface in the unreinforced and reinforced PMMA matrix, PMMA matrix (a), 5% NBR-5% Al₂O₃ (b), 7.5% NBR- 5% Al₂O₃ (c), 10% NBR-5% Al₂O₃ (d), 5% NBR-5% YSZ (e), 7.5% NBR-5% YSZ (f), 10% NBR-5% YSZ (g); and 5% NBR-5% SiO₂ (h), 7.5% NBR-5% SiO₂ (i), and 10% NBR-5% SiO₂ (j). NBR: nitrile-butadiene rubber; Al₂O₃: aluminum oxide; YSZ: yttria-stabilized zirconia; SiO₂: silicon dioxide; PMMA: poly(methyl methacrylate); SEM: scanning electron microscopy.

The role of NBR to improve K _IC can be explained similar to other works.^7,51 They stated that there are two different approaches to improve the strength of PMMA; firstly, by varying the proportion a cross-linking agent such as ethylene glycol dimethacrylate bead polymer into the acrylic resin, and secondly, by reinforcing the denture base polymer with rubber phase. The rubber-reinforced PMMA was also increased in the fracture resistance.⁴⁹

FESEM of fracture surface morphology

Figure 8 shows the FESEM micrographs of the fracture surface of unreinforced PMMA matrix and reinforced PMMA prepared using different ratios of NBR particles and treated ceramic fillers. The figure shows that addition of fillers results in the formation of microcracks in the microstructure. The trend is that the higher filler provides more cracks and this reflected in their K _IC values as shown in Figure 7. The unreinforced PMMA matrix depicted in Figure 8(a) represents the fracture surface morphology of PMMA matrix appears smooth, rapid crack structure with characteristics of brittle fracture behavior. Subsequently, the fracture morphology appeared smoother, indicating indiscriminate crack propagation through the PMMA matrix.¹⁶ Brittle behavior is characterized by smooth areas, and indicating weak resistance to crack propagation.³⁴ The K _IC is a measure of the energy required to initiate and propagate a crack in a material.⁵⁰ For that reason, the unreinforced PMMA is brittle and has lower impact resistance.⁴⁷ The ability of PMMA denture base to withstand the presence of notches and crack propagation is an important factor affecting denture base performance.

The fracture surfaces of the reinforced PMMA denture base by different ratios of NBR from 5 wt% to 10 wt% with 5 wt% of treated ceramic fillers (Al₂O₃, YSZ, and SiO₂, respectively) are depicted in Figure 8(b) to (k). For the combination between Al₂O₃ with NBR particles (Figure 8(b) to (d)), the particles are very well distributed in the matrix and the surface displays more crack and are rough. This is similar to the observation.^51,52 They examined the development of crack accelerations in the PMMA; the fracture resistance increased with the dispersion of the rubber particles in the PMMA matrix. The NBR particles are not seen detached and pulled out of the PMMA matrix. This fact leads to an increase of the absorbed energy and explains the rise of the K _IC parameter. A developing crack will propagate through the PMMA but will decelerate at the rubber interface, causing dispersion of the cracks. This observation is similar to work done by Chao and Jia¹⁹ who reported increase in the amount of fibers contributes to the ductility of the dental material and distribute disorderly in the composite, providing multidirectional reinforcement. This is because when a force is exerted on the composite, the load force is conveyed via the dental material to the fiber, providing the dental composite a greater load force and prevents it from cracking.

Micrographs of PMMA matrix filled with NBR and YSZ fillers shows homogeneous distribution of fillers as seen in Figure 8(e) to (g). The morphology was rough with small cracks on the surface. The homogenous filler dispersion enhanced the ability of the composite to distribute the stresses uniformly. Therefore, this led to higher resistance of fracture force and absorbs greater amounts of energy at a higher strain rate before fracture.⁵³ The ability to resist crack propagation can be augmented by the addition of reinforcing filler.¹⁸ The treated YSZ filler improves the interfacial interactions between filler and PMMA matrix and improves the mechanical properties. Similar observations were made.²¹

For treated SiO₂ particles with NBR particles, the cracks size is slightly bigger on the surface compared to other fillers as shown in Figure 8(h) to (j). This is due to incompatibility between SiO₂ filler and NBR particles as shown by the surface contact between SiO₂ and matrix. However, the stress at which such a ductile fracture mechanism takes place is reduced when the rubber particles increased. As the amount of NBR is increased (from 5 wt% to 10 wt%) the K _IC is reduced. This is because the fracture surface contains smaller cracks that can absorb less energy.⁴⁹ The rubber particles acted as an impact modifier, absorbing the energy during the application of fracture load.⁵⁴ Dispersion of rubber-based composite particles within the PMMA matrix allows the tension generated by impact to propagate through the material and improve the rubber/PMMA interface. This result showed that the concentration of added rubber was directly proportional to the resistance to fracture. The addition of rubber to PMMA increases the ability to absorb energy and overcomes the possibility of fracture property, which in turn prevents mechanical failure of the prosthetic.⁵⁵

Figure 9(a) to (c) shows the FESEM micrographs and EDS analysis of PMMA composite with NBR particles and ceramic fillers (Al₂O₃, YSZ, and SiO₂) as the reinforcement particles. The ceramic fillers were treated with silane coupling agent (γ-MPS). EDS analysis detected the presence of silicon element at the interphase of each ceramic filler in the NBR/PMMA composite. This observation has confirmed the presence of silane as the coupling agent on the ceramic fillers in PMMA composites. The properties of the polymer composites provide adhesion between the polymer and filler particles.⁵⁶

Figure 9.

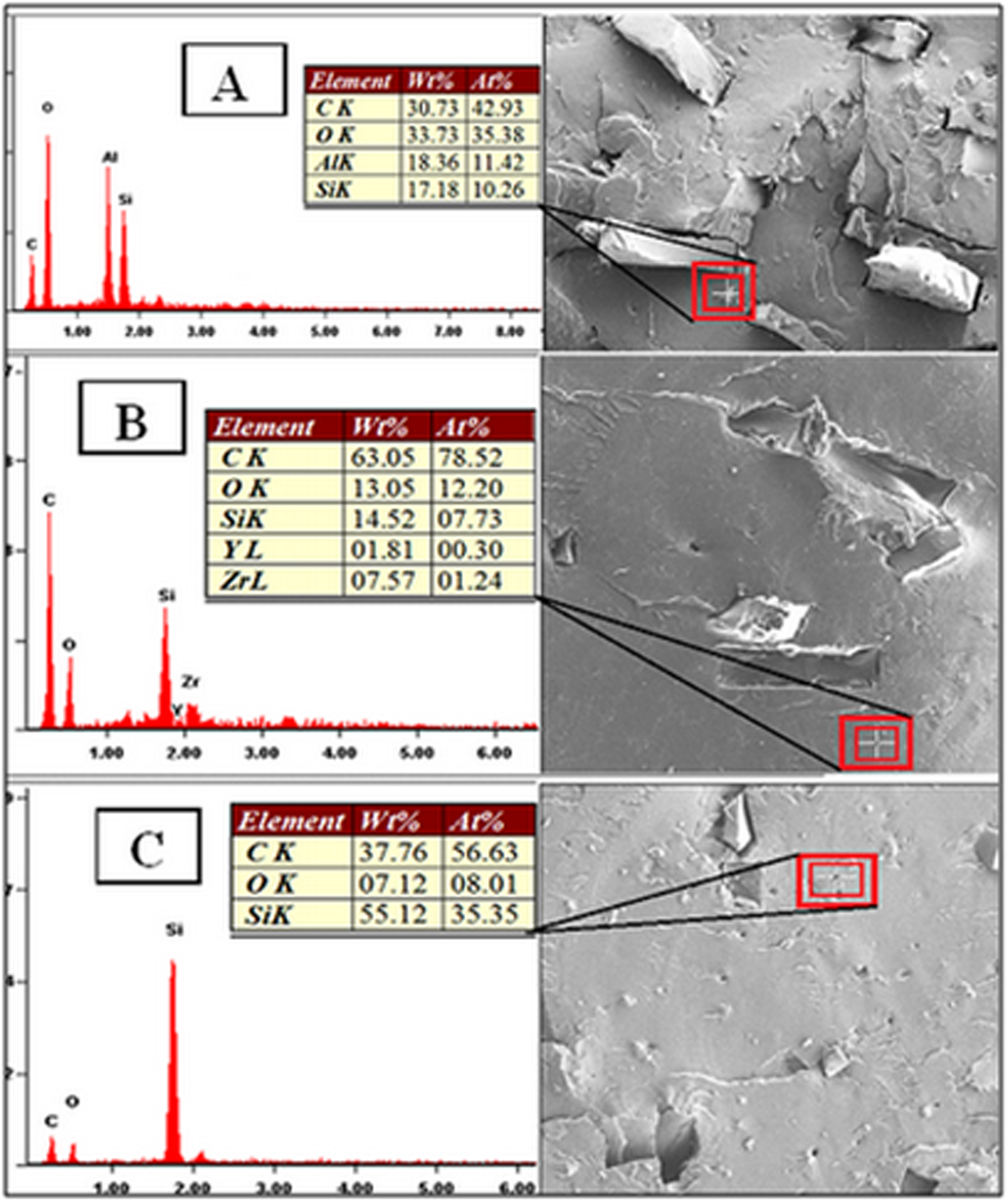

(Confirmation of silane treatment by EDX: (a) Al₂O₃ particles, (b) YSZ particles, and (c) SiO₂ particles in the NBR/PMMA composite. EDX: energy-dispersive X-ray spectroscopy; Al₂O₃: aluminum oxide; YSZ: yttria-stabilized zirconia; SiO₂: silicon dioxide.

Conclusion

In this work, the effect of nitrile rubber (NBR) particles as impact modifier together with three different ceramic fillers (Al₂O₃, YSZ, and SiO₂) in PMMA matrix was investigated for its mechanical properties. Both the IS and the K _IC of PMMA matrix reinforced by NBR particles as impact modifier together with ceramic fillers have improved the mechanical properties. The reinforced PMMA matrix obtained with 10 wt% of NBR particles and 5 wt% Al₂O₃ resulted in the best values of IS (26 kJ/m²) and K _IC (2.77 MPa m^1/2) when compared to all other combinations. These composite properties are well suited for prosthodontics applications and are able to resist high mastication forces.
