Canadian Association of Radiologists Gastrointestinal Imaging Referral Guideline

Abstract

The Canadian Association of Radiologists (CAR) Gastrointestinal Expert Panel consists of radiologists, a gastroenterologist, a general surgeon, a family physician, a patient advisor, and an epidemiologist/guideline methodologist. After developing a list of 20 clinical/diagnostic scenarios, a systematic rapid scoping review was undertaken to identify systematically produced referral guidelines that provide recommendations for one or more of these clinical/diagnostic scenarios. Recommendations from 58 guidelines and contextualization criteria in the Grading of Recommendations, Assessment, Development, and Evaluations (GRADE) for guidelines framework were used to develop 85 recommendation statements specific to the adult population across the 20 scenarios. This guideline presents the methods of development and the referral recommendations for dysphagia/dyspepsia, acute nonlocalized abdominal pain, chronic abdominal pain, inflammatory bowel disease, acute gastrointestinal bleeding, chronic gastrointestinal bleeding/anemia, abnormal liver biopsy, pancreatitis, anorectal diseases, diarrhea, fecal incontinence, and foreign body ingestion.

Introduction

Beginning in March 2022, an Expert Panel (EP) comprised of radiologists, a gastroenterologist, a general surgeon, a family physician, a patient advisor, and an epidemiologist/guideline methodologist met to develop a new set of recommendations specific to referral pathways for adults for conditions related to the gastrointestinal (GI) system. Through discussion (via a virtual meeting) followed by offline communication, the EP developed a list of 20 clinical/diagnostic scenarios to be covered by this guideline. These recommendations are intended primarily for referring clinicians (eg, family physicians, specialty physicians, nurse practitioners); however, they may also be used by radiologists, individuals/patients, and patient representatives.

Our methods describing the guideline development process, including the rapid scoping review to identify the evidence base, has been published in CMAJ Open ¹ and an editorial to this series of guideline publications is available in CARJ. ² The application of well-established scoping review and rapid review guidance (JBI, ³ Cochrane Handbook, ⁴ Cochrane Rapid Review Methods Group ⁵ ) and guideline methodology (ie, Grading of Recommendations Assessment, Development, and Evaluation or GRADE^6,7) were used to identify the evidence-base and to guide the Expert Panel in determining the strength and direction of the recommendations for each clinical scenario (Table 1). The quality of conduct and reporting of the included guidelines identified in the scoping review were evaluated with the AGREE-II checklist, ⁸ using a modified scoring system. In instances where guidelines were lacking, expert consensus was used to develop the recommendation. Contextualization to the Canadian health care system was considered for each recommendation, with discussion around the factors found in the Evidence to Decision framework in GRADE for guidelines (eg, balance of desirable and undesirable outcomes, values and preferences, resources implications). ⁷

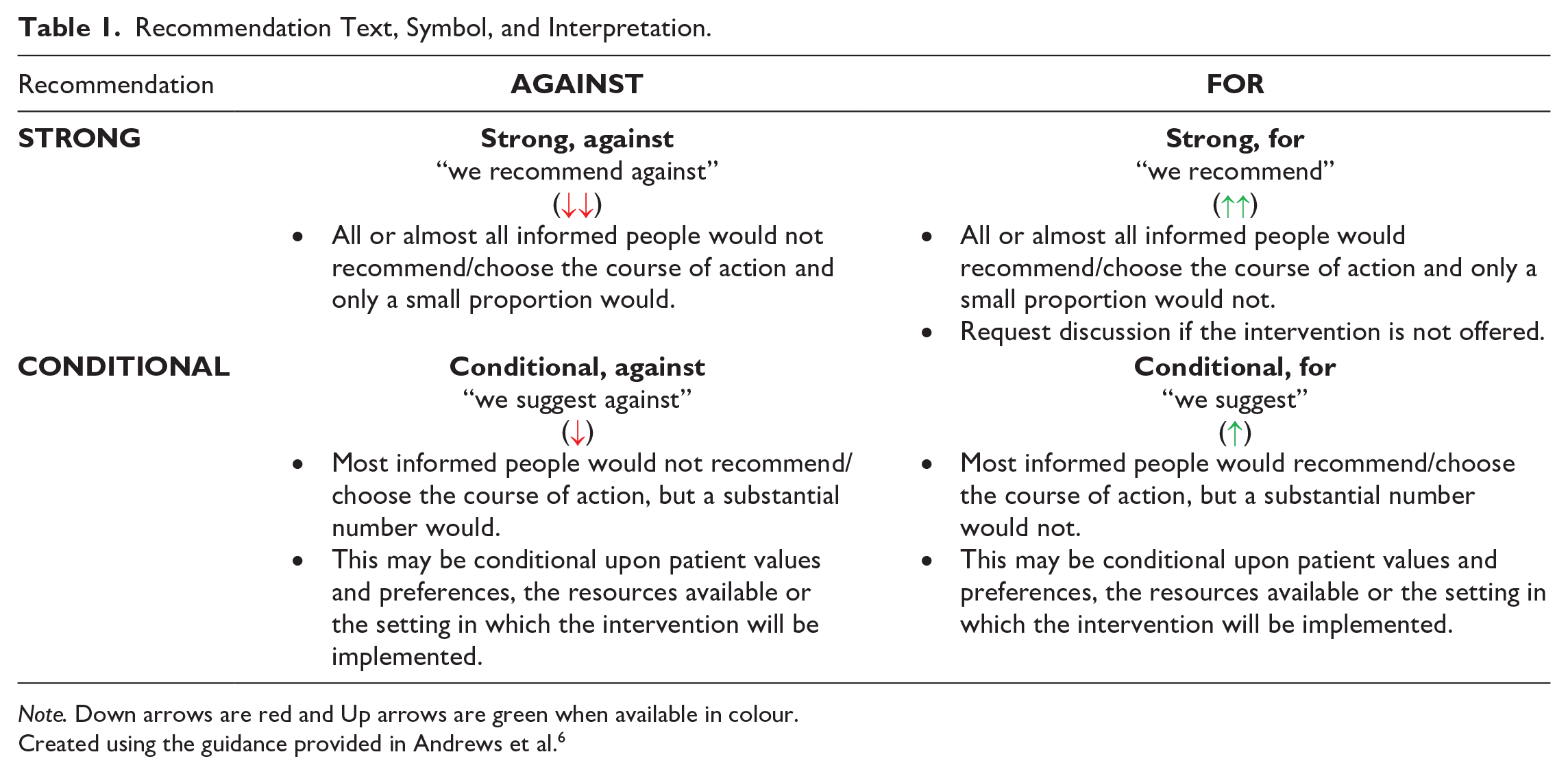

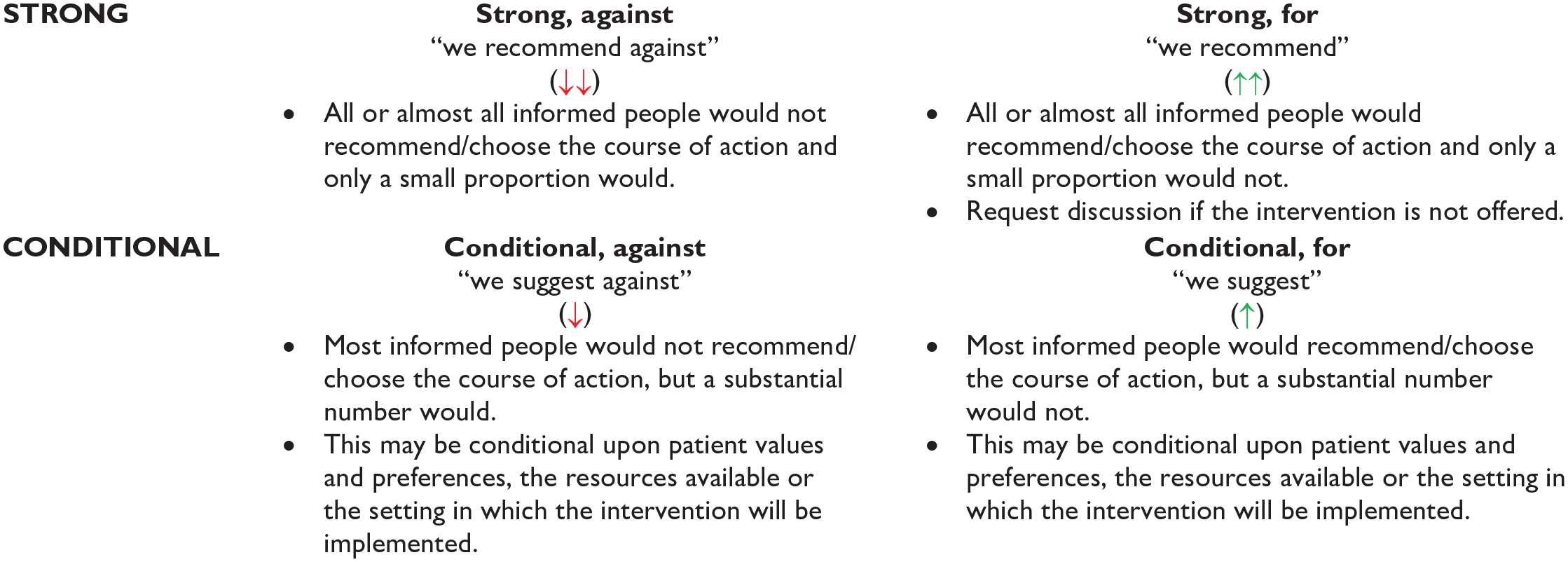

Table 1.

Recommendation Text, Symbol, and Interpretation.

Recommendation	Against	For

Note. Down arrows are red and Up arrows are green when available in colour.

Created using the guidance provided in Andrews et al. ⁶

A systematic search for guidelines (with an a priori defined inclusion criteria) was run in Medline and Embase on April 28, 2022. The search was limited to publications from 2016 onward (Supplemental Appendix 1). Supplemental searching included the following national radiology and/or guideline groups: the American College of Radiology, the National Institute for Health and Care Excellence, and the Royal College of Radiologists 8th Edition (2017). Recommendations for each clinical scenario were formulated over a 1-day hybrid in-person/virtual meeting on December 8, 2022. External review and feedback were obtained from radiologists, a nuclear medicine radiologist, emergency physicians, a surgeon, a family medicine physician, and a nurse practitioner. The full guideline can be found on the CAR website (www.car.ca).

Results

Systematic Scoping Review

A total of 5614 records were identified through the electronic database and 4 additional records were added from the supplemental search. Thirty guidelines, plus 2 companion papers, were included (Figure 1). Potentially relevant guidelines published in languages other than English can be found in Supplemental Appendix 2. A list of excluded records including justifications for exclusion is available upon request. Most guidelines were rated as moderate or high quality, using the modified AGREE-II checklist ⁸ (Supplemental Appendix 3). The number of guidelines included per clinical/diagnostic scenario ranged from 1 to 9, with a median of 4 guidelines per clinical scenario.

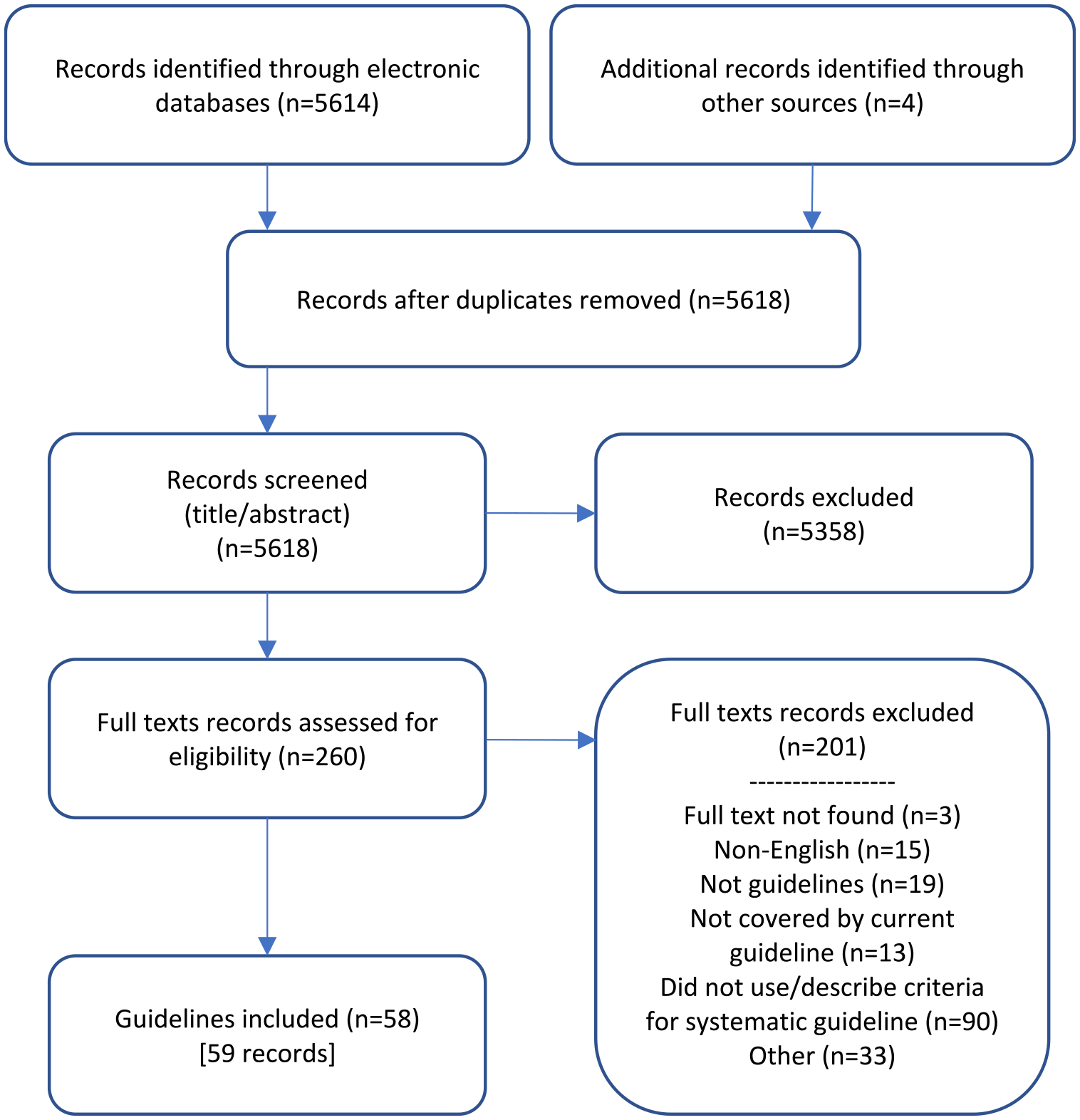

Figure 1.

PRISMA flow diagram.

Recommendations

Additional details of the included guidelines, including which imaging modalities (eg, computed tomography [CT], computed tomography angiography [CTA], magnetic resonance cholangiopancreatography [MRCP], magnetic resonance imaging [MRI], nuclear medicine [NM], radiograph [XR], ultrasound [US]) that were discussed can be found in Supplemental Appendix 4.

A guideline is intended to guide and not be an absolute rule. Medical care is complex and should be based on evidence, a clinician’s expert judgment, the patient’s circumstances, values, preferences, and resource availability. Not all imaging modalities are available in all clinical environments, particularly in rural or remote areas of Canada. Decisions about patient transfer, use of alternative imaging or serial clinical examination and observation can be difficult. Therefore, the expected benefits of recommended imaging, risks of travel, patient preference, and other factors must be considered. The guideline recommendations are to assist the choice of imaging modality in situations where it is deemed clinically necessary to obtain imaging.

Unless the panel agreed a specific protocol is required to optimize patient care/diagnosis, the recommendations do not specify when contrast should or should not be used, as this may vary based on clinical presentation, regional practice preferences, preference of the referring clinician, radiologist and the patient, and resource availability.

We reviewed relevant recommendations related to the 20 clinical/diagnostic scenarios previously published by radiology and specialty societies, including: the Canadian Association of Radiologists, ⁹ the American College of Gastroenterology, ¹⁰ the American College of Gastroenterology, ¹¹ the American College of Gastroenterology and the Canadian Association of Gastroenterology, ¹² the American College of Physicians, ¹³ the American College of Radiology,^14-28 the American Society for Gastrointestinal Endoscopy,^29,30 the Asociación Mexicana de Gastroenterología, ³¹ the Association of Coloproctology of Great Britain and Ireland, ³² the British Society of Gastroenterology,^33,34 the British Society of Gastroenterology and the United Kingdom Primary Sclerosing Cholangitis, ³⁵ the Canadian Association of Gastroenterology, ³⁶ the European Association for Endoscopic Surgery, ³⁷ the European Association for Endoscopic Surgery and the Society of American Gastrointestinal and Endoscopic Surgeons, ³⁸ the European Association for the Study of the Liver, ³⁹ the European Society of Coloproctology, ⁴⁰ the European Society of Gastrointestinal Endoscopy,^41,42 the European Society of Gastrointestinal Endoscopy and the European Association for the Study of the Liver, ⁴³ the European Society for Trauma and Emergency Surgery, ⁴⁴ the German Guideline, ⁴⁵ the German Society for Digestive and Metabolic Diseases (DGVS), ⁴⁶ the Infectious Diseases Society of America, ⁴⁷ the International Consensus on Diverticulosis and Diverticular Disease, ⁴⁸ the International Society for Esophageal Diseases, ⁴⁹ the Italian Association of Hospital Gastroenterologists and Endoscopists and the Italian Society of Paediatric Gastroenterology Hepatology and Nutrition, ⁵⁰ the Italian Polispecialistic Society of Young Surgeons (SPIGC), ⁵¹ the Japan Gastroenterological Association, ⁵² the Japanese Society of Gastroenterology,^53,54 the Joint European Guideline, ⁵⁵ the Korean Society of Neurogastroenterology and Motility and Asian Neurogastroenterology and Motility Association, ⁵⁶ the National Institute for Health and Clinical Excellence, ⁵⁷ the Polish Society of Gastroenterology and the Polish National Consultant in Gastroenterology, ⁵⁸ the Royal College of Radiologists, ⁵⁹ the Society of American Gastrointestinal and Endoscopic Surgeons, the Société français de chirurgie digestive and the Société d’imagerie abdominale et digestive, ⁶⁰ the Society for Vascular Surgery, ⁶¹ the Taiwanese Guideline, ⁶² the United European Gastroenterology,^63,64 the United European Gastroenterology and the European Society of Neurogastroenterology and Motility, ⁶⁵ and the World Society of Emergency Surgery.^66,67

Recommendations are presented in 3 tables: Dysphagia/dyspepsia, acute nonlocalized and acute localized abdominal pain recommendations (Table 2), Chronic abdominal pain, inflammatory bowel disease, acute GI bleeding, chronic GI bleeding, abnormal liver biopsy recommendations (Table 3), and Pancreatitis, anorectal disease, diarrhea, fecal incontinence, and foreign body ingestion recommendations (Table 4).

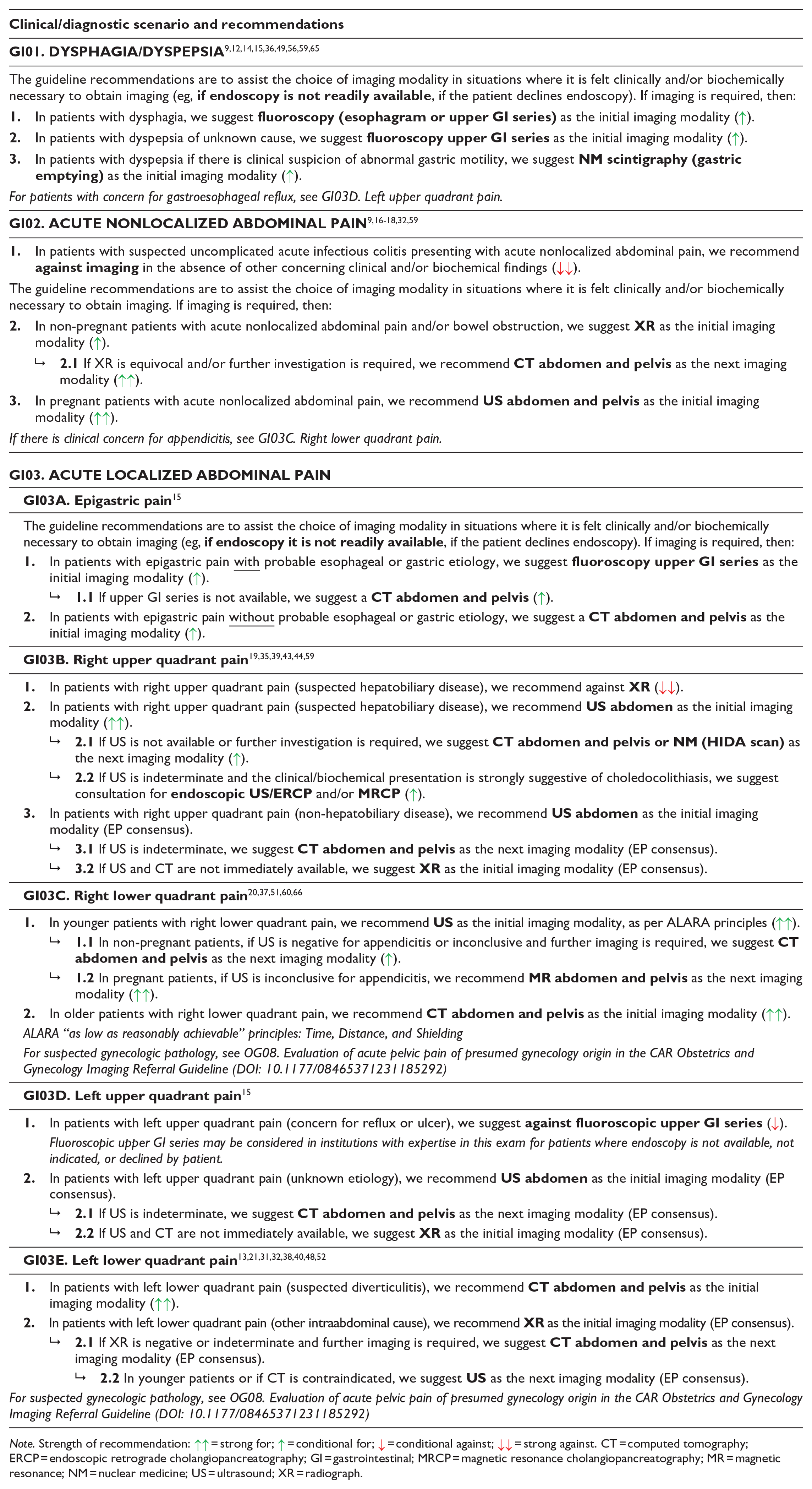

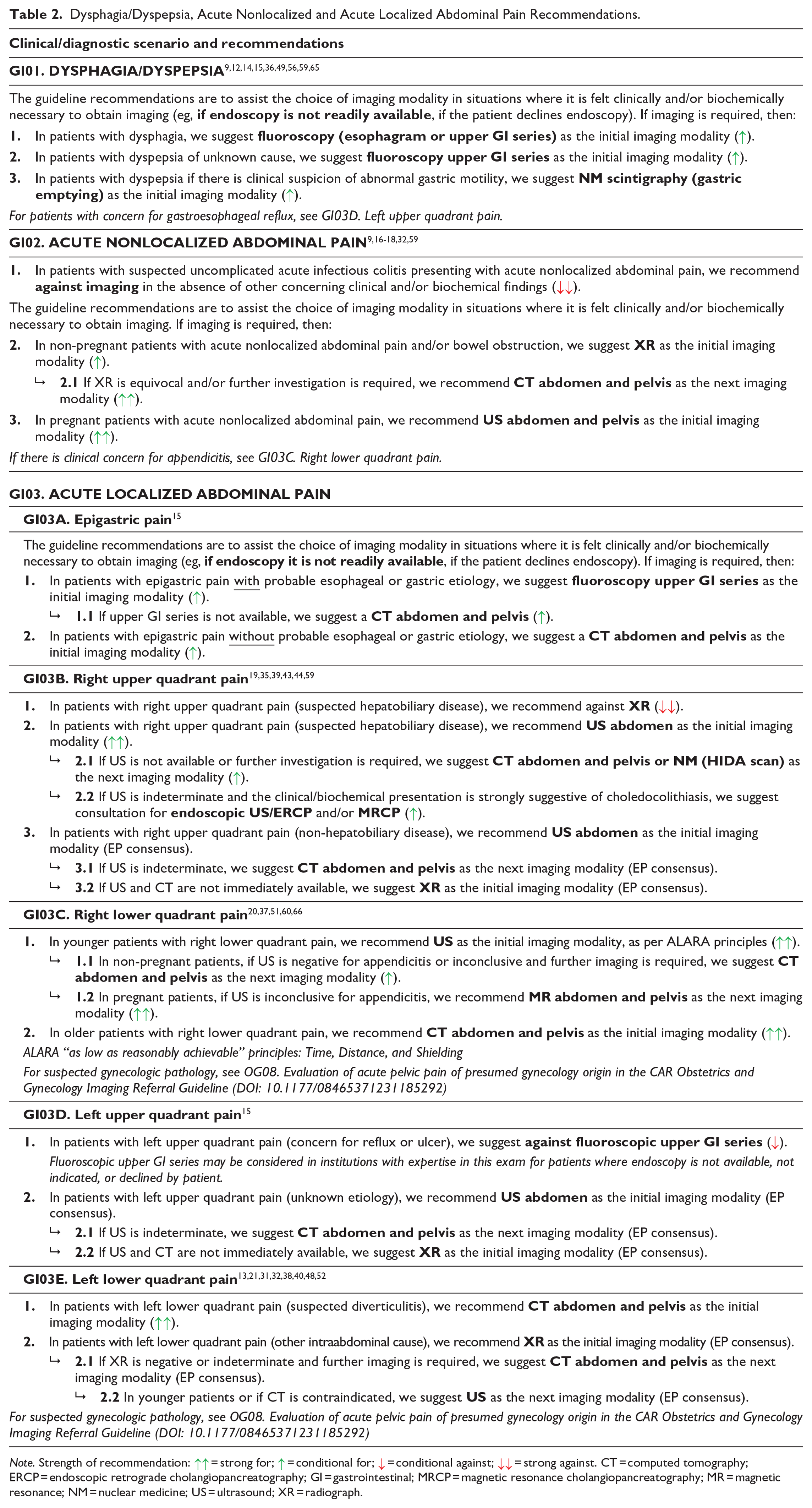

Table 2.

Dysphagia/Dyspepsia, Acute Nonlocalized and Acute Localized Abdominal Pain Recommendations.

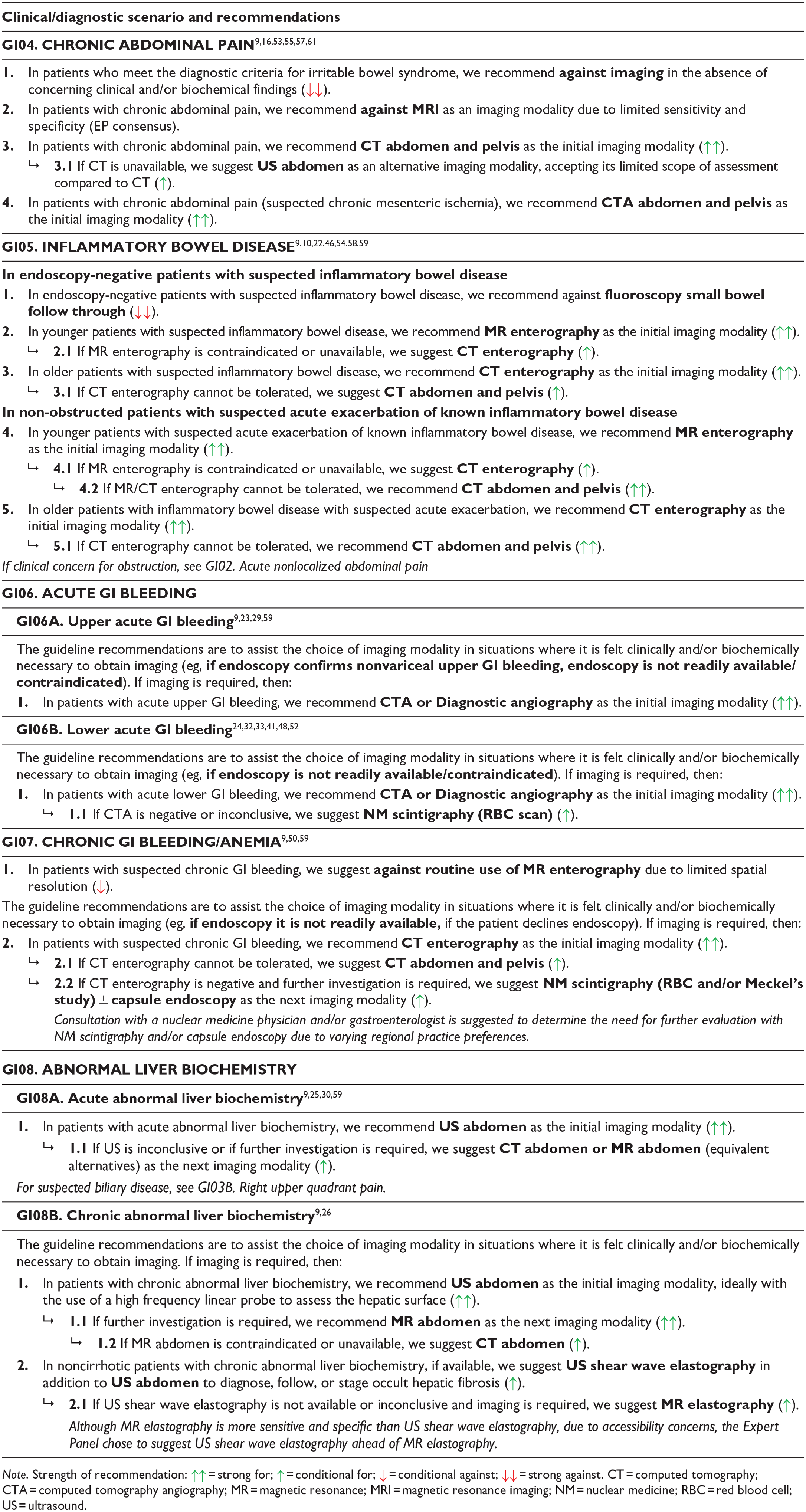

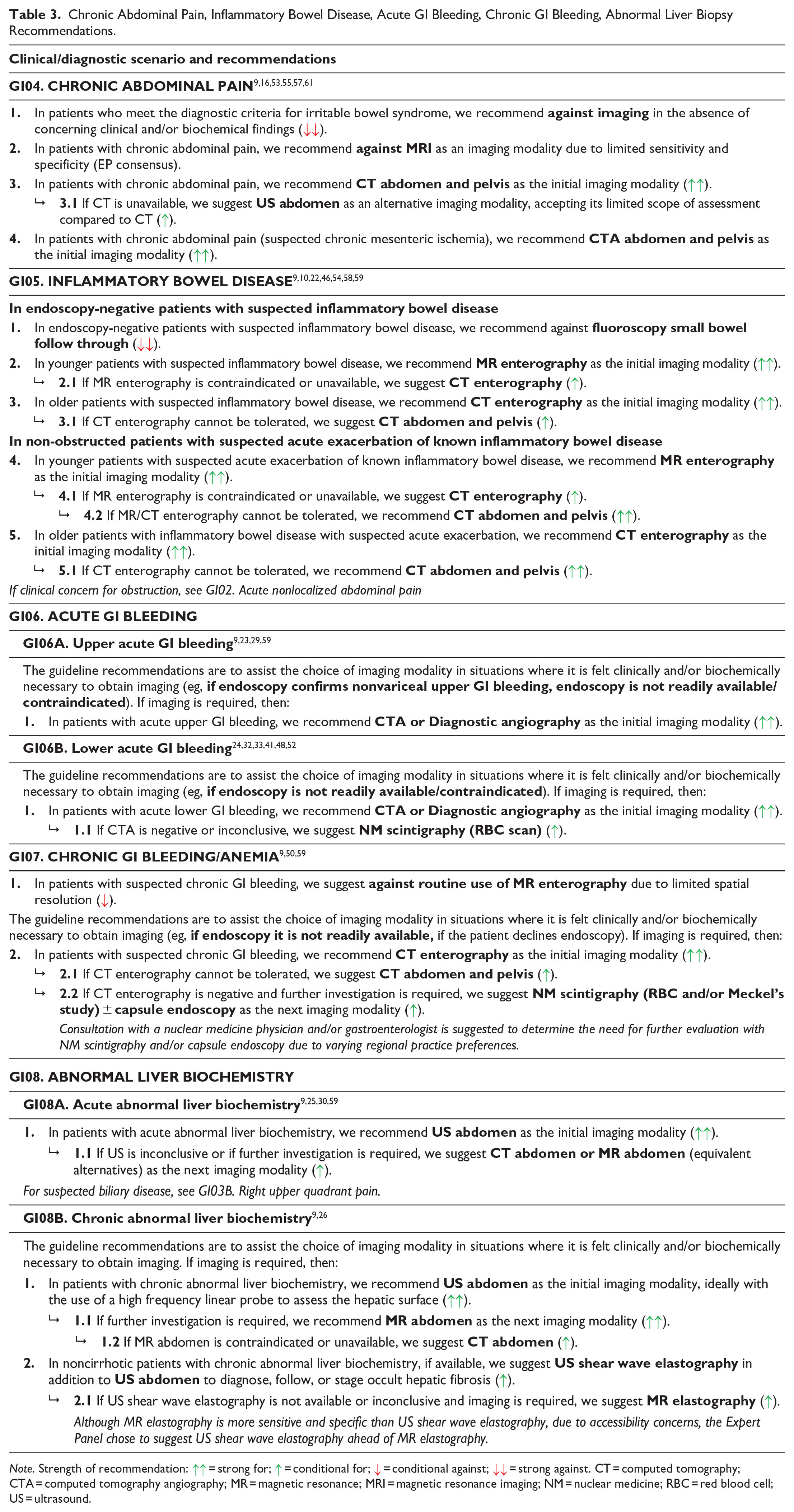

Table 3.

Chronic Abdominal Pain, Inflammatory Bowel Disease, Acute GI Bleeding, Chronic GI Bleeding, Abnormal Liver Biopsy Recommendations.

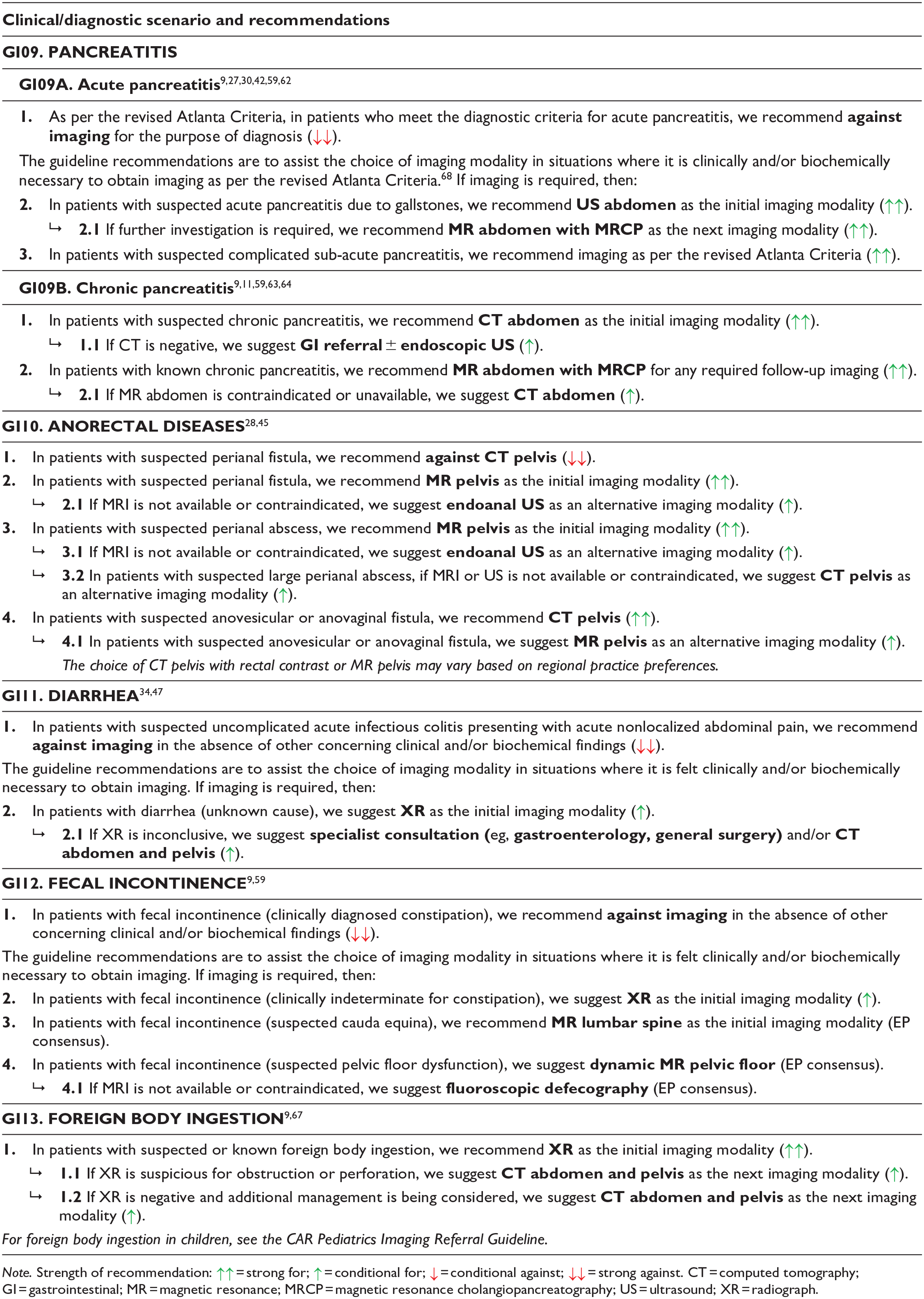

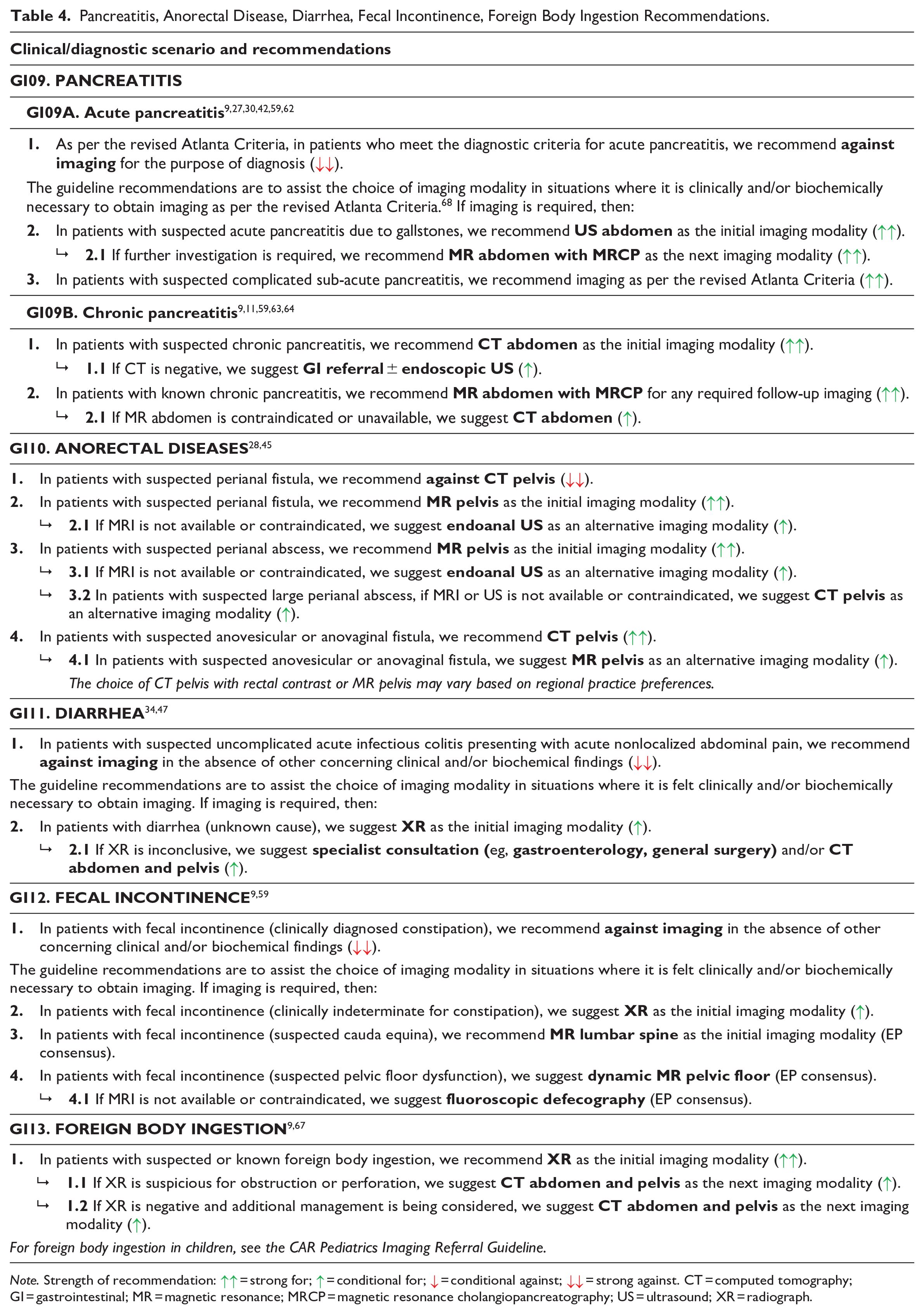

Table 4.

Pancreatitis, Anorectal Disease, Diarrhea, Fecal Incontinence, Foreign Body Ingestion Recommendations.
