A Specific Role for the REV-ERBα–Controlled L-Type Voltage-Gated Calcium Channel Ca V 1.2 in Resetting the Circadian Clock in the Late Night

Abstract

Within the suprachiasmatic nucleus (SCN) of the hypothalamus, circadian timekeeping and resetting have been shown to be largely dependent on both membrane depolarization and intracellular second-messenger signaling. In both of these processes, voltage-gated calcium channels (VGCCs) mediate voltage-dependent calcium influx, which propagates neural impulses by stimulating vesicle fusion and instigates intracellular pathways resulting in clock gene expression. Through the cumulative actions of these processes, the phase of the internal clock is modified to match the light cycle of the external environment. To parse out the distinct roles of the L-type VGCCs, we analyzed mice deficient in Ca_v1.2 (Cacna1c) in brain tissue. We found that mice deficient in the Ca_v1.2 channel exhibited a significant reduction in their ability to phase-advance circadian behavior when subjected to a light pulse in the late night. Furthermore, the study revealed that the expression of Ca_v1.2 mRNA was rhythmic (peaking during the late night) and was regulated by the circadian clock component REV-ERBα. Finally, the induction of clock genes in both the early and late subjective night was affected by the loss of Ca_v1.2, with reductions in Per2 and Per1 in the early and late night, respectively. In sum, these results reveal a role of the L-type VGCC Ca_v1.2 in mediating both clock gene expression and phase advances in response to a light pulse in the late night.

Keywords

REV-ERBα resetting light calcium suprachiasmatic nucleus (SCN)L-type calcium channel

Seated in the suprachiasmatic nucleus (SCN) of the hypothalamus, internalized rhythms of the external light-day cycle oscillate in the form of transcriptional and posttranslational autoregulatory feedback loops (Asher and Schibler, 2011). Information regarding light intensity is transduced from the intrinsically photoreceptive ganglion cells of the retina and travels along the retinohypothalamic tract to ultimately influence clock phase in the SCN. On reaching the SCN, a diverse set of extracellular signals (e.g., glutamate, brain-derived neurotrophic factor, and vasoactive intestinal peptide) is responsible for rapidly coordinating individual cellular clocks within the SCN by evoking chromatin remodeling and inducing immediate-early gene and clock gene expression. The product of these various cascades manifests in the shifting of the circadian clock to match the external phase with the internal phase (Golombek and Rosenstein, 2010). Therefore, both rapid propagation of neural activity and the combined influence of intracellular pathways are necessary to ensure prompt photic entrainment.

The role of calcium, which is integral in both of these signaling cascades, is ubiquitous throughout circadian and phase-shifting biology (Colwell, 2000; Pennartz et al., 2002). Extracellular calcium is required for proper clock gene expression (Lundkvist et al., 2005), while circadian calcium fluxes (independent of membrane depolarization) in the cytosol of SCN neurons have been demonstrated in vitro (Fukushima et al., 1997; Ikeda et al., 2003; Brancaccio et al., 2013) and change rapidly in response to the photic signals from the retina (Irwin and Allen, 2007). Additional work indicated that the amplitudes of these fluxes are largely influenced by membrane depolarization and, therefore, have been suggested to require a form of reinforcement or cross-talk between SCN neurons in their regulation (Enoki et al., 2012). Taking the unique roles of calcium rhythmicity and dependence on membrane depolarization, voltage-gated calcium channels may play distinct roles in both processes.

For light to shift the molecular clock at the chromatin level, neuronal calcium influx via N-methyl-D-aspartate receptors and voltage-gated calcium channels (VGCCs) is responsible for activating second-messenger signaling systems. Ultimately, the second messengers converge in cyclic AMP (cAMP) response element-binding protein (CREB)-mediated transcription of the immediate early gene c-fos and the clock genes Per1 and Per2 (West et al., 2001; Kornhauser et al., 2002). Through this mechanism, exposure to light directly affects the phase of the molecular clock. Despite the simplicity of this model, the circadian clock appears to regulate its own input pathway because shifting the phase of the molecular clock is dependent on both the time of night at which light is received and the phase-specific molecular mechanisms. Ding et al. (1998) illustrated this point by demonstrating a time-of-night specific role of the ryanodine receptors in the SCN, with ryanodine receptors releasing intracellular calcium in the early subjective night to mediate phase delays but playing no role in phase advances induced in the late subjective night. Furthermore, mice deficient for the gene coding for calbindin D-28k (a cytosolic calcium-buffering and -sensing protein) display increased phase delays when subjected to light in the early night, further supporting differential pathways of calcium signaling in the adaptation of the molecular clock to light (Stadler et al., 2010).

Due to the extensive requirements of calcium and membrane depolarization in both clock regulation and adaptation, L-type VGCCs appear as a prime candidate in supporting and mediating proper functioning of the circadian system. The impetus to study their role in circadian biology is further substantiated by their prevalent expression in the SCN, with L-type VGCCs appearing to be the most abundant (Nahm et al., 2005). Furthermore, in vitro studies have demonstrated that VGCCs play an integral role in phase shifts, with L-type antagonists affecting phase advances and T-type channel antagonists affecting phase delays (Kim et al., 2005). Finally, L-type VGCCs are particularly interesting candidates due to their slow voltage-dependent inactivation, large single-channel conductance, and well-defined role in cAMP-dependent protein phosphorylation pathways (Catterall, 2011; Hofmann et al., 2014), a putative cytosolic bridge between electrical activity and the core clock (Atkinson et al., 2011). Despite these conclusions, no one (to our knowledge) has looked in vivo at the functional role of L-type VGCCs in the SCN and their influence on clock gene regulation and adaptation.

To determine the role of the L-type VGCC in the circadian system, the present study examined both the expression of Ca_v1.2 (the L-type voltage-dependent calcium channel Cacna1c) and its function in circadian rhythmicity and photic entrainment. To this end, brain-specific Ca_v1.2 knockout mice were assessed on their ability to sustain circadian rhythmicity in constant darkness and phase shift following exposure to light pulses in the early and late subjective night. Our results suggest a time-of-night-specific role of the Ca_V1.2 channel in circadian adaptation to light pulses. Although the mechanism remains unclear, the current study suggests a differential mode of calcium signaling in circadian adaptation during the night.

Experimental Procedures

Animals

Animal care and handling were performed according to the Canton of Fribourg’s law for animal protection authorized by the veterinary office of the Canton of Fribourg, Switzerland, and the UK Animals (Scientific Procedures) Act 1986, with local ethical approval. Rev-Erbα^−/− mice were obtained from U. Schibler, Geneva (Preitner et al., 2002). Ca_v1.2 L1 (KO-Gen) and Ca_v1.2 L2 (conditional gene for nestin-cre) mice (Seisenberger et al., 2000) were backcrossed on a C57BL6 genetic background for 10 generations. Nestin-cre transgenic animals (Tronche et al., 1999) were backcrossed for 3 generations on a C57BL6 background. The CACNA1C × nestin-cre mice were, on a C57BL6 background, backcrossed for 4 or more generations. To rule out unspecific effects of the nestin-cre transgene, littermate controls expressing cre were used in all experiments involving genetic deletion of Ca_v1.2 knockout animals (Langwieser et al., 2010). Cre recombinase is expressed in these mice in neuronal and glial cell precursors, and it is active only in these brain cells (Zimmerman et al., 1994; Tronche et al., 1999).

Locomotor Activity Monitoring and Light-Induced Resetting

Mouse handling and housing were as described (Jud et al., 2005). For the analysis of circadian behavior, mice were entrained to a cycle of 12 h light and 12 h darkness (LD 12:12 h) for 2 weeks and then released in constant darkness (DD). Running wheel activity was recorded and evaluated using the ClockLab software (Actimetrics, Wilmette, IL, USA). For better visualization of daily rhythms, locomotor activity records were double plotted, which means that each day’s activity is plotted twice: to the right of and below that of the previous day. The period length in DD was assessed on 10 consecutive days of stable free-running activity by χ²-periodogram analysis. For the analysis of light-induced resetting, we used an Aschoff type I protocol (Jud et al., 2005). Mice maintained in DD were subjected to brief light pulses (400 l×, 15 min) at circadian time (CT) 10, 14, or 22. Light seen at CT10 corresponds to light perceived during the subjective day and should not provoke a phase shift of behavioral activity. Light pulses at CT14 or CT22 fall at early or late subjective night and lead to phase delays or phase advances, respectively. Between the presentation of the different light pulses, mice were allowed to stabilize their circadian oscillator for 3 to 4 weeks. Light pulses were determined by fitting a regression line through at least 7 onsets of activity before the light pulse and a second regression line through at least 7 onsets of activity after the light pulse. The 2 days directly after the administration of the light pulse were not taken into account for the calculation of the phase shift. The distance between the 2 regression lines on the day following the light pulse determined the phase shift.

In Situ Hybridization

For the analysis of circadian gene expression, mice maintained in LD 12:12 h were released in DD and sacrificed on the third day in DD. Circadian times were calculated for each mouse individually by analyzing its locomotor activity in a wheel-running setup. Mice were sacrificed at CT0, CT6, CT12, or CT18. For light induction experiments, mice maintained in DD were subjected to a 15-min light pulse at either CT14 or CT22 and sacrificed at CT15 or CT23, respectively. Control animals were sacrificed without prior light exposure at CT15 or CT23.

Specimen preparation and in situ hybridization were performed according to standard protocols (Albrecht et al., 1997). The in situ hybridization probes for Per1, Per2, and c-fos were as described (Albrecht et al., 1997). The probe for Ca_v1.2 encompassed nucleotides 5202-5484 of the Ca_v1.2 cDNA and was cloned into a PCR–blunt II–TOPO vector (Invitrogen, Carlsbad, CA, USA). The hybridization procedure was briefly as follows: dewaxed, rehydrated, and fixed 7 µm brain sections were permeabilized using proteinase K and subjected to acetylation. Hybridization with ³⁵S-labeled riboprobes was performed overnight at 55 °C in humidified chambers. Stringency washes were carried out at 63 °C, and sections were incubated with ribonuclease A (Sigma-Aldrich, St. Louis, MO, USA) to degrade unbound radioactively labeled riboprobe. For analysis, sections were exposed to autoradiograph films, and the signals were quantified by densitometric analysis (GS-800; Biorad, Berkeley, CA, USA) using the Quantity One software (Biorad). Signals from the SCN were normalized by subtracting the optical density measured in the lateral hypothalamus adjacent to the SCN. For each animal, 6 sections were analyzed, and at least 3 animals per genotype were used. For circadian expression of Ca_v1.2, the highest wild-type average value in each experiment was set to 100%, and the other values were calculated relative to this. For light-induced expression, the average value measured in control animals not treated with light in each experiment was defined as 1, and the other values were calculated relative to this to determine the fold induction.

Transactivation Assay

A 1.9 kb fragment of the mouse Ca_v1.2 promoter (nucleotides -1996 to the transcription start site, containing retinoid orphan receptor elements (ROREs) at -1808, -1586, -1211, and -1029) was cloned into a pGL3 basic vector (Promega, Madison, WI, USA) using the following primers: GGCTAGCAGTACGGGTTAAGACAGTTGC (forward primer; NheI site) and GAGATCTCATTGTGGCTTCCAGTTGGGTACC (reverse primer; BglII site). The potential ROREs were mutated by site-directed mutagenesis using the following primers: -1818 GGAAAACACCAAATTAGAGATATCAAGCAGGGAGCTG -1781 (mRE1), -1602 CTGAGACTTTAAAGCTAGCTTTTGTACCCATCAAGTGCACGC -1564 (mRE2), -1230 CTCTGTTCTTGTAAGATCTGGCTGGATTGCCAG -1197 (mRE3), and -1047 GTTTTCCAAAATGGCGGATCCAGAACCTATAGTGC -1015 (mRE4).

Four consecutive rounds of site-directed mutagenesis were performed on the Ca_v1.2::luc clone to obtain pGL3_Ca_v1.2_mRE1-mRE2-mRE3-mRE4 lacking any potential ROREs left, and mutagenesis was verified by DNA sequencing. Expression vectors for Bmal1, Npas2, Rorα1, and Rev-Erbα were used as previously described (Langmesser et al., 2008; Schmutz et al., 2010) using a β-galactosidase expression vector as control. Transactivation assays were performed in NIH3T3 cells. An empty pGL3 vector and Bmal1::luc reporter were used as negative and positive controls, respectively.

Bioluminescence Monitoring

Organotypic slices of the SCN were made as described previously (Hastings et al., 2005). Briefly, mice carrying the floxed allele and Nestin-CRE were crossed into the Per2::luciferase bioluminescent reporter line (Yoo et al., 2004) to generate pups aged between 5 and 10 days old. Brains were removed, and coronal slices (300 µm thickness) made with a McIlwain Tissue Chopper (Mickle Laboratories, Surrey, UK) and placed on a Millicell filter culture insert (Millipore, Billerica, MA, USA). After 7 or more days in culture, the slices were transferred to HEPES-buffered recording medium containing luciferin and placed in a light-tight incubator at 37 °C immediately below a photon-counting head (Model H9319-11, Hamamatsu UK, Herts, UK) linked to a personal computer to record photon emissions in 6-min bins. Time courses of bioluminescence were analyzed by fast Fourier transform to determine the period and amplitude of the oscillation using Brass software running on the BioDare platform (courtesy of Professor Andrew Millar, Centre for Synthetic and Systems Biology, University of Edinburgh, UK).

Chromatin Immunoprecipitation

For the chromatin immunoprecipitation (ChIP) experiments, the hypothalamic regions of two mice each including the SCN were homogenized in 1× phosphate-buffered saline supplemented with 1% formaldehyde, incubated for 5 min at room temperature, and nuclei and chromatin prepared according to Hampp et al. (2008). DNA fragments precipitated with an anti–REV-ERBα antibody (SAB2101632; Sigma-Aldrich) were detected with the following reverse transcription PCR primers and probes: Ca_v1.2 regulatory region: forward 5′-GTT TTC CAA AAT GGC AGG TCA AGA ACC-3′, reverse 5′-TGT AGT TTC CTG GTA AGA CAC CCA GT-3′, and the probe 5′-FAM-AGA CAC TGA AGC CCA GCG GCA GAC ACC-TAMRA-3′; Bmal1 regulatory region: forward 5′-AGC GAG CCA CGG TGA GTG T-3′, reverse 5′-CCG GGA ACT CGC GAC CC-3′, and probe 5′-FAM- AGC CGT CTC GGG GCG TCC CG-TAMRA-3′; and Dbp intron1: forward 5′-TCC ATG TGA CCC TGC GAG GC-3′, reverse 5-CCT GGA GTC CTA GGG GAA GGG-3′, and probe 5′-FAM- CCC GCC CAA GCC CGT GTC TGC-TAMRA-3′.

Results

As a first step in determining whether Ca_v1.2 is implicated in the regulation of the circadian clock, we characterized the daily activity of brain-specific Cav1.2^−/− knockout mice (Ca_v1.2^−/− knockout [KO]) that did not express Ca_v1.2 in the SCN (Fig. 1A). These animals were compared to wild-type control littermates and assessed on their clock parameters, including period, total daily wheel-running activity, and precision of daily onset of activity. Animals were entrained to a 12-h LD cycle (12:12 LD) and then released into DD. Under both conditions, the two groups displayed stable free-running activity rhythms and did not differ in any of the aforementioned parameters (Fig. 1B-D). Ca_v1.2^−/− KO mice exhibited a period length of 23.52 h ± 0.07 (n = 12), whereas control animals showed similar period lengths of 23.38 h ± 0.06 (n = 12), thus revealing that the Ca_v1.2 channel does not play a role in circadian regulation at the behavioral level (Fig. 1D). To substantiate this claim, Ca_v1.2 knockout (KO) and wild-type mice were crossed into a PER2:LUC reporter line to measure period and amplitude in SCN slice cultures (Fig. 1E). The results revealed no significant influence of the Ca_v1.2 channel in clock gene regulation, as normal rhythmicity was sustained in wild-type and Ca_v1.2 knockout mice (Fig. 1F), as was amplitude (Fig. 1G) in cycling of the bioluminescence signal. With the indication that the Ca_v1.2 channel does not regulate circadian period, we next sought to determine if the channel was involved in the adaptation of the clock to changing lighting conditions.

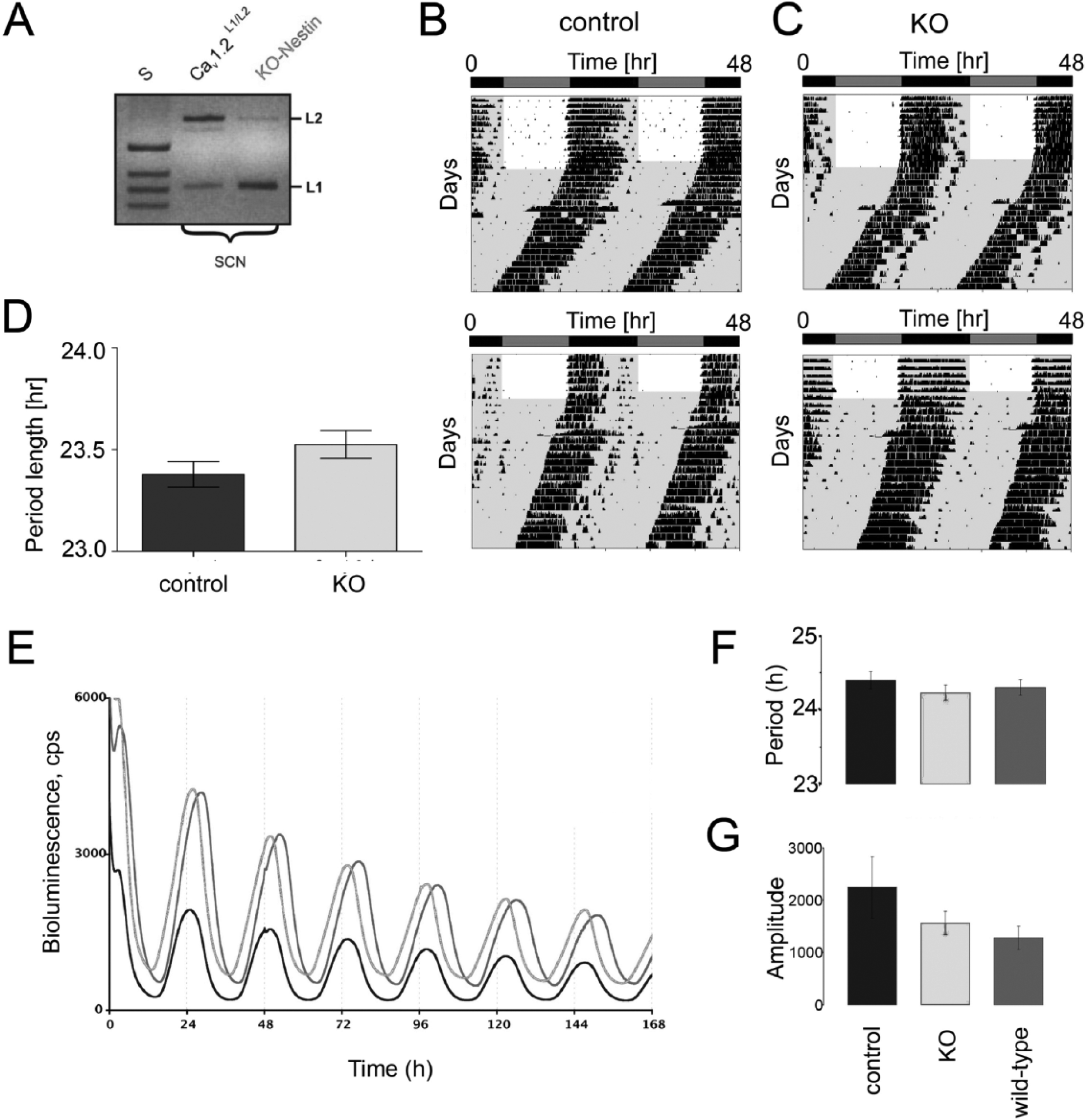

Figure 1.

Ca_v1.2 is dispensable for rhythmic circadian locomotor behavior under constant conditions. (A) Cav1.2 mRNA expression is absent in the SCN of brain-specific Cav1.2 knockout (KO) mice (KO-nestin), with L1 representing the KO allele and L2 the floxed allele. Representative locomotor activity records of control animals (B) and Cav1.2 KO mice (C) maintained in a 12-h light and 12-h darkness cycle (light-dark 12:12 h) or constant darkness (DD) are shown. Locomotor activity is represented as black bars and double plotted. Gray-shaded areas indicate phases of darkness. (D) Average free-running period of control and Cav1.2 KO animals maintained in DD as determined by χ²-periodogram analysis (mean ± SEM; n = 12; unpaired t test, p > 0.05). (E) Bioluminescence of SCN slices in culture; (F) period of bioluminescence of SCN slices; and (G) amplitude of bioluminescence of SCN slices. There are no significant differences between genotypes for period or for amplitude. One-way ANOVA p > 0.05; n = 3. Data presented as mean ± SEM. Control = Cav1.2 ^L1/L2 :: Per2luc (floxed wild-type littermates), KO = Cav1.2 KO-nestin :: Per2luc, wild-type :: Per2luc.

Entrainment to a changing light schedule requires both calcium-mediated second-messenger signaling and neuronal excitation: therefore, we expected the Ca_v1.2 channel to play a role in entrainment. To assess this function, animals were exposed to a 15-min light pulse at CT10, CT14, or CT22, and their phase shifts were assessed. Since animals do not respond to light pulses during the subjective day (CT0-12), as expected, both control (2.3 ± 3.1 min, n = 12) and Ca_v1.2^−/− KO mice (2 ± 3.2 min, n = 11) did not display phase shifts when subjected to light at CT10 (p > 0.05, t test) (Fig. 2A). Exposure to a 15-min light pulse in the early subjective night (CT14), however, evoked normal phase delays in both control (−122 ± 12 min, n = 12) and Ca_v1.2^−/− KO mice (−114 ± 12 min, n = 11) (p > 0.05, t test) (Fig. 2B). Application of a 15-min light pulse in the late subjective night (CT22) evoked in both genotypes a phase advance. Intriguingly, the phase advance was significantly reduced (to approximately 50%) in the Ca_v1.2^−/− KO mice (110 ± 9 min, n = 10) compared to wild-type control animals (216 ± 19 min, n = 11), thus uncovering a specific role for the Ca_v1.2 channel in the late night (p < 0.001, t test) (Fig. 2C). Overall, these results reveal that the Ca_v1.2^−/− KO mice, following a light pulse in the late subjective night, display an impaired ability to phase advance. These results suggest that the Ca_v1.2 L-type VGCC plays a unique role in the adaptation to light during the late subjective night.

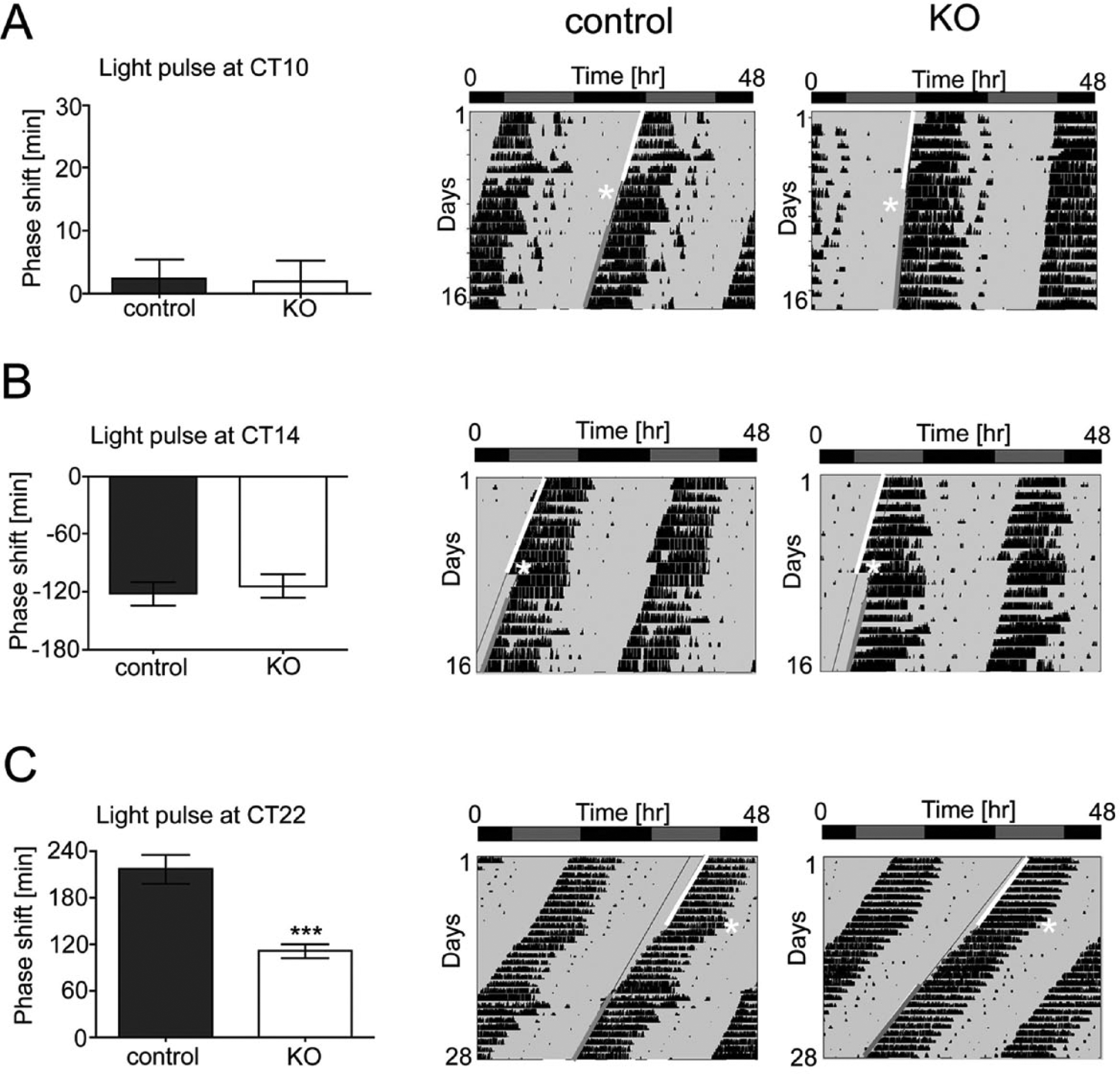

Figure 2.

Ca_v1.2 knockout (KO) mice show smaller phase shifts after a light pulse at late subjective night. Shown are the quantifications of the phase shifts observed after brief light pulses presented at different times of the day (left panels) and representative locomotor activity records showing the locomotor activity before and after light administration for control (middle panels) and Cav1.2 KO mice (right panels). White lines in the activity recordings represent the onset of activity before the light pulse, and grey lines represent the onset after the light pulse. White asterisks indicate the timing of the light pulse. Light pulses were administered at circadian time (CT) 10 (A), CT14 (B), or CT22 (C). Data are represented as mean ± SEM (n = 10-12), and significant differences were determined by unpaired t test (*** p < 0.001).

With the knowledge that Ca_v1.2^−/− KO animals display disrupted phase advances when subjected to light in the late subjective night, we next sought to determine whether our behavioral phenotype could be further delineated at the molecular level. Using in situ hybridization, Ca_v1.2 mRNA transcripts were targeted in wild-type mouse SCN at hours 0, 6, 12, and 18. As hypothesized, Ca_v1.2 was expressed rhythmically in the SCN, with expression peaking during the late subjective night (CT18) and dropping to its lowest point during the day (CT6) (Fig. 3A, top row; Fig. 3B, solid lines). The peak of expression during the late subjective night suggests an important function of the Ca_v1.2 channel during this time of day. This is in line with the observed defect in the phase-advancing ability after a light pulse at CT22 of mice deficient in this channel.

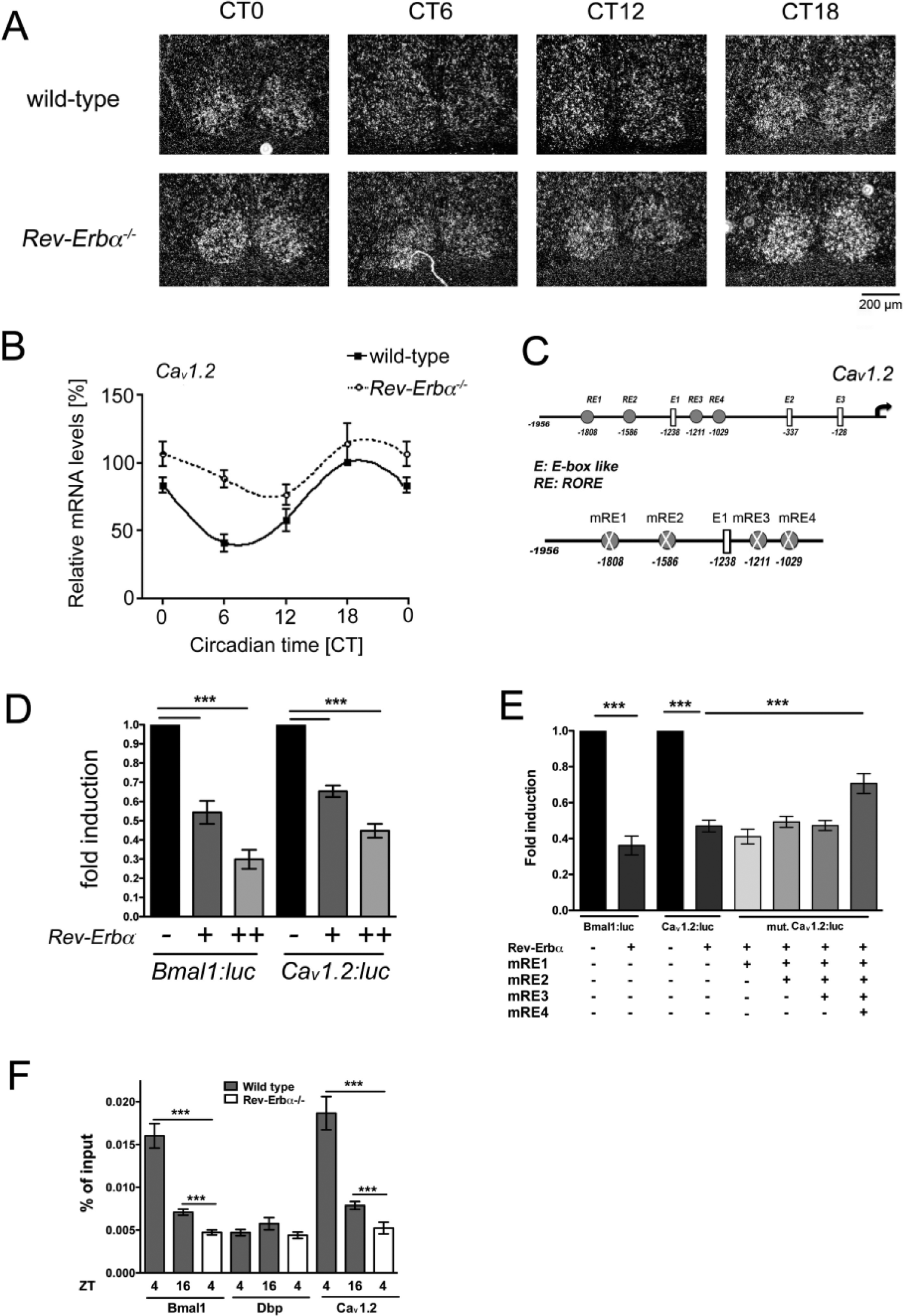

Figure 3.

Ca_v1.2 is expressed in a circadian fashion in the SCN and is regulated by REV-ERBα. Expression of Cav1.2 in the SCN of wild-type and Rev-Erbα−/− mice maintained in constant darkness as revealed by in situ hybridization. Animals were sacrificed at circadian times (CT) 0, CT6, CT12, and CT18. (A) Representative micrographs reveal rhythmic expression of Cav1.2 in the SCN of wild-type animals (top row) and Rev-Erbα knockout (KO) animals (bottom row). The location within the SCN was determined by Hoechst dye staining (gray). Cav1.2 expression signal is shown in white. Bar = 200 µm. (B) Quantification of the Cav1.2 expression signal by densitometric analysis of autoradiography films. Shown are the relative optical densities in the SCN of wild-type and Rev-Erbα−/− KO mice (mean ± SEM, n = 3). (C) Schematic representation of the retinoid orphan receptor elements (ROREs) in the Cav1.2 promoter. The numbers represent the nucleotide at the end of the element. (D) Transfection experiments in NIH3T3 cells show a repression potential of REV-ERBα that is similar for both the Bmal1::luc and the Cav1.2::luc reporter constructs (n = 5, ***p < 0.001, mean ± SD). (E) Mutation of the ROREs 1-4 (mRE1-mRE4) in the Cav1.2 promoter (n = 5, ***p < 0.001, mean ± SD). (F) Chromatin immunoprecipitation (ChIP) reveals time-of-day-dependent binding of REV-ERBα on the Cav1.2 promoter in hypothalamic tissue, including the SCN (n = 4, ***p < 0.001, mean ± SEM, one-way ANOVA).

Since the Ca_v1.2^−/− KO mice displayed the opposite phase-shifting phenotype compared to Rev-Erbα^−/− KO animals in response to a light pulse at CT22 (with Rev-Erbα^−/− KO exhibiting increases in phase advances), we were curious to see whether REV-ERBα regulates Ca_v1.2 expression, which may explain the Rev-Erbα^−/− KO phase-advancing phenotype (Preitner et al., 2002). To this end, we employed in situ hybridization to measure the expression of Ca_v1.2 mRNA in Rev-Erbα^−/− KO animals (Preitner et al., 2002). As hypothesized, Ca_v1.2 mRNA was significantly enhanced at all time points, thus proposing a repressive function of the nuclear receptor REV-ERBα in regulating Ca_v1.2 expression (Fig. 3A, lower panels; Fig. 3B, dashed line). Furthermore, circadian amplitudes of Ca_v1.2 expression were largely damped by the loss of Rev-Erbα, thus indicating that REV-ERB $α$ actively represses Ca_v1.2 expression during the day while permitting its induction during the night phase. Since a slight repression of Ca_v1.2 can still be observed at CT12, it is likely that additional factors regulate the Ca_v1.2 promoter. The results reveal circadian control of the mRNA of the Ca_v1.2 channel with its expression being repressed during the day and then liberated during the early night, with expression peaking during the late night.

To further explore the molecular regulation of Ca_v1.2, we performed in vitro transactivation experiments in NIH-3T3 cells using a Ca_v1.2-luciferase (Ca_v1.2::luc) reporter plasmid. We analyzed the promoter region of Ca_v1.2 and predicted putative REV-ERBα binding sites (so-called ROREs; Fig. 3C) and tested whether this nuclear receptor can regulate Ca_v1.2 promoter activity. As expected, co-transfection of increasing amounts of REV-ERBα significantly reduced the transcription of Ca_v1.2 similarly to the repression seen using a Bmal1-luciferase (Bmal1::luc) reporter (Fig. 3D). In contrast, the activating nuclear receptor RORα1 induced the Ca_v1.2::luc reporter activity in a similar manner as the Bmal1::luc reporter (Suppl. Fig. S1A). To verify that REV-ERBα was acting at the RORE elements in the Ca_v1.2 promoter, we performed site-directed mutagenesis to insert mutations into the predicted RORE elements (Fig. 3C, mRE). Absence of RORE elements 1-3 did not result in decreased repression by REV-ERBα (Fig. 3E, mRE1-3). By mutagenizing all four RORE elements, however, the expression of Ca_v1.2 was partially rescued because REV-ERB $α$ was unable to perform its repressive function (Figure 3E, mRE1-4). Since we also identified putative E-box elements (E1-E3) in the promoter of Ca_v1.2, we performed further transactivation experiments with the basic helix-loop-helix transcription factors BMAL1 and NPAS2 to test whether they regulated Ca_v1.2::luc reporter activity, but we did not observe an increase in Ca_v1.2 transcription (Suppl. Fig. S1B).

Finally, to confirm the binding of REV-ERBα to the Ca_v1.2 promoter in vivo, we performed ChIP experiments in hypothalamic tissue that included the SCN. As anticipated, our controls demonstrated that REV-ERB $α$ binds the BMAL1 promoter in wild-type but not Rev-Erbα^−/− KO animals (positive control), and REV-ERBα does not bind to the Dbp promoter in wild-type or Rev-Erbα^−/− KO animals (negative control) (Fig. 3F). In wild-type animals, REV-ERB $α$ binding to the Ca_v1.2 promoter was significantly enhanced at ZT4 with binding dropping at ZT16. In the Rev-Erbα^−/− KO animals, the signal is completely lost (Fig. 3F). These results are consistent with the previous results obtained with the Ca_v1.2::luc reporter and in situ hybridization that demonstrate the repressive role of REV-ERBα in Ca_v1.2 expression (Fig. 3D-3E), while confirming that the peak levels of Ca_v1.2 mRNA induction overlap with the lowest levels of REV-ERB $α$ binding and vice versa (Fig. 3A and 3F).

Since the circadian clock regulates Ca_v1.2 expression by REV-ERB $α$ and displays attenuated phase advances, we next sought to determine whether the Ca_v1.2 channel plays a role in clock gene expression following a 15-min light pulse at CT14 or CT22. As previously reviewed, following a light pulse during the subjective night, c-fos, Per1, and Per2 are induced (albeit with different kinetics), and through this mechanism, the circadian clock is directly modulated (Albrecht et al., 1997, 2001; Yan and Silver, 2002; Golombek and Rosenstein, 2010). We performed in situ hybridization targeting the clock genes Per1 and Per2 and the immediate-early gene c-fos 45 min after the light pulses. It appears that in Ca_v1.2^−/− KO mice, the trend is an attenuated induction of gene expression, which may be due to a general effect of the null mutation on photo-responsiveness in the SCN. This attenuation, however, appears not to be equal for all genes. Following a 15-min light pulse in the early subjective night (CT14), Ca_v1.2^−/− KO mice unexpectedly exhibited significantly less induction of Per2 but did not show any differences in Per1 or c-fos (Fig. 4). When challenged during the late subjective night (CT22), Ca_v1.2^−/− KO mice displayed a significant lower induction of Per1 without displaying any differences in c-fos or Per2 expression (Fig. 4). In sum, these results indicate that the Ca_v1.2 channel influences clock gene induction during the early and late subjective night.

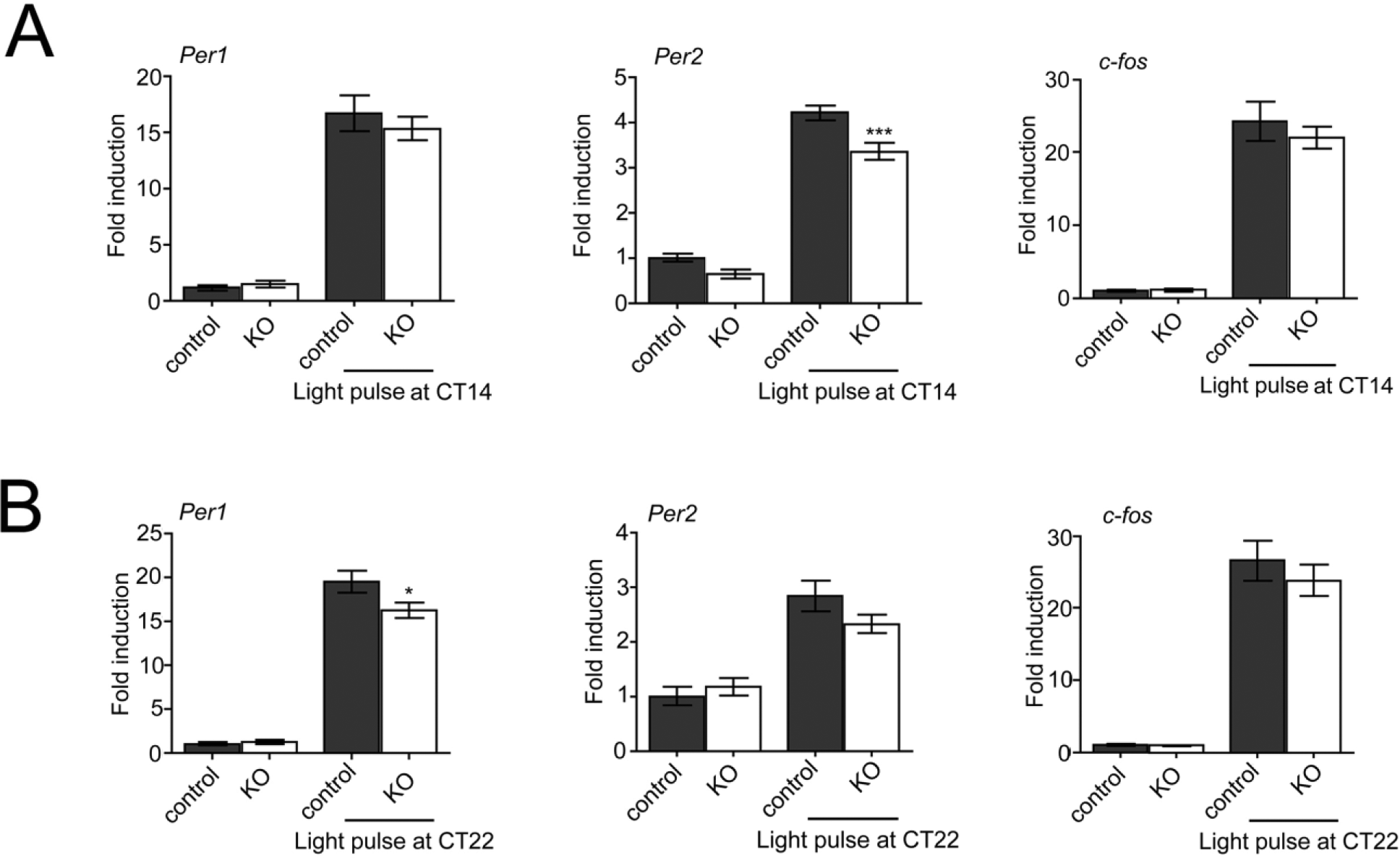

Figure 4.

Induction of Per1, Per2, and c-fos mRNA after a light pulse in the SCN (A) Induction of Per1 (left), Per2 (middle), and c-fos (right) mRNA expression in the SCN of control and Cav1.2 knockout (KO) animals after a light pulse administered at circadian time (CT) 14 as revealed by in situ hybridization. Animals treated with light at CT14 and animals not exposed to light were sacrificed at CT15. Shown is the mean ± SEM (n = 3) of relative induction values as calculated by comparison of expression levels in light-treated mice with control animals not treated with light. Significant differences were determined by one-way ANOVA analysis. (B) Induction of Per1 (left), Per2 (middle), and c-fos (right) expression in the SCN of control and Cav1.2 KO mice in response to a light pulse applied at CT22. Animals treated with light at CT22 and animals not exposed to light were sacrificed at CT23. Shown is the mean ± SEM of relative induction values (n = 3-4). Differences were analyzed by one-way ANOVA (*p < 0.05).

Discussion

In the present study, we report a time-of-night-specific role of the L-type VGCC Ca_v1.2 in setting the circadian clock during the late night. Although the clock appears to be self-sufficient in regulating its output and clock gene expression in the absence of the Ca_v1.2 channel (Figs. 1 and 3B), the clock-resetting mechanism is largely affected in the late night because phase advances are significantly reduced after presentation of a light pulse (Fig. 3). The finding that Ca_v1.2 mRNA expression is rhythmic with a peak during the late night (Fig. 3A) suggests that the Ca_v1.2 channel is specifically implicated in clock resetting during the late night. It appears that the gene regulation of the Ca_v1.2 channel is wrapped neatly into the circadian clock machinery because its expression is controlled by the repressive function of the nuclear receptor REV-ERBα (Fig. 3B). This is evidenced by the deregulation of Ca_v1.2 mRNA expression in Rev-Erbα^−/− KO animals, the ability of REV-ERBα to repress a Ca_v1.2 luciferase reporter in transfection experiments and ChIP experiments, which confirm that REV-ERB $α$ binds to the Ca_v1.2 promoter in vivo (Fig. 3D-3E). Finally, Ca_v1.2 appears to be one of the factors that contributes to clock gene induction following a light pulse because the induction of the Period genes is attenuated in the Ca_v1.2^−/− KO mice with Per2 affected during the early night (Fig. 4A) and Per1 during the late night (Fig. 4B).

Although the lack of the Ca_v1.2 channel did not affect clock period and the adaptation of the clock to light pulses during the early night, it is very possible that compensatory mechanisms took over in Ca_v1.2 knockout mice due to the high prevalence of VGCCs in the SCN. There are four L-type calcium channels in total, with two (Ca_v1.2 and Ca_v1.3) being specifically implicated in neuronal gene expression (Catterall, 2011). Furthermore, there are five distinct forms of VGCCs in total, and their expression has all been documented in the SCN (Nahm et al., 2005). Thus, the findings of this study are significant because the loss of a single L-type VGCC channel influences the phase-shifting ability of mice in the late night. What role the remaining calcium channels play has yet to be determined.

One explanation for the lack of an effect of the loss of the Ca_v1.2 channel on phase delays may come from the function of the intracellular ryanodine receptors. The light-induced signal transduction pathway for the early night may predominantly affect the ryanodine receptors, which then release calcium from intracellular stores (Ding et al., 1998), and hence extracellular calcium influx via Ca_v1.2 channels induced by membrane depolarization may play a minor or no role in the response to light perceived during the early night. In contrast, during the late night, ryanodine receptors are not responsive to light (Ding et al., 1998), and extracellular calcium signaling via calcium channels located in the synaptic membrane like the L-type Ca²⁺ channel Ca_v1.2 may become the driving force for phase advances. Our finding is supported by the study of Kim et al. (2005), who applied L-type Ca²⁺ channel blockers to hypothalamic slices and found that they affected phase advances but not phase delays. In contrast, T-type Ca²⁺ channel blockers modulated the phase delay response but did not affect phase advances (Kim et al., 2005). Interestingly, also extra-SCN areas that signal to the SCN appear to be involved in the clock-resetting process. These extra SCN pathways appear to rely on NPQ-type Ca_v2.1 channels and have a direct impact on the phase of the SCN (van Oosterhout et al., 2008). Taken together, it appears that Ca²⁺ channels play an important role in clock resetting. T-type Ca²⁺ channels are important for phase delays, and L-type Ca²⁺ channels are important for phase advances. Extra SCN signals to the SCN that elicit phase advances appear to involve N-type Ca_v2.1 channels. The observation that phase delays are usually larger than advances may be due to the additional assistance of ryanodine receptors in the delay response.

The current study provides a solid basis to begin to parse out the functional roles of VGCCs in the SCN and determine their specific function in circadian timekeeping. Nahm et al. (2005) have already demonstrated the widespread expression of VGCCs in the SCN and their rhythmic expression of P/Q and T-type channels, and Kim et al. (2005) have proposed a role for T-type VGCCs in mediating phase delays in the early night. Therefore, it seems very likely that many of the VGCCs are under control of the circadian clock and may play differential roles in circadian regulation and adaptation. Further in vivo studies are required to fill this gap and determine their functional roles.
