Macrolide susceptibility and molecular characteristics of Bordetella pertussis

Abstract

Objective

To analyse macrolide resistance and molecular characteristics of Bordetella pertussis clinical isolates from western China, and to explore the relationship between macrolide-resistance and genotypes.

Methods

Susceptibilities of B. pertussis clinical isolates to erythromycin, azithromycin and clarithromycin were determined by epsilometer test (E-test). Isolated strains were sequenced to ascertain the presence of the 23S rRNA gene A2047G mutation. Strains were typed using multilocus antigen sequence typing, multilocus variable-number tandem-repeat analysis (MLVA) and pulsed-field gel electrophoresis (PFGE).

Results

Of 58 B. pertussis strains isolated in this study, 46 were macrolide-resistant and 12 were macrolide sensitive. All macrolide-resistant strains carried the A2047G mutation and were the prn1/ptxP1/ptxA1/fim3-1/fim2-1 genotype; the MLVA types were MT195 (19/58), MT55 (13/58) and MT104 (14/58), and the PFGE profiles were classified into BpSR23 (17/58) and BpFINR9 (29/58) types. None of the macrolide-sensitive strains carried the A2047G mutation; genotypes were (prn9 or prn2)/ptxP3/ptxA1/fim3-1/fim2-1, and all were MT27. PFGE profiles differed from the macrolide-resistant strains.

Conclusions

B. pertussis clinical isolates from western China were severely resistant to macrolides. Genotypes differed between macrolide-resistant and macrolide-sensitive strains, and there may be a correlation between acquisition of macrolide resistance and changes in specific molecular types.

Keywords

Macrolide resistance Genotype Multilocus antigen sequence typing (MAST)Multilocus variable-number tandem-repeat analysis (MLVA)Pulsed-field gel electrophoresis (PFGE)

Introduction

Pertussis is an acute respiratory disease caused by Bordetella pertussis that mainly affects infants. Macrolide antibiotics, such as erythromycin, have always been the first choice for preventing and treating pertussis. During the past decade, erythromycin-resistant pertussis strains have been reported in many countries around the world, but resistance remains rare in Europe and the USA.^1,2,3 In China, since erythromycin-resistant B. pertussis strains were first identified in the Shandong province in 2011,⁴ high rates of erythromycin-resistant isolates have been identified in several large cities: 87.5% (14/16) in Xi’an (2012–2013;⁵ 57.4% (81/141) in Shanghai (2016–2017);⁶ and 94.44% (17/18) in Tianjin (2013–2018).⁷ High rates of resistance have also been reported in other areas of China, and the resistance may be related to an adenine (A) to guanine (G) mutation at site 2047 in the 23S rRNA gene. Moreover, a previous study showed that pertussis strains are also resistant to macrolides other than erythromycin, such as azithromycin and clarithromycin.⁸

Adaptive changes in vaccine-associated genes of circulating pertussis strains have been reported in many countries over the past 10 years.⁹ For example, the main current pertussis toxin (ptx)A allele is ptxA1, which differs from the vaccine strain that harbours the ptxA2 allele. In addition, the B. pertussis multilocus variable-number tandem-repeat analysis (MLVA)-type MT27 strain has gradually replaced the MT83 vaccine strain across Europe.¹⁰ However, there are few published investigations in this field regarding China.

The macrolide-resistance phenotypes of B. pertussis have been shown to be associated with their genotypes.^6,11 For example, a study from Shanghai demonstrated that the ptx promotor (ptxP)1 strains were significantly more resistant to erythromycin than the ptxP3 strains.⁶ Although a large amount of data on macrolide resistance for B. pertussis have been published in China, most relate to the east of China, including Beijing, Shanghai, and Shenzhen,^6,11 and few studies are from western China. The aim of the present study was to explore macrolide susceptibility in B. pertussis clinical isolates from the west of China, to investigate the correlation between susceptibility and B. pertussis genotype, and to compare genotypes between isolated B. pertussis strains with different macrolide-resistant phenotypes. Clinical B. pertussis isolates were collected and analysed for susceptibility to three macrolide antibiotics using the epsilometer (E)-test and were assessed for the presence of the A2047G mutation in the 23S rRNA gene. Genotyping was performed using three methods: multilocus antigen sequence typing (MAST); multilocus variable-number tandem-repeat analysis (MLVA); and pulsed-field gel electrophoresis (PFGE).

Materials and methods

Bacterial isolates

Nasopharyngeal swabs (NPSs) were collected from 1200 patients, aged <1 years, hospitalized with suspected pertussis infection at Xi’an Children’s Hospital, Lianhu District, Xi’an, China, between 2018 and 2020. Samples were collected from infants who met the Chinese diagnostic criteria clinical case definition for pertussis, i.e., cough lasting at least two weeks and/or with one of the following: paroxysms of coughing, and/or inspiratory whoop and/or post-tussive vomiting and/or iterative cyanosis and apnoea. Bacterial DNA was extracted from the NPSs using the QIAamp DNA Mini Kit (Qiagen, Dusseldorf, Germany), according to the manufacturer’s instructions, and subjected to real-time polymerase chain reaction (PCR) to detect the presence of IS481 and ptxP using Double Nucleic acid Test kit for Bordetella pertussis (Mabsky Biotech, Shenzhen, China) and QuantStudio5 Real-Time PCR System (ThermoFisher Scientific, Waltham, MA, USA), according to the manufacturer’s instructions. The NPSs positive for both IS481 and ptxP were cultured on charcoal agar (Oxoid, Hampshire, UK) plates supplemented with 15% sheep blood, at 37 °C for 3–5 days. A total of 58 isolates were positive for culture, biochemical testing, and slide agglutination with specific anti-sera to B. pertussis (BD Biosciences, Sparks, MD, USA). Strains were stored at –70 °C with 30% glycerine for later use.

This study was approved by the Human Ethics Committee of Xi’an Centre for Disease Control and Prevention, and was conducted in accordance with the Declaration of Helsinki. The samples used in this study were non-invasive throat swab specimens and were collected for the sole purpose of the present study. Written informed consent for study inclusion and preparation of the manuscript was obtained from each participant’s parents or legal guardian prior to the study.

Antimicrobial susceptibility testing and mutation site detection

Minimum inhibitory concentrations (MICs) of three macrolide antibiotics (erythromycin, azithromycin and clarithromycin) were determined via E-test. Briefly, previously frozen bacterial samples were thawed and cultured for 72 h at 36 °C on charcoal agar plates containing 10% sheep blood. Suspensions of B. pertussis isolates, equivalent to a 0.5 McFarland standard, were then prepared in sterile saline and inoculated onto Bordet-Gengou agar (BD, Franklin Lakes, NJ, USA) containing 10% sheep blood and cultured at 36 °C with antibiotic concentrations ranging from 0.016 to 256 mg/L, according to a previously published method.¹² MICs and inhibition zone sizes were measured at day 5 of incubation. Antibiotic-free plates were inoculated to check for growth and purity, and E-tests using sulfamethoxazole/trimethoprim (BioMérieux, Marcy l'Etoile, France), a common alternative antibiotic for macrolide-resistant pertussis strains, were also conducted as above. Reference strains of B. pertussis (ATCC9797) and Staphylococcus aureus (ATCC29213) served as controls. The Clinical and Laboratory Standards Institute (CLSI) and the European Committee on Antimicrobial Susceptibility Testing (EUCAST) do not yet provide breakpoint criteria for B. pertussis antimicrobial susceptibility. Therefore, the Standardized interpretation criteria of CLSI breakpoints for fastidious organisms of the Haemophilus species, Aggregatibacter species, Cardiobacterium hominis, Eikenella corrodens and Kingella species (HACEK) group were referenced,¹³ and the MIC50, MIC90 and MIC ranges were reported.

The 23S rRNA gene was amplified in DNA from each of the 58 isolates using PCR with the following primers (1505F: GGCACGAGCGAGCAAGTCTC; and 2128R: TCTGGCGACTCGAGTTCTGC), according to a previously published protocol.⁵ PCR products were then sequenced via the Sanger (dideoxy chain-termination) method to ascertain the presence of the A2047G mutation, using a second-generation sequencer (ABI3730XL; ThermoFisher). The sequencing results were compared against the standard X68323 sequence and the allele of the GenBank Chinese vaccine strain (accession No. CP002695). Mutant and sensitive strains preserved in the laboratory were used as controls.

Multilocus antigen sequence typing

Multilocus antigen sequence typing was performed for the following antigenic genes: pertactin (prn), ptxP, ptxA, serotype 2 fimbrial subunit (fim2) and serotype 3 fimbrial subunit (fim3), according to the methods described previously.^14,15 The alleles mentioned above were determined by sequencing and compared against sequences at the public databases for molecular typing and microbial genome diversity (https://pubmlst.org/). The B. pertussis standard strain ATCC 9797 and reference strain 13038 with known alleles, maintained in the present authors’ laboratory, were included as positive controls.

Multilocus variable-number tandem-repeat analysis

For MLVA, the variable number of tandem repeats (VNTRs) in six loci (VNTR1, VNTR3a, VNTR3b, VNTR4, VNTR5, and VNTR6) was determined as described previously.^16,17 After the allele of every VNTR locus was obtained, the MLVA types (MTs) were assigned to the reference database at http://www.mlva.net/. The B. pertussis ATCC 9797 (18323) with known MT was included as a reference strain in each run.

Pulsed-field gel electrophoresis

Isolates were analysed according to the standardized recommendations for typing B. pertussis using XbaI as a restriction enzyme, as previously described.¹⁸ Briefly, the PFGE groups were deﬁned as distinct DNA band patterns if they differed by at least one band. The procedures included bacterial embedding, bacterial lysis, cleaning gel blocks, DNA enzymatic digestion using XbaI (Qiagen), sample addition and PFGE (Bio-Rad, Hercules, CA, USA) for 18 h, and image acquisition and analysis using a ThermoFisher gel electrophoresis imager. The nomenclature was based on profiles already defined for Finland (BpFINR), Sweden (BpSR) and China (BpCHR). Furthermore, isolates with new profiles were designated as BPX01XA001 and BPX01XA002, respectively, in the series. The B. pertussis standard strain ATCC 9797 and Salmonella standard strain H9812 were included as reference strains. BioNumerics software, version 7.6 (www.Bionumerics.com) was used for cluster analysis of the electrophoresis band.

Results

Antimicrobial susceptibility testing and mutation site detection

The E-test results showed that 44 of the 58 isolates (isolate codes 01–27, 29, 32–44, and 46–48) were resistant to erythromycin, azithromycin and clarithromycin (MIC ≥128 mg/L), and two isolates (isolate codes 28 and 45) were resistant to erythromycin and azithromycin (MIC >256 mg/L) but sensitive to clarithromycin (MIC <0.016 mg/L). A total of 12 isolates (isolate codes 30, 31, and 49–58) were sensitive to erythromycin, azithromycin and clarithromycin (MIC ≤0.032 mg/L). The A2047G mutation was detected in 46 macrolide-resistant strains (isolate codes 01–29 and 32–48), while no A2047G mutation was found in the 12 sensitive strains. The MIC50 was >256 mg/L and the MIC90 was >256 mg/L in all macrolide-resistant strains. In addition, all the isolates were sensitive to sulfamethoxazole/trimethoprim (MIC range, 0.002–0.008 mg/L). Results of antibiotic susceptibility and mutation site detection are summarized in Table 1.

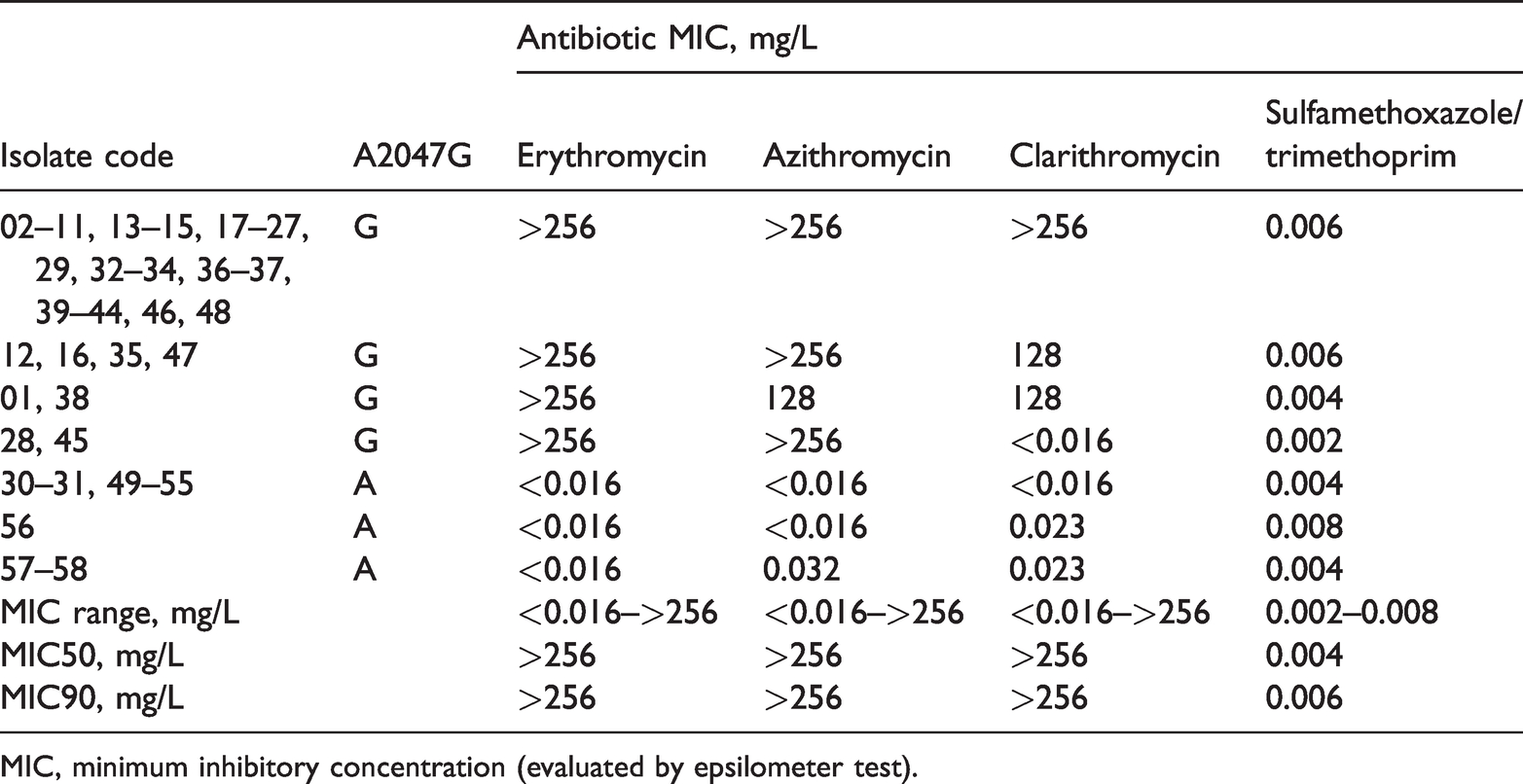

Table 1.

Antibiotic susceptibility and presence of A2047G 23S rRNA mutation in 58 Bordetella pertussis isolates.

Isolate code	A2047G	Antibiotic MIC, mg/L
Isolate code	A2047G	Erythromycin	Azithromycin	Clarithromycin	Sulfamethoxazole/trimethoprim
02–11, 13–15, 17–27, 29, 32–34, 36–37, 39–44, 46, 48	G	>256	>256	>256	0.006
12, 16, 35, 47	G	>256	>256	128	0.006
01, 38	G	>256	128	128	0.004
28, 45	G	>256	>256	<0.016	0.002
30–31, 49–55	A	<0.016	<0.016	<0.016	0.004
56	A	<0.016	<0.016	0.023	0.008
57–58	A	<0.016	0.032	0.023	0.004
MIC range, mg/L		<0.016–>256	<0.016–>256	<0.016–>256	0.002–0.008
MIC50, mg/L		>256	>256	>256	0.004
MIC90, mg/L		>256	>256	>256	0.006

MIC, minimum inhibitory concentration (evaluated by epsilometer test).

MAST types of B. pertussis isolates and the relationship with macrolide resistance

All isolates in the current study harboured the ptxA1/fim2-1/fim3-1 alleles. Three different prn alleles were detected: prn1, prn2, and prn9; and there were two ptxP alleles: ptxP1 and ptxP3. Three antigenic genotypes were found to be present in the isolates according to the different prn and ptxP alleles: prn1/ptxP1/ptxA1/fim3-1/fim2-1, prn9/ptxP3/ptxA1/fim3-1/fim2-1, and prn2/ptxP3/ptxA1/fim3-1/fim2-1. The antigenic genotypes of all the macrolide-resistant strains were prn1/ptxP1/ptxA1/fim3-1/fim2-1 (46/58 [79.3%]), while the sensitive strains were identified as (prn9 or prn2)/ptxP3/ptxA1/fim3-1/fim2-1 (12/58 [20.7%]). The results suggested that the antigenic genotypes of macrolide-resistant B. pertussis are different from those of macrolide-sensitive B. pertussis. The macrolide susceptibility and genotypic distribution of the 58 B. pertussis isolates are summarized in Table 2.

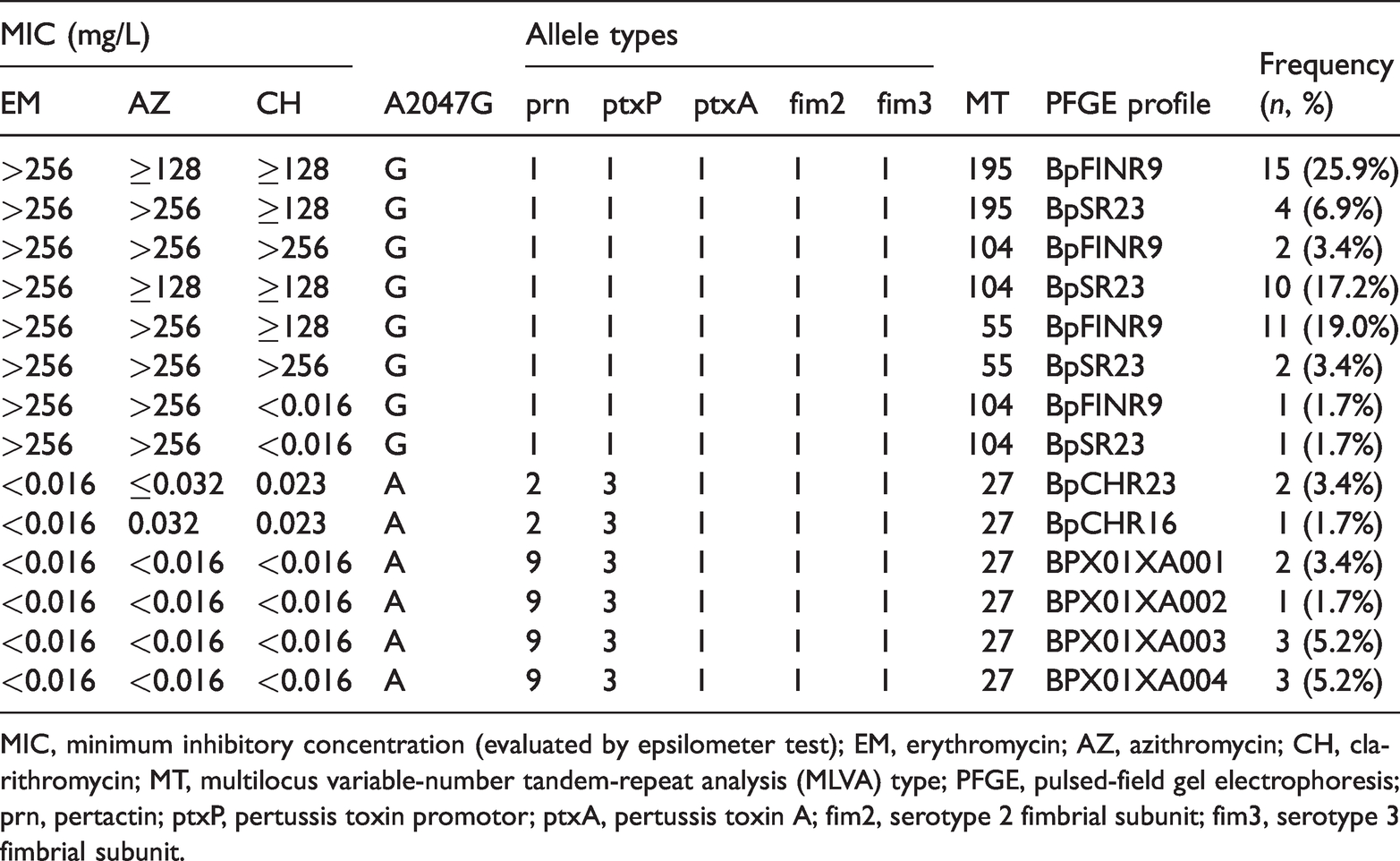

Table 2.

Summary of macrolide susceptibility and genotype distribution of 58 Bordetella pertussis isolates.

MIC (mg/L)			A2047G	Allele types					MT	PFGE profile	Frequency(n, %)
EM	AZ	CH	A2047G	prn	ptxP	ptxA	fim2	fim3	MT	PFGE profile	Frequency(n, %)
>256	≥128	≥128	G	1	1	1	1	1	195	BpFINR9	15 (25.9%)
>256	>256	≥128	G	1	1	1	1	1	195	BpSR23	4 (6.9%)
>256	>256	>256	G	1	1	1	1	1	104	BpFINR9	2 (3.4%)
>256	≥128	≥128	G	1	1	1	1	1	104	BpSR23	10 (17.2%)
>256	>256	≥128	G	1	1	1	1	1	55	BpFINR9	11 (19.0%)
>256	>256	>256	G	1	1	1	1	1	55	BpSR23	2 (3.4%)
>256	>256	<0.016	G	1	1	1	1	1	104	BpFINR9	1 (1.7%)
>256	>256	<0.016	G	1	1	1	1	1	104	BpSR23	1 (1.7%)
<0.016	≤0.032	0.023	A	2	3	1	1	1	27	BpCHR23	2 (3.4%)
<0.016	0.032	0.023	A	2	3	1	1	1	27	BpCHR16	1 (1.7%)
<0.016	<0.016	<0.016	A	9	3	1	1	1	27	BPX01XA001	2 (3.4%)
<0.016	<0.016	<0.016	A	9	3	1	1	1	27	BPX01XA002	1 (1.7%)
<0.016	<0.016	<0.016	A	9	3	1	1	1	27	BPX01XA003	3 (5.2%)
<0.016	<0.016	<0.016	A	9	3	1	1	1	27	BPX01XA004	3 (5.2%)

MIC, minimum inhibitory concentration (evaluated by epsilometer test); EM, erythromycin; AZ, azithromycin; CH, clarithromycin; MT, multilocus variable-number tandem-repeat analysis (MLVA) type; PFGE, pulsed-field gel electrophoresis; prn, pertactin; ptxP, pertussis toxin promotor; ptxA, pertussis toxin A; fim2, serotype 2 fimbrial subunit; fim3, serotype 3 fimbrial subunit.

MLVA types of B. pertussis isolates and the relationship with macrolide resistance

For MLVA, four different MTs were obtained from the 58 strains: MT195 (19 strains [32.8%]), MT104 (14 [24.1%]), MT55 (13 [22.4%]) and MT27 (12 [20.7%]). Of note, MT195, MT104 and MT55 were detected from macrolide-resistant strains, while the 12 susceptible strains were identified as MT27, suggesting that MLVA types of macrolide-resistant B. pertussis may be radically different from macrolide-sensitive isolates.

PFGE profiles of B. pertussis isolates and the relationship with macrolide resistance

Eight different PFGE profiles (BpFINR9, BpSR23, BpCHR23, BpCHR16, BPX01XA001, BPX01XA002, BPX01XA003, and BPX01XA005) were retrieved (Table 2). The two most common PFGE profiles were BpFINR9 (29 strains [50.0%]) and BpSR23 (17 strains [29.3%]), and these were both obtained from the macrolide-resistant strains. The remaining PFGE profiles were identified in the 12 macrolide-susceptible strains, suggesting that PFGE type may differ between macrolide-resistant and macrolide-sensitive strains of B. pertussis. A dendrogram of PFGE profiles and associated molecular characteristics in the 58 B. pertussis isolates is shown in Figure 1.

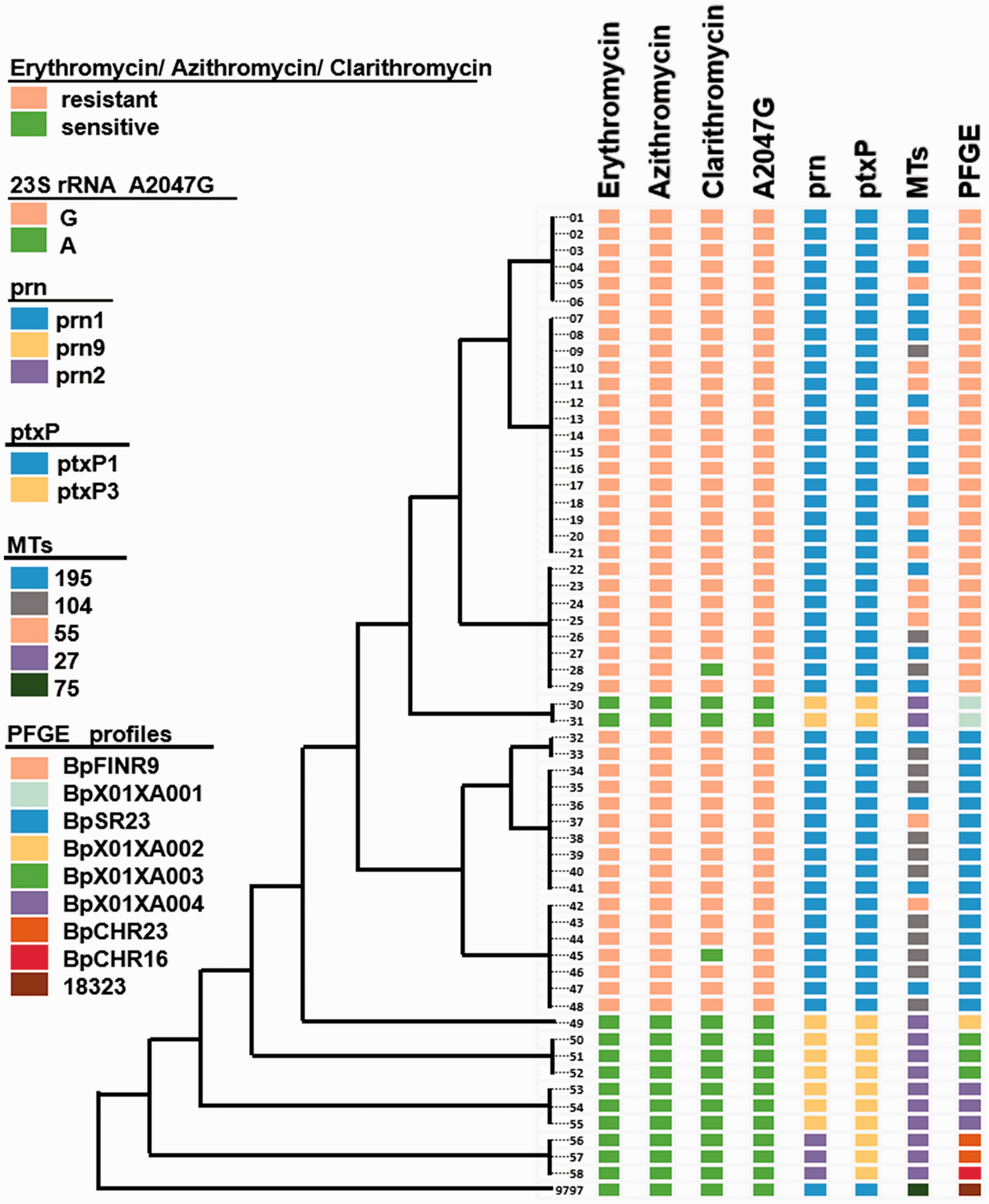

Figure 1.

Dendrogram of the association between pulsed-field gel electrophoresis (PFGE) profiles and molecular characteristics of 58 Bordetella pertussis isolates. All isolates carried the ptxA1/fim2-1/fim3-1 alleles. The 9797 susceptible isolate is a standard reference strain. Prn, pertactin; ptxP, pertussis toxin promotor; MT, multilocus variable-number tandem-repeat analysis (MLVA) type; ptxA, pertussis toxin A; fim2, serotype 2 fimbrial subunit; fim3, serotype 3 fimbrial subunit.

Discussion

Erythromycin has been the preferred antibiotic for treatment and prevention of pertussis, but resistance to erythromycin has been reported in many countries, particularly China.^5,19 Clinically isolated B. pertussis has previously been reported as not only resistant to erythromycin, but also to other macrolides, such as azithromycin and clarithromycin.⁸ In the present study, resistance rates of the strains were 79.3% (46/58) to erythromycin and azithromycin and 75.9% (44/58) to clarithromycin, indicating a relatively high rate of macrolide-resistance in B. pertussis strains in China. Despite no standard procedure for antimicrobial susceptibility testing of B. pertussis, the present macrolide resistance rates are considered to be reliable because all macrolide-resistant isolates showed erythromycin MICs ≥128 mg/L. The A2047G 23S rRNA mutation was detected in macrolide-resistant strains, while the susceptible strains were not found to carry the mutation. The present results are consistent with previous research,¹¹ and provide further evidence that the A2047G mutation may be the main mechanism of B. pertussis resistance to macrolide antibiotics.

Of note, two of the isolates in the present study (isolate codes 28 and 45) were resistant to erythromycin and azithromycin (MIC >256 mg/L), but sensitive to clarithromycin (MIC <0.016 mg/L). The A2047G mutation is thought to be the main mechanism of B. pertussis resistance to macrolides, however, the possible mechanism causing differences in resistance among erythromycin, azithromycin and clarithromycin remains unknown. We speculate that the possible mechanism may include the following: (1) In 1991, a study reported a pattern of resistance mediated by an efflux system that resulted in Streptococcus pneumoniae being resistant to macrolides but sensitive to clindamycin.²⁰ The two B. pertussis strains in the present study may also have such a resistance pattern, and this warrants further investigation in subsequent experiments; (2) The clindamycin resistance gene ‘lnu’ has been found to exist in streptococcus strains, and the nucleotide transferase encoded by this gene can inactivate clindamycin, resulting in streptococcus with erythromycin resistance and clindamycin sensitivity.²¹ Whether there is a similar clarithromycin resistance gene in B. pertussis isolates is currently unknown and also requires further study; and (3) The removable methylase genes, erm, (mainly ermA and ermB) and efflux genes, mef, (mainly mefA and mefE) play an important role in the mechanism of macrolide antibiotic resistance.^22,23 Comprehensive screening of erm and mef genes may help uncover the unique resistance mechanism of the two B. pertussis strains isolated in the present study. The present authors aim to conduct further in-depth research into these three possible mechanisms to fully characterise the underlying processes involved in macrolide resistance but clarithromycin sensitivity in the two isolated strains.

The strains used for pertussis vaccine production in China include the P3slO strain, the 18323 strain and the CS strain. The P3slO and 18323 strains have been used for whole cell pertussis vaccine (wP) production, while the CS strain has been used for acellular pertussis vaccine (aP).²⁴ Prior to 2012, both wP and aP were in use, however, since 2012, the aP vaccine has been used exclusively, due to side effects of whole cell vaccines, and all children have been vaccinated with aP.²⁵ Large-scale pertussis vaccine manufacturers in China include Chengdu Institute of Biological Products (Chengdu), Wuhan Institute of Biological Products (Wuhan) and Yunan Watson Biological Company (Kunming). In the present study, all children providing samples had received the aP vaccine (CS strain) produced by the Wuhan Institute of Biology. China began to use pertussis vaccines in the 1960s with a vaccine strain that carried ptxA2. A study conducted by Zhang et al.,²⁶ showed that all isolates collected after 1983 contained ptxA1. The results of the present study are consistent with the findings of Zhang et al.,²⁶ in that all isolates carried ptxA1. However, the sustained rise of whooping cough began in 2013,²⁷ suggesting that the replacement of ptxA2 by ptxA1 may not be related to the rising incidence of pertussis in China.

In the present study, all the prn1 strains were resistant to macrolides, while prn9 and prn2 strains were macrolide-sensitive. In addition, all the ptxP1 strains were resistant to macrolides, while ptxP3 strains were susceptible. This may explain why there is no prevalence of macrolide-resistant strains in Europe, as the prevalent strain is ptxP3.¹⁴ The results suggest that the acquisition of macrolide resistance in B. pertussis may be related to the change of antigen-related genes, especially ptxP and prn genes. At present, there is no systematic report on the resistance mechanism of B. pertussis to macrolides, with the mutation of A to G at site 2047 of the 23S rRNA gene being the only unified understanding of macrolide resistance in B. pertussis strains. Fu et al.⁶ speculated that the B. pertussis strain carrying prn1/ptxP1 has been prevalent in the population for a long time and acquired resistance during the screening of macrolides, while the ptxP3 strains emerged gradually after the popularization of the vaccine in China, and was sensitive to macrolides due to short exposure time. In addition, antibiotic misuse is known to be widespread in China, and macrolide misuse may provide favourable conditions for the transmission of erythromycin-resistant pertussis strains and may have caused the limited spread of ptxP3 type strains (prevalent in erythromycin-susceptible strains) in China. In the present study, the prn1 and ptxP1 genes always appeared at the same time, accompanied by the A2047G mutation and macrolide resistance. The potential existence of a mechanism in such an association requires further study. Possible resistance mechanisms of pathogens to macrolide antibiotics include active efflux, target change (gene mutation or methylation) and drug inactivation.^28,29 Comprehensive screening of the resistance mechanism above will contribute to elucidating the possible cause of macrolide resistance in prn1/ptxP1 isolates.

Four MTs were obtained in the present study: MT195, MT104, MT55 and MT27. The rate of MT27 strain isolation has been increasing continuously in Europe over the past 20 years, and more than 80% of isolates were reported to be MT27 in recent years.¹⁰ However, the rate of MT27 strain detection remains relatively low in China, and a total of 12 such strains (20.7%) were detected in the present study. Substantial heterogeneity of MLVA types has been identified among erythromycin-resistant and erythromycin-sensitive pertussis isolates.³⁰ In the present study, MT195, MT104, and MT55 were detected from macrolide-resistant strains, while MT27 was identified from susceptible strains. The results corroborate the opinion that the acquisition of macrolide-resistance may be associated with change of MLVA types.

A certain correlation has been shown to exist between the drug-resistance phenotype and the PFGE genotype in Salmonella enterica.³¹ In a bioinformatics analysis, macrolide-resistant pertussis isolates were shown to mainly belong to the Va, Vb and Vc sub-lineages below the lineage V.³² Furthermore, erythromycin-resistant lineages I, II, and III have been reported,^1,33 which were similar to the sub-lineages Va, Vb, and Vc above. The present results were consistent with those of the above studies: PFGE profiles BpFINR9 and BpSR23 were obtained from macrolide-resistant pertussis strains, while susceptible strains were identified as having different profiles (Figure 1). The results suggest that the high macrolide resistance rate may due to the horizontal spread of resistant clones in China.

The high macrolide resistance rate in the present study suggests that antibiotic resistance in pertussis strains should be carefully monitored. In addition, the MICs of macrolides to ptxP1 strains were significantly higher than those to ptxP3 strains, and the MICs to other MT strains were also higher than to MT27 strains, suggesting that the molecular characteristics of pertussis strains should also be noted. All macrolide-resistant strains in the present study carried the A2017G mutation, the ptxP1 and prn1 alleles, the MLVA types MT195, MT55 and MT104, and the PFGE profiles were classified into BpSR23 and BpFINR9 types. However, no A2017G mutations were found in any of the macrolide-sensitive strains, whose genotypes were (prn9 or prn2)/ptxP1/MT27, and PFGE profiles were different from the macrolide-resistant strains. These results suggest that the acquisition of macrolide resistance may be associated with changes in specific molecular characteristics.

In conclusion, as outbreaks and drug resistance of B. pertussis have been reported in many parts of the world, there have been numerous in-depth studies on the genomic diversity of pertussis strains, however, there are few published reports regarding B. pertussis in China.³⁴ Strains in the present study were collected mainly from the western region of China, including Shaanxi, Gansu and Qinghai. The data published here highlight potential inadequacies of B. pertussis vaccination, and B. pertussis genomic diversity, in western China, and provide a reference value for the importance of improving the pertussis vaccine in China. However, the present results may be limited by the relatively small number of strains investigated, and future studies should include an expanded range and volume of sampling to verify the conclusions. In addition, comprehensive screening for possible mechanisms of macrolide resistance, such as dynamic efflux, target change and drug inactivation, should be conducted to further clarify the connection between the acquisition of macrolide resistance in B. pertussis and change of genotypes.

Footnotes

Author contributions

ZJS wrote the manuscript; ZDQ revised the manuscript; ZJS, ZDQ, WXQ, LH, and WXG collected the data; and WXQ, LH, and WXG analysed the data. All authors read and approved the final manuscript.

Declaration of conflicting Interest

The Authors declare that there is no conflict of interest.

Funding

This research was funded by the Science and Technology Program of Xi’an-Medical Research Program (201805101YX9SF35[2]); and the Health Research Personnel Training Program of Xi’an-2018 Bureau Scientific Research Projects (grant number J201801016).

ORCID iD

Juansheng Zhang

References

Wang

Luan

, et al. Genomic epidemiology of erythromycin-resistant Bordetella pertussis in China. Emerg Microbes Infec 2019; 8: 461–470.

Bartkus

Juni

Ehresmann

, et al. Identification of a mutation associated with erythromycin resistance in Bordetella pertussis: implications for surveillance of antimicrobial resistance. J Clin Microbiol 2003; 41: 1167–1172.

Korgenski

Daly

JA.

Surveillance and detection of erythromycin resistance in Bordetella pertussis isolates recovered from a pediatric population in the Intermountain West region of the United States. J Clin Microbiol 1997; 35: 2989–2991.

Zhang

Wang

, et al. High-resolution melting analysis for the detection of two erythromycin-resistant Bordetella pertussis strains carried by healthy schoolchildren in China. Clin Microbiol Infect 2013; 19: E260–E262.

Wang

Cui

, et al. High prevalence of erythromycin-resistant Bordetella pertussis in Xi'an, China. Clin Microbiol Infect 2014; 20: O825–O830.

Wang

Tian

, et al. Bordetella pertussis infection in infants and young children in Shanghai, China, 2016–2017: clinical features, genotype variations of antigenic genes and macrolides resistance. Pediatr Infect Dis J 2019; 38: 370–376.

Guo

Zhang

, et al. Analysis on drug resistance of Bordetella pertussis isolated in Tianjin. Disease Surveillance 2018; 33: 585–589 [In Chinese, English abstract].

Wang

Hou

, et al. Appearance of macrolide-resistant Bordetella pertussis strains in China. Antimicrob Agents Chemother 2013; 57: 5193–5194.

Saadatian-Elahi

Plotkin

Mills

KHG

, et al. Pertussis: biology, epidemiology and prevention. Vaccine 2016; 34: 5819–5826.

10.

Barkoff

Mertsola

Pierard

, et al. Surveillance of circulating Bordetella pertussis strains in Europe during 1998 to 2015. J Clin Microbiol 2018; 56: 01998-17.

11.

Jiang

Liu

Chen

, et al. Epidemiological characteristics, genotypes, genetic relationships and macrolide resistance of 31 Bordetella pertussis strains isolated from infants and young children in Shenzhen. Chin J Microbiol Immunol 2019; 12: 270–276 [In Chinese].

12.

Liu

Zhang

, et al. Where macrolide resistance is prevalent. APMIS 2015; 123: 361–363.

13.

Souder

Vodzak

Evangelista

, et al. Antimicrobial susceptibility and molecular detection of pertactin-producing and pertactin-deficient Bordetella pertussis. Pediatr Infect Dis J 2017; 36: 119–121.

14.

Van Gent

Heuvelman

Van der Heide

, et al. Analysis of Bordetella pertussis clinical isolates circulating in European countries during the period 1998–2012. Eur J Clin Microbiol Infect Dis 2015; 34: 821–830.

15.

Mooi

Van Loo

Van Gent

, et al. Bordetella pertussis strains with increased toxin production associated with pertussis resurgence. Emerg Infect Dis 2009; 15: 1206–1213.

16.

Schouls

Van der Heide

Vauterin

, et al. Multiple-locus variable-number tandem repeat analysis of Dutch Bordetella pertussis strains reveals rapid genetic changes with clonal expansion during the late 1990s. J Bacteriol 2004; 186: 5496–5505.

17.

Van Gent

Bart

Van der Heide

, et al. Small mutations in Bordetella pertussis are associated with selective sweeps. PLoS One 2012; 7: e46407.

18.

Advani

Hallander

Dalby

, et al. Pulsed-field gel electrophoresis analysis of Bordetella pertussis isolates circulating in Europe from 1998 to 2009. J Clin Microbiol 2013; 51: 422–428.

19.

Yang

Yao

, et al. Variation in Bordetella pertussis susceptibility to erythromycin and virulence-related genotype changes in China (1970–2014). PLoS One 2015; 10: e138941.

20.

Sutcliffe

Tait-Kamradt

Wondrack

Streptococcus pneumoniae and Streptococcus pyogenes resistant to macrolides but sensitive to clindamycin: a common resistance pattern mediated by an efflux system. Antimicrob Agents Chemother 1996; 40: 1817–1824.

21.

Brisson-Noël

Delrieu

Samain

, et al. Inactivation of lincosaminide antibiotics in Staphylococcus. Identification of lincosaminide O-nucleotidyltransferase and comparison of the corresponding resistance genes. J Biol Chem 1988; 263: 15880–15887.

22.

Calatayud

Ardanuy

Cercenado

, et a1. Serotypes, clones, and mechanisms of resistance of erythromycin-resistant Streptococcus pneumoniae isolates collected in Spain. Antimicrob Agents Chemother 2007; 51: 3240–3246.

23.

Zhao

Kong

Zeng

, et al. Distribution of genotypes and antibiotic resistance genes among invasive Streptococcus agalactiae (group B streptococcus) isolates from Australasian patients belonging to different age groups. Clin Microbiol Infect 2008; 14: 260–267.

24.

Wang

Zhang

, et al. Sequencing of the S1 and Prn genes of three pertussis strains for the preparation of vaccine in China. Chin J Microbiol Immunol 2006; 26: 137–142 [In Chinese].

25.

Liu

Wang

Zhang

, et al. Pertussis outbreak in a primary school in China: infection and transmission of the macrolide-resistant Bordetella pertussis. Pediatr Infect Dis J 2018; 37: 145–148.

26.

Zhang

Zhao

, et al. Effect of vaccination on Bordetella pertussis strains, China. Emerg Infect Dis 2010; 16: 1695–1701.

27.

Wang

Han

Liu

, et al. Direct detection of erythromycin-resistant Bordetella pertussis in clinical specimens by PCR. J Clin Microbiol 2015; 53: 3418–3422.

28.

Lim

Moon

Chae

, et al. Macrolide resistance mechanisms and virulence factors in erythromycin-resistant Campylobacter species isolated from chicken and swine feces and carcasses. J Vet Med Sci 2017; 78: 1791–1795.

29.

Cagliero

Mouline

Cloeckaert

, et al. Synergy between efflux pump CmeABC and modifications in ribosomal proteins L4 and L22 in conferring macrolide resistance in Campylobacter jejuni and Campylobacter coli. Antimicrob Agents Chemother 2006; 50: 3893–3896.

30.

Deng

, et al. High prevalence of macrolide-resistant Bordetella pertussis and ptxP1 genotype, mainland China, 2014–2016. Emerg Infect Dis 2019; 25: 2205–2214.

31.

Spiliopoulou

Zografou

Goula

, et al. Molecular epidemiology and antibiotic resistance patterns of Salmonella enterica from southwestern Greece. Chemotherapy 2007; 53: 392–396.

32.

Yao

Deng

, et al. The epidemic of erythromycin-resistant Bordetella pertussis with limited genome variation associated with pertussis resurgence in China. Expert Rev Vaccines 2020; 19: 1093–1099.

33.

Liu

Gröndahl-Yli-Hannuksilarondahl

, et al. Whole-genome sequencing reveals the effect of vaccination on the evolution of Bordetella pertussis. Sci Rep 2015; 5: 12888.

34.

Bowden

Weigand

Peng

, et al. Genome structural diversity among 31 Bordetella pertussis isolates from two recent U. S. whooping cough statewide epidemics. mSphere 2016; 1: e00036–16.
