Correlation of radiomic features on dynamic contrast-enhanced magnetic resonance with microvessel density in hepatocellular carcinoma based on different models

Abstract

Objective

To explore the correlations of radiomic features of dynamic contrast-enhanced magnetic resonance imaging (DCE-MRI) with microvessel density (MVD) in patients with hepatocellular carcinoma (HCC), based on single-input and dual-input two-compartment extended Tofts (SITET and DITET) models.

Methods

We compared the quantitative parameters of SITET and DITET models for DCE-MRI in 30 patients with HCC using paired sample t-tests. The correlations of SITET and DITET model parameters with CD31-MVD and CD34-MVD were analyzed using Pearson’s correlation analysis. A diagnostic model of CD34-MVD was established and the diagnostic abilities of models for MVD were analyzed using receiver operating characteristic curve (ROC) analysis.

Results

There were significant differences between the quantitative parameters in the two kinds of models. Compared with SITET, DITET parameters showed better correlations with CD31-MVD and CD34-MVD. The K^trans and Ve radiomics features of the DITET model showed high efficiency for predicting the level of CD34-MVD according to ROC analysis, with areas under curves of 0.83 and 0.94, respectively.

Conclusion

Compared with SITET, the DITET model provides a better indication of the microcirculation of HCC and is thus more suitable for examining patients with HCC.

Keywords

Hepatocellular carcinoma microvessel density single-input two-compartment extended Tofts model dual-input two-compartment extended Tofts model magnetic resonance imaging portal vein hepatic artery

Introduction

Hepatocellular carcinoma (HCC) is the most common vessel-rich malignant liver tumor. During hepatocarcinogenesis, new arterial capillaries are formed and the blood supply from the portal vein decreases, resulting in a microcirculation that is functionally significantly different from that of normal liver parenchyma.¹ Microvessel density (MVD) is the gold standard for evaluating tumor neovascularization in patients with HCC.

Dynamic contrast-enhanced magnetic resonance imaging (DCE-MRI) is a non-invasive MRI method based on the pharmacokinetics of the contrast agent, which uses fast T1-weighted sequence to track low-molecular-weight contrast agents injected intravenously into the tissue microcirculation. According to the signal changes of each voxel, it extracts information reflecting the functional status of the microcirculation,^2–4 and the quantification parameters (volume transfer constant, K^trans; flux rate constant, kep; extravascular fluid space contrast volume, Ve; plasma volume fraction, Vp) and perfusion parameters (blood flow, BF; blood volume, BV) can be obtained and used to evaluate changes in the microcirculation.

Radiomics involves the application of extensive automated data-characterization algorithms to transform the image data for the region of interest (ROI) into characteristic spatial data with high resolution. Combined with clinical, pathological, or genetic information, radiomics data for the liver can help to characterize lesions and aid preoperative diagnosis,^5–7 assess tumor differentiation and proliferation,^8–10 and evaluate therapeutic effect and predict prognosis.^11,12

The liver is a dual-blood-supply organ that accepts blood from both the hepatic artery and portal vein. This unique physiological structure means that calculating the quantitative DCE-MRI parameters differs from that for organs with a single blood supply. Based on the characteristics of the dual blood supply, most quantitative analysis of DCE-MRI of the liver is currently carried out using the dual-input two-compartment extended Tofts (DITET) model.^13–19 However, given that HCCs are mainly supplied by the hepatic artery, the relative benefits of the single-input two-compartment extended Tofts (SITET) and DITET models remain unclear, and comparative studies of these methods are lacking.

In this study, we speculated that the DITET model would provide a better indication of the microcirculation of HCC and would thus be more suitable for studying these patients. We explored the correlations of radiomic features based on the SITET and DITET models with MVD in patients with HCC to determine the most suitable mathematical input model for DCE-MRI in patients with HCC, and to promote the clinical application of DCE-MRI.

Patients and methods

Patients

This retrospective study was approved by the Ethics Committee of Nantong Third People’s Hospital (approval no. EL2015010). All the subjects provided signed informed consent before DCE-MRI examination. Eligible patients were selected from 7 July 2015 to 16 August 2017 according to the following inclusion criteria: B-ultrasound, computed tomography and conventional MRI showed the presence of liver tumor; maximum lesion diameter >2 cm (with easy to define region of interest (ROI), thus reducing error caused by delineation of ROI); and lesion confirmed as HCC by pathology. The exclusion criteria were: a history of liver surgery or intervention; poor liver or kidney function, and cannot undergo contrast enhancement examination; MRI inspection contraindications; and cannot sign informed consent due to physiological or mental disorders.

MRI examination

Upper abdominal MRI was carried out using a 3.0T MRI system (Achieva; Philips, the Netherlands) with a 32-channel DCE images were obtained using the THRIVE sequence in the axial direction, covering 40 cm of liver scanning 40 periods, lasting for 4 minutes and 3 s. The contrast agent (Gd-DTPA-BMA; Omniscan; GE Healthcare, IL, USA) was injected at the end of the second period of DCE. The scanning parameters were as follows: TR/TE = 3.0/1.34 ms, FOV = 390 mm × 334 mm, matrix = 196 × 168, and spatial resolution 2 mm × 2 mm × 2.5 mm. The time resolution was 6S and the flip angle was 12°. During the scanning process, parallel acquisition technology was applied, with acquisition factor 2. Before contrast-enhanced scanning, five flip angles (3°, 6°, 9°, 12°, and 15°) were scanned. The other sequence parameters were as used before to calculate the tissue background T1 value. All patients fasted for 6 hours before examination. The total volume of the injected Gd-DTPA-BMA was calculated as 0.2 mL/kg body weight at a rate of 3.0 mL/s in the elbow vein, plus 20 mL normal saline injected at the same speed after injection of the contrast agent.

Pathological specimen processing

Tumor samples obtained during surgery were used for pathological analysis to determine the diagnosis and grade of malignancy. Tumor grade was assessed as I, II, III, or IV according to the Edmondson Steiner grading method. The tumor MVD was evaluated by EnVision immunohistochemical staining (Gene Tech, China). Antigen repair was carried out by the high-pressure method in ethylenediaminetetraacetic acid (pH 9.0) for 3 minutes. The sections were then incubated with hydrogen peroxide for 15 minutes, anti-CD31 monoclonal antibody (mouse anti-human; Gene Tech) or anti-CD34 monoclonal antibody (mouse anti-human; Gene Tech) at room temperature for 2 hours, followed by horseradish peroxidase-labeled goat anti-rabbit antibody (Gene Tech) at room temperature for 30 minutes. The slides were stained with diaminobenzidine and hematoxylin and scanned at ×100 magnification (×10 objective and ocular lens, Olympus BX51; Olympus, Japan) to identify CD31- and CD34-immunopositive sinusoidal areas (hot spots). Five ROIs were then randomly selected from the hot spots at ×200 magnification for each section. The MVD areas were measured quantitatively using Image-Pro plus 6.2.1 software (Media Cybernetics, Silver Spring, MD, USA). The final MVD for each sample was expressed as the ratio of the sum of the immunopositive areas and the sum of the total area.

Data post-processing

The DCE-MRI data were processed using OK software (Omnikit; GE Healthcare). First, three-dimensional non-rigid registration technology was used for data-motion correction and registration. A T1 map was then calculated using five flip-angle images, and two circular ROIs were drawn at the artery and portal vein to obtain time-density curves. Finally, SITET and DITET models were selected to fit the data and the quantitative permeability parameters, including K^trans, kep, Ve, and Vp, and quantitative perfusion parameters, including BF, BV, were obtained.

The outlines of the tumor as the ROI on the most obvious tumor-enhancement image, avoiding tumor hemorrhage and necrosis areas were delineated by a radiologist with 10-years’ experience who was blinded to the pathology. The same ROIs were used for the SITET and DITET models, and 376 image features (42 histogram features, 334 texture features) were extracted using AK software (AnalysisKit; GE Healthcare).

Statistical analysis

The data obtained in this study were analyzed using R language programming software (version 3.6.1, https://www.r-project.org/). Differences between the SITET and DITET features were compared using paired samples t-tests. The correlations between the quantitative parameters of the two models with CD31-MVD and CD34-MVD were then calculated using Pearson’s correlation coefficient.

In this study, the MVD prediction model was constructed using texture analysis. HCCs were divided into high-MVD and low-MVD groups based on the median CD34-MVD. Texture analyses were then carried out using radiomics features extracted from different quantitative images. The parameters were initially screened using the Mann–Whitney U test and univariable logistic regression, and parameters with P < 0.1 were selected for multivariate logistic regression analysis to produce the final prediction model. The area under curve (AUC) was used to evaluate the effectiveness of the model.

A flow chart of the study method is shown in Figure 1.

Figure 1.

Flow chart of study methods.

Results

Baseline data

Thirty-two patients who underwent DCE-MRI were initially included in the study, but two were subsequently excluded because of image blurring. Thirty patients (31 lesions) with a history of chronic hepatitis B cirrhosis were therefore included in the analysis (24 men, 6 women; age 42–76 years). The lesions ranged from 21 to 150 mm. The pathological grades of the 31 HCCs were as follows: five grade II, one grade II–III, 25 grade III, and no grade IV lesions. The enhancement of HCC occurred earlier than in the liver parenchyma, and remained higher than that of the liver parenchyma (Figure 2). HCC in the VII–VIII liver segment is shown in Figure 3a. The MVD of the tumor tissues was detected by CD31 and CD34 immunohistochemistry (Figure 3b,c). The images of K^trans, kep, Ve, Vp, BF, and BV were obtained by software calculation (Figure 3d-o).

Figure 2.

Dynamic contrast-enhanced magnetic resonance imaging of a 51-year-old male patient with a 10-year history of chronic hepatitis B. Segment VII of liver with pathologically confirmed hepatocellular carcinoma (HCC), grade III. (a) Time-intensity curve of hepatic artery, portal vein, HCC, and liver parenchyma enhancement. (b) Regions of interest: red circle, hepatic artery; blue circle, portal vein; orange polygon, HCC; green circle, liver parenchyma.

Figure 3.

A 54-year-old woman with chronic hepatitis B cirrhosis. Surgical and pathology results showed grade II hepatocellular carcinoma in the VII–VIII liver segment. (a) Selection of permeability quantification and perfusion parameters. (b) CD31-labeled microvessel density images (×200 magnification). (c) CD34-labeled microvessel density images (×200 magnification). K^trans, kep, Ve, Vp, BF, and BV calculated by (d–i) single-input and (j–o) dual-input two-compartment extended Tofts models.

Difference in quantitative parameters between SITET and DITET models

Forty-two histogram characteristics of K^trans, kep, Ve, Vp, BF, and BV were obtained for the SITET and DITET models, respectively (total 504). Totals of 34/42, 37/42, 35/42, 38/42, 36/42, and 32/42 histogram characteristics differed significantly between the two models for K^trans, kep, Ve, Vp, BF, and BV, respectively. A total of 334 texture features for K^trans, kep, Ve, Vp, BF, and BV were obtained for the two models, respectively (total 4008), with significant differences between the two models in 209/334, 53/334, 175/334, 93/334, 93/334, and 28/334, respectively (Supplementary File 1).

Correlation between quantitative parameters of SITET model and MVD

There was no significant correlation between the histogram characteristics of the SITET model and CD31-MVD or CD34-MVD. In the texture features, only 3/334 Vp and 2/334 BV features were significantly correlated with CD31-MVD and CD34-MVD, respectively (Supplementary File 2).

Correlation between quantitative parameters of DITET model and MVD

There was no significant correlation between the K^trans histogram characteristics of the DITET model and CD31-MVD. However, 24/42, 5/42, 22/42, 2/42, and 14/42 histogram characteristics of kep, Ve, Vp, BF, and BV feature, respectively, were significantly correlated with CD31-MVD (Supplementary 3). In addition, 24/334, 35/334, 20/334, 28/334, 56/334 and 33/334 K^trans, kep, Ve, Vp, BF, and BV texture features, respectively, were significantly correlated with CD31-MVD (Supplementary 3).

The K^trans, kep, Ve, Vp, BF, and BV histogram features were significantly correlated with CD34-MVD for 10/42, 23/42, 15/42, 28/42, 5/42, and 12/42 features, respectively (Supplementary 3), and K^trans, kep, Ve, Vp, BF, and BV texture features were significantly correlated with CD34-MVD for 32/334, 21/334, 28/334, 32/334, 34/334, and 35/334 features, respectively (Supplementary File 3).

Index of CD34-MVD model based on K^trans and Ve

An MVD diagnostic model was constructed for the DITET model parameters. Only the K^trans and Ve imaging parameters in the DITET model successfully constructed high- and low-density MVD diagnostic models, with diagnostic accuracies of 0.80 and 0.88, respectively, and sensitivities of 0.833 and 0.917, respectively (Table 1), indicating some value for diagnosing the level of MVD. The AUCs were 0.83 and 0.94, respectively (Figure 4) and the cross-validation results of the K^trans vs. Ve models were 0.74 and 0.89, respectively.

Table 1.

Evaluation index of CD34-microvessel density model based on K^trans and Ve.

	Precision (95%CI)	Sensitivity	Specificity	Positive predictive value	Negative predictive value
K^trans	0.800 (0.593–0.932)	0.833	0.769	0.769	0.833
Ve	0.880 (0.688–0.975)	0.917	0.846	0.846	0.917

CI, confidence interval.

Figure 4.

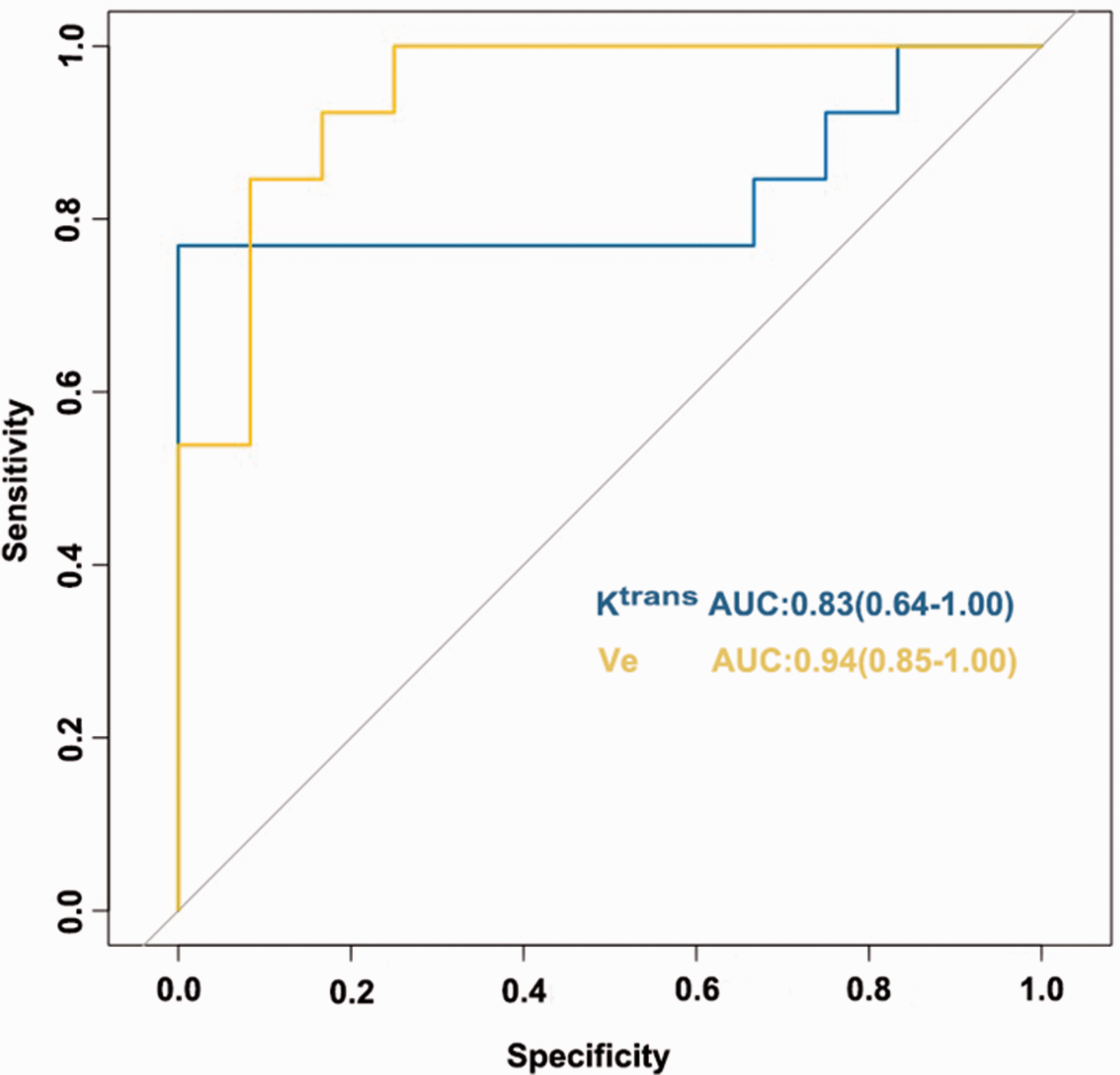

Area under the receiver operating characteristic curves of K^trans and Ve parameters in the dual-input two-compartment extended Tofts model for CD34-microvessel density.

Discussion

The current study revealed large differences in imaging characteristics between the SITET and DITET models in relation to the permeability and perfusion parameters of the HCC microvascular environment. Approximately 75% of normal liver tissue is supplied by the portal vein and 25% by the arterial phase; however, new capillaries in malignant liver tumors originate from the hepatic artery, and the SITET model ignores the blood supply from the portal vein. Morgan et al.²⁰ used DCE-MRI to analyze the degree of capillary function damage in liver metastasis. They used the DITET model to analyze the background of the liver parenchyma quantitatively, and the SITET model to analyze the tumor data, taking account of the different blood supply patterns and cell structures. Some quantitative HCC studies have used the SITET model to evaluate the differential diagnosis of HCC,²¹ and the curative effects of local chemotherapy²² and targeted therapy.^23,24 However, although the arterial blood supply is relatively increased in HCC compared with the portal blood supply, the tumor still has a dual blood supply, and other studies have therefore used the DITET model to study HCC in terms of comparing mathematical models,^25,26 and assessing the diagnosis²⁷ and curative effect of interventional therapy.^28,29

Both CD31 and CD34 are expressed in vascular endothelial cells. Sinusoid capillarization and neovascularization are increased in HCC, and the expression levels of CD31 and CD34 are accordingly increased. Based on these imaging characteristics, we explored the correlations between SITET and DITET model parameters and MVD in patients with HCC. Compared with the SITET model, both the permeability and perfusion parameters of DITET correlated better with CD31-MVD and CD34-MVD, suggesting that the mathematical DITET model was more consistent with the microcirculation environment of HCC.

The permeability and perfusion parameters of the DITET model may thus be used to predict and evaluate the efficacy of targeted therapy²⁵ and the response to transarterial chemoembolization in HCC,²⁸ and for the diagnosis and classification of hepatic fibrosis and evaluation of liver function.^18,30–32 However, the permeability and perfusion parameters of the SITET model may be suitable for evaluating liver metastasis, including the differential diagnosis and efficacy evaluation of targeted therapy.^20,22

A previous study showed increased expression of CD31 and CD34 in hepatic sinusoids and increased neovascularization during transformation from cirrhotic nodules to HCC, with a particularly significant increase in CD34 expression.³³ This may explain the better correlation between the DITET model and CD34-MVD in the current study. The increase in microvessels in HCC results in increased blood volume and blood flow and increased perfusion, characterized by increased BF and BV of the microcirculation. The number of microvessels and the percentage of contrast medium in the tissue also increase, characterized by an increase in Vp. However, the neovascularization endothelium is incomplete, and permeability to the contrast medium and K^trans are thus increased. Some previous studies showed good correlations between K^trans and MVD in some tumors (retinoblastoma, breast cancer, lung cancer, gastric cancer, and glioma).^34–39

The current study showed that the imaging characteristics K^trans, Vp, BF, and BV in the DITET model were closely related to the expression of CD34 in HCC microvessels. At the same time, the MVD diagnostic model based on the DITET K^trans and Ve imaging features could distinguish the level of MVD. These results were validated by ROC curve analysis. Using the CD31-MVD and CD34-MVD immunohistochemical slices as the reference standard and the self-control method, the imaging characteristics reflected by the quantitative DCE-MRI DITET model parameters were more strongly correlated with MVD in patients with HCC, compared with SITET, and better reflected the real microcirculation environment.

This study had some limitations. First, the basis of the MVD high and low groupings were not supported by references. Second, the sample size was small and all the cases were from a single center and were obtained using a single MRI scanner. Multicenter studies with more cases are therefore needed to validate these results. Finally, the small sample size and large number of tested features may be prone to significant overfitting problems.

In summary, the DITET model provides a better indication of the microcirculation of HCCs compared with the SITET model, and is thus more suitable for the study of patients with HCC.
