Enamel defects in permanent teeth of patients with cleft lip and palate: a cross-sectional study

Abstract

Objective

This study investigated the prevalence, type, and location of enamel defects in the permanent teeth of patients with complete unilateral or bilateral cleft lip and palate (CLP), and compared the prevalence and characteristics of defects between CLP patients and non-CLP individuals.

Methods

We examined completely erupted permanent dentition, except for third molars, of CLP patients and non-CLP individuals of both sexes, 9–36 years of age, and analyzed corresponding panoramic radiographs. Two independent examiners performed clinical examinations in accordance with the Modified Developmental Defects of Enamel index.

Results

A total of 210 (87.9%) CLP patients and 194 (41.4%) non-CLP individuals had at least one enamel defect; these were more prevalent in the CLP group than in the non-CLP group. Upper teeth were primarily affected by enamel defects associated with the cleft; defects were most prevalent on the cleft side in CLP patients, followed by the non-cleft side in CLP patients, and then by non-CLP individuals.

Conclusion

Enamel defects were more common in CLP patients than in non-CLP individuals. Among CLP patients, enamel defects were more prevalent in the cleft side of the maxilla; the central incisor was the most commonly affected tooth in this quadrant.

Keywords

Cleft lip and palate enamel defects dentition maxilla central incisor opacity hypoplasia mineralization

Introduction

Cleft lip and palate (CLP) is a common birth defect due to abnormal orofacial development, which exhibits both ethnic and geographical variation.¹ The prevalence rates of nonsyndromic, syndromic, and overall CLP in China are 14.23, 2.40, and 16.63 per 10000 live births, respectively.² Dental anomalies may comprise enamel defects, hypodontia, supernumerary teeth, and/or microdontia;³ these anomalies are more common in CLP patients than in the general non-CLP population, and are more frequent in permanent teeth than in primary teeth.⁴

Enamel defects are frequently observed in CLP patients. Maciel et al.⁵ reported a higher incidence of enamel defects on the cleft side for both deciduous and permanent dentition, compared with the non-cleft side, in children with complete unilateral CLP. Ruiz et al.⁶ reported a significant increase in the incidence of enamel defects in the upper anterior teeth of patients with complete CLP. Nevertheless, previous studies regarding enamel defects in CLP patients have primarily recruited CLP patients and mainly explored developmental defects of the enamel on certain teeth.^7–11 There are no available systematic comparisons of enamel defects between CLP patients and non-CLP individuals across the entire dentition, as well as between affected and non-affected sides of CLP patients.

Incidences of dental anomalies may differ between cleft and non-cleft sides in CLP patients. Some studies have shown a higher rate of dental anomalies in the cleft side,^5,8,10–12 while others^13,14 have reported similar prevalence rates between the two sides, or higher incidence on the non-cleft side. Etiological factors underlying dental anomalies in CLP patients are not yet fully understood, and may include both genetic and environmental factors.^15–17

This cross-sectional study evaluated the prevalence and characteristics of enamel defects in the permanent teeth of patients with complete unilateral and bilateral CLP, and compared the findings with non-CLP individuals as a control group.

Methods

The study population included non-syndromic individuals from two groups (CLP and non-CLP) at Peking University Hospital of Stomatology, Beijing, China, who were recruited during the period from October 2015 to September 2017. The patients were recruited with the approval of the hospital’s Ethics and Research Committee, and all patients provided written informed consent to participate in the study.

Male and female individuals who fulfilled the following criteria were eligible for inclusion: individuals were Chinese non-syndromic patients who all had similar socioeconomic and geographic characteristics, thereby reducing risk of bias; complete eruption of permanent teeth was observed; all surfaces of the teeth were accessible for appropriate clinical examination (no restorations, orthodontic appliances, or crowns); complete medical records were available, including dental history and intraoral standardized panoramic photographs. The following criteria were further applied in the CLP group: complete unilateral or bilateral CLP was present; all patients had received lip and hard tissue closure surgery before 3 years of age. The following criteria were further applied in the non-CLP control group: individuals had no history of dental extractions of any permanent teeth, no history of trauma, and no history of previous orthodontic/prosthodontic treatment or maxillofacial surgery. In both groups, third molars, supernumerary teeth, and unerupted teeth were not examined for enamel defects.

Three complete orofacial CLP categories were analyzed, based on the affected side of the lip, alveolar process, and palate: bilateral CLP (CLPB), left unilateral CLP (CLPL), and right unilateral CLP (CLPR). Patients with unilateral or bilateral lip and alveolus cleft, as well as patients who exhibited only cleft palate or cleft lip, were not included.

Enamel defects in both CLP and non-CLP groups were evaluated and recorded by two independent examiners under artificial light with a dental probe and mouth mirror after drying the teeth for 15 s; examinations were performed in accordance with the Modified Developmental Defects of Enamel Index (Modified DDE Index).^6,18 The Kappa coefficient was used to assess the consistency of enamel examinations between the two examiners.

According to the Modified DDE Index, enamel defects are mainly classified as normal (Code 0), demarcated opacity (Code 1), diffuse opacity (Code 2), or hypoplasia (Code 3). Demarcated opacity and diffuse opacity are characterized by changes in the translucency of enamel to various degrees.^6,19 Hypoplasia is characterized by pits, grooves, and a partial or complete absence of enamel over a considerable area of dentine.^6,20 Combined defects include diffuse opacity or demarcated opacity combined with hypoplasia; however, such defects were not analyzed in this study due to their low incidence rates (<0.8%) in both groups.

The affected surfaces of the teeth (mesial, distal, buccal, or palatal) were recorded, as well as the specific locations of enamel defects along the surfaces of each tooth (incisal, middle, and cervical). Among CLP patients, the prevalence and characteristics of enamel changes on the cleft side were compared with those on the non-cleft side. Moreover, changes in enamel defects were evaluated in non-CLP individuals, as a control group. Chi-squared and Fisher’s exact tests were conducted to compare between groups; differences with p < 0.05 were considered to be statistically significant.

Results

The study population consisted of 708 non-syndromic individuals, comprising CLP and non-CLP groups. In the CLP group, a total of 239 CLP patients (73 CLPB, 109 CLPL, and 57 CLPR) were thoroughly examined for enamel defects. All patients were between 9 and 34 years of age (mean age, 16 years; 143 male patients, 96 female patients). In the non-CLP group, a total of 469 individuals without CLP (age, 10–36 years; mean age, 20 years; 246 male individuals, 223 female individuals) were also examined as controls. There were no significant differences in sex ratio between the groups. There were also no significant differences in age distribution between the groups. The kappa value for examinations in the CLP group was 0.869 (95% CI: 0.824–0.913, p < 0.001), which indicated good consistency between the two examiners. Similarly, the examinations showed good consistency in the non-CLP group, with a kappa value of 0.797 (95% CI: 0.729–0.865, p < 0.001).

A total of 210 (87.9%) of 239 CLP patients had enamel defects; 86 (27 CLPB, 37 CLPL, and 22 CLPR) were female, and 124 (37 CLPB, 60 CLPL, and 27 CLPR) were male. There were no significant sex differences in the prevalence of enamel defects across all cleft types, or within the non-CLP group (Table 1). In the non-CLP group, 194 (41.4%) of 469 individuals had enamel defects (89 female individuals, 105 male individuals). There were no significant differences in sex distribution between the CLP and non-CLP groups. However, the prevalence of enamel defects significantly differed between the two groups (p < 0.0001).

Table 1.

Enamel defects by sex and cleft.

Group	Presence of defect	Total		Male		Female		p value*
Group	Presence of defect	N	%	N	%	N	%	p value*
CLPB	No	9	12.3	6	14.0	3	10.0	0.7283
CLPB	Yes	64	87.7	37	86.0	27	90.0	0.7283
CLPL	No	12	11.0	8	11.8	4	9.8	1
CLPL	Yes	97	89.0	60	88.2	37	90.2	1
CLPR	No	8	14.0	5	15.6	3	12.0	1
CLPR	Yes	49	86.0	27	84.4	22	88.0	1
CLP	No	29	12.1	19	14.6	10	9.2	0.5506
CLP	Yes	210	87.9	124	95.4	86	78.9	0.5506
Non-CLP	No	275	58.6	141	59.5	134	57.8	0.5738
Non-CLP	Yes	194	41.4	105	44.3	89	38.4	0.5738

*Fisher’s exact test. CLPB, bilateral cleft lip and palate; CLPL, left unilateral cleft lip and palate; CLPR, right unilateral cleft lip and palate; CLP, cleft lip and palate.

Overall, the incidence rates of all three enamel defects were much higher in the CLP group than in the non-CLP group (p < 0.0001, Table 2); there was an increased average number of affected teeth per person in the CLP group, compared with the non-CLP group (p < 0.0001). Diffuse opacity was present at a higher rate in the CLP group (p = 0.0153), while the average number of affected teeth per person in the CLP group did not significantly differ from that in the non-CLP group. Finally, the rate of demarcated opacity was higher in the CLP group than in the non-CLP group (p < 0.0001); the average number of affected teeth per person in the CLP group was greater than that in the non-CLP group (p < 0.0001, Table 2).

Table 2.

Enamel defect incidence and average number of affected teeth.

Group	Demarcated opacity				Diffuse opacity				Hypoplasia
Group	Incidence	p value*	Affected teeth**	p value*	Incidence	p value*	Affected teeth**	p value*	Incidence	p value*	Affected teeth**	p value*
CLPB	0.8	n.d	0.74	n.d	2.4	n.d	2.1	n.d	0.4	n.d	0.37	n.d
CLPL	1.3		0.74		4.5		2.66		0.8		0.44
CLPR	0.5		0.61		1.6		1.82		0.6		0.7
CLP	2.7	<0.0001	0.71	<0.0001	8.5	0.0153	2.29	0.1734	1.8	<0.0001	0.48	<0.0001
Non-CLP	1.6	<0.0001	0.43	<0.0001	7.5	0.0153	2.01	0.1734	0.1	<0.0001	0.02	<0.0001

*Chi-square test. **Average number. CLPB, bilateral cleft lip and palate; CLPL, left unilateral cleft lip and palate; CLPR, right unilateral cleft lip and palate; CLP, cleft lip and palate; n.d., not determined.

The prevalence of defects in all quadrants was significantly higher in the CLP group than in the non-CLP group (p < 0.0001, Table 3). Furthermore, in the CLP group, the rates of defects were higher in the upper right quadrant (Q1) and upper left quadrant (Q2) than in the mandibular left (Q3) and right (Q4) quadrants; differences in defect distribution among the four quadrants were significant (p < 0.0001). Chi-squared analysis revealed significant differences in Q1 vs. Q2 (p = 0.0179), Q1 vs. Q3 (p < 0.0001), Q1 vs. Q4 (p < 0.0001), Q2 vs. Q3 (p < 0.0001), and Q2 vs. Q4 (p < 0.0001). However, there were no significant differences between Q3 and Q4, which suggests that the defects occurred mainly in the maxillary region, rather than the mandibular region. There were no significant differences among the four quadrants in the non-CLP group (Table 3).

Table 3.

Enamel defects by quadrant in maxilla and mandible.

Location	Quadrant	Presence of defect	CLP		Non-CLP		p value*
Location	Quadrant	Presence of defect	N	%	N	%	p value*
Maxilla	Q1	No	101	42.3	401	85.5	<0.0001
	Q1	Yes	138	57.7	68	14.5	<0.0001
	Q2	No	76	31.8	404	86.1	<0.0001
	Q2	Yes	163	68.2	65	13.9	<0.0001
Mandible	Q3	No	166	69.5	424	90.4	<0.0001
	Q3	Yes	73	30.5	45	9.6	<0.0001
	Q4	No	171	71.5	418	89.1	<0.0001
	Q4	Yes	68	28.5	51	10.9	<0.0001
p value*			<0.0001		0.0641

*Chi-squared test. CLP, cleft lip and palate.

With regard to CLP subgroups, similar results regarding differences in defect distributions among the four quadrants were also found in the CLPB group (p < 0.0001), CLPL group (p < 0.0001), and CLPR group (p = 0.0002). The distributions of defects across the three subgroups significantly differed in Q1 (p = 0.0039) and Q2 (p = 0.035, Table 4); there were no significant associations between defects and teeth located in Q3 and Q4 across the three subgroups (Table 4).

Table 4.

Enamel defects by quadrant in maxilla and mandible and by cleft type.

Location	Quadrant	Presence of defect	CLPB		CLPL		CLPR		p value*
Location	Quadrant	Presence of defect	N	%	N	%	N	%	p value*
Maxilla	Q1	No	21	28.8	58	53.2	22	38.6	0.0039
	Q1	Yes	52	71.2	51	46.8	35	61.4	0.0039
	Q2	No	19	26	31	28.4	26	45.6	0.035
	Q2	Yes	54	74	78	71.6	31	54.4	0.035
Mandible	Q3	No	54	74	71	65.1	41	71.9	0.4016
	Q3	Yes	19	26	38	34.9	16	28.1	0.4016
	Q4	No	55	75.3	76	69.7	40	70.2	0.6883
	Q4	Yes	18	24.7	33	30.3	17	29.8	0.6883
p value*			<0.0001		<0.0001		0.0002

*Fisher’s exact test. CLPB, bilateral cleft lip and palate; CLPL, left unilateral cleft lip and palate; CLPR, right unilateral cleft lip and palate.

The CLP group showed a much higher incidence of hypoplasia in all upper teeth, with the exception of the second molar, compared with the non-CLP group (Table 5). Furthermore, the CLP group showed a significantly higher rate of demarcated opacity defects in the central incisors on both sides of the maxilla, as well as in the left maxillary canine and left maxillary first premolar (Table 5). Finally, the right central maxillary incisor and left maxillary canine exhibited higher rates of diffuse opacity defects in the CLP group (Table 5). Overall, the prevalence rates of enamel defects were higher in the CLP group than in the non-CLP group. In addition, the difference in prevalence rate between the two groups was much greater in the left maxilla than in the right maxilla.

Table 5.

Statistical significance of comparisons of different types of enamel defects between CLP and Non-CLP groups.

Tooth No.	Group	Demarcated opacity			Diffuse opacity			Hypoplasia			Overall
Tooth No.	Group	No	Yes	p value*	No	Yes	p value*	No	Yes	p value*	No	Yes	p value*
11	CLP	197	27	0.0043	191	33	0.0188	202	22	<0.0001	142	82	<0.0001
11	Non-CLP	438	27	0.0043	424	41	0.0188	465	0	<0.0001	397	68	<0.0001
12	CLP	148	6	0.2527	143	11	0.8142	151	3	0.0028	134	20	0.1582
12	Non-CLP	445	10	0.2527	425	30	0.8142	455	0	0.0028	415	40	0.1582
13	CLP	199	3	0.6845	184	18	0.627	197	5	0.0062	176	26	0.1586
13	Non-CLP	433	4	0.6845	403	34	0.627	436	1	0.0062	398	39	0.1586
14	CLP	193	1	0.2881	175	19	0.1625	191	3	0.009	171	23	0.1865
14	Non-CLP	431	8	0.2881	410	29	0.1625	439	0	0.009	402	37	0.1865
15	CLP	187	2	1	171	18	0.5595	187	2	0.0322	167	22	0.3091
15	Non-CLP	428	4	1	397	35	0.5595	432	0	0.0322	393	39	0.3091
16	CLP	232	7	1	201	38	0.2245	235	4	0.0282	190	49	0.1417
16	Non-CLP	455	14	1	410	59	0.2245	468	1	0.0282	395	74	0.1417
17	CLP	186	0	N/A	179	7	0.269	185	1	0.1321	178	8	0.5604
17	Non-CLP	421	0	N/A	396	25	0.269	421	0	0.1321	396	25	0.5604
21	CLP	193	28	0.0043	192	29	0.1437	198	23	<0.0001	141	80	<0.0001
21	Non-CLP	438	28	0.0043	422	44	0.1437	464	2	<0.0001	392	74	<0.0001
22	CLP	145	8	0.3263	137	16	0.2105	148	5	0.0001	124	29	0.0109
22	Non-CLP	439	15	0.3263	421	33	0.2105	454	0	0.0001	406	48	0.0109
23	CLP	180	14	0.001	167	27	0.0113	188	6	0.0015	147	47	<0.0001
23	Non-CLP	432	7	0.001	406	33	0.0113	438	1	0.0015	398	41	<0.0001
24	CLP	183	13	0.0099	173	23	0.0951	194	2	0.033	158	38	0.0013
24	Non-CLP	434	10	0.0099	410	34	0.0951	444	0	0.033	400	44	0.0013
25	CLP	180	6	0.0974	162	24	0.0833	184	2	0.0315	154	32	0.0096
25	Non-CLP	424	5	0.0974	393	36	0.0833	429	0	0.0315	388	41	0.0096
26	CLP	232	6	1	187	51	0.059	235	3	0.0148	178	60	0.0009
26	Non-CLP	456	13	1	413	56	0.059	469	0	0.0148	400	69	0.0009
27	CLP	189	0	N/A	182	7	0.2475	188	1	0.1363	181	8	0.4439
27	Non-CLP	419	0	N/A	394	25	0.2475	419	0	0.1363	394	25	0.4439

*Fisher’s exact test. CLP, cleft lip and palate.

In comparison of the incidence of maxillary enamel defects between cleft and non-cleft sides within the CLP group, the central incisor was the most commonly affected tooth, such that the central incisor on the cleft side had a significantly higher prevalence of defects than the corresponding tooth on the non-cleft side (p < 0.0001, Table 6). This was primarily because of increased prevalence of hypoplasia on the cleft side in CLP patients (p = 0.0214, Table 6).

Table 6.

Statistical significance of comparisons on different types of enamel defects between Cleft and Non-Cleft sides.

Tooth	Side	Demarcated opacity			Diffuse opacity			Hypoplasia			Overall
Tooth	Side	No	Yes	p value*	No	Yes	p value*	No	Yes	p value*	No	Yes	p value*
Central incisor	Cleft	242	11	0.2685	242	44	0.2561	250	36	0.0214	162	124	<0.0001
Central incisor	Non-Cleft	148	11	0.2685	141	18	0.2561	150	9	0.0214	121	38	<0.0001
Lateral incisor	Cleft	155	6	1	147	16	0.5495	159	4	1	135	28	0.6398
Lateral incisor	Non-Cleft	138	6	1	133	11	0.5495	140	4	1	123	21	0.6398
Canines	Cleft	236	5	0.5145	218	30	0.6251	240	8	0.5479	198	50	0.285
Canines	Non-Cleft	143	5	0.5145	133	15	0.6251	145	3	0.5479	125	23	0.285
First premolar	Cleft	239	3	0.6736	223	27	1	247	3	1	209	41	0.6636
First premolar	Non-Cleft	138	3	0.6736	126	15	1	139	2	1	121	20	0.6636
Second premolar	Cleft	237	4	0.4637	212	29	0.6087	239	2	0.6193	206	35	1
Second premolar	Non-Cleft	130	4	0.4637	121	13	0.6087	132	2	0.6193	115	19	1
First molar	Cleft	304	6	0.3574	256	55	0.4613	307	4	0.6986	245	66	0.2541
First molar	Non-Cleft	160	6	0.3574	132	34	0.4613	163	3	0.6986	123	43	0.2541
Second molar	Cleft	241	0	N/A	231	10	0.7777	240	1	1	230	11	0.7952
Second molar	Non-Cleft	134	0	N/A	130	4	0.7777	133	1	1	129	5	0.7952

*Fisher’s exact test.

The incidence rates of defects in the maxilla in both CLP and non-CLP groups were evaluated in accordance with the Modified DDE Index. The distributions of DDE codes significantly differed between CLP and non-CLP groups (p < 0.0001; Table 7). The prevalence rates of all three enamel defects in the maxilla were significantly higher on the cleft side than on the non-cleft side in the CLP group (p < 0.0001, Table 7). When enamel defect codes were combined (Codes 1–3) for the CLP and non-CLP maxilla, the prevalence of defects in the maxilla was also significantly higher in the CLP group than in the non-CLP group (p < 0.0001). Similarly, the prevalence was higher on the cleft side than on the non-cleft side within the CLP group (p = 0.0125). Interestingly, the cleft side in the CLP group showed the highest prevalence rate for all three enamel defect codes, followed by the non-cleft side in the CLP group, and finally by the non-CLP group.

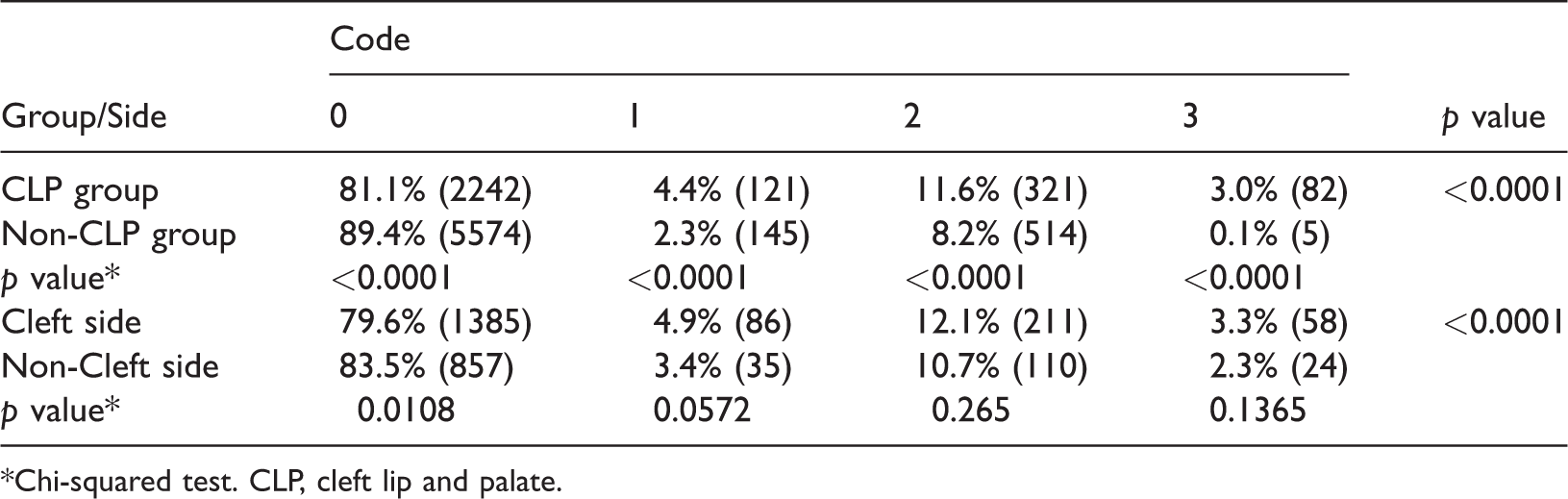

Table 7.

Percent distribution of types of enamel defects, based on the Modified Developmental Defects of Enamel Index.

Group/Side	Code				p value
Group/Side	0	1	2	3	p value
CLP group	81.1% (2242)	4.4% (121)	11.6% (321)	3.0% (82)	<0.0001
Non-CLP group	89.4% (5574)	2.3% (145)	8.2% (514)	0.1% (5)	<0.0001
p value*	<0.0001	<0.0001	<0.0001	<0.0001
Cleft side	79.6% (1385)	4.9% (86)	12.1% (211)	3.3% (58)	<0.0001
Non-Cleft side	83.5% (857)	3.4% (35)	10.7% (110)	2.3% (24)	<0.0001
p value*	0.0108	0.0572	0.265	0.1365

*Chi-squared test. CLP, cleft lip and palate.

The color and location of defects in both groups were also examined. Although the predominant colors in both groups were yellow in teeth with hypoplasia (63.6% in CLP and 66.7% in non-CLP) and white in teeth with diffuse opacity (56.5% in CLP and 56.8% in non-CLP) and demarcated opacity (61.8% in CLP and 75.4% in non-CLP), there were significant differences in demarcated opacity distribution (p = 0.0046) and overall color analyses (p = 0.024). Clinical examination of the affected teeth indicated that the locations of hypoplasia significantly differed between the two groups (p = 0.0227). In the CLP group, the highest prevalence rate of hypoplasia was observed in the cervical one-third of the tooth (34.8%); in contrast, the non-CLP group showed an even distribution of hypoplasia between the cervical, middle, and incisal portions of the tooth. However, there were no significant differences in locations of opacities between the two groups. In the CLP group, the highest prevalence of diffuse opacity was observed in the cervical one-third of the tooth (38.6%), whereas that of demarcated opacity was observed in the middle one-third of the tooth (38.2%). In the non-CLP group, the highest prevalence of diffuse opacity defects was observed in the middle one-third of the tooth (38.5%), whereas that of demarcated opacity was observed in the incisal one-third of the tooth (38.4%).

Discussion

Previous studies have demonstrated no significant differences in the prevalence of dental anomalies between male and female individuals.^4,21,22 Although there were no significant differences in sex proportion between the groups in the present cross-sectional study, the majority of the individuals recruited for the CLP group were male (59.8%). This characteristic was consistent with previous findings that CLP patients are predominantly male.^17,23 Furthermore, patients with enamel defects in the CLP group were also predominantly male (59%). In comparison, while a sex disproportion was observed within the non-CLP group (54% male, 46% female), it was less obvious than that in the CLP group.

We also found a higher prevalence of unilateral clefts than bilateral clefts. Moreover, unilateral clefts were often on the left side (45.6%, CLPL; 23.8%, CLPR; and 30.5%, CLPB), which is consistent with the findings of previous studies involving CLP patients. These trends may be related to the anatomy and direction of human blood vessels, which lead to increased blood pressure in the right internal carotid artery; during prenatal growth, this anatomical feature may cause a greater amount of blood flow to the right side of the face, compared with the blood flow from arteries on the left side of the face.^24–26

Bartzela et al.²⁷ found that left-side clefts were more common than right-side clefts, and the rate of tooth agenesis was greater on the left side of the maxilla. Thus, the disproportionate incidence of left-side clefts and tooth agenesis may be due to a connection between clefts and congenital defects in organs located on the same side of the body. The BCL-6 corepressor (BCOR) gene, which contributes to asymmetric organ development in oculofaciocardiodental syndrome, could also be associated with clefting genes, resulting in increased prevalence of left-side clefts. However, further studies are necessary to explore the underlying genetic etiology.^27–29

The etiology of the high prevalence rate of enamel changes in CLP individuals, along with the increased incidence of such changes on the left side of the maxilla, remains unclear. In a case-control study, Carpentier et al.⁷ revealed that surgical techniques typically used for soft palate closure may lead to enamel defects involving maxillary premolars in CLP patients, because such surgeries interfere with blood supply to the developing premolars at a critical stage for tooth enamel development. This conclusion is consistent with previous hypotheses that surgical interventions for cleft repair could result in nutritional and metabolic disturbances in patients, which could lead to increased enamel defects and other dental anomalies.^30,31 In the present study, we found that differences in prevalence rates between the two groups for different kinds of enamel defects were also more striking on the left side of the maxilla (Table 5). This finding supported the data of the previous reports, and may also be related to the implementation of soft palate surgeries and their effects on blood supply during tooth enamel development.

However, in another cross-sectional study regarding enamel defects of central incisors in children with CLP, Maciel et al.,⁵ found that the prevalence of defects was higher on the cleft side than on the non-cleft side, and higher in permanent teeth than in deciduous teeth. These findings may have been related to the pathological processes responsible for clefts, as well as the exposure of permanent teeth to potential prenatal and postnatal etiological factors for longer periods than deciduous teeth.^5,32 The present study supports the hypothesis that the same factors underlying the incidence of clefts may also be responsible for the increased prevalence of enamel defects in these individuals.^30,32–34

Recent studies have suggested that both genetic and environmental factors contribute to the etiology of clefting.^15,35,36 Genetics-based studies have shown that amelogenin (encoded by the AMELX gene), which is involved in the formation of dental enamel, is also a candidate gene for involvement in CLP, which suggests a genetic association (or shared genetic background) linking enamel defects and clefts.³⁷ Thus, the inclusion of information related to dental anomalies in genetic analyses of CLP may provide new opportunities to map the susceptibility loci associated with the production of clefts.

We analyzed the presence of enamel defects across all quadrants in both CLP and non-CLP groups, as well as their presence across different cleft types within the CLP group. The results indicated a significant increase in the prevalence of enamel defects in the CLP group across all quadrants (p < 0.0001). This suggests that clefts are associated with an increased incidence of enamel defects in all permanent dentition. However, it is important to note that, within the CLP group, only the Q1 and Q2 quadrants showed significant differences in prevalence of enamel defects. This indicates that clefts mainly affect the maxilla (rather than the mandible) with regard to enamel development in CLP individuals.

These findings were reinforced in further analyses of enamel codes in the present study. All three types of defects were more prevalent in the CLP group than in the non-CLP group. Moreover, the cleft side of CLP patients showed the highest prevalence of defects, followed by the non-cleft side of CLP patients, and then by non-CLP individuals. Notably, incisors and canines were disproportionately affected in the CLP group. Finally, the central incisor was the most affected tooth on the cleft side in CLP patients.

A potential etiological explanation for our results is that disturbances during embryogenesis, along with genetic interactive pathways, could have contributed to increased prevalence of enamel defects in CLP patients, relative to non-CLP individuals, even outside the cleft area in the CLP group. Moreover, surgical interventions during the critical stage of tooth formation and development may have contributed to the increased prevalence of enamel defects on the cleft side in CLP patients, compared with their non-cleft side. A potential explanation for these trends is that genetic factors causing clefts may also be responsible for the presence of enamel defects, as variation in enamel defects between the cleft and non-cleft sides in the CLP group was less striking than variation in enamel defects between the CLP and non-CLP groups.

Although the predominant colors in both groups were yellow in teeth with hypoplasia and white in teeth with diffuse opacity or demarcated opacity, there were significant differences in demarcated opacity distribution (p = 0.0046) and overall color analyses (p = 0.024). This is consistent with the findings of Malanczuk et al.³² and Maciel et al.,⁵ in which white opacities were more prevalent than yellow opacities on the cleft side in CLP patients. However, the differences in the prior studies were not statistically significant, and those authors suggested that the finding may have been due to chance. However, in the present study, there was a significant difference in the color distribution of demarcated opacity between the two groups (p = 0.0046). Moreover, we found that hypoplasia was mostly present in the cervical one-third of the tooth (34.8%) in the CLP group, while there was an even distribution of hypoplasia between the cervical, middle, and incisal portions of the tooth in the non-CLP group. We speculate that this may have been associated with soft palate surgeries, the timing of which overlapped with the occurrence of enamel mineralization of the cervical one-third of the tooth.

However, because we sought to explore the relationship between CLP and enamel defects, we did not focus on etiological factors underlying such correlations. Therefore, further studies are needed to confirm our findings, as well as to test existing hypotheses regarding whether genes and surgical disruption clearly contribute to the development of cleft and enamel defects.

A number of recent studies have sought to define sub-phenotypes of oral clefts based on dental development. Most of these studies focused on dental anomalies, including tooth agenesis, supernumerary teeth, taurodontism, and microdontia.^4,14,38 However, enamel defects, which can cause esthetic problems and increase the risk of dental caries development,^39,40 have rarely been investigated. Our results indicate that enamel changes can also serve as clinical markers to define sub-phenotypes of oral clefts. Moreover, central incisors, which are the teeth most commonly affected by enamel defects, should be examined carefully prior to orthodontic treatment.

The limitations of this study primarily comprise the general limitation of cross-sectional studies, in that all enamel defects in all individuals in both groups were evaluated at a single, specific time. Other developmental risk factors (e.g., malnutrition and birth weight) that might influence enamel formation were not controlled in this study. Furthermore, no corresponding mechanism studies were performed to investigate reasons underlying the association between cleft presence and occurrence of enamel defects.

In conclusion, the most common enamel defects in both groups were (in descending order): diffuse opacity, demarcated opacity, and hypoplasia. However, the CLP group was disproportionately affected by (in descending order) hypoplasia, demarcated opacity, and diffuse opacity. Both groups showed a similar predominant color distribution in all three types of defects. However, there were significant differences between the two groups with regard to the location of hypoplasia on the surface of the tooth. The rate of defects was significantly higher in the CLP group across all quadrants. Within the CLP group, only Q1 and Q2 quadrants showed significant differences in defects across all cleft types. The cleft side of the CLP group showed the highest rates of all three types of defects, followed by the non-cleft side of the CLP group. The maxilla of the non-CLP group exhibited the lowest prevalence of defects. Incisors and canines of CLP individuals had higher rates of defects, compared with those of non-CLP individuals. The central incisor was the most commonly affected tooth within the CLP group; central incisors on the cleft side exhibited comparatively higher prevalence of defects than those on the non-cleft side.

Declaration of conflicting interest

The authors declare that there is no conflict of interest.
