Calcium transients in nNOS neurons underlie distinct phases of the neurovascular response to barrel cortex activation in awake mice

Abstract

Neuronal nitric oxide (NO) synthase (nNOS), a Ca²⁺ dependent enzyme, is expressed by distinct populations of neocortical neurons. Although neuronal NO is well known to contribute to the blood flow increase evoked by neural activity, the relationships between nNOS neurons activity and vascular responses in the awake state remain unclear. We imaged the barrel cortex in awake, head-fixed mice through a chronically implanted cranial window. The Ca²⁺ indicator GCaMP7f was expressed selectively in nNOS neurons using adenoviral gene transfer in nNOS^cre mice. Air-puffs directed at the contralateral whiskers or spontaneous motion induced Ca²⁺ transients in 30.2 ± 2.2% or 51.6 ± 3.3% of nNOS neurons, respectively, and evoked local arteriolar dilation. The greatest dilatation (14.8 ± 1.1%) occurred when whisking and motion occurred simultaneously. Ca²⁺ transients in individual nNOS neurons and local arteriolar dilation showed various degrees of correlation, which was strongest when the activity of whole nNOS neuron ensemble was examined. We also found that some nNOS neurons became active immediately prior to arteriolar dilation, while others were activated gradually after arteriolar dilatation. Discrete nNOS neuron subsets may contribute either to the initiation or to the maintenance of the vascular response, suggesting a previously unappreciated temporal specificity to the role of NO in neurovascular coupling.

Keywords

Functional hyperemia neurovascular coupling GCaMP7f nitric oxide 2-photon microscopy

Introduction

The neurovasculature is critically important for the maintenance of brain health.¹ One of its vital functions is to preserve the metabolic homeostasis of the brain by matching energy substrates delivery with the degree of metabolic activity of brain cells, while removing waste products and heat.² This phenomenon termed functional hyperemia results from the concerted action of a wide variety of cell types at different levels of the cerebral vasculature.² Accumulating evidence suggests that functional hyperemia is initiated by neural signals at the site of activation leading to endothelial hyperpolarization in local microvessels.^3
–5 Such hyperpolarization, in turn, is transmitted retrogradely through inter-endothelial and myo-endothelial junctions to hyperpolarize upstream contractile mural cells resulting in vasodilatation and increased flow to the activated area.^4
–6 The spatiotemporal correspondence between neural activity and functional hyperemia is at the bases of functional MRI signals widely used to localize brain function.^7,8 However, the nature of the neuronal signals and their relationships to the hemodynamic response remain poorly understood.

Numerous molecular signals have been implicated in functional hyperemia.^9
–12 However, nitric oxide (NO), a potent vasodilator released by a subpopulation of GABAergic neurons expressing the neuronal isoform of NO synthase (nNOS or Nos1),^13
–16 is widely recognized as a major contributor in animals^9,12,17 as in humans.^18,19 nNOS neurons fall into distinct types based on their anatomical features.¹³ Type 1 neurons have long range projections reaching the contralateral hemisphere and have been linked to sleep and wakefulness.^20
–22 Type 2 neurons have the morphological features of interneurons with short bipolar or multipolar projections.¹³ Both types also express mainly neuropeptide Y, somatostatin, and/or vasoactive intestinal peptide, have frequent contacts with blood vessels and have been implicated in neurovascular regulation.^{13,16,23
–26} Thus, the increase in cerebral blood flow (CBF) elicited by brain activation is associated with NO release,^27
–29 while pharmacological inhibition and genetic deletion of nNOS, or depletion of nNOS neurons attenuates the increase in CBF produced by neural activity in different brain regions,^29
–35 a finding also observed in humans.^18,19 Furthermore, chemical, optogenetic or chemogenetic activation of nNOS neurons increases local CBF,^27,36
–39 attesting to their potential for neurovascular regulation. Despite these advances, the mode of activation of the nNOS neural network, and the spatiotemporal relationships between nNOS neuron activity and arteriolar dilatation have not been established.

Most studies investigating the link between neural activity and CBF have been performed in anesthetized animals. While unavoidable and necessary in certain experimental settings, anesthesia has potent neuronal and vascular effects that alter the neurovascular mechanisms underlying functional hyperemia.^40
–42 This problem is particularly concerning when attempting to relate nNOS neural network activity with vascular responses since anesthetics target differently GABAergic and glutamatergic neuronal populations, altering network activity and excitatory-inhibitory balance.⁴³ Consequently, the neurovascular mechanisms driving functional hyperemia in the anesthetized state may not accurately reflect those operating in the awake state.⁴⁴

In the present study we used 2-photon excited fluorescence microscopy (2PEF) in awake mice to investigate the relationship between nNOS neuronal network activity, by the Ca²⁺ indicator GCaMP7f, and functional hyperemia in the whisker barrel cortex. We found that nNOS neurons exhibit diverse patterns of activity corresponding to spontaneous or evoked activation of the whisker barrel cortex or grooming-related motion. Correlation with the resulting arteriolar dilatation unveiled early and late patterns of nNOS neuron activity suggesting distinct roles in the initiation and maintenance of the hemodynamic response. Interestingly, no link was observed between the distance of active nNOS neurons from nearby arterioles and their involvement in arteriolar dilatation. The data provide a first insight into the spatiotemporal dynamics of the events linking nNOS neuron activity to microvascular function and may aid in the interpretation of the alterations in neurovascular coupling occurring in pathological states in which nNOS neurons are compromised.^45
–47

Materials and methods

Animals

Animal husbandry and the experimental procedures used in this study were approved by the Institutional Animal Care and Use Committee (IACUC) of Weill Cornell Medicine (protocol number 0711-687 A) and comply with the ARRIVE guidelines.⁴⁸ Studies were performed in 3–4 months old mice of both sexes on C57BL/6J genetic background. NOS1^cre breeders were purchased from the Jackson Laboratory (#017526) and breed in house with mice on C57BL/6J genetic background.

Animal preparation

Optical access to brain was achieved through a long-term implanted glass-covered cranial window, as described previously.⁴⁹ Briefly, animals were anesthetized using isoflurane (1.5–2% in oxygen) and placed on a feedback-controlled heating blanket that maintained body temperature at 37 °C (50-7053 P; Harvard Apparatus). After removing the scalp and periosteum from the skull surface, a custom-made titanium head post was glued onto the right hemisphere over the somatosensory cortex using dental cement (C&B Metabond, Parkell). A 3-mm diameter bilateral craniotomy was performed over parietal cortex using a dental drill. The exposed brain was covered with sterile saline and sealed with a 3-mm square borosilicate coverslip glass (CS-3S, Warner Instruments) using cyanoacrylate glue and tissue adhesive (1469SB; 3 M). For nNOS neuron specific GCaMP7f expression, AAV PHP.eB Syn-FLEx-GCaMP7f (104492-PHPeB, Addgene) was diluted (4 × 10¹⁰ vg/100 µl sterile saline) and injected retroorbitally. This BBB permeable virus⁵⁰ utilizes a flip excision (FLEx) switch,⁵¹ to target GCaMP7f expression to nNOS neurons in NOS1^cre mice. All mice were allowed to recover for at least 7 days before handling and habituation to the head restraint for awake in vivo imaging. Mice were gently handled for two weeks and then gradually habituated to longer periods (1, 5, 10 up to 40 min) to the head-restraint under the microscope. All mice were rewarded with sweetened milk before, during and after training sessions. During habituation process, mice were also exposed to whisker air-puffs. On average, habituation took about two weeks. Data were acquired from fully habituated mice that did not exhibit signs of distress when head restrained at the time of imaging. In some mice the femoral artery was cannulated under isoflurane anesthesia for recording of arterial pressure and blood gas while head restrained. As in previous studies,⁵² wounds were treated with lidocaine ointment and mice remained calm after awakening. Mice had stable blood pressure (mean arterial pressure: 84.8 ± 2.5 mmHg) and blood gases (pH 7.329 ± 0.016, PaCO₂ 35.2 ± 1.3 mmHg, PaO₂ 116.8 ± 3.9 mmHg, O₂ saturation 98.3 ± 0.2%), which also attests to the lack of stress.

Two-photon imaging in awake mice

As described in detail elsewhere,^46,49 to visualize the microvasculature mice were briefly anesthetized with isoflurane (1.5–2%, during ∼2 min) and injected retroorbitally with 70 kDa Texas Red-conjugated dextran to label the plasma (50 µL, 2.5% w/v, Invitrogen). Mice were allowed to recover fully prior to awake imaging. For 2PEF imaging, mice were head fixed using a titanium headplate and placed inside a 50 ml falcon tube which accommodates comfortably the mouse without constricting the body. The end of the tube was trimmed to allow the animals to comfortably rest on their belly. Mice were rewarded with sweetened milk before and during imaging sessions. Imaging was performed on a Fluoview 2-photon microscope (FVMPE; Olympus) and excitation pulses were provided by a solid-state laser (InSight DS+; Spectraphysics). For acquiring two channel movies (GCaMP7f and Texas Red), the excitation laser was tuned to 910 nm and fed through a primary dichroic mirror (FV30-NDM690). Emission light went through an IR blocking filter (FV30-BA685RXD) and then guided toward gallium arsenide phosphide (GaAsP) photomultiplier tubes (PMTs) by FV30-SDM-M mirror. GCaMP7f and Texas Red fluorescence were collected using an FV30-FGR filter cube (green: 495–540 nm, red 575–645 nm, separated by 570 nm dichroic mirror) mounted in front of GaAsP-PMTs. Image stacks and movies were acquired through Fluoview software (FV31S-SW, version 2.3.1.163; Olympus). First, a map of the vasculature was taken through a × 5 objective (MPlan N 5 × 0.1 NA, Olympus) and compared with laser speckle map to locate the same imaging field in the whisker barrel cortex and identify pial vessels branches that feed the barrel cortex. Once the blood vessels to be imaged were identified, we switched to a × 25 objective (XLPlan N 25 × 1.05 NA, Olympus). Two channel movies of 509 × 509 µm² (512 × 512 pixel) were acquired using a resonant scanner with a framerate of 3.8 Hz (4 lines averaged, 5 minutes long). During imaging, mice received trains of nitrogen 5 sec or 30 sec long air-puffs angled toward the tip of whiskers contralateral to the imaged cortex. We used lowest setting from a picospritzer to generate gentle light air-puff (approx. 10 psi, Picospritzer II, Parker) resulting in flickering motion of the whiskers. The pressure of the air-puff was adjusted so that only the whiskers were displaced, but the mouse was not startled and did not display any signs of agitation or discomfort (Supplementary movie 1). We did not attempt to study different frequencies of stimulation, but we used a standardized stimulation protocol that elicited consistent neural and vascular responses. An optogenetic TTL pulse generator (OTPG_4, Doric Lenses) was triggered directly from the Olympus breakout box at the start of data acquisition and a Doric GUI platform allowed us to program duration and frequency of air-puff train. Mice were continuously monitored during experiments through live videos with an infrared camera (120 frames/second) illuminated with 850 nm LED via Bandicam software and focused on the whiskers that received the air-puffs. We placed a 850 nm short pass filter (FES0850, Thorlabs) in front of the lens of the webcam to block the excitation laser light. The live movie during each image acquisition was saved for off-line analysis of whisking and grooming related motion (Supplementary movie 2). We programmed an Arduino board to signal Bandicam software to synchronize the video recording with the imaging acquisition.

Analysis of in vivo calcium transients

The GCaMP7f channel of the two-channel movie was motion corrected to account for small xy displacement using the motion correction module of EZcalcium (https://github.com/porteralab/EZcalcium), which implemented the Non-Rigid Motion Correction (NoRMcorre) strategy.⁵³ Then soma of nNOS neuron were visually inspected and manually contoured on CalciumDX software⁵⁴ (https://github.com/ackman678/CalciumDX). Signal intensity from each soma contour over each movie frame was saved for further analysis using custom written Matlab code. Fluorescence signal time series (ΔF/F: change in fluorescence divided by baseline fluorescence) were calculated for each individual neuron. For 5 seconds whisker air-puffs, the mean of the lower 25% in a 15-second sliding window was used to calculate the baseline fluorescence for each cell to account for both differences in GCaMP expression and de-trending for slow time-scale changes in fluorescence.⁵⁵ For analysis of 30 sec whisker air-puffs we used the mean of the lower 10% in 50-second sliding window as baseline fluorescence. To determine the onset and termination of a calcium transient, the ΔF/F signal was processed through a 4th order zero phase low pass filter (Matlab functions: butter, filtfilt) and marked active when ΔF/F exceeded two standard deviations above the baseline fluorescence. The termination of a calcium transient was identified as occurring when ΔF/F fell below 0.5 standard deviation (SD) above the baseline fluorescence, SD was determined from the entire population in each experiment to identify active cells not confounded from background noise. To accurately detect firing onset accounting for the time it takes to reach two SD of ΔF/F, we considered activation time when the ΔF/F derivative increased more than a half SD. Neuronal ensemble activity over time was simply calculated as the percent of cells active in each frame. Statistically significant multicellular ensemble events were determined when the percent of simultaneously active cells exceed the percent expected by chance given the observed level of activity in the field of view. The threshold was calculated as detailed elsewhere.⁵⁵ Cells that did not exhibit any statistically significant Ca²⁺ transients during a given recording session were excluded from analyses.

Analysis of vessel diameter

The Texas red channel of the two-channel movie was used for vessel analysis. Vessels cross sections with a diameter >10 µm were examined with ‘plot Z axis profile’ in ImageJ. Arterioles and venules were identified based on vasoactivity and direction of flow, as previously described.^46,56,57 We focused on arterioles for their key role in regulating flow during synaptic activity.^58,59 To estimate diameter of a penetrating arteriole accurately, we used thresholding in Radon space (TiRS) (https://github.com/DrewLab/Thresholding_in_Radon_Space).⁶⁰ This TiRS method is robust to noise and shape changes when arteriole dilate/constrict and accurately computes cross sectional area of a penetrating arteriole. Arteriolar diameter in time series were processed through a 2nd order zero phase low pass filter (Matlab functions: butter, filtfilt) before further analysis. The percent diameter change due to motion and short air-puff (5 seconds) was calculated from baseline diameter right before dilation and peak dilation. Percent diameter change during 30 seconds air-puff was calculated by averaging 5 seconds at the baseline and diameter at 25–30 seconds during air-puff.

Analysis of whisking and motion

Time locked videos from the mouse infrared camera during image acquisition were analyzed to quantify whisking and grooming motion. For whisker analysis, we draw a box encompassing the whiskers and computed mean whisker angle by applying the Radon transform (Matlab function: radon) to each frame as previously described.⁶¹ The mean whisker position was low pass filtered to 30 Hz (Matlab functions: butter, filtfilt) then whisker acceleration was computed from the second derivative. The absolute whisker acceleration was smoothened and binarized by manual thresholding, empirically determined for each animal. To detect motion during grooming, we draw a box encompassing the mouse’s upper torso and forelimbs. We then calculated the mean difference of each pixel value between two consecutive frames, which quantified body position changes between each movie frame. The motion estimate was analyzed further as described for the whiskers above. We binarized both whisking and motion as changes in values between each frame in a 120 frames/second.

Immunohistochemistry

Immunostaining of brain was performed as described before with some modifications.^49,62 Animals were anesthetized with sodium pentobarbital and transcardially perfused with 15 ml of phosphate buffered saline (PBS) (Sigma-Aldrich) followed by 30 ml of 4% w/v paraformaldehyde (PFA) (Fischer Scientific) in PBS. Brains were extracted, stored overnight in in 4% PFA in PBS at 4 °C, then in 15% w/v sucrose in PBS for 8 hr at 4 °C, followed by 24 hr in 30% sucrose, and then in 60% sucrose until sectioning. The tissue was then frozen and cut into 20-µm thick coronal sections on a cryostat, mounted onto microscope slides and kept at −80°C. Brain sections were permeabilized with 0.5% Triton X-100 (Sigma) in PBS (PBST) for 30 min, blocked with 10% normal donkey serum (NDS) in 0.1% PBST for 30 min and incubated in 5% NDS-0.1% PBST at 4 °C overnight with the following primary antibodies against NOS1, GFP, GAD67, or CaMKII. The next day, after three washes with PBS, specimens were incubated with anti-chicken Alexa flour 488-, anti-rabbit Cy3- or anti-mouse Alexa flour 647-conjugated donkey secondary antibodies (1:200; Jackson ImmunoResearch Laboratories). Then, sections were washed with PBS and mounted using an anti-fade mounting medium that contained DAPI (Vetashield, H-1200, Vector Laboratories). Fluorescent images were collected using a confocal microscope (Leica TCS SP8) with a 20×/0.75 NA objective (11506517, Leica). The following primary antibodies were used: rabbit anti-NOS1 polyclonal antibody (1:300, AB5380, Sigma-Aldrich), chicken anti-GFP polyclonal antibody (1:500, A10262, Invitrogen), mouse anti-GAD67 monoclonal antibody (1:300, MAB5406, Sigma-Aldrich), rabbit anti-CaMKII monoclonal antibody (1:300, ab52476, abcam).

Analysis of mRNA data

Mouse brain single cell mRNA data was downloaded from Mouse Brain Atlas (https://storage.googleapis.com/linnarsson-lab-loom/dev_all.loom).⁶³ We used Seurat (Vers. 4.1.0)⁶⁴ in the R statistical environment for analysis and data visualization. The expression matrix was downsampled to limit the number of cells in each cluster defined by “ClusterName” to 2000. The matrix was further reduced by rejecting cells with <500 or >30.000 UMI counts, or >5% mitochondrial genes. Log normalization, variable gene detection, scaling, and principal component analysis was performed in Seurat with default settings. UMAP was computed on the first 40 principal components. We then selected telencephalic neurons matching the occurrence of “TE” (telencephalic) in the ClusterName metadata column and further rejected cells that originated from animals <28 days of age. UMAP plots were visualized with the FeaturePlot function in Seurat. Color scales are log-transformed normalized expression values.

Correlation analysis

Neuronal ΔF/F for each neuron and determination of active/inactive state during time series are detailed above. We used Spearman correlation to correlate the activity (ΔF/F) between individual neurons and every other neuron over a 5 minute period where calcium transients (ΔF/F) values during inactive state were set to zero (Figure 2(f) and (g)). When matching the time each neuron fired during certain behavior such as whisking or motion (Figure 2(h)), we binarized neuronal activity as active or inactive, and correlated it to the binarized motion or whisking traces. Pearson correlations were calculated between neuronal calcium transients (ΔF/F) and arteriolar diameter (µm) within the same recording session over a 5 minute period. Calcium transients (ΔF/F) values during inactive state were set to zero (Figure 3(d)). We used normalized diameter change over time (0 – 1 range, Matlab function: normalize, ‘range’) and aligned the start of neuronal activity with the vascular response to account for the delay of arteriolar dilatation slightly (approx. 1 second). To this end, we found the delay between normalized arteriolar diameter change and normalized neuronal ensemble using (Matlab function: finddelay) and shuffled the data accordingly (Matlab function: circshift). For each neuron we selected the 30 seconds air-puff period (including 5 seconds pre air-puff, and 5 seconds post) with the least motion and (1) quantified the peak of calcium transients (ΔF/F) (2) calculated the Person correlation between ΔF/F and normalized arteriolar diameter (Figure 4(d)).

Image, data, and statistical analysis

All 2PEF images were analyzed using custom written code on Matlab (R2018a, R2021b, R2022a, Mathworks) unless otherwise noted (R2014b for CalciumDX, R2018a and above for EZCalcium). Immunohistological images are maximum z projections and representative 2PEF images are average projections in time. Representative correlation matrix on Figure 2(f) was plotted after sorting neuronal calcium transients in ascending order based on the values in the time when highest neuronal ensemble was observed to cluster/highlight neurons with functional connectivity. Data clustering (Figure 2(h) and (i)) was performed using an unsupervised clustering approach based on maximum coordinate difference (Matlab function: spectralcluster). Statistical analyses were done using Matlab (R2021b, MathWorks) or Prism (v.9.4.0, GraphPad Software). Graphs in all plots represents the mean and error bars represent the SD. Data were tested for normal distribution by the D’Agostino-Person test before running any comparisons. When comparing different animals, we used nested one-way ANOVA. To evaluate statistical differences between the linear correlations of two data sets, we generated one-way analysis of covariance models (Matlab function: aoctool) and ran multiple comparison tests (Tukey-Kramer) of the group means (Matlab function: multcompare). To estimate the linear relationship between distance and correlation coefficient we used simple linear regression on Prism. The data that support the findings of this study and codes to plot and analyze data are available from the author on reasonable request.

Results

GCaMP7f is selectively expressed in nNOS neurons which include both excitatory and inhibitory subtypes

First, we sought to characterize the nNOS population expressing GCaMP7f. To achieve selective GCaMP7f expression in nNOS neurons we administered a GCaMP7f expressing adeno-associated virus driven by the synapsin promoter and containing a Cre responsive flip-excision switch (AAV PHP.eB Syn-FLEX-GCaMP7f, i.v.) in a nNOS Cre driver mouse line (NOS1^cre). The GCaMP7f AAV transduced nNOS neurons with high efficiency. Immunohistochemical analysis showed that 95.3 ± 2.8% (mean ± SD) express both nNOS-immunoreactivity and GCaMP7f (Figure 1(a) and (c)). Of the GCaMP7f expressing neurons, 87.2 ± 3.2% were inhibitory (GAD67 positive) and 12.8 ± 3.2% were excitatory (CaMKII positive) (Figure 1(b) and (c)). To confirm that both excitatory and inhibitory neurons expressed nNOS, we mined a mouse single-cell RNAseq dataset.⁶³ We found that some nNOS neurons express the inhibitory neuron transcript Gad1 (87.0%) and others the excitatory neuron transcript Slc17a7 (11.4%) (Figure 1(d)). The expression of nNOS in excitatory neurons is consistent with extensive molecular, biochemical, and anatomical evidence from the literature.^23,65,66 Therefore, using this viral gene transfer approach we were able to induce GCaMP7f expression in the majority of nNOS neurons, both excitatory and inhibitory.

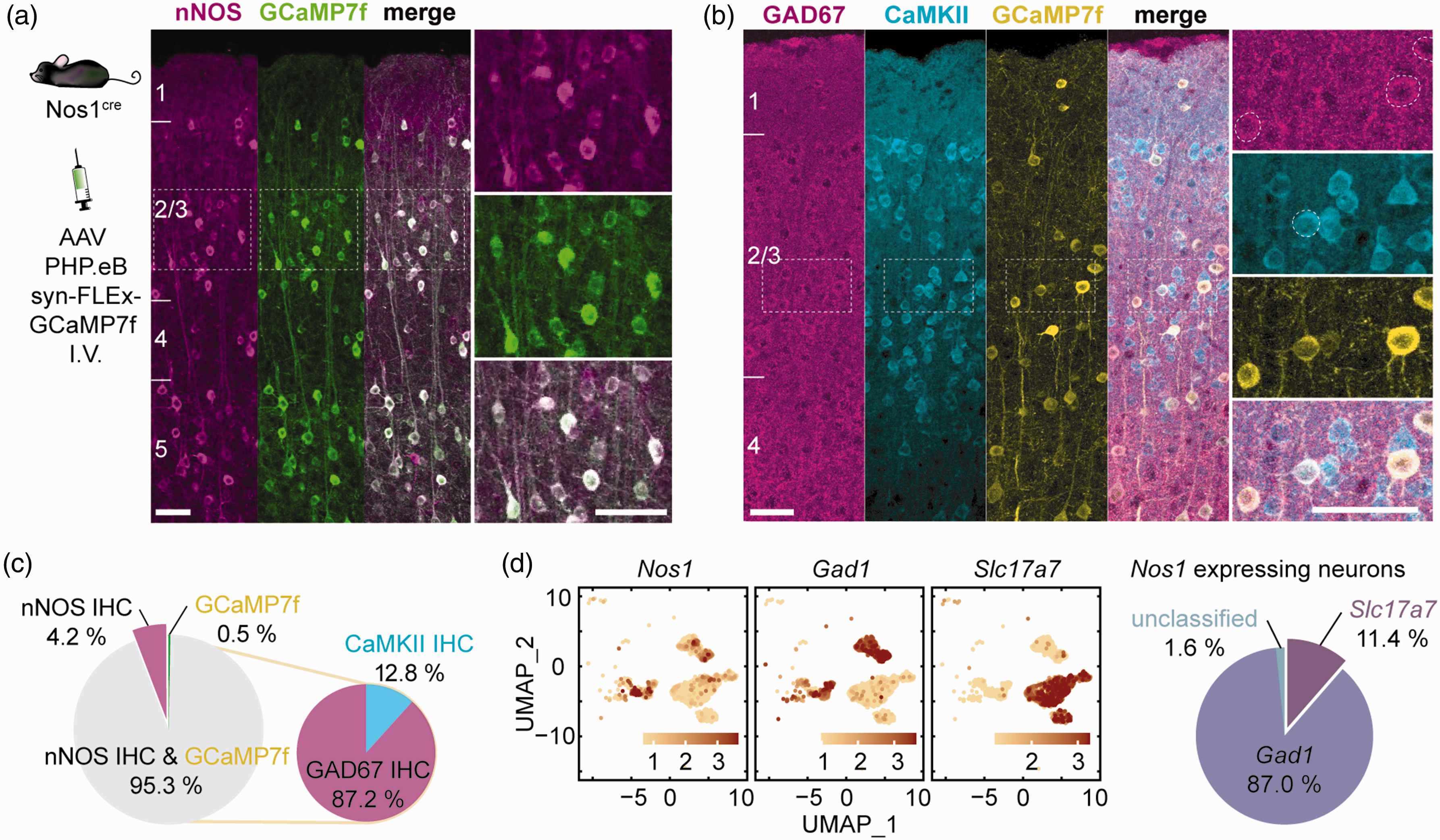

Figure 1.

Viral gene transfer-induced expression of GCaMP7f in nNOS neurons of NOS1^cre mice. (a) GCaMP7f was expressed in NOS1^cre mice using systemic administration of an AAV-PHP.eB viral vector. The localization of GCaMP7f expression in nNOS neurons in the cortical layers was verified by immunohistochemistry (IHC). Right panels are enlargements of the dashed squares in the left panel (n = 2,744 neurons in 5 mice). (b) GCaMP7f expression in inhibitory (GAD67) or excitatory (CaMKII) neurons of nNOS^cre mice treated with the AAV-PHP.eB viral vector. (c) Neurons (%) expressing nNOS, GCaMP7f or both, and, among GCaMP7f positive neurons, those expressing GAD67 or CaMKII (n = 690 neurons in 3 mice) and (d) Single-cell RNAseq data (mousebrain.org/development/downloads.html) showing expression of Nos1 both in excitatory (Slc17a7) and inhibitory (Gad1) neurons (%), confirming the finding by immunohistochemistry in b. Scale bar = 50µm throughout.

nNOS neurons differentially respond to whisker activity and motion

We then performed imaging of GCaMP7f labeled nNOS population in the whisker barrel cortex in head-restrained awake mice through a chronic cranial window (Figure 2(a)). To localize the whisker barrel cortex, we used laser speckle imaging during mechanical stimulation of the contralateral whiskers, as previously described.⁴⁶ The laser speckle signal increased about 20% in the whisker barrel cortex (Figure 2(b)). Awake mice were then head fixed under the two-photon microscope and, using the laser speckle map as a guide, we imaged the whisker barrel cortex during delivery of air-puffs to the contralateral whiskers. Although head-restrained, the mice were free to readjust their body position and from time to time exhibited grooming behavior (Supplementary movie 2). We defined ‘motion’ as spontaneous movements that involved grooming or changes in posture. ‘Whisking’ includes both air-puff induced whisker deflection and spontaneous whisking. This experimental setting allowed us to map the spatiotemporal dynamics of cortical nNOS neurons activity in behaving mice with and without whisker air-puffs (Figure 2(d)). Analysis of the Ca²⁺ signal revealed that nNOS neurons exhibited different patterns of activity. Some neurons responded faithfully to all the whisker puffs, but not to spontaneous whisking or motion (Figure 2(d); neuron 3). Other neurons responded to spontaneous or evoked whisking (neuron 1) and some predominantly to motion (neuron 2).

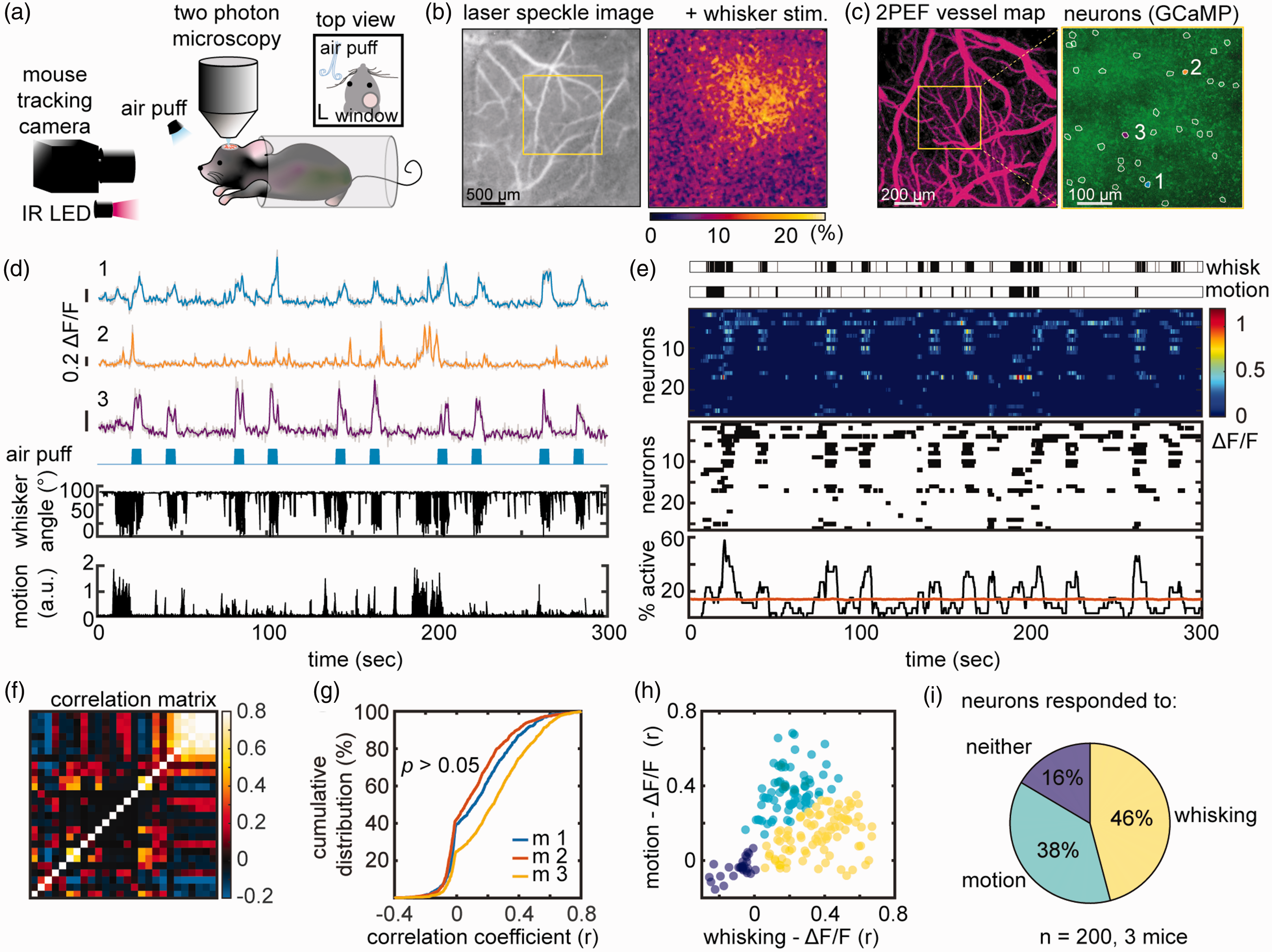

Figure 2.

In vivo imaging of nNOS neurons in awake, head-fixed mice during air-puff whisker stimulation. (a) Experimental setup for 2PEF imaging during whisker air-puff stimulation, which includes an infrared (IR) camera for tracking whisker and upper limb movements. (b) Localization of the hemodynamic response evoked by whisker stimulation in the contralateral whisker barrel cortex by laser speckle imaging. (c) Left panel: 2PEF map of pial vessels (within the yellow square in b) imaged at 5x. Right panel: GCaMP7f expressing nNOS neurons in layer 2/3 (outlined in white) imaged at 25x. The Ca²⁺ activity of neurons labelled 1, 2 and 3 is shown in (d). (d) Ca²⁺ activity (ΔF/F see methods) in neurons 1, 2 and 3 during 10 air-puffs each lasting 5 sec (blue marks). Whisker displacement and limb motion are also displayed. Notice that neuron 3 responds to air-puffs, while neuron 2 mainly to motion. Neuron 1 exhibits mixed responses. (e) Representative raster plots of ΔF/F (top), onset and termination of neuronal activity (middle), and proportion of simultaneously active cells over time (neuronal ensemble, bottom) from the neuronal population shown in (c, right panel). Each row represents a single cell. Ensemble activity above the orange line is statistically significant. (f) Correlation matrix quantifying functional connectivity between each neuron and every other neuron shows a broad range of correlations (Spearman’s rho). (g) Cumulative distribution of correlation coefficients across all animals shows that all mice had similar distribution (nested one-way ANOVA) and (h) scatter plot of the correlation coefficient between each neuron ΔF/F and whisker activity (x-axis) or motion (y-axis) showing three populations of nNOS neurons each responding predominantly to whisking, motion or neither and (i) Pie chart summarizing data in (h) from all mice. Data were clustered using spectral clustering.

We then examined the ensemble activity of the nNOS neurons evoked by air-puffs or motion. We found a significant synchrony of Ca²⁺ activity with up to 58% of nNOS neurons firing at the same time (Figure 2(e)). To gain insight into the functional connectivity among nNOS neurons, we assembled a correlation matrix relating Ca²⁺ activity across all cells in a field of view (Figure 2(f)). We found a broad distribution of correlation coefficients with some neurons exhibiting synchronous Ca²⁺ activity (r: 0.5-0.8), and other less synchronous activity (Figure 2(g)). We then sought to provide additional evidence that specific subgroups of nNOS neurons responded to a specific stimulus, as suggested by inspection of the patterns of neural activity. Using an unsupervised clustering approach, we found that some neurons were more responsive to whisking activity (46%) and others to motion (38%). Other neurons (16%) were not correlated to whisking or motion (Figure 2(h) and (i)).

nNOS neurons ensemble activity is strongly correlated with arteriolar dilatation

Since nNOS neurons have been linked to functional hyperemia,^27
–35 we next sought to examine the relationship between nNOS neuron Ca²⁺ activity and local arteriolar dilatation (Figure 3(a) and (b)). Arteriolar dilatations ranging from 3.4–22.0% promptly followed peaks of neuronal ensemble activity induced by air-puffs, spontaneous whisking or motion (Figure 3(b) and (c)). Larger arteriolar responses were observed when air-puffs and motion occurred at the same time (14.8 ± 4.4%; p < 0.05 from whisking + motion) (Figure 3(b) and (c)). Such larger hemodynamic responses were associated with greater ensemble activity resulting in a steeper linear relationship between the two (Figure 3(c)). However, the increased hemodynamic response could not be explained solely on the bases of increased neuronal activity since the vasodilatation was greater than that evoked by whisker stimulation alone with comparable ensemble activity (% of active neurons) (Figure 3(c)). Therefore, we examined if changes in blood pressure could contribute to larger hemodynamic response, in separate awake mice (n = 5) equipped with an indwelling femoral artery catheter we monitored blood pressure during whisker stimulation and motion. We found that mean arterial pressure remained stable during 30 sec whisker stimulation (baseline: 84.8 ± 2.5 mmHg; whisker stimulation: 84.7 ± 4.0 mmHg; p > 0.05), but was transiently increased during spontaneous movements including grooming (baseline: 84.8 ± 2.4 mmHg; motion: 97.7 ± 4.0 mmHg; p = 0.03), a normal response in mice,^67
–70 raising the possibility that the elevation in blood pressure played additional role in the enhanced hemodynamic response.

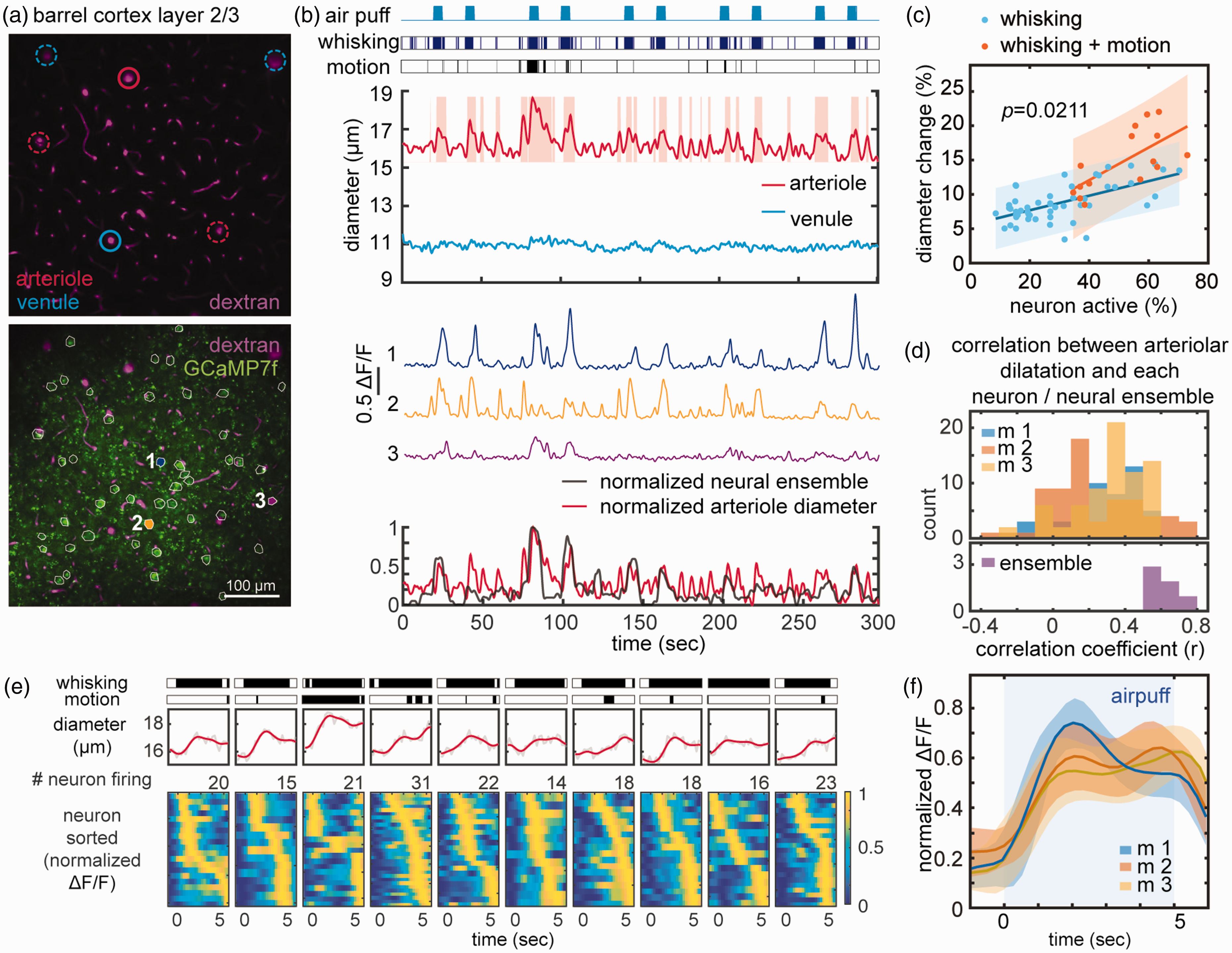

Figure 3.

Microvascular responses associated with nNOS Ca²⁺ activity during 5 sec whisker puffs and grooming motion. (a) 2PEF map of arterioles and venules (top) and of both vessel and GCaMP7f-expressing nNOS neurons (outlined in white, bottom). Vessels analyzed in b are circled in solid red or blue, and neurons are numbered (1,2,3) (b) Arterioles, but not venules, dilate in response to whisker puffs, spontaneous whisking or motion (grooming). Representative Ca²⁺ transients in neuron 1, 2, and 3 (middle). Overlay of normalized neural ensemble activity and arteriolar diameter changes highlighting the close correspondence between arteriolar and neural responses (bottom). (c) Linear relationship between the magnitude of the ensemble activity and arteriolar dilatation in response to whisking or whisking and spontaneous motion. Notice that with whisking+motion the slope of the relationship is significantly greater than with whisking alone (multiple comparison of one-way analysis of covariance models). (d) The distribution of correlation coefficients between arteriolar dilatation and nNOS Ca²⁺ transients for individual neurons does not differ in the 3 mice studied (p>0.05; nested one-way ANOVA)(top). The strongest correlation is observed between ensemble activity and arteriolar dilatation (bottom). (e) Representative arteriolar diameter changes relative to the timing of the peak Ca²⁺ activity in individual neuron during 10 consecutive 5 sec whisker air-puffs shown in (b). Notice that in some neurons peak activity occur earlier than in other neurons and (f) Average of ten raster plots in 3 mice showing early and late active nNOS neurons. Shading indicates standard deviation.

Arteriolar dilatation is associated with distinct phases of nNOS neuron Ca²⁺ activity

Next, we examined the relationship between individual nNOS neuron Ca²⁺ transients and arteriolar dilatation. With 5 sec air-puffs, we found varying degrees of correlations (r:-0.36 to 0.77), but ensemble activity exhibited the strongest correlation with arteriolar dilatation (Figure 3(d)). We did not observe dilatation of the venules ( Figure 3(b)). The discrepancy between the lower correlation coefficient of individual neurons compared to ensemble activity raises the possibility that there are differences in the timing of neuronal activity relative to arteriolar dilatation. Therefore, we examined the temporal relationships between nNOS neuron Ca²⁺ transients and arteriolar dilatation. We found that within a single 5 second whisker air-puff, there were neurons that were active immediately as the air-puff started, and other neurons that had a delayed onset of activity (Figure 3(e) and (f)).

To better resolve the temporal relationships between nNOS Ca²⁺ transients and arteriolar dilatation we used a longer whisker stimulus (Figure 4(a)). With a 30 sec stimulus we observed a sustained and robust arteriolar dilatation (8.1 ± 3.1%) associated with a small increase in venular diameter (2.0 ± 0.8%) peaking at the end of the stimulation period (Figure 4(a)). As for the Ca²⁺ transients, a group nNOS neurons became active immediately before the arteriolar dilation (early responding neurons), their activity subsiding despite persistence of the air-puff. Other neurons (sustaining neurons) became gradually active after the dilatation and remained active throughout the air-puff (Figure 4(b) to (d)). Correlation analysis between the shape of the Ca²⁺ transient and the arteriolar dilatation revealed that the Ca²⁺ transients of the sustaining neurons were similar in shape to the arteriolar dilatation signal (Figure 4(d)), consistent with their involvement in the maintenance of the vasodilatation.

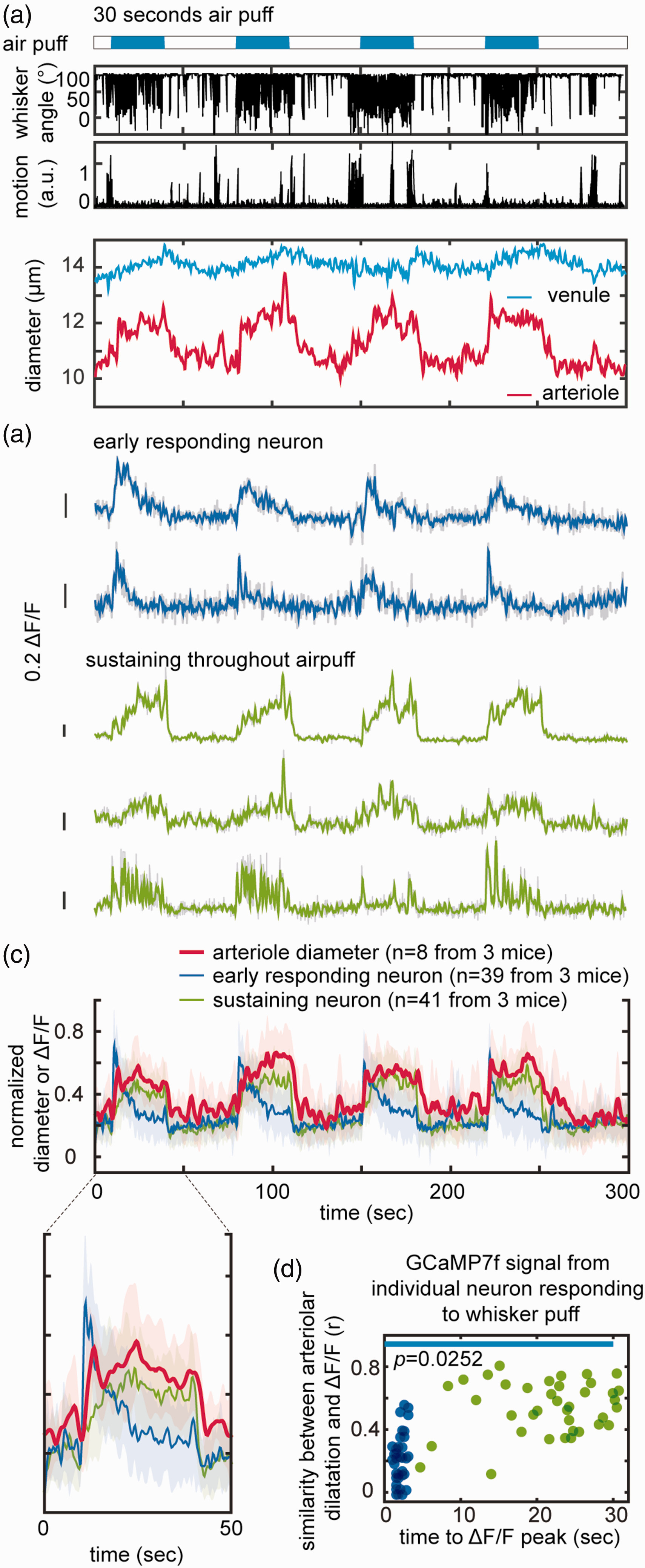

Figure 4.

Microvascular responses associated with nNOS Ca²⁺ activity during 30 sec whisker puffs. (a) Representative dataset from four 30-seconds whisker air-puff showing the corresponding dilatation of arterioles and venules. (b) Representative pattern of Ca²⁺ (ΔF/F) transients showing early responding neurons (blue) and neurons with sustained activity throughout the stimulus (green). (c) Average of normalized Ca²⁺ transients and corresponding arteriolar dilatation (8 datasets in 3 mice). The enlarged graph for a single air-puff shows neurons active prior to the arteriolar dilatation (early responding neurons; blue) and neurons active during the dilatation (sustaining neurons; green) and Continued.(d) plot of the time to peak of Ca²⁺ (ΔF/F) transients, and similarity of the time course of neuronal and arteriolar responses. Two distinct nNOS neuronal populations can be identified: one rapidly decaying and preceding the arteriolar dilatation (blue; early responding neurons), and the other exhibiting a time course similar to the arteriolar dilation (green; sustaining neurons). The blue line indicates that duration of air-puff. Statistical significance was calculated as in Figure 3(c).

The hemodynamic response is not related to the proximity of active nNOS neurons to local arterioles

nNOS neurons release NO that is thought to diffuse to nearby arterioles causing their dilatation.^27
–29 Since some nNOS neurons are closely associated with blood vessels,^23,25,26 we examined whether the dilation of a particular arteriole was related to its proximity to the soma of active nNOS neurons. To this end, we calculated correlation coefficient between arteriolar dilatation and the Ca²⁺ signals for individual nNOS neurons (early responding and sustaining) in a 509 × 509 µm² field (Figure 5(a)). The correlation coefficient was then plotted as a function of the distance between the neurons and the arterioles. We found that there was no correlation between the proximity of an arteriole to nNOS neurons and its dilatation (Figure 5(b), all R-Squared values close to 0).

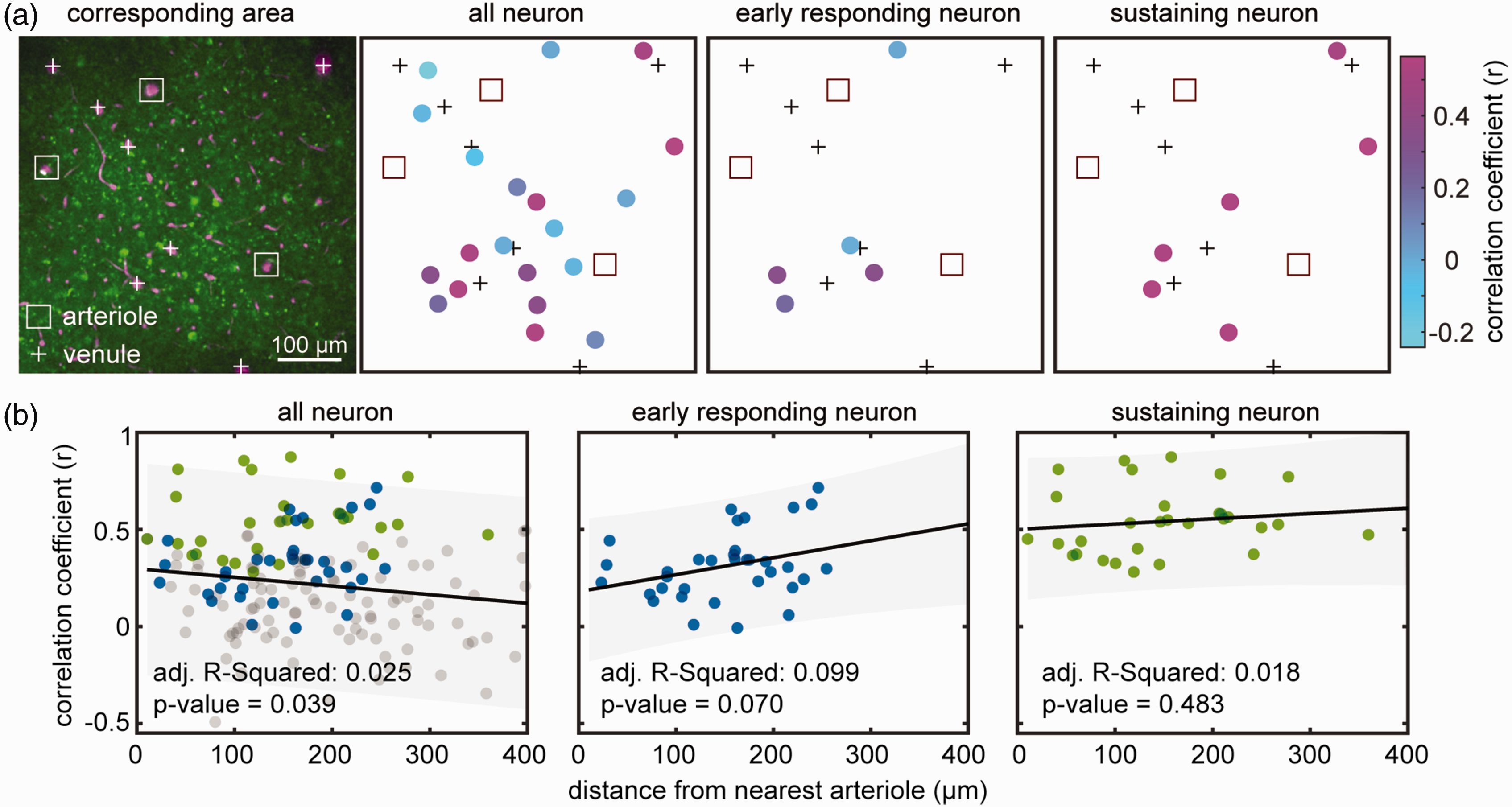

Figure 5.

Spatial relationship of nNOS neurons responsive to air-puff and arterioles. (a) Representative 2PEF map of arterioles (square outline) and venules (+ sign) and GCaMP7f-expressing nNOS neurons. The schematic maps on the right show individual neurons color coded for the correlation of their Ca²⁺ response with that arteriolar dilatation. Notice that the highly correlated neurons do not cluster near the arterioles and (b) Linear regression analysis between distance of individual neuron from arterioles and correlation of their Ca²⁺ response with that arteriolar dilatation (n = 170 neurons from 3 mice). There is no relationship between the distance from the nearest arteriole and correlation of Ca²⁺ transients with arteriolar dilatation.

Discussion

We sought to investigate the relationship between nNOS neuron network activity and the corresponding microvascular changes in the somatosensory cortex of awake mice. We found that voluntary whisking, air-puff induced whisker stimulation, and grooming-related motion induced significant nNOS ensemble activity. Different patterns of Ca²⁺ transients were observed: some nNOS neurons responded to either whisking or motion, some to both, and some were active in a manner not related to these inputs. The nNOS neuron activity was associated with dilatation of the arterioles in the field of view. We noticed that the Ca²⁺ response of some nNOS neurons was closely correlated with the arteriolar dilatation but the ensemble activity of all nNOS neurons in the field of view yielded the best correlation. By investigating the timing of the Ca²⁺ signal relative to the arteriolar dilatation we discovered that some nNOS neurons became active either immediately prior to the arteriolar response or after the response was well developed, unveiling two distinct phases in the nNOS neural events associated with the vasodilation. Finally, we found that the activity of nNOS neurons closer to local arterioles was not better correlated with the hemodynamic response than that of more distant neurons, whether early or late responding. These observations provide new insights into the activation pattern of nNOS neurons, and into the relationship between nNOS neuron Ca²⁺ activity and the ensuing microvascular response.

A major strength of the present study is that the experiments were performed in awake mice, which is critically important when investigating interneuron activity, highly sensitive to anesthetics.⁴³ Accordingly, we could monitor not only neurovascular coupling related to air-puff induced whisker stimulation but also to spontaneous whisking and grooming-related motion. We found that the hemodynamic response to whisking plus motion was more pronounced than that of whisking alone. However, the increase in ensemble activity could not explain the enhanced vasodilatation. We found that the motion of the mice was associated with an increase in blood pressure, which may also contribute since rapid changes in blood pressure escape cerebrovascular autoregulation and influence CBF.^71
–75 Monitoring arterial pressure and blood gasses, is challenging and not always feasible especially in the awake state. However, it may be needed to assess the impact of systemic factors on CBF responses, particularly in conscious mice.²

We found different patterns of nNOS neuron Ca²⁺ activity in the whisker barrel cortex. Some nNOS neurons responded to either whisking or motion, some to both, and some were active independently. Such diversity is anticipated based on the complexity of the nNOS neuronal network and its connectivity.⁷⁶ Thus, nNOS neurons are innervated by cortical and subcortical pathways forming a rich network responsive to a wide variety of stimuli.^{20
–22,26,36,77} In agreement with data in the literature, we found that the majority of nNOS neurons also expressed GAD67 reflecting their inhibitory nature.¹³ However, consistent with data in the literature,^23,66 a subpopulation of nNOS neurons also express excitatory neuron markers. Since cortical nNOS neurons receive thalamic afferents,⁷⁷ it is not surprising that some nNOS neurons responded faithfully to sensory inputs. However, we cannot comment on whether these nNOS neurons are excitatory of inhibitory or whether these are type 1 or type 2.

Another key finding of the study is that there are two distinct groups of layer 2/3 nNOS neurons linked to the hemodynamic response, one active immediately prior to the arteriolar dilatation and the other becoming active more gradually throughout the response. As for the identity of these nNOS neurons, in the mouse whisker barrel cortex, type I nNOS neurons are located in deep cortical layers, while type II neurons are most abundant in layer 2/3.¹³ Since we recorded from lamina 2/3, we can assume that the Ca²⁺ signal was predominantly from type II nNOS neurons. However, further studies are required to identify the specific type of nNOS neurons and define their contribution to the early or late phase of the hemodynamic response. Furthermore, the associated neurotransmitters and neuropeptides, would also have to be determined and temporally correlated to the phases of the hemodynamic response.

NOS, a Ca²⁺-calmodulin dependent enzyme, is activated by intracellular Ca²⁺.⁷⁸ Assuming that the GCaMP7f signal reflects an increase in intracellular Ca²⁺ sufficient to activate nNOS, it is likely that the Ca²⁺ signal in these neurons is associated with NO production. Considering the wealth of data linking neuronal NO with functional hyperemia,^27
–35 it is conceivable that early active nNOS neurons are involved in the initiation of the vasodilatation. Indeed, NO release has been shown to precede the flow response during neural activation.^27
–29 As for the nNOS neurons active later, studies did not detect sustained NO release throughout the hemodynamic response.^27
–29 However, in these studies NO readings were taken at a single point with implanted electrodes in brain slices or in vivo under anesthesia.^27
–29 Furthermore, the activating stimulus, NMDA application^27,29 or electrical stimulation of the forepaw,²⁸ was not comparable to whisker air-puffs in the awake state. Alternatively, since nNOS neurons have the potential to release also vasoactive neuropeptides,^36,79 we cannot rule out the possibility that the nNOS neurons responding later contribute to the response by releasing these agents. Another caveat is that 2PEF imaging performed on parallel plane to the brain surface can only visualize a small fraction of nNOS neurons in layer 2/3. Considering the heterogeneous distribution of nNOS neurons in the neocortex,¹⁴ we cannot exclude that other patterns of activity may be evoked by somatosensory stimuli in nNOS neurons in other layers or cortical areas. Furthermore, an involvement of astrocytes in the late phases of the hemodynamic response cannot be excluded. While there is converging evidence that astrocytes can influence microvascular tone, their role in neurovascular coupling remains controversial.^80,81 However, an elegant study in awake mice points toward a state-dependent engagement of astrocytes, as reflected by Ca²⁺ signaling, in the late phase of the hemodynamic response.⁵⁹ This effect seems to depend on endothelial NOS and not nNOS.⁵⁹

The network events driving these two patterns of activity by different nNOS neurons remain unclear. Previous studies have revealed that the rodent whisker barrel cortex receives and processes sensory information in temporally distinct patterns. Short latency responses are mainly found in layer 4 and 5B/6, where the sensory thalamic input terminates.^82
–85 More superficial neurons in layer 2/3 respond with longer latencies and typically exhibit longer-lasting responses.^86,87 Furthermore, GABAergic neurons located in layer 3-5 are known to receive prominent short-latency input from the thalamus and are strongly and reciprocally connected to nearby excitatory neurons, thereby providing both feed forward and feedback inhibition within local microcircuits.^88,89 How these complex network events engage different groups of nNOS neurons to contribute to the early and late phases of functional hyperemia remains to be determined.

We also found that the distance of the soma of nNOS neurons from arterioles did not correlate with the vascular response. Considering the high two-dimensional diffusion coefficient of NO (3,300 µm²/sec),^90,91 the distance of the processes from the vessels could have no impact over the small distances examined. However, since nNOS is enriched in the terminals of nNOS neurons^23,25,26 and we monitored only the position of the soma, our spatial data needs to be interpreted with caution. Therefore, more sensitive activity markers and imaging modalities with higher resolution would be needed to provide insight into the relationship between the location of nNOS and the hemodynamic response.

In conclusion, we have demonstrated that nNOS neurons exhibit diverse patterns of activity in awake behaving mice with and without mechanical stimulation of the facial whiskers. nNOS neurons activity displayed a selective stimulus dependence to whisker stimulation or grooming and their ensemble activity was associated with robust dilatation of local arterioles. With whisker stimulation, correlation analysis revealed two distinct temporal patterns of activity one preceding and the other following the arteriolar dilatation, consistent with temporally distinct roles of nNOS neurons in the neural events underlying functional hyperemia. Interestingly, the location of nNOS neurons relative to the arteriole did not show a correlation with the hemodynamic response. Collectively, the data suggest that nNOS neurons are selectively engaged by diverse inputs and that the NO-dependent component of functional hyperemia is driven by time-dependent engagement of distinct groups of nNOS neurons. These novel findings may provide insight into the neurovascular dysfunction associated with brain diseases, such as tauopathies, amyloid pathology, and pathological stress, and in which nNOS neurons are preferentially targeted by the disease process.^45
–47
