Effectiveness of butylphthalide on cerebral autoregulation in ischemic stroke patients with large artery atherosclerosis (EBCAS study): A randomized,controlled,multicenter trial

Abstract

Finding appropriate drugs to improve cerebral autoregulation (CA) in patients with acute ischemic stroke (AIS) is necessary to improve prognosis. We aimed to investigate the effect of butylphthalide on CA in patients with AIS. In this randomized controlled trial, 99 patients were 2:1 randomized to butylphthalide or placebo group. The butylphthalide group received intravenous infusion with a preconfigured butylphthalide-sodium chloride solution for 14 days and an oral butylphthalide capsule for additional 76 days. The placebo group synchronously received an intravenous infusion of 100 mL 0.9% saline and an oral butylphthalide simulation capsule. The transfer function parameter, phase difference (PD), and gain were used to quantify CA. The primary outcomes were CA levels on the affected side on day 14 and day 90. Eighty patients completed the follow-up (52 in the butylphthalide group and 28 in the placebo group). The PD of the affected side on 14 days or discharge and on 90 days was higher in the butylphthalide group than in the placebo group. The differences in safety outcomes were not significant. Therefore, butylphthalide treatment for 90 days can significantly improve CA in patients with AIS.

Trial registration: ClinicalTrial.gov: NCT03413202

Keywords

Acute ischemic stroke butylphthalide cerebral autoregulation clinical trial prognosis

Introduction

Stroke is the second leading cause of death worldwide, with ischemic stroke accounting for approximately 62.4% of all stroke cases.¹ However, most patients with acute ischemic stroke (AIS) do not have the opportunity to receive intravenous thrombolysis or intravascular intervention and only rely on medical treatment.² Therefore, identifying suitable intervention targets and specific therapeutic drugs is important for improving the prognosis of patients with AIS.

Animal and clinical studies have indicated that cerebral autoregulation (CA) is an important indicator for maintaining stable cerebral blood flow despite changes in cerebral perfusion pressure and arterial blood pressure made by regulating the contraction and relaxation of cerebral small vessels and microvessels.^3
–6 It has been reported that CA is closely related to the prognosis of cerebrovascular disease;^4,7
–10 higher CA can maintain relatively stable and adequate cerebral perfusion after AIS, which is beneficial for the prognosis of these patients. Thus, CA may be an intervention target for improving the prognosis of AIS patients. Butylphthalide is a synthetic compound; its chemical formula is C₁₂H₁₄O₂ and its molar mass is 190.24 g/mol. Food and Drug Administration of China approved it for treating ischemic stroke in 2002.^11,12 Butylphthalide has two dosage forms, injection and capsule, and can perform sequential therapy within 90 days after AIS. Previous studies reported that butylphthalide significantly increased regional cerebral blood flow in ischemic stroke animal models^13
–15 and patients with carotid artery atherosclerotic stenosis.¹⁶ We considered that this phenomenon might be owing to the improvement of CA by butylphthalide, which keeps cerebral blood flow at a higher level and ultimately improves the prognosis of AIS patients.^17,18

In the present study, we hypothesized that butylphthalide would effectively improve CA levels in patients with AIS. Accordingly, we sought to use a randomized controlled trial to compare CA levels on day 14 after butylphthalide injection and day 90 after treatment with injection + capsule.

Material and methods

The EBCAS (Effectiveness of Butylphthalide on Dynamic Cerebral Autoregulation in Patients with Acute Ischemic Stroke) study was a multicenter, randomized, controlled, blinded phase 4 clinical trial registered at ClinicalTrials.gov (NCT03413202). The study was conducted in accordance with the Declaration of Helsinki and approved by the Ethics Committee of the First Hospital of Jilin University (2017-263). In this study, all participants were fully informed and provided written informed consent signed by themselves or their immediate relatives. The participants had the right to withdraw from the study at any point.

Participants

Patients with AIS at four centers, including First Hospital of Jilin University (northern China), First Hospital of Hebei North University (central China), People's Hospital of Lixin County (eastern China), and Guangdong Provincial Hospital of Traditional Chinese Medicine (southern China), who met the specific inclusion and exclusion criteria from February 2018 to December 2021 were consecutively enrolled. The inclusion criteria were as follows: (1) age ≥ 18 and < 80 years, male or female; (2) within 48 hours of symptom onset; (3) diagnosis of large-artery atherosclerosis ischemic stroke according to the Trial of Org 10172 in Acute Stroke Treatment classification (TOAST criteria);¹⁹ (4) unilateral internal carotid artery or M1 segment of middle cerebral artery stenosis (rate of stenosis ranging from 50 to 99%); (5) baseline National Institute of Health Stroke Scale (NIHSS) score ≥ 5 and ≤25; (6) Glasgow Coma Scale score ≥8; (7) no occurrence of stroke in the past 3 months; and (8) sufficient bilateral temporal bone windows for insonation of the middle cerebral artery. The exclusion criteria were patients who: (1) had received or planned to undergo intravascular interventional treatment/thrombolytic therapy; (2) were unable to cooperate with CA monitoring; (3) had received butylphthalide treatment after stroke onset; (4) had arrhythmia, anemia, or hyperthyroidism, which may influence the stability of cerebral blood flow; (5) had other intracranial diseases, including cerebral hemorrhage (primary or secondary), intracranial neoplasm, aneurysm, and arteriovenous malformation.; (6) had alanine transaminase or glutamic-oxalacetic transaminase more than three times the upper limit of normal and continuing to rise and creatinine clearance rate <30 mL/min; (7) had Modified Rankin Scale (mRS) score ≥2 before stroke onset; (8) had malignant neoplasm and expected lifetime <2 years; (9) were pregnant or lactating; (10) were participating in other trials or had participated in other trials in the past 3 months; (11) had dementia or mental illness; (12) had CA data that could not be analyzed owing to the coherence function <0.34.

Study drugs

The active ingredient of the drug used in our study is butylphthalide, and two dosage forms of butylphthalide injection and butylphthalide capsule were used in this study. Butylphthalide injection is obtained as the marketed drug Butylphthalide and Sodium Chloride Injection (NBP injection, 25 mg butylphthalide in 100 mL 0.9% saline; CSPC-NBP Pharmaceutical Co., Ltd. Hebei, China) and butylphthalide soft capsules are also marketed products (NBP capsules, 100 mg butylphthalide; CSPC-NBP Pharmaceutical Co., Ltd. Hebei, China). Placebo consisted of identical pre-packaged 100 mL 0.9% saline and opaque capsules filled with starch.

Randomization and blinding

Patients who met all eligibility criteria were randomly assigned in a 2:1 ratio to the butylphthalide or placebo group through a stratified block randomization process using a random block size of 4. The randomization sequence was created by an independent biostatistician using SPSS statistical software 18.0 (IBM Corp., Armonk, NY, USA) and was stratified by center. The patients and researchers at each center were unaware of the block size. Butylphthalide and placebo were identical in appearance, size, smell, usage, and dosage. They were pre-packaged and numbered consecutively at the pharmaceutical factory according to the randomization sequence. Each patient was assigned an order number and received the corresponding pre-packaged medication. The patients, healthcare providers, data collectors, and outcome adjudicators were blinded to the medication assignment of the participants.

Sample size

Based on the results of our previous studies, we estimated that the phase difference (PD) of the affected side of the placebo group after 14 days was 20 ± 14 degrees. Butylphthalide was expected to increase the phase value by 10 degrees (30 ± 16 degrees). With the power set at 80% and α level at 0.05, the estimated sample size was 78 patients (52 in the butylphthalide group and 26 in the placebo group). Considering a 20% loss to follow-up, we estimated that 99 patients were needed (66 patients in the butylphthalide group and 33 patients in the placebo group).

Study design

The researchers screened potential patients in the neurology outpatient and emergency departments, followed by the completion of transcranial Doppler (EMS-9PB, Delica, Shenzhen, China) and carotid ultrasound (MVU-6500, Delica, Shenzhen, China). If the patient met the inclusion criteria, a dedicated neurologist introduced the study to the patient and their immediate relatives. Once written informed consent was obtained, patients were randomly assigned to the butylphthalide or placebo groups. The butylphthalide group received intravenous infusion with a preconfigured butylphthalide-sodium chloride solution (25 mg butylphthalide in 100 mL 0.9% saline) for 14 days (twice daily) and oral butylphthalide capsule for additional 76 days (200 mg, thrice daily). The placebo group received an intravenous infusion of 100 mL 0.9% saline for 14 days (twice daily) and an oral butylphthalide simulation capsule for an additional 76 days (200 mg, thrice daily). The transfer function parameter, PD, and gain were used to quantify the CA.

Patients in both groups received standard medical treatment according to the guidelines for the management of AIS.²⁰ Primary outcome measures were PD levels of the affected side on day 14 after injection and 90 days after treatment with injection + capsule. Secondary outcome measures were PD levels of the unaffected side, other CA parameters, functional independence, NIHSS scores, and Barthel scores on day 14 after injection and on day 90 after injection + capsule. Safety outcome measures were adverse events and serious adverse events within 90 days. In addition, patient data, including demographic and clinical characteristics, laboratory test results, complete trial data, and follow-up data, were collected. Functional independence was defined as an mRS score of ≤2 at 90 days.

Cerebral autoregulation assessment and data analysis

In both groups, CA was monitored thrice: at baseline, on day 14/discharge after treatment with injection, and on day 90 after treatment with injection + capsule. The measurements were performed in a special examination room with minimal visual, acoustic, and temperature stimulations. All CA measurements were performed by a doctor specialized in neurovascular ultrasound. Before the CA assessment, blood pressure and heart rate were measured at the left brachial artery using an automatic blood pressure monitor. CA was monitored using transcranial Doppler (MultiDop X4, DWL, Sipplingen, Germany) combined with a finger continuous blood pressure monitor (Finometer Model 1, FMS, Amsterdam, The Netherlands) simultaneously, and real-time cerebral blood flow velocity (CBFV) and arterial blood pressure (ABP) signals were recorded for 5 min. End-tidal CO₂ levels were measured using a nasal cannula capnograph (MultiDop X4, DWL, Sipplingen, Germany). During the entire process, the patients were instructed to stay awake, breathe normally, and minimize body movements.

After the measurements were collected, the data were analyzed using MATLAB (MathWorks, Natick, MA, United States).^21,22 Each patient's ABP and CBFV signals were aligned using a cross-correlation function. The resultant signals were then down-sampled to 1 Hz after applying an anti-alias filter with a cutoff frequency of 0.5 Hz. Welch's method was employed to estimate the autospectrum of ABP, $S_{x x} (f)$ , and the cross-spectrum of ABP and CBFV, $S_{x y} (f)$ , in frequency domain by averaging the periodograms of the down-sampled ABP and CBFV with a 50% overlapped hamming window of 90 s. The transfer function, $H (f)$ , was then deviated as:

H (f) = \frac{S_{x y} (f)}{S_{x x} (f)}

(1)

Gain and PD can then be calculated from (1) by equations (2) and (3), respectively, as:

|H (f)| = \sqrt{\{{|H_{R} (f)|}^{2} + {|H_{I} (f)|}^{2}\}}

(2)

θ = \tan^{- 1} [H_{I} (f) / H_{R} (f)]

(3)

where R and I denote the real and imaginary parts of the transfer function, respectively. Finally, PD, gain, and coherence in a low-frequency range, 0.06 to 0.12 Hz were calculated. Only data with coherence ≥0.34 (number of windows: 5; critical values of coherence: 5%) were included in the subsequent statistical analysis.^21,22

Statistical analysis

Statistical software SPSS 26.0 (IBM Corp., Armonk, NY, USA) was used for data analysis. Data are expressed as the mean ± standard deviation or median (interquartile range) for numerical variables and were analyzed using Student's t-test or Mann–Whitney U test. Categorical variables are presented as absolute numbers and percentages and were compared using χ² test or Fisher's precision probability test. The full analysis set and per-protocol population were used to analyze the efficacy outcomes of this study. Multiple imputations, based on five replications, were used to impute the missing values in the full analysis set. Unadjusted and adjusted associations between butylphthalide and efficacy outcomes were estimated using linear or logistic regression models, as appropriate. For safety outcomes, the differences between the two groups were compared using χ² test or Fisher's precision probability test. Statistical significance was set at 2-tailed P < 0.05.

Results

Participant characteristics

Ninety-nine patients were enrolled in this study from February 2018 to December 2021 (Figure 1). Sixty-six patients were assigned to the butylphthalide group and 33 to the placebo group. Six patients whose final diagnosis was not large-artery atherosclerotic ischemic stroke were excluded. Therefore, 93 patients were included in the full analysis set (62 in the butylphthalide group and 31 in the placebo group). A total of 80 patients completed the final follow-up process of this study and were included in the per-protocol analysis population (52 in the butylphthalide group and 28 in the placebo group); of these, CA measurements were completed at discharge for 44 patients and on day 14 for 36 patients.

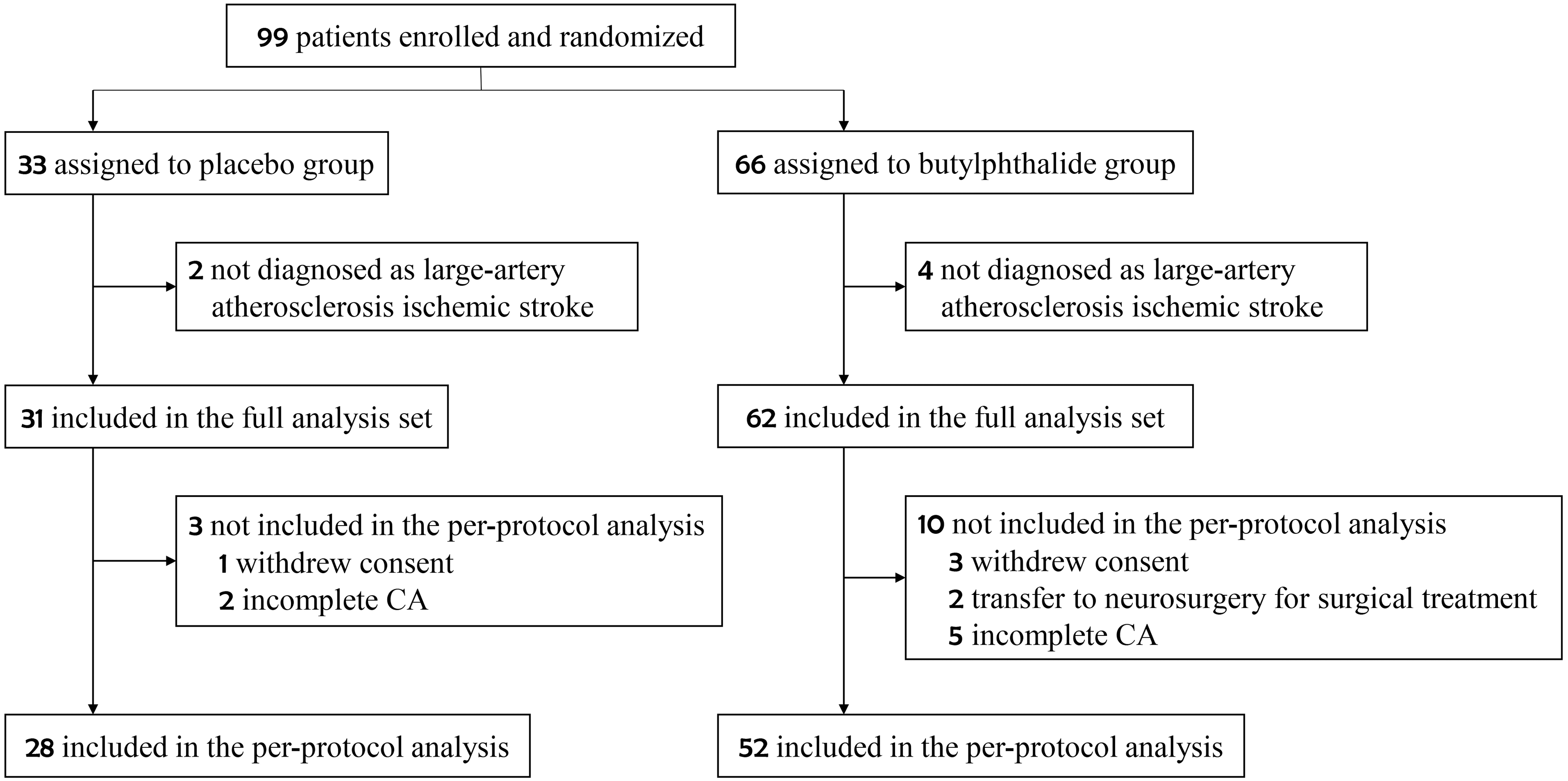

Figure 1.

Flowchart of the study.

The baseline characteristics of patients in the butylphthalide group were similar to those in the placebo group (Table 1). The mean age of the 93 participants was 57.2 ± 11.6 years; 78 participants (83.9%) were male. The median NIHSS score was 7 (interquartile range, 6 to 10) in the butylphthalide group and 10 (interquartile range, 6 to 13) in the placebo group, and the median baseline PD of the affected side was 25.20 degrees (interquartile range, 8.37 to 37.81 degrees) and 25.05 degrees (interquartile range, 15.98 to 37.86 degrees), in the butylphthalide and placebo groups, respectively.

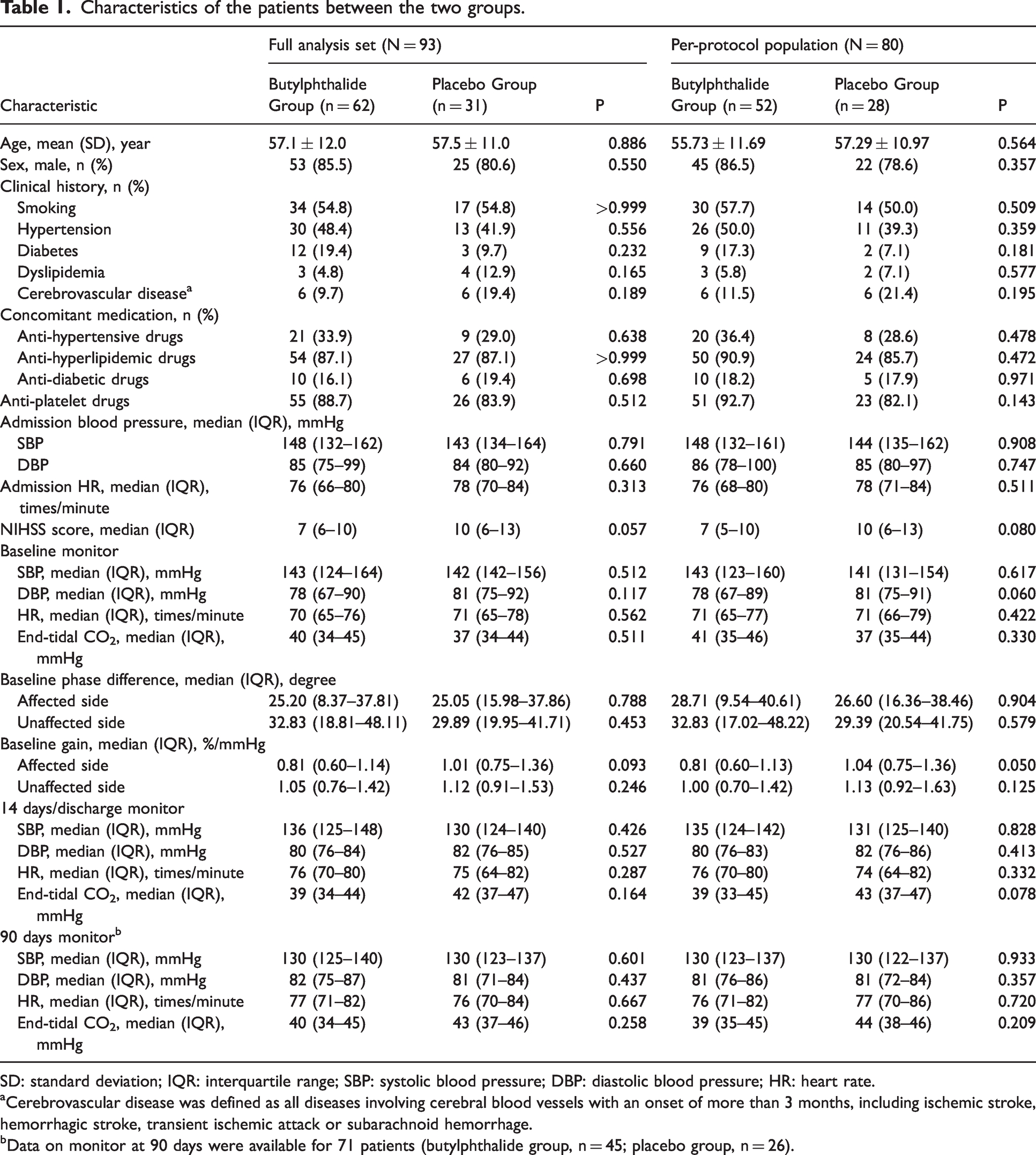

Table 1.

Characteristics of the patients between the two groups.

Characteristic	Full analysis set (N = 93)			Per-protocol population (N = 80)
Characteristic	Butylphthalide Group (n = 62)	Placebo Group (n = 31)	P	Butylphthalide Group (n = 52)	Placebo Group (n = 28)	P
Age, mean (SD), year	57.1 ± 12.0	57.5 ± 11.0	0.886	55.73 ± 11.69	57.29 ± 10.97	0.564
Sex, male, n (%)	53 (85.5)	25 (80.6)	0.550	45 (86.5)	22 (78.6)	0.357
Clinical history, n (%)
Smoking	34 (54.8)	17 (54.8)	>0.999	30 (57.7)	14 (50.0)	0.509
Hypertension	30 (48.4)	13 (41.9)	0.556	26 (50.0)	11 (39.3)	0.359
Diabetes	12 (19.4)	3 (9.7)	0.232	9 (17.3)	2 (7.1)	0.181
Dyslipidemia	3 (4.8)	4 (12.9)	0.165	3 (5.8)	2 (7.1)	0.577
Cerebrovascular disease^a	6 (9.7)	6 (19.4)	0.189	6 (11.5)	6 (21.4)	0.195
Concomitant medication, n (%)
Anti-hypertensive drugs	21 (33.9)	9 (29.0)	0.638	20 (36.4)	8 (28.6)	0.478
Anti-hyperlipidemic drugs	54 (87.1)	27 (87.1)	>0.999	50 (90.9)	24 (85.7)	0.472
Anti-diabetic drugs	10 (16.1)	6 (19.4)	0.698	10 (18.2)	5 (17.9)	0.971
Anti-platelet drugs	55 (88.7)	26 (83.9)	0.512	51 (92.7)	23 (82.1)	0.143
Admission blood pressure, median (IQR), mmHg
SBP	148 (132–162)	143 (134–164)	0.791	148 (132–161)	144 (135–162)	0.908
DBP	85 (75–99)	84 (80–92)	0.660	86 (78–100)	85 (80–97)	0.747
Admission HR, median (IQR), times/minute	76 (66–80)	78 (70–84)	0.313	76 (68–80)	78 (71–84)	0.511
NIHSS score, median (IQR)	7 (6–10)	10 (6–13)	0.057	7 (5–10)	10 (6–13)	0.080
Baseline monitor
SBP, median (IQR), mmHg	143 (124–164)	142 (142–156)	0.512	143 (123–160)	141 (131–154)	0.617
DBP, median (IQR), mmHg	78 (67–90)	81 (75–92)	0.117	78 (67–89)	81 (75–91)	0.060
HR, median (IQR), times/minute	70 (65–76)	71 (65–78)	0.562	71 (65–77)	71 (66–79)	0.422
End-tidal CO₂, median (IQR), mmHg	40 (34–45)	37 (34–44)	0.511	41 (35–46)	37 (35–44)	0.330
Baseline phase difference, median (IQR), degree
Affected side	25.20 (8.37–37.81)	25.05 (15.98–37.86)	0.788	28.71 (9.54–40.61)	26.60 (16.36–38.46)	0.904
Unaffected side	32.83 (18.81–48.11)	29.89 (19.95–41.71)	0.453	32.83 (17.02–48.22)	29.39 (20.54–41.75)	0.579
Baseline gain, median (IQR), %/mmHg
Affected side	0.81 (0.60–1.14)	1.01 (0.75–1.36)	0.093	0.81 (0.60–1.13)	1.04 (0.75–1.36)	0.050
Unaffected side	1.05 (0.76–1.42)	1.12 (0.91–1.53)	0.246	1.00 (0.70–1.42)	1.13 (0.92–1.63)	0.125
14 days/discharge monitor
SBP, median (IQR), mmHg	136 (125–148)	130 (124–140)	0.426	135 (124–142)	131 (125–140)	0.828
DBP, median (IQR), mmHg	80 (76–84)	82 (76–85)	0.527	80 (76–83)	82 (76–86)	0.413
HR, median (IQR), times/minute	76 (70–80)	75 (64–82)	0.287	76 (70–80)	74 (64–82)	0.332
End-tidal CO₂, median (IQR), mmHg	39 (34–44)	42 (37–47)	0.164	39 (33–45)	43 (37–47)	0.078
90 days monitor^b
SBP, median (IQR), mmHg	130 (125–140)	130 (123–137)	0.601	130 (123–137)	130 (122–137)	0.933
DBP, median (IQR), mmHg	82 (75–87)	81 (71–84)	0.437	81 (76–86)	81 (72–84)	0.357
HR, median (IQR), times/minute	77 (71–82)	76 (70–84)	0.667	76 (71–82)	77 (70–86)	0.720
End-tidal CO₂, median (IQR), mmHg	40 (34–45)	43 (37–46)	0.258	39 (35–45)	44 (38–46)	0.209

SD: standard deviation; IQR: interquartile range; SBP: systolic blood pressure; DBP: diastolic blood pressure; HR: heart rate.

^aCerebrovascular disease was defined as all diseases involving cerebral blood vessels with an onset of more than 3 months, including ischemic stroke, hemorrhagic stroke, transient ischemic attack or subarachnoid hemorrhage.

^bData on monitor at 90 days were available for 71 patients (butylphthalide group, n = 45; placebo group, n = 26).

Primary outcome

In the per-protocol analysis set, the median PD in the affected side on day 14 or at discharge was 28.4 degrees (interquartile range, 18.6 to 45.2 degrees) in the butylphthalide group and 22.0 degrees (interquartile range, 10.9 to 34.2 degrees) in the placebo group. The unadjusted beta coefficient for the PD of the affected side on day 14 or at discharge was 7.663 (95% confidence interval [CI], 0.509–14.818; P = 0.036). Furthermore, the median PD of the affected side at 90 days was 31.9 degrees (interquartile range, 21.0 to 43.1 degrees) in the butylphthalide group and 21.3 degrees (interquartile range, 8.6 to 32.4 degrees) in the placebo group. The corresponding unadjusted beta coefficient for the PD of the affected side at 90 days was 11.995 (95% CI, 3.255–20.736; P = 0.008) (Table 2 and Figure 2). The results indicated that treatment with butylphthalide increased CA on both days 14/discharge and 90. In the full analysis set, the PD of the affected side on day 90 showed similar results; however, the PD of the affected side measured on day 14 or at discharge yielded different results, with an unadjusted beta coefficient of 4.892 (95% CI, −2.440 to 12.225; P = 0.190) (Table 3).

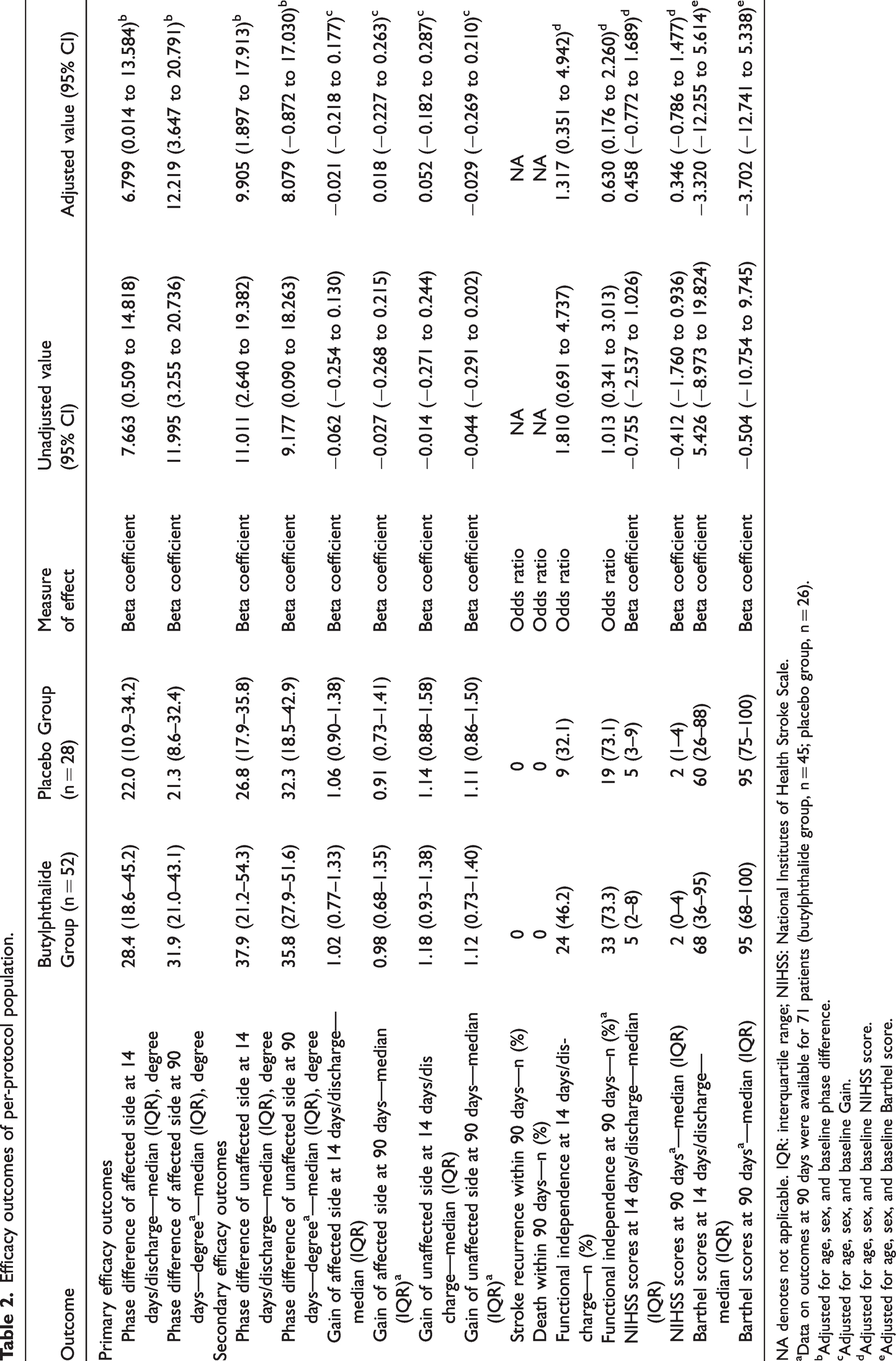

Table 2.

Efficacy outcomes of per-protocol population.

Outcome	Butylphthalide Group (n = 52)	Placebo Group (n = 28)	Measure of effect	Unadjusted value (95% CI)	Adjusted value (95% CI)
Primary efficacy outcomes
Phase difference of affected side at 14 days/discharge—median (IQR), degree	28.4 (18.6–45.2)	22.0 (10.9–34.2)	Beta coefficient	7.663 (0.509 to 14.818)	6.799 (0.014 to 13.584)^b
Phase difference of affected side at 90 days—degree^a—median (IQR), degree	31.9 (21.0–43.1)	21.3 (8.6–32.4)	Beta coefficient	11.995 (3.255 to 20.736)	12.219 (3.647 to 20.791)^b
Secondary efficacy outcomes
Phase difference of unaffected side at 14 days/discharge—median (IQR), degree	37.9 (21.2–54.3)	26.8 (17.9–35.8)	Beta coefficient	11.011 (2.640 to 19.382)	9.905 (1.897 to 17.913)^b
Phase difference of unaffected side at 90 days—degree^a—median (IQR), degree	35.8 (27.9–51.6)	32.3 (18.5–42.9)	Beta coefficient	9.177 (0.090 to 18.263)	8.079 (−0.872 to 17.030)^b
Gain of affected side at 14 days/discharge— median (IQR)	1.02 (0.77–1.33)	1.06 (0.90–1.38)	Beta coefficient	−0.062 (−0.254 to 0.130)	−0.021 (−0.218 to 0.177)^c
Gain of affected side at 90 days—median (IQR)^a	0.98 (0.68–1.35)	0.91 (0.73–1.41)	Beta coefficient	−0.027 (−0.268 to 0.215)	0.018 (−0.227 to 0.263)^c
Gain of unaffected side at 14 days/dis charge—median (IQR)	1.18 (0.93–1.38)	1.14 (0.88–1.58)	Beta coefficient	−0.014 (−0.271 to 0.244)	0.052 (−0.182 to 0.287)^c
Gain of unaffected side at 90 days—median (IQR)^a	1.12 (0.73–1.40)	1.11 (0.86–1.50)	Beta coefficient	−0.044 (−0.291 to 0.202)	−0.029 (−0.269 to 0.210)^c
Stroke recurrence within 90 days—n (%)	0	0	Odds ratio	NA	NA
Death within 90 days—n (%)	0	0	Odds ratio	NA	NA
Functional independence at 14 days/discharge—n (%)	24 (46.2)	9 (32.1)	Odds ratio	1.810 (0.691 to 4.737)	1.317 (0.351 to 4.942)^d
Functional independence at 90 days—n (%)^a	33 (73.3)	19 (73.1)	Odds ratio	1.013 (0.341 to 3.013)	0.630 (0.176 to 2.260)^d
NIHSS scores at 14 days/discharge—median (IQR)	5 (2–8)	5 (3–9)	Beta coefficient	−0.755 (−2.537 to 1.026)	0.458 (−0.772 to 1.689)^d
NIHSS scores at 90 days^a—median (IQR)	2 (0–4)	2 (1–4)	Beta coefficient	−0.412 (−1.760 to 0.936)	0.346 (−0.786 to 1.477)^d
Barthel scores at 14 days/discharge— median (IQR)	68 (36–95)	60 (26–88)	Beta coefficient	5.426 (−8.973 to 19.824)	−3.320 (−12.255 to 5.614)^e
Barthel scores at 90 days^a—median (IQR)	95 (68–100)	95 (75–100)	Beta coefficient	−0.504 (−10.754 to 9.745)	−3.702 (−12.741 to 5.338)^e

NA denotes not applicable. IQR: interquartile range; NIHSS: National Institutes of Health Stroke Scale.

^aData on outcomes at 90 days were available for 71 patients (butylphthalide group, n = 45; placebo group, n = 26).

^bAdjusted for age, sex, and baseline phase difference.

^cAdjusted for age, sex, and baseline Gain.

^dAdjusted for age, sex, and baseline NIHSS score.

^eAdjusted for age, sex, and baseline Barthel score.

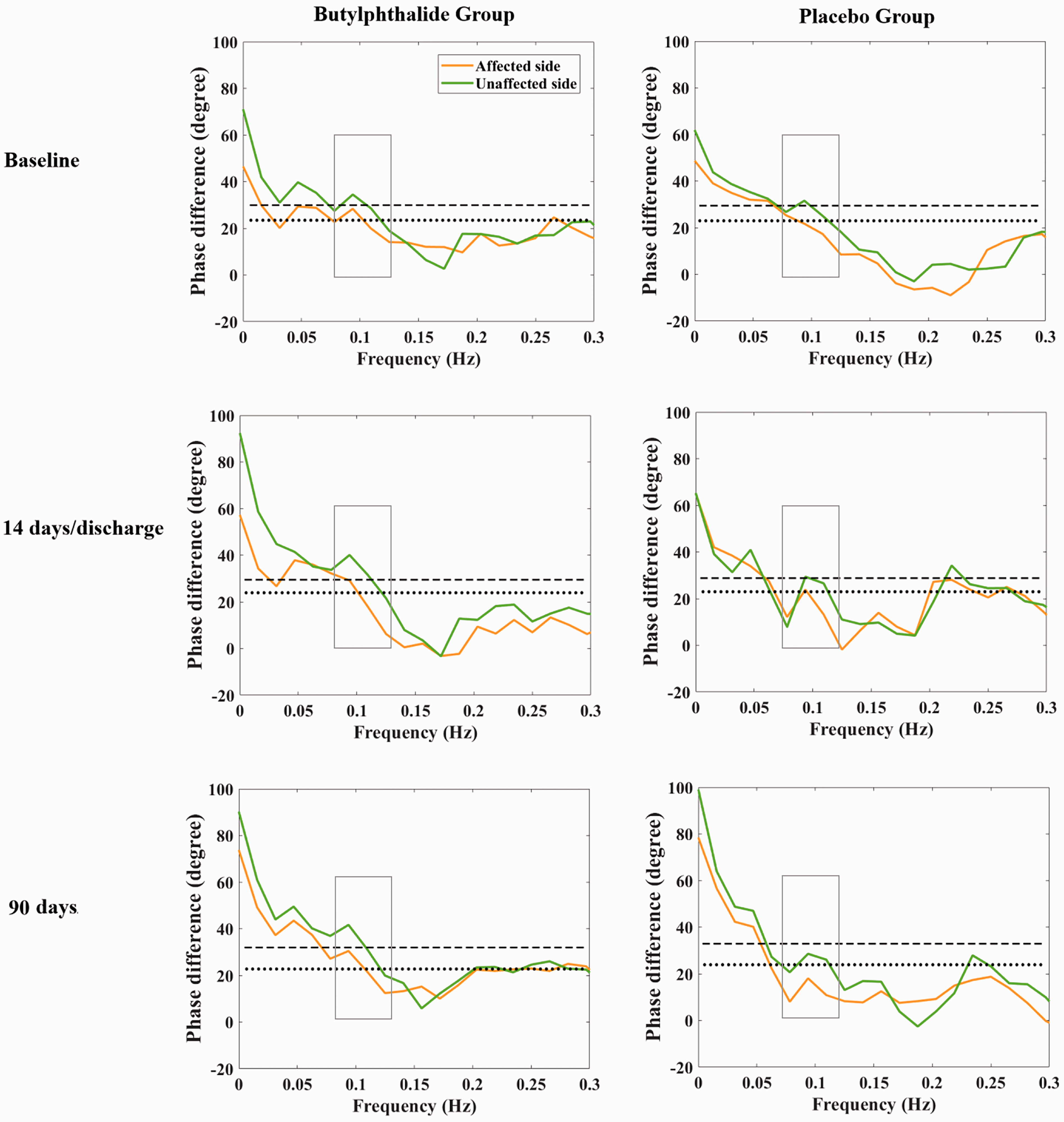

Figure 2.

Phase difference in the butylphthalide and placebo groups. The dotted and dashed lines represent the median phase difference of the affected and unaffected sides in the placebo group at different time points, respectively.

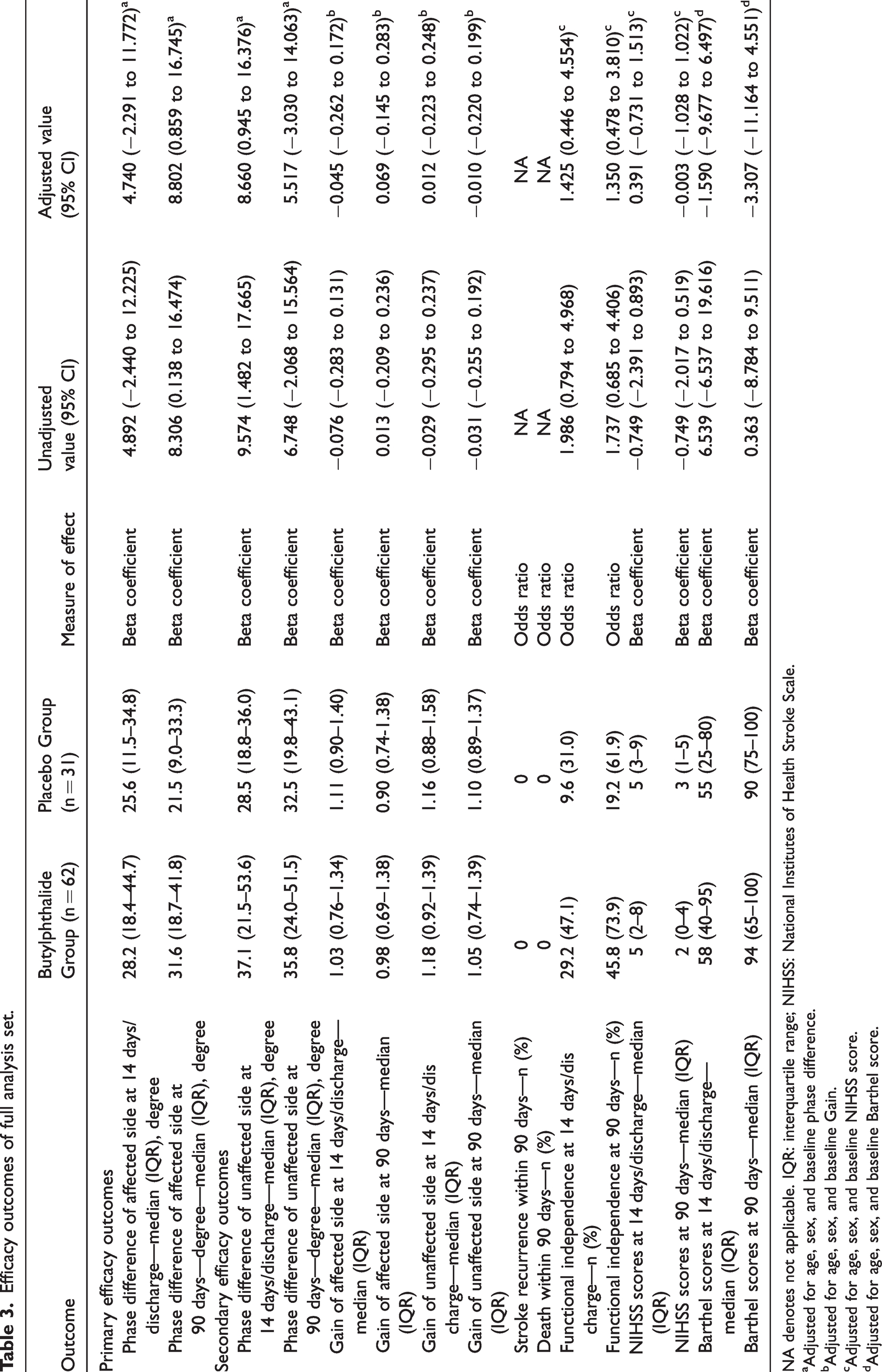

Table 3.

Efficacy outcomes of full analysis set.

Outcome	Butylphthalide Group (n = 62)	Placebo Group (n = 31)	Measure of effect	Unadjusted value (95% CI)	Adjusted value (95% CI)
Primary efficacy outcomes
Phase difference of affected side at 14 days/ discharge—median (IQR), degree	28.2 (18.4–44.7)	25.6 (11.5–34.8)	Beta coefficient	4.892 (−2.440 to 12.225)	4.740 (−2.291 to 11.772)^a
Phase difference of affected side at 90 days—degree—median (IQR), degree	31.6 (18.7–41.8)	21.5 (9.0–33.3)	Beta coefficient	8.306 (0.138 to 16.474)	8.802 (0.859 to 16.745)^a
Secondary efficacy outcomes
Phase difference of unaffected side at 14 days/discharge—median (IQR), degree	37.1 (21.5–53.6)	28.5 (18.8–36.0)	Beta coefficient	9.574 (1.482 to 17.665)	8.660 (0.945 to 16.376)^a
Phase difference of unaffected side at 90 days—degree—median (IQR), degree	35.8 (24.0–51.5)	32.5 (19.8–43.1)	Beta coefficient	6.748 (−2.068 to 15.564)	5.517 (−3.030 to 14.063)^a
Gain of affected side at 14 days/discharge— median (IQR)	1.03 (0.76–1.34)	1.11 (0.90–1.40)	Beta coefficient	−0.076 (−0.283 to 0.131)	−0.045 (−0.262 to 0.172)^b
Gain of affected side at 90 days—median (IQR)	0.98 (0.69–1.38)	0.90 (0.74-1.38)	Beta coefficient	0.013 (−0.209 to 0.236)	0.069 (−0.145 to 0.283)^b
Gain of unaffected side at 14 days/dis charge—median (IQR)	1.18 (0.92–1.39)	1.16 (0.88–1.58)	Beta coefficient	−0.029 (−0.295 to 0.237)	0.012 (−0.223 to 0.248)^b
Gain of unaffected side at 90 days—median (IQR)	1.05 (0.74–1.39)	1.10 (0.89–1.37)	Beta coefficient	−0.031 (−0.255 to 0.192)	−0.010 (−0.220 to 0.199)^b
Stroke recurrence within 90 days—n (%)	0	0	Odds ratio	NA	NA
Death within 90 days—n (%)	0	0	Odds ratio	NA	NA
Functional independence at 14 days/dis charge—n (%)	29.2 (47.1)	9.6 (31.0)	Odds ratio	1.986 (0.794 to 4.968)	1.425 (0.446 to 4.554)^c
Functional independence at 90 days—n (%)	45.8 (73.9)	19.2 (61.9)	Odds ratio	1.737 (0.685 to 4.406)	1.350 (0.478 to 3.810)^c
NIHSS scores at 14 days/discharge—median (IQR)	5 (2–8)	5 (3–9)	Beta coefficient	−0.749 (−2.391 to 0.893)	0.391 (−0.731 to 1.513)^c
NIHSS scores at 90 days—median (IQR)	2 (0–4)	3 (1–5)	Beta coefficient	−0.749 (−2.017 to 0.519)	−0.003 (−1.028 to 1.022)^c
Barthel scores at 14 days/discharge— median (IQR)	58 (40–95)	55 (25–80)	Beta coefficient	6.539 (−6.537 to 19.616)	−1.590 (−9.677 to 6.497)^d
Barthel scores at 90 days—median (IQR)	94 (65–100)	90 (75–100)	Beta coefficient	0.363 (−8.784 to 9.511)	−3.307 (−11.164 to 4.551)^d

NA denotes not applicable. IQR: interquartile range; NIHSS: National Institutes of Health Stroke Scale.

^aAdjusted for age, sex, and baseline phase difference.

^bAdjusted for age, sex, and baseline Gain.

^cAdjusted for age, sex, and baseline NIHSS score.

^dAdjusted for age, sex, and baseline Barthel score.

Secondary outcomes

In the per-protocol analysis set, the PD of the unaffected side on day 14 or at discharge was higher in the butylphthalide group than in the placebo group, and the unadjusted beta coefficient for the PD of the unaffected side on day 14 or at discharge was 11.011 (95% CI, 2.640–19.382; P = 0.011). For the PD of the unaffected side on day 90, butylphthalide treatment was associated with an improvement in the unadjusted model; however, the association was not duplicated after adjusting for confounders. In the full analysis set, the PD of the unaffected side on day 14 or at discharge showed similar results; however, on day 90, no significant association between butylphthalide treatment and the PD of the unaffected side was observed in both unadjusted and adjusted models. No significant effect of butylphthalide on the gain was observed on either side on day 14 or at discharge and on day 90 in both per-protocol analysis and full analysis sets (Tables 2 and 3).

In the per-protocol analysis set, functional independence on day 14 or at discharge was achieved in 46.2% of the patients in the butylphthalide group and 32.1% in the placebo group. However, the unadjusted interval estimation of the odds ratio (OR) included 1 (OR, 1.810; 95% CI, 0.691–4.737; P = 0.227), which means there was no significant difference in the 14-day functional outcome between the two groups. Similarly, functional independence on day 90 was achieved in 73.3% of patients in the butylphthalide group and in 73.1% in the placebo group; the unadjusted OR was 1.013, and its 95% CI was 0.341–3.013 (P = 0.981). The results for the other secondary outcomes also did not show a significant difference between the two groups (Table 2). The full analysis yielded similar results (see Table 3).

Safety outcomes

The percentage of patients with total adverse events within 90 days did not differ significantly between the two groups (27.4% in the butylphthalide group [17 of 62 patients] and 16.1% in the placebo group [5 of 31 patients], P = 0.227; Table 4). Abnormal liver function occurred in 9.7% (6 of 62) of the patients in the butylphthalide group but in none of the patients in the placebo group. However, the difference between the two groups was not statistically significant (P = 0.173). There were no significant group differences in other types of adverse events. Only one patient experienced serious adverse events during the study period; however, according to the researcher's judgment, it was not related to the use of the study drug.

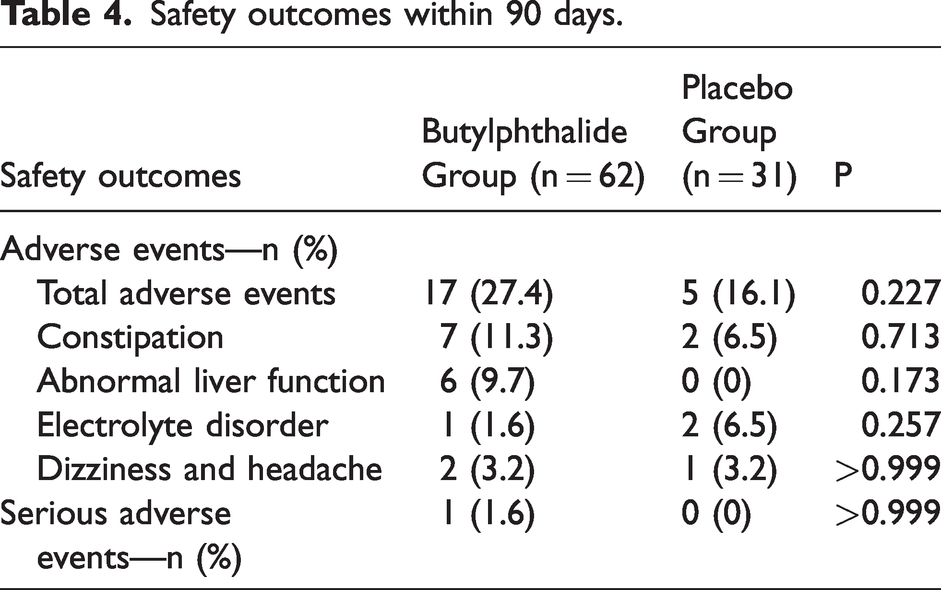

Table 4.

Safety outcomes within 90 days.

Safety outcomes	Butylphthalide Group (n = 62)	Placebo Group (n = 31)	P
Adverse events—n (%)
Total adverse events	17 (27.4)	5 (16.1)	0.227
Constipation	7 (11.3)	2 (6.5)	0.713
Abnormal liver function	6 (9.7)	0 (0)	0.173
Electrolyte disorder	1 (1.6)	2 (6.5)	0.257
Dizziness and headache	2 (3.2)	1 (3.2)	>0.999
Serious adverse events—n (%)	1 (1.6)	0 (0)	>0.999

Discussion

In the present study, we found that butylphthalide treatment for 90 days can significantly improve CA in patients with AIS. This indicated that butylphthalide is an effective drug for improving CA through its mechanism of action.

CA is an essential indicator of cerebrovascular function and is responsible for maintaining cerebral blood flow during fluctuations in blood pressure within a relatively constant range.²³ CA is closely related to AIS prognosis; however, few drugs have been reported to improve CA in patients with AIS. One study reported that in patients with carotid artery atherosclerotic stenosis, the butylphthalide group had higher cerebral hypoperfusion than the placebo group.¹⁶ A possible reason for this is that the butylphthalide group had higher CA; thus, these patients were more capable of maintaining adequate cerebral blood flow. In this study, we confirmed our hypothesis and found that continuous application of butylphthalide for 90 days can improve CA, suggesting the need for continued medication use.

The mechanism by which butylphthalide improves this regulation is unclear. The normal function of cerebrovascular endothelial cells is the basis for maintaining CA because endothelial cells modulate many aspects of vascular function. Endothelial cells, for example, secrete nitric oxide, which maintains the vascular tone²⁴ in the blood vessels of the brain at a certain level, which is critical for maintaining CA. Thus, damage to cerebrovascular endothelial cells in patients with AIS is closely related to the impairment of CA.²⁵ Previous studies have reported that butylphthalide positively affects vascular endothelial cells. For example, Liu et al. showed that butylphthalide protects endothelial cells against advanced glycation end-product-induced injury by attenuating oxidative stress and inflammatory response.²⁶ Wei et al. found that butylphthalide reduced oxygen-glucose deprivation-induced endothelial cell damage by increasing PGC-1α.²⁷ Therefore, butylphthalide may improve CA in patients with AIS through its protective effects on cerebrovascular endothelial cells. In addition, previous studies have suggested that butylphthalide can improve collateral circulation, such as acting as a vasodilator and promoting collateriogenesis,^14,15 which may play a role in enhancing CA.

Furthermore, the CA of the unaffected side in the butylphthalide group was higher than that of the placebo group after 14 days of treatment. This phenomenon can be explained as follows. Previous studies have found that the CA on the unaffected side is influenced by that of the affected side in patients with cerebrovascular stenosis.²⁸ When the CA of the affected side is damaged, part of the function of the CA of the unaffected side is also compensated. In the present study, the CA of the affected side of the butylphthalide group was higher than that of the placebo group after 14 days of medication; thus, the CA of the unaffected side of the butylphthalide group was less influenced by the affected side, masking any difference in CA of the unaffected side. This finding also suggests that butylphthalide can improve CA in patients in the acute stage.

In this study, we investigated the effects of butylphthalide on prognostic indicators. Although the proportion of functional independence at 14 and 90 days was higher in the butylphthalide group than in the placebo group, the differences were not statistically significant. This may be because of the small sample size. Simultaneously, no significant difference was found between the two groups regarding safety indicators, indicating that continuous application of butylphthalide for 90 days is safe.

It is worth mentioning that, in randomization, we chose 2:1 instead of 1:1; this is because many previous studies had demonstrated the efficacy of butylphthalide in patients with AIS. Therefore, although this study focused on the effect of butylphthalide on CA, the number of patients in the placebo group should be minimized to benefit more patients. Therefore, we revised the protocol to 2:1 randomization to ensure that more patients receive butylphthalide therapy.

Our study has a few limitations. First, we excluded patients who received endovascular treatment; thus, many patients with large vessel occlusion could not be included in this study, and whether butylphthalide can improve CA in such patients remains unknown. Second, the sample size of our study was relatively small, which may be an important reason why we did not find that butylphthalide administration improves clinical outcomes in patients with AIS.

In conclusion, butylphthalide treatment for 90 days can significantly improve CA in patients with AIS.
