Cannabinoid receptor activation in the juvenile rat brain results in rapid biomechanical alterations: Neurovascular mechanism as a putative confounding factor

Abstract

We have recently reported cannabinoid-induced rapid changes in the structure of individual neurons. In order to investigate the presence of similar effects at the regional level, measures of brain tissue biomechanics are required. However, cannabinoids are known to alter cerebral blood flow (CBF), putatively resulting in presently unexplored changes in cerebral tissue biomechanics. Here we used magnetic resonance elastography (MRE) and flow-sensitive alternating inversion recovery (FAIR) imaging to measure in vivo alterations of mechanical properties and CBF, respectively, in the rat hippocampus, a brain region with a high density of type-1 cannabinoid receptors (CB₁R). Systemic injection of the cannabinoid agonist CP55,940 (0.7 mg/kg) induced a significant stiffness decrease of 10.5 ± 1.2% at 15 minutes. FAIR imaging indicated a comparable decrease (11.3 ± 1.9%) in CBF. Both effects were specific to CB₁R activation, as shown by pretreatment with the CB₁R-specific antagonist AM251. Strikingly, similar rapid parallel changes of brain elasticity and CBF were also observed after systemic treatment with the hypotensive drug nicardipine. Our results reveal important drug-induced parallel changes in CBF and brain mechanical characteristics, and show that blood flow-dependent tissue softening has to be considered as an important putative confounding factor when cerebral viscoelastic changes are investigated.

Introduction

The type-1 cannabinoid receptor (CB₁R) has initially been identified as the main neuronal target of Δ⁹-tetrahydrocannabinol (Δ⁹THC), the major psychoactive substance of marijuana. CB₁Rs are widely distributed in neurons of the cerebral cortex, hippocampus, basal ganglia, amygdala and cerebellum and are the major mediators of endocannabinoid signalling in the brain. CB₁Rs are mainly recognized as key players in the regulation of neurotransmission ¹ but several lines of evidence suggest that CB₁Rs also act as regulators of neuronal structure. Chronic CB₁R activation induces structural alterations both in vivo^2,3 and in vitro ⁴ and structural remodeling has also been observed at a short-time scale in vitro.^5,6 Notably, our recent report suggests that CB₁R can rapidly transform the neuronal cytoskeleton through actomyosin contractility, resulting in cellular remodeling events ultimately able to affect brain architecture and wiring. ⁷ These data suggest that the activation of CB₁R, one of the most highly expressed brain G protein-coupled receptors (GPCRs), might also result in rapid structural changes in the developing brain in vivo, although such an effect has not yet been demonstrated.

One of the reasons for this lack of knowledge is the technical difficulty involved in the detection of rapid changes in the structure and biomechanics of the living brain. In addition to the challenge of measuring the biomechanical parameters of living neuronal tissue, CB₁R-induced changes in cerebral blood flow (CBF) might also represent a confounding factor. Notably, CB₁Rs are also expressed in micro-vascular endothelial cells ⁸ and in smooth muscle cells ⁹ of the cerebral vasculature, which play a major role in the mediation of vasodilatation. ¹⁰ To date, a link between the perfusion of the brain and its mechanical properties has only been demonstrated in vitro. ¹¹ Recent in vivo studies provide strong evidence of biomechanical changes following perfusion fluctuations in organs such as the liver or kidney, ¹² but similar rapid correlations between tissue biomechanics and perfusion have yet to be demonstrated in the living brain.

While mechanical properties of the young brain were previously measured either ex vivo^13,14 or invasively in vivo,^15,16 the presence of non-physiological blood perfusion and metabolic conditions resulted in highly different elasticity values hindering the establishment of consensus reference values. The CBF is also changing throughout the life. For instance, a 70% increase in the signal-to-noise ratio of the arterial spin labeling (ASL) perfusion MRI images and a 30% increase in the absolute cerebral blood flow compared to the adult data were observed. ¹⁷

Magnetic resonance elastography (MRE) is a magnetic resonance imaging (MRI) technique capable of exploring the biomechanical properties of soft tissue in vivo by measuring cyclic displacements of propagating shear waves. ¹⁸ Increasing MRE-based evidence suggests that the mechanical properties of living soft tissue are sensitive markers of its structure, vasculature and perfusion, which can be influenced by a variety of biological factors, such as brain tumors, ¹⁹ multiple sclerosis ²⁰ and neurodegenerative processes. ²¹ Pathological processes such as acute neuroinflammation have also been recently shown to cause reductions in the mechanical cohesion of brain tissue and subsequent reversible decreases in elasticity and viscosity. ²² Similarly, changes in the neural density after stroke have been shown via MRE to induce modifications in viscoelastic cerebral properties. ²³ A recent study demonstrated that brain mechanical properties measured by MRE are also markers of the modification of brain tissue micro-architecture, by showing a link between viscoelasticity and histologically detected cortical myelin content during an active demyelination protocol of the mouse corpus callosum. ²⁴ Interestingly, in this study corpus callosum viscoelasticity showed rapid increase (∼20% between weeks 3 and 9) until stabilization around nine weeks of age, showing that brain maturation is accompanied by measurable and significant changes in brain biomechanical parameters.

The objective of this study was to apply parallel in vivo measurements of CBF and mechanical brain characteristics to better understand their relation. To measure perfusion-induced bio-mechanical changes, CBF was measured by an MRI-based imaging technique, flow-sensitive alternating inversion recovery (FAIR) perfusion imaging, during systemic treatment with both a cannabinoid agonist and the hypotensive drug nicardipine. In parallel, we used MRE to identify local alterations of mechanical properties induced by systemic cannabinoid or nicardipine treatment, by focusing on the hippocampus, a cerebral structure with high CB₁R-density in the juvenile rat brain.

Material and methods

Drug preparation

CP55,940 (synthetic cannabinoid receptor agonist) and AM251 (specific type-1 cannabinoid receptor antagonist) were obtained from Tocris (Bristol, UK). CP55,940 and AM251 were dissolved at final concentrations of 0.2 mg/ml and 0.9 mg/ml respectively, in vehicle. Vehicle solution was composed by 80% volume of 0.9% NaCl, 10% volume of DMSO and 10% volume of Tween 80 (Sigma Aldrich). Nicardipine, a dihydropyridine-type Ca²⁺ channel blocker with high vascular selectivity and strong cerebral and coronary vasodilatory activity (Aguettant Laboratories, Lyon, France), was used undiluted, at 10 mg/ml.

Drug application

All experiments were performed in agreement with the European Community Council Directive of 22nd September 2010 (010/63/UE) and the local ethics committee “Comité d’éthique en matière d’expérimentation animale n°59, C2EA – 59, ‘Paris Centre et Sud’” (agreement #2014-14). The number of animals in our study was kept to the necessary minimum and we have followed the ARRIVE guidelines for the report of the experiments. The measurements were conducted on healthy randomized male or female Sprague–Dawley rats weighing 20–30 g and aged from 10 to 12 days (Janvier-Europe laboratories, Saint Berthevin, France). Sex-dependent differences were not investigated in this study. Rats were housed in a 12–12-h light-dark cycle room at 22℃. CP55,940 (0.7 mg/kg), AM251 (3 mg/kg), nicardipine (15 mg/kg) or vehicle (2 ml/kg) were injected intraperitoneally. Animals that died or moved during the acquisitions were excluded from the analysis (mortality rate: 12.8% and 5.9% for MRE and FAIR imaging, respectively). For MRE experiments, a total of 20 rats received CP55,940 injections, preceded by an injection of either the antagonist AM251 (n = 6 total, all successfully tested) or the vehicle (n = 14 total; 11 successfully tested, three excluded due to mortality). The control group was assessed by performing two repeated injections of vehicle (n = 7 total; five successfully performed, two excluded due to mortality). In order to confirm the absence of effect of AM251 injected alone, a second control group of rats underwent a pre-injection of AM251 followed by an injection of vehicle (n = 3 total, all successfully tested). To assess the effect of a brain vasodilatation on mechanical properties, a single injection of nicardipine was performed (n = 9 total; eight successfully tested, one excluded due to movement). In FAIR experiments, the CBF values were recorded in a total of 19 rats, after injection of either CP55,940 (n = 8 total; six successfully performed, two excluded due to mortality), nicardipine (n = 8 total; five successfully performed, one excluded due to mortality, two excluded due to movement) or AM251 + CP55,940 (n = 3 total, all successfully tested).

MRI and MRE acquisitions

Cerebral MRI and MRE were performed on a 7-Tesla small animal MRI scanner (Pharmascan, Bruker Biospin SA, Wissembourg, France). All experiments were performed on anesthetized rats, using 1–2% isoflurane in 50% O₂ and 50% air with a facemask (Matrx™ VIP 3000, Midmark Corp., OH, USA). The respiration was monitored (Small Animal Instruments 1025L, Stony Brook, NY, USA). For the MRE acquisitions, mechanical waves were generated using a uni-axial modal exciter vibrating at 1000 Hz (Bruel & Kjaer 4808, Naerum, Denmark). The waves were transmitted from the exciter to a piston through a carbon fiber rod using a custom-made set-up (Figure 1). The piston was positioned against the top of the rat skull (supine position) which was embedded in a plaster helmet. The vibration of the piston induces the vibration of the skull and consequently of the brain. A volume coil was used for MRI excitation and a 20 mm diameter surface coil positioned below the top of the head was used for MRI signal acquisition. After standard calibration, piloting and shimming, high-resolution axial T2-weighted images were acquired with the following parameters: a Multi Slice Multi Echo sequence (MSME), a repetition time (TR) of 2000 ms, an echo time (TE) of 63 ms, a slice thickness of 1 mm, an acquisition matrix of 256 × 256, a field of view (FOV) of 30 mm, one average, on 10 slices, resulting in an acquisition time of 8 min. Afterwards, T2-weighted images centered on the hippocampus in an axial orientation were acquired with the following parameters: a MSME, a TE/TR of 63/2000 ms, a slice thickness of 0.3 mm, an acquisition matrix of 128 × 128, a FOV of 19.2 mm, one average, 10 slices, resulting in an acquisition time of 3 min. Then, the 3D-MRE scanning parameters included the following: a SE sequence with synchronous 1000 Hz motion–encoding gradients to encode three orthogonal displacement maps in phase images; a TE/TR of 19.5/901 ms, a slice thickness of 0.3 mm, an acquisition matrix of 64 × 64, a FOV of 19.2 mm, one average, 10 slices, resulting in an acquisition time of 7 min per direction, leading to 21 minutes on the three consecutives directions. A minimum of four time steps of the shear wave were acquired for each image. This first MRE examination, considered as a baseline acquisition for each animal, was followed by the injections of drugs. Fifteen and 60 min after the injection, a second and a third MRE examination were, respectively, performed.

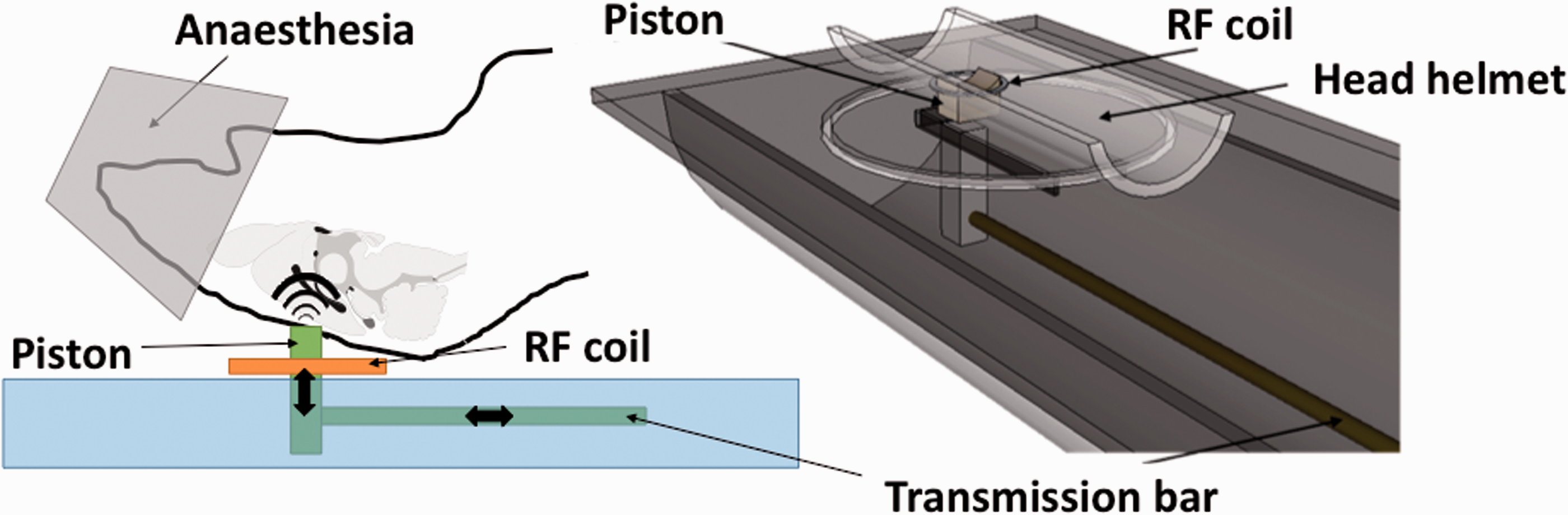

Figure 1.

Schematic view of the MRE experimental setup. Seven Tesla small animal MRI scanner (Pharmascan, Bruker BioSpin). A carbon fiber rod transmits vibrations from a remote vibration generator to a piston in contact to the head of the animal, which is maintained in supine position above the surface coil by an adapted head helmet. The entire setup is inserted within the volume transmit coil of the MR system.

Shear mechanical properties were reconstructed from the acquired MRE data (small cyclic displacements) using published algorithms, ²⁵ by an investigator blind to the treatment protocol. Results are presented in terms of absolute value |G*| = (G′²+ G″ ² )^1/2 of the complex shear modulus, of which real G′ – storage modulus – and imaginary G″ – loss modulus – parts correspond to the stored energy (elastic part) and the energy dissipated or lost due to scattering (viscous part), respectively, when subjected to external forces. The magnitude of the complex valued shear modulus corresponds to the measurement of the stiffness of the tissue. Regions of interest (ROIs) were defined on anatomical images and copied onto the maps of reconstructed mechanical parameters providing mean values and standard deviations. Signal-to-noise ratio (SNR) measurements on the shear wave displacement maps were performed to assess the reliability and sensitivity of this methodology.

Cerebral blood flow map by flow sensitive alternating inversion recovery

Cerebral blood flow (CBF), a measurement of the blood perfusion in units of ml of blood/min/100 g of tissue, was quantified using a flow sensitive alternating inversion recovery (FAIR) sequence on the same small-animal 7-Tesla MR scanner. After standard calibration, piloting and shimming, first axial T2-weighted (MSME, TE/TR: 63/2 ms, 1 mm slice thickness; matrix 256 × 256, field of view (FOV) 3 cm, one average, 10 slices) images were acquired to localize the hippocampus. Cerebral perfusion maps were obtained by using the flow alternating inversion recovery technique (TE/TR: 19/4000 ms, 1 axial slice, 300 µm × 600 µm × 3 mm, five inversion times, 3 mm inversion slab thickness, interleaved mode). Briefly, images of longitudinal relaxation rates (R1  = 1/T1) were calculated from the inversion recovery profiles obtained in the presence of the global (true R1) or the selective (apparent R1') inversion pulses. The difference in R1 between the two inversion modes was attributed to the perfusion of non-inverted spins in the labeled slice.^26,27 Cerebral perfusion (P, ml/(100 g × min)) was calculated as described by Kober et al. using the following relationship: P = λ × (R1_blood/R1) × (R1′−R1), where λ is the blood tissue partition coefficient ²⁸ (taken as 90 ml/g according to literature values ²⁹ ) and R1_blood is the relaxation rate of blood at 7 T (taken as 2400 ms, according to the literature ³⁰ ). CBF was evaluated in manually drawn ROIs, positioned on the hippocampus, by an investigator blind to the treatment protocol. ROIs were defined on anatomical MR images and were copied onto the maps obtained by the FAIR acquisitions, providing mean values and standard deviations of the CBF. In each rat, four FAIR acquisitions were successively performed before injections, and provided reference values of CBF. After drug injection, FAIR acquisitions and CBF measurements were performed during 80 min, by performing one scan every seven minutes.

Immunohistochemistry

The immunochemistry was performed on a single untreated control rat, deeply anesthetized with intra-peritoneal pentobarbital injection (100 mg/kg) and perfused transcardially with 50 ml fixative solution containing 4% paraformaldehyde in 0.1 M phosphate buffer, pH 7.5. The brain was removed, post-fixed in 4% paraformaldehyde for 24 h at 4℃, cryoprotected in phosphate buffer and 20% sucrose, frozen in isopentane at −50℃ and stored at −80℃ until processing. The brain was sectioned with a cryostat (50 µm thick) at the same coronal orientation as MR images. After permeabilization during 30 min, incubation of Triton X-100 0.5% in 0.1 M PBS (Phosphate Buffered Saline), slices were blocked by 1 h incubation of 0.1% Triton X-100, 5% Normal Goat Serum (NGS) and 0.1 M PBS. Then, slices were incubated 24 h at 4℃ with an anti-CB₁R antibody directed at the C terminus of the CB₁ receptor diluted 1:500 in the incubation solution (NGS: 0.5%, Triton X-100: 0.1%, PBS: 0.1 M. Azide: 0.1%). ³¹ After washing with PBS 0.1 M, sections were incubated for 2 h at room temperature, with an Alexa Fluor® 488 anti-rabbit IgG (1:200) (Invitrogen) diluted in the incubation solution. Images were taken on a Zeiss AxioImager M1 microscope (Carl Zeiss GmbH, Oberkochen, Germany), using a 20 × , 0.75 numerical aperture (NA) objective.

Statistical analysis

Both |G*| and perfusion values are expressed as mean ± SEM. Statistical analysis was performed using Statistica® software. For the MRE data, a paired t-test was used to compare elasticity measurements before and after injection. A two-way analysis of variance (ANOVA) followed by Newman Keul’s post hoc test was used to assess the difference between treatments. The statistical analysis on the CBF measurements were performed using repeated-measures one-way ANOVA followed by a Bonferroni's multiple comparison post-hoc test.

Results

Localization of the CB₁R in the juvenile rat brain

In order to select a region of interest (ROI) with high CB₁R density, immunolabeling of the brain of a juvenile rat was performed. At the investigated forebrain level (Figure 2a and 2b), the purified anti-CB₁R antibody produced moderate to strong labeling of the neocortex, the hippocampal formation, the pallido-nigral pathway of the basal ganglia and the basolateral complex of the amygdala. CB₁R was poorly expressed in the corpus callosum, the thalamus and the hypothalamus. This distribution is coherent with previous reports, which, by using comparable experimental conditions in the adult brain, reported a high level of CB₁R expression in a subset of GABAergic neurons in these regions.^1,31

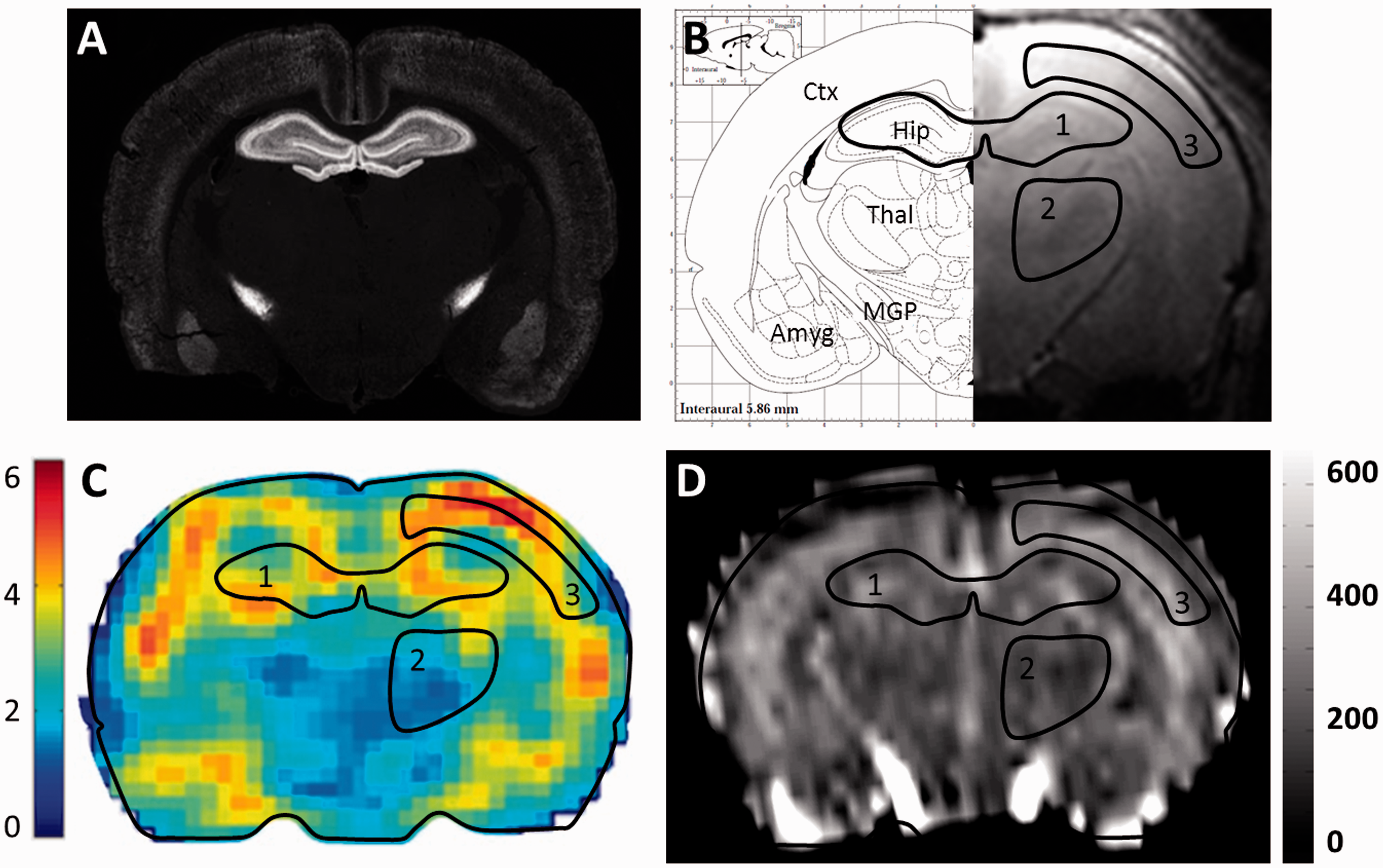

Figure 2.

Parallel anatomical, MRI, MRE and CBF maps of a juvenile rat brain section. (a) CB₁R immunolabeling on a coronal section of a rat brain at postnatal day 11. (b) Right: High-resolution coronal T2-weighted MRI image. Left: Corresponding brain atlas map from Paxinos G and Watson C, exhibiting three hand-drawn regions of interest used to extract mean values from both MRE and CBF maps (1: hippocampus, 2: thalamus, 3: cortical grey matter). Ctx: Cortex; Thal: Thalamus, Hip: Hippocampus; MGP: Medial Globus Pallidus, Amyg: Amygdala. (c) MRE map of the absolute values (kPa) of the complex-valued shear modulus |G*|. (d) Cerebral blood flow map (ml/min/100 g).

Viscoelasticity and CBF maps of the juvenile rat brain

Three-dimensional (3D) displacement fields generated by the vibration source were acquired during the wave propagation in the brain (Supplementary Figure S1). From the MRE data, the absolute value of the complex valued shear modulus (|G*|) maps were generated, as illustrated in Figure 2c. Analysis ROIs were defined from the high-resolution T2-weighted images, which allowed visualizing cerebral regions such as the hippocampus, the cerebral cortex and the thalamus (Figure 2b). Maps of the absolute values of the complex valued shear modulus provided mean reference viscoelasticity values in the hippocampus and thalamus of 4.63 ± 0.04 kPa and 3.60 ± 0.07 kPa, respectively (n = 33 rats). The signal-to-noise ratio (SNR) was 1.7 times higher in the hippocampus (4.9) than in the thalamus (2.9). Due to reasons detailed in the Discussion section, MRE data were extracted only from the hippocampus ROI for further analysis (Table 1). To obtain CBF values, the same ROIs were applied (Figure 2d), yielding a reference CBF value of 266.0 ± 3.4, 253.8 ± 17.7 and 233.4 ± 5.0 ml/min/100 g in the hippocampus, the thalamus and the cortex, respectively (n = 14 rats).

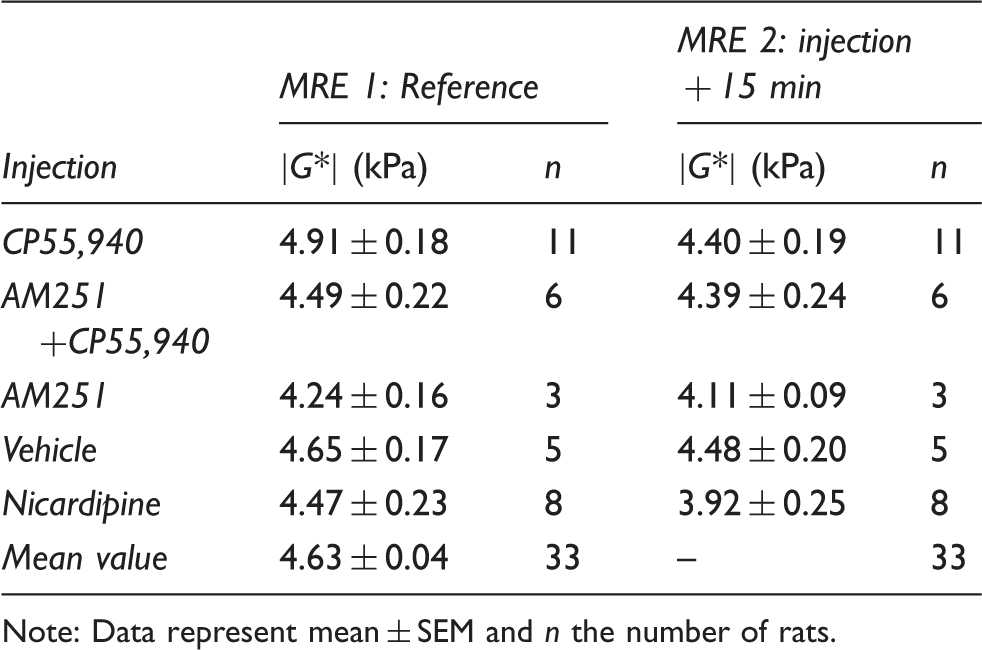

Table 1.

Absolute values of the complex-valued dynamic shear modulus (|G*|) values measured in the hippocampus before and 15 min after injections.

Injection	MRE 1: Reference		MRE 2: injection  + 15 min
	|G*| (kPa)	n	|G*| (kPa)	n
CP55,940	4.91 ± 0.18	11	4.40 ± 0.19	11
AM251 +CP55,940	4.49 ± 0.22	6	4.39 ± 0.24	6
AM251	4.24 ± 0.16	3	4.11 ± 0.09	3
Vehicle	4.65 ± 0.17	5	4.48 ± 0.20	5
Nicardipine	4.47 ± 0.23	8	3.92 ± 0.25	8
Mean value	4.63 ± 0.04	33	–	33

Note: Data represent mean ± SEM and n the number of rats.

CB₁R activation induces rapid softening of the hippocampus

MRE data are summarized in Table 1. The mean value of |G*| measured in the hippocampus of 11 rats was 4.91 ± 0.18 kPa at resting state (Figures 2c and 3a). Fifteen minutes after the injection of the cannabinoid agonist CP55,940 (CP, 0.7 mg/kg), the |G*| value decreased to 4.40 ± 0.19 kPa, revealing a significant reduction of 10.5 ± 1.2 % (P < 0.001) (Figure 3a and 3b). This significant stiffness reduction was maintained at 60 min after injection (Figure 3b). In order to assess the involvement of CB₁R in the CP effect, the CB₁R-specific antagonist AM251 (3 mg/kg) was injected 15 min before CP. This AM251 pre-treatment completely inhibited the effect of CP (Figure 3c), demonstrating that the CP-induced softening of the hippocampus is due to CB₁R activation. Neither the AM251 injected alone nor the vehicle solution had any effect on the elasticity of the hippocampus (Supplementary Figure S2).

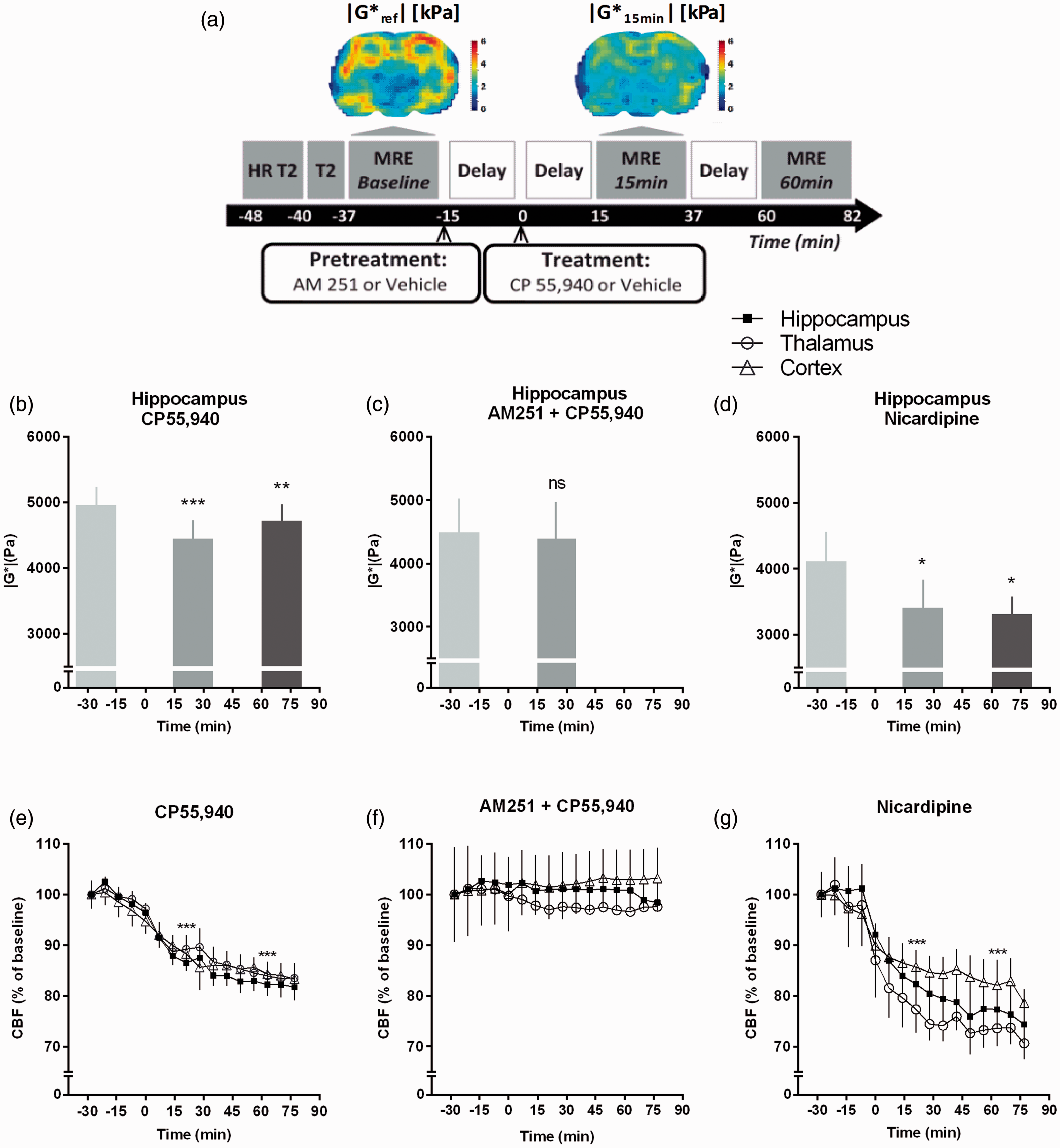

Figure 3.

CB₁R activation and nicardipine lead to a decrease of cerebral elasticity and blood flow. (a) Experimental protocol for MRI and MRE. A coronal section of the cerebral elasticity before and 15 minutes after CP55,940 (CP) injection is shown (Up). (b, c, d) Results are mean ± SEM of the |G*| quantified in the hippocampus. (b) CP55,940 injection induces a significant decrease of |G*| at 15 min (10.5 ± 1.2%, n = 11) and 60 min (4.8 ± 1.0%, n = 6) after the injection. (c) The AM251 (3 mg/kg, i.p.), injected 15 min before CP (0.7 mg/kg, i.p.), inhibits the effect of the CP (n = 6). (d) Nicardipine (15 mg/kg, i.p.) induces a significant decrease of the |G*| at 15 min (12.7 ± 1.9 %, n = 8) and 60 min (18.9 ± 3.8 %, n = 3) after the injection. Statistical analysis: *P < 0.05, **P < 0.01, ***P < 0.001 versus baseline. Paired t-test (for C) or repeated measures one-way ANOVA following by a Bonferroni's multiple comparison post-hoc test. (e, f, g) Results are mean ± SEM of the CFB expressed as percentage of the baseline which represents 257.5 ± 3.3; 247.7 ± 2.1 and 226.4 ± 2.8 ml/min/100 g in the hippocampus, the thalamus and the cortex, respectively. (e) The CB₁R agonist CP (0.7 mg/kg, i.p.) induces a significant decrease of the CBF in all the regions analyzed (^###P < 0.001, n = 6). (f) The selective CB₁R antagonist AM251 (3 mg/kg, i.p.), injected 15 minutes before CP (0.7 mg/kg, i.p.) inhibits the effect of the CP (n = 3). (g). Nicardipine (15 mg/kg, i.p.) induces a significant decrease of the CBF in all the regions analyzed (^###P < 0.001, n = 5).

In all treatment protocols, an absence of variation of the loss tangent tan(δ) was observed, with a mean value of 0.15 ± 0.002. Consequently, the capacity of the cerebral tissue to store energy (i.e. its elasticity) is systematically about 6.7 times higher than its capacity to lose energy (i.e. its viscosity), at the whole range of elasticity changes observed here. Therefore, the relative variations of the complex-valued shear modulus observed in this study are exactly the same for both the elastic G′ and viscous G″ modulus, indicating that both cerebral elasticity and viscosity show the same variation after drug injection.

CB₁R activation induces CBF decrease

The effect of CP55,940 on the CBF has been evaluated in six juvenile rats. Mean CBF values before CP55,940 injection were 257.5 ± 3.3; 247.7 ± 2.1 and 226.4 ± 2.8 ml/min/100 g in the hippocampus, thalamus and cortex, respectively (Figure 2e). Fifteen minutes after CP55,940 injection, the CBF was 228.3 ± 4.1, 221.3 ± 4.8 and 208.7 ± 4.4 ml/min/100 g, indicating a decrease of 11.3 ± 1.9%; 10.7 ± 2.0% and 7.8 ± 1.4%, respectively (P < 0.001) (Figure 3e). The CB₁R antagonist AM251 injected at 15 min before the injection of CP55,940 completely inhibited this effect in all regions (Figure 3f), indicating that CP55,940-induced CBF decrease is specific to CB₁R activation. These results suggest that cannabinoid-induced decrease of CBF may significantly contribute to cannabinoid-induced rapid changes in cerebral viscoelasticity.

Assessment of the effect of a decreased CBF on the elasticity of the hippocampus

In order to directly investigate the effect of blood flow on cerebral viscoelasticity, we used the vasodilator drug nicardipine, a selective Ca²⁺ channel blocker. The basal CBF evaluated in hippocampus of five rats was 273.8 ± 5.6 ml/min/100 g. At 15 min following intra-peritoneal injection of nicardipine at the dose of 15 mg/kg, the CBF decreased to 229.8 ± 8.3 ml/min/100 g (P < 0.001). This corresponds to a relative decrease of 16.1 ± 2.4% (Figure 3g), which is similar from those observed at 15 min after CP injections (11.3 ± 1.9%).

In parallel, we measured |G*| values at 15 min after nicardipine injection. The baseline |G*| value was 4.1 ± 0.4 kPa (Figure 3d). Importantly, at 15 min after nicardipine injection, the decrease of hippocampus stiffness was comparable to what was observed after CP injection, since it reached 3.4 ± 0.4 kPa, corresponding to a change of 12.7 ± 5.3% (P < 0.001) (Figure 3d).

These results suggest that changes in CBF and viscoelasticity are strongly correlated in the brain after injection of the vasodilator drug nicardipine.

Discussion

As an important first step to establish the putative presence of rapid cannabinoid-induced biomechanical changes in the living brain, here we measured the effect of brain blood flow changes on brain tissue rigidity. Our results reveal important drug-induced parallel changes in cerebral blood flow and brain mechanical characteristics and show that perfusion-dependent tissue softening has to be considered when investigating changes in cerebral viscoelasticity.

In vivo viscoelastic properties of the juvenile rat brain

Brain mechanical and functional properties are specific to the cerebral developmental stage. Mechanical properties of the juvenile brain are critical parameters in different medical domains, such as neurosurgery or traumatology. Here we present the first non-invasively obtained in vivo viscoelastic measurements of the juvenile rat brain. Shear mechanical properties indicated by |G*| values are significantly higher in the hippocampus (4.91  ±  0.61 kPa) than in the thalamus (3.60  ±  0.42 kPa) (n = 11 rats). Despite the lack of sensitivity of the measurement in some of these regions, the heterogeneity of the cerebral elasticity is in accordance with previous studies on adult ³² and juvenile brains.^13–16 The higher apparent rigidity of the hippocampus as compared to the thalamus could be due to the more organized layered structure of the hippocampus. Interestingly, comparable difference of stiffness between gray and the more organized white matter was observed in vivo in 25 healthy adult human brains. ³³

Taken together, MRE of juvenile rat brain is a valid tool to measure changes of juvenile rat brain mechanical properties.

The relationship between brain viscoelastic properties and CBF

In the present study, in vivo MRE coupled to FAIR measurements allowed investigation of parallel changes in hippocampus elasticity and blood flow on a short time scale. While in vivo data has been recently obtained by linking ischemia and decrease of cerebral elasticity in the rat brain after stroke, the potential confounding effects of tissue necrosis did not allow a definitive conclusion on the relationship between brain viscoelastic properties and CBF ³⁴ to be made. Here, we observed that nicardipine, a selective blocker of L-type voltage-gated Ca²⁺ channels in the smooth muscle of cerebral and coronary blood vessels, induced a parallel decrease of CBF and brain elasticity. This result is in accordance with in vitro studies on the brain ¹¹ and with in vivo studies performed in other organs such as the liver or kidney. ¹² Previous studies showed an impact of age on brain viscoelasticity that has been attributed to modifications of brain structure.^16,21 However, a significant decline of CBF with advancing age has been showed by Chen et al. ³⁵ By linking cerebral blood flow to mechanical properties, our study suggests that potential changes in CBF may also contribute to the above reported age-related modifications of brain mechanical properties.

To conclude, our findings show that the CBF must be taken into account in the interpretation of cerebral MRE-provided data.

The softening of the hippocampus induced by the CB₁R activation

The dorsal hippocampus, by expressing a high density of CB₁Rs, and by being close to the surface coil, is in optimal position for the measurement of putative cannabinoid-induced mechanical changes by MRE. Indeed, we were able to obtain adequately high SNR to reliably measure changes in mechanical properties of this brain region.

Our study shows that i.p. injection of the cannabinoid receptor agonist CP55,940 (CP) at a dose of 0.7 mg/kg induces a 10.5 ± 1.2% decrease of stiffness in the hippocampus at 15 min after injection. While CP55,940 targets both cannabinoid receptor subtypes (CB₁R as well as CB₂R), the antagonist AM251 is selective for CB₁Rs. Consequently, AM251 pre-treatment confirmed that CP-induced rapid mechanical effects observed in this study are specific to CB₁Rs. To the best of our knowledge, similar acute effect of a drug on in vivo cerebral mechanical properties has not been reported yet. Importantly, parallel FAIR measurements showed that CP injection also induces a decrease of cerebral perfusion with similar amplitude (11.3 ± 1.9 %), which was inhibited by AM251 pre-treatment, showing that this effect is also CB₁R-specific. This result is in agreement with previously reported decrease of CBF in the rat hippocampus in response to Δ⁹THC. ³⁶ CB₁Rs are highly expressed in endothelial cells ⁸ as well as cerebrovascular smooth muscle cells ⁹ and several mechanisms have been proposed to explain CB₁R-induced CBF decrease.^37,38 Interestingly, CB₁R agonists stimulate production of nitric-oxide (NO), a potent vasoactive molecule that induces CBF decrease. NO appears to be produced in response to CB₁ receptor stimulation in a G_i/o-selective manner without an obvious Ca²⁺ transient. ³⁹ Importantly, similarly to nicardipine treatment, the cannabinoid-induced changes in cerebral perfusion and |G*| values are correlated, suggesting that the apparent rapid softening of the hippocampus after CP injection mainly results from perfusion decrease.

Limitations and perspectives

The deeper laying thalamus presents relatively poor SNR compared to the hippocampus, which is explained by the important distance from the surface coil as well as from the vibrating piston, hindering precise measurement of elasticity changes in this structure. In addition, the cerebral cortex, which also expresses CB₁Rs, is adjacent to the skull, and potential artifacts caused by partial volume effects due to insufficient spatial resolution are likely. Indeed, close proximity with an extremely stiff object, such as the skull may generate artifacts in the wave inversion algorithms, affecting the reliability of the mechanical measurements in the cortical ROI. Consequently, in the present study, we focused on the dynamic measurements of brain mechanical properties only to the dorsal hippocampus ROI.

Previous studies have reported that perfusion is markedly increased in rats anesthetized with isoflurane compared to perfusion in rats anesthetized with other anesthetic agents. ⁴⁰ However, in our control tests (MRE as well as FAIR imaging), isoflurane animals (anesthetized using) were injected with the vehicle only. The stability of MRE (Figure S2) as well as FAIR values (data not shown) in these control conditions indicates that the duration of the anesthesia did not induce any significant variation of CBF or elasticity of the hippocampus over the time-course of the experiment. Finally, we used two controls, vehicle treatment and antagonist pre-treatment, to show that the effects of CP55,945 are specifically mediated by the CB₁ cannabinoid receptor.

The calculations of cerebral blood flow values were performed under the assumption of a constant value for λ the partition coefficient. This constant is derived from average tissue and blood water content according to literature values. This assumption is commonly accepted in FAIR perfusion studies. Whether the partition coefficient may in fact vary in response to the stimuli used in the present study remains to be examined. However, the range of potential variation of λ is strictly limited to the range between the value of brain (0.90) and at the most extreme possible case, the density of blood, which would amount to a partition coefficient of 1/1.06, or 0.94 ml blood/g tissue. This potential range of 4% for the variation of λ was considered to be sufficiently low to validate the hypothesis of a constant partition coefficient.

A current limitation of the study is the relatively long duration of MRE acquisition, thus protocols using shorter acquisition times will be necessary to identify effects occurring at time-scales shorter than 15 min. Especially, the measurement of both mechanical and perfusion properties is not triggered on the cardiac cycle inducing an averaging over cerebral blood pulsations. Finally, the lack of significant change of the loss tangent could be interpreted as either a conservation of the ratio between elasticity and viscosity after drug injection or a lack of sensitivity of the method to depict viscosity modifications. To our knowledge, no precedent from the literature describes in vivo modifications of the cerebral loss tangent with drug injection or blood flow modification.

Conclusions

The present work shows that MRE is a useful tool to measure drug-induced viscoelastic changes in the living brain, however for agonism of CB₁ by CP55,940 the observed viscoelastic changes appear to be dominated by neurovascular causes. First, we show that MRE is able to produce heterogeneous maps of elasticity and viscosity of juvenile rat brains. Second, a correlation between cerebral perfusion and brain elasticity is demonstrated, indicating that the CBF must be considered in the interpretation of cerebral MRE studies. Indeed, when blood pressure is changing, vascular pressure probably immediately affects vascular turgor and therefore cerebral mechanical properties. In this study, a significant temporal alteration of young rat hippocampus stiffness has been observed in a short delay after systemic cannabinoid injection, in correlation with a decrease of local cerebral blood flow. The use of combined MRE/FAIR techniques provides valuable information and opens new possibilities to investigate the drug-induced changes in cerebral biomechanics in vivo, as a complement to classical methods.
