Abstract

The goal of this study was to determine whether the use of nesting material or polycarbonate shelters as enrichment devices would have an impact on end points commonly measured during the conduct of the National Toxicology Program (NTP) 13-week studies. The study design was consistent with the NTP 13-week toxicity studies. Harlan Sprague-Dawley (HSD) rats and their offspring and B6C3F1/N mice were assigned to control (unenriched) and enriched experimental groups. Body weight, food and water consumption, behavioral observations, fecal content, clinical pathology, gross pathology, organ weights, and histopathology were evaluated. Enriched male mice and male and female rats exhibited decreased feed intake without a subsequent decrease in body weight; this may have been the result of the nesting material reducing the effect of cold stress, thereby allowing for more efficient use of feed. There were statistical differences in some hematological parameters; however, these were not considered physiologically relevant since all values were within the normal range. Gross pathology and histopathological findings were background changes and were not considered enrichment-related. Nesting material and shelters were used frequently and consistently and allowed animals to display species-typical behavior. There was no significant impact on commonly measured end points in HSD rats and B6C3F1/N mice given enrichment devices.

Keywords

environmental enrichment animal welfare laboratory animals rats mice

Introduction

Animal welfare is a prevailing and important issue in biomedical research. Much advancement has been made with regard to providing adequate care, environments, and husbandry in which laboratory animals can thrive. The research community endeavors to fulfill and improve the 3Rs: replacement, refinement, and reduction (Russell and Burch 1959). One aspect currently in the forefront of animal welfare is a method of refinement referred to as environmental enrichment.

The most recent edition of the Guide for the Care and Use of Laboratory Animals (the Guide, National Research Council [NRC] 2011) encourages biomedical research programs to facilitate the development and use of enrichment programs. Environmental enrichment is defined as “a measure and/or resources designed to promote expression of natural, species typical behaviors.” The goals of environmental enrichment include decreasing abnormal behaviors and providing a certain degree of control over its environment to the animal, hence improving animal welfare through the reduction of stress (Brinkman 1996). Multiple studies have shown that environmental enrichment can lead to improvements in animal welfare such as decreased maladaptive behaviors and decreased aggression (Van der Meer, Van Loo, and Baumans 2004). According to the Guide, investigators, animal care staff, and IACUC members are encouraged to design enrichment programs after consulting current and applicable literature. Environmental enrichment is a variable that must be evaluated on a case-by-case basis with each experiment and constructed on the specific needs of the program (NRC 2011).

The Guide recommends the use of appropriate enrichment methods for vertebrates used in research. Users of research animals have a responsibility to address enrichment from an animal welfare perspective. There are challenges associated with adding environmental enrichment to an animal study, including (1) enrichment devices may introduce a potential variable, (2) the composition of the enrichment device may impact the study, (3) the physiological effects on the study animals, and (4) the practicality of implementing devices in a research program. Ultimately, it is the responsibility of the researchers, veterinary team, and IACUCs to test and support environmental enrichment that is deemed appropriate for the facility and study. There is ample literature on the use and comparison of various enrichment devices in nonregulatory rodent studies, thus increasing the likelihood of finding enrichment suitable for the needs of a specific regulatory study (Dean 1999).

The goals of this study were to evaluate whether or not the animals used the enrichment devices provided and to determine whether studies conducted by the NTP were positively or negatively impacted by the use of enrichment devices. We hypothesized that the use of enrichment in NTP studies will have no detrimental impact. Currently in NTP studies, animals are provided social enrichment through group housing of male rats, female rats, and female mice in feed, water, and gavage studies. Male mice and pregnant rats are housed individually and have visual and olfactory contact with conspecifics. Animals used for inhalation and dermal studies are housed individually as well. Our study evaluated the impact of the use of nesting material (Crink-l’nest™; The Andersons Inc., Maumee, OH) in mouse studies, and nesting material (Crink-l’nest) or rectangular polycarbonate shelters (Rat Retreats™; Bio-Serv, Frenchtown, NJ) for pregnant dams and their weanlings in rat studies. The end points evaluated included body weight, food and water consumption, behavioral observations, fecal content, clinical pathology, gross pathology, organ weights, and histopathology.

Materials and Methods

Animals

Eleven- to fourteen-week-old time-mated female Harlan Sprague-Dawley (HSD) rats, Hsd: Sprague-Dawley^® SD^® were obtained from Harlan Inc. (Indianapolis, IN) on gestation day 2 (GD2). The dams were provided NIH-07 irradiated pelleted feed (Zeigler Brothers Inc., Gardners, PA) and tap water ad libitum during the gestation and lactation period. Post weaning, NTP-2000 irradiated pelleted feed (Zeigler Brothers Inc.,) and tap water were provided ad libitum to the rat weanlings. The pregnant dams were housed individually during the study and with their litters after gestation. On postnatal day (PND) 28, the pups were weaned and randomized into group housing. Male rat weanlings were housed in pairs, and female rat weanlings were housed in groups of 3. Sentinel rats assigned to the study (6/sex) were evaluated and were negative for lymphocytic choriomeningitis virus, Mycoplasma pulmonis bacteria, rat parvovirus 1, rat minute virus, Kilham’s rat virus, Toolan’s H1 virus, pneumonia virus of mice, rat coronavirus, sialodacryoadenitis virus, reovirus type 3, rat theilovirus, and Sendai virus.

Three- to four-week-old B6C3F1/N mice were obtained from the NTP colony maintained at Taconic Biosciences Inc. (Germantown, NY). The mice were provided irradiated NTP-2000 diet (Zeigler Brothers Inc) and tap water, ad libitum. Male mice were single-housed, and female mice were group-housed, 5 per cage. Vendor surveillance records indicated that the mice were free of common murine pathogens. Sentinel mice (5/sex) assigned to the study were evaluated and were negative for the bacterial agent M. pulmonis and the following viruses: ectromelia virus, murine rotavirus, mouse hepatitis virus, minute virus of mice, mouse norovirus, mouse parvovirus, pneumonia virus of mice, reovirus 3, Sendai virus, Theiler’s mouse encephalomyelitis virus, and lymphocytic choriomeningitis.

Housing and Environmental Conditions

Animals were housed in an Association for Assessment and Accreditation of Laboratory Animal Care International accredited facility and in accordance with the Guide for the Care and Use of Laboratory Animals (NRC 2011). Animals were quarantined and acclimated for 10 days upon arrival. The housing rooms were maintained on an alternating 12-hr light–dark cycle with a temperature range of 68°F to 73°F and 35% to 65% humidity. Solid bottom polycarbonate cages (Lab Products Inc., Seaford, DE) with certified, irradiated hardwood bedding (Beta-Chips; Northeastern Products Corp., Montville, NJ) were used to house the animals. Procedures performed during the study were reviewed and approved by the facility’s Institutional Animal Care and Use Committee.

Study Design

The study design was consistent with the NTP 13-week (subchronic) toxicology studies (including perinatal exposure in rats), which are designed to characterize the subchronic toxicity of chemical, physical, or biological agents. The end points evaluated included body weight, food and water consumption, behavioral observations, fecal content, clinical pathology, gross pathology, organ weights, and histopathology.

The study was staggered by 1 week to accommodate handling of a large number of rat pups. In rats, each pregnant dam was randomly assigned to a treatment (enriched, n = 32) or control (unenriched, n = 18) group by body weight after identification via tail tattoos (Table 1). Pregnant dams were weighed on GD5 and every 3 days thereafter until parturition; GD5 was the first day nesting material was added to the cage and behavioral observations were started. Pups were weighed every 3 days, and rat weanlings were weighed weekly. Food and water consumption was measured weekly. At PND 28, the litters were weaned and randomly assigned to 3 groups (n = 30/sex) which included unenriched, enriched with nesting material, or enriched with shelters (Table 2). Weaned rats were held for up to 13 weeks.

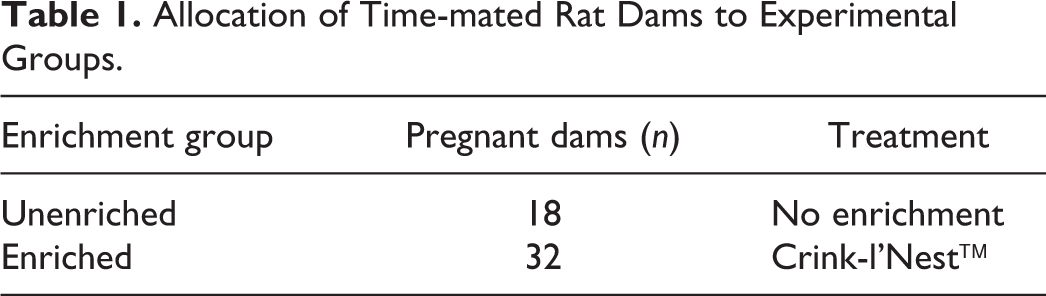

Table 1.

Allocation of Time-mated Rat Dams to Experimental Groups.

Enrichment group	Pregnant dams (n)	Treatment
Unenriched	18	No enrichment
Enriched	32	Crink-l’Nest™

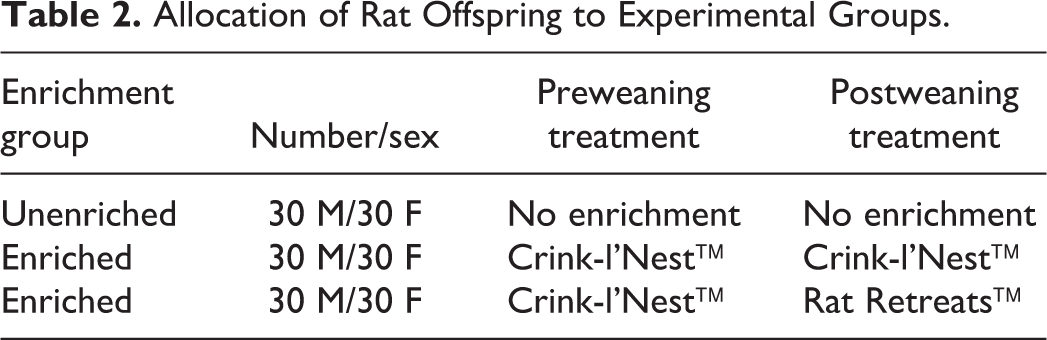

Table 2.

Allocation of Rat Offspring to Experimental Groups.

Enrichment group	Number/sex	Preweaning treatment	Postweaning treatment
Unenriched	30 M/30 F	No enrichment	No enrichment
Enriched	30 M/30 F	Crink-l’Nest™	Crink-l’Nest™
Enriched	30 M/30 F	Crink-l’Nest™	Rat Retreats™

In the 13-week mouse study, each animal was randomly assigned to the treatment (enriched) or control (unenriched) groups (n = 40/sex) following subcutaneous implantation of transponders for identification (Table 3). Mice were weighed and behavioral observations were started on day 1 (D1) of the study; D1 was the first day nesting material was added to the cage. Mice were weighed weekly. Additionally, food and water consumption was measured weekly.

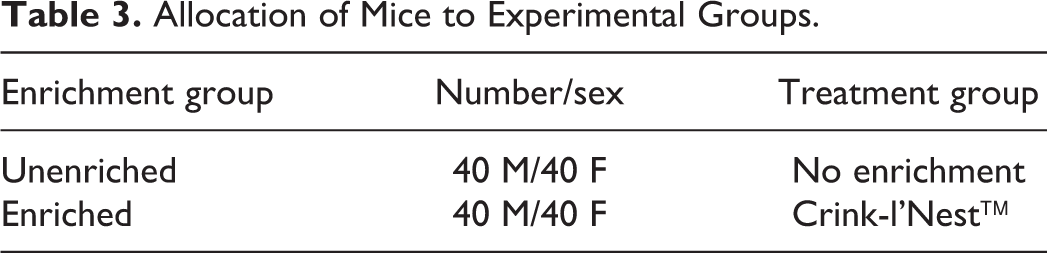

Table 3.

Allocation of Mice to Experimental Groups.

Enrichment group	Number/sex	Treatment group
Unenriched	40 M/40 F	No enrichment
Enriched	40 M/40 F	Crink-l’Nest™

Enrichment

Natural, nonbleached nesting material (approximately 8 g/cage; Crink-l’Nest, The Andersons Inc.) was added to the cages of the pregnant rat dams in the enriched group throughout pregnancy and lactation. When the rat pups from the enriched group were weaned, the weanling rats were divided to receive either the nesting material or shelters until the end of the study. The pregnant dams in the unenriched group were kept in the same housing with no enrichment; rat weanlings from these dams continued to be housed without enrichment. For mice, approximately 6 g of nesting material was added to the cages at each cage change until the end of the study. The unenriched mice were kept in identical housing with no enrichment.

Behavioral Observations

Behavioral observations were performed prior to and 24 hr after the addition of fresh enrichment (clean nesting material or clean shelters) to the cages. Observations were performed to determine the frequency of use and activity involving the enrichment devices. Cage changes were performed twice weekly for the rats and female mice with fresh nesting material (rats and mice) or clean shelters (rats only) added at each change. Cage changes were performed once a week for male mice with fresh nesting material added at each change. Observations occurred on the day of cage change before the enrichment was changed and 24 hr later to view the interactions with the enrichment. Observations for all study animals were performed between 06:00 hr and 10:00 hr and took approximately 1 hr (12-hr light cycle began at 06:00 hr). The observer recorded the activity of the animals and the animal’s interaction with the enrichment device (nest building or use of the shelters) on an ethogram-driven tally sheet specifically adapted for this study (ethogram adapted from Winnicker et al. [2012]). The ethogram was adapted in the following ways:

Rodent activity in each cage was divided into 3 main categories

Active—activities that included rearing, ambulating, and climbing.

Maintenance—activities that included grooming, feeding/drinking, and nest building.

Inactive—activities that included sleeping, resting while awake and motionless.

Use of enrichment device

Rodent did not touch enrichment material.

Rodent only scattered enrichment material.

Rodent made nest with enrichment material or used shelters.

Examination of Fecal Content

Fecal samples of 5 to 6 pellets per cage were collected weekly to examine for remnants of ingested nesting material (mice and rats) and plastic from the shelters (rats). The fecal samples were placed in a petri dish with water, crushed, placed on white filter absorbent paper (Nalgene^® VERSI-DRY^®, Waltham, MA), and viewed under a dissecting microscope to aid in identifying enrichment material.

Clinical Pathology

For mice and rats, K₂ ethylenediaminetetraacetic acid–anticoagulated whole blood samples were collected at necropsy under isoflurane anesthesia from the retro-orbital venous sinus (mice) and retro-orbital plexus (rats) for a complete blood count (CBC) evaluation. The CBC included a red blood cell (RBC; erythrocyte) count, hemoglobin (HB), hematocrit (HCT), mean corpuscular volume (MCV), mean corpuscular hemoglobin (MCH), MCH concentration (MCHC), platelet (PLT) count, total white blood cell (WBC; leukocyte) count, leukocyte differential (both % and absolute; neutrophils [NEUs], lymphocytes [LYMs], monocytes [MONs], eosinophils, basophils and large unstained cells), and reticulocytes (RET% and RET). The CBCs were analyzed for mice using the ProCyte Dx hematology analyzer (IDEXX Laboratories, Westbrook, ME) and for rats using the ADVIA 2120 hematology system (Siemens Medical Solutions, Malvern, PA). Blood smears were prepared for each specimen and stained with Romanowsky stain and examined to assess RBC, WBC, and PLT morphology.

Plasma and feces were collected at necropsy and corticosterone concentrations were analyzed using an Apex Automatic Gamma Counter (ICN/Micromedic Systems, Huntsville, AL) using a double antibody, ¹²⁵I radioimmunoassay method obtained from MP Biomedicals, LLC (Orangeburg, NY). The plasma samples were analyzed following the procedures provided by the reagent manufacturer. The fecal samples were analyzed following the methods described previously by Touma, Palme, and Sachser (2004).

Anatomical Pathology

Following euthanasia with 100% carbon dioxide and death confirmed by opening the chest, a complete necropsy was performed. All gross lesions collected were documented. Liver, spleen, thymus, adrenal glands, lung, kidneys, and gastrointestinal tract were collected and weighed. The gastrointestinal tract was opened and examined. The collected tissues were fixed by immersion in 10% neutral-buffered formalin for 24 hr and transferred to the histopathology laboratory for processing.

Statistical Methods

For animals that were multiple-housed, feed and water consumption was estimated as amounts per animal per day, based on consumption totals for each cage. For pregnant HSD dams, feed consumption, water consumption, and body and organ weights were compared between enriched and unenriched groups using 2-sample t-tests (significance = p < .05). Because not all dams produced litters, a one-sided Fisher’s exact test was used to compare littering rates between the enriched and unenriched groups. For rat weanlings, feed and water consumption and body and organ weights were compared among the 3 groups (unenriched, nesting material, and shelters) using analysis of variance followed by Tukey’s test to adjust for conducting multiple tests. Corticosterone values were not normally distributed (skewed to the right), so analyses were conducted by 2-sample t-tests on log-transformed values. Prior to analysis of the hematology data, extreme values were identified by the outlier test of Dixon and Massey (1951) and implausible values, that is, extreme values from causes other than treatment and values that the laboratory indicated as being inadequate due to measurement problems, were eliminated from the analysis. There were 8 such values excluded from the statistical analyses. Hematology data, which typically has a skewed distribution, were analyzed using the 2-sided nonparametric multiple comparison method (Dunn 1964) in which the unenriched group was considered the comparator group. Litter effects were not considered in the analysis of the rat weanling data.

For the mouse data, 2 approaches were employed to assess the significance of pairwise comparisons between enriched and unenriched groups in the analysis of continuous variables. Parametric multiple comparison methods (Williams 1971, 1972; Dunnett 1955) were used to analyze organ and body weight data that have approximately normal distribution. Nonparametric multiple comparison methods (Shirley 1977; Dunn 1964) were used to analyze hematology and hormone data which typically have skewed distributions. Jonckheere’s (1954) test was used to assess the significance of dose–response trends and to determine whether a trend-sensitive test (Williams’ or Shirley’s test) was more appropriate for pairwise comparisons than a test that does not assume a monotonic dose–response (Dunnett’s or Dunn’s test). Trend-sensitive tests were used when Jonckheere’s test was significant at p < .01. Prior to analysis, extreme values identified by the outlier test of Dixon and Massey (1951) were examined by NTP personnel. Implausible values, extreme values from animals that were suspected of being sick due to causes other than treatment, and food and water values indicated as being inadequate due to measurement problems were eliminated from the analysis. There were 27 individual animal food and water consumption values and 1 hematology value excluded from the statistical analyses.

Results

Body Weight, Food and Water Consumption

There were no differences in mean body weights of the rat dams between enriched and unenriched groups (Table 4). Food consumption was significantly higher for the unenriched dams compared to the enriched dams between PND 15 to 27 (weeks 6 and 7) of the study (Table 5). No statistically significant difference was seen in water consumption between the 2 groups of dams (data not shown).

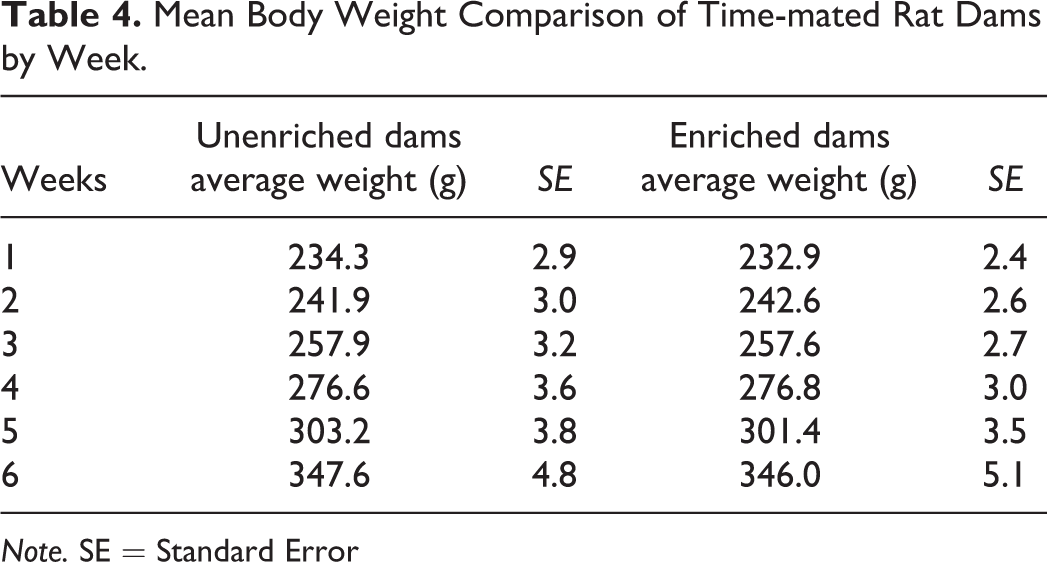

Table 4.

Mean Body Weight Comparison of Time-mated Rat Dams by Week.

Weeks	Unenriched dams average weight (g)	SE	Enriched dams average weight (g)	SE
1	234.3	2.9	232.9	2.4
2	241.9	3.0	242.6	2.6
3	257.9	3.2	257.6	2.7
4	276.6	3.6	276.8	3.0
5	303.2	3.8	301.4	3.5
6	347.6	4.8	346.0	5.1

Note. SE = Standard Error

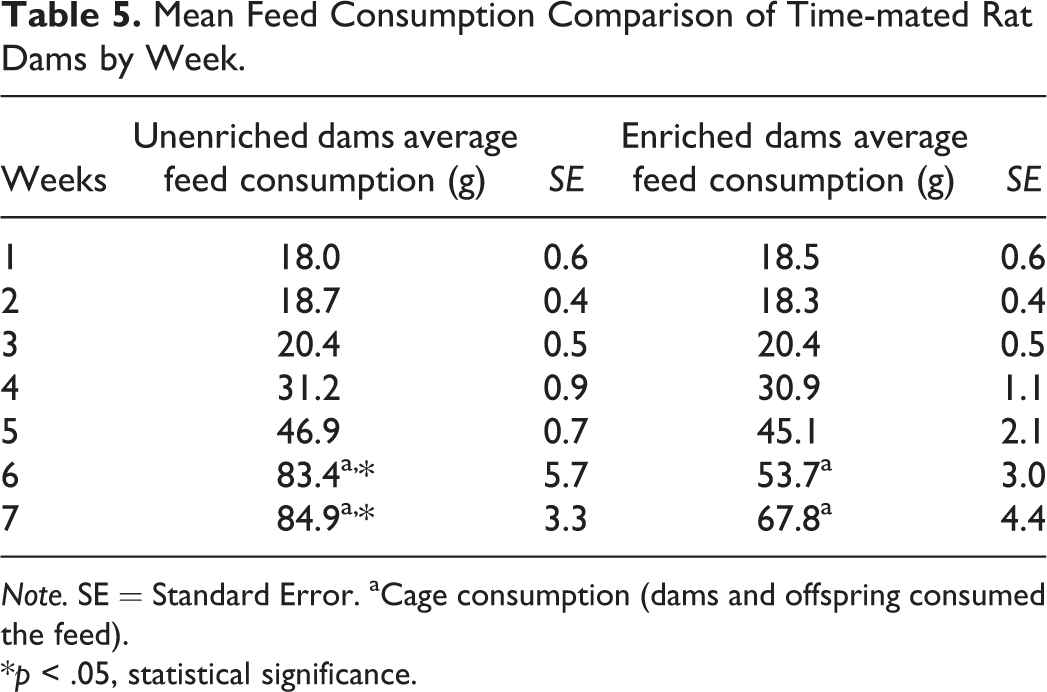

Table 5.

Mean Feed Consumption Comparison of Time-mated Rat Dams by Week.

Weeks	Unenriched dams average feed consumption (g)	SE	Enriched dams average feed consumption (g)	SE
1	18.0	0.6	18.5	0.6
2	18.7	0.4	18.3	0.4
3	20.4	0.5	20.4	0.5
4	31.2	0.9	30.9	1.1
5	46.9	0.7	45.1	2.1
6	83.4^a,*	5.7	53.7^a	3.0
7	84.9^a,*	3.3	67.8^a	4.4

Note. SE = Standard Error. ^aCage consumption (dams and offspring consumed the feed).

*p < .05, statistical significance.

Body weights of male weanling rats were similar among the 3 groups, with sporadic marginally (p < .05) significant differences on PND 4, PND 15, PND 18, and preweaning. No differences were seen in body weights postweaning (Figure 1A). Feed consumption of the unenriched male weanling rats was significantly higher than the shelter group throughout most of the study (Figure 1B). Feed consumption of the unenriched was higher than the nesting material for the majority of the weeks, but it was not statistically significant. Water consumption of the unenriched male weanling rats was significantly higher than the nesting material- and shelter-enriched groups on weeks 1 and 2. Water consumption of the nesting material-enriched male weanling rats was significantly higher than the shelter group on weeks 5, 6, 8, and 9 of 13 (Figure 1C).

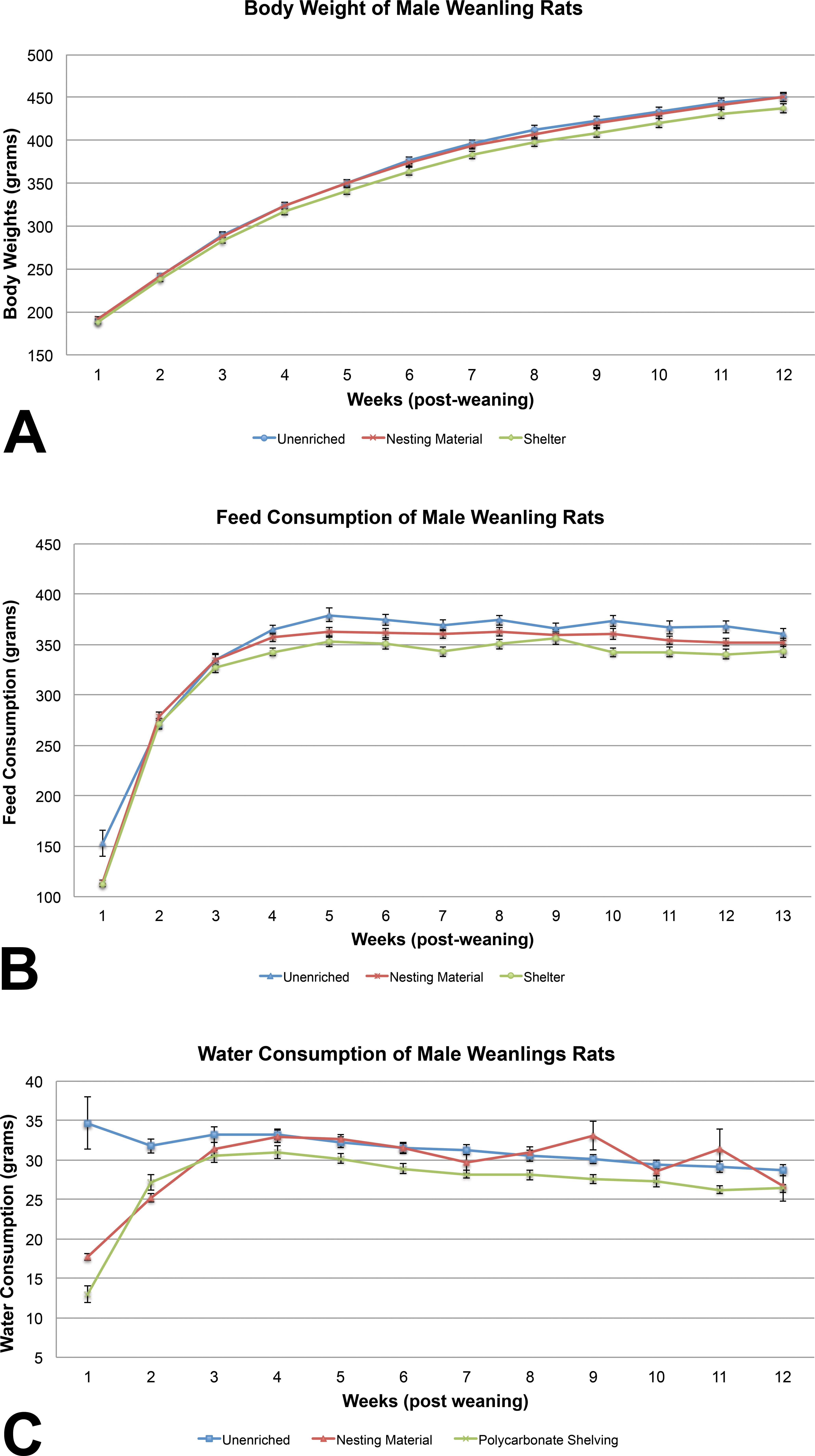

Figure 1.

(A) Comparison of weanling male rat average body weights showed no statistically significant differences during the 13-week postweaning (mean ± 1 SE). (B) Feed consumption between the 3 groups of weanling male rats showed a statistically significant difference on weeks 1, 3, 4, 5, 6, 7, 10, 11, and 12. The unenriched group consistently consumed more feed during the course of the study (mean ± 1 SE). (C) Water consumption of the unenriched male weanling rats was significantly higher than the nesting material- and shelter-enriched groups on weeks 1 and 2. Water consumption of the nesting material-enriched male weanling rats was significantly higher than the shelter group on weeks 5, 6, 8, and 9 of 13 (mean ± 1 SE).

The female weanling rats with shelters had significantly higher body weights on PND 4 of the study compared to the unenriched and nesting material-enriched groups, but postweaning, body weights were similar among the 3 groups of female rat weanlings (Table 6). Feed consumption in the unenriched female rat weanling groups was significantly higher than the shelter group on weeks 3, 5, 6, 10, 11, and 13 (Figure 2A). Feed consumption of the unenriched was higher than the nesting material for the majority of the weeks, but it was not statistically significant. Similarly, water consumption in the unenriched female rat weanling group was significantly higher than the shelter-enriched groups at weeks 1, 5, 6, 10, and 11 (Figure 2B).

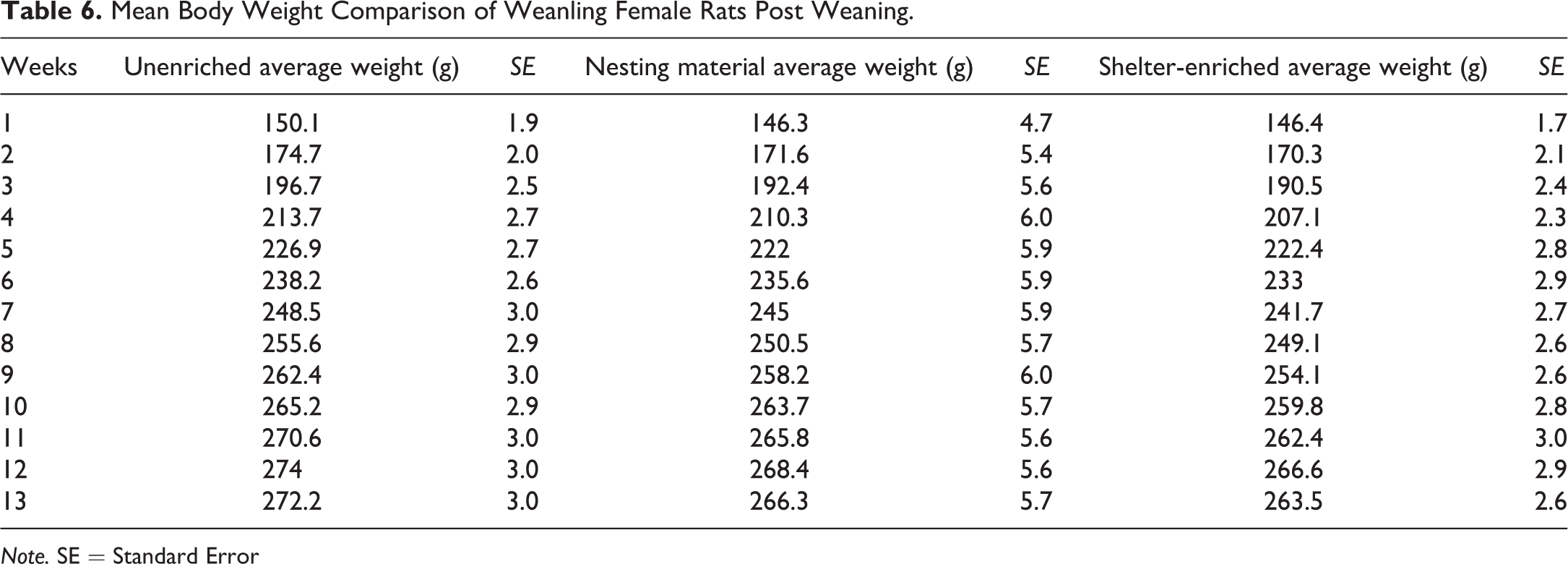

Table 6.

Mean Body Weight Comparison of Weanling Female Rats Post Weaning.

Weeks	Unenriched average weight (g)	SE	Nesting material average weight (g)	SE	Shelter-enriched average weight (g)	SE
1	150.1	1.9	146.3	4.7	146.4	1.7
2	174.7	2.0	171.6	5.4	170.3	2.1
3	196.7	2.5	192.4	5.6	190.5	2.4
4	213.7	2.7	210.3	6.0	207.1	2.3
5	226.9	2.7	222	5.9	222.4	2.8
6	238.2	2.6	235.6	5.9	233	2.9
7	248.5	3.0	245	5.9	241.7	2.7
8	255.6	2.9	250.5	5.7	249.1	2.6
9	262.4	3.0	258.2	6.0	254.1	2.6
10	265.2	2.9	263.7	5.7	259.8	2.8
11	270.6	3.0	265.8	5.6	262.4	3.0
12	274	3.0	268.4	5.6	266.6	2.9
13	272.2	3.0	266.3	5.7	263.5	2.6

Note. SE = Standard Error

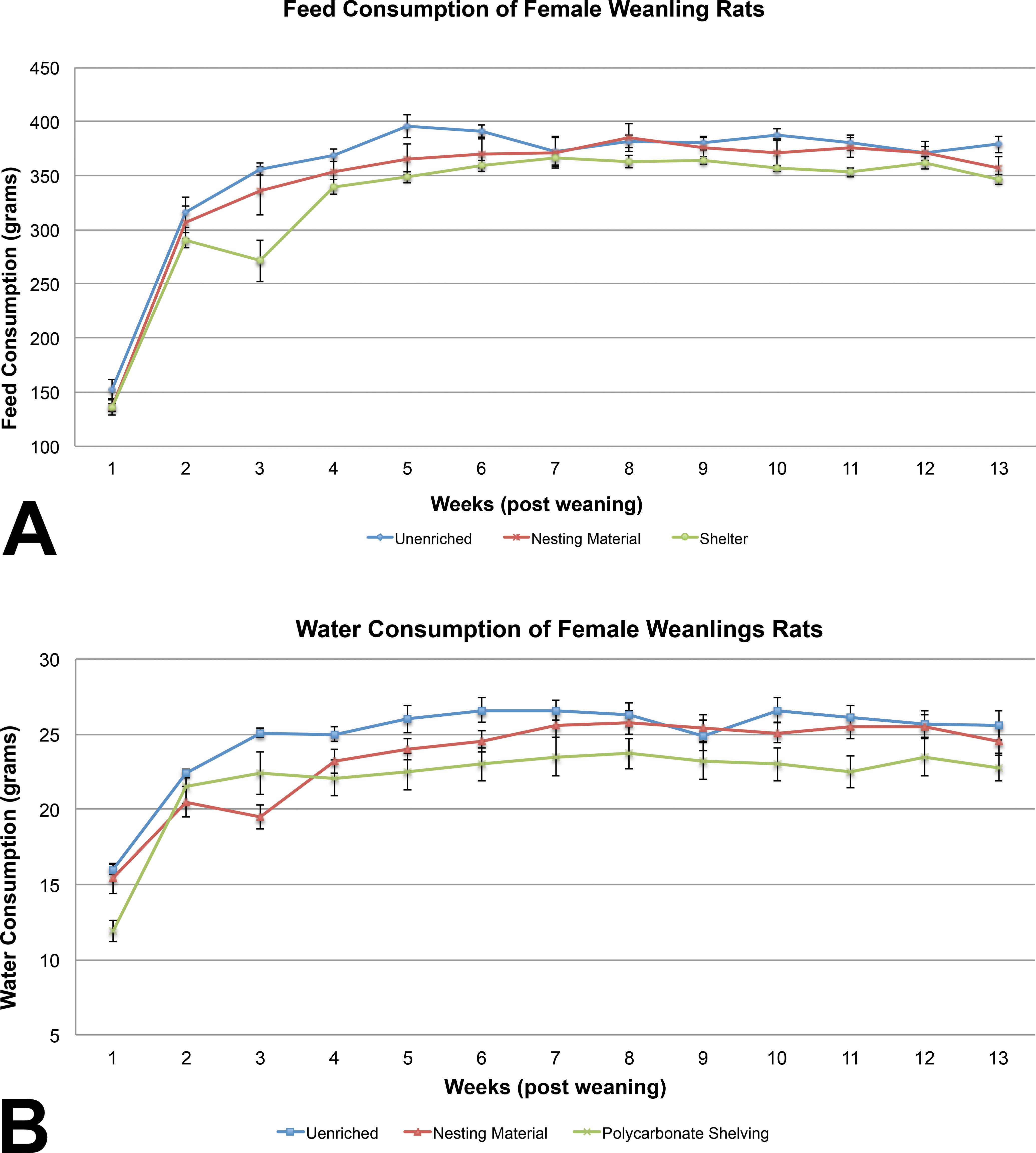

Figure 2.

(A) Feed consumption between the 3 groups of weanling female rats showed a statistically significant difference on weeks 3, 5, 6, 10, 11, and 13. The unenriched group consistently consumed more feed during the course of the study (mean ± 1 SE). (B) Water consumption in the unenriched female rat weanling group was significantly higher than the shelter-enriched groups at weeks 1, 5, 6, 10, and 11 (mean ± 1 SE).

For mice, body weights of the enriched group were similar to those of the unenriched group for males (Figure 3A). Body weights of the unenriched females were increased on 4 of the 13 weeks (Figure 4A).

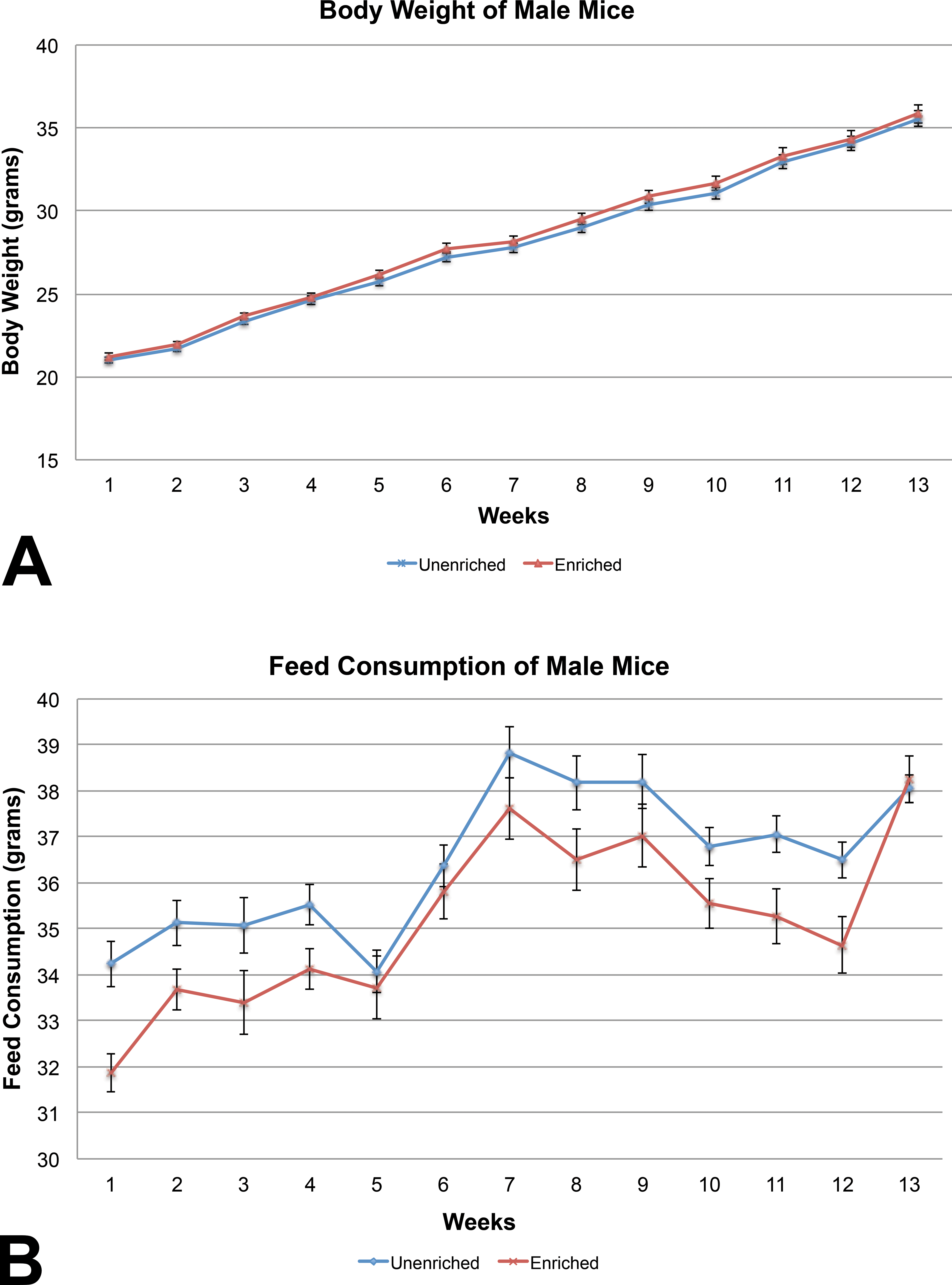

Figure 3.

(A) Mean body weight comparison between the male mice showed no statistically significant difference (mean ± 1 SE). (B) Feed consumption between the male mice showed a statistically significant difference on weeks 1, 2, 3, 4, 8, 9, 10, 11, and 12. The unenriched male mice were statistically increased in consumption over the nesting paper-enriched male mice during these weeks (mean ± 1 SE).

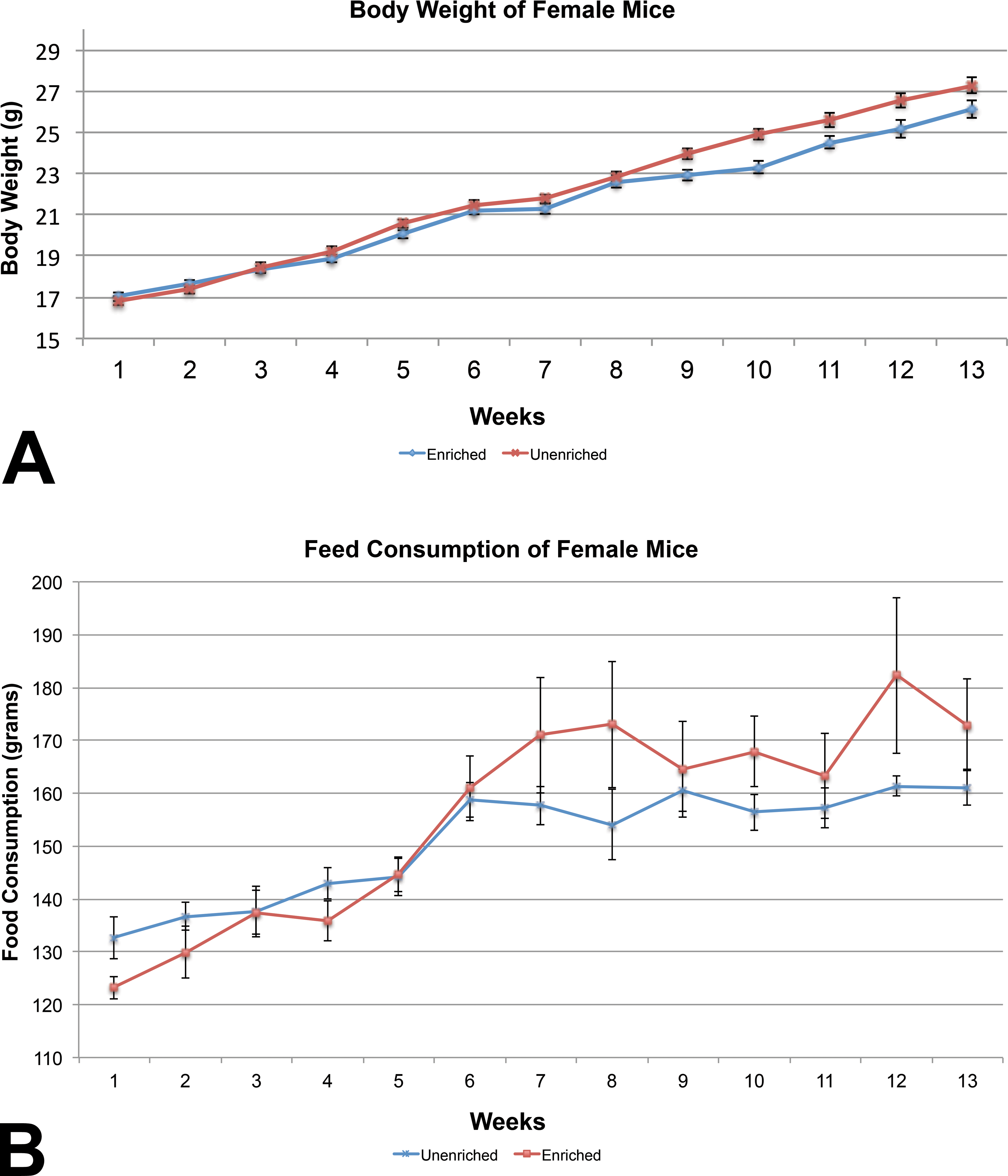

Figure 4.

(A) Mean body weight comparison between the female mice showed statistically significant difference on weeks 9 through 12 (mean ± 1 SE). (B) Feed consumption comparison between the female mice showed no statistically significant difference (mean ± 1 SE).

The unenriched male mice group consumed significantly more feed than the enriched group (Figure 3B), while feed consumption among the female mice was similar between the enriched and unenriched groups (Figure 4B). Water consumption did not differ significantly between the enriched and unenriched groups for either male or female mice (data not shown).

Behavioral Observations

After the nesting material was introduced, the rat dams in the enriched group constructed simple nests. All dams that littered placed their pups in nesting material. The rat weanlings enriched with nesting material continued to build nests for resting and sleeping. Both dams and nesting material-enriched weanling rats were observed to consume small (on average 0.5 cm × 0.5 cm) bits of nesting material. This was typically observed at cage change with the both rat dams and weaned rats. Occasionally, the rats would actively construct nests and consume small amounts of nesting material and continue to nest build. At other times, when no particular nest building activity was occurring and the dam or pup would consume small amount of nesting material then go on to another activity such as grooming or drinking. There was no consistent correlation between activity type and nesting material ingestion. Occasionally, dams were observed ingesting a small flake of bedding and then continue on with exploration activity. The weanling rats enriched with shelters at weaning, used the shelters for resting, and were occasionally observed to use it for play with cagemates. The rats used the shelters daily, and there was no physical evidence or observation of the rats gnawing on the shelters (Figures 5 and 6).

Figure 5.

Rat weanling using Crink-l’Nest™.

Figure 6.

Female mice in nest built with Crink-l’Nest™.

The nesting material was placed into the enriched group mouse cages on D1 of the study and overnight was used to construct nests, as with the rats. Observations were conducted during the lights on period in the room and majority of the enriched mice were resting. There were observations noting mice nest building with the nesting material. The enriched mice were not observed sleeping outside the nest during the observation periods or ingesting the nesting material. Enrichment was refreshed twice weekly for female mice and all rats, and once weekly for male mice during the cage change. The day following the placement of the nesting material, a new nest was observed. Female mice slept in clusters and used the nest for sleeping. The control male mice appeared to perform nest building activity by gathering the bedding into a concave bed.

Gross Fecal Evaluations

One fecal pellet typically contained one 0.5 cm by 0.5 cm or smaller piece of nesting material along with some bedding material in the rat dams and weanling samples. Pieces of the shelters (used for rats only) were not seen in the fecal evaluations.

During the study, gross examination of mouse fecal pellets did not reveal any enrichment pieces. Fecal samples only contained food and bedding pieces.

Hematological and Corticosterone Evaluation

Hematology evaluations revealed that the RBC parameters of HB, HCT, MCH, and MCV of the nesting material-enriched dams showed a statistically significant decrease in comparison to the control rat dams. The total WBC, LYM, and MON counts of the male shelter-enriched rat weanlings showed a statistically significant increase in comparison to the unenriched male rat weanlings. The male nesting material-enriched rat weanlings demonstrated a statistically significant decrease in platelets compared to the unenriched male rat weanlings. The LYMs of the nesting material-enriched female rat weanlings showed a statistically significant decrease in comparison to the female unenriched group. The female shelter-enriched rat weanlings showed statistically significant increase in HCT compared to the unenriched females. The shelter- and nesting material-enriched female rat weanlings showed a statistically significant increase in MCHC in comparison to the unenriched female rats. The MCH was statistically decreased in the shelter and nesting material female rat weanlings compared to the control group. All of the hematology parameters were within normal range for the HSD rat. Though statistically significant, the observed differences were not considered to be of physiological significance.

Male mice in the enriched group had a slight, statistically significant increase in the platelets and reticulocytes over the unenriched group, but it was not physiologically significant. The female enriched mice compared to the unenriched female mice had significantly higher counts of WBCs (LYM, NEU, and MON) and RBC (HB, MCHC, and MCV) but, like the males, the differences were not physiologically significant.

Plasma corticosterone levels for the rat dams were similar between the enriched and unenriched groups. Fecal corticosterone of the enriched rat dams was significantly higher than in the unenriched rat dams (Table 7A). Plasma corticosterone levels were not significantly different among the 3 groups of weanling rats of either sex. Fecal corticosterone collection was inadvertently not performed on all the weanling rats and statistical analysis could not be performed.

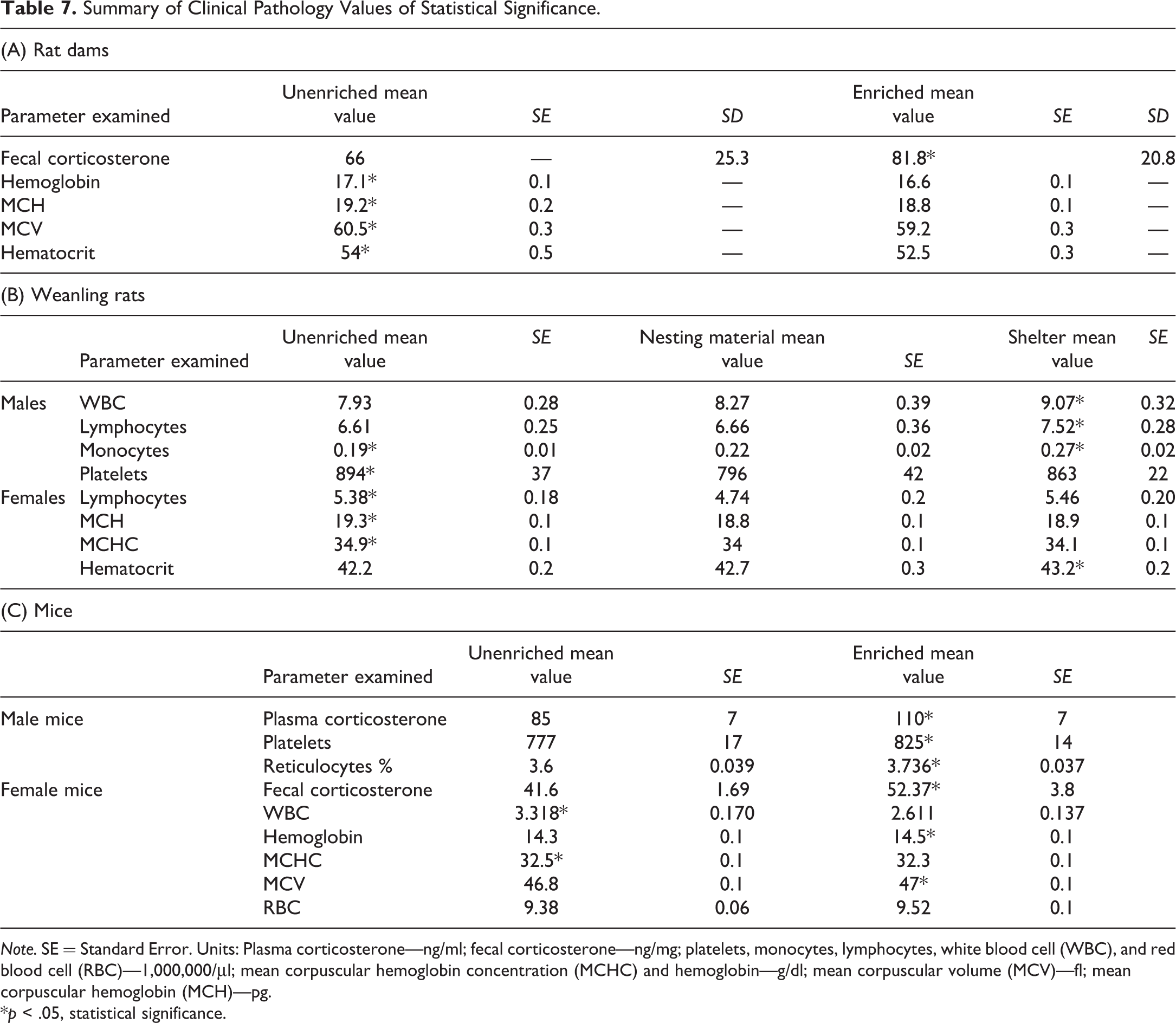

Table 7.

Summary of Clinical Pathology Values of Statistical Significance.

(A) Rat dams
Parameter examined		Unenriched mean value	SE	SD	Enriched mean value	SE	SD
Fecal corticosterone		66	—	25.3	81.8*		20.8
Hemoglobin		17.1*	0.1	—	16.6	0.1	—
MCH		19.2*	0.2	—	18.8	0.1	—
MCV		60.5*	0.3	—	59.2	0.3	—
Hematocrit		54*	0.5	—	52.5	0.3	—
(B) Weanling rats
	Parameter examined	Unenriched mean value	SE	Nesting material mean value	SE	Shelter mean value	SE
Males	WBC	7.93	0.28	8.27	0.39	9.07*	0.32
	Lymphocytes	6.61	0.25	6.66	0.36	7.52*	0.28
	Monocytes	0.19*	0.01	0.22	0.02	0.27*	0.02
	Platelets	894*	37	796	42	863	22
Females	Lymphocytes	5.38*	0.18	4.74	0.2	5.46	0.20
	MCH	19.3*	0.1	18.8	0.1	18.9	0.1
	MCHC	34.9*	0.1	34	0.1	34.1	0.1
	Hematocrit	42.2	0.2	42.7	0.3	43.2*	0.2
(C) Mice
		Parameter examined	Unenriched mean value	SE	Enriched mean value	SE
Male mice		Plasma corticosterone	85	7	110*	7
		Platelets	777	17	825*	14
		Reticulocytes %	3.6	0.039	3.736*	0.037
Female mice		Fecal corticosterone	41.6	1.69	52.37*	3.8
		WBC	3.318*	0.170	2.611	0.137
		Hemoglobin	14.3	0.1	14.5*	0.1
		MCHC	32.5*	0.1	32.3	0.1
		MCV	46.8	0.1	47*	0.1
		RBC	9.38	0.06	9.52	0.1

Note. SE = Standard Error. Units: Plasma corticosterone—ng/ml; fecal corticosterone—ng/mg; platelets, monocytes, lymphocytes, white blood cell (WBC), and red blood cell (RBC)—1,000,000/μl; mean corpuscular hemoglobin concentration (MCHC) and hemoglobin—g/dl; mean corpuscular volume (MCV)—fl; mean corpuscular hemoglobin (MCH)—pg.

*p < .05, statistical significance.

The plasma corticosterone levels of the enriched male mice were significantly higher than in unenriched male mice, while there was no significant difference in fecal corticosterone levels between the 2 groups of male mice (data not shown). Fecal corticosterone levels of enriched female mice were significantly higher than in unenriched female mice, but the plasma corticosterone levels did not differ significantly between the enriched female mice and the unenriched female mice. Tables 7A–C summarize above hematological and corticosterone data.

Gross and Histopathology Evaluation

At necropsy, some of the enriched rat dams and weanlings in the nesting material group had small amounts of nesting material within the stomachs. Significant microscopic findings were not observed in the gastrointestinal tract of these rats compared to rats having no nesting material in the stomachs. None of the rat weanlings had shelter pieces present in their stomachs. Microscopic lesions seen in the rat dams and weanlings were considered incidental background changes common to the HSD rat. The rat dams and weanlings in each group showed incidental microscopic changes consisting of proteinaceous cast, chronic progressive nephropathy, and mineralization of the kidneys. The nephropathy appeared to be in the early stages of development for each animal at the time of necropsy. Mixed cell infiltrate of the liver, infiltrate of alveolar histiocytes, thymic cyst, and age-related lymphoid hyperplasia were observed across all animal groups. The incidental background lesions between the enriched and unenriched groups of the rat dams and weanlings were comparable in occurrence and type.

No gross findings were observed at necropsy of the B6C3F1/N mice. Nesting material was not found on examination of the contents of the stomach and upper small intestines of the mice. All lesions observed on histopathology were considered incidental background changes common to the B6C3F1/N mice. The incidental lesions consisted of hyperplasia of the adrenal cortical subcapsular cells, renal tubular proteinaceous cast, minimal mixed cell infiltrate of the liver, and hematopoiesis in the spleen of both groups and sexes. Renal tubular cytoplasmic vacuolation was seen in the males but not in the females. The accumulation of homogenous eosinophilic hyaline material within gastric epithelial cells in the cardiac region of the glandular cells was observed in both group of females but not seen in the males. Lymphoid hyperplasia was seen and attributed to age-related active lymphoid tissue. The incidental background lesions were generally similar between the enriched and unenriched groups of the mice with no differences in the occurrences or types of lesions.

Organ Weights

The mean thymus weight of the unenriched rat dams was significantly higher than that of the enriched group. All other organ weights (adrenal glands, kidneys, liver, lungs, and spleen) of the rat dams were not significantly different between enriched and unenriched rat dams. The unenriched male and female weanling rat groups showed a significantly higher mean liver weight than the shelter-enriched group of weanling rats. In male weanling rats, the unenriched group had a significantly higher mean lung weight than the shelter-enriched groups (Table 8).

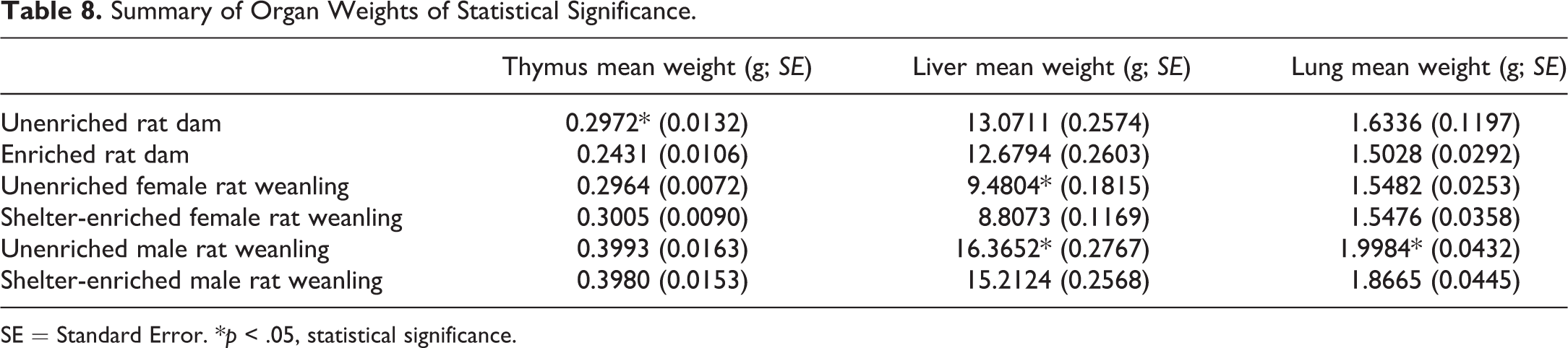

Table 8.

Summary of Organ Weights of Statistical Significance.

	Thymus mean weight (g; SE)	Liver mean weight (g; SE)	Lung mean weight (g; SE)
Unenriched rat dam	0.2972* (0.0132)	13.0711 (0.2574)	1.6336 (0.1197)
Enriched rat dam	0.2431 (0.0106)	12.6794 (0.2603)	1.5028 (0.0292)
Unenriched female rat weanling	0.2964 (0.0072)	9.4804* (0.1815)	1.5482 (0.0253)
Shelter-enriched female rat weanling	0.3005 (0.0090)	8.8073 (0.1169)	1.5476 (0.0358)
Unenriched male rat weanling	0.3993 (0.0163)	16.3652* (0.2767)	1.9984* (0.0432)
Shelter-enriched male rat weanling	0.3980 (0.0153)	15.2124 (0.2568)	1.8665 (0.0445)

SE = Standard Error. *p < .05, statistical significance.

Organ weights in the male and female mice did not differ significantly between enriched and unenriched groups (data not shown).

Discussion

The goal of this study was to determine the impact of environmental enrichment devices on end points evaluated during the conduct of NTP subchronic studies. Additionally, we observed the interaction of the rats and mice with the enrichment devices. We hypothesized that the enrichment devices would not cause an adverse effect on the animals or the measured end points. The study showed that the rats and mice used the enrichment devices frequently and consistently, allowing species-typical behavior. It also appeared that some of the natural stresses that may affect experimental outcomes such as cold stress and isolation stress were alleviated with the use of enrichment devices. These types of stresses are of particular concern with singly housed rodents. It has been shown that these stresses can result in altered physiology and increased aggression in mice, respectively (Morgan et al. 2007; Matsumoto et al. 2005). Both sources of stress can have an effect on the well-being of rodents.

Food consumption by the singly housed unenriched male mice was greater than that by the singly housed enriched male mice. This has been observed in several other studies evaluating the effects of enrichment on food and water intake (Van de Weerd et al. 1997; Olsson and Dahlborn 2002; Watson 1993). Watson (1993) observed similar results in individually housed mice. The insulation of the nesting material may have allowed singly housed male mice to maintain thermoregulation and reduce heat loss to the environment. Although the present study did not directly measure body temperature, studies on thermoregulation of rodents have shown that nesting material may decrease heat loss and help mice maintain normal core body temperature (Gaskill et al. 2011). The Guide recommends 68°F to 79°F as the dry-bulb macroenvironmental temperature for housing rodents; however, the preferred temperature for mice is approximately 86°F (Gaskill et al. 2011). It could be speculated that if nesting material were not available, the energy conserved by the enriched mice would have been used to maintain their core temperature. The nesting material as enrichment is a means for rodents to control chronic cold stress, which potentially could be a variable in experimental outcomes (Sesti-Costa et al. 2012; Kokolus et al. 2013; Morgan et al. 2007). Nesting material may be a way to mitigate this variable. The body weight of the unenriched and enriched groups of male mice showed no significant difference. The enriched male mice had less feed intake but were able to maintain a body weight comparable to that of their unenriched counterpart. This finding suggests that the nesting material may have enhanced the food conversion by the enriched mice as noted by other investigators (Gaskill, Winnicker, et al. 2013).

The female mice in both the unenriched and enriched groups showed no difference in food and water intake. An increase in food consumption similar to that observed in male mice was expected but was not observed. This may have occurred because female mice are group-housed and sleep in clusters, which may contribute to more efficient thermoregulation than in singly housed males. Due to the social nature of mice, group clustering is likely the common resting and sleeping behavior. Nesting material may play a lesser role in thermoregulation in adult female mice that are group-housed.

Differences in food consumption between the dams on weeks 6 and 7 of the study (PND 15 to 27) was most likely due to additional consumption of food by the litters. Male and female enriched rat weanlings had decreased food and water consumption consistently over several weeks. The body weights of the nesting material- and shelter-enriched rat weanlings were similar to those of the unenriched rat weanlings. Few studies have specifically focused on thermoregulation in rats. Kinder (1927) and Boice (1977) demonstrated that rats build nests in response to temperature decreases. It has been shown that rat nest building activity is inversely related to the temperature of the housing environment; nest building was seen as independent of parturition, as nonpregnant rats built nests when the material is available (Kinder 1927). Several studies have shown that nest building by rats is not limited to females and is a part of their normal species-typical behavior (Kinder 1927; Jegstrup et al. 2005; Manser et al. 1998b). It is probable that the rats in our study used their enrichment devices for thermoregulation and were performing normal species-typical behavior.

In previous studies, rats have been shown to prefer caging with enrichment versus no enrichment (Bradshaw and Poling 1991). These studies also support the finding that nonpregnant rats build and maintain nests. Construction of nests by rats can vary in complexity. As in mice, nest building in rats appears to be influenced by the type of nesting material and the strain of rat (Manser et al. 1998a; Jegstrup et al. 2005). In the present study, both dams and offspring rats provided nesting material built nests; the dams used the nests for resting, and to gather, house, and nurse their pups. Once weaned, the rat weanlings used the nests for sleeping during the light period. Rats provided the shelters after weaning, used them to rest on or in during the light period. Rats have shown a preference for shelters when given the option of nesting material or shelter. In scenarios where both nesting and shelters were an option, rats combined and used both enrichment devices (Manser et al. 1998a; Patterson-Kane, Harper, and Hunt 2001). Our observations support the findings that rats build nest and use shelters making them both biologically relevant enrichments.

Mice prefer and will work to gain access to nesting material (Olsson and Dahlborn 2002). If given the choice, mice also have a preference among types of nesting material (Van De Weerd et al. 1996; Van De Weerd et al. 1998). Mice tend to prefer more natural material (Hess et al. 2008), which led to the type of nesting material chosen for this study. It has been shown that whereas nest building ability varies with strain, the type of material provided affects the quality of the nests built (Hess et al. 2008). Mice given paper strips built better nests than counterparts provided facial tissue or both substrates. During our observations, the enriched male and female mice used the nesting material, whenever it was provided. Mice build nests of varying complexity based on strain differences or genetic modification. Lactating and pregnant C57BL/6J mice built more complex nests than DBA/2J mice (Bond et al. 2002). C57BL/6JJmsSlc mice built nests faster but with lower walls than JF1/Ms mice (Okayama, Goto, and Toyoda 2015); genetically modified Shn-2 KO mice exhibited impaired nest building behavior (Takao et al. 2013). In the present study, the singly housed male mice not provided nesting material were observed making shallow concavities in the bedding resembling a nest. The mice exhibited the gathering behavior associated with nest building, gathering the bedding material around themselves. Building nests from bedding is not uncommon (Gaskill, Gordon, et al. 2013); however, in the present study, group-housed female mice were not observed building nests in the bedding. It has been demonstrated that mice make better nests when given nesting material, enhancing breeding performance and thermoregulation (Gaskill, Gordon, et al. 2013). Gaskill, Gordon, et al. (2013) demonstrated nude mice had reproductive improvement when provided nesting material with an increase in numbers of pups birthed and weaned. The authors scored both the nest with nesting material and nest from bedding. Also, the conversion of food consumption to body weight was improved in the weaned pups.

Rat offspring appear to learn the purpose of nesting material and nest building skills from their dams; it appears that exposure to nesting material at a young age and the type of nesting material appear to be important in determining nest building skills (Van Loo and Baumans 2004). In addition, rats provided more natural material built more complex nests. During the observation periods, dams and weanling rats were seen consuming small amounts of bedding and nesting material and both were present in their fecal samples. The shelter material did not appear gnawed, and none was found in the feces. It has been reported that older rats exposed to nesting material tend to ingest the material most likely due to the lack of exposure at a young age. More ingestion of nesting material was seen in the rats exposed for the first time at an older age (after weaning age). Adult rats in their study ate both the naturalistic and nonnaturalistic nesting material (Van Loo and Baumans 2004). The dams in our study had not been previously exposed to nesting material, and this is most likely the reason for our observations. Our experience with rat pups differed from that of other authors. The ingestion of nesting material by the rat weanlings could possibly be a behavior learned from observation of the dams. There are no cited references of rats eating bedding known to us; however, this activity has been noted anecdotally and has been reported to be quite common in the pet rats (Tayy 2007).

In mice, there was no gross evidence in the fecal pellets indicating consumption of the nesting material. However, small amounts of bedding material was present in all fecal pellets although the mice were not observed ingesting bedding. There did not appear to be any detrimental effects resulting from ingesting the bedding. While unintentional ingestion of any substance in a study can be undesirable, screening the substance for contaminants can be a viable solution. It is recommended that enrichment devices be evaluated in regards to their practical use, benefit, and experimental effect (Dean 1999).

Rat dams had minimal (≤3% in magnitude) differences in the erythron; these were not considered physiologically significant. There were a few scattered and minor hematologic changes in the male or female rat weanlings that were inconsistent between the sexes and were not considered biologically important or related to enrichment. There were no differences in plasma corticosterone values of the male and female rat weanling groups.

In mice, there were no differences in the hematology end points that were considered related to enrichment devices. The apparent 6% increase in PLT counts detected statistically in male mice was minor and well within the 642 to 1,137 × 10³ (5 to 95 percentile) range reported for control male B6C3F1/N mice in NTP 13-week studies (NTP 1990). Although there is not a large body of literature regarding PLT responses to stress, it has been reported that platelets are not sensitive to stress (Everds et al. 2013). In female mice, there was a small increase in the WBC count that was reflected by proportional increases in LYM and NEU counts. All counts were within the reported biological variability for female B6C3F1/N mice (NTP 1990). Furthermore, the LYM and NEU distribution percentages were unaffected, suggesting that the LYM and NEU counts were increased solely due to the apparent increase in the WBC count. In general, WBC changes related to chronic stress include decreases in LYM counts and variably changed NEU counts (Everds et al. 2013). These effects did not occur in the present study and the minor WBC changes that occurred were not considered related to enrichment. This effect has also been reported in rats housed in enriched environments. Thus, the statistically significant hematological changes in male and female mice noted above were not considered biologically important or related to enrichment.

There was an apparent increase in fecal corticosterone in female mice and plasma corticosterone of male mice provided enrichment devices. The increased fecal corticosterone concentration in exposed female mice was small and well within the range of normal values that have been reported for mice (Touma, Palme, and Sachser 2004). Since the female mice were group-housed, fecal sampling was performed on a cage basis, thus reducing the overall number of samples (n = 8) collected from females compared to the singly housed male mice which were sampled on an individual basis (n = 40), and there were no differences in the fecal corticosterone concentration. Furthermore, since sampling by cage did not permit equivalent representation of all animals housed as a group, preanalytical variability (and possibly, bias) introduced by the sample collection and processing could have affected the outcomes of either or both the enriched and unenriched groups (especially considering the small “n”). Thus, the higher fecal corticosterone observed in the enriched female mice is of questionable significance and was not considered related to enrichment. The higher plasma corticosterone of enriched male mice may reflect a response to enrichment. The increase was not of large magnitude, and, in general, the plasma values for the unenriched males were similar to previously reported values for male B6C3F1/N mice (Islam and Pestka 2003). Several reports have indicated that rats housed in enriched environments demonstrate “eustress” or “good stress” that is characterized by generally higher corticosterone values compared to age-matched, traditionally housed animals (Marashi et al. 2003; Benaroya-Milshtein et al. 2004; Moncek et al. 2004; Konkle et al. 2010). The female mice demonstrated no effect in the plasma corticosterone concentrations. However, the females did have approximately 3-fold higher plasma corticosterone concentrations than the males. This was expected and may be related to higher corticosteroid-binding protein (aka, transcortin) concentrations in females compared to males (Tinnikov 1999).

Enrichment had no apparent effect on the occurrence or incidences of the background histological lesions in the rats and mice in this study. The organ weight differences seen in the unenriched dams, increased thymus weights, the higher unenriched female weanling rat liver weights, and the higher unenriched male weanling rat liver and lung weights were not linked to any obvious clinical or hematological abnormalities or the use of any enrichment device.

It would be beneficial in future studies to evaluate the effect of various thermal conditions on the metabolism of specific xenobiotics. Thermal stress is a progressively trending area of research. Maloney et al. (2014) provide a detailed review on the effect of thermal stress on the mouse model. The review addresses the concern that mice housed below their lower critical temperature have abnormal cardiovascular physiology, metabolism, longevity, and disease development. Gordon, Johnstone, and Aydin (2014) give a thorough review of the effects of thermal stress on toxicant absorption and metabolism by mammals. The latter author emphasizes that environmental temperature should not be the only consideration when studying toxicants but the thermoregulation by mammalian models. Both authors highlight the important concern of using thermally stressed mouse models when extrapolating data for use in humans and the need for additional research.

In conclusion, the present study showed that the nesting material and shelters did not adversely impact end points commonly measured during the conduct of NTP studies. The only consistent effect appeared to be increased intake in food by the unenriched male mice and rat weanlings, with no differences in weight. The histopathological evaluations of the animals showed no lesions of consequence and hematological values were within the normal range. Overall, the effects of the enrichment were positive in light of promoting normal behavior and improved thermoregulation leading to reduced physiological stress. We recommend the use of these devices for enrichment during the conduct of NTP studies.
