Abstract

Spanish

The effect of hexane, dichloromethane, ethyl acetate and hydroalcoholic fractions obtained from ethanolic extract of Trichilia pallida, T. pallens and Toona ciliata on growth and nutritional physiology of Spodoptera frugiperda was evaluated. First instar larvae were fed on a diet treated with fractions for ten days. The most active fractions were applied on the diet and offered to larvae until the pupal stage to verify effects on growth and survival. To calculate the nutritional indices, fractions were incorporated into the diet offered to fourth instar larvae for four days. The dichloromethane fraction of T. pallens stems affected growth and survival of S. frugiperda larvae, and fractions of T. pallida leaves and stems, and of To. ciliata leaves and fruits affected larval growth. Nutritional analysis indicated that the fraction of To. ciliata leaves acts mainly as a phagodeterrent, while dichlorometane fractions of T. pallida stems and leaves, To. ciliata fruits and T. pallens stems cause toxic effects after ingestion, reducing the efficiency of food conversion and increasing the metabolic cost to the larvae.

Keywords

Insect metabolism Plant extracts Sublethal effects

Introduction

One of the challenges for insect control is the development of more effective strategies than chemical insecticides, as there are insect populations resistant to most synthetics currently used, and also safer for man, the environment and natural enemies (Rattan 2010). Botanical insecticides are suggested as an alternative to synthetics (Akhtar et al. 2012), and the family Meliaceae is currently well investigated due to the occurrence of limonoid triterpenes, promising compounds that have biological activities on insects like insecticidal, phagodeterrent and growth regulating (Isman et al. 2002; Roy and Saraf 2006). Most work has been focused on the neem tree Azadirachta indica A. Juss. and the limonoid azadirachtin (Ntalli and Menkissoglu-Spiroudi 2011). Other bioactive compounds are available on genera Cedrela, Khaya, Trichilia, Chisocheton, Toona and Turaeu (Isman 1995; Abdelgaleil et al. 2001).

There are reports of bioactivity of other Meliaceae like Trichilia pallida Swartz, Trichilia pallens C. DC. and Toona ciliata M. Roemer extracts on some insect pests (Bezerra-Silva et al. 2010; Cunha et al. 2005; Pavarini et al. 2010), including Spodoptera frugiperda (J. E. Smith) (Lepidoptera: Noctuidae) (Rodríguez and Vendramim 1997; Roel et al. 2000; Bogorni and Vendramim 2003 2005). However there are no studies about fractionation of these extracts to evaluate the effect of the fractions on the fall armyworm. Considering the potential of these three Meliaceae for the control of insects, this study was carried to evaluate the effect of the fractions of ethanolic extracts on the growth, survival and nutritional physiology of S. frugiperda.

Materials and methods

The chemical procedures were carried out at the Laboratório de Produtos Naturais of Universidade Federal de São Carlos (UFSCar), and biological tests with S. frugiperda at Laboratório de Plantas Inseticidas of Escola de Superior de Agricultura Luiz de Queiroz (ESALQ), in São Paulo, Brazil, from October 2010 to December 2012.

Insects rearing.

S. frugiperda was maintained in a laboratory under controlled conditions (25 ± 2 °C, RH = 60 ± 10% and 14-hour photoperiod). Larvae were fed on an artificial diet (Greene et al. 1976) and adults received honey solution 1%.

Plant material.

Stems and leaves of T. pallida (voucher ESA 81288) were collected in October 2010, and stems, leaves and fruits of To. ciliata (voucher ESA 78420) in January 2011, both from the ESALQ campus. Stems and leaves of T. pallens (voucher ESA 81286) were collected in April 2011 from Lajeado das Orquídeas in Sapopema-PR. The material was dried in a drying oven with air circulation at 40 °C, ground in a Wiley mill and stored in glass vials.

Extracts and fractions.

Ethanolic extracts were prepared using an Ika Ultra Turrax (T25) dispersing instrument. Five extractions of five minutes each at 8,000 rpm and room temperature were carried out, by adding 1 L of ethanol per 200 g of powdered plant material. The extracts were filtered through a filter paper and the solvent was eliminated under vacuum on a rotary evaporator (45 °C) until dry. Each residue of ethanol extract (10 g) was dissolved in methanol (100 mL) and water (300 mL) and exhaustively extracted by consecutive liquid/liquid partition with solvents of increasing polarity (hexane, dichloromethane and ethyl acetate) using a separating funnel, which was shaken to mix the solvent with the extract and then allowed to stand for phase separation. The hexane, dichloromethane, ethyl acetate and last remaining hydroalcoholic fractions were evaporated under vacuum. At the end of the process, the following were obtained: hexane, dichloromethane, ethyl-acetate and hydroalcoholic fractions of T. pallida leaves, T. pallida stems, T. pallens leaves, T. pallens stems, To. ciliata leaves, To. ciliata stems and To. ciliata fruits, totaling 28 fractions.

Bioactivity assays.

Fractions were evaluated in four bioassays: 1) all fractions of T. pallida; 2) fractions of T. pallens stems; 3) fractions of T. pallens leaves; and 4) all fractions of To. ciliata. Hexane, dichloromethane and ethyl acetate fractions of three plants were redissolved in acetone and water (1:1) and hydroalcoholic fractions were redissolved in ethanol and water (1:1) at 1% (10,000 ppm) (weight by volume). The artificial diet was placed in multi-well plates (2 mL per well) and 30 µL of fractions at 1% were applied on the diet surface. After two hours for solvent evaporation, first instar larvae (24 h of age) were placed one per well. Three controls were used: water and acetone (1:1), water and ethanol (1:1), and only water to evaluate the effect of the solvents. Each treatment consisted of four repetitions of 24 larvae, except in the assay with fractions of T. pallens leaves, which consisted of five replicates of twelve larvae. Mortality was recorded daily, and after ten days the surviving larvae were weighed.

Effect on larval growth and survival.

In a second test, the most active fractions were selected to determine the effects on larvae growth and survival. Fractions dissolved at 1% were applied on the diet surface in glass tubes (8.5 × 2.5 cm) containing 3 mL of diet (40 µL/tube), and first instar larvae were individualized in tubes. Four replicates of five larvae each were performed. The parameters evaluated were mortality, duration of larval stage and pupal weight at 24 hours.

Effect on nutritional physiology.

To understand the effects of the most active fractions on the nutritional physiology of S. frugiperda, nutritional indices of fourth instar larvae that ingested treated diet were calculated. Fractions were dissolved in acetone and incorporated into the artificial diet at a concentration of 1,000 ppm (1 mg/g diet). The artificial diet containing the fractions or acetone (control) was placed in glass tubes of known weight, which were weighed again to obtain the initial weight of diet. Fourth instar larvae were weighed and individualized in the tubes. Initial fresh and dry weights of an aliquot of the same instar larvae were determined. A diet containing only acetone was used as control. Twenty fourth instar larvae were used per treatment (independent replicates), and after four days of feeding, larvae and feces were separated from the remaining diet. Larvae were killed by freezing and all the material was placed in a drying oven at 50 °C for seven days, to obtain the dry weight, which was used for the determination of nutritional indices.

From these data the weights were obtained: food supplied, food remaining, food ingested (I), feces (F), larvae weight gain (B) and larvae mean weight (C). Then the following indices were calculated in the duration of feeding time (T): the relative consumption rate (RCR = I / (C×T)), the relative metabolic rate (RMR = M / (C x T)), relative growth rate (RGR = B / (CT)), the efficiency of conversion of ingested food (ECI = (B / I) × 100) and digested food (ECD = (B / (I - F)) × 100), the approximate digestibility (AD = ((I - F) / I) × 100), the metabolic cost (MC = 100 - ECD), weight of the assimilated food (I - F) and weight of the metabolized food (M = (I-F) - B) (Scriber and Slansky Jr. 1981).

Data analysis.

All bioassays were carried out in a completely randomized design. The nutritional indices were subjected to covariance analysis (Raubenheimer and Simpson 1992), in which the denominator was used as a covariate for each index. Means were compared by the Tukey-Kramer test (p ≤ 0.05), with the statistical program SAS 9.2 (SAS Statistical Analysis System, 2009). For the other analyses, the statistical program R version 3.0.1 (R Development Core Team, 2013) was used. Data with binomial distribution (mortality) were analyzed by GLM (Generalized Linear Models) by chind procedure using the chi-square test (p ≤ 0.05) for comparison of means. The other data were subjected to Bartlett's test to check homogeneity of variances, and to the Shapiro-Wilk test to verify the normality of residuals. Then an analysis of variance was done (F test, p < 0.05), and means were compared by the Tukey test (p ≤ 0.05), using the glm and glht procedures.

Results and discussion

Bioactivity assays.

Among hexane, dichloromethane, ethyl acetate and hydroalcoholic fractions of T. pallida leaves and stems applied on the diet offered to the larvae of S. frugiperda (Table 1), the dichloromethane fraction of stems was the one that caused higher larval mortality than those recorded in the ethanol, acetone and water controls. For both stems and leaves in ethyl acetate, hexane and hydroalcoholic fractions, mortality did not differ from controls. There was no difference between the water control and the ethanol and acetone controls (solvents used to dissolve the fractions), indicating no effect of them on the larvae. Despite the low mortality levels, the weight of larvae that ingested the diet containing dichloromethane fractions of T. pallida leaves and stems was reduced after ten days, not reaching 10% of those recorded in the other treatments.

Similar results were observed with the fractions of T. pallens stems, where only the dichloromethane fraction caused larval mortality higher than in the three controls, and drastically affected larval growth, which reached a maximum of 1.5% of the weight recorded in all treatments including controls (Table 1). For ethyl acetate, hexane and hydroalcoholic fractions, larval mortality did not differ from the controls.

There was no difference between treatments with fractions of T. pallens leaves and controls in relation to larval mortality. For larval weight, the value obtained in the hexane fraction was lower than that obtained in control water, but did not differ from ethanol and acetone controls (Table 1). Fractions of To. ciliata stems, leaves and fruits did not reduce larval survival, but dichloromethane fractions of leaves and fruits affected the larvae development (Table 2).

Table 1.

Means of weight and mortality (± standard error) of Spodoptera frugiperda larvae fed on artificial diet treated with 1% fractions of Trichilia pallida and Trichilia pallens leaves and stems, after ten days. Piracicaba, Brazil.

Treatment	Weight ± SE (mg)¹	Mortality ± SE (%)²
Trichilia pallida-DIC-stems	14.38 ± 1.62a	12.50 ± 0.38a
Trichilia pallida-DIC-leaves	22.13 ± 2.25a	9.38 ± 1.04ab
Trichilia pallida-ETAC-stems	290.99 ± 32.14 b	1.04 ± 1.04 bc
Trichilia pallida-HEX-leaves	288.16 ± 20.25 b	0.00 ± 0.00 c
Trichilia pallida-ETAC-leaves	375.87 ± 24.06 bc	1.04 ± 1.04 bc
Trichilia pallida-HEX-stems	303.78 ± 14.35 bc	1.04 ± 1.04 bc
Control ethanol	340.66 ± 18.00 bc	1.04 ± 1.04 bc
Control acetone	351.87 ± 24.70 bc	1.04 ± 1.04 bc
Control water	374.26 ± 26.40 bc	1.04 ± 1.04 bc
Trichilia pallida-HA-stems	325.61 ± 14.19 bc	0.00 ± 0.00 c
Trichilia pallida-HA-leaves	392.10 ± 27.32c	0.00 ± 0.00c
F	73.96	-
p	< 0.001	< 0.001
Trichilia pallens-DIC-stems	4.31 ± 0.30a	30.21 ± 2.62a
Trichilia pallens-ETAC-stems	289.46 ± 21.94 b	3.13 ± 1.99b
Control ethanol	294.36 ± 5.89 b	1.04 ± 1.04b
Control acetone	314.06 ± 12.47b	0.00 ± 0.00 b
Trichilia pallens-HA-stems	326.97 ± 14.21 bc	1.04 ± 1.04b
Trichilia pallens-HEX-stems	374.71 ± 10.46c	6.25 ± 3.61b
Control water	375.62 ± 13.18c	0.00 ± 0.00 b
F	186.33	-
p	< 0.001	< 0.001
Trichilia pallens-HEX-leaves	344.06 ± 17.31a	1.67 ± 1.67
Trichilia pallens-DIC-leaves	372.57 ± 28.61ab	11.67 ± 4.25
Trichilia pallens-ETAC-leaves	399.22 ± 24.54ab	10.00 ± 4.86
Trichilia pallens-HA-leaves	405.60 ± 25.42ab	8.33 ± 0.00
Control ethanol	414.96 ± 13.20ab	3.13 ± 1.20
Control acetone	435.30 ± 24.35ab	6.67 ± 1.67
Control water	443.56 ± 10.56 b	6.67 ± 4.86
F	2.63	-
p	0.0375	0.3482

Means Followed by the same letter, in the column, do not differ (Tukey, p ≤ 0.05)¹ GLM, F test (p ≤ 0.05)² GLM, chi-squa red test (p ≤ 0.05); DIC: dichloromelhane; ETAC: ethyl acethate; HEX: hexane; HA: hydroalcoholic.

Bioactivity of these Meliaceae extracts against S. frugiperda was already reported (Rodríguez and Vendramim 1997; Roel et al. 2000; Torrecillas and Vendramim 2001; Bogorni and Vendramim 2003, 2005). However, methods used to obtain the extracts and evaluate the bioactivity in these studies differ considerably from those used in this study, making it difficult to compare with the data obtained here. Some of these studies refer to aqueous or organic extracts obtained by different methods. the experimental techniques vary between tests with corn leaves treated daily with the extracts and the extract addition to the artificial diet. The concentrations used, the evaluation time and age of larvae are also important factors. Despite all these variables, the effects observed in larvae after ingestion of food treated with extracts of these plant species are similar: reduction in larval weight gain, prolonged larval stage, smaller pupae, and concentration-dependent mortality. The To. ciliata extracts, however, mainly caused sublethal effects, with low mortality even at higher concentrations, as reported by Rodriguez and Vendamim (1997) for S. frugiperda larvae. The most significant effect is the low larval weight gain. Some fractions caused large reductions in larval weight few days after feeding on treated diets. This may be a result of reduced consumption due to a phagodeterrent activity, or low nutritional adequacy of the food by the presence of xenobiotics. Another possibility is post-ingestion toxic effect, causing poor utilization of food by insects or inhibiting important vital processes, causing developmental delay. However, the mixture of compounds present in the fractions of the plant extracts makes it difficult to conduct a more detailed study of the mode of action.

The effect against insects of the genus Trichilia has been attributed to a group of tetranortriterpenoids that includes hirtin (Xie et al. 2004) and the trichilins (Champagne et al. 1989; Nakatani 2001). The limonoids from To. ciliata were related to the phytochemical resistance to the shoot borer Hypsipyla (Agostinho et al. 1994); and toonacilin, 6-acetoxitoonacilin (Kraus et al. 1978) and cedrelone (Arnason et al. 1987; Koul and Isman 1992) have insecticidal and phagodeterrent properties.

The low weight gain observed in larvae after ingestion of dichlorometane fractions (except for T. pallens leaves) is an indication that this solvent is more efficient in the extraction of active compounds of these Meliaceae species. For example, Pérez-Flores et al. (2012) used dichloromethane to extract limonoids from leaves of some plants of this family. For Tuta absoluta (Meyrick, 11917) (Lepidoptera: Gelechiidae), the dichloromethane extract of T. pallida leaves was also more efficient than hexane and methanol extracts in hexane (Cunha et al. 2005). Dichloromethane is a solvent of medium polarity, extracting hydrophobic and amphipathic compounds, thus covering large amount of compounds (Ferracini et al. 2005). This feature is subject to the chemical composition of each plant species; that is, dichloromethane may not be a good solvent when apolar compounds are abundant. For Meliaceae species studied, however, this solvent was very efficient.

Effect on larval growth and survival.

When larvae were exposed to the treatments during the entire larval stage, among fractions with higher bioactivity on S. frugiperda (dichloromethane fractions of T. pallens stems, T. pallida leaves and stems, and To. ciliata leaves and fruits), only the dichloromethane fraction of T. pallens stems caused larval mortality, which was different from that recorded in control. The fractions of T. pallida leaves and stems and To. ciliata leaves did not differ from the fraction of T. pallens stems, but also did not differ from the control. The fraction of T. pallens stems and the fraction of T. pallida leaves significantly affected the larval growth, causing a prolonged larval stage in approximately six to seven days compared to the control. In addition, pupal weight was lower than the control with these two treatments and with the fraction of T. pallida stems (Table 3). As previously verified, the fractions of To. ciliata leaves and fruits were those that least affected S. frugiperda survival and growth. A characteristic of many Meliaceae extracts is a slow and crescent effect over time, justifying the increased mortality observed in this assay compared to the previous one, which was only ten days long, mainly of T. pallens stems and of T. pallida leaves and stems.

Table 2.

Means of weight and mortality (+ standart error) of Spodoptera frugiperda larvae fed on artificial diet treated with 1% fractions of Toona ciliata leaves, stems and fruits, after ten days. Piracicaba, Brazil.

Treatment	Weight ± SE (mg)¹	Mortality ± SE (%)²
Toona ciliata-DIC-leaves	114.25 ± 11.10a	1.04 ± 0.10
Toona ciliata-DIC-fruits	146.86 ± 4.65ab	1.04 ± 0.10
Toona ciliata-ETAC-stems	158.20 ± 6.63 abc	1.04 ± 0.10
Toona ciliata-DIC-stems	169.33 ± 12.30 abcd	0.00 ± 0.00
Toona ciliata-HA-leaves	183.95 ± 15.07 bcde	0.00 ± 0.00
Toona ciliata-ETAC-leaves	191.41 ± 9.15 bcde	0.00 ± 0.00
Toona ciliata-HEX-stems	193.47 ± 10.42 bcde	0.00 ± 0.00
Toona ciliata-HEX-leaves	194.70 ± 9.53 bcde	0.00 ± 0.00
Toona ciliata-HEX-fruits	197.06 ± 13.84 bcde	0.00 ± 0.00
Toona ciliata-ETAC-fruits	198.16 ± 20.30 bcde	0.00 ± 0.00
Toona ciliata-HA-fruits	201.90 ± 5.46 bcde	1.04 ± 0.10
Control water	210.36 ± 10.22cde	0.00 ± 0.00
Toona ciliata-HA-stems	721.51 ± 13.17 cde	0.00 ± 0.00
Control ethanol	231.88 ± 14.16de	1.04 ± 0.10
Control acetone	237.15 ± 22.42e	2.08 ± 0.14
F	5.98	-
p	< 0.001	0.3482

Sublethal effects were also observed, as delayed development, characterized by a larval stage of longer duration, and pupal weight reduction. Bogorni and Vendramim (2005) observed longer duration of the larval stage of S. frugiperda fed on diets containing the fraction of To. ciliata leaves, despite lower food intake, ingested food was well used, but not enough for the growth to be equal to that of the control larvae. For the other fractions, the larvae continued feeding, probably as an attempt to compensate for the high metabolic cost.

Table 3.

Larval mortality, larval stage duration and pupae weight with 24 hours (± standard error) of Spodoptera frugiperda fed on artificial diet treated with 1% dichloromethane fractions of Trichilia pallida, Trichilia pallens and Toona ciliata. Piracicaba, Brazil.

Treatment	Weight ± SE (mg)¹	Mortality ± SE (%)²	Pupae weight ± SE (mg)³
Trichilia pallens-Stems	60.00+-8.16 a	24.25+-2.22a	208.32+-19.32a
Trichilia pallida-Leaves	40.00+-8.16ab	23.77+-0.58a	201.73+-0.91 a
Trichilia pallida-Stems	35.00+-17.08ab	21.43+-0.82ab	221.75+-9.84ab
Toona ciliata-Leaves	30.00+-10.00ab	18.88+-0.53b	272.16+-11.28c
Toona ciliata-Fruits	10.00+-5.77b	18.40+-0.34b	260.48+-4.27 bc
Control	5.00+-5.00b	17.25+-0.13b	279.51+-5.03 c
F	-	9.22	10.18
p	< 0.001	< 0.001	< 0.001

Extracts of other Meliaceae also caused changes in the nutritional physiology of insects. When fourth instar Spodoptera litura larvae were fed on a diet containing methanolic extract of branches of Trichilia americana (Sesse and Mocino) Pennington, the RGR, RCR, ECI and ECD all decrease. It is likely that this decrease in consumption rate is due to an phagodeterrent effect of the extract, and at least in part this contributes to the decrease in growth rate. However, a decrease in ECI and ECD indicates that T. americana extract also exhibits some post-ingestion toxicity (Wheeler and Isman 2001). Methanolic extracts of Melia azedarach L. leaves reduced RGR, RCR, ECD and ECI of Cnaphalocrocis medinalis Guenée (Lepidoptera: Pyralidae), while AD increased (Senthil-Nathan 2006). In these cases, it seems to be a mixture of phagodeterrence and toxic effects, due to simultaneous reduction in consumption and food conversion. In the present work, this was not observed. The only fraction that reduced RCR was To. ciliata leaves, but without reduction in ECI and ECD; thus the decrease in RGR was due to reduced consumption, not to a toxic effect. The other fractions caused toxic effects (reduced ECI and ECD), but caused no reduction in consumption, thus showing no phagodeterrence.

Effect on nutritional physiology.

The analysis of covariance indicated the effect of treatments and covariates, but there was no interaction between the two factors, for any of the nutritional indices. Thus, the data were subjected to an analysis of variance.

Table 4.

Nutritional indices of Spodoptera frugiperda fourth instar fed on artificial diet containing 0.1% (1,000 ppm) dichloromethane fractions of Trichilia pallida, Trichilia pallens and Toona ciliata, after four days. Piracicaba, Brazil.

Treatment	RCR (g/g/dia)	RMR (g/g/dia)	RGR (g/g/dia)
Trichilia pallida-Stems	1.3176 ± 0.0148a	0.2948 ± 0.0179 a	0.3464 ± 0.0045 b
Trichilia pallida-Leaves	1.3028 ± 0.0401ab	0.2700 ± 0.0350 abc	0.3222 ± 0.0051c
Trichilia pallens-Stems	1.2833 ± 0.0156ab	0.2029 ± 0.0118 bcd	0.3354 ± 0.0047b
Toona ciliata-Fruits	1.2617 ± 0.0279ab	0.2783 ± 0.0193ab	0.3450 ± 0.0053 b
Control	1.2070 ± 0.0288b	0.1815 ± 0.0219cd	0.3784 ± 0.0080 a
Toona ciliata-Leaves	1.0879 ± 0.0220c	0.1592 ± 0.0205d	0.3458 ± 0.0061b
F	11.13	6.89	11.51
p	<0.001	< 0.001	< 0.001

The relative consumption rate (RCR), which indicates the amount of food ingested by larva per gram of body weight per day, increased after ingestion of the fraction of T. pallida stems. The RCR was reduced in the larvae that ingested diets containing fraction of To. ciliata leaves, and the other fractions (T. pallida leaves, T. pallens stems and To. ciliata fruits) did not differ from the control (Table 4). The relative metabolic rate (RMR), which indicates the amount of food spent by the larva in metabolism per gram of body weight per day, increased after ingestion of a diet containing fractions of To. ciliata fruits and T. pallida stems. However, the relative growth rate (RGR), which indicates the gain of biomass by the insect in relation to body weight per day, was reduced after ingestion of all the fractions, and the greatest reduction was caused by the fraction of T. pallida leaves (Table 4). This may be due to a low food intake or to a toxic effect caused by the fractions, resulting in the use of food for purposes other than growth, such as detoxification enzymes synthesis.

The efficiency of conversion of ingested food (ECI), which is the percentage of ingested food that is converted into biomass, was reduced in almost all treatments, except only the fraction of To. ciliata leaves, the only one that does not differ from the control (Table 5). The efficiency of conversion of digested food (ECD), which is the estimated percentage of assimilated food that was converted into biomass, decreased after ingestion of a diet containing fractions of To. ciliata fruits and T. pallida leaves and stems (Table 5). The low conversion of food into biomass justifies the delay in larval development observed with most of the fractions, and indicates that they cause toxic effects, except for the fraction of To. ciliata leaves, which caused no change in ECI and ECD. Fractions that caused reduction in ECD also caused increased metabolic cost (MC), i.e., the percentage of food metabolized into energy for the maintenance of life, increased. However, none of the fractions caused change in approximate digestibility (AD), which is the percentage of ingested food effectively assimilated by the insect (Table 5). This indicates that food was well assimilated by the larvae, but was mainly used for metabolism since the biomass conversion was low.

Table 5.

Treatment	ECI (%)	ECD (%)	AD (%)	MC (%)
Trichilia pallida-Leaves	24.9440 ± 0.6137a	56.6965 ± 2.7861a	44.9338 ± 1.5869ab	43.3035 ± 2.7861a
Trichilia pallens-Stems	26.2236 ± 0.6310 a	62.6631 ± 1.3451ab	42.0304 ± 1.1207 a	37.3369 ± 1.3451ab
Trichilia pallida-Stems	26.3561 ± 0.4836 a	54.5448 ± 1.3301a	48.6265 ± 1.0862b	45.4552 ± 1.3301a
Toona ciliata-Fruits	27.6266 ± 0.8843a	56.2060 ± 1.8711a	49.4727 ± 1.3171b	43.7940 ± 1.8711a
Control	31.4966 ± 0.9314b	68.5666 ± 2.5957b	46.3361 ± 1.5526ab	31.4334 ± 2.5957b
Toona ciliata-Leaves	32.0089 ± 0.9160b	70.1109 ± 2.7886b	46.2736 ± 1.4530ab	29.8891 ± 2.7886b
F	15.62	9.75	4.00	9.75
p	<0.001	<0.001	0.0027	<0.001

In all the fractions the amount of diet consumed decreased by more than half compared to the control (Fig. 1). As a result of food intake reduction, there was also reduced feces production and low weight gain, as well as a smaller amount of assimilated and metabolized food. Larvae that ingested a diet containing the dichloromethane fraction of To. ciliata leaves showed the least amount of food metabolized; that is, the highest amount of food was used for growth and not metabolism. Despite the reduction of total food consumption, the relative consumption to body weight (Table 6) was altered only with two fractions, increasing after ingestion of fraction of T. pallida stems, and decreasing with the fraction of To. ciliata leaves. In the first case, the increase indicates that there is not primary phagodeterrence (chemoreceptor-mediated), and the ECI and ECD reduction indicates that there is a post-ingestion toxic effect, which can be considered secondary phagodeterrence (reduced consumption caused by toxicity) (Mordue (Luntz) and Blackwell 1993). For the second fraction, phagodeterrence is responsible for reduction in relative consumption, since there was no change in the efficiency of food conversion, in metabolic cost or in relative metabolic rate, excluding the possibility of toxic effects, so the phagodeterrence is possibly primary. Therefore, for larvae fed on diets containing the fraction of To. ciliata leaves, despite lower food intake, ingested food was well used, but not enough for the growth to be equal to that of the control larvae. For the other fractions, the larvae continued feeding, probably as an attempt to compensate for the high metabolic cost.

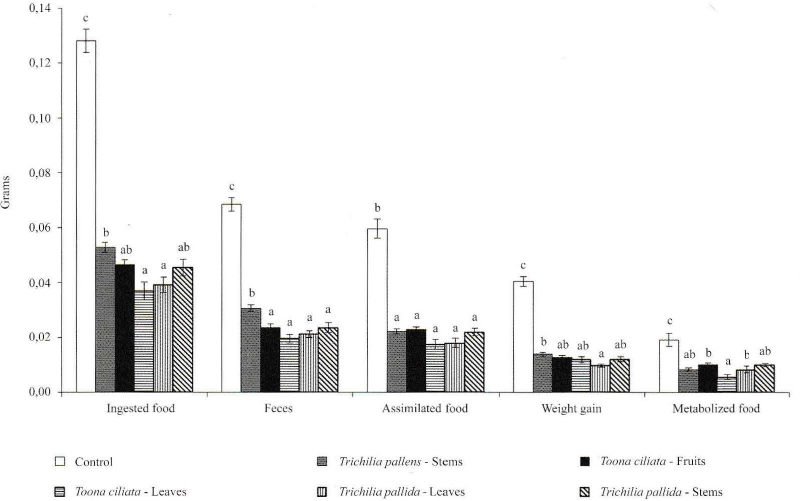

Figure 1.

Means (± standard error) of ingested food (F = 103.91, p<0.0001), feces (F = 101.85, p < 0.0001), assimilated food (F = 70.01, p < 0.0001), weight gain (F = 108.62, p < 0.0001) and metabolized food (F = 18.42, p < 0.0001) by Spodoptera frugiperda fourth instar fed on diet containing 0.1% dichloromethane fractions of Trichilia pallens, Trichilia pallida and Toona ciliata. Ingested food = feces + assimilated food; assimilated food = weight gain + metabolized food. Bars with the same letter, in each parameter, did not differ (GLM, Tukey test, p ≤ 0.05).

Conclusions

The dichloromethane fraction of T. pallens stems affects growth and survival of S. frugiperda larvae; and fractions of T. pallida leaves, of T. pallida stems, of To. ciliata leaves and of To. ciliata fruits affect growth. Bioactivity of the dichlo-romethane fractions of T. pallens stems, of T. pallida leaves, of T. pallida stems and of To. ciliata fruits is characterized by toxic effects after ingestion that can be referred to as secon-dary phagodeterrence, whereas fraction of To. ciliata leaves does not cause toxicity, but cause phagodeterrence, most likely primary.
