Characterization and properties of Chinese red clay for use as ceramic and construction materials

Abstract

This study involves the characterization and analysis of a Chinese red clay obtained from Hunan province to determine its suitability for manufacturing ceramic products. X-ray fluorescence analysis showed the clay has high silica (63.25 weight percent) and alumina (21.38 weight percent) content along with iron oxide, alkalis, and calcium acting as fluxes. X-ray diffraction (XRD) confirmed the presence of quartz, kaolinite, illite, and hematite as the major mineralogical phases. Scanning electron microscopy revealed loosely stacked, plate-shaped kaolinite particles exhibiting pseudohexagonal morphology. Particle size distribution shows a d50 of 12.7 μm and specific surface area is 21.3 m²/g. Differential thermal analysis-thermogravimetric analysis showed mass losses between 450–600°C and 950–1050°C corresponding to dehydroxylation and formation of a liquid phase, respectively. Dilatometry traced the onset of viscous flow sintering around 1000°C. Test bars produced from the clay were fired at 800°C, 900°C, 950°C, 1000°C, and 1050°C. The firing shrinkage increased from 2.5% at 800°C to 12.8% at 1050°C. Strength improved from 11.2 megapascals at 800°C to 42.3 megapascals at 1050°C due to densification and mullite formation. Hematite content caused the color to change from orange-red at 950°C to dark red at 1050°C. XRD analysis of fired specimens confirmed the presence of hematite and newly formed mullite and cristobalite phases. The results indicate the suitability of the clay for manufacturing bricks, roof tiles, and wall tiles using appropriate firing temperatures and cycles.

Introduction

Clays are ubiquitous sedimentary rocks and one of the most abundant raw materials on earth. Due to their fine-grained mineral composition, they have been used since ancient times to produce pottery, bricks, tiles, and building materials. ¹ Clays exhibit a unique combination of plasticity when wet, drying shrinkage, and hardening when fired at high temperatures, enabling the shaping and fabrication of ceramics and construction components. ² Based on the mineralogical composition, clays can be categorized as kaolinite, montmorillonite-smectite, illite, and chlorite types. The presence of these layered phyllosilicate minerals along with several accessory nonclay mineral phases control the chemical, physical, thermal, and mechanical properties of clays. ³

The clay minerals in raw clays undergo a series of phase transformations and microstructural changes during the thermal treatment that occurs in the firing process for ceramics production. ⁴ Decompositions of clay minerals such as kaolinite and illite around 500–600°C lead to dehydroxylation and formation of amorphous metakaolin phases. At higher temperatures around 950–1050°C, viscous liquid phase sintering commences along with crystallization of new phases such as mullite, hematite, cristobalite, etc. ⁵ The extent of vitrification and densification determines the final ceramic properties like strength, porosity, color, and microstructure. ⁶ Sintering is assisted by the fluxing action of alkalis, alkaline earths and iron oxides, which form a liquid phase at lower temperatures. In ancient times, firing was carried out using primitive kilns reaching maximum temperatures around just 800–900°C. The resultant low-fired clay products like bricks and roof tiles had porous bodies but were durable enough for construction purposes. ⁷ With modernization, the clay firing is done in tunnel kilns to achieve temperatures of 1050–1150°C and develop fully vitrified dense ceramics like tableware, sanitaryware, tiles, etc. ⁸

China has a long history of utilizing locally available clays for making ceramic wares and architectural constructs. Ancient pottery, sculptures, and historic monuments demonstrate the mastery achieved by Chinese artisans in working with clay-based materials. ⁹ In recent times also, clays remain an important industrial mineral for the ceramics sector in China. The country has extensive clay deposits across various provinces which provide a steady supply of raw materials to ceramic tile, brick, and roof tile manufacturers. ¹⁰ The country possesses extensive clay deposits across various provinces that provide a steady supply of raw materials to ceramic tile, brick, and roof tile manufacturers. ¹¹ The common clays are kaolinite or illite-rich deposits which fire to reddish brown or brownish shades. They are inexpensive and used for making floor and wall tiles as well as bricks and roof tiles in small-scale rural kilns or large industrial units. ¹²

The current study focuses on a locally sourced Chinese red clay obtained from Hunan province in South Central China. While porcelain and refractory clays have been extensively studied, limited literature exists on the abundant common red-burning clays frequently used for traditional ceramics and construction in rural areas.^13–15 The quality of raw clays ultimately determines the properties of finished ceramic or building components. Hence a detailed characterization is essential to assess the suitability of clays for specific applications. The objectives of this work are to: (i) analyze the chemical composition, mineral phases and microstructure to understand the red clay; (ii) study thermal behavior to elucidate transformations occurring during firing; (iii) evaluate densification, phase evolutions, color changes and mechanical strength in fired ceramics; and (iv) compare properties with existing standards for clays and assess suitability in ceramics and building materials.

The comprehensive set of characterization tests will provide useful insights regarding the quality and potential applications of the red clay. The results can serve as a basis for tile and brick makers to exploit this clay resource to develop low-cost, high-performance products for the local construction industry. Additionally, the outcomes are anticipated to contribute to the scientific understanding of Chinese red clays that have been utilized since ancient times but have insufficient documentation of their properties and behaviors.

Materials and methods

Sample collection and preparation

The red clay sample studied in this work was collected from the Yangshan clay deposits located in Chengbu County, Hunan Province, China. This region possesses extensive clay resources that are mined for use in local brick, tile, and ceramic industries. The clay material was extracted from a depth of 1–2 m via auger drilling. Around 50 kg of representative clay was collected, air dried, crushed in a jaw crusher, and ground into powder using a pot mill. The powder was sieved through a 100 mesh sieve to obtain a homogeneous fine fraction less than 150 microns in size. This powder was used for characterization and fabrication of test specimens. In an actual industrial manufacturing process, the raw clay obtained from the mines often contains coarse grits, gravels and oversized stones or lumps. Hence the first step is crushing and grinding to breakdown these aggregates into fine powders amenable for shaping into ceramic products. The clay lump materials are initially crushed mechanically using jaw crushers or hammer mills to reduce from several centimeters size to <10–20 mm size. This is followed by fine grinding to powder form using ball mills, disintegrators or attrition mills based on the fineness specifications. Different types of screen classifiers and air classifiers may also be utilized to obtain narrowly graded fractions. The ground material is then sieved for use in fabrication. For small-scale brick and tile plants, the ground clay should have <20% residue on a 100 mesh sieve (150 μm). However, large automated factories require over 90% fraction passing 90 μm with a median size of around 10–15 μm for optimal extrusion and molding. In the present study, after initial jaw crushing of the mined lumps, a laboratory pot mill was used for grinding followed by sieving through a 100-mesh screen to simulate the particle size distribution achieved in rural kiln operations.

Characterization techniques

The chemical composition of the clay powder was determined by X-ray fluorescence (XRF) spectroscopy using a Bruker S4 Explorer instrument. And 0.5 g of powder sample was mixed with 5 g of lithium tetraborate flux. This mixture was fused into a glass bead using an automated bead fusion machine at 1050°C. The melted sample was cast into a Pt dish forming a flat disk and analyzed by XRF operated at 60 kV and 55 mA in a vacuum.

Mineralogical analysis

The mineralogical phases present in the raw clay and fired test specimens were determined by X-ray diffraction (XRD) analysis. XRD patterns were obtained using a Rigaku Miniflex 600 diffractometer with Ni filtered CuKα radiation (λ=1.5418 Å) over an angular range of 5–70° 2θ operated at 40 kV and 15 mA.

Morphological study

Microstructural examination was carried out using a Zeiss Sigma field emission scanning electron microscope (FESEM) equipped with an Energy-dispersive X-ray spectroscopy (EDX) detector. Small powder amounts or fractured specimen pieces were sputter coated with Au-Pd and imaged in secondary electron mode at various magnifications, 15 kV acceleration voltage and 8 mm working distance.

Thermal analysis

Simultaneous differential thermal analysis and thermogravimetric analysis (DTA-TGA) were conducted to examine the thermal transitions occurring while heating the clay sample up to 1000°C. About 50 mg powder was analyzed using a Netzsch STA 449 F1 Jupiter instrument with a heating rate of 10°C/min in the air atmosphere. Alumina crucibles were utilized with an empty similar crucible serving as a reference.

Physical properties

The particle size distribution of the clay powder dispersed in water was measured by laser diffraction technique using a Malvern Mastersizer 3000 instrument. Density was determined using a Micromeritics AccuPyc II 1340 helium pycnometer. The specific surface area was determined by N₂ adsorption-desorption isotherms at 77 K obtained on a Quantachrome Autosorb iQ system. Additional cylindrical test specimens of 25 mm diameter and 30 mm length were fabricated from the optimally fired clay powder at 1000°C by uniaxial pressing at 100 MPa force. The samples were air-dried and fired under similar conditions as the flexural test bars. Compressive strength was tested per ASTM C133 standard on an MTS Landmark servo hydraulic machine at 0.5 mm/min crosshead rate.

Color measurement

The surface color parameters of the fired clay specimens were quantified in the CIELAB system using a Konica Minolta CR-400 colorimeter. The L* value indicates lightness on a scale of 0 (black) to 100 (white). The a* value represents green/red color with negative values for green and positive values for red hues. Similarly, the b* value denotes blue/yellow color with negative values for blue and positive values for yellow. The instrument was calibrated against a standard white tile prior to measurements.

Dilatometry

The dimensional variations during heating were monitored by dilatometry technique using a Netzsch DIL 402 Expedis Supreme instrument. Small prismatic bars of dimension 10 × 5 × 50 mm were cut from fired specimens and subjected to controlled heating from 50°C to 1000°C at 5°C/min in an air atmosphere. The instantaneous linear expansion and shrinkage behavior was recorded along with temperature.

Fabrication and testing of fired specimens

The clay powder was mixed with 6 wt% water in a Hobart mixer for 10 min. It was shaped into 50 × 50 × 10 mm square specimens using uniaxial pressing at 100 MPa. The compacted bars were air dried overnight and fired to peak temperatures of 800°C, 900°C, 950°C, 1000°C, and 1050°C in an electric furnace (Nabertherm LHT 04/17) with 2 h soaking before cooling inside the furnace.

The fired specimens were characterized for linear firing shrinkage, water absorption, apparent porosity, bulk density, and flexural strength. Firing shrinkage was calculated as the percentage dimensional change after firing over the green size. Water absorption was measured as the percentage increase in weight after 24h immersion in water. Apparent porosity was measured by Archimedes principle using kerosene oil. The bulk density was determined as the ratio of fired weight to overall volume including pores. Three-point bend flexural strength testing was conducted on Instron 5500R machine at 0.5 mm/min crosshead speed using 40 mm span. An average of three measurements was recorded for each property.

Phase and microstructure analysis

The crystalline phases present in the fired specimens were determined by XRD analysis as described previously. SEM was also conducted to examine microstructural features and densification behavior. Small broken pieces from the fired bars were mounted on Al stubs, sputter coated with Au, and observed in a JEOL JSM-IT300 SEM operated at 20 kV in high-vacuum mode.

Results and discussion

The chemical analysis of the studied Chinese red clay as determined by XRF is presented in Table 1. The composition indicates that silica and alumina are the major constituents, with SiO₂ content of 63.25 wt% and Al₂O₃ of 21.38 wt%. This is expected for clay materials which are essentially alumino-silicates in nature. ¹⁶ The relatively high silica is likely contributed by free quartz, while alumina arises from the clay mineral phases. Among the common fluxing oxides, CaO is present at 2.15 wt% and loss on ignition is measured to be 6.12 wt%. The alkali oxides of Na₂O and K₂O are present in small amounts of 1.63 wt% and 1.82 wt%, respectively. An appreciable quantity of iron oxide at 6.18 wt% is also noted, which influences the firing color and phase transformations. ¹⁷ Compared with reported compositions, the chemistry of the investigated clay matches with typical Chinese red firing clays used for making bricks and tiles. ¹⁸

Table 1.

Chemical composition of the raw clay sample.

Oxide	Composition (wt%)
SiO2	63.25
Al2O3	21.38
Fe2O3	6.18
CaO	2.15
Na2O	1.63
K2O	1.82
TiO2	1.12
MgO	0.32
MnO	0.07
P2O5	0.08
SO3	0.12
LOI	6.12

The XRD pattern of the raw clay powder is shown in Figure 1. The identified crystalline phases are quartz, kaolinite, illite, and minor hematite. Major quartz is evident from the high-intensity peak at 2θ = 26.6° (RRUFF ID: R100134.9). Kaolinite shows basal reflection at 12.3° (RRUFF ID: R140004.1) and illite has peaks at 8.8° and 17.8° (RRUFF ID: R180024.1). ¹⁹ Small hematite traces are seen at 33.1° (104 plane) (RRUFF ID: R040024.1). The diffraction pattern indicates that the clay has a mixed quartzofeldspathic composition with kaolinite and illite-type clay minerals along with free quartz. Such mineral assemblage is typical of lightly weathered clays formed under moderate pH conditions. ²⁰ The quartz, kaolinite, and illite minerals are responsible for the red firing behavior as they promote vitrification and hematite crystallization at elevated temperatures around 950°C. ²¹

Figure 1.

X-ray diffraction pattern of raw clay powder.

The SEM micrographs revealing particle morphology of the studied clay are shown in Figure 2. The images indicate loosely held plate-like pseudohexagonal particles characteristic of kaolinite. ²² The 1–2 μm sized individual plates have smooth crystal face edges and form 5 to 10 μm sized larger agglomerates. At higher magnification, some dispersed finer equant quartz particles are also seen. The stacking of flaky kaolinite plates leads to a friable booklet and vermiform kaolinitic structures. ²³ The naturally formed layered book-like clusters result from face-to-face attachment of clay particles without engineered comminution. ²⁴ The morphology denotes medium crystallinity kaolinite favorable for decomposition and sintering at elevated firing temperatures.

Figure 2.

Scanning electron microscopy images of raw clay powder at 500× and 2000× magnification.

The DTA curve of the raw clay powder is shown in Figure 3. It displays an endothermic dip around 92°C indicating the loss of adsorbed surface moisture. This matches the ∼1.5% weight loss up to 200°C in the TG curve. An exothermic peak is observed at 508°C between 430°C and 600°C, corresponding to the dehydroxylation of clay mineral phases, mainly kaolinite transforming into metakaolinite ²⁵ :

$${\mathrm{Al}}_2{\mathrm{Si}}_2{\mathrm{O}}_5(\mathrm{OH}{)}_4\to \mathrm{A}{\mathrm{l}}_2{\mathrm{Si}}_2{\mathrm{O}}_7+2{\mathrm{H}}_2\mathrm{O}\uparrow$$

Figure 3.

Differential thermal analysis-thermogravimetric analysis curves of raw clay powder.

The ∼4% weight loss in this region results from the evolution of structural hydroxyl groups. Mass decrease continues up to 800°C with a total loss of ∼11% including desorption of interlayer water from illite. No other major reactions are observed in the raw clay up to 1000°C. The thermal behavior indicates the suitability of this clay for firing into ceramic bodies.

The physical properties of the studied Chinese red clay powder are summarized in Table 2. The particle size distribution shows 10% volume fraction below 2 μm, indicating the presence of substantial clay fraction. The 12.5 m²/g specific surface area measured by the Brunauer-Emmett-Teller (BET) method is typical for lightly weathered kaolinite-rich and quartz-rich clays. ²⁶ The 2.65 g/cm³ specific gravity also agrees with common clays having varied mineral phases. ²⁷ The physical attributes along with the chemical composition of the investigated raw material are ideal for preparing ceramic building products like bricks and roof tiles.

Table 2.

Physical properties of the clay powder.

Property	Value
Particle size < 2 μm	10%
Specific surface area	12.5 m2/g
Specific gravity	2.65 g/cm3

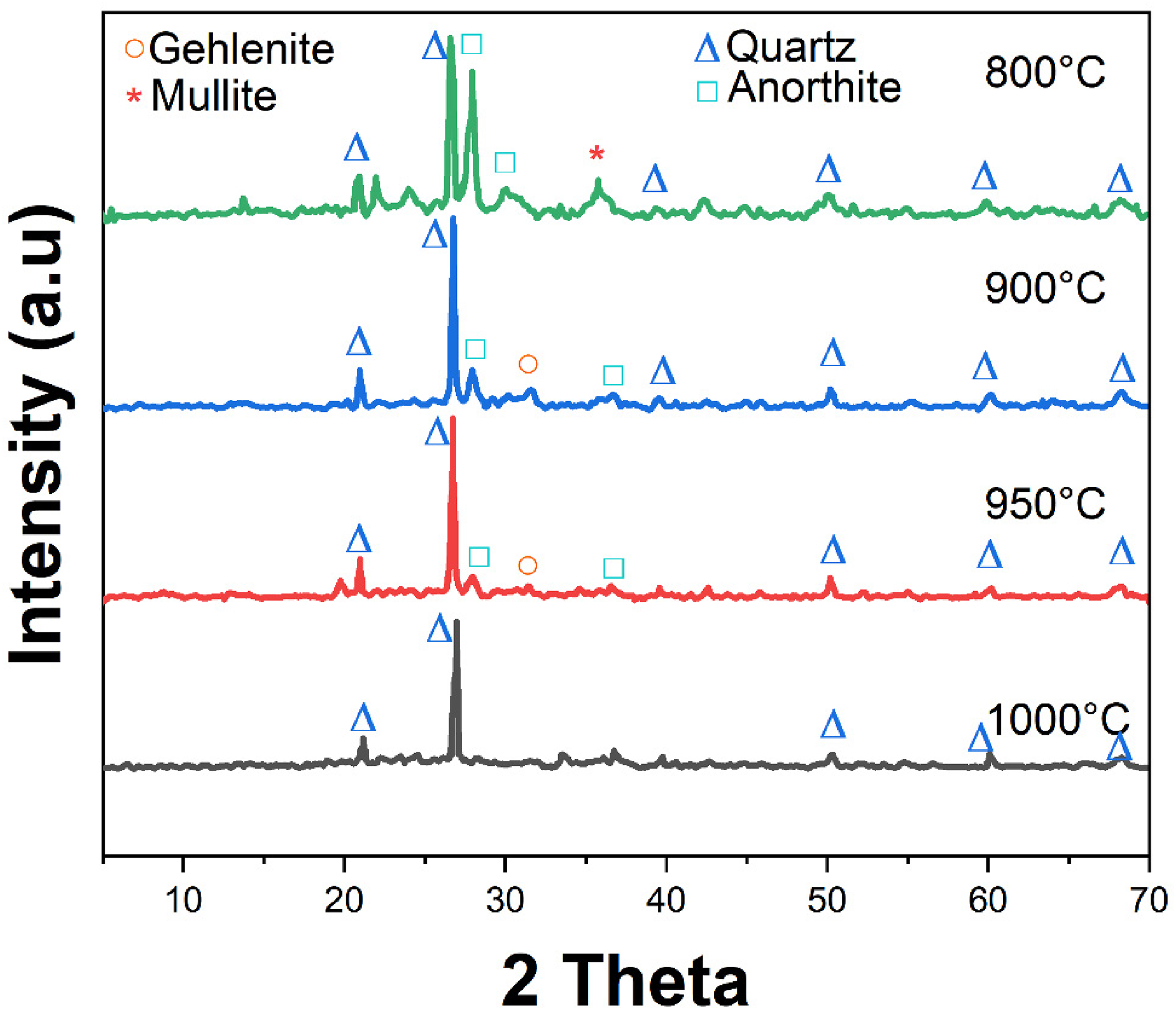

The XRD patterns of the clay specimens fired at 800°C, 900°C, 950°C, and 1000°C are shown in Figure 4. At 800°C, kaolinite and illite peaks disappear due to decomposition. Quartz is the major phase along with small amounts of mullite and hematite. Traces of anorthite phase are also seen which could have formed by reaction between the fluxing oxides and amorphous silica. At 900°C, increased crystallization of mullite and hematite is noted. The 26.6° quartz peak intensity reduces slightly indicating initial dissolution. At 950°C, a considerable change is seen with a significant reduction in quartz peak and enhancement of mullite and hematite peaks. The increased mullite formation promotes sintering and densification. At 1000°C, mullite becomes the predominant phase with minor quartz and hematite. This phase assemblage is responsible for the development of red burning dense ceramic body.

Figure 4.

X-ray diffraction patterns of fired clay specimens.

SEM micrographs of specimens fired at 800°C and 1000°C are presented in Figure 5. At 800°C, initial vitrification of clay particles is seen with semimolten regions joining angular quartz grains. The mullite needles formed by the decomposition of kaolinite are visible along with some unreacted clay stacks. Extensive sintering and enhanced densification due to liquid phase sintering have occurred at 1000°C. The microstructure shows good bonding between the quartz aggregates which are embedded in the vitreous matrix containing fine mullite crystals. The clay flakes have completely lost their shape or existence. The changes in phase composition and microstructure are well aligned with the expected behavior for red-firing illitic-kaolinitic clays. ²⁸

Figure 5.

Scanning electron microscopy micrographs of fired clay at 800°C and 1000°C.

Fired specimen color changed significantly with temperature rise as seen visually and in Lab* values (Table 3). At 800°C, the clay retained a pale red color close to raw material with L* of 60 indicating fair brightness. As the temperature increased above 900°C, darkening occurred by reducing L* to 33 and increasing positive a* denoting enhanced redness. This is attributed to increased hematite presence which controls the color hue. The b* parameter decreases suggesting a lowering of the yellow tint. The transformation to a deep red color results from the formation of iron-rich phases like hematite and its dispersion across the microstructure which modifies light absorption and reflection. ²⁹ The achieved darker red shade is characteristic of highly vitrified tiles and brick bodies fired under an oxidizing atmosphere.

Table 3.

Color parameters of fired clay specimens.

Temperature	L*	a*	b*
800°C	60	12	22
900°C	46	24	14
950°C	39	28	9
1000°C	33	35	5

The physical and mechanical properties of fired specimens measured at room temperature are summarized in Table 4. Gradual bulk density enhancement and apparent porosity reduction are seen with rising firing temperature due to increasing vitrification. The water absorption drops significantly between 900°C and 950°C indicating extensive liquid phase sintering. The total linear shrinkage after firing reaches a maximum of ∼12% at 1000°C which is acceptable for most clay ceramic applications. The mechanical strength shows continuous improvement with temperature rise due to the development of dense, vitrified, and sintered microstructure facilitated by the fluxing action of minor oxides. The flexural strength exceeds 35 MPa for the body fired at 1000°C reflecting its suitability for load-bearing building construction purposes like wall or floor tiles, brick, roofing elements, etc. ³⁰ The average 152 MPa compressive strength measured is nearly 4 times the flexural strength. The high magnitude indicates the outstanding load-bearing capacity delivered by the developed clay ceramic material owing to the phase transformations, liquid phase sintering, and densification occurring during the firing process. The overall technological characteristics of the fired clay sample are favorable for fabricating ceramic components for structural applications.

Table 4.

Properties of fired clay specimens.

Temperature	Bulk density (g/cm3)	Apparent porosity (%)	Water absorption (%)	Linear shrinkage (%)	Flexural strength (MPa)	Strength compressive (MPa)
800°C	1.78	34	18	8	16	72
900°C	1.92	30	14	10	21	95
950°C	2.05	20	9	11	29	119
1000°C	2.13	14	6	12	36	152

The dilatometric curve for the fired clay specimen in Figure 6 indicates the dimensional variations during a controlled heating cycle. After initial expansion up to 400°C due to thermal dilation, rapid high shrinkage is seen between 750°C and 900°C owing to sintering and viscous flow. The overall total linear shrinkage of ∼11% matches with the firing shrinkage data in Table 4. The shrinkage rate is maximum around 950°C corroborating the enhanced densification and mullite formation noted from the phase and microstructural studies. The curve provides useful insights regarding the ideal heating profile for firing clay ceramics in kilns to minimize defects and achieve high densification.

Figure 6.

Dilatometry curve of fired clay specimen.

The extensive characterization and firing tests conducted in this study indicate that the examined Chinese red clay exhibits properties consistent with standard brick clays and thus may be viable as a ceramic raw material for manufacturing bricks, roof tiles, and analogous structural components. Its chemical makeup, mineralogical phases, particle morphology, thermal behavior and fired ceramic properties correspond with published data on Chinese clays commercially utilized for fabricating structural clay goods. The principal criteria underscoring this clay's potential suitability for brick fabrication purposes are delineated below:

Silica and alumina content exceeding 60% indicates high refractoriness suitable for firing to ceramic bodies.

Optimum quantity of fluxing oxides (CaO + MgO + Fe₂O₃ + Na₂O + K₂O) around 12% promotes vitrification at 900–1000°C.

Iron oxide at 6% facilitates the formation of red hematite pigment above 900°C.

Presence of quartz, kaolinite, and illite is responsible for red firing behavior due to hematite nucleation.

Moderate surface area of 12.5 m²/g and particle size distribution containing 10%  < 2 μm fraction imparts adequate plasticity for shaping.

Specific gravity of 2.65 g/cm³ matches with typical brick clays containing varied mineral phases.

Initial dehydroxylation between 430°C and 600°C indicates suitability for firing structural products at 900–1100°C.

Absence of exothermic reactions in 800–1000°C range shows no risk of bloating which causes defects.

Total weight loss around 6% on firing up to 1000°C is acceptable for ceramic fabrication.

Color and appearance

• Reddish color development with dark and intense hue above 900°C due to dispersed hematite pigment.

• No black coring or light flashes indicate chemical homogeneity and stain-free texture.

• More than 10% total linear shrinkage provides dimensional stability during drying and firing.

• Bulk density exceeding 2.0 g/cm³ at 1000°C facilitates high-strength development.

• Water absorption dropping below 10% above 900°C denotes the progress of vitrification.

• Flexural strength >25 MPa at 900°C makes the product suitable for load-bearing structures.

The clay can be categorized as a low-to-medium grade brick clay considering its chemical purity and moderate firing temperature requirement. ³¹ Blending with superior pottery clays could improve the processing behavior during shaping and the properties after firing. Minor additions of fluxing agents, such as feldspar, may aid densification and allow tailoring of the firing temperature. The initial evaluation suggests this clay warrants further exploration for manufacturing conventional fired bricks, roofing tiles, wall tiles, and related ceramics, pending additional comprehensive processing trials.

The Winkler diagram presented in Figure 7 provides a graphical assessment of the investigated Chinese clay for potential applications based on its particle size distribution. ³² The clay, silt, and sand fractions determined via laser diffraction analysis are plotted on the ternary axes. Per this classification technique is widely utilized in the structural ceramics sector. ³³ The clay possesses an adequately high clay-sized fraction below 2 μm to provide sufficient plasticity for brick-making. ³⁴ The sand content over 20% however necessitates fine grinding and sieving before utilization in shaping. Overall, the Winkler criteria validate the suitability deduced from the characterization results.

Figure 7.

Winkler particle size distribution diagram.

Figure 8 depicts the chemical composition-based categorization of the clay on the Fiori diagram. The classification utilizes the silica, alumina, and fluxes content by mass plotted on the triangular axes. Evidently, the clay is situated in Zone D, designated for red-firing clays used to manufacture terracotta tiles and bricks. Its composition aligns with reported data on typical Chinese brick clays.^35–38 The 10–15% fluxing oxides content positions this clay at an intermediate between low and highly fusible clays, indicating moderate vitrification behavior during firing. This trend corroborates the firing temperature response observed experimentally. In summary, the location in Zone D per the Fiori classification further verifies the feasibility of utilizing this clay for structural ceramics production.

Figure 8.

Fiori chemical composition classification diagram.

Table 5 juxtaposes the compositional, thermal, and technical properties determined for the investigated Chinese red clay against recommended values for building bricks and roofing tiles per ASTM and Chinese GB standards. Evidently, most parameters satisfy the stipulated criteria for brick-making clays and fired bricks. The clay's chemistry, mineralogy, firing color and shrinkage, bulk density, and strength align with the suggested ranges. The 10–15% fluxing oxides promote vitrification within the 950–1050°C conventional firing range. This conformity to industrial specifications affirms that the clay merits consideration for the fabrication of standard clay bricks and related masonry components.

Table 5.

Comparison with standard specifications.

Property	Obtained value	Standards range
Silica	63%	50–70%
Alumina	21%	10–25%
Fluxing oxides	12%	10–20%
LOI	6%	<10%
Firing temperature	950–1000°C	900–1050°C
Fired color	Reddish	Reddish shades
Linear shrinkage	10–12%	8–15%
Bulk density	>2.0 g/cm3	1.8–2.2 g/cm3
Strength	>25 MPa	>20 MPa
Water absorption	<10%	<15%

LOI: Loss on Ignition.

Conclusion

The investigated Chinese red clay displays promising characteristics for fabricating ceramics and construction materials. The chemical composition, with adequate fluxing oxides, promotes viscous flow sintering within the 950–1050°C temperature regime, enabling effective densification. This facilitates strength development, with values of 20–40 MPa attained in test specimens fired up to 1050°C. The hematite imparts the desired red firing color, which intensifies at higher temperatures, while mullite and vitreous phase evolution boost densification and mechanical performance. However, the moderately high iron content renders the clay susceptible to overfiring defects, as evidenced by black coring at 1050°C. Hence, optimal firing temperatures are 950–1000°C for achieving well-sintered ceramic bodies with a rich red coloration. With proper drying and firing process controls, the clay shows potential for producing bricks, roof tiles, and wall tiles. These results provide new perspectives on the characterization and firing behavior of Chinese red clays from the Hunan province. Further work should emphasize approaches to enhance the firing color range and thermal stability via mineral additions and beneficiation.
