Abstract

Due to the complex and changeable train operation environment and the unstable and time-varying parameters, accurate modeling is limited. Therefore, a modified active disturbance rejection control algorithm based on feedforward compensation (FC-MADRC) is proposed targeting the speed control problem of trains under the circumstances of external disturbances, which reduces the dependence on the train model. Firstly, the state space equation is established based on the single-particle mathematical model of the train, and all the running resistances are regarded as disturbances. Secondly, the FC-MADRC algorithm is designed. Based on the terminal attractor function and the novel Sigmoid function, an improved tracking differentiator (ITD) is designed. An improved fal (nsfal) function with better smoothness is constructed by using the properties of the Dirac δ function, and an ameliorative nonlinear state error feedback (ANLSEF) and a modified extended state observer (IESO) are designed based on the nsfal function. Furthermore, based on the thought of PID, the integral term of error is introduced into ANLSEF for the nonlinear operation to reduce the steady-state error of train speed tracking. In order to promote the robustness and control accuracy of the system, the feedforward compensation term and disturbance compensation term are combined to perform dynamic compensation for disturbances in real time. Finally, the simulation is carried out with CRH380A train data. The results indicate that compared with conventional ADRC and 2DOF-PID, FC-MADRC has the more vital anti-disturbance ability and higher tracking accuracy. FC-MADRC has the advantages of solid anti-disturbance, fast response, and high tracking accuracy. Under the premise of external disturbance, it can still achieve accurate speed tracking under different road conditions.

Keywords

Automatic train operation speed tracking active disturbance rejection control feed-forward compensation Sigmoid function Dirac function

Introduction

As a fast, economical, stable, and safe mode of transportation, China's high-speed railway has developed rapidly in recent years.¹ By the end of 2022, the mileage of high-speed railways reached 42,000 km in China. At the end of 2019, Beijing-Zhangjiakou high-speed railway was opened, and automatic driving of the 350 km/h high-speed railway was realized for the first time. The application of automatic train operation (ATO) technology can improve operational efficiency, reduce energy consumption, reduce the burden on drivers, and improve the riding experience of passengers.² As one of the critical subsystems of the train control system, the ATO system (as shown in Figure 1) is responsible for controlling the braking and traction of high-speed trains (HST). Its most essential function is to control the velocity of HST, which is the basis for realizing the transportation security and automatic operation of HST.³ Therefore, it is essential to comprehend how to apply the ATO system to realize train velocity tracking in complicated environments.

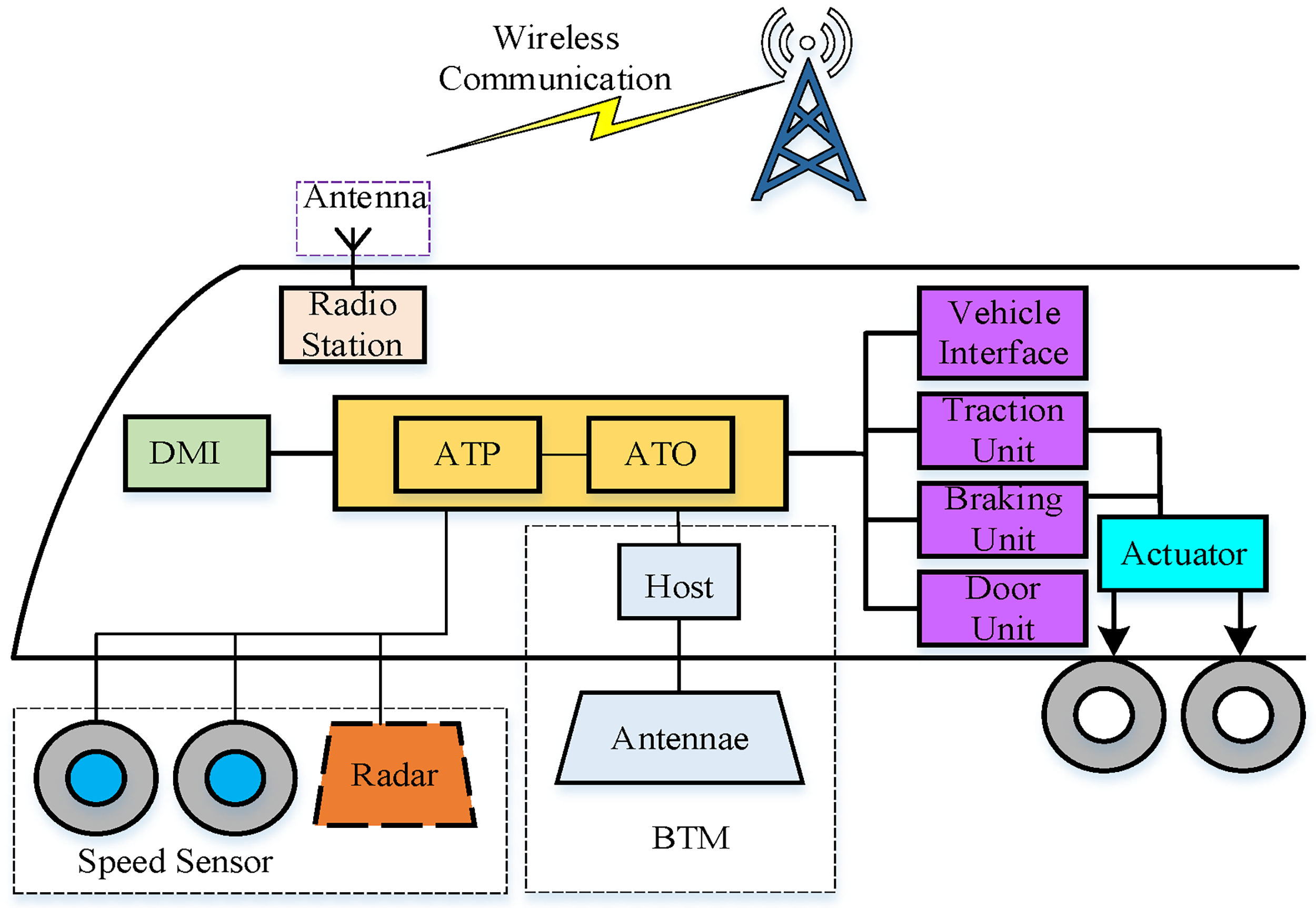

Figure 1.

Principle block diagram of ATO for high-speed train.

In recent years, the ATO algorithm has attracted extensive attention from scholars in engineering and academic fields. PID control was used based on intelligent optimization algorithms to control the velocity of the train.^4–6 In Ref. ⁷, a train speed control algorithm was proposed based on fractional order PID, improving comfort. The PID algorithm performs the speed tracking better and achieves a minor tracking error. However, it has poor robustness, anti-disturbance ability, and comfort in complex environments such as significant differences in vehicle parameters and external strong disturbance. Because fuzzy control has the advantages of good robustness and being easy to understand, and the design of fuzzy rules can be integrated into the prior human experience, many train control methods combined with fuzzy logic have emerged.^8–12 However, the establishment of fuzzy rules and membership functions relies too much on engineering experience, and it is not easy to adapt to the complex and changeable operating environment, which is not conducive to real-time tracking. MAO et al.¹³ proposed a new adaptive fault-tolerant sliding mode control scheme considering disturbance and actuator failure. Although sliding mode control^14–18 has a good tracking effect, it can easily produce a chattering phenomenon. Although some correction methods, such as the saturation function method, can effectively reduce the chattering phenomenon, they will sacrifice the advantage of outstanding anti-disturbance performance. In Ref. ¹⁹, a nonlinear model predictive control algorithm was designed to track the velocity curve accurately. In Ref. ²⁰, an improved Smith prediction method was applied to improve the tracking ability of deceleration. Although the above two methods can improve the control quality, the dependence on the accurate model needs to be lowered. Although the above two methods can improve the control quality, they rely too much on accurate models. In Ref. ²¹, an iterative learning method was used to track the desired speed curve of the train. This method improves the multi-point tracking accuracy by using the repeatability of the train motion and does not depend on the accurate model of the system. However, it has the disadvantages of blind selection of control law parameters and weak resistance to random non-repetitive disturbances. Yuan et al.³ considered stochastic disturbances and adopted the adaptive control strategy to track the speed gradually, which improved the robustness and transient performance of the train.

The above control methods have a satisfactory control effect. However, most control strategies are cumbersome to design, accurate models need to be constructed, and the anti-disturbance ability needs to be improved. The interference in the train operation environment is unknown and complicated, and the train has nonlinear characteristics. Accordingly, it is unrealistic to construct a precise mathematical model. It is imperative to devise a speed-tracking controller that does not rely upon the precise model and has high precision and strong anti-disturbance ability. HAN proposed an active disturbance rejection control (ADRC) formally based on the thought of error feedback of PID,²² which has been widely used in various fields^23–27 due to its excellent control performance. In Ref. ²⁸, aiming at the shortcoming of poor robustness of traditional PID under strong disturbance, the traditional ADRC was used for train speed control, which has the advantages of strong disturbance resistance and high tracking accuracy. In Ref. ²⁹, the improved particle swarm optimization algorithm was used to optimize the parameters of ADRC, which solved the problem of difficult parameter debugging. Aiming at the time delay problem of maglev train, Wang et al.³⁰ decomposed and optimized the ADRC structure and gave the parameter adjustment method under the equivalent model, which realized the accurate tracking of speed in different road sections. Liu et al.³¹ used BP neural network to adjust ADRC parameters adaptively and applied it to the speed control of a permanent magnet maglev train, which improved the robustness, stability and accuracy.

However, for the above ADRC train control method, the nonlinear function structure in the tracking differentiator (TD) is too complex, and the flutter phenomenon will exist by using the sign function. Although the fal function used in the extended state observer (ESO) is continuous, it is not derivable at the segmentation point and has no good smoothness. The derivative mutation will reduce the robustness of the observation system.

In summary, aiming at the speed control problem of trains running in complex environments and the defects of traditional ADRC, we design an improved active disturbance rejection speed controller for trains based on feedforward compensation (FC-MADRC) to ensure that the train can track the desired speed stably and accurately under the influence of various additional resistances and external disturbances. TD is improved by using an improved Sigmoid function. An ameliorative nonlinear state error feedback law (ANLSEF) and an improved ESO (IESO) are designed by using a smooth new fal function. To further improve the robustness of the system, feedforward compensation is added. Finally, the effectiveness of the improved ADRC for train speed control is verified by MATLAB.

Control mathematical model of the train

The train is affected by traction, braking force, additional resistance, and basic resistance. According to the single particle model of the train (as shown in Figure 2), the train control model is established as follows³²:

{\begin{matrix} \dot{x} = v \\ \begin{matrix} \dot{v} = c (u - w_{0} - w_{j} - o (\cdot)) \\ c = \frac{g}{1000 (1 + ρ)} \end{matrix} \\ w_{0} = r_{a} + r_{b} v + r_{c} v^{2} \\ w_{j} = w_{i} + w_{r} + w_{s} \end{matrix},

(1)

where x is the train displacement, v is the speed, c is the acceleration coefficient, u is the traction or braking force of the train, w₀ represents the basic resistance, w_j represents the additional resistance depending on the line, g is the gravitational acceleration, ρ represents the wheel rotation mass coefficient; r_a, r_b, r_c are the coefficients of the basic resistance, w_i is the additional resistance of the ramp, w_r is the additional resistance of the curve, w_s is the additional resistance of the tunnel. The train resistance will also be affected by falling leaves, subgrade settlement,^33,34 and extreme weather such as strong wind. The random resistance caused by the above factors is represented by o (·). Because o (·) has strong instability and randomness, we regard it as a part of external disturbance.

Figure 2.

Force diagram of a high-speed train in longitudinal motion.

According to Eq. (1), the train state equation is:

{\begin{matrix} \dot{x} = v \\ \dot{v} = c u - r_{a} c - r_{b} c v - r_{c} c v^{2} - c w_{j} - c \cdot o (\cdot) + ψ (t) \end{matrix},

(2)

where u is the control variable, and ψ(t) is the given external disturbance. The total external disturbance of the system is w(t) = ψ(t)-co(·), then the total disturbance f of the system is as follows:

f = x_{3} (t) = - r_{a} c - r_{b} c v - r_{c} c v^{2} - c w_{j} + w (t),

(3)

Extend f to a new state x₃, then Eq. (2) is rewritten as:

{\begin{matrix} {\dot{x}}_{1} = x_{2} \\ \begin{matrix} {\dot{x}}_{2} = x_{3} + b_{0} u \\ {\dot{x}}_{3} = \dot{f} = w_{0} (t) \\ y = x_{1} \end{matrix} \end{matrix},

(4)

where x₁ = x, x₂ = v, x₃ = f, b₀ is the adjustable control gain or compensation factor, y is the system output.

The control objectives of this paper are as follows:

For system (2) with external disturbance, the ITD is designed to arrange the transition process, and the IESO is constructed to observe the total disturbance in real time. An improved ADRC control algorithm based on feedforward compensation is designed to realize the accurate tracking of the expected speed of the high-speed train under external disturbance and complex road conditions.

Design of FC-MADRC speed controller

The control structure of FC-MADRC is shown in Figure 3, which mainly includes:

ITD: improved tracking differentiator based on the terminal attractor function and the modified Sigmoid function.

IESO: improved extended state observer based on a new smooth approximation function of the fal function.

ANLSEF: ameliorative nonlinear state error feedback law introducing error integral term and new smooth approximation function of the fal function.

FC: feedforward compensation.

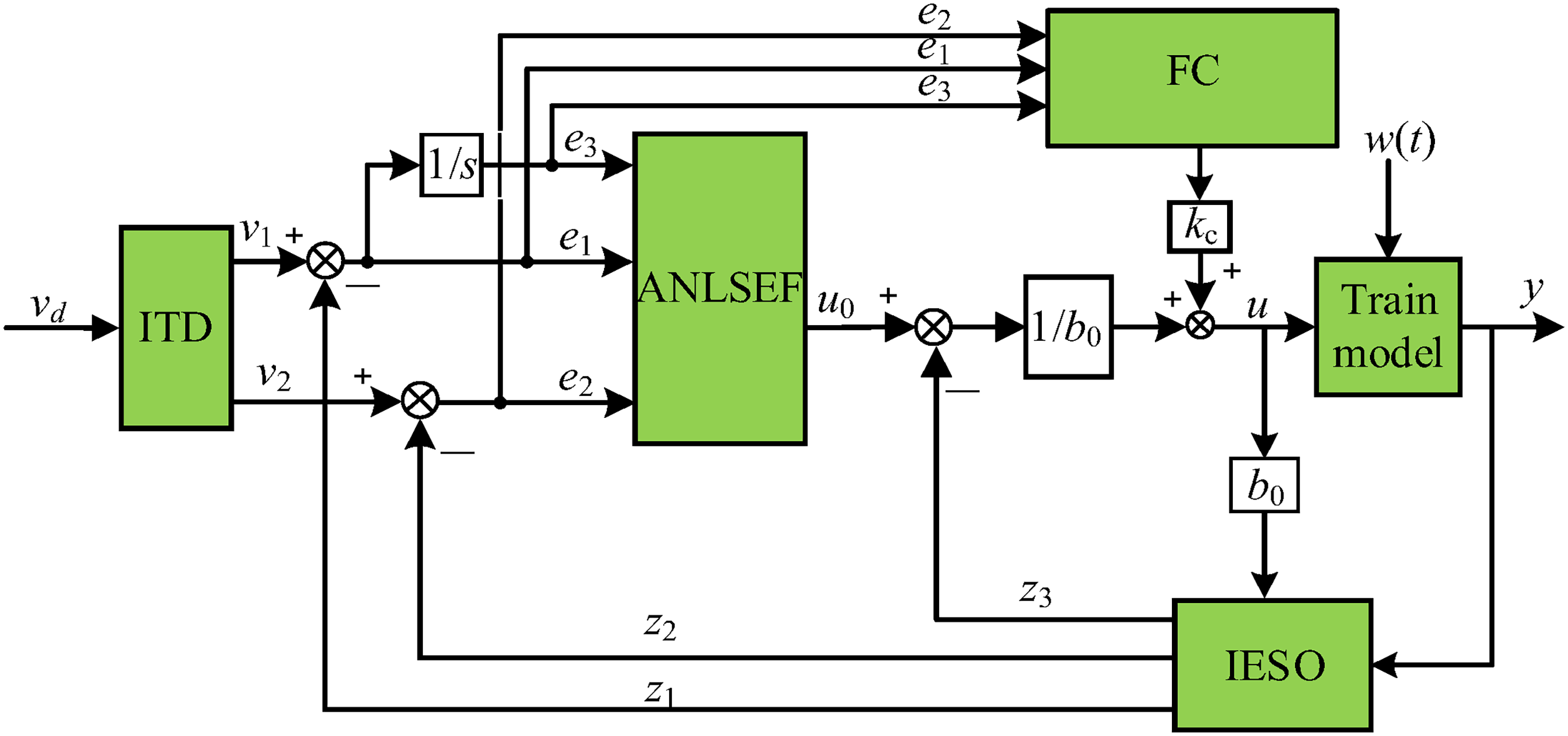

Figure 3.

Structure diagram of FC-MADRC.

Novel tracking differentiator design

Improved sigmoid function

The classical nonlinear TD (NLTD) and linear TD (LTD) in Eqs. (5) and (6) are as follows, respectively.

{\begin{matrix} u = f h a n (v_{1} (k) - v_{d} (k), v_{2} (k), r_{0}, h_{0}) \\ v_{1} (k + 1) = v_{1} (k) + h v_{2} (k) \\ v_{2} (k + 1) = v_{2} (k) + h u \end{matrix}

(5)

{\begin{matrix} v_{1} (k + 1) = v_{1} (k) + h v_{2} (k) \\ v_{2} (k + 1) = v_{2} (k) + h r^{2} (- a_{0} (v_{1} (k) - v_{d} (k)) - a_{1} v_{2} (k) / r) \end{matrix}

(6)

where v_d is the expected input, h is the sampling period, r is the speed factor, h₀ is the filtering factor, fhan(x₁, x₂, r₀, h₀) is the fastest synthesis function, the expression is:

{\begin{matrix} d = r_{0} h_{0}^{2} \\ a_{0} = h_{0} x_{2} \\ y = x_{1} + a_{0} \\ a_{1} = \sqrt{d (d + 8 | y |)} \\ a_{2} = a_{0} + s i g n (y) (a_{1} - d) / 2 \\ s_{y} = (s i g n (y + d) - s i g n (y - d)) / 2 \\ a = (a_{0} + y - a_{2}) s_{y} + a_{2} \\ s_{a} = (s i g n (a + d) - s i g n (a - d)) / 2 \\ f h a n = - r_{0} (a / d - s i g n (a)) s_{a} - r_{0} s i g n (a) \end{matrix}

(7)

The traditional nonlinear tracking differentiator using the sign function will have a flutter phenomenon, and its structure is complex. Although the conventional linear tracking differentiator has a simple structure, it loses the excellent quality of nonlinear characteristics.

The sigmoid function³⁵ is often used as the activation function of the neural network, which has the characteristics of smoothness, boundedness, and monotonicity. The Sigmoid function is improved by introducing an exponential factor to adjust the width of the approximate linear interval. The expression of the improved Sigmoid function is given:

i s i g (a x) = 2 (1 + e^{- 2 a x})^{- 1} - 1

(8)

where a is a constant. The function isig(ax) satisfies the following properties:

{\begin{matrix} (i s i g (a x))^{'} > 0 i s i g (- a x) = - i s i g (a x) \\ lim_{x \to - \infty} i s i g (a x) = - 1, lim_{x \to + \infty} i s i g (a x) = 1 \\ x > 0 \to i s i g (a x) > 0, x < 0 \to i s i g (a x) < 0 \end{matrix}

(9)

Let Eq. (8) be expanded by Taylor at zero point, one obtains

\begin{aligned} i sig (a x) = i sig (a x) |_{x = 0} + i sig (a x)^{'} |_{x = 0} (x - 0) + \frac{i sig (a x)^{″} |_{x = 0}}{2!} (x - 0)^{2} + \dots + R_{n} (x) \\ = a x - \frac{{(a x)}^{3}}{3} + o (x^{3}) \end{aligned}

(10)

According to Eq. (10), when x→0, isig(ax) exhibits linear characteristics. The smaller the value of a, the wider the approximate linear interval.

Novel tracking differentiator

Lemma 1.³⁶ Consider the following system ∑₀

{\begin{matrix} {\dot{z}}_{1} = z_{2} \\ {\dot{z}}_{2} = g (z_{1}, z_{2}) \end{matrix}

(11)

If the solution of Eq. (11) satisfies

lim_{t \to \infty} z_{1} (t) = 0, lim_{t \to \infty} z_{2} (t) = 0

(12)

then for any integrable and bounded signal v_d(t), and T > 0, R > 0, the system ∑₁

{\begin{matrix} {\dot{x}}_{1} = x_{2} \\ {\dot{x}}_{2} = R^{2} g (x_{1} - v_{d} (t), x_{2} / R) \end{matrix}

(13)

satisfies

lim_{R \to \infty} \int_{0}^{T} | x_{1} (t) - v_{d} (t) | d t = 0

(14)

The specific form of the function g (·) in Eq. (11) is designed as follows:

\bar{g} (z_{1}, z_{2}) = - κ_{1} | z_{1} |^{ϑ} i s i g (a z_{1}) - κ_{2} | z_{2} |^{ϑ} i s i g (z_{2})

(15)

where κ₁ > 0, κ₂ > 0, a > 0, 0 < ϑ<1.

{| \cdot |}^{ϑ}

is the terminal attractor function used to weaken the chattering.

Theorem 1

Given system ∑₂

{\begin{matrix} {\dot{z}}_{1} = z_{2} \\ {\dot{z}}_{2} = - κ_{1} {| z_{1} |}^{ϑ} i s i g (a z_{1}) - κ_{2} {| z_{2} |}^{ϑ} i s i g (z_{2}) \end{matrix}

(16)

System ∑2 is globally asymptotically convergent at the equilibrium point (0,0).

Proof of Theorem 1

Select

V (z_{1}, z_{2}) = \int_{0}^{z_{1}} {κ_{1} | ς |}^{ϑ} i s i g (a ς) d ς + \frac{1}{2} z_{2}^{2}

(17)

as a Lyapunov function. Combined with the properties in Eq. (9), one obtains

V (z_{1}, z_{2}) \geq 0

(18)

Only when z₁ = 0, z₂ = 0, then V (z₁, z₂) = 0. Finding the derivative of Eq. (17) yields

\begin{aligned} \dot{V} (z_{1}, z_{2}) = κ_{1} | z_{1} |^{ϑ} i s i g (a z_{1}) {\dot{z}}_{1} + z_{2} {\dot{z}}_{2} \\ = κ_{1} | z_{1} |^{ϑ} i s i g (a z_{1}) z_{2} + z_{2} (- κ_{1} | z_{1} |^{ϑ} i s i g (a z_{1}) - κ_{2} | z_{2} |^{ϑ} i s i g (z_{2})) \\ = - κ_{2} z_{2} | z_{2} |^{ϑ} i s i g (z_{2}) \leq 0 \end{aligned}

(19)

where,

\dot{V} (z_{1}, z_{2}) = 0

only when z₁ = z₂ = 0. According to the second Lyapunov theorem, ∑₂ is globally asymptotically stable.

Based on Lemma 1 and Theorem 1, an improved tracking differentiator (ITD) in the following discrete form can be obtained.

\begin{aligned} {\begin{matrix} v_{1} (k + 1) = v_{1} (k) + h v_{2} (k) \\ \begin{matrix} v_{2} (k + 1) = v_{2} (k) + h R^{2} \bar{g} (v_{1} - v_{d} (t), v_{2} / R) \\ = - κ_{1} | v_{1} - v_{d} (t) |^{ϑ} i s i g [a (v_{1} - v_{d} (t))] - κ_{2} | v_{2} / R |^{ϑ} i s i g (v_{2} / R) \end{matrix} \end{matrix} \end{aligned}

(20)

where v₁ is the tracking signal of v_d, v₂ is the differential signal of v_d, h is the sampling period; R is the velocity factor. The noise amplification factor is proportional to hR². Under certain conditions, as R increases, the tracking rate becomes faster, and the noise amplification is enhanced, which can be compensated by a small h value. The function of κ₁ is similar to that of R. Improving the value of κ₁ can improve the tracking and differential accuracy, but it will sacrifice the ability to suppress noise. Increasing the value of κ₂ can improve the ability of the system to suppress noise, but it will affect the response speed. The value of ϑ has a great influence on noise. Increasing ϑ will significantly improve the ability to suppress noise, but the tracking error will also increase. Increasing the parameter a can improve the tracking accuracy of the tracking differentiator to a certain extent, which can be regarded as a fine-tuning quantity in parameter design. The parameter tuning rules can be summarized as follows:

Firstly, select the appropriate value of a. Secondly, the value of ϑ is placed at a smaller value, and then after adjusting the appropriate R, κ₁ and κ₂ are fine-tuned to adjust the differential and tracking effects. Finally, the value of ϑ is adjusted to achieve the optimal noise suppression capability of the system.

ITD exhibits linear characteristics when the state is close to the equilibrium point, which can weaken the chattering. It exhibits nonlinear characteristics when the state is far from the equilibrium point, which can accelerate the convergence speed.

To verify the improved performance of ITD, it is compared with LTD and NLTD when the speed factor R is the same. In Simulink, the “Repeating Sequence” module is applied to generate a triangular wave signal, and the “Sine Wave” module and “Sign” module are employed to generate a square wave signal. Ulteriorly, they are used as the input signal of TD for simulation. The “Band-Limited White Noise” module is adapted to generate a white noise signal and is added to the input signal to verify the filtering ability of ITD. In the noise module, the parameter values of noise power and sample time are set to 10⁻¹⁰ and 0.001, respectively. The mean value of the noise signal generated by the band-limited white noise module is zero.

When the input signal is a triangular wave, the performance comparison of various TDs is shown in Figures 4 and 5. It can be seen from Figure 4 that ITD has the highest tracking accuracy while LTD has the worst tracking performance. From Figure 5, we observe that NLTD produces obvious chattering due to the use of the sign function. Compared with NLTD, LTD has slightly smaller chattering but noticeable overshoot and the slowest response speed. ITD has the smoothest differential signal and the fastest response speed, showing good differential and filtering performance. The noise suppression ability of ITD is the best because the acceleration function of ITD is designed by a continuous function, and the addition of a terminal attractor function further suppresses the effect of noise.

Figure 4.

Comparison of tracking effect when the reference input is triangular wave.

Figure 5.

Comparison of differential effect when the reference input is a triangular wave.

When the input signal is a square wave, the power spectral density of white noise is increased, and the parameter value of Noise power is set to 10⁻⁵. The performance comparison of various TDs is illustrated in Figures 6 and 7. It can be observed from Figure 6 that ITD also has a good filtering effect on the tracking signal, and ITD achieves fast-tracking of the square wave signal with almost no overshoot. From Figure 7, we observe that the differential signal of ITD has almost no chattering. In summary, the ITD we designed in this paper has good tracking and differentiation performance, as well as noise suppression ability.

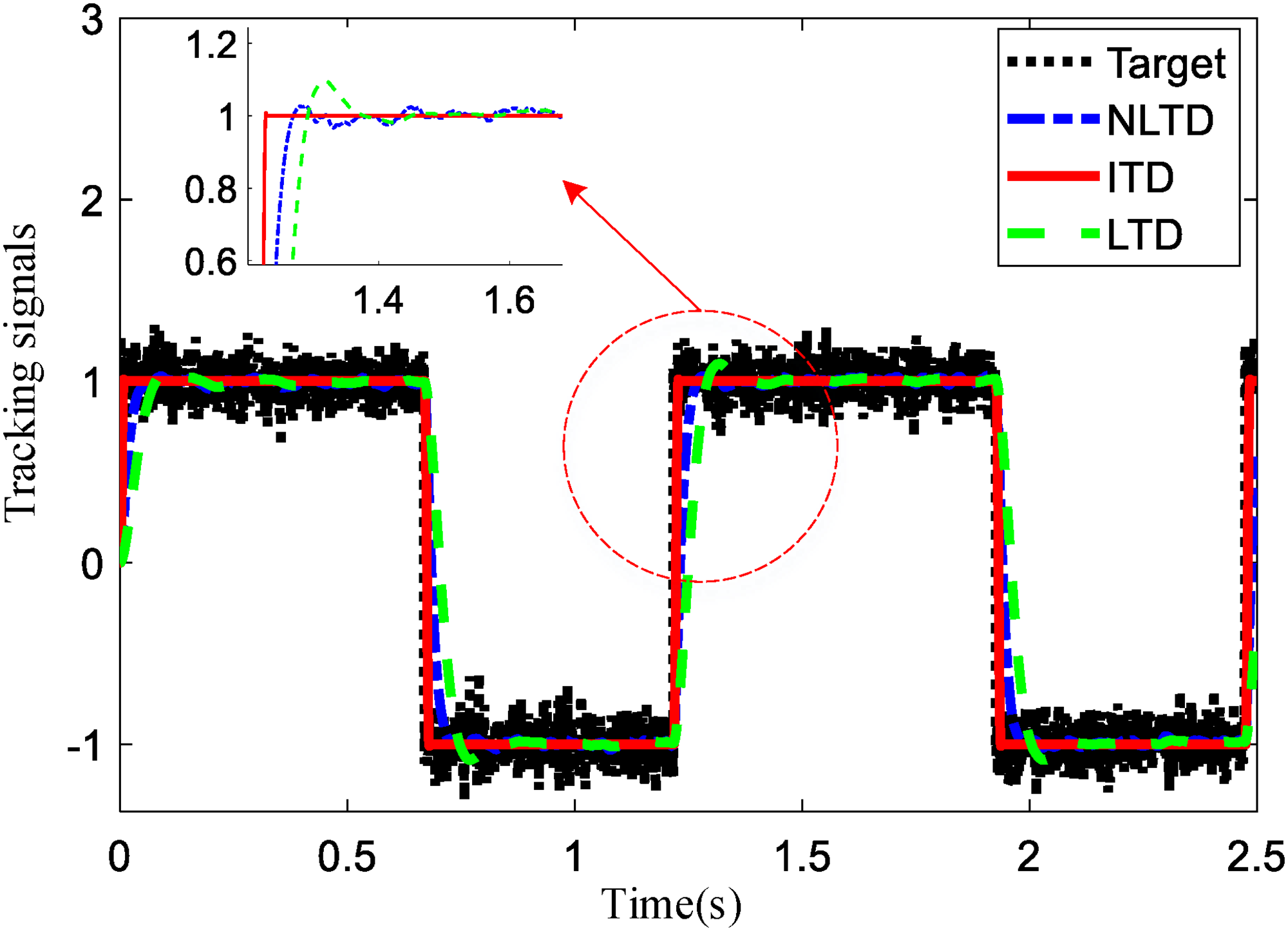

Figure 6.

Comparison of tracking effect when the reference input is a square wave.

Figure 7.

Comparison of differential effect when the reference input is a square wave.

Novel extended state observer

The extended state observer (ESO) is the core of ADRC, which is mainly used to estimate the total disturbance. Linear ESO (LESO) has an inherent peak effect, and ESO designed by Professor Han Jingqing can achieve smoother and more accurate total disturbance estimation by introducing a nonlinear function fal (·) to better suppress the peak effect. The ESO expression based on the fal function is:

{\begin{matrix} e = z_{1} - y \\ {\dot{z}}_{1} = z_{2} - β_{01} e \\ {\dot{z}}_{2} = z_{3} - β_{02} f a l (e, α_{01}, δ_{0}) + b_{0} u \\ {\dot{z}}_{3} = - β_{03} f a l (e, α_{02}, δ_{0}) \end{matrix}

(21)

where the expression of fal function is:

f a l (e, α_{i}, δ) = {\begin{matrix} \frac{e}{δ^{1 - α_{i}}}, | e | \leq δ \\ {| e |}^{α_{i}} s i g n (e), | e | > δ \end{matrix}

(22)

Novel fal function

The characteristics of nonlinear functions in ESO directly affect its observation performance, which in turn affects the performance of the control system. The selection of nonlinear functions should follow the following principles³⁷:

The function is symmetrical about the origin and can be derived everywhere.

The curve has good continuity, convergence, and smoothness.

Large gain is used when there is a small error, and small gain is used when there is a large error.

Although the fal function is continuous, it is not derivable at the segmentation point and has no good smoothness. The abrupt derivative will reduce the robustness and observation ability of the observation system.

Given the above problems, we use the Dirac δ function³⁸ widely used in physics to smooth the fal function. The Dirac δ function is a generalized function, proposed by the German mathematician G.Dirac, which is commonly used in physics to represent the density distribution of ideal models such as particle and point charge. The Dirac function satisfies the following condition:

lim_{n \to \infty} \int_{- \infty}^{+ \infty} δ_{n} (x) d x = 1

(23)

For any given interval (a, b) which does not contain zero, we have

lim_{n \to \infty} \int_{a}^{b} δ_{n} (x) d x = 0

(24)

A property of the Dirac function is shown below:

\int_{- \infty}^{+ \infty} f (x) δ (x - x_{0}) d x = f (x_{0})

(25)

If the smooth approximation function of δ(x) is μ(x), we obtain

h (x) = \int_{- \infty}^{+ \infty} f (y) μ (y - x) dy \approx f (x)

(26)

The smooth approximation function of the Dirac function has many expressions. We choose the following form of Gaussian pulse:

δ (x) = \frac{1}{ε \sqrt{π}} e^{- x^{2} / ε^{2}}, ε \to 0^{+}

(27)

From (26), a new smooth approximation function of fal function (nsfal) is obtained:

n s f a l (x, α, δ) = \int_{- \infty}^{+ \infty} \frac{1}{ε \sqrt{π}} e^{- {(x - y)}^{2} / ε^{2}} f a l (y, α, δ) d y \approx f a l (x, α, δ)

(28)

Taking δ = 0.05, α = 0.25, ε = 0.01 for simulation. Figures 8 and 9 present the characteristic curves and error gain curves of the two functions, respectively. It can be seen from Figure 8 that the fal function is obviously not derivable at the segmentation point, the nsfal function is derivable at the segmentation point, and the curve is smoother. From Figure 9, we can observe that both functions meet the following requirements: small gain is used when a large error. Near the origin, since the fal function is in the linear interval, the error gain remains unchanged, and the error gain of the nsfal function is more considerable and does not increase too much. The nsfal function is more consistent with the mechanism: significant gain is used when there is a small error and the gain control effect is better, which improves the rapidity and observation accuracy of the system.

Figure 8.

Function characteristic curve.

Figure 9.

Error gain curve.

Novel ESO based on nsfal function

By replacing the fal function in (21) with nsfal function, the form of improved ESO can be obtained:

{\begin{matrix} e = z_{1} - y \\ {\dot{z}}_{1} = z_{2} - β_{01} e \\ {\dot{z}}_{2} = z_{3} - β_{02} n s f a l (e, α_{01}, δ_{0}) + b_{0} u \\ {\dot{z}}_{3} = - β_{03} n s f a l (e, α_{02}, δ_{0}) \end{matrix}

(29)

where 2δ₀ is the length of the approximate linear interval of the nsfal function. If δ₀ is too large, the nsfal function will lose the effect of non-smooth feedback, and if δ₀ is too small, the system will oscillate near the origin. Generally, δ₀ is taken as 0.01. α₁ and α₂ are nonlinear factors. Usually, take α₁ = 0.5, α₂ = 0.25. The gain coefficients β₀₁, β₀₂ and β₀₃ are preliminarily tuned using the following empirical formulas³⁹ and then adjusted according to the actual observation effect.

{\begin{matrix} β_{01} = 3 ω_{0} \\ β_{02} = 3 ω_{0}^{3} / 5 \\ β_{03} = ω_{0}^{3} / 9 \end{matrix},

(30)

where the more incredible the ω₀, the better the estimation effect. As we can observe from Figure 10, when ω₀ is given, increasing β₀₃ properly can improve the accuracy of disturbance estimation in a steady state (when β₀₃ = ω₀³, the accuracy of disturbance estimation is the highest), but it is easy to cause oscillation and overshoot of disturbance estimation value, so β₀₃ = ω₀³/9 is taken to reduce oscillation (in this case, the accuracy of disturbance estimation is reduced). If the estimation accuracy is poor, the value of β₀₃ or ω₀ can be appropriately increased according to the actual application effect.

Figure 10.

Influence of the value of β₀₃ on the performance of disturbance estimation.

Analysis of convergence conditions of improved ESO

When the external disturbance is not considered, the observation error equation is obtained by combining Eqs. (4) and (29) as follows:

\dot{e} = - A (e) e,

(31)

where

\begin{aligned} A (e) = [\begin{matrix} β_{01} & - 1 & 0 \\ β_{02} \frac{n s f a l (e, α_{01}, δ_{0})}{e} & 0 & - 1 \\ β_{03} \frac{n s f a l (e, α_{02}, δ_{0})}{e} & 0 & 0 \end{matrix}] \\ B = β_{01} β_{02} H_{1} - β_{03} H_{2} \end{aligned}

(32)

For the convenience of representation, let H_i = nfal(e,α_0i,δ)/e, B = β₀₁β₀₂H₁ − β₀₃H₂. According to the characteristics of nsfal function in Figure 2, we know that H_i >0. When B > 0, there exists the following D matrix in Eq. (33) such that DA (e) is symmetric positive definite.

D = [\begin{matrix} 1 & \frac{β_{02} H_{1}}{B} + σ_{1} & - ε \\ - \frac{β_{02} H_{1}}{B} - σ_{1} & ε & \frac{1}{B} + σ_{2} \\ ε & - \frac{1}{B} - σ_{2} & ε \end{matrix}]

(33)

where σ₁, σ₂, are positive infinitesimals.

The Lyapunov function is constructed as follows:

V (t) = \int_{0}^{t} (D A (e) e, \dot{e}) d t + C_{0}

(34)

where C₀ is a constant. Expand the above equation to get

\begin{aligned} V (t) = \int_{0}^{t} ((D A (e) e)^{T} \dot{e}) d t + C_{0} \\ = - \int_{0}^{t} [(β_{01} e_{1} - e_{2})^{2} + ε (β_{02} H_{1} - e_{3})^{2} + ε (β_{03} H_{2})^{2}] d t + C_{0} \\ \approx - \int_{0}^{t} (β_{01} e_{1} - e_{2})^{2} d t + C_{0}, \end{aligned}

(35)

At the equilibrium state, e₁, and e₂ are bounded, then

\int_{0}^{t} {(β_{01} e_{1} - e_{2})}^{2}

is bounded in finite time. Therefore, V(t) > 0 as C₀ is undoubtedly large. Finding the derivative of Eq. (34) yields

\dot{V} (t) = - (β_{01} e_{1} - e_{2})^{2} - ε (β_{02} H_{1} - e_{3})^{2} - ε (β_{03} H_{2})^{2} \leq 0,

(36)

Therefore, when B > 0 is satisfied, the zero solution of Eq. (31) is asymptotically stable in the sense of Lyapunov. At this moment, the improved ESO based on nsfal function is convergent, that is, the observer states z₁, z₂, and z₃ can track x₁, x₂, and x₃. When the disturbance value increases, the disturbance estimation ability can be enhanced by increasing the value of the gain coefficient β₀₃. However, if β₀₃ is blindly increased while β₀₁ and β₀₂ remain unchanged, the conditions of B > 0 may not be satisfied, and the observation error cannot converge to a steady state. Therefore, when the disturbance becomes larger, three gain parameters of ESO need to be increased synchronously to meet the convergence condition.

The following step input signal is used to preliminarily verify the improvement effect of the improved ESO (IESO). Under the premise that the gain coefficients are the same, the traditional ESO and IESO in Eqs. (21) and (29) are compared. The comparison of disturbance observation results for different ESOs is illustrated in Figure 11. It can be observed that IESO has a faster disturbance estimation speed and smaller error peak compared with traditional ESO. All in all, IESO has better disturbance estimation performance.

Figure 11.

Comparison of disturbance estimation performance for different ESOs. (a) Disturbance estimation; (b) Estimation error.

Design of improved nonlinear state error feedback

The nonlinear state error feedback (NLSEF) of traditional ADRC is:

{\begin{matrix} e_{1} = v_{1} - z_{1} \\ e_{2} = v_{2} - z_{2} \\ u_{0} = μ_{1} f a l (e_{1}, α_{11}, δ) + μ_{2} f a l (e_{2}, α_{12}, δ) \end{matrix},

(37)

Inspired by the idea of PID control,⁴⁰ we analogize the parameters μ₁ and μ₂ to the proportional and differential coefficient of PID. Based on the traditional error feedback law, the integral term of error is introduced for nonlinear operation, and the parameter μ₂ is analogized to the integral coefficient of PID. The integral link we added, whose function is analogous to the integral adjustment function in PID, can improve the steady-state performance and train speed tracking accuracy. Besides, the nsfal function in Eq. (28) is introduced, and an ameliorative NLSEF (ANLSEF) is designed. ANLSEF is shown in Eq. (38):

{\begin{matrix} e_{1} = v_{1} - z_{1} \\ e_{2} = v_{2} - z_{2} \\ e_{3} = \int_{0}^{t} e_{1} (τ) d τ \\ \begin{matrix} u_{0} = μ_{1} n s f a l (e_{1}, α_{11}, δ) + μ_{2} n s f a l (e_{2}, α_{12}, δ) + μ_{3} n s f a l (e_{3}, α_{13}, δ) \\ u_{1} = \frac{u_{0} - z_{3}}{b_{0}} \end{matrix} \end{matrix},

(38)

where μ₁, μ₂, μ₃, α₁₁, α₁₂, α₁₃ are adjustable parameters. The functions of μ₁, μ₂, and μ₃ are the same as those of proportional, differential, and integral coefficients in PID control. The setting requirements of δ are the same as those of δ₀ of ESO. α₁₁, α₁₂, α₁₃ satisfy the following conditions: 0 < α₁₃ < α₁₁ < 1 < α₁₂. Usually take α₁₃ = 0.25, α₁₁ = 0.75, α₁₂ = 1.5.

Design of feedforward compensation

The system is transformed into an integrator series structure when the conventional ADRC can accurately estimate the total disturbance. However, there may be estimation errors in practice, resulting in disturbance in the double integrator structure. To improve the robustness and control accuracy of the system, a feedforward compensation term is added to the disturbance compensation control u₁ in (38) to further compensate for the disturbance in real-time, which can better suppress the internal and external disturbances. The feedforward compensation is designed as follows:

{\begin{matrix} a = k_{c} (e_{1} + e_{2} + e_{3}) \\ e_{1} = v_{1} - z_{1} \\ e_{2} = v_{2} - z_{2} \\ e_{3} = \int_{0}^{t} e_{1} (τ) d τ \end{matrix}

(39)

where k_c is the coefficient of feedforward compensation. Combining Eqs. (38) and (39), the final total compensation control quantity is obtained

u = u_{1} + a = \frac{u_{0} - z_{3}}{b_{0}} + a,

(40)

Finally, the controlled system is transformed into:

\ddot{y} = f + b_{0} u = f + b_{0} (a + \frac{u_{0} - z_{3}}{b_{0}}) = u_{0} + b_{0} a + (f - z_{3}),

(41)

It can be seen from Eq. (41) that when the observer has a disturbance estimation error, that is, f≠z₃, the feedforward compensation term plays the role of disturbance compensation, which can offset part of the disturbance estimation error and improve the control accuracy.

Simulation results and discussion

To verify the performance of the designed FC-MADRC, the CRH380A high-speed train is selected as the research object for simulation and comparison. The train parameters are shown in Table 1.

Table 1.

Basic parameters of CRH380A train.

Parameters	Value	Unit
Formation type	6M2T	-
Length of train	203	m
Maximum mass	452.3(AW2)	t
Curb weight	411.4(AW0)	t
Maximum operating speed	380	km/h
Rotary mass coefficient	0.11	-
Current-receiving voltage	25(50 Hz)	kV
Unit basic resistance	0.16 + 0.0053v + 0.00018v²	N/KN

“-” represents no unit

The state space equation of the CRH380A train is:

{\begin{matrix} {\dot{x}}_{1} = v \\ \dot{v} = 0.00883 u - 0.0014 - 0.0004 v - 0.0001 v^{2} - 0.00883 w_{j} + d (t) \end{matrix}

(42)

The selected target velocity reference trajectory is shown in Eq. (43):

v = {\begin{matrix} - 0.00075 t^{2} + 3 t, 0 \leq t \leq 200 \\ 300, 200 < t \leq 1200 \\ - 0.002 t^{2} + 4.8 t - 2580, 1200 < t \leq 1300 \\ 280, 1300 < t \leq 1400 \\ 0.28 t - 112, 1400 < t \leq 1600 \\ 336, 1600 < t \leq 2400 \\ - 0.0009 t^{2} + 4.3 t - 4800, 2400 < t \leq 3000 \end{matrix}

(43)

The Materials Taking d(t) = 1.1sin (0.77t), the following additional resistance F_wj is used to simulate the line conditions change.

F_{w_{j}} = {\begin{matrix} w_{e} + w_{s}, t \in [0, 400) \\ w_{e} + w_{s} + w_{r}, t \in [400, 1000) \\ w_{e} + w_{s} + w_{r} + o (\cdot), t \in [1000, 1800) \\ w_{s} + w_{r} + o (\cdot), t \in [1800, 2400) \\ w_{r}, t \in [2400, 3000] \end{matrix}

(44)

The calculation formulas of various additional resistances are as follows:

{\begin{matrix} w_{e} = 0.000131 l_{e} M g / 10^{3} \\ w_{r} = M g \sin θ \\ w_{s} = 10.5 α_{s} M g / (1000 l_{s}) \\ o (\cdot) = 50 \sin (0.02 v t) \end{matrix}

(45)

where l_e is the length of the tunnel, M is the mass of the train, g is the acceleration of gravity, θ is the slope angle, α_s is the center angle of the curve, and l_s is the length of the curve. Line parameters are selected as l_e = 5000m, θ = π/180rad, α_s = 2π/3rad, l_s = 400m.

Step response and sinusoidal response are shown in Figure 12 and Figure 13, respectively. From Figure 12, we observe that the overshoot of 2DOF-PID is more significant, and the response speed of FC-MADRC is faster than that of ADRC in the case of almost no overshoot. Figure 13 demonstrates that FC-MADRC can track sinusoidal signals well with the most negligible phase lag, while 2DOF-PID has a considerable phase lag.

Figure 12.

Step response.

Figure 13.

Sine response.

The speed tracking curve and speed error are shown in Figure 14 and Figure 15. FC-MADRC can better track the target speed curve, and its minimum speed tracking error is almost close to zero. The speed error range of 2DOF-PID is the largest. When the train enters the uphill ramp at 400 s, it begins to be subject to additional ramp resistance, which is equivalent to the introduction of step disturbance. At about 400 s: the maximum speed tracking error of FC-MADRC is about 0.005 km/h, which is the smallest of the three, and the speed tracking error of 2DOF-PID is about 0.553 km/h, which is the largest, indicating that FC-MADRC has the best anti-disturbance ability, while 2DOF-PID has the worst anti-disturbance ability. Similarly, during the 1000–2400 s period, the train is subject to other resistances, equivalent to introducing a sinusoidal disturbance with an amplitude of 50. From the time of 1000 s, the speed error of 2DOF-PID and ADRC begins to increase obviously, while the speed tracking error of FC-MADRC is still the smallest and has no noticeable change, which further shows that FC-MADRC has the best anti-disturbance performance.

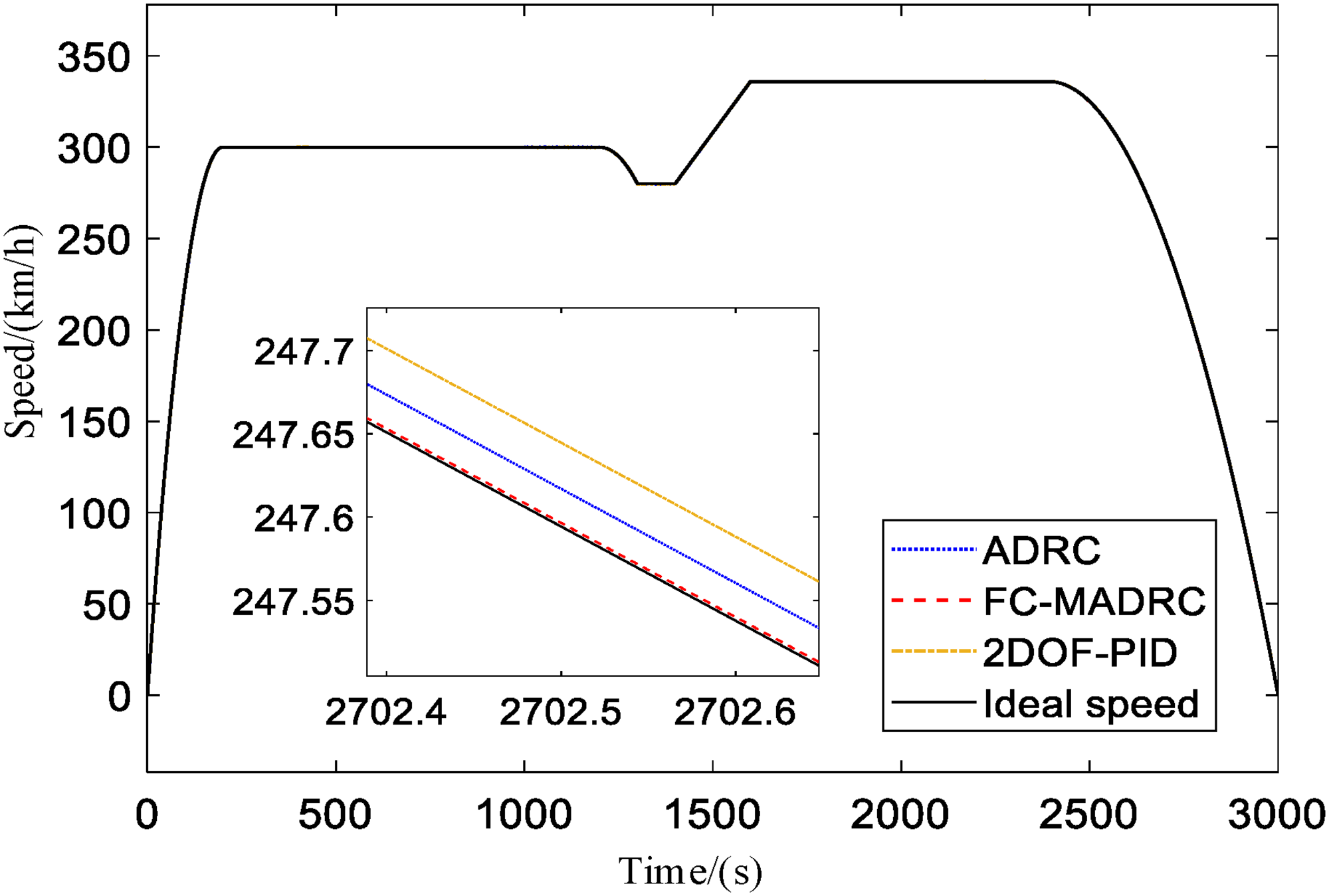

Figure 14.

Speed tracking curve.

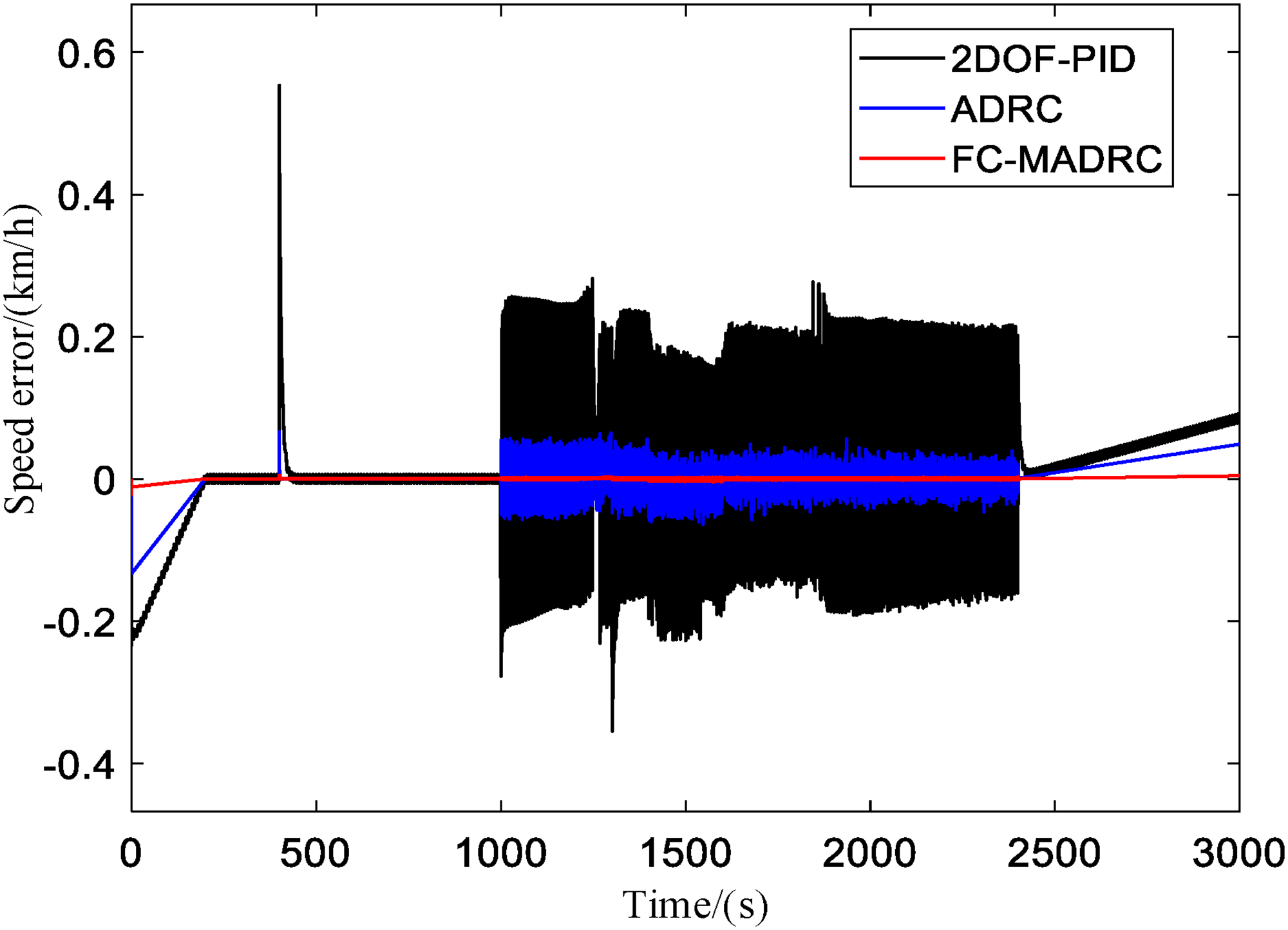

Figure 15.

Speed tracking error curve.

Figure 16 and Figure 17 illustrate the displacement tracking curve and displacement error. The minimum convergence range of displacement error of FC-MADRC is close to zero, and the maximum range of displacement error of 2DOF-PID is in the range of (−24.5 m, + 3.1 m). The displacement tracking error of the train at the last moment reflects the parking accuracy to a certain extent. At 3000 s: the displacement error of 2DOF-PID is 3.031 m and is not within the error range of ± 0.5 m, while the displacement errors of ADRC and FC-MADRC are 0.00473 m and 0.00033 m, respectively, which are close to zero and can meet the requirements of precise parking. The error of FC-MADRC is slightly smaller.

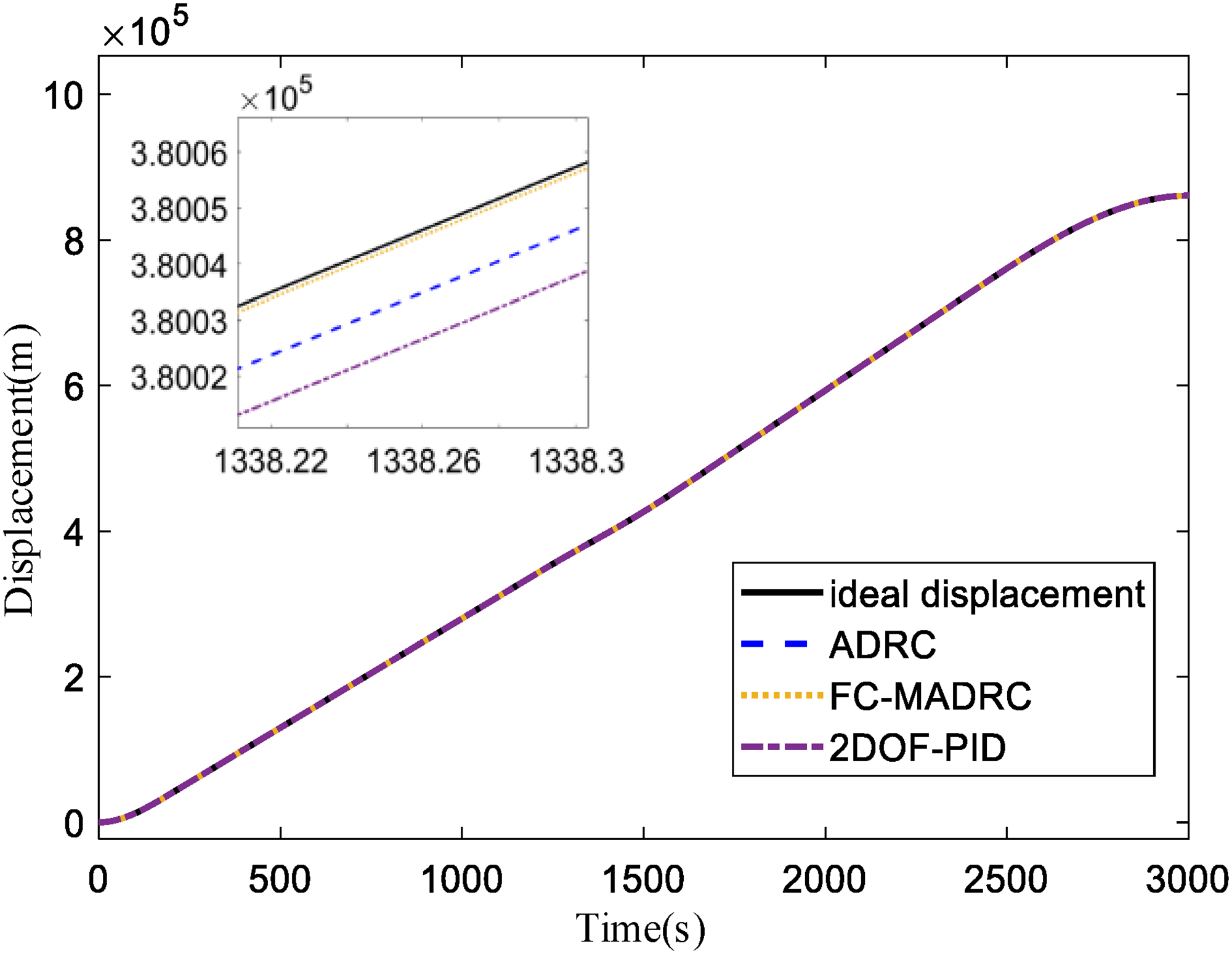

Figure 16.

Displacement tracking curve.

Figure 17.

Displacement tracking error curve.

To quantitatively measure the control effect of FC-MADRC, root mean square error (RMSE), integral of absolute error (IAE), and integral of absolute error multiplied by time (ITAE) were selected for comparison. Each speed error index is shown in Eqs. (46)-(48).

R M S E = \sqrt{\frac{1}{t} \int_{0}^{t} e_{y}^{2} d τ} = \sqrt{\frac{1}{t} \int_{0}^{t} {(y_{r} - y)}^{2} d τ},

(46)

I A E = \int_{0}^{t} | e_{y} | d τ = \int_{0}^{t} | y_{r} - y | d τ,

(47)

I T A E = \int_{0}^{t} t | e_{y} | d τ = \int_{0}^{t} t | y_{r} - y | d τ,

(48)

The velocity error indexes of FC-MADRC, 2DOF-PID, and ADRC are compared in Table 2. We see that the three error indexes of FC-MADRC are all the smallest among the three types of controllers, while the error index of 2DOF-PID is the largest. This shows that FC-MADRC has the best speed-tracking effect and the most substantial anti-disturbance ability, while 2DOF-PID has the worst speed-tracking effect and the weakest anti-disturbance ability. The anti-interference ability of FC-MADRC is more robust than that of ADRC.

Table 2.

Comparison of error velocity indexes.

Controllers	RMSE	ITAE	IAE
2DOF-PID	86.390 × 10⁻³	298.301 × 10³	186.305
ADRC	25.930 × 10⁻³	78.841 × 10³	49.245
FC-MADRC	1.890 × 10⁻³	4.957 × 10³	3.153

Conclusions

Due to the complex and changeable train operation environment, and unstable and time-varying parameters, the accurate modeling is limited, which makes the traditional PID control algorithm challenging to adapt. Therefore, an improved active disturbance rejection control algorithm based on feedforward compensation (FC-MADRC) is proposed targeting the speed control problem of trains under external disturbances, which effectively improves the speed tracking control performance.

The effectiveness of FC-MADRC is verified through MATLAB simulation tools. Compared with 2DOF-PID and ADRC, the improved control strategy improves the anti-disturbance ability and tracking accuracy. This control method can not only ensure the accurate tracking of train speeds, but also meet the requirements of accurate parking.

FC-MADRC has the advantages of strong anti-disturbance, fast response, and high tracking accuracy. Under the premise of external disturbance, it can still achieve accurate speed tracking under different road conditions, which can provide a reference for the engineering application of ATO speed control.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/ or publication of this article: This work was funded by Science and Technology Research & Development Plan Project of China National Railway Group Co., Ltd (grant number N2021G045) and Foundation of A Hundred Youth Talents Training Program of Lanzhou Jiaotong University (grant number 1520220321).

ORCID iD

Yidong Wang

Author biographies

Lili Yue received the M.S. degree from Lanzhou Jiaotong University, Lanzhou, China, in 2008, where she is currently pursuing the PhD degree. She is currently a Lecturer at the School of Automation and Electrical Engineering, Lanzhou Jiaotong University. Her research interest includes traffic information engineering and control.

Yidong Wang received the B.S. degree from the Lanzhou Jiaotong University, Lanzhou, China, in 2019, where he is currently pursuing the M.S. degree. His research interest includes active disturbance rejection control and automatic train control.

Baodi Xiao received the B.S. degree from Lanzhou Jiaotong University, China, in 1987, and the M.S. degree from the China Academy of Railway Sciences, in 2003. He was the deputy director and researcher of the Communication and Signal Research Institute of the China Academy of Railway Sciences, from 2002 to 2015. He was awarded the National Science and Technology Progress Award, in 2002. Currently, he is the Chairman of Beijing Consen Traffic Equipment Co., Ltd, China. His research interests include intelligent control of traffic information systems.

Yiqing Wang received the B.S. degree from the Lanzhou Jiaotong University, Lanzhou, China, in 2019, and the M.S. degree from Lanzhou Jiaotong University, China, in 2022. He is currently an engineer with China Railway Xi’an Bureau Group Co., Ltd, China. His research interest includes train operation control.

Junting Lin received the M.S. degree from Beijing Jiaotong University, Beijing, China, in 2008, and the PhD degree from Lanzhou Jiaotong University, China, in 2018. From 2011 to 2012, he was a visiting scholar in College of Transportation Engineering, Tongji University, China. He has participated in more than 10 research projects funded by National Natural Science Foundation of China and China Railway. He is the author of more than 40 papers published in international journals or conference proceedings. He is currently the director of Department of Rail Transit Signal and Control, a Professor with the School of Automation and Electrical Engineering, Lanzhou Jiaotong University. His research interests include obstacle conflict prediction and security protection based on autonomous perception, intelligent control and autonomous operation technology of rail transit trains.

References

Xiong

Shen

. Rise and future development of Chinese high-speed railway. J Traffic Transp Eng 2021; 21: 6–29.

Havaei

Sandidzadeh

. Multi-objective train speed profile determination for automatic train operation with conscious search: a new optimization algorithm, a comprehensive study. Eng Appl Artif Intell 2023; 119: 105756.

Yuan

Huang

. Adaptive speed tracking control for high speed trains under stochastic operation environments. Automatica 2023; 147: 110674.

Havaei

Sandidzadeh

. Intelligent-PID controller design for speed track in automatic train operation system with heuristic algorithms. J Rail Transp Plann Manage 2022; 22: 100321.

Cao

Wang

Zhao

. A new estimation method of the PID controller in automatic train operation systems. J Phys: Conf Ser 2021; 1972: 012037.

Chu

Dong

, et al. NSGA-II-Based parameter tuning method and GM (1,1)- based development of fuzzy immune PID controller for automatic train operation system. Math Probl Eng 2020; 2020: 1–20.

Zhang

Tan

Zhou

, et al. Research on optimal control of subway train based on fractional order PID controller. J China Railway Soc 2018; 40: 8–14.

Sun

Qiang

Wang

, et al. A fuzzy-logic-system-based cooperative control for the multielectromagnets suspension system of Maglev trains with experimental verification. IEEE Trans Fuzzy Syst 2023; 31: 3411–3422.

Zhu

Liu

, et al. Integrated optimal design of speed profile and fuzzy PID controller for train with multifactor consideration. IEEE Access 2020; 8: 152146–152160.

10.

Guo

Sun

Feng

, et al. Adaptive fuzzy sliding mode control for high-speed train using multi-body dynamics model. IET Intell Trans Sys 2023; 17: 450–461.

11.

Shi

. Robust control for T-S fuzzy multi-particle model of high-speed train with disturbances and time-varying delays. Int J Control Autom Syst 2022; 20: 3063–3074.

12.

Gao

Wei

Song

, et al. Fuzzy adaptive automatic train operation control with protection constraints: a residual nonlinearity approximation-based approach. Eng Appl Artif Intell 2020; 96: 103986.

13.

Mao

Yan

Jiang

, et al. Adaptive fault-tolerant sliding-mode control for high-speed trains with actuator faults and uncertainties. IEEE Trans Intell Transport Syst 2020; 21: 2449–2460.

14.

Cheng

Liu

Weng

, et al. Sliding mode control of continuous-time switched systems with signal quantization and actuator nonlinearity. Sci Prog 2020; 103: 003685042091215.

15.

Riaz

Yasin

Arshad Uppal

, et al. A novel dynamic integral sliding mode control for power electronic converters. Sci Prog 2021; 104: 003685042110448.

16.

Zhang

Jin

Zhao

. Dynamic balance control of double gyros unicycle robot based on sliding mode controller. Sensors 2023; 23: 1064.

17.

Liu

, et al. Research on sliding mode controller of the high-speed maglev train under aerodynamic load. Adv Mech Eng 2022; 14: 168781322211278.

18.

Yang

Zhang

Jin

. Optimization of urban rail automatic train operation system based on RBF neural network adaptive terminal sliding mode fault tolerant control. Applied System Innovation 2021; 4: 51.

19.

Jia

Wang

. Nonlinear model predictive control for automatic train operation based on multi-point model. J Jilin Univ (Eng Technol Ed) 2020; 50: 1913–1922.

20.

Zhou

Liu

, et al. Train braking deceleration control based on improved smith estimator. J Tongji Univ (Nat Sci) 2020; 48: 1657–1667.

21.

Hou

Zhang

, et al. Robust point-to-point iterative learning control for high-speed trains with model uncertainty and wind gust. Asian J Control 2022; 24: 3522–3537.

22.

Han

. From PID to active disturbance rejection control. IEEE Trans Ind Electron 2009; 56: 900–906.

23.

Cao

Feng

, et al. ADRC-Based Trajectory tracking control for a planar Continuum robot. J Intell Robot Syst 2023; 108: 1.

24.

Chen

Yang

. Heading rate controller for unmanned helicopters based on modified ADRC. Sci China Technol Sci 2023; 66: 1255–1262.

25.

Jin

Song

, et al. Linear active disturbance rejection control for the electro-hydraulic position servo system. Sci Prog 2021; 104: 003685042110009.

26.

Sang

Chen

. Design of an active front steering system for a vehicle using an active disturbance rejection control method. Sci Prog 2020; 103: 003685041988356.

27.

Yang

Zhao

, et al. Automatic current-constrained double loop ADRC for electro-hydrostatic actuator based on singular perturbation theory. Actuators 2022; 11: 381.

28.

Lian

Liu

, et al. Automatic operation speed control of high-speed train based on ADRC. J China Railway Soc 2020; 42: 76–81.

29.

Yang

Chen

Wang

. Design of active disturbance rejection controller for train speed tracking based on improved particle swarm optimization. J China Railway Soc 2021; 43: 40–46.

30.

Wang

Yang

Zou

, et al. Design maglev train speed tracking system based on improved active disturbance rejection controller. J Railway Sci Eng 2023; 20: 310–320.

31.

Liu

Zou

Yang

. Robust speed control of permanent magnet maglev trains with self-tuning of ADRC parameters. J Railway Sci Eng 2023; 20: 3500–3510.

32.

Zou

Wang

. Research on energy-saving operation optimization of urban rail trains based on genetic particle swarm hybrid algorithm. J Phys: Conf Ser 2022; 2401: 012075.

33.

Ayasrah

Qiu

Zhang

, et al. Prediction of ground settlement induced by slurry shield tunnelling in granular soils. Civil Eng J 2020; 6: 2273–2289.

34.

Daddow

Zhou

Naji

, et al. Effect of railway track segmentation method on the optimal solution of tamping planning problem. Civil Eng J 2021; 7: 1998–2010.

35.

Zha

Zuo

, et al. A family of soil water retention models based on sigmoid functions. Water Resour Res 2023; 59: e2022WR033160.

36.

Han

Wang

. Nonlinear tracking differentiator. J Syst Sci Math Sci 1994; 14: 177–183.

37.

Wang

Yao

. Analysis and application of fal function filter. Electr Mach Control 2010; 14: 88–91.

38.

Abdourahman

. Generalized-Function Solutions of a Differential Equation of L-order in the Space K’. IJTAM 2022; 8: 40–44.

39.

Chen

Huang

, et al. New design of active disturbance rejection control for nonlinear uncertain systems with unknown control input gain. Sci. China Inf. Sci. 2022; 65: 142201.

40.

Song

Hao

, et al. Research on PID parameter tuning and optimization based on SAC-auto for USV path following. J Mar Sci Eng 2022; 10: 1847.

Improved active disturbance rejection speed control for autonomous driving of high-speed train based on feedforward compensation

Abstract

Keywords

Introduction

Control mathematical model of the train

Design of FC-MADRC speed controller

Novel tracking differentiator design

Improved sigmoid function

Novel tracking differentiator

Novel extended state observer

Novel fal function

Novel ESO based on nsfal function

Analysis of convergence conditions of improved ESO

Design of improved nonlinear state error feedback

Design of feedforward compensation

Simulation results and discussion

Conclusions

Footnotes

Declaration of conflicting interests

Funding

ORCID iD

Author biographies

References
