Abstract

In order to solve the problem of poor robustness of the traditional method of calculating torque in the mechanical model of 7-DOF picking manipulator, this paper proposes a control strategy of calculating torque plus fuzzy compensation by using adaptive fuzzy logic system to compensate the uncertain part of the mechanical model of 7-DOF picking manipulator. By using Lagrange method, the dynamic model of 7-DOF manipulator is established, and the relationship between joint motion and applied torque (force) is obtained. Using ADAMS and MATLAB to establish a co-simulation platform, the manipulator and trajectory tracking control system are simulated. The results show that the trajectory tracking error of each joint in the algorithm is obviously reduced and the convergence trend is obvious. The average trajectory tracking accuracy of joint 1 to joint 7 was improved by 70.22%, 94.78%, 0.62%, 74.23%, 89.78%, 86.45%, and 67.15%, respectively. In this control scheme, the control force (moment) of each joint changes regularly, and the output force (moment) does not appear chattering and mutation when the disturbance signal is added. The research results can provide support for the further study of picking manipulator trajectory tracking control system.

Keywords

Agricultural manipulator trajectory tracking fuzzy compensation 7-DOF

Introduction

Picking robot has been gradually applied in the field of agricultural engineering, it is mainly used for picking tomatoes, cucumbers, oranges, apples, cherries, and so on.^1–6 Picking manipulator is a 7-DOF manipulator composed of two moving joints and five rotating joints,^7–10 it is a multivariable system with highly nonlinear, strong coupling, and time-varying pose.

When the external environment complies with constraints, it is difficult to obtain an accurate dynamic model of the manipulator. Therefore, the use of model-based control algorithms will cause problems such as poor robustness of the control system. The current trajectory tracking control methods mainly include calculation torque method, fuzzy control, neural network control, and fuzzy neural network control methods.^11–14 The calculated moment method is mainly used when the model is relatively fixed, Fuzzy logic systems have the ability to approximate arbitrary nonlinear functions with arbitrary accuracy.¹⁵ In recent years, adaptive fuzzy control has been increasingly used in manipulator control and has achieved a series of results.^16–18 Hsu et al.¹⁹ combined fuzzy control and supervisory control to ensure the stability of the closed-loop system. Labiod²⁰ use fuzzy logic compensation system to adaptively compensate the inaccurate and external interference manipulator dynamic model, and use the two-degree-of-freedom or five-degree-of-freedom manipulator for simulation verification, the results show that the control strategy has good stability and robustness, and has good trajectory tracking position error convergence.^21–24 The above adaptive fuzzy logic system has many membership functions, which leads to many fuzzy rules and large amount of calculation, therefore affects the real-time performance of control, and is usually suitable for manipulator systems with fewer degrees of freedom. Aiming at the uncertainty of the dynamic model parameters of the redundant picking manipulator and external interference.

This paper adopts a control strategy combining calculation torque and fuzzy compensation, established a joint simulation platform through ADAMS and MATLAB. This method doesn’t need to test the acceleration of the manipulator joints, and the uncertain part of each joint is approximated by a separate fuzzy logic system. The total number of fuzzy rules used is small, and it is more suitable for Redundant manipulator system control. The simulation test of the manipulator trajectory tracking control system is carried out, and the results show that the trajectory tracking error of each joint in the algorithm is significantly reduced, the control accuracy is greatly improved. The research results can provide support for the in-depth study of picking manipulator trajectory tracking control system.

Dynamic model and controller design

Dynamic modeling

Using the Lagrange method and considering the additional disturbance, the dynamic model of the picking manipulator is established as²⁵

D (q) \overset{\cdot\cdot}{q} + C (q, \overset{\cdot}{q}) \overset{\cdot}{q} + G (q) + τ_{d} = τ

(1)

In the formula, D(q) is the 7 × 7 dimensional symmetric positive definite inertia matrix of the manipulator; $C (q, \overset{\cdot}{q}) \overset{\cdot}{q}$ is the 7 × 1 dimensional centripetal torque and Coriolis torque vector; G(q) is the 7 × 1 dimensional Gravity vector; $\overset{\cdot\cdot}{q}$ , $\overset{\cdot}{q}$ , q are respectively 7 × 1 dimensional joint acceleration, velocity, position vector; τ is 7 × 1 dimensional torque input item; τ_d is 7 × 1 dimensional external disturbance term vector.

Taking into account that the manipulator is affected by uncertain factors such as external environmental interference during the work process, the dynamic model is not accurate, and the calculated torque method is used to control the output as:

τ = D_{0} (q) ({\overset{\cdot\cdot}{q}}_{d} - K_{v} \overset{\cdot}{e} - K_{p} e) + C_{0} (q, \overset{\cdot}{q}) \overset{\cdot}{q} + G_{0} (q)

(2)

In the formula, D₀, C₀, and G₀ are the estimated values of D, C, and G; e = [e₁, e₂, … , e₇]^T is the error vector; e = q − q_d; K_v and K_p are the velocity and position feedback gain vectors; q_d is the desired joint position vector.

From equations (1) and (2), we can get

\overset{\cdot\cdot}{e} + K_{v} \overset{\cdot}{e} + K_{p} e = D_{0}^{- 1} (\overset{\cdot\cdot}{q} + Δ C \overset{\cdot}{q} + Δ G - τ_{d}) = ρ

(3)

And ΔC = C₀ − C, ΔG = G₀ − G, it can be seen from equation (3) that the inaccuracy of the dynamic model of the manipulator will cause the system to produce an uncertain part ρ , resulting in a decrease in control performance. Therefore, this paper combines the fuzzy logic system with the calculation torque control method, and uses the fuzzy logic system to adaptively approximate the uncertain part ρ of the system.

Calculating torque-fuzzy compensation controller design

Fuzzy logic system based on fuzzy basis function

The fuzzy logic system realizes the conversion of fuzzy language rules into precise mathematical formulas. Assume that the fuzzy system is a mapping from the input domain U∈Rⁿ to the output domain V∈Rⁿ, and the form of fuzzy rules is:

R ^(l): If x₁ is $F_{1}^{l}$ and x_n is $F_{n}^{l}$ , then y^l is Q^l (l = 1, 2, …, M).

Among them, x = [x₁, x₂, … , x_n]^T∈ U, y = [y¹, y², … , y^l]^T∈ V are the input and output variables of the fuzzy system, respectively, $F_{i}^{l}$ is the fuzzy set of x_i, and its membership function is $μ_{F_{i}^{l}} (y^{l})$ , Q^l is the fuzzy set of y^l, and its membership function is $μ_{Q^{l}} (y^{l})$ , and M is the total number of fuzzy rules.

If single value fuzzer, product inference engine and center average anti-fuzzer are used to design fuzzy logic system, the output of fuzzy logic system is

y (x) = \hat{F} (x, Θ) = \frac{\sum_{l = 1}^{M} {\bar{y}}^{l} (Π_{i = 1}^{n} μ_{F_{i}^{l}} (x_{i}))}{\sum_{l = 1}^{M} (Π_{i = 1}^{n} μ_{F_{i}^{l}} (x_{i}))} = Θ^{T} ξ (x)

(4)

Among them, $Θ = {[{\bar{y}}^{1}, {\bar{y}}^{2}, . . . {\bar{y}}^{M}]}^{T}$ is the adjustable parameter vector, ${\bar{y}}^{l}$ is the value of the corresponding point of the membership function, $μ_{Q^{l}} (y^{l})$ is the maximum value, ξ(x) = [ξ₁(x), … , ξ_M(x)]^T is the fuzzy basis function vector. According to the universal approximation theorem of fuzzy logic system, if the input universe U is a compact set, then for any continuous function g(x) defined on U and any ε > 0, there must be a formula (4). The fuzzy system $\hat{F} (x, Θ)$ makes the following formula true.²¹

sup | \hat{F} (x, Θ) - g (x) | < ε

(5)

The universal approximation theorem provides a theoretical basis for fuzzy systems to be used in all nonlinear modeling problems.

Controller design

Design an adaptive fuzzy logic system f to approximate the uncertain part ρ of the system. In order to reduce the total number of fuzzy rules, the uncertain part ρ_i of each joint is approximated by a single f_i. The input of f_i is the error and error rate of joint i, so the total number of fuzzy rules is only 7 × 52. According to formulae (4) and (5), set

ρ_{i} = f_{i} (x_{i}, θ_{i}^{*}) + η_{i} = θ_{i}^{* T} ξ_{i} (x_{i}) + η_{i}

(6)

θ_{i}^{*} = argmin [sup f_{i} (x_{i}, θ_{i}) - ρ_{i}]

(7)

Among them, $x_{i} = {[e_{i}, {\overset{\cdot}{e}}_{i}]}^{T}$ ; θ^* is the optimal adaptive adjustment parameter matrix of f(x); η is the approximation error of the fuzzy system and the upper bound is η₀. Calculated torque–fuzzy compensation controller is composed of a calculated torque controller and an adaptive fuzzy compensation controller, which act together on the picking manipulator system, that is, the design controller is

τ = τ_{1} + τ_{2}

(8)

In the formula, τ₁ is the calculated torque controller; τ₂ is the adaptive fuzzy compensation controller. According to formula (4), it is defined as

τ_{2} = - D_{0} {[{\hat{θ}}_{1}^{T} ξ_{1} (x_{1}), . . ., {\hat{θ}}_{7}^{T} ξ_{7} (x_{7})]}^{T}

(9)

Among them, ${\hat{θ}}_{i}$ is the estimated value of $θ_{i}^{*}$ . Substituting formulae (8) and (9) into formula (1), the error function of each joint is obtained after finishing, and the state equation is written as

{\overset{\cdot}{x}}_{i} = A x_{i} + B (- {\tilde{θ}}_{i}^{T} ξ_{i} (x_{i}) + η_{i})

(10)

Among them, ${\tilde{θ}}_{i} = {\hat{θ}}_{i} - θ_{i}^{*}$ ; A is a stable matrix,

A = [\begin{matrix} 0 & 1 \\ - K_{p} & - K_{v} \end{matrix}], B = [\begin{matrix} 0 \\ 1 \end{matrix}]

Define the Lyapunov function as

V = \frac{1}{2} x_{i}^{T} P x_{i} + \frac{1}{2 γ} tr ({\tilde{θ}}_{i}^{T} {\tilde{θ}}_{i})

(11)

Among them, γ > 0, and $tr ({\tilde{θ}}_{i}^{T} {\tilde{θ}}_{i})$ is the trace of matrix ${\tilde{θ}}_{i}^{T} {\tilde{θ}}_{i}$ , that is, the sum of matrix eigenvalues, and P is a symmetric positive definite matrix, which satisfies the following Lyapunov equation

PA + A^{T} P = - Q

(12)

Among them, Q ≥ 0, take the adaptive law as

{\hat{θ}}_{i} = γ ξ_{i} (x_{i}) x_{i}^{T} PB

(13)

The stability analysis is as follows:

\begin{matrix} \overset{\cdot}{V} = - \frac{1}{2} [x_{i}^{T} P {\overset{\cdot}{x}}_{i} + {\overset{\cdot}{x}}_{i}^{T} P x_{i}] + \frac{1}{γ} tr ({\overset{\cdot}{\tilde{θ}}}_{i}^{T} {\tilde{θ}}_{i}) \\ = \frac{1}{2} [\begin{matrix} x_{i}^{T} P (A x_{i} + B (- {\tilde{θ}}_{i}^{T} ξ_{i} (x_{i}) + η_{i})) \\ + (x_{i}^{T} A^{T} + {(- {\tilde{θ}}_{i}^{T} ξ_{i} (x_{i}) + η_{i})}^{T} B^{T}) P x_{i} \end{matrix}] + \frac{1}{γ} tr ({\overset{\cdot}{\tilde{θ}}}_{i}^{T} {\tilde{θ}}_{i}) \\ = \frac{1}{2} [x_{i}^{T} (PA + A^{T} P) x_{i}] + {[- {\tilde{θ}}_{i}^{T} ξ_{i} (x_{i}) + η_{i}]}^{T} B^{T} P x_{i} + \frac{1}{γ} tr ({\overset{\cdot}{\tilde{θ}}}_{i}^{T} {\tilde{θ}}_{i}) \\ = - \frac{1}{2} {\overset{\cdot}{x}}_{i}^{T} Q x_{i} - ξ_{i}^{T} (x_{i}) {\tilde{θ}}_{i} B^{T} P x_{i} + η_{i} B^{T} P x_{i} + \frac{1}{γ} tr ({\overset{\cdot}{\tilde{θ}}}_{i}^{T} {\tilde{θ}}_{i}) \end{matrix}

(14)

Due to the existence of equation (15):

ξ_{i}^{T} (x_{i}) {\tilde{θ}}_{i} B^{T} P x_{i} = tr [B^{T} P x_{i} ξ_{i}^{T} (x_{i}) {\tilde{θ}}_{i}]

(15)

Then

\overset{\cdot}{V} = - \frac{1}{2} x_{i}^{T} Q x_{i} + η_{i} B^{T} P x_{i}

(16)

Since $η^{T} \leq η_{0}, B = 1$ , let λ_min(Q) be the minimum eigenvalue of matrix Q, λ_max(P) is the maximum eigenvalue of matrix P, we have

\overset{\cdot}{V} \leq - \frac{1}{2} x_{i} [λ (Q) x_{i} | η_{i 0} | {(P)}_{\max}_{\min}]

(17)

When $λ (Q) {\frac{2 λ {(P)}_{\max}}{x η_{0}}}_{\min}$ , that is, when the convergence radius of x is $x = \frac{2 λ {(P)}_{\max}}{λ {(Q)}_{\min} η_{0}}$ , $\overset{\cdot}{V} \leq 0$ . Therefore, when the eigenvalue of Q is larger, the eigenvalue of P is smaller, and the upper error η₀ of η is smaller, and the convergence radius of x is smaller, and the tracking effect is better. Calculating torque-fuzzy compensation control principle block diagram is shown in Figure 1. ${\overset{\cdot\cdot}{q}}_{d}$ , ${\overset{\cdot}{q}}_{d}$ , q_d represent the desired accelerate vector, velocity vector, and displacement vector of the joints respectively. K_v, K_p represent the feedback gain vector of velocity and displacement respectively; D₀(q) represent estimated symmetric definite inertia matrix; $C_{0} (q, \overset{\cdot}{q})$ represent the vector of centripetal force torque and Coriolis force torque. G₀(q) represent estimated gravity vector; τ₁, τ₂ represent the output torques of compute torque controller and fuzzy logic compensation controller respectively, e and $\overset{\cdot}{e}$ are error vector and error rate vector respectively. $\overset{\cdot}{q}$ and q are the actual velocity vector and displacement vector of the joints respectively.

Figure 1.

Control principle of compute torque with fuzzy Compensation.

Simulation and analysis of trajectory tracking control

Virtual prototype of picking manipulator

The structure diagram of picking manipulator is shown in Figure 2, the structural parameters are shown in Table 1.

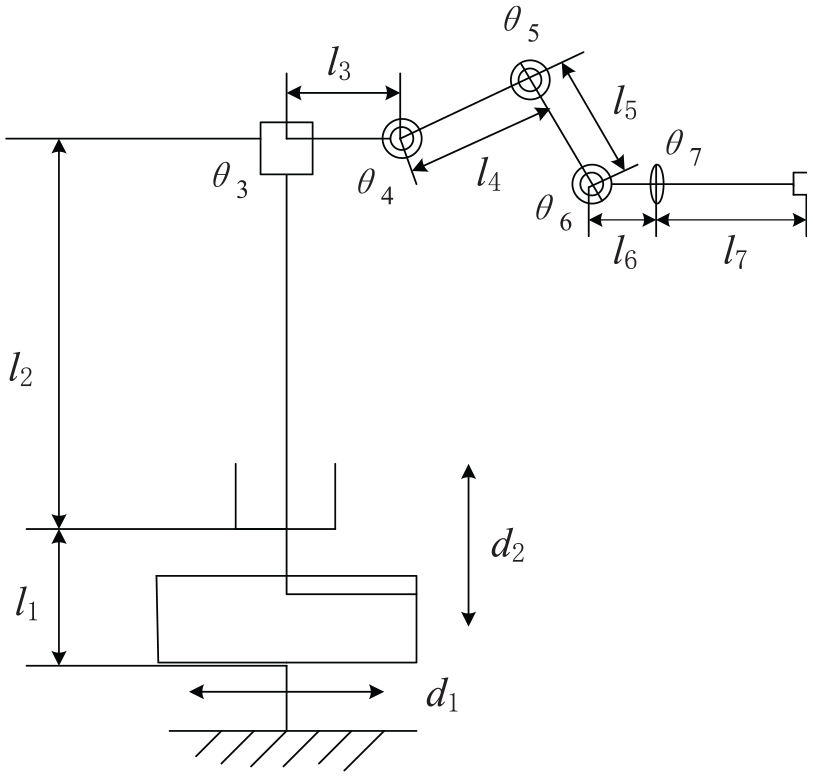

Figure 2.

Structure diagram of picking manipulator.

Table 1.

Structure parameters of manipulator.

i	1	2	3	4	5	6	7
d_i (mm)	[0, 200]	[0, 300]
θ_i (rad)			[−5π/6, 5π/6]	[−π/6, 5π/9]	[−2π/3, 0]	[−π/6, 10π/9]	[−π, π]
l_i (mm)	0	400	120	250	200	65	275

In order to realize the effective combination of mechanical system analysis and control design simulation, the electromechanical joint simulation of Adams and MATLAB is adopted to form a closed data cycle between Adams and MATLAB. The joint simulation system platform is shown in Figure 3.

Figure 3.

Co-simulation control system via ADAMS and MATLAB.

Dof 7_input is the system function name of joint variable input, Dof 7_control is the system function name of control module. Adams sub is virtual prototype module imported from ADAMS to Matlab. J1, J2, J3, J4, J5, J6, and J7 are the trajectory tracking error scopes of the seven joints. T1, T2, T3, T4, T5, T6, T7 and E1, E2, E3, E4, E5, E6, E7 are the velocity (angular velocity) and displacement (angle) scope of the seven joints. S-Function1 and S-Function2 represent two system functions for Simulink module in MATLAB.

Co-simulation based on ADAMS and MATLAB

ADAMS is an excellent virtual prototype simulation software, which can easily build a simulation platform with MATLAB. The data cycle between ADAMS and MATLAB can be formed by co-simulation, as shown in Figure 4.

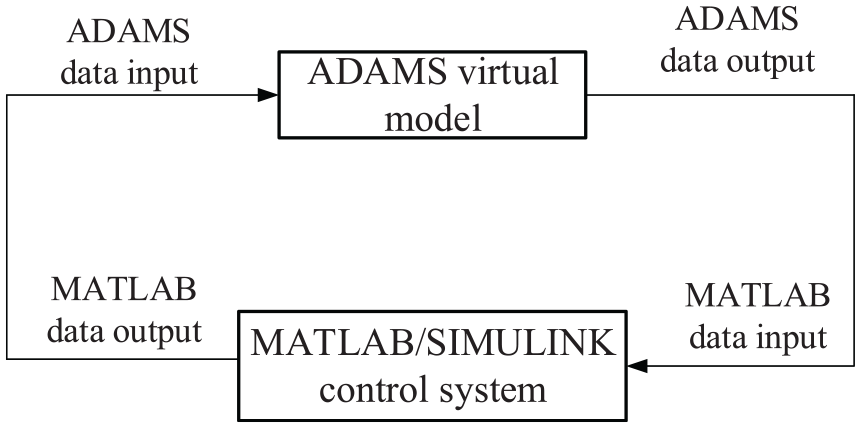

Figure 4.

The data cycle diagram between ADAMS and MATLAB.

The co-simulation can be divided into the following steps:

In ADAMS, the input and output of the virtual prototype model of the 7-DOF manipulator are treated as the state variables of the system, and the input variables are associated with the single component force (torque) of each joint.

The ADAMS/controls module is loaded, and the input (output) signals of the virtual prototype of the manipulator are defined. The control software type is set to Matlab, and the analysis type is set to Fortran;

The interface information is imported into the workspace of MATLAB, and the Adams_sub module of manipulator virtual prototype is established;

Taking the Adams_sub module as the controlled object, the trajectory tracking control system is established in Simulink, so as to complete the connection between the Adams_sub module and other modules.

Simulation results and analysis

In order to verify the manipulator trajectory tracking effect of the adaptive fuzzy compensation control, it is compared with the traditional calculation torque method control. In the two algorithms, set the desired manipulator joint space trajectory, joint initial position, and initial velocity as:

\begin{matrix} q_{d} = [0.2 \sin (0.1 π t); 0.2 \sin (0.1 π t); \cos (π t); 0.5 + \cos (π t); 1 \\ + \cos (π t); 2 + \cos (π t); \cos (π t)] \end{matrix}

(18)

q_{0} = [0.05; 0.05; 0.5; 1; - 0.5; 2.5; 0.5]

(19)

{\overset{\cdot}{q}}_{0} = [0; 0; 0; 0; 0; 0; 0]

(20)

In order to achieve universal approximation, this paper defines the membership functions of joint deviation and deviation rate as Gaussian membership functions. The membership function $μ_{F_{i}^{l (j)}} (x_{i})$ of the moving joint deviation e and deviation rate $\overset{\cdot}{e}$ in the adaptive fuzzy compensation control is:

μ_{F_{i}^{l (j)}} (x_{i}) = \exp (- ((x_{i} + 0.07 - 0.035 (l (j) - 1)) / 0.0175)^{2})

(21)

Membership function $σ_{F_{i}^{l (j)}} (x_{i})$ of deviation e and deviation rate $\overset{\cdot}{e}$ of rotational joint

σ_{F_{i}^{l (j)}} (x_{i}) = \exp (- ((x_{i} + 0.07 - 0.035 (l (j) - 1)) / 0.0175)^{2})

(22)

Among them, l is the number of fuzzy rules l = [12, 3, 4, 5], j = 1, 2, … , 5. Assuming that the physical parameters of the manipulator are uncertain, set the mass and moment of inertia of each member of the manipulator as estimated values, and the disturbance signal is introduced as

\begin{matrix} τ_{d} = [5 \sin (20 t); 25 \sin (20 t); 2 \sin (20 t); 3 \sin (20 t); 0.5 \sin (20 t); \\ 0.25 \sin (20 t); 0.04 \sin (20 t)] \end{matrix}

(23)

In order to avoid unreasonable torque output of joint drive motor caused by unsatisfactory control parameters, engineering tuning method is adopted and step disturbance is added to the system. Based on Ziegler Nichols method, the parameters of PID controller for each joint of manipulator are adjusted. First, let the differential coefficient and integral coefficient K_d = K_t = 0, increase the proportional coefficient K_p until the system starts to vibrate, then multiply the K_p value by 0.6 to get the final K_p value. Add step disturbance to the system, change the parameters of the regulator, observe the step response curve of the regulator output, and repeat the test until the control quality is satisfactory, the control parameters are determined as follows: Feedback gain K_p = 93eye(7), and K_v = 64eye(7), γ = 1000, Q = 100eye(2). In the experiment, set the trajectory of manipulator end as straight line, arc, and curve. Due to the similar test results, this paper only analyzes the results of the manipulator end moving from the initial position [0, 0.455, 0.931] to the end position [0, 0.305, 0.781]. Figure 5 shows the output tracking errors of each manipulator joints in two algorithms, and Figure 6 shows the output control force (torque) of each manipulator joints in two algorithms.

Figure 5.

The output tracking errors of each manipulator joints in two algorithms: (a) Joint 1, (b) Joint 2, (c) Joint 3, (d) Joint 4, (e) Joint 5, (f) Joint 6, and (g) Joint 7.

Figure 6.

The Output control force (torque) of each manipulator joints in two algorithms: (a) Joint 1, (b) Joint 2, (c) Joint 3, (d) Joint 4, (e) Joint 5, (f) Joint 6, and (g) Joint 7.

It can be seen from Figure 5 that the average tracking errors of joints 1–7 by using the calculation torque algorithm are 2.238 × 10⁻³ m, 0.0242 m, 0.0132, 0.0526, 0.113, 0.1075, and 0.0388 rad respectively, and the average error of seven joints using the calculation torque fuzzy compensation control algorithm is 6.65 × 10⁻⁴ m, 1.278 × 10⁻³ m, 0.0131, 0.0135, 0.0116, 0.0146, and 0.0127 rad. The average trajectory tracking accuracy was improved by 70.22%, 94.78%, 0.62%, 74.23%, 89.78%, 86.45%, and 67.15%, respectively. The maximum tracking error of mobile joint 2 and revolving joint 5 reached 0.026 m and 0.1507 rad, respectively. However, after introducing fuzzy compensation control algorithm at the same time point, the maximum error of joint 2 and joint 5 is only 0.00012 m and 0.006 rad, respectively. In the calculation torque method, except for the moving joints 1 and 2, the trajectory tracking errors of the other five joints have great changes, and the control stability is poor. In the application of calculation torque adaptive fuzzy compensation method, all joints achieve the desired motion trajectory within 2–3 s, and the tracking error of each joint changes smoothly, which can eliminate the influence of mechanical model inaccuracy and disturbance, and the expected trajectory of each link of picking manipulator is effectively controlled.

It can be seen from Figure 6 that the fuzzy compensation torque changes smoothly without sudden change. When the initial position error is large, the initial output force (torque) of joint 1 to joint 7 is 258.63, 453.127 N, 54.39, 98.33, 19.45, 12.73, and 0.11 N·m respectively. The Starting force (torque) of moving joints 1 and 2 and rotating joints 3 and 4 is relatively large, this is mainly due to the fact that the four joints are located at the end of the frame and bear a large body weight and inertial force. The closer the joint to the end effector, the smaller the output torque, which provides data support for the selection of drive motors for each joint. During the entire control process, the force (torque) changes regularly without abnormal chattering, which ensures the stability of the system.

Conclusion

For the 7-DOF picking manipulator, a calculation torque fuzzy compensation controller is designed. Its implementation does not depend on the precise mathematical model of the controlled object. The parameters of the fuzzy logic system can be adjusted adaptively, it has strong robustness to external disturbance signals. This control algorithm is used for the trajectory tracking control of the picking manipulator. Compared with the calculation torque control algorithm, the tracking error is significantly reduced, the control accuracy can be increased by 94.72%, and all joints reach the desired motion transition within 2–3 s and the motion is stable.

In the control algorithm based on adaptive fuzzy compensation, the control output torque of each joint changes smoothly, and the total control force (torque) of each joint of the manipulator changes regularly without abnormal chattering. The closer the hand is to the joint, the smaller the control torque.
