Abstract

German

Spanish

French

Individual or singly-housing laboratory rats is common in many animal facilities, but has an adverse impact on the welfare of this social species. It has previously been shown that a small proportion of individually housed mice (∼5%) engage in pathological overgrooming behaviour, but this has not been assessed in rats. We performed an observational study to determine the prevalence of overgrooming-related self-injury and whether providing nesting material enrichment throughout an animal’s life would affect the prevalence or severity of overgrooming-related self-injury. Due to protocol differences between projects in our behavioural neuroscience lab, unenriched rats received a nylabone and a shelter (n = 167), while baseline-enriched rats received a nylabone, shelter and shredded paper nesting material throughout experiments (n = 238). Unenriched rats received nesting material enrichment after the onset of overgrooming-related self-injury. Over 18 months, rats were monitored by their experimenters on a daily basis (5–7 days/week over 2–3 months/project) and any cases of overgrooming-related self-injury were recorded. Replicating the findings of previous studies in mice, we observed 20 cases of overgrooming-related self-injury (∼5%) with no difference in prevalence between rats on the basis of supplier, cage position, experimental procedure (behavioural only or involving surgical procedures), reinforcer (ethanol or sugar) or level of baseline-enrichment. While there was no difference in onset severity between rats that were unenriched at baseline and baseline-enriched rats, baseline-enriched rats had lower self-injury severity scores at one-, two- and four-week follow-ups. These results suggest that nesting material enrichment provided throughout an animal’s life may reduce overgrooming-related self-injury.

Keywords

grooming nesting social behaviour housing refinement

Laboratory rats have been domesticated for nearly two centuries, but they have retained a highly social nature.^1,2 Despite the importance of social interaction for laboratory rats,^1,3 it is often necessary to individually house rats for experimental purposes, such as to observe certain behavioural patterns or to prevent damage to implants. For example, individual housing is necessary to measure the alcohol intake of individual animals in their home-cage⁴ and is used in animal models of alcohol addiction because it can promote alcohol consumption.^5,6 In the neuroscience literature, rats are frequently described as individually housed. For example, we briefly surveyed the Journal of Neuroscience and found individual housing reported in approximately half of the papers published in 2017 that describe using rats and their housing conditions (online Supplementary Figure S1).⁷

However, individual housing has adverse psychological effects on rats, promoting depression-like symptoms and neurological changes.⁸ Moreover, stress and anxiety can contribute towards aberrant self-grooming behaviour in rodents⁹ and we have observed on several occasions that an animal’s overgrooming has resulted in alopecia or skin lesions. We attribute these occurrences to individual housing because they are not observed in group-housed rats in our laboratory or in group-housed rats in our animal facility. Repetitive aberrant behaviours, or stereotypies, are thought to be an indicator of poor welfare.¹⁰ Previous studies that observed individually and group-housed rats have found that individually housed rats are less active but engage in more self-directed behaviours, such as pawing and tail manipulation.^11,12 This is consistent with studies in mice that have found that the prevalence of self-barbering was 5.7% in individually housed mice and <1% in group-housed mice.¹³

Self-injury and aberrant or pathological grooming behaviour is used as an animal model of various psychological disorders, such as anxiety,¹⁴ obsessive–compulsive disorder,^13,15,16 autism spectrum disorders,¹⁷ Tourette syndrome¹⁸ and trichotillomania.^13,19 Active self-injury behaviours such as overgrooming can be induced by administration of psychostimulants, such as caffeine or pemoline, and it is thought that these experiments model aspects of autism spectrum disorders or anxiety where self-injury or repetitive behaviours are prevalent.^14,20,21 Loss of histamine signalling in the tuberomammillary nucleus of the hypothalamus, a dysregulation similar to Tourette syndrome, results in pathological grooming in mice.¹⁸ Similarly, the Shank3 mutant mouse, which is bred to model a genetic autism spectrum disorder (22q13 deletion syndrome), spontaneously displays pathological grooming behaviour.¹⁷ The Long–Evans rats used in our laboratory are an outbred strain, so it seems most likely that social isolation stress rather than a genetic or physiological pathology is the cause of the overgrooming-related self-injury we have observed.

Environmental enrichment has many beneficial effects for laboratory animals. In disease models, environmental enrichment can delay or prevent symptoms of Huntington’s disease,^22–24 Alzheimer’s disease,^25,26 schizophrenia,²⁷ stress-induced anxiety²⁸ or depression.²⁹ In individually housed rats, environmental enrichment in the form of providing structures, chew toys and nesting material has been shown to reduce stress as measured by adrenal size or the levels of adrenocorticotropic hormone and corticosterone.^30,31 Nesting material may be especially beneficial because rats show a preference for environments with shredded paper or nesting boxes, but not for other standard enrichment items like PVC tunnels or wooden sticks.³²

We therefore conducted an observational study that aimed to assess the prevalence of overgrooming-related self-injury and examine whether environmental enrichment with nesting material could reduce the severity or prevalence of overgrooming-related self-injury. While all rats that presented symptoms of overgrooming-related self-injury were provided with additional nesting material enrichment once experimenters identified the onset of overgrooming-related self-injury, differences in experimental protocols between projects resulted in some rats receiving nesting material as part of their standard housing throughout their presence in our facility (baseline-enriched rats), while other rats did not (unenriched rats). We hypothesised that rats provided with baseline enrichment would have lower prevalence and reduced severity of overgrooming-related self-injury. We also tested several alternative explanations including cage location (top, middle or bottom),³³ experimental procedures (behavioural experiments or experiments involving surgical procedures), reinforcer type (ethanol or sugar) and animal supplier (Charles River, Harlan Laboratories or an internal breeding colony).

Methods

Animals

Animals across multiple projects involving individual housing of rats were monitored over 18 months. Rats were monitored for the entirety of their projects, each of which was 2–3 months in duration. All rats (N = 415) were housed in standard plastic cages (44.5 cm ×25.8 cm × 21.7 cm) containing Teklad Sani Chip bedding (Cat# 7090, Envigo, Quebec, Canada). The vivarium was climate-controlled (21℃ ± 2℃) on a 12 h:12 h light:dark cycle (lights on at 07:00). Male Long–Evans rats were purchased from Charles River (n = 275) or Harlan Laboratories (Envigo; n = 48) weighing 220–240 g on arrival, or bred in-house (n = 92) for use in experiments that were approved by the Animal Research Ethics Committee at Concordia University and performed in accordance with guidelines from the Canadian Council on Animal Care. Hygiene monitoring was performed by Animal Care Facility staff.

In these experiments, rats were individually housed for the purpose of measuring home-cage consumption of ethanol (n = 164) or sugar solutions (n = 251). Rats from Harlan Laboratories were used for ethanol experiments because previous studies have shown that they drink more ethanol in Pavlovian conditioning experiments (see Table 1 for distribution of rats across study conditions).³⁴ Rats were subjected to either behavioural experiments involving appetitive conditioning (n = 230, ‘behavioural rats’) or experiments that involved high-impact surgical procedures to perform viral microinjections or implant guide cannulae or optic fibres prior to behavioural procedures (n = 185, ‘surgery rats’).^35–37 Rats that underwent surgery received isoflurane anaesthesia and analgesia with ketoprofen and buprenorphine.^35–37 Project and protocol differences meant that some rats were provided with a minimal level of baseline enrichment (unenriched rats, Figure 1(a)), which included a nylabone (Cat# K3580, Bio-Serv, New Jersey, USA) and, in most cases, a shelter (Cat#: K3245 or K3325 or K3365, Bio-Serv). For example, unenriched rats were primarily rats in ethanol-based experiments due to concerns that enrichment may reduce ethanol consumption (Table 1).^38,39 Baseline-enriched rats were provided additional nesting enrichment throughout experiments, including a nylabone, a shelter and shredded paper (EnviroDri®, FiberCore, Ohio, USA & Shepherd Specialty Papers, Tennessee, USA) that enabled them to nest and build a more complex environment (Figure 1(b) and (c)). Experimenters (n = 7) were trained to monitor rats for signs of overgrooming-related self-injury and, where self-injury was observed, to score the degree of injury on a seven-point scale (see Table 2 and Figure 2). Experimenters were advised that the aim of the study was to identify any protocol differences that may affect overgrooming-related self-injury. Most experimenters were involved in monitoring rats with and without enrichment and observations were usually made in pairs due to shared responsibilities for each project. In all experiments, animals were handled 5–7 days a week for behavioural experiments, during which time they were weighed and monitored daily. Self-injury severity scores were recorded at the onset of symptoms and then at one, two and four weeks after onset. Unenriched rats were provided with nesting material enrichment after the onset of symptoms. Due to the study’s observational nature, all comparisons between baseline-enriched and unenriched rats are between groups.
Figure 1.
Nesting material allowed rats to build more complex environments in their home-cage. (a) Unenriched rats were maintained in standard housing included a nylabone chew toy, which was normally attached to the cage lid, and a shelter. (b) Baseline-enriched rats were also provided with shredded paper, which they used to build nests. (c) In some cases, rats used both the shelter and nesting material together. After the onset of symptoms, unenriched rats were provided with the same level of enrichment as baseline-enriched rats.

Figure 2.
Typical presentation of overgrooming-related self-injury was focused on the anterior portion of the body. (a) A mild case of forepaw overgrooming involving hair loss only (severity score = 2). (b) A moderate case of overgrooming on the animal’s neck with some skin lesioning (severity score = 3). (c) A severe case affecting both ears (severity score = 5).

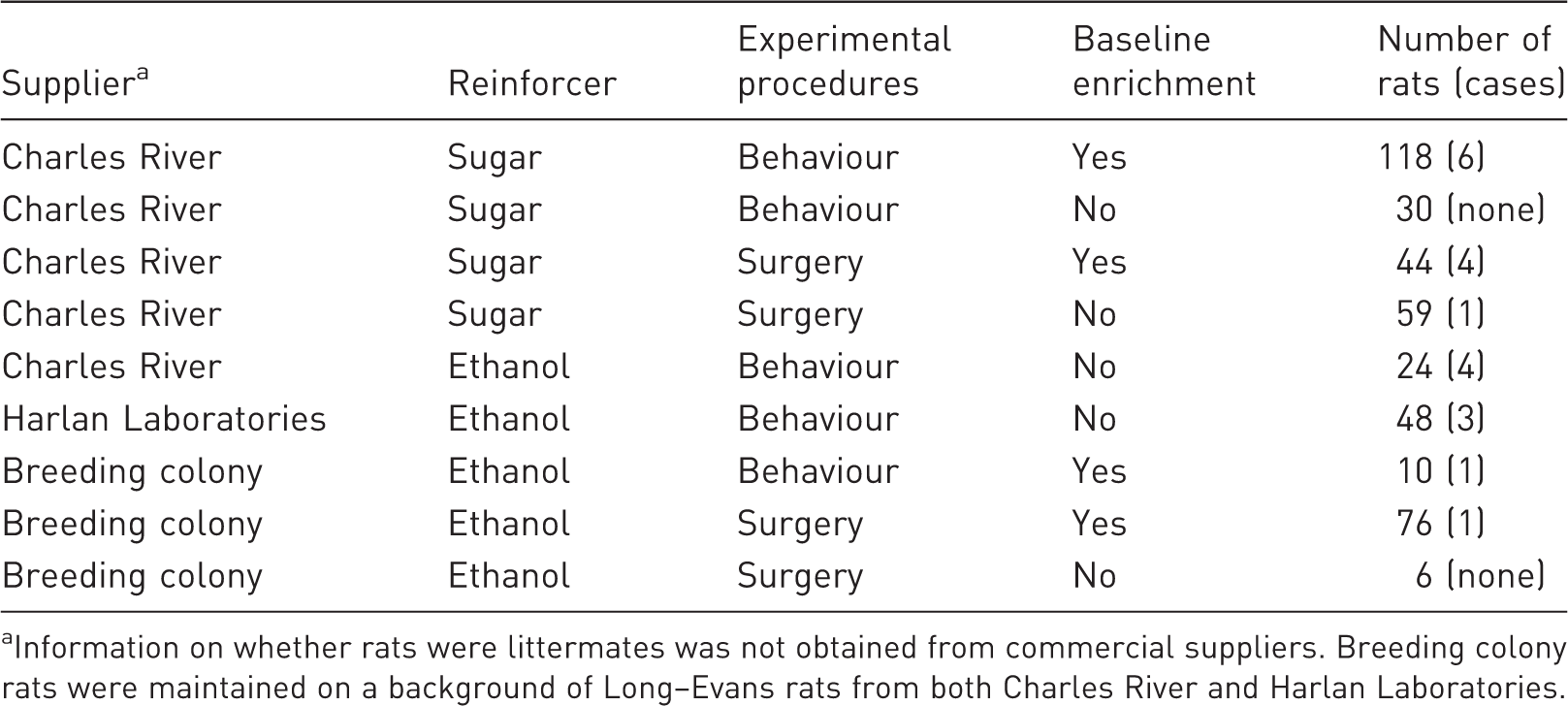

Table 1.
Number of rats monitored (and overgrooming-related self-injury cases) according to supplier, reinforcer, experimental procedures and baseline enrichment.

Supplier^a Reinforcer Experimental procedures Baseline enrichment Number of rats (cases)

Charles River Sugar Behaviour Yes 118 (6)

Charles River Sugar Behaviour No 30 (none)

Charles River Sugar Surgery Yes 44 (4)

Charles River Sugar Surgery No 59 (1)

Charles River Ethanol Behaviour No 24 (4)

Harlan Laboratories Ethanol Behaviour No 48 (3)

Breeding colony Ethanol Behaviour Yes 10 (1)

Breeding colony Ethanol Surgery Yes 76 (1)

Breeding colony Ethanol Surgery No 6 (none)

a
Information on whether rats were littermates was not obtained from commercial suppliers. Breeding colony rats were maintained on a background of Long–Evans rats from both Charles River and Harlan Laboratories.

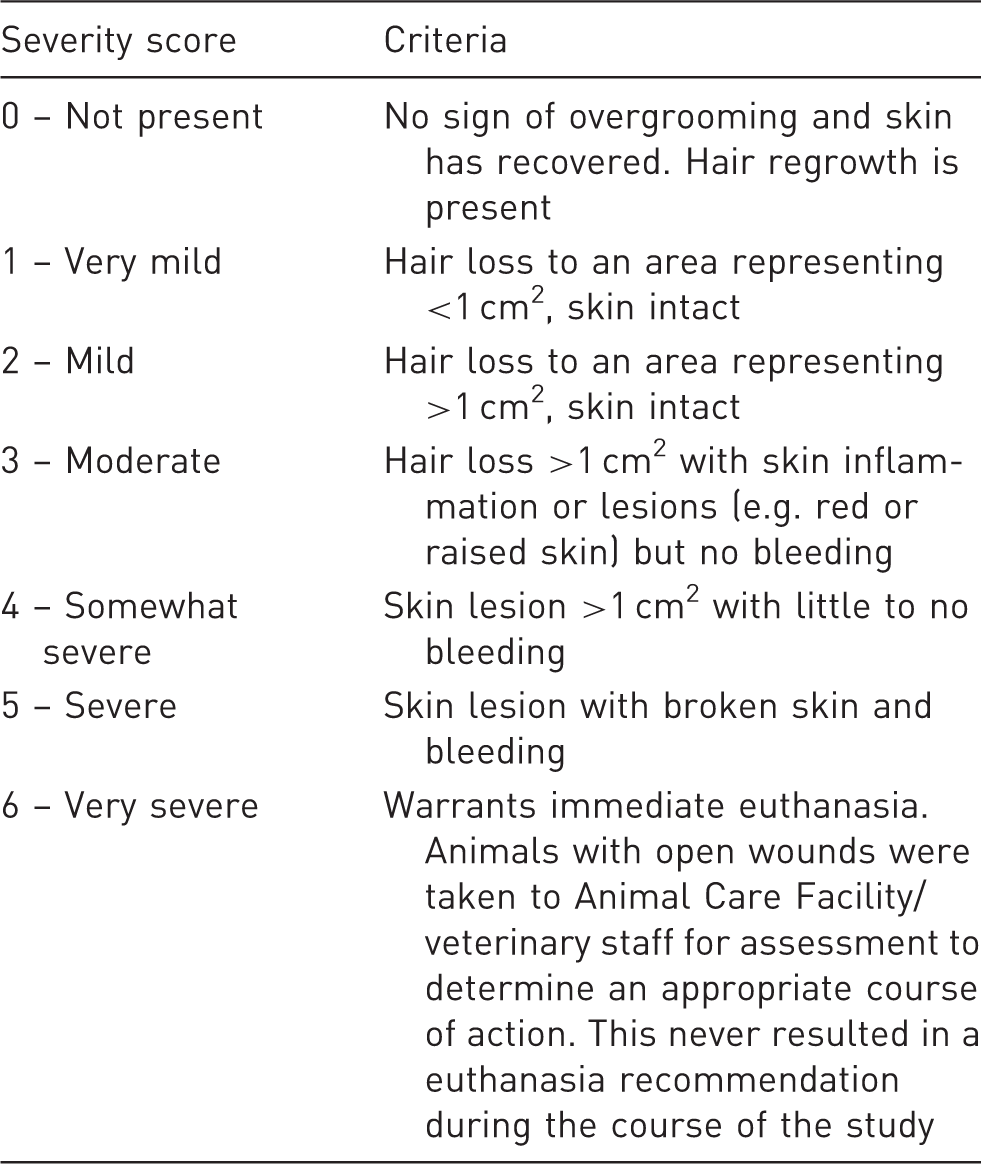

Table 2.
Scoring criteria for overgrooming-related self-injury.

Severity score Criteria

0 – Not present No sign of overgrooming and skin has recovered. Hair regrowth is present

1 – Very mild Hair loss to an area representing <1 cm², skin intact

2 – Mild Hair loss to an area representing >1 cm², skin intact

3 – Moderate Hair loss >1 cm² with skin inflammation or lesions (e.g. red or raised skin) but no bleeding

4 – Somewhat severe Skin lesion >1 cm² with little to no bleeding

5 – Severe Skin lesion with broken skin and bleeding

6 – Very severe Warrants immediate euthanasia. Animals with open wounds were taken to Animal Care Facility/veterinary staff for assessment to determine an appropriate course of action. This never resulted in a euthanasia recommendation during the course of the study

Data analysis and availability

Data were analysed using SPSS 24 (IBM, New York, USA). To determine whether prevalence was associated with particular factors, χ² tests were performed. Severity scores from onset to the two-week follow-up were analysed using mixed-design analysis of variance (ANOVA) with week as a within-subjects factor and baseline-enrichment, cage location, experimental procedures, reinforcer (ethanol or sugar) or supplier as a between-subjects factor. Because three rats had completed behavioural experiments before week 4, this week was analysed separately using an independent samples t-test or one-way ANOVA. All post-hoc tests were Bonferroni-corrected. Because the factors of experimental procedures, reinforcer type and supplier frequently biased whether rats received baseline-enrichment or not (Table 1), we used a mixed linear model to statistically control for bias. We used a scaled identity covariance matrix type and maximum likelihood estimation to model whether the fixed effects of baseline enrichment, experimental procedures, reinforcer and supplier affected severity scores from onset to week 2 when all cases were available for analysis.⁴⁰ Data are presented as means ± SEM. Raw data underlying is available on Figshare.⁷

Results

Prevalence of overgrooming-related self-injury

We observed a total of 20 cases of overgrooming-related self-injury (∼5% of monitored rats). Mean ±SEM (SD) weight at onset of symptoms was 367 ± 10.4 (46.7)g, ranging from 264 g to 476 g. Overgrooming-related self-injury typically presented as alopecia (in mild cases) or as skin lesions (in moderate–severe cases) on the neck or shoulders (45% of cases), forepaws (25%), around the ears (25%) and more rarely on the snout (10%) or tail (5%). Percentages sum to more than 100% because two cases involved multiple affected areas (one case affecting the paws and shoulders, one case affecting the paws and tail).

The prevalence of overgrooming was not associated with any specific factor. Prevalence did not appear to be associated with whether rats received a high baseline level of enrichment (n = 248 rats) or were unenriched (n = 167) at baseline (χ²(1) = 0.001, p = 0.982; Figure 3(a)). Previous studies suggest that cage location may affect animal welfare because cages positioned higher on the racks may receive more light, which stresses the animals,³³ so we also examined cage location. In our vivarium, each wall is fitted with four racks and rats are positioned so that they are distributed equally across racks. We found a distribution of overgrooming cases among the top (n = 4), middle two racks (n = 11) and bottom racks (n = 5) that was not associated with cage location χ²(2) = 0.344, p = 0.842; Figure 3(b)). Rats were subjected to either behavioural experiments with no surgery (n = 230, 14 cases of overgrooming) or to experiments involving surgical procedures such as viral microinjections, implantation of chronically indwelling cannulae or optic fibres (n = 185, six cases of overgrooming), but experimental procedure was not associated with an increased likelihood of engaging in overgrooming (χ²(1) = 1.808, p = 0.179; Figure 3(c)). Rats that were used in sugar studies (n = 251, 11 cases) were not more likely to present with overgrooming-related self-injury than rats in ethanol studies (n = 162, nine cases; χ²(1) = 0.264, p = 0.607; Figure 3(d)). All three sources of rats were also affected (Figure 3(e)), with 15 cases in Charles River rats, three cases in Harlan rats and two cases in rats bred in-house. There was no association between the supplier of the animals and the prevalence of overgrooming (χ²(2) = 1.86, p = 0.395).

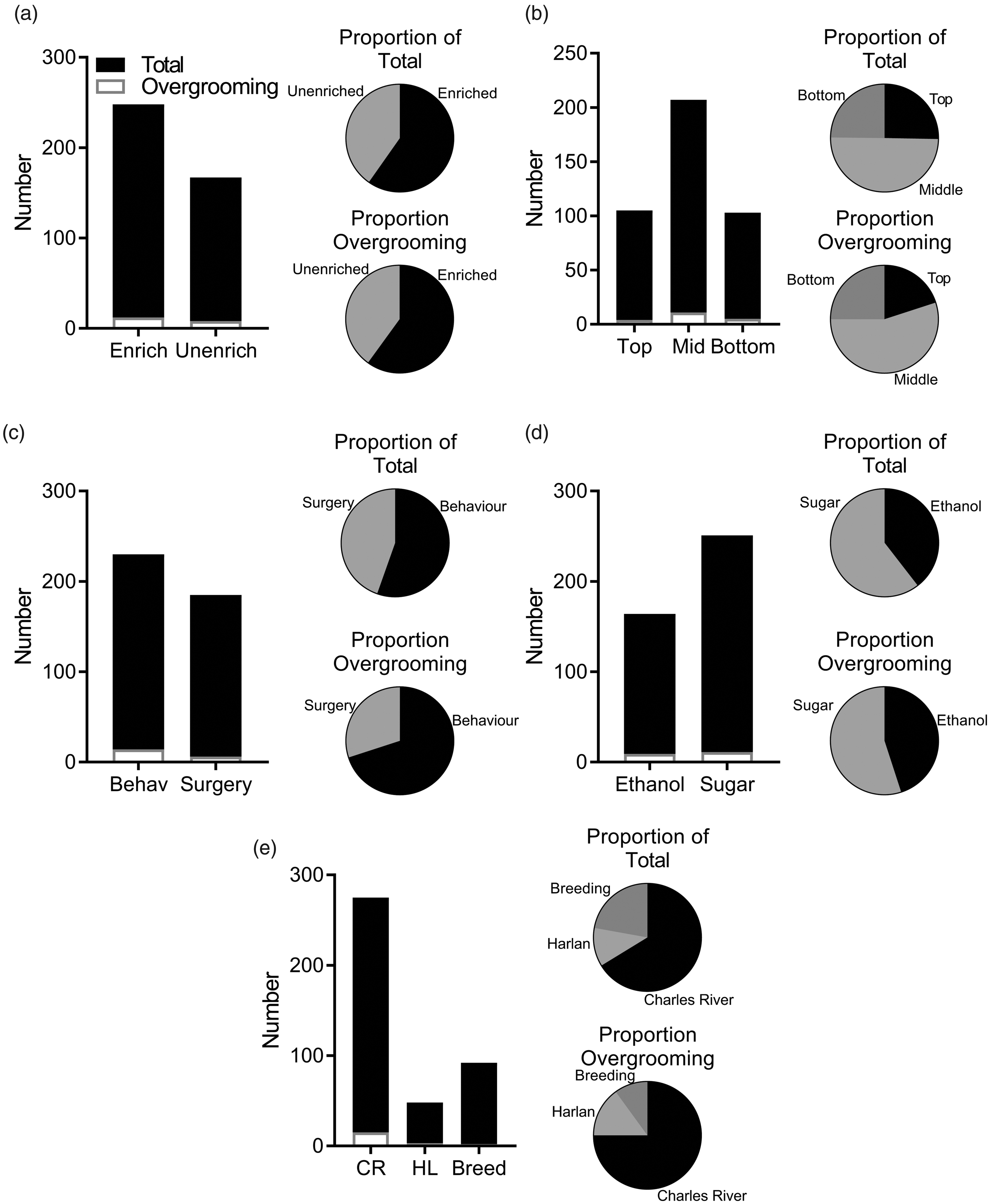

Figure 3.
Prevalence was not associated with any specific factor. (a) Baseline-enriched rats that received nesting material enrichment throughout experiments had a similar prevalence to unenriched rats who received nesting material enrichment only after the onset of symptoms. (b) Cage location, (c) experimental procedures (behavioural experiments only or experiments including intracranial surgery), (d) reinforcer type (ethanol or sugar), and (e) supplier were all unassociated with prevalence. Data are presented as frequencies with proportions of the total and proportion presenting with overgrooming-related self-injury.

Severity of overgrooming-related self-injury

Rats that received baseline nesting material enrichment as part of their standard housing (n = 12) experienced less severe self-injury and a more rapid recovery than unenriched rats (n = 8; Figure 4(a)) that were provided nesting material enrichment only after the onset of overgrooming-related self-injury. A mixed-design ANOVA with baseline-enrichment as a between-subjects factor and week as a within-subjects factor found that baseline-enriched rats had significantly lower self-injury severity scores (F(1, 18) = 15.243, p = 0.001). Although there was no main effect of week (F(1.481, 26.666) = 2.694, p = 0.099, Greenhouse–Geisser ɛ = 0.741), there was a significant week ×baseline-enrichment interaction (F(1.481, 26.666) =5.468, p = 0.017). Bonferroni-corrected post-hoc comparisons revealed that while there was no significant difference between baseline-enriched and unenriched rats at onset (p = 0.179), baseline-enriched rats had significantly lower self-injury severity scores at the one-week follow-up (p < 0.001) and the two-week follow-up (p = 0.002), perhaps because the unenriched rats increased in severity. At the four-week follow-up, 11 baseline-enriched rats and six unenriched rats were still undergoing experiments. An independent samples t-test showed that the difference in severity was still statistically significant (t(15) = 2.278, p = 0.038).

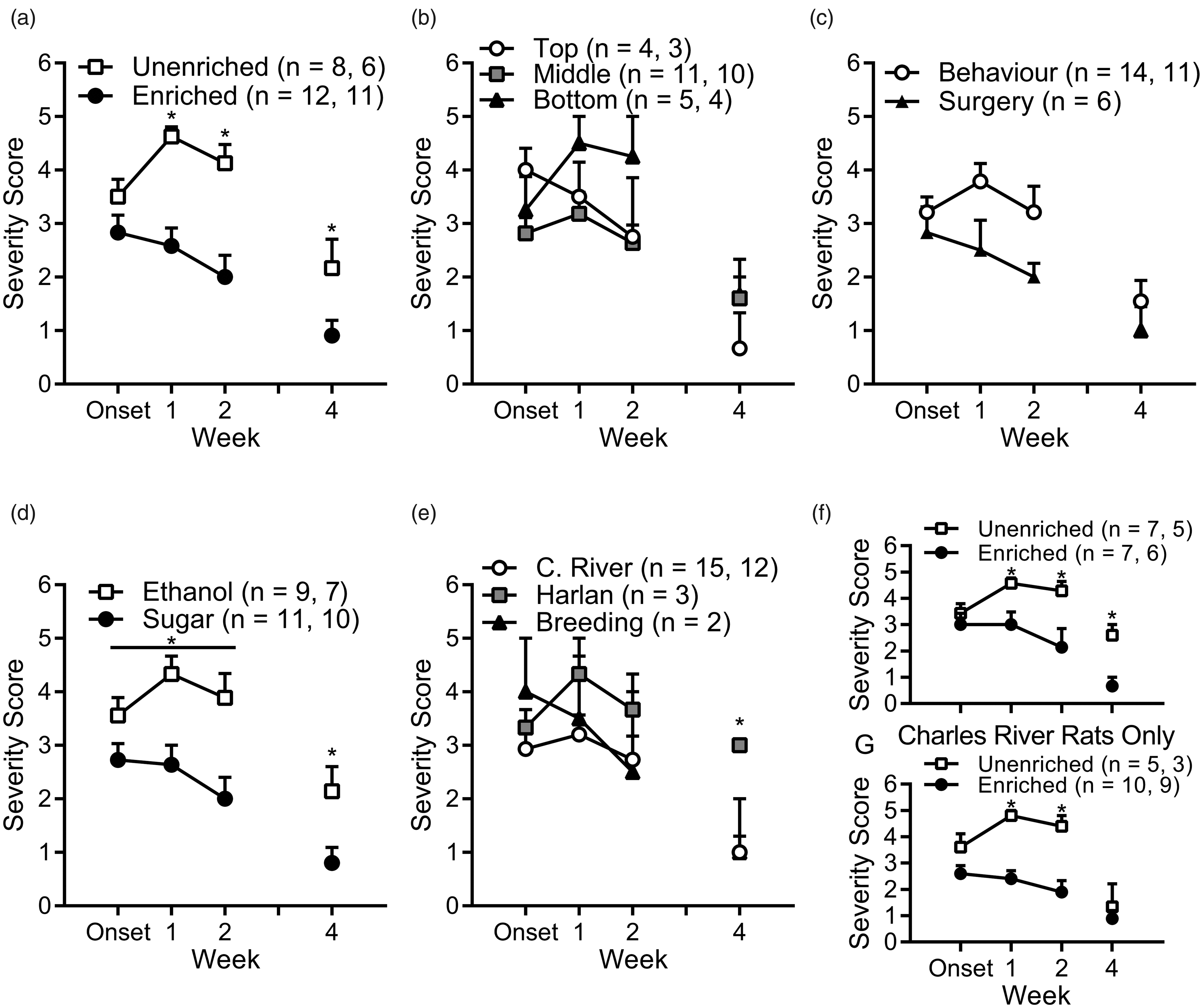

Figure 4.
Provision of nesting material enrichment at baseline was associated with lower severity and improved recovery from overgrooming-related self-injury. (a) Rats that received baseline enrichment had similar self-injury severity scores at onset to unenriched rats that received nesting material enrichment only after onset. Baseline-enriched rats had significantly lower severity at one-, two- and four-week follow-ups. (b) The position of the cage did not affect the severity score at onset or at any point during follow-up. (c) There was also no difference between behavioural experiments and experiments involving surgery. (d) Prior to statistical control for confounds, rats with ethanol as a reinforcer had higher severity scores than sugar rats throughout the monitoring period. (e) There was no difference between suppliers at onset or one- or two-week follow-ups. At week 4, rats from Harlan had significantly higher severity scores than rats from Charles River or from the internal breeding colony. (f) The effect of baseline enrichment was robust when analysing rats from behavioural experiments alone or (g) Charles River rats alone. Data are mean ± SEM and ns are given in legends for onset to week 2 and then for week 4 (if changed).

An alternative hypothesis might be that cage position influences the severity of overgrooming-related self-injury, but this was not the case. A mixed-design ANOVA with cage position as a between-subjects factor and week as a within-subjects factor found no main effect of cage position (F(2,17) = 0.456, p = 0.641; Figure 4(b)). Severity scores did not significantly change over the two weeks of follow-ups (F(2,34) =1.896, p = 0.166) and there was no significant week ×position interaction (F(4, 34) = 1.205, p = 0.327). At week 4, when there were 17 rats remaining in experiments (top n = 3, middle n = 10, bottom n = 4), a one-way ANOVA found no significant effect of position (F(2, 14) = 0.663, p = 0.531).

We also found no difference between behavioural experiments and experiments involving surgery (Figure 4(c)). A mixed-design ANOVA with experimental procedure as a between-subjects factor and week as a within-subjects factor found no main effect of experimental procedure (F(1, 18) = 2.992, p = 0.101), week (F(1.468, 26.418) = 1.876, p = 0.18, ɛ = 0.734) or week × experimental procedure interaction (F(1.468, 26.418) = 1.5, p = 0.24). One reviewer has suggested that the non-significant main effect of experimental procedure (p = 0.101) may be indicative of a trend or weak effect. We therefore examined the Bonferroni-corrected post-hoc comparisons at each timepoint, which indicated no significant difference between behavioural and surgery rats at onset (p = 0.481), week 1 (p = 0.056) or week 2 (p = 0.13). At the four-week follow-up, there were 11 behavioural rats and six surgery rats remaining and an independent t-test showed no significant difference between their severity scores (t(15) = 0.873, p = 0.396).

Rats in studies with a sugar reinforcer presented with significantly lower severity scores than rats in ethanol studies (Figure 4(d); F(1, 18) = 11.722, p = 0.003). However, mixed-design ANOVA found no significant effect of week (F(1.52, 27.377) = 2.179, p = 0.142, ɛ = 0.76) or week × reinforcer interaction (F(1.52, 27.377) = 2.326, p = 0.128). At week 4, there were seven rats in ethanol studies and 10 rats in sugar studies and rats in the sugar studies had significantly lower severity scores (t(15) = 2.601, p = 0.02).

Supplier did not have a clear effect on severity (Figure 4(e)). Mixed-design ANOVA found no main effect of supplier (F(2, 17) = 0.601, p = 0.559), week (F(1.499, 25.475) = 1.755, p = 0.197, ɛ = 0.749) or week × supplier interaction (F(2.997, 25.475) = 0.845, p = 0.482). However, prior to the four-week follow-up three Charles River rats completed their experiments, such that there were 12 Charles River rats, three Harlan and two breeding colony rats remaining. A one-way ANOVA found a significant effect of supplier (F(2, 14) = 4.941, p = 0.024) and Bonferroni-corrected post-hoc comparisons found Harlan rats had significantly higher severity scores than Charles River rats (p = 0.024), but there were no other significant pairwise comparisons (p ≥ 0.138). However, this result is confounded by the small number of rats obtained from Harlan laboratories and the breeding colony and because all of the Harlan rats were in the unenriched group.

Statistical control of confounds

Procedural differences related to experimental procedures (behavioural vs. surgery), reinforcer type (ethanol vs. sugar) and supplier frequently biased whether rats were in the baseline-enriched group or unenriched group (Table 1). While experimental control for confounding variables is not possible in an observational study, we used a mixed linear model to test the main effects that predicted severity scores from onset to the two-week follow-up, when all cases were available for analysis. A mixed linear model using a scaled identity covariance matrix, maximum likelihood estimation and random intercept suggested that only baseline enrichment was a significant predictor, with unenriched rats having higher severity scores than rats in the baseline-enriched group (β = 2.09 ± 0.83, t(20) = 2.52, p = 0.02). Experimental procedures was included in the model because of the potential marginal difference at week 1, but was not a significant predictor (β = 0.64 ± 0.44, t(20) = 1.46, p = 0.158). Reinforcer type was included because it had significant effects when analysed alone, but was also not a significant predictor (β = –0.31 ±0.94, t(20) = –0.33, p = 0.746). Supplier was also included because Harlan rats had significantly higher severity scores at week 4, which also appeared visually (but not statistically) in weeks 1–2. However, supplier was not a significant predictor because neither being from Charles River (β = –1.41 ± 1.13, t(20) = –1.25, p = 0.226) nor Harlan (β = –1.96 ± 1.15, t(20) = –1.71, p = 0.102) predicted severity scores.

To further control for possible confounds of experimental procedure and supplier, we were also able to analyse behavioural rats (i.e. rats whose experimental procedures did not include surgeries) and Charles River rats separately. Both of these conditions had a sufficient number of cases that were distributed across baseline-enriched and unenriched conditions. This analysis was not possible for reinforcer type because only one sugar rat was unenriched and only two ethanol rats were baseline-enriched.

Analysing behavioural rats alone (baseline-enriched n = 7, unenriched n = 7; Figure 4(f)) with a mixed-design ANOVA, demonstrated that baseline-enrichment was significantly associated with lower severity scores (F(1, 12) = 6.536, p = 0.025). While there was no significant effect of week (F(2, 24) = 2.446, p = 0.108), there was a significant week × baseline-enrichment interaction (F(2, 24) = 4.28, p = 0.026), with Bonferroni post-hocs showing that baseline-enriched rats had lower severity scores at the one-week (p = 0.012) and two-week (p = 0.019) follow-ups. An independent t-test also showed a significant difference at week 4 (t(9) = 3.747, p = 0.005; baseline-enriched n = 6, unenriched n = 5).

Similarly, analysing Charles River rats alone (baseline-enriched n = 10, unenriched = 5, Figure 4(g)), showed there was statistically significant effect of baseline enrichment on severity scores (F(1,13) = 19.414, p = 0.001). There was a significant week × baseline-enrichment interaction (F(2, 26) = 3.586, p = 0.042), but no main effect of week (F(2, 26) = 1.546, p = 0.232). Bonferroni-corrected post-hoc comparisons showed baseline-enriched rats had lower severity scores at the one-week (p < 0.001) and two-week (p = 0.003) follow-ups. At the four-week follow-up there were only three unenriched and nine baseline-enriched Charles River rats with no significant difference in their severity scores (t(10) = 0.62, p = 0.549).

Discussion

The present study found that rats that received nesting material enrichment at baseline experienced less severe overgrooming-related self-injury than rats that did not receive baseline enrichment. Although there was no difference in prevalence between rats that received nesting material enrichment at baseline compared with rats that were unenriched at baseline, the difference in severity and more rapid recovery after onset suggests that the simple refinement of providing shredded paper as nesting material provides a measurable improvement in the welfare of individually housed rats.

Numerous studies have shown that environmental enrichment is beneficial for laboratory rats. Our results are consistent with previous reports that environmental enrichment can reduce stress, anxiety and depression-like symptoms in laboratory animals, though we do not claim to have directly measured these behaviours.^{2,23–28,30,31,41} They further demonstrate that even a relatively small improvement in the level of enrichment can reduce the severity of overgrooming-related self-injury and thus likely increases welfare.¹⁰ Nesting material enrichment may be a particularly important form of environmental enrichment because instead of being a relatively static structure, it can serve multiple needs. Previous studies have shown that mice given shredded paper nesting material are able to build nests that are comparable to their wild counterparts’.⁴² While a shelter can provide a good hiding place (note that in Figure 1, all of the rats are in or on their tunnels), in group-housed mice it can actually promote aggression.⁴³ In addition to a hiding place, nesting material can provide thermal insulation⁴² and allows animals to express more of their natural behaviours, an important ‘five freedoms’ consideration.⁴⁴ In mice, nesting material reduced aggression between group-housed animals.⁴³ In rats, using nesting material is also a learned behaviour, which may explain why providing additional enrichment at the onset of overgrooming-related self-injury did not produce an immediate reduction in severity.⁴⁵ There is also the possibility that rats that were unenriched at baseline and given nesting material after onset experienced some neophobia towards the novel material, although several studies suggest that laboratory rats show low levels of neophobia that last no more than a day.^1,46,47 Moreover, when rats are introduced to a clean cage with new bedding, physiological effects last only a few hours while rats in our study were monitored over weeks.^48–50 It seems more likely that unenriched rats developed habitual stereotypies that persist even after their home-cage conditions were improved.¹⁰ Shredded paper nesting material may therefore be a particularly effective environmental enrichment for reducing stress in laboratory rats and should be provided wherever possible throughout the animal’s life.

Importantly, these effects appeared to be independent of several other factors, such as whether experimental procedures were purely behavioural or also included intracranial surgery. There was no significant effect of experimental procedure on the prevalence or severity of overgrooming-related self-injury. At most, there may have been a difference at the one-week follow-up, but this is probably due to chance because mixed linear modelling did not indicate any effect of experimental procedure. Moreover, if this was a real effect it would require a much larger sample size (at least 34 rats for 80% power according to G*Power 3.1.9.4)⁵¹ to detect it. It would also be highly counterintuitive because, despite the putative impact of intracranial surgeries, it would suggest that intracranial surgeries might reduce the severity of overgrooming-related self-injury. One potential explanation for the lack of a difference between behavioural and surgery rats is that surgery rats are provided a higher level of care, handling and habituation to experimental procedures that compensate for the stress associated with intracranial surgery experiments. Regardless of whether surgical experimental procedures affect the severity of overgrooming-related self-injury, our data suggest that baseline nesting material enrichment reduces the overgrooming-related self-injury because even when behavioural rats are analysed separately, the effect of baseline enrichment is still statistically significant.

There also did not appear to be a specific age at which rats would present with overgrooming-related self-injury because the weight at onset varied widely between 264 g, corresponding to a time shortly after arrival, and 476 g, corresponding to several weeks after arrival. Cage location also did not appear to have an effect since there was no significant difference in prevalence or severity at any point in time.

Individual housing of laboratory rats remains an important welfare concern for scientists and animal welfare specialists. Baseline environmental enrichment had no effect on the prevalence or onset severity of overgrooming-related self-injury. This suggests that individual housing remains a key stressor for laboratory rats and it is notable that the observed 5% prevalence in our study is almost identical to the previously observed 5.7% prevalence of self-barbering in individually housed mice.¹³ It also appears that enrichment needs to be permanent in order for it to have beneficial effects on the severity of overgrooming-related self-injury over time. In our study, rats that were observed to overgroom were provided with additional enrichment, but they still did not recover at the same rate as rats that had nesting material enrichment at baseline. Indeed, it appears that their condition initially worsened and at four weeks, while nearly half of the baseline-enriched rats had fully recovered (n = 5), only one of the rats that was unenriched at baseline had fully recovered. This suggests that environmental enrichment works by modulating the stress response over a long period of time.

One limitation of the present study is that we are unable to determine the nature of any proximal cause that might trigger overgrooming-related self-injury. We have observed, consistent with previous reports,¹³ a relatively low prevalence of overgrooming-related self-injury. There appears to be no consistent age/weight, experimental procedure, cage location or supplier associated with the onset of overgrooming. The low prevalence of overgrooming limits the forms of study primarily to observational designs because it requires a large number of animals to accumulate sufficient cases. This also results in a potential confound because it may be the case that projects where experimenters provided nesting material enrichment at baseline were less stressful than experiments without enrichment at baseline. Experiments using a sugar reinforcer tended to involve baseline enrichment while ethanol experiments did not. It is theoretically possible that the mere exposure to ethanol increased the severity of overgrooming-related self-injury despite ethanol’s anxiolytic effects, but this does not seem likely because all ethanol consumption was voluntary and, during Pavlovian conditioning, only small amounts of ethanol are available that are unlikely to have a long-lasting effect.^37,52 While mixed linear modelling suggested that baseline enrichment was the more important factor, this type of confound invites replication of the present study in other laboratories.

Another possibility is that our findings were affected by genetic differences between animals. For example, the significant difference between Harlan rats and Charles River rats at the four-week follow-up is confounded because all three Harlan rats were also unenriched rats, so it is unclear whether they had higher severity scores because they were Harlan rats or because they were unenriched until the onset of overgrooming-related self-injury. Although previous studies have found differences between Charles River rats and Harlan rats,^34,53 it has not been shown whether this extends to pathological grooming behaviour. Mixed linear modelling did not identify supplier or reinforcer as a significant predictor of severity scores. Moreover, even if Charles River rats are analysed alone, there is still a statistically significant effect of baseline enrichment, suggesting that the effect of baseline enrichment is unlikely to be a simple vendor difference.

Inter-experimenter differences are also a possible confound because it was not possible to calculate inter-rater reliability after training, due to the infrequent nature of cases. However, observations were frequently confirmed by a second experimenter, because most projects involved multiple experimenters. Ideally, the causes and best practices for management of overgrooming could be examined by direct experimental manipulation of self-injury behaviour. While this could be achieved using pharmacological approaches, such as the pemoline model,^14,20,21 it is unclear whether this would accurately model the overgrooming that results from individual housing. Therefore, while it is difficult to draw conclusions that would be as strong as those drawn from an experimental study, observational studies of overgrooming-related self-injury and its management are currently the most practical approach.

Conclusion

Individual housing of laboratory rats presents an important welfare concern for scientists. While individual housing may be justifiable in certain experimental models, it appears to result in approximately 5% of animals engaging in pathological overgrooming resulting in self-injury. Prevalence and severity appear to be independent of several other factors, such as the location of the cage, experimental procedures and source of the animals. While reinforcer type biased whether rats were in the baseline-enrichment group or unenriched until onset of symptoms, statistical analysis suggested that baseline enrichment was the more important factor. Thus, the simple refinement of providing rats with shredded paper nesting material enrichment throughout their life in the animal facility, in addition to shelters and chew toys, can reduce the severity of self-injury and promote recovery.

Supplemental Material

LAN894356 Supplemental Material - Supplemental material for Nesting material enrichment reduces severity of overgrooming-related self-injury in individually housed rats

Supplemental material, LAN894356 Supplemental Material for Nesting material enrichment reduces severity of overgrooming-related self-injury in individually housed rats by Shaun Y-S Khoo, Vanessa Correia and Alexandra Uhrig in Laboratory Animals

Supplier^a	Reinforcer	Experimental procedures	Baseline enrichment	Number of rats (cases)
Charles River	Sugar	Behaviour	Yes	118 (6)
Charles River	Sugar	Behaviour	No	30 (none)
Charles River	Sugar	Surgery	Yes	44 (4)
Charles River	Sugar	Surgery	No	59 (1)
Charles River	Ethanol	Behaviour	No	24 (4)
Harlan Laboratories	Ethanol	Behaviour	No	48 (3)
Breeding colony	Ethanol	Behaviour	Yes	10 (1)
Breeding colony	Ethanol	Surgery	Yes	76 (1)
Breeding colony	Ethanol	Surgery	No	6 (none)

Severity score	Criteria
0 – Not present	No sign of overgrooming and skin has recovered. Hair regrowth is present
1 – Very mild	Hair loss to an area representing <1 cm², skin intact
2 – Mild	Hair loss to an area representing >1 cm², skin intact
3 – Moderate	Hair loss >1 cm² with skin inflammation or lesions (e.g. red or raised skin) but no bleeding
4 – Somewhat severe	Skin lesion >1 cm² with little to no bleeding
5 – Severe	Skin lesion with broken skin and bleeding
6 – Very severe	Warrants immediate euthanasia. Animals with open wounds were taken to Animal Care Facility/veterinary staff for assessment to determine an appropriate course of action. This never resulted in a euthanasia recommendation during the course of the study
