Optimal tube length of orotracheal intubation for mice

Abstract

Endotracheal tube (ETT) management is an essential technique in handling mice with mechanical ventilators. Malposition into bronchi causes not only lethal complications for them but also less efficient mechanical ventilation. However, in general, it is difficult to know whether the ETT is placed with appropriate depth into the trachea of mice. We measured the distance from incisors to the bifurcation of trachea of multiple mice, and created a new estimation formula to obtain the suitable ETT length for mice with a body weight range from 17 g to 25 g: length (mm) = 0.5 × bodyweight (g) + 7. However, millimeter step adjustments are impracticable. Thus, slightly shorter than 2 cm (18–20 mm) may be the universal ETT length for mice with bodyweight > 17 g. Furthermore, their foot size may be a good alternative to predict the individual optimal ETT length for mice.

Airway management is critical in animal experiments with mechanical ventilation. Malposition of the endotracheal tube (ETT) within the airway such as endobronchial intubation results in serious complications, including lung collapse, which could be lethal for mice. Although many technical reports have been published regarding non-invasive endotracheal intubation methods for mice, little is known about the optimal ETT depth for mice.^1–11 How can we check the ETT position for intubated mice? In daily clinical care for intubated human patients, we routinely confirm the ETT position using several methods. ¹² Chest X-rays and lung auscultation are typical examples. For laboratory animals, however, they are generally inaccessible. Given the lack of ways to confirm ETT depth, determining a suitable ETT length for mice remains a priority.

Mice used in this work were included in research projects underway in our laboratory, with each project being approved by the Institutional Animal Care and Use Committee of the Cedars-Sinai Medical Center. All animal experimental procedures were conducted in accordance with the Guide for the Care and Use of Laboratory Animals of National Institute of Health and the Public Health Service Policy on Humane Care and Use of Laboratory Animals. The mice were purchased from The Jackson Laboratory (Bar Harbor, ME), and were housed under specific pathogen-free conditions at the Comparative Medicine Facility of Cedars-Sinai Medical Center. More specifically, animals were housed in individually ventilated cages (Allentown Inc., NJ, USA), five per cage, over autoclaved wood bedding (Sani-Chips, PJ Murphy, NJ, USA) under stable conditions (temperature 22–25℃, relative humidity 50–70%, 12-h light/dark cycle) with unrestricted access to water and diet. Nestlets (Ancare Corp, NY, USA) and a PVC pipe were provided for enrichment. We used three groups of mice; C57BL/6 male and female mice housed with standard diet; Balb/c male mice fed with standard diet; and C57BL6 female mice fed with high-fat diet (TD88137) (ENVIGO, Indianapolis, IN, USA) for 20 weeks (Table 1). All measurements were performed on mice after euthanasia by isoflurane inhalation overdose.

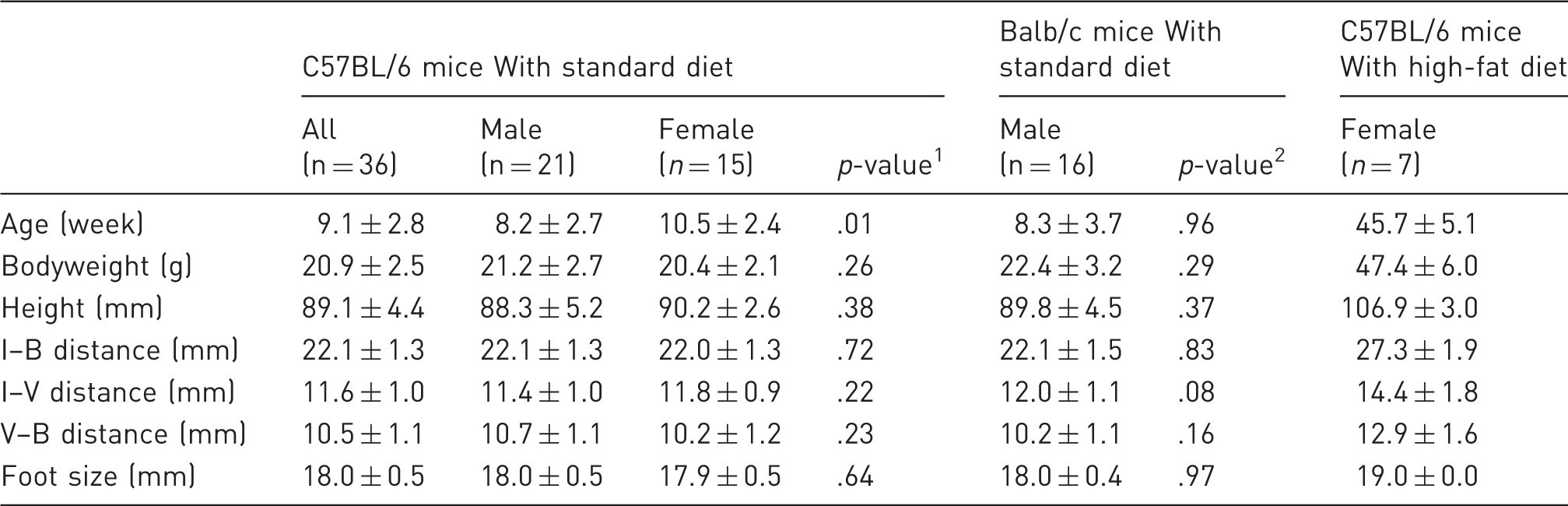

Table 1

Characteristics of animals in this study.

	C57BL/6 mice With standard diet				Balb/c mice With standard diet		C57BL/6 mice With high-fat diet
	All (n = 36)	Male (n = 21)	Female (n = 15)	p-value 1	Male (n = 16)	p-value 2	Female (n = 7)
Age (week)	9.1 ± 2.8	8.2 ± 2.7	10.5 ± 2.4	.01	8.3 ± 3.7	.96	45.7 ± 5.1
Bodyweight (g)	20.9 ± 2.5	21.2 ± 2.7	20.4 ± 2.1	.26	22.4 ± 3.2	.29	47.4 ± 6.0
Height (mm)	89.1 ± 4.4	88.3 ± 5.2	90.2 ± 2.6	.38	89.8 ± 4.5	.37	106.9 ± 3.0
I–B distance (mm)	22.1 ± 1.3	22.1 ± 1.3	22.0 ± 1.3	.72	22.1 ± 1.5	.83	27.3 ± 1.9
I–V distance (mm)	11.6 ± 1.0	11.4 ± 1.0	11.8 ± 0.9	.22	12.0 ± 1.1	.08	14.4 ± 1.8
V–B distance (mm)	10.5 ± 1.1	10.7 ± 1.1	10.2 ± 1.2	.23	10.2 ± 1.1	.16	12.9 ± 1.6
Foot size (mm)	18.0 ± 0.5	18.0 ± 0.5	17.9 ± 0.5	.64	18.0 ± 0.4	.97	19.0 ± 0.0

Data are mean ± SD. p-values were calculated by Mann–Whitney’s U test between standard diet-fed C57BL/6 male and female mice ¹ , or compared between standard diet-fed C57BL/6 male mice and Balb/c male mice ² .

A standard disposable intravenous catheter (BD Insyte Autoguard, 20GA 1.00 in., Becton Dickinson Infusion Therapy Systems Inc, Sandy, UT, USA) was orotracheally intubated, and the distances between the lower incisors and the bifurcation of the trachea (I-B distance), or the center of the thyroid cartilage (an index of the level of vocal cord; I-V distance) were measured (Figure 1(a)). The relationship between these measurements and bodyweight or height (the distance between the nose to the joint of a tail) was plotted, and their linear approximation and the coefficient of determination (R²) were calculated (Excel for Mac 2011, Microsoft, Redmond, WA, USA). The formula used by Excel is: = the regression sum of squares / the total sum of squares = DEVSQ (explained I–B lengths 1, explained I–B length 2 …) / DEVSQ (measured I–B length 1, measured I–B length 2 …). In addition, using the same mice, their size of right foot (the distance from the tip of the heel to the tip of the middle toe) was measured to evaluate the association with appropriate length of ETT intubation. All other statistical analysis was performed using Prism 4.0 software (GraphPad Software, San Diego, CA, USA). A p value < 0.05 was considered statistically significant.

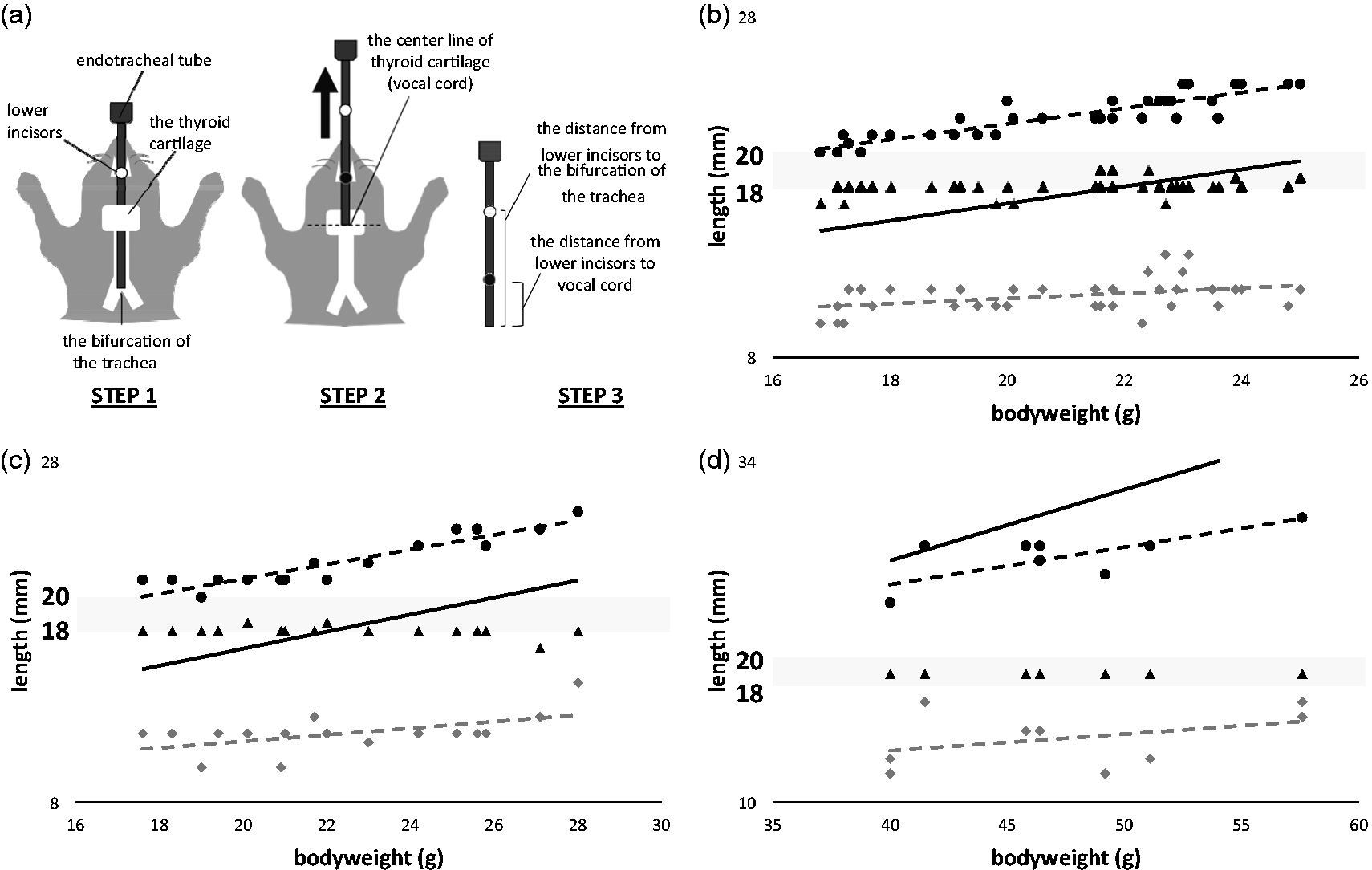

Figure 1.

Strategy and results for measuring distances between lower incisors and the bifurcation of the carina, or the vocal cord. (a) To measure the distance between the lower incisors and the bifurcation of the trachea (I–B distance), the tip of intubated catheter was placed at the bifurcation, and the catheter was marked at the lower incisors level (Step 1). When the catheter was so short that it did not reach to the bifurcation of the trachea, a guidewire was inserted in the catheter to fill the gap. Subsequently, to measure distance between the lower incisors and the vocal code (I–V distance), the catheter was carefully withdrawn to the center of the thyroid cartilage, an index of the level of vocal cord, and catheter was marked again at the lower incisors level (Step 2). The catheter was finally pulled out and the distances between the tip of catheter and marked points were measured (Step 3). (b)–(d) Black and grey broken lines indicate I–B and I–V distance, respectively. Proposed target depth of endotracheal tube tip was indicated by a black solid line (y = 0.5x + 7). A grey band indicates 18–20 mm. Black triangles indicate the foot size of each mouse. Each graph shows the result of C57/BL6 mice with standard diet (b), Balb/c mice with standard diet (c), and obese female C57/BL6 mice fed with high-fat diet (d).

In the standard-diet C57BL/6 group, there was no significant difference between the sexes in height, or I–B and I–V distance (Table 1). Therefore, we decided to use both male and female data together in the subsequent analysis. We calculated the linear association between the I–B distance and body weight with a coefficient of determination (R²= 0.81), which was better than with height (R²= 0.25): I–B distance (mm) =0.46 × bodyweight (g) + 12 (black broken line on Figure 1(b)). The length of trachea (distance from the vocal cord to the bifurcation of the trachea [V–B distance in Table 1], between black and grey broken lines on Figure 1(b)) was roughly 10 mm. The center of the trachea may be the safe ETT-tip position to prevent both accidental extubation and endobronchial intubation, which should be 5 mm inside from the vocal cord in our case. ⁶ Hence, we created the following simplified formula to estimate optimal ETT length for mice: length (mm) = 0.5 × bodyweight (g) + 7 (black solid line on Figure 1(b)). We also plotted foot sizes in Figure 1(b) (black triangles), all of which fell between the I–B and I–V distances. In addition, we confirmed that the simplified formula could be applied to the Balb/c mice group, and their foot size was also a good surrogate to estimate optimal ETT length (Figure 1(c)). On the other hand, our formula did not correlate well with mice that were older and overweight (Figure 1(d)); however, their foot size remained a good criterion of ETT length (Figure 1(d)).

Our findings require some careful interpretation as these are not guarantees but instead are guides for appropriate ETT tip position. These findings may not be applicable to other strains of mice. Additionally, we did not analyze tube width in this study. Some investigations used 24-gauge catheters, while others 20-gauge for orotracheal intubation.^4–9,13 While a wider endotracheal tube may cause injuries or edema to the airway, it allows a more accurate measure of airway pressure, ventilation with expected volume, or infallible drug administration by tight seal with the airway.^6,9 Thus, it is ideal that the tube size be chosen according to purposes of intubation, which will be a good subject for future investigation. Based on these limitations, this report raised a critical issue of management of ETT length with ventilated mice, which has not been well addressed, and provided data to resolve it. Evaluation of the success of endotracheal intubation is an important topic for researchers using intubated animals, and several methods have been reported in mice such as observing animal respiratory patterns and water drop movement inside the connected tube.^2,4,13 However, these methods overlook extremely deep or shallow intubation, thus making them less reliable. Studies published by Vergari et al. clearly stipulate the appropriate ETT length as 3–6 mm to insert from the vocal cords, which corresponds with our findings. Brown et al. described the insertion length as ∼3 mm into the trachea; however, our results found that the trachea has more length to be occupied and the ∼3 mm insertion length may be too shallow and cause accidental extubation.^1–3 In this study, we have provided a new estimation formula to obtain a suitable ETT length, which could be applied to two different strains of mice within the general range of bodyweight. However, the bodyweight-based calculation may not always be applicable, especially in obese mice, as shown in Figure 1(d). Moreover, it is impractical to adjust the small tube precisely in 1 mm steps. Therefore, we concluded that slightly shorter than 2 cm (18–20 mm) is the optimal ETT length for mice within the range of bodyweight (Grey line on Figure 1(b)–(d)). It should be noted that this simple number (18–20 mm) can be applied safely to obese mice, while the calculated length by the formula can result in too deep intubation. These findings may indicate that the growth rate of the trachea along with increase in bodyweight becomes slower at a certain point. Furthermore, we found foot size to be a good alternative to estimate optimal ETT length. Measurement of foot size can be performed promptly and easily without expensive equipment. In addition to C57Bl/6 mice, this method could be applied to Balb/c mice as well as obese mice. Incidentally, foot size has been previously reported to be useful for estimating optimal nasotracheal tube length for human neonates. ¹⁴ In conclusion, in addition to our formula, foot size may also accurately predict the distance for safe endotracheal intubation for mice. Further studies need to be performed to ensure the usefulness and safety of these estimation methods using mice under mechanical ventilation.
