Atmospheric PM 2.5 concentration prediction and noise estimation based on adaptive unscented Kalman filtering

Abstract

Due to the randomness and uncertainty in the atmospheric environment, and accompanied by a variety of unknown noise. Accurate prediction of PM_2.5 concentration is very important for people to prevent injury effectively. In order to predict PM_2.5 concentration more accurately in this environment, a hybrid modelling method of support vector regression and adaptive unscented Kalman filter (SVR-AUKF) is proposed to predict atmospheric PM_2.5 concentration in the case of incorrect or unknown noise. Firstly, the PM_2.5 concentration prediction model was established by support vector regression. Secondly, the state space framework of the model is combined with the adaptive unscented Kalman filter method to estimate the uncertain PM_2.5 concentration state and noise through continuous updating when the model noise is incorrect or unknown. Finally, the proposed method is compared with SVR-UKF method, the simulation results show that the proposed method is more accurate and robust. The proposed method is compared with SVR-UKF, AR-Kalman, AR and BP methods. The simulation results show that the proposed method has higher prediction accuracy of PM_2.5 concentration.

Keywords

Support vector regression adaptive unscented Kalman filtering noise estimation

Introduction

The rapid development of our industrialization process and economy in recent years, air pollution has already affected in developed regions of China such as Beijing, Tianjin and Hebei, the Pearl River Delta and the Yangtze River Delta.¹ PM_2.5 is one of particulate matter causing pollution. The sources of PM_2.5 are mainly divided into primary emission and secondary transformation sources, and the secondary transformation is the main source.^2,3 The people’s health, vegetation, agriculture and building materials are harmed in the Los Angeles Smog in 1930s, so people must use protective equipment to avoid being affected.^4–7 To make people avoid air pollution in advance, China’s environment department has also formulated a large number of measures and policies.⁸

The prediction of PM_2.5 concentration is the first research topic at present. Many methods are proposed to predict PM_2.5 concentration by a large number of experts and scholars. For example, Zhou et al.^9,10 proposes a generalized regression neural network prediction by data processing and analysis integrated empirical mode decomposition to predict PM_2.5. This method can improve the prediction accuracy of PM_2.5 concentration. Elangasinghe et al.¹¹ studies the PM_2.5 concentration in the region of New Zealand by artificial neural network (ANN). Feng et al.¹² uses different stations to establish a hybrid model to improve the prediction accuracy of daily average PM_2.5 concentration by artificial neural network (ANN). The influencing factors between different stations is used as the inputs of the hybrid model by the data of 13 pollution monitoring stations. The data is decomposed by wavelet changes and applied to the corresponding models. The method can establish powerful nonlinear network and improve prediction accuracy. Some scholars use time series method to study PM_2.5 concentration. Erdem et al.¹³ studies that the hourly average wind speed is predicted by the autoregressive moving average (ARMA) method. This method is used to predict the single sequence PM_2.5 concentration. This method improves the prediction accuracy of non-stationary wind speed time series. Lee and Tong¹⁴ uses a hybrid forecasting method to solve nonlinear time series prediction by improved autoregressive integral moving average method. The support vector machine and other statistical methods are also widely applied. Kavousi-Fard et al studies that a hybrid forecasting algorithm to forecast power load. The support vector regression is combined with improved firefly method to obtain optimal parameters and improve the prediction accuracy.¹⁵ Lin et al.¹⁶ gives an improved combination algorithm of support vector regression (SVR) to forecast seasonal revenues. However, the above-mentioned advanced methods need a large number of sample data, and the algorithm is complex and the amount of calculation is large. In complex environment, the most required variables are usually difficult to obtain. For example, the monitoring of SO₂ emissions from coal-fired power plant, the environment of monitoring flue gas is bad. The cost of installing monitoring equipment is high, so the SO₂ emissions are difficult to obtain. Thus, it is difficult to apply online in atmospheric environment. For this problem, the Kalman filter (KF) method doesn’t need a lot of calculation, and the calculation is simple. The Kalman method can estimate the missing information by limited measurement information. The KF method is widely applied.^17,18 The traditional KF method can only be used in linear system, and the application scope is limited. The extended Kalman filter (EKF) and unscented Kalman filter (UKF)^19,20 in nonlinear methods are used to apply in prediction area. Nasseri et al.¹⁹ studies the EKF is combined with Genetic Programming (GP) method to predict the water demand in Tehran. Zhao et al.²¹ proposes a robust iterated extended Kalman filter method. The EKF method needs to linearize the nonlinear function and calculate the Jacobian matrix by the Taylor’s formula. The prediction accuracy of this method is not ideal. Qi et al.²² proposes an improved UKF method (UKF-GPS) to improve numerical stability for power system. The shortcomings of the EKF method are solved.²³

However, most Kalman filter applications need to assume that the noise statistics are accurate or known. Such as noise variance of system and measurement noise, which is correct.

Once the noise statistics are not accurate, the PM_2.5 concentration prediction based on Kalman method will be inaccurate or even unstable. For this problem, Dai et al.²⁴ uses adaptive Kalman filter to estimate battery temperature. Liu and Partovibakhsh²⁵ studies adaptive unscented Kalman filter to estimate the state of lithium battery. This method uses covariance matching technology to adjust the noise covariance adaptively, which makes state of charge (SoC) estimation with high accuracy. Xiong et al.²⁶ uses the adaptive extended Kalman filter to realize the accurate SOC estimation of battery pack and ensure the accuracy of each battery estimation.

In addition, in the process of PM_2.5 concentration prediction. The statistical noise is usually assumed to be zero mean Gaussian white noise. In actual situation, the assumption is difficult to realize. Because the actual environment is complex and changeable, it is easy to be affected by external interference, which leads to the deviation of noise distribution, and affects the prediction accuracy. For this problem, an adaptive unscented Kalman filter based on support vector regression is proposed and applied in the area of PM_2.5 concentration prediction and on-line noise estimation. The prediction accuracy of atmospheric PM_2.5 concentration is improved from two aspects in this paper. Firstly, a framework of state equation based on support vector regression (SVR) is constructed. The framework of the model takes advantage of the SVR which can be used to do regression under the condition of small samples, and the kernel function can be used to solve the nonlinear problems. The SVR method avoids the shortcomings of model over fitting. Secondly, for the randomness and uncertainty of PM_2.5 concentration, an adaptive unscented Kalman filter (AUKF) is used to update the status continuously, and this method can predict the atmospheric PM_2.5 concentration when the noise statistics are incorrect or incorrect Gaussian. Then, the proposed method is compared with SVR-UKF. The simulation results show that the noise is estimated adaptively when the noise statistics of atmospheric PM_2.5 model is incorrect or exactly Gaussian. The accuracy and stability of the proposed method are proved. Finally, the proposed method is compared with SVR-UKF, AR-Kalman, AR and BP method. The simulation results prove the proposed method is more accurate in predicting PM_2.5 concentration.

The structure of the remainder of this paper is described as follows: the second section describes the development of PM_2.5 monitoring system. The third section is the PM_2.5 concentration prediction method. The simulation analysis is shown in fourth section. The last part draws the conclusions.

The development of PM_2.5 monitoring system

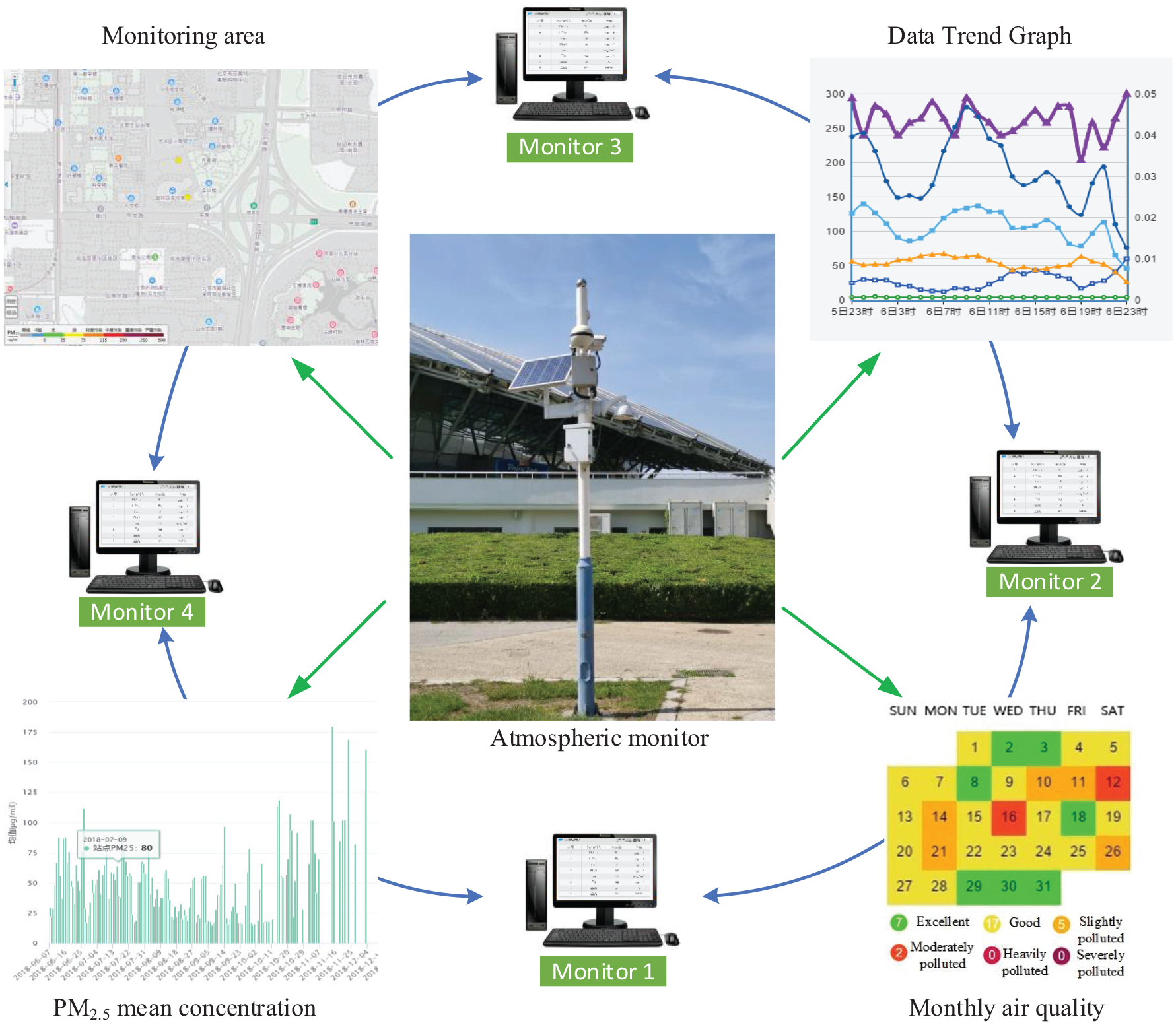

The monitoring system is introduced in this section. Beijing is a city with distinct seasons. The historical data of PM_2.5 concentration in 2018 is collected in a campus monitoring station area. The data is selected as research object from May to August. About 70% of the monitoring data is used as the training set, and the remaining 30% is the test data. The air monitoring system is shown in Figure 1, and the data is monitored by outdoor monitoring sensor probe. The system of platform equipment is composed of a solar panel power supply system and a power distribution box, which uses solar energy to supply power for the whole equipment. And the monitoring data is transferred to network cloud. The monitoring data concentration and historical trend are directly accessed the network by the upper computer. The trend of air pollution data can be monitored by trend graph. The operation status and geographical location of equipment at different monitoring areas can be seen in the monitoring area map. The users can monitor normal operation of equipment at different areas by different computer. The monitoring device can also monitor air quality at different times and display the PM_2.5 mean concentration. The monitored PM_2.5 concentration is used to verify the proposed method by this system.

Figure 1.

The air monitoring data system.

Through this monitoring platform, the proposed method in this paper is applied to predict the atmospheric PM_2.5 concentration in the next hour. Thus, the proposed is mainly introduced in next section.

Method

Support vector regression

The support vector machine (SVM) has usually classification and regression.²⁷ The SVR method is one of the SVM methods. The SVR is widely used in the field of regression. In this paper, the SVR is used to predict PM_2.5 concentration. The SVR method mainly constructs linear decision function in high-dimensional space to realize model prediction. The linear decision function is usually found by solving convex quadratic programming problems. This solution process embodies the principle of structural risk minimization, which avoids the over fitting phenomenon of traditional methods and improves the prediction ability. The SVR gives an n-dimensional input variable and a target variable. The samples $(x_{1}, y_{1}), (x_{2}, y_{2}), . . ., (x_{i}, y_{i})$ is usually given with $x_{i} \in R^{d}, y_{i} \in R$ , $i = 1, 2, . . ., n$ . The regression function of sample is described as follows:

f (x) = 〈 w, x 〉 + b

(1)

where $w$ is regression coefficient. $b$ is the bias. $〈 \cdot, \cdot 〉$ represents denotes the dot product, and it can be solved by convex optimization problems.²⁸ When the $f$ exists and approximates $(x_{i}, y_{i})$ with $ε$ precision. Some errors are allowed. Thus, the slack variables $ξ, ξ_{i}^{*}$ is introduced to cope with infeasible constraints of the optimization problem. The formula is shown as follows:

\min \frac{1}{2} ‖ w ‖^{2} + C \sum_{i = 1}^{N} (ξ_{i} + ξ_{i}^{*})

(2)

s . t . {\begin{matrix} y_{i} - 〈 w, x 〉 - b \leq ε + ξ_{i} \\ - y_{i} - 〈 w, x 〉 + b \leq ε + ξ_{i}^{*} \\ ξ_{i}, ξ_{i}^{*} \geq 0, i = 1, \dots, N \end{matrix}

(3)

where $C$ is trade off parameter between $f$ and larger than $ε$ , $ε$ is tolerance coefficient. The dual optimization problem is obtained by using Lagrange method, which is described as follows:

\begin{matrix} L = \frac{1}{2} ‖ ω ‖^{2} + C \sum_{i = 1}^{N} (ξ_{i} + ξ_{i}^{*}) - C \sum_{i = 1}^{N} (η_{i} ξ + η_{i}^{*} ξ^{*}) \\ - \sum_{i = 1}^{N} α_{i} (ε + ξ_{i} - y_{i} + 〈 ω, x_{i} 〉 + b) \\ - \sum_{i = 1}^{l} α_{i}^{*} (ε + ξ_{i}^{*} + y_{i} - 〈 ω, x_{i} 〉 - b) \end{matrix}

(4)

where L is Lagrangian, $η_{i}, η_{i}^{*}, α_{i}, α_{i}^{*}$ are Lagrangian multipliers. The partial derivatives of L to $b$ , $ω$ and $ξ_{i}^{*}$ are calculated as follows:

\frac{\partial L}{\partial b} = \sum_{i = 1}^{N} (α_{i}^{*} - α_{i}) = 0

(5)

\frac{\partial L}{\partial ω} = ω - \sum_{i = 1}^{N} (α_{i}^{*} - α_{i}) x_{i} = 0

(6)

\frac{\partial L}{\partial ξ_{i}^{*}} = (C - α_{i}^{*} - η_{i}^{*}) = 0

(7)

By substituting formula (5) to (7) into formula (4), the optimization problem is given as follows:

\begin{matrix} Max - \frac{1}{2} \sum_{i = 1, j = 1}^{N} (α_{j} - α_{i}^{*}) (α_{j} - α_{j}^{*}) K (x_{i}, x_{j}) \\ - \sum_{i = 1}^{N} (α_{i} + α_{i}^{*}) ε + \sum_{i = 1}^{N} (α_{i} - α_{i}^{*}) y_{i} \end{matrix}

(8)

where $K (x_{i}, x_{j})$ is kernel function. The $\sum_{i = 1}^{N} y_{i} (α_{i} - α_{i}^{*}) = 0$ is constraint condition. $0 < α_{i}, α_{i}^{*} < C$ . The regression function equation can be obtained as follows:

f (x) = \sum_{i = 1}^{N} (α_{i} - α_{i}^{*}) K (x, x_{i}^{*}) + b

(9)

where $〈 w, x 〉$ is calculated as follows:

〈 ω, x 〉 = \sum_{i = 1}^{N} (α_{i} - α_{i}^{*}) x_{i}

(10)

The Radial Basis Function (RBF) is selected as kernel function in this paper, which is described as follows:

K (x, x_{i}) = \exp (- \frac{{‖ x_{i} - x_{j} ‖}^{2}}{σ^{2}})

(11)

where $σ$ is the RBF width. The $b$ is calculated by Karush-Kuhn-Tucker (KKT) conditions.²⁹

b = y_{i} - 〈 w, x_{i} 〉 - ε, 0 < α_{i} < C

(12)

b = y_{i} - 〈 w, x_{i} 〉 + ε, 0 < α_{i}^{*} < C

(13)

The optimal choice of C and $σ$ are respectively 2⁴ and 0.0625 by multi-fold cross-validation in this paper. There are always randomness and uncertainty in the prediction process, the UKF based on state space frame of SVR can solve this problem by recursive state estimation.

The adaptive unscented Kalman filter method

The sampling points in the original state distribution are selected by a certain rule for this method, so that the mean and covariance of original state distribution are replaced by the sampling points. The state space frame of SVR is given as follows:

x_{k + 1} = f (x_{k}) + w_{k}

(14)

y_{k} = h (x_{k}) + v_{k}

(15)

where $f$ is a nonlinear equation function, $h$ is the nonlinear observation equation function. $w_{k}$ and $v_{k}$ are respectively the Gaussian white noise of $x_{k}$ , $y_{k}$ . $Q_{k}$ is covariance matrix of $w_{k}$ . The covariance matrix of $v_{k}$ is $R_{k}$ . The mean is $\bar{x}$ , and the variance is $P$ . $x_{k}$ denotes the state vector PM_2.5 concentration data. $y_{k}$ represents the observation PM_2.5 concentration data. The $w$ represents weights. n represents state dimension. The mean and covariance of the initialization state is given as follows:

{\begin{matrix} {\bar{x}}_{0} = E (x_{0}) \\ P_{0} = E [(x_{0} - \bar{x_{0}}) {(x_{0} - \bar{x_{0}})}^{T}] \end{matrix}

(16)

where $E$ is expected average, ${\bar{x}}_{0}$ is mean value, $P_{0}$ is covariance. The steps of calculating the sigma point are as follows:

x^{(0)} = \bar{x}, i = 0

(17)

x^{(i)} = \bar{x} + (\sqrt{(n + λ) P})_{i}, i = 1 ~ n

(18)

x^{(i)} = \bar{x} - (\sqrt{(n + λ) P})_{i}, i = 1 ~ n

(19)

where $(\sqrt{P})^{T} (\sqrt{P}) = P$ , ${(\sqrt{P})}_{i}$ represents the $i$ column of matrix square root.

λ = α^{2} (n + κ) - n

(20)

where $λ$ and $α$ are respectively scaling parameter. The distribution state of the sigma sampling points is determined by its selection. $α$ is set to 0.01 in this paper. $κ$ is set to 0. The corresponding weight of the sampling point is calculated as follows:

{\begin{matrix} ω_{m}^{(0)} = \frac{λ}{n + λ} \\ ω_{c}^{(0)} = \frac{λ}{n + λ} + (1 - α^{2} + β) \\ ω_{m}^{(i)} = ω_{c}^{(i)} = \frac{λ}{2 (n + λ)}, i = 1 ~ 2 n \end{matrix}

(21)

where $m$ and $c$ are mean value and covariance respectively. i is the number of sampling points. $ω$ is nonnegative weight coefficient. In this paper, $β$ is set to 2. The mean and covariance updates of system state is calculated as follows:

x_{k / k}^{(i)} = [{\hat{X}}_{k / k} {\hat{X}}_{k | k} + \sqrt{(n + λ) P_{k | k}} {\hat{X}}_{k | k} - \sqrt{(n + λ) P_{k | k}}]

(22)

The one step prediction of calculating sigma point set is obtained as follows:

x_{k + 1 | k}^{(i)} = f [k, x_{k | k}^{(i)}]

(23)

The one step prediction of system state is obtained by the weighted average value as follows:

{\hat{x}}_{k + 1 / k} = \sum_{i = 0}^{2 n} ω^{(i)} x_{k + 1 / k}^{(i)} + q_{k}

(24)

The one step prediction of covariance matrix is calculated as follows:

\begin{matrix} P_{k + 1 | k} = \sum_{i = 0}^{2 n} ω^{(i)} [{\hat{x}}_{k + 1 | k} - {x^{(i)}}_{k + 1 | k}] \\ [{\hat{x}}_{k + 1 | k} - {x^{(i)}}_{k + 1 | k}]^{T} + Q_{k} \end{matrix}

(25)

The new sigma point is generated by the UT transform according to the predicted value as follows:

\begin{matrix} x_{k + 1 / k}^{(i)} = [{\hat{x}}_{k + 1 / k} {\hat{x}}_{k + 1 / k} + \sqrt{(n + λ) P_{k + 1 / k}} \\ {\hat{x}}_{k + 1 / k} - \sqrt{(n + λ) P_{k + 1 / k}}] \end{matrix}

(26)

The predicted observations are obtained as follows:

y_{k + 1 / k}^{(i)} = h [{x^{(i)}}_{k + 1 | k}]

(27)

The predicted mean of the system is respectively described by weighted sum as follows:

{\bar{y}}_{k + 1 | k} = \sum_{i = 0}^{2 n} ω^{(i)} y_{k + 1 / k}^{(i)} + r_{k}

(28)

The update covariance and measurement covariance are obtained as follows:

{\begin{matrix} P_{y_{k} y_{k}} = \sum_{i = 0}^{2 n} ω^{(i)} [y_{k + 1 / k}^{(i)} - {\bar{y}}_{k + 1 | k}] {[y_{k + 1 / k}^{(i)} - {\bar{y}}_{k + 1 | k}]}^{T} + R_{k} \\ P_{x_{k} y_{k}} = \sum_{i = 0}^{2 n} ω^{(i)} [x_{k + 1 | k}^{(i)} - {\bar{y}}_{k + 1 | k}] {[x_{k + 1 | k}^{(i)} - {\bar{y}}_{k + 1 | k}]}^{T} \end{matrix}

(29)

The Kalman gain is calculated by formulate (25):

K_{k + 1} = P_{x_{k} y_{k}} P_{y_{k} y_{k}}^{- 1}

(30)

The state update and covariance update of the system are given as follows:

{\hat{x}}_{k + 1 | k + 1} = {\hat{x}}_{k + 1 | k} + K_{k + 1} [y_{k + 1} - {\hat{y}}_{k + 1 | k}]

(31)

P_{k + 1 | k + 1} = P_{k + 1 | k} - K_{k + 1} P_{y_{k} y_{k}} K_{k + 1}^{T}

(32)

where ${\hat{x}}_{k + 1 / k + 1}$ represents the predicted PM_2.5 concentration at (k+1)th time.

When the statistic noise is assumed to set, the SVR-UKF method can predict PM_2.5 concentration accurately. However, the noise is usually unknown or inaccurate. For example, assuming that the noise is zero mean Gaussian noise, $q_{k}$ , $Q_{k}$ , $r_{k}$ , $Q_{k}$ is known. The actual problem is the opposite. The AUKF method is used to solve this problem. The SVR-AUKF method is applied to estimate noise adaptively when the noise is unknown or inaccurate. The SVR-AUKF method is given as follows:

The mean value of process noise is given as follows:

{\hat{q}}_{k + 1} = (1 - d_{k + 1}) {\hat{q}}_{k} + d_{k + 1} [{\hat{x}}_{k / k} - \sum_{i = 0}^{2 n} w_{i}^{m} f (x_{k}^{(i)})]

(33)

where $d_{k + 1}$ is obtained as follows:

d_{k + 1} = \frac{(1 - b)}{(1 - b^{k + 1})}, k = 0, 1, 2, 3 . . i

(34)

where $b$ is the forgetting factor. The value is set to 0.98 in this paper. The process noise covariance is estimated as follows:

\begin{matrix} {\hat{Q}}_{k + 1} = (1 - d_{k + 1}) {\hat{Q}}_{k} + d_{k + 1} \\ [K_{k + 1} F_{k + 1} F_{k + 1}^{T} K_{k + 1}^{T} + P_{k + 1 / k + 1} \\ - \sum_{i = 0}^{2 n} w_{i}^{m} (x_{k + 1 / k}^{(i)} - \overset{\land}{x_{k + 1 / k}}) (x_{k + 1 / k}^{(i)} - \overset{\land}{x_{k + 1 / k}})^{T}] \end{matrix}

(35)

where $F_{k + 1}$ is given as follows:

F_{k + 1} = y_{k + 1} - {\hat{y}}_{k + 1}

(36)

The mean value of measured noise is estimated as follows:

{\hat{r}}_{k + 1} = (1 - d_{k + 1}) {\hat{r}}_{k} + d_{k + 1} [y_{k + 1} - \sum_{i = 0}^{2 n} ω_{i}^{m} h (x_{i, k + 1 / k})]

(37)

The measurement noise covariance is estimated as follows:

\begin{matrix} {\hat{R}}_{k + 1} = (1 - d_{k + 1}) {\hat{R}}_{k} + d_{k + 1} [F_{k + 1} F_{k + 1}^{T} \\ - \sum_{i = 0}^{2 n} w_{i}^{c} (y_{k + 1 / k}^{(i)} - {\bar{y}}_{k + 1 / k}) (y_{k + 1 / k}^{(i)} - {\bar{y}}_{k + 1 / k})^{T}] \end{matrix}

(38)

While the accuracy of PM_2.5 concentration prediction is improved, the noise is estimated adaptively. The state space framework of SVR is established, and the AUKF method is combined with the state space framework to estimate the noise online. The flowchart of SVR-AUKF method is shown in Figure 2.

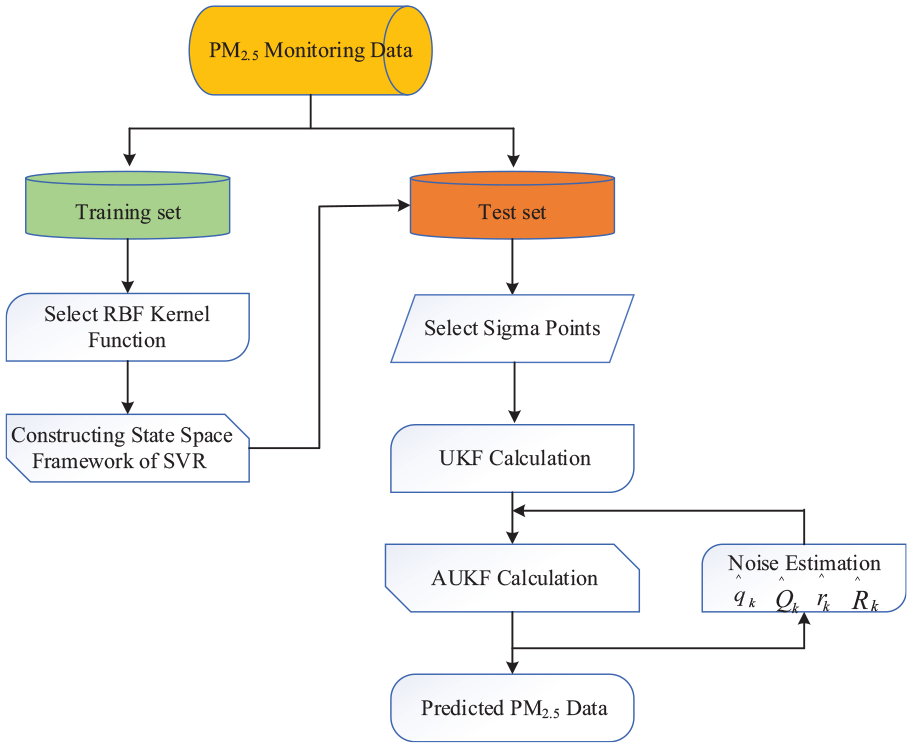

Figure 2.

The flowchart of SVR-AUKF method.

The flowchart shows the operation process of SVR-AUKF method. Firstly, we select the RBF as kernel function. The state space framework of SVR is established by the monitored PM_2.5 concentration data. Secondly, the appropriate set of sigma points is selected by a new set of PM_2.5 concentration data. Then, the recursive calculation of UKF method is carried out by the established SVR framework. Finally, the SVR-AUKF method is implemented to predict PM_2.5 concentration with the noise ( ${\hat{q}}_{k}$ , ${\hat{Q}}_{k}$ , ${\hat{r}}_{k}$ , ${\hat{R}}_{k}$ ) at kth time. During the iteration of AUKF method, the noise ( ${\hat{q}}_{k + 1}$ , ${\hat{Q}}_{k + 1}$ , ${\hat{r}}_{k + 1}$ , ${\hat{R}}_{k + 1}$ ) at (k+1)th time is estimated and the ${\hat{x}}_{k + 1}$ is update. The PM_2.5 concentration prediction and noise estimation of SVR-AUKF are realized by this operation process.

Simulation analysis

In this section, the advantages and effectiveness of the proposed method are verified by simulation analysis. The PM_2.5 concentration is collected every hour as sampling period by monitor monitoring data system. The first 700 sets of sample data are used for training data, the other 300 sets are used for test data. The different performance indexes are used to evaluate the prediction precision, which includes mean absolute error (MAE), mean absolute percentage error (MAPE), root mean squared error (RMSE), which is respectively given as follows:

MAE = \frac{1}{n} \sum_{k = 1}^{n} | y_{k + 1} - \overset{}{{\hat{y}}_{k + 1}} |

(39)

MAPE = \frac{1}{n} \sum_{k = 1}^{n} | \frac{y_{k + 1} - \overset{}{{\hat{y}}_{k + 1}}}{y_{k + 1}} | \times 100 %

(40)

R M S E = \sqrt{\frac{1}{n} \sum_{k = 1}^{n} {(y_{k + 1} - {\hat{y}}_{k + 1})}^{2}}

(41)

where $y_{k + 1}$ represents the actual PM_2.5 concentration value, ${\hat{y}}_{k + 1}$ is the predicted PM_2.5 concentration value.

PM_2.5 concentration prediction with inaccurate process noises

The different noise statistics are used for simulation research and comparison in this section. When the process noises are incorrect or unknown, the SVR-AUKF method is compared with SVR-UKF method. The prediction accuracy and validity of SVR-AUKF is verified by comparison. Firstly, the measurement noise ( $r_{0}$ = 0.3, $R_{0}$ = 0.08) is assumed to be known, and the incorrect process noise ( $q_{0}$ , $Q_{0}$ ) is selected randomly. Two groups of incorrect process noise values are given. The Tables 1 and 2 give the inaccurate initial values of process noise ( $q_{0}$ , $Q_{0}$ ). In addition, the initial $x_{0}$ is 157.

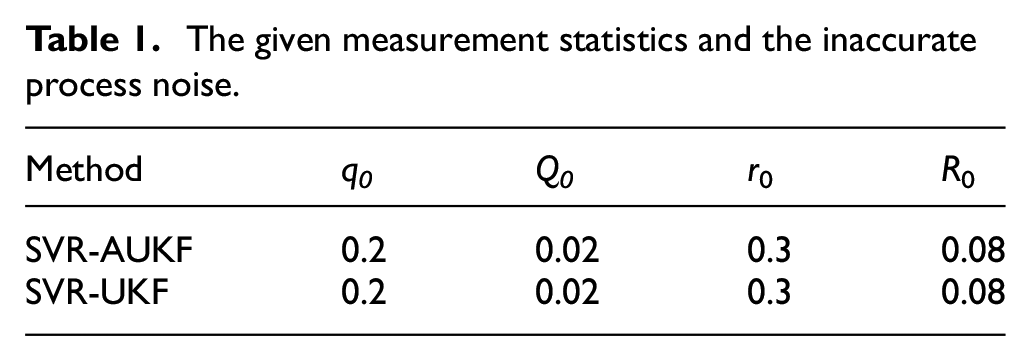

Table 1.

The given measurement statistics and the inaccurate process noise.

Method	q₀	Q₀	r ₀	R ₀
SVR-AUKF	0.2	0.02	0.3	0.08
SVR-UKF	0.2	0.02	0.3	0.08

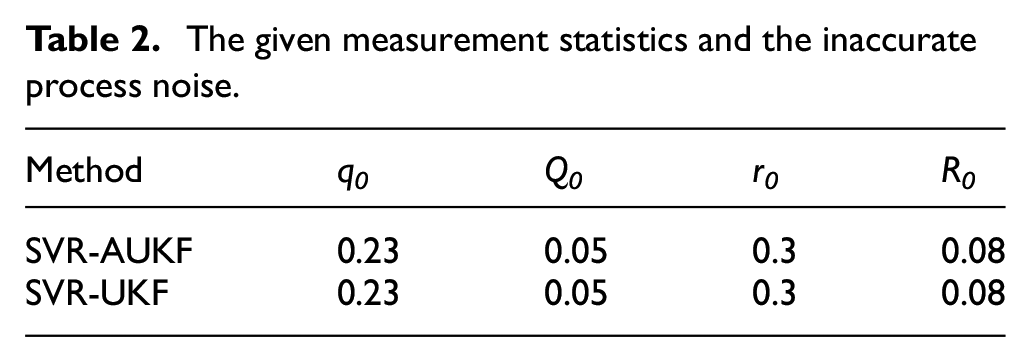

Table 2.

The given measurement statistics and the inaccurate process noise.

Method	q₀	Q₀	r₀	R₀
SVR-AUKF	0.23	0.05	0.3	0.08
SVR-UKF	0.23	0.05	0.3	0.08

The prediction result of SVR-AUKF method is compared with SVR-UKF method. The Figure 3 shows the prediction result of SVR-AUKF and SVR-UKF with the inaccurate process noise. The comparison results are given as follows:

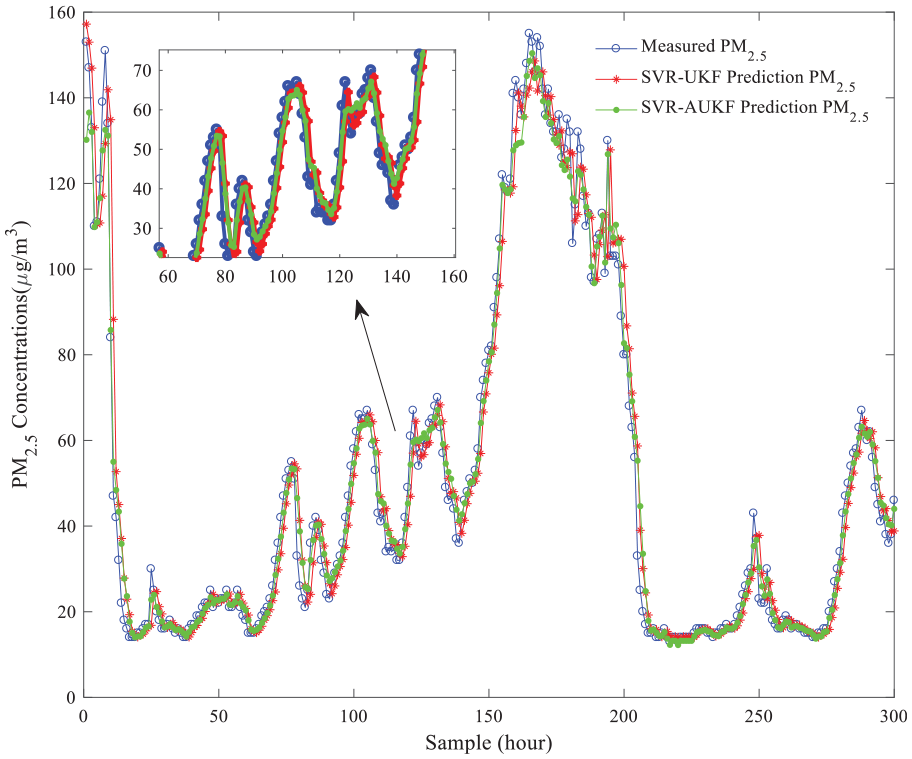

Figure 3.

PM_2.5 concentration prediction based on SVR-AUKF and SVR-UKF with the inaccurate process noise.

Figure 3 shows the prediction results based on SVR-AUKF method and SVR-UKF method with incorrect noise statistics. It can be seen that when the inaccurate noise statistics are given, the SVR-AUKF can predict PM_2.5 concentration. The SVR-UKF can also predict PM_2.5 concentration. SVR-UKF has no noise estimator. Once the noise is changed, the prediction accuracy will be affected. In order to further prove this situation, the Figure 4 gives boxplot of the prediction error based on the two methods.

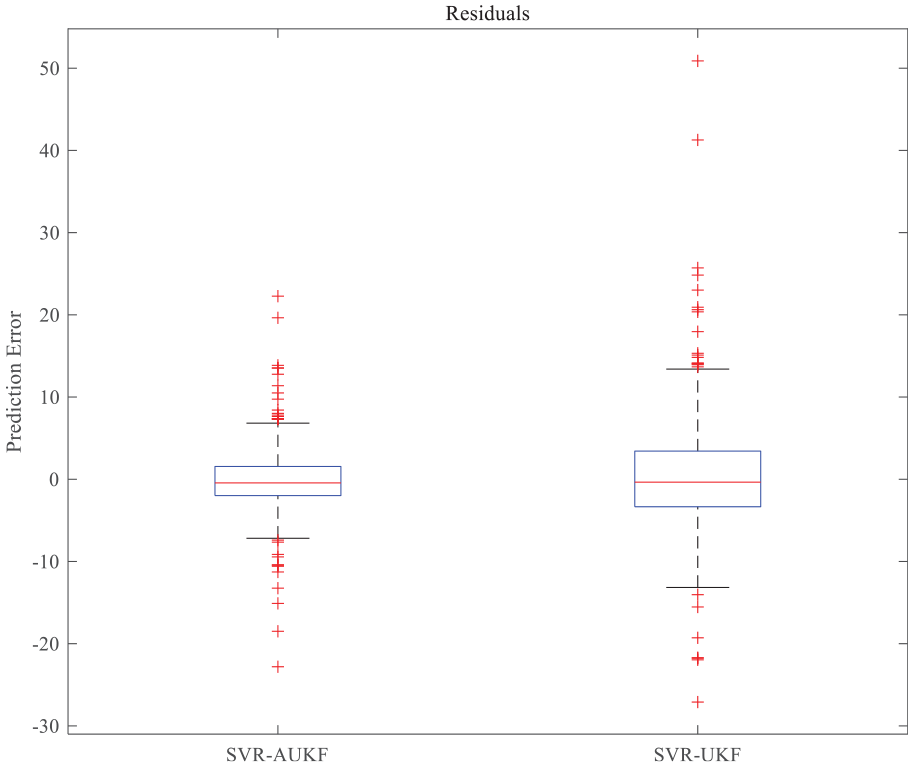

Figure 4.

Boxplot of the prediction residuals of SVR-AUKF and SVR-UKF with the inaccurate process noise.

The Figure 4 shows that the SVR-AUKF method is more accurate in predicting PM_2.5 concentration. More uniform error distribution. The upper and lower limits of error are smaller. However, SVR-UKF has no noise estimator. It is more susceptible to the given incorrect noise than SVR-AUKF. The prediction accuracy is also affected. For example, the Table 2 gives another set of incorrect noises is given.

The Figure 5 shows the prediction result of SVR-AUKF and SVR-UKF with another set of inaccurate process noise. The comparison results are given as follows:

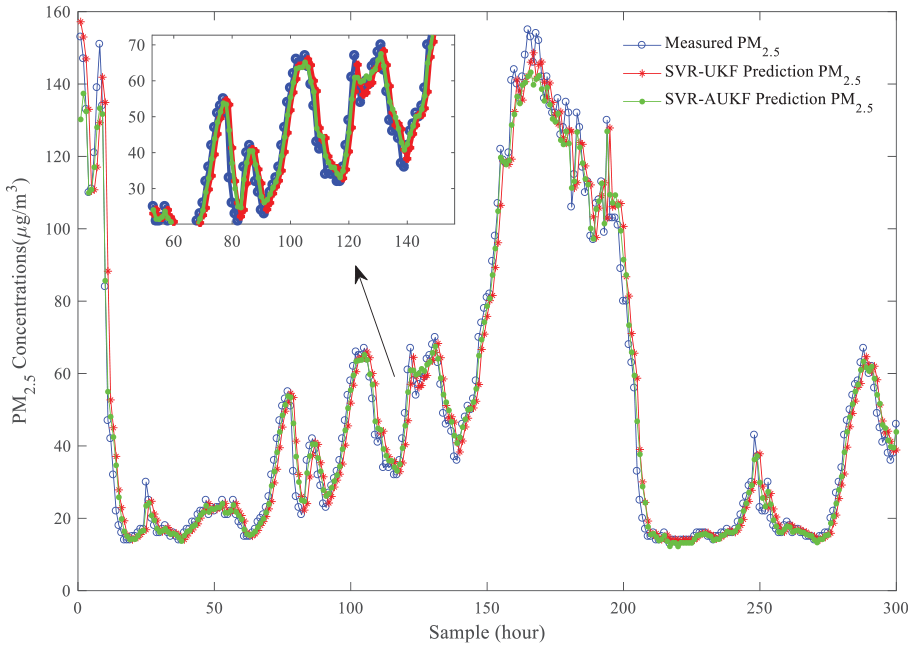

Figure 5.

PM_2.5 concentration prediction based on SVR-AUKF and SVR-UKF with the inaccurate process noise.

It is obvious that incorrect noise statistics has a great impact on SVR-UKF from Figures 5 and 6. The prediction error is easy to be affected and changed, and the prediction accuracy will also be affected when noise change. The SVR-AUKF method is not affected greatly, and the noise is estimated adaptively. When the noise of SVR-AUKF method is 0.3, 0.05, 0.3, 0.08. The MAE is 2.7104, the MAPE is 0.9035, the RMSE is 4.2086. The MAE of SVR-UKF is 5.1892, the MAPE is 1.7297, the RMSE is 8.0205. Therefore, the SVR-AUKF method can adaptively realize noise statistics and improve PM_2.5 concentration prediction accuracy when the process noise is not correct. The SVR-AUKF has better robustness.

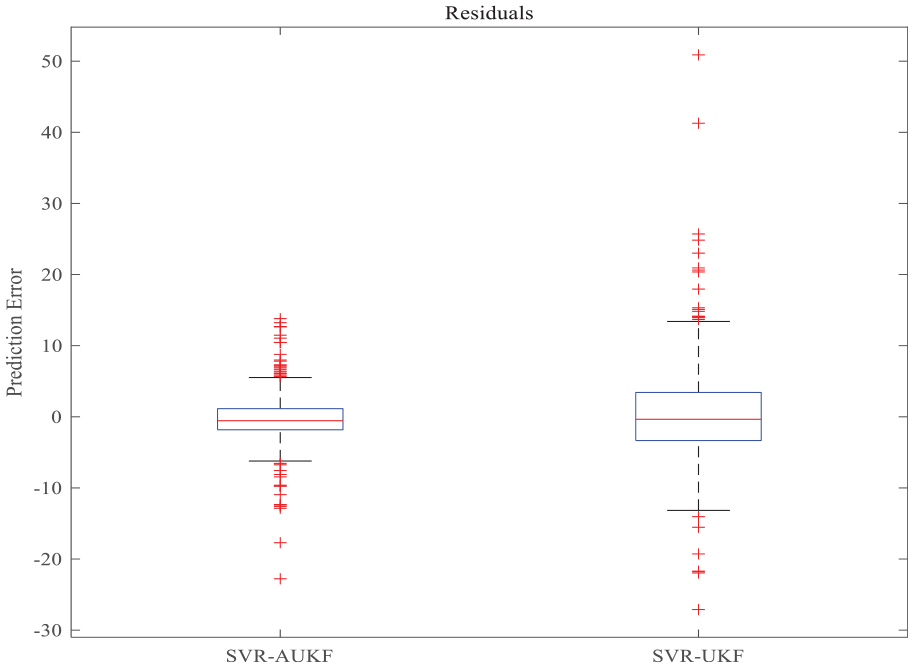

Figure 6.

Boxplot of the prediction residuals of SVR-AUKF and SVR-UKF with the inaccurate process noise.

In order to further prove that the SVR-AUKF method has higher accuracy, the five different methods are compared. When the noise ( $q_{0} = 0.2$ , $Q_{0} = 0.02$ , $r_{0} = 0.3$ , $R_{0} = 0.08$ ) is given randomly, the Figure 7 gives the comparison results. The prediction residuals of five method are described in Figure 8.

Figure 7.

The comparison results of PM_2.5 concentration prediction based on five methods.

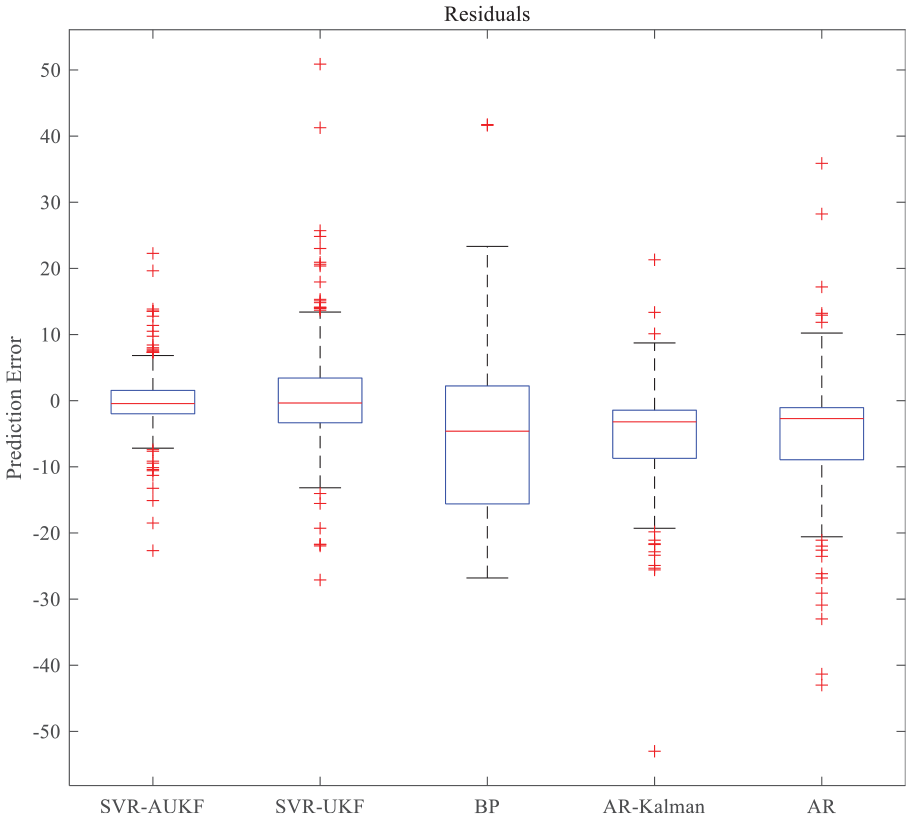

Figure 8.

Boxplot of the prediction residuals based on five method.

In order to further prove the prediction accuracy of the proposed method for PM_2.5 concentration, the proposed method is compared with other methods. The statistical error of different methods is given as follows:

The Table 3 shows that the performance error of SVR-AUKF method is smallest. The SVR-AUKF method is superior to other method. The proposed SVR-AUKF method not only has PM_2.5 concentration prediction accuracy, but it also has higher robustness.

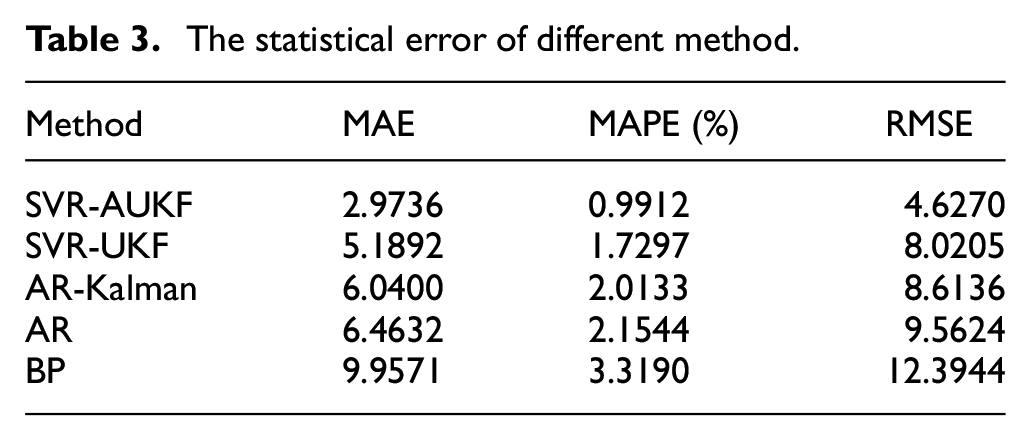

Table 3.

The statistical error of different method.

Method	MAE	MAPE (%)	RMSE
SVR-AUKF	2.9736	0.9912	4.6270
SVR-UKF	5.1892	1.7297	8.0205
AR-Kalman	6.0400	2.0133	8.6136
AR	6.4632	2.1544	9.5624
BP	9.9571	3.3190	12.3944

PM_2.5 concentration prediction with inaccurate measurement noise

In this section, the initial value of process noise ( $q_{0}$ = 0.15, $Q_{0}$ = 0.06) is assumed to be known. As shown in Tables 4 and 5. Two groups of incorrect measurement noise values are given, which proves SVR-UKF with no noise estimator will be affected, the prediction accuracy is not as high as SVR-AUKF. The Table 4 shows the inaccurate initial values of measurement noise ( $r_{0}$ , $R_{0}$ ). The accuracy of SVR-AUKF and SVR-UKF method is compared. The initial values of measurement noise are given as follows:

Table 4.

The given process statistics and the inaccurate measurement noise.

Method	q₀	Q₀	r₀	R₀
SVR-AUKF	0.15	0.06	0.2	0.04
SVR-UKF	0.15	0.06	0.2	0.04

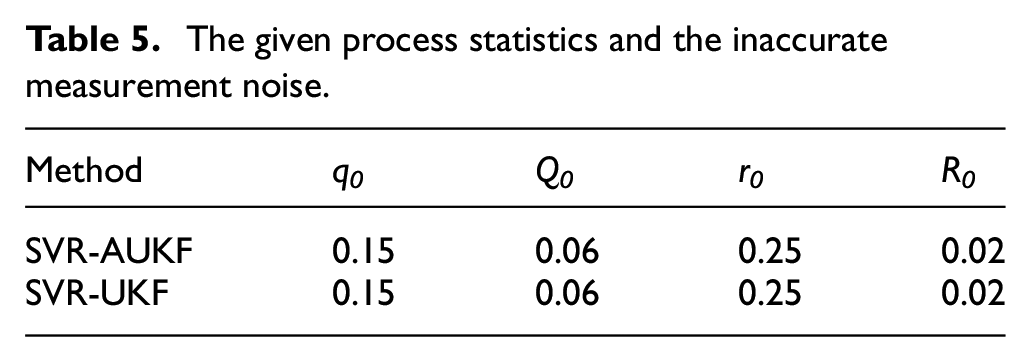

Table 5.

The given process statistics and the inaccurate measurement noise.

Method	q₀	Q₀	r₀	R₀
SVR-AUKF	0.15	0.06	0.25	0.02
SVR-UKF	0.15	0.06	0.25	0.02

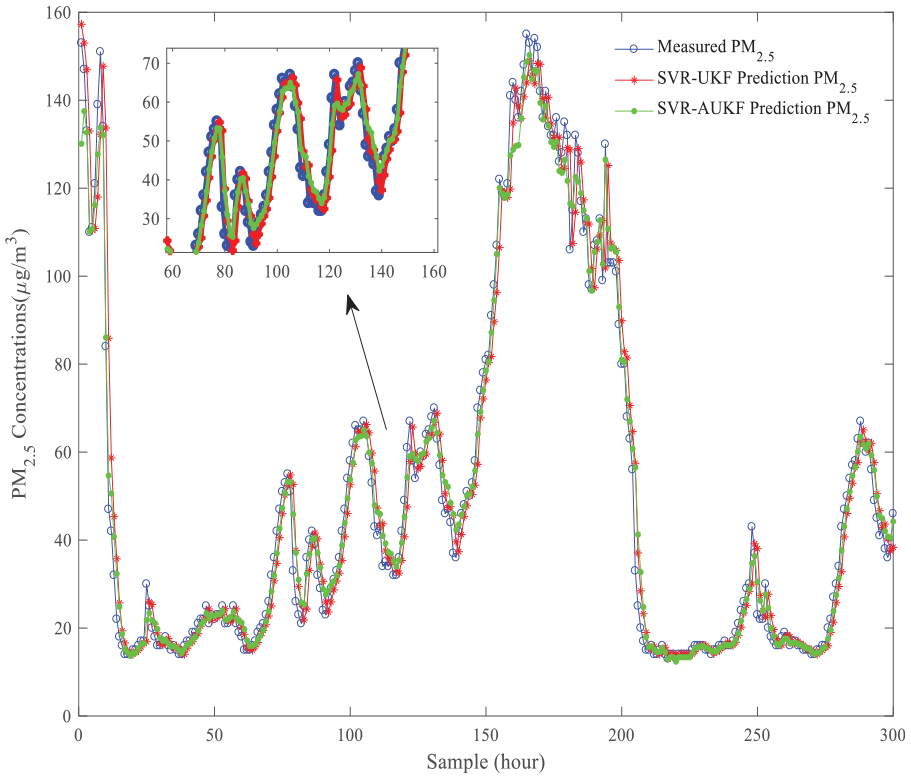

The Figure 9 shows the prediction result of SVR-AUKF and SVR-UKF with the inaccurate measurement noises. The comparison results are given as follows:

Figure 9.

PM_2.5 concentration prediction based on SVR-AUKF and SVR-UKF with the inaccurate measurement noise.

The Figures 9 and 10 shows that the prediction accuracy of the SVR-AUKF method with the inaccurate measurement noise. The prediction accuracy of the SVR-AUKF method is higher than the SVR-UKF method. The inaccurate noise is easy to produce large error. When the inaccurate measurement noise is given, the SVR-AUKF method still has higher prediction accuracy, and it is not affected by the noise, which can be estimate adaptively. The proposed method is superior to SVR-UKF, and it has good robustness, and the effectiveness of SVR-AUKF method is also proved. In order to prove that SVR-UKF method is easily affected without noise estimator, another set of incorrect measurement noise is given as follows:

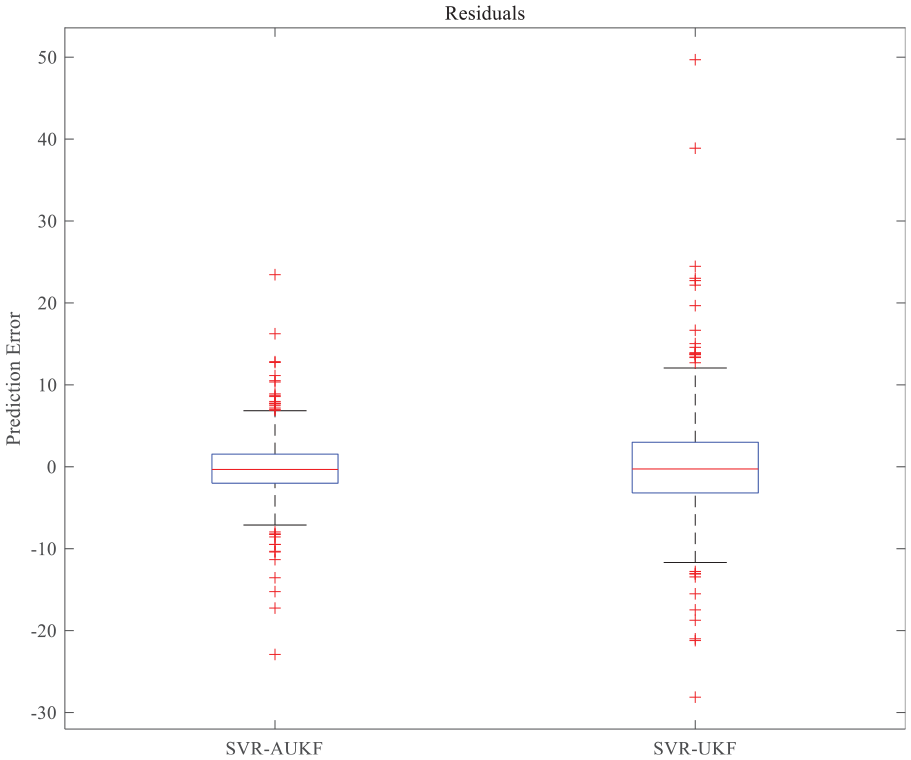

Figure 10.

Boxplot of the prediction residuals of SVR-AUKF and SVR-UKF with the inaccurate measurement noise.

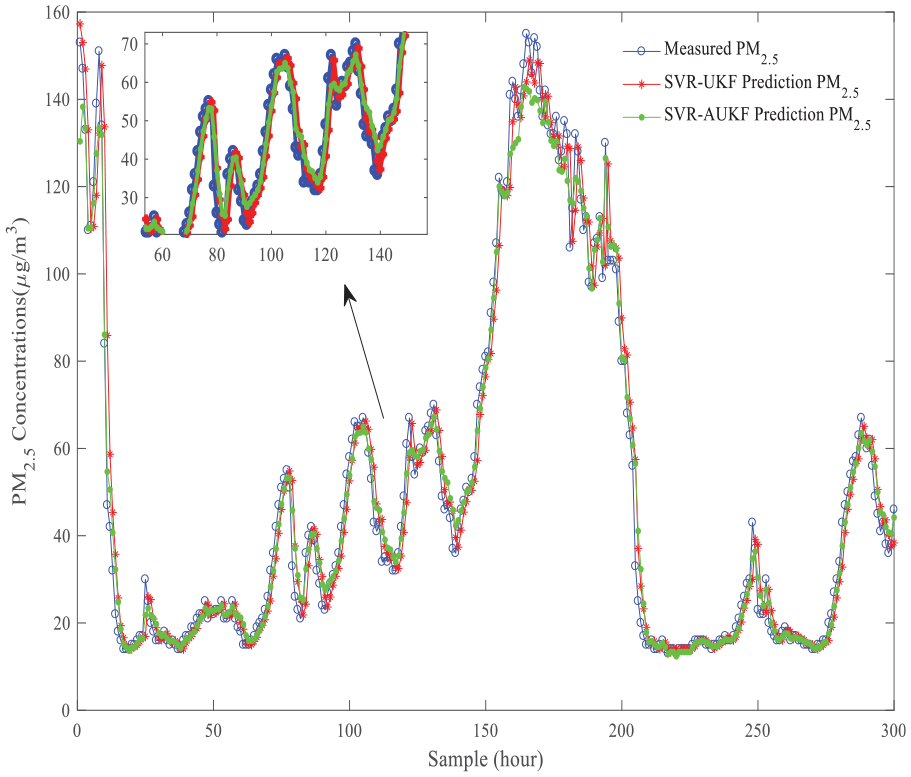

The Figure 11 shows the prediction result of SVR-AUKF and SVR-UKF with the inaccurate measurement noises. The comparison results are given as follows:

Figure 11.

The comparison results of SVR-AUKF and SVR-UKF with the inaccurate measurement noise.

It can be seen that the prediction accuracy of SVR-AUKF method is still more accurate from Figures 11 and 12. The Figure 12 shows the prediction residuals of SVR-AUKF and SVR-UKF. The error upper limit distribution of SVR-AUKF is smaller and more uniform. When another inaccurate measurement noise is given, the SVR-AUKF method still has higher prediction accuracy, it is not affected and estimate adaptively. In order to better prove the prediction accuracy of the proposed method, when the noise ( $q_{0} = 0.16$ , $Q_{0} = 0.09$ , $r_{0} = 0.2$ , $R_{0} = 0.40$ ) is given randomly, the SVR-AUKF method is compared with other methods. The Figure 13 gives the comparison results of the different methods.

Figure 12.

Boxplot of the prediction residuals of SVR-AUKF and SVR-UKF with the inaccurate measurement noise.

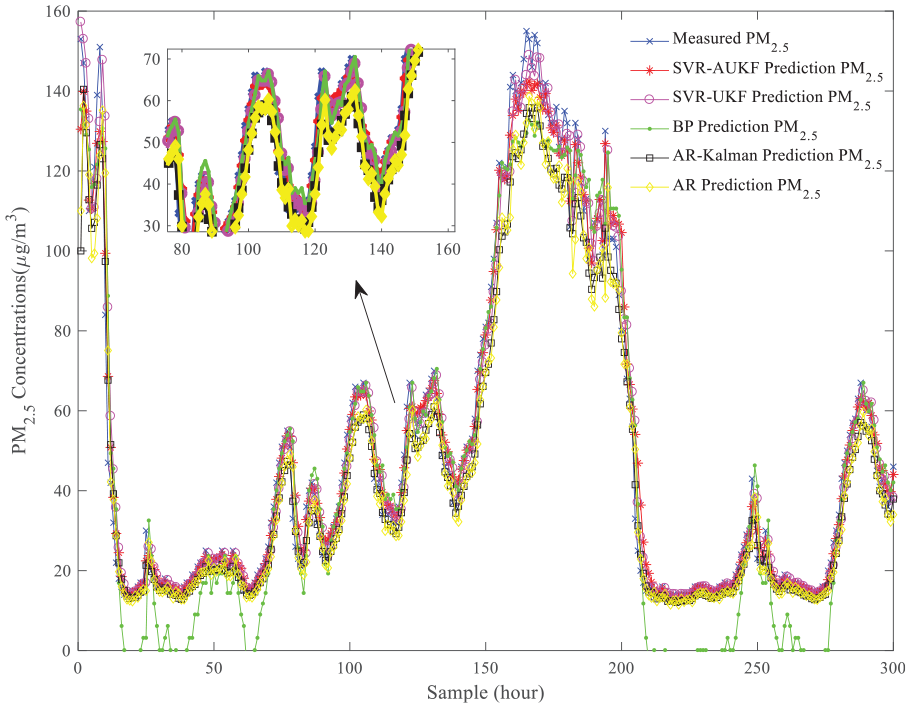

Figure 13.

The comparison results of PM_2.5 concentration prediction based on five methods.

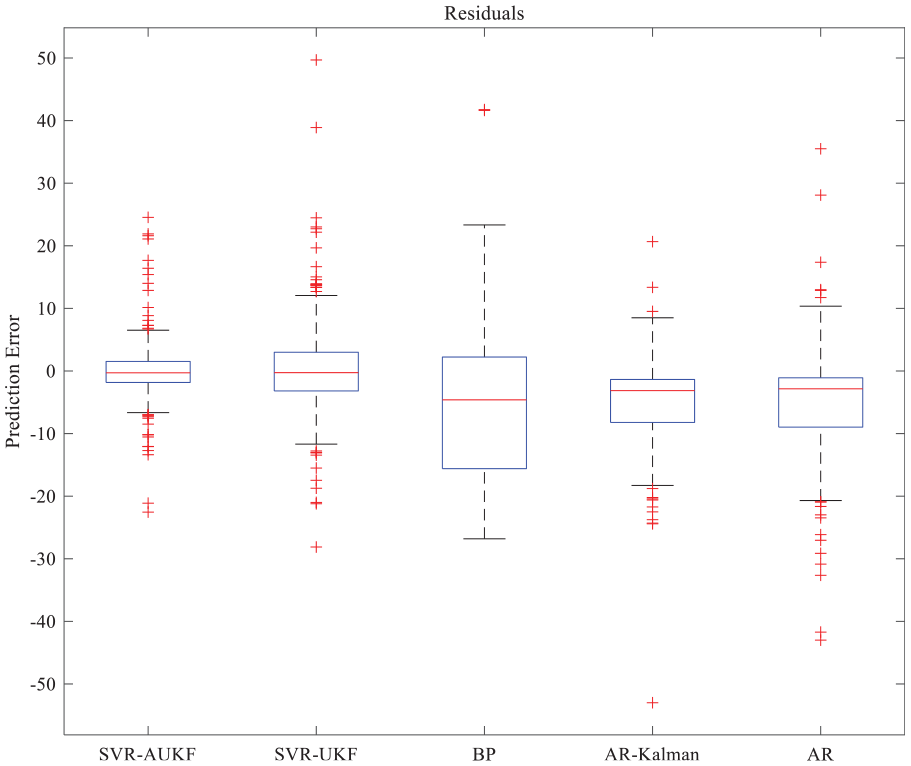

From the Figures 13 and 14, it can be concluded that the SVR-AUKF method with noise estimator is more accurate and robust in predicting PM_2.5 concentration. The error statistical analysis of Table 6 is given. The MAE of SVR-AUKF is 3.0418, the MAPE is 1.0139, the RMSE is 5.0469. The MAE of AR-Kalman method is 5.7451, the MAPE is 1.9150, the RMSE is 8.2389. The MAE of SVR-UKF method is 4.8615, the MAPE is 1.6205, the RMSE is 7.6176. The error of SVR-AUKF method is the smallest in five methods. Due to the SVR-UKF method lacks noise estimator, the SVR-UKF method is easy to be affected with noise. The proposed SVR-AUKF method has higher prediction accuracy than other methods, the statistical error is smaller and the robustness is better. The statistical error is shown as follows:

Figure 14.

Boxplot of the prediction residuals based on five method.

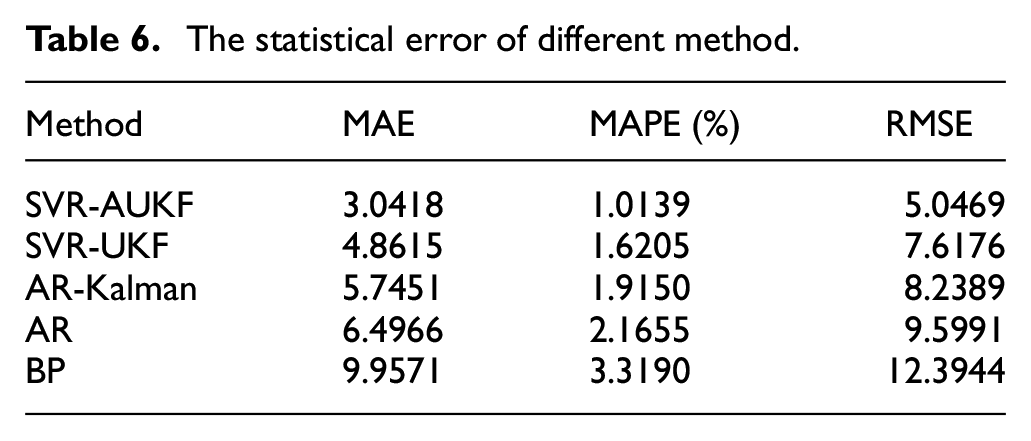

Table 6.

The statistical error of different method.

Method	MAE	MAPE (%)	RMSE
SVR-AUKF	3.0418	1.0139	5.0469
SVR-UKF	4.8615	1.6205	7.6176
AR-Kalman	5.7451	1.9150	8.2389
AR	6.4966	2.1655	9.5991
BP	9.9571	3.3190	12.3944

Conclusions

In this paper, a hybrid modeling method based on support vector regression state space and adaptive unscented Kalman filter is proposed. Firstly, the support vector regression model is established and the state space framework of PM_2.5 concentration series is described. Then, the adaptive unscented Kalman filter is used to dynamically update the state when the process and measurement noise are unknown or incorrect, and the noise is correctly estimated in the iterative process, so as to improve the prediction accuracy of PM_2.5 concentration. Finally, the proposed method is compared with the SVR-UKF method which lacks the ability of noise estimation, the results show that the proposed method can not only accurately predict the PM_2.5 concentration, but also has higher robustness when the process and measurement noises are incorrect. The proposed is compared with SVR-UKF, AR-Kalman, AR and BP methods, the simulation results prove that the proposed method has higher prediction accuracy in predicting PM_2.5 concentration.

However, the PM_2.5 concentration always changes with complex environment in atmospheric environment. The single model method is difficult to satisfy the current changing environment. Thus, the PM_2.5 concentration prediction of multiple models may be considered and studied in the future.

Footnotes

Acknowledgements

The author would like to thank other members for their contributions to this work.

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship and/or publication of this article: This study is support by National Key Research and Development Project (2018YFB1702704, 2018YFC1602704) and the National Natural Science Foundation of China (61873006, 61673053)

ORCID iD

Jihan Li

Data availability

The code for this study can be obtained from the corresponding author.

References

Wang

Fang

Spatial-temporal characteristics of the PM_2.5 in China in 2014. Acta Geogr Sin 2015; 70(11): 1720–1734.

Haywood

Roberts

Slingo

, et al. General circulation model calculations of the direct radiative forcing by anthropogenic sulfate and fossil-fuel soot aerosol. J Clim 1997; 10(7): 1562–1577.

Hunt

Abraham

Judson

, et al. Toxicologic and epidemiologic clues from the characterization of the 1952 London smog fine particulate matter in archival autopsy lung tissues. Environ Health Perspect 2003; 111(9): 1209–1214.

Schiller

The Los Angeles smog. Nat Munic Rev 1955; 44(11): 558–564.

Yan

Cao

Chen

, et al. Spatial and temporal characteristics of air quality and air pollutants in 2013 in Beijing. Environ Sci Pollut Res Int 2016; 23(14): 13996–14007.

Gao

Guttikunda

Carmichael

, et al. Health impacts and economic losses assessment of the 2013 severe haze event in Beijing area. Sci Total Environ 2015; 511(1): 553–561.

Liang

Xiao

, et al. Satellite-based short- and long-term exposure to PM_2.5 and adult mortality in urban Beijing, China. Environ Pollut 2018; 242: 492–499.

Zheng

The impacts of provincial energy and environmental policies on air pollution control in China. Renew Sustain Energy Rev 2015; 49: 386–394.

Tai

APK

Mickley

Jacob

DJ.

Correlations between fine particulate matter (PM_2.5) and meteorological variables in the United States: implications for the sensitivity of PM_2.5 to climate change. Atmos Environ 2010; 44(32): 3976–3984.

10.

Zhou

Jiang

Wang

, et al. A hybrid model for PM_2.5 forecasting based on ensemble empirical mode decomposition and a general regression neural network. Sci Total Environ 2014; 496(15): 264–274.

11.

Elangasinghe

Singhal

Dirks

, et al. Complex time series analysis of PM₁₀ and PM_2.5 for a coastal site using artificial neural network modelling and k-means clustering. Atmos Environ 2014; 94: 106–116.

12.

Feng

Zhu

, et al. Artificial neural networks forecasting of PM_2.5 pollution using air mass trajectory based geographic model and wavelet transformation. Atmos Environ 2015; 107: 118–128.

13.

Erdem

Shi

ARMA based approaches for forecasting the tuple of wind speed and direction. Appl Energy 2011; 88(4): 1405–1414.

14.

Lee

Tong

LI.

Forecasting time series using a methodology based on autoregressive integrated moving average and genetic programming. Knowl Based Syst 2011; 24(1): 66–72.

15.

Kavousi-Fard

Samet

Marzbani

A new hybrid Modified Firefly Algorithm and Support Vector Regression model for accurate short-term load forecasting. Expert Syst Appl 2014; 41(13): 6047–6056.

16.

Lin

Pai

, et al. Revenue forecasting using a least-squares support vector regression model in a fuzzy environment. Inf Sci 2011; 220(1): 196–209.

17.

Cassola

Burlando

Wind speed and wind energy forecast through Kalman filtering of numerical weather prediction model output. Appl Energy 2012; 99: 154–166.

18.

Liu

Tian

YF.

Comparison of two new ARIMA-ANN and ARIMA-Kalman hybrid methods for wind speed prediction. Appl Energy 2012; 98: 415–424.

19.

Nasseri

Moeini

Tabesh

Forecasting monthly urban water demand using Extended Kalman Filter and genetic programming. Renew Energy 2016; 85: 790–809.

20.

Bisoi

Dash

PK.

A hybrid evolutionary dynamic neural network for stock market trend analysis and prediction using unscented Kalman filter. Appl Soft Comput 2014; 19: 41–56.

21.

Zhao

Netto

Mill

A robust iterated extended Kalman filter for power system dynamic state estimation. IEEE Trans Power Syst 2017; 32(4): 3205–3216.

22.

Sun

Wang

, et al. Dynamic state estimation for multi-machine power system by unscented Kalman filter with enhanced numerical stability. IEEE Trans Smart Grid 2016; 9(2): 1184–1196.

23.

Chen

Short-term wind speed prediction using an unscented Kalman filter based state-space support vector regression approach. Appl Energy 2014; 113: 690–705.

24.

Dai

Zhu

, et al. Adaptive Kalman filtering based internal temperature estimation with an equivalent electrical network thermal model for hard-cased batteries. J Power Sources 2015; 293: 351–365.

25.

Liu

Partovibakhsh

An adaptive unscented Kalman filtering approach for online estimation of model parameters and state-of-charge of lithium-ion batteries for autonomous mobile robots. IEEE Trans Control Syst Technol 2014; 293(2): 357–363.

26.

Xiong

Sun

Gong

, et al. Adaptive state of charge estimator for lithium-ion cells series battery pack in electric vehicles. J Power Source 2013; 242(15): 699–713.

27.

Brereton

Lloyd

GR.

Support vector machines for classification and regression. Analyst 2009; 23: 230–267.

28.

Smola

Scholköpf

A tutorial on support vector regression. Stat Comput 2004; 14(3): 199–222.

29.

Gass

MC.

Karush-Kuhn-Tucker (KKT) conditions. In: Gass

(ed.) Encyclopedia of operations research & management science. Boston, MA: Springer, 2013, pp.833–834.

Atmospheric PM 2.5 concentration prediction and noise estimation based on adaptive unscented Kalman filtering

Abstract

Keywords

Introduction

The development of PM2.5 monitoring system

Method

Support vector regression

The adaptive unscented Kalman filter method

Simulation analysis

PM2.5 concentration prediction with inaccurate process noises

PM2.5 concentration prediction with inaccurate measurement noise

Conclusions

Footnotes

Acknowledgements

Declaration of conflicting interests

Funding

ORCID iD

Data availability

References

The development of PM_2.5 monitoring system

PM_2.5 concentration prediction with inaccurate process noises

PM_2.5 concentration prediction with inaccurate measurement noise
