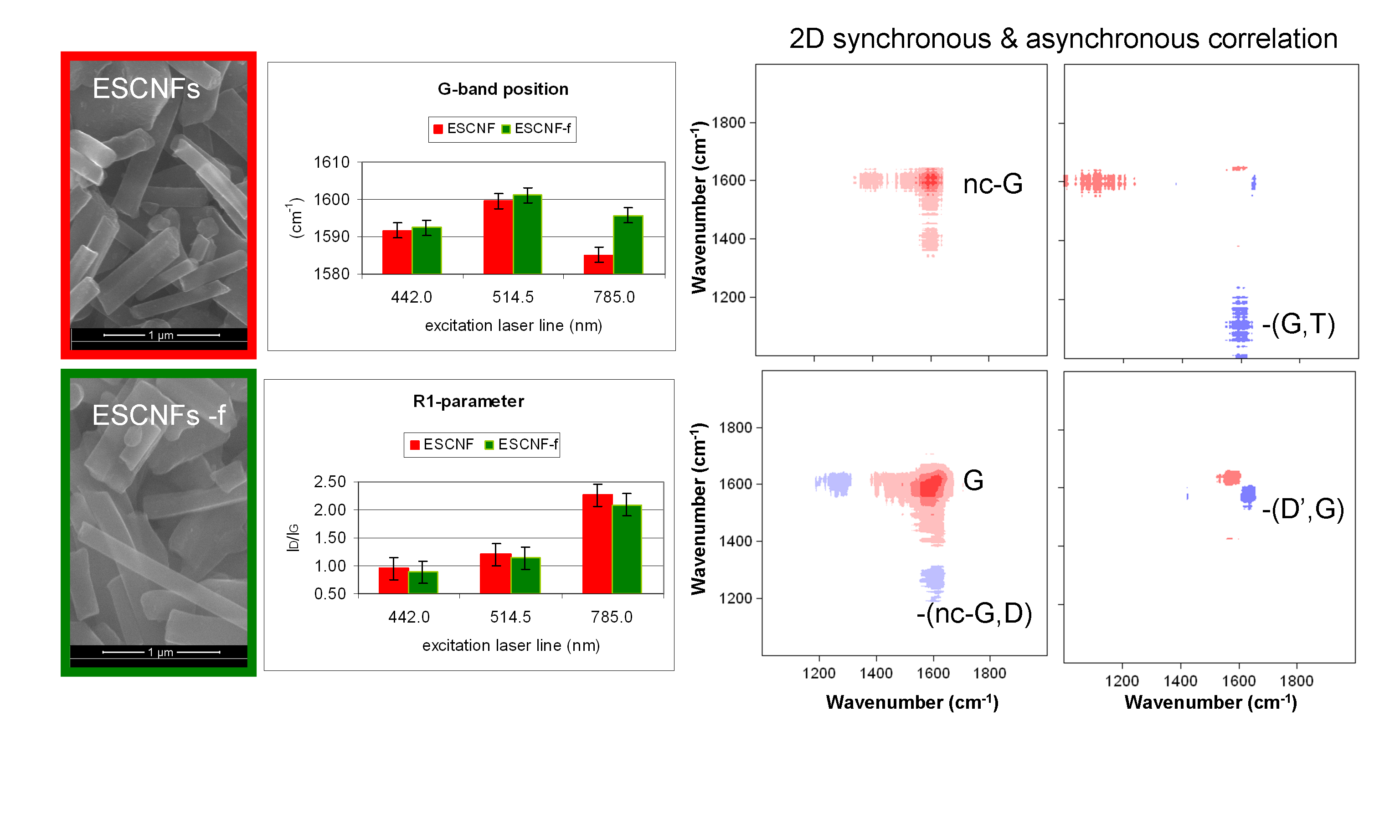

Carbon nanofibers are a new type of carbon materials. One of the methods of obtaining them is the carbonization of a polymer precursor. They are attractive in many areas, including medicine, due to the possibility of modifying their properties in a wide range. For example, the conditions of the carbonization process result in the creation of materials with designed structures and surface parameters. In the current work, the nanoprecursor was polyacrylonitrile (PAN) fibers. Two types of carbon fibers obtained by carbonization of the PAN precursor at 1000 °C were tested. The first electrospun carbon nanofibers (ESCNFs) were cytotoxic, while the second ESCNF-f were biocompatible after functionalization. The parameters obtained from Raman tests did not clearly discriminate between the tested materials. Multiwavelength Raman studies, analyzed using the two-dimensional correlation spectroscopy (2D-COS), treating the laser energy as an external disturbance, showed a difference between both fibrous structures. 2D-COS indicates that structures resembling graphite systems, devoid of disordered carbon forms, are nontoxic.
KimK.YangS.. “Electrochemical Properties of Carbon Nanofiber Web as an Electrode for Super Capacitor Prepared by Electrospinning”. Appl. Phys. Lett. 2003. 83: 1216–1218.
2.
ZhangB.KangF.TarasconJ.-M.KimJ.-K.. “Recent Advances in Electrospun Carbon Nanofibers and Their Application in Electrochemical Energy Storage”. Prog. Mater. Sci. 2016. 76: 319–380.
3.
NakamuraK.KatoH.SanoK.OgiwaraN., et al. “A Thin Carbon Fiber Web as a Scaffold for Bone Tissue Regeneration”. Small. 2009. 5(13): 1540–1546.
WebsterT.WaidM.McKenzieJ.L.PriceR.L.EjioforJ.U.. “Nano-Biotechnology Carbon Nanofibres as Improved Neural and Orthopaedic Implants”. Nanotechnology. 2004. 15(1): 48–54.
6.
TibbettsG.G.. “Vapor-Grown Carbon Fibers: Status and Prospects”. Carbon. 1989. 27(5): 745–747.
7.
FitzerE.. “PAN-Based Carbon Fibers: Present State and Trend of the Technology from the Viewpoint of Possibilities and Limits to Influence and to Control the Fiber Properties by the Process Parameters”. Carbon. 1989. 27(5): 621–645.
8.
XueJ.XieJ.LiuW.XiaY.. “Electrospun Nanofibers: New Concepts, Materials, and Applications”. Acc. Chem. Res. 2017. 50: 1976–1987.
9.
ZussmanE.ChenX.DingW.CalabriL., et al. “Mechanical and Structural Characterization of Electrospun PAN-Derived Carbon Nanofibers”. Carbon. 2005. 43(10): 2175–2185.
10.
EatemadiA.DaraeeH.KarimkhanlooH.KouhiM., et al. “Carbon Nanotubes: Properties, Synthesis, Purification, and Medical Applications”. Nanoscale Res. Lett. 2014. 9: 393.
11.
KimY.A.HayashiT.EndoM.DresselhausM.S.. “Carbon Nanofibers”. In: VajtaiR, editor. Springer Handbook of Nanomaterials. Berlin: Springer, 2013. Pp. 233–262.
12.
Wesełucha-BirczynskaA.DługonE.KołodziejA.BilskaA., et al. “Multi-wavelength Raman Microspectroscopic Studies of Modified Nonwoven Carbon Scaffolds for Tissue Engineering Applications”. J. Mol. Struct. 2020. 1220: 128665.
13.
MusiolP.SzatkowskiP.GubernatM.Weselucha-BirczynskaA.BlażewiczS.. “Comparative Study of the Structure and Micro-Structure of PAN-Based Nano- and Micro-Carbon Fibers”. Ceram. Int. 2016. 42(10): 11603–11610.
14.
TanE.P.S.LimC.T.. “Mechanical Characterization of Nanofibers: A Review”. Compos. Sci. Technol. 2006. 66(9): 1102–1111.
15.
KisinE.R.MurrayA.R.SargentL.LowryD., et al. “Genotoxicity of Carbon Nanofibers: Are They Potentially More or Less Dangerous Than Carbon Nanotubes or Asbestos?” Toxicol. Appl. Pharmacol. 2011. 252(1): 1–10.
16.
HauboldA.D.MoreR.B.BokrosJ.C.. “Carbons”. In: BlackJHastingsG., editors. Handbook of Biomaterial Properties. London: Chapman and Hall, 2016. Chap. 11, Pp. 549–560.
17.
PanekA.Fraczek-SzczyptaA.DługonE.NocunM., et al. “Genotoxicity Study of Carbon Nanoforms Using a Comet Assai”. Acta Phys. Pol. A. 2018. 133: 306–308.
18.
Wesełucha-BirczyńskaA.BabełK.JurewiczK.. “Carbonaceous Materials for Hydrogen Storage Investigated by 2D Raman Correlation Spectroscopy”. Vib. Spectrosc. 2012. 60: 206–211.
NodaI.OzakiY.. Two-Dimensional Correlation Spectroscopy: Applications in Vibrational and Optical Spectroscopy. Chichester, UK: John Wiley and Sons, 2004.
SmolkaW.PanekA.GubernatM.Szczypta-FraczekA., et al. “Structure and Biological Properties of Surface-Engineered Carbon Nanofibers”. J. Nanomater. 2019. 2019. 4146190.
23.
SmolkaW.DlugonE.JelenP.NiemiecW., et al. “Carbon Nanofibers Coated with Silicon/Calcium-Based Compounds for Medical Application”. J. Nanomater. 2019. 7172641.
24.
FerrariA.C.RobertsonJ.. “Interpretation of Raman Spectra of Disordered and Amorphous Carbon”. Phys. Rev. 2000. 61: 14095–14107.
25.
FerrariA.C.RobertsonJ.. “Resonant Raman Spectroscopy of Disordered, Amorphous, and Diamondlike Carbon”. Phys. Rev. 2001. 64(1–13): 075414.
26.
FerrariA.C.RobertsonJ.. “Origin of the 1150 cm–1 Raman Mode in Nanocrystalline Diamond”. Phys. Rev. B. 2001. 63(12): 121405(R).
27.
FerrariA.C.RobertsonJ.. “Raman Spectroscopy of Amorphous, Nanostructured, Diamond-Like Carbon, and Nanodiamond”. Phil. Trans. R. Soc. Lond. 2004. 362(1824): 2477–2512.
28.
FerrariA.C.. “Raman Spectroscopy of Graphene and Graphite: Disorder, Electron–Phonon Coupling, Doping and Nonadiabatic Effects”. Solid State Commun. 2007. 143(1–2): 47–57.
29.
TuinstraF.KoenigJ.L.. “Raman Spectrum of Graphite”. J. Chem. Phys. 1970. 53: 1126–1130.
30.
PimentaM.A.DresselhausG.DresselhausM.S.CançadoL.G., et al. “Studying Disorder in Graphite-Based Systems by Raman Spectroscopy”. Phys. Chem. Chem. Phys. 2007. 9(11): 1276–1291.
31.
AntunesE.F.LoboA.O.CoratE.J.Trava-AiroldiV.J., et al. “Comparative Study of First- and Second-Order Raman Spectra of MWCNT at Visible and Infrared Laser Excitation”. Carbon. 2006. 44(11): 2202–2211.
32.
PajdaM.Wesełucha-BirczynskaA.KołodziejA.SwietekM., et al. “A Correlation of Raman Data with the Nanomechanical Results of Polymer Nanomaterials with Carbon Nanoparticles”. J. Mol. Struct. 2022. 1264: 133305.
