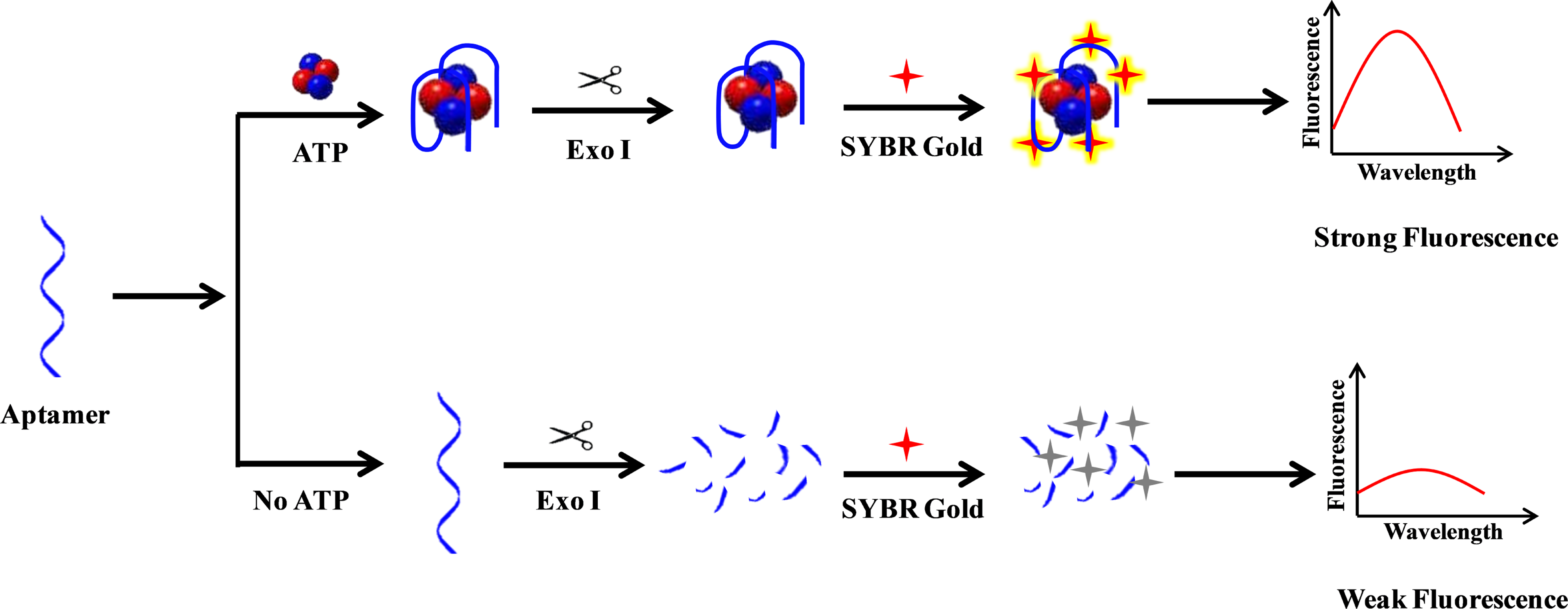

In this experimental research, a label-free sensing strategy is developed and employed to detect adenosine triphosphate with utilization of aptamers, including exonuclease I and SYBR Gold. The conformation of aptamers bonding to the specific target molecule (ATP) is transformed into an antiparallel G-quadruplex structure from a random coil. Afterwards, considering the unfolded aptamers are the preferred substrates for exonuclease I, the addition of exonuclease I is used so as to digest unfolded aptamers in the mixture in a selective manner. In the follow-up study, in order to strengthen the fluorescence intensity, SYBR Gold is applied as a fluorescent probe. The aptasensor presents the features of high selectivity against adenosine triphosphate and the low detecting limit of concentrations (39.2 nM). In order to verify the validation of experimental procedures and the practical application of the aptasensor, the detection of adenosine triphosphate for human serum samples is performed with satisfactory success. The recovery result with the range of 93.8%–108.1% is desirable and suggests that the designed approach is applicable. The outcomes of the cellular adenosine triphosphate assay manifest that the level of adenosine triphosphate concentrations in cell extracts can be monitored without the interference of other substances in the cells. Subject to its advantageous benefits (cost-effective, easiness, rapidity, and extraordinary selectivity), the designed approach has a promising implication for adenosine triphosphate detection in the research domain of bioanalytical science and biology.
DaiS.L.WuS.J.DuanN.ChenJ., et al.“Using Hexagonal Core/Shell Upconversion Nanoparticles as Luminophores”. Biosens. Bioelectron. 2017; 91: 538–544.
2.
ZhaoY.Y.LiuR.J.SunW.Y.LvL., et al.“Ochratoxin A Detection Platform Based on Signal Amplification by Exonuclease III and Fluorescence Quenching by Gold Nanoparticles”. Sens. Actuators, B. 2018; 255(Part 2): 1640–1645.
3.
SunC.Y.SuR.F.BieJ.X.SunH.J., et al.“Label-Free Fluorescent Sensor Based on Aptamer and Thiazole Orange for the Detection of Tetracycline”. Dyes Pigm. 2018; 149: 867–875.
ZhangH.LeiZ.X.FuX.DengX.C., et al.“Hg2+-Triggered Exonuclease III-Assisted Dual-Cycle Targets Recycling Amplification for Label-Free and Ultrasensitive Colorimetric Detection of Hg2+”. Sens. Actuators, B. 2017; 246: 896–903.
6.
YuP.ZhangX.H.XiongE.H.ZhouJ.W., et al.“A Label-Free and Cascaded Dual-Signaling Amplified Electrochemical Aptasensing Platform for Sensitive Prion Assay”. Biosens. Bioelectron. 2016; 85: 471–478.
7.
WangB.WuY.Y.ChenY.F.WengB., et al.“A Highly Sensitive Aptasensor for OTA Detection Based on Hybridization Chain Reaction and Fluorescent Perylene Probe”. Biosens. Bioelectron. 2016; 81: 125–130.
8.
WangX.JinM.JinC.S.SunJ.F., et al.“A New Sesquiterpene, a New Monoterpene and Other Constituents with Anti-Inflammatory Activities from the Roots of Aristolochia debilis.” Nat. Prod. Res. 2020; 34(3): 351–358.
9.
LepageD.JimenezA.BeauvaisJ.DubowskiJ.J.“Real-Time Detection of Influenza A Virus Using Semiconductor Nanophotonics”. Light: Sci. Appl. 2013; 2: e62.
10.
ZhangR.K.ChouketR.PlamontM.A.KelemenZ., et al.“Macroscale Fluorescence Imaging Against Autofluorescence Under Ambient Light”. Light: Sci. Appl. 2018; 7: 97.
11.
JinL.ZhouW.LiR.JinM., et al.“A New Polyacetylene and Other Constituents with Anti-Inflammatory Activity from Artemisia halodendron”. Nat. Prod. Res. 2019; 35(6): 1010–1013.
12.
Z.L. Wang, K. Ma, B. Xu, X. Li, et al. “A Highly Sensitive “Turn-On” Fluorescent Probe for Bovine Serum Albumin Protein Detection and Quantification Based on AIE-Active Distyrylanthracene Derivative”. Sci. China Chem. 2013. 56(9): 1234–1238.
13.
TenagliaE.FerrettiA.DecosterdL.A.WernerD., et al.“Comparison Against Current Standards of a DNA Aptamer for the Label-Free Quantification of Tobramycin in Human Sera Employed for Therapeutic Drug Monitoring”. J. Pharmaceut. Biomed. 2018; 159: 341–347.
14.
LiS.S.LiuS.WangJ.F.ZhaoY.H., et al.“Proximity-Enabled Bidirectional Enzymatic Repairing Amplification for Ultrasensitive Fluorescence Sensing of Adenosine Triphosphate”. Anal. Chim. Acta. 2020; 1104: 156–163.
15.
JiangS.ZhangY.ZhengJ.H.LiX., et al.“Potentiation of Hepatic Stellate Cell Activation by Extracellular ATP is Dependent on P2X7R-Mediated NLRP3 Inflammasome Activation”. Pharmacol. Res. 2017; 117: 82–93.
16.
OhishiT.AbeH.SakashitaC.SaqibU., et al.“Inhibition of Mitochondria ATP Synthase Suppresses Prostate Cancer Growth Through Reduced Insulin-Like Growth Factor-1 Secretion by Prostate Stromal Cells”. Int. J. Cancer. 2016; 146(12): 3474–3484.
17.
OkerbergE.S.DagbayK.B.GreenJ.L.SoniI., et al.“Chemoproteomics Using Nucleotide Acyl Phosphates Reveals an ATP Binding Site at the Dimer Interface of Procaspase-6”. Biochemistry. 2019; 58(52): 5320–5328.
18.
WenW.BaoT.YangJ.ZhangM.Z., et al.“A Novel Amperometric Adenosine Triphosphate Biosensor by Immobilizing Graphene/Dual-Labeled Aptamers Complex onto Poly(o-phenylenediamine) Modified Electrode”. Sens. Actuators, B. 2014; 191: 695–702.
19.
WangZ.LiM.Y.ZhangZ.H.ZuoH.X., et al.“Panaxadiol Inhibits Programmed Cell Death-Ligand 1 Expression and Tumour Proliferation via Hypoxia-Inducible Factor (HIF)-1 Alpha and STAT3 in Human Colon Cancer Cells”. Pharmacol. Res. 2020; 155: 104727.
20.
MaK.WangH.LiH.L.WangS., et al.“A Label-Free Aptasensor for Turn-On Fluorescent Detection of ATP Based on AIE-Active Probe and Water-Soluble Carbon Nanotubes”. Sens. Actuators, B. 2016; 230: 556–558.
21.
C.J. Wu, S.F. Wang, X.L. Luo, R. Yuan, et al. “Adenosine Triphosphate Responsive Metal-Organic Frameworks Equipped with a DNA Structure Lock for Construction of a Ratiometric SERS Biosensor". Chem. Commun. 2020. 56(9): 1413–1416.
22.
DengD.H.XiaN.LiS.J.XuX.Y., et al.“Simple, Fast, and Selective Detection of Adenosine Triphosphate at Physiological pH Using Unmodified Gold Nanoparticles as Colorimetric Probes and Metal Ions as Cross-Linkers”. Sensors. 2012; 12(11): 15078–15087.
23.
XueN.WuS.J.LiZ.B.MiaoX.M.“Ultrasensitive and Label-Free Detection of ATP by Using Gold Nanorods Coupled with Enzyme Assisted Target Recycling Amplification”. Anal. Chim. Acta. 2020; 1104: 117–124.
24.
SangF.M.ZhangX.LiuJ.YinS.Y., et al.“A Label-Free Hairpin Aptamer Probe for Colorimetric Detection of Adenosine Triphosphate Based on the Anti-Aggregation of Gold Nanoparticles”. Spectrochim. Acta, Part A. 2019; 217: 122–127.
25.
D.Y. Ji, H.Q. Wang, J. Ge, L. Zhang, et al. “Label-Free and Rapid Detection of ATP Based on Structure Switching of Aptamers". Anal. Biochem. 2017. 526: 22–28.
26.
HuoY.QiL.LvX.J.LaiT., et al.“A Sensitive Aptasensor for Colorimetric Detection of Adenosine Triphosphate Based on the Protective Effect of ATP-Aptamer Complexes on Unmodified Gold Nanoparticles”. Biosens. Bioelectron. 2016; 78: 315–320.
27.
HolmA.I.S.KohlerB.HoffmannS.V.NielsenS.B.“Synchrotron Radiation Circular Dichroism of Various G-Guadruplex Structures”. Biopolymers. 2010; 93(5): 429–433.
28.
YuJ.C.ZhangL.Q.XuX.LiuS.Q.“Quantitative Detection of Potassium Ions and Adenosine Triphosphate via a Nanochannel-Based Electrochemical Platform Coupled with G-Quadruplex Aptamers”. Anal. Chem. 2014; 86(21): 10741–10748.
29.
HeX.X.LiZ.X.JiaX.K.WangK.M., et al.“A Highly Selective Sandwich-Type FRET Assay for ATP Detection Based on Silica Coated Photon Upconverting Nanoparticles and Split Aptamer”. Talanta. 2013; 11: 105–110.
30.
GeJ.OuE.C.YuR.Q.ChuX.“A Novel Aptameric Nanobiosensor Based on the Self-Assembled DNA-MoS2 Nanosheet Architecture for Biomolecule Detection”. J. Mat. Chem. B. 2014; 2(6): 625–628.
31.
BaoT.ShuH.W.WenW.ZhangX.H., et al.“A Sensitive Electrochemical Aptasensor for ATP Detection Based on Exonuclease III-Assisted Signal Amplification Strategy”. Anal. Chim. Acta. 2015; 862: 64–69.
32.
SongQ.W.PengM.S.WangL.HeD.C., et al.“A Fluorescent Aptasensor for Amplified Label-Free Detection of Adenosine Triphosphate Based on Core-Shell Ag@SiO2 Nanoparticles”. Biosens. Bioelectron. 2016; 77: 237–241.
33.
ZengX.D.ZhangX.L.YangW.JiaH.Y., et al.“Fluorescence Detection of Adenosine Triphosphate Through an Aptamer-Molecular Beacon Multiple Probe”. Anal. Biochem. 2012; 424(1): 8–11.
