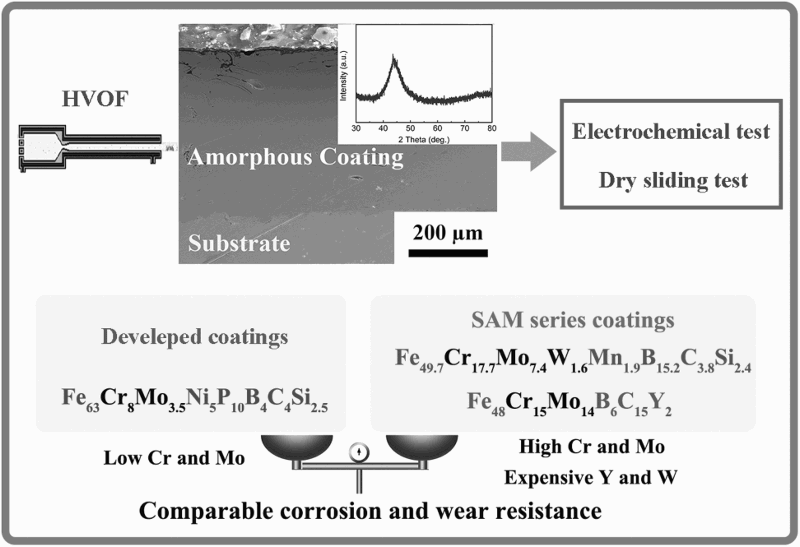

The amorphous coating with a new developed composition of Fe63Cr8Mo3.5Ni5P10B4C4Si2.5 has been successfully prepared by high velocity oxygen fuel technique. The amorphous coating shows good corrosion and wear resistance, which compare favourably with those of the well-known SAM1651 (Fe48Mo14Cr15Y2C15B6) and SAM2X5 (Fe49.7Cr18Mn1.9Mo7.4W1.6B15.2C3.8Si2.4) amorphous coatings despite the absence of W, and very low Cr and Mo content. The electrochemical impedance spectroscopy (EIS) and Mott–Schottky analysis reveal that under high passive potentials the passive film on the coating reflects bi-layer structure and transpassive dissolution occurs, but the film can still remain passive due to slow ionic transport under these conditions. Donor densities of the passive films on the coatings are in the order of magnitude of 1021 cm−3 which is comparable to the reported values for passive films of SAM series amorphous coatings indicating the approximate stability of the passive film. In addition, the dominating wear mechanism of Fe-based amorphous coatings is oxidation wear.
GreerA. L., RutherfordK. L. and HutchingsM.: ‘Wear resistance of amorphous alloys and related materials’, Int. Mater. Rev., 2002,
47, 87–112. doi: 10.1179/095066001225001067
2.
PangS. J., ZhangT., AsamiK. and InoueA.: ‘Synthesis of Fe–Cr–Mo–C–B–P bulk metallic glasses with high corrosion resistance’, Acta Mater., 2002,
50, 489–497. doi: 10.1016/S1359-6454(01)00366-4
ShiM. J., PangS. J. and ZhangT.: ‘Towards improved integrated properties in FeCrPCB bulk metallic glasses by Cr addition’, Intermetallics, 2015,
61, 16–20. doi: 10.1016/j.intermet.2015.02.010
5.
GuoS. F., LiuL., LiaN. and LiY.: ‘Fe-based bulk metallic glass matrix composite with large plasticity’, Scripta Mater., 2010,
62, 329–332. doi: 10.1016/j.scriptamat.2009.10.024
6.
GuoS. F., QiuJ. L., YuP., XieS. H. and ChenW.: ‘Fe-based bulk metallic glasses: brittle or ductile?’, Appl. Phys. Lett., 2014,
105, 161901. doi: 10.1063/1.4899124
7.
LiangX. B., ChengJ. B., BaiJ. Y. and XuB. S.: ‘Erosion properties of Fe based amorphous/nanocrystalline coatings prepared by wire arc spraying process’, Surf. Eng., 2010,
26, 209–215. doi: 10.1179/174329409X409521
8.
KatakamS., HwangJ. Y., PaitalS., BanerjeeR., VoraH. and DahatreN. B.: ‘In situ laser synthesis of Fe-based amorphous matrix composite coating on structural steel’, Metall. Mater. Trans. A, 2012,
43, 4957–4966. doi: 10.1007/s11661-012-1312-4
9.
ZhangH., XieY. T., HuangL. P., HuangS. S., ZhengX. B. and ChenG.: ‘Effect of feedstock particle sizes on wear resistance of plasma sprayed Fe-based amorphous coatings’, Surf. Coat. Technol., 2014,
258, 495–502. doi: 10.1016/j.surfcoat.2014.08.050
10.
LinJ. R., WangZ. H., LinP. H., ChengJ. B., ZhangX. and HongS.: ‘Effect of crystallisation on electrochemical properties of arc sprayed FeNiCrBSiNbW coatings’, Surf. Eng., 2014,
30, 683–687. doi: 10.1179/1743294414Y.0000000299
11.
FarmerJ., ChoiJ. S., SawC., HaslamJ., DayD. and HaileyP.: ‘Iron-based amorphous metals: high-performance corrosion-resistant material development’, Metall. Mater. Trans. A, 2009,
40, 1289–1305. doi: 10.1007/s11661-008-9779-8
12.
GuoR. Q., ZhangC., YangY., PengY. and LiuL.: ‘Corrosion and wear resistance of a Fe-based amorphou s coating in underground environment’, Intermetallics, 2012,
30, 94–99. doi: 10.1016/j.intermet.2012.03.026
13.
LiuW. H., ShieuF. S. and HsiaoW. T.: ‘Enhancement of wear and corrosion resistance of iron-based hard coatings deposited by high-velocity oxygen fuel (HVOF) thermal spraying’, Surf. Coat. Technol., 2014,
249, 24–41. doi: 10.1016/j.surfcoat.2014.03.041
14.
ZhengZ. B., ZhengY. G., SunW. H. and WangJ. Q.: ‘Effect of applied potential on passivation and erosion–corrosion of a Fe-based amorphous metallic coating under slurry impingement’, Corros. Sci., 2014,
82, 115–124. doi: 10.1016/j.corsci.2014.01.004
15.
ZhangS. D., ZhangW. L., WangS. G., GuX. J. and WangJ. Q.: ‘Characterisation of three-dimensional porosity in an Fe-based amorphous coating and its correlation with corrosion behaviour’, Corros. Sci., 2015,
93, 211–221. doi: 10.1016/j.corsci.2015.01.022
16.
ZhangC., GuoR. Q., YangY., WuY. and LiuL.: ‘Influence of the size of spraying powders on the microstructure and corrosion resistance of Fe-based amorphous coating’, Electrochim. Acta, 2011,
56, 6380–6388. doi: 10.1016/j.electacta.2011.05.020
YasirM., ZhangC., WangW., XuW. P. and LiuL.: ‘Wear behaviors of Fe-based amorphous composite coatings reinforced by Al2O3 particles in air and in NaCl solution’, Mater. Des., 2015,
88, 207–213.
19.
WangW., ZhangC., XuP., YasirM. and LiuL.: ‘Enhancement of oxidation and wear resistance of Fe-based amorphous coatings by surface modification of feedstock powders’, Mater. Des., 2015,
73, 35–41. doi: 10.1016/j.matdes.2015.02.015
20.
ScandianC., BoherC., de MelloJ. D. B. and Rezai-AriaF.: ‘Effect of molybdenum and chromium contents in sliding wear of high-chromium white cast iron: the relationship between microstructure and wear’, Wear, 2009,
267, 401–408. doi: 10.1016/j.wear.2008.12.095
21.
BlinkJ., FarmerJ., ChoiJ. and SawC.: ‘Applications in the nuclear industry for thermal spray amorphous metal and ceramic coatings’, Metall. Mater. Trans. A,
2009, 40A, 1344–1354.
22.
FernandesF. A. P., HeckS. C., PiconC. A., TottenG. E. and CastelettiL. C.: ‘Wear and corrosion resistance of pack chromised carbon steel’, Surf. Eng., 2012,
28, 313–317. doi: 10.1179/1743294411Y.0000000079
23.
LvY. Z., SunY. F., ZhaoJ. Y., YuG. W., ShenJ. J. and HuS. M.: ‘Effect of tungsten on microstructure and properties of high chromium cast iron’, Mater. Des., 2012,
39, 303–308. doi: 10.1016/j.matdes.2012.02.048
24.
LiJ. W., MaH. R., ChangC. T., WangX. M. and LiR. W.. “Synthesis and mechanical properties of FeCrMoNiPCBSi bulk metallic glasses” (Unpublished results).
25.
ZhangC., ChanK. C., WuY. and LiuL.: ‘Pitting initiation in Fe-based amorphous coatings’, Acta Mater., 2012,
60, 4152–4159. doi: 10.1016/j.actamat.2012.04.005
26.
LuoH., DongC. F., XiaoK. and LiX. G.: ‘Characterization of passive film on 2205 duplex stainless steel in sodium thiosulphate solution’, Appl. Surf. Sci., 2011,
258, 631–639. doi: 10.1016/j.apsusc.2011.06.077
27.
FujimotoS. and TsuchiyaH.: ‘Semiconductor properties and protective role of passive films of iron base alloys’, Corros. Sci., 2007,
49, 195–202. doi: 10.1016/j.corsci.2006.05.020
28.
RodriguezM. A. and CarranzaR. M.: ‘Properties of the passive film on alloy 22 in chloride solutions obtained by electrochemical impedance’, J. Electrochem. Soc., 2011,
158, C221–C230. doi: 10.1149/1.3581034
29.
MacdonaldD. D.: ‘The point-defect model for the passive state’, J. Electrochem. Soc., 1992,
139, 3434–3449. doi: 10.1149/1.2069096
30.
MacdonaldD. D.: ‘On the existence of our metals-based civilization I. Phase-space analysis’, J. Electrochem. Soc., 2006,
153, B213–B224. doi: 10.1149/1.2195877
31.
WangY., JiangS. L., ZhengY. G., KeW., SunW. H. and WangJ. Q.: ‘Effect of porosity sealing treatments on the corrosion resistance of high-velocity oxy-fuel (HVOF)-sprayed Fe-based amorphous metallic coatings’, Surf. Coat. Technol., 2011,
206, 1307–1318. doi: 10.1016/j.surfcoat.2011.08.045
32.
KongJ., XiongD. S., LiJ. L., YuanQ. X. and TyagiR.: ‘Effect of flash temperature on tribological properties of bulk metallic glasses’, Tribol. Lett., 2009,
35, 151–158. doi: 10.1007/s11249-009-9444-4
