Verification of Enhancement of the CSF Space,not Parenchyma,in Acute Stroke Patients with Early Blood—Brain Barrier Disruption

Abstract

Enhancement on post-contrast fluid-attenuated inversion recovery (FLAIR) images after acute stroke has been attributed to early blood—brain barrier disruption. Using an estimate of parenchymal volume fraction and the apparent diffusion coefficient (ADC), we investigated the relative contributions of cerebral spinal fluid (CSF) and parenchyma to enhancement seen on postcontrast FLAIR. Enhancing regions were found to have low parenchymal volume fractions and high ADC values, approaching that of pure CSF. These findings suggest that contrast enhancement on FLAIR occurs predominately in the CSF space, not parenchyma.

Introduction

After the development of intravenously administered contrast agents such as Gd-DTPA (gadoliniumdiuethylene triamine penta-acetic acid), T₁-weighted contrast-enhanced magnetic resonance imaging has been employed for the assessment of blood—brain barrier (BBB) integrity in experimental (Dijkhuizen et al, 2001; Kastrup et al, 1999; Runge et al, 1994) and clinical stroke (Elster and Moody, 1990; Koenigsberg et al, 1999; Merten et al, 1999). Gd-DTPA does not readily cross an intact BBB; thus, the presence of image enhancement post-contrast enables the identification of BBB disruption. Recent studies have shown similar findings on T₂-weighted fluid-attenuated inversion recovery (FLAIR) imaging (Dechambre et al, 2000; Latour et al, 2004; Mathews et al, 1999; Warach and Latour, 2004). In both cases, the T₁ values in regions of BBB disruption are shortened from intravascular leakage of Gd contrast into the extracellular space. Because the inversion time in FLAIR imaging is selected to null the cerebral spinal fluid (CSF) signal, a shortening of the T₁ value because of contrast agent leakage results in incomplete suppression and marked hyperintensity.

While BBB disruption is detectable using either method, it has been suggested that T₂-weighted FLAIR imaging is more sensitive than T₁-weighted imaging to lower concentrations of gadolinium (Mamourian et al, 2000; Mathews et al, 1999). Although hyperacute lesions are generally inconspicuous on FLAIR, it is important to note that lesions at subacute or chronic time points may be hyperintense before gadolinium administration, based on the development of vasogenic edema. In contrast, the CSF, meninges, and subdural or subarachnoid space remain dark owing to the FLAIR method and suppression of the CSF signal. These regions only appear hyperintense after administration of Gd contrast (Dechambre et al, 2000; Latour et al, 2004; Mathews et al, 1999; Warach and Latour, 2004). Because early BBB disruption has been strongly associated with reperfusion, hemorrhagic transformation, and poor prognosis in acute stroke patients, this phenomenon has been termed HARM (Hyperintense Acute injuRy Marker) (Warach and Latour, 2004).

Although past studies have suggested that the location of HARM is in the CSF (Dechambre et al, 2000; Koenigsberg et al, 1999; Latour et al, 2004; Warach and Latour, 2004), the verification of CSF-based HARM versus involvement of the parenchymal space has yet to be performed. Accurate differentiation between CSF and parenchyma is needed to assess the relative contributions of each population to the HARM enhancement. Unfortunately, fast imaging techniques such as echo planar imaging (EPI) have limited spatial resolution with considerable volume averaging of gray matter, white matter, vasculature, and CSF. Because CSF is characterized by long T₂ and high apparent diffusion coefficient (ADC) values relative to gray matter and white matter, any partial volume averaging of CSF common to DW-EPI acquisition schemes will undoubtedly yield artificially high T₂ and ADC values, respectively, in human brain (Falconer and Narayana, 1997). Diffusion measurements in combination with the FLAIR technique permit a way of addressing partial volume averaging at the borders between the ventricular space, parenchyma, and sulci.

The effects of partial volume averaging of CSF and parenchyma on ADC values have been studied by combining the FLAIR preparation with DW-EPI (Bykowski et al, 2004). The b = 0 image in the FLAIR-DWI sequence is T₂-weighted with CSF suppression (i.e., FLAIR). The b = 0 image in standard DWI is T₂-weighted and lacks CSF suppression (i.e., T₂). Because both sequences are resolution-matched, taking the ratio of the two b = 0 images (FLAIR and T₂) provides an estimate of the volume fraction of parenchyma (Λ_app-p) (Latour and Warach, 2002). ADC values, in combination with Λ_app-p values, should permit a quantitative comparison between ischemic lesion, healthy tissue, and regions with HARM on FLAIR. We hypothesize that the HARM regions will include those areas with high ADCs and low apparent volume fractions (i.e., CSF) in contrast to normal tissue.

Materials and methods

Patient Selection and Imaging Criteria

A retrospective analysis of 10 acute stroke patients (subpopulation of previous study; Latour et al, 2004) was performed using the following inclusion criteria: (1) imaging performed pre- and post-Gd contrast (FLAIR, standard DWI, FLAIR-DWI) within a 24-h time period, (2) evidence of HARM on FLAIR post-Gd contrast, and (3) observation of focal post-Gd contrast enhancement within the vascular territory of the acute stroke. Patients (five men; five women) had a median baseline NIHSS (The National Institutes of Health Stroke Scale) of 9 with an average age of 79 years. Four of ten patients received intravenous rtPA after the pre-Gd scan. Patients were imaged using a GE 1.5 T clinical MR system using the following parameters: matrix size = 128 ˜ 128 (zero-filled to 256 ˜ 256); 24-cm field of view (0.94 mm in-plane resolution); 20, 7-mm-thick axial-oblique slices (interleaved acquisition). Typical sequence parameters were as follows: FLAIR: TR/TE˜9,000/85 ms, TI-1,750 ms; standard DWI: TR/TE˜6,000/72 ms, b = 0, 1,000 s/mm²; FLAIR-DWI: TR/TE˜9,000/72 ms, TI˜2,200 ms, b = 0, 1,000 s/mm². Median scan times from symptom onset were 2 and 6 h for the pre- and post-Gd contrast imaging protocols, respectively.

Data Analysis

Image analysis and parameter map production were performed using routines written in IDL (Research Systems Inc., Boulder, CO, USA) and MIPAV (BIRSS, NIH, Bethesda, MD, USA). After midsagittal alignment, image coregistration was performed using an optimized automatic registration algorithm with six degrees of freedom, trilinear interpolation, and the normalized mutual information cost function. After coregistration of all images, ADC parameter maps were calculated based on b = 0 and isotropic (b = 1,000) DW images for both FLAIR-DWI and standard DWI:

$$\mathrm{A}\mathrm{D}\mathrm{C}=\ln \left(\frac{{\mathrm{S}}_0}{{\mathrm{S}}_{\mathrm{I}\mathrm{S}\mathrm{O}}}\right);{\mathrm{S}}_{\mathrm{I}\mathrm{S}\mathrm{O}}=\sqrt[3]{{\mathrm{S}}_{\mathrm{x}}{\mathrm{S}}_{\mathrm{y}}{\mathrm{S}}_{\mathrm{z}}}$$

(1)

where S_o is the signal intensity in the b = 0 image and S_ISO is the signal intensity in the isotropic (b = 1,000) image. For S_ISO, S_x, S_y, and S_z refer to the signal intensities in b = 1,000 images acquired for each of the three orthogonal directions (x, y, z). Parameter maps for the apparent volume fraction of parenchyma (Λ_app-p) were calculated based on the ratio of FLAIR to T₂ images at baseline (precontrast):

$${\lambda }_{\mathrm{a}\mathrm{p}\mathrm{p}-\mathrm{p}}=\frac{\mathrm{F}\mathrm{L}\mathrm{A}\mathrm{I}\mathrm{R}-\mathrm{D}\mathrm{W}\mathrm{I}(b=0)}{\mathrm{s}\mathrm{t}\mathrm{a}\mathrm{n}\mathrm{d}\mathrm{a}\mathrm{r}\mathrm{d}\mathrm{D}\mathrm{W}\mathrm{I}(b=0)}=\frac{\mathrm{F}\mathrm{L}\mathrm{A}\mathrm{I}\mathrm{R}}{T_2}$$

(2)

Regions with HARM on FLAIR were segmented based on positive signal enhancement seen post-contrast when compared with the pre-contrast images. Additional volumes of interest were drawn for ischemic lesion and the comparable contralateral region based on isotropic (b = 1,000) DW images. FLAIR signal differences pre-versus post-Gd contrast were calculated, with normalization to the baseline (pre-contrast) signal:

$$\mathrm{s}\mathrm{i}\mathrm{g}\mathrm{n}\mathrm{a}\mathrm{l}(\%\mathrm{o}\mathrm{f}\mathrm{b}\mathrm{a}\mathrm{s}\mathrm{e}\mathrm{l}\mathrm{i}\mathrm{n}\mathrm{e})=\frac{{\mathrm{F}\mathrm{L}\mathrm{A}\mathrm{I}\mathrm{R}}_{\mathrm{p}\mathrm{r}\mathrm{e}}-{\mathrm{F}\mathrm{L}\mathrm{A}\mathrm{I}\mathrm{R}}_{\mathrm{p}\mathrm{o}\mathrm{s}\mathrm{t}}}{{\mathrm{F}\mathrm{L}\mathrm{A}\mathrm{I}\mathrm{R}}_{\mathrm{p}\mathrm{r}\mathrm{e}}}$$

(3) Scatter plots of standard ADC versus Λ_app-p were created for individual regions (HARM, lesion, healthy tissue). The values are expressed as mean (s.d.). Two-tailed paired t-tests assuming unequal variances were performed to assess differences between individual regions. A value of P <0.01 was considered significant.

Results

Figure 1 shows evidence of HARM for a representative acute stroke patient with early BBB disruption. Enhancement on FLAIR was never seen before Gd contrast (Figure 1, top left). After contrast administration, HARM was visible on FLAIR (Figure 1, top middle). Representative volumes of interest for HARM regions (yellow), lesion (red), and healthy tissue (blue) are shown (Figure 1, bottom right). These volumes of interest were employed for the calculation of FLAIR signal enhancement, standard ADCs, FLAIR-ADCs, and Λ_app-p values (equations (1) to (3)).

Figure 1

Evidence of HARM for a representative acute stroke patient with early blood—brain barrier (BBB) disruption (woman, 81 years old, baseline NIHSS 17, no tPA). Top (left to right): FLAIR pre-Gd contrast, FLAIR post-Gd contrast, isotropic DWI (b = 1000). Bottom (left to right): standard ADC, FLAIR ADC, and volume fraction of parenchyma (Λ_app-p) parameter maps. FLAIR enhancement was never seen before Gd contrast. After Gd contrast, FLAIR images were positive for HARM. Volumes of interest were drawn for regions with HARM (post-Gd FLAIR, brackets), ischemic lesion (isotropic DWI, arrows) and the comparable contralateral region. Scan times from symptom onset were 2 h 35mins and 6 h 27mins for the pre-Gd versus post-Gd contrast administration, respectively.

Figure 2 (top) displays the degree of signal enhancement, expressed as percent of baseline, for HARM (yellow), ischemic lesion (red), and healthy tissue (blue). HARM regions had a significant signal increase after Gd contrast (1.81 (0.32), P <0.01). There were no appreciable changes in signal for ischemic stroke (1.13 (0.09), P=0.21) or healthy tissue (1.01 (0.11), P=0.92). Figure 2 (bottom) displays the relationship between standard ADC values (non-CSF suppressed) and Λ_app-p values for HARM (dot), ischemic lesion (square), and healthy tissue (plus). HARM regions had relatively low Λ_app-p values in comparison with both ischemic stroke and healthy tissue. HARM regions had significantly higher ADCs (1.6 × 10⁻³mm⁻²/sec (0.4)) than both ischemic stroke (0.73 × 10⁻³mm⁻²/sec (0.08), P <0.01) and healthy tissue (0.9 × 10⁻³mm⁻²/sec (0.2), P < 0.01), consistent with that of CSF Although ADCs in regions with HARM were slightly reduced from standard values for pure CSF (˜3.0 × 10⁻³mm⁻²/sec), partial volume averaging of CSF and normal parenchyma is likely. Λ_app-p values for HARM regions, ischemic stroke, and healthy tissue were 0.40 (0.10), 0.74 (0.07), and 0.76 (0.08), respectively. After volume fraction correction, ADCs in HARM regions were 2.7 × 10⁻³mm⁻²/sec (0.5). After CSF suppression, the ADCs for ischemic stroke and healthy tissue were 0.63 × 10⁻³mm⁻²/sec (0.06) and 0.79 × 10⁻³mm⁻²/sec (0.06), consistent with previous reports (Bykowski et al, 2004; Falconer and Narayana, 1997; Latour and Warach, 2002).

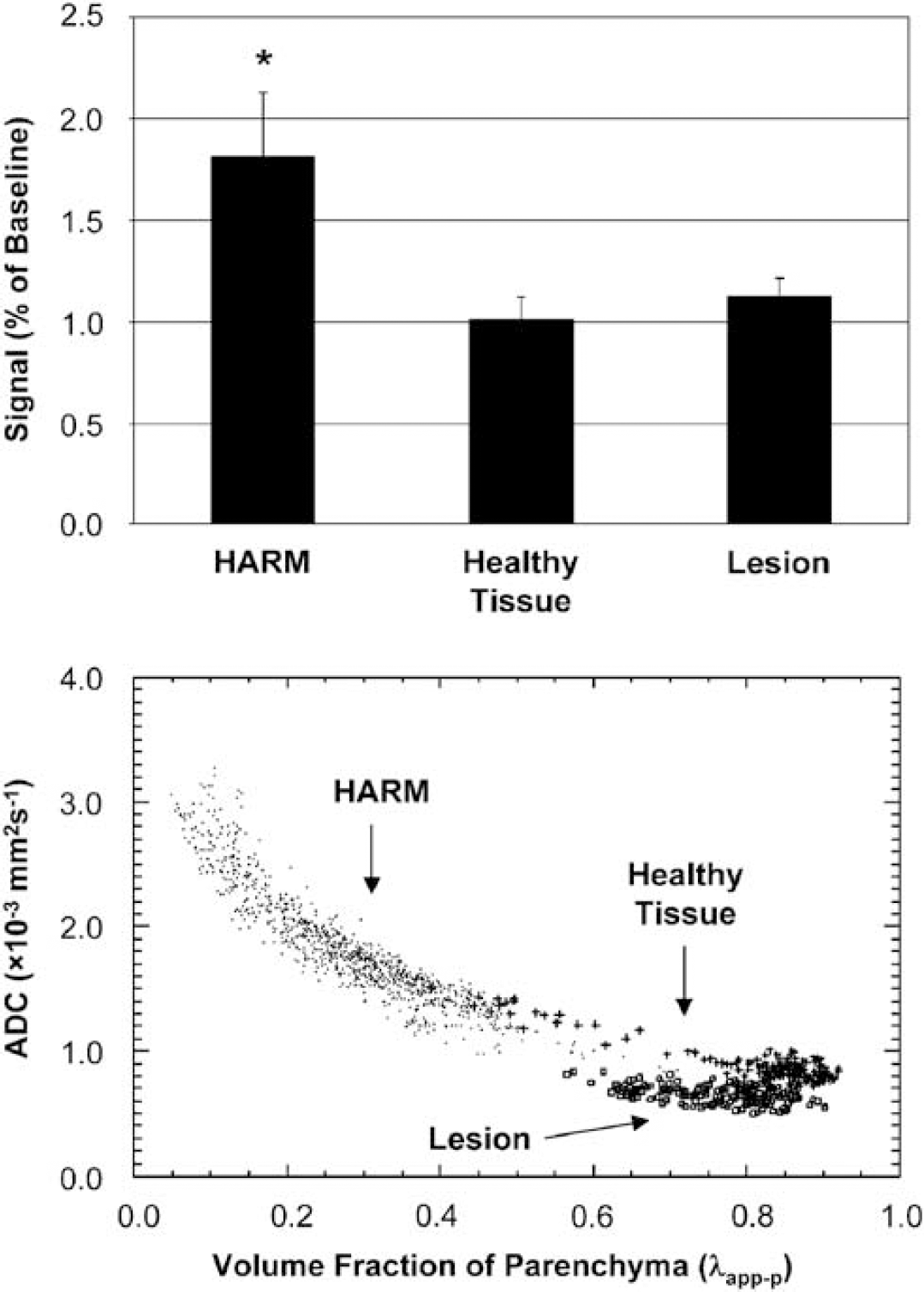

Figure 2

Top: FLAIR signal enhancement pre- versus post-Gd contrast. HARM regions had a significant signal increase, whereas ischemic lesion and healthy tissue did not. Bottom: scatterplot of standard ADCs versus volume fraction of parenchyma (Λ_app-p) for HARM (dot), ischemic lesion (square), and contralateral tissue (plus). Note that HARM regions have a low Λ_app-p and high ADCs compared with ischemic stroke and normal tissue. Significance with P <0.01.

Discussion

After stroke, there is a delayed loss of BBB integrity within and along the lesion periphery (Kastrup et al, 1999). Early reperfusion may temporarily alleviate these BBB alterations, but if delayed, reperfusion will likely exacerbate the amount of endothelial injury (Huang et al, 1999; Kastrup et al, 1999; Nagahiro et al, 1994). BBB disruption is coupled to the inflammatory response and activation of matrix metalloproteinases (Rosell et al, 2006; Rosenberg et al, 1998). Depending on the severity and duration of insult, irreversible endothelial dysfunction may occur (Romanic et al, 1998). Subacute or chronic formation of edema may then lead to diapedesis of blood and hemorrhagic transformation (Dijkhuizen et al, 2001; Montaner et al, 2001). No longer considered a static entity, the BBB has become increasingly important in its role in delayed neuroinflammation and has warranted further study.

BBB assessment has generally been performed by T₁-weighted contrast-enhanced magnetic resonance imaging. When utilizing the standard dose of Gd-DPTA (0.1 mmol/kg), T₁-weighted images have three times lower contrast-to-noise than that of FLAIR images (Mamourian et al, 2000; Mathews et al, 1999). Runge et al (1994) reported that T₁-weighted magnetic resonance imaging detection of BBB disruption was visible in only three of six cats at the standard dose (˜25% signal enhancement), but in all six at the triple dose (100% signal enhancement) of contrast agent. These in vitro phantom and in vivo experiments indicate that CSF changes evident on FLAIR may not be evident on T₁-weighted studies.

In our study, we utilized the FLAIR technique in combination with standard DWI methods to assess the regional distribution of early BBB disruption in acute stroke patients. Hyperintensity on follow-up FLAIR often occurs because of the natural progression of the ischemic lesion and is difficult to differentiate from contrast enhancement of the CSF Our approach to differentiate parenchymal injury from post-Gd enhancement was to estimate the volume fraction of parenchyma (Λ_app-p) and the ADC (equations (1) and (2)) in regions that appear hyperintense on follow-up FLAIR. We found that regions with diffuse HARM were characterized by high ADCs and low Λ_app-p values. These findings show the inclusion of the CSF space and exclusion of the parenchyma. Although we cannot conclude that Gd contrast is responsible for 100% of the enhancement seen, previous work has shown that enhancement on FLAIR never occurs before administering contrast agent. Quantitative measurements of T₁ would provide a definitive verification of contribution of Gd to CSF signal enhancement. This has not been possible to date given the logistic challenges in an acute stroke setting. Further work will be necessary to determine the exact relationship between Gd enhancement, T₁ change, and severity of BBB disruption.

Delivery of Gd contrast into the CSF/subarachnoid space may occur (1) via the ependymal barriers in periventricular regions such as the choroid plexus and leptomeninges (Ennis and Keep, 2006; Nagahiro et al, 1994) and/or (2) via faulty tight junctions between adjacent vascular endothelial cells (Romanic et al, 1998). These potential mechanisms of entry have been investigated in experimental models of stroke, but their verification in the clinical setting has yet to be performed. Because our evaluation was performed acutely, this does not rule out the involvement of the parenchyma at subacute or chronic time points. Delayed involvement of the parenchyma is likely. For these reasons, the spatiotemporal evolution of HARM on FLAIR will depend on the dose and administration of Gd contrast, as well as the timing of imaging pre- versus post-contrast.

In conclusion, early HARM occurs predominantly in the CSF space than in parenchyma. Because HARM has negative implications to patient outcome, further study of the extent of HARM severity will be useful for refinement of clinical trials and patient management. We hypothesize that the dual acquisition of standard DWI and FLAIR-DWI, when combined with the apparent volume fraction of parenchyma (Λ_app-p), will lead to more accurate assessment of HARM severity in clinical studies of stroke progression.

Disclosure/Conflict of Interest

The authors have reported no conflict of interest.
