Abstract

The positron emission tomography (PET) radiotracer [¹¹C]Pittsburgh Compound B (PIB) is a marker of amyloid plaque deposition in brain, and binding potential is usually quantified using the cerebellum as a reference where the specific binding is negligible. The use of the cerebellum as a reference, however, has been questioned by the reported cerebellar [¹¹C]PIB retention in familial Alzheimer's disease (AD) subjects. In this work, we developed a supervised clustering procedure for the automatic extraction of a reference region in [¹¹C]PIB studies. Supervised clustering models each gray matter voxel as the linear combination of three predefined kinetic classes, normal and lesion gray matter, and blood pool, and extract reference voxels in which the contribution of the normal gray matter class is high. In the validation with idiopathic AD subjects, supervised clustering extracted reference voxels mostly in the cerebellum that indicated little specific [¹¹C]PIB binding, and total distribution volumes of the extracted region were lower than those of the cerebellum. Next, the methodology was applied to the familial AD cohort where the cerebellar amyloid load had been demonstrated previously, resulting in higher binding potential compared with that obtained with the cerebellar reference. The supervised clustering method is a useful tool for the accurate quantification of [¹¹C]PIB studies.

Keywords

PET reference region supervised clustering

INTRODUCTION

Positron emission tomography (PET) with [¹¹C]Pittsburgh Compound B (PIB) has been utilized for the in vivo imaging of amyloid plaque deposition in the human brain, and has consistently demonstrated a robust amyloid load in Alzheimer's disease (AD) patients when compared with age-matched controls.^1-3 Initially, compartmental and graphical kinetic techniques have been used for the quantification of the tracer binding with an arterial input function.⁴ Subsequently, simpler kinetic methods with a reference input have been adopted and, using the cerebellum as a reference, have demonstrated effective quantification ability to retain the discriminatory power between AD and matched controls.⁵ Reference region methodologies have obvious appeal for clinical use because they do not require arterial blood sampling, which is logistically challenging, more so in elderly or impaired subjects. Recently, however, [¹¹C]PIB retention in the cerebellum was reported in presenilin 1 mutation carriers compared with normal volunteers,^6,7 suggesting that this region may not be generally suitable as a reference region. Anatomic references other than the cerebellum can be sought, such as the pons as we previously showed.⁸ However, there is now a growing interest in an automatic procedure that is able to identify accurately a reference region for [¹¹C]PIB dynamic studies. Although the target-to-reference signal in AD is quite large, research focus is now shifting toward disease progression and toward subjects with low or mild uptake;^9,10 in this context, small specific uptake in the reference may hamper the required accuracy in quantification. Second, novel application of [¹¹C]PIB as a myelin marker and its application to neurodegenerative disorders such as multiple sclerosis,¹¹ reflects an obvious need for an automatic reference tissue methodology that may depart from the a priori definition of an anatomic region given the high uncertainty in the spatial pattern that is targeted.

Automatic clustering was first proposed to extract the reference region for brain PET studies in which the anatomic definition of a region without specific binding was difficult, for example, in the case of the neuroinflammatory marker [¹¹C]-(R)-PK11195 given its unpredictable distribution pattern.¹² In this context, the automatic method segmented brain voxels into classes on the basis of their time–activity courses and selected as reference the class of voxels that exhibited the kinetic behavior closer to that of gray matter in healthy controls. The approach was subsequently refined to increase the reliability of reference extraction for [¹¹C]-(R)-PK11195 study using a supervised approach, that modeled each pixel's time–activity curve (TAC) as the sum of six predefined kinetic classes, normal gray matter, white matter, pathologic peripheral benzodiazepine receptor binding, vascular binding, muscle, and the skull.¹³ Multicenter validation of the approach has further confirmed that supervised reference region extraction is indeed the optimal reference approach for [¹¹C]-(R)-PK11195 quantification.¹⁴

In the present study, we optimized the supervised procedure for the extraction of a reference region in [¹¹C]PIB PET studies, and validated this method in the [¹¹C]PIB studies of idiopathic AD subjects where a plasma input function was available. In particular, we wished to demonstrate that in these AD subjects, the algorithm was able to select reference voxels that lacked a specific-binding component that was identified through the plasma input. The method was then applied to a cohort of familial AD patients where the cerebellar uptake had been previously demonstrated.

MATERIALS AND METHODS

Algorithm Implementation of Supervised Clustering for [¹¹C]PIB

The supervised clustering approach for [¹¹C]PIB PET study (Super-PIB) was constructed as an extension of the one developed for [¹¹C]PK11195.¹³ This algorithm consists of three elements: (1) an input normalization procedure to scale each frame of the dynamic sequence, (2) a set of predefined kinetic classes, (3) a regression procedure to calculate the contribution of each kinetic class to the signal of each voxel. These weights, and in particular those of the gray matter class, are then used to calculate the reference input TAC.

Normalization of positron emission tomography dynamic sequence

In the PET dynamic images, the radioactivity of each frame was normalized for every voxels in the brain by subtracting the mean frame activity and dividing it by the frame standard deviation (SD) to create a unit input.

P_{i}^{n} (t) = \frac{P_{i} (t) - P_{mean} (t)}{P_{sd} (t)}

(1)

where P_i is the radioactivity concentration of i′th voxel, P_mean and P_sd are the mean and SD of radioactivity concentration for all voxels within the gray matter and white matter, respectively.

Predefined kinetic classes

Three kinetic classes of normal gray matter (class 1), high specific-binding gray matter (class 2), and blood pool (class 3), were predefined from the normalized PET dynamic sequence. The kinetic class of normal gray matter was extracted from the average of normalized time course (P_iⁿ) in the gray matter for 8 control subjects. The gray matter was identified using coregistered structural scans. For each subject, gray matter was defined from voxels in which the value of gray matter map was higher than 90% of the maximum value. Meanwhile, the kinetic class of high specific-binding gray matter was obtained from the average of normalized time course for three AD subjects sampled on the prefrontal cortex that has been consistently reported to demonstrate substantial specific [¹¹C]PIB retention in AD.⁴ Finally, the kinetic class of blood pool was defined from eight control subjects by extracting 30 voxels in which the radioactivity concentration of initial 60 seconds was the highest among all voxels in the brain. The definition of this class aims at avoiding voxels, particularly in the cerebellum, that are too close to venous sinuses and therefore are not representative of normal gray matter.

Estimation of each class contribution

The supervised clustering algorithm modeled the normalized kinetic of voxel i in the gray matter of PET dynamic sequence, identified via the structural MR scan, as a weighted linear combination of the predefined kinetic classes as follows;

\begin{matrix} P_{i}^{n} (t) = W_{i}_{1} K_{1}^{n} (t) + W_{i}_{2} K_{2}^{n} (t) + W_{i}_{3} K_{3}^{n} (t) & (W_{i 1}, W_{i 2}, W_{i 3} \geq 0) \end{matrix}

(2)

where K₁ⁿ, K₂ⁿ, K₃ⁿ are the predefined kinetic of class 1, 2, and 3, respectively.

The weights w₁, w₂, w₃ were calculated for each voxel within the gray matter by solving equation (2) with the nonnegative least-squares algorithm.¹⁵ In addition, weight ratios were calculated as follows;

\begin{matrix} R_{i k} = W_{i}_{k} / (W_{i}_{1} + W_{i}_{2} + W_{i}_{3}) & (k = 1, 2, 3) \end{matrix}

(3)

Extraction of reference region

Voxels in which the ratio of class 1 (R₁) was higher than 0.9 were regarded as the reference region, and the TAC of reference region C_r(t) was finally calculated from these voxels as a weighted average of the non-normalized voxel TAC as;

C_{r} (t) = \sum_{i = 1}^{N} w_{i 1} p_{i} (t) / \sum_{i = 1}^{N} w_{i 1}

(4)

where N is the number of voxels regarded as the reference region.

Note that the threshold value of R₁ = 0.9 is a good compromise to obtain highly homogeneous gray matter in a large enough number of voxels.

Positron Emission Tomography Study

Eight healthy control subjects, 10 patients with idiopathic AD, and eight patients with familial AD (presenilin 1 mutation carriers AD) participated in this study. Patient data have been reported in the previously published investigation.⁷ Elevated [¹¹C]PIB binding was reported in some elderly normal volunteers,^16-20 but this was not the case in healthy control subjects enrolled in this study. Ethical approval was granted by the Hammersmith Hospitals Trust Ethics Committee, and permission to administer radioisotopes was granted by the Administration of Radioactive Substances Advisory Committee of the Department of Health, UK. Informed written consent was obtained from all patients and healthy volunteers. All scans were performed in accordance with the guideline of Hammersmith Hospitals Trust Ethics Committee.

PET studies with [¹¹C]PIB were performed on an ECAT EXACT HR + (CTI/Siemens) PET camera with 15.5-cm axial field of view, 63 transaxial planes. A transmission scan was acquired before an emission scan using a single rotating photon point source of 150 MBq of ¹³⁷Cs for subsequent attenuation correction and scatter correction. ~ 370 MBq of [¹¹C]PIB was administered by a bolus injection 30 seconds after the start of emission scan. The specific radioactivity was 20,235 (± 6240) MBq/μmol at the time of injection. Emission data were then acquired over 90 minutes in list mode and reorganized as 32 time frames (30-s background frame, 1 × 15-s frame, 1 × 5-s frame, 1 × 10-s frame, 2 × 30-s frames, 9 × 60-s frames, 3 × 180-s frames, and 14 × 300-s frames). The data were reconstructed by a filtered back-projection using ramp filter set at 0.5 times the Nyquist frequency. The transaxial and axial spatial resolution of the reconstructed images were 5.6 and 5.4 mm full width at half maximum, respectively, at 10-cm distance from the center.

Arterial blood sampling was carried out for healthy controls and idiopathic AD subjects, not for the familial AD subjects, because it was not possible to obtain consent for this particular cohort. Arterial whole blood activity was monitored continuously for the first 15 minutes of the scan with a bismuth germinate coincidence detector at a flow rate of 5 mL/minute. At the same time, discrete arterial blood samples were withdrawn at 5, 10, 15, 20, 30, 40, 50, 60, 75, and 90 minutes after the injection into heparinized syringes, and the radioactivity concentration of the whole blood and plasma was measured. Eight plasma samples at 5, 10, 15, 30, 40, 60, 70, and 90 minutes were analyzed for metabolites using an on-line system with a reverse-phase high-performance liquid chromatography linked to radioactivity and absorbance detectors connected to a PC-based integrator.²¹ The level of [¹¹C]PIB and other ¹¹C components at each sample time was calculated as a percentage of total radioactive component in each analyte, and the function of unmetabolized parent fraction in plasma was obtained from the fit of sigmoidal function for the parent fraction to the eight measurements as shown previously by Edison et al.²² In their paper, it was reported that [¹¹C]PIB was relatively rapidly metabolized; parent fraction in plasma was ~20% after 20 minutes, and 10% after 60 minutes, and that there was no significant difference between the cohorts of AD patients and age-matched control subjects.²² A metabolite-corrected plasma curve was generated by the product of the plasma activity and nonmetabolite fraction curves as reported previously.²²

Volumetric T1-weighted MR images were obtained with a 1.5 Tesla GE Signa scanner.

Data Analysis

Magnetic resonance images were segmented and coregistered to the summation PET images by SPM2 (Functional Imaging Laboratory, Wellcome Department of Imaging Neuroscience, University College London, London, UK). Gray matter and white matter maps were obtained from the segmented MR images and thresholded (only map value>90% of maximum value were retained) to minimize the effect of partial volume. The eight healthy volunteers and three idiopathic AD subjects were used to predefine the three kinetic classes, and the test analysis for the Super-PIB application analysis was performed on the other seven idiopathic AD subjects and eight familial AD subjects. In these subjects, the weight of each class component was calculated for all voxels within the gray matter by equation (2), and TAC of the reference region was extracted by equation (4).

Regions of interest were manually drawn on the coregistered MR images for the cerebellum, prefrontal cortex, thalamus and pons, and ROIs for the cerebellum and prefrontal cortex were masked with the gray matter maps. The respective TACs were then extracted from the dynamic PET images.

Validation of Super-PIB Extracted Reference Region

The TACs of the Super-PIB extracted region were compared with that of the cerebellum in idiopathic AD subjects to investigate whether Super-PIB can exclude pathologic gray matter region with specific binding from the reference region. The total distribution volumes (V_T) were estimated for the Super-PIB extracted region and cerebellum by the Logan graphical analysis (GA) with a plasma input²³ using points after 50 minutes.

Next, the Super-PIB clustering was evaluated by investigating the distribution of Super-PIB extracted reference voxels in the cerebellum. All voxels in the cerebellum were divided into four segments according to the ratio of each kinetic class component estimated by equation (3); those with voxels regarded as a reference region (REF), those with voxels regarded as a non-reference region owing to the high specific-binding component (R₂≥0.1 and R₃<0.1) (NREF-Binding), those regarded as a non-reference region owing to the high blood-pool component (R₂<0.1 and R₃≥0.1) (NREF-Blood), and those regarded as a non-reference region owing to both specific binding and blood-pool components (NREF-Others). Note that the threshold values of R₂≥0.1 or R₃≥0.1 were determined such that R₁ value, expressed as equation (3) for kinetic class 1 (k = 1), would be between 0 and less than 0.9 and would be regarded as a non-reference region of non-zero to avoid spurious noise effects. The average TAC of each segment was calculated, and its V_T was estimated by GA with a plasma input. In addition, V_T values were calculated voxel-by-voxel, and the distribution of V_T values for voxels within each segment was investigated.

Comparison between Plasma Input and Reference Input Graphical Analysis

First, binding potentials (BP_ND = k₃/k₄) of the target region were estimated by the GA with a plasma input function (GA-plasma)²³ in the idiopathic AD cohort. Total distribution volumes of the target regions, i.e., the gray matter, white matter, prefrontal cortex, thalamus, and pons, and reference region, i.e., the cerebellum and the Super-PIB extracted region, were estimated and the BP_ND of target regions was calculated as;

B P_{ND} = \frac{V_{tg} - V_{ref}}{V_{ref}}

(5)

where V_tg and V_ref are the total distribution volume for the target and reference region, respectively, and V_ref is used as an estimate of the distribution volume of the free and nonspecifically bound tracer. Both the cerebellum and the Super-PIB extracted region were used as reference, and the estimated BP_ND were compared.

Next, BP_ND of the target regions were also derived from the distribution volume ratio by the GA with a reference input (GA-reference).²⁴ Distribution volume ratio of target-to-reference region was estimated with the Super-PIB extracted TAC as a reference input and k2 value (=0.149), and BP_ND was calculated as;

B P_{ND} = V_{tg}^{r} - 1

(6)

where V^r_tg is the distribution volume ratio in the target region. The estimated BP_ND of the target regions were compared with BP_NDs estimated by GA-plasma.

Binding Potential in Familial Alzheimer's Disease Patients

In the familial AD group, BP_ND were estimated by GA-reference with Super-PIB extracted reference region (BP_sup) and compared with those obtained by GA-reference with the cerebellar reference region (BP_cer). BP_sup and BP_cer were also estimated in the idiopathic AD group and the healthy control group. Note the kinetic classes used for the Super-PIB in eight control subjects were predefined individually from the normalized TAC of seven control subjects without the TAC of that subject itself.

Statistical Analysis

All analyses were carried out using Matlab (The Mathworks, Natick, MA, USA). Method comparison was carried out using either linear regression or Bland-Altman plots.²⁵ Statistical comparisons were performed using linear parametric models (Student's t-tests) with 0.05 as the significance level.

RESULTS

Reference Extraction by Supervised Clustering

The normalized TAC of each class defined for use in the supervised clustering is shown in Figure 1. The weight ratio of normal gray matter class (R₁) was high mainly in the cerebellum (Figure 2A), whereas the voxels of specific-binding gray matter were clustered into the cerebral cortex, such as frontal cortex, occipital cortex, and anterior cingulate (Figure 2B). The algorithm also identified the voxels with significant signal coming from the blood fraction (Figure 2C). The supervised algorithm selected as reference region a set of gray matter voxels, mostly in the cerebellum with a few in the cortices (Figure 2D).

Figure 1.

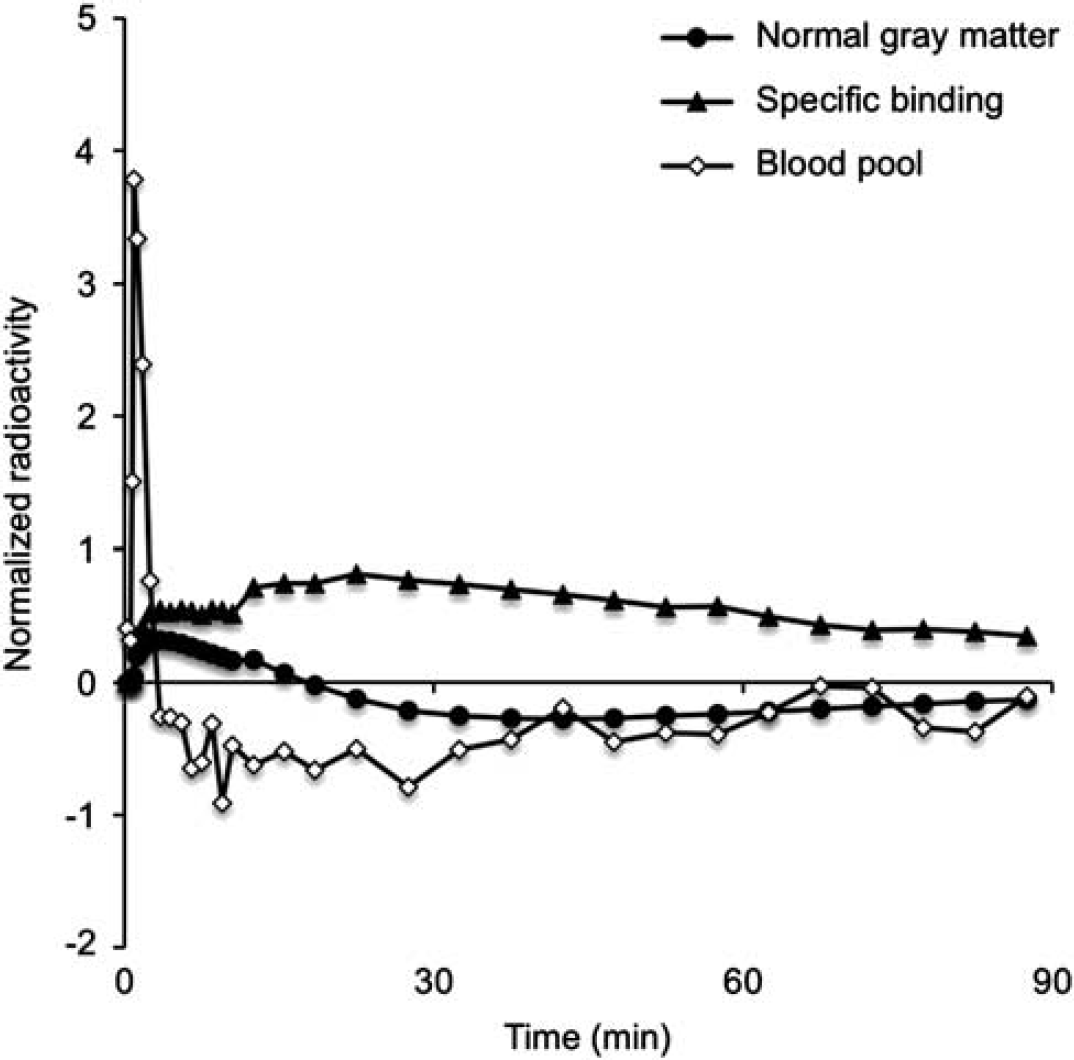

Normalized time–activity curve of the predefined three classes; normal gray matter, specific-binding gray matter, and blood pool.

Figure 2.

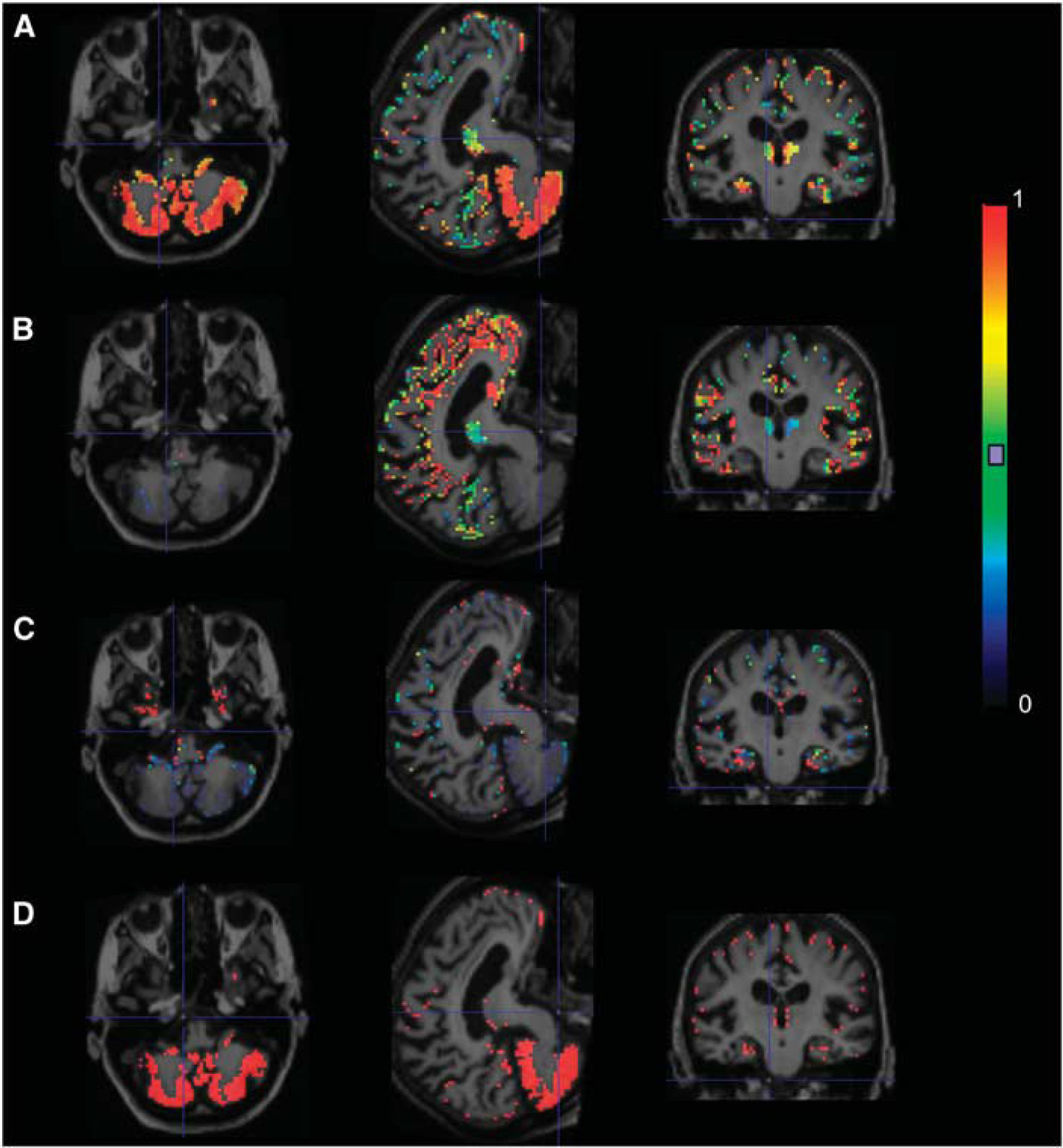

Maps of normal gray matter ratio (A), specific-binding gray matter ratio (B), blood-pool ratio (C) estimated by supervised algorithm, and extracted reference region (D) superimposed on magnetic resonance imaging for an idiopathic Alzheimer's disease subject.

The TACs of Super-PIB reference region were close to those of the cerebellum, though the radioactivity of Super-PIB reference region was slightly lower in later frames. The average V_T estimated by the GA-plasma for Super-PIB extracted region and the cerebellum in seven idiopathic AD subjects were 3.0 ±0.45 and 3.3 ±0.51, respectively. Estimated V_T of Super-PIB reference region was significantly lower than those of the cerebellum (paired t-test, P<0.05).

Evaluation of Super-PIB Segments in the Cerebellum

Application of Super-PIB clustering in idiopathic AD patients resulted in the cerebellum being divided into segments, i.e., REF, NREF-Binding, NREF-Blood, and NREF-Others. The case where the ratio of non-reference voxels in the cerebellum was largest among seven subjects is shown in Figure 3 and related TACs are shown in Figure 3D that clearly demonstrates the tracer retention at late times for the TAC of the NREF-Binding segment. In this instance, the VT values estimated by GA-plasma were 4.16 for the whole cerebellum (5180 voxels), 3.36 in the REF segment (2790 voxels), 5.58 in the NREF-Binding segment (1477 voxels), and 3.27 in the NREF-Blood segment (652 voxels). This result was consistently repeated in the other six subjects. For all seven subjects, ~70% of voxels in the cerebellum belonged to the reference region segment, and V_T estimate of REF was much lower than that of NREF (Table 1).

Figure 3.

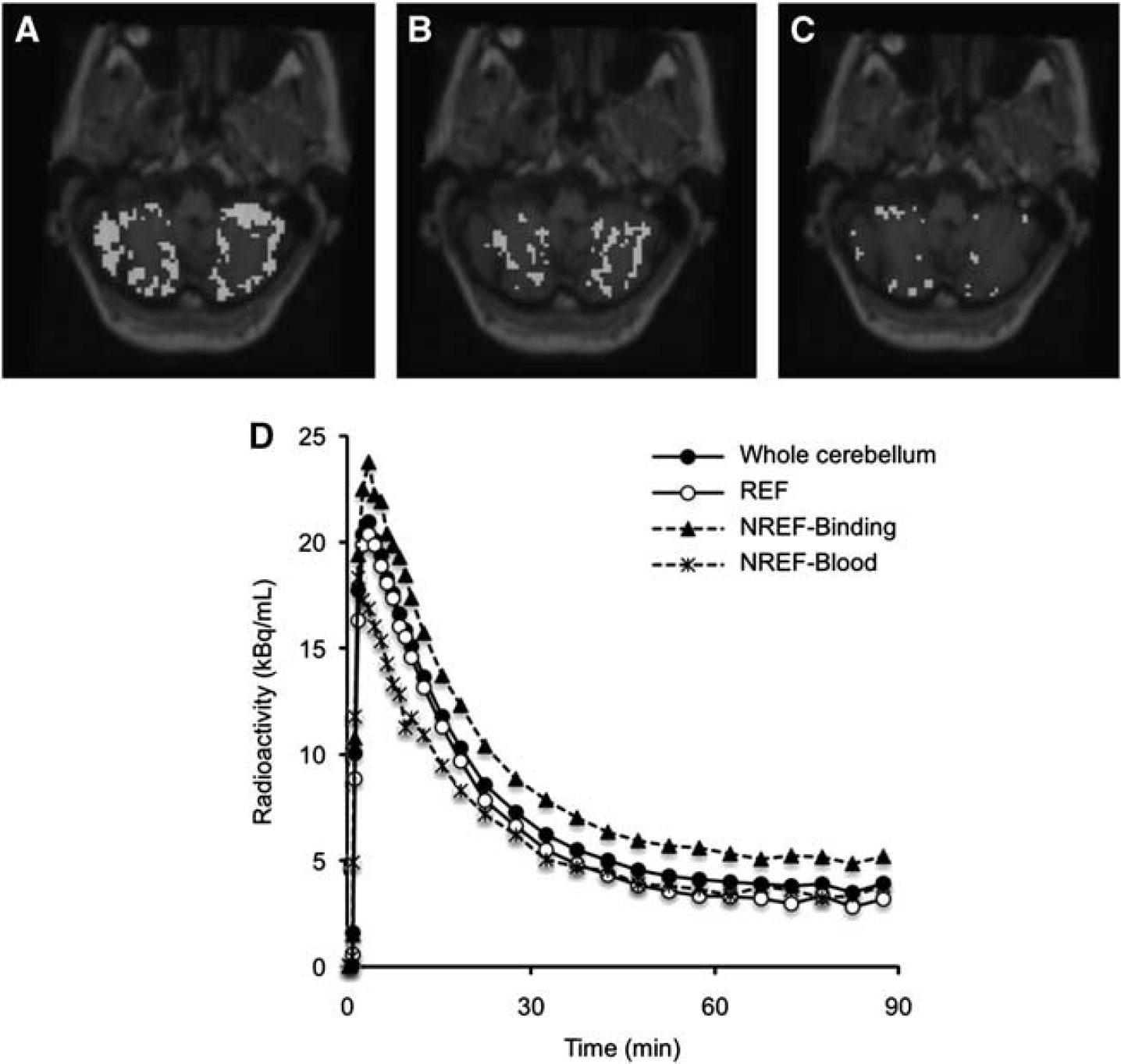

Example of cerebellar segmentation for the idiopathic Alzheimer's disease subject that demonstrated the higher non-reference percentage of voxels in the cerebellum; reference (A; REF), non-reference with high specific-binding fraction (B; NREF-Binding), and non-reference with high blood-pool fraction (C; NREF-Blood) superimposed on magnetic resonance imaging (upper), and averaged time–activity curve of the whole cerebellum and each cerebellar segment (D) (lower).

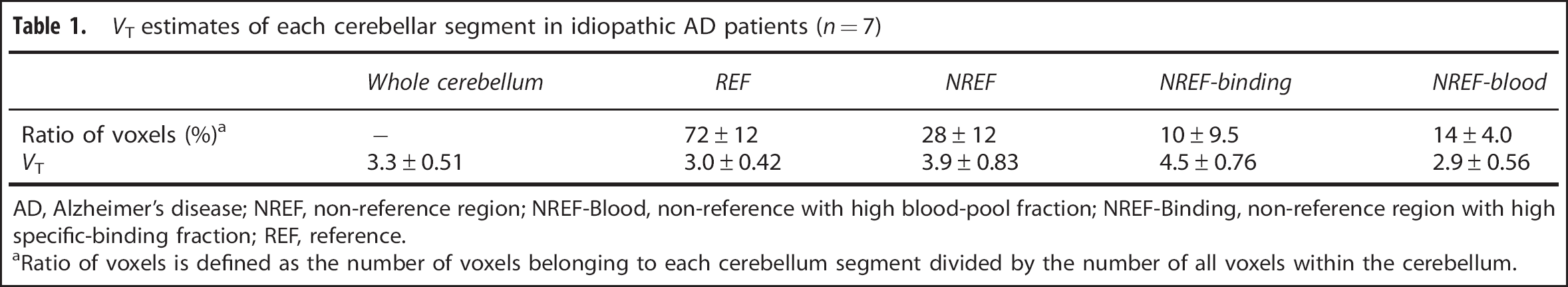

Table 1.

V_T estimates of each cerebellar segment in idiopathic AD patients (n = 7)

	Whole cerebellum	REF	NREF	NREF-binding	NREF-blood
Ratio of voxels (%)^a	—	72 ± 12	28 ± 12	10 ± 9.5	14± 4.0
V _T	3.3 ±0.51	3.0 ± 0.42	3.9 ± 0.83	4.5 ± 0.76	2.9 ± 0.56

AD, Alzheimer's disease; NREF, non-reference region; NREF-Blood, non-reference with high blood-pool fraction; NREF-Binding, non-reference region with high specific-binding fraction; REF, reference.

^aRatio of voxels is defined as the number of voxels belonging to each cerebellum segment divided by the number of all voxels within the cerebellum.

The histograms of the VT value from voxel-wise GA for the cerebellum of a subject are shown in Figure 4. The VT distribution of voxels in the NREF-Binding segment was higher than that in the REF and NREF-Blood segments. In this subject, the mean value of V_T estimates of REF, NREF-Blood, and NREF-Binding were 2.5, 2.3, and 3.3, respectively.

Figure 4.

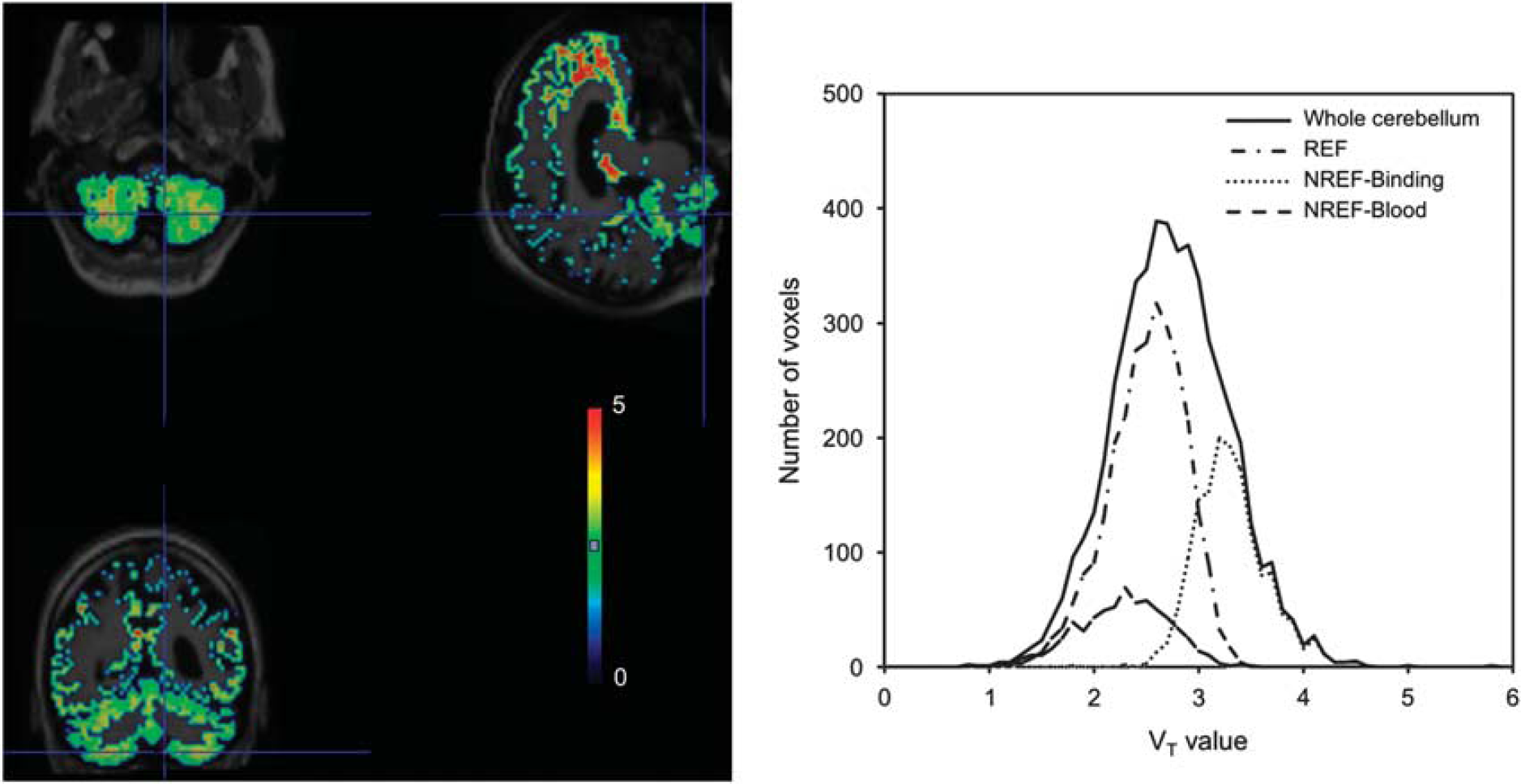

Parametric V_T map of the same idiopathic Alzheimer's disease subject obtained using a plasma input function (left) and histogram of V_T estimates for voxels within each cerebellar segment identified by the supervised algorithm. REF, reference; NREF-Binding, non-reference region with high specific-binding fraction; NREF-Blood, non-reference with high blood-pool fraction.

Comparison between Plasma Input and Reference Input Graphical Analysis

In the GA-plasma, BP_ND of target regions estimated with V_T of Super-PIB extracted region were higher than that with V_T of the cerebellum. However, there was a good correlation between both methods (Figure 5A). In the comparison between BP_ND by the GA-plasma and GA-reference, there was a good correlation between both methods, though BP_NDs by GA-reference were underestimated (Figure 5B). The Bland-Altman plot demonstrates that underestimation is present for the high-end BP_ND (Figure 5C) and is the result of the known bias introduced by the GA-reference technique and not by the reference TAC itself.

Figure 5.

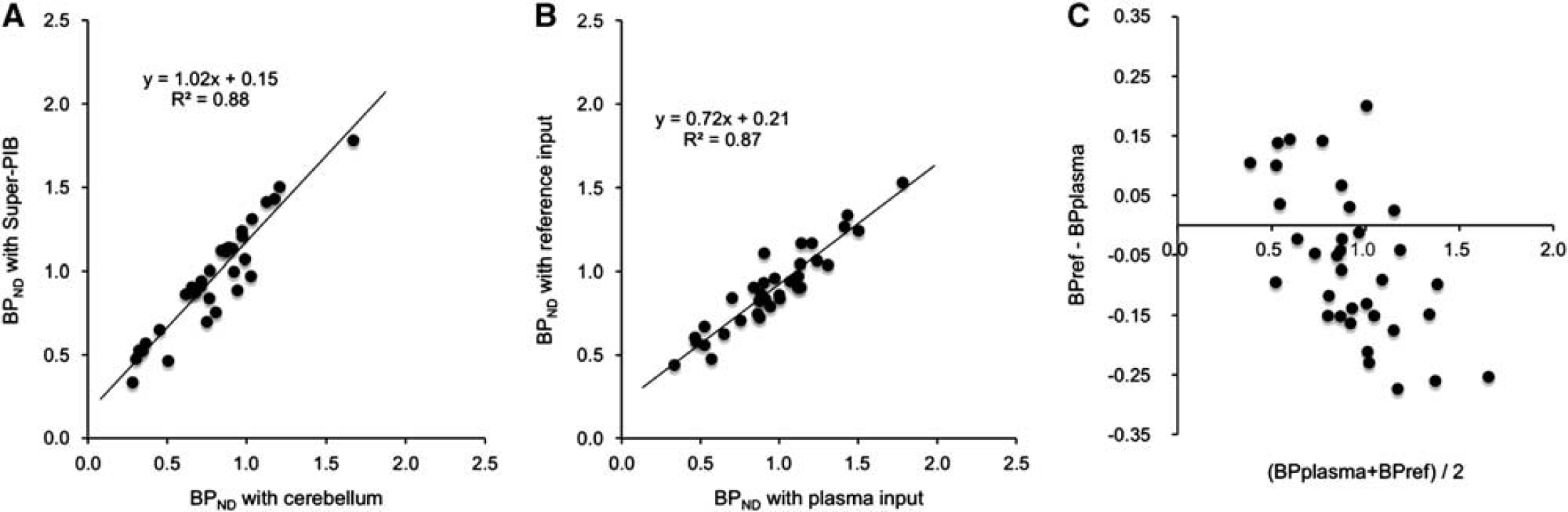

Relationship of binding potential (BP_ND) estimates between the plasma input graphical analysis using the supervised clustering extracted region and using the cerebellum as a reference region (A), relationship of BP_ND estimates between the plasma input graphical analysis and reference input graphical analysis using the supervised clustering extracted reference region (B), and Bland-Altman plots between BP_ND estimates with the plasma input and the supervised clustering extracted reference input (C).

Binding Potential in Familial Alzheimer's Disease Patients

In familial AD subjects, BP_ND of the prefrontal cortex estimated by GA-reference with Super-PIB reference was (0.83 ± 0.36 (mean ± s.d.)), clearly higher than those with the cerebellar reference (0.63 ±0.40 (mean ± s.d.)) (Figure 6), and these differences were statistically significant (paired t-test, P<0.01). Percentage wise, the difference between BP_sup and BP_cer was (-1.8% to 75% (mean ± s.d. 30 ± 25)) in the familial AD group compared with −6.2% to 25% (mean ± s.d.) 14 ± 11)) in the idiopathic AD group.

Figure 6.

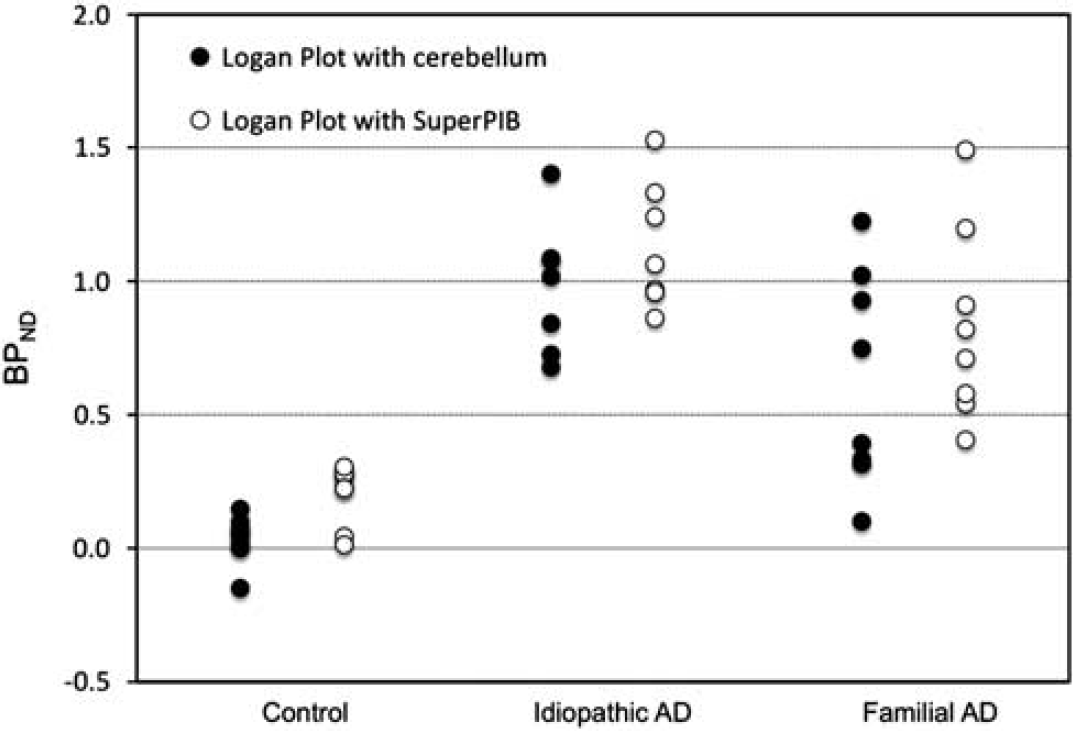

Binding potential (BP_ND) values of prefrontal cortex estimated by the reference input graphical analysis with cerebellum or supervised clustering extracted region as a reference for controls, idiopathic Alzheimer's disease (AD), and familial AD subjects.

Note that the use of the novel reference methodology results in an increase of the BP_ND in the target regions also in controls; these BP_ND values are also greater than 0 (although no amyloid is expected in this cohort). This result is consistent with the demonstrated binding of [¹¹C]PIB to myelin in the healthy brain.¹¹ The novel reference is selected on pure gray matter voxels and this minimizes partial volume effects from white to gray matter and reduces the baseline signal in the reference. This then results in the BP_ND of the target regions being higher and also greater than 0 given the specific binding of the tracer to the myelin protein content of the target white matter.

DISCUSSION

The aim of this work was to develop and validate an automatic extraction algorithm for the accurate identification of a reference region in dynamic [¹¹C]PIB studies.

The methodology is based on the principle that the kinetics of the gray matter voxel can be explained as a linear mixture of healthy gray matter plus gray matter with specific binding and a blood volume component. These classes can be readily identified given the negligible presence of specific binding due to amyloid in normal volunteers and, in contrast, the widespread and intense specific binding in the cortical regions of AD patients. Therefore, it is easy to obtain the typical kinetic pattern of a normal gray matter and a region with amyloid deposition. We acknowledge that the empirical definition of gray matter in control subjects as the tissue reference for our methodology may introduce a slight bias. A percentage of normal subjects (B30%) does seem to show low but significant amount of specific binding in gray matter regions (but not globally). However, the fact that our reference tissue was averaged on all gray matter and on all normal subjects (who, in our data set, did not seem to show any remarkable binding) renders the expected bias negligible. Differently from previous work with [¹¹C]-(R)-PK11195,¹³ we have excluded the use of normal white matter as a kinetic class given the unspecific accumulation of [¹¹C]PIB in myelin.

Results in an idiopathic AD cohort confirmed the ability of the technology to recover a set of reference voxels, mostly cerebellar, that was away from areas of tracer accumulation as well as from areas close to or including large venous pools. Note that the inclusion of voxels with large contamination from the blood volume may introduce biases as well. In addition, in a familial AD cohort, the Super-PIB methodology demonstrated higher BP_ND values in target regions compared with those obtained with the cerebellar reference input. In a familial AD patient, the possibility of presence of non-neuritic amyloid plaques in the cerebellum was demonstrated,²⁶ and in previous PET studies with [¹¹C]PIB, the retention of radioactivity did occur in the cerebellum, although there was considerable variability between subjects.⁷ The magnitude of the BP_ND increase brought by the Super-PIB reference region was larger than the one in the idiopathic AD cohort, confirming that the cerebellar binding had been efficiently filtered from the reference voxels.

The novel reference methodology, by selecting highly homogeneous gray matter voxels, avoids the spillover of specific-binding signal from white matter where [¹¹C]PIB is bound to myelin. This results in the BP_ND of cortical regions to be higher than the one quantified using a whole cerebellar reference. The fact that BP_ND in control regions is greater than 0 also confirms the previously demonstrated use of [¹¹C]PIB as a potential marker of myelin in neurodegenerative disorders such as multiple sclerosis.¹¹

The accuracy of the quantification achieved was confirmed by the good match between plasma and reference quantification. The underestimation of BP_ND in the GA with reference input was observed when BP_ND was larger and is the same bias observed in previous reports using the cerebellum as a reference input, which is due to the graphical estimation methodology.⁵

As the previous application of supervised clustering has demonstrated,¹⁴ the technique can be robustly applied across centers and scanners as long as injecting protocols, scanner resolution properties, and reconstruction parameters are similar. However, in case kinetic classes will have to be re-defined, as explained in the previous paragraph, in the case of [¹¹C]PIB this is quite straightforward. Clinical use of the methodology may require the redefinition of the kinetic classes if scanner resolution and/or reconstruction parameters differ. In particular, given the experience with a similar methodology for [¹¹C]-(R)-PK11195 studies,¹⁴ we identified significant changes in the class profiles when moving to 5 to 2 mm resolution and from filtered back-projection to iterative reconstruction approaches.

In summary, the supervised clustering method automatically detects a reliable reference region in [¹¹C]PIB PET dynamic studies, it is a useful and practical tool for the accurate quantification of the specific binding of the radiotracer and is a methodology of general applicability.
