Abstract
Objective
To measure afterdrop and rewarming in subjects placed in a hypothermia wrap immediately after extrication from 60 minutes of snow burial.
Methods
We measured esophageal core body temperature (Tes) in 6 subjects buried in compacted snow (mean density 39%) for up to 60 minutes at an altitude of 2450 m while breathing with an AvaLung (Black Diamond Equipment, Salt Lake City, UT). Mean snow temperature was –3.5 ± 1.0°C and mean air temperature was 0 ± 2°C. Subjects wore a 1-piece Gore-Tex suit over medium weight Capilene underwear with a hood, face mask, goggles, mittens, and boots. After extrication from snow burial subjects were immediately placed in a hypothermia wrap. Tes was measured for an additional 60 minutes as subjects rewarmed by shivering.
Results
Tes cooling rate during snow burial was 0.84 ± 0.3°C/h during a mean burial time of 58 ± 4 minutes. Tes afterdrop (0.77 ± 0.4°C) occurred 12 ± 8 minutes after extrication from snow burial at a cooling rate of 4.0 ± 0.8°C/h (
Conclusion
Afterdrop rate increased about 4-fold as compared to snow burial cooling rate for a transient time period in subjects who were placed immediately into an insulating hypothermia wrap. Spontaneous endogenous rewarming increased core body temperature at a slightly higher rate than it decreased during snow burial. These findings suggest that field rewarming of mildly hypothermic and shivering avalanche burial victims is possible, but they should be insulated quickly to limit significant afterdrop.
Introduction
Survivors of avalanche burial may be hypothermic 1 –3 and severity depends on duration of burial, but rate of core temperature cooling is not well defined. Knowledge of core temperature cooling rate would help predict severity of hypothermia and enable rescuers to better triage and treat avalanche burial victims. Mildly hypothermic avalanche burial victims could potentially be rewarmed in the field, while those with moderate or severe hypothermia would require rapid evacuation to a hospital for rewarming.
In a previous study we measured core body temperature cooling rate in mildly hypercapnic subjects buried in snow wearing a lightweight clothing insulation system and found that core body temperature cooling rate was 1.2 to 1.3°C/h. 4 In a subsequent study we measured core body temperature afterdrop in mildly hypercapnic subjects extricated from 60 minutes of snow burial who ambulated 30 m to a warming shelter, and found that core temperature afterdrop cooling rate during the first 5 minutes after extrication from snow burial was 3.3°C/h, more than double the cooling rate of 1.3°C/h during snow burial. 5 This suggests afterdrop may significantly worsen hypothermia in extricated avalanche burial victims and impair rewarming attempts in the field or during transport. However, the high rate of core temperature cooling during afterdrop in our previous study may have been due to ambulation of the subjects from the study site to a rewarming area, because exercise is known to increase afterdrop in studies of immersion hypothermia. 6 We therefore designed this current study to measure core temperature afterdrop when subjects are immediately packaged in an insulating hypothermia wrap after extrication from snow burial.
Our previous studies also suggest that avalanche burial victims buried for periods of up to 1 hour, and who are extricated alive, should only have mild hypothermia (32–36°C) if core body temperature was normal (37°C) at the time of burial. Mildly hypothermic avalanche burial victims extricated alive should exhibit vigorous shivering. Studies of immersion hypothermia show that it is possible for mildly hypothermic persons to rewarm by shivering alone if dry insulation is provided, 6 defined as spontaneous endogenous rewarming. 7 We also designed this study to determine whether spontaneous endogenous rewarming could attenuate afterdrop and rewarm subjects after extrication from snow burial.
Our objective in this study was to measure core body temperature cooling rate in subjects buried in dense snow for up to 60 minutes while breathing with an artificial device (AvaLung 2, Black Diamond Equipment, Salt Lake City, UT), and then to measure afterdrop and rewarming rate as subjects were extricated from snow burial and placed immediately in an insulating hypothermia wrap and allowed to rewarm by shivering alone.
Methods
This study was performed at 2450 m elevation (average barometric pressure 571 ± 3 mm Hg) at The Canyons ski resort in the Wasatch Mountains, Utah. Average ambient air temperature was 0 ± 2°C during the studies. The experimental set-up consisted of a large mound of snow compacted with body weight and allowed to age-harden for approximately 2 hours. Snow density was determined in multiple sites using a 1000-cc wedge density cutter (Snowmetrics, Ft. Collins, CO) that measured the weight of water per cubic meter (kg/m3). Snow density is reported as a percent (ie, 300 kg/m3 is 30% density snow). Mean snow density was 39 ± 3%. Snow temperature was measured with a dual thermocouple thermometer (Model 600-1040, Barnant Co, Barrington, IL). Mean snow temperature was –3.5 ± 1°C. A shoulder width trench was dug into one end of the snow mound and a sitting platform created for the subject so that the head would be approximately 50 cm under the top surface of the mound after burial. Figure 1 shows the experimental burial site with a subject during extrication at the end of a study burial. Subjects were fully buried in the snow for up to 60 minutes while breathing with an artificial device (AvaLung 2, Black Diamond Equipment, Salt Lake City, UT). After 60 minutes of snow burial subjects were extricated and transferred to a hypothermia wrap where they were allowed to rewarm by shivering for 60 minutes.

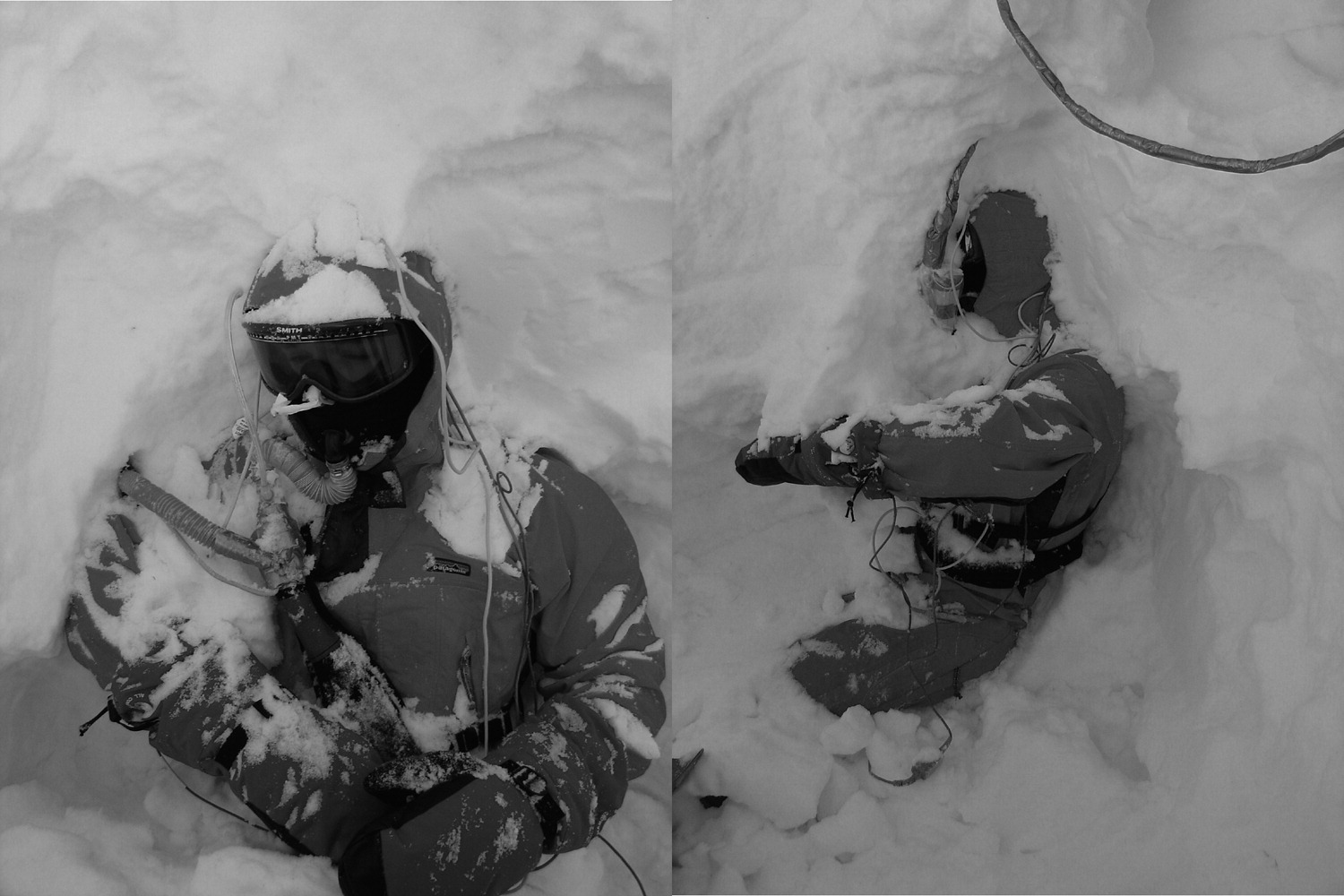

Front and side views of a subject during extrication at the end of a burial.
Subjects were healthy paid volunteers, 3 women and 3 men, mean age 27 ± 3 years, mean height 174 ± 5 cm, mean weight 66 ± 4 kg, mean body mass index 22 ± 1. All subjects wore an identical lightweight clothing insulation system consisting of a 1-piece Gore-Tex suit (Patagonia, Ventura, CA) over medium weight Capilene underwear (Patagonia), a hood and facemask with goggles, mittens and warm boots. The Intermountain Healthcare Research and Human Rights Committee approved this study, and written informed consent was obtained from volunteers.
During snow burial subjects breathed through an artificial breathing device that draws inspired air from the snowpack in front of the subject's chest and diverts expired air into the snowpack behind the subject (Figure 2). This device is used by some persons traveling in avalanche terrain and is intended to prolong survival during avalanche burial (AvaLung 2). In a previous study our group demonstrated that subjects breathing with this device during snow burial maintained adequate oxygenation for up to 60 minutes but gradually developed hypercapnia. 8

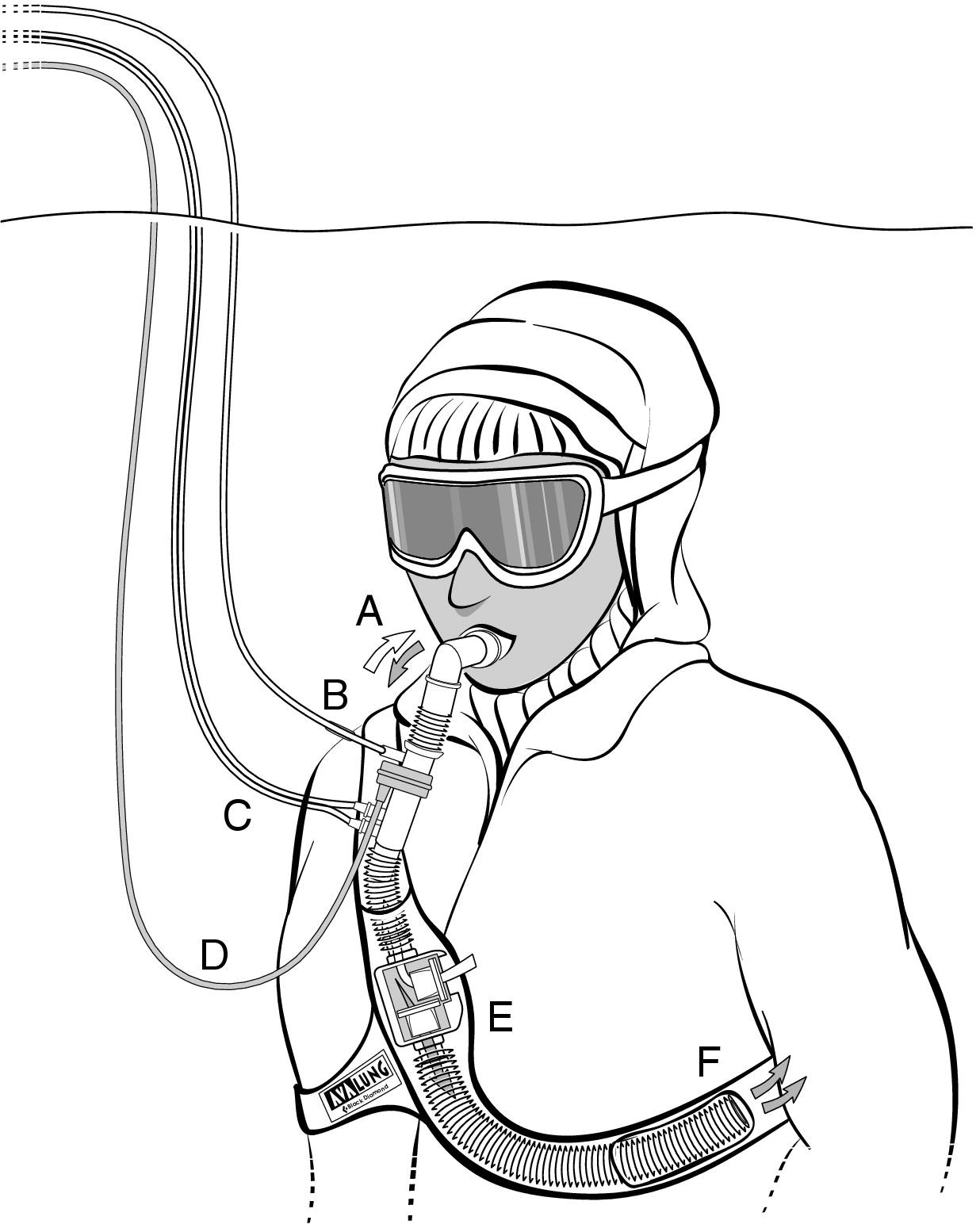

The breathing device used during the snow burial is shown (AvaLung 2). White arrows show flow of inspiratory air, and dark arrows show flow of expiratory air. The subject breathes in and out through the mouthpiece (A). An emergency oxygen back-up line (B) is attached directly into the mouthpiece apparatus and is used only if the subject becomes hypoxemic or requests to end the study. Monitoring lines (C, D) are connected to a device for measuring and recording inspired carbon dioxide, expired carbon dioxide, and minute ventilation. Inhaled air enters from the snowpack through the 1-way inspiratory valve on the side of the housing inside the mesh-protected harness on the chest (E). Expired air leaves the lungs through the mouthpiece and travels down the respiratory tubing to the housing and then passes through an expiratory 1-way valve located at the bottom of the housing (E) and travels via respiratory tubing inside the harness around to the back (F).
Physiologic parameters were continuously monitored during the burial studies and were recorded every minute. These parameters included esophageal core body temperature (Tes) in degrees celsius obtained by a probe inserted through the nose and into the esophagus with the tip at the level of the heart. Core body temperature was also measured with a rectal probe (Tre) inserted to 15 cm. Esophageal and rectal temperature probes (model 401, YSI Inc, Yellow Springs, OH) were attached to a monitor (Propaq Encore, Protocol Systems Inc, Beaverton, OR) that also monitored surface 3 lead electrocardiogram (ECG). Ventilation parameters measured included partial pressure of end-tidal carbon dioxide (ET
Immediately prior to burial subjects made a brisk uphill walk for 5 minutes and then returned to the study area where they were rapidly buried while sitting in the snow mound trench and breathing on the mouthpiece of the artificial breathing device. Snow was rapidly and densely compacted around their bodies until they were completely buried and immobile. Study time was started when the subject's head was completely buried. During the burial subjects could communicate with the surface team via intercom at any time if necessary. The study burial was terminated after 60 minutes, or when Sp
After 60 minutes of burial subjects were extricated from the snow (time 0) and immediately placed in a synthetic sleeping bag (custom made, rating 0°C) wrapped in a wool blanket on an ensolite pad. A heavy plastic vapor barrier (6 mil black plastic 10 × 10 ft) was then wrapped around the wool blanket, sleeping bag, and ensolite pad to complete the hypothermia wrap. Core body temperature was monitored for an additional 60 minutes.
Statistics
All data were compared using time 0 of extrication so that if a subject's snow burial portion of the study was less than 60 minutes, their data were adjusted so that end burial occurred at time 0 (extrication) and the start of burial occurred at minus the number of minutes of the duration of their study burial. Both Tes and Tre were recorded and are reported for comparison, but only Tes is used for data analysis due to the known lag of Tre during rewarming.
Cooling rate in °C/h was calculated arithmetically using the Tes at extrication and Tes at the time of burial. Afterdrop cooling rate in °C/h was calculated arithmetically by using the nadir in afterdrop Tes and the Tes at extrication. Rewarming rate in °C/h was calculated arithmetically by using the nadir in afterdrop Tes and the end study (60 minutes after extrication) Tes. Afterdrop cooling rate was compared to cooling rate during snow burial by a paired
Results
Tes cooling rate (Table and Figure 3) during snow burial was 0.84 ± 0.3°C/h during a mean burial time of 58 ± 4 minutes. Tes afterdrop occurred over 12 ± 8 minutes after extrication from snow burial with a Tes cooling rate of 4.0 ± 0.8°C/h (
Comparison of esophageal and rectal core temperature cooling and rewarming rates

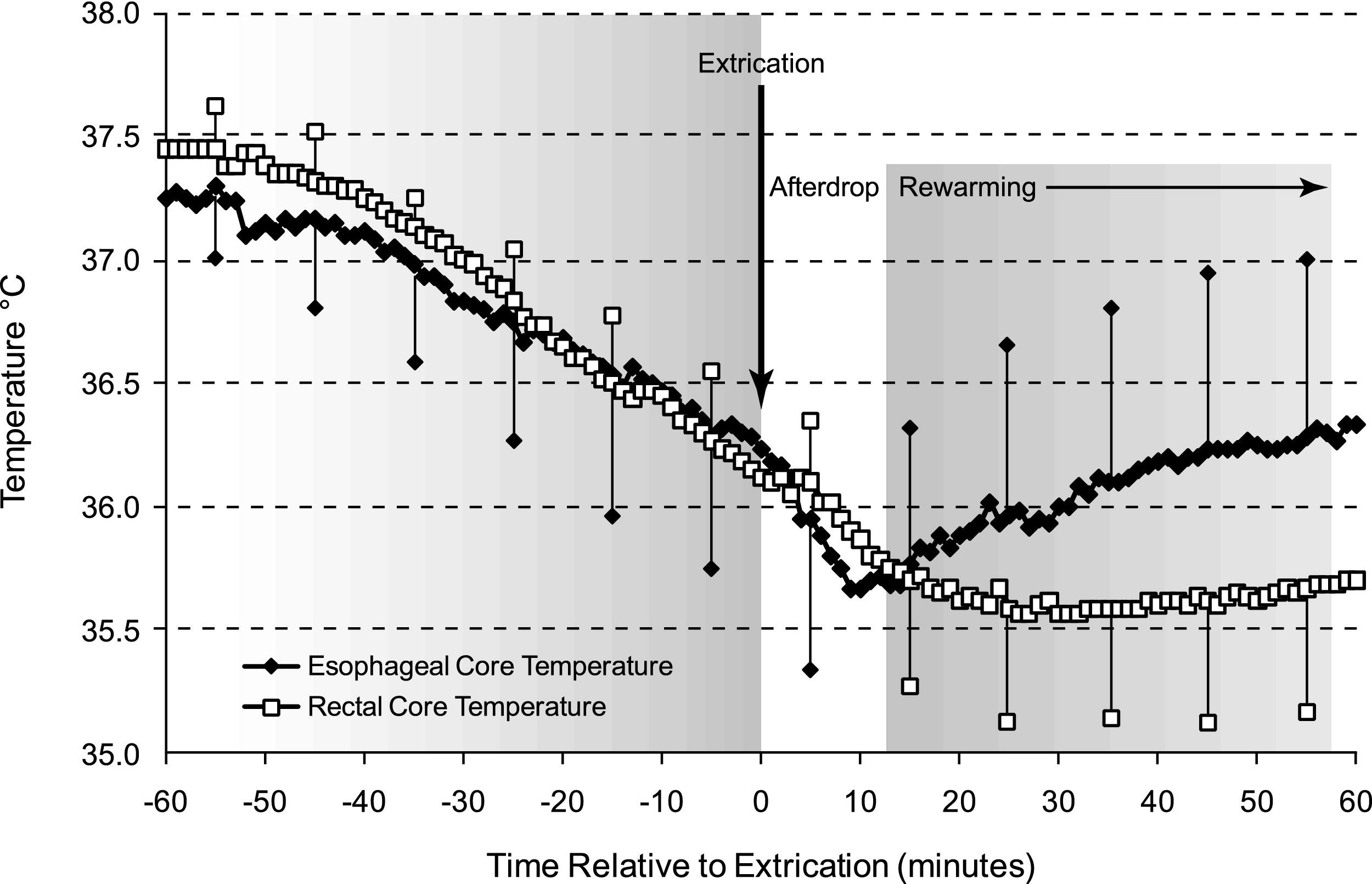

Esophageal (Tes ♦) and rectal (Tre □) core temperatures in °C ± SD during snow burial and after extrication during spontaneous endogenous rewarming. Time 0 is relative to extrication from snow burial. At extrication from snow burial both Tes and Tre show an afterdrop, but the afterdrop of Tes is attenuated and the Tes shows rewarming of the core as insulation is provided to the shivering subject. Tre lags behind Tes during rewarming representing temperature gradients from the body core to the body shell as rewarming occurs. The findings suggest that core cooling rates during avalanche burial will cause only mild hypothermia during burials of up to about 1 hour in duration, but significant afterdrop can occur in avalanche burial victims after they are extricated from snow burial and insulation should be provided as quickly as possible. Avalanche burial victims who are awake and shivering after extrication from snow burial can be rewarmed in the field by spontaneous endogenous rewarming (providing insulation and allowing shivering to rewarm the avalanche burial survivor).
Tre cooling rate (Table and Figure 3) during snow burial (1.4 ± 0.5°C/h) was greater than Tes cooling rate (0.84 ± 0.3°C/h) (
During snow burial fraction of inspired CO2 increased from 0.4 ± 0.6% to 4.9 ± 2.1% (
Discussion
We found that during burial in dense snow for up to 60 minutes core body temperature cooling rate was 0.84 ± 0.3°C/h. After extrication from snow burial, afterdrop cooling rate significantly increased to more than four times the cooling rate during snow burial (4.0 ± 0.8°C/h). Afterdrop was attenuated after just 12 ± 8 minutes, limiting afterdrop to 0.77 ± 0.4°C. Spontaneous endogenous rewarming increased core temperature at a slightly faster rate than it decreased during snow burial (rewarming rate 1.1 ± 0.3°C/h,
The Tes cooling rate during snow burial in this study (0.84 ± 0.3°C/h) was lower than the Tre cooling rate (1.4 ± 0.5°C/h). In our previous studies using a similar snow burial protocol, Tre cooling rate was 1.2 to 1.3°C/h,4,5 which is about the same Tre cooling rate observed in this study. This current study is the first to measure Tes cooling rate during snow burial. Tes is a more accurate measure of core temperature cooling because it more closely correlates with temperature of the heart.7,9 Tre, however, is a more easily measured temperature in the field or during initial evaluation in a hospital. The most significant difference between Tes and Tre occurs during the transition from cooling to rewarming. During this period Tes and heart temperature may be rising while Tre is still falling 7 , 9,10 as was observed in our study. Relying on Tre measurements to guide treatment may lead to overly aggressive measures to rewarm a hypothermic patient. As our study demonstrates, despite the continued drop in Tre, spontaneous endogenous rewarming of the core, as measured by Tes, was occurring through shivering in a field setting. This lends support to the recommendation that esophageal temperature measurements be used for clinical decision making in extricated avalanche burial victims. 1 Measurement of tympanic membrane temperature may also be used but requires a thermocouple probe with a cotton tip that is placed directly on the tympanic membrane, and its accuracy in a field setting is controversial. 11 Infrared tympanic thermometers are not recommended for field diagnosis because of inaccuracy due to environmental conditions. 7
The findings in our study suggest that a mildly hypothermic and shivering avalanche burial survivor can be rewarmed in the field if adequate insulation is provided. Our study also suggests that providing insulation as soon as possible to an avalanche burial victim is important to limit afterdrop. The likely mechanism for the increased cooling rate during afterdrop in our study is increased activity by the subject upon extrication from snow burial as compared to total immobilization in dense compacted snow during burial. During extrication in our study the level of activity of subjects was minimal and consisted of moving the extremities to help free themselves. The rapid increase in core temperature cooling rate during extrication from snow burial was reported previously by our group using Tre 5 in subjects who ambulated after extrication. The study we report here is the first to measure Tes afterdrop rates after extrication from snow burial. Despite measures to limit activity, and afterdrop, by keeping subjects supine and immediately placing them in a hypothermia wrap, afterdrop cooling rate still significantly accelerated as compared to snow burial cooling rate, which has implications for treatment of hypothermic avalanche burial survivors.
The Tes afterdrop in this study (0.77 ± 0.4°C) is greater than reported by Giesbrecht et al 6 in subjects cooled in 8°C water and then rewarmed by shivering with insulation provided (afterdrop 0.33 ± 0.24°C) but of similar duration (12 ± 8 minutes in our study vs 14 ± 7 minutes). The afterdrop in this study is lower than that reported by Giesbrecht and colleagues 6 in subjects cooled in 8°C water and then rewarmed by exercising (afterdrop 0.9 ± 0.3 of duration 27 ± 11 minutes). Interestingly, the afterdrop rate in this study (4.0 ± 0.8°C/h) is much higher than afterdrop cooling rates reported by Giesbrecht et al 6 (1.4–2.0°C/h). The increased afterdrop cooling rate in our study is similar to the increased cooling rate observed after circulation to a limb is temporarily occluded, then restored, during cold water immersion. 12 We speculate that convective cooling was the mechanism for afterdrop in our study; increased circulation to cold extremities during extraction cooled the blood and then after circulation back to the heart caused further cooling of the core. 13 The findings in our study also suggest that extrication after cooling during snow burial results in a very high afterdrop cooling rate.
Our findings from this small descriptive study suggest that avalanche burial victims should be kept supine and insulated in a hypothermia wrap as quickly as possible after extrication from snow burial in order to limit afterdrop and potential complications from hypothermia. Although increased physical activity after extrication from avalanche burial should be avoided in order to limit afterdrop, this is not always possible for safety or logistical reasons, and extricated avalanche victims may need to ambulate in order to move to a location away from further avalanche danger or self evacuate from a backcountry location when a rescue litter and rescue team are not available. In a previous study 5 we determined the Tre afterdrop that would occur in rescued avalanche burial victims who ambulate for short distances. Interestingly, the Tre afterdrop was similar in the two studies: 0.65 ± 0.5°C at 26 ± 15 minutes in our current study, and 0.69 ± 0.4°C at 21 ± 8 minutes in our previous study. The findings in our current study demonstrate that Tes has a shorter duration of afterdrop than Tre, and an increased rewarming rate.
Hypothermia and trauma are the major medical problems requiring treatment in survivors of avalanche burial. Knowledge of core temperature cooling rate during avalanche burial would help rescue personnel estimate the severity of hypothermia and provide appropriate treatment for survivors. Few previous studies report core body temperature cooling rate during avalanche burial. Locher and Walpoth retrospectively studied 32 avalanche accidents where mean burial times and mean transport times to the hospital were over 60 minutes, and estimated that core body temperature cooling rate averaged 3°C/h from the time of burial in the avalanche to arrival at a hospital. 14 In the study that we report here, and in previous studies, we observed a lower core temperature cooling rate during snow burial of 0.8 to 1.3°C/h.4,5 The difference in cooling rates between our studies and that of Locher and Walpoth might be explained by afterdrop. The higher core temperature cooling rate reported by Locher and Walpoth included cooling during avalanche burial and after extrication during transport to a hospital. Cooling rate may have been higher after extrication due to core temperature afterdrop. Brugger and colleagues 2 reported clinical observations of rapid core temperature afterdrop in extricated avalanche burial victims, which is supported by the findings in our study.
Cooling rates reported from actual avalanche burial victims have varied from lower to higher than the cooling rates reported in our study. A 25-year-old male snowboarder survived avalanche burial for 20 hours with a large air pocket in front of his body and at the time of extrication had a core body temperature of 25.6°C (tympanic) in –5°C snow, giving a core body temperature cooling rate of 0.6°C/h. 4 In contrast, a 29-year-old backcountry skier breathing into an airpocket survived a 100-minute avalanche burial at a depth of 3 m and had a core temperature on extrication of 22°C (tympanic), giving a cooling rate of approximately 9°C/h. 15 These contrasting examples of actual core cooling rate during avalanche burial demonstrate that many factors contribute to core cooling rate, including snow temperature, insulation, physiologic status of the avalanche victim, and traumatic injuries that may predispose to hypothermia because of impaired thermogenesis.
Our study has significant limitations for application to rescue and medical care of actual avalanche burial victims. In the controlled experimental set up in our study, some factors that may occur in actual avalanche burial cannot be duplicated for safety reasons and core temperature cooling rate during actual avalanche burial may vary more than in our study. Avalanche burial victims may be unconscious or have traumatic injuries that could influence thermoregulation and increase core temperature cooling rate. Differences in clothing insulation may increase or decrease core temperature cooling rate. During prolonged burial core temperature cooling rate may not be linear and may plateau or accelerate below the core temperatures observed in our study. Persons buried in an avalanche may become more hypoxic than the subjects in our study, which may further accelerate core temperature cooling rate because hypoxia, independent of hypercapnia, can accelerate core temperature cooling rate. 16
The artificial breathing device used in our study is worn by some persons traveling in high-risk avalanche terrain for use as an emergency breathing device if they are caught and buried in an avalanche. Survival after avalanche burial using this device has occurred. 17 The results from our study may be applied by rescue personnel to estimate the severity of hypothermia in persons using this device for breathing after avalanche burial. Our study suggests that uninjured avalanche burial victims with an artificial breathing device who are extricated within an hour may only be mildly hypothermic and can be rewarmed in the field. In contrast, the results of our study may not be directly applicable to avalanche burial victims with a natural air pocket.
Conclusions
Core body temperature cooling rate after extrication from snow burial increased about 4-fold for a transient time period in subjects who were placed as quickly as possible into an insulating hypothermia wrap, but afterdrop was attenuated after a mean of only 12 minutes. Spontaneous endogenous rewarming from shivering alone increased core body temperature at a slightly higher rate than it decreased during snow burial. This suggests that field rewarming of avalanche burial victims with mild hypothermia who are shivering is possible, but they should be insulated quickly to limit the significant afterdrop that can occur. An accelerated afterdrop cooling rate places avalanche burial survivors at greater risk of complications due to hypothermia. This is important information for rescue personnel who should keep the avalanche burial victim supine and provide insulation as quickly as possible in order to prevent further heat loss after extrication from the snow.
