A Distributed Hunting Approach for Multiple Autonomous Robots

Abstract

A novel distributed hunting approach for multiple autonomous robots in unstructured mode-free environments, which is based on effective sectors and local sensing, is proposed in this paper. The visual information, encoder and sonar data are integrated in the robot's local frame, and the effective sector is introduced. The hunting task is modelled as three states: search state, round-obstacle state, and hunting state, and the corresponding switching conditions and control strategies are given. A form of cooperation will emerge where the robots interact only locally with each other. The evader, whose motion is a priori unknown to the robots, adopts an escape strategy to avoid being captured. The approach is scalable and may cope with problems of communication and wheel slippage. The effectiveness of the proposed approach is verified through experiments with a team of wheeled robots.

1. Introduction

Inspired by distributed multi-agent systems in nature with the characteristics of parallelism, adaptation and fault-tolerance, multiple robotic systems have attracted considerable interest [1–4]. This requires the robots to work cooperatively without any conflict for better performance of the system. With the increasing demand for multiple robots working in unstructured and dynamic environments, the difficulties of organizing and coordinating them are augmented. Robotic systems may also suffer from communication problems. In this situation, maximizing local sensing provides a better solution.

As a representative yet challenging test-bed for multiple robots, the hunting problem has been specifically researched due to inherent dynamic characteristics in competitive environments. The objective of the hunting is to enable a team of robots to tactically search and hunt an evader with possibly adversarial reactions. Its potential applications include hostile capture operations, as well as security or search and rescue scenarios. In this paper, we are interested in multi-robot distributed hunting based on local sensing in unstructured model-free environments. In such a scenario, some common sensors, such as CCD cameras, sonar sensors and encoders are used to acquire the information, and a practicable approach is proposed that may be readily implemented by ordinary mobile robots.

The hunting problem has been widely studied by many researchers. Two classes of approaches have been investigated: one involves an environment model and the other considers environments without or regardless of a model. The former approach builds the environment in the form of a grid or graph, off- or on-line. In [5], multiple robots pursue a non-adversarial mobile evader in indoor environments with map discretization, and simulated results are presented. In [6,7], the hunting and map building problems are combined. A team of unmanned air and ground vehicles are required to complete the task, the air vehicle playing the role of supervisory agent that can detect the evader but not capture it. In [8], a hunting algorithm is given based on a grid map. The case with one or more hunters pursuing an evading prey on a graph is presented in [9]. The maintaining of visibility of an evader by a pursuer is investigated in [10,11].

There also exist many approaches that work without environmental modelling or independently of a model. Yamaguchi presents a feedback control law for coordinating the motion of multiple mobile robots to capture/enclose a target by making troop formations [12], which is controlled by formation vectors. Cao et al. study the hunting problem of multiple mobile robots and an intelligent evader, and the proposed approaches are verified by simulations [13,14]. In [15], the prey is hunted by the robots with four modes (navigation-tracking, obstacle avoidance, cooperative collision avoidance, and circle formation). In [16], the problem of pursuit evasion games is considered with the aid of a sensor network. Biologically inspired approaches have also been introduced: Alfredo Weitzenfeld discusses hunting using the inspiration of wolf packs [17,18].

Other related work includes target tracking, which may provide some helpful solutions. Multi-robot tracking of a moving object using directional sensors with limited range was carried out in [19]. Tracking objects with a sensor network system consisting of distributed cameras and laser range finders is addressed in [20]. Liu et al. study multi-robot tracking of a mobile target [21], and a three-layer (monitoring layer, target tracking layer and motor actuation layer) framework is given.

The main contribution of this paper is to provide an effective sector-based distributed hunting approach for multiple autonomous robots in unstructured model-free environments. The cooperation emerges through local interaction using simple and specific individual activities. The proposed approach may avoid problems of communication, and the long-term influence of wheel slippage is also eliminated.

The rest of the paper is organized as follows. Section 2 gives the distributed approach for the hunting system based on local sensing and effective sector. Section 3 depicts the escape strategy for the evader. Experimental results are presented in section 4, and section 5 concludes the paper.

2. The distributed approach for the hunting system

2.1. Control structure

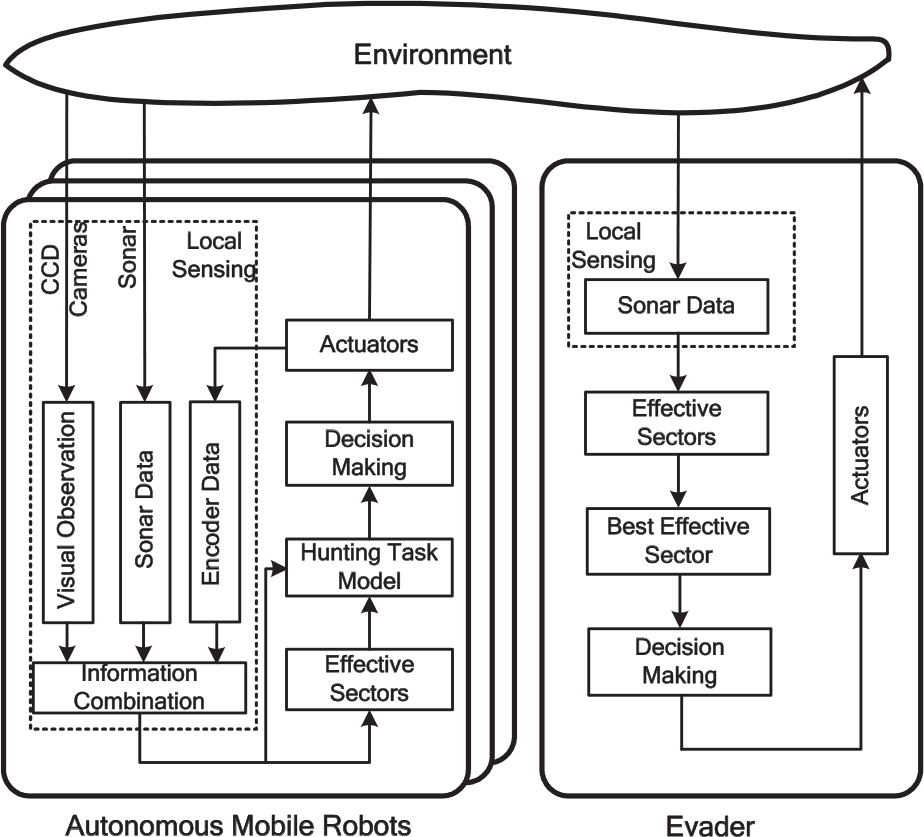

The hunting control structure for multiple autonomous robots with a smart evader is shown in Fig. 1. The ambient environment information of an individual robot is acquired by local sensing. The vision system can recognize and localize interested objects, including teammates and the evader, which are within its sight. Considering that the vision system sometimes cannot provide valid data, the encoder information is combined to estimate the relative positions. The sonar data are used to detect the potential dangers. The effective sector that implies possible collision-free motion regions is then introduced. Provided with local sensory information and effective sectors, the robot selects the suitable task state for the current situation from search, round-obstacle and hunting states, which provides the solution to effective hunting. The decision results are then sent to the actuators. The evader is endowed with a certain intelligence and tries to escape by an effective sector-based strategy based on its sonar data.

Figure 1.

Control structure for hunting system

2.2. Local sensing

Each robot is defined by a local polar coordinate frame whose pole is the robot centre with the polar axis direction of its heading. The vision system of an individual robot consists of three cameras S_v(i)(i=1,2,3) with a limited field of view, shown in Fig. 2, where the arrow shows the robot's heading.

Figure 2.

Vision system of an individual robot

Each robot has a unique column marker, which is colour coded with upper and lower parts. A finite set of distinctive colour combinations is predefined. The robot may identify the interested objects, including teammates and evader, through visual recognition, and then the relative information in its local frame may be approximately calculated. When an interested object is out of sight, an estimation of relative positions is necessary within a certain time by integrating the historical data with encoder information.

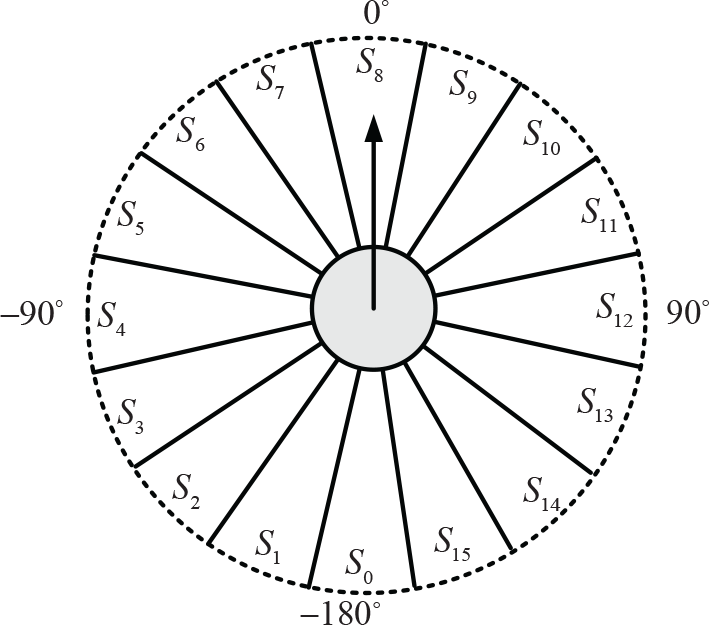

An array of sonar S_k(k=0,1,…k_s-1) is used to detect the surrounding environment and the layout is shown in Fig. 3 with k_s=16. Each sonar sensor has a bounded sector range and we denote the offset angle of sensor S_k as ${\varphi }_{\mathrm{s}}^{\mathrm{k}}=-\pi +2\mathrm{k}\pi /{\mathrm{k}}_{\mathrm{s}}$ , which is the direction angle of central line ${\mathrm{l}}_{{\mathrm{s}}_{\mathrm{k}}}$ of its sensory sector. Let ${\rho }_{\mathrm{s}}^{\mathrm{k}}$ be the corresponding detecting distance in the local frame and ${\rho }_{\mathrm{s}}^{\mathrm{k}}=0$ when S_k senses no object.

Figure 3.

Sonar sensors array

In order to avoid regarding the detected evader as an obstacle, it is necessary to eliminate the evader-related information. Assume that the robots and the evader have the same size, with radius r. We denote with (d _t ,θ _t ) the estimated position of the evader in the robot's local frame, in which d _t is the relative distance between the robot and the evader, and θ _t is the observation angle. We obtain the angle range Ψ of the evader, whose bilateral boundary lines ${\mathrm{L}}_{sl}^{\mathrm{t}}$ and ${\mathrm{L}}_{sr}^{\mathrm{t}}$ correspond to the angles ${\theta }_{sl}^{\mathrm{t}}=\{\begin{array}{ll}{\theta }_{\mathrm{t}}-\arcsin \frac{\mathrm{r}}{{\mathrm{d}}_{\mathrm{t}}}+2\pi \hfill & {\theta }_{\mathrm{t}}-\arcsin \frac{\mathrm{r}}{{\mathrm{d}}_{\mathrm{t}}}<0\hfill \\ {\theta }_{\mathrm{t}}-\arcsin \frac{\mathrm{r}}{{\mathrm{d}}_{\mathrm{t}}}\hfill & others\hfill \end{array}$ and ${\theta }_{sr}^{\mathrm{t}}={\theta }_{sl}^{\mathrm{t}}+2\arcsin \frac{\mathrm{r}}{{\mathrm{d}}_{\mathrm{t}}}$ (see Fig. 4), respectively.

Figure 4.

Filtering of evader-related information

The sensor numbers ${\mathrm{N}}_{sl}$ and ${\mathrm{N}}_{sr}$ corresponding to lines ${\mathrm{L}}_{sl}^{\mathrm{t}}$ and ${\mathrm{L}}_{sr}^{\mathrm{t}}$ are then calculated: ${\mathrm{N}}_{sl}=\{\begin{array}{ll}{\mathrm{k}}_{\mathrm{c}}({\theta }_{sl}^{\mathrm{t}})\hfill & {\mathrm{k}}_{\mathrm{c}}({\theta }_{sl}^{\mathrm{t}})<{\mathrm{k}}_{\mathrm{s}}\hfill \\ {\mathrm{k}}_{\mathrm{c}}({\theta }_{sl}^{\mathrm{t}})-{\mathrm{k}}_{\mathrm{s}}\hfill & others\hfill \end{array}$ , ${\mathrm{N}}_{sr}=\{\begin{array}{ll}{\mathrm{k}}_{\mathrm{c}}({\theta }_{sr}^{\mathrm{t}})\hfill & {\mathrm{k}}_{\mathrm{c}}({\theta }_{sr}^{\mathrm{t}})<{\mathrm{k}}_{\mathrm{s}}\hfill \\ {\mathrm{k}}_{\mathrm{c}}({\theta }_{sr}^{\mathrm{t}})-{\mathrm{k}}_{\mathrm{s}}\hfill & others\hfill \end{array}$ , where ${\mathrm{k}}_{\mathrm{c}}(\theta )=floor(\frac{\theta + \pi }{2\pi }{\mathrm{k}}_{\mathrm{s}}+0.5 )$ and floor() is the round down operator.

Thus the sensors set corresponding to Ψ is given as follows:

$\mathrm{\Omega }=\left\{{\mathrm{S}}_{\mathrm{t}}|\mathrm{t}=\{\begin{array}{ll}{\mathrm{N}}_{sl},\dots ,{\mathrm{N}}_{sr}\hfill & {\mathrm{N}}_{sl}\le {\mathrm{N}}_{sr}\hfill \\ ({\mathrm{N}}_{sl},\dots ,{\mathrm{k}}_{\mathrm{s}}-1)\cup (0,\dots ,{\mathrm{N}}_{sr})\hfill & {\mathrm{N}}_{sl}>{\mathrm{N}}_{sr}\hfill \end{array}\right\}.$

Project S_t in Ω with ${\rho }_{\mathrm{s}}^{\mathrm{t}}\ne 0$ on line L _t from the robot to the evader. If the projection distance is less than ${\mathrm{d}}_{th}^{ot}$ , where ${\mathrm{d}}_{th}^{ot}={\mathrm{d}}_{\mathrm{t}}-2\mathrm{r}$ , it is considered that an obstacle is detected; otherwise, the evader is considered to be detected and the corresponding sensing information has to be cleared.

2.3. Effective Sector

The effective sector is introduced to represent possible collision-free regions for an individual robot. We label as ${\mathrm{S}}_{{\mathrm{t}}_{\mathrm{c}}}$ the sonar sensor with L _t in it. Let Ω _c be the set of sonar sensors including ${\mathrm{S}}_{{\mathrm{t}}_{\mathrm{c}}}$ and the two nearest neighbouring sensors of each side with respect to ${\mathrm{S}}_{{\mathrm{t}}_{\mathrm{c}}}$ . For each sensor in Ω _c , B _c =1, where B _c is a Boolean variable.

There exists an effective sector sz (see Fig. 5a) between S_m and S_n, having detected obstacles, only if the following conditions c₁-c₃ are satisfied simultaneously:

Figure 5.

Effective sector

• c₁) ${\rho }_{\mathrm{s}}^{\mathrm{m}}$ and ${\rho }_{\mathrm{s}}^{\mathrm{n}}$ are no greater than ${\rho }_{sz}^{\mathrm{s}}=\{\begin{array}{ll}\min ({\mathrm{d}}_{\mathrm{t}},{\rho }_{th}^{\mathrm{s}})\hfill & {\mathrm{B}}_{\mathrm{c}}=1\hfill \\ {\rho }_{th}^{\mathrm{s}}\hfill & {\mathrm{B}}_{\mathrm{c}}=0\hfill \end{array}$ , where ${\rho }_{th}^{\mathrm{s}}$ is a predefined constant;

• c₂) ${\rho }_{\mathrm{s}}^{\mathrm{p}}=0$ or ${\rho }_{\mathrm{s}}^{\mathrm{p}}>{\rho }_{sz}^{\mathrm{s}}$ for ∀S_p between S_m and S_n (e.g., clockwise);

• c₃) θ _sz ≥π/4 or d _sz ≥4r, where the sector angle θ _sz is defined as the angle between the central lines ${\mathrm{l}}_{{\mathrm{s}}_{(\mathrm{m}+1)\mathrm{mod}{\mathrm{k}}_{\mathrm{s}}}}$ and ${\mathrm{l}}_{{\mathrm{s}}_{(\mathrm{n}-1)\mathrm{mod}{\mathrm{k}}_{\mathrm{s}}}}$ , which correspond to the sensors ${\mathrm{S}}_{(\mathrm{m}+1)\mathrm{mod}{\mathrm{k}}_{\mathrm{s}}}$ and ${\mathrm{S}}_{(\mathrm{n}-1)\mathrm{mod}{\mathrm{k}}_{\mathrm{s}}}$ ; d _sz is the distance between the closest perceived points of S_m and S_n to the sector when θ _sz <7π/8 and is assigned a bigger value in other cases.

If all sonar sensors have not detected objects, or all detecting distances are greater than ${\rho }_{sz}^{\mathrm{s}}$ , there is only one effective sector and θ _sz =2π.

If the central line ${\mathrm{l}}_{{\mathrm{s}}_{{\mathrm{t}}_{\mathrm{c}}}}$ of ${\mathrm{S}}_{{\mathrm{t}}_{\mathrm{c}}}$ belongs to an effective sector sz, this means that the evader is in sz. In this case, considering the need for direction searching to navigate the robot, two sub-sectors $\mathrm{s}{\mathrm{z}}_{\mathrm{l}}^{\mathrm{t}}$ and $\mathrm{s}{\mathrm{z}}_{\mathrm{r}}^{\mathrm{t}}$ are generated by dividing sz with line ${\mathrm{l}}_{{\mathrm{s}}_{{\mathrm{t}}_{\mathrm{c}}}}$ , shown in Fig. 5(b). We denote with ${\theta }_{szl}^{\mathrm{t}}$ and ${\theta }_{szr}^{\mathrm{t}}$ the angles between ${\mathrm{l}}_{{\mathrm{s}}_{(\mathrm{m}+1)\mathrm{mod}{\mathrm{k}}_{\mathrm{s}}}}$ and ${\mathrm{l}}_{{\mathrm{s}}_{{\mathrm{t}}_{\mathrm{c}}}}$ , ${\mathrm{l}}_{{\mathrm{s}}_{{\mathrm{t}}_{\mathrm{c}}}}$ and ${\mathrm{l}}_{{\mathrm{s}}_{(\mathrm{n}-1)\mathrm{mod}{\mathrm{k}}_{\mathrm{s}}}}$ , respectively. ${\mathrm{d}}_{szl}^{\mathrm{t}}$ is defined as the distance between the closest perceived point of S _m to sz and point ${\mathrm{P}}_{{\mathrm{s}}_{{\mathrm{t}}_{\mathrm{c}}}}$ , and ${\mathrm{d}}_{szr}^{\mathrm{t}}$ is the distance between ${\mathrm{P}}_{{\mathrm{s}}_{{\mathrm{t}}_{\mathrm{c}}}}$ and the closest perceived point of S _n to sz, where the point ${\mathrm{P}}_{{\mathrm{s}}_{{\mathrm{t}}_{\mathrm{c}}}}$ lies in the line ${\mathrm{l}}_{{\mathrm{s}}_{{\mathrm{t}}_{\mathrm{c}}}}$ with a distance offset $\min (d_t,{\rho }_{th}^s)$ . The sub-sector $\mathrm{s}{\mathrm{z}}_{\mathrm{l}}^{\mathrm{t}}$ ( $\mathrm{s}{\mathrm{z}}_{\mathrm{r}}^{\mathrm{t}}$ ) is also considered as an effective sector when ${\theta }_{szl}^{\mathrm{t}}\ge \frac{\pi }{8}\cup {\mathrm{d}}_{szl}^{\mathrm{t}}\ge 2\mathrm{r}$ ( ${\theta }_{szr}^{\mathrm{t}}\ge \frac{\pi }{8}\cup {\mathrm{d}}_{szr}^{\mathrm{t}}\ge 2\mathrm{r}$ ) is satisfied.

2.4. Hunting Task Model

The individual robot acquires information on the evader, teammates and obstacles in its local frame by local sensing, and the hunting task is modelled as three states: search state, round-obstacle state and hunting state, as shown in Fig. 6.

Figure 6.

Modelling of the hunting task

When the robot has no information about the evader, including the failed prediction of the evader (C₁), it has to explore the environment to find the evader in search state. Once the evader is localized, if it is not in any effective sector (C₂) and ${\rho }_{\mathrm{s}}^{{\mathrm{t}}_{\mathrm{c}}}<{\mathrm{d}}_{th}^{ro}\cap \left|{\theta }_{\mathrm{t}}\right|\le \frac{\pi }{2}$ (C₃), where ${\mathrm{d}}_{th}^{ro}$ is a given threshold, this implies that the path to the evader is blocked and the robot should be in round-obstacle state; otherwise, it will execute the hunting state. A robot in round-obstacle state will switch to hunting state when the evader is discovered by CCD camera S_v(2) (C₄); meanwhile, the evader is in an effective sector with safe direction L _t (C₅).

Before describing each state in detail, we first give the directional passageway DP, which indicates whether the corresponding direction is safe or not. DP is described as a directional rectangle whose length and width are ${\mathrm{d}}_{\mathrm{l}}^{rp}$ and ${\mathrm{d}}_{\mathrm{w}}^{rp}$ , respectively, as shown in Fig. 7. The robot's centre is located in DP.

Figure 7.

The directional passageway DP

For DP whose orientation angle is θ _rp , we say the DP with direction l _DP is safe only when there is no perceived point in the sensor's central line within DP for any sonar sensor related to the zone. A safe DP will ensure the robot can move along the direction l _DP . Taking the DP in Fig. 7 as an example, it is not safe because of the sonar sensor S_u..

2.4.1. Search State

In this state, the robot wanders around to find the evader. In the case of a just failed prediction, the robot will firstly rotate for a certain time based on the evader's historical observation information.

2.4.2. Round-obstacle State

First of all, the robot should determine the preferred side of two sides separated by L _t to move around. There is one exception: when the directional passageway with direction L _t is safe, and the evader is detected by a non-front camera within a distance ${\mathrm{d}}_0^{\mathrm{t}}$ , the first choice is to rotate to see the evader through the front camera.

How to select the preferred side is the problem to be addressed. We denote with sz _l and sz _r the first effective sectors by searching from both sides of L _t , and the corresponding sector angles are θ _szl , θ _szr , respectively. ${\vartheta }_{szl}^{\mathrm{t}}$ and ${\vartheta }_{szr}^{\mathrm{t}}$ are the angles between the central line ${\mathrm{l}}_{{\mathrm{s}}_{{\mathrm{t}}_{\mathrm{c}}}}$ of ${\mathrm{S}}_{{\mathrm{t}}_{\mathrm{c}}}$ and the starting edges of sz _l , sz _r , respectively. If the robot sees the teammates, the side with the lower number of teammates will be chosen; otherwise, the side with a bigger value between ${\mathrm{k}}_1{\theta }_{szl}-{\mathrm{k}}_2{\vartheta }_{szl}^{\mathrm{t}}$ and ${\mathrm{k}}_1{\theta }_{szr}-{\mathrm{k}}_2{\vartheta }_{szr}^{\mathrm{t}}$ takes priority, where k₁=0.6, k₂=0.4; if there are no effective sectors, the evader's relative information is the key factor for the preferred side selection.

After the preferred side is obtained, the robot will watch the evader carefully with no effective sectors. For other cases, from the starting edge of the first effective sector corresponding to the preferred side, the safety of directional passageways is judged at an angle interval of ϑ₀. ϑ _rps is labelled as the directional angle of the first safe directional passageway. If |ϑ _rps |≤2π/3, the direction corresponding to ϑ _rps is considered as an ideal one; otherwise, no proper direction is obtained. In this case, in a similar way, the robot selects the ideal direction from another side. If there is still no proper direction, the robot has to watch the evader; otherwise, the preferred side will be changed.

2.4.3. Hunting State

Each robot is required to decide the occasion to coordinate according to the distribution of ambient teammates and the evader. Robot R, obtains R _l and R _r , which are the teammates of both sides with respect to the evader with the smallest angles formed by ambient teammates, evader and R. The smallest angles are described by ${\theta }_{\mathrm{l}}^{\mathrm{r}}$ and ${\theta }_{\mathrm{r}}^{\mathrm{r}}$ (see Fig. 8), respectively. The coordination is based on ${\theta }_{\mathrm{l}}^{\mathrm{r}}$ , ${\theta }_{\mathrm{r}}^{\mathrm{r}}$ and a given ${\theta }_{th}^{\mathrm{r}{\mathrm{p}}_{co}}$ , as well as d _t and θ _t . When |θ _t |<π/2, if ${\mathrm{d}}_{\mathrm{t}}>{\mathrm{d}}_{th}^{\mathrm{c}{\mathrm{o}}_{-}}$ , the robot R will consider coordination with its teammates. Once ${\mathrm{d}}_{\mathrm{t}}\le {\mathrm{d}}_{th}^{\mathrm{c}{\mathrm{o}}_{-}}$ is satisfied, the coordination will be re-considered only when ${\mathrm{d}}_{\mathrm{t}}>{\mathrm{d}}_{th}^{\mathrm{c}{\mathrm{o}}_{+}}$ , where ${\mathrm{d}}_{th}^{\mathrm{c}{\mathrm{o}}_{+}},\hspace{0.17em}{\mathrm{d}}_{th}^{\mathrm{c}{\mathrm{o}}_{-}}$ are given thresholds, and ${\mathrm{d}}_{th}^{\mathrm{c}{\mathrm{o}}_{+}}>{\mathrm{d}}_{th}^{\mathrm{c}{\mathrm{o}}_{-}}$ . If the coordination is taken into consideration by robot R, when ${\theta }_{\mathrm{l}}^{\mathrm{r}}<{\theta }_{th}^{\mathrm{r}{\mathrm{p}}_{co}}$ ( ${\theta }_{\mathrm{r}}^{\mathrm{r}}<{\theta }_{th}^{\mathrm{r}{\mathrm{p}}_{co}}$ ), a cooperative decision with R _l (R _r ) is made as follows.

Figure 8.

The coordination based on local interaction

Let O _lr be the midpoint of the line connecting R _l and R _r , and O _rlr be the midpoint of the line connecting R _l and R. If R decides to coordinate with both-sides teammates R _l and R _r , it moves towards point P _vp1 (see Fig. 8) in favour of group motion, where P _vp1 is on the line from the evader to O _lr with a distance d _t /k _co to the evader, where k _co =2. When only one teammate is considered, i.e., R _l , the robot will move towards the point P _vp2 , which is located in the ray generated by rotating the line from the evader to O _rlr away from R _l with an angle of ${\theta }_{th}^{\mathrm{r}{\mathrm{p}}_{co}}/2$ , and the distance between P _vp2 and evader is d _t /k _co . Regardless of the scenario, R obtains the first safe directional passageways of both sides of expected direction at an interval angle ϑ₀. The direction corresponding to the selected directional passageway that has a smaller angle with L _t will be the ideal one.

When there is no coordination with other teammates, R will make a decision based only on the evader, and is expected to move towards the evader directly. If the directional passageway corresponding to L _t is not safe, an ideal direction will be chosen similarly.

2.5. Motion Control

Based on these three states, if the robot needs to watch the evader, it will rotate to bring the evader within a minor angle range of the robot's heading; if not, an ideal direction is generated and ϑ _c is used to describe the corresponding direction angle. If the directional passageway corresponding to the robot's heading is not safe, or ${\mathrm{d}}_{\mathrm{t}}\ge {\mathrm{d}}_0^{\mathrm{t}}\cap \left|{\vartheta }_{\mathrm{c}}\right|\ge \frac{\pi }{2}$ , or ${\mathrm{d}}_{\mathrm{t}}<{\mathrm{d}}_0^{\mathrm{t}}\cap \left|{\vartheta }_{\mathrm{c}}\right|\ge \frac{\pi }{6}$ , the robot only rotates towards the ideal direction; otherwise, it turns towards the ideal direction with a given speed v under the constraint of maximal rotation angle ϑ_rmax.

Once a robot finds the evader visually and d _t <d _thres , where d _thres is a given threshold, the “stop” information is sent, which means that the evader has been captured.

3. Escape Strategy for the Evader

Consider a situation where the evader tries to evade being captured by the robots with sonar data. The motion of the evader is not known to the robots a priori. It adopts the same sonar model as that of the robots. When there is no danger in a virtual circle around the evader with a given radius of ${\rho }_{th}^{\mathrm{e}}$ , it will wander around; if danger exists, it adopts an escape strategy, which is depicted as follows.

The evader finds all effective sectors clockwise from sensor S₀. Similar to the effective sector shown in Fig. 5(a), let ${\theta }_{sz}^{\mathrm{e}}$ be the angle of effective sector sz _e . ${\mathrm{P}}_{sz}^{\mathrm{e}}$ is the midpoint of the line connecting the closest perceived points of sensors S_m and S_n to sz _e , and ${\mathrm{d}}_{rc}^{\mathrm{e}}$ is the distance from the evader to point ${\mathrm{P}}_{sz}^{\mathrm{e}}$ . When ${\theta }_{sz}^{\mathrm{e}}<7\pi /8$ , we get ${\mathrm{d}}_{rm}^{\mathrm{e}}$ , which is the minimum of detecting distances of S_m, S_n, as well as the angle ${\theta }_{rc}^{\mathrm{e}}$ between ${\mathrm{l}}_{rc}^{\mathrm{e}}$ and the evader heading, where ${\mathrm{l}}_{rc}^{\mathrm{e}}$ is the direction from the evader to ${\mathrm{P}}_{sz}^{\mathrm{e}}$ .

If ${\theta }_{sz}^{\mathrm{e}}\ge 7\pi /8$ , the corresponding effective sector is selected as the optimal one; otherwise, an evaluation function is constructed ${\mathrm{f}}_{sz}^{\mathrm{e}}={\mathrm{a}}_1\frac{{\mathrm{d}}_{rm}^{\mathrm{e}}}{{\rho }_{th}^{\mathrm{e}}}+{\mathrm{a}}_2\frac{8{\theta }_{sz}^{\mathrm{e}}}{7\pi }-{\mathrm{a}}_3\frac{{\theta }_{rc}^{\mathrm{e}}}{\pi }$ , where a₁,a₂,a₃>0. The effective sector with maximum ${\mathrm{f}}_{sz}^{\mathrm{e}}$ will be chosen. We denote with $\mathrm{s}{\mathrm{z}}_{\mathrm{e}}^{\mathrm{o}}$ the optimal sector, whose sector angle is ${\theta }_{szo}^{\mathrm{e}}$ .

If the sector angle of $\mathrm{s}{\mathrm{z}}_{\mathrm{e}}^{\mathrm{o}}$ satisfies ${\theta }_{szo}^{\mathrm{e}}\ge 2\pi /3$ , the angular bisector direction of ${\theta }_{szo}^{\mathrm{e}}$ will be preferred; otherwise, ${\mathrm{l}}_{rc}^{\mathrm{e}}$ direction is preferred. When the directional passageway corresponding to the preferred direction is safe, the preferred direction is the ideal one; if it is not, we first obtain safe directional passageways from both sides with respect to the preferred direction at an interval angle ϑ₀. The direction corresponding to the selected directional passageway that has a smaller angle to the evader heading will then be selected. We denote with ${\vartheta }_{\mathrm{c}}^{\mathrm{e}}$ the angle of ideal direction in the evader's local frame. If $\left|{\vartheta }_{\mathrm{c}}^{\mathrm{e}}\right|>\pi /3$ or the directional passageway corresponding to the evader's heading is not safe, the evader only rotates towards its ideal direction; otherwise, it turns towards the ideal direction with a given speed v ^e under the constraint of maximal rotation angle ${\vartheta }_{\mathrm{r}\max }^{\mathrm{e}}$ .

As soon as the evader continuously discovers that there are no effective sectors or the safe directional passageway, or ${\theta }_{szo}^{\mathrm{e}}\le 3\pi /8\cap {\mathrm{d}}_{rc}^{\mathrm{e}}<{\mathrm{d}}_{thres}$ , it will give up escaping. The “stop” information will be sent to all robots.

4. Experiments and Results

In this section, the proposed approach is experimentally evaluated by a team of wheeled robots. The evader is also a robot. ϑ_rmax=5π/36, ${\vartheta }_{\mathrm{r}\max }^{\mathrm{e}}$ =2π/9, v = v ^e =0.25 m/s.

Some parameters in the proposed approach are set as follows: ${\rho }_{th}^{\mathrm{s}}$ =2m, ${\mathrm{d}}_{\mathrm{l}}^{rp}$ =0.8m, ${\mathrm{d}}_{\mathrm{w}}^{rp}$ =63.7cm, ${\mathrm{d}}_{th}^{ro}$ =1.2m, ${\theta }_{th}^{\mathrm{r}{\mathrm{p}}_{co}}$ =π/2, ${\mathrm{d}}_{th}^{\mathrm{c}{\mathrm{o}}_{-}}={\mathrm{d}}_0^{\mathrm{t}}$ =1.4m, ${\mathrm{d}}_{th}^{\mathrm{c}{\mathrm{o}}_{+}}$ =1.6m, ${\mathrm{d}}_{thres}$ =1.1m. ${\rho }_{th}^{\mathrm{e}}$ is set to 1.4m.

Several representative experiments are conducted. Besides the motion trajectories based on encoder information, the state diagram reflecting the variation among the states is also presented. For better demonstration, three original states are subdivided into the following states: search, round-obstacle, hunting with coordination, and hunting without coordination, which correspond to m_state=1, 2, 3, 4, respectively.

Experiment 1 adopts two robots, R₁ and R₂, to pursue a static evader. The initial positions of R₁, R₂ are S₁ and S₂, respectively. The motion trajectories of the two robots are shown in Fig. 9(a) and the state diagram of the robots is depicted in Fig. 9(b). The task is completed smoothly by local coordination between these two robots.

Figure 9.

A hunting experiment with two robots and a static evader

Experiment 2 requires three robots, R₁, R₂ and R₃, to pursue a moving evader: their initial positions are S₁, S₂, S₃ and S_E, respectively. The experiment result is shown in Fig. 10. It can be seen that the hunting task is accomplished through the efforts of all robots.

Figure 10.

Trajectories of the robots and the evader for experiment 2

Experiment 3 is conducted to test the robustness of the proposed approach. Two pursuer robots, R₁, R₂, and an evader, with initial positions S₁, S₂ and S_E, are involved in this scenario. R₂ is assumed to suddenly stop because of a fault. The motion trajectories are depicted in Fig. 11 and Fig. 12 gives the state diagram of the robots. Initially, only R₁ sees the evader and it will directly pursue the evader. After the evader is detected by R₂, R₂ also pursues the evader. After a little while, R₂ thinks about the coordination with R₁ and its m_state becomes 3 until it stops at location G₂. As for R₁, it continues to execute the task and finally the evader is captured at location G_E.

Figure 11.

Motion trajectories for experiment 3

Figure 12.

State diagram of R₁ and R₂

5. Conclusions

In order to complete hunting tasks in dynamic and unstructured environments, and considering the need to reduce communication and provide better expandability, this paper proposes a novel and practical hunting approach for a group of autonomous mobile robots based on effective sectors and local coordination. Teammates, evader and obstacles are represented in the robot's local frame. The hunting task is modelled and coordination emerges through local interactions of individual robots. The experimental results prove the effectiveness of the proposed approach.
