Frequency-following response effect according to gender using a 10-Hz binaural beat stimulation

Abstract

BACKGROUND:

Several studies have continuously investigated FFRs using binaural beat (BB) stimulations and their related effects. However, only a few studies have investigated the differences in BB stimulation effects according to basic demographic characteristics, such as gender and age.

OBJECTIVE:

This study aimed to determine the alpha wave activity after a 10-Hz BB stimulation and subsequently identify differences according to gender across all brain areas (frontal, central, parietal, temporal, and occipital areas).

METHODS:

A total of 23 healthy adults (11 male and 12 female), aged 20–29, participated in the study. For the 10-Hz BB stimulation, pure tone auditory stimuli of 250 and 260 Hz were given to the left and right ear, respectively. Through a power spectrum analysis of the phase-excluding BBs (non-BBs) and phase-including 10-Hz BBs ( $\alpha$ -BBs), the alpha power at each brain area was estimated. These values were compared using a mixed-design ANOVA.

RESULTS:

With the exception of the temporal area, all other brain areas showed a significant increase in alpha power for $\alpha$ -BBs compared to those of non-BBs. However, the difference according to gender was not significant.

CONCLUSION:

The results indicated the lack of gender effects in alpha wave generation through a 10-Hz BB stimulation.

1. Introduction

Frequency-following response (FFR) refers to the brain nerve activity synchronization phenomenon under frequency stimuli. In particular, binaural beats (BBs), a type of FFR, refer to the sounds that control the brain wave based on differences in the auditory stimuli frequency. BBs consist of a baseline and baseline $+$ difference frequency. For example, when BBs are stimulated with a baseline frequency of 200 Hz and baseline $+$ difference frequency of 210 Hz, the brain synchronizes to the difference frequency of 10 Hz [1, 2, 3, 4, 5].

Numerous studies have reported FFRs using BB stimulations. Jirakittayakorn and Wongsawat [6] showed that BBs with a 6-Hz difference frequency could increase the theta wave. Furthermore, Puzi et al. [7] confirmed an increase in the alpha wave after BBs were stimulated with a 10-Hz difference frequency. In addition, Park et al. [8] reported an increase in the beta wave after BBs were stimulated with a 20-Hz difference frequency.

The generation of a specific brain wave through BB stimulation may also induce several emotional effects. BBs that led to delta or theta wave generation could induce physical and psychological comfort, thus enhancing the quality of sleep [9]. David et al. [10] reported an improvement in tinnitus through an 8-Hz BB stimulation. Furthermore, Beauchene et al. [11] revealed that a 15-Hz BB stimulation led to beta wave generation, which helped in enhancing short- and long-term memory and cognitive ability.

Accordingly, studies have continuously investigated FFRs using BB stimulations and their related effects. However, only a few studies have investigated the differences in BB stimulation effects according to basic demographic characteristics, such as gender and age. Norhazman et al. [12] found a higher level of increase in alpha waves in males than in females with a 9-Hz BB stimulation after induced stress, indicating that the effect of stress reduction was greater in males. However, their study was limited in that only the frontal brain area was examined. Although some attempts have been made to identify the effects of BB stimulations according to gender, it is essential to further verify whether gender has a significant effect on brainwave synchronization via BB stimulation across all brain areas under various emotional and cognitive perspectives. Furthermore, such studies are needed to perform an in-depth analysis of the effects and standards of BB stimulations.

Therefore, this study aimed to determine the effects of BB stimulation according to gender by first monitoring alpha wave generation with a 10-Hz BB stimulation. Subsequently, the differences in alpha waves according to gender across all brain areas (i.e., the frontal, central, parietal, temporal, and occipital areas) were examined.

2. Method

2.1 Subjects

In this study, 23 healthy male (11) and female (12) adults, aged 20–29, voluntarily participated after being recruited through an advertisement. The subjects filled out the consent form to participate in the experiment. Table 1 presents the age characteristics of the study participants. The subjects did not have a medical history related to auditory function (hearing impairment or loss) and were instructed to take an adequate sleep of at least 7 h on the night before the day of the experiment. The subjects were also prohibited from engaging in activities that may affect the electroencephalogram (EEG) results, such as the intake of caffeinated drinks, drugs, and alcohol and smoking on the day of the experiment. In addition, this study was conducted with the approval of the Konkuk university institutional review board (7001355-202105-HR-439).

2.2 Binaural Beats (BBs)

The BB was set to 10 Hz, which is the median value of the alpha spectrum (8–13 Hz) [13, 14]. An auditory stimulator (Q product, G company, South Korea) was used to induce 250 Hz and 260 Hz stimuli to the left and right ears, respectively, through a pair of earphones (sound pressure: about 60 dB). The experiment comprised a 5-min phase each without (non_BBs) and with BB stimulation ( $\alpha$ _BBs) (Fig. 1).

Table 1

Age characteristics of the study participants

	Male	Female	Total
Number of subjects	11	12	23
Mean age (SD)	25.9 ( $\pm$ 1.5)	22.9 ( $\pm$ 1.3)	24.4 ( $\pm$ 2.0)

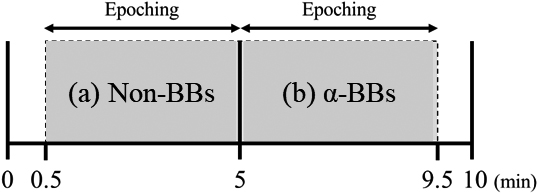

Figure 1.

Experimental design.

2.3 EEG measurement and analysis

Using Enobio20 (NeuroElectrics, Spain), brainwaves were measured at a 500-Hz sampling rate. Based on the 10–20 system, the electrodes were attached to a total of 19 areas in the frontal (Fp1, Fp2, F3, F4, F7, F8, Fz), central (C3, C4, Cz), parietal (P3, P4, P7, P8, Pz), temporal (T7, T8), and occipital (O1, O2) areas. The reference and ground electrodes were attached to the right mastoid and right ear lobe, respectively. The impedance was maintained below 5 k $\mathrm{\Omega }$ between the electrode and scalp. To prevent any external stimuli that may affect the results, the experiment was conducted in an isolated area.

The resulting brainwave data were analyzed using MATLAB 2017 (MathWorks, USA). First, a bandpass filtering of 0.5–50 Hz was performed to remove different noises, including the power noise, electromagnetic waves, blinking, and other movements. To minimize possible noise at the start and end of the experiment, the initial and final 30 s of each measurement were excluded, and the brainwave signals were obtained through epoching for the non- and $\alpha$ -BBs (4.5 min each) (Fig. 1).

The collected data were converted to power values using frequency-based fast Fourier transform (FFT), and the mean absolute power of the alpha frequency range (8–13 Hz) was produced via power spectrum analysis [6, 15, 16].

To compare the BB stimulation effects in terms of state and gender, the mean alpha power was obtained for each brain area, and a mixed-design ANOVA was performed (SPSS25, IBM, USA).

3. Results

Figure 2a and b illustrate the changes in mean alpha wave power in accordance with the BB stimulation for the entire brain and for each different brain area, respectively. With the exception of the temporal area ( $p=$ 0.077, ${\eta }_p^2=$ 0.141), the mean alpha power level was significantly higher for $\alpha$ -BBs than for non-BBs across all brain areas, as listed in Table 2. All brain areas, except for the temporal area, showed an effect magnitude of approximately 25%, indicating a relatively strong influence of the 10-Hz BB stimulation on alpha wave activity. Furthermore, the differences according to gender were not statistically significant across all brain areas, and no interaction effect was observed (Table 2). Similarly, the magnitude of the effect was small, which was approximately 5% or less on average.

Table 2

Mixed-design ANOVA results

Brain area	Effect	MS	df	$F$	$p$	${\eta }_p^2$
Frontal	State ${}^{*}$	0.001	1	5.255	0.032	0.200
	Gender	0.004	1	2.247	0.149	0.097
	State $\times$ Gender	0.000	1	0.093	0.764	0.004
Central	State ${}^{**}$	0.001	1	8.267	0.009	0.282
	Gender	0.001	1	0.201	0.659	0.009
	State $\times$ Gender	0.000	1	0.943	0.343	0.043
Parietal	State ${}^{**}$	0.001	1	9.278	0.006	0.306
	Gender	0.001	1	0.234	0.634	0.011
	State $\times$ Gender	0.000	1	3.235	0.086	0.134
Temporal	State	0.000	1	3.451	0.077	0.141
	Gender	0.001	1	0.398	0.535	0.019
	State $\times$ Gender	0.000	1	0.926	0.347	0.042
Occipital	State ${}^{*}$	0.002	1	5.540	0.028	0.209
	Gender	0.004	1	0.493	0.490	0.023
	State $\times$ Gender	0.000	1	1.141	0.298	0.052

${}^{*}p<$ 0.05; ${}^{**}p<$ 0.01.

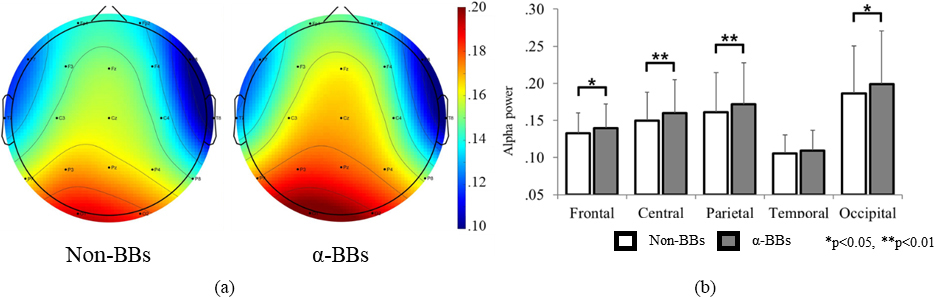

Figure 2.

Alpha wave comparison according to the BB stimulation state. (a) Brain topography for 19 channels. (b) Alpha power at each brain area.

4. Discussion

This study examined whether a 10-Hz BB stimulation led to changes in alpha waves across all brain areas (i.e., the frontal, central, parietal, temporal, and occipital areas) and whether there was any effect according to gender on the FFR. The magnitude of the effect was analyzed for the main BB stimulation state effect, differences according to gender, and interaction effect (state $\times$ gender). The magnitude of the effect is a standard indicator of the influence of an independent variable on dependent variables. It is commonly used in studies on gender effects to estimate the level of influence on each variable [17, 18, 19, 20].

The main effect (BB stimulation state) analysis indicated that all brain areas except the temporal area had an increase in alpha waves with a relatively high effect magnitude, which may be interpreted as the influence of the BB stimulation on alpha wave generation. This is consistent with previous studies that monitored alpha wave generation through BB stimulation [21, 22]. Conversely, the increasing trend in alpha waves for the temporal lobe was not statistically significant. The temporal lobe is the area that handles auditory information, and it is presumed that the actual auditory recognition of the baseline frequency stimulation (a fall in alpha wave) offsets the effect of the difference frequency (a rise in alpha wave).

The analysis of the other main variable (gender) revealed that it was not a significant variable because the magnitude of the effect in terms of alpha waves was substantially low.

The interaction effect was also analyzed to verify that gender did not influence the FFR after a BB stimulation across all brain areas. Both male and female participants in this study exhibited an increase in alpha waves after the BB stimulation, and the rate of increase was approximately 8% and 4%, respectively. This appear to be in agreement with a previous study reporting a higher level of brainwave synchronization after a BB stimulation in male subjects. However, as the difference in the rate of increase between genders and the magnitude of the effect were considerably low, it is difficult to conjecture that there was any significant effect according to gender on brainwave synchronization after a BB stimulation. From an anatomical and physiological perspective, the cochlea in females is shorter than in males; therefore, the delay time for auditory information processing is shorter in females, while males were able to better detect auditory information in complex masking tasks. This was a feature related to complex auditory stimuli detection, including linguistic sounds that indicated a difference according to gender [23]. In contrast, no difference according to gender was found in another study that applied pure tone stimuli [24]. Although further studies are necessary, it is plausible that differences regarding pure tones as relatively simple auditory stimuli are minimal across genders, despite differences in the processing of information containing complex linguistic factors. Therefore, no differences according to gender were found in this study, where the BB stimulation was applied by 10-Hz pure tone stimuli.

5. Conclusion

The results of this study indicated that a 10-Hz BB stimulation could cause alpha wave generation across all brain areas except the temporal area, and gender had no effect on the FFR process. This suggests that BB stimulations may produce effective outcomes regardless of gender. In addition, for the temporal lobe, where the auditory information is processed, the baseline frequency is likely to offset the difference frequency to render the BB stimulation without a significant effect. Based on these results, this study effectively addressed the limitations of previous studies that focused solely on a specific brain area.

Nevertheless, there still remains many variables that need to be analyzed for a more reliable determination of the effectiveness of BB stimulations. The effects of BB stimulations under various emotional/cognitive states and according to age as the most representative demographic variable will be investigated in a future study.
