Abstract

Semantic annotation of tabular data is the process of matching table elements with knowledge graphs. As a result, the table contents could be interpreted or inferred using knowledge graph concepts, enabling them to be useful in downstream applications such as data analytics and management. Nevertheless, semantic annotation tasks are challenging due to insufficient tabular data descriptions, heterogeneous schema, and vocabulary issues. This paper presents an automatic semantic annotation system for tabular data, called MTab4D, to generate annotations with DBpedia in three annotation tasks: 1) matching table cells to entities, 2) matching columns to entity types, and 3) matching pairs of columns to properties. In particular, we propose an annotation pipeline that combines multiple matching signals from different table elements to address schema heterogeneity, data ambiguity, and noisiness. Additionally, this paper provides insightful analysis and extra resources on benchmarking semantic annotation with knowledge graphs. Experimental results on the original and adapted datasets of the Semantic Web Challenge on Tabular Data to Knowledge Graph Matching (SemTab 2019) show that our system achieves an impressive performance for the three annotation tasks. MTab4D’s repository is publicly available at https://github.com/phucty/mtab4dbpedia.

Keywords

Table annotation knowledge graph DBpedia semantic table interpretation

1. Introduction

Many tabular data resources have been made available on the Web and data portals, thanks to the Open Data initiative in recent years. The resources contain valuable information that helps establish transparency, improve human life quality, and inspire business opportunities. Although tabular data offers enormous potential, it is difficult to be used in applications due to insufficient descriptions, heterogeneous schema, and vocabulary issues.

One possible solution for the usability problems is to generate semantic annotation of tables, particularly matching table elements with knowledge graphs (KGs) such as DBpedia. As a result, the meaning of tabular data could be interpreted or inferred by knowledge graph concepts; therefore, it is easy to be used in other downstream applications such as data analytics and management.

This paper presents MTab4D, a semantic annotation system for tabular data, designed to address the three annotations tasks of the Semantic Web challenge on tabular data annotation with knowledge graphs (SemTab 2019).1

¹
SemTab 2019: http://www.cs.ox.ac.uk/isg/challenges/sem-tab/, last accessed 03/2022.
SemTab 2019 is a systematic benchmark for promoting a comparison of state-of-the-art annotation systems [7]. Figure 1 illustrates the three semantic annotation tasks. Cell-Entity annotation (CEA) is the task of assigning an entity to a table cell (Fig. 1a). Column-Type annotation task (CTA) assigns entity types (e.g., DBpedia class hierarchy) to a table column (Fig. 1b). Column Pair-Property annotation (CPA) is the task of assigning a property or a predicate to the relation between two table columns (Fig. 1c).

Fig. 1.
Tabular data annotations with DBpedia. dbr: is an entity prefix, and dbo: is a type prefix.

Figure 2 depicts an example of semantic annotations for tabular data. dbr:Arthur_Drews is an entity annotation for cell “A. Drews”. The type annotations for column “col1” are dbo:PopulatedPlace and dbo:Place. The property of dbo:deathYear is the annotation for the relation between column “col0” and column “col2”.

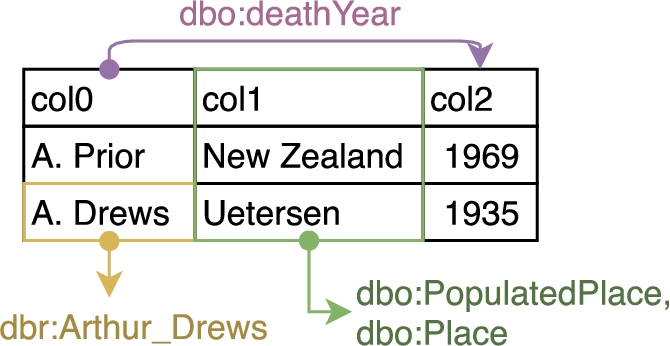

Fig. 2.
An example of semantic annotation of tabular data.

This paper proposes an annotation pipeline that combines multiple matching signals from table elements to address schema heterogeneity and ambiguity. Our system is inspired by the graphical probability model-based approach [11] and the signal (or confidence) propagation as in the T2K system [22]; however, our system improves the annotation tasks’ performance with the following contributions:
Table Pre-processing: We introduce a method for pre-processing tables to deal with data noisiness consisting of cell normalization, datatype prediction for cells and columns, header prediction, subject column prediction, and matching target prediction.

Entity Search: Most previous systems used online entity search services to generate candidate entities (e.g., DBpedia lookup); however, it is hard to reproduce the same search results if the search index change due to the evolution of the knowledge graph. We introduce novel entity search modules as in Section 3.3 (keyword search, fuzzy search, and aggregation search) based on the DBpedia October 2016 dump that enables the entity search results to be reproduced for future studies.

Numerical Column Matching: Data matching for numerical columns is challenging because the corresponding value in KG is rarely equal to a query value. Therefore, we adopt EmbNum+ [16] as the semantic labeling for numerical columns to find relevant properties and use DBpedia ontology to infer entity types which are the domains of the relevant properties.

Column-based Matching: We introduce column-based matching between the table subject column and other remaining table columns (i.e., entity columns, literal columns). The novel column-based signals could enhance the overall matching performance.
We also provide the contributions to the tabular data annotation community as follows.

Data Analysis and Extra Resources for Reproducibility: This paper provides insightful analysis and extra resources on benchmarking semantic annotation with knowledge graphs. Since the knowledge graph changes over time, it is hard to compare annotation systems that used a different version of the target knowledge graph. To standardize the evaluation of the tabular data annotation tasks, we provide the extra resources, the adapted SemTab 2019 dataset built on the October 2016 version of DBpedia (similar to the SemTab 2019 setting), as in [14]. The resources are also accessible from the public APIs,2 ²
API documents: https://mtab4d.kgraph.jp/docs, last accessed 03/2022.
e.g., entity search, entity information retrieval, numerical attribute retrieval, and evaluation retrieval.

Annotation API and Graphical Interface: We provide tabular data annotation API, graphical interface,3 ³
MTab4D Graphical Interface: https://mtab4d.kgraph.jp, last accessed 03/2022.
and instruction on replicating MTab4D experiment results.4 ⁴
MTab4D Repository: https://github.com/phucty/mtab4dbpedia, last accessed 03/2022.
Our implementation supports multilingual tables (covered the most popular languages) and could process many table formats such as Excel, CSV, TSV, or markdown tables.

MTab4D is an extended version of our work MTab [13,15] (the best performance for the three matching tasks: the 1^st rank in all (four) rounds and all (three) tasks). This system advances the previous study in the three directions:

Refactoring Implementation: We refactor the codes over most of the components of MTab [13,15] to optimize MTab4D efficiency. Moreover, MTab4D could auto predict table header, subject column, and matching targets (Section 3.2), and provide annotations. MTab4D is publicly available at⁴ under an open-source license.

Reproducibility: MTab’s entity search modules are built by aggregating many online entity search services from DBpedia, Wikipedia, and Wikidata [13,15]. As a result, it is hard to reproduce the entity search results since the search index changes over time. We build new search modules based on the DBpedia October 2016 dump to enable reproducibility. Moreover, we also provide the adapted SemTab 2019 data with the DBpedia October 2016 version [14]. These resources enable a consistent environment setup for a fair comparison between annotation systems in future studies.

Public services: We also focus on building public services so that we refactor the implementation, optimize system efficiency, and support multilingual tables, and could be able to process various table formats such as Excel, CSV, TSV, or markdown tables. We also provide a graphical interface that enables the user to do table annotation by pasting the table of contents from table files or websites. Wang et al. [26] state that only our system could generate the annotations, while other annotation systems require high time complexity.

The rest of this paper is organized as follows. In Section 2, we define the annotation tasks and describe MTab4D assumptions. Then, we present the overall framework and the details of each framework’s module in Section 3. Section 4 reports experimental settings, results, and error analysis. We describe MTab4D public APIs and graphical interfaces in Section 5. Section 6 discusses the related work on semantic annotation of table data and summarizes the participant approaches. Finally, we summarize the paper and discuss future directions and the lessons learned in Section 7.
2. Definitions and assumptions

In this section, we provide formal definitions for the three annotation tasks in Section 2.1. The assumptions on MTab4D are described in Section 2.2.

2.1. Problem definitions

2.1.1. Knowledge graph

The DBpedia knowledge graph G can be described as an RDF graph consisting of a set of RDF triples (facts) $F = {f_{1}, . ., f_{| F |}}$ . A triple $f \in F$ , which is in the form of (subject, predicate, object), comprises a subject (an entity), a predicate (a property), and an object (an entity, or a literal value). Literal values could be expressed in plain literals as strings with or without language tags, e.g., “Tokyo@en”, or typed literals as strings with datatype values (integers, dates), e.g., “13”^^xsd:int.

We denote the set of entities as $E = {e_{1}, \dots, e_{| E |}}$ , the set of entity types (derived from the rdf:type predicate of the triples) as $T = {t_{1}, \dots, t_{| T |}}$ , and the set of properties as $P = {p_{1}, \dots, p_{| P |}}$ .

Entity types are related by an rdfs:subClassOf relation. When $t_{1}$ is a subclass of $t_{2}$ (or multi hops) ( $t_{1}, t_{2} \in T$ ), we write the relation between the two types as $t_{1} \subseteq^{+} t_{2}$ (or $t_{1} \subseteq^{*} t_{2}$ for multi hops).

Entity $e \in E$ could be an instance of one or multiple types (hierarchy). We denote $T_{e}$ as the subset of T that are types of entity e, and $t_{e} \in T_{e}$ as a type of entity e.

A triple comprises an entity e, a property p, and an object (an entity $e^{'} \neq e$ or a literal value).

2.1.2. Tabular data

Let S be a two-dimensional table consisting of an ordered set of N rows and M columns. We denote a table row as $r_{i}$ , where $i \in [1 \dots N]$ ; a table column as $c_{j}$ , in which $j \in [1 \dots M]$ . A table cell is denoted as $S_{i, j}$ in the row $r_{i}$ and the column $c_{j}$ . A relation between two columns $c_{j}$ and $c_{j^{'}}$ is denoted as $R_{j, j^{'}}$ , where $j, j^{'} \in [1, M], j \neq j^{'}$ .

2.1.3. Matching targets

Let $m_{CEA}^{S}$ , $m_{CTA}^{S}$ , and $m_{CPA}^{S}$ be the matching targets (indexes) of table cells, columns, and column pair relations.

2.1.4. Semantic annotation tasks

Given the DBpedia knowledge graph G, table S, and matching targets $m_{CEA}^{S}$ , $m_{CTA}^{S}$ , $m_{CPA}^{S}$ , the tables to KG matching problems could be formalized the three following tasks:

Cell-Entity matching (CEA): matching each table cell in the CEA matching targets ( $S_{i, j} \in m_{CEA}^{S}$ ) into an entity $e_{i, j} \in E$ . $\begin{matrix} (1) & S_{i, j} \overset{CEA}{\to} E \end{matrix}$

Column-Type matching (CTA): matching each table column in the CTA matching targets ( $c_{j} \in m_{CTA}^{S}$ ) into a class hierarchy $T_{j} \in T$ . $\begin{matrix} (2) & c_{j} \overset{CTA}{\to} T \end{matrix}$

Column Pair Relation-Property matching (CPA): matching each relation between two columns in the CPA matching targets ( $R_{j, j^{'}} \in m_{CPA}^{S}$ ) into a property $p_{i, j^{'}} \in P$ . $\begin{matrix} (3) & R_{j, j^{'}} \overset{CPA}{\to} P \end{matrix}$

2.2. Assumptions

We build MTab4D system based on the following assumptions:

Assumption 1.
MTab4D is built based on a closed-world assumption.

MTab4D annotates tabular data based on the knowledge graph information. Therefore, we assume that the knowledge graph (DBpedia) is complete and correct. When table elements are not available in the knowledge graph, the system mistakenly returns the most relevant results (incorrect answers).
Assumption 2.
The tabular input data is a horizontal relational table type.

A horizontal relational table contains semantic knowledge graph triples as (subject, predicate, object). The table also has a subject column containing entity names, and the relation between the subject column and other table columns represents the predicate relation between the entities (subject) and attribute values (object). Assumption 3.
All the cell values of the same column have the same datatype, and the entities related to cell values of the same column are of the same type.

3. MTab4D approach

In this section, we describe the MTab4D framework in Section 3.1. The details of each step are described from Section 3.2 to Section 3.7.

Fig. 3.

MTab4D framework for tabular data annotations.

3.1. Framework

We design MTab4D as the seven-step pipeline as shown in Fig. 3.

Step 1 pre-processes the input table consisting of cell value normalization, cell and column datatype prediction, header prediction, subject column prediction, and matching targets prediction. Step 2 is to generate candidate entities.

Then, Step 3 and Step 4 generate candidate types and properties using the row-based aggregation from Step 2, respectively. Step 5 disambiguates candidate entities with confidence aggregation from Step 2, Step 3, and Step 4.

Step 6 and Step 7 are to disambiguate candidate types and properties with results from Step 5, respectively.

The following are detailed explanations of each step of the framework.

3.2. Step 1: Pre-processing

We perform the five following processes: cell normalization, datatype prediction, header detection, and subject column prediction, matching targets prediction.

3.2.1. Cell normalization

We remove HTML tags and non-cell-values such as -, NaN, none, null, blank, unknown, ?, #. Additionally, we use the ftfy tool [23] to fix all noisy cells caused by incorrect encoding during file loading.

3.2.2. Data type prediction

The system predicts a table cell’s datatype into either non-cell (empty cell), literal, or named-entity (NE). We use the pre-trained SpaCy models [8] (OntoNotes 5 dataset) to identify named and numeric entities. A cell has a named-entity type when the SpaCy model recognizes an entity-name tag such as PERSON (human names), NORP (nationalities), FAC (building), ORG (companies), GPE (countries, cities), LOC (locations), PRODUCT (objects, vehicles), EVENT (wars, sports events), WORK_OF_ART (books, songs), LAW (law documents), LANGUAGE (named language). A cell has a literal type when the recognized SpaCy tag is a numeric tag such as DATE (date), TIME (time), PERCENT (percentage), MONEY (amount of money), QUANTITY (measurements), ORDINAL (ordinal), and CARDINAL (other numerical values). If no tag is assigned, we associate the cell type with named-entity because the SpaCy model could miss the named-entity types.

Next, the system predicts a table column’s datatype into either a non-match column (empty column) $c^{nan}$ , a literal $c^{lit}$ , or a named-entity column $c^{ent}$ . The column datatype is derived from the majority voting of all cell datatypes in this column.

3.2.3. Header prediction

Let $r^{h}$ be a table header. We use simple heuristics to predict table headers as follows.

Table headers could be located in some of the first rows of a table.

If the list of datatypes of the header candidate row differs from most datatypes of the remaining rows, the candidate is the table header. For example, the list of datatypes of header candidate (row) is [named-entity, named-entity, named-entity], while the list of the majority datatype of remaining rows is [named-entity, literal, literal].

We also found that the length of header text is empirically shorter or longer than the remaining data rows. If the length of values of the header candidate row is less than the 0.05 quantile or larger than the 0.95 quantiles of the length of the value of remaining rows, the candidates are the table header.

3.2.4. Subject column prediction

Let $c^{core}$ be the subject column of a table. We adopt the heuristics proposed by Ritze et al. [22] and modify a simple heuristic to predict the subject column of a table as follows.

A column is a subject column when its datatype is a named-entity type.

The average cell value length is from 3.5 to 200. We also add a restriction that only considers non-header cells since the length of table headers could differ from the remaining cells.

The subject column is determined based on the uniqueness score as an increased score for columns with many unique values and reduces the score for columns with many missing values. The subject column is the highest unique score column. If we have many columns with the same score, the left-most column is chosen.

3.2.5. Matching targets prediction

MTab4D uses the following heuristics to generate matching targets for the three annotations tasks when the input does not have matching targets.

CEA task: matching targets are the table cells whose datatypes are strings.

CTA task: matching targets are columns so that the column datatypes are strings.

CPA task: matching targets are the relation between the core attribute and the remaining table columns.

3.3. Step 2: Candidate entity generation

To generate candidate entities for the CEA matching targets, we perform entity searching on the MTab4D search engine.5

⁵
MTab4D Entity search: https://mtab4d.kgraph.jp/search, last accessed 03/2022.
Unlike previous work using online entity search services to generate candidate entities, the MTab4D entity search engine is built from DBpedia’s October 2016 dump version for reproducibility. We extracted 5,226,192 entities (ignore disambiguate entities) and 35,331,799 entity labels (including entity labels, aliases, other names, redirect entity labels, and disambiguation entity names) from DBpedia dump files in the most popular languages (i.e., English, China, German, France, Arabic, Russia, Italy, Japanese, Netherlands, Poland, Portugal).

We build the three entity search modules (i.e., keyword search, fuzzy search, and aggregation search) to address table cell values’ ambiguity and noisiness.

Let q be a query which is a table cell $S_{i, j}$ ; the entity search module retrieves the query from the MTab4D search engine to get a ranking list of relevant entities $E_{q}$ and entities’ ranking scores. We normalize the ranking scores to $[0, 1]$ using the softmax function and associate these normalized scores as entity confidence scores of cell $S_{i, j}$ using an entity search module $ϕ_{1} (S_{i, j}, e_{i, j})$ .

For the three search modules, the default limit of the ranking list is set as 100 in all our experiments for efficiency reasons. The detail of search modules is described as follows.
3.3.1. Keyword search

We build the keyword search to address table cells ambiguity and entity name variant. We use the Elasticsearch engine6

⁶
https://www.elastic.co/elasticsearch/, last accessed 03/2022.
to index Wikidata entity labels as separated documents. The ranking scores are calculated using the default BM25 ranking function of Elasticsearch and entity popularities. The entity popularities are pre-calculated using the PageRank algorithm on DBpedia. The ranking scores of the keyword search module $f_{keyword}$ are calculated as follows. $\begin{matrix} (4) & \begin{aligned} f_{keyword} (q, e) & = α \cdot softmax (f_{bm25} (q, e)) + (1 - α) \cdot f_{popularity} (e) \end{aligned} \end{matrix}$ where the BM25 ranking scores are denoted as $f_{bm25} (q, e)$ , and the entity popularities are denoted as $f_{popularity} (e)$ . We use the BM25 hyper-parameters as $b = 0.75$ , $k_{1} = 1.2$ . We set $α = 0.8$ as empirically putting more weighting for the ranking functions of the BM25 algorithm.
3.3.2. Fuzzy search

Another challenge of entity search is that table cells might be noisy, contain many spelling errors, and are expressed as abbreviations. We introduce the fuzzy search module using edit distance (Damerau–Levenshtein) and entity popularities. The ranking score of fuzzy search is calculated as follows. $\begin{matrix} (5) & \begin{aligned} f_{fuzzy} (q, e) & = α \cdot \frac{1}{f_{edit} (q, e) + 1} + (1 - α) \cdot f_{popularity} (e) \end{aligned} \end{matrix}$ where $f_{edit} (q, e)$ is Damerau–Levenshtein distance between the table cell and entity label. We also use the same keyword search parameter α to put more weight into the edit distance empirically.

Since the edit distance calculation is expensive, we perform candidate filtering and hashing to reduce the number of operations on pairwise edit distance calculation. We remove candidate entities with their length larger or smaller $d$ characters than the query’s length (To be simple, we set d to six in all of our experiments). Because of the efficient reason, we only perform a fuzzy search with a maximum of six edit distances. We also perform candidate hashing with pre-calculating entity label deletion as SymSpell: Symmetric Delete algorithm [6].

3.3.3. Aggregation search

This search module is designed to aggregate keyword search and fuzzy search results with a weighted fusion as the following equation. $\begin{matrix} (6) & f_{agg} (q, e) = β \cdot f_{keyword} + (1 - β) \cdot f_{fuzzy} \end{matrix}$ We set the β parameter as 0.5 to equal contribution to the keyword search and the fuzzy search.

3.4. Step 3: Candidate type generation

This step is to generate candidate types for the named-entity columns. The overall confidence scores of candidate types are described in Section 3.4.5. The details of entity search signals, named-entity recognition signals, table header signals, numerical column signals are described in Section 3.4.1, Section 3.4.2, Section 3.4.3, and Section 3.4.4.

3.4.1. Entity search signals

Let $ϕ_{2} (c_{j}, t_{j})$ be a potential function of candidate type $t_{j}$ of column $c_{j}$ derived from entity search signals as the following equation: $\begin{matrix} (7) & ϕ_{2} (c_{j}, t_{j}) = \sum_{S_{i, j} \in c_{j}} f_{2} (S_{i, j}, t_{i, j}) \end{matrix}$ where the type confidence $f_{2} (S_{i, j}, t_{i, j})$ is the majority vote for type $t_{i, j} \in T_{i, j}$ of candidate entity $e_{i, j} \in E_{i, j}$ at cell $S_{i, j}$ . We use entity confidence $ϕ_{1} (S_{i, j}, e_{i, j})$ as in Section 3.3 as the voting score. Finally, we normalize the confidence scores of candidate types derived from entity search signals to a range [0, 1] by dividing each element by the total sum.

3.4.2. Named-entity recognition signals

We denote the potential function of candidate types derived from name-entity recognition signals as $ϕ_{3} (c_{j}, t_{j})$ . The potential function is calculated as the following equation: $\begin{matrix} (8) & ϕ_{3} (c_{j}, t_{j}) = \sum_{S_{i, j} \in c_{j}} f_{3} (S_{i, j}, t_{i, j}) \end{matrix}$ where $f_{3} (S_{i, j}, t_{i, j})$ is an indicator function of the mapping between name entities and DBpedia classes as in Table 1. $f_{3} (\cdot \cdot \cdot)$ is calculated as the following equation: $\begin{matrix} (9) & \begin{aligned} f_{3} (S_{i, j}, t_{i, j}) = \{\begin{array}{ll} 1, & if \exists TypeMap (f_{NER} (S_{i, j})) \\ 0, & others \end{array} \end{aligned} \end{matrix}$ where $TypeMap (\dots)$ is the mapping function between named entities and DBpedia classes. The name-entity recognition function is denoted as $f_{NER}$ . We use the SpaCy tool [8] to derive the name-entity label for each cell $S_{i, j}$ in the column $c_{j}$ as in Section 3.2.2.

Finally, we normalize the confidence scores of candidate types to the range $[0, 1]$ . The normalization is done by dividing each element by the total sum.

Table 1
Mappings between named entities (using SpaCy toolkit) and DBpedia entity types

NER Tags DBpedia Entity Types

PERSON dbo:Person

NORP dbo:Country, dbo:Religious, dbo:PoliticalParty

FAC dbo:PopulatedPlace, dbo:Building, dbo:RouteOfTransportation, dbo:Airport

ORG dbo:Organization

LOC dbo:PopulatedPlace

GPE dbo:PopulatedPlace

PRODUCT dbo:Device, dbo:Food

EVENT dbo:Event

WORK_OF_ART dbo:Work

LAW dbo:LawFirm

LANGUAGE dbo:Language

NER Tags	DBpedia Entity Types
PERSON	dbo:Person
NORP	dbo:Country, dbo:Religious, dbo:PoliticalParty
FAC	dbo:PopulatedPlace, dbo:Building, dbo:RouteOfTransportation, dbo:Airport
ORG	dbo:Organization
LOC	dbo:PopulatedPlace
GPE	dbo:PopulatedPlace
PRODUCT	dbo:Device, dbo:Food
EVENT	dbo:Event
WORK_OF_ART	dbo:Work
LAW	dbo:LawFirm
LANGUAGE	dbo:Language

3.4.3. Table header signals

Let $ϕ_{4} (c_{j}, r_{j}^{h}, t_{j})$ be the potential function of type candidates from similarity measures between header $r_{j}^{h}$ of column $c_{j}$ and DBpedia classes. We use a lexical similarity, specifically normalized Damerau–Levenshtein distance, as the potential function. $\begin{matrix} (10) & ϕ_{4} (c_{j}, r_{j}^{h}, t_{j}) = \frac{1}{f_{edit} (t_{j}, r_{j}^{h}) + 1} \end{matrix}$ where $f_{edit} (t_{j}, r_{j}^{h})$ is the edit distance between column header $r_{j}^{h}$ and a type $t_{j}$ (a DBpedia class).

We also normalize candidate type confidence scores to $[0, 1]$ by dividing each element by the total sum.

3.4.4. Numerical column signals

Let $ϕ_{5} (c_{j}^{core}, c_{j^{'}}^{num}, t_{j})$ be the potential function of candidate types of the subject column $c_{j}^{core}$ derived from numerical column $c_{j^{'}}^{num}$ .

We first use EmbNum+ [16] for column $c_{j^{'}}^{num}$ to find relevant numerical properties $P_{j^{'}}$ in DBpedia.7

⁷
We used the 200 most frequently numerical attributes (numerical properties, e.g., height, weight) of DBpedia as the database.
The confidence score of property $p_{j^{'}} \in P_{j^{'}}$ is calculated as the following equation. $\begin{matrix} (11) & f_{num} (c_{j^{'}}^{num}, p_{j^{'}}) = | P_{j^{'}} | - {rank}_{p_{j^{'}}} \end{matrix}$ where ${rank}_{p_{j^{'}}}$ is the ranking index of $p_{j^{'}}$ in $P_{j^{'}}$ . The scores are also normalized to $[0, 1]$ by diving each element to the total sum.

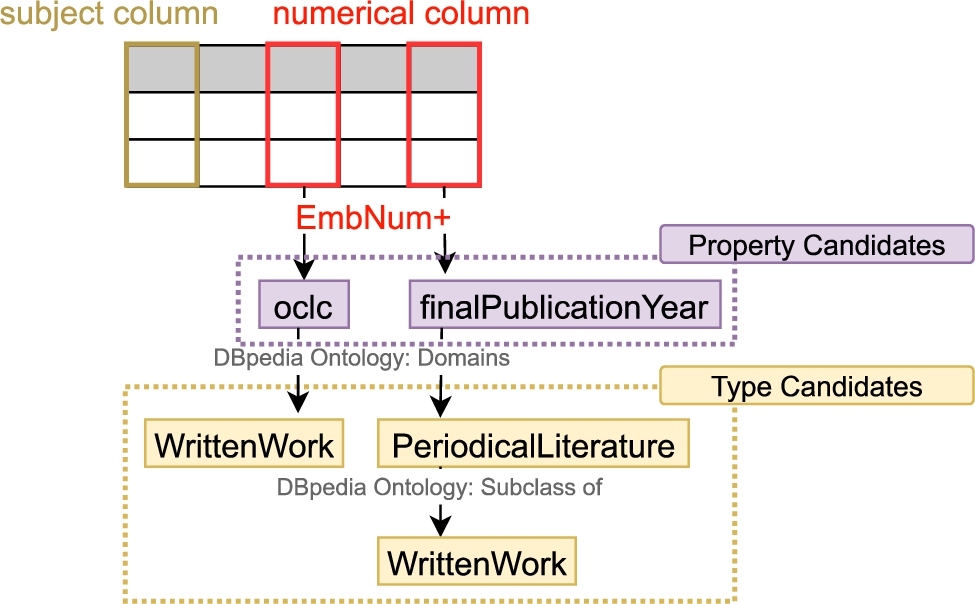

Fig. 4.
Property lookup with EmbNum+.

Next, we use the candidate properties to infer the classes (types) for the subject column. The inferred classes are the candidate properties’ domain classes (dbo:domain). For example, in Fig. 4, the candidate properties of the two numerical columns are “dbo:oclc” and “dbo:finalPublicationYear”. The inferred candidate types of the subject column given the two numerical columns are “dbo:WrittenWork” and “dbo:PeriodcalLiterature” (the domain types of the candidate properties).

Let $T_{c_{j}^{num}}$ be the set of inferred types from numerical columns for the subject column $c_{j}^{core}$ . The type confidence scores are calculated as the following equation. $\begin{matrix} (12) & ϕ_{5} (c_{j}^{core}, c_{j^{'}}^{num}, t_{j}) = max (f_{num}^{'} (c_{j^{'}}^{num}, t_{j})) \end{matrix}$ where $\begin{matrix} (13) & f_{num}^{'} (c_{j^{'}}^{num}, t_{j}) = f_{num} (c_{j^{'}}^{num}, p_{j^{'}}) \end{matrix}$ where $t_{j}$ is the domain of the property $p_{j^{'}}$ . We also normalize the type confidence scores to $[0, 1]$ by dividing each element by the total sum.
3.4.5. Signal aggregation

The confidence scores of candidate types $ϕ_{6} (c_{j}, t_{j})$ are aggregated from entity search signals $ϕ_{2} (c_{j}, t_{j})$ (Section 3.4.1), named-entity recognition signals $ϕ_{3} (c_{j}, t_{j})$ (Section 3.4.2), table header signals $ϕ_{4} (c_{j}, r_{j}^{h}, t_{j})$ (Section 3.4.3), and numerical column signals $ϕ_{5} (c_{j}^{core}, c_{j^{'}}^{num}, t_{j})$ (Section 3.4.4). The aggregated type confidence scores are calculated as the following equations: $\begin{matrix} (14) & \begin{aligned} ϕ_{6} (c_{j}, t_{j}) = \{\begin{array}{l} w_{2} \cdot ϕ_{2} (c_{j}, t_{j}) + w_{3} \cdot ϕ_{3} (c_{j}, t_{j}) + w_{4} \cdot ϕ_{4} (c_{j}, r_{j}^{h}, t_{j}) + w_{5} \cdot ϕ_{5} (c_{j}^{core}, c_{j^{'}}^{num}, t_{j}), \\ c_{j} is a NE and a subject column \\ w_{2} \cdot ϕ_{2} (c_{j}, t_{j}) + w_{3} \cdot ϕ_{3} (c_{j}, t_{j}) + w_{4} \cdot ϕ_{4} (c_{j}, r_{j}^{h}, t_{j}), \\ c_{j} is a NE and not a subject column \end{array} \end{aligned} \end{matrix}$

To avoid adding too much noise to the final aggregation, we omit the types that have confidence scores less than γ.8

⁸
The parameter $γ = 0.5$ is selected empirically.
MTab4D uses an equal contribution for the weighting of $w_{2}$ , $w_{3}$ , $w_{4}$ , $w_{5}$ . After aggregation, we normalize candidate types to $[0, 1]$ by dividing each candidate type $ϕ_{6} (c_{j}, t_{j})$ by the total sum of the confidence scores of all candidate types in the column $c_{j}$ .
3.5. Step 4: Candidate property generation

This step is to generate candidate properties $p_{j, j^{'}} \in P_{j, j^{'}}$ of the relation $R_{j, j^{'}}$ between two columns $c_{j}$ and $c_{j^{'}}$ . We assume that the input table is a horizontal relational type so that this step focuses on the relations of 1) the subject column to an entity column and 2) the subject column to a literal column. We associate the subject column with $c_{j}^{core}$ , an entity column with $c_{j^{'}}^{ent}$ , and a literal column with $c_{j^{'}}^{lit}$ .

3.5.1. Subject column – named-entity column

Let $ϕ_{7} (c_{j}^{core}, c_{j^{'}}^{ent}, p_{j, j^{'}})$ be the potential function of candidate properties of the relation $R_{j, j^{'}}$ between the subject column $c_{j}^{core}$ and a named-entity column $c_{j^{'}}^{ent}$ .

Cell $S_{i, j}$ is the table cell in the subject column $c_{j}^{core}$ and row $r_{i}$ . Cell $S_{i, j^{'}}$ is the table cell in the same row $r_{i}$ and the named-entity column $c_{j^{'}}^{ent}$ .

We assume that there is a relation between candidate entities of $S_{i, j}$ and $S_{i, j^{'}}$ that equivalence to a DBpedia property; therefore, we query how many links (relations or properties) between candidate entities of $S_{i, j}$ and $S_{i, j^{'}}$ . The confidence scores of candidate properties are calculated as $f_{7} (r_{i}, R_{j, j^{'}}, p_{j, j^{'}}) = 1$ if there is any relation between the candidate entities of the two cells. We aggregate the scores of all rows of the two columns to get the confidence scores of candidate properties as the following equation. $\begin{matrix} (15) & ϕ_{7} (c_{j}^{core}, c_{j^{'}}^{ent}, p_{j, j^{'}}) = \sum_{i \in [1, N]} f_{7} (r_{i}, R_{j, j^{'}}, p_{j, j^{'}}) \end{matrix}$ Then, we normalize the confidence scores of candidate properties between the subject column and a named-entity column to a range of $[0, 1]$ by dividing each element by the total sum.

Figure 5 illustrates candidate property generation between the subject and entity columns. The list of $e_{1}$ , $e_{2}$ , $e_{3}$ is candidate entities of the table cell $c_{1}$ , while $e_{4}$ , $e_{5}$ , $e_{6}$ are the candidate entities of cell $c_{2}$ . The candidate property $p_{1}$ is derived from finding properties between the two lists of candidate entities. The final candidate properties are aggregated from all rows of the two columns.

Fig. 5.

Illustration of candidate property generation between the subject column and an entity column.

3.5.2. Subject column – literal column

Let $ϕ_{8} (c_{j}^{core}, c_{j^{'}}^{lit}, p_{j, j^{'}})$ be the potential function of candidate properties of the relation between the subject column $c_{j}^{core}$ and a literal column $c_{j^{'}}^{lit}$ . At row $r_{i}$ , cell $S_{i, j}$ is in the subject column, and cell $S_{i, j^{'}}$ is in the literal column.

We perform value-based matching to calculate the similarities between entity attribute values of the $S_{i, j}$ candidate entities and the cell value $S_{i, j^{'}}$ . Given a candidate entity $e_{i, j}$ of $S_{i, j}$ that has pairs of property( $p_{e_{i, j}}$ )-value( $v_{e_{i, j}}$ ), we compare the similarity between $S_{i, j^{'}}$ with all pair values $v_{e_{i, j}}$ based on their datatypes (textual type or numerical type). We select the pairs of table cell values and entity values with larger similarities than β. The similarities are calculated as the following:

Textual values: We use the normalized Damerau–Levenshtein distance as the similarity between $v_{e_{i, j}}$ and $S_{i, j^{'}}$ as the following equation. $\begin{matrix} (16) & f_{8}^{text} (v_{e_{i, j}}, S_{i, j^{'}}) = \frac{1}{f_{edit} (v_{e_{i, j}}, S_{i, j^{'}}) + 1} \end{matrix}$ where $f_{edit} (v_{e}, S_{i, j^{'}})$ is the Damerau–Levenshtein distance.

Numerical values: we adapt the relative change as the numerical similarity as the following equation. $\begin{matrix} (17) & \begin{aligned} f_{8}^{num} (v_{e_{i, j}}, S_{i, j^{'}}) = \{\begin{array}{ll} 1 - \frac{| S_{i, j^{'}} - v_{e_{i, j}} |}{max (| S_{i, j^{'}} |, | v_{e_{i, j}} |)}, & if max (| S_{i, j^{'}} |, | v_{e_{i, j}} |) \neq 0 \\ 1, & if max (| S_{i, j^{'}} |, | v_{e_{i, j}} |) = 0 and | S_{i, j^{'}} - v_{e_{i, j}} | = 0 \end{array} \end{aligned} \end{matrix}$

We aggregate the confidence scores of all rows of the two columns based on properties and then normalize these scores to

[0, 1]

Fig. 6.

Illustration of candidate property generation between the subject column and a literal column.

Figure 6 illustrates candidate property generation between the subject and literal columns. The list of $e_{1}$ , $e_{2}$ , $e_{3}$ is the candidate entities of the table cell $c_{1}$ , the pairs of property-value $[p_{1}, v_{1}]$ , $[p_{2}, v_{2}]$ are the triples of the candidate entity $e_{1}$ . We calculate the similarities between the entity attribute values $v_{1}$ , $v_{2}$ , and the literal cell $c 2$ and aggregate the similarity based on the properties of the entity values.

3.6. Step 5: Entity matching

This step is to re-calculate the candidate entities based on the prior signals from the previous steps. Given a table cell $S_{i, j}$ , we consider the signals from:

$ϕ_{1} (S_{i, j}, e_{i, j})$ : The candidate entity confidences from entity search as described in Section 3.3.

$ϕ_{9} (c_{j}, e_{i, j})$ : The confidence scores of candidate entities of their type’s confidence scores are as in Section 3.4. The entity confidences scores derived from type confidence score of column $c_{j}$ as $ϕ_{9} (c_{j}, e_{i, j}) = ϕ_{6} (c_{j}, t_{j})$ .

$ϕ_{10} (S_{i, j}, e_{i, j})$ : We calculate the similarity between the candidate entity label and the table cell using the normalized Damerau–Levenshtein distance. Then, we associate the score as the confidence score of candidate entities given the cell value $S_{i, j}$ using the lexical similarity measurement.

$ϕ_{11} (r_{i}, e_{i, j})$ : These signals are calculated from the confidence scores of candidate entities in the subject column given cell values in a row $r_{i}$ . We do the same procedure of value-based matching as Step 4 to compare all entity attribute values with row values, but similarities are ordered by the entities. Then, we compute the mean probability for all cell values.

The candidate entity confidence scores of the table cell of $S_{i, j}$ is calculated as the following equation: $\begin{matrix} (18) & ϕ_{12} (S_{i, j}, e_{i, j}) = \{\begin{array}{l} w_{1} \cdot ϕ_{1} (S_{i, j}, e_{i, j}) + w_{9} \cdot ϕ_{9} (c_{j}, e_{i, j}) + w_{10} \cdot ϕ_{10} (S_{i, j}, e_{i, j}) + w_{11} \cdot ϕ_{11} (r_{i}, e_{i, j}), \\ if S_{i, j} \in c_{j}^{core} \\ w_{1} \cdot ϕ_{1} (S_{i, j}, e_{i, j}) + w_{9} \cdot ϕ_{9} (c_{j}, e_{i, j}) + w_{10} \cdot ϕ_{10} (S_{i, j}, e_{i, j}), if S_{i, j} \notin c_{j}^{core} \end{array} \end{matrix}$ where $w_{1}$ , $w_{9}$ , $w_{10}$ , $w_{11}$ are parameters. We also use an equal contribution for the parameters. We select the highest confidence score of candidate entities as the annotation for a table cell.

3.7. Step 6, 7: Type and property matching

We aggregate the highest probabilities of candidate entities in Step 5 for each cell $S_{i, j}$ , then infer types and properties with the majority voting.

4. Evaluation

This section first reports the detail about benchmark datasets in Section 4.1, evaluation metrics in Section 4.3, and experimental setting in Section 4.4. The overall results are reported in Section 4.5.

4.1. Datasets

We use the two datasets as the original SemTab 2019 (four rounds) and the adapted SemTab 2019 with the 2016 October of DBpedia [14]. Table 2 reports the number of tables in each dataset; target cells (in CEA), columns (in CTA), and column pairs (in CPA) of the original and adapted versions of the SemTab 2019 dataset.

Table 2
Statistics of matching targets on the original and adapted SemTab 2019 datasets

Round #Table CEA Targets CPA Targets CTA Targets

Original Adapted Original Adapted Original Adapted

1 70 8418 8406 116 116 120 120

2 11925 463796 457567 6762 6762 14780 14333

3 2162 406827 406820 7575 7575 5762 5673

4 818 107352 107351 2747 2747 1732 1717

Round	#Table	CEA Targets	CPA Targets	CTA Targets
1	70	8418	8406	116	116	120	120
2	11925	463796	457567	6762	6762	14780	14333
3	2162	406827	406820	7575	7575	5762	5673
4	818	107352	107351	2747	2747	1732	1717

4.1.1. Original SemTab 2019 dataset

The SemTab 2019 challenge has four rounds; each round came with a different set of tables and matching targets for each annotation task [7]. In detail, Round 1 data is a subset of the T2Dv2 dataset, a standard dataset in tabular data annotation. Round 2 is the biggest and most complex since it combines Wikipedia tables and automatically generated tables from DBpedia. Round 3 and 4 datasets also are automatically generated from DBpedia, but the easily matched cells are removed in Round 4. To generate the tabular data, firstly, a list of classes and properties are gathered, then for each class, the generator selects groups of properties and uses them to create “realistic” tables using SPARQL queries. Finally, the “realistic” tables are added noise into the surface textual of table cells or removed “easy” matches cells.

4.1.2. Adapted SemTab 2019 dataset

This section presents an adapted SemTab 2019 with the 2016 October of DBpedia for reproducibility [14]. It is challenging to compare annotation systems while not using the same experimental setting (DBpedia version). Knowledge Graphs change over time so that the schema or instances from a DBpedia version have many differences from another version. As a result, an annotation system could yield a different performance when benchmarked on different DBpedia versions.

To enable reproducibility, we perform adaptations on the original version of the SemTab 2019 dataset to October 2019 of DBpedia as in Section 4.1.3. Section 4.1.4 reports the open resources from the adapted dataset.

4.1.3. Ground truth

We process the original SemTab 2019 dataset as follows:

We make matching targets, and ground truth answers consistent by removing the matching targets that are not available in the ground truth and the original matching targets.

We remove invalid entities, types, and properties that are not available in the October 2016 version of DBpedia.

We add missing redirects, equivalent entities, types, and properties.

We remove prefixes to avoid redirect issues. For example, the expected prefix of the entity “Lake Alan Henry” is “http://dbpedia.org/resource/Lake_Alan_Henry” while the CEA ground truth of the original SemTab 2019 Round 1 has “http://dbpedia.org/page/Lake_Alan_Henry”. Removing the prefix also have a data storage-efficient (The adapted SemTab 2019 saves 51.3% more space than the original dataset).

4.1.4. Public resources

We also prepare open resources to be reproduced for future studies.

Schema: We prepare the CSV files as DBpedia class hierarchy, properties, and equivalents.

Data: We also published an entity JSON list dump (all information about entities) of the October 2016 version of DBpedia. The information of each entity could be accessed quickly using our opened API⁴ without processing entire all DBpedia entities.

Entity Search: We provide a public API of entity search based on entity label and aliases (multilingual) of DBpedia 2016 October. The search results will be expected to be the same using our API, while using other online entity searches (e.g., DBpedia entity search or Wikipedia search) could yield different answers.

Other resources: We also provide other public APIs⁴ of tabular data annotations, numerical attribute labeling, annotation evaluation for the original and adapted SemTab 2019 datasets [14].

4.2. Analysis of the original SemTab 2019 dataset

CEA task Table 3 depicts the number of inconsistencies between the SemTab 2019 ground truth data and the October 2016 version of DBpedia.

Index Inconsistencies (IIndex) describes the number of invalid table cell indexes of CEA targets. Encoding Inconsistencies (IEncoding) describes the number of encoding errors of DBpedia URIs. Many samples are inconsistent with URI encoded and decoded representation. For example, an entity URI of dbr:Angélica_Rivera could be encoded as “dbr:Ang%C3%A9lica_Rivera” and decoded as “dbr:Angélica_Rivera”. The ground truth of CEA contains a mixture between encoded URI and decoded URI. The encoding URI (percent-encoding) is not encouraged.9

⁹
DBpedia URI encoding: https://wiki.dbpedia.org/uri-encoding, last accessed 03/2022.
Invalid Inconsistencies (IInvalid) is the number of invalid entities not in the October 2016 version of DBpedia, and Redirect Inconsistencies (IRedirect) is the number of matching targets missing redirect entities.

The Round 2 dataset contains many inconsistencies, including the four types of inconsistencies (7.8% inconsistencies) because this dataset combines a subset of Wikipedia tables (with a different KG target: the October 2015 version of DBpedia) and automatically generated tables (from the October 2016 version of DBpedia). Round 1 dataset is the second place of inconsistencies (7%) since this is the subset of the T2D dataset (with a KG target as the 2014 version of DBpedia). Round 3 dataset has 3% inconsistencies, and Round 4 dataset is the cleanest in four rounds (2% inconsistencies).

Table 3
Analysis of the CEA task of SemTab 2019 with the DBpedia October 2016

Round IIndex IEncoding IInvalid IRedirect

1 0 418 22 203

2 250 21912 7662 6130

3 0 7427 763 4140

4 0 1487 22 682

CTA task Table 4 depicts the number of inconsistencies of CTA with the October 2016 version of DBpedia. Index errors (IIndex) describes the number of invalid table column indexes of CTA targets. Missing equivalent classes (IHierarchy) is the number of hierarchy classes’ inconsistencies in the CTA ground truth. There are 2% index errors in the Round 2 dataset. Although the CTA ground truth is derived from the October 2016 version of DBpedia, there are some inconsistencies, such as dbo:Region class is not an ancestor of dbo:City in the October 2016 version of DBpedia while it is an ancestor in the ground truth data. The class hierarchy also misses equivalent classes such as dbo:PenaltyShootOut class is the equivalent with dbo:Event. It could be semantic incorrect about (dbo:PenaltyShootOut owl:equivalentClass dbo:Event); however, we adopt the fact to follow DBpedia correctness and completeness assumption.

Round 2 dataset has 2% index errors where the target matching is not available in the input table. Round 1 has no errors, while Round 2, 3, 4 have 5%, 6%, and 1% IHierarchy error rates.

Table 4
Analysis on CTA task of SemTab 2019 with the October 2016 version of DBpedia

Round IIndex IHierarchy

1 0 0

2 323 697

3 0 353

4 0 14

CPA task We found that the ground truth of the CPA task misses many equivalent properties. For example, the properties of dbo:team has its equivalent property as dbo:club. Some of the equivalent properties in the October 2016 version of DBpedia are (dbo:team, dbo:club), (dbo:composer, dbo:musicBy, dbo:jureLanguage), and (dbo:area, dbo:landArea, dbo:waterArea).

Table 5 depicts statistics on missing equivalent properties (IIEquivalent) in the October 2016 version of DBpedia. Round 1 has 4% of ground truth missing equivalent properties. Round 2, 3, 4 have approximately 28% missing equivalent properties.

Table 5
Analysis on CPA task of SemTab 2019 with the October 2016 version of DBpedia

Round IEquivalent

1 5

2 1911

3 2030

4 828

4.3. Evaluation metrics

Round	IIndex	IEncoding	IInvalid	IRedirect
1	0	418	22	203
2	250	21912	7662	6130
3	0	7427	763	4140
4	0	1487	22	682

Round	IIndex	IHierarchy
1	0	0
2	323	697
3	0	353
4	0	14

Round	IEquivalent
1	5
2	1911
3	2030
4	828

There are four different metrics used to evaluate tabular data annotation:

F1-score is a harmonic mean of precision and recall. It is used as the primary score to measure the performance of entity annotations (CEA – all rounds), property annotations (CPA – all rounds), and type annotation (CTA – Round 1). The F1 metric is calculated as follows. $\begin{matrix} (19) & F1 = \frac{2 * Precision * Recall}{Precision + Recall} \end{matrix}$ where $Precision$ , and $Recall$ are calculated as follows. $\begin{array}{c} (20) & Precision = \frac{# correct annotations}{# annotations} \\ (21) & Recall = \frac{# correct annotations}{# annotation targets} \end{array}$

$Precision$ scores are used as the secondary score in entity annotations (CEA – all rounds), property annotations (CPA – all rounds), and type annotation (CTA – Round 1).

Regarding the type annotation CTA task, two metrics are designed to measure the hierarchy of class annotations (Average Hierarchical – AH) and perfect class annotations (Average Perfect – AP) [9]. The AH score is used as the primary score, while the AP score is used as the secondary score for rounds 2, 3, 4 of CTA task.

Let the list of target columns be $m_{CTA}^{S}$ , the number of column annotations be a, and the number of perfect annotations be $a_{perfect}$ , the number of OK annotations denotes as $a_{OK}$ , and the number of the wrong annotation denotes as $a_{wrong}$ . The equations of the AH score and AP score are described as follows. $\begin{array}{c} (22) & AH = \frac{\sum_{a \in m_{CTA}^{S}} a_{perfect} + 0.5 * a_{OK} - a_{wrong}}{| T |} \\ (23) & AP = \frac{\sum_{a \in m_{CTA}^{S}} a_{perfect}}{\sum_{a \in T} a_{perfect} + a_{OK} + a_{wrong}} \end{array}$

4.4. Experimental settings

MTab4D is built based on the October 2016 version of DBpedia with three versions (a, b, f) depending on the use of the entity search module. MTab4Db is the system that uses the keyword search, MTab4Df is used the fuzzy search, and MTab4Da is used the aggregation search.

We compare MTab4D with other systems, using the results reported in SemTab 2019 dataset (original version). Unlike our participated system MTab, MTab4D focuses on reproducibility, where we use the entity search built from dump data of DBpedia.

We also conduct experiments MTab4D on the adapted version of SemTab 2019, where we remove the inconsistencies between ground truth and the October 2016 version of DBpedia.

4.5. Experimental results

In this section, we first report the results of MTab4D with other SemTab 2019 participants on the original data version in Section 4.5.1. The full results are reported on the challenge websites.10

¹⁰
Results: http://www.cs.ox.ac.uk/isg/challenges/sem-tab/2019/results.html, last accessed 03/2022.
Then, we present the results of MTab4D on the adapted version of SemTab 2019 in Section 4.5.2.
4.5.1. Original SemTab 2019 dataset

Table 6 depicts the CEA results in the F1 score and Precision of MTab4D compared to the other systems on the original version of SemTab 2019. Because of the high data inconsistencies in Rounds 1 and 2, MTab4D could not provide comparable results with the original system MTab. However, MTab4Db, with a keyword search, got slightly higher performance than the MTab system in Round 3 and Round 4. In Round 1 and Round 2, MTab4Df using fuzzy search achieves higher performance than MTab4D using keyword search and aggregation search. It could be explained that the datasets have a higher noisy level of table cells, such as incorrect encoding parsing, entity labels variance, or abbreviation. In rounds 3 and 4, MTab4Db using keyword search achieves higher performance since the table cells are more likely similar to entity labels of DBpedia.

Table 6
CEA results in F1 score and Precision for the four rounds of the original version of SemTab 2019

F1 score Precision

Round: 1 2 3 4 1 2 3 4

MTab * 1.000 0.911 0.970 0.983 1.000 0.911 0.970 0.983

CSV2KG * 0.448 0.883 0.962 0.907 0.627 0.893 0.964 0.912

Tabularisi * 0.884 0.826 0.857 0.803 0.908 0.852 0.866 0.813

MantisTable * 1.000 0.614 0.633 0.973 1.000 0.673 0.679 0.983

LOD4ALL * 0.852 0.757 0.828 0.648 0.874 0.767 0.833 0.654

ADOG * 0.657 0.742 0.912 0.835 0.673 0.745 0.913 0.838

DAGOBAH * 0.897 0.713 0.725 0.578 0.941 0.816 0.745 0.599

MTab4Db 0.839 0.888 0.984 0.984 0.839 0.888 0.984 0.984

MTab4Df 0.867 0.892 0.983 0.983 0.873 0.899 0.983 0.983

MTab4Da 0.839 0.885 0.983 0.983 0.839 0.885 0.983 0.983

^*
Results are taken from SemTab 2019 [9].

	F1 score	Precision
MTab *	1.000	0.911	0.970	0.983	1.000	0.911	0.970	0.983
CSV2KG *	0.448	0.883	0.962	0.907	0.627	0.893	0.964	0.912
Tabularisi *	0.884	0.826	0.857	0.803	0.908	0.852	0.866	0.813
MantisTable *	1.000	0.614	0.633	0.973	1.000	0.673	0.679	0.983
LOD4ALL *	0.852	0.757	0.828	0.648	0.874	0.767	0.833	0.654
ADOG *	0.657	0.742	0.912	0.835	0.673	0.745	0.913	0.838
DAGOBAH *	0.897	0.713	0.725	0.578	0.941	0.816	0.745	0.599
MTab4Db	0.839	0.888	0.984	0.984	0.839	0.888	0.984	0.984
MTab4Df	0.867	0.892	0.983	0.983	0.873	0.899	0.983	0.983
MTab4Da	0.839	0.885	0.983	0.983	0.839	0.885	0.983	0.983

Table 7 depicts the CTA results in AH score and AP score of MTab4D compared to the other systems on the original version of SemTab 2019. Because of the CTA inconsistencies of the ground truth, MTab4D results are not comparable with our system MTab in SemTab 2019. MTab4Df achieves slightly higher performance than MTab4D using other entity search modules.

Table 7

CTA results in F1 and Precision for Round 1 and AH score, and AP score of the original version of SemTab 2019

	AH score				AP score

Round:	1 (F1)	2	3	4	1 (Precision)	2	3	4
MTab *	1.000	1.414	1.956	2.012	1.000	0.276	0.261	0.300
CSV2KG *	0.833	1.376	1.864	1.846	0.833	0.257	0.247	0.274
Tabularisi *	0.825	1.099	1.702	1.716	0.825	0.261	0.277	0.325
MantisTable *	0.929	1.049	1.648	1.682	0.933	0.247	0.269	0.322
LOD4ALL *	0.850	0.893	1.442	1.071	0.850	0.234	0.260	0.386
ADOG *	0.829	0.713	1.409	1.538	0.851	0.208	0.238	0.296
DAGOBAH *	0.644	0.641	0.745	0.684	0.580	0.247	0.161	0.206
MTab4Db	–	0.952	1.837	1.922	–	0.217	0.247	0.289
MTab4Df	–	0.996	1.839	1.927	–	0.225	0.249	0.289
MTab4Da	–	0.970	1.838	1.922	–	0.218	0.247	0.289

Results are taken from SemTab 2019 [9].

Table 8 depicts the CPA results in F1 score and precision of MTab4D compared to the other systems on the original version of SemTab 2019. MTab4D results are slightly lower than our system MTab in SemTab 2019 because of lacking equivalent properties of the CPA ground truth. The results of using different search modules are similar; as a result, we conclude that there is no effect of using different entity search modules in MTab4D.

Table 8

CPA results in F1 score and Precision for the four rounds of the original version of SemTab 2019

	F1 score				Precision

Round:	1	2	3	4	1	2	3	4
MTab *	0.987	0.881	0.844	0.832	0.975	0.929	0.845	0.832
CSV2KG *	–	0.877	0.841	0.830	–	0.926	0.843	0.835
Tabularisi *	0.606	0.79	0.827	0.823	0.638	0.792	0.83	0.825
MantisTable *	0.965	0.46	0.518	0.787	0.991	0.544	0.595	0.841
LOD4ALL *	–	0.555	0.545	0.439	–	0.941	0.853	0.904
ADOG *	–	0.459	0.558	0.75	–	0.708	0.763	0.767
DAGOBAH *	0.415	0.533	0.519	0.398	0.347	0.919	0.826	0.874
MTab4Db	–	0.839	0.844	0.830	–	0.842	0.849	0.838
MTab4Df	–	0.839	0.844	0.830	–	0.842	0.849	0.838
MTab4Da	–	0.839	0.844	0.830	–	0.843	0.849	0.838

Results are taken from SemTab 2019 [9].

4.5.2. Adapted SemTab 2019 dataset

This section compares the MTab4D performance on the original and adapted versions of the SemTab 2019 datasets.

Table 9 depicts the MTab4D results in the F1 score of the CEA task on the original and adapted version of the SemTab 2019 dataset. MTab4D, built on the October 2016 version of DBpedia, consistently achieves better performance on the adapted version dataset than the original one. Round 1 and 2 results in the adapted version have more improvement than Round 3, 4 because Round 1, 2 have more inconsistencies in the original dataset.

Table 9
CEA results in F1 score of MTab4D for the original and adapted version of SemTab 2019 dataset

Method Round 1 Round 2 Round 3 Round 4

Original Adapted Original Adapted Original Adapted Original Adapted

MTab4Db 0.839 0.857 (+2.15%) 0.888 0.918 (+3.38%) 0.984 0.992 (+0.81%) 0.984 0.987 (+0.30%)

MTab4Df 0.867 0.886 (+2.19%) 0.892 0.923 (+3.48%) 0.983 0.992 (+0.92%) 0.983 0.987 (+0.41%)

MTab4Da 0.839 0.860 (+2.50%) 0.885 0.916 (+3.50%) 0.983 0.992 (+0.92%) 0.983 0.986 (+0.31%)

Method	Round 1	Round 2	Round 3	Round 4
MTab4Db	0.839	0.857 (+2.15%)	0.888	0.918 (+3.38%)	0.984	0.992 (+0.81%)	0.984	0.987 (+0.30%)
MTab4Df	0.867	0.886 (+2.19%)	0.892	0.923 (+3.48%)	0.983	0.992 (+0.92%)	0.983	0.987 (+0.41%)
MTab4Da	0.839	0.860 (+2.50%)	0.885	0.916 (+3.50%)	0.983	0.992 (+0.92%)	0.983	0.986 (+0.31%)

Table 10 depicts the MTab4D results in the AH score of the CTA task on the original and adapted version of the SemTab 2019 dataset. The performance of MTab consistently improves on the adapted version.

Table 10

CTA results in AH score of MTab4D for the original and adapted version of SemTab 2019 dataset

Method	Round 1		Round 2		Round 3		Round 4

	Original	Adapted	Original	Adapted	Original	Adapted	Original	Adapted
MTab4Db	1.292	1.350 (+4.49%)	0.952	0.986 (+3.57%)	1.837	1.926 (+4.84%)	1.922	1.923 (+0.05%)
MTab4Df	1.337	1.396 (+4.41%)	0.996	1.031 (+3.51%)	1.839	1.928 (+4.84%)	1.927	1.926 (−0.05%)
MTab4Da	1.300	1.358 (+4.46%)	0.970	1.006 (+3.71%)	1.838	1.927 (+4.84%)	1.922	1.923 (+0.05%)

Table 11 depicts the MTab4D results in the F1 score of the CPA task on the original and adapted version of the SemTab 2019 dataset. The performance of MTab significantly improves on the adapted version, adding the equivalent properties into the ground truth data. Due to the incompleteness of DBpedia, there are many indirect equivalent properties in DBpedia. For example, dbo:deathCause and dbo:causeOfDeath have the same equivalent property of wikidata:P509 (cause of death). The problem of knowledge graph completion is not the main focus of this work, but we can expect the improvement of property annotations when the completeness of DBpedia is improved.

Table 11

CPA results in F1 score of MTab4D for the original and adapted version of SemTab 2019 dataset

Method	Round 1		Round 2		Round 3		Round 4

	Original	Adapted	Original	Adapted	Original	Adapted	Original	Adapted
MTab4Db	–	–	0.839	0.982 (+17.04%)	0.844	0.975 (+15.52%)	0.830	0.983 (+18.43%)
MTab4Df	–	–	0.839	0.982 (+17.04%)	0.844	0.975 (+15.52%)	0.830	0.983 (+18.43%)
MTab4Da	–	–	0.839	0.983 (+17.16%)	0.844	0.975 (+15.52%)	0.830	0.983 (+18.43%)

4.6. Errors analysis

This section analyzes the error cases of entity CEA, CTA, and CPA tasks of MTab4D. Specifically, we perform the following analysis objectives:

EA1: How many MTab4D errors are on the CEA task? Which source caused these errors?

EA2: How many MTab4D errors are on the CTA task? Do CEA results affect the annotation result of the CTA task?

EA3: How many MTab4D errors are on the CPA task? Do CEA results affect the annotation result of the CPA task?

EA4: How many MTab4D errors are on different table sizes?

For each question, we analyze MTab4D results on the adapted datasets (Section 4.5.2) using the MTab4Db (MTab4D with the keyword search in Section 3.3.1) since this setting achieved the best performance in this dataset. Error details on each table and errors of other MTab4D versions (i.e., MTab4Df, and MTab4Da) are available on the MTab4D repository.11

¹¹
MTab4D error log files: https://github.com/phucty/mtab4dbpedia/blob/master/data/errors.tar.bz2, last accessed 03/2022.

4.6.1. EA1: MTab4D errors on the CEA task

Statistics of entity annotation errors on the adapted SemTab 2019 dataset depicts in Table 12. The error rate of entity annotation is from 0.75% to 14.32%. MTab4D results have higher error rates in noisy data as Round 1 (14.32%), and Round 2 (8.17%), and lower error rates in the synthesis data Round 3 (0.75%), and Round 4 (1.27%).

Most entity annotation errors (from 89.21% to 95.88%) do not have correct answers in entity search modules in Step 2. Due to the high ambiguity of table cells, there are 4.12%–10.79% of other CEA errors even if there is a correct answer in the step of candidate entity generation.

Because MTab4D entity search modules return the top 100 relevant entities as a default setting (efficiency reasons), a correct answer might be ranked lower than the top 100. To understand MTab4D performances in a larger search limit, we re-run the experiments with the search limit setting as 1,000. Table 13 depicts MTab4D performances with the search limit as 1,000 and as 100 on the adapted SemTab 2019 dataset. Although there is an increasing search limit in MTab4D, the differences in final results are not significant. Building a better search engine for tabular data is challenging for future studies because table data contains ambiguous text, abbreviations, misspellings.

Table 12
Statistics of entity annotation errors on the adapted SemTab 2019 dataset. We show the number of CEA matching targets as #Targets, the number of errors of MTab4Db as #Errors, the percentage of CEA errors when there is no correct entity available in the candidate entity list of the search modules (Section 3.3) as Search , and Others (other error cases)

Round 1 Round 2 Round 3 Round 4

#Targets 8,406 457,567 406,820 107,351

#Errors 1,204 (14.32%) 37,365 (8.17%) 3,069 (0.75%) 1,360 (1.27%)

Search 89.78% 93.92% 89.21% 95.88%

Others 10.22% 6.08% 10.79% 4.12%

	Round 1	Round 2	Round 3	Round 4
#Targets	8,406	457,567	406,820	107,351
#Errors	1,204 (14.32%)	37,365 (8.17%)	3,069 (0.75%)	1,360 (1.27%)
Search	89.78%	93.92%	89.21%	95.88%
Others	10.22%	6.08%	10.79%	4.12%

Table 13

Annotation results of MTab4D on the adapted SemTab 2019 dataset with the search limit as 1,000. We also show the percentage difference of the results with search limit as 1000 and the results of the search limit of 100 (as in Table 9, 10, and 11)

Task	Method	Round 1	Round 2	Round 3	Round 4
CEA	MTab4Db	0.849 (−0.93%)	0.918 (+0.00%)	0.994 (+0.20%)	0.992 (+0.51%)
	MTab4Df	0.883 (−0.34%)	0.925 (+0.22%)	0.994 (+0.20%)	0.991 (+0.41%)
	MTab4Da	0.851 (−1.05%)	0.916 (+0.00%)	0.993 (+0.10%)	0.991 (+0.51%)
CTA	MTab4Db	1.358 (+0.59%)	0.975 (−1.12%)	1.927 (+0.05%)	1.923 (+0.00%)
	MTab4Df	1.396 (+0.00%)	1.031 (+0.00%)	1.930 (+0.10%)	1.925 (−0.05%)
	MTab4Da	1.358 (+0.00%)	0.986 (−1.99%)	1.928 (+0.05%)	1.923 (+0.00%)
CPA	MTab4Db	–	0.982 (+0.00%)	0.975 (+0.00%)	0.983 (+0.00%)
	MTab4Df	–	0.982 (+0.00%)	0.975 (+0.00%)	0.984 (+0.10%)
	MTab4Da	–	0.983 (+0.00%)	0.975 (+0.00%)	0.983 (+0.00%)

4.6.2. EA2: MTab4D errors on the CTA task

Statistics of type annotation errors on the adapted SemTab 2019 dataset are depicts in Table 14. In this analysis, a type annotation is an error when there is no overlapping between the annotated and ground truth types (the concatenation of perfect and OK types). The error rate of type annotation is from 1.57% to 16.75%. MTab4D results have higher error rates in noisy data as Round 1 (9.17%), and Round 2 (16.75%), and lower error rates in the synthesis data Round 3 (1.75%), and Round 4 (1.57%).

There is also a large portion of the CEA annotation errors (80%-99.35%) for type errors. Since the MTab4D type annotation module aggregates confidence signals from CEA annotation results, the errors in CEA tasks also affect the performance of CTA tasks.

Table 14
Statistics of type annotation errors on the adapted SemTab 2019 dataset. We show the number of CTA matching targets as #Targets, the number of errors of MTab4Db as #Errors. CEA errors depicts the probability of having CEA errors in the table that have CTA errors

Round 1 Round 2 Round 3 Round 4

#Targets 109 14,333 5,673 1,717

#Errors 10 (9.17%) 2,401 (16.75%) 99 (1.75%) 27 (1.57%)

CEA errors 80.00% 99.35% 88.16% 81.82%

	Round 1	Round 2	Round 3	Round 4
#Targets	109	14,333	5,673	1,717
#Errors	10 (9.17%)	2,401 (16.75%)	99 (1.75%)	27 (1.57%)
CEA errors	80.00%	99.35%	88.16%	81.82%

4.6.3. EA3: MTab4D errors on the CPA task

Statistics of property annotation errors on the adapted SemTab 2019 dataset are depicts in Table 15. The error rate of type annotation is from 2.66% to 2.97%. We also have the same observation as the CTA tasks; the CPA results are strongly affected by the CEA task performance as a large portion of the CEA annotation errors (80%-99.35%) for property annotation errors.

Table 15
Statistics of property annotation errors on the adapted SemTab 2019 datasets. We show the number of CPA matching targets as #Targets, the number of errors of MTab4Db as #Errors. CEA errors depicts the probability of having CEA errors in the table that have CPA errors

Round 1 Round 2 Round 3 Round 4

#Targets – 6,762 7,575 2,747

#Errors – 151 (2.23%) 225 (2.97%) 73 (2.66%)

CEA errors – 98.75% 90.09% 88.89%

	Round 1	Round 2	Round 3	Round 4
#Targets	–	6,762	7,575	2,747
#Errors	–	151 (2.23%)	225 (2.97%)	73 (2.66%)
CEA errors	–	98.75%	90.09%	88.89%

4.6.4. EA4: MTab4D errors on different table sizes

Statistics of MTab4D errors on different table sizes are reported in Table 16. Overall, MTab4D performance increase with the increase of table size. Regarding the CEA task, MTa4D provides many errors (31.78% of the annotations are incorrect) in the small tables (less than ten cells), while the system performs very well in large tables. In the CTA task, MTab4D results also have many errors in small table sizes (30.66% of the annotations are errors); however, the system works well for large tables. There is no target matching for tables with the number of cells less than ten and larger than 10,000 cells for the CPA task. MTab4D provides the best results for tables with cells from 100 to 1,000 with only 5.72% incorrect answers.

Table 16
Statistics of MTab4D errors on different table sizes

#Cells 10 100 1,000 10,000 100,000

CEA 31.78% 1.82% 0.10% 0.03% 0.00%

CTA 30.66% 9.79% 2.72% 1.77% 0.00%

CPA – 7.89% 5.72% 9.26% –

#Cells	10	100	1,000	10,000	100,000
CEA	31.78%	1.82%	0.10%	0.03%	0.00%
CTA	30.66%	9.79%	2.72%	1.77%	0.00%
CPA	–	7.89%	5.72%	9.26%	–

5. MTab4D APIs, and graphical interface

This section describes our implementations as described in Section 3: MTab4D APIs and MTab4D graphical interface.

5.1. MTab4D APIs

We provide the five following APIs.

Entity Search: This API is used to search relevant entities from the October 2016 version of DBpedia. There are three search modules (Section 3.3): keyword search, fuzzy search, and aggregation search.

Entity Information Retrieval: This API is used to retrieve entity information from the October 2016 version of DBpedia. The responded object includes DBpedia title, mapping to Wikidata, Wikipedia, label, aliases, types, entity popularity (PageRank score), entity triples, and literal triples.

Table Annotation: This API sends a table to the API and gets the annotation results, including structural and semantic annotations. The user could provide the annotation targets for CEA, CTA, or CPA tasks as the input, or MTab4D also could automatically predict the targets based on cell and column datatypes as in Section 3.2.5.

Numerical Labeling: The user could do numerical labeling from numerical columns and get a ranking list of relevant properties as EmbNum+ [16].

SemTab 2019 Evaluation: The user could submit the annotation results of CEA, CTA, and CPA tasks to calculate the evaluation metrics from the original and adapted datasets of SemTab 2019.

5.2. MTab4D graphical interface

We provide two interfaces entity search and table annotation.

5.2.1. Entity search interface

The user can enter a query in the entity search interface then search with the three MTab4D entity search modules (i.e., keyword search, fuzzy search, and aggregation search). Figure 7 illustrates an example of the fuzzy search with the keyword of “Senaticweb”. It takes only 0.06 seconds to get the relevant “Semantic Web” entity.

Fig. 7.

MTab4D entity search interface.

5.2.2. Table annotation interface

The user can copy and paste table content expressed in any language from tabular data files (Excel, CSV, TSV) or tables on the Web in the table annotation interface. Then, the user could tap the “Annotate” button to get the annotation results.

Fig. 8.

MTab4D table annotation interface.

Figure 8 illustrates an example of table annotation on the “v15_1” table in Round 4 of SemTab 2019. MTab4D takes 0.78 seconds to annotate the input table, as shown in the left figure. The figure on the right shows the annotation results. The table header is in the first row, and the core attribute is in the first column. Entity annotations are in red and located below the table cell value. The type annotation is in green and located in the “Type” column. Finally, the relations between the core attribute and other columns are in blue and located in the property column.

6. Related work

In this section, we review the other systems participating in SemTab 2019. Also, we discuss related works on the tabular data annotation task.

6.1. SemTab 2019 systems

Table 17
Comparison of candidate entity generation methods of SemTab 2019 participants

MTab4D CSV2KG TabularISI MantisTable LOD4ALL ADOG DAGOBAH

URI heuristic * x ✓ x x ✓ x x

DBpedia SPARQL ✓ x x ✓ x x ✓

DBpedia Lookup ✓ ✓ x x x x x

DBpedia Spotlight x ✓ x x x x x

Wikidata SPARQL ✓ x ✓ x x x ✓

Wikipedia (CirrusSearch) x x x x x x ✓

Wikipedia (Multilingual) ✓ x x x x x x

DBpedia Elastic Search x x ✓ x x ✓ x

Wikidata Elastic Search x x ✓ x x x ✓

LOD4ALL Elastic Search x x x x ✓ x x

^*
URI heuristic: checking whether there is an available entity that has a similar label with table cell using ASK SPARQL.

	MTab4D	CSV2KG	TabularISI	MantisTable	LOD4ALL	ADOG	DAGOBAH
URI heuristic *	x	✓	x	x	✓	x	x
DBpedia SPARQL	✓	x	x	✓	x	x	✓
DBpedia Lookup	✓	✓	x	x	x	x	x
DBpedia Spotlight	x	✓	x	x	x	x	x
Wikidata SPARQL	✓	x	✓	x	x	x	✓
Wikipedia (CirrusSearch)	x	x	x	x	x	x	✓
Wikipedia (Multilingual)	✓	x	x	x	x	x	x
DBpedia Elastic Search	x	x	✓	x	x	✓	x
Wikidata Elastic Search	x	x	✓	x	x	x	✓
LOD4ALL Elastic Search	x	x	x	x	✓	x	x

This section describes the six other frequent participants for all rounds of SemTab 2019 challenges.

The participants generate candidate entities by looking up table cell values or search values in the local index with Elastic Search in DBpedia, Wikidata. Table 17 reports the lookup services used in the participant systems because of lacking specification of information retrieval techniques, hyper-parameters, database index sources. Then, the candidate types and candidate properties are estimated using the candidate entities. Finally, the systems perform entity disambiguation to return the CEA results. The CTA and CPA annotations are generated with the CEA annotations using majority voting.

CSV2KG (IDLAB) first searches on DBpedia lookup and DBpedia Spotlight to generate candidate entities [25]. The candidate types and property annotations are estimated using majority voting approaches based on candidate entities. Then, the entity annotations are estimated using the information of candidate properties. Finally, type annotations are estimated using entity annotations.

Tabular ISI approach first generates candidate entities with Wikidata API and Elastic Search on entity labels of Wikidata, DBpedia. Second, the authors use the heuristics TF-IDF approach and machine learning (neural network ranking) model to select the best candidate for the entity annotation task [24]. The type annotations are estimated with the results from entity annotations with hierarchy searching on common classes. The property annotations are estimated by finding the relation between candidate entities of the primary and secondary columns or values matching the primary and secondary columns’ values.

Mantis Table performs column analysis, including predicting name entity columns, literal columns, and subject column, then mapping between columns into concepts in DBpedia [3]. The relationships between the subject column and other columns are estimated based on predicate context and predicate frequency of column value and candidate predicates. Finally, entity linking is performed using the results from previous steps for cell value disambiguation. The property annotations are estimated by getting the maximum frequency of candidate properties in the entity linking phase. The authors calculate the hierarchical path score of entity types from entity annotations to estimate type annotations. Then type annotations are estimated on the maximum of the path score.

DAGOBAH performs entity linking with a lookup on Wikidata, DBpedia, and voting mechanisms [1]. The authors used Wikidata entity embedding to estimate the entity candidate types, assuming that the same column’s entities should be closed in the embedding spaces as they share semantic meanings.

LOD4ALL uses a combination of direct search (SPARQL ASK on dbr:“query”), keyword search (Abbreviation of Human name), and Elastic Search to find candidate entities [12]. The candidate entities will be used to estimate type annotations with majority voting. Then, the system determines the entity annotations with the type constraints. Finally, the property annotations are estimated by a column-based majority voting with entity annotations of each table row.

ADOG focuses on entity annotation with Elastic Search on an integrated ontology (DBpedia sub-graph) using a NoSQL database named ArangoDB [18]. The system estimates entity annotation using Levenshtein distance, and the results of type and property annotations are estimated from entity annotations.

In summary, some participants adopt the online lookup services of DBpedia, Wikidata, Wikipedia. As a result, it is hard to reproduce the experimental result while the source index changes over time. Some participants built offline lookup services that lacked specification on the information retrieval techniques, hyper-parameter settings, or index sources. It is also hard to reproduce their results. To address the problem, we built a database index from dump data of the October 2016 version of DBpedia. We released many public APIs about entity search modules that enable reproducibility for future studies.

Moreover, tabular data contains many numerical attributes that help us use semantic labeling results for numerical attributes. In MTab4D, we aggregate signal from the results of semantic labeling for numerical attributes (columns) using EmbNum+ [16] (deep metric for distribution similarity calculation). Additionally, we also use novel signals from the relations of column pairs to enhance overall matching performance.

6.2. Other tabular data annotation tasks

The tabular data annotation tasks could be categorized as structure or semantic annotation.

The structural annotation contains table type prediction [17], datatype prediction, table header annotation, subject column prediction, and holistic matching across tables [10]. In SemTab 2019, most tables are represented as a horizontal relational type; headers are located at the first row of tables, and the subject column is in the first table column.

There are many previous studies on table semantic annotation, including schema-level matching, e.g., tables to classes [22], columns to properties [2,16,19,22] or classes [27], and data-level matching, e.g., rows [5,22] or cells to entities [11,27]. SemTab 2019 also has schema annotation as the CTA task, data annotation as the CEA task, and a novel CPA task as column relation annotation.

6.3. DBpedia version

Due to the different environment settings, such as the DBpedia version, it is hard to compare the annotations directly. Table 18 reports the DBpedia versions used in table annotation tasks. Quercini et al. [20] used a snippet of DBpedia in 2013. T2K [22] conducts experiments on the T2D dataset built on the 2014 version of DBpedia. Efthymiou et al. [5] introduce Wikipedia tables and an adapted version of Limaye gold standard [11] built on the October 2015 version of DBpedia. The recent work (MantisTable [4]) builds the annotation system based on the DBpedia 2017 version. In this work, we follow the SemTab 2019 to build the system based on the DBpedia October 2016 version.

Table 18
Studies used DBpedia as the target knowledge graph

Study DBpedia Version

Quercini et al. [20] 2013

T2K [22] 2014

Efthymiou et al. [5] October 2015

MantisTable [4] 2017

MTab4D October 2016

Study	DBpedia Version
Quercini et al. [20]	2013
T2K [22]	2014
Efthymiou et al. [5]	October 2015
MantisTable [4]	2017
MTab4D	October 2016

7. Conclusion

This paper presents MTab4D, a table annotation system that combines multiple matching signals from different table elements to address schema heterogeneity, data ambiguity, and noisiness. This paper also provides insightful analysis and extra resources on benchmarking semantic annotation with knowledge graphs. Additionally, we also introduce MTab4D APIs and graphical interfaces for reproducibility. Experimental results on the original and adapted datasets of the Semantic Web Challenge on Tabular Data to Knowledge Graph Matching (SemTab 2019) show that our system achieves an impressive performance for the three matching tasks.

7.1. Future work

MTab4D could be improved in many dimensions, such as effectiveness, efficiency, and generality. Regarding efficiency, MTab4D could be modified in a parallel processing fashion since the lookup steps and the probability estimations in Step 2, 3, and 4 are independent. Regarding effectiveness, MTab4D performance could be improved by relaxing our assumptions:

The closed-world assumption (Assumption 1) might not hold in practice. Improving the completeness and correctness of knowledge graphs might improve MTab4D performance.

MTab4D assumes the input table as a horizontal relational type as in Assumption 2. To make MTab4D work for other table types, e.g., vertical relational, we need to perform further preprocessing steps to identify table types and transform table data to horizontal relational.

Many tables could have a shared schema, e.g., tables on the Web could be divided into many web pages; therefore, we can expect an improving matching performance by stitching tables on the same web page (or domain) [10,21].

7.2. Lessons learned

This section discusses the lessons learned from SemTab 2019 challenge.

Benchmarking value From our perspective, SemTab 2019 plays a vital role in benchmarking tabular data annotation tasks. Due to the differences in benchmark settings, tabular datasets, and target matching knowledge bases in the literature, there is a need for a general benchmark for tabular data annotation tasks to promote a fair comparison of annotation systems. This challenge reflects the practical performance of matching techniques and the importance of features for tabular matching.

DBpedia as target knowledge graph The choice of DBpedia as the target matching reflects the low update knowledge graph. In real-world practice, many knowledge graphs change rapidly, such as Wikidata. We will have different challenges in matching the fast-evolving knowledge graphs.

Footnotes

Acknowledgements

The research was partially supported by the Cross-ministerial Strategic Innovation Promotion Program (SIP) Second Phase, “Big-data and AI-enabled Cyberspace Technologies” by the New Energy and Industrial Technology Development Organization (NEDO).

We would like to thank the SemTab 2019 challenge organizers for organizing the successful challenge. We also thank IBM Research and SIRIUS for their sponsorship of the challenge.

References

Chabot,

Labbé,

Liu and

Troncy, DAGOBAH: An end-to-end context-free tabular data semantic annotation system, in: SemTab@ISWC 2019, CEUR Workshop Proceedings, Vol. 2553, CEUR-WS.org, 2019, pp. 41–48, http://ceur-ws.org/Vol-2553/paper6.pdf .

Chen,

Jiménez-Ruiz,

Horrocks and

C.A.

Sutton, ColNet: Embedding the semantics of web tables for column type prediction, in: Proceedings of the Thirty-Third AAAI Conference on Artificial Intelligence, 2019, 2019, pp. 29–36. doi:10.1609/aaai.v33i01.330129.

Cremaschi,

Avogadro and

Chieregato, MantisTable: An automatic approach for the semantic table interpretation, in: SemTab@ISWC 2019, CEUR Workshop Proceedings, Vol. 2553, CEUR-WS.org, 2019, pp. 15–24, http://ceur-ws.org/Vol-2553/paper3.pdf .

Cremaschi,

F.D.

Paoli,

Rula and

Spahiu, A fully automated approach to a complete semantic table interpretation, Future Generation Computer Systems 112 (2020), 478–500. doi:10.1016/j.future.2020.05.019.

Efthymiou,

Hassanzadeh,

Rodriguez-Muro and

Christophides, Matching web tables with knowledge base entities: From entity lookups to entity embeddings, in: The Semantic Web – ISWC 2017 – 16th International Semantic Web Conference, 2017, 2017, pp. 260–277. doi:10.1007/978-3-319-68288-4_16.

Garbe, SymSpell: Symmetric Delete algorithm, GitHub, 2012, https://github.com/wolfgarbe/SymSpell.

Hassanzadeh,

Efthymiou,

Chen,

Jiménez-Ruiz and

Srinivas, SemTab2019: Semantic web challenge on tabular data to knowledge graph matching – 2019 data sets, Zenodo, 2019. doi:10.5281/zenodo.3518539.

Honnibal and

Montani, spaCy 2: Natural language understanding with Bloom embeddings, convolutional neural networks and incremental parsing, 2017, https://spacy.io/.

Jiménez-Ruiz,

Hassanzadeh,

Efthymiou,

Chen and

Srinivas, SemTab 2019: Resources to benchmark tabular data to knowledge graph matching systems, in: The Semantic Web – 17th International Conference, ESWC 2020, Lecture Notes in Computer Science, Vol. 12123, Springer, 2020, pp. 514–530. doi:10.1007/978-3-030-49461-2_30.

10.

Lehmberg and

Bizer, Stitching web tables for improving matching quality, Proc. VLDB Endow. 10(11) (2017), 1502–1513, http://www.vldb.org/pvldb/vol10/p1502-lehmberg.pdf . doi:10.14778/3137628.3137657.

11.

Limaye,

Sarawagi and

Chakrabarti, Annotating and searching web tables using entities, types and relationships, Proc. VLDB Endow. 3(1) (2010), 1338–1347, http://www.vldb.org/pvldb/vldb2010/pvldb_vol3/R118.pdf . doi:10.14778/1920841.1921005.

12.

Morikawa, Semantic table interpretation using LOD4ALL, in: SemTab@ISWC 2019, CEUR Workshop Proceedings, Vol. 2553, CEUR-WS.org, 2019, pp. 49–56, http://ceur-ws.org/Vol-2553/paper7.pdf .

13.

Nguyen,

Kertkeidkachorn,

Ichise and

Takeda, MTab: Matching tabular data to knowledge graph using probability models, in: SemTab@ISWC 2019, CEUR Workshop Proceedings, Vol. 2553, CEUR-WS.org, 2019, pp. 7–14, http://ceur-ws.org/Vol-2553/paper2.pdf .

14.

Nguyen,

Kertkeidkachorn,

Ichise and

Takeda, Semantic annotation for tabular data with DBpedia: Adapted SemTab 2019 with DBpedia 2016-10, Zenodo, 2021. doi:10.5281/zenodo.4922769.

15.

Nguyen,

Kertkeidkachorn,

Ichise and

Takeda, MTab: Matching tabular data to knowledge graph using probability models, 2019, CoRR abs/1910.00246, arXiv:1910.00246.

16.

Nguyen,

Ichise and

Takeda, EmbNum+: Effective, efficient, and robust semantic labeling for numerical values, New Generation Computing 37(4) (2019), 393–427. doi:10.1007/s00354-019-00076-w.

17.

Nishida,

Sadamitsu,

Higashinaka and

Matsuo, Understanding the semantic structures of tables with a hybrid deep neural network architecture, in: Proceedings of the Thirty-First AAAI Conference on Artificial Intelligence, 2017, 2017, pp. 168–174, http://aaai.org/ocs/index.php/AAAI/AAAI17/paper/view/14396 .

18.

Oliveira and

d’Aquin, ADOG – annotating data with ontologies and graphs, in: SemTab@ISWC 2019, CEUR Workshop Proceedings, Vol. 2553, CEUR-WS.org, 2019, pp. 1–6, http://ceur-ws.org/Vol-2553/paper1.pdf .

19.

Pham,

Alse,

C.A.

Knoblock and

P.A.

Szekely, Semantic labeling: A domain-independent approach, in: The Semantic Web – ISWC 2016 – 15th International Semantic Web Conference, Lecture Notes in Computer Science, Vol. 9981, 2016, pp. 446–462. doi:10.1007/978-3-319-46523-4_27.

20.

Quercini and

Reynaud, Entity discovery and annotation in tables, in: Joint 2013 EDBT/ICDT Conferences, EDBT ’13 Proceedings,

Guerrini and

N.W.

Paton, eds, ACM, 2013, pp. 693–704. doi:10.1145/2452376.2452457.

21.

Ritze, Web-scale web table to knowledge base matching, PhD thesis, University of Mannheim, Germany, 2017. https://ub-madoc.bib.uni-mannheim.de/43123.

22.

Ritze,

Lehmberg and

Bizer, Matching HTML tables to DBpedia, in: Proceedings of the 5th International Conference on Web Intelligence, Mining and Semantics, WIMS 2015, 2015, pp. 10–1106. doi:10.1145/2797115.2797118.

23.

Speer, ftfy, 2019, version 5.5. https://github.com/LuminosoInsight/python-ftfy.

24.

Thawani,

Hu,

Zafar,

N.T.

Divvala,

Singh,

Qasemi,

P.A.

Szekely and

Pujara, Entity linking to knowledge graphs to infer column types and properties, in: SemTab@ISWC 2019, CEUR Workshop Proceedings, Vol. 2553, CEUR-WS.org, 2019, pp. 25–32, http://ceur-ws.org/Vol-2553/paper4.pdf .

25.

Vandewiele,

Steenwinckel,

F.D.

Turck and

Ongenae, CVS2KG: Transforming tabular data into semantic knowledge, in: SemTab@ISWC 2019, CEUR Workshop Proceedings, Vol. 2553, 2019, pp. 33–40, http://ceur-ws.org/Vol-2553/paper5.pdf .

26.

Wang,

Shiralkar,

Lockard,

Huang,

X.L.

Dong and

Jiang, TCN: Table convolutional network for web table interpretation, in: WWW ’21: The Web Conference 2021,

Leskovec,

Grobelnik,

Najork,

Tang and

Zia, eds, ACM / IW3C2, 2021, pp. 4020–4032. doi:10.1145/3442381.3450090.

27.

Zhang, Effective and efficient semantic table interpretation using

{TableMiner}^{+}

, Semantic Web 8(6) (2017), 921–957. doi:10.3233/SW-160242.

MTab4D: Semantic annotation of tabular data with DBpedia

Abstract

Keywords

1. Introduction

2.1. Problem definitions

2.1.1. Knowledge graph

2.1.2. Tabular data

2.1.3. Matching targets

2.1.4. Semantic annotation tasks

2.2. Assumptions

3.2. Step 1: Pre-processing

3.2.1. Cell normalization

3.2.2. Data type prediction

3.2.3. Header prediction

3.2.4. Subject column prediction

3.2.5. Matching targets prediction

3.3. Step 2: Candidate entity generation

3.3.3. Aggregation search

3.4. Step 3: Candidate type generation

3.4.1. Entity search signals

3.4.2. Named-entity recognition signals

3.4.4. Numerical column signals

3.5.1. Subject column – named-entity column

3.7. Step 6, 7: Type and property matching

4. Evaluation

4.1. Datasets

4.1.2. Adapted SemTab 2019 dataset

4.1.3. Ground truth

4.1.4. Public resources

4.2. Analysis of the original SemTab 2019 dataset

4.4. Experimental settings

4.5. Experimental results

10 Results: http://www.cs.ox.ac.uk/isg/challenges/sem-tab/2019/results.html, last accessed 03/2022. Then, we present the results of MTab4D on the adapted version of SemTab 2019 in Section 4.5.2. 4.5.1. Original SemTab 2019 dataset

11 MTab4D error log files: https://github.com/phucty/mtab4dbpedia/blob/master/data/errors.tar.bz2, last accessed 03/2022. 4.6.1. EA1: MTab4D errors on the CEA task

Table 16 Statistics of MTab4D errors on different table sizes #Cells 10 100 1,000 10,000 100,000 CEA 31.78% 1.82% 0.10% 0.03% 0.00% CTA 30.66% 9.79% 2.72% 1.77% 0.00% CPA – 7.89% 5.72% 9.26% –

5.1. MTab4D APIs

5.2. MTab4D graphical interface

5.2.1. Entity search interface

6.1. SemTab 2019 systems

6.3. DBpedia version

Table 18 Studies used DBpedia as the target knowledge graph Study DBpedia Version Quercini et al. [20] 2013 T2K [22] 2014 Efthymiou et al. [5] October 2015 MantisTable [4] 2017 MTab4D October 2016

7.1. Future work

7.2. Lessons learned

Footnotes

Acknowledgements

References

¹⁰
Results: http://www.cs.ox.ac.uk/isg/challenges/sem-tab/2019/results.html, last accessed 03/2022.
Then, we present the results of MTab4D on the adapted version of SemTab 2019 in Section 4.5.2.
4.5.1. Original SemTab 2019 dataset

¹¹
MTab4D error log files: https://github.com/phucty/mtab4dbpedia/blob/master/data/errors.tar.bz2, last accessed 03/2022.

4.6.1. EA1: MTab4D errors on the CEA task

Table 16
Statistics of MTab4D errors on different table sizes

#Cells 10 100 1,000 10,000 100,000

CEA 31.78% 1.82% 0.10% 0.03% 0.00%

CTA 30.66% 9.79% 2.72% 1.77% 0.00%

CPA – 7.89% 5.72% 9.26% –

Table 18
Studies used DBpedia as the target knowledge graph

Study DBpedia Version

Quercini et al. [20] 2013

T2K [22] 2014

Efthymiou et al. [5] October 2015

MantisTable [4] 2017

MTab4D October 2016
