Abstract

Background:

Swallowing impairment, including altered physiology and aspiration, occur across the progression of Parkinson’s disease (PD). The phase of respiration during which a swallow is initiated has been linked to swallowing impairment and aspiration in cohorts with dysphagia following stroke and head and neck cancer treatment, but has been understudied in PD. If similar findings are shown in individuals with PD, the implications for swallowing assessment and treatment are significant.

Objective:

The aim of this systematic review and meta-analysis of literature was to examine respiratory-swallow coordination measures and potential implications on swallowing physiology in individuals with PD.

Methods:

An extensive search of 7 databases (PubMed, EMBASE, Central, Web of Science, ProQuest Dissertations & Theses, Scopus, and CINAHL) with predetermined search terms was conducted. Inclusion criteria were individuals with PD and the use of objective evaluations of respiratory-swallow coordination.

Results:

Of the 13,760 articles identified, 11 met the inclusion criteria. This review supports the presence of atypical respiratory swallow patterning, respiratory pause duration and lung volume at swallow initiation in individuals with PD. The meta-analysis estimated an occurrence of 60% of non-expiration-expiration and 40% of expiration-expiration respiratory phase patterns surrounding swallowing.

Conclusion:

Although this systematic review supports the occurrence of atypical respiratory-swallow coordination in individuals with PD, the evidence is limited by the variability in the methods of data acquisition, analysis, and reporting. Future research examining the impact of respiratory swallow coordination on swallowing impairment and airway protection using consistent, comparable, and reproducible methods and metrics in individuals with PD is warranted.

Keywords

Deglutition disorders respiration Parkinson’s disease systematic review meta-analysis

INTRODUCTION

Parkinson’s disease (PD) is one of the most common neurodegenerative disorders in the world [1, 2], and it is prevalent in approximately 1 million individuals in the United States [3]. Although the cause of PD is unknown, its pathological hallmark sign is the loss of dopamine producing or dopaminergic neurons in the substantia nigra pars compacta of the basal ganglia [4, 5]. Dopamine deficiency and the resultant inhibition of neural signals in the basal ganglia circuity [6] lead to insufficiency of movement in PD [7, 8], characterized by classic motor symptoms including rest tremors, bradykinesia, muscular rigidity, and postural instability [9]. Theoretical and empirical research supports that the neuropathology of PD disrupts not only motor control, but also has a negative impact on swallowing physiology [10 –14] and respiratory systems [15 –25], superimposed by the natural process of aging in this population [26]. Swallowing and respiratory impairments in individuals with PD are known to be “silent threats,” progressing undetected until the clinical complaints are severe in advanced stages of the disease [27], resulting in respiratory compromise, aspiration pneumonia, or both.

Dysphagia is a highly prevalent manifestation of PD [10, 11], characterized by altered swallow physiology and aspiration [12 –14]. It is a primary factor contributing to aspiration pneumonia, the leading cause of hospitalization and death in individuals with PD [28 –31]. The dopaminergic basal ganglia system, primarily impaired in PD, plays an important role in the neural control of swallowing. This occurs at the level of the putamen and globus pallidus, which are regions in the basal ganglia responsible for initiating motor activity and modulating swallowing [14, 32]. Deposition of pathologies of PD such as alpha-synuclein and Lewy bodies in this anatomical area may lead to medullary swallowing and respiratory center dysfunction [14 , 33–35]. Evidence suggests that these anatomical changes give rise to physiological impairments in swallowing characterized by repetitive pumping lingual movements, piecemeal deglutition, somatosensory deficits, reduced rate of spontaneous swallows, spasms, hypomotility, etc. [14].

PD is frequently associated with respiratory impairments [15 –25]. Parasympathetic hyperactivity, changes in the central ventilatory control, and occurrence of restrictive and obstructive pulmonary patterns are some mechanisms which may result in respiratory dysfunction [15 , 37]. These deficits can lead to abnormalities including reduced chest wall expansion, upper airway muscular dysfunction, reduced lung volume, and decreased respiratory muscular and coordination deficits, which are characteristic signs of PD [16 , 36–38].

Swallowing and respiration are complex physiological events that share a tightly coordinated relationship [26 , 39–41]. In healthy adults, swallowing occurs during a pause in the expiratory phase of quiet breathing with brief expiratory airflow following the offset of swallowing [26 , 39–74]. This typical pattern has been described as “optimal” because of the beneficial impact on airway protection and bolus clearance [26 , 75–77]. However, this typical coordination can be negatively impacted in several disorders such as stroke and head and neck cancer, resulting in reduced swallowing safety and efficiency [78 –80]. Atypical patterns differing from an expiration-swallow-expiration (EX-EX) pattern have potential biomechanical disadvantages, especially for airway protection. Research regarding typical lung volume at swallow initiation in healthy adults is mixed, influenced by data analysis methods, bolus volume and consistencies [74, 81]. While some research reports that swallowing initiation occurs at the mid to low lung volume relative to resting expiratory level [41, 74], other research has found that swallowing initiation may occur at mid or higher lung volumes [72, 73].

Dysphagia and respiratory dysfunction have been studied independently in individuals with PD, but limited research explores their coordination. Studies targeting respiratory swallow coordination (RSC) in individuals in PD used inconsistent methods for data acquisition, analysis, and reporting of results. Review studies focusing on the impact of PD on RSC are unavailable, despite the high prevalence of motor control deficits, abnormal respiratory patterns, and dysphagia in individuals with PD [82 –100]. As such, the aim of this systematic review and meta-analysis of the literature was to examine RSC measures and potential implications on swallowing physiology in individuals with PD. Studies included in this systematic review contained small sample sizes, variable results, and limited data points. A meta-analysis was completed to ensure effective synthesis of the results, accounting for effect sizes and limited number of included articles. Our long-term goal is to enhance evidence-based dysphagia rehabilitation and improve quality of life of these patients.

METHODS

Protocol

PROSPERO, an international prospective register of systematic reviews, was examined to ensure a similar review does not exist. This review was registered with PROSPERO on May 15, 2021, to avoid duplication and limit reporting bias. The research question, rationale, and selection criteria were determined a-priori. The study selection process utilized the Preferred Reporting Items for Systematic Reviews and Meta-Analysis (PRISMA) standards [101].

Eligibility criteria

Studies that met the following criteria were included in the review: a) Participants were adults (18+ years of age) with a diagnosis of PD; b) Instrumental methods were used to assess RSC; c) Studies were randomized controlled trials, cohort studies, case-control studies, case series or reports, dissertations, and single-subject case studies; d) Articles published in the English language.

Studies that met the following criteria were excluded in the review: a) Participants were healthy individuals, individuals with progressive neurological disorders other than PD, animals, or children; b) Non-instrumental methods were used to assess RSC or analyzed respiration and swallowing abilities independently; c) Expert opinions, tutorials, background information, in vitro studies, and conference abstracts; d) Articles published in languages other than English.

Search strategy and information sources

The search strategy using the keywords “((dysphagia OR deglutition OR swallow*) AND (respirat* OR breath*)) AND (Parkinson*)” was the most inclusive and yielded several articles. We chose the following seven databases: PubMed, EMBASE, Central, Web of Science, ProQuest Dissertations & Theses, Scopus, and CINAHL. The search string utilized for PubMed was: ((“deglutition disorders"[MeSH Terms] OR (“deglutition"[All Fields] AND “disorders"[All Fields]) OR “deglutition disorders"[All Fields] OR “dysphagia"[All Fields] OR “dysphagias"[All Fields] OR (“deglutition"[MeSH Terms] OR “deglutition"[All Fields] OR “deglutitions"[All Fields] OR “deglutitive"[All Fields]) OR “swallow*"[All Fields]) AND (“respirat*"[All Fields] OR “breath*"[All Fields]) AND “parkinson*"[All Fields]); Translations: dysphagia: “deglutition disorders"[MeSH Terms] OR (“deglutition"[All Fields] AND “disorders"[All Fields]) OR “deglutition disorders"[All Fields] OR “dysphagia"[All Fields] OR “dysphagias"[All Fields]; deglutition: “deglutition"[MeSH Terms] OR “deglutition"[All Fields] OR “deglutitions"[All Fields] OR “deglutitive"[All Fields]. Using this search strategy and these databases, we completed an initial search. Repeat literature searches were completed in February 2022 and February 2023 in all databases to review for any additional articles.

We conducted an ancestral bibliography search to ensure that we did not miss any eligible articles. Using the online tool SnowGlobe [102] that assists with backward literature searching, we scanned the reference lists of all included papers [85 , 96]. We manually searched the back references of two included articles that were undetected by SnowGlobe [82, 83]. In February 2022, the references of the two new articles included in this systematic review were manually searched as well [99, 100]. No additional articles met the inclusion criteria.

Selection process

The first author (RR) screened all articles at the title, abstract, and full text stages. We utilized the Rayyan QCRI software, an online systematic review manager for orderly screening of articles [103]. Once duplicates were excluded from the initial search results, title screen was completed based on the following keywords: (“dysphagia”/ “deglutition”/ “swallowing”/ “swallow”/ “swallowing disorder” and/or “breathing”/ “respiration”/ “respiratory”/ “pulmonary” and/or “Parkinson”/ “Parkinson’s disease”). Studies that met this eligibility criteria were then reviewed for further inclusion via abstract screening or full text review. The full-text study selection process was completed using a brief code consisting of 5 criteria: the mention of the keyword “respiratory swallow coordination”, the participant diagnosis, evaluation type, intervention technique, and the outcome measures provided. Each code had a criterion of 1 or 0, as outlined in Supplementary Table 1.

Thereafter, a blinded rater (RS) independently screened 20% of the studies at the title, abstract, and full-text stage to ensure reliability, such that no eligible studies were missed in the study selection process. For the final inclusion of studies, complete agreement was required. Any disagreement was resolved through discussion between the two authors. If an agreement could not be reached, the senior author was consulted.

Data collection process and data items

Following study selection, data collection was completed utilizing a full codebook of 82 questions related to descriptive measures, outcome measures, and the risk of bias, as outlined in Supplementary Table 2.

Study risk of bias assessment

A modified version of the NIH Quality Assessment Tool for Observational Cohort and Cross-Sectional studies [104] was utilized to assess methodological quality of the studies included in this systematic review. This tool consisted of one question focusing on the research question, four questions targeting subject characteristics and recruitment, three questions targeting study methodology, and one question specifically answering blinding and reliability of the study. Ordinal and binary data were coded for each question and each study. Reliability was completed by two independent raters (RR, RS) for 20% of studies. Disagreements were discussed until a consensus was reached.

Meta-analysis

Raw data of respiratory phase patterns were extracted from all included studies. These patterns were categorized as: expiration-swallow-expiration (EX-EX), inspiration-swallow-expiration (IN-EX), expiration-swallow-inspiration (EX-IN), inspiration-swallow-inspiration (IN-IN), expiration before a swallow (EX-S), inspiration before a swallow (IN-S), expiration after a swallow (S-EX), and inspiration after a swallow (S-IN). Certain studies reported patterns other than EX-EX and grouped them as non-expiration-swallow-expiration (non-EX-EX).

Raw frequency and percentages of respiratory phase patterns (EX-EX, non-EX-EX, IN-EX, EX-IN, IN-IN, EX-S, IN-S, S-EX, S-IN) were transformed into logit event rates to compute effect sizes for analysis. The robust variance estimation (RVE) method [105] was employed to account for the dependent structure of the correlated effect sizes because effect sizes were not from an independent sample of participants. RVE method assumes the covariance structure between dependent data by accounting for the different correlation strengths between effect sizes from the same group of participants. All analyses were performed using the Robumeta package in R [106]. Three models were created to determine if there were a predominance of atypical respiratory phase patterns in individuals with PD and healthy controls. The three respiratory-swallow phase patterns used for purposes of this meta-analysis were EX-EX patterns, non-EX-EX patterns, and specific patterns before or after a swallow (EX-S, IN-S, S-IN, S-EX). The primary model was created to calculate a pooled estimate of EX-EX and non-EX-EX respiratory phase patterns in individuals with PD and healthy controls, and the pooled difference between the groups. Meta-analysis was run using extracted data reflecting EX-EX respiratory phase patterns from 24 trials, and non-EX-EX patterns from 15 trials. The second model was to determine the pooled estimate of specific respiratory phase patterns between individuals with PD and healthy controls, and the pooled difference between the groups. Meta-analysis was run using extracted data reflecting EX-S from 4 trials, IN-S from 9 trials, S-EX from 6 trials, and S-IN from 8 trials. The third model was to determine the impact of bolus type (thin liquids) on respiratory phase patterns. Meta-analysis was run using extracted data reflecting EX-EX respiratory phase patterns from 21 trials, and non-EX-EX patterns from 15 trials. From these models, we converted the logit event rates to percentages. A sensitivity analysis was done by bolus type to test if results were highly influenced by a single study. To test for the possibility of bias due to publication of selective or significant results by journals, a publication bias analysis was performed. Small sample corrections in the model accounting for dependent data were incorporated, and an Egger’s regression test was performed.

RESULTS

Study selection

We identified 12,118 articles in the initial literature search. The first author (RR) conducted a title and abstract screen utilizing the inclusion and exclusion criteria, resulting in a yield of 175 full text articles that were further assessed for eligibility. Brief coding was completed, and nine articles met the inclusion criteria which then underwent full coding and data extraction [82 , 96]. In February 2022, a repeat literature search was conducted, which identified 883 articles published in these databases since March 2021. Fifty-seven full-text articles were assessed for eligibility, and two additional articles met the inclusion criteria [99, 100]. In February 2023, a third literature search was conducted, identifying 759 articles published in these databases since February 2022. Fifty-one full text articles were screened for eligibility, and no new articles met the inclusion criteria. A total of eleven articles were included in this systematic review [82 , 100]. Figure 1 outlines the PRISMA flow chart. Interrater reliability exceeded 80% for all screening and extraction, and complete agreement was achieved for decisions regarding inclusion or exclusion of studies.

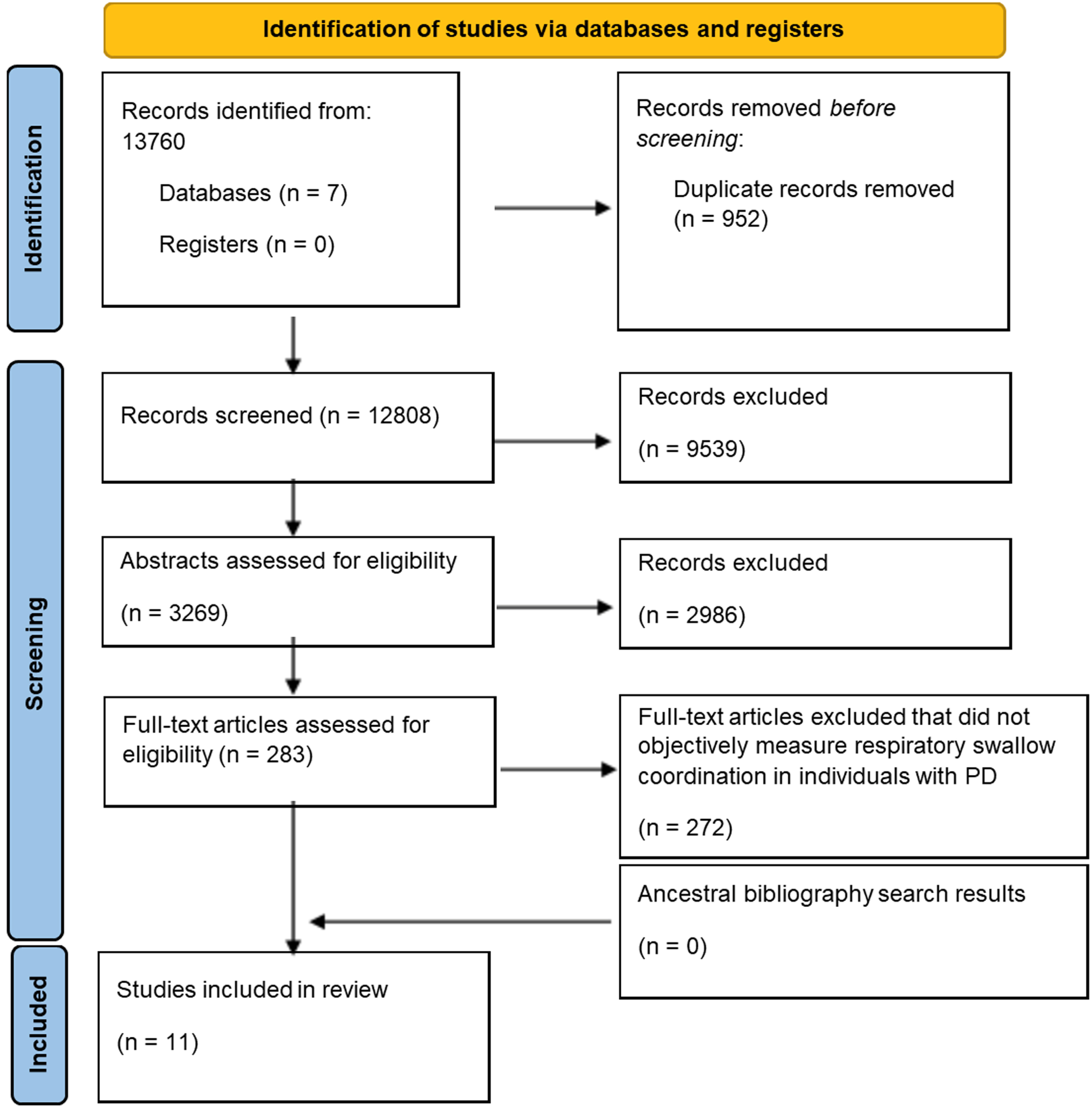

Fig. 1

The figure showcases the screening process using Preferred Reporting Items for Systematic Reviews and Meta-Analysis (PRISMA) for determining the eleven articles included in this systematic review.

Study characteristics

Participant demographics

Of the eleven studies included in this review, the number of participants included in each study ranged from 1 to 42 (Mean = 22.63; Median = 25). The mean age of the participants was 68.61 years with an age range reported in nine of eleven (81.8%) studies [82 , 100] ranging from 40 to 88 years. Participant demographics and details are outlined in Table 1.

Table 1

Participant demographics

Studies	Number of participants with PD	Mean age (y)±Standard deviation (SD); Age range (y)	Sex	Mean disease duration (y)±Standard deviation (SD); Disease duration range (y)	Mean Hoehn-Yahr scale scores±Standard deviation Hoehn-Yahr scale scores; Range Hoehn-Yahr scale scores	Pharmacological dopamine use during study
Curtis, 2020 pages 74–142 [82]	24	69.5±9.9; 49 to 88	Male: 17 Female: 7	Not provided by study	2±1.022; 1 to 4	No information provided
Curtis, 2020 pages 171–232 [83]	12	66.83; 49 to 84	Male: 10 Female: 2	7.42; 2 to 16	2.42; 1 to 4	“On” stage
Wang et al., 2017 [85]	42; Control subjects recruited	64.7±8.6; Not provided by study	Male: 27 Female: 15	8.95±4.86, 1 to 19	1.68±0.67; 1 to 3	“On” stage
Pinnington et al., 2000 [87]	12; Control subjects recruited	68; Not provided by study	Male: 7 Female: 5	11; Not provided by study	Not provided by study; 2 to 5	“On” stage
Lim et al., 2008 [88]	10	63.5; 51 to 69	Male: 6 Female: 4	8.5; 2 to 16	2.4; 1 to 4	“On” stage
Troche et al., 2011 [91]	39	67.8±9.28; Not provided by study	Male: 29 Female: 10	Not provided by study	Not provided by study; 2 to 4 during “on” stage	“On” stage
Gross et al., 2008 [92]	25; Control subjects recruited	71±9.86; 53 to 84	Male: 25 Female: 0	Not provided by study	2.4; 2 to 3	“On” stage
Curtis et al., 2020 [93]	1	81; not applicable	Male: 1 Female: 0	8.5; Not applicable	Not applicable; score of 3	“On” stage
Curtis &Troche, 2020 [96]	25	70.5; 40 to 87	Male: 19 Female: 6	Since diagnosis: 6.7±3.5; 8 to 16	Not provided by study	No information provided
Curtis et al., 2022 [99]	33	69.8±10.6; Not provided by study	Male: 26 Female: 7	Since diagnosis: 6.7±3.5; 8 to 16	Not provided by study;	“On” stage
Wang et al., 2018 [100]	26	62.12±8.52; Not provided by study	Male: 19 Female: 7	8.5±4.65; 1 to 19	1.84±0.811; 1 to 3	“On” stage

Risk of bias

Risk of bias was assessed using the modified NIH Quality Assessment Tool for Observational Cohort and Cross-Sectional studies [104] with scores ranging from 0 to 9, and 9 being the highest score. All studies clearly stated the research question, and all studies recruited from the same or similar populations including the severity of PD. Ten of the eleven (90.9%) studies [82 , 100] clearly defined the study population. One of eleven (9.1%) studies [92] provided justification related to sample size. Variables were clearly defined and statistically evaluated in all studies. However, insufficient or unclear information for blinding of raters was provided in six of eleven (54.5%) studies [85 , 100].

Results of individual studies and syntheses

Methods for recording respiratory-swallow coordination

All of the studies used variable instrumental methods and measures to assess the coordination of respiration and swallowing. Methods for recording respiratory-swallow signals from each study are outlined in Table 2.

Table 2

Methods for recording respiratory-swallow coordination, swallowing, and respiration.

Studies	Instrumentation utilized to measure respiratory-swallow coordination, swallowing and respiration
Curtis, 2020 pages 74–142 [82]	Respiratory inductive plethysmography; Nasal airflow recording via nasal airflow cannula; Submental surface electromyography; Spirometry with face mask; Perceived respiratory sensation testing via inspiratory resistive loading, respiratory strength via MicroRPM respiratory manometer; Signals input directly into a PowerLab data acquisition system, digitized, and recorded at 2kHz; Lab Chart data analysis software sync all signals and stored them for analyses; FEES; Patient reported outcome measures, Unified Parkinson’s Disease Rating Scale.
Curtis, 2020 pages 171–232 [83]	Respiratory inductive plethysmography via Respitrace system; Nasal airflow monitoring via nasal airflow cannula; Spirometry with face mask; Submental surface electromyography; FEES; Patient reported outcome measures; Unified Parkinson’s Disease Rating Scale.
Wang et al., 2017 [85]	Non-invasive electrophysiological swallowing and respiration assessment was based on BIOPAC MP100 system; Sensors used to detect bio-signals of swallowing and respiration; Nasal cannula for airflow monitoring; Force sensing resistor (FSR) sensors for laryngeal excursion; Submental surface electromyography; Patient reported outcome measures; Unified Parkinson’s Disease Rating Scale.
Pinnington et al., 2000 [87]	Non-invasive method - Exeter Dysphagia Assessment Technique (EDAT) recorded; Simultaneous respiratory synchronization with swallowing; Bi-directional airflow recorded through nasal cannula; Swallow sounds recorded by microphone held against throat; All signals recorded by chart recorder; Analyzed subsequently by paper or disk record; Patient reported outcome measures; Unified Parkinson’s Disease Rating Scale.
Lim et al., 2008 [88]	EMG surface electrodes placed midline under the chin; Nasal cannula attached to patient and connected to Digital Swallowing Workstation v.3.0.1; Lung function using closed loop spirometry; Assessment of swallowing using a nasoendoscope; Timed test of swallowing; Patient reported outcome measures; Unified Parkinson’s Disease Rating Scale.
Troche et al., 2011 [91]	Videofluoroscopy - Philips radiographic/fluoroscopic unit; Nasal respiratory flow captured using a 7-foot nasal cannula coupled to Swallow Signals lab; Respiratory tracing captured at 250 Hz used to generate digital display of both respiratory phase and duration of apneic pause during swallowing; Respiratory events interpreted from Kay elemetrics signal lab output; Patient reported outcome measures.
Gross et al., 2008 [92]	Respiratory inductance plethysmography; Kaypentax swallowing station with swallowing signals lab; Nasal cannula that connected to transducer in the Swallowing signals lab; Submental surface electromyography; Patient reported outcome measure; Unified Parkinson’s Disease Rating Scale.
Curtis et al., 2020 [93]	Simultaneous respiratory plethysmography; Nasal thermistor; Submental surface electromyography; Spirometry; Signals input directly into a PowerLab data acquisition system, digitized, and recorded at 2kHz; Lab Chart data analysis software sync all signals and stored them for analyses; FEES; respiratory strength via MicroRPM respiratory manometer; Patient reported outcome measures; Unified Parkinson’s Disease Rating Scale.
Curtis &Troche, 2020 [96]	Respiratory inductive plethysmography (RIP) via the Respitrace system; Elastic Respitrace bands around ribcage and abdomen; Signals were input directly to a PowerLab data acquisition system, digitized, and recorded at 2 kHz; Video capture of the flexible endoscopic evaluation of swallowing was also recorded and inputted into the same PowerLab system; FEES; LabChart data analysis software was used to synchronize the RIP signals with the FEES video recording; Patient reported outcome measures.
Curtis et al., 2022 [99]	Simultaneous respiratory plethysmography and FEES; Respiratory inductive plethysmography using Respitrace system; Elastic Respitrace bands around ribcage and abdomen; Input directly into PowerLab data acquisition system, digitized, and recorded at 2 kHz; Sync with FEES using external camera with LabChart video capture module; Patient reported outcome measures.
Wang et al., 2018 [100]	Electrophysiological monitoring system (BIOPAC MP 100 system); AcqKnowledge software for data recording and analysis; Simultaneously recorded swallowing and respiration biosignals, including sEMG, nasal airflow and thyroid cartilage excursion; Patient reported outcome measures; Unified Parkinson’s Disease Rating Scale.

Measures of respiratory-swallow coordination

In this systematic review, RSC measures focusing on respiratory phase patterning, respiratory cessation duration, and lung volume at swallow initiation in individuals with PD were examined. The impact of RSC and potential linkages to swallowing impairments and airway protection were reviewed.

Respiratory phase

Ten of eleven (90.9%) studies [82 , 100] reported varied respiratory phase patterns in individuals with PD, differing from the EX-EX phase pattern observed in healthy controls [26 , 39–74]. Results from each study are outlined in Table 3.

Table 3

Summary of respiratory phase patterns during swallowing for each individual study

Studies	Respiratory phase patterns; total number of swallows; bolus characteristics
Curtis, 2020 pages 74–142 [82]	EX-S (Expiration prior to cessation): 47.90%, Range: 9 to 84.8% S-EX (Expiration post cessation): 71.80%, Range: 31 to 96.9% EX-EX: 30.2%, Range: 6 to 69.7% Total number of swallows: 729 Bolus type: 10 trials of preferred bolus volume of thin liquid and 23 trials across 11 swallowing conditions
Curtis, 2020 pages 171–232 [83]	EX-EX: Probe (delayed baseline): 22.50%, Probe (Pre-RST): 25%, Generalization testing (delayed baseline): 27.30%, Generalization testing (Pre-RST): 30.70% Total number of swallows: Probe: 120 each, Generalization testing: 276 each. Bolus type: Probe task: preferred bolus volume of safest thin liquid consistency; Generalization task: - 23 trials across 11 swallowing conditions.
Wang et al., 2017 [85]	EX-EX: PD group: 30%, control group: 52% Non-EX-EX: PD group: 70%, control group: 48% Total number of swallows: 265 Bolus type: 1 mL, 3 mL, 5 mL, 10 mL, and 20 mL of thin liquid bolus
Pinnington et al., 2000 [87]	EX-S: PD: 83%, control group: 88% IN-S: PD: 10%, control group: 12% RC-S: PD: 7% S-EX: PD: 80%, control group: 99% S-IN: PD: 18% S-RC: PD: 2% Total number of swallows: 120 Bolus type: 10 trials of 5 mL thin liquid bolus
Lim et al., 2008 [88]	S-EX: “off” phase of dopamine: 91%, “on” phase of dopamine: 100% Total number of swallows: 100 each Bolus type: 10 trials of 8 mL of thin liquid bolus
Troche et al., 2011 [91]	EX-S: 70.10% IN-S: 29.90% S-EX: 86.40% S-IN: 13.60% Total number of swallows: 670 Bolus type: 10 trials of 5 mL thin liquid bolus and one 3 oz sequential thin liquid swallow by cup
Gross et al., 2008 [92]	IN-S: PD: Pudding: 16.60%, Cookie: 13.75%; healthy: Pudding: 9.56%, Cookie: 1.86% S-IN: PD: Pudding: 25.53%, Cookie: 24.76%; healthy: Pudding: 7.39%, Cookie: 9.34% Total number of swallows: PD: Pudding: 235, Cookie: 210/211 Bolus type: 10 trials of semisolid (pudding) and 9 trials of 2.5 g solid (cookie) portions
Curtis et al., 2020 [93]	Probe measures: EX-EX: Probe: 23.40%, Generalization: 28.20% IN-EX: Probe: 66.60%, Generalization: 71.80% EX-IN: Probe: 3.40%, Generalization: 0% IN-IN: Probe: 6.60%, Generalization: 0% Total number of swallows: Probe: 20, Generalization: 14 Bolus type: 10 trials of cup sips of thin liquid and non-cued saliva swallows; generalization: liquids and solids
Curtis &Troche, 2020 [96]	IN-S: 21.3% S-IN: 8% EX-EX: 70.7% IN-EX: 22.7% EX-IN: 6.7% IN-IN: 0% Total number of swallows: 75 Bolus type: Three trials of 5 mL thin liquid administered by syringe
Curtis et al., 2022 [99]	IN-S: 55.20% S-IN: 19% EX-EX: 33.10% IN-EX: 48.40% EX-IN: 11% IN-IN: 6.70% Total number of swallows: 163 Bolus type: Five trials of 5 mL thin liquid by 30 mL medicine cup
Wang et al., 2018 [100]	EX-EX: PD: 1 mL: 22%, 3 mL: 29%, 5 mL: 33%, 10 mL: 38%, 20 mL: 22%, total: 30% EX-EX: Healthy: 1 mL: 59%, 3 mL: 48%, 5 mL: 53%, 10 mL: 53%, 20 mL: 44%, total: 52% Non-EX-EX: PD: 1 mL: 78%, 3 mL: 71%, 5 mL: 67%, 10 mL: 62%, 20 mL: 78%, total: 70% Non-EX-EX: Healthy: 1 mL: 41%, 3 mL: 52%, 5 mL: 47%, 10 mL: 47%, 20 mL: 56, total: 48% Total number of swallows: PD: 248, healthy: 231 Bolus type: 3 trials of each bolus volume of thin liquid (1 mL, 3 mL, 5 mL, 10 mL, 20 mL)

EX-EX: expiration-swallow-expiration; IN-EX: inspiration-swallow-expiration; EX-IN: expiration-swallow-inspiration; IN-IN: inspiration-swallow-inspiration; EX-S: expiration before a swallow; IN-S: inspiration before a swallow; S-EX: expiration after a swallow; S-IN: inspiration after a swallow; non-EX-EX: non-expiration-swallow-expiration.

Meta-analyses of respiratory phase patterns

Pooled estimates of EX-EX vs non-EX-EX in PD and healthy group

For individuals with PD, EX-EX patterns were reported by seven studies [82 , 100] from 19 trials, and the pooled percentage estimate is 40.8%. Non-EX-EX patterns were reported by two studies [85, 100] from 10 trials, and the pooled percentage estimate is 59.9%. These results show that individuals with PD have respiratory phase patterns consisting of greater non-EX-EX patterns, irrespective of bolus consistency or volume. Results are outlined in Table 4 and Figs. 2 3.

Table 4

Pooled estimates and differences in percentage of respiratory phase patterns between individuals with PD and healthy controls by bolus type

Bolus type	Respiratory phase patterns	Pooled percentage estimate of PD patients	Pooled percentage estimate of healthy controls	Pooled estimated difference in percentage between PD patients and healthy controls	Pooled estimated difference in logit between PD patients and healthy controls (95% CI)	p	No. of trials	Reported by no. of studies
All	EX-EX	40.8%	50.6%	–9.9%	–0.40 (–0.53, –0.27)	0.001	PD: 19; controls: 5	PD: 7; controls: 1
Thin	EX-EX	40.8%	50.6%	–9.8%	–0.40 (–0.56, –0.23)	0.004	PD: 16; controls: 5	PD: 6; controls: 1
All	Non-EX-EX	59.9%	49.4%	10.5%	0.43 (0.21, 0.65)	0.026	PD: 10; controls: 5	PD: 2; controls: 1
Thin	Non-EX-EX	59.9%	49.4%	10.5%	0.43 (0.21, 0.65)	0.026	PD: 10; controls: 5	PD: 2; controls: 1
All	EX-S	58.4%	70.4%	–12.0%	–0.53 (–1.43, 0.38)	0.130	PD: 3; controls: 1	PD: 3; controls: 1
All	IN-S	35.5%	22.4%	13.1%	0.65 (–0.75, 2.05)	0.160	PD: 6; controls: 3	PD: 4; controls: 2
All	S-EX	76.6%	88.0%	–11.5%	–0.81 (–2.53, 0.91)	0.215	PD: 5; controls: 1	PD: 4; controls: 1
All	S-IN	31.9%	26.0%	6.0%	0.29 (–0.08, 0.67)	0.095	PD: 6; controls: 2	PD: 4; controls: 1

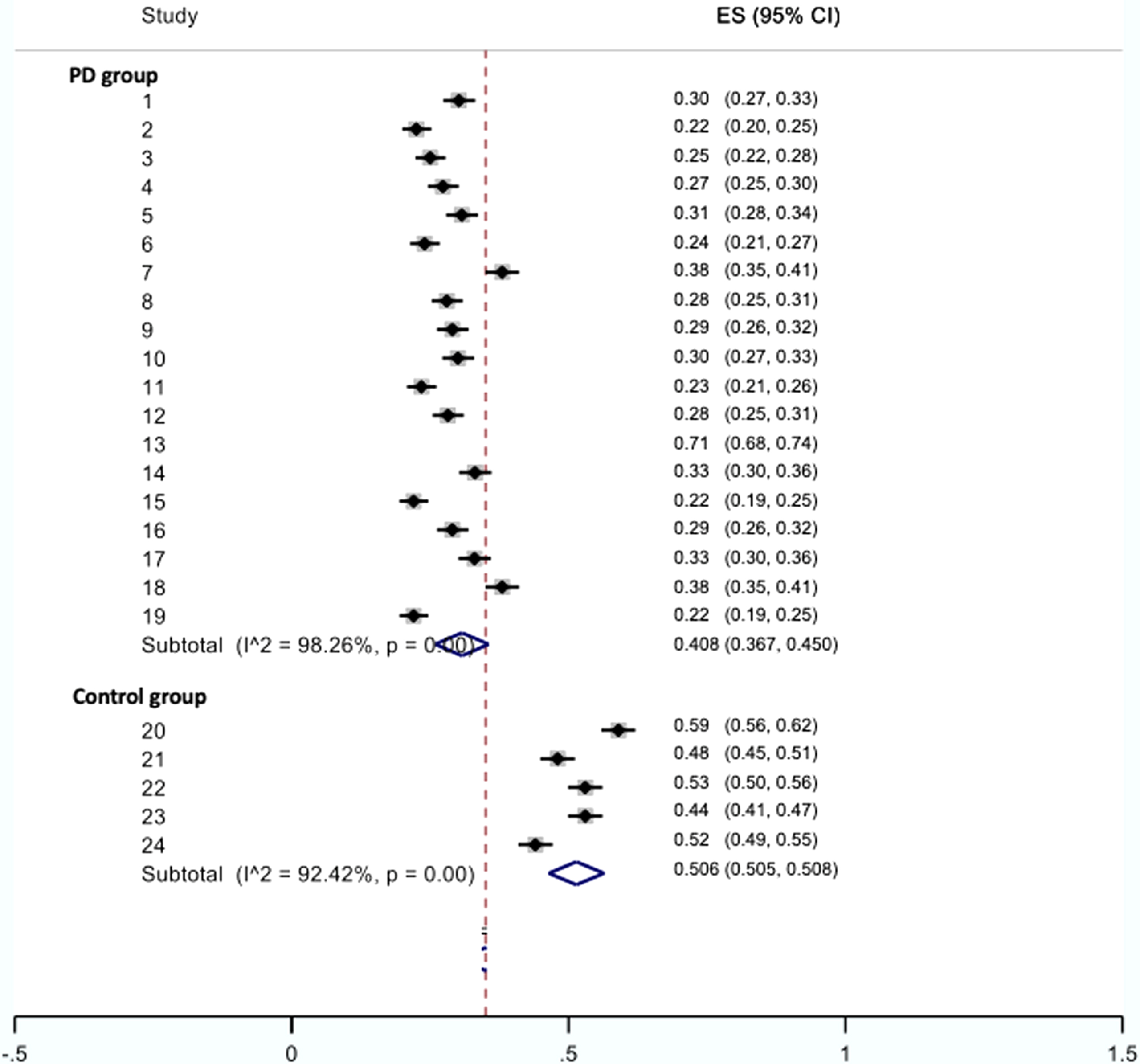

Fig. 2

Pooled estimate of EX-EX respiratory phase pattern by groups (in proportion).

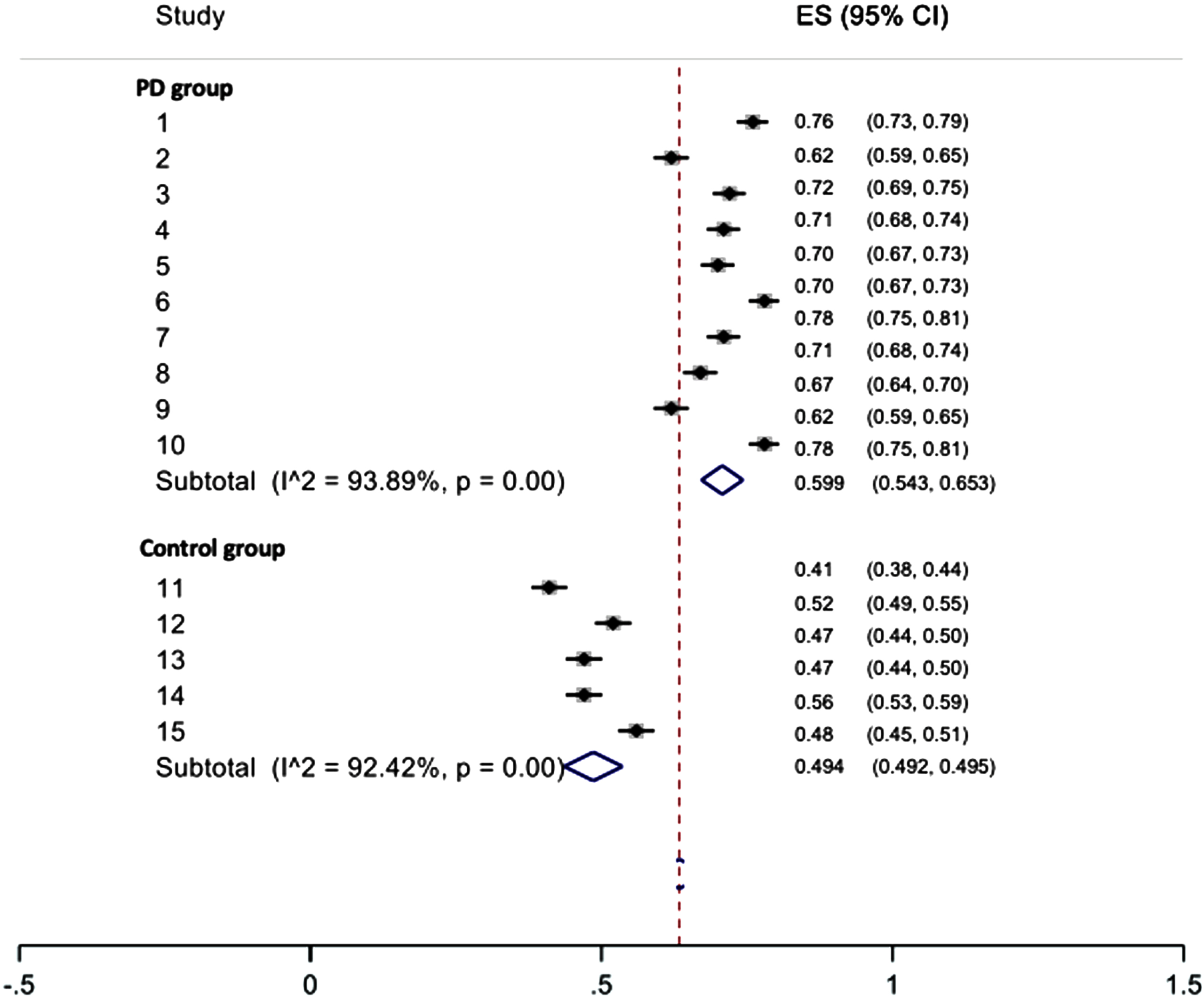

Fig. 3

Pooled estimate of non-EX-EX respiratory phase pattern by groups (in proportion).

For healthy controls, EX-EX were reported by only one study [85] from 5 trials, and the pooled percentage estimate is 50.6%. Non-EX-EX patterns were reported by one study [85] from 5 trials, and the pooled percentage estimate is 49.4%.

Pooled difference of EX-EX vs non-EX-EX in PD and healthy group and impact of bolus type

The PD group’s EX-EX percentage was 9.9% lower than the control group (p = 0.001) for all bolus types. Pooled estimated difference for EX-EX was similar for thin liquid only (–9.8%, p = 0.004). The PD group’s non-EX-EX percentage was 10.5% higher than the control group (p = 0.026) for all bolus types. Pooled estimated difference for non-EX-EX was similar for thin liquid only (10.5%, p = 0.026). Results are summarized in Table 4.

Sensitivity analysis and publication bias

A sensitivity analysis was completed by restricting the analysis to thin liquids only, and no change in results was observed. This indicates that no single study had extreme percentage-weights to highly influence the estimates. Publication bias was assessed by Egger’s regression tests for asymmetry (for EX-EX patterns: t = 4.65, p = 0.0001; for non-EX-EX patterns: t = –7.16, p < 0.0001). This indicates that there may be potential publication bias in the meta-analysis findings.

Respiratory cessation

Ten of eleven (90.9%) studies measured respiratory cessation as a RSC outcome measure [82 , 100]. Six of ten (60%) studies [82 , 99] reported longer respiratory cessation duration in individuals with PD when compared to healthy controls. In contrast, two of the ten (20%) studies [85, 92] reported no significant difference in respiratory cessation duration between PD and control groups. Two of the ten (20%) studies [91, 100] reported inconclusive or unclear findings of respiratory cessation duration in individuals with PD. Individual characteristics of each study are outlined in Table 5.

Table 5

Measures of respiratory cessation and lung volume at swallow initiation for each individual study

Studies	Respiratory cessation	Lung volume at swallow initiation
Curtis, 2020 (pages 74–142) [82]	Average - 3.55±1.34 s Range –1.49 to 7.39 s	11.5±5.6% Vital capacity (VC) Range –0% VC to 23.1% VC
Curtis, 2020 (pages 171–232) [83]	Average during probe measures - 3.24 s at delayed baseline and 1.68 s pre-intervention Average during Generalization testing -4.36 s at delayed baseline and 4.14 s pre-intervention	Average during probe measures - 10.8% VC at delayed baseline and 13% VC pre-intervention Average during Generalization testing -12.8% VC at delayed baseline and 14.6% VC pre-intervention
Pinnington et al., 2000 [87]	PD - 0.69±0.17 s Healthy - 0.42±0.11 s	Not measured
Curtis et al., 2020 [93]	Average during probe measures - 3.17±2.29 s (Range –0.79 to 9.30 s) Average during Generalization testing - 5.58±2.58 s (Range –1.37 to 11.68 s)	Average during probe measures - 66.0±12.3% VC (Range –44.7 to 99.3% Vital capacity) Average during Generalization testing - 67.5±10% VC (Range –53.6 to 95.4% Vital capacity)
Curtis &Troche, 2020 [96]	Average - 1.74±1.11 s; (Percentile ranges –25% –1.03 s, 50% –1.39 s, 75% –1.81 s	34.6±41.2% Tidal breathing above end expiratory level
Curtis et al., 2022 [99]	Average - 2.96±2.78 s Avg coefficient of variation –41.4% (SD = 20.1%); Percentile ranges –25% –1.21 s, 50% –1.88 s, 75% –3.68 s	83.3±81.8% Tidal volume relative to end expiratory level of rest breathing; 16.9±16.0% vital capacity relative to end expiratory level of rest breathing (SD = 16.0); Avg coefficient of variation –12.9% (SD = 8.2%)
Gross et al., 2008 [92]	PD group - Average for swallows occurring during expiration - 0.643±0.133 (Range –0.409 to 1.300 s) Average for swallows occurring during inspiration -0.665±0.182 (Range –0.417 to 1.325 s) Control group - Average for swallows occurring during expiration - 0.649±0.133 (Range –0.377 to 1.357 s) Average for swallows occurring during inspiration -0.887±0.274 (Range –0.576 to 1.744 s)	Low tidal volume (no value provided)
Wang et al., 2017 [85]	No value provided	Not measured
Wang et al., 2018 [100]	No value provided	Not measured
Troche et al., 2011 [91]	No value provided	Not measured
Lim et al., 2008 [88]	Not measured	Not measured

SD: standard deviation.

Varying durations of respiratory cessation were reported by studies included in this review. Studies that reported longer durations of respiratory cessation associated with swallowing events exhibited an average of 2.6 s (range: 0.69–5.58 s), compared to healthy or control groups (range: 0.5–1.5 s) [74].

Lung volume at swallow initiation

Six of eleven (54.5%) studies [82 , 99] evaluated lung volume at swallow initiation (LVSI) with varying conclusions. Results of lung volume at swallow initiation ranged from 0% vital capacity to 99.3% vital capacity. Individual characteristics of each study are outlined in Table 5.

Impact on swallowing efficiency

Five of eleven (45.5%) studies [82 , 99] linked RSC outcome measures to the presence of swallowing impairment or reduced airway protection. Four of eleven (36.4%) studies [85 , 100] implicated a relationship between RSC outcomes and swallowing function and airway protection. One of eleven (9.1%) studies [92] reported inconclusive results. In addition, one of eleven (9.1%) studies [88] correlated RSC with pharmacological dopaminergic intervention.

Variable methodology and results were found in studies that linked RSC outcome measures to the presence of swallowing impairment or reduced airway protection [82 , 99]. Troche et al. (2011) reported significant positive relationships between respiratory events, respiratory cessation duration, and penetration-aspiration scale scores (PAS) [107] assessed by videofluoroscopy [91]. Similarly, Curtis (2020; pages 74–142) reported that RSC measures such as respiratory phase patterning, respiratory cessation duration, and lung volume at swallow initiation were altered, and these changes were linked with the severity of vallecular and pyriform residue, and the presence of penetration-aspiration assessed by Flexible Endoscopic Evaluation of Swallowing (FEES) in an participants with PD [82]. Likewise, Curtis et al. (2021) reported that participants demonstrated PAS scores assessed by FEES ranging from 1–8, with a score of 8, representing silent aspiration, was most frequent in 27.2% of participants [99]. Swallows in these participants were frequently characterized by IN-EX patterns with initiation near the end-inspiratory level of tidal breathing, and a median respiratory pause duration of approximately 2 s [99].

Intervention studies that examined changes in RSC showed similar results to the observational studies. These respiratory-swallow interventions trained individuals with PD to perform the typical EX-EX respiratory pattern. In a single subject treatment study, Curtis et al. (2020) reported descriptive analyses revealing improvements from baseline measures in PAS scores assessed by FEES, vallecular and piriform residue assessed by the 5-point Yale Pharyngeal Residue Severity Rating scale [108] and Dynamic Imaging Grade of Swallowing Toxicity (DIGEST) [109] following completion of respiratory-swallow training [93]. In another experiment Curtis (2020; pages 171–232) reported that 58.3% of participants had moderate dysphagia as per Dynamic Imaging Grade of Swallowing Toxicity for FEES (DIGEST-FEES) [83]. Significant reductions in the frequency of abnormal PAS scores (p < 0.0005), vallecular residue (p = 0.001), piriform residue (p = 0.001), laryngeal vestibule residue (p < 0.0005), vocal fold residue (p = 0.002), and subglottic residue (p = 0.010) immediately post respiratory-swallow training and during the 1-month follow up assessment were reported. Patient reported outcome measures of swallowing using the Functional Oral Intake Scale (FOIS) showed significant improvement post respiratory-swallow training [83].

DISCUSSION

We completed a systematic review of the literature resulting in identification of 13,760 articles of which eleven articles met the inclusion criteria [82 , 100]. Results of this review supported the presence of atypical RSC in individuals with PD, with a meta-analysis reporting an estimated 60% of non-EX-EX and 40% of EX-EX respiratory phase patterns surrounding swallowing, irrespective of bolus type. This differs from the predominant occurrence of swallows bracketed by expiration in healthy adults [26 , 39–74].

Methods of data acquisition and analysis

Variable measures of evaluation to assess RSC in individuals with PD were utilized in the studies included in this review. Five of eleven (45.5%) studies [82 , 99] used Flexible Endoscopic Evaluation of Swallowing (FEES) in attempt to objectively assess swallowing physiology simultaneously during respiratory-swallow measurements. FEES is a minimally invasive procedure, with a scope passed through the nasopharynx and positioned at a point posterior to the epiglottis where the laryngeal structures can be clearly visualized. Swallowing physiology is analyzed upon oral intake of measured boluses of food and liquid by the patient [110]. The use of FEES during respiratory-swallow measurements presents some challenges. A prevalent complaint during the administration of FEES is patient discomfort [111]. Secondly, there is partial obstruction of the nasopharynx during FEES due to insertion of the scope through the nose. These challenges may negatively disrupt the natural, synergistic relationship between respiration and swallowing, impacting the incidence of naturally occurring swallows. When performing FEES in individuals with PD, an approximate increase in lung volume at swallow initiation by 3% vital capacity as a function of the laryngoscope was reported [82]. The clinical impact of this effect was unknown [82]. Use of videofluoroscopic procedures during respiratory-swallow measurements alleviates some of the physiological load associated with the indwelling endoscope used in FEES and may lead to a more accurate representation of a patient’s typical respiratory-swallow pattern. Additionally, use of varying methodologies utilized to detect a swallow, such as identification of endoscopic white-out on the FEES, respiratory pause on nasal plethysmography signals, and placement of digital tags manually during respiratory data acquisition [96, 99] may have also confounded direct comparison of results.

Measures of respiratory-swallow coordination

For this review, RSC measures included respiratory phase patterning, respiration cessation duration, and lung volume at swallow initiation in individuals with PD.

Respiratory phase

This review and meta-analysis support that individuals with PD exhibit an estimated 60% of non-EX-EX and 40% of EX-EX respiratory phase patterns surrounding swallowing, irrespective of bolus type. In some cases, we were unable to directly compare all studies due to differences in the operational definitions and labeling of phase patterns.

The high occurrence of atypical respiratory phase patterns in individuals with PD may be attributed not only to PD, but also to concurrent clinical factors such as the known age-related changes to swallowing [26, 71] and respiration [112, 113]. These factors, when combined with PD, may consequently increase the risk of penetration or aspiration of liquids or solids during a swallow.

Previous review studies confirmed that the EX-EX respiratory phase pattern remains predominant in adults across the age continuum of 18 to 83 years [74]. It has been shown in other disease populations that initiation of swallowing during the expiratory phase of respiration at mid to low lung volume provides a neutral position of the tongue base and larynx, creating an ideal physiologic set point for airway protection and bolus clearance movements that occur during pharyngeal swallowing [114]. In contrast, this meta-analysis reports an estimated 50% of non-EX-EX and 50% of EX-EX respiratory phase patterns in the control group of healthy older adults, with mean age of 63 years [85]. However, these findings are derived from a single study [85] and should be interpreted with caution. Due to this limitation, the estimates for respiratory phase patterns in healthy controls from this review cannot be compared or generalized.

Respiratory cessation

This review supports that individuals with PD exhibit longer respiratory cessation durations during swallowing when compared to healthy controls. Studies included in this review implemented varying terminologies, definitions, and methods to measure respiratory cessation in individuals with PD, which may have contributed to variability of results. Terms utilized were ‘respiratory pause duration’ [82 , 99], ‘swallowing respiratory pause’ [85, 100], ‘pharyngeal part’ or ‘deglutition apnoea’ [87], ‘swallowing apnea’[91], ‘duration of deglutitive apnea’ [92], and ‘swallow apnea duration’ [93, 96]. The term “apnea” can be associated with presence of a disease or deficit [115]. As such, a more physiologically appropriate term to use in studies of RSC and the inhibition in respiration resulting from swallowing is ‘respiratory cessation’ or ‘respiratory pause’ [79, 116].

If shown in future studies using clearly defined methods and measures, the prevalence of longer respiratory cessation durations during swallowing in individuals with PD suggests that longer periods of cessation may be a compensatory strategy for prolonged airway closure and increased airway clearance [82]. Longer respiratory cessation may enable increased airway protection related to impaired movements of swallowing or altered RSC. It should be noted that this potential compensatory strategy may also result in dyspnea or shortness of breath in patients with PD and co-existing respiratory disorders.

Lung volume at swallow initiation

This review supports that individuals with PD initiate swallows at lung volumes that are different from typical lung volumes at swallowing initiation reported in healthy adults [26 , 67–69]. Interpretation and conclusions are difficult, however, because of the wide variations in the nature of respiratory methods and values to report lung volume at swallowing initiation. For example, some studies reported lung volume at swallow initiation as a percentage of vital capacity (% VC) relative to end expiratory level of tidal breathing [82 , 93]. Others used a percentage of the participants’ average tidal breathing range (% TB) [96], or as a percentage of the participant’s average tidal volume (% TV) relative to end-expiratory level [92, 99]. Further, varying methods used to analyze the lung volume data and small sample sizes limit the ability to draw conclusions regarding the relevance of the lung volume data on swallowing physiology in patients with PD.

Individuals with PD exhibit significantly reduced chest wall expansion, upper airway obstruction and muscular dysfunction resulting in lower forced vital capacity (VC), forced expiratory volume in 1 s (FEV1), FEV1/VC, and peak expiratory flow rate (PEFR) compared to age and sex matched controls [15 , 117]. Initiation of a swallow at atypical lung volumes may be related to these underlying changes in pulmonary function in patients with PD. If future studies with adequate sample sizes and controls allowing direct comparisons support the alterations in lung volume at swallow initiation in patients with PD, these lung volumes may contribute to reduced airway protection and bolus clearance based on information obtained in healthy adults. That is, initiation of swallowing at typical lung volumes provides significant airway and biomechanical advantages related to laryngeal closure and bolus clearance through the upper aerodigestive tract [41].

Limitations

Multiple variables, in addition to the variation in data recording and measurement, may have contributed to the inconsistency of RSC findings in this review. Nuances of the study protocols, such as swallowing instruction or cueing, mode of bolus delivery, and bolus characteristics have been shown to result in different respiratory swallow pattern and lung volume at swallow initiation [41]. Additionally, variations in participant demographics, severity and symptoms associated with PD for each patient, reported deficits in swallowing physiology, and use of pharmacological or dopaminergic intervention may have directly impacted respiratory-swallow measurements. Finally, despite thorough and widespread review of the literature targeting RSC and PD, relevant studies could have been missed. The potential of publication bias in the meta-analysis due to the limited and variable published studies, suggests that findings should be interpreted with caution until more studies are completed.

Conclusions

This systematic review appears to support that respiratory-swallow patterning, respiratory pause duration, and lung volume at swallow initiation differ when comparing patients with PD to healthy controls [26 , 39–74]. These altered components of RSC may play a collective role in the high prevalence of dysphagia and aspiration in this patient population. However, results from this review should be interpreted with caution due to sample size limitations and high degree of variability in swallowing physiology and respiratory-swallow signal data acquisition, measurement, and analysis methods. Future research examining the nature and impact of RSC on swallowing physiology and airway protection, that use consistent, comparable, and reproducible methods and metrics in individuals with PD and healthy controls is warranted. Such studies will clarify our understanding of the relevance of RSC on swallowing function and airway protection in patients with PD, and the role of training typical coordination patterns on swallowing safety and efficiency observed in other patient groups with dysphagia.

Footnotes

ACKNOWLEDGMENTS

Ms. Rabab Rangwala: doctoral student stipend from Northwestern University. Ms. Raneh Saadi: doctoral student stipend from Northwestern University. Dr. Lee: salary from Northwestern University. Dr. Reedy: salary from Northwestern University. Dr. Kantarcigil: salary from Northwestern University. Dr. Roberts: salary from Northwestern University. Dr. Martin-Harris: salary from Northwestern University and Edward Hines, Jr. VA Hospital; NIH/NIDCD, 2K24DC12801-07 grant; Modified Barium Swallow Impairment Profile (MBSImP) royalties from Northern Speech Services through Medical University of South Carolina Foundation for Research Development.

CONFLICT OF INTEREST

The authors have no conflict of interest to report.

DATA AVAILABILITY

The data supporting the findings of this study are available within the article and/or its .

The supplementary material is available in the electronic version of this article: .
