Multi-dimensional T-S dynamic fault tree analysis method involving failure correlation

Abstract

The lack of effective failure correlation analysis is one main reason for the gap between the reliability models and the actual complex systems with mixed static and dynamic characteristics. Takagi and Sugeno (T-S) dynamic fault tree is one powerful tool to analyze the static and dynamic failure logic relationship but it assumes the failure probability of the event is independent. Therefore, this paper proposes a multi-dimensional T-S dynamic fault tree analysis method involving failure correlation. The method integrates the failure probability distribution function of basic events with multi-factors and the multi-dimensional copula function, and the important measure of this method is also deduced. The reliability model expression for systems with failure correlations, both in series and in parallel, is discussed and verified. Compare the proposed method with the assumption that the probability of a failure event is independent. This method solves the problem of a large error when ignoring the failure correlation between parts and the degree of the correlation between variables can be characterized. The reliability analysis can be conducted on complex systems affected both by multi-factors and failure correlations. The proposed method is applied to the reliability analysis of a hydraulic height adjustment system and the correctness and superiority of the method are verified.

1 Introduction

As modern engineering systems become larger and more complex, and the level of system integration becomes higher, it is crucial to consider various system characteristics to ensure their reliability, which poses a huge challenge to system reliability analysis and evaluation. The system characteristics to be considered mainly include the following aspects: 1) Due to the complexity and diversity of engineering system structure and fault types, the fault evolution process exhibits mixed static and dynamic failure behavior. 2) The occurrence of system failures is often influenced by multi-factors due to the operating mechanism and working environment of the system. 3) The coupling relation of system structure and function makes the system and its components have multimode failure and failure correlation. Several traditional methods have been researched and proven to be powerful tools for analyzing and evaluating system reliability, including Reliability Block Diagram (RBD) [10], Fault Tree Analysis (FTA) [13, 29], Binary Decision Diagram (BDD) [5, 18], Markov chains [1, 24], Bayesian Network (BN) [2], etc. These traditional methods have certain advantages in terms of modeling, execution, and computational efficiency, but also have significant limitations: 1) The RBD is usually based on the static model of the system and cannot consider the effect of dynamic factors on system reliability. 2) Static fault tree analysis has been developed into Dugan dynamic Fault tree analysis (DFTA) that can capture dynamic failure behavior, but it can only perform qualitative analysis and require the assistance of Markov chains or Monte Carlo methods for quantitative calculations. 3) While Markov chains offer a solution to dynamic behavior problems, it is limited by its inability to handle failure behaviors that follow non-exponential distributions. Additionally, in dealing with complex systems, the challenge of exponential growth in state space arises. 4) BDD is a useful tool to evaluate the impact of various factors on decision outcomes. However, its applicability is limited to simple and unambiguous problems. It has proven to be less effective in addressing complex and fuzzy problems, and the modeling process is relatively complex. 5) The BN requires probability calculation and inference during inference, which may require more computing resources and time. Especially in cases where the network is large or has complex structures, the computational complexity will further increase. Traditional analysis methods have not fully considered the effect of mixed static and dynamic failure behavior, multi-factor influencing characteristics and failure correlation on system reliability analysis. With the emergence of the above problems, their limitations are becoming increasingly apparent.

The Takagi-Sugeno dynamic Fault tree analysis (T-S DFTA) method proposed by scholars Yao et al. [4] can describe both static and dynamic failure behavior. It developed after TS-FTA [16], a method can only describe static failure behavior. It overcomes the shortcoming that the DFTA [19] method can only qualitatively analyze. T-S dynamic gates and their event description rules can infinitely approximate the failure behavior of real systems and can describe any form of static and dynamic failure behavior. Furthermore, Yao et al. [3] proposed a continuous-time T-S DFTA method, which is capable of solving the calculation error problem of discrete-time T-S DFTA and indicating the changing trend of system failure probability. Taking the tape winding hydraulic system as an example, Sun et al. [17] applied the continuous-time T-S DFTA algorithm to the quantitative analysis of dynamic system reliability.

In addition to being dynamic, actual systems are also affected by multi-factors. Considering the effect of a wide variety of factors on the system fault probability, Cui and Li [27] proposed a state absorption method and a state recurrence method in accordance with the Space Fault Tree (SFT) to study the logical relationship between reliability and factors. Further considering the effect of multi-factors and taking the electrical system as the research object, the failure probability distribution of the components and the system under the two factors (including time and temperature), as well as the probability importance and criticality importance of the components were obtained [26]. Chen et al. [7] proposed a continuous-time multi-dimensional T-S DFTA and applied it to the reliability analysis of the hydraulic system of concrete pump trucks. Although the above method enhances the description ability of the fault tree and other methods under multi-factors, the failure correlation between the components in the system is not considered.

In the actual system, a wide variety of components have a certain failure correlation due to mutual cooperation. The reliability analysis results will significantly deviate from the actual situation if only the failure independence between components is considered. Thus, the effect of failure correlation problems should be considered. Tang et al. [20] proposed a novel theoretical method for reliability calculation with failure correlation in mechanical systems. The static and dynamic calculation models in accordance with copulas theory were built, and the problem of determining the correlation degree was solved. On that basis, the precision was ensured, and the calculation was simplified significantly. Safaei et al. [12] used a copula to model the dependency structure of components and studied the aging replacement policy for repairable series and parallel systems with n dependent components. Ding et al. [11] developed a reliability analysis method based on Copula Bayesian Network (CBN). The correlation between a wide variety of subsystems and components was considered, and the difficulty of modeling and assessment was overcome. Mahmoudi et al. [8] built a reliability analysis model for weighted-k-out-of-n systems with failure correlation using the copula function. Saberzadeh et al. [30] considered a complex system composed of n independent elements used the copula function to model the dependency between components, and studied the reliability of the system under the degradation performance. These methods mainly focus on solving the problem of failure correlation with copula functions. It needs to be emphasized that there is a lack of research on system reliability analysis when considering the multiple failure modes of components under the effect of multi-factors, as well as the mixed static and dynamic failure behavior and failure correlation.

In this paper, the multi-dimensional T-S dynamic fault tree analysis method involving failure correlation is proposed, in which the failure correlation model is incorporated into the multi-dimensional T-S DFTA model. Then a typical application case is taken as the reliability analysis of a hydraulic transmission system. Hydraulic transmission is developing toward high precision and complexity, so its reliability is affected by multi-dimensional factors other than time, and it has dynamic dependency between components.

The remainder of this paper is organized as follows. Section 2 introduces the multi-dimensional T-S DFTA method. Section 3 is devoted to the failure correlation reliability analysis method. Section 4 provides the multi-dimensional T-S DFTA method for correlation failure. Section 5 presents an example analysis of the hydraulic system to verify the feasibility of the proposed method. Finally, Section 6 concludes the paper.

2 Multi-dimensional T-S DFTA method

2.1 T-S dynamic gates and their event sequence description rules

The T-S model comprises a series of IF-THEN rules, which can accurately describe nonlinear systems by using a series of local linear subsystems combined with membership functions. T-S dynamic gates and their event sequence description rules can approximate the failure behavior of the real system infinitely and describe any static and dynamic failure behaviors. The T-S dynamic fault tree model is shown in Fig. 1. x _i (i = 1, 2,  …  , n) represents the basic event, and y represents the top event, then G₁ represents the T-S dynamic gate.

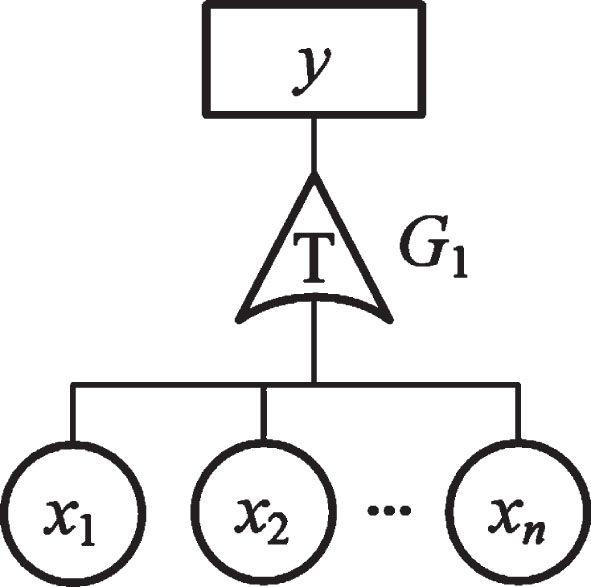

Fig. 1

T-S dynamic fault tree.

The event sequence description rules include input rules and output rules. The input rules are adopted to describe the fault sequence of basic events x₁∼x _n , which is expressed by the sequence rule O_(l). The output rule describes the failure time of the top event y when the basic event x _i fails in a certain sequence. Table 1 lists the event sequence description rules.

Table 1

Event sequence description rules of G₁ gate

Rule	x 1	x 2	⋯	x n	O (l)	y
1	1	2	⋯	n	O (1)	δ(1)(t y )
2	1	3	⋯	n	O (2)	δ(2)(t y )
⋮	⋮	⋮	⋮	⋮	⋮	⋮
l	o(t1)	o(t2)	⋯	o(t n )	O (l)	δ(l)(t y )
⋮	⋮	⋮	⋮	⋮	⋮	⋮
r	n	n-1	⋯	1	O (r)	δ(r)(t y )

In the input rules, the natural numbers o(t₁)∼o(t _n ) are adopted to express the failure occurrence sequence of basic events x₁∼x _n . The failure occurrence time of the basic events with small values is earlier than that of the basic events with high values.

Boudali [15] employed the unit-step function and impulse function in the continuous-time BN method to describe the dependencies of a complex dynamic system. In accordance with the above idea, the sequence rule O_(l) is formed by multiplying a set of unit-step functions. According to the properties of the unit-step function u(t _i – t _j ), it is adopted to describe the fault sequence of basic events x₁∼x _n .

$1,t_i\ge t_j$(1)

In the output rules, the impulse function δ (t _y – t _i ) is employed to describe the failure time of the top event y. $\begin{array}{cc}\hfill \delta \left(t_y-t_i\right)=\{\begin{array}{c}\hfill 0,t_y\ne t_i\hfill \\ \hfill \infty ,t_y=t_i\hfill \end{array}& \hfill \end{array}$(2) where t _i and t _y represent the failure time of basic events x _i and top event y, respectively. δ (t _y – t _i ) = ∞ indicates that the top event y fails at t _i . In contrast, δ (t _y – t _i ) = 0 indicates that y does not fail at t _i .

Rule 1 in Table 1 serves as an example to interpret rules, i.e., basic events x₁ to x _n are executed according to 1, 2,  …  , n, and then o(t₁) = 1, o(t₂) = 2,  …  , o(t _n ) = n. The sequence rule O ₍₁₎  is expressed as follows: $\begin{array}{cc}\hfill O_{\left(1\right)}=u\left(t_n-t_{n-1}\right)u\left(t_{n-1}-t_{n-2}\right)\cdots u\left(t_2-t_1\right)& \hfill \end{array}$(3)

In this case, the output rule is represented by the impulse function δ ₍₁₎ (t _y ) of the top event y.

Compared with conventional logic gates expressing static and dynamic relationships, T-S dynamic gates are capable of characterizing any dynamic logic gate relationships, thus reducing the difficulty of fault tree modeling. For static and dynamic failure behaviors which cannot be expressed by existing logic gates, the corresponding event sequence description rules can be set for modeling and analysis based on T-S dynamic gates. In the following, AND gate and compound dynamic gate are taken as examples of the transformation process of each logic gate to the T-S dynamic gate.

(1) AND gate transforms to T-S dynamic gate

AND gate indicates that the top event occurs when all basic events occur. Table 2 lists the event sequence description rules when T-S dynamic gate is adopted to express the logic of AND gate.

Table 2

Event sequence description rules of the T-S dynamic gate transforming from AND gate

Rule	x 1	x 2	O (l)	y
1	1	2	u(t2– t1)	δ(t y – t2)
2	2	1	u(t1– t2)	δ(t y – t1)

(2) Composite dynamic gate transforms to T-S dynamic gate

Besides AND gate, OR gate, priority-AND gate, etc., T-S dynamic gates can describe any logic relations of events through input and output rules which are maybe difficult to describe with existing logic gates.

The cooling and filtering system in a hydraulic system is taken as an example. The basic events x₁ and x₂ represent the cooler failure and the filter failure, respectively, and the top event y is the cooling and filtering system failure. When the basic event x₁ of the cooler fails, the hydraulic oil temperature increases continuously. It is assumed that after a period d, the oil temperature exceeds the allowable maximum oil temperature of the system, resulting in system failure, i.e., y fails at time t _i +d which is later than the time x₁ fails. In the other situation, the top event y happens when filtering system x₂ fails. Subsequently, the event sequence description rules of the composite T-S dynamic gate are listed in Table 3.

Table 3

Event sequence description rule of composite T-S dynamic gate

Rule	x 1	x 2	O (l)	y
1	1	2	u(t2– t1)	δ(t y – (t1 + d))
2	2	1	u(t1– t2)	δ(t y – t2)

2.2 Multi-dimensional T-S DFTA method

The multi-dimensional T-S DFTA method comprises an input rule and an output rule algorithm in which multi-factors are considered.

(1) Input rule algorithm

The input rule algorithm is capable of obtaining the execution possibility of the respective rule in the T-S dynamic gate.

When the basic events x _i (i = 1, 2,  …  , n) are affected by the working time t _i and other k factors (h₁, h₂,  …  , h _k ), the rule execution possibility P* _(l) , which describes the rule l is expressed as: $\begin{array}{cc}\hfill P_{\left(l\right)}^{*}=\prod _{i=1}^n{O}_{\left(l\right)}{f}_i\left(t_i,h_1,h_2,\cdots ,h_k\right)& \hfill \end{array}$(4) where n denotes the number of basic events; O_(l) is the sequence rule; f _i (t _i , h₁, h₂,  …  , h _k ) is the failure probability density function of x _i .

The failure probability density function is written as follows: $\begin{array}{cc}\hfill f_i\left(t_i,h_1,h_2,\cdots ,h_k\right)=\frac{{\partial }^{k+1}{F}_i\left(t_i,h_1,h_2,\cdots ,h_k\right)}{\partial t_i\partial h_1\partial h_2\cdots \partial h_k}& \hfill \end{array}$(5) where F _i (t _i , h₁, h₂,  …  , h _k ) is the failure probability distribution function of x _i .

(2) Output rule algorithm

The failure probability density function and the failure probability distribution function of the top event can be obtained by calculating the rule execution possibility and the top event unit impulse function using the output rule algorithm.

The failure probability density function f _y (t _y , h₁, h₂,  …  , h _k ) of the top event y represents expressed as: $\begin{array}{cc}\hfill \begin{array}{c}\hfill f_y\left(t_y,h_1,h_2,\cdots ,h_k\right)\hfill \\ \hfill =\sum _{l=1}^r{\int }_0^{+\infty }{\int }_0^{+\infty }\cdots \begin{array}{c}\hfill \begin{array}{c}\hfill {\int }_0^{+\infty }{P}_{\left(l\right)}^{*}{\delta }_{\left(l\right)}\left(t_y\right)\mathrm{d}{t}_1\mathrm{d}{t}_2\cdots \mathrm{d}{t}_n\hfill \end{array}\hfill \end{array}\hfill \\ \hfill \hfill \end{array}& \hfill \end{array}$(6) where r is the total number of rules, generally r = n!; δ _(l) (t _y ) is the unit impulse function of the top event y.

The failure probability distribution function F _y (t _y , h₁, h₂,  …  , h _k ) is obtained by integrating Equation (6) in the factors as follows: $\begin{array}{cc}\hfill \begin{array}{c}\hfill F_y\left(t_y,h_1,h_2,\cdots ,h_k\right)\hfill \\ \hfill ={\overbrace{{\int }_0^{+\infty }{\int }_0^{+\infty }\cdots {\int }_0^{+\infty }{\int }_0^t}}^{k+1}{f}_y\left(t_y,h_1,h_2,\cdots ,h_k\right)\hfill \\ \hfill \mathrm{d}{t}_y\mathrm{d}{h}_1\mathrm{d}{h}_2\cdots \mathrm{d}{h}_k\hfill \\ \hfill \hfill \end{array}& \hfill \end{array}$(7)

2.3 Verification of multi-dimensional T-S DFTA method

The multi-dimensional T-S DFTA method is compared with the Dugan dynamic fault tree analysis method based on the Markov chain solution.

(1) Dugan dynamic fault tree analysis method based on Markov chain

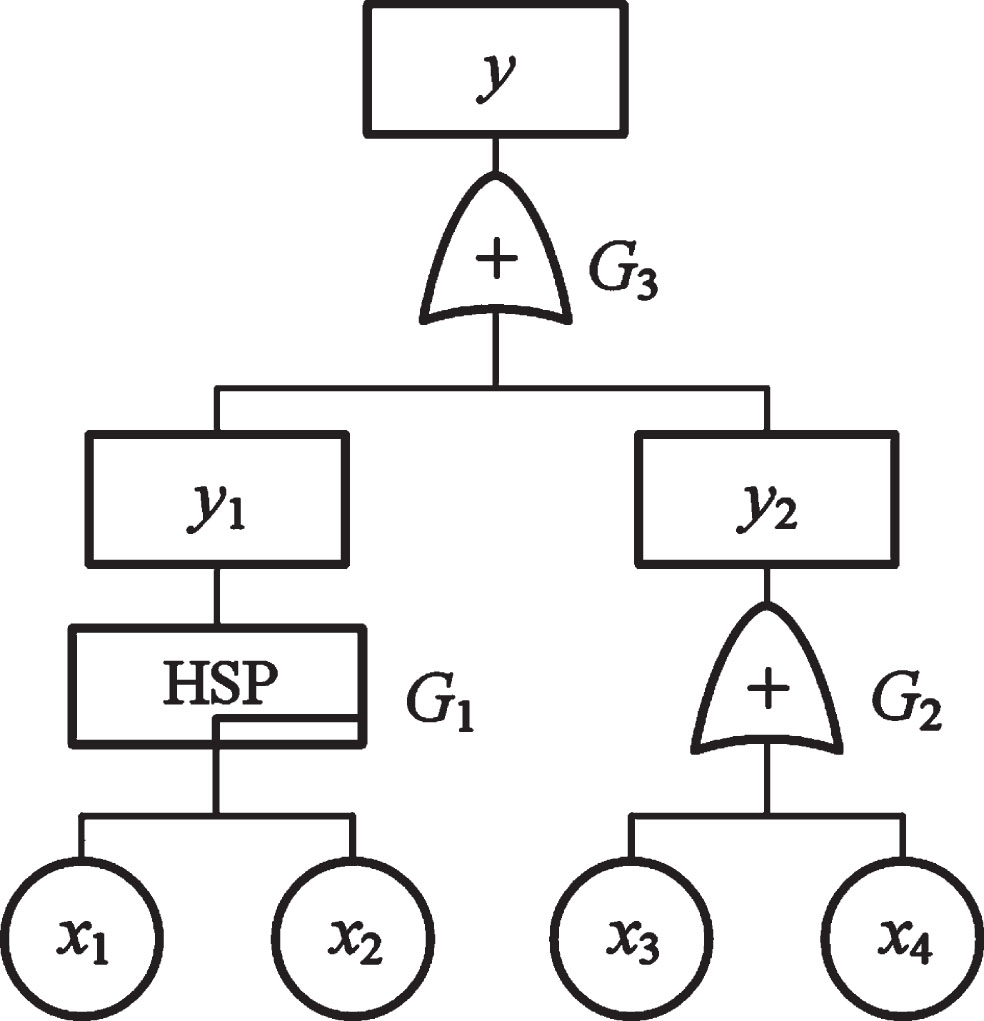

The Dugan dynamic fault tree of a hydraulic system is shown in Fig. 2. G₁∼G₃ represent hot spare gates, OR gates, OR gates respectively, y is the top event, y₁ and y₂ are intermediate events, and the failure rates λ _i of the basic events x _i (i = 1, 2, 3, 4) are 2×10^–6/ h, 2×10^–6/ h, 3×10^–6/ h, 6×10^–6/ h, respectively.

Fig. 2

Dugan dynamic fault tree analysis for hydraulic system.

By analyzing the failure principle of the system, the failure path of the system is: $\{\begin{array}{c}{x}_1\to x_2+x_3+x_4\hfill \\ x_2\to x_1+x_3+x_4\hfill \\ x_3+x_4\hfill \end{array}$

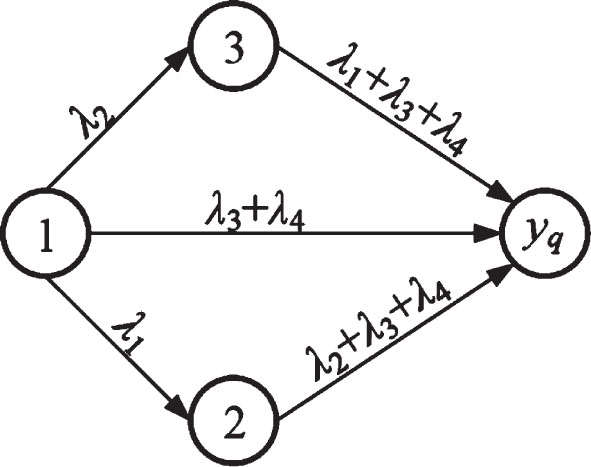

The Markov state transition diagram transformed by the system failure path is shown in Fig. 3.

Fig. 3

Markov state transition diagram.

From Fig. 3, the Markov state transition rate matrix D can be obtained as follows: $\begin{array}{cc}\hfill D=\left[\begin{array}{cccc}\hfill -\sum _{i=1}^4{\lambda }_i\hfill & \hfill {\lambda }_1\hfill & \hfill {\lambda }_2\hfill & \hfill {\lambda }_3+{\lambda }_4\hfill \\ \hfill 0\hfill & \hfill -\sum _{i=2}^4{\lambda }_i\hfill & \hfill 0\hfill & \hfill \sum _{i=2}^4{\lambda }_i\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill -{\lambda }_1-{\lambda }_3-{\lambda }_4\hfill & \hfill {\lambda }_1+{\lambda }_3+{\lambda }_4\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \end{array}\right]& \hfill \end{array}$(8)

According to the Markov differential equation and the state transition rate matrix D , it is obtained that: $\begin{array}{cc}\hfill \frac{dP\left(t\right)}{\mathit{dt}}=D^{T}P\left(t\right)& \hfill \end{array}$(9) where, P (t) = [P₁(t), P₂(t),  …  , P _{q -1}(t), P _q (t)]^T. P₁(t), P₂(t),  …  , P _{q -1}(t), and P _q (t) are the probabilities of the system being in states 1∼(q– 1) and y _q (q = 1, 2,  …  , k _q ) at time t, respectively. q is the number of states in the Markov state transition diagram.

By substituting the task time t_M = 10000h, the failure rate of basic events, and the initial value P (0) = [1, 0, 0, 0]^T into Equation (9), the failure probability of the system in state Fa can be calculated, and P _y (t_M) = 0.086427.

(2) Multi-dimensional T-S DFTA method

The Dugan dynamic fault tree of the hydraulic system shown in Fig. 2 is transformed into a multi-dimensional T-S dynamic fault tree shown in Fig. 4.

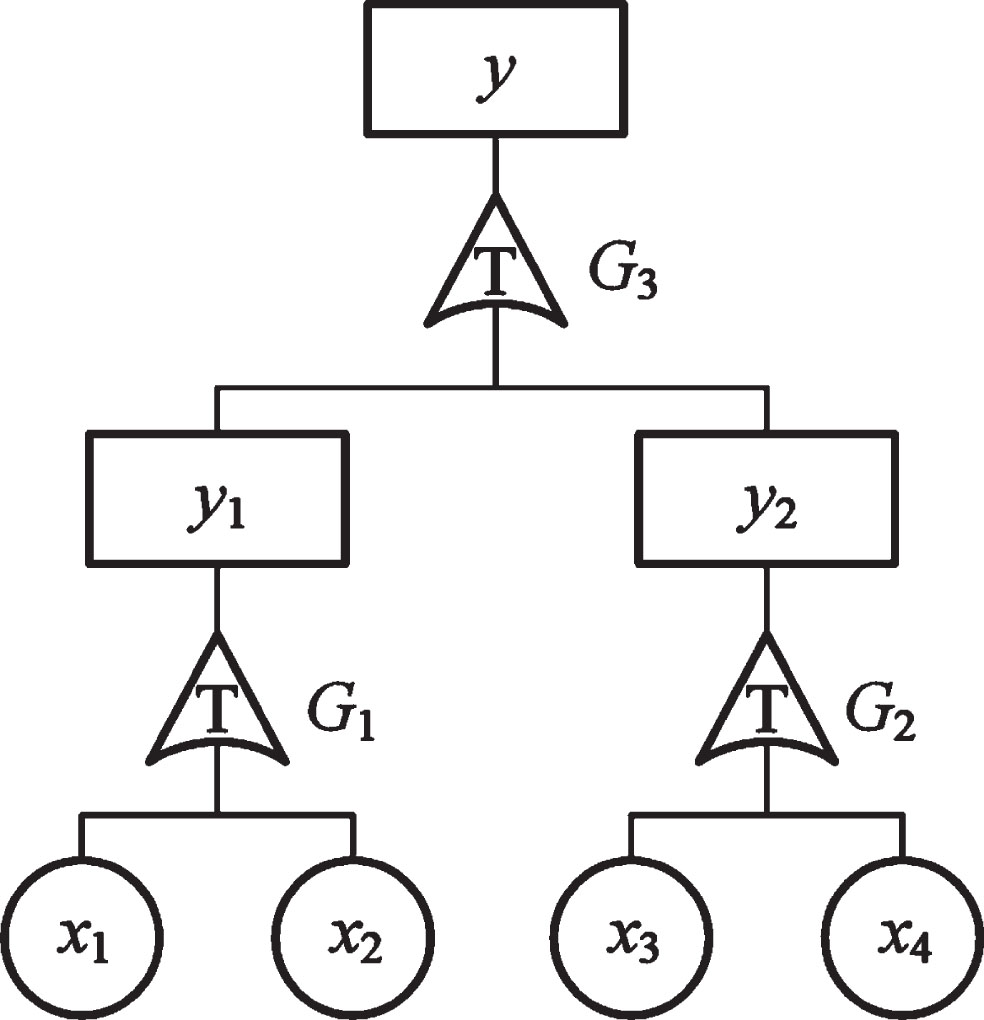

Fig. 4

Multi-dimensional T-S dynamic fault tree for hydraulic system.

The event sequence description rules of G₁∼G₃ gates established from the multi-dimensional T-S dynamic fault tree in Fig. 4 are shown in Tables 4–6.

Table 4

Event sequence description rules of G₁ gate

Rule	x 1	x 2	O (l)	y 1
1	1	2	u (t2-t1)	δ (t y 1 -t2)

Table 5

Event sequence description rules of G₂ gate

Rule	x 3	x 4	O (l)	y 2
1	1	2	u (t2-t1)	δ (t y 2 -t1)
2	2	1	u (t1-t2)	δ (t y 2 -t2)

Table 6

Event sequence description rules of G₃ gate

Rule	y 1	y 2	O (l)	y
1	1	2	u (t2-t1)	δ (t y -t1)
2	2	1	u (t1-t2)	δ (t y -t2)

The failure probability of each component of the hydraulic system obeys the exponential distribution under the influence of the working time t. Through the multi-dimensional T-S DFTA method, from Equations (4) to (7) and Tables 4 to 6, it can be obtained that when the task time t_M = 10000h, the failure probability of the top event y is P _y (t_M) = 0.086427, which is the same as the results calculated by the mothed of Markov chain as above.

The failure probability distribution curve of the top event y with time is shown in Fig. 5.

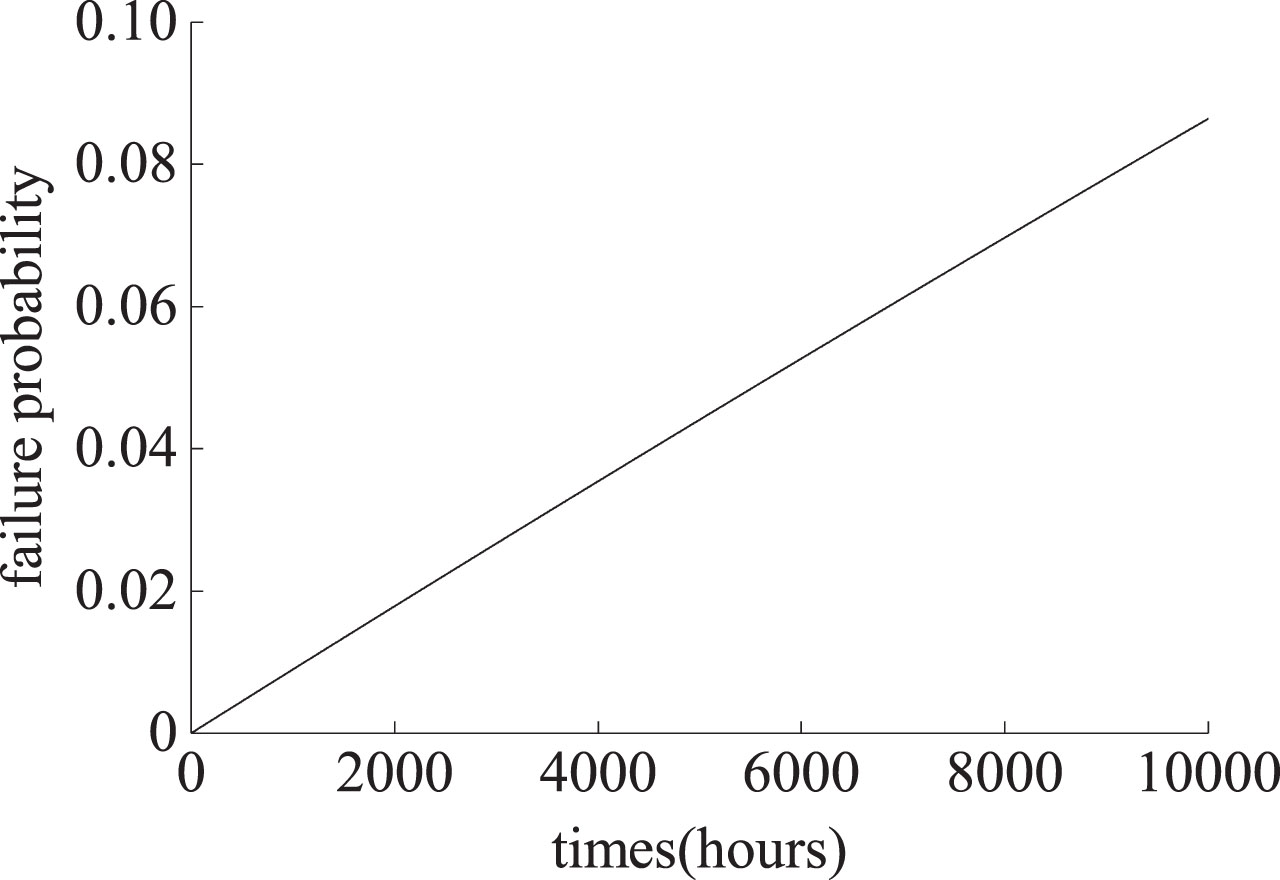

Fig. 5

Curve of failure probability of top event y changing with time.

The multi-dimensional T-S dynamic fault tree can show the change curve of the top event failure probability with time. Therefore, the multi-dimensional T-S DFTA method is feasible and superior.

2.4 Importance of multi-dimensional T-S DFTA

Importance analysis takes on an essential significance in reliability analysis. The importance ranking of the respective component or subsystem in the system under different conditions can be obtained based on the results of the importance analysis, which is beneficial to find the weak links of the system and enhance its reliability [22].

Probability importance is expressed as the influence degree how basic component reliability changes on system reliability changes. The probability importance of the multi-dimensional T-S dynamic fault tree of basic event x _i is written as follows: $\begin{array}{cc}\hfill I_{\mathrm{Pr}}\left(x_i\right)=\frac{\partial F_y\left(t_y,h_1,h_2,\cdots ,h_k\right)}{\partial F_i\left(t_i,h_1,h_2,\cdots ,h_k\right)}& \hfill \end{array}$(10) where F _y (t _y , h₁, h₂,  …  , h _k ) and F _i (t _i , h₁, h₂,  …  , h _k ) are the failure probability distribution functions of the top event and the basic event, respectively.

The probability importance of multi-dimensional T-S DFTA refers to the difference of failure probability distribution function of top event y in state y _q (q = 1, 2,  …  , k _q ) when failure probability distribution function F _i (t _i , h₁, h₂,  …  , h _k ) is 1 and 0, respectively. $\begin{array}{cc}\hfill \begin{array}{c}\hfill I_{\mathrm{Pr}}\left(x_i\right)=F\left(y_q,F_i\left(t_i,h_1,h_2,\cdots ,h_k\right)=1\right)\hfill \\ \hfill -F\left(y_q,F_i\left(t_i,h_1,h_2,\cdots ,h_k\right)=0\right)\hfill \\ \hfill \hfill \end{array}& \hfill \end{array}$(11)

3 Failure correlation reliability analysis method

Failure correlation is a common phenomenon in mechanical systems or hydraulic systems. Ignoring failure correlation between components will cause deviation in reliability analysis results, so failure correlation should be considered in the reliability analysis process. The copula function is an essential tool to describe the correlation between variables, and it has been extensively employed to solve the problem of failure correlation.

3.1 Sklar theorem for n-dimensional copula functions

Let X = (X₁, X₂,  …  , X _n ) be an n-dimensional random vector, its marginal distribution function is F₁(x₁), F₂(x₂),  …  , F _n (x _n ), and the joint distribution function is H(x₁, x₂,  …  , x _n ), then there is a unique n-dimensional copula function C _n (u₁, u₂,  …  , u _n ), so that for any (x₁, x₂,  …  , x _n )∈R ⁿ , can be obtained: $\begin{array}{cc}\hfill \begin{array}{c}\hfill H\left(x_1,x_2,\cdots ,x_n\right)=\hfill \\ \hfill C_n\left(F_1\left(x_1\right),F_2\left(x_2\right),\cdots ,F_n\left(x_n\right)\right)\hfill \\ \hfill \hfill \end{array}& \hfill \end{array}$(12)

When all the components of an n-dimensional random variable X = (X₁, X₂,  …  , X _n ) are independent of each other, it can be obtained that: $\begin{array}{cc}\hfill C_n\left(u_1,u_2,\cdots ,u_n\right)=u_1{u}_2\cdots u_n& \hfill \end{array}$(13)

3.2 Common copula functions

There are some types of common copula functions [9, 25] as shown in Table 7.

Table 7

Two-dimensional Copula function and its tail dependence

Function Type	C (u, v ; θ)	Tail dependence
Gauss	${\int }_{-\infty }^{{\Phi }^{-1}\left(u\right)}{\int }_{-\infty }^{{\Phi }^{-1}\left(v\right)}\frac{1}{2\pi \sqrt{1-{\theta }^2}}exp\left(\frac{2\theta \mathit{xy}-x^2-y^2}{2\left(1-{\theta }^2\right)}\right)\mathrm{d}x\mathrm{d}y,\theta \in \left[-1,1\right]$	Tail symmetry
Gumbel	exp(- [(- ln u) 1/θ + (- ln v) 1/θ] θ) , θ ∈ (0, 1]	Right tail correlated
Clayton	(u-θ + v-θ-1) -1/θ, θ ∈ (0, ∞)	Left tail correlated
Frank	$-\frac{1}{\theta }log\left[1+\left(\left(e^{-\theta u}-1\right)·\left(e^{-\theta v}-1\right)\right)/\left(e^{-\theta }-1\right)\right]$	Tail symmetry

3.3 Failure correlation reliability model with a series system

For the series system, the failure logic relation is OR gate, i.e., a system failure occurs when any component fails. It is assumed that the series system comprises n components x₁, x₂,  …  , x _n , and the reliability functions corresponding to the respective component are R₁(t), R₂(t),  …  , R _n (t). When the components are independent of each other, the system reliability R _a (t) is expressed as follows: $\begin{array}{cc}\hfill R_a\left(t\right)=\prod _{i=1}^n{R}_i\left(t\right)& \hfill \end{array}$(14)

Under the complete correlation between components, the reliability R _b (t) of the system is expressed as follows: $\begin{array}{cc}\hfill R_b\left(t\right)=min\left(R_1\left(t\right),R_2\left(t\right),\cdots ,R_n\left(t\right)\right)& \hfill \end{array}$(15)

Considering the actual correlation between components in the series system, the actual system reliability R(t) should be within the range of the complete independence and the complete correlation of the respective component, which is expressed as follows: $\begin{array}{cc}\hfill \prod _{i=1}^n{R}_i\left(t\right)\le R\left(t\right)\le min\left(R_1\left(t\right),R_2\left(t\right),\cdots ,R_n\left(t\right)\right)& \hfill \end{array}$(16)

The copula function C _n (u₁, u₂,  …  , u _n ) is adopted to describe the correlation between the components of the series system, and the reliability of the system R _c (t) is written as [20]: $\begin{array}{cc}\hfill R_c\left(t\right)={\Delta }_{1-R_1\left(t\right)}^1{\Delta }_{1-R_2\left(t\right)}^1\cdots {\Delta }_{1-R_n\left(t\right)}^1{C}_n\left(u_1,u_2,\cdots ,u_n\right)& \hfill \end{array}$(17) where “Δ” represents the difference.

The single difference is ${\Delta }_{u1}^{u2}$ C(u, v₀) = C(u₂, v₀)– C(u₁, v₀), and the double difference is ${\Delta }_{v1}^{v2}{\Delta }_{u1}^{u2}$ C(u, v) = C(u₂, v₂)– C(u₂, v₁)+C(u₁, v₂)– C(u₁, v₁), and so on.

Equation (17) suggests that when the series system is consistent with the copula function correlation the fault probability distribution function F _c (t) is expressed as: $\begin{array}{cc}\hfill F_c\left(t\right)=1-{\Delta }_{F_1\left(t\right)}^1{\Delta }_{F_2\left(t\right)}^1\cdots {\Delta }_{F_n\left(t\right)}^1{C}_n\left(u_1,u_2,\cdots ,u_n\right)& \hfill \end{array}$(18) where F _i (t)(i = 1, 2,  …  , n) denotes the failure probability distribution function corresponding to the respective component.

3.4 Failure correlation reliability model with a parallel system

In a parallel system, its failure logic relation is AND gate, i.e., the system fails when all components of the system fail. It is assumed that the parallel system consists of n components x₁, x₂,  …  , x _n and the corresponding reliability function of the respective component is R₁(t), R₂(t),  …  , R _n (t). When the correlation between components is not considered, the reliability R _a (t) of the system is written as follows: $\begin{array}{cc}\hfill R_a\left(t\right)=1-\prod _{i=1}^n\left(1-R_i\left(t\right)\right)& \hfill \end{array}$(19)

When the complete correlation between components is considered, the reliability R _b (t) of the parallel system is obtained by the component with the greatest reliability, which is expressed as follows: $\begin{array}{cc}\hfill R_b\left(t\right)=max\left(R_1\left(t\right),R_2\left(t\right),\cdots ,R_n\left(t\right)\right)& \hfill \end{array}$(20)

The copula function C _n (u₁, u₂,  …  , u _n ) is adopted to describe the correlation between the components of the parallel system, and the reliability of the system R _c (t) is written as [20]: $\begin{array}{cc}\hfill R_c\left(t\right)=1-C_n\left(1-R_1\left(t\right),1-R_2\left(t\right),\cdots ,1-R_n\left(t\right)\right)& \hfill \end{array}$(21)

Equation (21) suggests that when the parallel system is consistent with the copula function correlation, the fault probability distribution function F _c (t) is expressed as follows: $\begin{array}{cc}\hfill F_c\left(t\right)=C_n\left(1-R_1\left(t\right),1-R_2\left(t\right),\cdots ,1-R_n\left(t\right)\right)& \hfill \end{array}$(22)

4 Failure correlation reliability analysis method

The multi-dimensional copula function is introduced into the multi-dimensional T-S dynamic fault tree model, so that it can analyze the reliability of failure correlation of complex systems affected by multiple factors. Thus, the failure correlation multi-dimensional T-S DFTA method is proposed.

4.1 Multi-dimensional copula function

The system comprises n components x _i (i = 1, 2,  …  , n). When the failure correlation of the respective component is only affected by the working time t, the fault probability distribution function of the respective component is F _i (t _i )(i = 1, 2,  …  , n). The failure probability density function is f _i (t _i )(i = 1, 2,  …  , n). Assuming that the joint probability distribution function is F(t₁, t₂,  …  , t _n ), according to Equation (12), there is a unique copula function C _n (u₁, u₂,  …  , u _n ) as follows: $\begin{array}{cc}\hfill F\left(t_1,t_2,\cdots ,t_n\right)=C_n\left(F_1\left(t_1\right),F_2\left(t_2\right),\cdots ,F_n\left(t_n\right)\right)& \hfill \end{array}$(23)

Taking the derivative of the above equation, the joint probability density function f(t₁, t₂,  …  , t _n ) of F(t₁, t₂,  …  , t _n ) is expressed as follows: $\begin{array}{cc}\hfill \begin{array}{c}\hfill f\left(t_1,t_2,\cdots ,t_n\right)=\hfill \\ \hfill c_n\left(F_1\left(t_1\right),F_2\left(t_2\right),\cdots ,F_n\left(t_n\right)\right)\prod _{i=1}^n{f}_i\left(t_i\right)\hfill \\ \hfill \hfill \end{array}& \hfill \end{array}$(24) where c _n (u₁, u₂,  …  , u _n ) is the density function of C _n (u₁, u₂,  …  , u _n ) which is expressed as follows: $\begin{array}{cc}\hfill c_n\left(u_1,u_2,\cdots ,u_n\right)=\frac{{\partial }^{n}C\left(u_1,u_2,\cdots ,u_n\right)}{\partial u_1\partial u_2\cdots \partial u_n}& \hfill \end{array}$(25)

When the failure correlation of the respective component is affected by t and other k factors (h₁, h₂,  …  , h _k ), the failure probability distribution function of the respective component is F _i (t _i , h₁, h₂,  …  , h _k )(i = 1, 2,  …  , n), and the failure probability density function is expressed as f _i (t _i , h₁, h₂,  …  , h _k )(i = 1, 2,  …  , n). The joint probability distribution function F(t, h₁, h₂,  …  , h _k ) and the joint probability density function f(t, h₁, h₂,  …  , h _k ) are expressed as follows: $\begin{array}{cc}\hfill \begin{array}{c}\hfill F\left(t,h_1,h_2,\cdots ,h_k\right)=\hfill \\ \hfill C_n\left(F_1\left(t_1,h_1,h_2,\cdots ,h_k\right),\cdots ,F_n\left(t_n,h_1,h_2,\cdots ,h_k\right)\right)\hfill \\ \hfill \hfill \end{array}& \hfill \end{array}$(26) $\begin{array}{cc}\hfill \begin{array}{c}\hfill f\left(t,h_1,\cdots ,h_k\right)=\hfill \\ \hfill c_n\left(F_1\left(t_1,h_1,\cdots ,h_k\right),\cdots ,F_n\left(t_n,h_1,\cdots ,h_k\right)\right)\hfill \\ \hfill \prod _{i=1}^n{f}_i\left(t_i,h_1,\cdots ,h_k\right)\hfill \\ \hfill \hfill \end{array}& \hfill \end{array}$(27)

4.2 Multi-dimensional T-S DFTA with failure correlation

(1) Dynamic gates of failure correlation and their description rules of event sequence

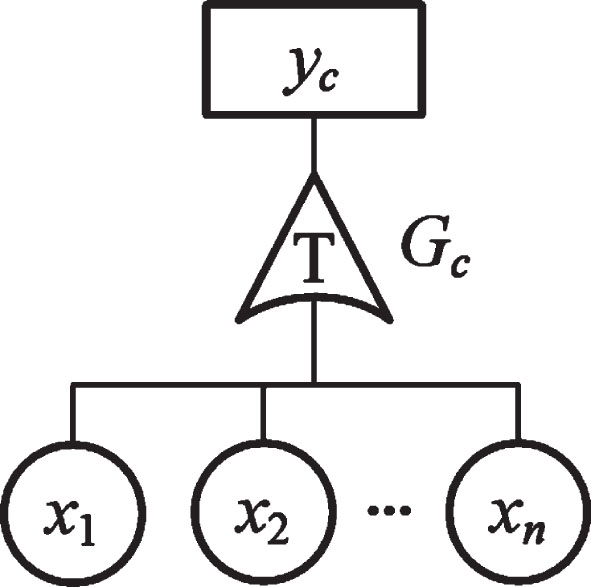

Let the basic event be x _i (i = 1, 2,  …  , n) and the failure time of each event is t _i (i = 1, 2,  …  , n). To distinguish the multi-dimensional T-S DFTA method with failure correlation from that without failure correlation, the top event and its failure time under failure $P_{C\left(l\right)}^{*}=O_{\left(l\right)}f\left(t,h_1,h_2,\cdots ,h_k\right)$ correlation are expressed as y _C and t _{y C} respectively, where the subscript C suggests that the failure correlation between the basic events is described by the copula function. The T-S dynamic gate of failure correlation is illustrated in Fig. 6. Gate G _C is represented as the T-S dynamic gate of failure correlation, and its event sequence description rules are shown in Table 8. O _(l)  is the failure sequence rule of the respective basic event and δ_(l) (t _{y C} ) is the failure time of y _C in rule l, respectively.

Fig. 6

T-S dynamic fault tree with failure correlation.

Table 8

Events sequence description rules of G _c gate

Rule	x 1	x 2	⋯	x n	O (l)	y c
1	1	2	⋯	n	O  (1)	δ(1) (t y C )
2	1	3	⋯	n	O  (2)	δ(2) (t y C )
⋮	⋮	⋮	⋮	⋮	⋮	⋮
l	o(t1)	o(t2)	⋯	o(t n )	O (l)	δ(l) (t y C )
⋮	⋮	⋮	⋮	⋮	⋮	⋮
r	n	n-1	⋯	1	O  (r)	δ(r) (t y C )

(2) Multi-dimensional T-S DFTA with failure correlation

1) Input rule algorithm

When there is failure correlation between the basic events x _i (i = 1, 2,  …  , n), the joint probability density function f(t, h₁, h₂,  …  , h _k ) is adopted to replace the product of the failure probability density functions of each event. Moreover, the rule execution possibility $P_{C(l)}^{*}$ of the T-S dynamic gate with failure correlation is expressed as follows: $\begin{array}{cc}\hfill P_{C\left(l\right)}^{*}=O_{\left(l\right)}f\left(t,h_1,h_2,\cdots ,h_k\right)& \hfill \end{array}$(28)

When the respective basic event x _i (i = 1, 2,  …  , n) is independent of each other, it yields: $\begin{array}{cc}\hfill \begin{array}{c}\hfill P_{C\left(l\right)}^{*}=O_{\left(l\right)}f\left(t,h_1,h_2,\cdots ,h_k\right)\hfill \\ \hfill =O_{\left(l\right)}{c}_n\left(F_1\left(t_1,h_1,h_2,\cdots ,h_k\right),\cdots ,F_n\left(t_n,h_1,h_2,\cdots ,h_k\right)\right)\hfill \\ \hfill \prod _{i=1}^n{f}_i\left(t_i,h_1,h_2,\cdots ,h_k\right)=O_{\left(l\right)}\hfill \\ \hfill \prod _{i=1}^n{f}_i\left(t_i,h_1,h_2,\cdots ,h_k\right)\hfill \\ \hfill \hfill \end{array}& \hfill \end{array}$(29)

The result of Equation (29) is consistent with Equation (4), thus suggesting that when the basic event is independent of each other, the rule execution possibility obtained by the copula function is consistent with multi-dimensional T-S DFTA method without failure correlation.

2) Output rule algorithm

Based on the above input rule algorithm, the failure probability density function of the top event y _C with failure correlation is expressed as follows: $\begin{array}{cc}\hfill \begin{array}{c}\hfill f_{y_C}\left(t_{y_C},h_1,h_2,\cdots ,h_k\right)=\sum _{l=1}^r{\int }_0^{+\infty }{\int }_0^{+\infty }\cdots {\int }_0^{+\infty }\hfill \\ \hfill P_{C\left(l\right)}^{*}{\delta }_{\left(l\right)}\left(t_{y_C}\right)\mathrm{d}{t}_1\mathrm{d}{t}_2\cdots \mathrm{d}{t}_n\hfill \\ \hfill \hfill \end{array}& \hfill \end{array}$(30)

By integrating Equation (30) within working time t, the failure probability distribution function of y _C with failure correlation is expressed as follows: $\begin{array}{cc}\hfill \begin{array}{c}\hfill F_{y_C}\left(t_{y_C},h_1,\cdots ,h_k\right)\hfill \\ \hfill ={\int }_0^{+\infty }{\int }_0^{+\infty }\cdots {\int }_0^{+\infty }{\int }_0^t{f}_{y_C}\left(t_{y_C},h_1,\cdots ,h_k\right)\mathrm{d}{t}_{y_C}\mathrm{d}{h}_1\cdots \mathrm{d}{h}_k\hfill \\ \hfill \hfill \end{array}& \hfill \end{array}$(31)

4.3 Importance of multi-dimensional T-S DFTA with failure correlation

The probability importance equations of multi-dimensional T-S dynamic fault tree with failure correlation is derived as below.

When the basic event x _i (i = 1, 2,  …  , n) has failure correlation, the probability importance I_PrC(x _i ) with failure correlation is expressed as follows: $\begin{array}{cc}\hfill I_{\mathrm{Pr}C}\left(x_i\right)=\frac{\partial F_{y_C}\left(t_{y_C},h_1,h_2,\cdots ,h_k\right)}{\partial F_i\left(t_i,h_1,h_2,\cdots ,h_k\right)}& \hfill \end{array}$(32) where F _{y C}  (t _i , h₁, h₂, …, h _k ) and F _i  (t _i , h₁, h₂, …, h _k ) denote the failure probability distribution functions of the top event y _C and the basic event x _i (i = 1, 2,  …  , n) respectively under the effect of multiple factors when considering the existence of failure correlation in x _i (i = 1, 2,  …  , n).

4.4 Verification of multi-dimensional T-S DFTA with failure correlation

The series system is taken as an example for verification. It is assumed that a series system comprises components x₁ and x₂. When the failure of the system is only affected by the working time t, the failure probability distribution function of the two components is denoted as F₁(t₁) and F₂(t₂), and the failure probability density function is expressed as f₁(t₁) and f₂(t₂). The copula function C(F₁(t₁), F₂(t₂)) is adopted to represent the failure correlation of the two components. The multi-dimensional T-S DFTA with failure correlation is employed to solve the failure probability distribution function of the series system.

The T-S dynamic fault tree with failure correlation of the series system is built. Table 9 lists the event sequence description rules of gate G _c .

Table 9

Event sequence description rules of G _c gate

Rule	x 1	x 2	O (l)	y c
1	1	2	u (t2-t1)	δ (t y C -t1)
2	2	1	u (t1-t2)	δ (t y C -t2)

According to the input rule algorithm, the rule execution possibility in Table 9 can be calculated as follows: $\begin{array}{cc}\hfill \begin{array}{c}\hfill P_{C\left(1\right)}^{*}=O_{\left(1\right)}c\left(F_1\left(t_1\right),F_2\left(t_2\right)\right)\prod _{i=1}^2{f}_i\left(t_i\right)\hfill \\ \hfill =u\left(t_2-t_1\right)c\left(F_1\left(t_1\right),F_2\left(t_2\right)\right)f_1\left(t_1\right)f_2\left(t_2\right)\hfill \\ \hfill \hfill \end{array}& \hfill \end{array}$(33) $\begin{array}{cc}\hfill \begin{array}{c}\hfill P_{C\left(2\right)}^{*}=O_{\left(2\right)}c\left(F_1\left(t_1\right),F_2\left(t_2\right)\right)\prod _{i=1}^2{f}_i\left(t_i\right)\hfill \\ \hfill =u\left(t_1-t_2\right)c\left(F_1\left(t_1\right),F_2\left(t_2\right)\right)f_1\left(t_1\right)f_2\left(t_2\right)\hfill \\ \hfill \hfill \end{array}& \hfill \end{array}$(34)

In accordance with the output rule algorithm, the failure probability density function and failure probability distribution function of the series system are expressed as follows: $\begin{array}{cc}\hfill \begin{array}{c}\hfill f_{y_C}\left(t_{y_C}\right)=\sum _{l=1}^2{\int }_0^{+\infty }{\int }_0^{+\infty }{P}_{C\left(l\right)}^{*}{\delta }_{\left(l\right)}\left(t_{y_{C_1}}\right)\mathrm{d}{t}_1\mathrm{d}{t}_2\hfill \\ \hfill =f_1\left(t_{y_C}\right)\left(1-\frac{\partial C\left(F_1\left(t_{y_C}\right),F_2\left(t_{y_C}\right)\right)}{\partial F_1\left(t_{y_C}\right)}\right)\hfill \\ \hfill +f_2\left(t_{y_C}\right)\left(1-\frac{\partial C\left(F_1\left(t_{y_C}\right),F_2\left(t_{y_C}\right)\right)}{\partial F_2\left(t_{y_C}\right)}\right)\hfill \\ \hfill \hfill \end{array}& \hfill \end{array}$(35) $\begin{array}{l}{F}_c\left(t\right)=1-{\Delta }_{F_1\left(t\right)}^1{\Delta }_{F_2\left(t\right)}^{1}C\left(F_1\left(t\right),F_2\left(t\right)\right)\\ =F_1\left(t\right)+F_2\left(t\right)-C\left(F_1\left(t\right),F_2\left(t\right)\right)\end{array}$(36)

According to Equation (18), the failure probability distribution function F _c (t) of the series system in compliance with the conventional copula function can be obtained: $\begin{array}{cc}\hfill \begin{array}{c}\hfill F_c\left(t\right)=1-{\Delta }_{F_1\left(t\right)}^1{\Delta }_{F_2\left(t\right)}^{1}C\left(F_1\left(t\right),F_2\left(t\right)\right)\hfill \\ \hfill =F_1\left(t\right)+F_2\left(t\right)-C\left(F_1\left(t\right),F_2\left(t\right)\right)\hfill \\ \hfill \hfill \end{array}& \hfill \end{array}$(37)

Equations (36) and (37) suggest that the failure probability distribution function solved by the multi-dimensional T-S DFTA with failure correlation is consistent with that solved using the reliability model of the failure correlation series system [14]. As a result, the correctness of the model in solving the reliability problem of the failure correlation series system is verified.

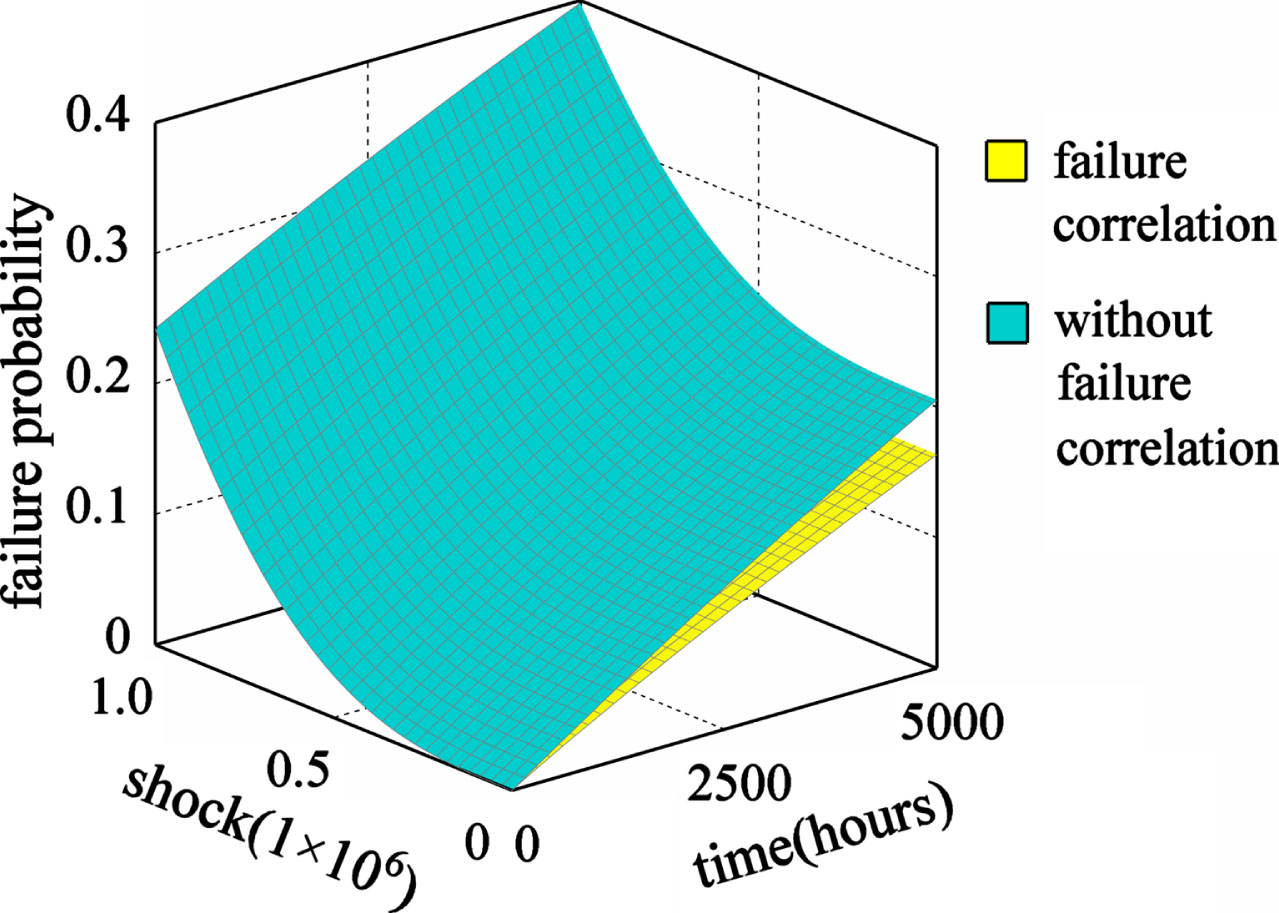

When considering that the failure of the series system is affected by three factors, taking working time t, working temperature T and shock number s as the examples, the failure probability distribution functions of components x₁ and x₂ are expressed as F₁(t₁, T₁, s₁) and F₂(t₂, T₂, s₂), respectively. The correlation between components is expressed by copula function C(F₁(t₁, T₁, s₁), F₂(t₂, T₂, s₂)), and the fault probability distribution function F(t, T, s) of the system is expressed as follows: $\begin{array}{cc}\hfill \begin{array}{c}\hfill F\left(t,T,s\right)=F_1\left(t_1,T_1,s_1\right)+F_2\left(t_2,T_2,s_2\right)\hfill \\ \hfill -C\left(F_1\left(t_1,T_1,s_1\right),F_2\left(t_2,T_2,s_2\right)\right)\hfill \\ \hfill \hfill \end{array}& \hfill \end{array}$(38)

4.5 Advantages

The failure correlation multi-dimensional T-S DFTA method can comprehensively consider and analyze multi-factor influence problems and failure correlation problems in the system. The problem of large errors can be solved by considering the system’s static and dynamic characteristics and taking into account the correlation between parts. The results of the reliability analysis are closer to the real situation. It reduces the misjudgment of system failure probability and component importance ranking when considering fault correlation. It has advantages over the multi-dimensional T-S DFTA method without considering failure correlation.

5 Case analysis

The shearer has been confirmed as the critical equipment for the fully mechanized mining face in the coal mine. The shearer comprises the cutting department for coal cutting, the transmission system for power transmission, as well as the hydraulic height adjustment system [23]. To be specific, the hydraulic height adjustment system is a vital part of the shearer, which is mainly responsible for adjusting the height of the cutting drum [28]. It is easy to fail in a working environment with high dust, complex force, narrow space and long working hours. Thus, it is necessary to conduct reliability analysis of the hydraulic height adjustment system.

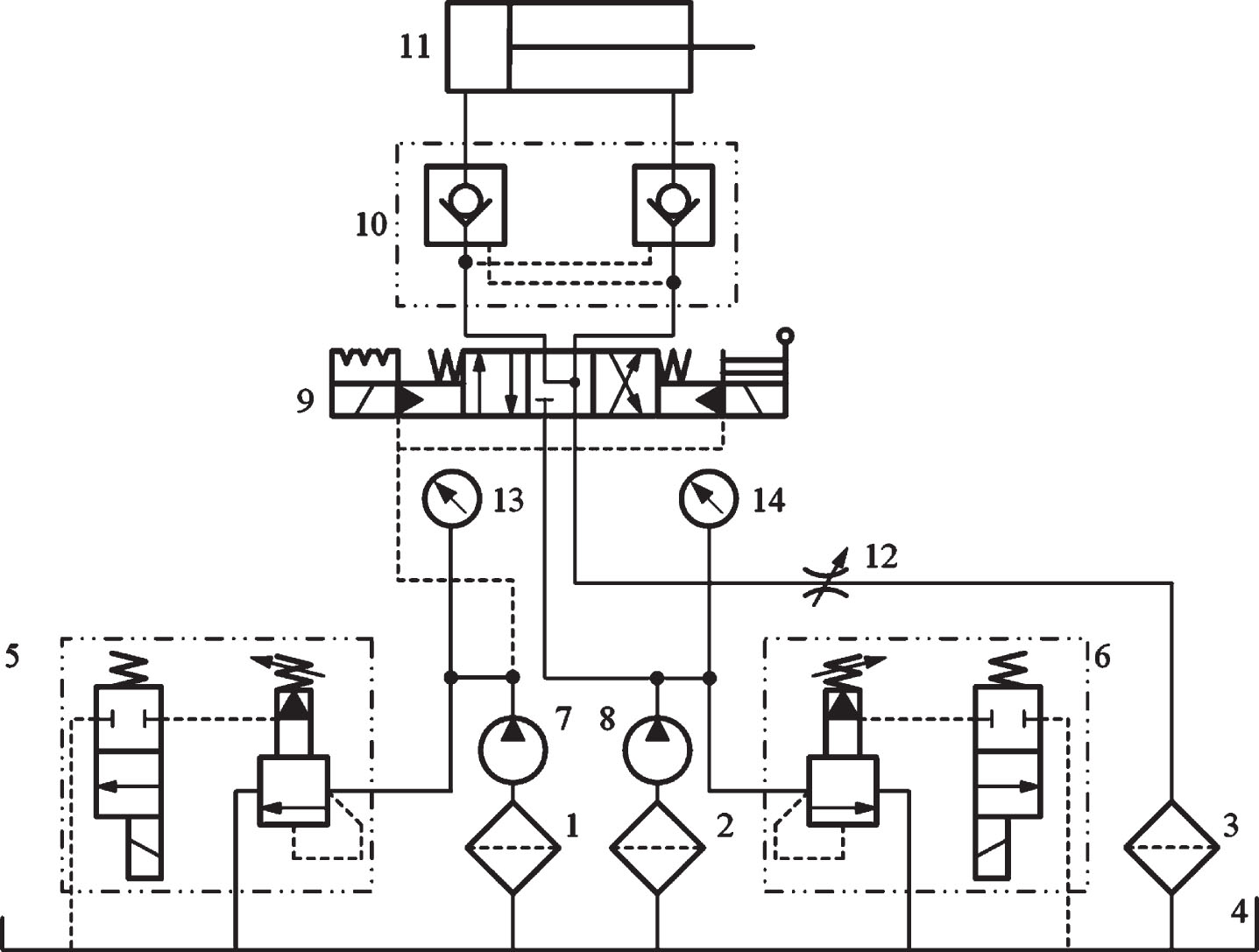

Figure 7 depicts the hydraulic principal diagram of the shearer hydraulic height adjustment system. The externally controlled electro-hydraulic reversing valve controls the action of raising the cylinder, and the low-pressure pump provides externally controlled pressure oil for the electro-hydraulic reversing valve. The electro-hydraulic reversing valve with an emergency handle can be manually reversed by the emergency handle when the electromagnetic pilot valve cannot be changed. The hydraulic lock cooperates with the Y-type neutral function reversing valve, so that the height adjustment oil cylinder can be stopped at any position and can be prevented from moving after stop.

Fig. 7

Principal diagram of hydraulic height adjustment system.

5.1 System reliability analysis without failure correlation

(1) Failure probability analysis

Based on the working principle and failure mechanism of the hydraulic height adjustment system of the shearer, the multi-dimensional T-S dynamic fault tree of the hydraulic height adjustment system is built as shown in Fig. 8. G₁, G₄∼G₇ represent the T-S dynamic OR gate, G₂ represents the T-S dynamic cold-spare gate, and G₃ represents the T-S dynamic priority-AND gate, respectively. x₁∼x₁₂ are basic events, and the specific event names and failure rates are shown in Table 10 [6]. y is the top event. y₁∼y₆ represents intermediate events, and the specific event names are: filter system failure, pilot valve commutation failure, hydraulic oil contamination, Electrohydraulic reversing valve failure, oil supply system failure, and execution system failure.

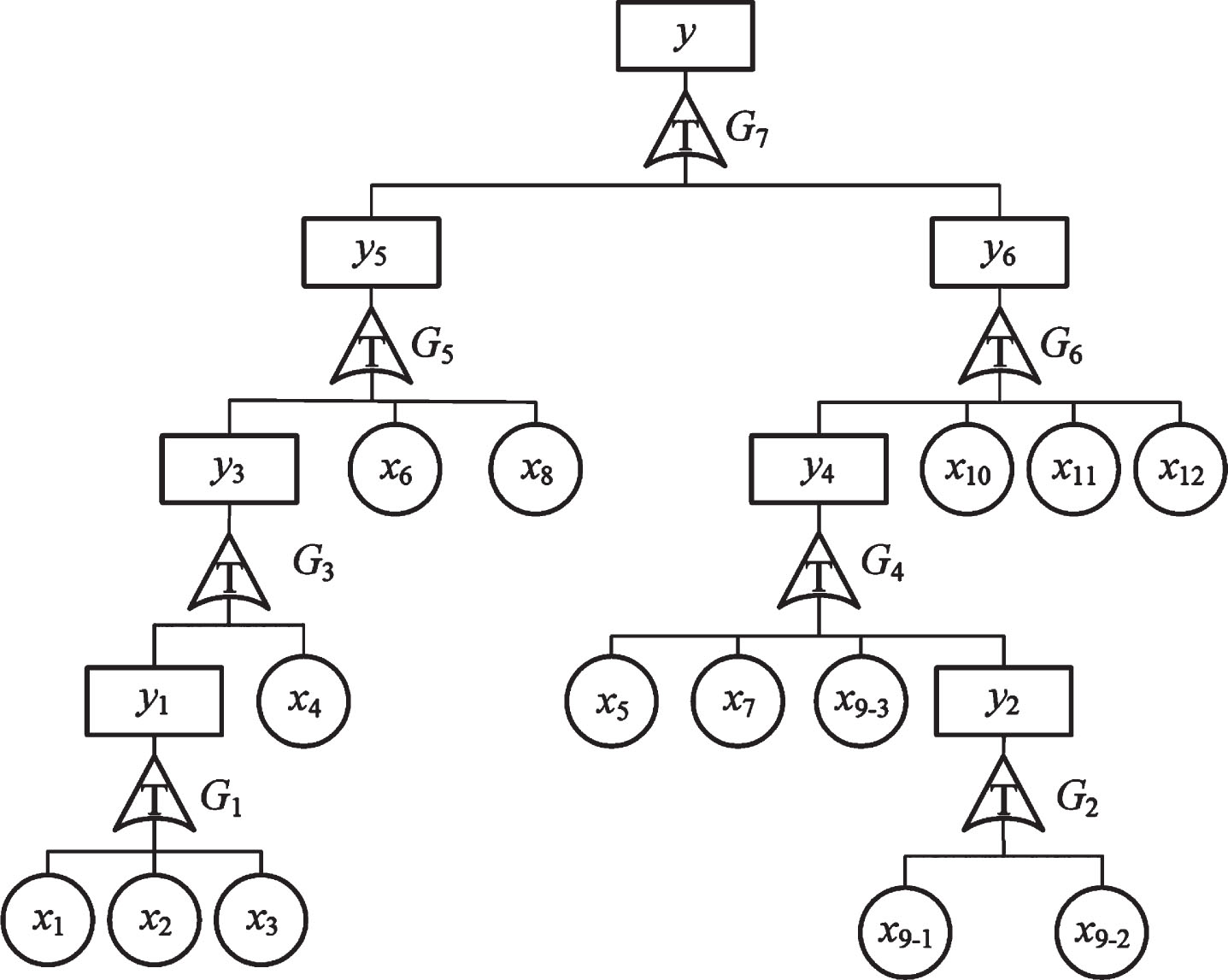

Fig. 8

Multi-dimensional T-S dynamic fault tree for hydraulic height adjustment system.

Table 10

Name and failure rate of basic event

Event code	Event name	Failure Rate (×10–6/h)	Event code	Event name	Failure Rate (×10–6/h)
x 1	Oil suction filter 1	0.3	x 8	High-pressure pump	13.5
x 2	Oil suction filter 2	0.3	x 9-1	Solenoid pilot valve of electro-hydraulic reversing valve	4.5
x 3	Oil return filter	0.5	x 9-2	Manual pilot valve of electro-hydraulic reversing valve	3.5
x 4	Hydraulic oil	0.5	x 9-3	Main valve of electro-hydraulic reversing valve	4.0
x 5	Electromagnetic relief valve 1	4.7	x 10	Hydraulic lock	1.1
x 6	Electromagnetic relief valve 2	4.7	x 11	Height adjustment cylinder	5.5
x 7	Low-pressure pump	9.0	x 12	Throttle valve	3.5

In the hydraulic height adjustment system, the life of the electromagnetic relief valve and the hydraulic pump is significantly affected by the hydraulic shock. Let the shock obey a Weibull distribution, and its failure probability distribution function is as follows, and its parameters are shown in Table 11. $\begin{array}{cc}\hfill F_i\left(s\right)=1-exp\left[-{\left(s/\eta \right)}^m\right]& \hfill \end{array}$(39)

Table 11

Weibull parameters of the basic events

Basic event x i	Component name	Shape parameter m	Characteristic life η/(×106 times)
x5, x6	Electromagnetic relief valve	4.0521	13.0173
x7, x8	Hydraulic pump	3.0791	1.8992

where m is the shape parameter, s is the number of shocks, and η is the characteristic life.

The event sequence description rules for gates G₁∼G₇ are built, and the G₁, G₂ and G₃ gates are used as an example for description. The event sequence description rules for the G₁ gate are shown in Table 12.

Table 12

Event sequence description rules of G₁ gate

Rule	x 1	x 2	x 3	O (l)	y 1
1	1	2	3	u(t3– t2)u(t2– t1)	δ (t y 1 -t1)
2	1	3	2	u(t2– t3)u(t3– t1)	δ (t y 1 -t1)
3	2	1	3	u(t3– t1)u(t1– t2)	δ (t y 1 -t2)
4	2	3	1	u(t2– t1)u(t1– t3)	δ (t y 1 -t3)
5	3	2	1	u(t1– t2)u(t2– t3)	δ (t y 1 -t3)
6	3	1	2	u(t1– t3)u(t3– t2)	δ (t y 1 -t2)

The event sequence description rules for the G₂ gate are shown in Table 13.

Table 13

Event sequence description rules of G₂ gate

Rule	x 9-1	x 9-2	O (l)	y 2
1	1	2	u (t9-2-t9-1)	δ (t y 2 -t9-2)

The event sequence description rules for the G₃ gate are shown in Table 14.

Table 14

Event sequence description rules of G₃ gate

Rule	y 1	x 4	O (l)	y 3
1	1	2	u (t4-t y 1 )	δ (t y 3 -t4)
2	2	1	u (t y 1 -t4)	0

When the failure probability of the respective component obeying the exponential distribution is only under the effect of the working time t and the task time is t_M = 5000h, the failure probability distribution of the top event y can be obtained by the multi-dimensional T-S DFTA method as shown in Fig. 9.

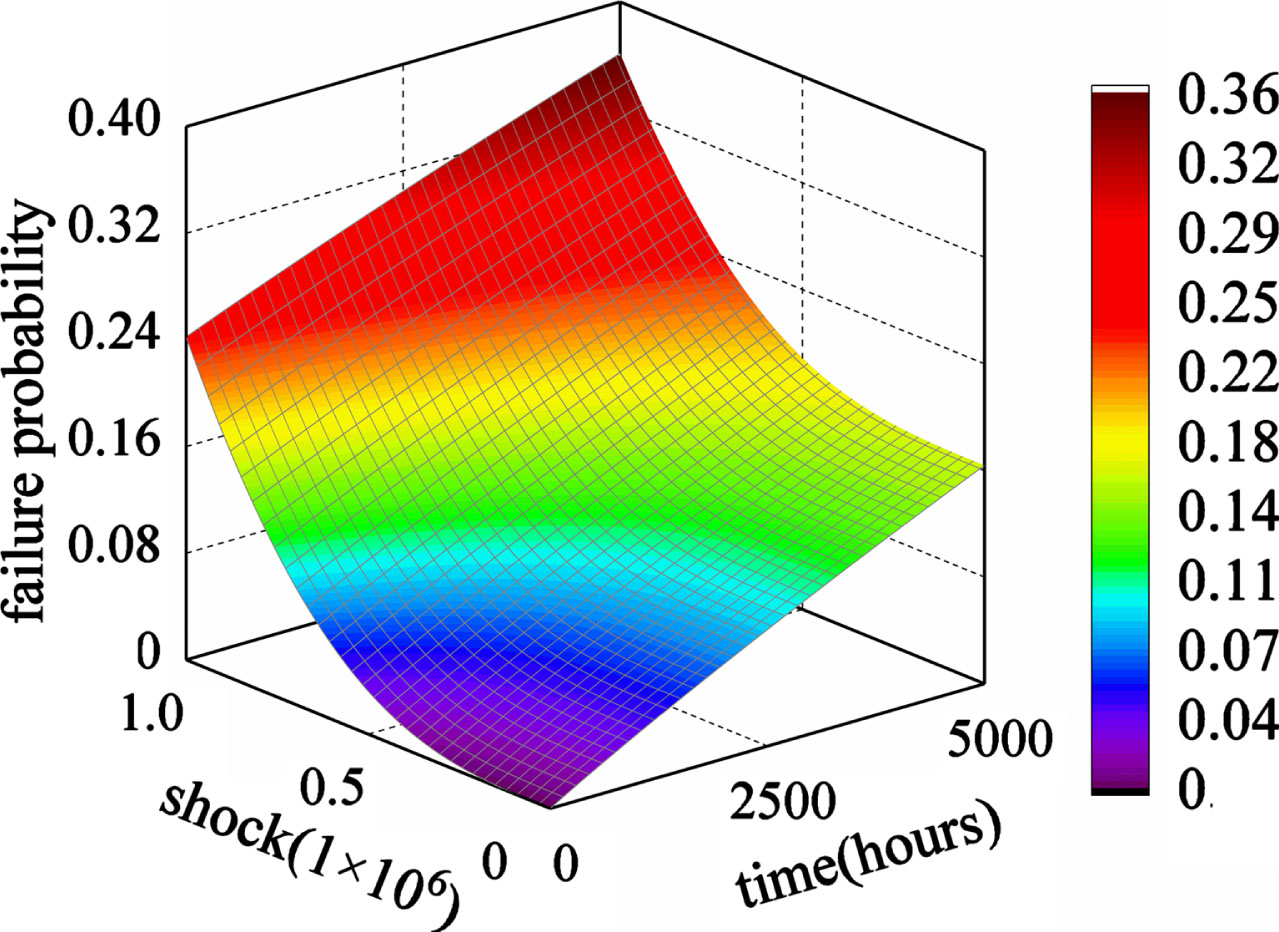

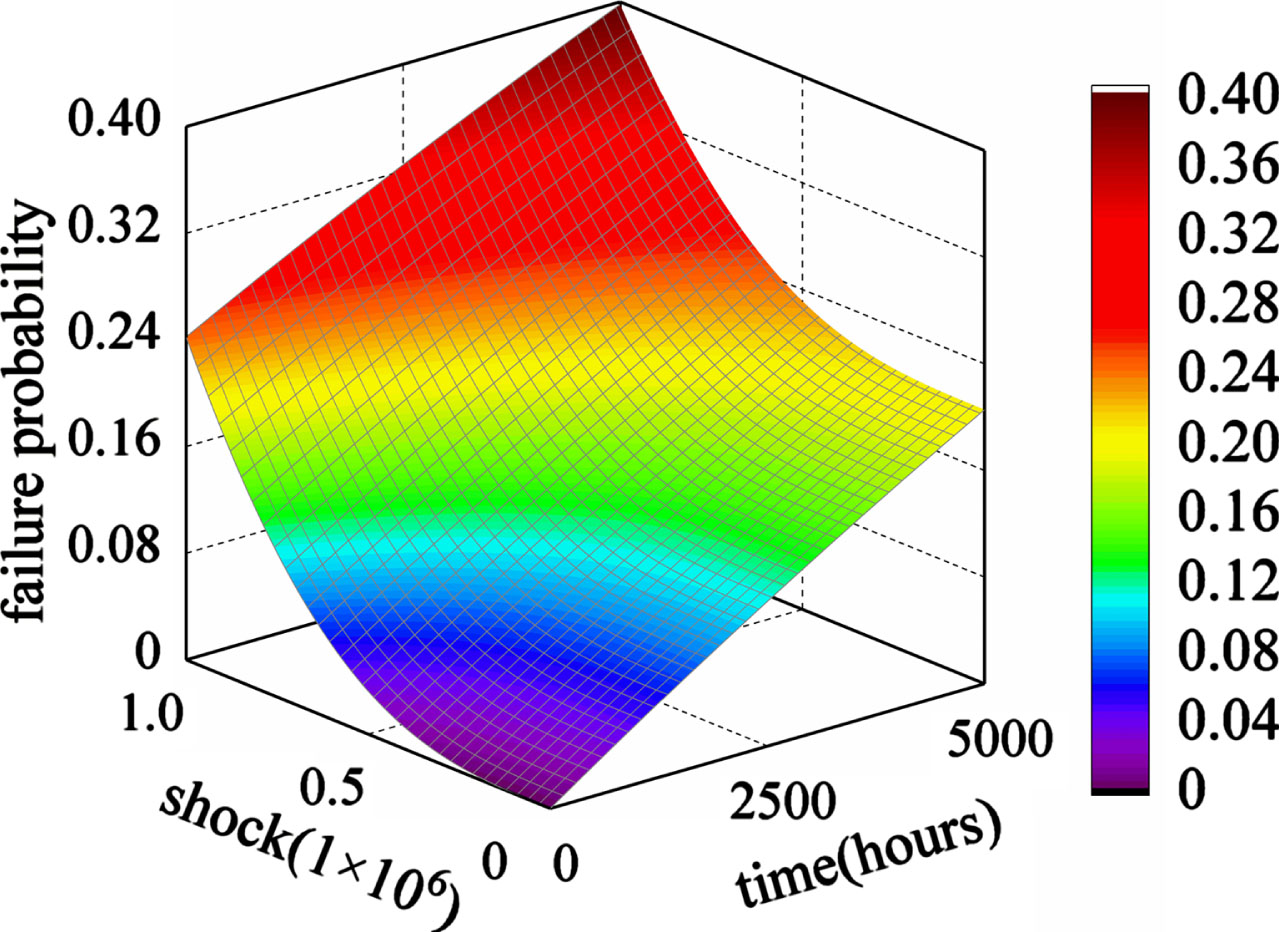

Fig. 9

Failure probability distribution of top event y without failure correlation.

As depicted in Fig. 9, the relationship between the two factors on the top event failure probability of the hydraulic height adjustment system is shown. when the working time t increases from 0 to 5000h, the failure probability value increases from 0 to nearly 0.2 when only the time factor is considered. With the increase of the number of shock s from 0 to 1×10⁶ times, the failure probability value increases from 0 to nearly 0.24 when only shock number factor is considered. When t = 5000h, s = 1×10⁶ times, the failure probability achieves the maximum value of 0.4. It can be seen that compared with only considering the influence of a single factor on the probability of system failure, the multi-dimensional T-S DFTA method considering multiple influencing factors can obtain more comprehensive results when analyzing the reliability of the system.

(2) Probability importance analysis

The probability importance of the respective basic event of the hydraulic height adjustment system is expressed in Equation (10), which can be classified into two types in accordance with the different distribution trends and the magnitude. The first type of probability importance involves basic events x₁, x₂, x₃, x₄, x_9-1 and x_9-2, as presented in Fig. 10. The second type of probability importance comprises basic events x₅, x₆, x₇, x₈, x_9-3, x₁₀, x₁₁ and x₁₂, as illustrated in Fig. 11.

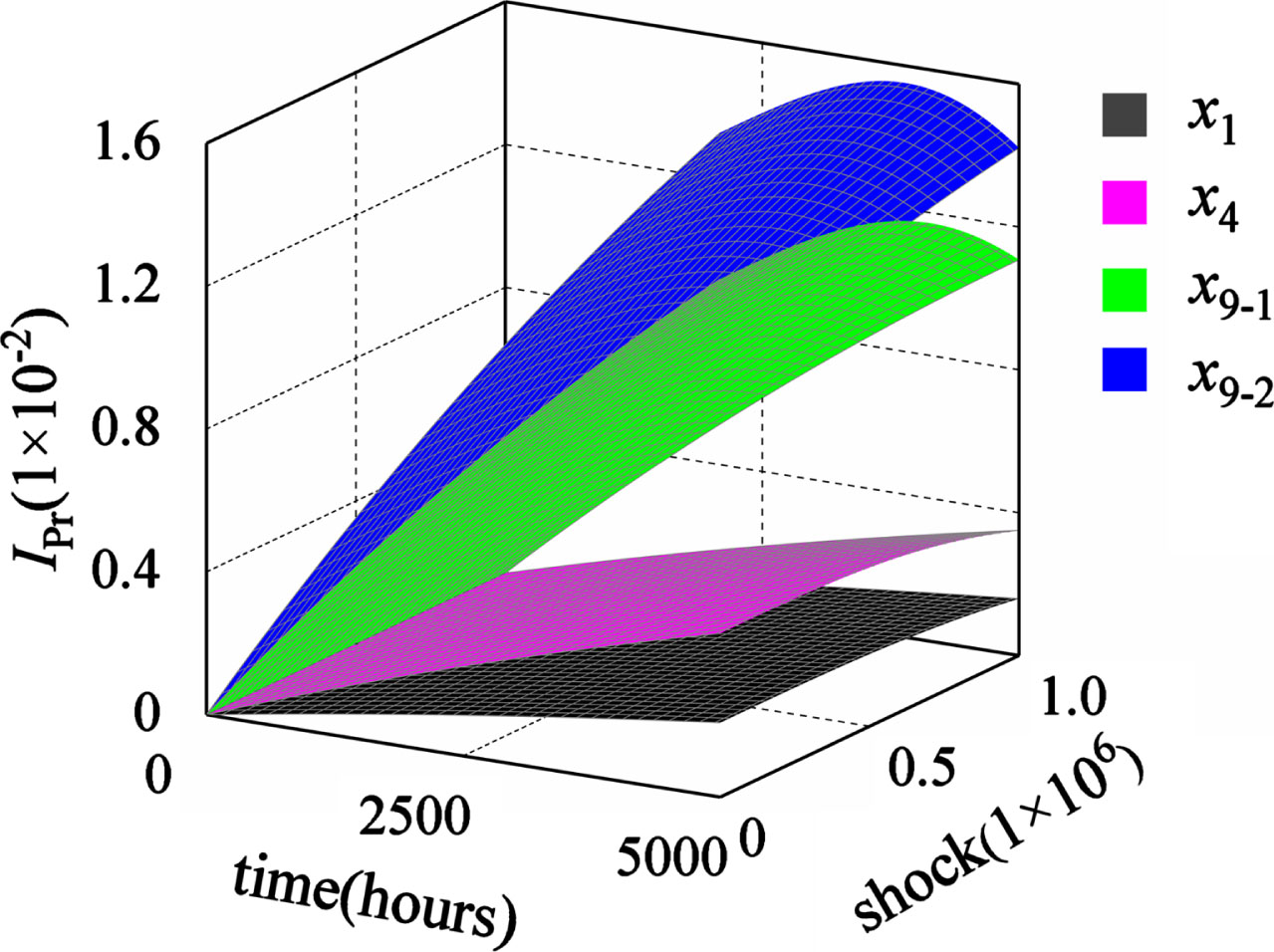

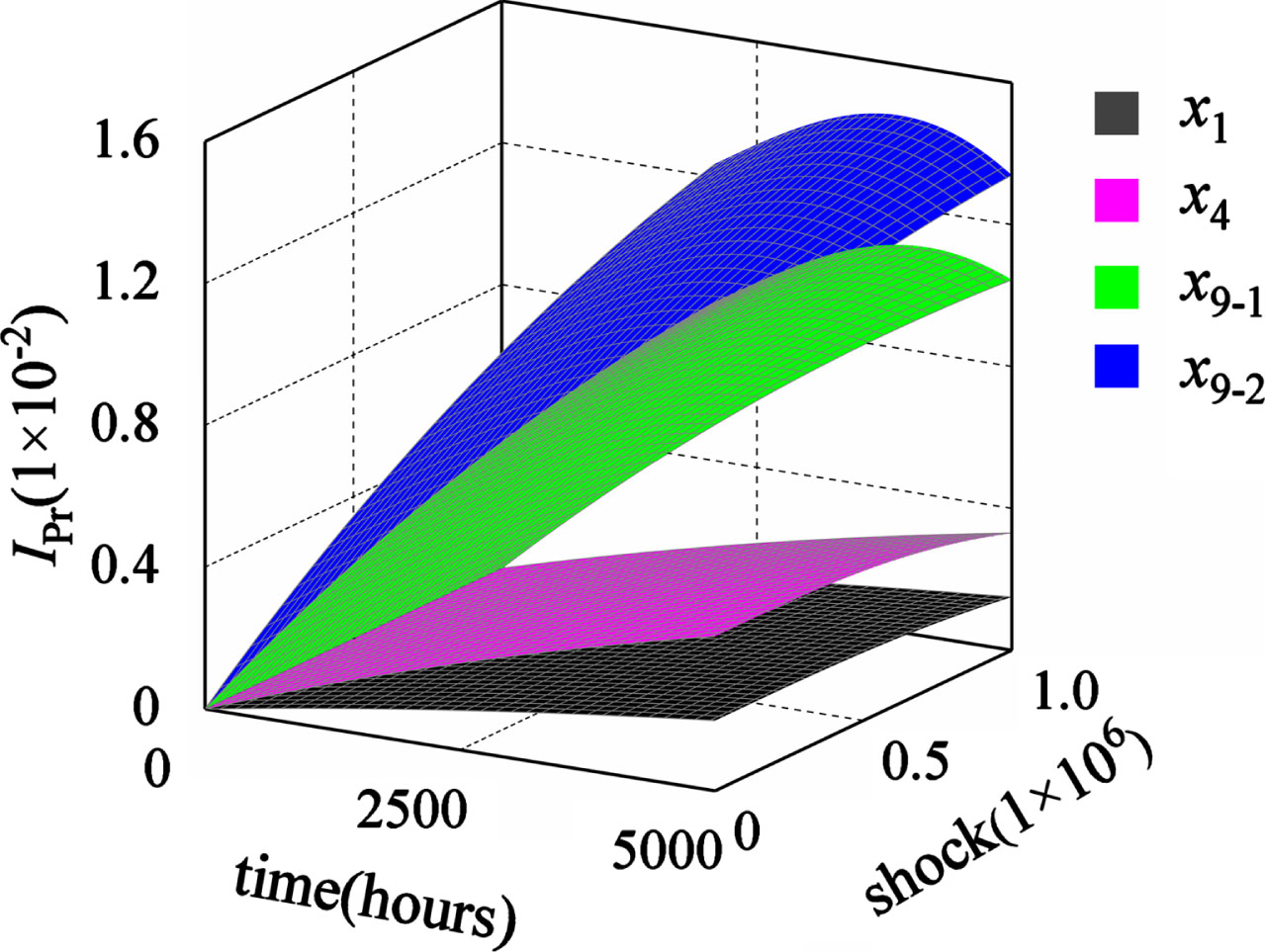

Fig. 10

The first type of probability importance without failure correlation.

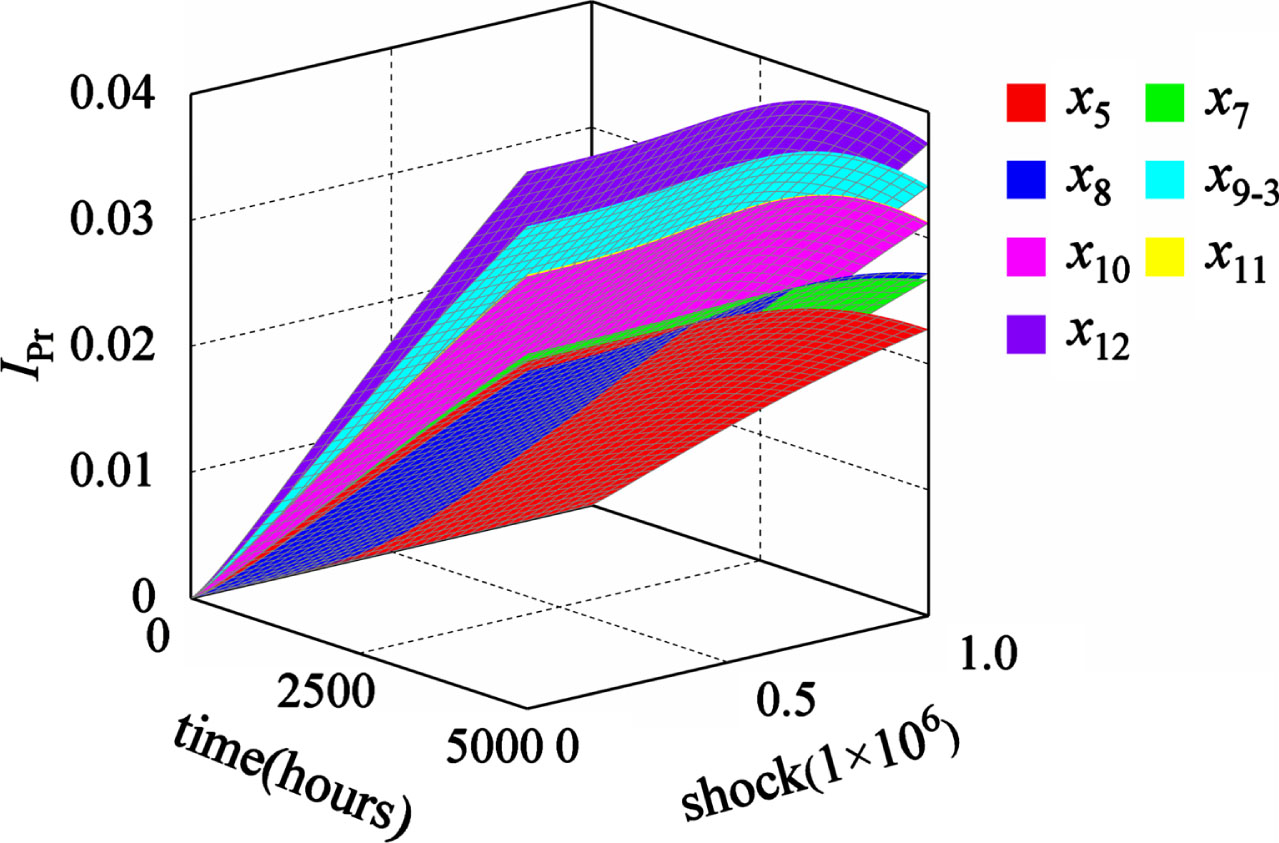

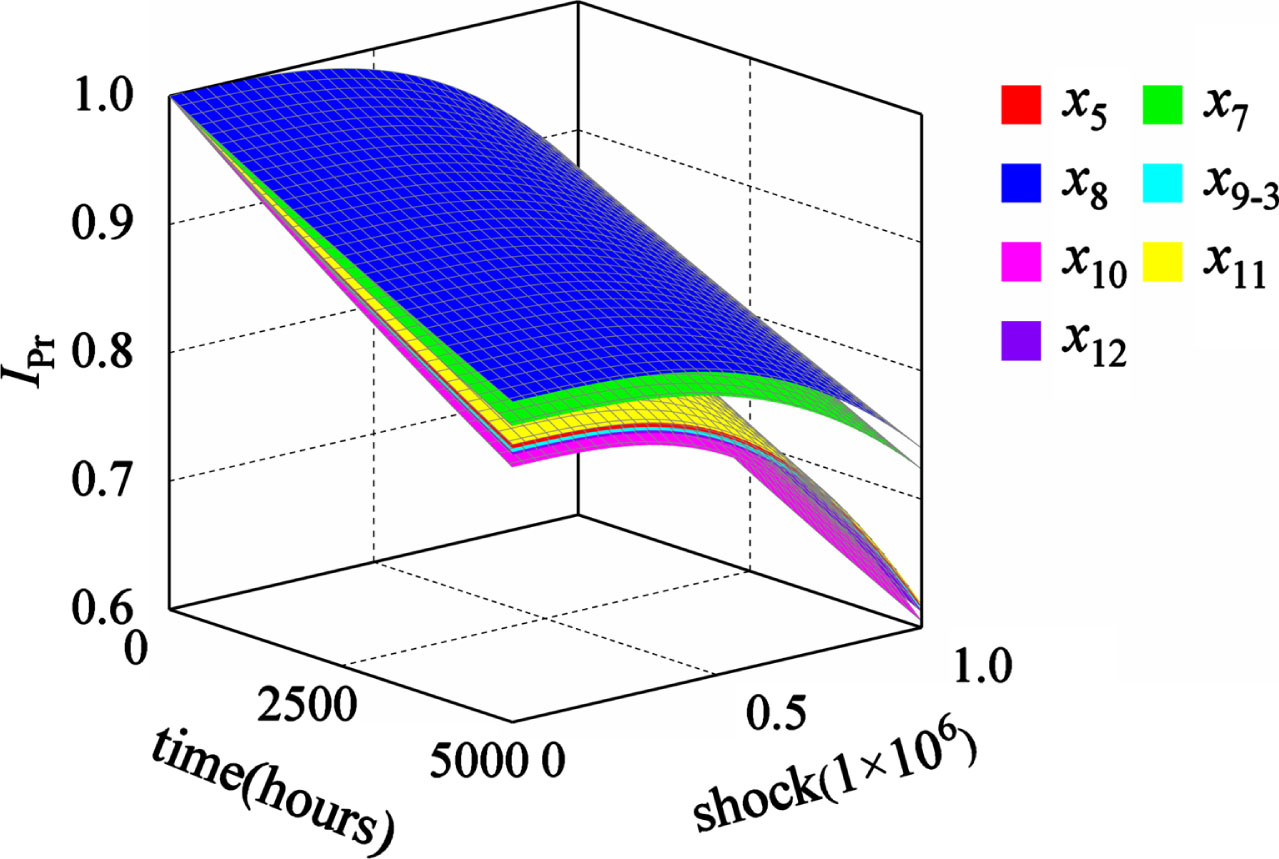

Fig. 11

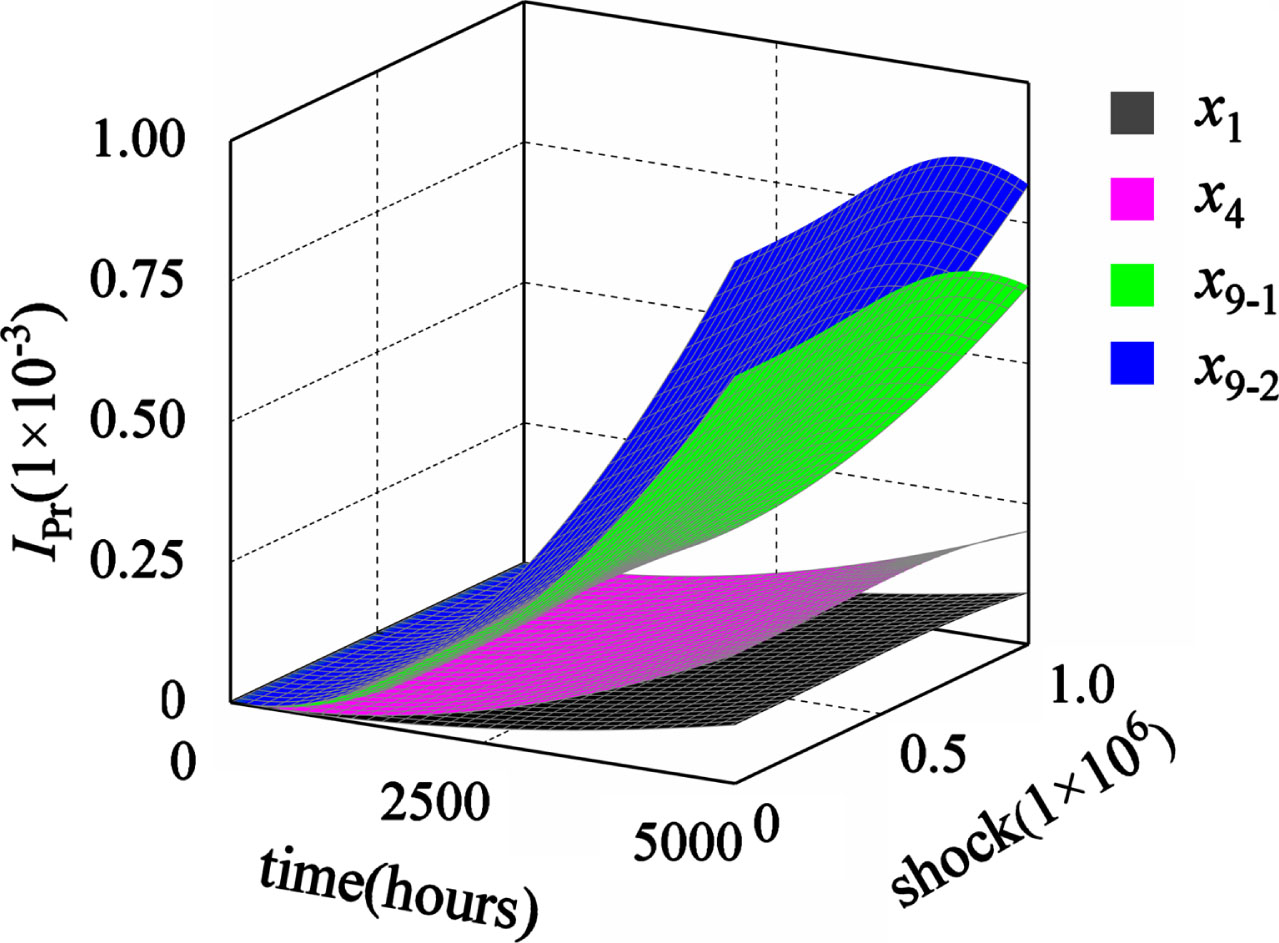

The second type of probability importance without failure correlation.

In the first type of probability importance, the descending order is x_9-2 = x_9-1, x₄, x₃, x₁ = x₂. The distributions of x₁, x₂ are the same and both are close to x₃, so that x₂ and x₃ are not drawn in Fig. 10. As depicted in Fig. 10, the probability importance of x₁, x₄, x_9-1 and x_9-2 increases with the extension of the working time, whereas x_9-1 and x_9-2 increase faster than x₁ and x₄. With the increase of the number of shocks, it shows a distribution trend of first increasing and then decreasing, whereas the trends of x_9-1 and x_9-2 are more significant than those of x₁ and x₄.

In the probability importance of the second type of Fig. 11, the descending order is x₈, x₇, x₁₁, x₅, x_9-3, x₁₂ and x₁₀. x₅ is equivalent to x₆.

The comparison between Figs. 10 and 11 suggests that when failure correlation is not involved, the probability importance of the second type is larger than that of the first type. According to the trend of the probability importance of the basic events in Fig. 11 it can be seen that basic events x₁₁, x₅, x_9-3, x₁₂ and x₁₀ change relatively large and should be focused on.

5.2 System reliability analysis with failure correlation

The hydraulic transmission system is dependent on hydraulic oil who circulates in the system as the working medium for transmitting energy. The failure of the hydraulic components will have more correlation when the oil is polluted. Accordingly, the reliability analysis results will be more realistic when the failure correlation between components is considered in the reliability analysis of the hydraulic system.

(1) Failure probability analysis

As depicted in Fig. 12, the multi-dimensional T-S dynamic fault tree copula model of the system is built based on the multi-dimensional T-S dynamic fault tree of the hydraulic height adjustment system and the failure correlation contents of the basic events. x₁∼x₁₂ represent the basic events, which are the same hydraulic components as those represented by the multi-dimensional T-S DFTA without considering failure correlation in Section 5.1. Unlike y₁∼y₆ and G₁∼G₇ in Section 5.1, y _{c 1}∼y _{c 6} denote the failure correlation intermediate events, and G _{c 1}∼G _{c 7} are failure correlation T-S dynamic gates whose logical relationship between subordinate events is expressed by the corresponding copula function.

Fig. 12

Multi-dimensional T-S dynamic fault tree copula model for hydraulic height adjustment system.

Since the correlation between the life of mechanical parts is generally positive, Gumbel-Copula will be selected as the copula function based on the requirements of model parameter estimation and simple calculation. The failure correlation degree of the subordinate event is changed by changing the correlation coefficient θ of the copula function. The multi-dimensional T-S dynamic fault tree copula model is equivalent to the multi-dimensional T-S dynamic fault tree model when there is no correlation between subordinate events, i.e., when they are entirely independent. The failure correlation between the basic events x₅ and x₇, x₆ and x₈, x₁₀, x₁₁ and x₁₂ is considered in the hydraulic height adjustment system. The copula function types and Correlation coefficient θ used by x₅ and x₇, x₆ and x₈, x₁₀, x₁₁ and x₁₂ are shown in Table 15.

Table 15

Basic event failure correlation content

Event code	Copula function	Correlation coefficient θ
x5 and x7	Gumbel Copula	0.2
x6 and x8	Gumbel Copula	0.2
x10, x11 and x12	Gumbel Copula	0.3

The event sequence description rules for the failure correlation T-S dynamic gates G _{c 1}∼G _{c 7} are built, and G _{c 1} is taken as an example for illustration, as shown in Table 16.

Table 16

Event sequence description rules of gate G_c1

Rule	x 1	x 2	x 3	O (l)	y 1
1	1	2	3	u(t3– t2)u(t2– t1)	δ (t y c 1 -t1)
2	1	3	2	u(t2– t3)u(t3– t1)	δ (t y c 1 -t1)
3	2	1	3	u(t3– t1)u(t1– t2)	δ (t y c 1 -t2)
4	2	3	1	u(t2– t1)u(t1– t3)	δ (t y c 1 -t3)
5	3	2	1	u(t1– t2)u(t2– t3)	δ (t y c 1 -t3)
6	3	1	2	u(t1– t3)u(t3– t2)	δ (t y c 1 -t2)

To be specific, y _{c 1} denotes the upper event under failure correlation, thus suggesting filter system failure. In the multi-dimensional T-S dynamic fault tree, the G₁ gate denotes an OR gate, so that the failure correlation T-S dynamic gate G _{c 1} represents the OR gate with failure correlation.

The fault probability distribution of top event y _c under failure correlation is obtained from the multi-dimensional T-S dynamic fault tree copula model, as presented in Fig. 13.

Fig. 13

Failure probability distribution of top event y _c with failure correlation.

Figure 13 illustrates the changing trend of the failure probability of the top event y _c of the hydraulic height adjustment system under t and s. The failure probability of the top event increases with the increase of t and s. Under the effect of the number of shocks s, its upward trend is from slow to fast. Thus, the failure probability of the top event increases with the increase of t and s.

The two failure probability distributions with and without failure correlation are compared to further examine the effect of failure correlation on the overall reliability of the system. As depicted in Fig. 14, the trend of the two changes with the factors is the same, and only the value of the failure probability is different, i.e., the failure probability distribution without failure correlation is slightly more significant than the failure probability distribution with failure correlation. This is because the positive correlation of the basic events is considered in the reliability analysis of failure correlation. Due to the effect of positive correlation between basic events, the survival probability of the respective basic event is greater than that when they are independent of each other, so that the reliability of the system is enhanced, that is, the probability distribution of failures considering failure correlation is smaller than the probability distribution of failures that do not consider failure correlation.

Fig. 14

Comparison of the failure probability distribution.

Only the reliability analysis results at the system level are obtained by solving the system failure probability distribution with failure correlation. The following is a multi-dimensional T-S dynamic fault tree copula importance algorithm for the respective basic event to analyze the probability importance. At the level of basic components, the quantitative reliability analysis of the shearer height adjustment system with failure correlation is carried out.

(2) Probability importance analysis

According to the distribution of the probability importance of the basic events of the hydraulic height adjustment system under failure correlation, the probability importance is divided into two types, and each category contains the same basic events as without considering failure correlation.

The probability importance of the first type with failure correlation is shown in Fig. 15, and its descending order is x_9-2, x_9-1, x₄, x₃ and x₁ = x₂. To clarify the difference between them, the importance of involving failure correlation is subtracted from that when it is not considered, and the difference of the distribution between the first type of probability importance with and without failure correlation is presented in Fig. 16.

Fig. 15

The first type of probability importance with failure correlation.

Fig. 16

The difference between the first type of probability importance distributions with and without failure correlation.

The importance distributions of the second type of probability importance basic events x₁₀ and x₅ intersect with failure correlation. x₅ is equal to x₆. Compared with the case without failure correlation, the importance order of x₅, x_9-3, x₁₀, x₁₁ and x₁₂ has changed. Fig. 17 illustrates the probability importance distribution of the second type of the basic event under failure correlation. They are sorted from high to low as x₈, x₇, x_9-3, x₁₁, x₁₂, x₁₀ and x₅. Fig. 18 presents the difference between the distribution of the second type of probability importance without failure correlation and with failure correlation.

Fig. 17

The second type of probability importance with failure correlation.

Fig. 18

The difference between the second type probability importance distributions with and without failure correlation.

5.3 Result and recommendations

Through the examples studied, it can be seen that compared with not considering the failure correlation, the failure probability of the system top event considering the failure correlation decreases by 0.0368 at t = 5000h, s = 1×10⁶ times. The probability importance of x_9-3, x₁₀, and x₁₂ (main valve of electro-hydraulic reversing valve, hydraulic lock, throttle valve) increased by 0.0341, 0.0312, and 0.0375 respectively, which changed significantly compared with that when failure correlation is not considered. In other words, in the actual situation where correlation is widespread, more attention should be paid to x_9-3, x₁₀, and x₁₂.

Based on the case analysis presented in this chapter, the findings suggest that neglecting the influence of failure correlation can lead to a misjudgment of the probability of system failure. Such misjudgment can introduce errors into the reliability evaluation process of the system. Additionally, from the ranking results of probability importance, ignoring failure correlation can lead to a misjudgment of important components that have a significant impact on the system. Consequently, this can lead to prioritization errors during maintenance and repair activities. These observations highlight the significance of the proposed method for practical reliability assessment and subsequent maintenance and repair tasks.

6 Conclusions

T-S dynamic fault tree is one powerful tool to analyze the static and dynamic failure logic relationship. Based on T-S DFTA, this paper comprehensively studies the reliability analysis of complex systems with mixed static and dynamic characteristics and failure correlation affected by multi-factors. A reliability analysis method of multi-dimensional T-S dynamic fault tree analysis with failure correlation is proposed. Firstly, the T-S DFTA is multi-dimensional processed to enable an analysis of systems affected by multi-factors. Furthermore, the copula function is multi-dimensional processed and integrated into the multi-dimensional T-S DFTA algorithm, which is verified in the series system. Meanwhile, the importance algorithm of multi-dimensional T-S dynamic fault tree with failure correlation is proposed. For the sake of illustration, the method is applied to the hydraulic height adjustment system of a coal mining machine. The system failure probability distribution and basic events importance order of multi-dimensional T-S DFTA are calculated without and with considering failure correlation. The results illustrate that the method is more in line with the actual situation. It lays a theoretical basis for discovering the weak links of the system and enhancing the reliability of the system.

The main attraction of this research lies in its focus on the issue of failure correlation and multi-factors, which expands the framework for reliability assessment and analysis. However, in the present analysis, this paper just discusses the commonly used series and parallel systems, while other types of systems, such as warm-standby and k-out-of-n systems, require further research. In addition, in the future work, this method will catch our focus by considering the optimization of constraints such as cost, weight volume in real systems.
