Balancing exploration and exploitation: Unleashing the adaptive power of automatic cuckoo search for meta-heuristic optimization

Abstract

Meta-heuristic optimization algorithms are versatile and efficient techniques for solving complex optimization problems. When applied to clustering algorithms, these algorithms offer numerous advantages over traditional optimization methods, including global search capabilities, iterative refinement processes, robustness to initial conditions, and flexibility in handling diverse clustering objectives and constraints. Employing meta-heuristic optimization in clustering algorithms leads to improved accuracy, scalability, robustness, and flexibility in finding optimal or near-optimal clustering solutions. These algorithms generate new individuals iteratively using nature-inspired operations to obtain high-quality results. However, they often suffer from slower convergence and lack guarantees of finding the best solution for every problem, posing ongoing challenges in algorithm development. This study focuses on addressing the issue of premature convergence in metaheuristic algorithms by introducing an automatic cuckoo search (AuCS) algorithm. The AuCS algorithm aims to strike a balance between exploration and exploitation by dynamically updating the step size in each generation, thereby avoiding premature convergence. To evaluate the effectiveness of the proposed algorithm, experiments were conducted on 13 standard benchmark functions and 14 CEC 2005 benchmark functions. In overall performance, AuCS has the best optimum value in 72.22% of cases. This demonstrates the efficacy of the proposed algorithm in achieving improved clustering accuracy and minimizing intra-cluster distance. The proposed AuCS algorithm was applied to data clustering and compared with four swarm optimization algorithms. Here, AuCS outperforms these well-known algorithms in 5 out of 7 datasets. The experimental evaluations in both benchmark functions and clustering problems confirm the promising results of the proposed algorithm, suggesting that AuCS could be considered as a potential improvement over the cuckoo search algorithm.

Keywords

Clustering cuckoo search algorithm advanced cuckoo search algorithm exploration exploitation

1. Introduction

Meta-heuristic optimization algorithms offer versatile solutions for efficiently solving complex optimization problems, transcending the limitations of traditional methods. In the realm of clustering algorithms, leveraging meta-heuristic optimization techniques presents numerous advantages. These include the ability to perform global searches, enabling comprehensive exploration of the solution space, iterative refinement for improved results, robustness in handling large and intricate datasets, and adaptability to diverse clustering objectives and constraints. Employing meta-heuristic optimization in clustering algorithms can lead to enhanced accuracy, scalability, robustness, and flexibility in obtaining optimal or near-optimal clustering solutions.

Metaheuristics can be categorized into two types, such as evolutionary algorithm and swarm optimization algorithm. Algorithms that are evolved by getting inspired by biological evolution are coming under the evolutionary algorithm category. However, algorithms that simulate the social behaviour of living creatures are coming under the second category. Genetic algorithm (GA) [1] and differential evolution (DE) [2] are two good examples of evolutionary algorithms, whereas particle swarm optimization (PSO) [3, 4], artificial bee colony (ABC) [5, 6], cuckoo search (CS) algorithm [7] and ant colony optimization (ACO) [8] are some of the popularly used swarm optimization algorithms. These algorithms generally follow specific nature-inspired operations to produce new individuals, and a continuous iteration may lead to a quality result. However, not very well-written metaheuristics sometimes suffer from premature convergence due to a lack of balance between exploration and exploitation of the search space.

This has always been a challenge among researchers to find the global optimum value. The metaheuristic performs way better than the traditional optimization approaches in dealing with the local minima trap issue. However, the lack of balance between exploration and exploitation always results in premature convergence. This study focuses on addressing the challenge of premature convergence, a common limitation in meta-heuristic algorithms. To overcome this issue, an Automatic Cuckoo Search (AuCS) algorithm is proposed, aiming to strike a balance between exploration and exploitation. By dynamically updating the step size in each generation, the AuCS algorithm effectively avoids premature convergence and achieves superior optimization performance. The contributions of this manuscript can be summarized as follows: (a) introduction of the AuCS algorithm, designed to achieve a balance between exploration and exploitation; (b) mitigation of premature convergence in Cuckoo Search (CS) through the adaptive updating of the step size; (c) comparative analysis of the proposed AuCS algorithm with CS and adaptive cuckoo search (ACS) [12] using 27 benchmark functions in 30 and 50 dimensions; and (d) evaluation of the AuCS algorithm’s efficacy in clustering, with a focus on minimizing intra-cluster distance and improving clustering accuracy. The experimental results demonstrate the effectiveness of the proposed AuCS algorithm, highlighting its superiority in addressing premature convergence and its potential for enhancing optimization performance in various problem domains. This manuscript serves as a valuable contribution to the field of meta-heuristic optimization, offering insights into adaptive optimization techniques and their applicability in clustering algorithms.

The rest of the manuscript has been outlined as follows. Related works, such as CS and its different variations have been briefed in Section 2. Section 3 provides a brief overview and a method-wise comparative analysis of CS, ACS, and AuCS. Section 4 presents the experimental outcomes and analysis. Finally, Section 5 concludes the work.

2. Related works

As metaheuristics can efficiently explore the search space without necessarily knowing about the problem and its derivatives, these have become more popular among researchers and have been associated with handling challenging optimization problems. The CS proposed by Yang et.al. [7] is a highly efficient optimization algorithm and is mainly known for its capability to deal with diversified optimization problems. With the benefits of the simple concept, high efficiency, ease of implementation, and few parameters to adjust, CS has been applied in various fields. The efficiency of CS had been proven by Yang and Deb compared with other metaheuristics such as GA and PSO.

Moreover, researchers have devoted their time and knowledge to the direction of improving the performance of CS. Specifically, they have contributed in three specific directions. People have hybridized the CS with some of the existing optimization algorithms to increase convergence by overcoming the weakness of the CS. Secondly, people try to modify the mechanism or strategy to improve search capability. Lastly, researchers have contributed to developing methods that control the associated parameters of CS differently for better convergence and to improve the versatility and robustness to handle different optimization problems.

Dhabal et al. developed a gbest-guided CS algorithm [9], proposing a replacement strategy based on gbest. Instead of considering a fixed, they thought of an adaptive $\beta$ that changes with each generation. Moreover, the abandoned probability is also chosen based on the dimension of the problem. In this way, the performance of CS is improved significantly as compared to the original CS. In [10], authors combined an adaptive mutation factor from the Cauchy distribution to generate new mutant solutions in each generation. By considering the Cauchy distribution and varying scaling factors, the author claimed the avoidance of premature convergence. Huang et al. find the impact of step size in searching for optimal solutions is significant [11]. Their experiment concludes that adjusting the step size from 0.2 to 0.4 by Chaos leads to better convergence. Naik et al. [12] proposed ACS algorithm where adaptive step size and levy flight parameters help to improve the exploration-exploitation balance, convergence speed, and solution quality. Cheng et al. [13] proposed constructing a candidate pool with three different CS algorithm variants. By considering each algorithm’s past success and failure experience, an adaptive scheme has been chosen to determine the probability of selecting each algorithm. A hybrid algorithm consisting of CS and adaptive Gaussian quantum-behaved PSO [14] is proposed in [15]. After upgrading fifty percent of the population with each of the algorithms, the original CS’s deletion strategy is applied to the whole population in each generation. A hybrid CS algorithm was proposed in [16] to enhance both the exploration and exploitation capability of the original CS. Here, an improved Differential Algorithm is applied to the second phase to avoid premature convergence, and the local search ability is enhanced by increasing the exploitation ability. Gao et al. proposed five adaptive strategies to select the probability percentage and the value of various control parameters for different functions and generations [17]. The claim was that experiment led to an overwhelming performance upgradation of the CS algorithm. Similarly, a Fractional-order cuckoo search algorithm was proposed in [18]. Here, the author combined the fractional calculus memory feature to improve the cuckoo’s stochastic walk by watching the cuckoo’s past behaviour present in the memory. Moreover, the probability is adaptively picked from the B distribution. The paper validated the model’s efficacy with twenty-eight benchmark functions. The author in [19] introduced a novel reinforcement searching method. The search method follows the concept of the snap-drift neural network to find a balance between exploration and exploitation.

To find a better solution than the existing one, many variants of different metaheuristic algorithms have been developed in the recent past. However, the convergence of metaheuristics algorithms is slow as compared to traditional optimization techniques, and yet there is not a single one that can guarantee to find the best value for any problem. Hence, it remains an open challenge for all to explore an efficient algorithm.

3. Methodologies

This section provides a comprehensive analysis of the CS and ACS algorithms, focusing on implementation details, advantages, and limitations. Emphasis is placed on evaluating the exploration and exploitation capabilities and the impact of algorithm parameters. These observations justify the need for the proposed research by identifying areas for improvement. By examining the intricacies of CS and ACS, this section uncovers opportunities to enhance their performance, particularly in achieving a better balance between exploration and exploitation.

3.1 Comparative analysis: Advantages and limitations of cuckoo search (CS) and adaptive cuckoo search (ACS)

The CS optimization algorithm, inspired by the behaviour of cuckoo birds, offers a simple yet effective approach to solving optimization problems proposed by Yang and Deb in 2009. CS combines global random search and local search, achieving a balance between exploration and exploitation. Its scalability and efficiency make it suitable for large-scale problems. However, CS has limitations. It is sensitive to initial settings and struggles with complex multimodal functions. Slower convergence speed in high-dimensional problems is another challenge. CS relies on a biased random walk for exploration. Customizing parameters is vital to address these limitations and optimize CS’s performance for specific problem characteristics. In CS, to generate a uniformly randomized population, key parameters like population size (NP) and solution dimension ( $D$ ) are initialized upfront. The entire set of nests, which represents solutions, is then uniformly prepared within a bounded search space defined by predetermined lower $Y_{\textit{LB}}=\left\{{y_{\textit{LB}}^{1}\ldots y_{\textit{LB}}^{D}}\right\}$ and upper $Y_{\textit{UB}}=\left\{{y_{\textit{UB}}^{1}\ldots y_{\textit{UB}}^{D}}\right\}$ bounds. For instance, the $j^{\textit{th}}$ attribute of the $i^{\textit{th}}$ solution, with dimension $D$ in the current generation, can be generated using the following Eq. (1). Furthermore, in this step, several essential parameters are initialized, including the number of cuckoos/solutions ( $N$ ), the discoverable probability $P_{a}$ , the step size ( $\alpha$ ), the Levy flight component ( $\beta$ ), and the number of iterations/generations (NoG).

$\displaystyle y_{i,gn}^{j}=y_{\textit{LB}}^{j}+\textit{rand}\ \left[{0,1}% \right]\cdot\left({y_{\textit{UB}}^{j}-y_{\textit{LB}}^{j}}\right)\quad j=1,2,% \ldots,D$ (1)

The Levy flight probability approach is utilized for searching new solutions. Levy flight involves a random walk where the step length follows a Levy distribution. This approach is preferred in the CS algorithm due to its fast convergence and efficient exploration of large search spaces [20]. To generate a new solution, the following steps are taken starting from Eq. (2).

$\displaystyle{y}_{{i},{gn}+1}={y}_{{i},{gn}}+\alpha\cdot\left({{y}_{{\textit{% best}}}-{y}_{{i},{gn}}}\right)\otimes{\textit{levy}}\ \left({{s},{\beta}}\right)$ (2)

In the context described, ${y}_{{i},{gn}+1}$ represents the ${i}^{{th}}$ solution in generation ${gn}+1$ , ${y}_{{i},{gn}}$ denotes the solution in the current generation, and ${y}_{\textit{best}}$ represents the current best solution. The step size ${\alpha}>0$ , typically set to 1, and $\oplus$ denotes the entry-wise product. The random walk in the levy flight approach is represented as ${\textit{levy}}\left({{s},{\beta}}\right)$ . To determine the levy step size ${s}$ , the Mantenga algorithm provided below can be employed using Eq. (3).

$\displaystyle{s}=\frac{{u}}{{v}^{1/{\beta}}}$ (3)

Here, ${u}$ and ${v}$ are considered as Gaussian normal distributions, which can be evaluated using Eqs (4) and (5). Here, ${\sigma}^{2}$ is the variance, and can be determined using Eq. (6), where ${\Gamma}$ is the gamma function and ${\beta}$ is a random number that lies within [1 $\sim$ 3].

$\displaystyle{u}\sim{N}\left({0,{\sigma}^{2}}\right)$ (4) $\displaystyle{v}\sim{N}\left({0,1}\right)$ (5) $\displaystyle{\sigma}^{2}=\left[{\frac{{\Gamma}\left({1+{\beta}}\right)}{{% \beta\Gamma}\left({\left({1+{\beta}}\right)/2}\right)}\cdot\frac{\sin\left({{% \pi\beta}/2}\right)}{2^{\left({{\beta}-1}\right)/2}}}\right]^{1/{\beta}}$ (6)

A crucial step in CS, similar to other swarm optimization algorithms, is the selection of solutions for the next generation. The fitness of the newly generated ${i}^{{th}}$ solution is compared with that of a randomly selected ${j}^{{th}}$ solution. The solution with superior fitness replaces the inferior one for the next generation. Furthermore, a fraction of the worst solutions, determined by the abandoned probability ${P}_{a}$ , are discarded and substituted with newly created candidate solutions. This process enhances the exploration of the search space in pursuit of improved solutions. The following Eq. (7) is employed to accomplish this.

$\displaystyle{y}_{{i},{gn}+1}={y}_{{i},{gn}}+{\alpha s}\otimes{H}\left({{P}_{a% }-\in}\right)\otimes\left({{y}_{{j},{gn}}-{y}_{{k},{gn}}}\right)$ (7)

In the given context, ${y}_{{j},{gn}}$ and ${y}_{{k},{gn}}$ represent two randomly selected solutions with random permutations. $\alpha$ denotes the positive size scaling factor, $s$ indicates the step size, and $\in$ represents a random number drawn from a normal distribution. Additionally, in each generation, the solution with the best fitness value ( ${y}_{\textit{best}}$ ) is retained and carried forward to the next generation. The aforementioned processes persist until a stopping criterion is met. Similar to other nature-inspired algorithms, this algorithm can be halted under the following conditions: when a solution surpasses the feasible threshold, when the maximum number of predetermined generations, NoG, is reached, or when there is no observable improvement in the results over an extended period of generations.

The ACS algorithm, an extension of CS proposed by Naik et al. in 2016, introduces adaptive strategies to improve its performance. Adaptive step size and levy flight parameters allow the algorithm to dynamically adjust during optimization. This adaptation improves the exploration-exploitation balance, convergence speed, and solution quality. ACS excels in exploring complex multimodal problems with narrow peaks. Its adaptive nature enables it to dynamically adapt to problem characteristics, leading to better performance. However, implementing and tuning ACS is more complex than the original CS algorithm. Optimal parameter configuration requires expertise and time. Additionally, the adaptive nature may introduce randomness, potentially increasing computational time or yielding suboptimal solutions. ACS offers advantages like improved balance, faster convergence, and adaptability. Yet, challenges include complexity, tuning difficulty, potential increased computational time, and the risk of suboptimal solutions.

While most steps in Algorithm 1 remain unchanged, there are notable differences in the way the algorithm handles solution generation. Specifically, ACS incorporates an adaptive approach where the step size is determined based on the fitness of each individual nest in the current iteration. Interestingly, this algorithm deviates from the conventional use of Levy distribution and completely disregards the variable $\alpha$ . By adopting this adaptive approach, ACS aims to improve the efficiency and effectiveness of the CS algorithm in finding optimal solutions. The adaptive step size of this algorithm can be calculated as follows.

$\displaystyle\textit{{step}}_{i}\left({{t}+1}\right)=\left({\frac{1}{{t}}}% \right)^{\left|{\left({\left({\textit{bestf}\left({t}\right)-{f}_{i}\left({t}% \right)}\right)/\left({\textit{bestf}\left({t}\right)-\textit{worstf}\left({t}% \right)}\right)}\right)}\right|}$ (8)

Here, $t$ is the current generation and $f_{i}\left(t\right)$ represents the fitness of the $i^{th}$ nest. $\textit{bestf}\left(t\right)$ and $\textit{worstf}\left(t\right)$ characterizes the best and worst fitness value of the current generation respectively. This equation indicates that the step size gradually decreases along with the increase of generation. Moreover, each nest of the solution space is updated by taking step size into consideration. The equation is as follows.

$\displaystyle{X}_{i}\left({{t}+1}\right)={X}_{i}\left({t}\right)+\textit{randn% }\times\textit{step}_{i}\left({{t}+1}\right)\times\left({{X}_{i}\left({t}% \right)-{X}_{\textit{gbest}}\left({t}\right)}\right)$ (9)

Here, $X_{i}\left(t\right)$ represents a solution in the current generation $t$ and is the best solution of the entire population with the best fitness value, $\textit{bestf}\left(t\right)$ for the same generation. The entire steps of this process can be referred from the Algorithm 2.

Algorithm 1: The pseudo-code of this CS

1. Begin 2. Decide one objective function

f\left(y\right)

to be optimized, where

=\{y^{1},y^{2},\ldots,y^{D}\}

3. Initialize

\beta

and

\alpha

. 4. Initialize a population

Y

N P

number of sulutions, where

Y=\left\{{y_{1},y_{2},\ldots,y_{\textit{NP}}}\right\}

. 5. while

\left({\textit{gn}<\textit{NOG}}\right)

//or any one of the stopping criteria is reached 5.1. Get a random new cuckoo solution (say

y_{i}

), generated by Levy flights using

\beta

and

\alpha

. 5.2. Find the fitness of each solution using the selected objective function

f

. 5.3. Select one random nest out of NP (say

y_{j})

. 5.4. Find out the quality/ fitness as

f_{i}

and

f_{j}

for

y_{i}

and

y_{j}

respectively. 5.5. if

\left({f_{i}>f_{j}}\right)

5.5.1. Replace

y_{j}

by the newly generated solution

y_{i}

. 5.6. end of if 5.7. Find the fitness/quality of NP number of solutions of the entire population. 5.8. Abandon/ reject a

P_{a}

fraction of worse solutions/nests and build a new one with a new location in place of rejected nests. 5.9. Keep the best solutions/nests with good fitness value. 5.10. Rank the solutions to find the current best. 6. end of while 6.1. Post-processing of results 7. End

Algorithm 2: The pseudo-code of this ACS

1. Begin 2. Decide one objective function

f\left(y\right)

to be optimized, where

=\{y^{1},y^{2},\ldots,y^{D}\}

3. Initialize a population

Y

of NP number of sulutions, where

Y=\left\{{y_{1},y_{2},\ldots,y_{\textit{NP}}}\right\}

. 4. while

\left({gn<\textit{NOG}}\right)

//or any one of the stopping criteria is reached 4.1. Find the

\textit{bestf},\textit{worstf}

, and

X_{\textit{gbest}}

for the current generation. 4.2. Evaluate step size using Eq. (8). 4.3. Update each solution using Eq. (9). 4.4. Find the fitness of each solution using the selected objective function. 4.5. Select one random nest out of NP (say

y_{j})

. 4.6. Find out the quality/fitness as

f_{i}

and

f_{j}

for

y_{i}

and

y_{j}

respectively. 4.7. if

\left({f_{i}>f_{j}}\right)

4.7.1. Replace

y_{j}

by the newly generated solution

y_{i}

for maximization problem. 4.8. end of if 4.9. Find the fitness/quality of NP number of solutions of the entire population. 4.10. Abandon/reject a

P_{a}

fraction of worse solutions/nests and build a new one with a new location in place of rejected nests. 4.11. Keep the best solutions/snests with good fitness value. 4.12. Rank the solutions to find the current best. 5. end of while 5.1. Post-processing of results 6. end

In ACS, though the algorithm adaptively considers the step size, it has not considered the concept of levy flight. Hence, the value of $\alpha$ and $\beta$ has been completely ignored in ACS. In order to avoid premature convergence and to maintain the balance between exploration and exploitation, authors proposed the AuCS in which both value of step size and $\alpha$ get updated along with each generation. The proposed mechanism of AuCS is discussed in the next section.

3.2 The proposed automatic cuckoo search optimization (AuCS) Algorithm: Features, advantages, and contributions

This work aims to address the issue of local minima by achieving a delicate balance between exploration and exploitation in the search space. An analysis of the CS algorithm reveals that the parameters $\alpha$ and $\beta$ govern exploitation and exploration, respectively. However, CS tends to prematurely converge to suboptimal results due to excessive exploitation. Balancing exploration and exploitation is crucial for finding the global optimum and mitigating local optima. To achieve this, an additional parameter is proposed to maintain a balance throughout the search process. Initially, emphasis is placed on exploration, gradually shifting towards exploitation. Similarly, the step size in CS should start small for wider exploration and increase over time to prevent trapping in local optima. The proposed parameter, represented in Eq. (10), serves to establish and maintain this balance.

$\displaystyle\psi=\frac{\textit{NoG }-G}{\textit{NoG}}$ (10)

In this context, the symbol NoG denotes the total number of generations, while $G$ represents the current generation. Upon analyzing this parameter, it becomes evident that the value of $\psi$ progressively decreases as the number of generations increases. Utilizing $\psi$ , the formulation for $\beta$ can be expressed in Eq. (11).

$\displaystyle\beta=3\times\left({1-\psi}\right)$ (11)

It becomes evident that $\beta$ is now dependent on $\psi$ , with $\beta$ increasing as the generation number rises. The higher the generation, the larger the step size. By employing this formula, we ensure that the value of $\beta$ remains within the range of [0-3]. Consequently, during the later stages of the search, a larger step size facilitates exploration of positions located at a greater distance and potentially offers better values. This mechanism helps prevent the algorithm from becoming trapped in local minima, enhancing its ability to find more optimal solutions.

When considering Eq. (2) involving $\alpha$ , it becomes apparent that in each generation, the search process of the entire population gravitates towards the local best solution. This is due to the fact that each position in the population is updated based on the local best, rendering the search more susceptible to becoming trapped in local minima. Despite the fact that the value of $\alpha$ can be selected from the range of [0, 1], its impact on avoiding local minima is not particularly significant. After conducting numerous operations, it has been observed that $\alpha$ does not exert a substantial influence on convergence. Consequently, $\alpha$ is employed in a completely different manner to maintain exploitation. As exploitation intensifies the search towards a global optimum, it is recommended to prioritize exploration in the early stages of the search process. Consequently, the following equations have been formulated to achieve a balance between these two crucial factors.

$\displaystyle{\alpha}=1-{\psi}$ (12)

In contrast to exploiting the entire population as described in Eq. (12), $\alpha$ now determines the proportion of random solutions to be exploited based on the current best solution in each generation. It is evident that there is a proportional increase in the $\alpha$ value with the advancement of generations. This facilitates an accelerated exploitation process over time, with an increasing emphasis on exploitation as the generations progress. The complete concept and implementation details are elaborated in the subsequent sections (Section 4).

In this work, the traditional greedy selection approach has been replaced by adopting the elitism principle inspired by NSGA II [21]. This methodology involves merging the old and new populations and sorting them based on their fitness values. From this combined population, the top NP solutions (where NP represents the population size) are selected from 2NP for the subsequent generation. Unlike the greedy approach, this selection method ensures that every high-performing solution from the current generation is retained, without the risk of losing any promising individuals. By incorporating elitism, the algorithm preserves the best solutions, promoting their continued influence and enhancing the potential for improved performance in subsequent generations.

To summarize, these strategies, including the adaptation of $\beta$ and $\alpha$ based on $\psi$ and the incorporation of elitism, aim to strike a balance between exploration and exploitation, overcoming local minima and improving the performance of the algorithm as given in Algorithm 3.

Algorithm 3: The pseudo-code of the proposed AuCS

1. Begin 2. Decide one objective function

f\left(y\right)

to be optimized, where

=\left\{{y^{1},y^{2},\ldots,y^{D}}\right\}

. 3. Initialize a population

Y

of NP number of sulutions, where

Y=\left\{{y_{1},y_{2},\ldots,y_{\textit{NP}}}\right\}

. 4. while

\left({gn<\textit{NOG}}\right)

//or any one of the stopping criteria is reached 4.1. Evaluate

\beta

either using Eq. (11). 4.2. Evaluate

\alpha

using Eq. (12). 4.3. Find the fitness of each solution using the selected objective function

f

. 4.4. Get NP new cuckoo solutions (say

Y_{\textit{new}}

), generated by Levy flights using calculated

\beta

and

\alpha

. 4.5. Merge

Y

and

Y_{\textit{new}}

to get 2NP number of cuckoo solutions. 4.6. Sort the entire 2NP solutions based on their fitness/quality. 4.7. Select top NP solutions as

Y

. 4.8. Abandon/reject a

P_{a}

fraction of worse solutions/ nests and build a new one with a new location in place of rejected nests. Let the population with new solutions termed as

Y_{\textit{up}}

4.9. Merge

Y

and

Y_{\textit{up}}

to get 2NP number of cuckoo solutions. 4.10. Sort the entire 2NP solutions based on their fitness/quality. 4.11. Select top NP solutions as

Y

. 4.12. Find the current best. 5. end of while 5.1. Post-processing of results 6. end

3.3 The proposed AuCS algorithm for clustering: Exploiting balance between exploration and exploitation

The proposed AuCS algorithm shows promise in addressing clustering problems and has been successfully applied in this domain. Clustering involves grouping data points based on similarity, and the AuCS algorithm offers a unique approach by optimizing the clustering process. Implementation of AuCS in clustering entails data preprocessing, algorithm application, and parameter tuning. Preprocessing ensures data suitability, while the algorithm’s steps are tailored for clustering, including generating solutions, adjusting step sizes, and maintaining exploration-exploitation balance. Parameters like $\alpha$ and $\beta$ are carefully selected based on dataset characteristics. Termination criteria determine when the algorithm stops. Performance evaluation measures inter-cluster distance and accuracy. AuCS is assessed for meaningful and well-separated clusters, compared with other algorithms or benchmarks. Its ability to handle complex and high-dimensional problems is attributed to its exploration-exploitation balance.

4. Result analysis: Benchmark functions and data clustering

This section provides a comprehensive examination of the results and a discussion of the newly introduced approach. The discussion encompasses two aspects. Firstly, an analysis is conducted using 13 fundamental benchmark test functions [12], as well as 14 additional test functions from CEC 2005 [22]. Secondly, the performance is assessed based on data clustering.

Table 1
Parameter settings

Algorithms	NP	$\beta$	$\alpha$	$P_{a}$	NoG(30D)	NoG(50D)
CS	50	1.5	1	0.25	3000	5000
ACS	50	Not considered	Not considered	0.25	3000	5000
AuCS	50	Adaptive	Adaptive	0.25	3000	5000

4.1 Benchmark test function analysis

In this section, we analyse and discuss the performance of the proposed algorithm using 27 benchmark test functions. These include 13 standard test functions and 14 test functions from CEC 2005. By comparing the obtained results with the global optimum values of these functions, we evaluate the effectiveness of the proposed algorithm. Specifically, we compare the results of the proposed AuCS algorithm with those of the CS and ACS algorithms. The total number of function evaluations for all 27 benchmark functions is fixed at $D\times 10000$ , where $D$ represents the dimension of the solution. For detailed parameter settings of CS, ACS, and AuCS, please refer to Table 1.

Table 2
Details of basic unimodal functions

Test functions	Mathematical expression	Range
Sphere Model	$f_{1}\left(X\right)=\mathop{\sum}\limits_{i=1}^{d}x_{i}^{2}$	( $-$ 100, 100) $d$
Schwefel’s Problem 2.22	$f_{2}\left(X\right)=\mathop{\sum}\limits_{i=1}^{d}\left\|{x_{i}}\right\|+\mathop% {\prod}\limits_{i=1}^{d}x_{i}$	( $-$ 10, 10) $d$
Schwefel’s Problem 1.2	$f_{3}\left(X\right)=\mathop{\sum}\limits_{i=1}^{d}\left({\mathop{\sum}\limits_% {j=1}^{i}x_{j}}\right)^{2}$	( $-$ 100, 100) $d$
Schwefel’s Problem 2.21	$f_{4}\left(X\right)=\max_{i}\left\{{\left\|{x_{i}}\right\|,1\leqslant i\leqslant d% }\right\}$	( $-$ 100, 100) $d$
Generalized Rosenbrock’s Function	$f_{5}\left(X\right)=\mathop{\sum}\limits_{i=1}^{d-1}\left[{100\left({x_{i+1}-x% _{i}^{2}}\right)^{2}+(x_{i}-1)^{2}}\right]$	( $-$ 30, 30) $d$
Step Function	$f_{6}\left(X\right)=\mathop{\sum}\limits_{i=1}^{d}\left({x_{i}+0.5}\right)^{2}$	( $-$ 100, 100) $d$
Quartic Function	$f_{7}\left(X\right)=\mathop{\sum}\limits_{i=1}^{d}ix_{i}^{4}+\textit{random}% \left[{0,1}\right)$	( $-$ 1.28, 1.28) $d$

Table 3

Details of basic multimodal functions

Test functions	Mathematical expression	Range	Global minima
Generalized Schwefel’s Problem 2.26	$f_{8}\left(X\right)=\mathop{\sum}\limits_{i=1}^{d}-x_{i}\sin\left({\sqrt{\left% \|{x_{i}}\right\|}}\right)$	( $-$ 500, 500) $d$	$-$ 12569.5
Generalized Rastrigins Function	$f_{9}\left(X\right)=\mathop{\sum}\limits_{i=1}^{d}\left[{x_{i}^{2}-10\cos\left% ({2\pi x_{i}}\right)+10}\right]$	( $-$ 5.12, 5.12) $d$	0
Ackley’s Function	$f_{10}\left(X\right)\!=\!-20\exp\left({-0.2\sqrt{\frac{1}{n}\mathop{\sum}% \limits_{i=1}^{d}x_{i}^{2}}}\right)\!-\!\exp\left({\frac{1}{n}\mathop{\sum}% \limits_{i=1}^{d}\cos\left({2\pi x_{i}}\right)}\right)+20+e$	( $-$ 32, 32) $d$	0
Generalized Griewank Function	$f_{11}\left(X\right)=\frac{1}{4000}\mathop{\sum}\limits_{i=1}^{d}x_{i}^{2}-% \mathop{\prod}\limits_{i=1}^{d}\cos\left({\frac{x_{i}}{\sqrt{i}}}\right)+1$	( $-$ 600, 600) $d$	0
Generalized Penalized Function 1	$f_{12}\left(X\right)=\frac{\pi}{d}\left\{{10\sin\left({\pi y_{i}}\right)+% \mathop{\sum}\limits_{i=1}^{d}\left({y_{i}-1}\right)^{2}\left[{1+10\sin^{2}(% \pi y_{i+1})}\right]+\left({y_{d}-1}\right)^{2}}\right\}$ $+\mathop{\sum}\limits_{i=1}^{d}u\left({x_{i},10,100,4}\right)$ , where $y_{i}=1+\left({\frac{\left({x_{i}+1}\right)}{4}}\right),\ \textit{and}\ u\left% ({x_{i},a,k,m}\right)=\left\{{{\begin{array}[]{l}{k\left({x_{i}-a}\right)^{m},% {x}_{i}>a}\hfill\\ {0,-a<x_{i}<a}\hfill\\ {k\left({-x_{i}-a}\right)^{m},x_{i}<-a}\hfill\\ \end{array}}}\right.$	( $-$ 50, 50) $d$	0
Generalized Penalized Function 2	$f_{13}\left(X\right)=$ $0.1\left\{{{\begin{array}[]{*{20}c}{\sin^{2}\left({3\pi x_{1}}\right)}\hfill\\ {+\mathop{\sum}\limits_{i=1}^{d}\left({x_{i}\!-\!1}\right)^{2}\left[{1\!+\!% \sin^{2}\left({3\pi x_{i}+1}\right)}\right]\!+\!\left({x_{d}-1}\right)^{2}% \left[{1\!+\!\sin^{2}\left({2\pi x_{d}}\right)}\right]}\hfill\\ \end{array}}}\right\}$ $+\mathop{\sum}\limits_{i=1}^{d}u\left({x_{i},5,100,4}\right),\textit{where}\ u% \left({x_{i},a,k,m}\right)=\left\{{{\begin{array}[]{l}{k\left({x_{i}-a}\right)% ^{m},{x}_{i}>a}\hfill\\ {0,-a<x_{i}<a}\hfill\\ {k\left({-x_{i}-a}\right)^{m},x_{i}<-a}\hfill\\ \end{array}}}\right.$	( $-$ 50, 50) $d$	0

Among the 13 test functions considered, the first 7 functions listed in Table 2 are unimodal functions, while the remaining functions are multimodal functions with multiple local minima, as described in Table 3. Furthermore, these functions have been evaluated using dimensions of 30 and 50.

Table 4

Details of CEC 2005 unimodal functions

CEC test functions	Mathematical expression	Range	$f\_\textit{bias}$	Global minima
Shifted sphere function	$f_{1}\left(X\right)=\mathop{\sum}\limits_{i=1}^{d}Z_{i}^{2}+f\_\textit{bias}_{1}$	( $-$ 100, 100) $d$	$f_{1}\left({X^{\ast}}\right)=f\_\textit{bias}_{1}=-450$	$X^{\ast}=0$
Shifted Schwefel’s problem 1.2	$f_{2}\left(X\right)=\mathop{\sum}\limits_{i=1}^{d}\left({\mathop{\sum}\limits_% {j=1}^{i}Z_{j}}\right)^{2}+f\_\textit{bias}_{2}$	( $-$ 100, 100) $d$	$f_{2}\left({X^{\ast}}\right)=f\_\textit{bias}_{2}=-450$	$X^{\ast}=0$
Shifted rotated high conditioned elliptic function	$f_{3}\left(X\right)=\mathop{\sum}\limits_{i=1}^{d}\left({10^{6}}\right)^{\frac% {i-1}{d-1}}Y_{i}^{2}+f\_\textit{bias}_{3}$	( $-$ 100, 100) $d$	$f_{3}\left({X^{\ast}}\right)=f\_\textit{bias}_{3}=-450$	$X^{\ast}=0$
Shifted Schwefel’s problem 1.2 with noise in fitness	$f_{4}\left(X\right)=\left({\mathop{\sum}\limits_{i=1}^{d}\left({\mathop{\sum}% \limits_{j=1}^{i}Z_{j}}\right)^{2}}\right)\ast$ $\left({1+0.4\left\|{N\left({0,1}\right)}\right\|}\right)+f\_\textit{bias}_{4}$	( $-$ 100, 100) $d$	$f_{4}\left({X^{\ast}}\right)=f\_\textit{bias}_{4}=-450$	$X^{\ast}=0$
Schwefel’s problem 2.6 with global optimum on bounds	$f_{5}\left(X\right)=\max\left({\left\|{A_{i}X-B_{i}}\right\|}\right)+f\_\textit{% bias}_{5}$	( $-$ 100, 100) $d$	$f_{5}\left({X^{\ast}}\right)=f\_\textit{bias}_{5}=-310$	$X^{\ast}=0$

Here, $Z=X-O$ , where $X=\left[{X_{1},X_{2},\ldots,X_{d}}\right]$ , $O=\left[{O_{1},O_{2},\ldots,O_{d}}\right]$ and $Y=\left({X-O}\right)\times M$ . The $d$ represents dimensions, $O$ is the shifted global optimum and $M$ is the orthogonal matrix.

Table 5

Details of CEC 2005 multimodal functions

CEC test functions	Mathematical expression	Range	$f\_\textit{bias}$	Global minima
Shifted Rosenbrock’s Function	$f_{6}\left(X\right)=$ $\mathop{\sum}\limits_{i=1}^{d}\left({100\left({Z_{i}^{2}-Z_{i+1}}\right)^{2}+% \left({Z_{i}-1}\right)^{2}}\right)+f\_\textit{bias}_{6}$	( $-$ 100, 100) $d$	$f_{6}\left({X^{\ast}}\right)$ $=f\_\textit{bias}_{6}=390$	$X^{\ast}=0$
Shifted rotated Griewank’s Function without bound	$f_{7}\left(X\right)=\mathop{\sum}\limits_{i=1}^{d}\frac{Z_{i}^{2}}{4000}-% \mathop{\prod}\limits_{i=1}^{d}\cos\left({\frac{Y_{i}}{\sqrt{i}}}\right)+1+f\_% \textit{bias}_{7}$	(0,600) $d$	$f_{7}\left({X^{\ast}}\right)=$ $f\_\textit{bias}_{7}=-180$	$X^{\ast}=0$
Shifted rotated Ackley’s with global optimum on bounds	$f_{8}\left(X\right)=-20\exp\left({-0.2\sqrt{\frac{1}{d}\mathop{\sum}\limits_{i% =1}^{d}P_{i}^{2}}}\right)$ $-\exp\left({\frac{1}{d}\mathop{\sum}\limits_{i=1}^{d}\cos\left({2\pi P_{i}}% \right)}\right)+20+e+f\_\textit{bias}_{8}$	( $-$ 32, 32) $d$	$f_{8}\left({X^{\ast}}\right)=$ $f\_\textit{bias}_{7}=-140$	$X^{\ast}=0$
Shifted Rastrigin’s Function	$f_{9}\left(X\right)=$ $\mathop{\sum}\limits_{i=1}^{d}\left({Z_{i}^{2}-10\cos\left({2\pi Z_{i}}\right)% +10}\right)+f\_\textit{bias}_{9}$	( $-$ 5, 5) $d$	$f_{9}\left({X^{\ast}}\right)=$ $f\_\textit{bias}_{9}=-330$	$X^{\ast}=0$
Shifted Rotated Rastrigin’s Function	$f_{10}\left(X\right)=$ $\mathop{\sum}\limits_{i=1}^{d}\left({R_{i}^{2}-10\cos\left({2\pi R_{i}}\right)% +10}\right)+f\_\textit{bias}_{10}$	( $-$ 5, 5) $d$	$f_{10}\left({X^{\ast}}\right)=$ $f\_\textit{bias}_{10}=-330$	$X^{\ast}=0$
Shifted Rotated Weierstrass’ Function	$f_{11}\left(X\right)=\mathop{\sum}\limits_{i=1}^{d}\left({\mathop{\sum}\limits% _{k=0}^{20}0.5^{k}\cos\left({2\pi 3^{k}\left({U_{i}+0.5}\right)}\right)}\right)$ $+-d\mathop{\sum}\limits_{k=0}^{20}0.5^{k}\cos\left({2\pi 3^{k}.0.5}\right)+f\_% \textit{bias}_{11}$	( $-$ 0.5, 0.5)		$X^{\ast}=0$
Schwefel’s problem 2.13	$f_{12}\left(X\right)=\mathop{\sum}\limits_{i=1}^{d}\left({A_{i}-B_{i}\left(X% \right)}\right)^{2}+f\_\textit{bias}_{12}$	( $-\pi\pi)d$	$f_{11}\left({X^{\ast}}\right)=$ $f\_\textit{bias}_{11}=-460$	$X^{\ast}=0$

Here, $Y=\left({X-O}\right)\times M$ ; $M={M}^{\prime}(1+0.3|N(0,1)|)$ ; $M$ is the linear transformation matrix, condition number $=$ 3; $P=\left({X-O}\right)\times Q$ ; $Q$ is the linear transformation matrix, condition number $=$ 100; $R=\left({X-O}\right)\times S$ ; $S$ is the linear transformation matrix, condition number $=$ 2; $U=\left({X-O}\right)\times V$ , where $V$ is the linear transformation matrix, condition number $=$ 5; $A_{i}=\sum_{i=1}^{d}\left({a_{ij}\sin\left({a_{j}}\right)+b_{ij}\cos\left({a_{% j}}\right)}\right)$ and $B_{i}\left(X\right)=\sum_{i=1}^{d}\left({a_{ij}\sin\left({X_{j}}\right)+b_{ij}% \cos\left({X_{j}}\right)}\right).$

Table 6

Details of CEC 2005 expanded multimodal functions

CEC test functions	Mathematical expression	Range	$f\_\textit{bias}$	Global minima
Shift Expanded Griewank’s plus Rosenbrock’s Function	$f_{13}\left(X\right)=F_{7}\left({F_{6}\left({Z_{1},Z_{2}}\right)}\right)+F_{7}% \left({F_{6}\left({Z_{2},Z_{3}}\right)}\right)+$ $\ldots,F_{7}\left({F_{6}\left({Z_{d-1},Z_{d}}\right)}\right)+F_{7}\left({F_{6}% \left({Z_{d},Z_{1}}\right)}\right)$ $+f\_\textit{bias}_{13}$	( $-$ 5, 5) $d$	$f_{13}\left({X^{\ast}}\right)=$ $f\_\textit{bias}_{13}=-130$	$X^{\ast}=0$
Shift Expanded Scaffer’s Function	$f_{14}\left(X\right)=EF\left({Z_{1},Z_{2},\ldots,Z_{d}}\right)=F\left({Z_{1},Z% _{2}}\right)+$ $F\left({Z_{2},Z_{3}}\right)+\ldots+F\left({Z_{d-1},Z_{d}}\right)+F\left({Z_{d}% ,Z_{1}}\right)+$ $f\_\textit{bias}_{14}$	( $-$ 100, 100) $d$	$f_{7}\left({X^{\ast}}\right)=$ $f\_\textit{bias}_{7}=-300$	$X^{\ast}=0$

Here, $F_{7}\left(X\right)$ is the Griewank’s function; $F_{7}\left(X\right)=\frac{Z_{i}^{2}}{4000}-\prod_{i=1}^{d}\cos\left({\frac{Y_{% i}}{\sqrt{i}}}\right)+1$ ; $F_{6}\left(X\right)$ is the Rosenbrocks’s function; $F_{6}\left(X\right)=\sum_{i=1}^{d-1}\left({100\left({Z_{i}^{2}-Z_{i+1}}\right)% ^{2}+\left({Z_{i}-1}\right)^{2}}\right)$ ; $F\left({W,X}\right)=0.5+\frac{\left({\sin^{2}\left({\sqrt{W^{2}+X^{2}}}\right)% -0.5}\right)}{\left({1+0.001\left({X^{2}+W^{2}}\right)}\right)^{2}}$ .

Likewise, among the 14 CEC 2005 test functions, f1–f5 are unimodal functions with a single optimal value, f6–f12 are basic multimodal functions, and f13–f14 are categorized as expanded multimodal functions. Detailed descriptions of these functions can be found in Tables 4 to 6, sourced from [22]. It is worth noting that as the solution space dimension increases, the complexity of finding the optimal value also increases. To assess the scalability of the proposed model, all 14 benchmark test functions have been evaluated using solution spaces of dimensions 30 and 50. To ensure a fair comparison, the number of solutions considered for all algorithms is fixed at 50, regardless of the specific benchmark function.

Table 7

Performance evaluation of basic uni-modal and multi-modal benchmark test functions with dimension 30D

Functions	Item	CS	ACS	AuCS (0-3)
$f_{1}$	Best (Rank) Average (Rank) Std (Rank)	1.4348e-11 (3) 6.8292e-11 (3) 5.7542e-11 (3)	1.8765e-20 (2) 6.1335e-13 (2) 1.1304e-12 (2)	1.2853e-70 (1) 9.2604e-66 (1)1.5671e-65 (1)
$f_{2}$	Best (Rank) Average (Rank) Std (Rank)	5.5772e-05 (3) 1.4020e-04 (2) 4.6867e-05 (2)	7.6637e-07 (2) 4.7903e-04 (3) 8.1901e-04 (3)	1.0926e-49 (1) 8.1981e-49 (1)1.2129e-48 (1)
$f_{3}$	Best (Rank) Average (Rank) Std (Rank)	9.4810 (3) 18.5317 (2) 5.0183 (2)	0.6745 (2) 73.8519 (3) 78.4464 (3)	2.9030e-05 (1) 0.0034 (1)0.0089 (1)
$f_{4}$	Best (Rank) Average (Rank) Std (Rank)	0.2064 (3) 0.4041 (3) 0.1434 (2)	0.1679 (2) 0.3640 (2) 0.1851 (3)	0 (1) 0 (1)0 (1)
$f_{5}$	Best (Rank) Average (Rank) Std (Rank)	18.8026 (3) 20.5397 (2) 0.9571 (1)	5.8605 (2) 13.7495 (1) 4.8754 (2)	5.0892 (1) 48.4772 (3) 58.2585 (3)
$f_{6}$	Best (Rank) Average (Rank) Std (Rank)	0 (1) 0 (1)0 (1)	0 (1) 0 (1)0 (1)	0 (1) 0 (1)0 (1)
$f_{7}$	Best (Rank) Average (Rank) Std (Rank)	0.0048 (1) 0.0108 (2) 0.0042 (1)	0.0190 (3) 0.0333 (3) 0.0155 (3)	0.0055 (2) 0.0091 (1) 0.0045 (2)
$f_{8}$	Best (Rank) Average (Rank) Std (Rank)	$-$ 8.4211e+03 (3) $-$ 8.0093e+03 (3) 260.3037 (1)	$-$ 1.0076e+04 (2) $-$ 9.4151e+03 (2) 483.3161 (3)	$-$ 1.1740e+04 (1) $-$ 1.1220e+04 (1) 368.0064 (2)
$f_{9}$	Best (Rank) Average (Rank) Std (Rank)	61.5125 (3) 85.1768 (3) 12.3657 (3)	24.6853 (2) 42.4595 (2) 10.4503 (2)	0 (1) 0.9286 (1)2.8852 (1)
$f_{10}$	Best (Rank) Average (Rank) Std (Rank)	0.1852 (3) 12.3884 (3) 8.3894 (3)	1.8947e-06 (2) 1.9656e-05 (2) 3.0235e-05 (2)	3.5527e-15 (1) 6.0396e-15 (1)3.3704e-15 (1)
$f_{11}$	Best (Rank) Average (Rank) Std (Rank)	6.1508e-09 (3) 2.7928e-07 (3) 2.4591e-07 (2)	2.3201e-12 (2) 2.0734e-07 (2) 4.7554e-07 (3)	0 (1) 0 (1)0 (1)
$f_{12}$	Best (Rank) Average (Rank) Std (Rank)	2.2326e-10 (3) 1.4155e-08 (2) 2.1051e-08 (2)	1.9118e-11 (2) 1.0151 (3) 1.1331 (3)	1.2413e-31 (1) 1.6201e-28 (1)5.0297e-28 (1)
$f_{13}$	Best (Rank) Average (Rank) Std (Rank)	1.3902e-10 (3) 1.7017e-09 (2) 1.6270e-09 (2)	1.2781e-28 (2) 5.2015e-15 (1)1.6445e-14 (1)	2.0004e-30 (1) 0.0022 (3) 0.0046 (3)
Avg. Rank	Best Average Std	35/13 $=$ 2.69 31/13 $=$ 2.38 25/13 $=$ 1.92	26/13 $=$ 2.00 26/13 $=$ 2.00 31/13 $=$ 2.38	14/13 $=$ 1.07 17/13 $=$ 1.3019/13 $=$ 1.46

Table 8

Performance evaluation of basic unimodal and multi-modal benchmark test functions with dimension 50D

Functions	Item	CS	ACS	AuCS (0-3)
$f_{1}$	Best (Rank) Average (Rank) Std (Rank)	3.0820e-12 (3) 2.6160e-11 (3) 2.4861e-11 (3)	1.3204e-14 (2) 5.6386e-12 (2) 5.6778e-12 (2)	2.6559e-56 (1) 1.7709e-53 (1)5.2744e-53 (1)
$f_{2}$	Best (Rank) Average (Rank) Std (Rank)	1.8815e-05 (2) 3.4116e-05 (2) 1.2139e-05 (2)	8.6730e-04 (3) 0.3585 (3) 0.8356 (3)	5.4115e-45 (1) 1.0628e-43 (1)1.6372e-43 (1)
$f_{3}$	Best (Rank) Average (Rank) Std (Rank)	135.5975 (3) 273.6280 (2) 78.8229 (2)	92.5570 (2) 679.4066 (3) 480.1962 (3)	0.3425 (1) 1.7488 (1)1.5891 (1)
$f_{4}$	Best (Rank) Average (Rank) Std (Rank)	1.9063 (2) 3.6231 (3) 1.1355 (2)	2.1721 (3) 4.0516 (2) 1.2245 (3)	0 (1) 0 (1)0 (1)
$f_{5}$	Best (Rank) Average (Rank) Std (Rank)	27.6149 (3) 43.4768 (1)15.5470 (1)	3.3865 (2) 47.1766(2) 26.1169 (2)	0.0809 (1) 70.5958 (3) 52.9302 (3)
$f_{6}$	Best (Rank) Average (Rank) Std (Rank)	0 (1) 0.3500 (3) 0.5871 (3)	0 (1) 0.1000 (2) 0.3162 (2)	0 (1) 0 (1)0 (1)
$f_{7}$	Best (Rank) Average (Rank) Std (Rank)	0.0164 (2) 0.0253 (2) 0.0085 (1)	0.0367 (3) 0.0574 (3) 0.0164 (3)	0.0126 (1) 0.0239 (1) 0.0088 (2)
$f_{8}$	Best (Rank) Average (Rank) Std (Rank)	$-$ 1.3193e+04 (3) $-$ 1.2350e+04 (3) 610.8790 (2)	$-$ 1.6353e+04 (2) $-$ 1.4426e+04 (2) 1.1446e+03 (3)	$-$ 1.9291e+04 (1) $-$ 1.8575e+04 (1)413.4637 (1)
$f_{9}$	Best (Rank) Average (Rank) Std (Rank)	118.9928 (3) 146.0915 (3) 19.4428 (3)	54.3129 (2) 93.2324 (2) 15.2427 (2)	0 (1) 12.0888 (1)8.4934 (1)
$f_{10}$	Best (Rank) Average (Rank) Std (Rank)	1.5335 (3) 14.3400 (3) 5.5783 (3)	3.3017e-06 (2) 1.6245e-05 (2) 1.7953e-05 (2)	7.1054e-15 (1) 1.2257e-14 (1)4.8184e-15 (1)
$f_{11}$	Best (Rank) Average (Rank) Std (Rank)	2.6187e-11 (3) 5.9557e-09 (2) 9.9814e-09 (2)	4.4409e-16 (2) 6.9738e-09 (3) 1.4505e-08 (3)	0 (1) 3.3307e-17 (1)8.1345e-17 (1)
$f_{12}$	Best (Rank) Average (Rank) Std (Rank)	6.7097e-11 (3) 0.0895 (2) 0.3021 (2)	3.7129e-14 (2) 1.1332 (3) 1.2015 (3)	4.0310e-30 (1) 2.6529e-20 (1)1.1653e-19 (1)
$f_{13}$	Best (Rank) Average (Rank) Std (Rank)	1.3030e-11 (3) 2.2101e-09 (1)4.3580e-09 (1)	6.1992e-21 (2) 1.2649e-04 (2) 3.2423e-04 (2)	1.1639e-27 (1) 0.0055 (3) 0.0056 (3)
Avg. Rank	Best Average Std	34/13 $=$ 2.615 30/13 $=$ 2.307 27/13 $=$ 2.076	28/13 $=$ 2.153 31/13 $=$ 2.384 33/13 $=$ 3.538	14/13 $=$ 1.076 18/13 $=$ 1.38418/13 $=$ 1.384

Table 9

Performance evaluation of CEC 2005 unimodal and multimodal benchmark test functions with dimensions 30D

Function	Item	CS	ACS	AuCS (0–3)
$f_{1}$	Best (Rank) Average (Rank) Std (Rank)	2.4566e-11 (3) 5.4475e-11 (3) 2.8062e-11 (3)	3.4602e-12 (2) 9.3702e-13 (2) 1.4831e-28 (1)	6.8410e-27 (1) 3.1934e-24 (1) 6.8987e-24 (2)
$f_{2}$	Best (Rank) Average (Rank) Std (Rank)	19.9534 (3) 38.0864 (2) 13.8044 (2)	10.9798 (2) 844.7488 (3) 768.2824 (3)	7.9295e-04 (1) 0.0038 (1)0.0029 (1)
$f_{3}$	Best (Rank) Average (Rank) Std (Rank)	4.0649e+06 (2) 7.0520e+06 (2) 1.7479e+06 (2)	7.7069e+06 (3) 1.5492e+07 (3) 6.0980e+06 (3)	6.7855e+05 (1) 1.8013e+06 (1)8.4988e+05 (1)
$f_{4}$	Best (Rank) Average (Rank) Std (Rank)	1.3446e+03 (2) 3.2764e+03 (2) 1.3002e+03 (1)	4.9571e+03 (3) 1.2022e+04 (3) 5.3358e+03 (3)	1.0645e+03 (1) 3.2603e+03 (1) 1.9919e+03 (2)
$f_{5}$	Best (Rank) Average (Rank) Std (Rank)	1.1398e+03 (2) 2.0497e+03 (1)630.1381 (1)	626.8084 (1) 5.3140e+03 (2) 3.1386e+03 (3)	5.8093e+03 (3) 8.0622e+03 (3) 1.2140e+03 (2)
$f_{6}$	Best (Rank) Average (Rank) Std (Rank)	21.7699 (3) 23.9722 (1)1.3845 (1)	0.4427 (1) 1.1822e+04 (3) 3.3116e+04 (3)	5.6261 (2) 191.3166 (2) 323.5012 (2)
$f_{7}$	Best (Rank) Average (Rank) Std (Rank)	4.6963e+03 (1) 4.6963e+03 (1)0 (1)	4.6963e+03 (1) 4.6963e+03 (1) 7.9865e-10 (3)	4.6963e+03 (1) 4.6963e+03 (1) 1.2127e-12 (2)
$f_{8}$	Best (Rank) Average (Rank) Std (Rank)	20.9000 (3) 20.9423 (3) 0.0352 (2)	20.8469 (2) 20.9064 (2) 0.0324 (1)	20.0463 (1) 20.1681 (1) 0.0909 (3)
$f_{9}$	Best (Rank) Average (Rank) Std (Rank)	62.0172 (3) 75.1271 (2) 10.9132 (2)	58.9877 (2) 105.2253 (3) 33.5828 (3)	7.9597 (1) 13.0340 (1)3.2982 (1)
$f_{10}$	Best (Rank) Average (Rank) Std (Rank)	104.1123 (1) 125.0064 (1)12.0835 (1)	190.5987 (2) 273.2310 (3) 74.8800 (3)	198.9906 (3) 268.6218 (2) 50.5844 (2)
$f_{11}$	Best (Rank) Average (Rank) Std (Rank)	26.0519 (3) 29.8440 (3) 2.0148 (1)	19.3787 (1) 27.6948 (2) 4.7487(3)	20.5806 (2) 26.7160 (1) 3.4454 (2)
$f_{12}$	Best (Rank) Average (Rank) Std (Rank)	2.3679e+05 (3) 4.1150e+05 (3) 1.0170e+05 (3)	1.5430e+04 (2) 1.8536e+05 (2) 8.8858e+04 (2)	3.8511e+03 (1) 1.8499e+04 (1)1.1522e+04 (1)
$f_{13}$	Best (Rank) Average (Rank) Std (Rank)	6.8793 (2) 10.1278 (2) 1.5332 (2)	7.8635 (3) 13.9900 (3) 4.7878 (3)	2.3710 (1) 4.1515 (1)0.7504 (1)
$f_{14}$	Best (Rank) Average (Rank) Std (Rank)	13.1046 (3) 13.2166 (3) 0.0897 (1)	12.1354 (2) 12.8059 (1) 0.3613 (3)	12.1028 (1) 13.2131 (2) 0.2216 (2)
Avg. Rank	Best (Rank) Average (Rank) Std (Rank)	34/14 $=$ 2.428 29/14 $=$ 2.071 23/14 $=$ 1.642	27/14 $=$ 1.928 33/14 $=$ 2.357 37/14 $=$ 2.642	20/14 $=$ 1.428 19/14 $=$ 1.357 24/14 $=$ 1.71

To compare the proposed approach with existing methods, a standardized evaluation method is utilized. This method assigns ranks to algorithms based on their performance across specific test functions. The algorithm with the best result receives a rank of one, the second-best receives a rank of two, and so on. Averaging these ranks determines the average rank for each algorithm. Lower rank values indicate superior performance. Table 7 showcases the performance of the evaluated algorithms on 13 basic unimodal and multimodal test functions with 30D, highlighting their relative efficiency.

The proposed AuCS algorithm demonstrates superior performance compared to CS and ACS for various unimodal and multimodal functions. In the case of unimodal functions, AuCS outperforms CS and ACS for f1, f2, f3, and f4, consistently finding the global minimum for f4. For f6 and f7, AuCS performs similarly or slightly better than CS and ACS. Among the multimodal functions (f8 to f13), AuCS significantly outperforms both CS and ACS, except for f13 where ACS achieves a better mean value. It can be observed that, the AuCS outperforms the other algorithms in 10 out of 13 cases, showcasing its effectiveness in solving both unimodal and multimodal optimization problems.

To ensure transparency in the comparison, a rank-based approach is employed. Each algorithm is ranked based on its performance for each test function. Average ranks are calculated for each algorithm across all functions. Based on this approach, AuCS outperforms ACS and CS, with average rank values of 1.30 and 1.46 for mean and standard deviation, respectively. AuCS consistently achieves the best optimum values among the algorithms. ACS performs better than CS in terms of average rank for mean and standard deviation, but CS exhibits less result fluctuation. AuCS demonstrates robustness with the minimum standard deviation, indicating stability. Table 8 presents the performance of the algorithms on the same 13 test functions with an updated dimension of 50 in the solution space.

As the dimension increases, the difficulty of finding the optimum value also rises. To accommodate the higher complexity, the number of function evaluations is increased to 500,000. Analyzing Table 9, it is evident that the proposed AuCS algorithm maintains consistent performance as complexity increases. For the first 7 unimodal cases, AuCS significantly outperforms the other algorithms, consistently achieving the target optimum value for f4 and f6. However, neither CS nor ACS reach the global optimum for f6, indicating performance degradation for this test function. Among the 7 benchmark functions, AuCS outperforms CS and ACS in 6 cases, while ACS outperforms CS in 4 cases. For the 6 multimodal test functions, AuCS demonstrates considerably better performance. Overall, AuCS dominates CS and ACS in 11 out of 13 benchmark functions, highlighting its superior performance as complexity increases. Table 9 provides a comparative study of the three algorithms using CEC 2005 test functions in a 30D solution space.

Table 10

Performance evaluation of CEC 2005 uni-modal and multi-modal benchmark test functions with dimensions 50D

Function	Item	CS	ACS	AuCS (0-3)
$f_{1}$	Best (Rank) Average (Rank) Std (Rank)	1.3226e-11 (3) 4.5667e-11 (3) 3.6478e-11 (3)	1.7124e-14 (2) 2.0970e-11 (2) 3.2618e-11 (2)	1.4050e-24 (1) 4.0168e-020 (1)9.8386e-020 (1)
$f_{2}$	Best (Rank) Average (Rank) Std (Rank)	1.0040e+03 (2) 1.3633e+03 (2) 278.5013 (2)	2.6013e+03 (3) 6.1432e+03 (3) 1.9269e+03 (3)	2.1715 (1) 17.1625 (1)31.6499 (1)
$f_{3}$	Best (Rank) Average (Rank) Std (Rank)	1.7147e+07 (3) 2.1140e+07 (2) 4.2896e+06 (2)	6.1264e+06 (2) 6.1487e+07 (3) 5.7988e+07 (3)	2.2291e+06 (1) 3.4737e+06 (1)1.1951e+06 (1)
$f_{4}$	Best (Rank) Average (Rank) Std (Rank)	1.4675e+04 (2) 2.3750e+04 (2) 7.1150e+03 (2)	1.8158e+04 (3) 4.3098e+04 (3) 1.6897e+04 (3)	1.4655e+04 (1) 2.0519e+04 (1)5.8615e+03 (1)
$f_{5}$	Best (Rank) Average (Rank) Std (Rank)	5.4919e+03 (1) 6.6468e+03 (1)952.7219 (1)	4.8403e+03 (2) 1.0673e+04 (2) 9.0441e+03(3)	1.4302e+04 (3) 1.8099e+04 (3) 2.3938e+03 (2)
$f_{6}$	Best (Rank) Average (Rank) Std (Rank)	26.4538 (3) 67.1982 (2) 47.8242 (2)	7.9372 (2)
55.6403 (1) 33.5184 (1)	1.4720 (1) 91.7946 (3) 130.4624 (3)
$f_{7}$	Best (Rank) Average (Rank) Std (Rank)	6.1953e+03 (1) 6.1953e+03 (1) 2.2505e-10 (2)	6.1953e+03 (1) 6.1953e+03 (1) 9.2301e-06 (3)	6.1953e+03 (1) 6.1953e+03 (1)3.6253e-12 (1)
$f_{8}$	Best (Rank) Average (Rank) Std (Rank)	21.0419 (3) 21.1313 (3) 0.0420 (2)	21.0123 (2) 21.0810 (2) 0.0455 (3)	20.1201 (1) 20.2459 (1)0.0407 (1)
$f_{9}$	Best (Rank) Average (Rank) Std (Rank)	140.2048 (2) 156.1818 (2) 12.4713 (2)	217.2164 (3) 273.7080 (3) 38.7424 (3)	19.9017 (1) 28.8266 (1)9.3144 (1)
$f_{10}$	Best (Rank) Average (Rank) Std (Rank)	207.3623 (1) 260.5827 (1)23.2883 (1)	368.4736 (2) 576.2718 (3) 112.9895(3)	386.0393 (3) 546.2016 (2) 108.1387 (2)
$f_{11}$	Best (Rank) Average (Rank) Std (Rank)	52.9282 (2) 58.8611 (2) 2.4713 (1)	40.4417 (1) 49.6178 (1) 4.8562 (2)	54.3497 (3) 63.6414 (3) 5.1836 (3)
$f_{12}$	Best (Rank) Average (Rank) Std (Rank)	1.5130e+06 (3) 2.3478e+06 (3) 3.9754e+05 (2)	8.4888e+05 (2) 1.8917e+06 (2) 6.6004e+05 (3)	3.0007e+04 (1) 8.2750e+04 (1)3.6104e+04 (1)
$f_{13}$	Best (Rank) Average (Rank) Std (Rank)	22.2638 (2) 23.3180 (2) 0.7773 (1)	31.4020 (3) 44.9906 (3) 9.5248 (3)	4.4975 (1) 6.4633 (1) 1.6087 (2)
$f_{14}$	Best (Rank) Average (Rank) Std (Rank)	22.6587 (3) 22.8767 (3) 0.1469 (1)	21.7384 (2) 22.3506 (1) 0.3485 (2)	20.7133 (1) 22.4933 (2) 0.7685 (3)
Avg. Rank	Best (Rank) Average (Rank) Std (Rank)	31/14 $=$ 2.214 29/14 $=$ 2.071 24/14 $=$ 1.714	30/14 $=$ 2.142 30/14 $=$ 2.142 37/14 $=$ 2.642	20/14 $=$ 1.428 22/14 $=$ 1.57123/14 $=$ 1.642

Among the first 5 unimodal benchmark functions, AuCS outperforms the other algorithms in 4 cases, while CS performs best only for f5. CS provides better results than ACS in 4 out of 5 cases. AuCS achieves the best optimal values for f1, f2, f3, and f4. For the 7 basic multimodal functions, AuCS outperforms CS and ACS in 4 cases, while CS performs best in 2 cases. Among the expanded multimodal functions, AuCS significantly outperforms CS and ACS for f13. Overall, AuCS dominates with the best results in 9 out of 14 benchmarks. Based on average rank, AuCS outperforms CS and ACS, with a mean rank value of 1.35. In terms of fluctuation, CS performs better than AuCS and ACS. Increasing the dimension to 50, AuCS continues to dominate the other algorithms (see Table 10).

Among the 5 unimodal functions, AuCS outperforms CS and ACS in both mean and standard deviation values in 4 cases. For the multimodal functions, AuCS achieves the best mean value in 3 cases, while ACS performs best in 2 cases and CS performs best in 1 case. AuCS dominates in terms of standard deviation. In the two expanded multimodal functions, AuCS outperforms CS and ACS in the mean value for f13 and achieves the highest optimal value for f14. Using the average rank method, AuCS easily dominates with average rank values of 1.571 for mean, 1.426 for reaching the best optimal value, and 1.642 for standard deviation. This indicates AuCS’s superiority in all aspects, with reduced result fluctuation and increased robustness compared to CS and ACS.

Table 11

Evaluation of performance gain of AuCS over CS and ACS

Test functions	CS (RMSE)	ACS (RMSE)	AuCS (RMSE)	Performance gain (AuCS)
				CS	ACS
Set 1 (Basic 13 test functions (30D))	1265.02	875.2005	374.5255	2.38	1.33
Set 1 (Basic 13 test functions (50D))	2386.546	1819.2	658.7566	2.62	1.76
Set 2 (CEC 2005 14 test functions (30D))	1887933	4140710	481450.3	2.92	7.6
Set 2 (CEC 2005 14 test functions (50D))	5684643.56	16440871.9	928679.037	5.12	16.70

Moreover, in order to find the overall performance gain of AuCS, root mean square error (RMSE) have been considered as performance measurement tool in this work. Here, the average optimized result along with each global optimum value for all 27 test functions are considered to calculate the RMSE. These 27 test functions have been evaluated for both 30D and 50D. So, for each set of functions, the evaluated RMSE score have been provided in Table 11. Considering the RMSE, one can easily see the overwhelming performance of AUCS over others. Considering the performance gain, AuCS performs 2.38 and 2.62 times better than CS algorithm for 30D and 50D respectively for first set of basic 13 test functions. Similarly, the AuCS also outperforms CS in case of 14 CEC 2005 benchmark functions. For 30D, AuCS performs 2.92 times better and for 50D, it is 5.12 times better. Also, for 1 ${}^{\text{st}}$ set of functions, the performance of AuCS is 1.33 and 1.76 times better than ACS for 30D and 50D respectively. Similarly, the AuCS has a performance gain of 7.6 times and 16.7 times for Set 2 over ACS for 30D and 50D respectively. Interestingly, even if ACS performs better than CS for Set 2 of test functions based on rank method, CS outperforms ACS based on RMSE for both 30D and 50D.

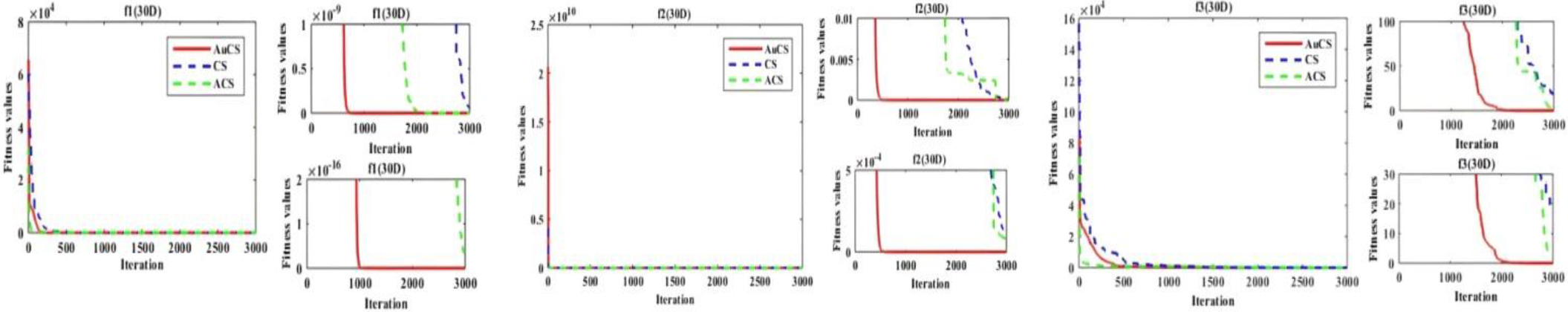

Figure 1.

Convergence performance comparison based on $f_{1}$ , $f_{2}$ and $f_{3}$ with 30D.

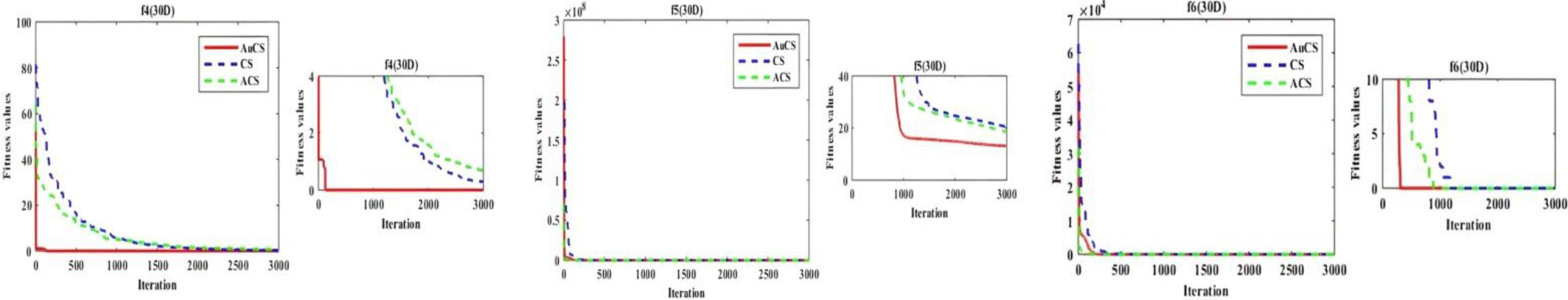

Figure 2.

Convergence performance comparison based on $f_{4}$ , $f_{5}$ and $f_{6}$ with 30D.

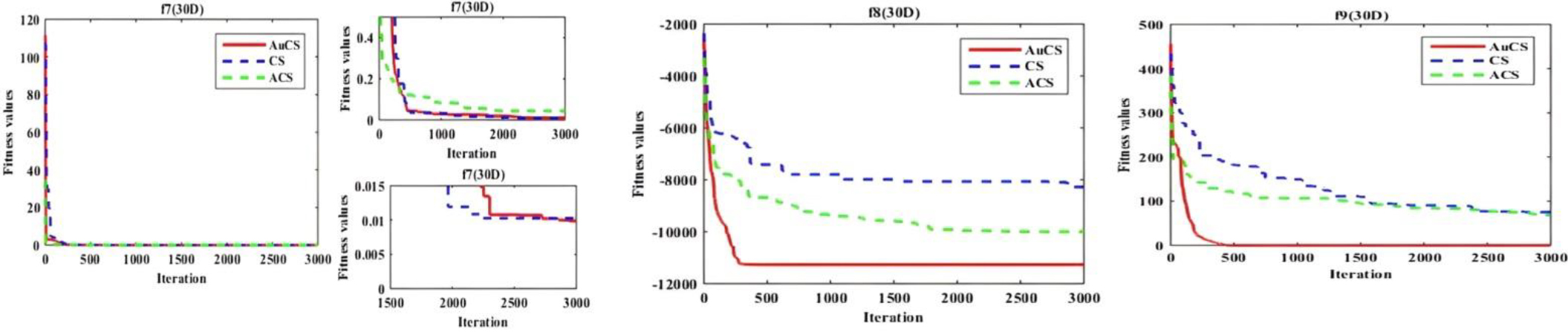

Figure 3.

Convergence performance comparison based on $f_{7}$ , $f_{8}$ and $f_{9}$ with 30D.

Table 12

Summary of the datasets

Name of the datasets	Number of classes ( $k$ )	Number of features ( $d$ )	Total number of objects ( $n$ )
Iris	3	4	150
Cancer	2	9	683
Wine	3	13	178
Vowel	6	3	871
CMC	3	9	1473
Thyroid	3	5	215
Glass	6	9	214

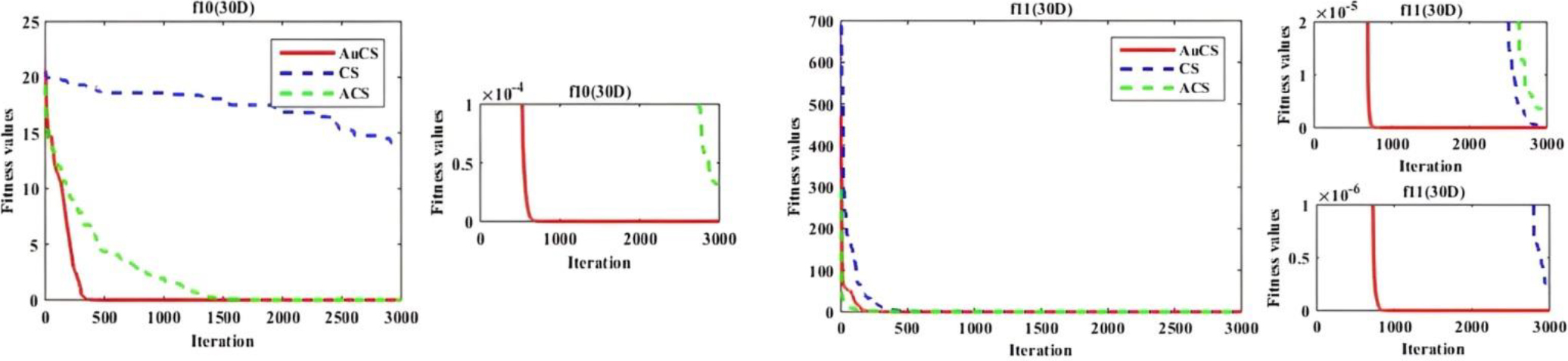

Figure 4.

Convergence performance comparison based on $f_{10}$ and $f_{11}$ with 30D.

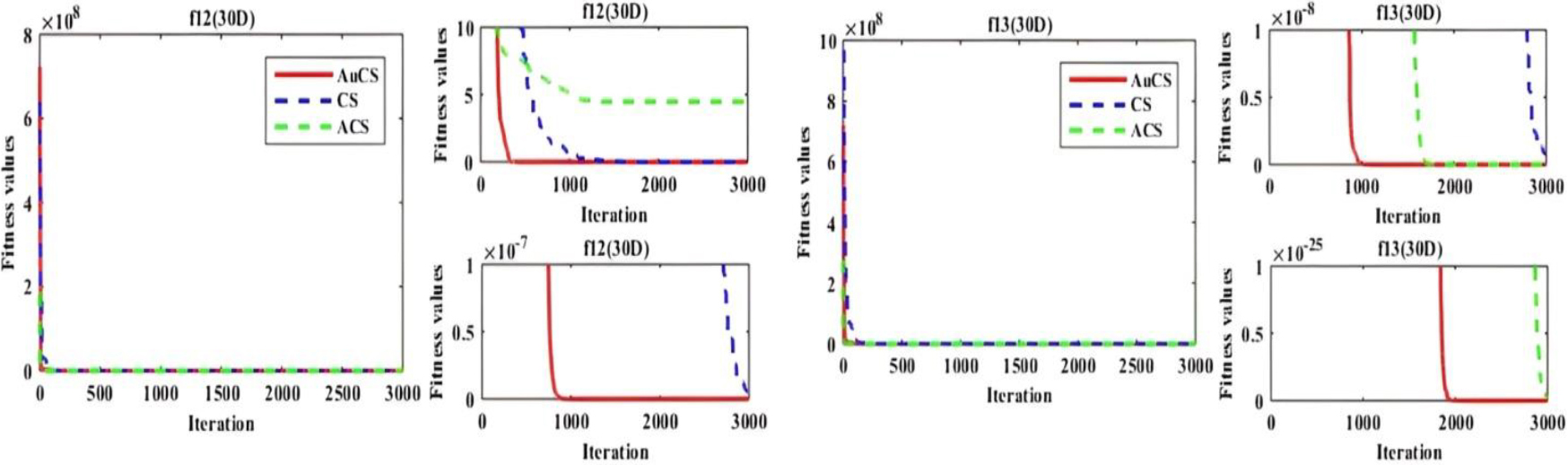

Figure 5.

Convergence performance comparison based on and $f_{12}$ and $f_{13}$ with 30D.

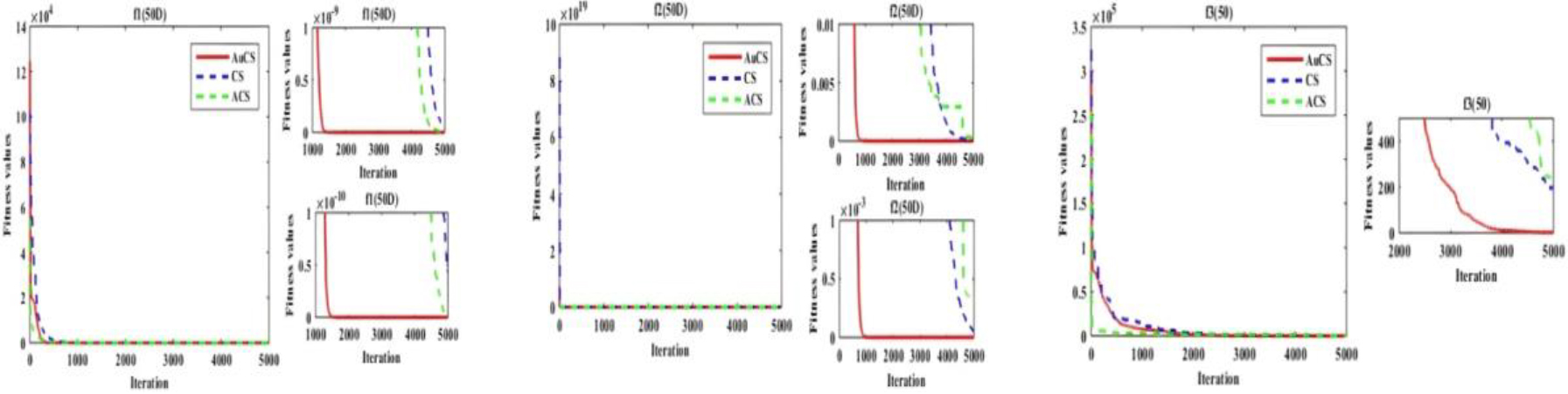

Figure 6.

Convergence performance comparison based on $f_{1}$ , $f_{2}$ and $f_{3}$ with 50D.

Figures 1–19 display the convergence graphs for all 13 standard and 14 CEC 2005 benchmark functions in both 30D and 50D cases. Graphs are magnified to showcase differences in convergence. AuCS demonstrates faster convergence, overcoming local minima issues. These graphs illustrate the efficiency of AuCS in solving unimodal and multimodal problems. For the remaining 28 CEC 2005 cases, AuCS exhibits faster and more accurate convergence in most instances. The strategy of increasing the step size at a later stage aid in avoiding local optima.

Analyzing all these tables and figures, AuCS completely outperforms CS and ACS in 39 out of 54 cases that include both 30D and 50D solution space for performance comparison. So in overall performance, AuCS results in the best optimum value in 72.22% cases. These cases not only include unimodal problems but also consist of highly complex multimodal problems. Hence, this reflects the proposed one is quite scalable and robust in dealing with different challenges in different environment.

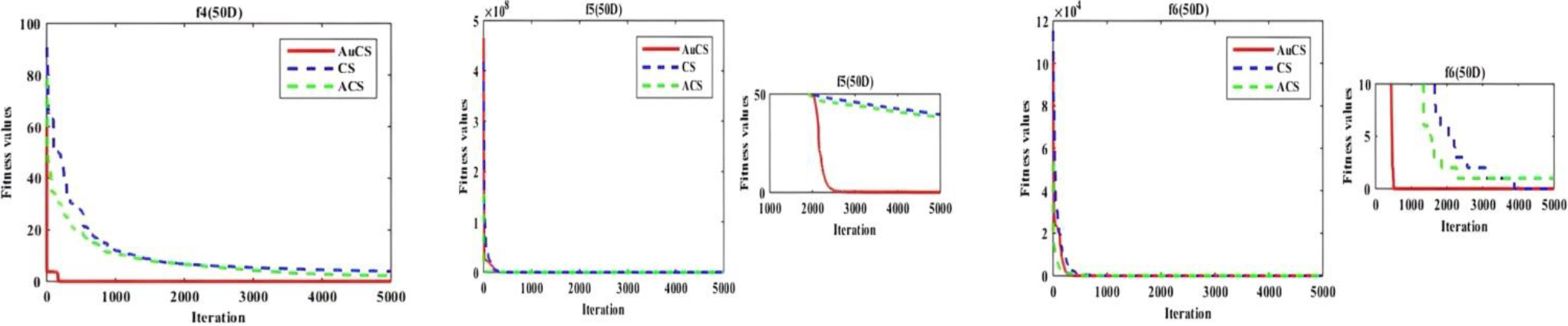

Figure 7.

Convergence performance comparison based on $f_{4}$ , $f_{5}$ and $f_{6}$ with 50D.

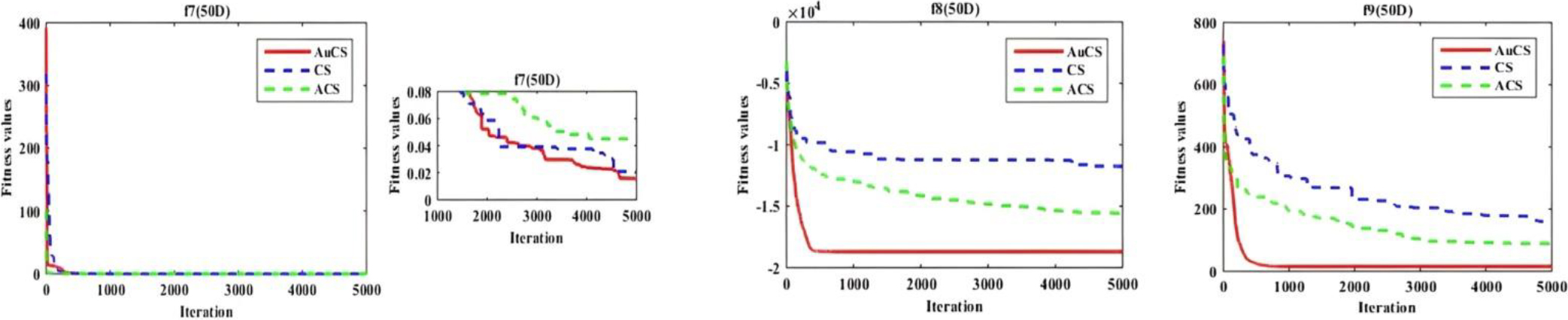

Figure 8.

Convergence performance comparison based on $f_{7}$ , $f_{8}$ and $f_{9}$ with 50D.

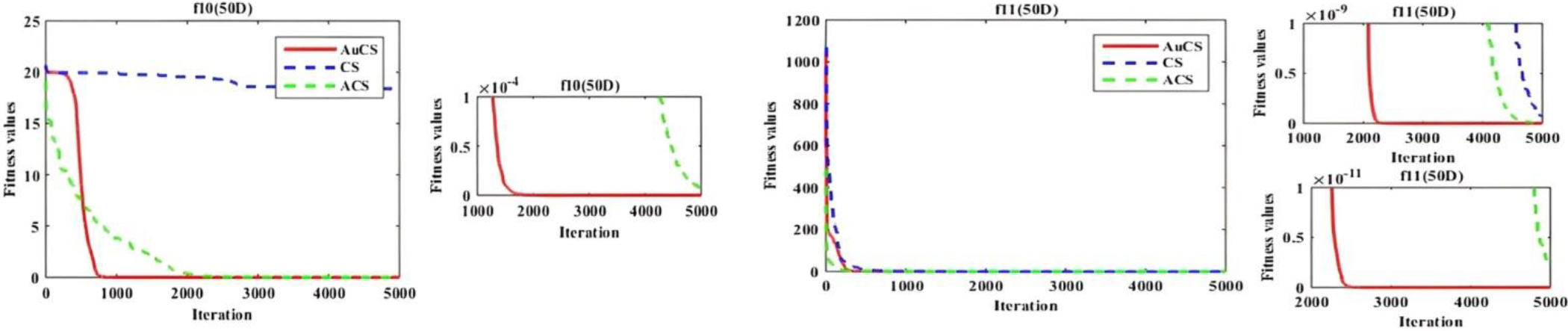

Figure 9.

Convergence performance comparison based on $f_{10}$ and with 50D.

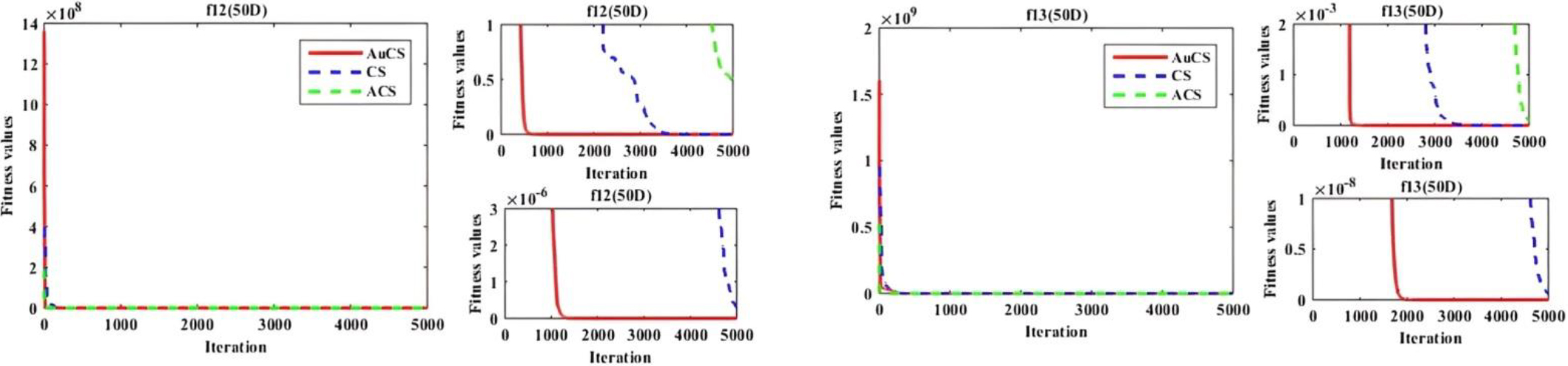

Figure 10.

Convergence performance comparison based on with 50D.

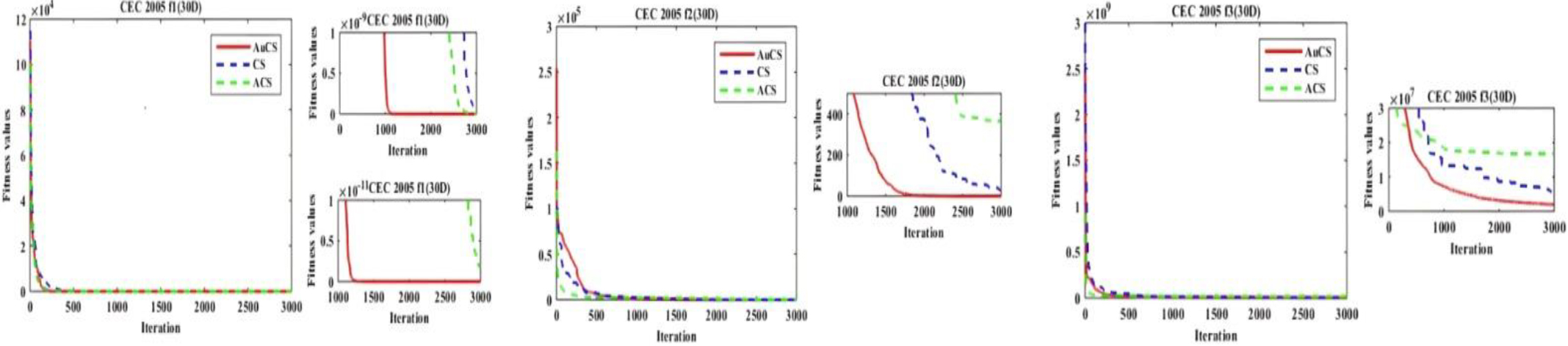

Figure 11.

Convergence performance comparison based on $f_{1}$ , $f_{2}$ and $f_{3}$ with 30D (CEC 2005).

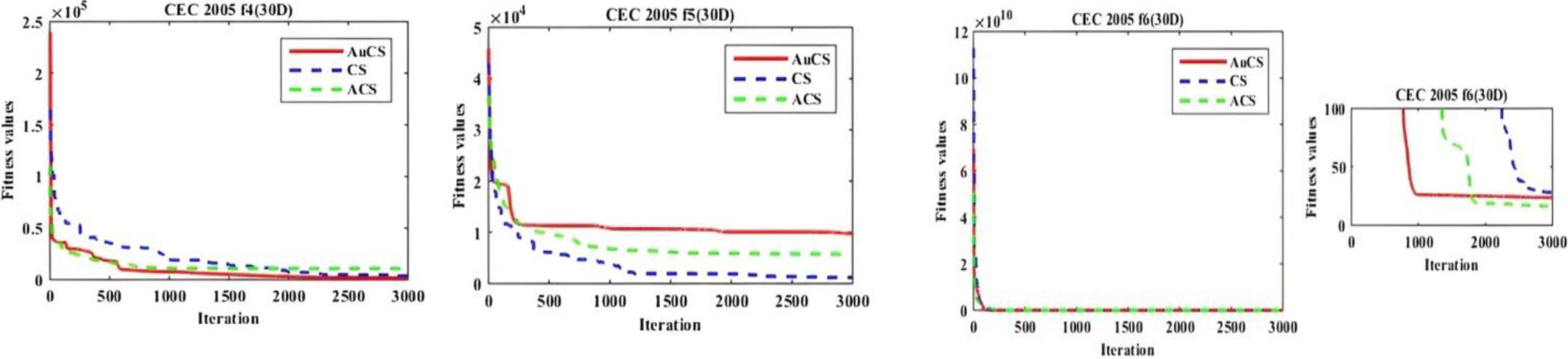

Figure 12.

Convergence performance comparison based on $f_{4}$ , $f_{5}$ and $f_{6}$ with 30D (CEC 2005).

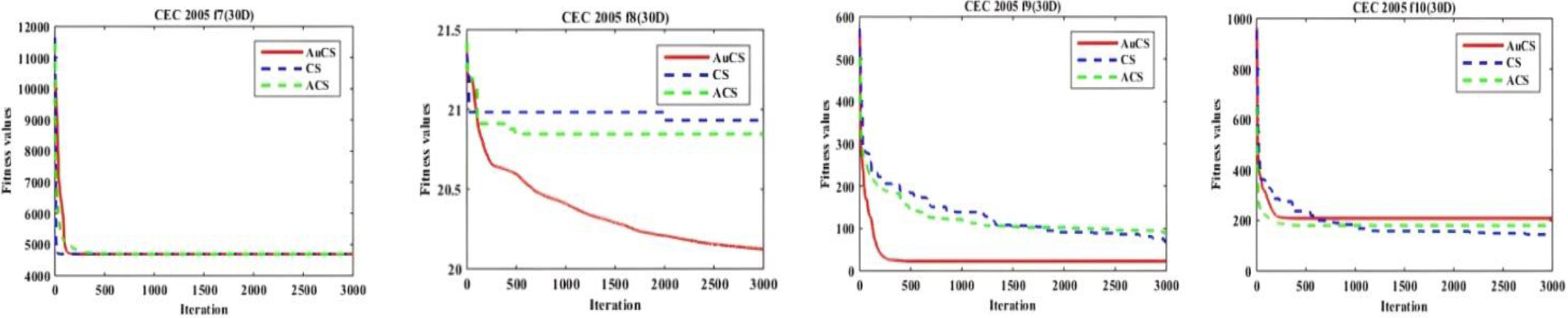

Figure 13.

Convergence performance comparison based on $f_{7}f_{8}$ , $f_{9}$ and $f_{10}$ with 30D (CEC 2005).

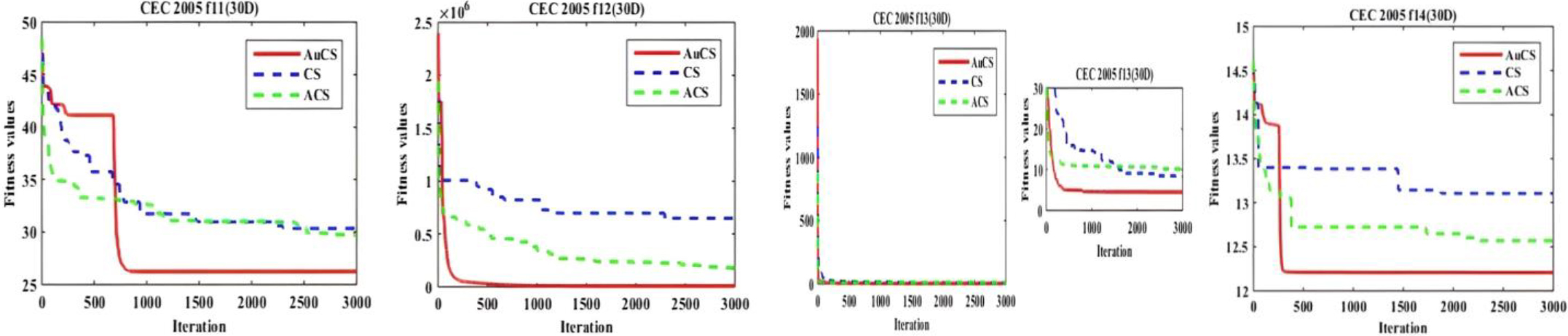

Figure 14.

Convergence performance comparison based on $f_{11}$ . , $f_{12}$ and $f_{13}$ with 30D (CEC 2005).

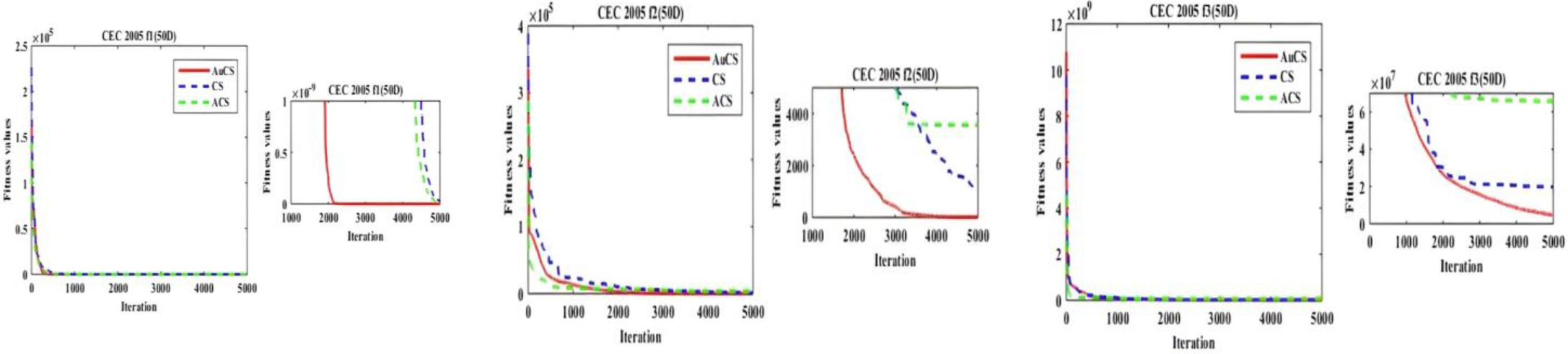

Figure 15.

Convergence performance comparison based on $f_{1}$ , $f_{2}$ and $f_{3}$ with 50D (CEC 2005).

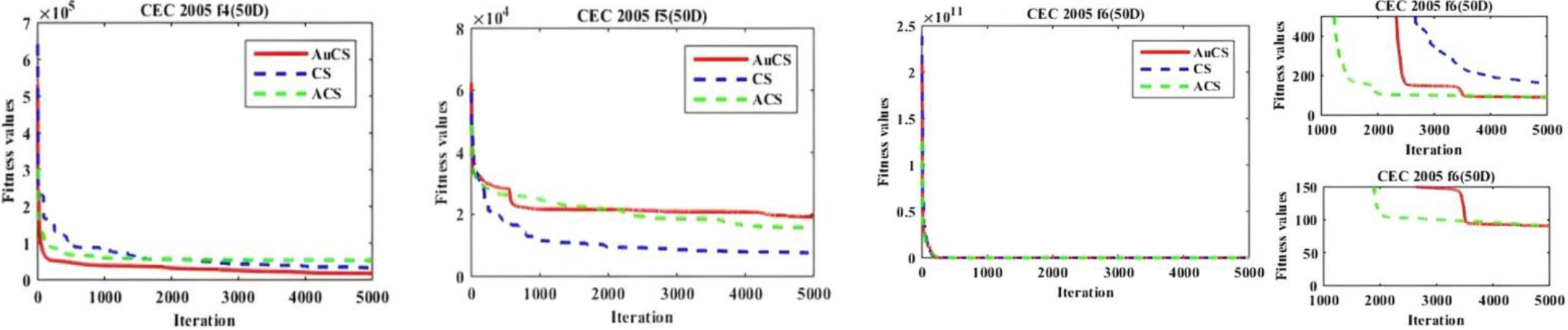

Figure 16.

Convergence performance comparison based on $f_{4}$ , $f_{5}$ and $f_{6}$ with 50D (CEC 2005).

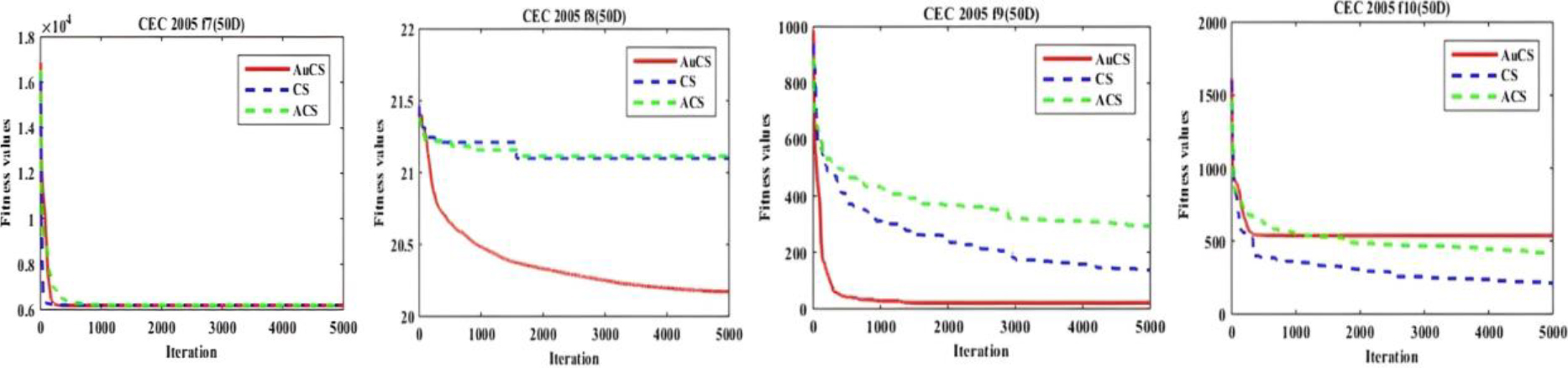

Figure 17.

Convergence performance comparison based on $f_{7}f_{8}$ , $f_{9}$ and $f_{10}$ with 50D (CEC 2005).

Figure 18.

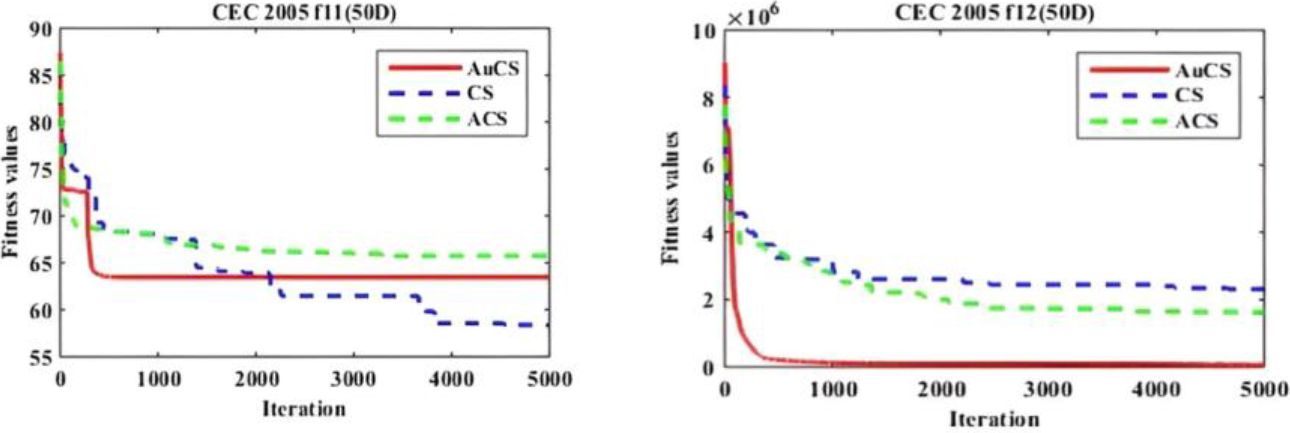

Convergence performance comparison based on $f_{11}$ and $f_{12}$ with 50D(CEC 2005).

4.2 Analysis based on clustering

This section presents an analysis of clustering using five swarm optimization algorithms. Seven benchmark datasets are used to assess robustness. Results for compared methods (excluding AuCS) are referred from [23], ensuring a fair comparison. Experimental conditions remain unchanged, with fixed 50D search space dimension and maximum 10,000 function evaluations as suggested in [23]. To assess stability, AuCS is tested over 30 independent runs for each dataset instead of 20. Results consider both optimized intra-cluster distance and accuracy. Table 12 provides a summary of each dataset, while complete details can be found in [24].

Table 13
Comparative analysis based on minimization of the intra-cluster distance

Datasets	Item	ACO	ABC	PSO	PSOAG	AuCS
Iris	Mean(Rank) Std(Rank)	100.67(3) 1.58(4)	101.00(4) 1.43(3)	104.45(5) 4.77(5)	96.97(2) 0.35(2)	96.65(1)0.003(1)
Wine	Mean(Rank) Std(Rank)	16300.71(3) 10.86(4)	16506.75(5) 131.42(5)	16303.16(4) 4.82(3)	16296.30(2) 1.69(2)	16293.74(1)0.917(1)
Cancer	Mean(Rank) Std(Rank)	3376.20(4) 42.60(3)	3102.63(3) 68.00(4)	4024.79(5) 270.67(5)	2984.24(2) 17.63(2)	2964.53(1)0.221(1)
CMC	Mean(Rank) Std(Rank)	6151.35(5) 63.22(5)	5649.94(3) 54.01(3)	5750.07(4) 59.56(4)	5559.98(2) 31.97(2)	5536.92(1)2.798(1)
Thyroid	Mean(Rank) Std(Rank)	1950.37(3) 15.16(2)	2111.39(4) 94.36(5)	2369.90(5) 85.11(4)	1902.77(1) 16.69(3)	1909.724(2) 2.79(1)
Vowel	Mean(Rank) Std(Rank)	170849.30(5) 2055.93(2)	160347.29(4) 3275.35(4)	154017.6(3) 3722.14(5)	149734.4(1)988.20(1)	150768.514(2) 2435.15(3)
Glass	Mean(Rank) Std(Rank)	226.41(2) 4.64(1)	297.10(4) 9.15(3)	324.31(5) 12.63(5)	244.99(3) 10.41(4)	224.12(1) 6.11(2)
Avg. Rank	Mean Std	25/7 $=$ 3.57 22/7 $=$ 3.14	27/7 $=$ 3.85 27/7 $=$ 3.85	31/7 $=$ 4.42 31/7 $=$ 4.42	13/7 $=$ 1.85 16/7 $=$ 2.28	9/7 $=$ 1.2810/7 $=$ 1.42

Table 14

Comparative analysis based on accuracy percentage

Datasets	Item	ACO	ABC	PSO	PSOAG	AuCS
Iris	Mean(Rank) Std(Rank)	72.17(5) 3.55(5)	90.63(2) 1.63(3)	89.73(4) 2.28(4)	91.03(1) 1.27(2)	90.00(3) 0.000(1)
Wine	Mean(Rank) Std(Rank)	61.18(5) 3.13(5)	70.90(4) 0.92(4)	71.21(2) 0.36(2)	70.98(3) 0.33(1)	71.23(1) 0.47(3)
Cancer	Mean(Rank) Std(Rank)	78.23(5) 1.13(4)	95.51(3) 0.55(3)	94.36(4) 1.61(5)	96.31(2) 0.20(2)	96.48(1)4.336e-14(1)
CMC	Mean(Rank) Std(Rank)	36.96(5) 0.77(4)	40.10(2) 0.70(3)	39.80(4) 0.53(2)	39.87(3) 0.30(1)	41.16(1) 2.74(5)
Thyroid	Mean(Rank) Std(Rank)	51.93(5) 2.37(1)	60.67(4) 10.55(4)	62.93(3) 3.63(2)	74.37(1) 10.95(5)	66.60(2) 1.45(1)
Vowel	Mean(Rank) Std(Rank)	36.50(5) 1.78(1)	53.59(3) 4.75(5)	54.05(2) 4.01(2)	51.75(4) 4.25(3)	57.42(1) 4.56(4)
Glass	Mean(Rank) Std(Rank)	37.90(5) 2.97(5)	48.57(3) 1.78(4)	49.15(2) 1.30(1)	51.26(1) 1.75(3)	38.13(4) 1.71(2)
Avg. Rank	Mean Std	35/7 $=$ 5 25/7 $=$ 3.57	21/7 $=$ 3 26/7 $=$ 3.71	21/7 $=$ 3 18/7 $=$ 2.57	15/7 $=$ 2.14 17/7 $=$ 2.42	13/7 $=$ 1.8517/7 $=$ 2.42

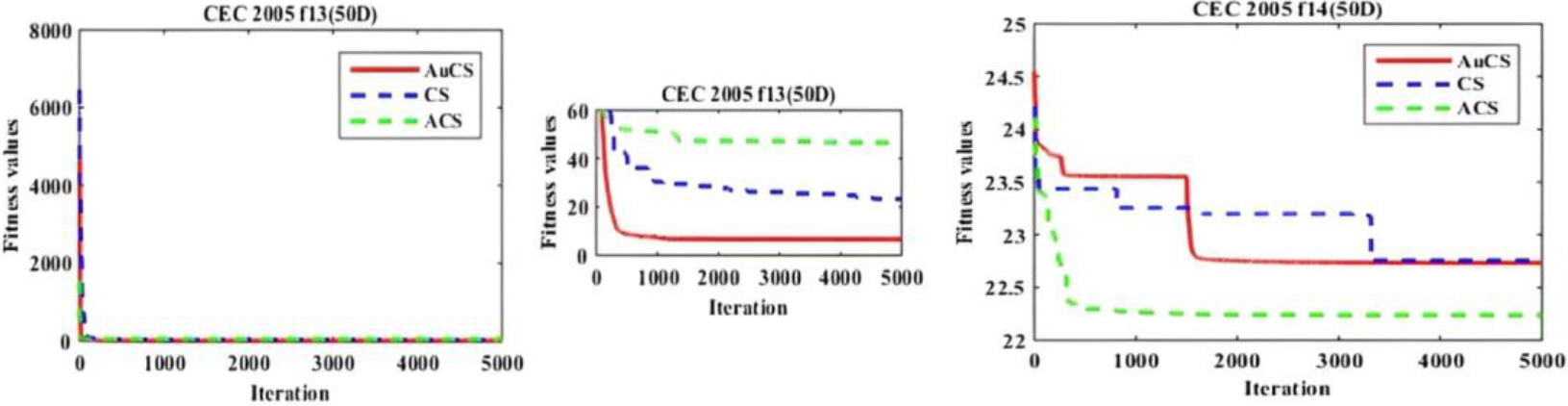

Figure 19.

Convergence performance comparison based on and $f_{13}$ and $f_{14}$ with 50D (CEC 2005).

Table 13 presents the analysis based on intra-cluster distance, whereas Table 14 demonstrates the comparison based on accuracy achieved by each of the meta-heuristics namely ACO, ABC, PSO and particle swarm optimization with age-group topology (PSOAG) [25] (a variation of PSO) along with the proposed AuCS.

Table 13 compares algorithms based on intra-cluster distance for seven real datasets. AuCS outperforms other algorithms in 5 out of 7 datasets. It also exhibits significantly better results in terms of standard deviation. AuCS excels in Iris, Wine, Cancer, and CMC datasets for both average intra-cluster distance and standard deviation. PSOAG performs better than AuCS in Thyroid and Vowel datasets, but AuCS still outperforms PSOAG by a significant margin in terms of standard deviation. This highlights the robustness of the proposed methodology. To ensure fairness, the average rank comparison is employed. The algorithm with the minimum intra-cluster distance receives rank one, while the algorithm with the maximum value receives rank five. The same ranking process is applied to standard deviation. AuCS outperforms others with average ranks of 1.28 for average intra-cluster distance and 1.42 for standard deviation. This validates the effectiveness of AuCS in achieving optimized results and demonstrates its robustness across multiple runs.

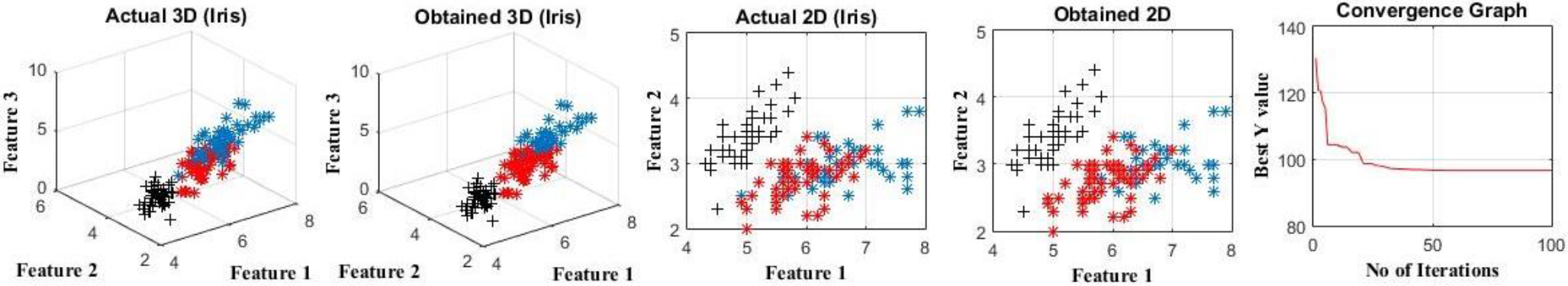

Figure 20.

Convergence performance of AuCS for Iris dataset.

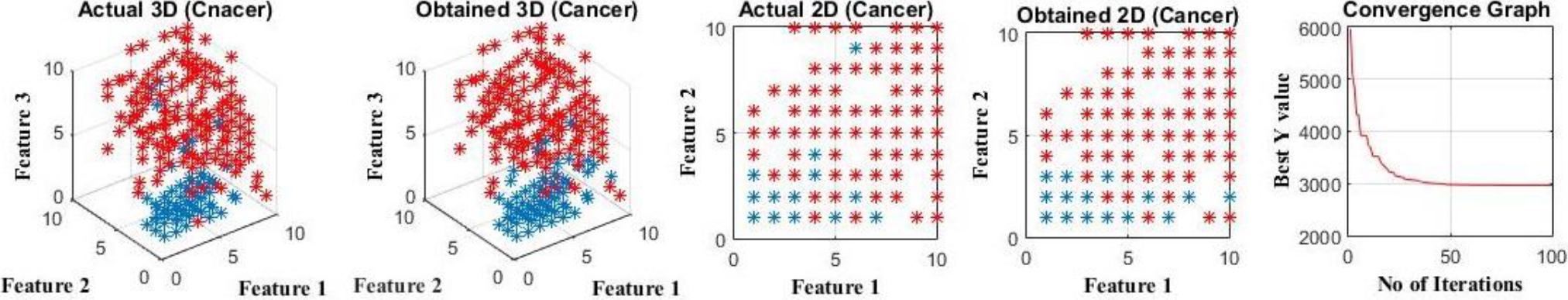

Figure 21.

Convergence performance of AuCS for Cancer dataset.

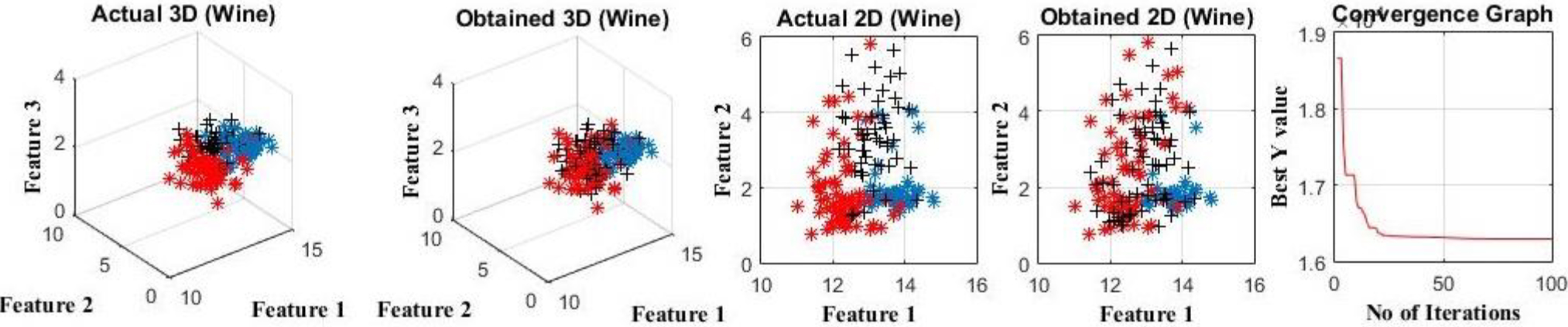

Figure 22.

Convergence performance of AuCS for Wine dataset.

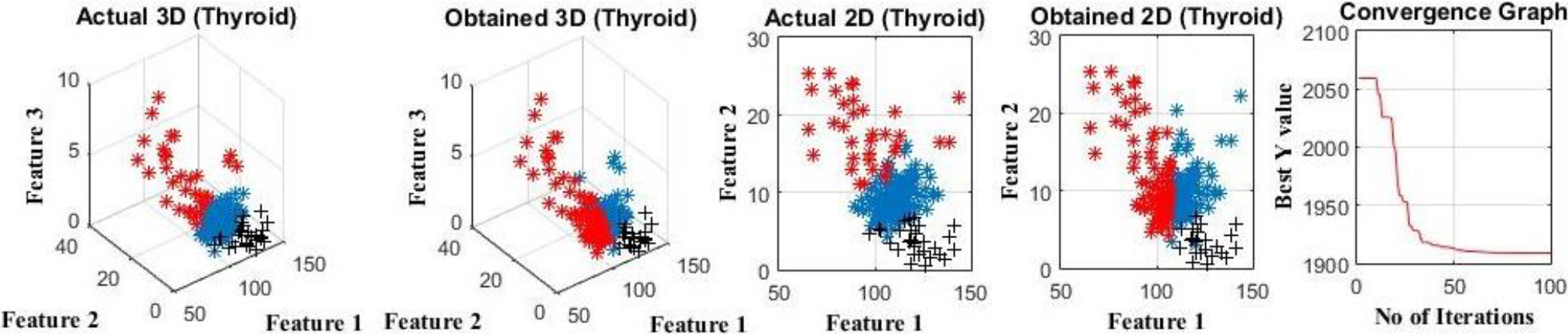

Figure 23.

Convergence performance of AuCS for Thyroid dataset.

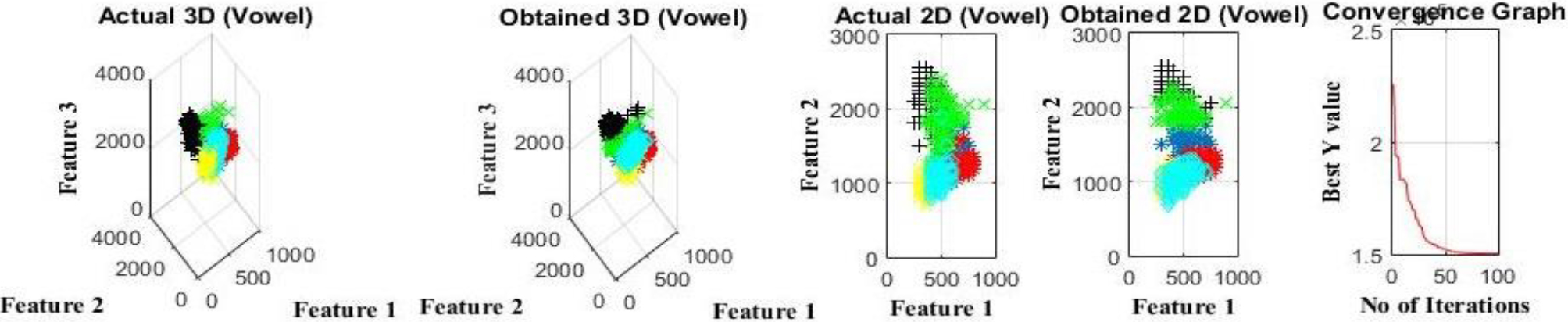

Figure 24.

Convergence performance of AuCS for Vowel dataset.

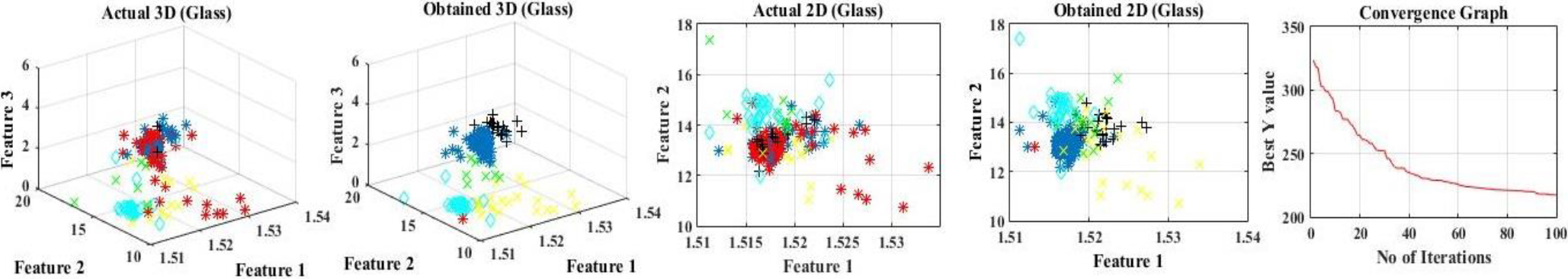

Figure 25.

Convergence performance of AuCS for Glass dataset.

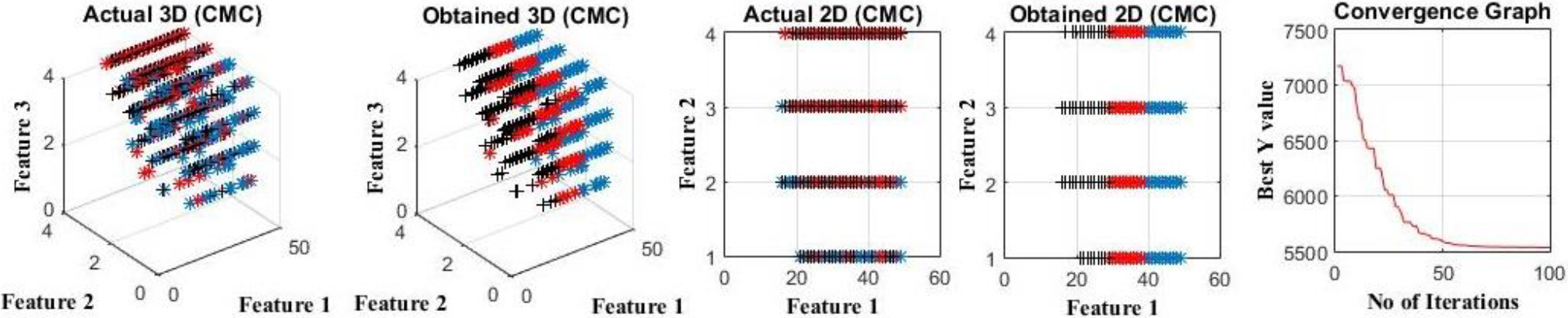

Figure 26.

Convergence performance of AuCS for CMC dataset.

Table 14 displays the evaluation of algorithms based on average accuracy. Note that the algorithms were not specifically designed for accuracy optimization; centroid calculation determined accuracy. AuCS outperforms others in four out of seven datasets, while PSOAG excels in the remaining datasets. Notably, AuCS performs exceptionally well in Wine, Cancer, and CMC datasets. Using the average rank strategy, AuCS achieves the highest average rank of 1.85. It also demonstrates comparable performance to PSOAG in terms of standard deviation. Figures 20–26 provide visual representation of clustering outcomes obtained from AuCS algorithm and depict each dataset’s clustering outcomes using AuCS. Each dataset is represented by five sub-figures, showcasing the disparities between actual clustering and AuCS clustering. The visualizations include both 2D and 3D perspectives, providing a comprehensive understanding of the results. Additionally, the convergence performance of AuCS for each dataset is graphically presented. These convergence graphs offer insights into how effectively AuCS identifies optimal points. Analyzing these graphs provides valuable information about the rate at which AuCS achieves optimal solutions for each dataset.

5. Conclusion

This work introduces the AuCS algorithm, which addresses the challenge of exploration-exploitation balance in the cuckoo search algorithm. Through extensive analysis, AuCS demonstrates superior performance on benchmark functions and clustering tasks. It outperforms the cuckoo search algorithm and ACS swarm intelligence algorithm, showcasing scalability and effectiveness. It can be noticed the AuCS excels in 72.22% of all test cases. Also, it stands top against all swarm optimization algorithms in 5 out of 7 datasets. Future research directions include evaluating AuCS on additional benchmarks, optimizing its parameters, comparing it with other algorithms, exploring hybridization approaches, and validating its practical applicability. Also, can further be implemented as a multi-objective algorithm to solve many multi-objective optimization problems. AuCS emerges as a powerful and promising optimization algorithm with wide-ranging potential in solving complex problems across various domains.

References

Holland

. Adaptation in natural and artificial systems: an introductory analysis with applications to biology, control, and artificial intelligence. MIT press; 1992 Apr 29.

Storn

Price

. Differential evolution – a simple and efficient heuristic for global optimization over continuous spaces. Journal of Global Optimization. 1997 Dec; 11: 341-59.

Kennedy

Eberhart

. Particle swarm optimization. In Proceedings of ICNN’95-international; conference on neural networks 1995 Nov 27 (Vol. 4, pp. 1942-1948). IEEE.

Poli

Kennedy

Blackwell

. Particle swarm optimization: An overview. Swarm Intelligence. 2007 Jun; 1: 33-57.

Karaboga

Gorkemli

Ozturk

Karaboga

. A comprehensive survey: artificial bee colony (ABC) algorithm and applications. Artificial Intelligence Review. 2014 Jun; 42: 21-57.

Karaboga

Basturk

. A powerful and efficient algorithm for numerical function optimization: artificial bee colony (ABC) algorithm. Journal of Global Optimization. 2007 Nov; 39: 459-71.

Yang

Deb

. Cuckoo search via Lévy flights. In 2009 World congress on nature & biologically inspired computing (NaBIC) 2009 Dec 9 (pp. 210-214). IEEE.

Dorigo

Birattari

Stutzle

. Ant colony optimization. IEEE computational intelligence magazine. 2006 Nov; 1(4): 28-39.

Dhabal

Venkateswaran

. An efficient gbest-guided Cuckoo Search algorithm for higher order two channel filter bank design. Swarm and Evolutionary Computation. 2017 Apr 1; 33: 68-84.

10.

Wei

. A novel cuckoo search algorithm under adaptive parameter control for global numerical optimization. Soft Computing. 2020 Apr; 24: 4917-40.

11.

Huang

Ding

Wang

. Chaos-enhanced Cuckoo search optimization algorithms for global optimization. Applied Mathematical Modelling. 2016 Mar 1; 40(5-6): 3860-75.

12.

Naik

Panda

. A novel adaptive cuckoo search algorithm for intrinsic discriminant analysis based face recognition. Applied Soft Computing. 2016 Jan 1; 38: 661-75.

13.

Cheng

Wang

Xiong

. Ensemble of cuckoo search variants. Computers & Industrial Engineering. 2019 Sep 1; 135: 299-313.

14.

Kumar

Rahman

Duary

Mahato

Bhunia

. A new QPSO based hybrid algorithm for bound-constrained optimisation problem and its application in engineering design problems. International Journal of Computing Science and Mathematics. 2020; 12(4): 385-412.

15.

Kumar

Shaikh

Mahato

Bhunia

. Applications of new hybrid algorithm based on advanced cuckoo search and adaptive Gaussian quantum behaved particle swarm optimization in solving ordinary differential equations. Expert Systems with Applications. 2021 Jun 15; 172: 114646.

16.

Wei

. An effective hybrid cuckoo search algorithm for unknown parameters and time delays estimation of chaotic systems. IEEE Access. 2017 Aug 10; 6: 6560-71.

17.

Gao

Zhang

. Adaptive cuckoo algorithm with multiple search strategies. Applied Soft Computing. 2021 Jul 1; 106: 107181.

18.

Yousri

Mirjalili

. Fractional-order cuckoo search algorithm for parameter identification of the fractional-order chaotic, chaotic with noise and hyper-chaotic financial systems. Engineering Applications of Artificial Intelligence. 2020 Jun 1; 92: 103662.

19.

Rakhshani

Rahati

. Snap-drift cuckoo search: A novel cuckoo search optimization algorithm. Applied Soft Computing. 2017 Mar 1; 52: 771-94.

20.

Cheng

Wang

Jiang

Cao

Xiong

. Cuckoo search algorithm with dynamic feedback information. Future Generation Computer Systems. 2018 Dec 1; 89: 317-34.

21.

Deb

Pratap

Agarwal

Meyarivan

. A fast and elitist multiobjective genetic algorithm: NSGA-II. IEEE transactions on evolutionary computation. 2002 Apr; 6(2): 182-97.

22.

Sarangi

Panda

Das

Abraham

. Design of optimal high pass and band stop FIR filters using adaptive Cuckoo search algorithm. Engineering Applications of Artificial Intelligence. 2018 Apr 1; 70: 67-80.

23.

Xiang

Zhu

Meng

. A dynamic shuffled differential evolution algorithm for data clustering. Neurocomputing. 2015 Jun 22; 158: 144-54.

24.

Bache

Lichman

. UCI machine learning repository, (2013). Retrieved March 6, 2020, from http//archive.ics.uci.edu/ml.

25.

Jiang

Wang

. Particle swarm optimization with age-group topology for multimodal functions and data clustering. Communications in Nonlinear Science and Numerical Simulation. 2013 Nov 1; 18(11): 3134-45.

Balancing exploration and exploitation: Unleashing the adaptive power of automatic cuckoo search for meta-heuristic optimization

Abstract

Keywords

1. Introduction

2. Related works

3. Methodologies

3.1 Comparative analysis: Advantages and limitations of cuckoo search (CS) and adaptive cuckoo search (ACS)

4. Result analysis: Benchmark functions and data clustering

Table 1 Parameter settings

Table 2 Details of basic unimodal functions

Table 13 Comparative analysis based on minimization of the intra-cluster distance

References

Table 1
Parameter settings

Table 2
Details of basic unimodal functions

Table 13
Comparative analysis based on minimization of the intra-cluster distance
