Abstract

The novel coronavirus (COVID-19) that emerged and transmitted from China (Wuhan City) had a staggering effect on public health and the world economy. The early diagnosis of COVID-19 has become more important for its treatment and for controlling its spread due to its highly transmissible nature. In addition, the restricted supply of test kits calls for an alternative system for diagnosis. Since radiological images of chest of patients with COVID-19 show abnormalities, it is possible to diagnose COVID-19 utilizing chest X-ray images. Therefore, by applying deep convolution neural network (CNN), we have presented a diagnosis of COVID-19 based on chest X-ray images in this paper. For the diagnosis of COVID-19, an exhaustive comparative performance analysis of 16 state-of-the-art models is presented. Moreover, each model is trained with three approaches: transfer learning, fine tuning and scratch learning. The experiments were conducted on the dataset that comprises of 127 images of COVID-19, 500 images of Pneumonia and 500 images of normal cases. We have performed the experiments in two scenarios: binary classification (COVID-19 vs. Normal) and multiclass classification (COVID-19 vs. Pneumonia vs. Normal). Further, we have applied cost-sensitive learning technique to handle the class imbalance issue. In this study, InceptionResNetV2 model with fine-tuning approach achieved highest classification accuracy of 99.20% in binary classification and Xception model achieved classification accuracy of 89.33% in multiclass classification among all considered models. To validate our approach, we have presented the performance of our model on three other datasets and achieved adequate classification accuracy. Hence, the promising results demonstrate that the fine-tuning of deep CNN models is an effective way for diagnosis of COVID-19 and therefore, it can be deployed in diagnostic centers to assist radiologist after its validation with more prominent datasets.

Keywords

COVID-19 coronavirus chest X-ray convolution neural network transfer learning fine tuning scratch learning

1. Introduction

The COVID-19 is the most recently discovered pandemic disease caused by the coronaviruses. The outbreak of this disease began in China (Wuhan city) in December, 2019, thereafter it transmitted in many countries globally [1]. Initially, it is presumed that COVID-19 was infected by bat to human [2]. Coronavirus constitute a large family of viruses that causes sickness to animals and mankind. The disease caused by this virus transmits primarily from one person to another through tiny droplets either through mouth or nose, that are oozed out when a person with COVID-19 starts coughing, sneezing or speaking. The bigger droplets zoom through the air after the sneezing, but smaller droplets that are exhaled, are glided. The coronavirus is transmitted through air and quickly infect people when inhaled, causing serious illness. Different forms of coronavirus are responsible for respiratory infections, and symptoms vary from common cold to various diseases such as Middle East Respiratory Syndrome (MERS) and Severe Acute Respiratory Syndrome (SARS) [3]. The dry cough, fever and tiredness are the some of the unique occurrences in COVID-19 patients. Some people also get infected with mild symptoms such as headache, nasal congestions, and sore throat [4]. On the other hand, because of serious respiratory issues, few are associated with relatively high ICU admittance and mortality.

In current situation, researchers have been using various clinical methods for diagnosis of COVID-19. Reverse Transcription Polymerase Chain Reaction (RT-PCR) which is used for the gene sequencing of respiratory and blood samples [5], can also be used to detect COVID-19. However, as a result of low sensitivity of RT-PCR, COVID-19 cannot be detected quickly in patients, resulting lack of treatment which may result in infecting a large number of population [5]. Therefore, it is suggested that the computed tomography (CT) and chest X-ray (CXR) are sensitive methods and preferred to detect COVID-19 over RT-PCR [6]. These are most common techniques used for diagnosis of Pneumonia, lungs inflammation etc. In this study, CXR images are preferred and used to diagnosis COVID-19 over CT scan because of following reasons: (i) CXR imaging machines are easily available in hospitals, (ii) CXR images are cheaper than CT scan and (iii) CXR has low ionizing radiation than CT scan. However, it calls for radiology experts and takes significant time, which is key constraints in situation like COVID-19 pandemic. Therefore, many testing kits have been developed. However, we need to rely on other possible angle for its diagnosis due to limited number of testing kits. Therefore, developing an automated and reliable system for diagnosis of COVID-19 is necessary to save the professional’s precious time.

As per literature, several image based methods have been presented for detection of COVID-19. Ozturk et al. [7], proposed DarkCovidNet based on CNN using X-ray images for binary (COVID vs. No-Findings) and multiclass (COVID vs. Pneumonia vs. No-Findings) classification and achieved an accuracy of 98.08% and 87.02% respectively. Hemdan et al. [8] explored seven pre-trained deep CNN models for detection of healthy status against COVID-19 utilizing chest X-rays and obtained that performance of VGG16 and DenseNet201 is better compared to rest. Narin et al. [3] explored three deep learning models utilizing chest X-rays and achieved detection accuracy of 98% using ResNet50. Apostolopoulos et al. [9] explored six deep learning models with transfer learning approach using X-ray images and achieved classification accuracy of 96.78% for binary classification and 94.72% for multiclass classification. Sethy and Behera [10] used extracted features form different CNN models to feed into Support Vector Machine (SVM) for classification. In this experiment, ResNet50 model with SVM classifier achieved 95.38% accuracy. In the same line, Wang and Wong [11] proposed a COVID-Net that obtained 92.40% accuracy in detecting three classes i.e. normal, pneumonia and COVID-19 images. Das et al. [12] explored Xception with FT and obtained a classification accuracy of 97.40% while Pathak et al. [13] proposed a deep transfer learning and obtained an accuarcy of 93.02%. Nayak et al. [14] explored Resnet-34 to classify Normal and COVID-19 and achieved a classification accuracy of 98.33%. Gilanie et al. [15] proposed a CNN model for the classification of Normal, Pneumonia and COVID-19 images and reported an accuracy of 96.68%. Oh et al. [16] achieved a classification accuracy of 91.90% for classification of COVID-19, Pneumia and Normal using a patch-based CNN approach with limited training data.

In this paper, we have presented exhaustive comparison of performance of 16 state-of-the-art deep CNN models for binary classification (COVID-19 vs. Normal) and multiclass classification (COVID-19 vs. Pneumonia vs. Normal). The models used in this paper are: (i) VGG16, (ii) VGG19, (iii) ResNet50, (iv) ResNet101, (v) ResNet152, (vi) ResNet50V2, (vii) ResNet101V2, (viii) ResNet152V2, (vix) InceptionV3, (x) InceptionResNetV2, (xi) Xception, (xii) MobileNet, (xiii) MobileNetV2, (xiv) DenseNet121 (xv) DenseNet169, (xvi) DenseNet201. Further, the performances of these 16 models have been compared in three different training strategy: transfer learning (TL), fine tuning (FT) and scratch learning (SL). Therefore, this paper’s contributions are as follows: (i) diagnosis of COVID-19 using chest X-ray images; (ii) diagnosis of COVID-19 in two scenarios: binary classification (COVID-19 vs. Normal) and multiclass classification (COVID-19 vs. Pneumonia vs. Normal); (iii) performance comparison of 16 state-of-the-art deep CNN models in diagnosis of COVID-19; (iv) comparative performance analysis of models in three training strategies: TL, FT and SL; (v) handled class imbalance issue using cost-sensitive learning technique; (vi) achieved classification accuracy of 99.20% in binary classification and 89.33% in multiclass classification using InceptionResNetV2 and Xception model respectively with fine-tuning approach; (vii) validation of these models on three other datasets obtained from different sources.

The remainder of this paper is arranged as follows. Section 2 explains methodology and the state-of-the-art deep CNN models used in this paper. Section 3 presents the experimental result and performance analysis and finally, Section 4 concludes our study.

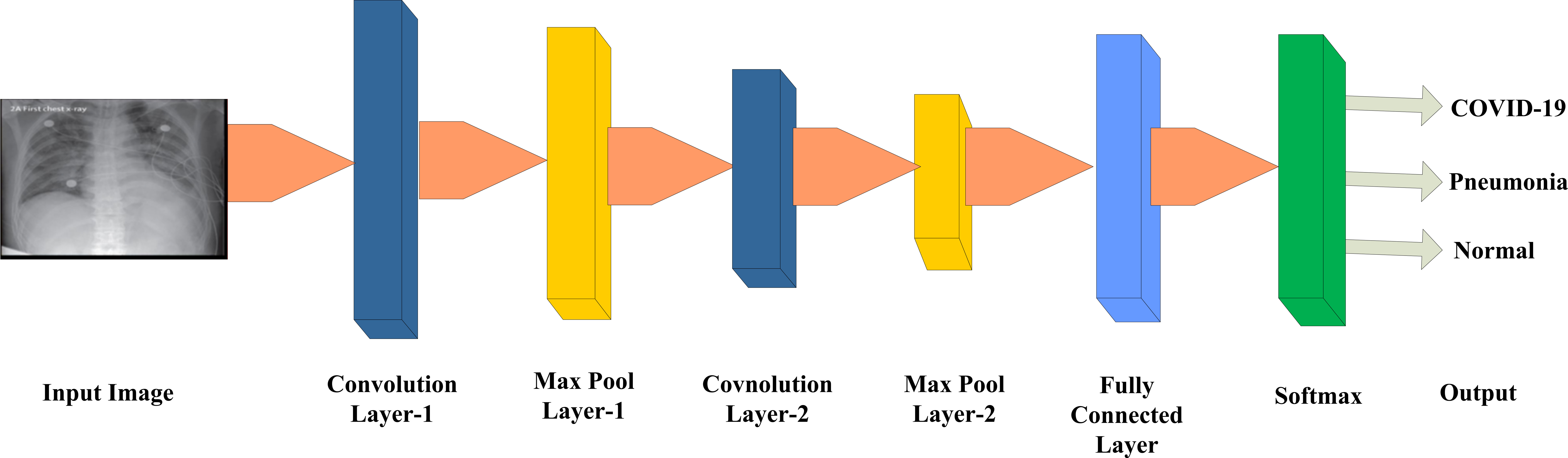

Figure 1.

General deep CNN architecture for diagnosis of COVID-19.

2. Methodology

A significant development of deep learning has given a new dimension in machine learning domain during the last decades. The convolutional neural network (CNN) has emerged as most powerful model among various deep learning models for visual recognition tasks [17, 18, 19]. Figure 1 depicts the general architecture of CNN for the diagnosis of COVID-19.

The primary components of CNN architecture are: (a) convolution layer, (b) pooling layer, and (c) fully connected layer. In the process of CNN, each iteration is called as an epoch. The trained model with deep CNN showed high discriminative power. The different components of it is described below.

a) Convolution layer

CNN’s main component is the convolution layer. It’s principle concept is to extract local features from the input image and generate feature maps [20]. It consists of learnable parameters called filters or kernels that is convolved with input image and expressed as Eq. (4).

$\displaystyle F({i,j})=({I\ast K})({i,j})=\mathop{\sum}\limits_{m}\mathop{\sum% }\limits_{n}K({i+m})({j+n})I({m,n})$ (1)

where, $I$ denotes input image, $K$ denotes $2D$ filter with size ( $m\times n$ ) and $F$ defines feature map with size ( $i\times j$ ) (output) of the convolution layer. Here, $I$ is convolved with $K$ to produce $F$ . The feature map is then fed to activation function. Rectified Linear Unit (ReLU) is the most common activation function. The output of convolution layers is fed to pooling layer.

b) Pooling layer

In CNN architecture, the convolution layers are accompanied by pooling layers. The pooling layer are used for subsampling. These layers are often referred to as down sampling layers because the spatial size of the function map is reduced and thus the computational complexity is minimized. Max pooling [21] is the most common pooling technique and it is expressed in Eq. (2).

$\displaystyle y=\max_{i,j=1}^{s,t}F_{i,j}$ (2)

where, $s$ and $t$ is the pooling size. In general, there are number of alternate stacking of convolution and pooling layers in any CNN architecture. At last, output is flattened and provided to fully connected layer.

c) Fully connected layer

After many convolution and pooling layers in CNN architecture, there is fully connected layer. The fully connected layer has neurons that are having connections to all activations of previous layer. The activations in this layer are computed in the form of affine transformations that involves matrix multiplication and bias offset. There may be more than one fully connected layer in any model. The most common activation function in fully connected layer is Softmax. The Softmax function calculates the probability distribution of output classes and it is expressed as

$\displaystyle\sigma(\vec{Z})_{i}=\frac{e^{Z_{i}}}{\sum_{j=1}^{C}e^{Z_{j}}}$ (3)

Table 1

The details of four CXR datasets considered in this paper

Dataset used	No. of COVID-19 images	No. of normal images	No. of pneumonia images	Total images
[7]	125	500	500	1125
[33]	504	81	18	603
[35]	58	127	–	185
[36]	35	03	02	40

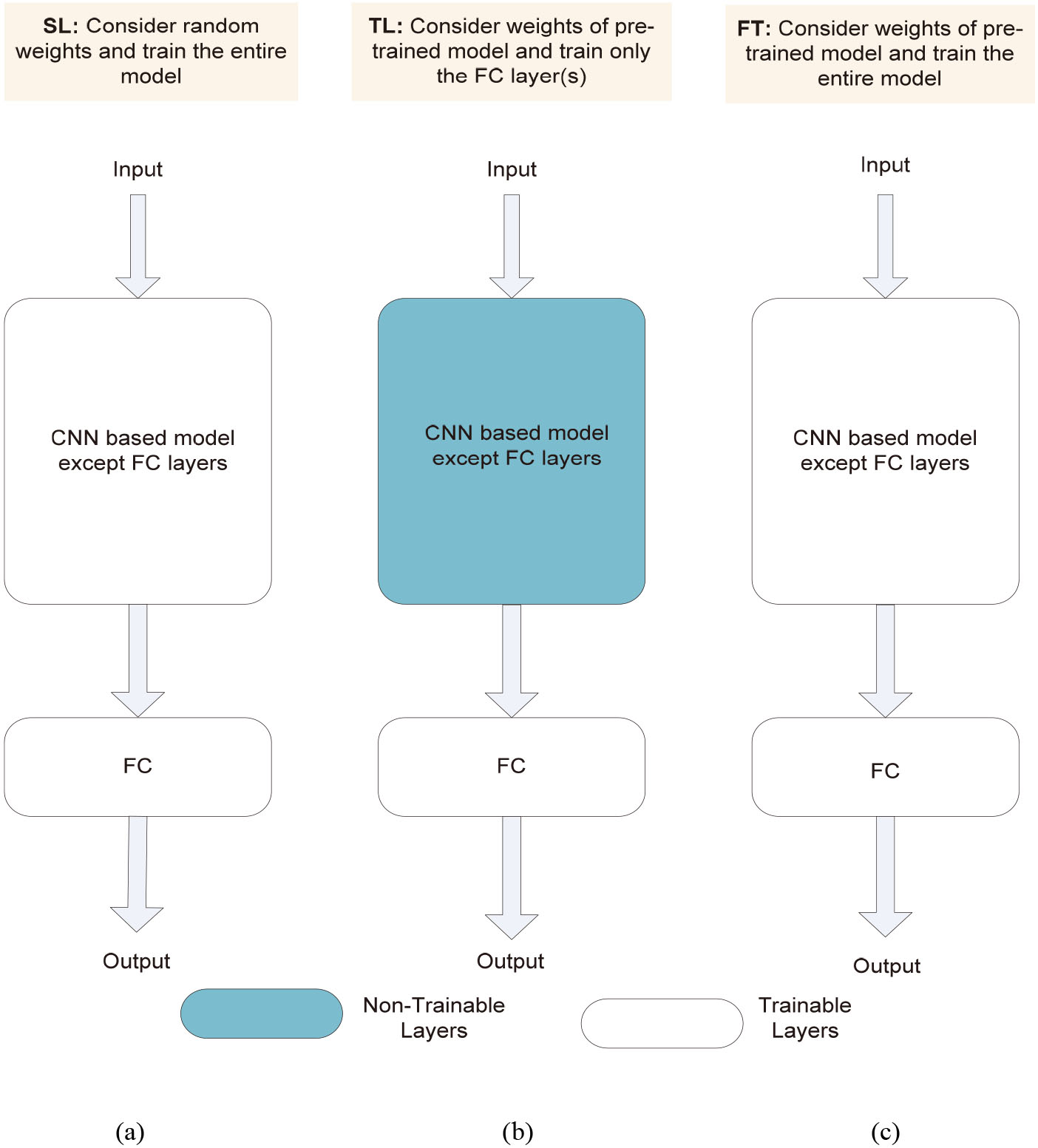

Figure 2.

General architecture of CNN model with three training approaches: (a) scratch learning; (b) transfer learning; (c) fine tuning.

where $\vec{Z}$ is the input vector and $Z_{i}$ is the elements of the input vector having any real value to Softmax. Denominator is the normalization term that ensures the summation of output value is equal to 1. $C$ is the number of classes.

All these layers are stacked to build a complete CNN architecture. In addition to these layers, the other layers such as batch normalization and dropout may be appended to reduce time complexity and avoid overfitting, respectively.

2.1 Dataset description

In this paper, we have used four CXR image datasets obtained from different sources. The details of these datasets has been presented in Table 1. However, we have utilized CXR image dataset of [7] to train and explore the performance of 16 models. Figure 2 depicts the sample image of each class of this dataset [7]. The best performing model among 16 models were applied on three other datasets [22, 23, 24] for validation.

2.2 Transfer learning, fine tuning and scratch learning

The simplest way of training any CNN model is scratch learning. Here, the weights of all the layers are randomly initialized and updated using backpropagation algorithm through several iterations until it attains the minimum loss. Figure 2a shows the general architecture of a CNN model with scratch learning. However, it increases the computational cost and powerful GPU requirement as the number of layer increases. Therefore, techniques such as transfer learning and fine tuning has been proposed to solve these issues.

Availability of large dataset is not always possible and training with small dataset may cause the problem of overfitting. A transfer learning approach [25] has been introduced as an solution to this issue. Transfer learning is a method in which pre-trained model information is applied to a large dataset to solve a similar problem in different datasets. Here, the weights of all the layers are frozen except the last few fully connected layers, i.e., only the weights of unfrozen layers take part in training. Hence, it reduces the computational complexity while producing adequate performance. Figure 2b shows the general architecture of CNN model with transfer learning. Another technique called fine tuning is a mid-way approach between scratch learning and transfer learning. Here, the weights of pre-trained model are used as initial weights and the weights of all the layers are updated using backpropagation algorithm while training. Figure 2c shows the general architecture of CNN model with fine tuning.

2.3 Pre-trained deep CNN models

We have explored 16 pre-trained deep CNN models for diagnosis of COVID-19 and they are: (i) VGG16, (ii) VGG19, (iii) ResNet50, (iv) ResNet101, (v) ResNet152, (vi) ResNet50V2, (vii) ResNet101V2, (viii) ResNet152V2, (ix) InceptionV3, (x) InceptionResNetV2, (xi) Xception, (xii) MobileNet, (xiii) MobileNetV2, (xiv) DenseNet121, (xv) DenseNet169, (xvi) DenseNet201. All of the aforementioned models have been pre-trained on ImageNet dataset [26] that consists of 1.2 million images of 1000 classes. Moreover, we have presented the exhaustive comparative performance analysis of these models in three training approaches: transfer learning, fine tuning and scratch learning. A brief description of each model has been provided below.

Simonyan et al., [27] proposed VGG16 model. It is a sequential CNN using 3 $\times$ 3 filters with increasing depth of 16 layers. Max-pooling was performed on 2 $\times$ 2 pixel window with stride of 2. After each max pool layer, the number of convolution filters gets doubled. It has three fully connected layers. There are 4096 neurons in the first two fully connected layer and 1000 neurons in the third one. Figure 3a shows the architecture of VGG16. Similar to VGG16, VGG19 model is developed with addition layers having a depth of 19 layers. Residual Neural Network (ResNet) was introduced by He et al. [28]. It employs residual learning framework which has skip connections from earlier layer along with direct connection from the immediate previous layer. There are several variants of ResNet architecture such as ResNet50, ResNet101, ResNet152, ResNet50V2, ResNet101V2 and ResNet152V2. ResNet50 has 50 layer in depth, ResNet101 has 101 layers and so on. Though, these models have more in depth than VGG16/VGG19 but has lower complexity compared to it. Figure 3b presents the basic architecture of ResNet model. The inception architecture was introduced by Szegedy et al. [29]. The first version is known as GoogleNet or InceptionV1. The InceptionV1 is refined through various ways and it is improved by adding batch normalization layer which is coined as InceptionV2 [30]. Further, this version is improved by putting factorization idea which is known as InceptionV3 [31]. Figure 3c presents the architecture of InceptionV3 model. Various combination of inception architecture and residual connections have been proposed in literature and InceptionResNetV1 and InceptionResNetV2 [32] are popular among them. Figure 3d presents the architecture of InceptionResNetV2 model. The architecture of Xception [33] is based on depthwise separable convolution layer. Here, it is considered that mapping of spatial correlation and cross-channel correlation in the feature maps would be completely decoupled. There are 36 convolution layers to extract features from input. These 36 layers form 14 modules. Except first and last modules, 12 modules have linear residual connections around them. Figure 3e presents the architecture of Xception model. MobileNet [34] is constructed by depth wise separable convolutions that are a type of factorized convolutions. The factorize convolutions factorize standard convolutions into depthwise convolution and a pointwise convolution with 1 $\times$ 1 convolution. This factorizing of standard convolution has the greater impact on reducing the computation time drastically as well as model size. Figure 3f presents the architecture of MobileNet. In addition, MobileNetV2 is proposed by Sandler et al. [35]. It’s initial convolution layer has 32 filters and these are accompanied by 19 residual bottleneck layers. Dense Convolutional Network (DenseNet) has been proposed by Huang et al. [36]. It is densely connected CNN architecture where each layer is interconnected to each other in feedforward manner. Three DenseNet models, i.e., DenseNet121, DenseNet169 and DenseNet201 have been explored. The architecture of DenseNet169 model has been depicted in Fig. 3g.

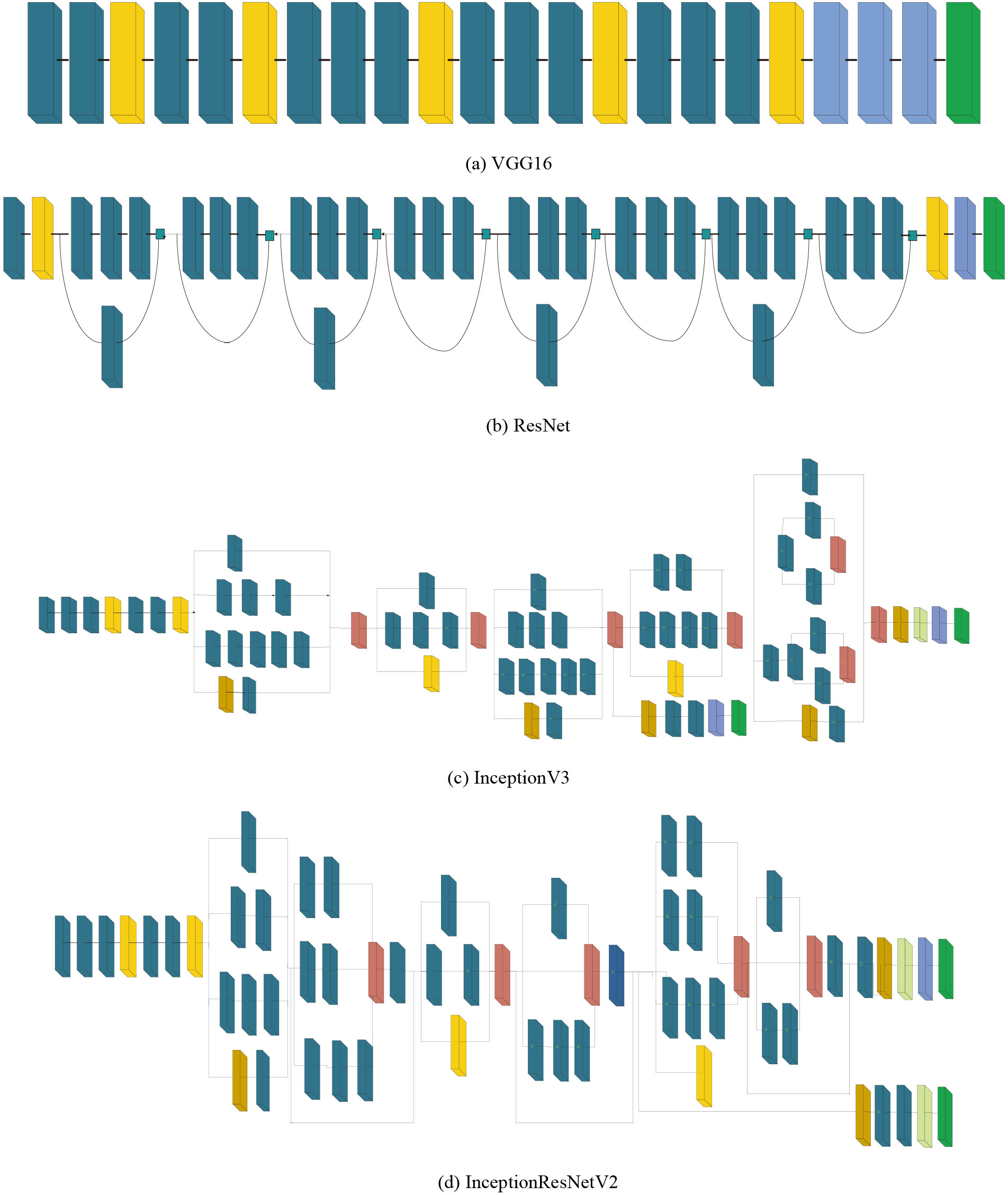

Figure 3.

Architecture of state-of-the-art deep CNN models.

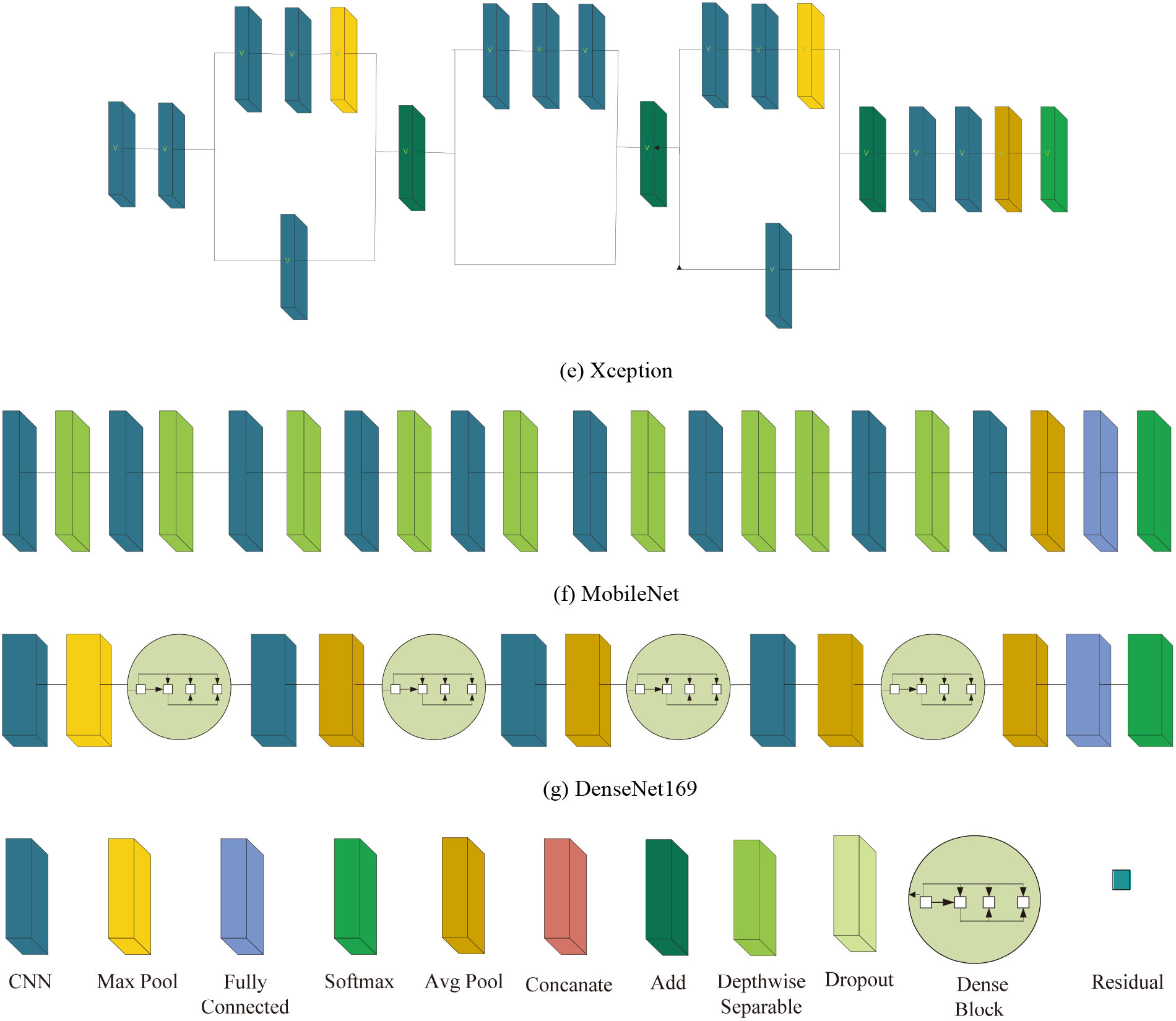

Figure 3.

Continued.

Figure 4.

Sample image of each class: (a) COVID-19, (b) Pneumonia and (c) Normal.

Table 2

Trainable parameters of deep CNN models

Model	Binary classification			Multiclass classification
	TL	FT	SL	TL	FT	SL
VGG16	8,194	134,268,738	134,268,738	12,291	134,272,835	134,272,835
VGG19	8,194	139,578,434	139,578,434	12,291	139,582,531	139,582,531
ResNet50	4,098	23,538,690	23,538,690	6,147	23,540,739	23,540,739
ResNet101	4,098	42,556,930	42,556,930	6,147	42,558,979	42,558,979
ResNet152	4,098	58,223,618	58,223,618	6,147	58,225,667	58,225,667
ResNet50V2	4,098	23,523,458	23,523,458	6,147	23,525,507	23,525,507
ResNet101V2	4,098	42,532,994	42,532,994	6,147	42,535,043	42,535,043
ResNet152V2	4,098	58,192,002	58,192,002	6,147	58,194,051	58,194,051
InceptionV3	4,098	21,772,450	21,772,450	6,147	21,774,499	21,774,499
InceptionResNetV2	3,074	54,279,266	54,279,266	4,611	54,280,803	54,280,803
Xception	4,098	20,811,050	20,811,050	6,147	20,813,099	20,813,099
MobileNet	2,002	4,233,978	4,233,978	3,003	4,234,979	4,234,979
MobileNetV2	2,562	2,226,434	2,226,434	3,843	2,227,715	2,227,715
DenseNet121	2,050	6,955,906	6,955,906	3,075	6,956,931	6,956,931
DenseNet169	3,330	12,487,810	12,487,810	4,995	12,489,475	12,489,475
DenseNet201	3,842	18,096,770	18,096,770	5,763	18,098,691	18,098,691

2.4 Class balancing

It can be observed from Table 1 that all four dataset has the class imbalance issue. For example, the number of COVID-19 images in the datasets of [7] are 125 whereas the other two classes (Pneumonia and Normal) have 500 images each. This results in bias to the performance of the model. Hence, we have used cost-sensitive learning [37] to handle the class imbalance problem which computes the class weights for each class as shown in Eq. (4) where, C represents number of classes and $N_{i}$ represents number of images in the $i^{\text{th}}$ class. The objective here is to assign different weights to the different misclassifications cost while computing total cost during training and it is achieved by assigning higher weights to the minority classes and lower weights to the majority classes.

$\displaystyle\textit{class\_weight}_{i}=\frac{\mathop{\sum}\nolimits_{j=1}^{C}% N_{j}}{N_{i}}$ (4)

3. Results and discussion

3.1 Experimental design

The experimental setup to train all 16 deep CNN models has been described in this section. These are pre-trained models and already trained on a large dataset known as ImageNet. The ImageNet comprises of 1000 classes. Hence, these CNN models are having 1000 neurons in the FC layer to predict 1000 classes. However, we have evaluated for binary class (COVID-19 Vs. Normal) and multiclass (COVID-19 Vs. Pneumonia Vs. Normal) in this paper. Therefore, FC layer was replaced by two neurons in case of binary class and three neurons in case of multiclass. The size of the input image was reshaped as defined for each pre-trained CNN models. The size of the input image for InceptionV3, InceptionResNetV2 and Xception is 299 $\times$ 299 $\times$ 3 while for the rest of the models it is 224 $\times$ 224 $\times$ 3. Table 2 shows the trainable parameters for all the models with TL, FT and SL approach in case of binary and multiclass classifications. We have used Adam (Adaptive Moment Estimation) optimizer with learning rate of 0.01, epochs of 200 and batch size of 32. Early stopping criteria has been used in this experiment to avoid overfitting. In early stopping criteria, the training is stopped when it meets pre-defined criterion. Otherwise, the model is trained till full epoch count. Here, we have set the criteria of early stopping as if validation loss does not decrease to 0.001 till 50 epochs, training should be stopped. The dataset [7] has been distributed into three parts: (i) training set (70% of dataset), (ii) validation set (10% of dataset) and (iii) test set (20% of dataset). The experiment was run for five trials to avoid biasedness of each trail due to different set of training, validation and testing set in each trail. Further, overall accuracy (OA) has been calculated by computing average of accuracies for five trials to demonstrate the performance of the models. Moreover, average standard deviation (SD) of accuracies in five trials has also been calculated to show the robustness of the model. All the experiments have been performed in keras framework with tensorflow backend using Python 3.6. Here, Google Colaboratory has been utilized for implementation that provides Intel(R) Xeon(R) CPU @ 2.30 GHz, 13 GB RAM and NVIDIA Tesla K80 GPU.

3.2 Experimental results

The classification accuracy obtained using 16 models on test set has been shown in Tables 3 and 4 for binary and multiclass classification, respectively. Following observations have been made: (i) among three techniques (TL, FT, SL), SL has produced lowest accuracy in both scenario (binary and multiclass). The rationale behind it is that SL technique might require more number of epochs to effectively train the model. When comparing TL and FT, TL has performed better for few models and FT has produced better results for few other models. However, the difference in OA is very less in these two techniques; (ii) highest OA of 99.20% has been obtained using InceptionResNetV2 model with FT for binary classification (Table 3) and the highest OA of 89.33% has been obtained using Xception model with FT approach for multiclass classification (Table 4).

Table 3
Performance comparison of deep CNN models with TL, FT and SL approach for binary classification (COVID-19 vs. Normal)

Deep CNN model	TL	FT	SL
Vgg16	97.12 $\pm$ 1.87	90.56 $\pm$ 6.96	80.48 $\pm$ 1.57
Vgg19	96.64 $\pm$ 2.50	86.56 $\pm$ 8.14	79.20 $\pm$ 2.43
ResNet50	83.52 $\pm$ 2.98	94.08 $\pm$ 0.96	91.84 $\pm$ 2.55
ResNet101	85.12 $\pm$ 1.93	92.48 $\pm$ 3.77	93.44 $\pm$ 3.93
ResNet152	78.24 $\pm$ 0.87	93.12 $\pm$ 8.61	90.88 $\pm$ 5.02
ResNet50V2	96.64 $\pm$ 1.38	94.08 $\pm$ 2.41	93.28 $\pm$ 2.89
ResNet101V2	97.60 $\pm$ 1.13	96.80 $\pm$ 1.13	91.84 $\pm$ 4.33
ResNet152V2	96.96 $\pm$ 0.93	95.52 $\pm$ 2.75	92.32 $\pm$ 1.87
InceptionV3	95.68 $\pm$ 1.80	97.44 $\pm$ 1.18	95.68 $\pm$ 1.65
InceptionResNetV2	97.12 $\pm$ 1.72	99.20 $\pm$ 1.18	94.40 $\pm$ 2.63
Xception	97.60 $\pm$ 1.43	97.60 $\pm$ 1.13	98.40 $\pm$ 1.01
MobileNet	95.36 $\pm$ 1.17	97.92 $\pm$ 1.48	93.44 $\pm$ 2.92
MobileNetV2	97.12 $\pm$ 0.82	93.44 $\pm$ 3.33	78.24 $\pm$ 1.56
DenseNet121	97.12 $\pm$ 0.82	97.60 $\pm$ 0.88	93.60 $\pm$ 2.58
DenseNet169	97.60 $\pm$ 1.60	93.60 $\pm$ 4.23	94.40 $\pm$ 3.04
DenseNet201	98.40 $\pm$ 0.88	94.40 $\pm$ 1.68	94.56 $\pm$ 1.99

Table 4

Performance comparison of deep CNN models with TL, FT and SL approach for multiclass classification (COVID-19 vs. Pneumonia vs. Normal)

Deep CNN model	TL	FT	SL
Vgg16	78.49 $\pm$ 2.11	73.33 $\pm$ 2.67	42.13 $\pm$ 4.50
Vgg19	78.76 $\pm$ 1.44	57.42 $\pm$ 13.17	45.24 $\pm$ 2.41
ResNet50	61.96 $\pm$ 1.88	77.33 $\pm$ 7.02	71.20 $\pm$ 5.11
ResNet101	60.36 $\pm$ 1.10	82.40 $\pm$ 2.46	68.80 $\pm$ 8.74
ResNet152	59.20 $\pm$ 2.05	69.25 $\pm$ 15.09	74.76 $\pm$ 2.77
ResNet50V2	80.18 $\pm$ 2.79	83.11 $\pm$ 3.12	73.16 $\pm$ 2.22
ResNet101V2	77.06 $\pm$ 2.36	80.80 $\pm$ 5.02	73.24 $\pm$ 5.39
ResNet152V2	80.89 $\pm$ 1.46	81.78 $\pm$ 3.66	69.24 $\pm$ 5.82
InceptionV3	78.49 $\pm$ 1.45	86.22 $\pm$ 1.59	77.16 $\pm$ 3.79
InceptionResNetV2	79.73 $\pm$ 3.91	85.16 $\pm$ 3.00	70.40 $\pm$ 3.06
Xception	77.87 $\pm$ 1.67	89.33 $\pm$ 1.16	77.51 $\pm$ 4.19
MobileNet	79.29 $\pm$ 2.22	85.96 $\pm$ 2.87	65.78 $\pm$ 13.53
MobileNetV2	81.42 $\pm$ 2.26	67.47 $\pm$ 3.78	44.53 $\pm$ 3.11
DenseNet121	80.89 $\pm$ 1.54	82.84 $\pm$ 3.09	74.31 $\pm$ 4.63
DenseNet169	81.07 $\pm$ 2.56	84.18 $\pm$ 1.88	68.09 $\pm$ 12.14
DenseNet201	80.89 $\pm$ 2.16	84.27 $\pm$ 1.55	77.87 $\pm$ 2.60

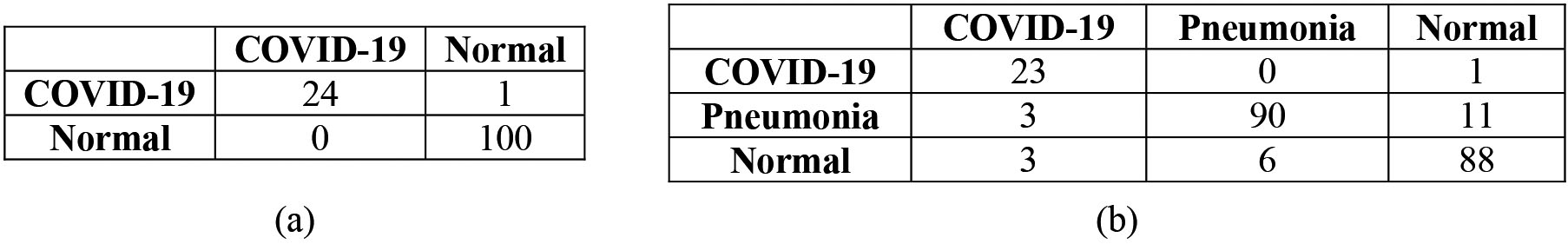

Figure 5.

Confusion matrix: (a) Binary classification, (b) multiclass classification.

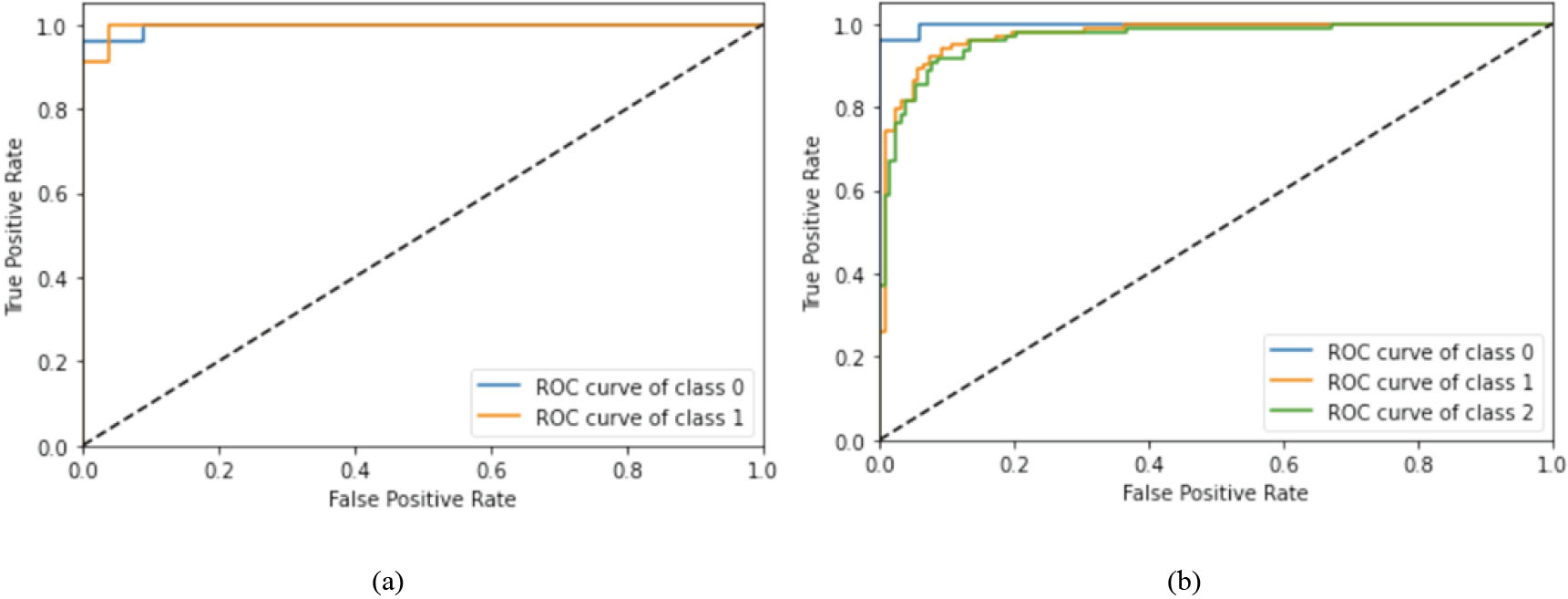

Figure 6.

ROC curve: (a) Binary classification, (b) multiclass classification.

Table 5

Other performance parameters for binary and multiclass classification without class balancing

Classes	Class accuracy (%)	Precision	Recall	F1-score
Binary classification
COVID-19	96.00	1.00	0.96	0.98
Normal	100	0.99	1.00	1.00
Multiclass classification
COVID-19	95.83	0.79	0.96	0.87
Pneumonia	86.54	0.94	0.87	0.90
Normal	90.72	0.88	0.91	0.89

Table 6

Other performance parameters for binary and multiclass classification with class balancing

Classes	Class accuracy (%)	Precision	Recall	F1-score
Binary classification
COVID-19	97.00	0.97	0.97	0.97
Normal	99.00	0.99	0.99	0.99
Multiclass classification
COVID-19	100	0.96	1.00	0.98
Pneumonia	89.81	0.90	0.90	0.90
Normal	87.23	0.88	0.87	0.88

Table 7

Validation of our approach on other three CXR datasets with class balancing

Data set used	No. of COVID-19 images	No. of normal images	No. of pneumonia images	Classification type	Model	Accuracy (%)
[22]	504	81	–	Binary	InceptionResNetV2	96.19
	504	81	18	Multiclass	Xception	82.37
[23]	58	127	–	Binary	InceptionResNetV2	91.89
[24]	35	3	–	Binary	InceptionResNetV2	91.67
	35	3	2	Multiclass	Xception	91.68

Table 8

Benchmarking of our approach with existing approaches on COVID-19 diagnosis

Authors	Modality	# classes with data size	Methodology	Classification accuracy (%)
Ozturk et al. [7]	CXR	500 Normal 125 COVID-19 500 Pneumonia 500 Normal 125 COVID-19	DarkCovidNet	98.08 (Binary Class) 87.02 (Multiclass)
Narin et al. [3]	CXR	50 COVID-19 50 Normal	ResNet50 with TL	98.00 (Binary Class)
Apostolopoulos et al. [9]	CXR	224 COVID-19 714 Bacterial and Viral Pneumonia 504 Normal	MobileNetV2 with TL	96.78 (Binary Class) 94.72% (Multiclass)
Sethy et al. [10]	CXR	133 COVID-19 133 Normal	ResNet50 with TL and SVM	95.38 (Binary Class)
Hemdan et al. [8]	CXR	25 COVID-19 25 Normal	COVIDX-Net	90.00 (Binary Class)
Wang et al. [11]	CXR	16,756 Images of Normal, Pneumonia and COVID-19	COVID-Net	92.40 (Multiclass)
Elasnaoui et al. [38]	CXR	2780 Bacteria Pneumonia 1493 Coronavirus, 231 COVID-19 1583 Normal	InceptionResNetV2 with TL	92.18 (Multiclass)
Das et al. [12]	CXR	500 Pneumonia 500 Normal 125 COVID-19	Extreme version of Inception	97.40 (Multiclass)
Pathak et al. [13]	CXR	419 COVID-19 439 Normal or Pneumonia infected	Deep Transfer Learning	93.02 (Binary class)
Nayak et al. [14]	CXR	203 Normal 203 COVID-19	Resnet-34	98.33 (Binary Class)
Gilanie et al. [15]	CXR and CT	7021 Normal and Pneumonia 1066 COVID-19	CNN model	96.68 (Binary class)
Oh et al. [16]	CXR	5000 images (Normal, Pneumonia and COVID-19)	Patch-based CNN	91.9 (Multiclass)
Our Approach	CXR	500 Normal 125 COVID-19 500 Pneumonia 500 Normal 125 COVID-19	InceptionResNetV2 with FT for Binary Class Xception with FT for multiclass	99.20 (Binary Class) 89.33 (Multiclass)

For a more detailed analysis, we have shown few other performance parameters using best performing models only, i.e., InceptionResNetV2 model for binary classification and Xception model for multiclass classification. Figure 5 depicts the confusion matrix for binary and multiclass classification where diagonal elements illustrate correct classification. Further, class accuracy, precision, recall and F1 score have been presented in Table 5 which shows our model is able to classify COVID-19 class with very high accuracy (96% in case of binary class and 95.83% in case of multiclass). Moreover, the receiving operating characteristic (ROC) curve has been shown in Fig. 6 where class 0, 1 and 2 represents COVID-19, Pneumonia and Normal class respectively. As all curves are closer to top-left corner, it demonstrates encouraging performance of the model. Further, we have applied cost-sensitive learning technique to handle the class imbalance issue and the results were shown in Table 6. It can be observed from Tables 5 and 6 that there is an improvement in COVID-19 classification accuracy after class balancing in case of binary classification (1.04% improvement) and multiclass (4.35% improvement) as well. Further, we have validated our approach on three other datasets obtained from different sources and the performance has been depicted in Table 7. From Table 7, it is evident that our approach is able to achieve adequate classification accuracy on other three datasets as well.

Lastly, to highlight the performance of our approach, a benchmarking of our approach with the existing approaches has been presented in Table 8. DarkCovidNet proposed by Ozturk et al., [7] for classification of COVID-19 obtained an accuracy of 98.08% and 87.02% for binary and multiclass respectively. Narin et al. [3] explored ResNet50 with TL and reported an accuracy of 98% while Sethy and Behera [10] explored ResNet50 with TL and SVM and achieved an accuracy of 94.72%. Apostolopoulos and Mpesiana [9] demonstared MobileNetV2 with TL and reported 96.78% accuracy for binary class and 94.72% accuracy for multiclass. COVIDX-Net proposed by Hemdan et al. [8], achieved an accuracy of 90% and COVID-Net proposed by Wang and Wond [11] obtained an accuracy of 92.40%. Elasnaoui and Chawki [38] explored InceptionResNetV2 with TL and reported 92.18% accuracy. Das et al. [12] explored Xception with FT and reported a classification accuracy of 97.40%. Pathak et al. [13] proposed a deep transfer learning (DTL) and reported an accuarcy of 93.02%. Nayak et al. [14] explored Resnet-34 and achieved a classification accuracy of 98.33%. Gilanie et al. [15] proposed a CNN model and reported an accuracy of 96.68%. Oh et al. [16] proposed a patch-based CNN and achieved a classification accuracy of 91.90% for classification of COVID-19, Pneumia and Normal class.

4. Conclusion

Due to the rapid growth in COVID-19 patients globally, automatic detection of COVID-19 patients is the need of the hour. A comprehensive comparative analysis of 16 deep CNN models to diagnose COVID-19 utilizing chest X-ray images has been presented in this paper. Further, the performances of these 16 models have been evaluated with three approaches namely TL, FT and SL in two scenarios: binary classification (COVID-19 vs. Normal) and multiclass classification (COVID-19 vs. Pneumonia vs. Normal). Our analysis concludes that the performance of deep CNN model is better with FT approach as compared to TL and SL for considered dataset. Among 16 models, InceptionResNetV2 has achieved highest classification accuracy of 99.20% in case of binary class and Xception model has obtained highest classification accuracy of 89.33% in case of multiclass. In addition, the class imbalance issue has been taken care using cost-sensitive learning technique and found improvement in COVID-19 classification accuracy. To substantiate the performance of our approach, experiments have been performed on other three datasets as well and observed that it achieved an adequate classification accuracy for all three datasets. In future, we intend to work on large datasets to validate our model. Subsequently, it may help radiologists to have a second opinion and prioritize their patients.
