Abstract
This article describes a systematic investigation on the expectations of potential users of Ambient Assisted Living (AAL) technologies. More specifically it describes the efforts made to elicit users expectations for services of an AAL system that aims to both monitor older people fostering their independent living and preventing dangerous situations and also offers a valid help to their caregivers. The specific target of our work is older adults, with no critical pathological conditions, who wish to stay home as long as possible. The work proposes a plan for a rigorous systematization of the users needs and their validation based on a combination of qualitative and quantitative research techniques involving both the
Keywords
Introduction
Life expectation is nowadays increasing [18] and consequently the number of people who will need support to cope with age-related impairments and to maintain a valuable Quality of Life (QoL) will also increase. One of the first wishes of this population is to be able to live autonomously as long as possible, and to age well. Notably, independent living is also known to reduce the cost to society of supporting people who have lost some autonomy [20] and there is considerable evidence that health promoting behaviours of older people offers the potential for improving health status and Quality of Life also reducing the cost of health care [3,23,26,33]. Quality of Life has been defined as “
Advanced age is one of the most important factors for frailty, dependency, and level of received care [2,14,25,27,29]. In this respect, it becomes important to promote and foster a good QoL in such kind of persons, that also means to cope with age-related health impairments and decrease of independence. A correlated concept is the notion of Aging-In-Place [30] that promotes the idea of allowing seniors to keep control of their environment and activities to improve their autonomy, health, well-being and their feeling of dignity. The adoption of new technologies to preserve the independence of older people in the domestic environment is becoming increasingly important in the context of this demographic change and the relevance of this new technology for daily activities of self care [11] within the smart home domain is also increasingly discussed.
Initiatives to leverage technology as a key element to support ageing are indeed manifold, most of which fall under the Ambient Assisted Living (AAL) initiative funded by the European Commission. The purpose of this program is the development and use of new technologies to enable older users and disabled to live comfortably at home, improving their autonomy, facilitating daily activities, ensuring good conditions of safety, supporting prevention or monitoring and treating sick people. The widespread application of AAL technique could avoid, in many cases, the admission to hospitals or nursing homes, allowing a better QoL and savings costs for the community.
This work reports an effort performed in Italy to elicit, in a structured way, user expectations for an AAL system devoted to older adults (not affected by a critical pathologic condition) to support their independent living. The analysis is based on the combination of qualitative and quantitative methods involving representative users (ecological context). The specific effort derived from the quantitative approach allowed validating our results. Additionally the statistically relevant number of participants provides a clear indication of priorities for the synthesis of AAL services based on acceptance and perceived usefulness of both primary and secondary users. Detailed priorities are provided for specific services belonging to four different categories. The conclusions derived from this study can be used as an indication of the main wishes of older adults with respect to technology that is intended as a means to support their independent living and is also influenced by the perspective of their caregivers.
The paper is organized as follows: Section 2 contains an overview of related works on the investigations of users expectations from AAL technology; Section 3 describes the main concepts and ingredients that inspired the study and that emerged from our experience, the
Related works
Smart homes, AmI and AAL: Users involvement
A study by Eggen and colleagues [17] tried to investigate what “home” actually means for people, ultimately aiming at understanding how people would like to live in their “Dream Home”, the “Home of the Future” highlighting some interesting requirements in terms of trust, usability and the possibility to
A recent review on AAL technologies, products and services [37] promotes a user-centric development of technology with a strong involvement of end users specifically for usability and accessibility issues pointing out the lack of proper attention to the topic. The review analyzes a number of papers related to the AAL research areas and selects a subset of them that are classified around the “user interaction area” focusing mainly on the development of new interaction mechanisms, new ways of presenting information and evaluation of devices. Most of these research papers in fact are technology-oriented and focus on how technology can be used in the AAL context instead of looking at the users’ need and discuss their implications for practice.
Some results come from studies aimed at investigating seniors perception and monitoring needs with respect to the “smart home” technology devoted to improve QoL and/or monitor older users’ health status [15,43]. Results of the first study showed a rather positive attitude toward devices able to enhance their lives. The main areas of intervention cited for these tools are emergency help, prevention and detection of falls, monitoring of physiological parameters. In the second study, both the elderly and their family were involved in order to identify monitoring needs and expectations. Themes like maintaining independence, detecting cognitive decline, sharing of information, and the trade off between privacy and usefulness of monitoring have been highlighted. Additionally, the acceptance by the elderly of unobtrusive in-home monitoring seemed to be closely tied to the perceived utility of data and services generated by such systems.
Both studies were mainly conducted using only qualitative research (focus groups) without involving a statistically significant numbers of participants well distributed among primary and secondary users. Additionally, the suggested domains of interventions for AAL systems were not deeply analyzed subdividing them into sub-items and no clear indications about a level of priority were provided to the systems developers.
One work that considers a large number of participants and combines qualitative and quantitative research has been carried out within the SAAPHO project [16]. In this work a statistically relevant numbers of older users from two different countries have been recruited for eliciting requirements of an intelligent system to support independent living. A number of monitoring needs (both related to the environmental safety and health status) emerged and the possibility to use the technology to facilitate contacts with relatives and friends was highlighted. This study provides qualitative indications from primary users on the sphere of intervention for AAL system not dwelling on the details of the difference in priorities of the specific services thus leaving space for improvement in the user needs elicitation and its implications for the system developers.
Progress beyond state-of-the art
The present study aims at assessing the users’ needs for AAL services that perform older adults monitoring at home. The paper gathers users’ feedback from a twofold perspective, namely the point of view of both older users at home directly exploiting the AAL technology and of their carers who also indirectly benefit from the AAL services while providing their care. The analysis is based on a methodology that combines qualitative and qualitative analysis [7]. The quantitative analysis enabled the production of a complete set of user requirements validated with a significant number of user representatives. A subsequent elaboration of the results synthesized a clear indication of the level of priority for the elicited services and a set of suggestions that can be useful for the practical development of innovative AAL services.
New AAL services: The GiraffPlus concept
The study described in this paper has been grounded on a project named
The starting point of the
The picture introduces the key concepts relevant for the current paper that are: the
The
First of all we can identify the human actors who are the target of the AAL services:
The The For this reason, in order to further investigate this aspect, we subdivide secondary end-users into two different sub-groups: (a)
Key technological ingredients

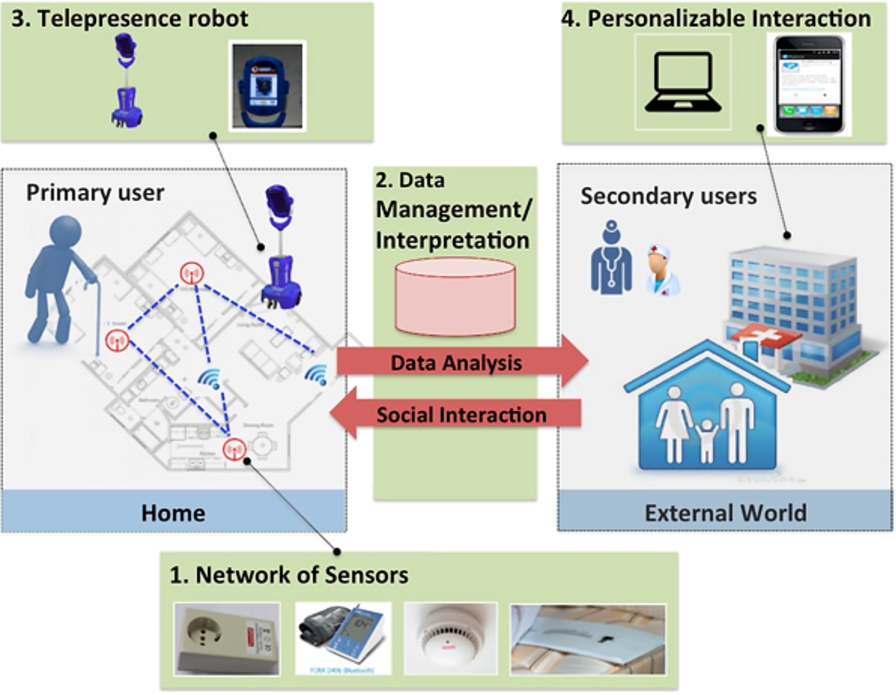

The key technological ingredients of the system (see Fig. 1) that constitutes the main building block of
It is worth highlighting the idea of a telepresence robot as a potential exploitable ingredient to allow secondary end-users to visit the assisted person in his/her home via an embodied robotic presence through which the visitor can communicate and at the same time move around in the environment. The robot is the technological component considered to be placed in the home of the elderly and used to connect to healthcare professionals as well as family members. This element of the system is mainly thought as a means to enable the delivery of services that are more “social oriented” and can also be potentially enriched with additionally services.
Having described the key general elements of the Long-term behavioural and physiological Producing Exporting data for a real time use (hence, for example, for issuing The communication through the telepresence robot is the basic media for social communication from outside into the house through Having such a general set up, the system could offer a channel from the secondary to the primary for messages and reminders created through the visualisation front-end and delivered on the robot screen.
Toward the primary users the project idea was to implement the following functionalities:
The messages and the information open up an interesting spectrum of possibilities that can be coordinated by personalization because different people may like different delivery of the information to each of the human actors connected to the dialogue with the system.
After this synthesis of initial services the effort was devoted to more critically and rigorously investigate the users’ requirements for such kind of system by carrying out a rigorous investigation on users expectations.
Elicitation of user needs
A specific effort of the project has been then focussed on the user requirement analysis in order to both gather real users’ needs and expectations with respect to the system and derive more general indications with respect to innovative AAL services. To this purpose 3-months of intense work have been dedicated to recruit representatives of both primary and secondary users and perform an intense investigation whose methods and results are described here.
Objective and motivations
The objective of our study was to gather users’ needs and opinions with respect to the AAL services and to identify a set of services that the users (both primary and secondary) consider as most important to be realized. Specifically, the study aimed at:
eliciting and validate what activities, events, physiological and psychological data or behaviours are important to observe; determining the level of
Overall we aimed at: identifying the set of factors that are particularly important to ensure early detection of possible deterioration of health; investigating what type of support could be useful to cope with age-related impairments, and contributing to understand what is needed to support preventive medicine. These indications allow to combine the technological components previously presented and offer dedicated services that are grounded on real needs and expectations of users in terms of improving their independent living and/or to facilitate the roles of their carers.
Method
The general method of the study3 The general method has been conceived with the help of the School of Health and Medical Sciences of the Örebro University, the Lund University, the Andalusian Health Service and the Örebro County Council. In this paper we focus on the application of the methodology on a sample of Italian users.
Analysis of existing literature on relevant indicators for independent living.
Qualitative study to identify user requirements for the
Quantitative study to validate and prioritize the user expectations.
The first step was devoted to study existing literature related to the main factors that contribute to endanger the level of independency of an elderly people at home. The idea was in fact to try to understand the relevant factors that represent a risk for the decline of elderly persons, and thus, should be monitored over time [9, pp. 13–17].
Starting from this, we then focused our effort on gathering feedback from real users (both primary and secondary), by involving them directly in giving their opinion on the services that an intelligent AAL system should offer.

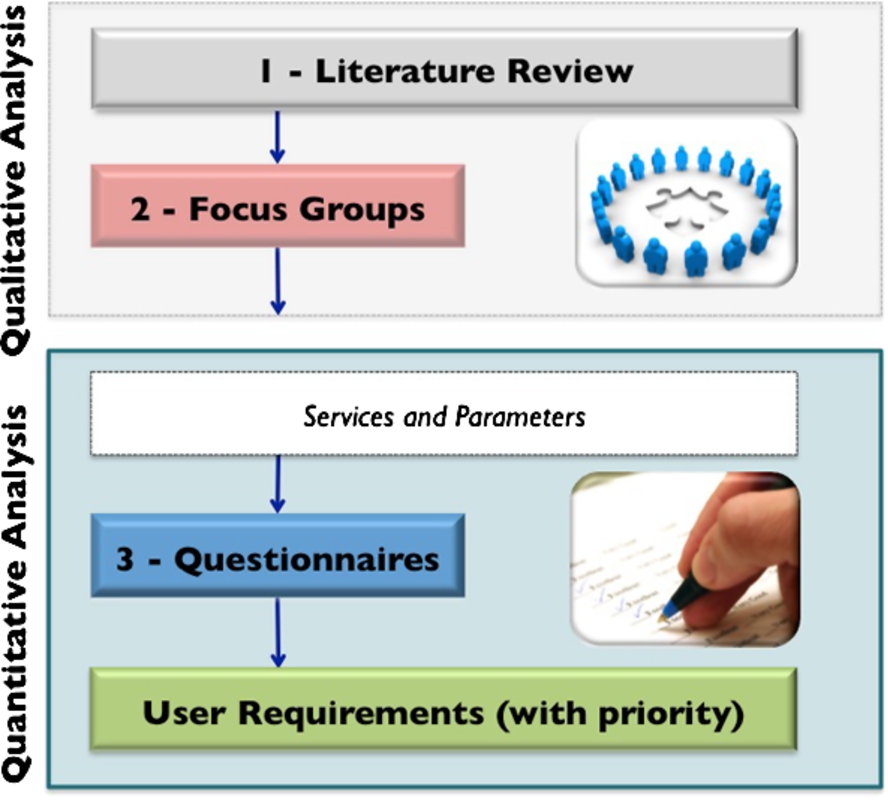

General method for user requirement analysis: quantitative analysis is used to validate results and define priorities.
To this purpose we combined qualitative and quantitative research as shown in Fig. 2, steps 2 and 3.
Specifically, a set of focus groups have been organized to define the services and parameters to monitor. A critical analysis of these requirements has then been made and used to create questionnaires to be administrated again to both primary and secondary users. The questionnaires directly reflected the list of services and parameters to be monitored that emerged from the focus groups work. The idea of these questionnaires was to have an indication on the level of perceived
The rest of the paper reports the results of this analysis performed in Italy.
A focus group is a form of qualitative research in which a group of people are asked about their perceptions, opinions, beliefs and attitudes towards a product, service, concept or idea [41]. Two focus groups with primary and secondary users were conducted in Italy, in order to collect the perspective from users on their needs and what is important to observe to support independent living and assuring an acceptable QoL.
Participants
Table 1 shows the participants of the two focus groups performed in Italy.
Focus groups participants
Focus groups participants
Specifically a first focus group (FG1) involved representative of secondary users recruited among health care professionals (doctors, nurses, occupational therapists, physiotherapists, psychologist, home care professionals or other professionals) working in the field of care for elderly persons. The second focus group (FG2) involved elderly persons, as representative of the primary users of the
As we mentioned earlier through this paper, the
Participants were recruited through ASL RMA and the focus groups meetings were held at the ASL premises under the supervision of the personnel working there thus adhering to the ethical code of that organization.
A general description of the The general schema to follow during the focus group was conceived by the School of Health and Medical Sciences of the Örebro University, see also [9].
In contrast, quite different questions were asked to primary users such as: «
The moderators followed the discussion guide to generate interest in the topic, involve all the participants, and keep the discussion on track. One or more observers assisted the moderator. The role of the observers was to listen to the discussion, take notes and interact with the moderator when necessary. Notes from the observer could be used in directing the moderator in one way or another. Each focus group was a one and a half hour long discussion about health deterioration due to aging, elderly persons’ expectations and need of support, how this support should be delivered, what should be monitored, and what constitutes an alarm. The focus group discussions were tape-recorded and transcribed verbatim.
The aim of the analysis was to identify examples and suggestions of activities, events, behaviours and physiological/psychological data to observe in order to detect deterioration of health and/or need for care or help. An additional aim was to identify the participants thoughts about the type of support services needed for the elderly persons.
The analyses were close to the direct wording in the text without deeper interpretation of latent meanings. The analysis was done by reading the text back and forth to get a picture of how the participants talked about different aspects of the identified factors. First of all, the text was read through to get a whole picture of the content. Secondly, suggested factors/activities/events/data that were mentioned by the participants was identified and marked in the text. The next step was to identify in the text if the focus group expressed that the marked data was an important factor to observe. For each factor the participants’ motivation or arguments for this being an important factor were described. Furthermore, for each factor, discussions about needed support were identified and described.
Focus group results
The results of the focus groups have been organized according to macro-categories that seem to be relevant to consider for supporting both primary and secondary users. These categories are also in line with the International Classification of Functioning, Disability and Health (ICF)5 ICF is a global theoretical framework for classification of health and health related domains. It describes interactions between specific health conditions and activities, participation, body functions and contextual factors.
Both primary and secondary users claimed that a decrease of body functions is something important and relevant to observe for early detection of health deterioration. Examples of things that could be important to monitor are: cardiovascular functions ([
Additional aspects that seem to be interesting to monitor are the possible changes in the “usual routines” of older persons at home. This was discussed mostly by the secondary users (caregivers). Detected changes in daily routines of the older person were described as possible signs of deterioration of health and increased need for support. Specifically the following aspects have been mentioned: loss of routines, inability to manage the daily activities, changed patterns of activity and mobility in the home, more time spent in bed than usual, leaving home at unusual times, mobility decline, number of visits to the toilet at night; eating and drinking deterioration; personal hygiene; ability to cope with diabetes, ability to and time spent on preparing food, forgetting to turn off the light or the stove. A specific attention has then been given also by elderly to the ability to handle medications. This result is supported by several references in the literature [13,19,24,34] that describe how the ability to manage activities of daily living is important for independence and quality of life and also as an important detector of risks, for example risk of falls.
The one related to risk of
Both professionals and the older persons identified the fear of being alone and the need for contact with relatives and professionals ([
Both primary and secondary users mentioned the need to prevent potential risks related to environmental factors. Factors suggested to monitor were for instance: fire detection, taps opened, smoke detection, wet floor, temperature, and gas leaking. Another aspect that was mentioned by the elderly was the fear of intrusion in the home. This is also in line with our previous study [10] where the support for environmental safety have been suggested as one of the most important aspects in the home monitoring domain.
Overall primary users showed their interest in the potential of the system ([
Additional aspects also emerged from the analysis. The technical solutions should not replace human contact, rather they should be seen as a means to foster and promote human communication and support. Additionally it is important that the technical solutions support the individuals’ autonomy and do not make them dependent on the technology itself.
Even though the questions asked during the focus group did not specifically contained questions related to the costs associated to the service as done in [40], participants raised concerns about possible additional costs they had to pay. In fact, keeping the costs of the service low is a key requirements for older adults. Additionally they also would expect the participation of the National Health Care service that might bear part of the costs.
A final consideration, related mainly to the focus group with health professionals, was an expressed need to focus on a specific typology of assisted person in order to provide their feedback. This entails that different people have different needs and in turn suggests a user requirement for the solutions to be customizable to different cases.
Starting from the focus group analysis we then reasoned on how this feedback could be translated into user requirements for the system that could be considered as representative of users’ expectations of AAL solutions and how to assess a level of priority that could be useful for the system developers.
Method
The first step was to examine the main areas of interest for monitoring that emerged from the focus group results. These categories were then analyzed and reasoned upon. Figure 3 shows the results of this subsequent elaboration. Specifically we identified two macro-categories that contains the 4 sub-categories. The first one can be seen as mainly related to the

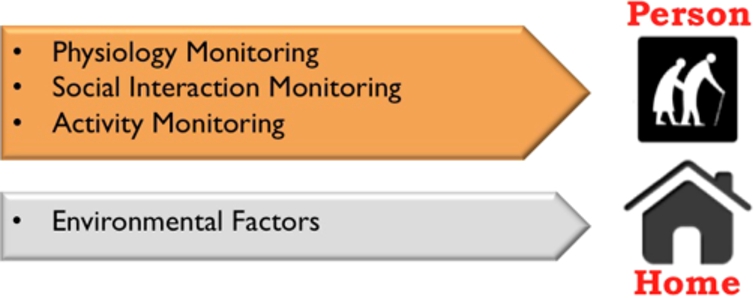

Monitoring areas for the
The Person monitoring services contains these three main subareas:
The Home services are mainly related to the monitoring of
Based on this classification we then translated the results of the focus groups into a list of services that the system could provide. More specifically the results have been organized into 4 different areas of interest (that consequently defined the different sub-scales of the questionnaires). Examples of statement describing the services and consequently the questions are: “Monitoring the movement of the person inside the house”; “Monitoring blood glucose levels in blood (glycemia)”; “Support the elderly person in remembering to take medicine or perform medication”; in the Figs 5, 6, 7 and 8 a synthetic version of the description of all investigated services (i.e., all items of the questionnaire) is provided that show the typology of questions that participants were asked to assess with respect to perceived
The questionnaires to assess the perceived
A similar scale was adopted to access the
The overall questionnaire consisted then of 45 items for
Internal consistency of the subscales has been assessed through the Cronbach’s Alpha. The computed coefficients revealed good reliability for all the subscales both for usefulness and for acceptability (see Table 2).
Crombach’s Alpha coefficient for each subscales
Crombach’s Alpha coefficient for each subscales
Considering that questionnaires had to be administered to three different kinds of users (primary users and two different types of secondary users), different variants were developed in order to find the most suitable version according to the users’ language and understanding. Specifically, the same questions were formulated in different ways depending on the user’s typology. For primary users (older persons) the questions were developed avoiding technical terms. The application and response to the questionnaire was individual.
We recruited 105 persons for this evaluation phase. Specifically 44 primary users were the elderly people (EP), and a total of 61 secondary users participated in the study. More specifically, 33 informal caregivers (CG) were recruited among primary users’ relatives or friends, and 28 Health Professional caregivers (HP) such as physicians, home care assistants, psychologists, nurses, and physical therapists. The elderly were for the most part women (
The subgroup Health Care Professional were composed by 16 females, and 12 males. They were on average 45.93 years old (
Elderly people were recruited mainly into day care centers (Associazione Arca di Noè and Virtus Italia). Care Givers were recruited with the help of the above mentioned organizations and Health Professionals into ASL. All subjects were also asked about their attitude toward technology in general.
Opinions of participants toward technology. Percentage scores
Opinions of participants toward technology. Percentage scores
The whole sample expressed a positive attitude toward it, no one stated negative opinions, except for two health care professionals (see Table 3 for details).
Statistical analyses were conducted in order to assess different levels of perceived usefulness and acceptance for each parameter or event to monitor. More specifically, we relied on the analysis of the variance with one factor, three levels (
Results
The whole sample seems to perceive the overall system as a useful support to independent living, as the scores of the usefulness of the system were quite high (see Fig. 4). The categories Physiological Monitoring and Environmental Monitoring received the highest scores. Specifically, participants rated the usefulness of physiological monitoring as 4 mean score (

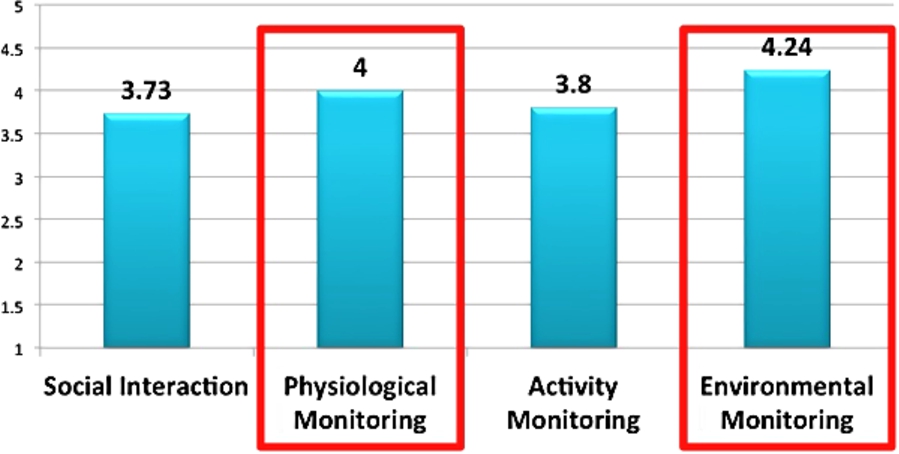

Overall assessment of the AAL system per category: Means – scores 1–5.
When performing mean difference analyses among users, no significant differences emerged with respect to the perception of usefulness of the four sub-scales. This means that all monitoring areas are perceived by older people, caregivers and health professionals as equally useful. In order to test if gender could affect this perception, we also performed a mean comparison within each user group considering usefulness rating in the sub scales as independent variable. No significant differences emerged. This means that both males and females equally rated the usefulness on every monitoring areas.
After this analysis we also applied the Anova test on the data of each sub scale in order assess possible differences among the single individual items within each sub-scale.
Overall all items related to the ability of the system to support social interaction were rated as useful by the participants (see Fig. 5). The means values give a quantitative indication of the perceived usefulness for each specific monitoring service. Specifically, This is a specific capability that allows one component of the
The means values for each item and an explanation of the items are depicted in Fig. 5.

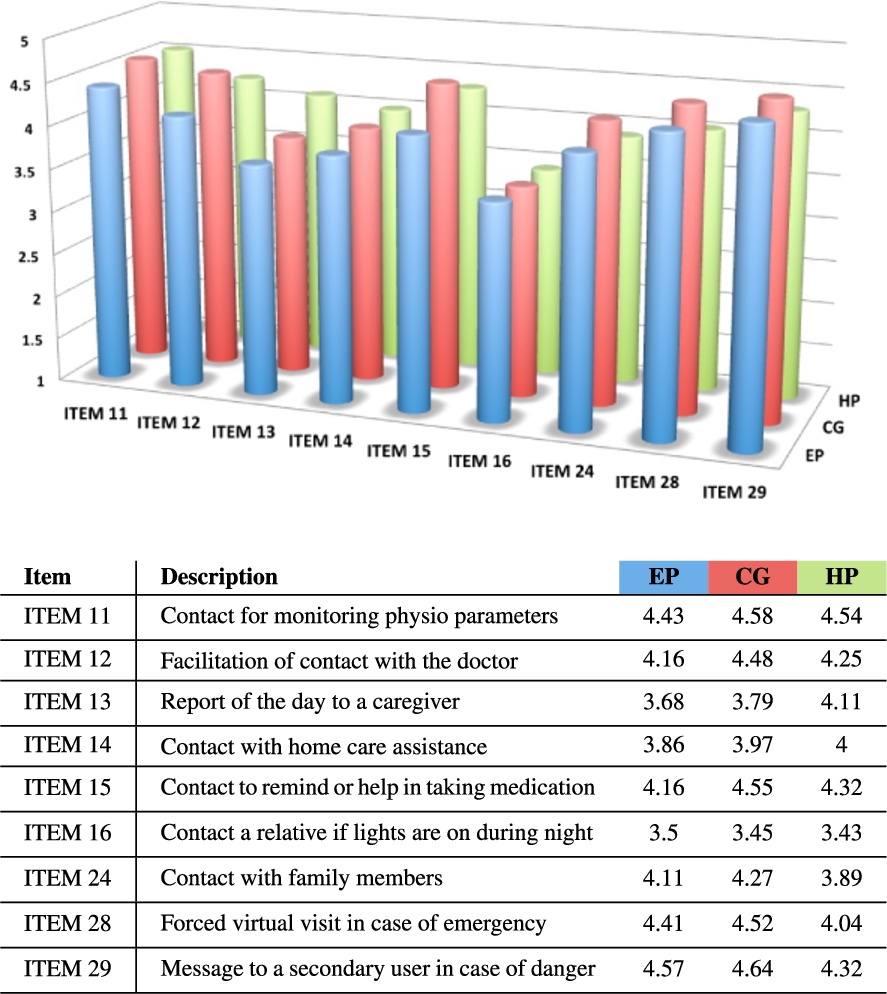

Social interaction area. Mean scores given by the different users (EP, CG and HP) to each item: Scale 1–5.
The idea behind this set of services is to monitor specific activities of daily living that are indicative of well-being and autonomy of the elderly.
As shown in Fig. 6, primary users rated all services as less useful than secondary users on average.
Person monitoring area. Mean scores given by the different users (EP, CG and HP) to each item: Scale 1–5.
Some of these differences resulted statistically significant. The significant results are related to the detection of the person’s presence inside the home, i.e.,
Finally, the main concern seems to be connected with the possibility of the system to be able
Also for the physiological monitoring usefulness, an analysis on each single service was performed. No significant differences among subjects were found. In fact, elderly people, caregivers, and health professional gave a similar average score on the usefulness of this type of services.

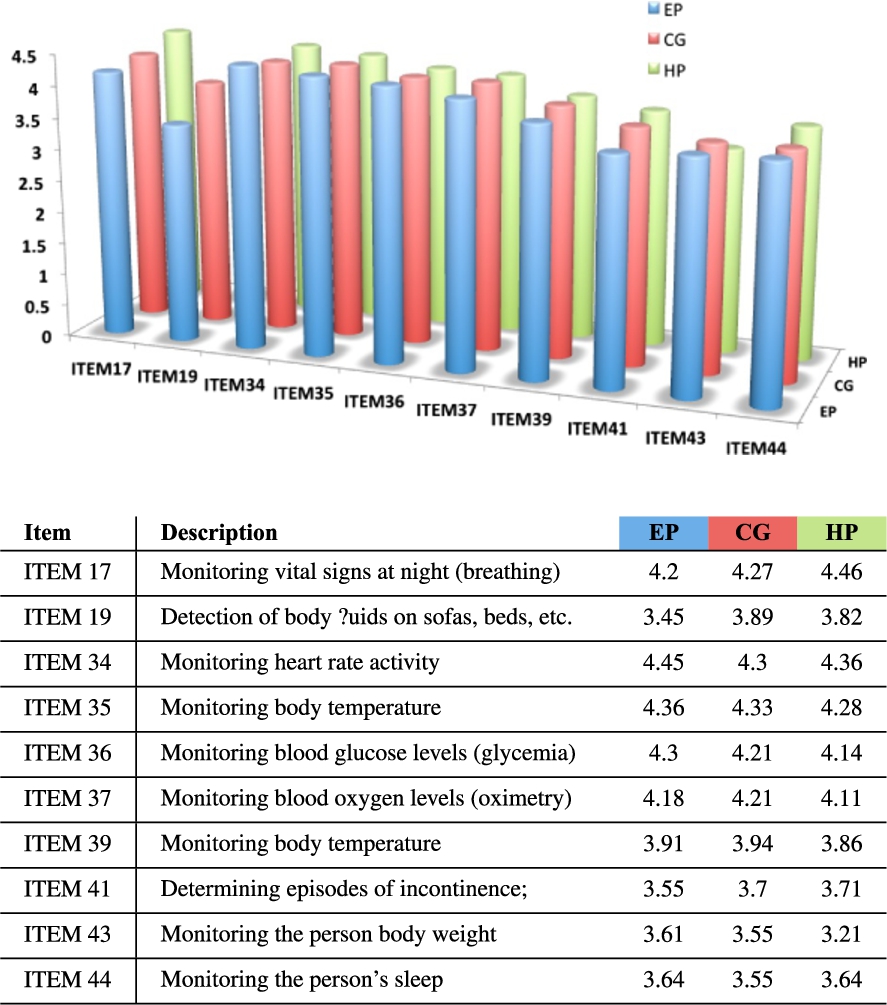

Specifically, Fig. 7 illustrates how they all considered each service or parameter monitoring as useful. Nonetheless, monitoring parameters that represent vital signs or age-related diseases, such as Physiological monitoring area. Mean scores given by the different users (EP, CG and HP) to each item: Scale 1–5.
The environment monitoring is considered by every respondent as an important service that an AAL system could offer.

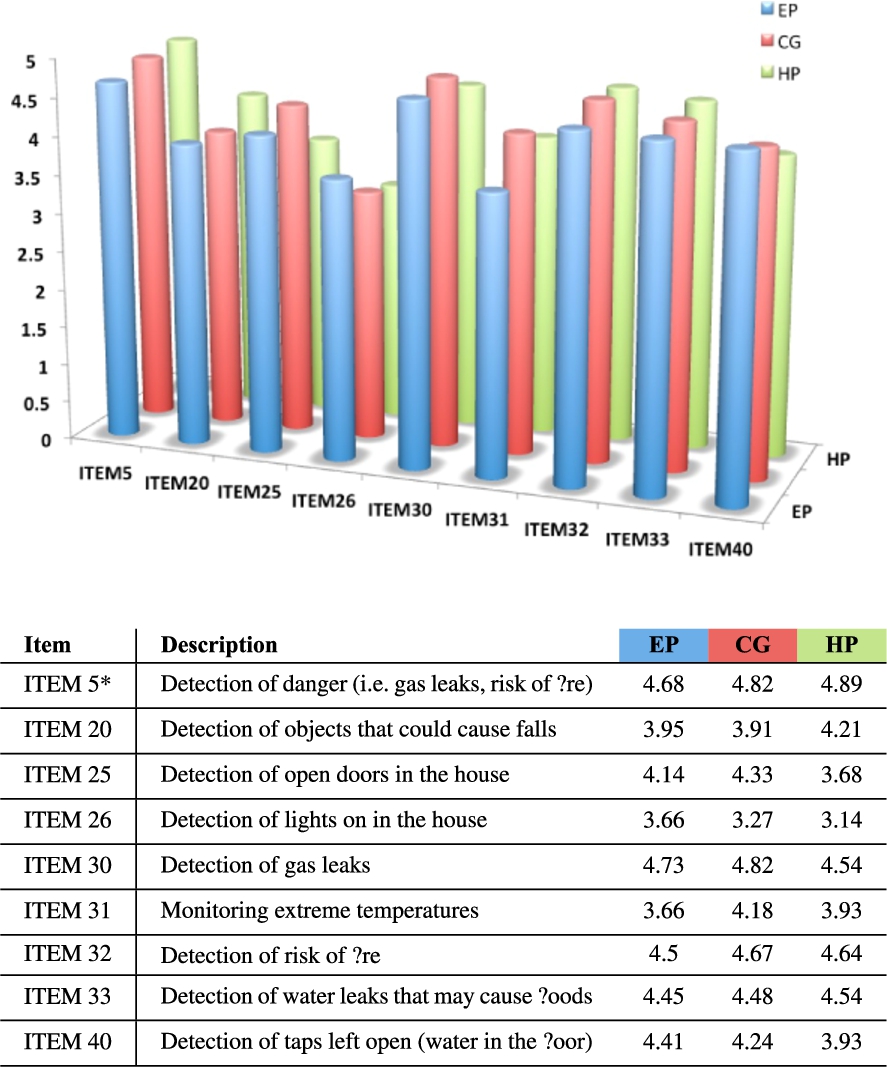

Figure 8 shows that services referring to the Home monitoring area. Mean scores given by the different users (EP, CG and HP) to each item: Scale 1–5.
Correlation between usefulness and acceptability in each sub-scale
As depicted in Table 4, results show significant positive correlations between usefulness (U) and acceptability (A) in every sub-scale.
We may infer that participants perceived as acceptable what they consider useful with respect to every area supported by the system. This means that the more a service is considered useful, the more it is accepted by users.
Considering the feedback gathered from users and presented above, a further refinement has been performed in order to assign a specific priority to each functionality and, then, elicit an additional valuable indication for system design phases. Specifically, three different priority levels have been considered: KEY, DESIRABLE and OPTIONAL.
A requirement is assigned a
This kind of analysis generated a mapping from functionalities into classes of priorities. A synthetic description of the distribution of such classification is depicted in Table 5.
A detailed description of priority assignment is depicted in Table 6. It is worth noting that the high number of optional priorities assigned in both person activities and physiological monitoring is mainly related to privacy issues, i.e., users do not feel as useful/acceptable to have some vital signs (e.g., weight) or activities (e.g., time spent in bathroom) monitored.
Functionalities priority distribution
Functionalities priority assignment
The investigation presented above was aimed to identify and validate the type of parameters, events, or situations particularly important to be detected and/or monitored in order to support elderly people at home through intelligent technology and AAL solutions. The goal was also to elicit a set of crucial features for AAL systems addressing specific issues within each ICF area in order to support the prevention of early deterioration of healthy conditions, and to promote independent living for the elderly. The assignment of priorities to each of these features has been set to influence the design, development and deployment of the GiraffPlus solution and, thus, enhancing its potential efficacy. The rest of this section presents a discussion addressing different macro categories and relating results (and assigned priorities) to the analysis of
Practical implications for a real AAL system
An important aspect that emerged from the study is a general good attitude towards the use of AAL technology. Both primary and secondary users expressed positive feelings toward the technology. Specifically, both during the focus groups, and through the questionnaires administration, positive impressions emerged with respect to the proposed intelligent system. No negative opinions on the system and services emerged from the entire sample. At the same time, investigating the relation between the system’s usefulness and acceptability, interesting results emerged. People seem to be confident in what they consider useful. A positive correlation between these two dimensions was found which might mean that people are not so distrustful of this kind of support. In other words, the perceived benefits that intelligent AAL solutions could bring to the elderly, seems to mitigate the negative effect of other concerns like privacy or mistrust. Nevertheless, a subtle issue about privacy still emerged. Especially in those cases where elderly people (primary users) had to deal with aspects related to their own activities monitoring, the expressed judgments were slightly less positive than the ones of the other participants (secondary users).
This consideration could be interpreted as a comprehensible concern about privacy and fear of being controlled by other persons. It is worth underscoring how this aspect should not be underestimated when building any kind of assistance and support technology. The emerging discussion about privacy has implications also for the system development. A twofold perspective could be adopted: (a) service perspective and (b) data policy perspective.
For the first aspect, this study suggests that an ideal system should be customisable so as to respect the user’s preferences in terms of “level of invasiveness” (i.e., the user should be able to decide the level of monitoring invasiveness). Consequently, also the offered services may be tailored according to the availability of data. This entails to ensure
From the second point of view, the relevance of implementing suitable data policies within the technical requirements for the design of an AAL system should be taken into account. In particular: the system shall protect stored data related to the old people activities against accidental and/or unlawful destruction/loss/alteration as well as unauthorized or unlawful storage, processing, access or disclosure; it shall allow access to personal data only by authorized personnel and only for legally authorized purposes. Reliable security mechanisms for both storage and communication processes should be implemented and a clear and effective data access policy should be defined to avoid not proper access to data.
The IP is consistent with the data protection directive (Directive 95/46/EC), EU regulation that applied during the project and that it is still consistent with the new General Data Protection Regulation (GDPR) (Regulation (EU) 2016/679). The EU GDPR has been adopted on 27 April 2016 and will apply from 25 May 2018.
In addition to the general aspect, different action areas have been considered within the study, which includes
Social interactions monitoring
Results from the literature review show that social interactions is perceived as a means to contribute to a good QoL and better health for the elderly. Maintaining relationships, especially with family and friends is considered very important. Loss of relations might on the contrary lead to poorer health [4]. In line with this consideration, results of our study show that facilitating communication between the elderly and relatives is a useful service both for primary and secondary users thus suggesting that this could be a relevant service that an AAL system should provide. At the same time also communication with doctors, or home care assistants emerged to be a relevant issue to improve through the system. In fact, another way to exploit the “social/communication ability” of the system, seems to be its use to facilitate the doctors’ work after hospitalization.
Overall, it clearly emerged that after an hospitalization period, patients usually feel abandoned and manifest the need to maintain a contact with their care givers. The AAL system could then be seen as a means to continue and prolong the monitoring and interaction period started at the hospital and then activated from home thus allowing a continuous monitoring of both physiological parameters and psychological conditions. Indeed, all users participating at the survey considered it as a strongly useful service.
The presence of a technological component for enabling remote social interactions, such as the telepresence robot or an alternative solution constitutes a crucial element in an AAL system. In fact, the presence of such a technology can facilitate social interactions bridging the gap between primary and secondary users who live far from each other or, also, when physical visits are not possible. Additionally, when the old person is not able to go outside the house (e.g., due to a physical condition) a technology enabling interactions with the external world can play the role of a
More in details, informal caregivers found also particularly interesting and useful the possibility to have access to the living environment through the system and “virtually enter” into a house from remote locations (by means of the telepresence robot). This confirms the importance for relatives (or even friends) to provide assistance as promptly as possible. Indeed, in case of emergency, e.g., when a old person falls in the house, the robot would allow to remotely visit the house, to check the actual situation as well as to provide some initial comfort to the person and, then, to be able to inform in advance paramedics about the situation in case their intervention is required.
Warnings and periodic reports
Other specific functions connected to the one just mentioned are considered as useful. For example, all users recognized the usefulness of the possibility to get a warning or alarm from the system in case of dangerous situations detected by the sensors.
A set of warning/alarm services should be implemented in an AAL system considering also redundant channels (e.g., pre-registered phone calls, SMS, emails, etc.). This is crucial to inform secondary users about potentially risky situations that may occur in the house and thus enhancing the safety condition for the old person. Additionally, the system could also guarantee the possibility to receive every day a sort of report on the elderly activities/status in order to reassure caregivers and relatives on the fact that everything went right during the day. The AAL system is then supposed to process and analyze the data gathered by sensors in the houses in order to produce concise information and generate daily reports containing aggregated and synthetic view of information for secondary users. Such reports should be generated taking into account also the relevant perspectives related to the different kind of users. In general, reports should provide different information to healthcare professionals or relatives and friends. In this sense, personalized services are crucial in order to adhere to users expectations.
Activity monitoring
A pervasive positive opinion about the monitoring mobility and balance decline has been found. The whole sample rated these services as particularly useful. A further confirmation of this result is also that participants unanimously rated the “detection of the person position”, “person motion”, and “motion absence” within the house, as a useful service. In this light detecting changes of body position in order to predict disability could be particularly useful. Different categories of users evaluated these functions slightly differently. Specifically elderly people found them less useful than secondary users. This finding can be interpreted as a fear perceived by the elderly to be “invasively monitored”. The idea to be monitored in terms of movement inside their house does not seem to be particularly appreciated, even if they rated it as a useful issue. Some household tasks that contribute to maintain independence were also investigated. Specifically, the ability to prepare food has been taken into account since it can be considered as predictor of physical decline, survival, and quality of life. Specifically, cognitive impairment is an important factor related to poorer nutritional status and increased need for assistance and care [34], and good nutritional status is important to preserve independent living [35]. In this respect, three kinds of detections were considered: the ability to prepare food, the time taken to do it, and the frequency with which the person opens the refrigerator. Respondents seem not to consider these aspects as important for the system implementation. Maintaining a routine in daily activities seems on the contrary to be important. In fact, the detection of changes of person’s habit in the daily activities inside the house (e.g., the person wakes up too late with respect to usual standards; the absence from the house is detected during unusual hours, e.g., overnight), can be seen as early sign of potential decline. In line with these findings the whole sample rated this type of service as useful recognizing its value in supporting prompt interventions in case of anomalies. Moreover, it is important to highlight that the main concern observed among elderly regards falls and fear of falling. In fact, monitoring possible person’s falls is the item that received the highest score from the whole sample.
A suitable set of environmental sensors should be constituted by typical telecare sensors, i.e., a set of binary sensors capable of sending signals to alert that a threshold has been crossed. Considering users preferences related to monitoring motion and position at home, a suitable set of sensors can be the following: (a) Fast Passive InfraRead (PIR) motion detectors for monitoring of movement, (b) bed/chair occupancy sensors for monitoring location in the house, (c) doors usage sensors for their opening and closing, and (d) electrical usage sensors for monitoring appliances utilization. Moreover fall detection sensors are also to be considered. The AAL system should also deploy an intelligent monitoring process service capable of analyzing and infer the actions performed by the user in the home processing the amount of data generated by such sensors. Then, the system should be also able to generate more meaningful information about activities and performing high-level reasoning over them. Then, inferred data can be exploited also to monitor activity patterns and generate alerts in case deviations from usual behaviors are detected (e.g., the system should detect cases in which an electrical device, e.g., a toaster, is forgotten switched on).
Vital parameters monitoring
Concerning body functions, literature evidences showed that several different functions might be risk factors of increased dependency. This means that detecting specifics changes in body functions could help both in preventive actions and in risk situations. Also disturbed sleep is associated with decreased ADL capacity, risk of falls and poor quality of life [31,45]. In this line, monitoring the person’s sleep, both in terms of motion (e.g., if he/she moves a lot during the night this could be a sign of a disturbed sleep), and in terms of vital signs (e.g., heart rate, breathing etc.), was considered by the whole sample as a useful function for AAL systems. As regard physiological monitoring, people were asked to answer about usefulness in monitoring specific parameters like blood pressure, glycaemia, oximetry, and body temperature. All participants rated all parameters as particularly useful. These results are also in line with evidences in literature. For example, research suggests that decreased functions of the cardiovascular systems are risk factors of decline in ADL and recurrent falls [21], and these kinds of detections may help in evaluating early signs of dysfunction. Overall the findings about useful in detection of incontinence situations are also in line with evidences that problems of urinary function are associated with increased dependency in ADL and risk of falling [45]. A similar trend is the result related to the monitoring of the presence of body fluids such as urine, blood, or sweat on sofas or beds, which have been considered as a useful function in the system by all participants.
AAL systems should be endowed with telemonitoring medical devices enabling the possibility of storing assessments of vital parameters. An AAL system should be then capable of detecting and storing biomedical parameters (e.g., blood pressure, blood glucose, weight, oxygen saturation, temperature, among others) and providing that information both for reporting and high-level reasoning.
Home environment monitoring
Environmental factors resulted to be predictors of independent living functioning among elderly people. Such type of monitoring functionality might improve both social functioning and a feeling of safety. This means that people valued the home highly and that living in their own place could contribute to good quality of life [4,28]. In this direction, when asking to people about the
In addition to telecare sensors discussed above, an AAL system should be equipped with a further set of environmental sensors to specifically address dangerous situations such as the ones indicated above. Among the sensors in the ADLife product line, some support a wide range of risky situations such as fire detection, flood detection and gas leak detection sensors. These sensors can generate suitable information to raise alarms and/or warnings about risky conditions and unsafe situations that may occur in the living environment and they can fully support home monitoring enabling an AAL system to ensure safety conditions.
Relevant AAL scenarios
The analysis of results also allowed envisaging a set of possible scenarios as particularly relevant for the considered AAL domain. This section describes a sketch of three possible scenarios that were recurrent in the focus group analysis and, thus, judged as particularly appropriate to inspire the use case definition. Such scenarios show concrete situations in which users (both primary and secondary users) may leverage system features taking advantage of their capability. Such scenarios constitutes a set of significant use cases to show how the system effectively address actual needs requested by users and, then, to provide technology providers and services developers with concrete reference to design and develop the actual AAL system. For each of the three scenarios, a set of information is provided: a brief description, the type of users involved, the possible role of the AAL system, the sensors and the main parameters to be monitored and relevant to the case study and, finally, the more relevant user requirements and implications for practice (IP) discussed above.
Monitoring a physiotherapy protocol
A first scenario is constituted by the case of an elderly user following a protocol for physiotherapy rehabilitation. In Fig. 9, a schematic idea of the scenario is depicted. The envisaged primary user is an old person at home following a physiotherapy treatment protocol while the secondary user is a physiotherapist in charge of monitoring the elderly during the rehabilitation period. In a rehabilitation protocol, the physiotherapist aims to fully restore the ability to move in a patient. In this perspective, the physical therapist is supposed to assign to the elderly a rehabilitation protocol strictly related to his/her physical condition. The system can register relevant information such as for example: how much time during the day the patient spends in bed, sitting, standing and moving positions. Such information can be provided periodically (e.g., on a daily basis) to the physiotherapist at the level of detail or as a cumulative data. In this way the therapist is able to gather an objective measure of the physical activity of the patient and possibly correct the protocol itself. Indeed, the time spent in certain activities can be considered as “normal” only within certain limits. Thus, collecting data over a certain period would also enable the therapist to perform an assessment of the user reactiveness to the therapy. Another important service is to enable the possibility of performing “Rehabilitation Session” exploiting the “telepresence” robot, i.e., having the physiotherapist connected through the robot to assist the primary user while performing rehabilitation exercises, assessing them and providing suggestions/comments remotely.

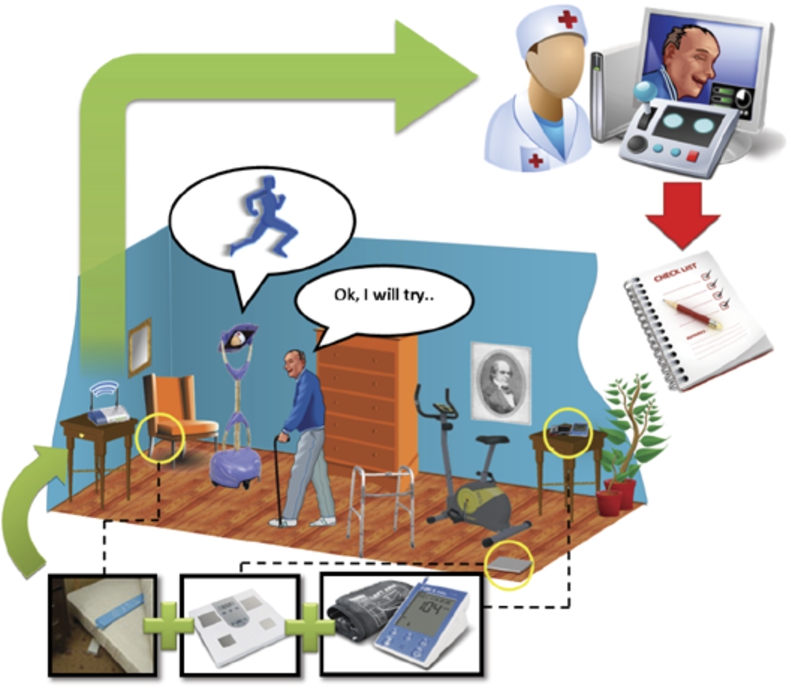

Scenario 1: monitoring a physiotherapy protocol.
The relevant sensors needed in this specific case are mainly related to environmental parameters dedicated to localize the position and the status of the user in the house, while a telepresence robot could be exploited to implement the rehabilitation sessions. In general, the principal requirements involved in the scenario are related to the need to facilitate contacts between the person and healthcare professionals, to monitor the primary user position in the house, to provide periodic reporting to a secondary user and to support the detection of changes in primary user habits.
This scenario requires to provide a proper data policy to implement suitable privacy issues management for sensible data about the health condition of the primary user (IP 1) as well as increase the frequency of interactions between the physiotherapist and the older person through the robot (IP 2) and hopefully increasing the effectiveness in therapy monitoring. Then, the generation of periodic reports can help the physiotherapist in being aware about the actual conditions of the older person (IP 3). The deployment of intelligent monitoring techniques can actually support the detection of specific issues such as, for instance, incorrect adherence to therapy prescription would support early detection by the system of specific issues (IP 4).
One of the recurring situations among the elderly is related to de-hospitalization periods, who are discharged from hospital to return in their home and do not receive regular and continuous support by medical staff. In such cases, the problem is usually constituted by the inability/difficulty to maintain a constant and frequent contact between formal caregivers and the elderly person, sometime also worsened by the fact that many elderly people also have few relatives that can take care of them at home. Figure 10 provides a schematic idea of such scenario: an AAL system could act as a facilitator for such monitoring.
The primary user is an elderly person at home after a period spent in hospital while the secondary users are the medical staff monitoring physiological parameters as well as psychologists and/or social operators monitoring the psychological condition. The assisted living system can support the users in two different directions. As a support for

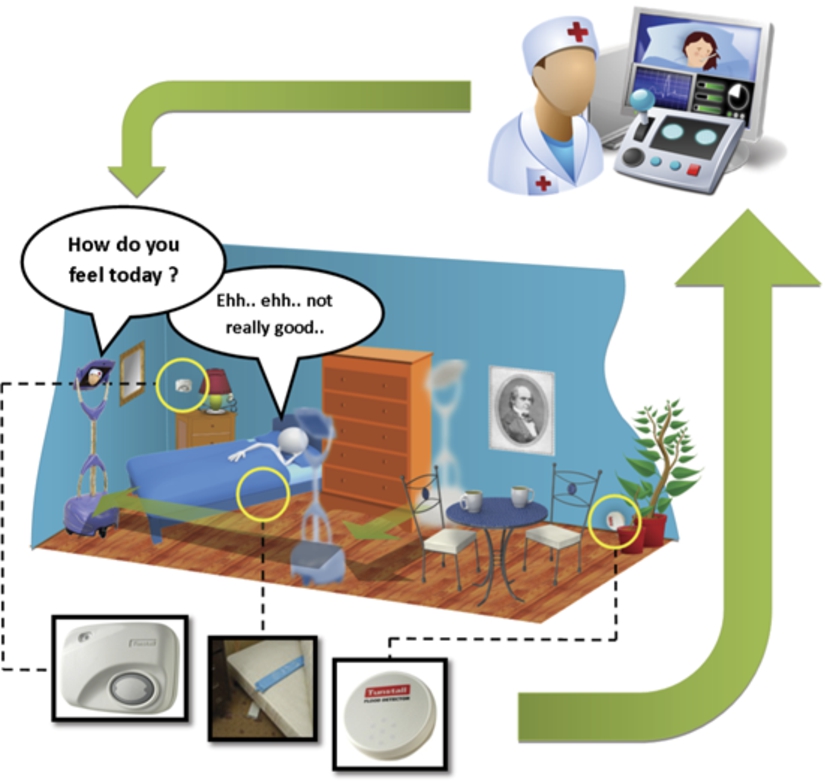

Scenario 2: monitoring after de-hospitalization.
The relevant sensors and parameters are mainly related to physiological monitoring, and again, the robot for remote communications. The principal requirements involved in this scenario are to facilitate contact between the person and healthcare professionals, to provide medical support and to monitor the vital signs of the user.
Proper data policy and privacy issues management is a crucial aspect also here (IP 1). Remote assistance through the telepresence robot is an essential aspect (IP 2) to implement a continuous care and close monitoring of older person conditions. Period of de-hospitalization for elderly may constitute a really delicate situation and thus the possibility for secondary users to receive warning and/or periodic reports about his/her status can help in tightly monitor the actual conditions of the older person (IP 3 and IP 5).
The third scenario envisages a (general) daily monitoring of the elderly person by an informal caregiver (e.g., a son or a close relative). In Fig. 11, a schematic idea of the scenario is provided in which the technology can constitute a means to detect risky situations as well as provide secondary users with warning messages.
The involved primary user is an old person living alone at home and assisted only by a secondary user, i.e., an informal caregiver, e.g., a son or a close relative of the elderly people who takes care of him/her.

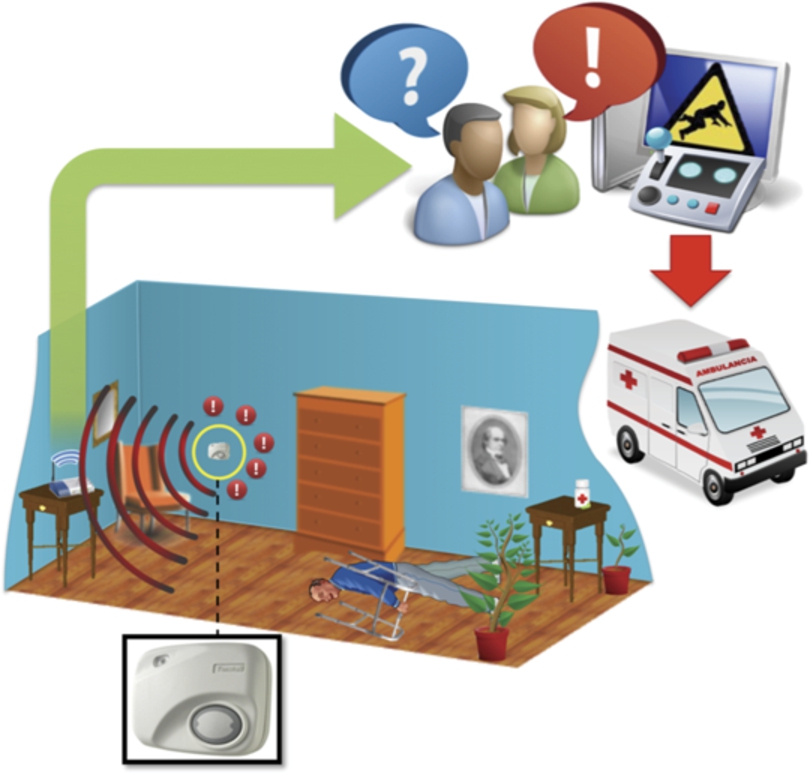

Scenario 3: Daily activity monitoring by an informal caregiver and possible warning messages.
In this scenario, the role of the AAL system is to detect risky situations such as falls and, according to pre-defined emergency protocols, the system is to react providing the related secondary user with a warning/alarm message. Additional relevant services can be, for instance, to perform monitoring of some environmental events and, more in general, to infer the activities performed by the person inside the house, e.g., monitoring of ADL activities in the different rooms of the house. Such information can be then presented to the informal caregiver as a further evidence of particular situations that may occur in the house.
The relevant sensors and parameters are mainly environmental sensors and parameters. The principal requirements involved in the scenario are related to detect risky situations, in particular detecting falls, and to provide warning notices to secondary users, to monitor the activities performed in different home places and providing periodic reporting to secondary users.
In this scenario, the main focus is on exploitation of data generated by sensors to check for risky situations (IP 6) as well as generate alarms for informal caregivers (IP 3). Yet another scenario in which data policy and privacy issues management are to be considered (IP 1).
This work presents a systematic analysis on users’ needs and preferences on a complex assistive system aimed to support both the elderly live independently in their own homes and their carers. Nevertheless we recognize some limitations of the study which open the path to further investigations.
One of the limit is that our results focus on the Italian situation, while a cross-cultural investigation with a comparable sample in terms of participants would have ensured a wider impact and also the emergence of possible differences among populations.
Additionally the present investigation focused mostly on users’ needs in terms of services to be delivered through the system, while less attention has been paid on aspects such as the impact and preference on single components to be deployed in the user’s environment. For instance, we relied on the idea of using a telepresence robotics platform as a means to support communication related service but this work did not report the investigation on users’ feelings with respect to the robotic platform, its appearance and users’ preference on interaction style. Collecting information, especially from the seniors’ point of view, about their impression on the robot could have provided additional advice on possible models of interaction to be implemented during the developmental phase. Nevertheless, it is also true that, after the developmental stage, a long-term evaluation phase was foreseen by deploying the whole system into real houses for long-term testing and iterative refinement and this makes plausible to hypothesise that this specific limitation will be faced during the long-term assessment.
Overall the testing phase in real houses will allow users to experience the produced technology, thus complementing the analysis on their feelings and opinion on this kind of assistive technology.
Conclusions
This paper describes the systematic work devoted to the elicitation and validation of users expectations of AAL intelligent services. Only few evidences and works systematically analyzed users’ requirements of such systems. Queirós and colleagues [37] highlighted in their review a deep lack in AAL research with respect to a deep and intense user perspective investigation. More specifically, it has been pointed out that there is a considerable attention focused on how technology can be used in the AAL contexts instead of looking at the users’ needs and proposing ways to address them. The focus is still on technology rather than on the person. In this respect, this paper reports on our efforts put on the user requirements elicitations highlighting the role of the different actors involved (both primary and secondary users) and eliciting the level of importance and priority they attribute to different services. The work is intended as a validation of users needs and a way to highlight the specific areas of interest for AAL solutions development. Results show that while there are some concerns about privacy, especially by elderly people, have been raised, users still appreciated the potentiality of AAL solutions in supporting independent living and improving QoL. In fact, it also was discovered that these concerns can be overcome when people are aware of what is happening and receive useful feedback/service. In other words, the importance to make users to understand the meaning and the value of what the system can do emerged clearly, highlighting also that a service that is considered useful is also considered more acceptable.
The main critical areas of intervention have been identified and validated by using a combination of qualitative and quantitative research methods. A list of priorities have been derived for each service. The obtained results have then been used to derive a list or priority associated to services and these provide advice for system developers, pointing out the importance of building intelligent technology that can be
