Abstract
The dominant approach to argument mining has been to treat it as a machine learning problem based upon superficial text features, and to treat the relationships between arguments as either support or attack. However, accurately summarizing argumentation in scientific research articles requires a deeper understanding of the text and a richer model of relationships between arguments. First, this paper presents an argumentation scheme-based approach to mining a class of biomedical research articles. Argumentation schemes implemented as logic programs are formulated in terms of semantic predicates that could be obtained from a text by use of biomedical/biological natural language processing tools. The logic programs can be used to extract the underlying scheme name, premises, and implicit or explicit conclusion of an argument. Then this paper explores how arguments in a research article occur within a narrative of scientific discovery, how they are related to each other, and some implications.
Keywords
Introduction
The dominant approach to argument (or argumentation) mining [6,14,29] has been to treat it as a machine learning problem requiring use only of superficial text features, enabling researchers to adopt methods that have been applied successfully to other natural language processing tasks. That approach has been successful for a variety of applications such as identifying reasons given for opinions in social media, or automatic assessment of student essay quality. However accurately summarizing argumentation in scientific research articles may require a deeper understanding of the text.
There are a number of problems with mining arguments in scientific documents using only superficial text features rather than at a semantic level [9,11]. Argument components may not occur in contiguity in the text. In fact, the content of an argument may be widely separated or the content of two arguments may be interleaved at the text level. Furthermore scientific text often contains enthymemes, i.e. arguments with some implicit premises or an implicit conclusion. Interpretation of enthymemes may require use of the preceding discourse context (including inferred conclusions of other arguments), presumed shared knowledge of the author and audience, as well as constraints of the underlying argumentation scheme [10].
Although human-level understanding of natural language text is currently beyond the state of the art, we propose a semantics-informed approach to extracting individual arguments from biomedical research articles on human genetic variants with adverse health effects. This paper describes how argumentation schemes implemented as logic programs in Prolog [2] could be used to extract individual arguments in that genre. The schemes are formulated in terms of semantic predicates that could be obtained from a text by use of BioNLP (biomedical/biological natural language processing) tools. However, extracting individual arguments is not sufficient for understanding the argumentation in a scientific research article. Instead, it is necessary to model the argumentation structure, or inter-argument relationships, in the article. As a step towards that, this paper explores how arguments in one research article are related to its narrative discourse structure, and how they are related to each other. Examining this narrative of scientific discovery suggests possible contextual constraints on semantics-informed argument mining and illustrates that a richer model of inter-argument relationships is needed.
Argumentation schemes
Argumentation schemes are abstract descriptions of acceptable, possibly defeasible, arguments used in conversation as well as in formal genres such as legal and scientific text [37]. This section describes our proposal to mine arguments using argumentation schemes implemented as logic programs. We present seven argumentation schemes that we defined in Prolog after analyzing the arguments in the first eight paragraphs of a ten-paragraph “Results/Discussion” section of a biomedical research article on the putative cause of a genetic disorder [13]. The article [35] was selected from the open-access CRAFT1

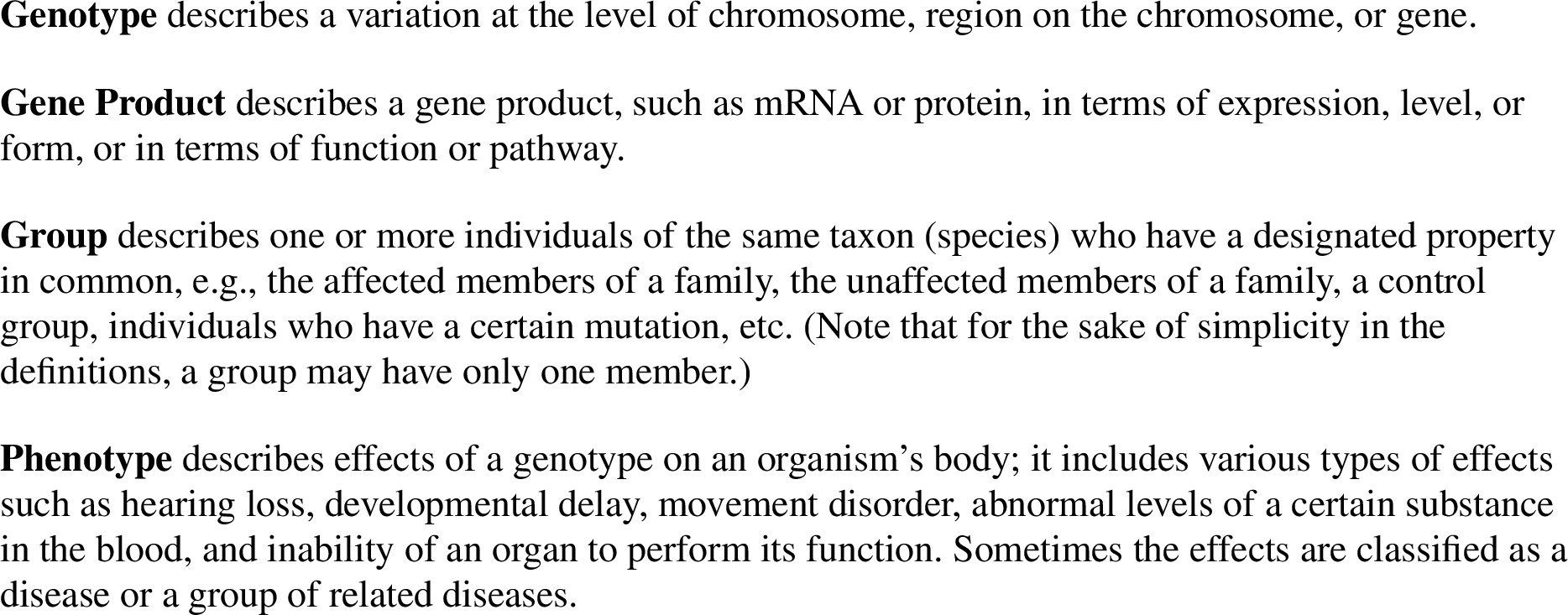

Domain Predicate Definitions.
Agreement.
Difference.

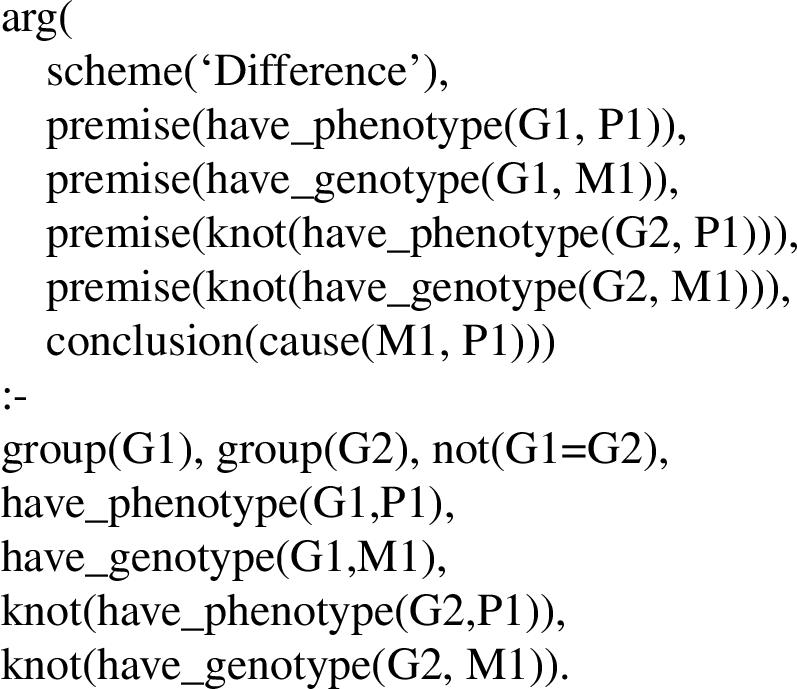

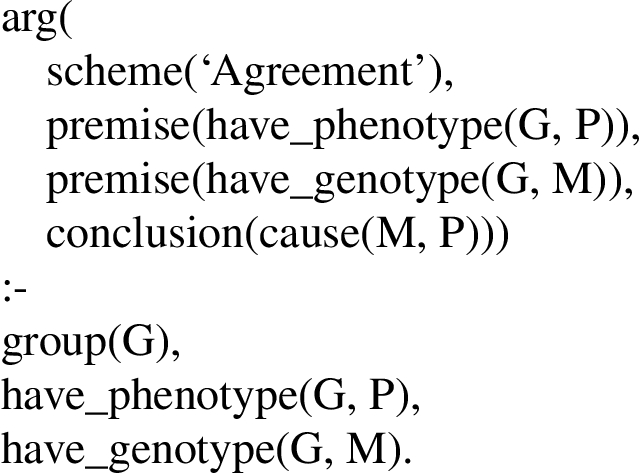

The schemes in Fig. 2 and Fig. 3 are specializations of Mill’s Method of Agreement and Method of Difference [16], respectively, which were formulated to describe scientific reasoning in the nineteenth century. (For readers who are not familiar with Prolog notation, see Section 3 for more information about the representation of the schemes.) Our
Failed Agreement (No Effect).

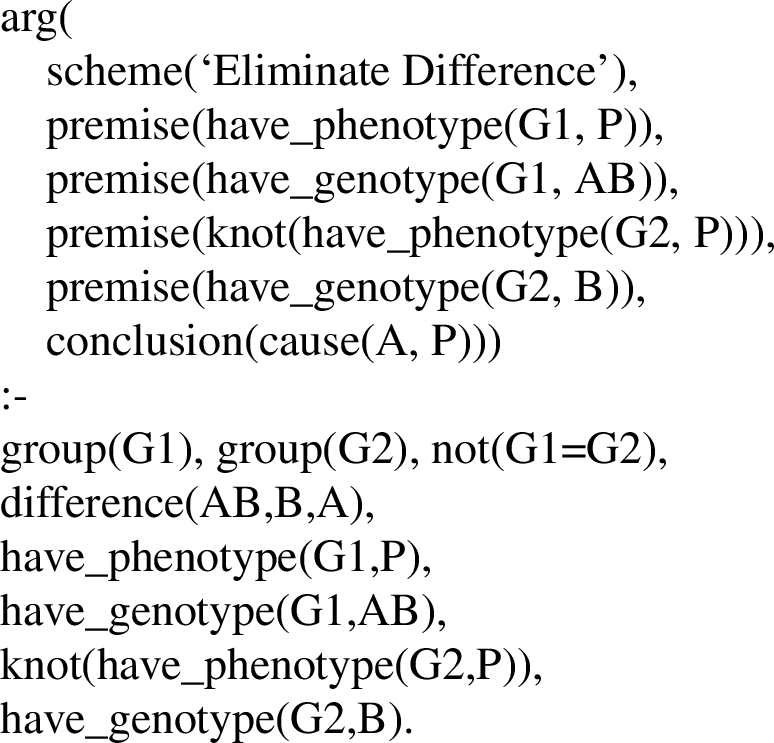

Eliminate Difference.
The scheme in Fig. 4, dubbed
The

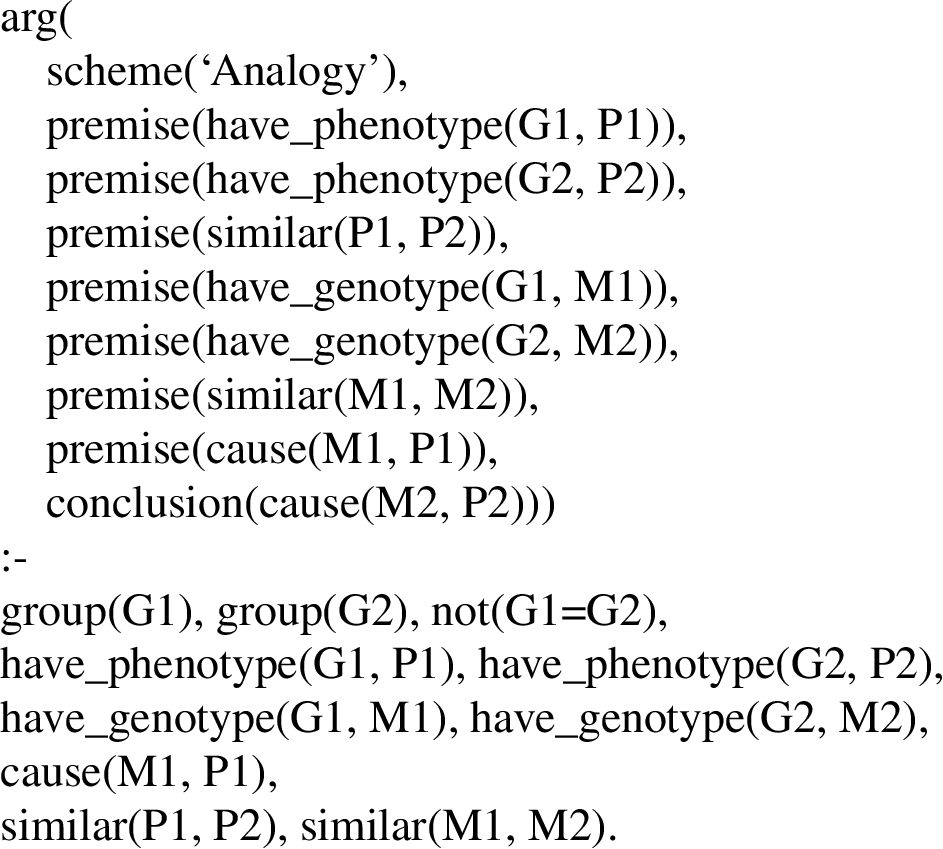

Analogy.
Consistent Explanation.
The Consistent Explanation scheme shown in Fig. 7 can be paraphrased as

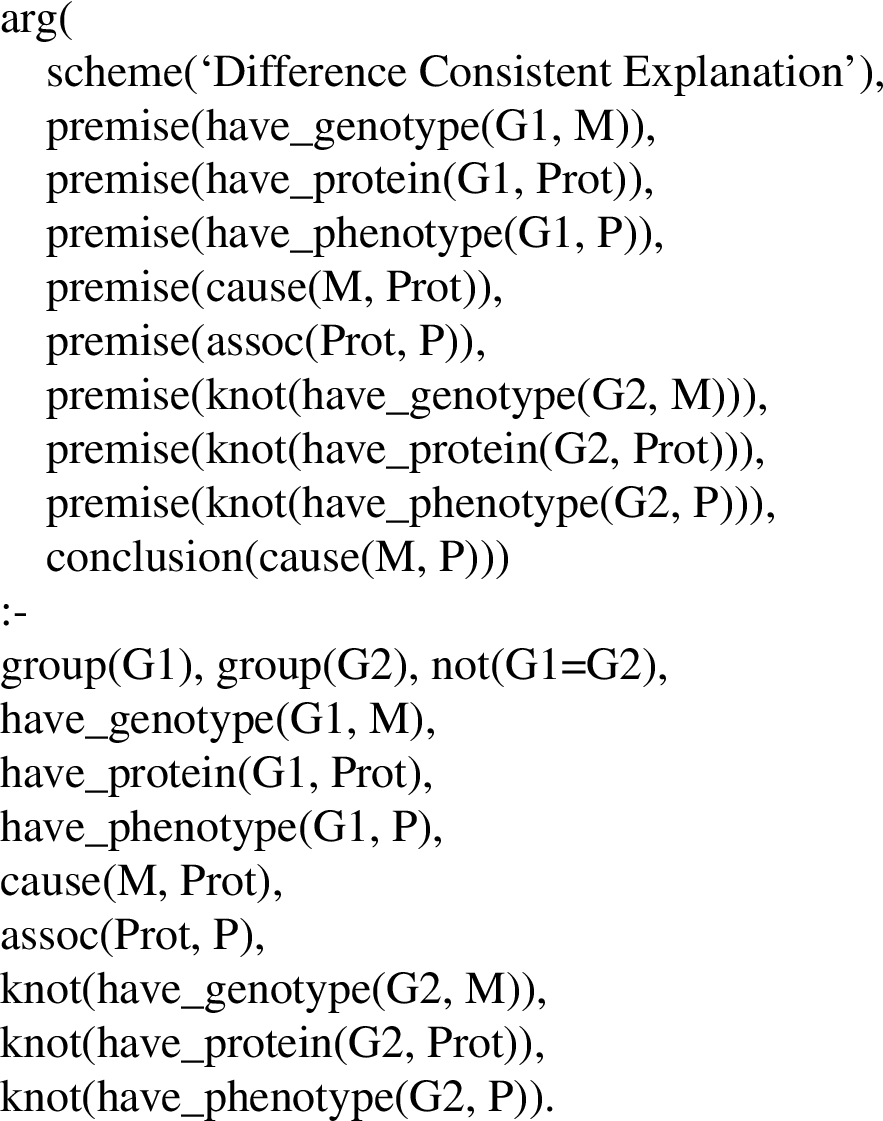

The Difference Consistent Explanation scheme shown in Fig. 8 combines aspects of Difference (Fig. 3) and the previous scheme, namely, if a certain causal mechanism explains how, in one group, abnormal genotype G causes abnormal phenotype P (via abnormal product Prot), and there is a second group that is known not to have G, Prot, nor P, then G may be the cause of P.
Difference Consistent Explanation.
The above schemes have been evaluated informally as follows. Previously, we drafted a catalog which included some similar argumentation scheme definitions based upon arguments that we had found in several other articles on genetic variants with adverse health effects [11]. Unlike the definitions given here, the schemes were defined in terms of non-domain-specific concepts. A small study showed that, given these definitions, other researchers could successfully identify the argument schemes of arguments in excerpts of articles of this sort [11]. After implementing the seven schemes described here based upon the author’s solo analysis of the CRAFT article [13], the article was re-analyzed by a team consisting of the author and two graduate student assistants (one a doctoral student with a background in genetics, the other a computer science major with an undergraduate degree in philosophy), and the seven types of arguments were re-analyzed. In the process of reanalyzing the article, the author rewrote the catalog of scheme definitions in terms of the domain-specific concepts (genotype, phenotype, etc.) implemented in the logic programs. Then another small study was done to see if, given the revised catalog and excerpts of the CRAFT article containing arguments with implicit conclusions, other researchers could reliably identify the premises and argumentation scheme for five types of argument [12]. Although mainly successful, the study revealed some confusion between schemes such as Analogy and Consistent Explanation, pointing to the need to better explain those schemes in a catalog for use by human annotators. An updated catalog of 15 argumentation schemes is now available.2 Available at https://github.com/greennl/BIO-Arg.
The Prolog implementation of the rules was tested using a manually created knowledge base [13]. The next section describes how such a knowledge base could be created automatically and how the rules could be used in an argument mining process.
This section summarizes our proposed approach to mining individual arguments using argumentation schemes like those described in Figs 2–8 in the preceding section. The first step would be to apply BioNLP tools to a source text to create a knowledge base (KB). Named entity recognition tools such as ABNER [32] or MutationFinder [5] could be used to recognize expressions referring to semantic class names such as genes, mutations, proteins, and phenotypes. Domain-specific relations in the argumentation schemes such as
Argument Mining Example.

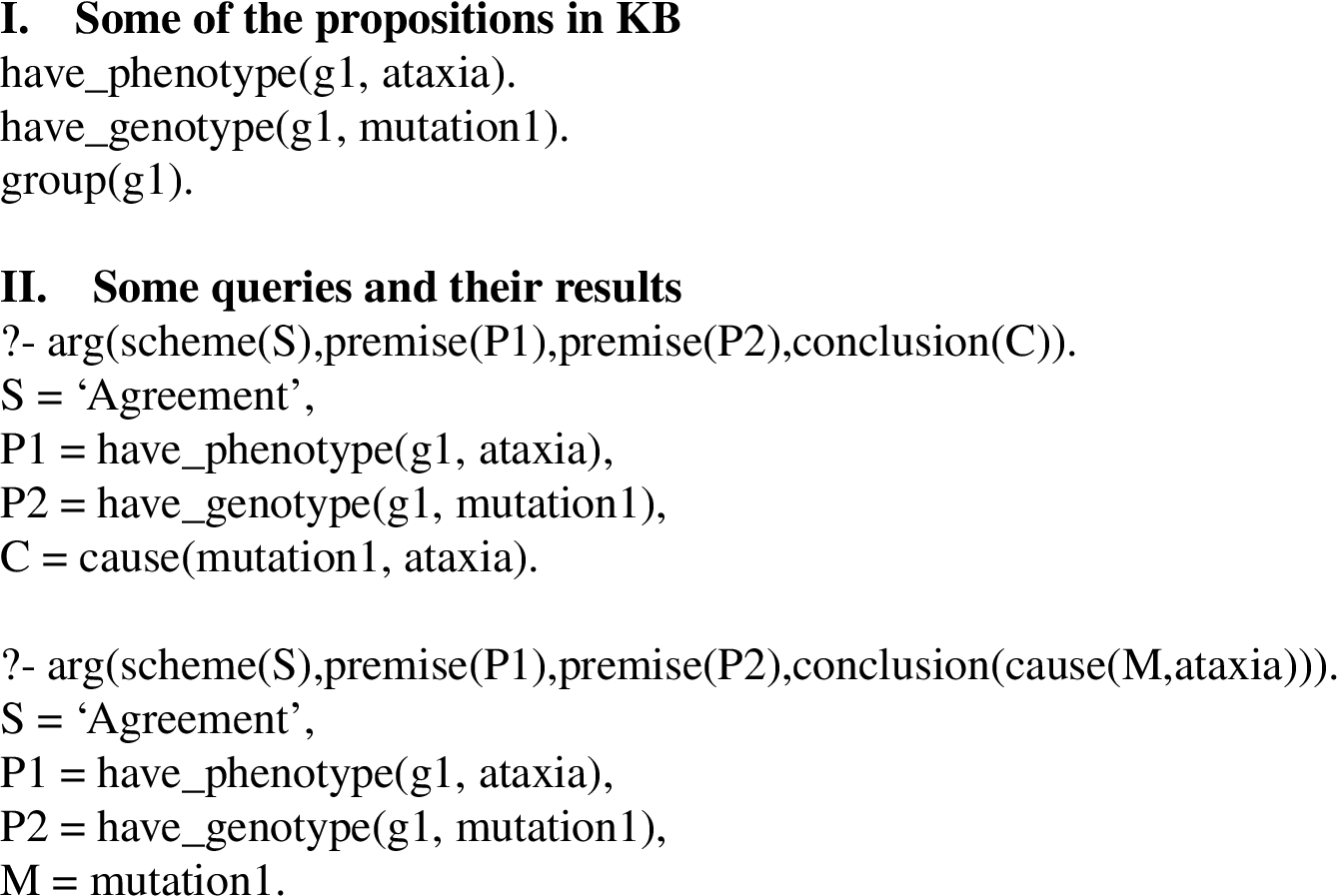

To illustrate this process, suppose that after creation of a KB by application of BioNLP tools to a biology article, the KB contains many Prolog propositions, including the three shown in Fig. 9, part I. One way to make use of the argument schemes shown in Figs 2–8 is to pose the Prolog query,
Prolog could derive an argument as an answer to the query as follows. For those unfamiliar with Prolog notation, note that the argumentation schemes shown in Figs 2–8 consist of two parts, separated by ‘:-’. The top part (to the left of ‘:-’) is a goal to be proven and the bottom part (to the right of ‘:-’) contains a list of propositions all of which must be proven in order to prove the goal. Both the goal and the list of propositions may contain variables, indicated by terms beginning with an upper case letter. In the process of proving a goal the Prolog theorem prover may replace variables with constants. In order to answer the above query, the theorem prover will apply schemes whose goal matches the query such as the
Since a KB typically would contain many more propositions extracted from an article than the three shown in the example, the above query might derive additional arguments using other argumentation schemes and/or other facts. Also, depending upon how the system is intended to be used, more specific queries could be posed, e.g., find arguments for causes of ataxia:
Prolog could then derive the argument described above, where
A possible limitation of this approach is the necessity to first extract semantic relations. However there is considerable effort in the BioNLP community to develop relation extraction tools for other purposes. Another possible limitation is the cost of manually deriving rules for topics not covered by the current rules. As noted above, the rules are specializations of argumentation schemes that have been described in research on argumentation in general and on biomedical argumentation. Thus it is plausible that the effort to create rules for other topics by specialization will not be significantly higher than the cost of formulating the current rule set. Also, since the size of the targeted literature is large and constantly growing, the benefits may outweigh the cost. (However, see the Discussion section on how scheme rules might be acquired in the future.)
Having proposed an approach to mining individual arguments, the next step of our research is to investigate how the arguments are related to other aspects of discourse structure, and how the arguments are related to each other. This section describes how they are related to discourse structure, and inter-argument relationships are discussed in the next section. Previous computation-oriented investigations of discourse in the natural sciences have addressed automatic classification of text segments, e.g., discourse coherence relations in corpora such as BioDRB [28] and BioCause [23], argumentative zones [34], and activities in a scientific investigation (CoreSC) [19]. None of those annotation schemes treat arguments in the sense described in the preceding sections.
Discourse Context of Arguments
Discourse Context of Arguments
The first eight paragraphs of the Results/Discussion section of the CRAFT article reports on a logical and temporal sequence of experiments. Arguments are given in the context of this narrative, i.e. a report of the scientific investigation. Table 1 shows our ad hoc analysis of the narrative using descriptive terms similar to those of the argumentative zone and CoreSC systems. The section begins with a description of the fortuitous discovery of an inherited ataxia-like disorder in some mice bred in the authors’ lab (labeled Report Observation). Then the authors describe a sequence of experiments (each labeled Report Experiment). The experiments are described in Table 1 in terms of Previous Research, Background Knowledge, Hypothesis, Result, and/or Conclusion. (Parts of a reported experiment that did not contain argument components, such as Method, are not indicated.)
The first three experiments were designed to reveal the genetic variant responsible for the ataxia-like mouse disorder. At the end of the report of the first three experiments, the article summarizes findings about known causes of ataxia in mice (labeled Summary). The goal of the subsequent experiments was to discover any related genetic variants causing a similar disorder in humans. The section ends with the authors’ final conclusion about the cause of ataxia in the individuals discussed in Experiments 4 through 7 (labeled Summary) and further arguments in support of it as a plausible cause of ataxia in humans in general (labeled Discussion).
Table 1 also shows the location of premises and conclusions of each argument and the name of its argumentation scheme in the context of this narrative structure. It can be seen that argument boundaries do not coincide with narrative segments. Also note that in most cases an argument’s conclusion is implicit. Moreover, the implicit conclusions of Arguments 1 and 4 function as premises of subsequent arguments. (The frequent occurrence of implicit conclusions poses quite a challenge for approaches based only on superficial text features.) To support our interpretation of some of these implicit conclusions, note the conclusions of Arguments 3, 4 and 5 are stated in the Abstract section, the conclusion of Arguments 3 and 4 is also stated in the Author Summary section, and less specific versions of conclusions of Arguments 4s and 12, 13, and 14 are stated in the article’s title. When conclusions are explicitly given, they are preceded by premises in Argument 5 and 10, and followed by premises in Arguments 11, 13, and 14. Thus, it is unclear from study of this article alone whether or not the ordering of premises and conclusion can be exploited for argument mining.
This analysis raises interesting questions for future research. First, are uses of certain argumentation schemes more likely to occur in certain discourse contexts? In the article, Analogy is used twice (and only) to argue for a hypothesis. (Perhaps there are normative constraints in this genre on the appropriate use of schemes for certain discourse goals.) Second, are certain sequences of uses of argumentation schemes more likely to occur? In the Discussion segment, for example, the sequence Failed Agreement (Argument 11) and Eliminate Difference (Argument 12) functions as an argumentative unit. The above observations could be verified by statistical analyses of corpora, and if true, could augment the semantic method we have proposed for extracting individual arguments. Another possibility is that the location in the narrative could be used as a constraint on argument scheme recognition: Although argument content is not in one-to-one correspondence with discourse boundaries, in cases where multiple argument scheme rules match, a heuristic strategy of preferring local content might be applied.
Table 2 shows that to describe this article a richer model of relationships between arguments is needed than simple support-attack relationships represented in current argument mining approaches, e.g., [4,27,33]. To explain the analysis in Table 2, first, note that the conclusion of all of the arguments is of the form
Dialectical structure
Dialectical structure
At this point, the narrative shifts focus to the cause of a similar disorder in humans. The relationship of Argument 5 to Argument 4s is that their conclusions are analogous in terms of
It would be misleading to reduce these relationships to simply support or attack in an automated summarization of the content. As described in research on formal dialogue games for use by software agents, the discovery dialogue [22] has a key feature in common with the scientific article that we analyzed. In a discovery dialogue, the goal is not to try to prove or disprove a given claim, but to discover something not previously known. In this genre when reporting on the discovery of the genetic cause of phenotypes in a population, the moves of the discovery dialogue can be summarized not only as asserting, supporting, or attacking a conclusion or responding to a critical question, but also as
Refining/Broadening/Rejecting
Asserting an analogous conclusion, or
Broadening/Aggregating/Restricting
It should be noted that it may also be necessary to model the relative strengths of arguments according to field-specific criteria, e.g., that evidence from a mouse model is not as strong as evidence from humans.
Argumentative zoning (AZ) annotation schemes were developed for automatically classifying the sentences of scientific articles (in computational linguistics and chemistry) in terms of their contribution of new knowledge to a field [34]. For example, categories include CONTRAST (negatively contrasting competitors’ knowledge claims to the author’s), BACKGROUND (generally accepted background knowledge), and OWN (the author’s new knowledge claim). An extension of AZ for genetics research articles includes categories such as MTH (methodology), RSL (experimental results), and IMP (implications of experimental results or previous work) [24]. The CoreSC (Core Scientific Concepts) annotation scheme was developed for automatic classification of sentences in terms of the components of a scientific investigation: Hypothesis, Motivation, Goal, Object, Background, Method, Experiment, Model, Observation, Result and Conclusion [19].
Two BioNLP corpora, BioDRB [28] and BioCause [23], have been annotated with discourse coherence relations similar to those defined in Rhetorical Structure Theory (RST) [21]. However, annotation of discourse coherence relations is not sufficient for argument mining since rhetorical structure may diverge from argument structure, and coherence relation definitions do not characterize distinctions among argumentation schemes [9,11,27].
In seminal work on argument mining, Mochales and Moens [25] developed a multi-stage approach applied to the Araucaria corpus [30] and a legal corpus. Machine learning was used to (1) classify sentences as part of an argument or not, (2) determine the boundaries of each argument, and (3) classify the sentences in an argument as premise or conclusion. Then in the final stage, manually constructed context-free grammar rules were used to detect relationships between arguments. On the other hand, Cabrio and Villata [4] used an approach based on calculating textual entailment [7] to detect support and attack relations between arguments in a corpus of on-line dialogues stating user opinions.
Feng and Hirst [8] investigated the problem of argumentation scheme recognition in the Araucaria corpus, given text labeled as the premises and conclusions of arguments. They built classifiers to recognize occurrences of the five most frequently used schemes in the corpus: Argument from example, Argument from cause to effect, Practical reasoning, Argument from consequences, and Argument from verbal classification. In addition to general features applicable to all five schemes, they used scheme-specific phrases such as ‘for example’ and punctuation cues.
In contrast to the above machine learning approaches, Saint-Dizier [31] used manually-derived rules encoded in a logic programming language for automatic identification of arguments giving reasons for a conclusion in instructional texts or opinion texts. However, unlike in our approach, the rules are based on syntactic patterns and lexical features.
Lawrence and Reed [18] investigated the problem of recognizing the “proposition type” of argument components in the AIFdb corpus [17]. In this corpus, the premises of an argument are subclassified according to type, e.g., the two premises of Practical Reasoning are labeled as Goal or GoalPlan. Thus, the proposition type provides a limited amount of semantic information. Using the labeling of premise type, conclusion, and argument scheme of text in the corpus, Lawrence and Reed built classifiers to recognize individual premises and conclusions based upon text features. They then experimented with identifying instances of schemes in a corpus of arguments extracted from a 19th century philosophy text. After classifying the proposition type of premises and conclusion of each text segment in the corpus, groupings of segments that could belong to the same argumentation scheme were identified. Missing components were assumed to indicate enthymemes.
Discussion
We have proposed an alternative to text-feature-based approaches to argument mining. A semantics-informed approach can avoid various problems in mining scientific articles faced by those approaches, e.g., that argument components may be conveyed through non-contiguous or overlapping text segments of varying granularity, a sparcity of discourse cues marking argument components, and the occurrence of enthymemes. Aside from the problems noted above, current approaches require a large corpus of annotated arguments, and there is currently no such corpus for biological/biomedical research articles. No doubt that is due to the difficulty (and expense) of analysis of argumentation in a highly specialized scientific domain.
Rather than annotate a scientific corpus at the text level, in [12] we propose creation of a semantically annotated corpus of arguments in a partially automated, two-step process. The first step would be to identify the entities and relations in the text. This could be done manually or using BioNLP tools. The second step would be to manually document the arguments in terms of the entities and relations annotated in the first step, i.e., at a propositional level. (However, a boot-strapping approach might be possible, where arguments might be provisionally annotated by use of argument mining rules, and then edited by human annotators.) Such a corpus could be used to validate argument mining results. Another possible use of the corpus, once created, would be to investigate automatic acquisition of semantics-informed argument mining rules through use of inductive logic programming (ILP) [3,15]. ILP might be used to incorporate contextual constraints into the argumentation schemes as well.
In addition to illustrating the implementation of argumentation schemes in terms of propositions that could be extracted by semantic tools, we investigated the relationship of arguments to narrative discourse structure. Although as we showed there is not a simple one-to-one relationship between argument boundaries and narrative segments, we suggest that contextual information provided by current tools that analyze scientific discourse structure could augment the use of argumentation schemes. Finally, we showed that the dialectical structure of argumentation in this type of article is more complex than has been assumed and suggest that it resembles in some respects the discovery dialogue type. In order to automatically generate useful summaries of argumentation, it may be advisable not only to extract individual arguments but to situate them in the narrative and dialectical structure.
Footnotes
Acknowledgements
The checking of argument analyses was done with the help of graduate students, Michael Branon and Bishwa Giri, who were supported by a University of North Carolina Greenboro 2016 Summer Faculty Excellence Research Grant.
