Toxic Effects of Virtako on the Brown Planthopper,Nilaparvata Lugens (Hemiptera: Delphacidae)

Abstract

Laboratory assays (Institute of Entomology, Sun Yat-Sen University, Guangzhou, China) were conducted to assess the potential of virtako, a mixture insecticide, which contains 20% chlorantraniliprole and 20% thiamethoxam, against the brown planthopper, Nilaparvata lugens (Hemiptera: Delphacidae). The toxic effects of virtako against the nymphal instars of N. lugens indicated that all instars were sensitive to the five concentrations (16, 8, 4, 2, 1 mg/L). The first-second instars were the most susceptible, and the median lethal concentrations [LC₅₀] were 4.76, 1.96 and 0.85 mg/L at 24, 48 and 72 h after treatment, respectively. Fifth-instars were the least susceptible with the LC₅₀ values of 23.76, 7.25 and 3.95 mg/L at 24, 48 and 72 h after treatment, respectively, and were significantly greater than those of the first - second instars. The LC₅₀s of the third - fourth instars were 11.59, 5.72 and 2.17 mg/L at 24, 48 and 72 h after treatment, respectively. These results indicate that virtako might be an effective alternative for the control of BPH N. lugens, by delaying the resistance levels of thiamethoxam.

Introduction

Insecticides have been used to control many key agricultural pests and have greatly improved agricultural production worldwide. In the integrated pest management (IPM) system, insecticides remain as key and popular weapons as there are quick, efficient, cost-effective and easy to use against pests (Karunaratne et al. 2007; Xue et al. 2010; Perry et al. 2011).

Brown planthopper, Nilaparvata lugens (Stål) (BPH) (Hemiptera: Delphacidae), is one of the most economically important insects of rice in most Asian countries. Both nymphs and adults of the BPH damage rice directly by removing nutrients and indirectly by transmitting rice pathogens, e.g., ragged stunt virus, striped virus and grassy stunt virus (Ghaffar et al. 2011; Gurr et al. 2011). Recently, most Chinese rice growers depend solely on chemicals to manage N. lugens. This continuous and indiscriminate use of one insecticide has resulted in the rapid development of insecticide resistance and exhaustion of most insecticide options in many rice-growing regions. For example, the resistance levels of BPH to imidacloprid in Nanning, Haiyan, Nanjing and Tongzhou populations has reached 200-799 fold compared with the susceptible strain because of continuous use of it to control this pest (Wang et al. 2009).

To avoid these problems, alternative insecticides must be developed for use against BPH to better manage the development of resistance to old ones. Mixture pesticides could have greater efficacy than individual pesticides in that they could manage several insects at a time, reduce the chemical concentrations needed for control, and play a synergistic action on pest control (Han et al. 1993; Corbel et al. 2003; Peng et al. 2010). Such a strategy has been recognized as an effective method to prolong older classes of insecticides service life, and it is also an acknowledged strategy for managing insecticide resistant populations via multiple attacking (McKenzie 1996; Tao et al. 2006; Ghafoor et al. 2011). Although few studies have involved in the use of mixed pesticides against pests, it has been widely used to combat insect pests in China where more than 2,200 different mixture pesticides are registered for use (Peng et al. 2010).

Virtako is a new mixed insecticide that contains 20% chlorantraniliprole and 20% thiamethoxam, developed in Switzerland during the 2000s by Syngenta. Thiamethoxam is presently one of the most effective chemicals for the control of sucking pests, including aphids, whiteflies, thrips, and some microlepidoptera (Sharma & Lal 2002). Chlorantraniliprole is a new insecticide belonging to the anthranilic diamide class. It is considered to be highly toxic to lepidopteran, coleopteran, and dipteran pests in several crops (Xu et al. 2008). Virtako provides the advantages of each of the two insecticides and is also considered to have low mammalian toxicity, high insecticidal activities and broad spectrum to Lepidoptera, Coleoptera, Diptera, Hemiptera and Orthoptera pests. Recently, virtako has been used for control of Cnaphalocrocis medinalis Guenée, and Lissorhoptrus Oryzophilus Kuschel in China (Yang et al. 2010; Geng et al. 2011).

To date, there is little information on the efficacy of virtako against BPH. Detailed information only exists in non-English language (especially Chinese) publications or in institutional reports. Thus, the objective of this study was to determine the effects of virtako on the nymphal stages of brown planthopper using laboratory immersion assays.

Materials and methods

Insects and insecticides

An insecticide-susceptible strain of BPH was maintained on rice seedlings at 26 ± 1 °C with a 16:8 h (L:D) photoperiod for more than three years at the Institute of Entomology, Sun Yat-Sen University, Guangzhou, China, without any exposure to insecticide. Virtako with a purity of 40.0% was obtained from Syngenta AG (Switzerland).

Bioassay

Bioassays were undertaken using the rice-stem dipping method (Zhuang et al. 1999; Wang et al. 2008; Zhang et al. 2010). Virtako was diluted in distilled water to five concentrations (a.i), each of which was half of the previous concentration (16.0, 8.0, 4.0, 2.0, 1.0 mg/L). Rice plants at tillering to booting stage were washed thoroughly and rice stems (about 10 cm long) with roots were cut and air dried to remove excess water. Three rice stems were grouped and dipped into different insecticide solutions for 30 sec. After the rice stems air dried, moistened cotton was used to wrap the rice roots. The treated rice stems were then placed into a 500-ml plastic cup. BPH nymphs were divided into three groups, first - second instars, third - fourth instars, and fifth instars. Thirty nymphs of the same group were introduced into each plastic cup using a vacuum device. All three groups were used as virtako test insects. Each concentration was replicated three times; a distilled water treatment was used as a control. Mortality of the nymphs was recorded every 24h after treatment. Treated insects were maintained at a temperature of 26 ± 1 °C with a 16: 8 h (L: D) photoperiod. The nymphs were considered dead if they failed to move after being gently prodded with a fine brush. Data with 20% mortality in the control treatment were rejected, and the assays were repeated.

Data analysis

Mortality data were subjected to analysis of variance (ANOVA of arcsine, logarithmic and square root transformed percentages). Significant differences were determined by using Tukey's honestly significant difference (HSD) test (P < 0.05) with SPSS software (version 17.0, SPSS Inc., Chicago, IL). Mortality was corrected using Abbott's formula, if necessary. Lethal concentrations (LC₃₀, LC₅₀ and LC₉₀) were calculated using probit analysis; values were expressed as means ± SE (SE) of 3 replicates. The indices of toxicity measurement derived from this analysis were:

LC₃₀ = lethal concentration that causes 30% response (mortality) of exposed organisms to the corresponding insecticide.

LC₃₀ = median lethal concentration that causes 50% response (mortality) of exposed organisms to the corresponding insecticide.

LC₉₀ = lethal concentration that causes 90% response (mortality) of exposed organisms to the corresponding insecticide.

Results

Laboratory test results showed that different instars of BPH had different levels of susceptibility to virtako (Table 1). The fifth instars were the least susceptible to virtako than the first - second and the third - fourth instars with an observed toxicity by stage being fifth instars < third - fourth instars < first - second instars. At 72h after treatment, The LC₅₀ value was 3.95 mg/L (χ² = 0.52; df = 3; P > 0.05) for fifth instars, 2.17 mg/L (χ² = 3.60; df = 3; P > 0.05) for third - fourth instars, and 0.85 mg/L (χ² = 4.90; df = 3; P > 0.05) for first - second instars.

Greater numbers of nymphs were killed at a faster rate with the higher concentrations (16 mg/l and 8 mg/l) than at the median (4 mg/l and 2 mg/l) and lower (1 mg/l) concentrations of virtako (Fig. 1), while mortality in the control (treated with distilled water) remained low. No significant differences (P > 0.05) in mortality of the first - second instars treated with 4 and 2 mg/L were observed at 24 h after treatment, but significant differences (P < 0.05) was observed by 48 and 72 h after treatment. Significant differences (P < 0.05) in mortality were observed between 16 and 8 mg/l 24 h after treatment, but no significant differences (P > 0.05) was observed by 48 and 72 h after treatment. However, significant differences (P < 0.05) in mortality were observed with other concentrations of virtako or the control. At 24 h after treatment, mortality in the third-fourth instars treated with 2 and 1 mg/L was no significant difference (P > 0.05). However, significant differences (P < 0.05) in mortality were observed with other concentrations of virtako or the control. For fifth instars, at 72 h after treatment, significant differences (P < 0.05) in mortality were observed with other concentrations of virtako or the control.

Table 1.

Susceptibility of different brown planthopper instars to virtako (Guangzhou, China).

Time1	Instar	Number2	LC30 (95% CL³) mg/L	LC50 (95% CL) mg/L	LC90 (95% CL) mg/L	Slope ± SE4
24h	1-2	90	2.05(1.68-2.51)	4.76(3.89-5.83)	37.77(30.83-46.29)	1.42±0.05
	3-4	90	5.90(4.90-7.10)	11.59(9.62-13.96)	61.12(50.70-73.69)	1.77±0.05
	5	90	12.16(9.49-15.58)	23.67(18.84-30.34)	121.97(94.91-156.74)	1.80±0.05
48h	1-2	90	0.99(0.82-1.18)	1.96(1.64-2.34)	10.61(8.86-12.70)	1.75±0.04
	3-4	90	2.53(2.07-3.08)	5.72(4.69-6.97)	42.73(35.0-52.17)	1.47±0.04
	5	90	3.24(2.54-4.12)	7.25(5.69-9.24)	52.82(41.33-67.50)	1.48±0.05
72h	1-2	90	0.44(0.35-0.56)	0.85(0.58-1.05)	4.14(3.34-5.12)	1.86±0.05
	3-4	90	1.06(0.88-1.27)	2.17(1.81-2.61)	12.75(10.61-15.33)	1.67±0.04
	5	90	1.85(1.47-2.32)	3.95(3.15-4.96)	25.74(20.47-32.35)	1.57±0.05

1

Time: the hours after treatment. βNumber: the number of larvae tested. ³CL: 95% confidence limit. ⁴Slope + SE: slope + standard error.

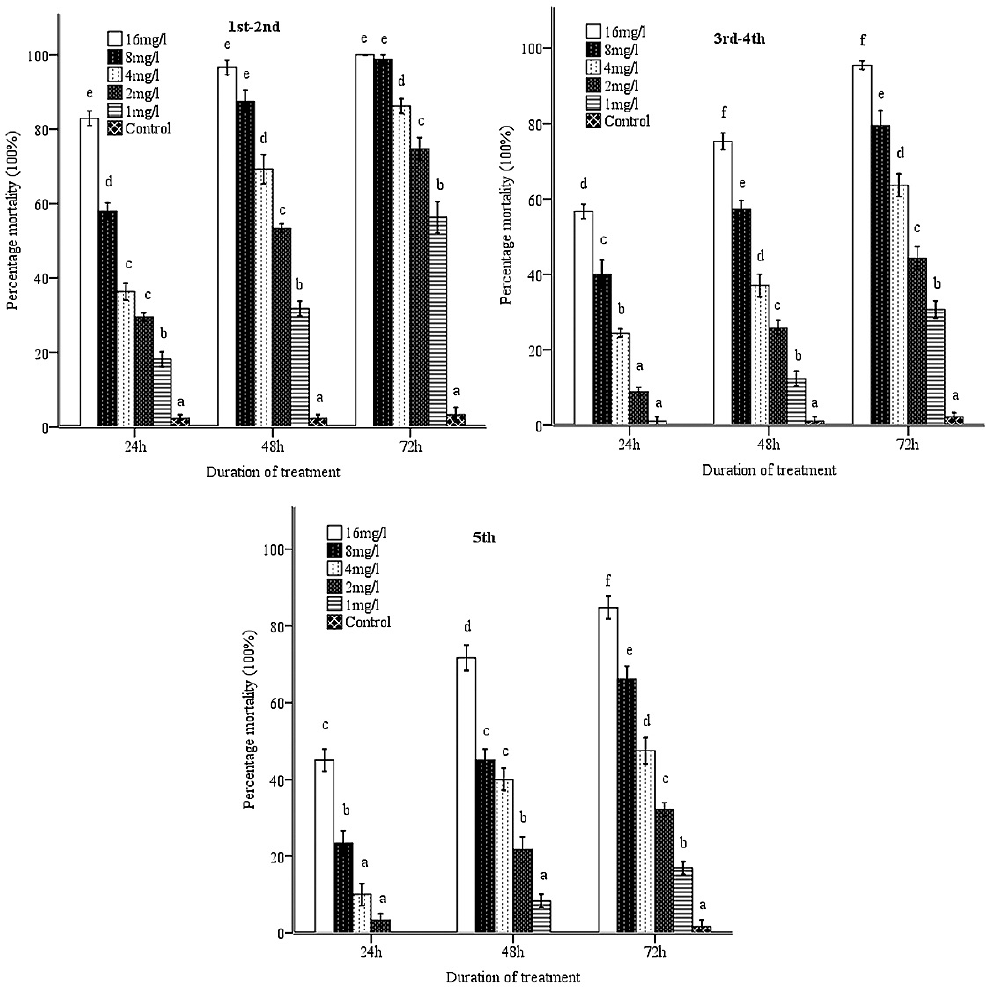

Figure 1.

Corrected mortality of brown planthopper instars following treatment with virtako (Guangzhou, China). Means with different letters are significantly different of mortality (ANOVA and Tukey HSD test, P < 0.05).

Discussion

In the laboratory bioassays, the 72-h LC₅₀ value of virtako against 3-4 instars of N. lugens was 2.17 mg/L, much higher than 96-h LC₅₀ value of thiamethoxam (0.11 mg/L) against 3 instars, which was reported by Wang et al. (2009). These different toxic effects on BPH are due to the combination of highly toxic thiamethoxam and the less toxic chlorantraniliprole in virtako. The use of brown planthopper populations from distinctly different geographic areas and different instars may be also influence the results.

In recent years, the BPH has caused severe damage to rice plants in most east and south-east Asian countries (Matsumura et al. 2008). Insecticides have been used extensively to control N. lugens, resulting in the development of resistance to many insecticides (Endo and Tsurumachi 2001; Yoo et al. 2002; Zhang et al. 2010). A mix of two unrelated insecticides may be more effective for managing insect pests than the alternate use of single insecticides (Corbel et al. 2003), which reduced the amount of pesticides to the target insects and was an important strategy to suppress the resistance level (Yin 2010; Zhang et al. 2010). Thiamethoxam and chlorantraniliprole belong to different groups of insecticides and have different pesticidal mechanisms. Thiamethoxam has been used for controlling N. lugens for a long time and resulted in a gradual decrease of efficacy against the pest, with the resistance levels in Ningbo, Hangzhou and Shaoguan populations ranging from 9.4 to 15.8 fold compared with the susceptible strain (Wang et al. 2009; Liu et al., 2010). Furthermore, the BPH was not the target pest of chlorantraniliprole (Xu et al. 2008). In our study, virtako affected various nymphal instars of brown planthopper (first - second, third - fourth, and fifth) at all five concentrations (16, 8, 4, 2, 1 mg/L). Higher rates of mortality were obtained with higher concentrations. Virtako caused 100% mortality of the first - second instars and nearly 100% mortality of the third - fourth and fifth instars at 16 mg/L at 72 h after treatment. In general, the increase of mortality was related to both time and virtako concentrations. Thus virtako may be used as an alternative insecticide to delay the resistance levels of thiamethoxam to control N. lugens. Virtako appears to be a potential candidate for the further management of BPH in rice production.
